Efﬁcient and Secure Cipher Scheme for Limited IoT Devices

Hassan N. Noura

1,2

, Ola Salman

and Ali Chehab

American University of Beirut, Department of Electrical and Computer Engineering, Lebanon

Arab Open University, Department of Computer Sciences, Beirut, Lebanon

Keywords:

Cryptanalysis, Data Conﬁdentiality, Cipher Scheme, Avalanche Effect, Key Derivation Function, Binary

Diffusion Matrix, Security Analysis.

Abstract:

In this paper, an effective and robust cipher scheme is proposed to cater for the resource-constrained nature

of IoT devices. The proposed cipher scheme is a combination of static and dynamic cryptographic structures,

towards ensuring better resistance and resilience against existing security attacks. More precisely, the proposed

solution is designed to be a lightweight cipher scheme, iterating a round function just twice, along with a

dynamic key-dependent block permutation. The proposed round function satisﬁes the required confusion and

diffusion properties, and consequently, it guarantees the desired cryptographic aspects such as message and

key avalanche effects. Finally, the security and performance tests conﬁrm the effectiveness and the robustness

of the proposed cipher solution in terms of security level, the associated delay and required resources.

1 INTRODUCTION

With the emergence of the Internet of Things (IoT),

billions of devices will be connected to the Internet.

Many of these devices are constrained in terms of

power consumption, memory capacity, and/or com-

putational capability. Such devices are used in an

IoT network to collect, monitor, and process data for

various types of applications. The ubiquitous con-

nectivity of these devices makes them prone to var-

ious security threats targeting main different secu-

rity aspects such as privacy, data conﬁdentiality, in-

tegrity (data/system(s)), availability (data/system(s)),

and authentication (device/user and data origin au-

thentication). Therefore, protective mechanisms,

which can be based on either cryptographic or non-

cryptographic solutions, must be employed to pre-

serve data and network security. In this paper, we

aim at designing a lightweight cryptographic solution

to preserve data conﬁdentiality in the IoT domain.

Given the huge amount of generated data and the lim-

itations of IoT devices, lightweight cipher algorithms

are needed to cope with the Big Data, time and re-

source constraints. The existing security solutions are

not suitable for constrained IoT devices. For exam-

ple, traditional cryptographic algorithms that provide

data conﬁdentiality, such as the Advanced Encryp-

tion Standard (AES) (Daemen and Rijmen, 2013), re-

quire a high number of rounds and operations (Noura

et al., 2018), exhibiting a high overhead in terms

of latency and resources. To resolve this issue, al-

ternative chaotic cryptographic algorithms have been

recently proposed. However, these algorithms suf-

fer from several performance and security limitations

such as the need for ﬂoating-point computations, ﬁ-

nite periodicity, and complex hardware implemen-

tation. Accordingly, and to respond better to real-

time IoT applications and tiny devices, recent works

proposed lightweight cipher algorithms with a rela-

tively low number of operations and rounds to mini-

mize the latency and resources (McKay et al., 2016;

Poschmann, 2009). Moreover, new lightweight cryp-

tographic algorithms that are based on the dynamic

key approach, with relatively small number of rounds,

were presented in (Noura et al., 2018; Melki et al.,

2018). In this context, this paper combines static

and dynamic cipher structures with a low number of

rounds to achieve a high level of security with mini-

mum delay and required resources. The proposed ci-

pher includes a simple round function that follows the

substitution-diffusion structure. This function is iter-

ated only twice to achieve the desired cryptographic

properties. The advantage of the proposed cipher,

compared to existing solutions (Noura et al., 2018;

Melki et al., 2018), is that it satisﬁes the avalanche

effect at the block level. The proposed cipher uses

a dynamic key to produce the required cryptographic

primitives for encryption/decryption. This dynamic

key is based on a device secret key and a nonce,

which complicates the attackers task in guessing and

breaking the proposed dynamic cryptographic algo-

rithm and the associated cryptographic primitives. Fi-

142

Noura, H., Salman, O. and Chehab, A.

Efﬁcient and Secure Cipher Scheme for Limited IoT Devices.

DOI: 10.5220/0009858501420150

In Proceedings of the 17th International Joint Conference on e-Business and Telecommunications (ICETE 2020) - DCNET, OPTICS, SIGMAP and WINSYS, pages 142-150

ISBN: 978-989-758-445-9

nally, the security and performance analysis conﬁrm

the effectiveness and the robustness of the proposed

cipher solution against several cryptographic attacks.

The rest of this paper is organized as follows. The

proposed key derivation scheme and cipher algorithm

are described in Section 2. The security analysis is

presented in Section 3. Then, the effectiveness of the

proposed cipher scheme is analysed and assessed in

Section 4. Finally, Section 5 concludes the paper.

2 PROPOSED CIPHER SCHEME

The majority of the existing cryptographic algorithms

(especially the standard ones) are based on a static

key and use static substitution and diffusion primi-

tives. The main originality of this work is combin-

ing static and dynamic cryptographic approaches to-

ward ensuring a good balance between performance

and security level. The proposed cipher scheme uses

the static AES substitution table which ensures the

strict avalanche criterion in addition to minimum lin-

ear and differential approximations (Koo et al., 2006;

Koo et al., 2003). Moreover, the proposed static bi-

nary diffusion in (Koo et al., 2006; Koo et al., 2003)

is used since it ensures a high linear branch number

(10 for h=16 and 12 for h=32). Furthermore, the pro-

posed algorithm uses dynamic addition round keys

and permutation tables. In the following, we detail the

proposed dynamic key and cryptographic primitives

derivation, cipher algorithm, and decryption process.

2.1 Dynamic Key and Cryptographic

Primitives Derivation

To generate the dynamic key (DK), the device secret

key SK is mixed with a Nonce for each set of mes-

sages (the number of messages can be conﬁgured ac-

cording to the IoT application requirements). Each

generated dynamic key DK is produced by hashing

the mix of the secret key and the Nonce as shown by

the following equation:

DK = h(SK ⊕ Nonce) (1)

Where h represents the secure cryptographic hash

function (SHA-512). The obtained dynamic key is

divided into 4 sub-keys (see Figure 1). Each of these

sub-keys is employed to produce a speciﬁc dynamic

key-dependent cryptographic primitive: round keys

and 3 permutation tables. The modiﬁed Key Setup

Algorithm (KSA) of RC4, presented in (Noura et al.,

2018), is used to produce the required permutation

and selection tables. The permutation table is used

in the block permutation process, which is denoted

BL − Pbox. The selection tables are generated us-

ing the technique in (Noura et al., 2019). Further-

more, two selection tables are employed, Pbox

SIV 1

and Pbox

SIV 2

, to select the round key for the ﬁrst and

the second iterations, respectively. On the other hand,

a set of q round keys is required, and it can be gener-

ated using any stream cipher. For example, RC4 can

be used to produce these q round keys (called IV ),

where each round key has h bytes in length.

Algorithm 1: Proposed Encryption Algorithm.

1: procedure ENCR(M, S −

box, SIV 1, SIV 2, IV, Bl Pbox, h)

2: Ml ← reshape(M, 1, 1 → size(M, 1) ×

size(M, 2) × size(M , 3))

3: n ← length(M1)

4: α ← d

5: Ml ← padding(Ml, α × h −n)

6: B ← reshape(Ml, α, h)

7: for it ← 1 toα do

8: X ← B(it, 1 → h) + IV ( SIV 1(it), 1 →

h)%256

9: Y ← S −box(X )

10: Z ← Di f f usion(Y )

11: X ← Z ⊕ IV ( S I V 2(it), 1 → h)

12: Y ← S −box(X )

13: Z ← Di f f usion(Y )

14: T mp(it, 1 → h) ← Z

15: end for

16: Cp ← T mp(Bl Pbox, 1 → h)

17: C ← reshape(Cp, 1, α × h)

18: return C

19: end procedure

2.2 Encryption Algorithm

The proposed cipher algorithm deals with a ﬂexible

block size (h bytes). If the number of bytes in a given

message is not a multiple of h (8, 16 and 32), padding

is required. Then, the input message is divided into

α blocks {B

, B

, . . . , B

}, where each block has a

length of h bytes.

The proposed cipher scheme is illustrated in Fig-

ure 2, while its pseudo-code is included in Algo-

rithm 1. The encryption scheme consists of two main

steps. First, the round function is iterated for two

times. Second, a block permutation process is in-

troduced to randomize the sequential order of the en-

crypted blocks. In fact, the round function consists of

three operations, byte addition with a round key, byte

substitution and binary byte diffusion, as described

next.

• The ﬁrst operation mixes an input message block

Efﬁcient and Secure Cipher Scheme for Limited IoT Devices

143

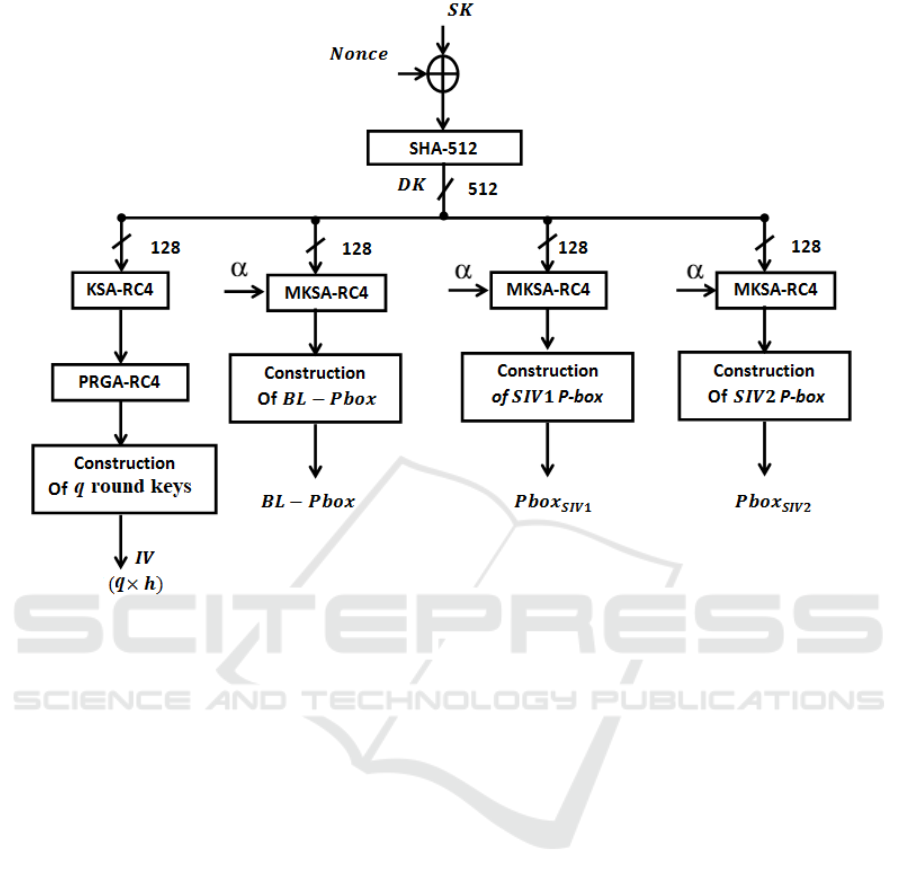

Figure 1: Architecture of the proposed key derivation function.

with a round key represented by the Initial Vec-

tor (IV), which is dynamically selected, according

to the ﬁrst selection table Pbox

SIV 1

, for the ﬁrst

round and to the second selection table Pbox

SIV 2

for the second round. In this operation, the arith-

metic addition modulo 256 is used in the ﬁrst

round and the logical ”exclusive or” is used in the

second one.

• Next, the substitution operation is performed

based on AES S-box.

• Then, a diffusion operation is performed based on

a static binary mixing matrix, G.

In fact, running the proposed cipher for two rounds

achieves a high level of randomness in addition to

message and key avalanche effects (a slight bit change

in the plain-block or dynamic key must produce com-

pletely different encrypted blocks). In the follow-

ing, we summarize the different steps of the proposed

round function.

2.2.1 Addition with a Round Key Operation

The proposed addition with a round key operation

uses two different instructions. The arithmetic ad-

dition modulo 256 is used for the ﬁrst round, while

the logical ’exclusive or’ is used for the second one.

The addition is performed between an input block and

a selected IV (SIV ), representing the round key, as

shown in the following equations.

Equation 2 illustrates the addition process.

x = A(B, SIV ) =



B + SIV mod 256 r =1

B ⊕ SIV r =2

(2)

Equation 3 illustrates the inverse addition operation

that should be employed in the decryption process.

B = A

−1

(X, SIV )

(

X ⊕ S I V r = 1

X − S I V mod 256 r = 2

(3)

B, X, SIV have each a length of h bytes. B and

X represent the input plain and encrypted blocks re-

spectively, while S I V is dynamically chosen for each

block and for each round according to two permuta-

tion tables (Pbox

SIV 1

, and Pbox

SIV 2

) from a set of q

different IVs.

2.2.2 Substitution Operation

Mainly, this step is introduced to ensure the confusion

property. The static AES substitution table is used to

substitute the addition block X, as indicated by the

following equation.

Y = AES − Sbox(X) (4)

WINSYS 2020 - 17th International Conference on Wireless Networks and Mobile Systems

144

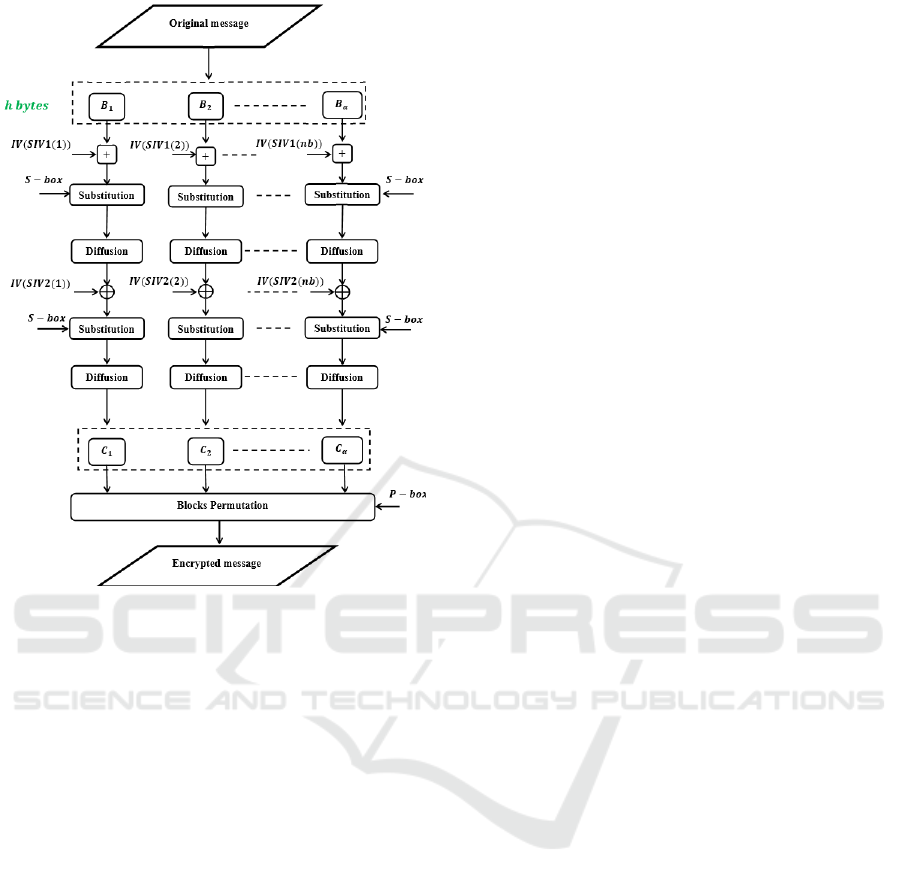

Figure 2: Architecture of the proposed encryption algo-

rithm.

2.2.3 Binary Diffusion Matrix Form

The diffusion process is applied in the binary ﬁnite

ﬁeld. We select a static binary diffusion matrix G

for each value of h since it only requires the logi-

cal ”exclusive or” operation and consequently, lower

execution time compared to other diffusion opera-

tions (Noura et al., 2019; Koo et al., 2006; Koo et al.,

2003).

Figure 3-(a) shows a visual representation of the

selected binary matrix G for h=32 (Koo et al., 2006)

and its corresponding inverse matrix G

−1

is shown in

Figure 3-(b). For The visual representation of G and

−1

, the blue color indicates that the index is equal

to 0, otherwise it is 1. Note that the employed ma-

trix should have a maximum linear branch number.

Therefore, for h = 8, the Camellia binary diffusion

matrix is chosen (Aoki et al., 2000), while for h =

16 and 32, the binary matrix of (Koo et al., 2003)

and (Koo et al., 2006) are chosen, respectively. The

methods proposed in (Koo et al., 2003; Koo et al.,

2006) offer some optimization by ﬁnding common

patterns in the diffusion matrix, which enables the re-

duction of the required diffusion computational com-

plexity. This will consequently decrease the required

execution time of the diffusion and inverse diffusion

operations. On the other hand, the proposed solution

requires only 2 iterations and consequently less exe-

cution time compared to (Koo et al., 2003) and (Koo

et al., 2006), which require 8 and 6 iterations, respec-

tively.

In fact, the different index values in each vector

) should be equal to 1 corresponding to the byte

introduced in the diffusion process (see (Koo et al.,

2006; Noura et al., 2019) for more details about the

binary diffusion process). The diffused byte is the re-

sult of m XORed bytes, where m represents the num-

ber of elements of the diffusion vector with the corre-

sponding index is equal to 1.

2.3 Blocks Permutation

This step consists of permuting the encrypted blocks.

It is designed to randomize the order of encrypted

blocks independently of the employed operation

mode. The block permutation operation is performed

using the produced dynamic P − box that has a length

of α elements.

2.4 Decryption Algorithm

The decryption process consists of applying the in-

verse block permutation ﬁrst, then two rounds of the

inverse round function. The inverse round function

consists of applying the round function in the reverse

order and using the inverse AES substitution table in

addition to the inverse diffusion matrix G

−1

. The in-

verse addition operation is already deﬁned previously

and the same round keys should be used. Algorithm 2

details the decryption steps to recover the plain block.

3 SECURITY ANALYSIS

In this section, a comprehensive security analysis is

conducted to demonstrate that the proposed cipher is

immune against several attacks such as statistical, dif-

ferential, chosen/known plain-text, and brute-force at-

tacks. In the following tests, the chosen plaintext mes-

sages follow the normal distribution with mean equal

to 128 and standard deviation equals to 16.

3.1 Resistance against Statistical

Attacks

A ciphertext should exhibit a high degree of random-

ness to resist statistical attacks (Noura et al., 2018;

Noura et al., 2017). The proposed cipher scheme

should therefore ensure the independence and unifor-

mity criteria. The uniformity of the ciphertext can be

Efﬁcient and Secure Cipher Scheme for Limited IoT Devices

145

(a) Binary Diffusion Matrix (b) Corresponding Invertible matrix of (a)

Figure 3: The binary diffusion matrix presented in (Koo et al., 2006) (a) and its corresponding inverse one (b).

Algorithm 2: Proposed decryption algorithm.

1: procedure DECR(C, Inv − S −

box, SIV 1, SIV 2, IV, Inv − Bl Pbox, h)

2: Cl ← reshape(M, 1, 1 → size(C, 1) ×

size(C, 2) × size(C, 3))

3: n ← length(C1)

4: α ← d

5: Cl ← reshape(Cl, α, h)

6: Cp ← T mp(Cl Pbox , 1 → h)

7: for it ← 1 toα do

8: Z ← Inverse Di f f usion(Cp(it, 1 → h))

9: Y ← Inv − S − box(Z)

10: X ← Y ⊕ IV ( SIV 2(it), 1 → h)

11: Z ← Inverse Di f f usion(X)

12: Y ← Inv − S − box(Z)

13: X ← Y − IV ( SIV 1(it), 1 → h)%256

14: T mp(it, 1 → h) ← X

15: end for

16: D ← reshape(T mp, 1, α × h)

17: D ← Eliminate Padding(D)

18: D ← reshape(D, L, C, P)

19: return D

20: end procedure

shown visually by analyzing the corresponding Prob-

ability Density Function (PDF) and it can be validated

using several statistical tests such as the entropy test.

In addition, a visual presentation of the encrypted

message recurrence can verify the independence cri-

terion of the ciphertext. Moreover, the difference per-

centage between the original and encrypted messages

can also be used to prove the independence between

plaintext and ciphertext. These tests were applied and

the results, as shown next, clearly conﬁrm that the

proposed scheme achieves the required properties and

consequently, can guard against statistical attacks.

3.1.1 Uniformity Analysis

To resist common statistical attacks, the encrypted

messages should satisfy the randomness property.

Therefore, we employ the PDF test to analyze the

distribution of the encrypted messages. The PDF of

the encrypted messages indicate whether or not the

ciphertext distribution is uniform. If the ciphertext

distribution is uniform, then each symbol (here each

byte) has an occurrence probability close to

, where

n is the number of symbols (here is equal to 256).

The amplitude, the corresponding PDF, and the recur-

rence of selected original messages are shown in Fig-

ure 4 a-c. Additionally, the corresponding encrypted

messages amplitude, PDF, and recurrence are shown

in Figure 4 d-f. It can be observed from the PDF

of the encrypted messages, using the proposed ci-

pher scheme, that each symbol has a uniform distri-

bution. Furthermore, the numerical results of cipher-

text symbols occurrence probability ( Figure 4 e) are

very close to 0.039, which represents the ideal value

for this test

256

Moreover, the entropy analysis of the encrypted

messages is computed and presented in Figure 5.

Here, the entropy is computed for each original mes-

sage of 256 bytes. The results indicate that the en-

crypted messages have an entropy close to the ideal

value, which is equal to log

(n) =8 (Noura et al.,

2018). Therefore, the proposed cipher algorithm is

sufﬁciently secure against entropy attacks.

On the other hand, the independence (probability

of difference at the bit level) between plain and en-

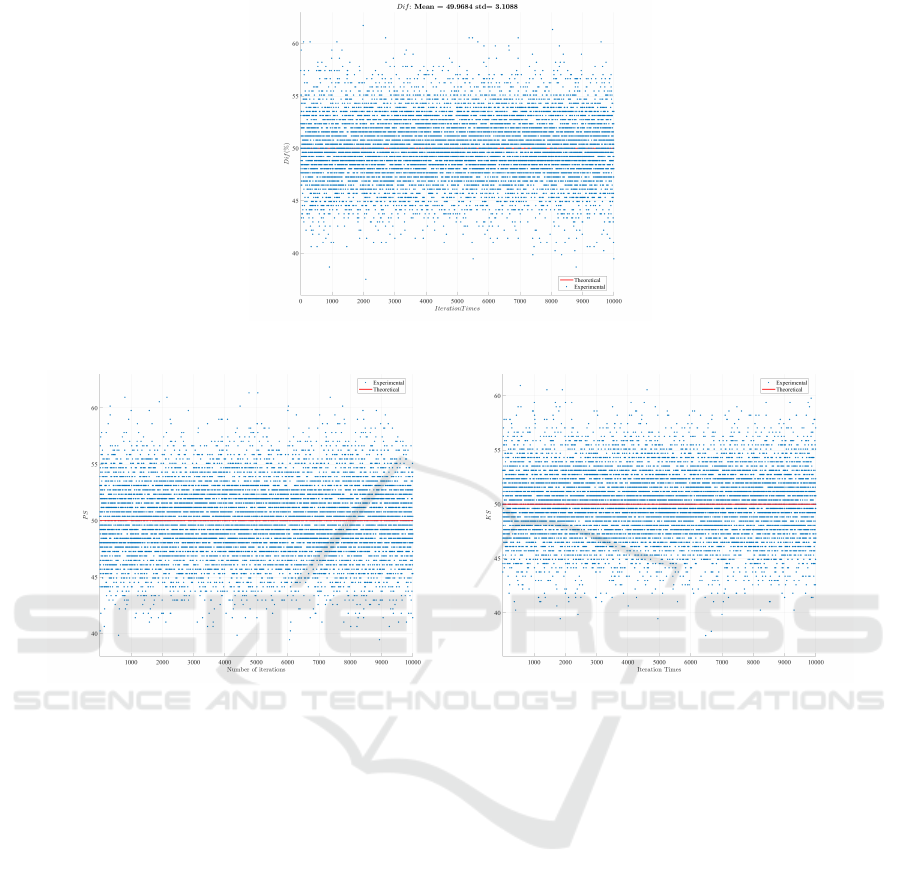

crypted messages are computed and shown in Fig-

ure 6-a). The resulting difference average value is

nearly 50%, which is the ideal value. Hence, the en-

crypted messages are totally different compared to the

original ones. As such, the proposed approach satis-

ﬁes the desired independence propriety.

WINSYS 2020 - 17th International Conference on Wireless Networks and Mobile Systems

146

(a) (b) (c)

(d) (e) (f)

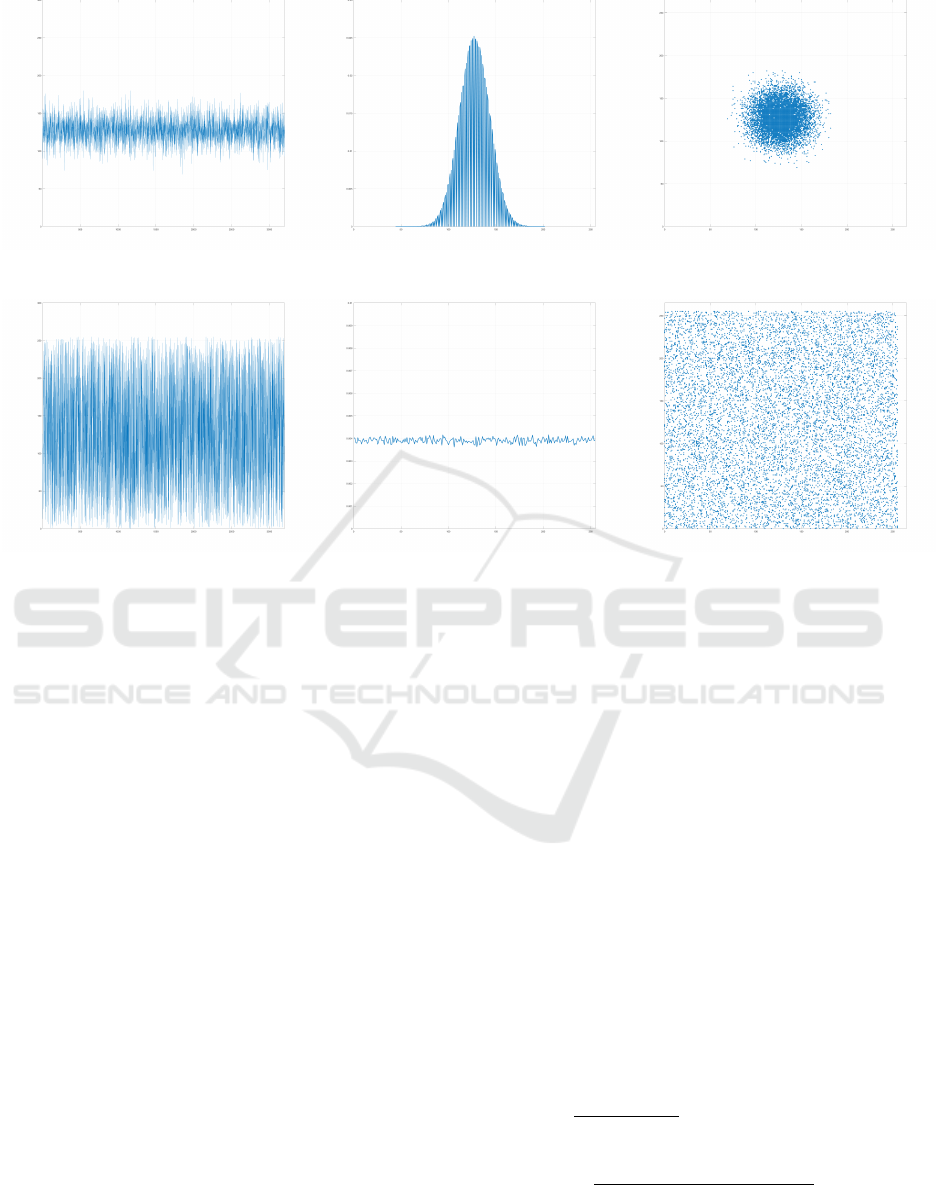

Figure 4: Amplitude variation of the original message (a) in addition to its corresponding probability density function (b),

and the original message recurrence (c). Amplitude variation of the obtained corresponding ciphertext (d) in addition to its

corresponding probability density function (e), and the ciphertext recurrence for a random dynamic key(h = 32) (f).

3.2 Resistance against Key-related

Attacks

In this section, we assess the proposed cipher scheme

against different sorts of key-related attacks. In the

following, we present the key sensitivity test results

in addition to analyzing the effect of weak keys on

the proposed scheme security.

3.2.1 Weak Key Effect

Unlike the static structure used by the standard sym-

metric cipher algorithms, the proposed cipher scheme

relies on the dynamic key structure. The proposed

cipher uses a pseudo-random function to produce a

dynamic key, which is used to produce several cryp-

tographic primitives (permutation and selection tables

in addition to round keys). Then, at each interval

(depending on the conﬁguration), the dynamic secret

key is updated and consequently a new set of crypto-

graphic primitives is generated. Thus, if in one inter-

val, there is a weakness in the dynamic key, this will

not affect the previous or next ciphertext messages se-

curity. This limits the effects of weak dynamic session

keys.

3.2.2 Key Sensitivity Test

This test aims at evaluating the secret key sensitiv-

ity against any slight change. In fact, the proposed

key derivation function is based on a secret key and a

cryptographic nonce. In this test, two dynamic keys

are used: DK

and DK

that differ in only one ran-

dom bit. Next, the plain-message (a) of Figure 4 is

encrypted using these keys. To evaluate the difference

between the obtained cipher-messages using DK

and

, the Hamming distance of the corresponding en-

crypted cipher-messages C

and C

is computed and

illustrated in Figure 6-(c) for 1,000 iterations, each

time with different DK

and DK

. The Hamming dis-

tance between these two cipher-messages is computed

as follows:

KS =

∑

k=1

⊕C

× 100% (5)

∑

k=1

(I)) ⊕ (E

(I))

× 100%

Where, T is the bits length of the plain and encrypted

messages. It is clear from Figure 6-c that the majority

Efﬁcient and Secure Cipher Scheme for Limited IoT Devices

147

of difference percentage values are close to the opti-

mal value (50 %). These results indicate that the pro-

posed encryption algorithm is robust and can with-

stand any adjustment(s) in the secret key or nonce.

Thus, the proposed cipher can resist key-related at-

tacks.

3.3 Resistance against Linear and

Differential Attacks

The plain-text/ciphertext sensitivity test aim at eval-

uating the ability of cipher scheme to resist against

linear and differential attacks (chosen/known plain-

text/ciphertext attacks). In other words, this test

demonstrates the level of sensitivity of the proposed

cipher against any variation(s) on the plain-block

message. Hence, the following scenario is realized:

First, two plain blocks B

and B

, which have only

one bit difference, are encrypted separately to produce

two cipher blocks C

and C

. Then, the Hamming dis-

tance between these two cipher-blocks is computed as

shown in Eq 5.

This test is iterated for 1, 000 random plain-blocks

as shown in Figure 6-(b). The obtained mean value is

close to 50%, which means that more than 50% of the

corresponding cipher-block changes. Therefore, the

proposed approach exhibits a high block sensitivity

against any change(s) on the plain-block, producing

a totally different encrypted block. Therefore, ensur-

ing the avalanche effect in a dynamic pseudo-random

manner helps in resisting linear and differential at-

tacks.

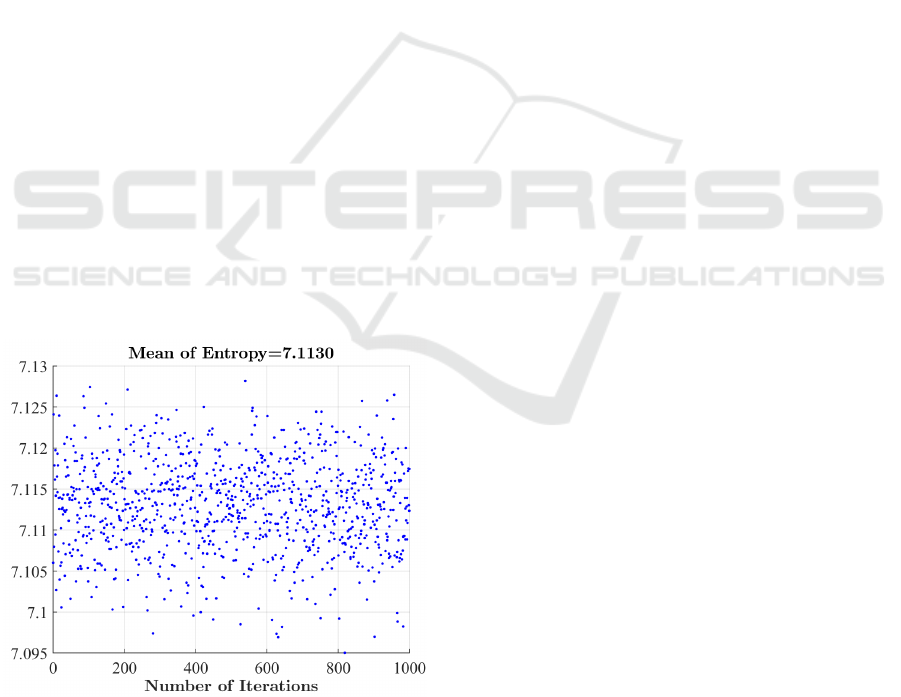

Figure 5: Entropy analysis of encrypted messages (each 256

bytes) using 1,000 random dynamic keys.

3.4 Discussion and Cryptanalysis

The proposed cipher approach ensures both the diffu-

sion and confusion properties. Moreover, it satisﬁes

the randomness and uniformity statistical character-

istics, which guarantees immunity against statistical

attacks.

Furthermore, the proposed cipher approach ren-

ders differential and linear attacks ineffective and in-

feasible since the avalanche effect at the block level

is attained along with a high key sensitivity, in a dy-

namic manner. In fact, any change(s) in any bit of

the secret key or Nonce can cause a signiﬁcant differ-

ence in the encrypted messages as seen in Figure 6.

Moreover, the key space of the secret key can be

128

, 2

256

or 2

512

, which is sufﬁciently large to ren-

der brute-force attacks infeasible. Additionally, the

key space of the dynamic key is 2

512

, which can also

be considered large enough to overcome brute-force

attacks. Hence, a secret key and a dynamic key are

employed in the proposed cipher approach to make

the cipher-text-only attack impossible and there is no

way to retrieve any useful information from the en-

crypted messages. Therefore, the proposed cipher can

guard against any cipher-text attack. Besides, the use

of a dynamic key-dependent cryptographic primitives

limits the ability of the attackers to break the proposed

cipher scheme, especially when conducting side chan-

nel attacks.

4 PERFORMANCE ANALYSIS:

COMPUTATIONAL DELAY

In this section, the computational delay of the pro-

posed cipher is evaluated. The main objective of the

proposed cipher approach is to achieve a high level

of security with the minimum number of operations

and round iterations to reduce the computational com-

plexity and consequently, the latency and resource re-

quirements.

To asses the total associated delay of the proposed

scheme, we deﬁne the following delay components:

1. T

denotes the required substitution execution

time for a block of h bytes.

2. T

denotes the required diffusion execution time

for a block of h bytes.

3. T

xor

denotes the required logical ”exclusive or”

execution time between two blocks of h bytes.

4. T

add

denotes the required arithmetic ”addition

modulo 256” execution time between two blocks

of h bytes.

WINSYS 2020 - 17th International Conference on Wireless Networks and Mobile Systems

148

(a) DIF

(b) PS (c) KS

Figure 6: Independence tests (a), plain-block sensitivity (b) and key sensitivity (c) against 1,000 random keys for the proposed

cipher.

5. T

denotes the required time to permute an input

block.

Therefore, the total Computational Delay (CD) of the

proposed scheme to encrypt two blocks is:

D−ECB

= 2 × T

+ 2 × T

+ ×T

xor

+ ×T

add

+ T

(6)

while the total computation delay of the standard AES

in (Daemen and Rijmen, 2013) to encrypt one block

is:

AES

= rT

+ (r + 1)T

xor

+ (r − 1)T

+ rT

(7)

where T

represents the required delay for the AES

diffusion mix-column operations (for all 4 columns),

representing the highest delay compared to the other

AES operations. T

represents the required delay

for the AES permutation ”Shift-rows” operation and r

represents the number of rounds. The minimum value

of r is 10 for 128 bits secret key. Hence, the minimum

AES computation delay is given by:

AES(r=10)

= 10T

+ 11T

xor

+ 9T

+ 10T

(8)

Consequently, the AES computational delay is larger

compared to the proposed one. Moreover, the pro-

posed solution uses an optimized binary diffusion

operations minimize the computational complexity

compared to mix-columns of AES, which reduces fur-

ther the required diffusion delay.

Accordingly, the proposed scheme requires less

computational complexity compared to the AES stan-

dard cipher for 128-bit length secret key.

5 CONCLUSION

In this paper, a novel cipher scheme is presented and

analyzed based on different criteria such as crypto-

graphic robustness and performance. The obtained

results show that the proposed solution provides a

high level of security with low resources and latency

requirements. This is achieved due to the low re-

quired number of operations and rounds. In addition,

Efﬁcient and Secure Cipher Scheme for Limited IoT Devices

149

the proposed cipher scheme is based on a combina-

tion of static (that can ensure maximum cryptographic

performance) and dynamic cryptographic primitives.

Additionally, all of its associated operations can be

realized in parallel. The diffusion operation is ﬂexi-

ble and depends on the block size, which can be cho-

sen according to the device limitations. Moreover, its

permutation operation is performed at the block level

and not at the byte level, which reduces the overhead

of permutation in terms of memory consumption and

latency.

REFERENCES

Aoki, K., Ichikawa, T., Kanda, M., Matsui, M., Moriai,

S., Nakajima, J., and Tokita, T. (2000). Camel-

lia: A 128-bit block cipher suitable for multiple plat-

forms—design andanalysis. In International Work-

shop on Selected Areas in Cryptography, pages 39–

56. Springer.

Daemen, J. and Rijmen, V. (2013). The design of Rijndael:

AES-the advanced encryption standard. Springer Sci-

ence & Business Media.

Koo, B., Jang, H., and Song, J. (2006). On constructing of a

32× 32 binary matrix as a diffusion layer for a 256-bit

block cipher. Information Security and Cryptology–

ICISC 2006, pages 51–64.

Koo, B. W., Jang, H. S., and Song, J. H. (2003). Con-

structing and cryptanalysis of a 16× 16 binary ma-

trix as a diffusion layer. In International Workshop

on Information Security Applications, pages 489–503.

Springer.

McKay, K. A., Bassham, L., Turan, M. S., and Mouha, N.

(2016). Report on lightweight cryptography. NIST

DRAFT NISTIR, 8114.

Melki, R., Noura, H. N., Mansour, M. M., and Chehab, A.

(2018). An efﬁcient ofdm-based encryption scheme

using a dynamic key approach. IEEE Internet of

Things Journal.

Noura, H., Chehab, A., Sleem, L., Noura, M., Couturier,

R., and Mansour, M. M. (2018). One round cipher al-

gorithm for multimedia iot devices. Multimedia tools

and applications, 77(14):18383–18413.

Noura, H., Sleem, L., Noura, M., Mansour, M. M.,

Chehab, A., and Couturier, R. (2017). A new efﬁcient

lightweight and secure image cipher scheme. Multi-

media Tools and Applications.

Noura, H. N., Chehab, A., and Couturier, R. (2019). Ef-

ﬁcient & secure cipher scheme with dynamic key-

dependent mode of operation. Signal Processing: Im-

age Communication, 78:448–464.

Poschmann, A. Y. (2009). Lightweight cryptography: cryp-

tographic engineering for a pervasive world. In PH.

D. THESIS. Citeseer.

WINSYS 2020 - 17th International Conference on Wireless Networks and Mobile Systems

150
