Superlinear and Bandwidth Friendly Geo-replication

for Store-and-forward Systems

Daniel Brahneborg

1 a

, Wasif Afzal

2 b

, Adnan

Cau

sevi

2 c

and Mats Bj

orkman

2 d

Infoﬂex Connect AB, Stockholm, Sweden

alardalen University, V

aster

as, Sweden

Keywords:

Store-and-forward, Replication, SMS.

Abstract:

To keep internet based services available despite inevitable local internet and power outages, their data must

be replicated to one or more other sites. For most systems using the store-and-forward architecture, data loss

can also be prevented by using end-to-end acknowledgements. So far we have not found any sufﬁciently good

solutions for replication of data in store-and-forward systems without acknowledgements and with geograph-

ically separated system nodes. We therefore designed a new replication protocol, which could take advantage

of the lack of a global order between the messages and the acceptance of a slightly higher risk for duplicated

deliveries than existing protocols. We tested a proof-of-concept implementation of the protocol for throughput

and latency in a controlled experiment using 7 nodes in 4 geographically separated areas, and observed the

throughput increasing superlinearly with the number of nodes up to almost 3500 messages per second. It is

also, to the best of our knowledge, the ﬁrst replication protocol with a bandwidth usage that scales according

to the number of nodes allowed to fail and not the total number of nodes in the system.

1 INTRODUCTION

Many services are accessed over the internet, mak-

ing them vulnerable to “inevitable, frequent, opaque,

expensive, and poorly understood” internet out-

ages (Aceto et al., 2018). Outages caused by net-

work failures are only opaque for the users when the

packets can be routed another way or to a different

destination. If the service runs on a single server or

even in a single data-center, from the perspective of

the clients accessing it, it is therefore not a matter of

“if, but rather when” it will fail (Yousif, 2018).

Internet outages caused by local

non-deliberate

reasons, e.g., power blackouts, ﬁres, and earth-

quakes, may affect an area of up to 1000 square

km with a time-to-recover in the order of hours or

days (Cetinkaya and Sterbenz, 2013). For a service

to remain accessible during such an outage, it must

therefore run on multiple servers in independent and

geographically separated data centers, possibly even

https://orcid.org/0000-0003-4606-5144

https://orcid.org/0000-0003-0611-2655

https://orcid.org/0000-0001-8009-9052

https://orcid.org/0000-0002-2419-2735

There is obviously not a lot that can be done about out-

ages on a global scale.

on different continents. However, replicating data be-

tween such servers can be problematic due to lim-

ited network bandwidth and long round-trip latencies

(“digital information travels along ﬁber optic cables at

almost exactly 2/3 the speed of light in vacuum [...]

the mnemonically very convenient value of 1ms RTT

[round-trip time] per 100km of cable” (Percacci and

Vespignani, 2003)).

Much of the internet trafﬁc today is to web ser-

vices, with clients accessing servers assumed to be

consistent between each other. However, the CAP

conjecture by Brewer (Brewer, 2000), later proven by

Gilbert and Lynch (Gilbert and Lynch, 2004), states

that the expected behaviour for a web service prevents

it from being both Consistent, Available and Parti-

tion tolerant at the same time. If partition tolerance

is a given, the system can, for instance, either sacri-

ﬁce consistency by allowing read operations without

ﬁrst verifying the data with the other nodes, or sac-

riﬁce availability by disallowing read operations en-

tirely. In either case, the response times from the sys-

tem can be reduced, and throughput increased, by us-

ing only a subset of the system nodes (Thomas, 1979),

(Maekawa, 1985), (Kumar, 1991) (as opposed to all

of them (Ricart and Agrawala, 1981)) to manage con-

sistency.

328

Brahneborg, D., Afzal, W.,

Cauševi

c, A. and Björkman, M.

Superlinear and Bandwidth Friendly Geo-replication for Store-and-forward Systems.

DOI: 10.5220/0009835403280338

In Proceedings of the 15th International Conference on Software Technologies (ICSOFT 2020), pages 328-338

ISBN: 978-989-758-443-5

To ensure data consistency in a replication proto-

col, the number of nodes to which read operations are

replicated, denoted as R, plus the number of nodes

to which write operations are replicated, denoted as

W , must always be strictly larger than n (Ahamad

and Ammar, 1989). For example, we can set R =

W = d(n + 1)/2e for all operations. This gives us

f = b(n −1)/2c as the number of nodes allowed to

fail before there is a risk for data loss or inconsisten-

cies. To optimize performance of read operations, a

common replication method, used by e.g. Redis

and

Spread

, is to simply broadcast all updates to all nodes

in the system, either directly or via an elected master.

This corresponds to the case where W = n and R = 1,

which obviously satisﬁes R +W > n.

Broadcasting the operations allows the client to

use any one of the n nodes to perform the required

operations, which is critical for functionalities such

as shopping carts. An item added to a shopping cart

in a request to one web server node, should still be

there when when another request, which is routed to

another web server node, adds a second item to the

cart. However, as n increases, the required bandwidth

for the data replication using existing methods also

increases, in the order of kn per node.

Despite their popularity, we will not consider web

servers in this work. Instead we will focus on the

requirements for a replication protocol as it would

be used by a store-and-forward system, a software

architecture which provides a buffer between pro-

ducers and consumers of data (Eugster et al., 2003).

This architecture decouples producers and consumers

in time, thereby allowing them to work at different

paces. It also gives the possibility to dynamically add

and remove consumers in response to varying loads

from the producers.

Store-and-forward systems have an important trait

as compared to a more general data storage: there are

no external readers. Once a data tuple has been re-

ceived and stored by the system, it is up to the system

itself to select which tuple is going to be forwarded

next, and by which node. The case of a reader ac-

cesses accessing a random node to request the value

of a particular data tuple, simply does not manifest

itself in these systems.

Ensuring a consistent relative order between the

data tuples is now the only remaining reason to broad-

cast read and write operations to a majority of the

nodes. If this ordering requirement can be disre-

garded, as is the case for data tuples representing in-

dependent or commutative operations (Shapiro et al.,

2011), we can fundamental change the replication

https://redis.io

http://www.spread.org

logic. Under these conditions, a store-and-forward

system can freely choose any f + 1 nodes for the stor-

age of each data tuple, and any subset of f nodes can

still fail without risking data loss.

This work aims to deﬁne a data replication proto-

col speciﬁcally tailored for store-and-forward systems

handling independent data tuples. The bandwidth re-

quired for the replication should be less than the or-

der of kn per node, to avoid using most of the band-

width replicating the data tuples as opposed to deliv-

ering them. Ideally, the replication overhead should

be in the order of kf per node. Each data tuple should

be forwarded only once, though a minuscule number

of duplications are acceptable in exceptional circum-

stances. We do not specify this requirement as simply

“at least once”, because that would allow for all data

tuples to be forwarded repeatedly which breaks the

bandwidth requirement.

The replication protocol we will describe in this

work satisﬁes the aforementioned requirements, and

allows replication writes in all network partitions with

at least f +1 nodes. We claim the following contribu-

tions in relation with this protocol.

1. A high level description of its functionality.

2. An open sourced proof-of-concept implementa-

tion of the data replication parts of the protocol.

3. A performance analysis on throughput and la-

tency, both when deployed within a local network

and for a geo-distributed system conﬁguration.

Following this introduction is a description of the

assumptions we have made about our system model,

and a sample application context. Section 2 describes

the proposed protocol. Section 3 describes the exper-

iment conducted to evaluate its performance, with the

results presented in Section 4 and discussed in Sec-

tion 5. Finally, Section 6 discusses related work, and

Section 7 holds conclusions and possible future work.

1.1 System Model

Our system model comprises a collection of n nodes,

named node

,node

,. ..,node

. Each node can ex-

change data with any other node, and may join and

leave the system at any time. The nodes are crash-

recovery, so they may also rejoin after crashing. Our

model is asynchronous as the nodes may be geograph-

ically distant from each other.

In accordance with the store-and-forward archi-

tecture, we have a set of producers and consumers,

each one connected to a subset of the system nodes.

Data tuples are received from producers, stored in

a local queue and subsequently forwarded to one of

the consumers, after which they are removed from

Superlinear and Bandwidth Friendly Geo-replication for Store-and-forward Systems

329

the queue. The data tuples are therefore managed

by the store-and-forward application for a relatively

short time, typically less than 1second.

The data tuples contain the following ﬁelds.

A globally unique id.

payload

Opaque application speciﬁc payload.

owners

An ordered list of f + 1 unique node identiﬁers.

The ﬁrst node referenced in this list is the one

which originally received this tuple, and the re-

maining nodes are the data tuple speciﬁc failover

nodes.

Security concerns such as authentication and en-

cryption are not part of the model. There are also no

byzantine failures (Lamport et al., 1982), with nodes

sending arbitrarily erroneous data.

1.2 Example Application

One application area matching our system model is

application-to-human messaging, e.g. an SMS gate-

way. Such gateways are used by SMS brokers, con-

necting clients via internet to mobile network opera-

tors. These clients are companies sending authenti-

cation codes, meeting reminders and similar informa-

tion. Using SMS for these messages is convenient,

as this technology makes it possible to reach all cus-

tomers without requiring any additional software on

their mobile phones. Figure 1 shows a schematic view

of this setup. In this use case, the replication would

be done between multiple SMS gateways belonging

to the same SMS broker, without affecting the proto-

cols towards the client companies or the operators.

We will use an SMS gateway for the motivation of

various assumptions and decisions throughout this pa-

per. For example, n is in this context typically at most

10, and f at most 2. The payload ﬁeld in the data tuple

consists of the sender’s and recipient’s phone num-

bers, the message text, and possibly additional other

information.

Company 1 Broker Operator 1

Operator 2Company 2

Figure 1: Companies sending text messages, an SMS bro-

ker, and mobile network operators.

2 PROPOSED SOLUTION

We now describe our proposed replication protocol,

named GeoRep, for use between n nodes, of which f

nodes can fail without data being lost. A program, Ex-

ampleApp, is running on each node, using a context

independent subsystem implementing the replication

protocol.

The main data ﬂows for the case with two nodes

are shown in Figure 2. A producer, of which there

may be many, sends data to ExampleApp on one of

the nodes. ExampleApp then tells GeoRep to store

the data in its persistent storage, and replicate it to

the other node. When ExampleApp has forwarded

the data to a consumer, it tells GeoRep to delete the

data on all nodes. The GeoRep modules communicate

with each other for replication and failure detection.

When a failed node has been observed, GeoRep tells

ExampleApp to forward the data tuples adopted from

the failed node.

node 1 node 2

ExampleApp

Producer

GeoRep

Data Tuple Storage

Consumer

ExampleApp

GeoRep

Data Tuple Storage

store

delete

store

delete

adopt adopt

store forward

Figure 2: Architecture overview for ExampleApp running

on two nodes.

2.1 Protocol Description

We here describe the activities done when GeoRep

starts and stops, how data is replicated, and how node

failures are handled. All use cases in this section are

described from the viewpoint of an individual node.

2.1.1 Startup

At startup, the application layer in ExampleApp pro-

vides the selected value for f to its GeoRep subsys-

tem, and an initial list of other nodes. GeoRep ﬁrst

ICSOFT 2020 - 15th International Conference on Software Technologies

330

loads any previously stored data tuples into appropri-

ate data structures in memory. It then waits for con-

tact requests, while also trying to make contact with

the other nodes.

In response to a contact request from node

, Geo-

Rep returns a welcoming message with its list of cur-

rently known nodes. This list includes temporarily

stopped nodes and their expected return times (see

Section 2.1.3, “Failover”, below). The contacted node

informs the others about node

. Node

tries to con-

nect to the existing nodes, getting their respective lists

of known nodes. If any node gets an update during

this phase, the full list is broadcast to all other nodes.

If the expected return times for a speciﬁc node dif-

fers, the maximum value is used. Eventually, this will

converge, from which point all nodes send periodic

heartbeats to all other nodes unless other data has re-

cently been sent.

If a node returns after a short time, each wel-

coming message will also contain the list of entries

adopted by each node. These entries can then be re-

moved by the returning node to avoid duplications.

2.1.2 Replication

The application layer in ExampleApp requests an en-

try to be replicated. GeoRep creates a list of f other

nodes known to be alive out of the existing n−1 ones,

putting it in the owners ﬁeld of the entry. If f > n −1,

this fails immediately.

The entry, plus the owners ﬁeld, is replicated to

the f nodes. Once all those nodes have responded,

control returns to the application. If multiple threads

request entries to be replicated at the same time, these

are all sent as a single network packet. When receiv-

ing an entry from another node, it is stored locally

and a response sent back, but no other action is taken.

Figure 3 shows the replication when n = 5 and f = 2.

2.1.3 Failover

If nothing is received on node

from node

for some

time, node

suspects node

to be dead. After this, no

more entries are replicated to node

until node

sends

something to node

again.

The reason for this lost connection may be a net-

work outage, leaving multiple isolated subsets of the

original n nodes still in contact with each other. Each

network partition with such a subset of nodes can

continue to run as before, as long as their set size is

greater than f .

After some conﬁgurable time, or after the recov-

ery timeout given by node

when it exited, node

considered dead. If node

ends up as the ﬁrst node

Producer

node5

node4

node3

node2

node1

payload: x id: 42

payload: x

owners: 1,3,4

Figure 3: Replicate a payload to a subset of size 2 of the 5

known nodes, here nodes 3 and 4. Nothing is sent to nodes

2 and 5.

in the owners list for one or more entries, the appli-

cation is notiﬁed, one entry at a time. The identiﬁers

of the adopted and successfully sent entries are stored

for a limited time, making it possible to notify node

should it return.

As node

knows the identiﬁers of the rest of the

nodes to which each entry was replicated, it will try

to inform those nodes about updated statuses. Only

the nodes in the owners list will ever send updates

and deletes for a particular entry.

2.1.4 Exiting

When ExampleApp exits and tells GeoRep to shut

down, this is broadcast to all other nodes, including

a timeout for when the node expects to be back. This

timeout is also stored locally. The timeout tells the

other nodes when they can start adopting that node’s

messages. If the original node comes back after the

timeout has expired, it can assume all of its messages

have been adopted by the other nodes.

2.2 Duplication Analysis

We now consider the cases that can occur in the same

situation as in Section 2.1.2, when n = 5 and f = 2,

and a message is replicated from node

to node

and

node

. The cases are shown in Figure 4. Neither

node

nor node

have ever heard of this message, so

whether they remain in contact with the other nodes

does not matter.

Superlinear and Bandwidth Friendly Geo-replication for Store-and-forward Systems

331

A. As long as node

is alive, it will try to deliver the

message to the consumer, and the statuses of the

other nodes do not matter.

B. If node

concludes that node

is dead or for some

other reason unreachable, it will adopt the mes-

sage and try to deliver it.

C. If node

loses contact with both node

and node

it will then try to deliver the message itself.

node5

node4

node3

node2

node1

Consumer

dead?

Figure 4: Possible duplications.

There is no way for a node to know if any of the

other nodes are dead or are unreachable for another

reason. In case multiple nodes can communicate with

the consumer but not with each other, messages could

therefore be duplicated. The probability for this is

low, and these duplications are therefore acceptable.

We consider it much more likely that a lost node is

dead or has lost internet connectivity entirely, and

thereby also the connectivity to the consumer. In both

cases the message is delivered only once.

2.3 Data Tuple Lifecycle

Figures 5 and 6 illustrate the replication and failover

from the perspective of a data tuple. The Inactive

state has a dashed border to show that it is a passive

state, waiting on an externally initiated event. The

solid arrows arrows represent state changes on the

ﬁrst node, and dotted arrows on the failover nodes.

First, in Figure 5, a producer sends the data tu-

ple to some node, whereby the data tuple enters the

Received state. This corresponds to the arrow from

Producer to node1 in Figure 3. Next, this node sets

the owners ﬁeld, and replicates the updated data tuple

to the selected failover nodes, where they are stored in

Inactive

DeletedForwarded

Stored

ReceivedT

to ﬁrst node

delete

replicate

to failover

nodes

on delete

Figure 5: The lifecycle of each data tuple on the ﬁrst node.

Inactive

DeletedForwarded

Stored

from

ﬁrst

node

earlier

nodes

dead

delete

Figure 6: The lifecycle of a data tuple in case of failover.

the Inactive state. In Figure 3, these are the arrows

on the right, from node1 to node3 and node4. When

the failover nodes have conﬁrmed this operation, the

data tuple on node1 moves to state Stored. It stays in

this state until the application has forwarded the data.

In the normal case, the application will forward

any data tuple in the Stored state, and then move

them to the Forwarded state. This instructs GeoRep

to inform the failover nodes, i.e., node3 and node4 in

Figure 3, that this data should be deleted. Finally, the

data tuple is removed from the local storage in Geo-

Rep on the ﬁrst node as well.

Figure 6 illustrates the cases shown as B and C in

Figure 4, when a failover node discovers that all ear-

lier nodes in the owners ﬁeld no longer respond to its

ICSOFT 2020 - 15th International Conference on Software Technologies

332

heartbeat requests. It then moves the data tuple from

state Inactive to Stored, and informs the applica-

tion about this change. The lifecycle then proceeds

as above, causing the data tuple to be forwarded and

then deleted on any remaining failover nodes. As de-

scribed in Section 2.2, there is a possibility for the

same data tuple to enter the Stored state and there-

fore be forwarded by multiple nodes. We do not need

to create a mechanism to prevent that, as such dupli-

cation are acceptable according to our requirements.

2.4 Source Code

The source code, consisting of about 3500 lines of C,

is publicly available

. This includes both the proof-

of-concept implementation of the replication protocol

and the test application and scripts used in the exper-

iment described next.

3 EXPERIMENT

For a study of the proposed protocol, we designed a

controlled experiment (Robson and McCartan, 2016).

The goal was to evaluate the throughput with a vary-

ing number of clients and servers in a few different

conﬁgurations.

3.1 Tasks

A common benchmark suite for replication systems

is the Yahoo! Cloud Serving Benchmark (YCSB)

(Cooper et al., 2010), which exists in several differ-

ent versions with varying proportions between writes

and reads. Using this suite makes it easy to com-

pare different solutions, but as it is designed for web

server type systems and not store-and-forward sys-

tems, YCSB was not meaningful for us. Instead,

we used a sequence of tasks corresponding with the

queue related operations performed by this type of

systems. The test application created the messages

itself, and discarded them when all tasks described

below were completed.

1. A new message was stored. The application

waited for acknowledgements from the required

number of servers.

2. A message was extracted from the queue.

3. The extracted message was deleted.

https://bitbucket.org/infoﬂexconnect/

leaderlessreplication

3.2 Factors

Due to the nature of the experiment, we were able

to use a ﬁxed design (Wohlin et al., 2012). In addi-

tion to the usual Independent and Dependent factors,

we found it relevant to describe the independent fac-

tors that we set to constant values, and the dependent

factors which we chose to ignore. These are all de-

scribed in more detail below, and summarized in Ta-

ble 1. The throughput is measured in messages per

second (MPS).

Table 1: Experiment factors.

Type Factor Value(s)/Unit

Independent

Servers, n 1, 3, 5, 7

Clients 1, 3, 10, 30, 100

Separation Local, Remote

Constant

Protection, f 1

Transient 5s

Steady-state 30s

Dependent

Throughput MPS

Min RTT Microseconds, µs

Ignored

Recovering MPS

Duplications Ratio

3.2.1 Independent Factors

The primary factors in this experiment were selected

to give a deeper understanding of the behaviour in dif-

ferent circumstances.

The number of servers was varied from 1 to 7.

Testing a replication method on a system with a single

server may seem strange, but this gave a baseline so

we could observe the cost of the increased data safety

provided by the replication.

Next, the number of client connections was varied

with a ratio of about 3 from 1 to 100. A real sys-

tem would have more clients than 100, but it would

also run on machines with more resources than we

had available for this experiment.

Finally, we used servers both within the same data

center and in multiple time-zones. The physical dis-

tances between the servers showed the effect of high

round-trip times.

3.2.2 Constants

The number of nodes that would be allowed to fail,

f , was set to 1 for all tests. A higher value for f

would mainly lead to more network trafﬁc and pos-

sibly longer round-trip times as seen by the clients.

Investigating the exact effects of this parameter was

not considered important at this time.

Superlinear and Bandwidth Friendly Geo-replication for Store-and-forward Systems

333

All conﬁgurations were tested for 35 seconds.

First, there was a transient phase of 5 seconds, allow-

ing the CPU caches and TCP parameters to stabilize.

Next, the code continued to run in the steady-state

phase for another 30 seconds.

3.2.3 Dependent/response Variables

For all conﬁgurations, i.e. the combinations of one

particular value for each of the independent variables,

the response variable of most interest to us in this

experiment was the total system throughput. This

throughput was deﬁned as the number of messages

processed per second, according to the sequence of

tasks described in Section 3.1. We also measured the

minimum RTT between each pair of nodes.

3.2.4 Ignored Response Variables

Other response variables that might be of interest

mainly concern the behaviour when a failed server is

detected, and the time-span afterwards during which

the system is reassigning messages to new servers.

Just as in the evaluation of MDC-Cast (Nehme et al.,

2018), another replication protocol for geo-separated

environments, we focus on the performance of the

failure-free case.

3.3 Procedure

Before each test, all servers were reset to a known

empty starting state. The ﬁles for local storage were

removed, so they could be recreated without con-

tent. The application was then started on all servers,

with the selected values for the independent variables

given to it as command line parameters.

The test application counted the number of mes-

sages processed each second by each server, values

that were then summarized into a result for the full

system. The median of the values for each of the 30

seconds in the steady-state phase was then calculated.

3.4 Execution

We used a total of thirteen servers during January

2020, all of them being the smallest ones offered by

DigitalOcean

at that time: 1 GB memory, 25 GB

disk, and 1 virtual x64 CPU. They all ran CentOS 7.5,

with the working directory on the ﬁlesystem XFS.

The code was compiled using gcc 4.8.5.

http://digitalocean.com

4 RESULTS

Here we present a summary of the results. The full

list of measurements for all tested conﬁgurations is

available together with the source code.

We got distinct results for three cases: a single

server, a cluster in a local network, and a cluster in

a geo-separated network. For a single server, which

effectively just means the key-value store LevelDB,

we got a peak throughput of 87 588 MPS.

In a local network, the total system throughput in-

creased with the number of nodes up to 47 572MPS

on 7 nodes, shown in Figure 7. The minimum RTT

varied between 143 µs and 420 µs.

When GeoRep was deployed in a cluster with

servers in separate time-zones, throughput again in-

creased with the number of nodes. The peak through-

put levels were obviously lower than in the local case

due to the longer round-trip times. Figure 8 shows

how the throughput reached 793 MPS for 3 nodes and

3449MPS for 7 nodes. The throughput also increased

almost perfectly with the number of clients, which we

can see as on 7 nodes 10 clients reached 353MPS, and

100 clients reached, as mentioned, 3449MPS.

For 3 geo-separated nodes, the minimum RTT av-

eraged 174 ms. For 7 nodes, some pairs of nodes

ended up relatively close to each other (e.g. New

York and Toronto in North America, and Amsterdam,

Frankfurt, and London in Europe), resulting in the av-

erage minimum RTT decreasing to 108ms. Figure 9

shows the RTT between a few selected pairs of nodes.

The proﬁles for nodes geographically close to each

other are notably similar.

5 DISCUSSION

GeoRep was able to leverage the ordering indepen-

dence and performed better as the number of clients,

and thereby also the number of parallel requests, in-

creased.

With a larger number of nodes, n, the average

distance between each pair of nodes in the geo-

distributed case and thereby their pair-wise round-trip

times, decreased. The system as a whole thus became

superlinear, providing throughput which increased

faster than the number of nodes, from 264 MPS per

node for 3 nodes, to 493 MPS per node for 7 nodes, as

shown in Figure 10.

With more powerful servers it may be possible

to support a larger number of clients, getting an

even higher system throughput. We also expect the

throughput to increase further by using a larger num-

ber of nodes than 7.

ICSOFT 2020 - 15th International Conference on Software Technologies

334

1542

2574

3405

4640

5564

6795

4253

10666

13484

17977

21671

23278

11664

18925

24292

33270

38816

47572

number of servers

kMPS

2 3 4 5 6 7

1 client 10 clients 100 clients

Figure 7: System throughput as a function of the number of servers, all running in the same data center.

205

353

793

2006

3449

number of servers

kMPS

1 2 3 4 5 6 7

10 clients 100 clients

Figure 8: System throughput as a function of the number of servers, running in different data centers on multiple continents.

Next, we will discuss the various types of identi-

ﬁed validity threats.

5.1 Threats to Validity

The identiﬁed validity threats are grouped (Cook and

Campbell, 1979; Jedlitschka et al., 2008) for better

overview.

5.1.1 Internal

Internal validity threats concern the causal relation-

ship between two variables. Even though an exist-

ing SMS gateway was the driving force for the re-

quirements addressed by GeoRep, a new and minimal

application was written for these experiments. This

avoided the threat of any confounding variables intro-

Superlinear and Bandwidth Friendly Geo-replication for Store-and-forward Systems

335

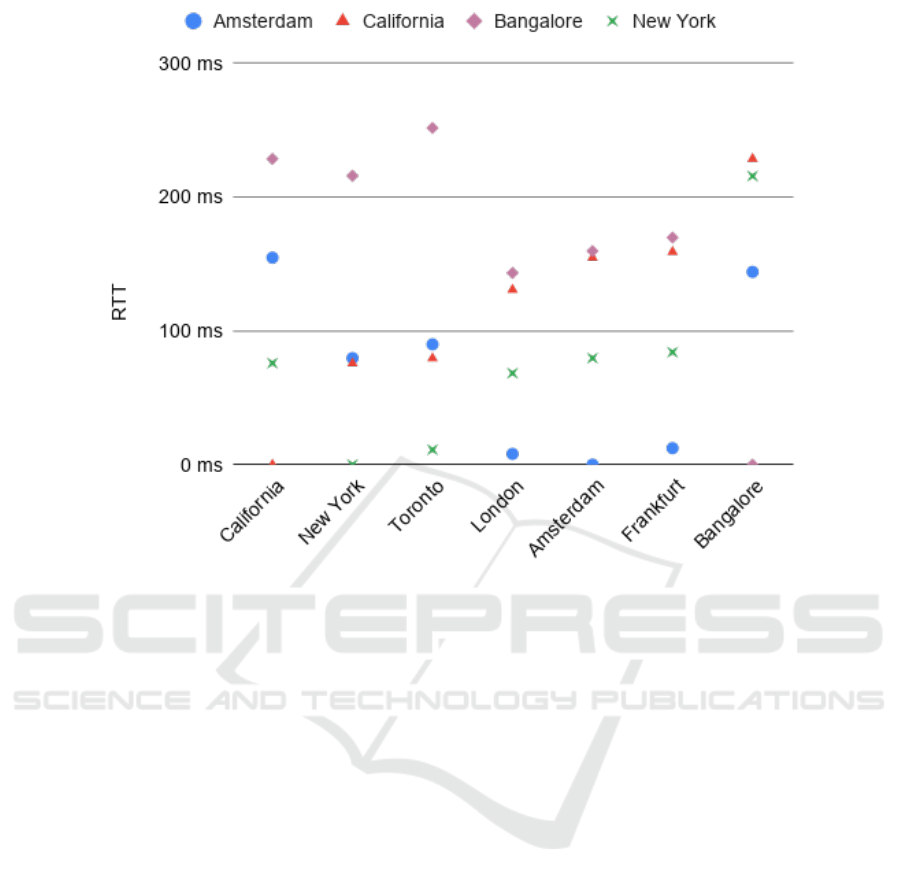

Figure 9: Round-trip time (RTT) for various pairs of servers.

duced by the gateway implementation and simpliﬁed

the reproducibility.

To address the threat of additional confounding

factors, all cases were run for a relatively long time.

As we focused on the median, any temporary vari-

ances in the environment were effectively ﬁltered out.

5.1.2 External

External validity threats concern whether the results

are still valid in a more general context. Due to not

having a coordinating server, our proposal is only us-

able for situations where the stored elements have no

relative order.

6 RELATED WORK

Other store-and-forward systems are application-to-

application queues, e.g. Apache Kafka (Kreps et al.,

2011). In Apache Kafka the data in the system can be

spread over multiple subsets of the nodes, with each

such subset being called a partition. A partition has

an elected leader, which handles all reads and writes,

and zero or more replicas which are kept in sync us-

ing a very efﬁcient mechanism. Should the leader be-

come unavailable, one of the replicas takes its place.

This gives an automatic ordering of the events, but at

the cost of being sensitive to the network latency be-

tween the client and the replica leader. GeoRep avoids

this cost, as it has no leader. Instead, clients are free

to connect to any node of their choice, thereby min-

imizing the latency time and as a result maybe also

maximizing the throughput.

For systems where a global ordering must be

maintained, the replication protocols are often based

on a variant of Paxos (Lamport, 1998) or Raft (On-

garo and Ousterhout, 2014). The Paxos variant Men-

cius (Mao et al., 2008) was designed to perform well

even in wide-area networks with high inter-node la-

tency. One of the ways they achieve this is to use

a multi-master setup, where the leadership is divided

among all nodes similarly to GeoRep. However, as all

data is sent to all other nodes, the throughput does not

increase when nodes are added to the system.

Many of the data replication protocols are also

based on total order broadcast (D

efago et al., 2004),

which also requires all data to be processed by all

nodes in the same order. This makes the situation

easier for the upper layers of the protocol, but can

never lower the bandwidth requirements. When the

data payload is big enough to make the system net-

work bound, throughput therefore instead notably

decreases. GeoRep could in this situation instead

ICSOFT 2020 - 15th International Conference on Software Technologies

336

264

401

493

number of servers

MPS

200

400

600

1 2 3 4 5 6 7

10 clients 100 clients

Figure 10: Throughput per node in the geo-distributed case.

provide a system throughput which increased faster

than n, as shown in Figure 8 and Figure 10. To the

best of our knowledge, the only other replication sys-

tem achieving this is PaRiS (Spirovska et al., 2019).

7 CONCLUSIONS AND FUTURE

WORK

To provide data safety against internet and power

outages for store-and-forward systems, we created

a new replication protocol. Particular consideration

was given to the requirements for SMS trafﬁc, e.g.,

having to work well in a geo-distributed conﬁgura-

tion and a lack of global order. In a controlled experi-

ment, the protocol was shown to scale well both with

the number of nodes in the system and the number

of parallel message producers. The highest recorded

throughput for the geo-distributed case was close to

3500MPS, but higher values ought to be possible us-

ing a larger number of more powerful machines. The

source code used in the experiment is open sourced to

enable replication studies.

For future work, we recall Figure 9 showing

the round-trip times between some selected pairs of

nodes. Instead of replicating messages to a random

selection of nodes, we can select the f ones with the

smallest RTT from where the message was received,

ignoring nodes with an RTT lower than 10ms. This

minimum value ensures messages are always repli-

cated outside of the critical region mentioned in the

Introduction section.

ACKNOWLEDGEMENTS

This work was sponsored by The Knowledge Founda-

tion industrial PhD school ITS ESS-H, H2020 project

ADEPTNESS (871319) and Infoﬂex Connect AB.

REFERENCES

Aceto, G., Botta, A., Marchetta, P., Persico, V., and

Pescap

e, A. (2018). A comprehensive survey on in-

ternet outages. Journal of Network and Computer Ap-

plications, 113(2018):36–63.

Ahamad, M. and Ammar, M. (1989). Performance Char-

acterization of Quorum-Consensus Algorithms for

Replicated Data. IEEE Transactions on Software En-

gineering, 15(4):492–496.

Brewer, E. A. (2000). Towards Robust Distributed Systems.

In Principles Of Distributed Computing. ACM.

Cetinkaya, E. K. and Sterbenz, J. P. (2013). A taxonomy

of network challenges. In International Conference

on the Design of Reliable Communication Networks,

DRCN.

Cook, T. D. and Campbell, D. T. (1979). Quasi-

experimentation: Design and analysis for ﬁeld set-

tings, volume 3. Rand McNally, Chicago.

Superlinear and Bandwidth Friendly Geo-replication for Store-and-forward Systems

337

Cooper, B. F., Silberstein, A., Tam, E., Ramakrishnan, R.,

and Sears, R. (2010). Benchmarking cloud serving

systems with YCSB. In Proceedings of the ACM sym-

posium on Cloud computing, SoCC ’10, New York,

NY, USA. ACM.

efago, X., Schiper, A., and Urb

an, P. (2004). Total order

broadcast and multicast algorithms. ACM Computing

Surveys, 36(4):372–421.

Eugster, P. T., Felber, P. A., Guerraoui, R., and Kermarrec,

A.-M. (2003). The many faces of publish/subscribe.

ACM Computing Surveys, 35(2):114–131.

Gilbert, S. and Lynch, N. A. (2004). Brewer’s Conjecture

and the Feasibility of Consistent, Available, Partition-

Tolerant Web Services. In Principles Of Distributed

Computing, PODC.

Jedlitschka, A., Ciolkowski, M., and Pfahl, D. (2008). Re-

porting experiments in software engineering. In Guide

to advanced empirical software engineering, pages

201–228. Springer.

Kreps, J., Narkhede, N., and Rao, J. (2011). Kafka: a Dis-

tributed Messaging System for Log Processing. In

Proceedings of the SIGMOD Workshop on Network-

ing Meets Databases, NetDB, Athens, Greece.

Kumar, A. (1991). Hierarchical Quorum Consensus: A

New Algorithm for Managing Replicated Data. IEEE

Transactions on Computers, 40(9):996–1004.

Lamport, L. (1998). The part-time parliament. ACM Trans-

actions on Computer Systems, 16(2):133–169.

Lamport, L., Shostak, R., and Pease, M. (1982). The

byzantine generals problem. ACM Transactions on

Programming Languages and Systems (TOPLAS),

4(3):382–401.

Maekawa, M. (1985). A

√

N Algorithm for Mutual Exclu-

sion in Decentralized Systems. ACM Transactions on

Computer Systems, 3(2):145–159.

Mao, Y., Junqueira, F. P., and Marzullo, K. (2008). Men-

cius: Building Efﬁcient Replicated State Machines for

WANs. In USENIX Conference on Operating Sys-

tems Design and Implementation, OSDI, Berkeley,

CA, USA.

Nehme, M.-J., Palix, N., Beydoun, K., and Quema, V.

(2018). MDC-Cast: A Total-Order Broadcast Protocol

for Multi-Datacenter Environments. In IEEE Sympo-

sium on Reliable Distributed Systems, SRDS. IEEE.

Ongaro, D. and Ousterhout, J. K. (2014). In Search of

an Understandable Consensus Algorithm. In USENIX

Annual Technical Conference.

Percacci, R. and Vespignani, A. (2003). Scale-free behav-

ior of the internet global performance. The European

Physical Journal B, 32(4):411–414.

Ricart, G. and Agrawala, A. K. (1981). An Algorithm for

Mutual Exclusion in Computer Networks. Communi-

cations of the ACM, 24(1):9–17.

Robson, C. and McCartan, K. (2016). Real world research.

John Wiley & Sons.

Shapiro, M., Preguic¸a, N., Baquero, C., and Zawirski, M.

(2011). A comprehensive study of Convergent and

Commutative Replicated Data Types. Technical Re-

port RR-7506, Inria – Centre Paris-Rocquencourt.

Spirovska, K., Didona, D., and Zwaenepoel, W. (2019).

PaRiS: Causally Consistent Transactions with Non-

blocking Reads and Partial Replication. In IEEE Inter-

national Conference on Distributed Computing Sys-

tems, ICDCS. IEEE.

Thomas, R. H. (1979). A majority consensus approach

to concurrency control for multiple copy databases.

ACM Transactions on Database Systems (TODS),

4(2):180–209.

Wohlin, C., Runeson, P., H

ost, M., Ohlsson, M. C., Reg-

nell, B., and Wessl

en, A. (2012). Experimentation in

software engineering. Springer Science & Business

Media.

Yousif, M. (2018). Cloud Computing Reliability—Failure

is an Option. IEEE Cloud Computing, 5(3):4–5.

ICSOFT 2020 - 15th International Conference on Software Technologies

338
