A Fine-grained Access Control Model for Knowledge Graphs

Marco Valzelli

, Andrea Maurino

and Matteo Palmonari

Department of Computer Science, Systems and Communication (DISCo), University of Milano-Bicocca,

Viale Sarca 336, Milan, Italy

Keywords:

Access Control, Property Graph, Knowledge Graph, NoSQL, Security.

Abstract:

Nowadays Knowledge Graphs are a common way to integrate and manage all the information that an organi-

zation owns. This involve also sensitive domains like security, so the management of access control on these

graphs became crucial. Due to their dimension, Knowledge graphs are often stored using NoSQL solutions,

that have very poor support to access control. In this paper a distributed and secure Knowledge graph man-

agement system is presented. The system supports both open and closed access control and its architecture

guarantees the management of very large knowledge graph.

1 INTRODUCTION

In 2012 Google introduced the Knowledge Graph

(KG in the follow) as a new technology to improve

its famous search engine. Basically, it is a graph that

contains all the main named-entity of the world and

the relations between them, so that the search engine

is able to identify the subject of the query and suggest

all object or features related to it. Since their intro-

duction, KGs have been largely used by a lot of big

and small companies (e.g. Amazon, Facebook and so

on), but they are also used in several research domains

as a way to describe in a common and shared way the

knowledge of a given ﬁeld. Several companies are

now aggregating the knowledge stored in both struc-

tured and unstructured sources into a unique, compre-

hensive KG, for a better data management. It is worth

noting that a KG can be considered as an evolution

of the traditional data integration approach, and as a

consequence the size of KG is bigger than previous

solutions.

As the uses case of KG increase, they start to in-

clude also very sensitive data like for cybersecurity

purposes (Piplai et al., 2019), in the military sec-

tor (Liao et al., 2019) the law enforcement sector

(Szekely et al., 2015), but also civilian cases like the

medical one (Rotmensch et al., 2017; Shi et al., 2017).

For example in this last case, the KG includes all in-

formation related to doctors, patients, diseases and so

https://orcid.org/0000-0002-4028-3063

https://orcid.org/0000-0001-9803-3668

https://orcid.org/0000-0002-1801-5118

on. Some people may access the KG in order to ana-

lyze correlation among clients but they cannot access

to personal details of patients, while another person

e.g. a doctor can access his patients’ information but

s/he cannot see information about others doctors. The

explosion of KG raises new issues wrt. the preserva-

tion of relevant information from unauthorized access

and their growing request for scalability at a higher

level.

Currently, there is no common opinion about how

to represent a KG. Among others, RDF is one of the

most adopted description languages, SPARQL is the

query language for RDF model and many systems for

managing RDF data (also called triple store) are avail-

able. However there are proposals to implement an

access control mechanism in RDF (Kagal et al., 2003;

Abel et al., 2007; Kirrane, 2015), but they are not

scalable nor ﬂexible and, most important not imple-

mented in commercial triple store. Recently, others

graph models like the Labelled Property Graph model

(LPG from now on) has been used to represent knowl-

edge graphs.

In this short paper, we propose a solution for en-

abling access control of large KG in a scalable way.

The scalability issue is solved by means of Janus-

graph

a distributed and scalable property graph. We

provide a systematic translation of RDF concepts in

terms of property graph model. Then we deﬁne a

access control method based on logical description

of KG and users in terms of property graph model;

our solution support a subset of SPARQL query lan-

janusgraph.org

Valzelli, M., Maurino, A. and Palmonari, M.

A Fine-grained Access Control Model for Knowledge Graphs.

DOI: 10.5220/0009833505950601

In Proceedings of the 17th International Joint Conference on e-Business and Telecommunications (ICETE 2020) - SECRYPT, pages 595-601

ISBN: 978-989-758-446-6

595

guages by optimizing Gremlinator (Thakkar et al.,

2018) a software layer able to translate a SPARQL

query into a property graph query.

The paper is organized as follows: in section 2

we report the most important contribution of literature

and industrial solution for the access control problem

applied to graphs, while in section 3 we provide a

more formal description of the problem. In section

4 presents the proposed access control method and in

section 5 the implementation of the model is shown.

Finally in section 6 we draw conclusion and discuss

future works.

2 RELATED WORK

The great success of graphs as data model is very re-

cent, but in the past we can ﬁnd that trees, a particu-

lar type of graph, have been used as a data structure

on which apply access control. This happened in the

2000 with XML, a format widely used to exchange

information across the web. With the need to store

data comes along the need to provide an access con-

trol framework (Damiani et al., 2002).

In this access control model users are identiﬁed

with their IP address, an ID and a symbolic name.

Those identiﬁers can be grouped in hierarchies and

all this information is stored in XML too. Also users

can be grouped, and for each group or user are as-

signed access rights. In turn, access rights give per-

missions on documents or document portions using

XPATH speciﬁcations on the DTD. Finally, the rules

are evaluated with deﬁned precedence and propaga-

tion speciﬁcations between instance level and DTD

level. Nowadays XML is also used as a serialization

format for graphs(Brandes et al., 2013).

Starting from 2001 with the birth of the seman-

tic web (Berners-Lee et al., 2001), the RDF semantic

graph framework provided an efﬁcient way to store

big amounts of data in a graph format. RDF datasets

usually are meant to be shared across the web, so no

access control models have been provided. Since the

users of RDF endpoints are often anonymous, the lit-

erature offers many proposals of context-based access

control frameworks. One of these (Stojanov et al.,

2017) also suggests an interesting mechanism for the

creation of view on the graph based on the composi-

tion of allow/deny rules. The researches in this area

also proposes to deﬁne policies through ontologies

and to apply these policies using ontological reason-

ing. Research in this area also tried to address partic-

ular aspects of this technology like distribution (Ka-

gal et al., 2003; Hollenbach et al., 2009), federation

(Goncalves et al., 2019) inference of new information

(Jain and Farkas, 2006) and possible solutions to the

scalability problem (Abel et al., 2007). Also more

traditional access control models like DAC have been

implemented (Kirrane, 2015). Although you can ﬁnd

signiﬁcant literature for access control in RDF Graphs

(Kirrane et al., 2017), these approaches cannot be di-

rectly applied in other graph contexts as they focus on

different aspects or heavily rely on ontological rea-

soning.

In recent years new storage models, called

NoSQL, have come alongside the relational model.

Unlike this one, that was made to strictly provide

ACID properties, these models were developed to

handle different use cases and huge amount of data

following the BASE philosophy. However, these

models were not designed with security and privacy

criterion and still lack in this aspect (Sahaﬁzadeh and

Nematbakhsh, 2015; Alotaibi et al., ). We found that

just a small part of these solutions support RBAC.

Also notable is the case of Accumulo

where is pro-

vided access control at cells level.

The NoSQL wave also brought new interest on

the graph model, due to its semi-structured nature

that allows more ﬂexibility and better performances

in many use cases. The graph model supported by

NoSQL products is very different from RDF. While it

is based on triples, the property graph model is bases

on nodes and edges on which you can specify particu-

lar attributes. We can ﬁnd two kinds of property graph

databases: the native ones, where data is physically

stored in terms of nodes and edges, and the hybrid

ones, that provides a property graph model but rely

on a different storage model like the wide-column.

Neo4J is the most common native graph database

and it implements the LPG model. It still has only

basic security and access control features: it allows to

deﬁne user role and their privileges

, but not at a ﬁne-

grained level. Some initial step has been taken in this

direction

, but it still needs improvements to be able

to cover the cases of open and closed policies.

The only signiﬁcant work in the property graph

context (Morgado et al., 2018) has designed an access

control model deﬁning how users or groups of users

can access and manipulate data. However, it has some

drawbacks like lack of ﬂexibility and redundancy. In

fact, you can only describe positive permissions and

you have to deﬁne them for every node, so it’s not

clear how the model can be applied with inheritance

and conﬂicts. Furthermore, this work and the neo4j

https://accumulo.apache.org/

neo4j.com/blog/role-based-access.-control-neo4j-

enterprise/

neo4j.com/blog/access-control-lists.-the-graph-

database-way/

SECRYPT 2020 - 17th International Conference on Security and Cryptography

596

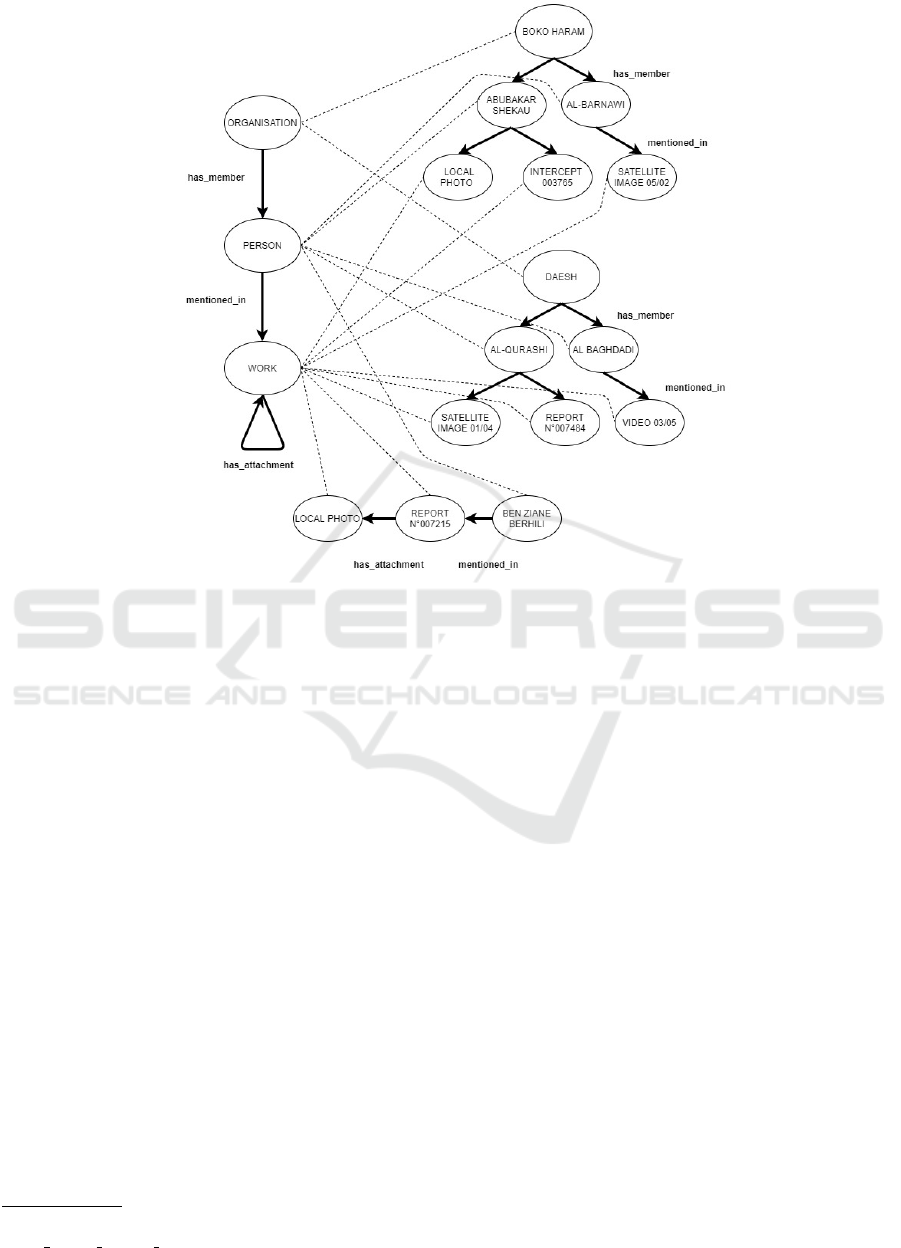

Figure 1: A practical use case of a source of general knowledge like DBpedia is extended with entities of the terrorism domain.

proposal has both the characteristic that they requires

quite complex algorithm to be evaluated, so their scal-

ability is in doubt. A different approach has been pro-

posed in the Tinkerpop community

where the evalu-

ation mechanism of the authorizations has been inte-

grated in the GDMBS but it checks for access control

metadata in every edge and node, so it needs a certain

redundancy both in the stored data and in the interro-

gation, impacting on the performance of the system.

In conclusion, the literature and the graph community

proposed some suitable model, but it still has to be

found a good trade-off between expressiveness, data

overhead and evaluation time.

3 CONSIDERED USE CASES

In the past years the literature on access control,

thanks to a great adoption in commercial DBMS,

has deﬁned a variety of policies one can imple-

ment.(Sandhu and Samarati, 1994). We focus on three

main approaches for access control:

• DAC: Discretionary access control provides for a

direct rights speciﬁcation between users or groups

archive.fosdem.org/2019/schedule/event/

graph access control tinkerpop

of users and resources. This approach allows a

great expressiveness, but at the same time lack

in maintainability. For example, if you want to

know every resource a speciﬁc user can access

you would have to do a full scan query. In ad-

dition, you can adopt also open policy that allows

specifying both denials and permissions. It is usu-

ally implemented with access control lists.

• MAC: Mandatory access control comes from the

military context and provides access to the re-

sources based on the clearance level of the user,

following the need-to-know principle (closed pol-

icy): a subject should only be given access rights

that are required to carry out the subject’s duties.

• RBAC: Role-based access control is a more re-

cent approach. It allows assigning rights to users

based on their roles. When the user needs differ-

ent rights, you only need to assign him to a new

role without changing access properties to every

resource he cannot access anymore.

These access control policies were designed to be

mutually exclusive, but instead we want to combine

and use them at the same time. Some effort has al-

ready been done in this direction (Jajodia et al., 2001).

We extend it by adding more abstraction also over re-

sources, borrowing the notion of classes from RDF

A Fine-grained Access Control Model for Knowledge Graphs

597

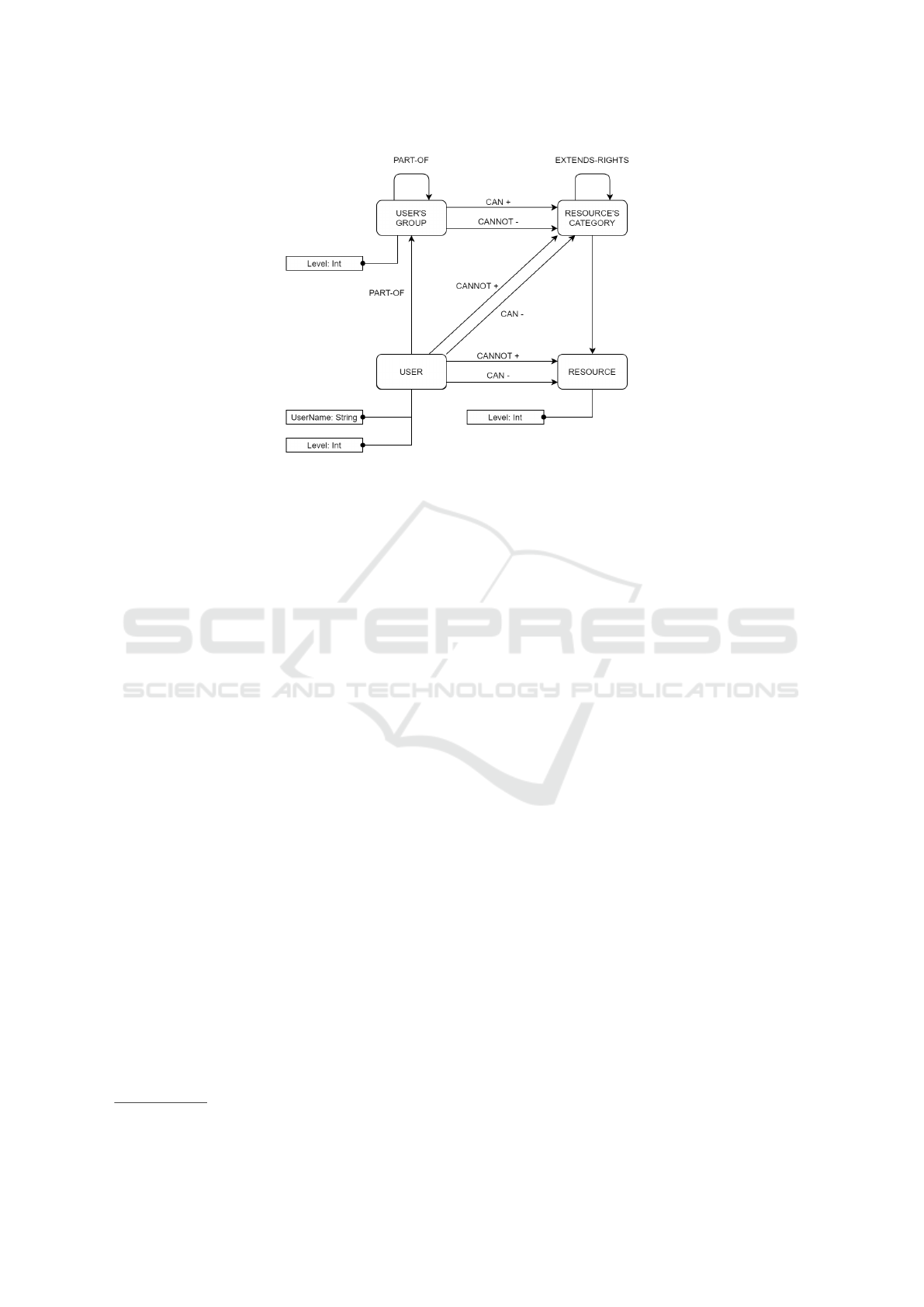

Figure 2: Graph pattern for the access control framework. ”Can” and ”Cannot” edges cannot be present simultaneously.

ontologies. In fact, groups of users and roles are

ways to assign the same rights to more users at the

same time, saving memory and maintainability time.

We pursue the same objective over resources by giv-

ing the possibility to deﬁne access rights over en-

tity classes and then propagate them using inheritance

mechanisms.

For example, let’s consider the case of a national

security agency ﬁghting terrorism, as described in im-

age 1. For building the knowledge graph one has to

start from a backbone of general knowledge. In this

case, we use DBpedia

, from which we use general

classes like Person, Organization and Work. These

classes can be used to classify and integrate sensitive

information about terrorists and information about

them. We call this extended graph the Domain Graph.

It should be noted that we can use relations between

classes as a way to extend access rights between in-

stances. In fact, if a user has access to a criminal

proﬁle, probably she will have access also to his re-

lated documents (except for clearance). It is possible

to represent as a graph also users, that can be grouped

by departments of the agency or their roles. We call

this part of the graph the User’s graph. In this domain,

we want to specify only what a user can view, with

a need-to-know principle. That can be done on the

base of both her role and groups, like with an RBAC

policy. because probably different departments of the

organization investigate different areas of the world,

so they have to be able to view only a small portion

of the graph. In addition, we may want to cover also

particular cases (like temporary operation) that allows

access to speciﬁc documents, like with a DAC. Plus,

wiki.dbpedia.org/

all those rules have to match a user’s clearance level

(MAC). With our work, we propose an access control

model that cover all these cases.

4 ACCESS CONTROL MODEL

First of all, we have to point that the security of a

computer system is composed of several ideal parts,

that are an authentication service, an authorization

database, an audit system, a security administrator

and the access control model. In this paper we focus

on this last part with the authorization database, as-

suming that the others are already present in the des-

tination system. In access control systems a distinc-

tion is generally made between policies and mecha-

nisms. Policies are high-level guidelines that deter-

mine how accesses are controlled and access deci-

sions determined. Mechanisms are low-level software

and hardware functions that can be conﬁgured to im-

plement a policy. With our access control model, we

pursue the goal to design a security mechanism that is

reusable for many different policies, especially both

the cases of open and closed policies. Our approach

is focused on giving or not access to resource. More

speciﬁc rights like own, delete, modify can be built on

the top of our model.

The idea behind our model is to exploit all the

ﬂexibility of the LPG model so we do not give a rigid

data structure, but only some graph patterns to follow,

as can be seen in ﬁgure 2. We can identify three main

parts in our model: the user’s subgraph, the resource’s

subgraph and the authorization’s edges between them.

In the user’s subgraph users are represented by

SECRYPT 2020 - 17th International Conference on Security and Cryptography

598

nodes with properties containing username, password

and clearance level. They can be grouped in groups by

linking them to users’ group nodes. This mean they

will inherit the access rights of the group. In the same

way users can be grouped by roles’ node. Potentially

these types of nodes can coexist, but this will lead to

a more complex rights administration.

As we mentioned before, we use relation between

classes as a way to extends rights between instances.

In fact, it is a common situation that some objects

are semantically dependents to another object, that

we call resource category. Our intuition is to use this

kind of relation between classes to automatically in-

sert speciﬁc ”extends rights” edges between their in-

stances.

Finally, we can specify access rights between

users or user’s groups and resource’s classes with au-

thorization edges. In our model we want to allow both

open and closed policies, so these edges can have op-

posite meanings. With closed policies access’ rights

are usually assigned with the ”need to know” prin-

ciple, which is that a user has to be given access to

the resources strictly necessary to carry out his duties,

and everything else is forbidden. On the contrary, us-

ing open policies are speciﬁed resources where a user

has not access and all that is not speciﬁed is allowed.

So the authorization edges must be used in dif-

ferent ways depending on the context: in the case of

closed policies they must specify what an user can

access, while in the case of open policies they specify

what a user cannot access.

In addition our model provides for particular pol-

icy speciﬁcation using exception edges, that are au-

thorization edges between user and resource in con-

trast to those between users’ groups and resources’

categories. Imposing this constrain we ensure to al-

low expressiveness without leading to too much com-

plexity.

So, after applying a closed policy, if you want to

obtain all the nodes a user can access you need to nav-

igate the graph up to the ”part-of edges”, search for

”can” edges and then retrieve all the nodes belonging

to that categories, then remove all the nodes linked by

a ”cannot” edge to the user.

In the same way to apply an open policy you know

that a user can potentially access all nodes except

those belonging to a category that is linked by a ”can-

not” edge to a group the user is part of. At the end

you only have to re-add the nodes linked by excep-

tion edge ”can” to the user. In both open and closed

policies the nodes can also be ﬁltered by the user’s

clearance level.

Determining which node a user can access with a

traversal has many advantage:

• Graph model has great readability and also inher-

itance mechanism are easy to understand

• You can specify a great variety of policies with a

few edges and attributes

• Full-scan are not needed as you can just use edges

to reach resources you are or not allowed to access

• Maintainability is also simpliﬁed. For example,

if a user wants to know which users have access

to an object, she can exploit the reverse path used

during the resource’s access mentioned before

Now we try to clarify our model with a practical

example, based on the previously presented Domain

Graph of terrorism. It has been extended in 3 with the

user’s graph, where agents are grouped by nodes rep-

resenting their roles and groups. The user’s graph is

linked to the Domain Graph with speciﬁc edges, and

it is also integrated by AC edges itself. Let’s clarify

their meanings:

• Green edges represent the positive ”can

view”

permission.

• Red edges represent the negative ”cannot view”

permission.

• Blue edges represent the extend rights relation.

This last relation can be manually speciﬁed between

speciﬁc classes of the Domain Graph Ontology. For

example, we specify that the relation ”mentioned in”

extends the access rights from entity of type ”Per-

son” to entity of type ”Work”. Then we can use au-

tomatic procedure to add the access control attribute

”extends rights” to all the edges ”mentioned in” be-

tween entities of the classes deﬁned before. From this

speciﬁcation we can deduce that:

• The department ”Africa NSA” is allowed to view

all Boko Haram organisation, but:

– The object ”Intercept 003765” cannot be seen

from agent Paul and agent Patricia due to too

low clearence level

– The object ”Satellite image 05/02” cannot be

seen from agent Paul due to a ”cannot” edge.

• The department ”Middle East NSA” is allowed to

view all Daesh organisation

• Agent Rick and agent Patricia are Director of their

department, and this allows them to have full ac-

cess to both organisation

In addition to this we can imagine that NSA or-

ganisation found a link between Daesh and the drug

dealer Ben Ziane Berhily, who supplies daesh soldier

with amphetamine. So agent Linda is allowed to view

Ben Ziane data with an exception speciﬁed with the

”can” edge.

A Fine-grained Access Control Model for Knowledge Graphs

599

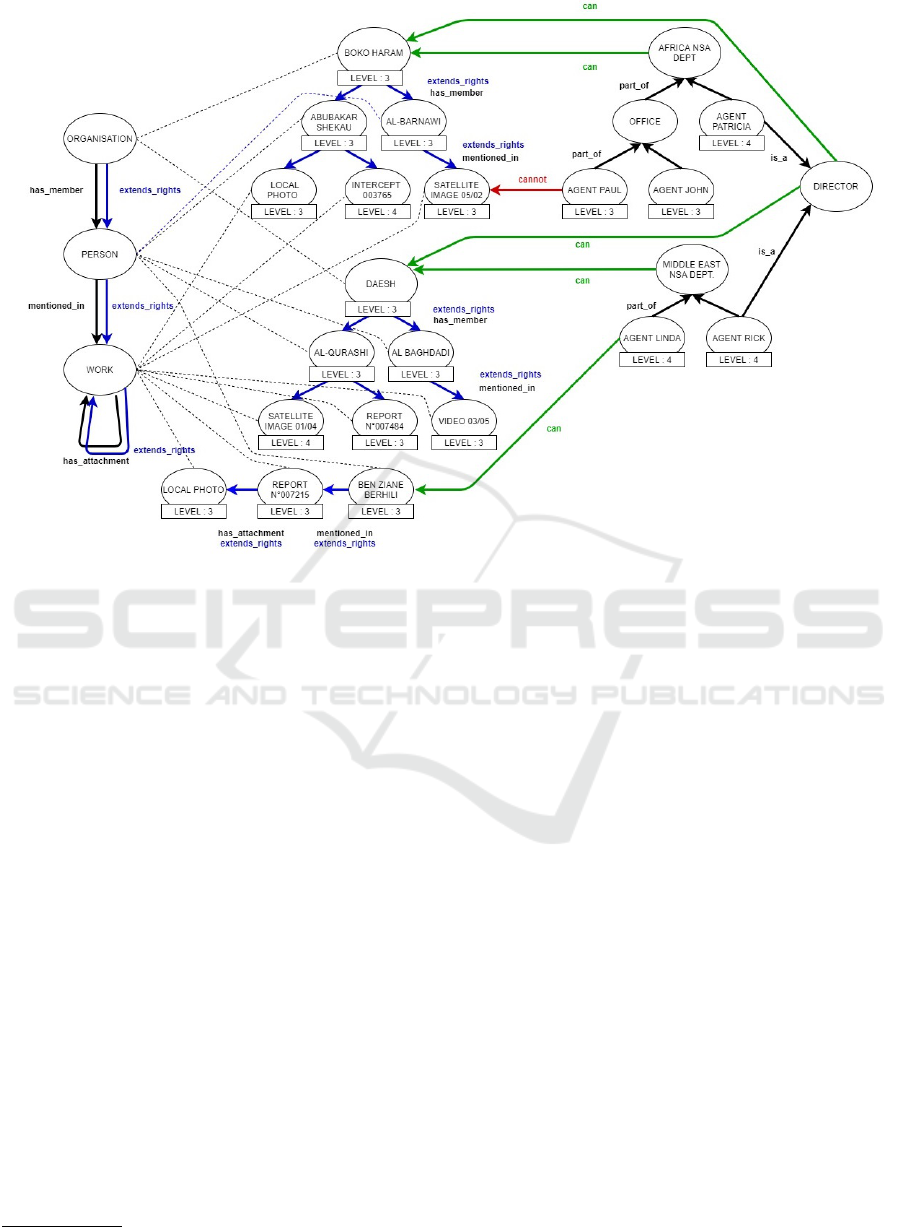

Figure 3: The before mentioned terrorism graph integrated with the users’ Graph and the authorization edges.

5 IMPLEMENTATION

For the implementation of our access control model,

we rely on Tinkerpop

, which is an Apache project

that provides several services and is compatible with

fairly all the most common graph products. The most

useful feature of this framework for our purposes is

the SubGraphStrategy, which is a traversal strategy

that allows to create a virtual subgraph based on given

constraints. What this method really does is to pro-

vide an automatic mechanism that, given a user query,

verify at every step if the initial constraints are satis-

ﬁed.Since we use a pattern-based approach integrated

with exceptions, we cannot use constraints based on

attributes.

Our solution is to split the process into a two step.

First, we retrieve all the IDs of the resource a user

can access, then we use this list as a constraint for

the traversal strategy. This prevents us to check for

many different conditions at every step using a more

immediate check like equality between IDs.

We now present a practical use example, based

on the graph presented in section 3 and 4. If the ac-

cess control strategy is not active, a general user can

have full access to data. For example, if she asks for

the names of criminals, the system will return all the

tinkerpop.apache.org/

nodes with class ”Criminal” present in their ”closure”

attribute.

g.V().has(’closure’,’criminal’).values(’name’)

>[Abubakar Shekau, A-Barnawi, Al-Qurashi,

> Al-Baghdadi, Ben Ziane Berhili]

But if a speciﬁc user logs in to the system, agent Linda

for example, our tool is able to build a personalized

view. This is done in two steps. First, we make

a query to identify the subset of nodes she has the

rights to see, considering the speciﬁc user, her clear-

ance level, and the before mentioned graph pattern

(the whole query is omitted for space reasons):

allowedVertices = g.V().has(’username’,’Linda’)

.outE(). ... .has(’level’,P.lte(clearance))

.id().toList()

Then, a personalized view is generated giving as input

the before extracted node ids:

sg=graph.traversal()

.withStrategies(SubgraphStrategy.build()

.vertices(__.hasId(P.within(allowed_vertices)))

.create())

Finally, the view is used to permit a transparent access

to resources:

sg.V().has(’closure’,’criminal’).values(’name’)

>[ Al-Qurashi, Al-Baghdadi, Ben Ziane Berhili]

SECRYPT 2020 - 17th International Conference on Security and Cryptography

600

This way the access control uses the great amount

of computational overhead at startup time, building

the personalized views for all the users. However,

these views has only to be generated once and then

stored in-memory, leading to a very short response

time when the user submits his query. At the same

time, the user is not aware of the access control mech-

anism, making the process totally transparent. To pre-

vent possible security issues, we have to protect script

execution on Tinkerpop, or an expert user could easily

bypass the SubGraphStrategy otherwise.

6 CONCLUSIONS AND FUTURE

WORK

We ﬁnd out that in the state of the art there are not

efﬁcient, ﬂexible and general-purpose access control

models for property graphs. We propose an approach

based on graph traversal over speciﬁc patterns and on

the creation of a subgraph using a Tinkerpop feature

to address this issue. This is a preliminary model on

the top of which it has to be build a more complete

access control policy that includes write, delete and

own rights. We left as a future work also an extensive

test of the scalability of the model.

REFERENCES

Abel, F., De Coi, J. L., Henze, N., Koesling, A. W., Krause,

D., and Olmedilla, D. (2007). Enabling advanced and

context-dependent access control in rdf stores. In The

Semantic Web, pages 1–14. Springer.

Alotaibi, A. A., Alotaibi, R. M., and Hamza, N. Access

control models in nosql databases: An overview.

Berners-Lee, T., Hendler, J., Lassila, O., et al. (2001). The

semantic web. Scientiﬁc american, 284(5):28–37.

Brandes, U., Eiglsperger, M., Lerner, J., and Pich, C.

(2013). Graph markup language (GraphML).

Damiani, E., De Capitani di Vimercati, S., Paraboschi, S.,

and Samarati, P. (2002). A ﬁne-grained access con-

trol system for xml documents. ACM Transactions on

Information and System Security (TISSEC), 5(2):169–

202.

Goncalves, M., Vidal, M.-E., and Endris, K. M. (2019).

Pure: A privacy aware rule-based framework over

knowledge graphs. In International Conference on

Database and Expert Systems Applications, pages

205–214. Springer.

Hollenbach, J., Presbrey, J., and Berners-Lee, T. (2009). Us-

ing rdf metadata to enable access control on the social

semantic web. In Proceedings of the Workshop on

Collaborative Construction, Management and Link-

ing of Structured Knowledge (CK2009), volume 514,

page 167.

Jain, A. and Farkas, C. (2006). Secure resource descrip-

tion framework: an access control model. In Proceed-

ings of the eleventh ACM symposium on Access con-

trol models and technologies, pages 121–129. ACM.

Jajodia, S., Samarati, P., Sapino, M., and Subrahmanian,

V. S. (2001). Flexible support for multiple access con-

trol policies. ACM Transactions on Database Systems

(TODS), 26(2):214–260.

Kagal, L., Finin, T., and Joshi, A. (2003). A policy based

approach to security for the semantic web. In In-

ternational semantic web conference, pages 402–418.

Springer.

Kirrane, S. (2015). Linked data with access control. In

Workshop on. pp, volume 14, page 23.

Kirrane, S., Mileo, A., and Decker, S. (2017). Access con-

trol and the resource description framework: A survey.

Semantic Web, 8(2):311–352.

Liao, F., Ma, L., and Yang, D. (2019). Research on con-

struction method of knowledge graph of us military

equipment based on bilstm model. In 2019 Inter-

national Conference on High Performance Big Data

and Intelligent Systems (HPBD&IS), pages 146–150.

IEEE.

Morgado, C., Baioco, G. B., Basso, T., and Moraes, R.

(2018). A security model for access control in graph-

oriented databases. In 2018 IEEE International Con-

ference on Software Quality, Reliability and Security

(QRS), pages 135–142. IEEE.

Piplai, A., Mittal, S., Joshi, A., Finin, T., Holt, J., Zak,

R., et al. (2019). Creating cybersecurity knowledge

graphs from malware after action reports.

Rotmensch, M., Halpern, Y., Tlimat, A., Horng, S., and

Sontag, D. (2017). Learning a health knowledge graph

from electronic medical records. Scientiﬁc reports,

7(1):1–11.

Sahaﬁzadeh, E. and Nematbakhsh, M. A. (2015). A sur-

vey on security issues in big data and nosql. Ad-

vances in Computer Science: an International Jour-

nal, 4(4):68–72.

Sandhu, R. S. and Samarati, P. (1994). Access control: prin-

ciple and practice. IEEE communications magazine,

32(9):40–48.

Shi, L., Li, S., Yang, X., Qi, J., Pan, G., and Zhou, B.

(2017). Semantic health knowledge graph: Semantic

integration of heterogeneous medical knowledge and

services. BioMed research international, 2017.

Stojanov, R., Gramatikov, S., Mishkovski, I., and Trajanov,

D. (2017). Linked data authorization platform. IEEE

Access, 6:1189–1213.

Szekely, P., Knoblock, C. A., Slepicka, J., Philpot, A.,

Singh, A., Yin, C., Kapoor, D., Natarajan, P., Marcu,

D., Knight, K., et al. (2015). Building and using a

knowledge graph to combat human trafﬁcking. In

International Semantic Web Conference, pages 205–

221. Springer.

Thakkar, H., Punjani, D., Lehmann, J., and Auer, S. (2018).

Two for one: Querying property graph databases us-

ing sparql via gremlinator. In Proceedings of the

1st ACM SIGMOD Joint International Workshop on

Graph Data Management Experiences & Systems

(GRADES) and Network Data Analytics (NDA), pages

1–5.

A Fine-grained Access Control Model for Knowledge Graphs

601
