Threat Modeling for Cyber-Physical Systems: A Two-dimensional

Taxonomy Approach for Structuring Attack Actions

Monika Maidl

, Gerhard M

unz

, Stefan Seltzsam

, Marvin Wagner

Roman Wirtz

and Maritta Heisel

Siemens AG, Otto-Hahn-Ring 6, 81739 Munich, Germany

University of Duisburg-Essen, Duisburg, Germany

Keywords:

Security Threats, Threat Modeling, Attack Actions, Taxonomy, Catalog.

Abstract:

Cyber-physical systems (CPSs) include devices that interaction with the physical world. Hence, attacks against

CPSs can lead to substantial damage and endanger life and limb. It is important to consider possible attacks

already in the early stages of system development, i.e. during the design phase, by performing threat modeling.

Threat modeling aims at identifying, analyzing and documenting potential attacks and threats against a given

CPS in a structured way. However, the systematic identiﬁcation of all relevant threats is not trivial. One

challenge is that knowledge about threats or potential attack actions is not documented in a way that makes it

easily accessible. To address this challenge, we propose a taxonomy approach for structuring attack actions.

The distinguishing feature of the taxonomy approach is the use of two dimensions: attack action types and

the attack surface. The attack surface consists of those points of a system at which interaction is possible.

Attackers can perform attack actions instead of the intended interaction at these points. As a CPS consists of

a range of heterogeneous, connected components that can be accessed in various ways, the attack surface of a

CPS is typically large. The attack surface of a speciﬁc CPS is deﬁned by its system architecture model. We

developed the taxonomy approach to support threat modeling for CPSs. Starting from existing approaches in

the context of threat modeling, we extended and modiﬁed those in several iterations to meet the challenges of

threat modeling for CPSs in industrial projects. While the focus in this paper is on CPSs, the two-dimensional

taxonomy approach can be easily applied to other domains.

1 INTRODUCTION

Cyber-physical systems (CPSs) are complex systems,

based on physical devices and software that are dis-

tributed across networks. Such systems are run-

ning in many places, for example, industrial plants,

public and private infrastructure systems, or energy-

generating and distributing facilities. The key tasks

are monitoring, automation, and control, which im-

plies interaction with the physical world, and many of

these systems are part of critical infrastructures. The

IoT (Internet-of-Things) wave is bound to lead to a

proliferation of CPSs, also into private homes.

As standard IT is used as well as a speciﬁc tech-

nology, CPSs are facing at least the same attacks as

standard IT systems. The attack surface increases

with connectivity, e.g. for remote analytics or remote

maintenance.

It is essential to design critical systems with ade-

quate security measures in place, in accordance with

security standards like IEC 62443 (IEC 62443, 2018).

Those standards require a risk-based approach as a

basis for identifying adequate protection measures.

To select those measures, relevant attack actions that

may have a negative impact on the system’s secu-

rity need to be identiﬁed. The term threat model-

ing is commonly used for methods that determine

all kinds of threats against a given system and doc-

ument them. Shostack (Shostack, 2014) deﬁnes the

term as follows: “Threat modeling is the use of ab-

stractions to aid in thinking about risks.” Uzunov

and Fern

andez (Uzunov and Fern

andez, 2014) give

an alternative deﬁnition: “Threat modeling is a pro-

cess that can be used to analyze potential attacks or

threats, and can also be supported by threat libraries

or attack taxonomies.” Threat libraries collect knowl-

edge about threats, thus assisting software and secu-

rity engineers in identifying threats for systems under

development. Often, such catalogs do not follow a

common structure, which makes it difﬁcult to iden-

160

Maidl, M., Münz, G., Seltzsam, S., Wagner, M., Wirtz, R. and Heisel, M.

Threat Modeling for Cyber-Physical Systems: A Two-dimensional Taxonomy Approach for Structuring Attack Actions.

DOI: 10.5220/0009829901600171

In Proceedings of the 15th International Conference on Software Technologies (ICSOFT 2020), pages 160-171

ISBN: 978-989-758-443-5

tify relevant entries.

A prominent taxonomy used in practice is

STRIDE (Kohnfelder and Grag, 2009), a mnemonic

consisting of keywords for six threat categories. A

difﬁculty in applying STRIDE’s categories is their

generic nature, requiring signiﬁcant security know-

how to grasp their meaning for the different elements

of the analyzed systems.

Our contribution is to use two dimensions for a

taxonomy. The claim of this paper is that our two-

dimensional taxonomy makes threat modeling easier

for practitioners. One of the dimensions is similar

to STRIDE and other taxonomies, as it uses classes

of attack actions. The new approach is to combine

this attack action dimension with a second dimen-

sion: The second dimension, which we call the at-

tack surface dimension, consists of the system ele-

ments that constitute the attack surface of the system:

Those points of a system at which interaction is pos-

sible. Attackers can perform attack actions instead of

the intended interaction at these points.

While the taxonomy approach with two dimen-

sions is not restricted to the domain of CPSs, the at-

tack surface dimension has to match the type of sys-

tem, the technical scope and level of detail that has

been chosen for threat modeling of the system. So the

attack surface dimension is determined by our target

systems, i.e. CPSs. We list the main characteristics of

this scope to show where changes would be necessary

when transferring the approach to another domain:

• A CPS is composed of various, heterogeneous

components: Embedded devices that are con-

nected to sensors and actuators, and worksta-

tions or servers that are running standard oper-

ating systems and domain-speciﬁc applications.

The components communicate through a combi-

nation of various network protocols. As a result of

that complexity, there are various, heterogeneous

ways of access, e.g. via physical interfaces like

USB, or via standard interfaces of the operating

system. The attack surface dimension has to in-

clude all ways of access, as all might be misused

by attackers.

• Threat modeling should address the system level,

where components and protocols are put together

into one system. The design of speciﬁc elements,

e.g. network protocols, is not in scope. Imple-

mentation details like the structure of messages or

processing of data are not considered for threat

modeling.

For our target scope of CPSs, we use the system

elements as proposed in our meta-model for CPSs

(Maidl et al., 2019).

The two-dimensional taxonomy can be used to

structure a catalog of attack actions for a speciﬁc

scope and domain. We provide an example of such

an attack action catalog, which we have compiled by

collecting and reviewing common attacks in the con-

text of industrial projects over many years, including

threat modeling, penetration tests, and real-world in-

cidents. Besides illustrating the approach, this attack

action catalog is of practical interest as it captures

common attack actions in our target scope. Practition-

ers can ﬁnd the relevant attack actions efﬁciently by

looking into the appropriate ﬁeld of the catalog during

threat modeling of a CPS. The presented attack action

catalog covers common attacks and includes attacks

that exploit typical weaknesses in standard IT tech-

nology. In order to cover attacks that are speciﬁc to

domain-related technology (e.g. embedded devices,

sensors) or attacks to speciﬁc components like net-

work devices, the catalog can be augmented.

Overall, the paper shows how a two-dimensional

taxonomy, and attack action catalogs that are based on

this taxonomy, increase quality, efﬁciency, and com-

pleteness of threat modeling. Furthermore, we dis-

cuss how the approach allows collecting knowledge

in a systematic way to be reusable for future projects.

Our paper is structured as follows: Section 2

provides a terminology for threat modeling. Sec-

tion 3 presents the two-dimensional taxonomy ap-

proach for structuring attack actions, provides a two-

dimensional taxonomy, and illustrates it with a cat-

alog for attack actions for CPSs. We compare our

taxonomy to STRIDE and CAPEC in Section 4, and

discuss related work in Section 5. Finally, we sum-

marize our contributions and provide an outlook on

future research directions in Section 6.

2 TERMINOLOGY

The terminology in the context of threat modeling

varies between different standards and publications.

So for reference, Figure 1 shows the terminology of

threat modeling that we use in this paper.

The output of threat modeling is a list of Threat

scenarios. Each threat scenario consists of the fol-

lowing elements: an Attack action, a CPS element as

part of the Attack surface, a Weakness, and a Protec-

tion goal. As protection goals, we consider the CIA

triad Conﬁdentiality, Integrity, and Availability. The

threat scenario describes how an attack action leads

to the violation of a protection goal by exploiting a

weakness. The attack action targets an element of the

attack surface of the CPS, i.e. an interface or net-

work communication. In some cases, a sequence of

Threat Modeling for Cyber-Physical Systems: A Two-dimensional Taxonomy Approach for Structuring Attack Actions

161

Weakness

Threat scenario

Attack action

Protection goal Confidentiality

Availability

Integrity

CPS element/

Attack surface

User Interface

OS-Level Access

C2C Interface

Physical Interface

Network

Communication

targets

leads to

violation of

exploits

MC AC MI DD TD ER

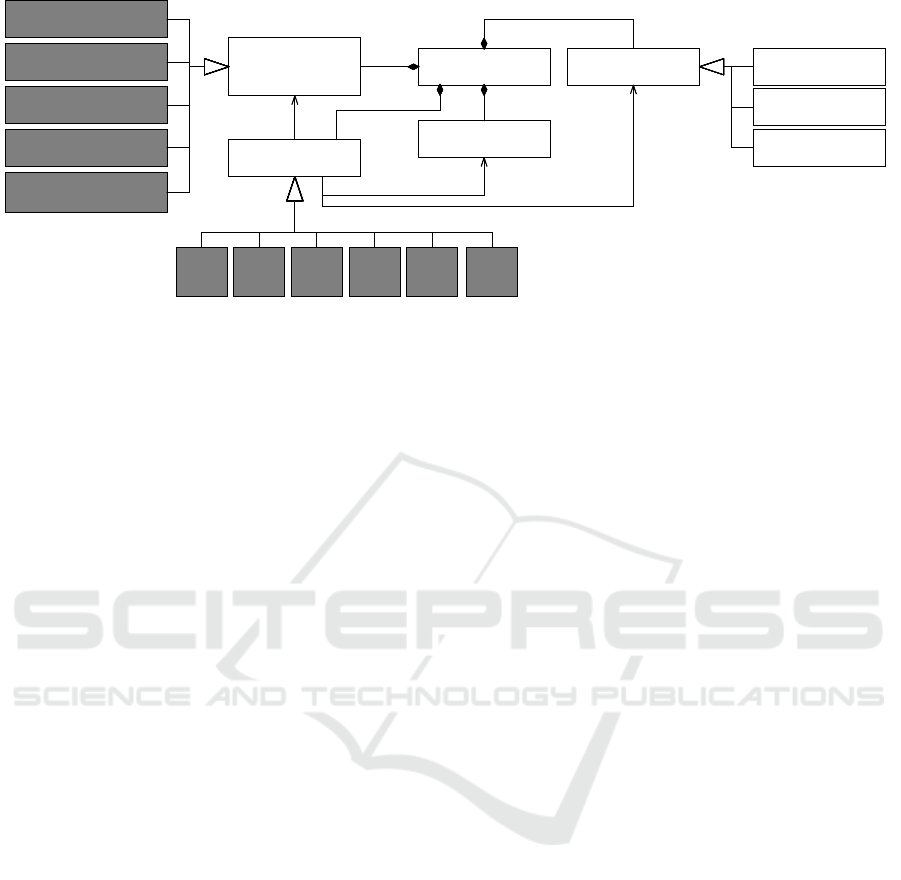

Figure 1: Threat modeling terminology.

attack actions are required for the violation of protec-

tion goals, and these are described as part of the threat

scenarios.

For illustration, we describe the example of a

threat scenario: An attacker, pretending to be a le-

gitimate device of the CPS, sends manipulated con-

ﬁguration (attack action) to an embedded component

that is accessible via a C2C interface. As a result,

the conﬁguration of the control program is changed

(violating the protection goal ‘integrity of conﬁgura-

tion’), and the embedded component behaves in an

unintended way.

The goal of threat modeling is to consider all rel-

evant attack actions against the CPS. To support this,

we use categories of attack surface elements and at-

tack action types. Figure 1 shows an overview of

these categories, and the next section explains the cat-

egories in full detail.

3 TAXONOMY AND ATTACK

ACTION CATALOG FOR CPSs

In the following, we present the main contribution of

our paper: The two-dimensional taxonomy approach.

We provide a two-dimensional taxonomy of attack ac-

tions for the scope of CPSs, and illustrate the taxon-

omy by presenting an attack action catalog structured

according to the taxonomy. We also explain how the

taxonomy supports threat modeling. We start with an

explanation of the two dimensions of the taxonomy.

3.1 Attack Surface Dimension

The ﬁrst dimension lists the parts of a system that

form the attack surface, i.e. those points of a sys-

tem at which an attack action may be performed. The

elements of the attack surface depend on the type of

system, and reﬂect the technical scope and level of

detail typically considered in threat modeling. In this

work, a CPS is viewed as a set of different types of

components like embedded devices and hosts (work-

stations and servers) that are running standard operat-

ing systems and domain-speciﬁc applications and ser-

vices. The components communicate through a com-

bination of network protocols. In previous work, we

proposed a metamodel for CPSs which is intended to

be used as a basis of security analysis and speciﬁes

the elements of the attack surface of a CPS (Maidl

et al., 2019). These elements form the attack surface

dimension, and in the following, we explain them in

detail.

The primary parts of an attack surface are the in-

terfaces of the system components, as interfaces are

the parts of the system that are open for interaction.

Corresponding to the scope and level of detail con-

sidered in this paper, the various interfaces related to

operating systems are covered by one abstract attack

surface element, and the same holds for network com-

munication.

User Interface. User interfaces are designed to let

human users interact with the system. User in-

terfaces can be realized in different ways, e.g. as

a graphical user interface of an application run-

ning on the local computer, as a web-based user

interface accessed over the network via a web

browser, or as a human-machine interface realized

with an embedded device. Apart from interfaces

for regular users of the CPS, user interfaces for ad-

ministration purposes need to be covered as well.

User interfaces are usually associated with user

accounts to implement user identiﬁcation, authen-

tication, and authorization.

Component-to-Component (C2C) Interface.

These interfaces are similar to user interfaces

but are designed to allow interaction between

ICSOFT 2020 - 15th International Conference on Software Technologies

162

components instead of humans. Typically, an

application running on a system component

calls a service that runs on another component

according to some protocol. C2C interfaces

implement protocols and may include authenti-

cation and authorization. Typically, the protocol

used by some C2C interface is utilizing standard

network services that are implemented as part

of the operating system. Interfaces (e.g APIs)

that exist internally in a component without

being accessible by other components are not

considered as C2C interfaces but considered as

part of OS level access.

OS Level Access. There are various possible ways of

how an attacker can interact with the operating

system of a component. This includes local APIs

and ﬁles, as well as the installation and modiﬁ-

cation of software, and network services that are

implemented as part of the operating system. We

use the element OS level access to represent the

range of actual OS interfaces. This corresponds

to the typical scope and level of detail of security

analyses for CPSs, where the interfaces of the op-

erating system are not modeled in all detail.

Physical Interface. These interfaces require physi-

cal access or physical proximity to the component

to interact with the system. This is often relevant

for CPSs with components that are widely de-

ployed across sites. Included are interfaces used

to communicate with the component, such as se-

rial ports, USB port, local diagnosis or manage-

ment interfaces, and near-ﬁeld communication,

e.g. Bluetooth. Other kinds of physical interac-

tions are covered as well, such as manipulating

the hardware and removing a hard drive.

Network Communication. User interfaces and C2C

interfaces may involve network communication

between different components of the CPS, using

a protocol. Communication takes place over a

potentially complex network infrastructure com-

posed of network cables and network devices like

routers and ﬁrewalls. We use Network Commu-

nication as an element of the attack surface that

subsumes all possibilities to attack the commu-

nication between components of the CPS. An at-

tacker could e.g. perform wiretapping at an acces-

sible LAN port, or hack into a network device to

disturb the communication. This abstraction cor-

responds to the typical scope and level of detail

of the design of CPSs, which builds on an exist-

ing network infrastructure such as the Internet or

production networks.

3.2 Attack Action Type Dimension

Attack actions are a central part of threat scenarios,

as shown in Section 2, and describe the action an at-

tacker takes at the attack surface of the system. Hence

it is straightforward to use types of attack actions as a

dimension of our taxonomy. Actual attack actions are

often creative ways to interact with the system in an

unintended way, and hence the known attack actions

are very heterogeneous. Therefore it is not straight-

forward to ﬁnd suitable types. We devised the fol-

lowing guiding principles for the development of our

attack action types.

1. Focus on actions that an attacker performs at some

location of the attack surface.

2. Strictly differentiate between attack actions and

harm. As detailed in Section 3.5, after the iden-

tiﬁcation of a relevant attack action for a CPS, it

is a separate step to analyze whether a protection

goal can be violated by that attack action.

3. Common attack actions should be assignable to

one of the attack action types in a straightforward

way. As a reference for common attack actions,

we use the list compiled from industrial projects,

as well as external sources (BSI, 2016). Coverage

of ‘esoteric’attack actions has less priority.

4. Keep it simple: For good usability, the list of at-

tack action types should not be too long, and easy

to grasp.

As the next step, we considered existing taxonomies,

in particular STRIDE and the taxonomy-level of

CAPEC. To meet the guiding principles, we per-

formed some adaptations. Section 4 contains a de-

tailed comparison of the attack action types with the

taxonomies of STRIDE and CAPEC, showing the

adaptations.

The following list presents the attack action types,

which form the attack action type dimension of our

taxonomy. We argue for each case that the ﬁrst two

principles are fulﬁlled.

MC. Misuse Credentials: Attacker obtains the au-

thentication credentials for the account of a legit-

imate user and uses these to get access.

Note that this type covers all attack actions that re-

late to passwords, e.g. actions like obtaining pass-

words by social engineering, or guessing the pass-

word. Such attacks are very common indeed. Lo-

gin interfaces are part of the attack surface. And

as misuse of a password is not in itself harmful,

the second principle is also observed.

AC. Exploit Weakness of Access Control: Attacker

circumvents or breaks access control and gets ac-

cess.

Threat Modeling for Cyber-Physical Systems: A Two-dimensional Taxonomy Approach for Structuring Attack Actions

163

This type covers the actions of attackers who are

confronted with some form of access control. Ac-

cess control is located at places where interaction

with users or other components is expected, and

hence the ﬁrst principle is fulﬁlled. The second

principle is observed by the same argument as for

MC. One could argue that credentials are part of

access control, but we decided to single out the

misuse of credentials as a separate type, as AC is

about exploiting (usually technical) weaknesses,

while MC is about misusing legitimate creden-

tials.

MI. Submit Malicious Input: Attacker enters or

sends malicious data or commands.

This type comprises many common attack ac-

tions, in particular many actions against Web ap-

plications like SQL-injection. The ﬁrst principle

is fulﬁlled since interfaces that take input are open

for interaction and hence are part of the attack

surface. The second principle is fulﬁlled as it re-

quires separate considerations to determine harm

that might be caused by malicious input.

DD. Disclose Data: Attacker reads or sniffs data.

This type comprises attack actions where an at-

tacker can easily read data at the attack surface,

e.g. by snifﬁng clear-text protocols. So the ﬁrst

principle is observed. Concerning the second

principle, note that this type stands for various ac-

tions in which data is read at a place directly ac-

cessible to the attacker. Whether such reading re-

sults in harm, by violating the protection goal of

conﬁdentiality, is a different (although in this case

fairly easy) consideration: Determining whether

the data that can be read is sensitive.

TD. Tamper Data: Attacker manipulates data.

This type is similar to the type DD. The differ-

ence is that this type covers attacks where data is

manipulated at the attack surface.

ER. Exhaust Resources: Attacker uses up limited,

shared resources needed by the system.

This type covers attack actions that exploit the

use of shared resources, e.g. CPU, memory, or

network bandwidth. The attack surface for these

actions is some form of access to the shared re-

source, e.g. the possibility to run applications on

the operating system, or the possibility to send

trafﬁc in a network. So the ﬁrst principle is ful-

ﬁlled. Concerning the second principle, like in

the two previous cases, it might be easy to deter-

mine the harm that follows from the exhaustion of

a shared resource, but this attack action type fo-

cuses on the ways how to perform the exhaustion.

The example attack action catalog in Table 2

shows that the third principle is met, by mapping a

range of common attack actions to our attack action

types.

3.3 Two-dimensional Taxonomy

As the attack action types of Section 3.2 stand for at-

tack actions at the attack surface, it is a natural step

to relate the attack action types with the attack sur-

face elements of Section 3.1. Table 1 shows the map-

ping, where the statements in each ﬁeld express the

relation. In most cases, the statements are straightfor-

ward, while some statements clarify the relevant as-

pects of the attack surface. Furthermore, some attack

actions are not relevant for certain elements of the at-

tack surface, resulting in empty ﬁelds in the table.

The two-dimensional taxonomy helps to system-

atically cover attack actions for the attack surface of a

system.

We provide some explanations for the statements

in the table: The attack action types DD and TD are

considered for user and C2C interfaces. By design,

these interfaces display data and provide functional-

ity for editing. Using this functionality is not an at-

tack action. If the access to a user or C2C interface is

meant to be restricted, then the attack action types MC

and AC apply and cover possible ways an attacker can

get access despite the access protection.

The last row of Table 1 shows that the attack ac-

tion type ER is only considered for OS level access

and network access. Only at these elements of the

attack surface, an attacker has direct access to lim-

ited resources, like CPU, memory, or network band-

width. In contrast, user interfaces, C2C interfaces,

and physical interfaces do not provide direct access

to resources. Malformed input to these interfaces that

causes the receiving component to crash, e.g. due to

overload, is covered by the type MI.

The column for OS level access reﬂects the fact

that this element of the attack surface comprises var-

ious interfaces of the operating system. For MC, the

user accounts of the operating system are in focus.

The attack action type AC refers to the various ac-

cess control mechanisms of the operating system, e.g.

privilege of processes and ﬁle permissions. It com-

prises attacks to exploit weaknesses in these mech-

anisms, e.g. to obtain higher privileges. Malicious

input (MI) can take the form of malware that exploits

vulnerabilities in the operating system. Malicious in-

put may originate from a user with OS level access

who is tricked into downloading and executing mal-

ware. Another path of malicious input is specially

crafted packets sent to a network service of the oper-

ICSOFT 2020 - 15th International Conference on Software Technologies

164

Table 1: Two-Dimensional taxonomy.

User

Interface

C2C

Interface

OS Level

Access

Physical

Interface

Network Comm.

MC Attacker misuses

credential to au-

thenticate to the

user interface

Attacker misuses

credential to au-

thenticate to the

C2C-interface

Attacker misuses

credential to ob-

tain access to the

operating system

Attacker misuses

credential to

obtain access to

physical interface

AC Attacker exploits

weakness in the

access control of

the user interface

Attacker exploits

weakness in the

access control of

the C2C interface

Attacker exploits

weakness in the

access control

of the operating

system

Attacker exploits

weakness in the

access control

of the physical

interface

MI Attacker enters

malicious input at

the user interface

Attacker sends

malicious input to

the C2C interface

Attacker sends

malicious input

to some OS level

interface

Attacker enters

malicious input

at the physical

interface

DD Attacker reads

data out of mem-

ory

Attacker reads

data via physical

interface

Attacker sniffs

network commu-

nication

TD Attacker manipu-

lates data stored in

memory

Attacker manip-

ulates data via

physical interface

Attacker manip-

ulates network

communication

ER Attacker exhausts

resources of the

operating system

Attacker exhausts

network resources

ating system.

For network communication, as explained in 3.1,

the scope and level of detail applied in the design of a

CPS usually does not include the network infrastruc-

ture. Hence, threat modeling for a CPS focuses on

attack actions against the network communication be-

tween components. These attack actions are disclos-

ing (DD), tampering (TD), and exhausting resource

(ER). The attack action types MC, AC, and MI are

not relevant as the network communication does not

process credentials, does not implement access con-

trol, and does not handle inputs. These tasks are per-

formed by the protocol stack of the corresponding

user or C2C interface.

3.4 Structuring Attack Action Catalogs

with the Taxonomy

While Table 1 helps to focus on relevant attack ac-

tion types for a certain interface, architects and soft-

ware developers ﬁnd it hard to identify speciﬁc attack

actions based on abstract attack action types: They

need an understanding of actual attack actions rather

than abstract categories. There are many threat and

attack catalogs that contain actual attack actions, but

it is hard to ﬁnd relevant entries, especially for people

without a deep security background.

We propose to use our two-dimensional taxonomy

to structure catalogs of speciﬁc attack actions. This

means that each speciﬁc attack action is assigned to

an attack action type and an element of the attack sur-

face. In that way, the (typically large) set of attack ac-

tion is clustered into 20 subsets in a way that is mean-

ingful for threat modeling. Practitioners can ﬁnd the

relevant attack actions efﬁciently by looking into the

appropriate ﬁeld of the structured catalog. Hence the

catalog provides a useful way to make security knowl-

edge about attacks available during threat modeling.

In Table 2 we provide an example catalog of attack

actions against CPSs, structured according to our tax-

onomy. The catalog in Table 2 captures the range of

attacks that have been considered in security analyzes

for CPSs over many years in industrial projects, and

also reﬂects the results of penetration tests and real

world incidents. Besides, the catalog was compared

and extended with external resources, e.g. from the

Bundesamt f

ur Sicherheit in der Informationsbranche

(BSI, 2016) as well as academic sources like (Uzunov

and Fern

andez, 2014). The catalog is not aiming for

completeness. Instead, the aim is to cover the most

relevant cases and include attacks that exploit typi-

cal weaknesses in standard IT technology. To cover

attacks that are speciﬁc to domain-related technology

(e.g. embedded devices, sensors) or attacks to speciﬁc

components like network devices, the catalog can be

augmented.

Attack actions and their relevance are changing

over time, so it is important to emphasize that such

a catalog has to be continuously updated.

Threat Modeling for Cyber-Physical Systems: A Two-dimensional Taxonomy Approach for Structuring Attack Actions

165

Table 2: Attack action catalog for CPSs.

User Interface C2C Interface OS Level Access Physical Interface Network Communication

– Phishing to obtain a user’s

password

– Brute force attack on weak

password

– Setting password through

weak password recovery

mechanism

– Extract default or hard-coded

passwords

– Brute force attack on weak

passwords

– Misuse fake MAC or IP ad-

dress to authenticate

– Misuse of temporary or default

password

– Brute-force attack to guess

password of OS account

– Misuse of shared password

(e.g. shared between sites)

– Social engineering to obtain

password to server manage-

ment consoles or BIOS

– Misuse of client-side authenti-

cation or authorization

– Access via debugging inter-

face

– Misuse of direct object refer-

ences e.g. in URLs

– Session hijacking

– Misuse of client-side authenti-

cation or authorization

– Security downgrade through

algorithm negotiation

– Misuse of excessively granted

privileges

– Bypass of kiosk mode

– Misuse of open network ser-

vice (e.g. Telnet, VNC)

– Misuse of (unnecessarily) high

privileges in OS

– Misuse of unlocked user ses-

sion

– Access through server man-

agement consoles or BIOS

– Re-boot with different OS

from CD or USB

– Access through unprotected

near-ﬁeld communication pro-

tocol

– Misuse of hardware interfaces

(UART, JTAG)

– Misuse of shut-down button

– Cross-site scripting

– SQL-injection

– Malware infection of compo-

nent through malicious pay-

load

– Fuzzing attack

– Malware infection of compo-

nent through malicious pay-

load

– Crash due to overload

– Trick OS-user to install or run

malware

– Network packet exploiting

vulnerability in network pro-

tocol implementation of the

OS, e.g. ping-of-death

– Malware infection of compo-

nent through infected USB

stick

– Read sensitive data from ﬁles

or Windows registry, e.g. pass-

words, operational data

– Read data from process mem-

ory by causing a core dump

– Steal media, i.e. SD card, USB

stick, or hard disk

– Install keylogger

– Take a covert look at a display

– Read data through hardware

interfaces (UART, JTAG)

– Read clear text protocols, e.g.

HTTP, FTP

– Sniff data sent over unpro-

tected WLAN

– Manipulate data in ﬁles or

databases

– Manipulate conﬁguration or

software

– Change data on removable me-

dia

– Manipulate or replay message

– Man-in-the-middle attack

– (Malicious) application uses

up CPU or memory

– Flooding the network

– Occupy wireless interfaces

with a jammer

ICSOFT 2020 - 15th International Conference on Software Technologies

166

3.5 Using the Taxonomy for Threat

Modeling

In the process of threat modeling, our taxonomy and

attack action catalog help to obtain a list of threat sce-

narios as described in Section 2. The elements of the

attack surface that need to be considered can be di-

rectly extracted from the design of the CPS. In the ﬁrst

step of threat modeling, for each of these elements

and each relevant attack action type, attack actions are

looked up from the catalog.

Once an attack action is found to be relevant,

the next step is to analyze whether the attack action

could lead to the violation of a protection goal of the

CPS. This is an essential step of threat modeling, in

which know-how about the architecture of the sys-

tem is combined with a thorough understanding of the

protection goals for the data and functionalities of the

system. If a path to the violation of a protection goal

has been found, a threat scenario is documented. The

threat scenario is completed by describing the weak-

ness of the CPS that is exploited by the attack action.

Usually, the attack action is directly associated with

a weakness, so this step is not challenging. For ex-

ample, the infection with malware is exploiting un-

patched vulnerabilities, while a brute force attack on

a password is exploiting weak passwords. In fact, it

would be a natural extension of an attack action cat-

alog to link the attack actions to related weaknesses

and hints for security measures. For example, enforc-

ing a strong password policy is a security measure to

protect against brute forcing.

After threat modeling has been completed, the

weaknesses are used as a basis to select (additional)

security measures for the CPS.

We point out some aspects of using the taxonomy

with an example: A component has several user in-

terfaces and C2C interfaces. The relevant attack ac-

tion types, namely MC, AC, and MI, are analyzed

for each of these interfaces. This helps to identify

weaknesses in the design of access control for these

interfaces, and weaknesses in the processing of in-

puts. The component also has several physical in-

terfaces, and the need to adequately protect each of

them may have been overlooked during design. Go-

ing through the attack action types helps to identify

the critical gaps. Furthermore, the component runs a

standard operating system that needs to be securely

conﬁgured and hardened. The attack action types al-

low the architect to understand which parts of the OS

need particular protection, e.g. by encrypting ﬁles,

disabling unneeded network services, or implement-

ing other hardening measures. For each of the net-

work communications of the CPS, the attack action

types DD, TD, and ER are analyzed, and as a result,

the architect might decide to use another protocol or

a secure channel for a protocol.

3.6 Further Beneﬁts

The example catalog of Section 3.4 illustrates the

structuring of attack actions according to the two-

dimensional taxonomy. In this section, we discuss

further ways to use taxonomy-based catalogs in the

context of threat modeling.

Speciﬁc Catalogs for Types of Components. A

CPS consists of heterogeneous components like con-

trollers, network devices, and standard IT compo-

nents. By providing a separate catalog for each type

of component, attack actions that are speciﬁc to the

technologies of that component type can be listed and

provided to practitioners. Such catalogs could either

complete or replace a generic catalog.

Reusing Threat Modeling Results. In practice, of-

ten a certain type of CPS is used as a blueprint for

industrial projects. After performing threat modeling

for that type of CPS, the knowledge generated by that

process of threat modeling can be captured in the form

of a speciﬁc attack action catalog. More precisely, the

entries in the generic catalog(s) can be replaced by

more speciﬁc and relevant attacks for the blueprint.

In that way, it is possible to make knowledge reusable

for future projects.

Using Catalogs in Tooling for Threat Modeling.

The beneﬁts of taxonomy-based catalogs are signif-

icantly increased by automation: We have developed

a prototype for a tool, and are in the piloting phase.

Our tool guides practitioners through the process of

threat modeling and presents relevant attack action

types when the practitioner is working in a certain part

of the system.

4 COMPARISON WITH STRIDE

AND CAPEC

In a systematic literature review on threat analysis of

software systems performed by Tuma et al. (Tuma

et al., 2018), ﬁve methodologies make use of some

sort of knowledge base, are applicable to the archi-

tectural or design level, and take the architectural de-

sign as input. Three of them use STRIDE (Shostack,

2014; Halkidis et al., 2008; Deng et al., 2011) as tax-

onomy, the remaining two refer to CAPEC (Almorsy

Threat Modeling for Cyber-Physical Systems: A Two-dimensional Taxonomy Approach for Structuring Attack Actions

167

et al., 2013; Berger et al., 2016). As our taxonomy

also provides a knowledge base and is supposed to be

used in the same context of threat analysis, this sec-

tion provides a detailed comparison with STRIDE and

CAPEC.

4.1 STRIDE

STRIDE (Kohnfelder and Grag, 2009) is a well-

known categorization model for threats against com-

puter systems. It has been developed by Microsoft

and is integrated in the Microsoft Threat Modeling

Tool

. STRIDE is a mnemonic for six threat cate-

gories: Spooﬁng, Tampering, Repudiation, Informa-

tion disclosure, Denial of service, and Elevation of

privilege.

We found that some of the STRIDE categories re-

fer to the impact of a successful attack (e.g. denial

of service) rather than to the actual action an attacker

performs. To avoid confusion, our taxonomy clearly

focuses on attack actions that describe what an at-

tacker does. The impact of an attack action can be

assessed in a subsequent step by determining the vio-

lated protection goals.

Table 3 shows how the STRIDE categories can be

mapped to our attack action types. As can be seen, the

STRIDE categories Tampering and Information dis-

closure are directly related to the attack action types

TD and DD. Spooﬁng can be achieved by misusing

credentials of existing accounts (MC), or by exploit-

ing an access control weakness (AC). Denial of ser-

vice is typically caused by malicious input (MI), such

as a specially crafted packet leading to a segmenta-

tion fault, or by exhausting limited resources (ER),

e.g. with a ﬂooding attack. Malicious input (MI) as

well as bypassing access control (AC) can lead to El-

evation of privilege.

We did not map the STRIDE category Repudia-

tion to any of our attack actions types. This is because

we see repudiation as violation of a protection goal

(i.e. non-repudiation), not an attack action. In fact,

various attack actions can be used with the goal to re-

pudiate an action, such as tampering log ﬁles. But our

types focus on the action of the attacker rather than

the goal of the action.

The main extension of our attack action types

compared to STRIDE is the attack action type MI,

which includes all kinds of injection attacks, such as

SQL injection, code injection through exploitation of

a buffer overﬂow vulnerability, infection of a system

with malware etc. In STRIDE, these attacks do not

Microsoft Threat Modeling Tool (last access:

December 4, 2019): https://www.microsoft.com/en-

us/securityengineering/sdl/threatmodeling

have an explicit category but can only be categorized

indirectly by the harm they cause (e.g. denial of ser-

vice).

STRIDE itself does not include an attack surface

dimension. The Microsoft Threat Modeling Tool al-

lows us to to associate STRIDE categories with el-

ements of a Data Flow Diagram (DFD), which con-

tains processes, data stores, external interactors, and

data ﬂows between them. However, the combination

of STRIDE categories and DFD elements is not used

to provide a better understanding of a STRIDE cate-

gory for a DFD element. More importantly, DFDs do

not reﬂect the different parts of the attack surface of

a system. So the combination of STRIDE with DFDs

lacks the possibility to create a catalog of relevant at-

tack actions for each attack surface element, similar

to the one in Table 2.

4.2 CAPEC

The Common Attack Pattern Enumeration and Clas-

siﬁcation (CAPEC) (MITRE, 2019), maintained by

MITRE

, provides a catalog of attack patterns. In

CAPEC version 3.2, attack patterns are classiﬁed ac-

cording to two different schemes. The ﬁrst scheme is

called domains of attack and assigns attack patterns to

the categories Software, Hardware, Communications,

Supply chain, Social engineering, and Physical secu-

rity. These categories refer to the type of weakness

that is exploited, such as a software vulnerability, a

weak physical control, or an unaware user. We found

that CAPEC attack patterns in the domain Commu-

nications largely correspond to the attack actions as-

sociated to our attack surface element Network Com-

munication. Similarly, most attack patterns belonging

to Hardware and Physical security are related to the

attack actions of the attack surface element Physical

Interface. For the other domains, however, we did not

ﬁnd any clear correlation with the different elements

of the attack surface.

The second CAPEC classiﬁcation scheme is

called mechanisms of attack and refers to general at-

tacking techniques, which is similar to the attack ac-

tion dimension of our taxonomy. Table 4 shows a

mapping of our attack action types to CAPEC mech-

anisms of attack. Attack patterns belonging to the

mechanism Engage in deceptive interactions range

from attacks targeting user credentials and clickjack-

ing to DLL injection and DNS spooﬁng. In our tax-

onomy, these attacks are separated into the attack ac-

tion types MC, AC, and MI. Similarly, Abuse of ex-

isting functionality covers a broad spectrum of attack

MITRE: https://www.mitre.org/ (last access: Decem-

ber 12, 2019)

ICSOFT 2020 - 15th International Conference on Software Technologies

168

Table 3: Mapping of taxonomy categories - STRIDE.

Category Description MC AC MI DD TD ER

Spooﬁng of user identity Impersonating something or someone else. X X

Tampering with data Modifying data or code X

Repudiation Denying to have performed an action

Information disclosure Exposing information to someone not au-

thorized to see it

Denial of service Deny or degrade service to users X X

Elevation of privilege Gain capabilities without proper authoriza-

tion

X X

Table 4: Mapping of taxonomy categories - CAPEC.

Mechanism of attack Description MC AC MI DD TD ER

Engage in deceptive in-

teractions

Spooﬁng and social engineering X X X

Abuse existing function-

ality

Manipulation of data or system behavior by

misusing system functionality

X X X X

Manipulate data struc-

tures

Manipulation of data by exploiting a system

vulnerability

X X

Manipulate system re-

sources

Manipulation of shared resources X X

Inject unexpected items Manipulation of system behavior through

malicious input

Employ probabilistic

techniques

Fuzzing and bruteforcing X X

Manipulate timing and

state

Exploitation of concurrency issues (e.g.

race condition)

X X

Collect and analyze in-

formation

Theft of information X X

Subvert access control Exploitation of access control weakness X

patterns that, in our taxonomy, belong to different at-

tack action types. As can be seen, the attack mech-

anisms Manipulate data structures, Manipulate sys-

tem resources, and Manipulate timing and state are

related to the attack action types MI and TD. These

two types distinguish between attacks sending mali-

cious input to a system interface, and attacks tamper-

ing data (e.g. conﬁguration ﬁles) directly, whereas

the three CAPEC mechanisms differentiate between

types of manipulated data and resources. The mech-

anism Employ probabilistic techniques includes pass-

word brute-forcing, which relates to the exploitation

of an access control weakness (AC), and fuzzing at-

tacks, which corresponds to sending potentially mali-

cious input to an interface (MI). Collect and analyze

information subsumes active and passive information

gathering techniques, belonging to the attack action

types MI and DD, respectively.

All in all, we can state that CAPEC’s approach

to classify attack patterns into mechanisms of attacks

has some similarities to the attack action dimension

of our taxonomy. The attack surface dimension of our

taxonomy, however, is not reﬂected in CAPEC. Some

CAPEC domains of attack are slightly related to spe-

ciﬁc attack surface elements, but in general, CAPEC

domains of attack refer to types of exploited weak-

nesses. As a consequence, CAPEC lacks the possibil-

ity to easily query attack patterns that are relevant for

a speciﬁc attack surface element of a CPS.

5 OTHER RELATED WORK

Almorsy et al. (Almorsy et al., 2013) introduced a

new architecture software security analysis. They use

OCL to formalize system architectural security attack

scenarios and security metrics. Since our approach is

model-based (cf. Section 3.1), our proposed taxon-

omy can be formalized in a similar way.

The paper by Halkidis et al. ((Halkidis et al.,

2008)) evaluates the protection that selected security

patterns of Blakley and Heath (Blakley et al., 2004)

offer against attacks. As attack categories, the au-

thors make use of STRIDE. The analyzed system is

annotated with stereotypes in order to check whether

security patterns have been used sufﬁciently. This ap-

proach of using stereotypes can be compared with our

interface types, e.g. there is a stereotype Applica-

tionEntryPoint that corresponds to our user interface.

The difference to our taxonomy is that the annotations

Threat Modeling for Cyber-Physical Systems: A Two-dimensional Taxonomy Approach for Structuring Attack Actions

169

are not associated with attack actions, but are associ-

ated with security patterns.

Uzunov and Fern

andez (Uzunov and Fern

andez,

2014) introduce system elements (called decompo-

sition layers) to describe threat patterns. The sys-

tem elements are similar to our attack surface ele-

ments, e.g. the decomposition layer ‘User interac-

tion’corresponds to a user interface. In contrast to our

work, the authors do not use the system elements for

structuring the threat patterns.

CAPEC (cf. Section 4.2) is often used as a com-

prehensive repository for attack descriptions rather

than as a taxonomy. An example is Adams et al.

(Adams et al., 2018), where CAPEC is used as source

to identify relevant attacks, by using machine learn-

ing and natural language processing. Another exam-

ple is the approach of (Li et al., 2016) to leverage the

CAPEC repository for ﬁnding relevant attacks, based

on problem patterns, solution patterns, and context

patterns.

Xiong and Lagerstr

om performed a literature re-

view on threat modeling (Xiong and Lagerstr

om,

2019). This literature review lists many papers

on threat modeling approaches that are based on

(semi-)formal methods for representing threats, like

game theory, Petri nets, Dolev-Yao threat model, PrT

nets, Hidden Markov models, Byzantine model, ﬂow

model, and others. The usage of taxonomies in these

approaches is different to our use. The taxonomy

does not represent threats, but provides a structure for

knowledge databases. Other papers covered in that

literature review describe the use of threat modeling

in a speciﬁc domain.

There are numerous risk management processes,

e.g. CORAS (Dahl et al., 2007), that require a de-

tailed identiﬁcation of threat scenarios. CORAS has

its own modeling language and provides guidelines

on how the method can be carried out. The method is

model-based and has tool-support. The identiﬁcation

of threat scenarios is often performed in brainstorm-

ing sessions which does not necessarily follow a sys-

tematic procedure. Our taxonomy can be used as an

input for those sessions to create CORAS diagrams.

Shevchenko et al. (Shevchenko et al., 2018) eval-

uates methods for threat modeling of cyber-physical

systems. They list twelve methods and rate them ac-

cording to 5 criteria. The usage of an attack action

catalog is no criteria. Some of the methods can be

enhanced with an attack action catalog.

Khan et al. (Khan et al., 2017) apply STRIDE-

based threat modeling to cyber-physical systems and

apply their adapted method on a real world example.

They state 10 possible threat consequences (TC) as an

example. The authors use data ﬂow diagrams (DFD)

to model a cyber-physical system and link the DFD

elements to TCs. The method of the paper is on a

high level and our taxonomy can be applied after their

method.

Currently, our taxonomy only allows us to ana-

lyze a system with regard to security. The LINDDUN

methodology of Deng et al. (Deng et al., 2011) intro-

duces privacy threat categories which have been de-

rived from STRIDE. The relation of STRIDE to pri-

vacy may help to transfer our taxonomy into the pri-

vacy context, as well.

6 CONCLUSION

In the present paper, we proposed a taxonomy ap-

proach for structuring attack actions. The taxonomy

approach consists of using two dimensions: (i) the

system elements representing the different parts of the

attack surface, and (ii) attack action types. Such a

taxonomy can be used to collect and document ex-

isting knowledge about common attack actions in a

systematic manner, which provides essential support

for threat modeling.

The two-dimensional taxonomy presented in this

paper is targeted for the domain of CPSs. As an ex-

ample, we provided a catalog of typical attack actions

against CPSs that is structured according to our tax-

onomy.

As future work, we plan to use the taxonomy ap-

proach in other domains, for example, cloud applica-

tions. The transfer requires us to adapt the ﬁrst di-

mension, i.e. to deﬁne the elements of attack surfaces

in that domain. For example, a cloud-based system

is not structured into components with OS-level in-

terface and C2C-interfaces. Instead, a cloud-based

system can be structured into containers and platform

services, thus leading to new interface types. With re-

gard to attack actions, ﬁrst experiments have shown

that these are also suitable in the domain of cloud ap-

plications.

As mentioned in Section 5, we also plan to extend

our taxonomy to be applicable in the context of pri-

vacy analysis. The LINDDUN method will be a good

starting point since it uses STRIDE. The mapping of

our attack action types to STRIDE categories is not

that difﬁcult, as we have shown in Section 4.

Last but not least, we have developed a proto-

type of a tool that supports the identiﬁcation of threats

based on our taxonomy. We have started piloting this

tool in industrial projects, and this will enable us to

evaluate the tool on a large scale.

ICSOFT 2020 - 15th International Conference on Software Technologies

170

REFERENCES

Adams, S. C., Carter, B. T., Fleming, C. H., and Beling,

P. A. (2018). Selecting system speciﬁc cybersecurity

attack patterns using topic modeling. In 17th IEEE

International Conference On Trust, Security And Pri-

vacy In Computing And Communications / 12th IEEE

International Conference On Big Data Science And

Engineering, TrustCom/BigDataSE 2018, New York,

NY, USA, August 1-3, 2018, pages 490–497.

Almorsy, M., Grundy, J., and Ibrahim, A. S. (2013). Auto-

mated software architecture security risk analysis us-

ing formalized signatures. In 35th International Con-

ference on Software Engineering, ICSE ’13, San Fran-

cisco, CA, USA, May 18-26, 2013, pages 662–671.

Berger, B. J., Sohr, K., and Koschke, R. (2016). Automat-

ically extracting threats from extended data ﬂow dia-

grams. In Engineering Secure Software and Systems

- 8th International Symposium, ESSoS 2016, London,

UK, April 6-8, 2016. Proceedings, pages 56–71.

Blakley, B., Heath, C., and of The Open Group Security Fo-

rum, M. (2004). Security design patterns. Technical

guide, TheOpen Group.

BSI (2016). Industrial Control System Security - Top 10

Threats and Countermeasures 2016. Bsi-cs 005e —

version 1.20 of 08/01/2016, Federal Ofﬁce for Infor-

mation Security (BSI).

Dahl, H., Hogganvik, I., and Stlen, K. (2007). Struc-

tured semantics for the coras security risk modelling

language. In Proc. of 2nd International Workshop

on Interoperability solutions on Trust, Security, Poli-

cies and QoS for Enhanced Enterprise Systems (IS-

TSPQ’07).

Deng, M., Wuyts, K., Scandariato, R., Preneel, B., and

Joosen, W. (2011). A privacy threat analysis frame-

work: supporting the elicitation and fulﬁllment of pri-

vacy requirements. Requir. Eng., 16(1):3–32.

Halkidis, S. T., Tsantalis, N., Chatzigeorgiou, A., and

Stephanides, G. (2008). Architectural risk analysis

of software systems based on security patterns. IEEE

Trans. Dependable Sec. Comput., 5(3):129–142.

IEC 62443 (2013-2018). Industrial communication net-

works - Network and system security - Security for in-

dustrial automation and control systems. International

standard, International Electrotechnical Commission

(IEC).

Khan, R., McLaughlin, K., Laverty, D., and Sezer, S.

(2017). Stride-based threat modeling for cyber-

physical systems. In 2017 IEEE PES Innovative

Smart Grid Technologies Conference Europe (ISGT-

Europe), pages 1–6. IEEE.

Kohnfelder, L. and Grag, P. (2009). The threats to

our products. Technical report, Microsoft Coopo-

ration. https://adam.shostack.org/microsoft/The-

Threats-To-Our-Products.docx.

Li, T., Paja, E., Mylopoulos, J., Horkoff, J., and Beck-

ers, K. (2016). Security attack analysis using attack

patterns. In 2016 IEEE Tenth International Confer-

ence on Research Challenges in Information Science

(RCIS), pages 1–13.

Maidl, M., Wirtz, R., Zhao, T., Heisel, M., and Wagner, M.

(2019). Pattern-based modeling of cyber-physical sys-

tems for analyzing security. In Proceedings of the 24th

European Conference on Pattern Languages of Pro-

grams, EuroPLop ’19, pages 23:1–23:10, New York,

NY, USA. ACM.

MITRE (2019). Common Attack Pattern Enumeration and

Classiﬁcation (CAPEC). https://capec.mitre.org.

Shevchenko, N., Frye, B. R., and Woody, C. (2018). Threat

modeling for cyber-physical system-of-systems:

Methods evaluation. Technical report, Carnegie

Mellon University Software Engineering Institute.

Shostack, A. (2014). Threat modeling - Designing for secu-

rity. Wiley Publishing, 1st edition.

Tuma, K., Calikli, G., and Scandariatoa, R. (2018). Threat

analysis of software systems: A systematic literature

review. The Journal of Systems & Software, 144:275–

294.

Uzunov, A. V. and Fern

andez, E. B. (2014). An extensible

pattern-based library and taxonomy of security threats

for distributed systems. Computer Standards & Inter-

faces, 36(4):734–747.

Xiong, W. and Lagerstr

om, R. (2019). Threat modeling -

A systematic literature review. Computers & Security,

84:53–69.

Threat Modeling for Cyber-Physical Systems: A Two-dimensional Taxonomy Approach for Structuring Attack Actions

171
