A Conceptual Framework for a Flexible Data Analytics Network

Daniel Tebernum and Dustin Chabrowski

Fraunhofer Institute for Software and Systems Engineering,

Keywords:

Data Analytics, Distributed System, Edge Computing, Data Provenance, Architecture.

Abstract:

It is becoming increasingly important for enterprises to generate insights into their own data and thus make

business decisions based on it. A common way to generate insights is to collect the available data and use

suitable analysis methods to process and prepare it so that decisions can be made faster and with more conﬁ-

dence. This can be computational and storage intensive and is therefore often outsourced to cloud services or

a local server setup. With regards to data sovereignty, bandwidth limitations, and potentially high charges, this

does not always appear to be a good solution at all costs. Therefore, we present a conceptual framework that

gives enterprises a guideline for building a ﬂexible data analytics network that is able to incorporate already

existing edge device resources in the enterprise computer network. The proposed solution can automatically

distribute data and code to the nodes in the network using customizable workﬂows. With a data management

focused on content addressing, workﬂows can be replicated with no effort, ensuring the integrity of results and

thus strengthen business decisions. We implemented our concept and were able to apply it successfully in a

laboratory pilot.

1 INTRODUCTION

Nowadays, data is crucial when it comes to fasten pro-

cesses, optimizing business models, and uncovering

knowledge that could lead to an advantage over com-

petitors (Otto and Österle, 2016). Many companies

see data as a resource they can mine, process, and

then use to their advantage. Often, data is analyzed

to detect hidden patterns or to get better insights into

it (Miloslavskaya and Tolstoy, 2016). It is therefore

essential that enterprises have a data friendly environ-

ment, where they can exploit the full potential of their

data anytime and in the most ﬂexible way. When it

comes to harnessing their own data, enterprises face

a variety of challenges. One can be the mere amount

of available data, that is at the same time rapidly in-

creasing. Ernst & Young claim that the “exponential

data growth is a fundamental problem that is contin-

uing to overwhelm most businesses, and it is accel-

erating” (Cudahy et al., 2016). Besides volume, also

variety and velocity in data can be a huge challenge.

In literature, these properties are often mentioned un-

der the term Big Data (Chen et al., 2014). But even if

the available data does not meet all requirements de-

ﬁned by the big data term, it can still be a hard task

to get the needed insights into ones own data (Gan-

domi and Haider, 2015). Strategies like outsourcing

data and its processing to a cloud service are not al-

ways feasible and ﬁnancially reasonable. Also, a lim-

ited upstream capacity can be an obstacle when work-

ing with terabytes of data. Another strategy may be

to build a local cluster that implements concepts like

a data lake to run data processing pipelines. Here,

too, possible costs for obtaining suitable hardware

have to be taken into account. In addition, the data

must ﬁrst migrate to these systems. This may cre-

ate unwanted duplicates that require additional stor-

age capacity. On top of that, there is a risk that re-

sources will be wasted, since much of the data in a

data lake could be abandoned or forgotten, thus creat-

ing so-called data swamps (Buyya et al., 2018). A fur-

ther challenge for enterprises becomes apparent when

looking at the topic of data sovereignty. Both strate-

gies mentioned above can be vulnerable in this case.

By uploading business relevant data to the cloud, it

needs to be clearly deﬁned to what extent the enter-

prise’s own data sovereignty has been preserved when

third parties have access to it (De Filippi and Mc-

Carthy, 2012). It should also be noted that the idea

of data sovereignty is not limited to the outer bound-

aries of an enterprise. The exchange of data between

internal departments can already be an insurmount-

able obstacle because of sensible data or licensing is-

sues. When using data for business decisions, addi-

Tebernum, D. and Chabrowski, D.

A Conceptual Framework for a Flexible Data Analytics Network.

DOI: 10.5220/0009827402230233

In Proceedings of the 9th International Conference on Data Science, Technology and Applications (DATA 2020), pages 223-233

ISBN: 978-989-758-440-4

223

tional guarantees in reproducibility have to be made.

Data processing must be repeatable at any time in or-

der to strengthen the conﬁdence in decision-making.

Finally, for data-driven enterprises, it must be en-

sured that the environment for working with data is

robust and highly available. Central cloud and even

local services may be subject to malfunctioning mak-

ing data-driven enterprises vulnerable to operational

downtimes. For instance, in the year 2017, 600 ﬂights

were cancelled due to a failure, resulting in a loss of

$112 million

To overcome these problems, we suggest that

data-driven enterprises extend their existing data pro-

cessing environment by including the already avail-

able computing and storage resources at the edge of

the computer network. This should be done in such

a way that both the edge devices and local servers

or cloud resources can be seamlessly integrated into

one network. Our main contribution in this paper is

therefore a conceptual framework that describes how

to build a system that is ﬂexible in terms of supported

devices and executable code and thus forming a data

analytics network. It is intended to be a template that

addresses the challenges mentioned above and offers

features such as availability, robustness, scalability,

ﬂexibility, and reliability when working with data. In

the following we will further motivate the need for

such a solution based on an enterprise use case. We

will then list the relevant requirements and present our

concept. A speciﬁc implementation of our concept

will be developed and evaluated to show that we met

our requirements. Finally, we compare our approach

to existing solutions from literature and practice and

discuss our results.

2 USE CASE EXAMPLE

Here, we illustrate an enterprise use case that is based

on an existing real world scenario. It will motivate

why a ﬂexible and scalable data analytics network,

capable of using existing edge devices, may be desir-

able for data-driven enterprises. The involved enter-

prise is an active player in the pharmaceutical sector.

It carries out its own development and research and

also produces its own medications. Due to this multi-

tude of activities, a great amount of data is generated

on a daily basis. It is stored locally on end devices

of the employees, a central network share, or in the

cloud. The data is already being used for daily work

in various departments. But often, it is consumed

https://www.datacenterknowledge.com/archives/2017/

05/30/british-air-data-center-outage-feeds-outrage-at-airli

ne-cost-cuts

where it is generated, resulting in data and knowl-

edge silos. Within the company, it often appears that

interesting and relevant data to one’s own work can

only be found by accidental contact with people from

other departments. This is particularly important for

the employed data scientists that want to gather more

insight into the data and extract knowledge from it.

As we know from literature, data scientists tend to

spend around 80% of their working time in ﬁnding

suitable data, maybe more (Deng et al., 2017). The

enterprise is fully aware of this problem and would

like to introduce a so-called data catalog. Data cat-

alogs store metadata about data and thus are able to

provide a helpful search functionality. Metadata can

contain many different types of information. From

technical information like ﬁle format and ﬁle size,

textual descriptions, and statistical analysis to infor-

mation about the data owner and the data’s application

areas. In general, “metadata is key to ensure that re-

sources will survive and continue to be accessible into

the future” (NISO Press, 2004). The more meaningful

metadata is available, the better the search functional-

ity in the data catalog operates. However, due to the

large amount of data, it is no longer realistic to in-

sert metadata into the catalog by hand. Still, a lot of

metadata can be extracted using automated solutions.

Some methods are quite trivial, while others can be

highly complex. In any case, there will be a very large

number of metadata services, since each type of data

has different requirements for the extraction of meta-

data.

In combination with the potential sensitivity of the

data, a cloud-only solution is not preferred. The com-

pany’s employees are equipped with personal com-

puters, which are far from being fully utilized and

therefore have free computing and storage resources.

These resources should help to retrieve the metadata

for the data catalog. However, existing servers or

cloud capacities should not be completely left out,

as they could be included in more complex calcula-

tions. Since business decisions can be made on the

basis of metrics from the data catalog, the extraction

of metadata should also be reproducible. Further-

more, some data is only accessible to a small circle

of people. The extraction of metadata can therefore

not be performed on any computer, but only on des-

ignated machines. The IT department of the company

therefore wants a uniform concept for the integration

of the different types of end devices into a company-

wide analysis network. In particular, the fact of regu-

larly joining and leaving devices, possible errors and a

feasible scaling of the solution should be considered.

The metadata extraction services are implemented by

different teams and require different domain knowl-

DATA 2020 - 9th International Conference on Data Science, Technology and Applications

224

edge. Therefore, the implementation of these services

should focus on the functionality, i.e. on the what, and

not on the how.

3 REQUIREMENTS

In this section, the most important requirements for

our solution are presented, that, at the same time, de-

ﬁne the objectives we want to reach. The require-

ments are derived from a literature analysis with focus

on data analytics platforms (see Chapter 7) in combi-

nation with the already mentioned challenges in the

previous two chapters. Table 1 shows the require-

ments in a structured way. In the following we will

provide a more detailed explanation of these require-

ments.

Devices that participate in the analytics network

should be able to perform any kind of given analy-

sis task, as long as these tasks are in general techni-

cally compliant to our system (FR1). This reduces the

number of different types of participants in the net-

work, which, in turn, minimizes overall complexity.

Each device itself decides how much computing and

storage resources should be donated to the network

(FR2). If it is known that the resources of a device

must be utilized more regularly, this can be taken into

account in the conﬁguration for the analysis network.

In general, however, the goal is that particularly un-

derutilized devices in the enterprise network should

donate their resources (NFR1) so there will be no

limitations in daily business and no additional costs

for hardware. The targeted solution should therefore

be able to support a wide range of different hardware

and operating systems (NFR2). This will also avoid

the need to develop speciﬁc solutions for each type

of device. With every additional device joining the

network, the probability of them leaving it increases,

whether intentionally or due to an error. It is the re-

sponsibility of the system to deal with such events ap-

propriately in a self-orchestrating way, thus allowing

the leaving and joining of devices at any time (Hoque

et al., 2017) (FR3). To derive maximum beneﬁt from

the network, it should not be specialized in process-

ing a particular type of data (FR4). This is mainly to

enable a high level of domain independence. Appli-

cations for data analysis are often structured so that

the programming language for the application logic,

the data format, or the runtime environment are pre-

deﬁned. In order for the network to remain of interest

in the future and to lower the entry barrier for devel-

opers, no major restrictions should be placed on the

choice of programming language (NFR3). Looking

at analyses, they are rarely atomic and must necessar-

ily be performed by a single device. Often analyses

can be divided into sequential and parallel steps. The

description of an analysis is therefore to be deﬁned

using a workﬂow notation, which in turn is to be used

as a recipe by the network to perform the analysis it-

self (FR5). By composing workﬂows of smaller tasks,

developers can also easily reuse already existing solu-

tions. As certain responsibilities and capabilities still

need to be established in a decentralized network, an

effective orchestration of the resources becomes a ma-

jor challenge (Hoque et al., 2017). Therefore, our

solution must be able to identify free capacities and

distribute tasks in our analytics network appropriately

(NFR4). In addition to the pure orchestration of re-

sources, the distribution of data and code necessary

for the analyses is also to be automated (FR6). Since

the network is expected to handle a large amount of

data, the distribution of data and code must be able

to scale practically (NFR5). Sometimes, one does

not want to distribute data or even code into a net-

work that is not trusted one hundred percent. We al-

ready discussed the need for data sovereignty. The

system must be able to restrict the execution loca-

tions and distribution of data and code (FR7). It

should be noted that the result of an analysis is not

very useful if it cannot be reproduced anymore (Deel-

man and Chervenak, 2008). While this is a common

thing when it comes to scientiﬁc workﬂows (Liu et al.,

2015), this is also crucial for data-driven enterprises,

as their business decisions are powered by generated

data insights. Thus, capturing the whole environment

of such processes is required to enable this essential

feature (Nekrutenko and Taylor, 2012) (FR8). To re-

duce the dependency and costs of upstream trafﬁc to

external cloud services, the system must be powerful

enough to distribute code and data as well as schedul-

ing tasks solely inside the network (NFR6). Since this

comes along with a number of potential error sources,

failure and fault tolerance must be provided to execute

analyses effectively (NFR7).

4 CONCEPTUAL FRAMEWORK

4.1 Analysis Tasks

As described in the previous section, we want to give

the opportunity of participating in our analytics net-

work to as many computers in the network as possi-

ble. The solution should not be coupled to a speciﬁc

hardware architecture and should support the most

common operating systems. For this purpose, it is

necessary to create an abstraction layer that allows

the encapsulation of executable code. Typically, there

A Conceptual Framework for a Flexible Data Analytics Network

225

Table 1: List of requirements to the Data Analytics Network.

Abbrev. Requirement

FR1 Nodes inside the network can execute heterogeneous analysis tasks.

FR2 Nodes can specify how much computation power and storage they want to donate.

FR3 Nodes can join and leave at any time.

FR4 Generic types of data can be processed.

FR5 Analyses are deﬁned and executed as workﬂows.

Func. Req.

FR6 Distribution and execution of tasks and data in the analytics network must be done autonomously.

FR7 The scheduling can be restricted to privacy, responsibility, and data governance constraints.

FR8 Workﬂows are fully reproducible with guarantees on the data and code used.

NFR1 Existing but idle company resources can be incorporated.

NFR2 Analyses can be run on heterogeneous devices.

NFR3 There are no programming language restrictions for implementing analysis tasks.

NFR4 Available resources should be orchestrated in an efﬁcient way.

NFR5 Analysis code and data is distributed in a scalable way.

Non-Func. Req.

NFR6 Upstream trafﬁc to external cloud services can be reduced.

NFR7 A failure and fault tolerance provides high availability and robustness.

are two methods to achieve this. The ﬁrst method is

classical virtualization. This creates a guest system

on the host system in which any code can run encap-

sulated. However, this method is often too compu-

tational and memory intensive, as it usually requires

the virtualization of a complete operating system. An-

other possibility is the packaging of code inside a con-

tainer environment. This provides a more lightweight

form of virtualization that reuses existing components

of the operating system. These packages, sometimes

called container images, also have an advantage when

it comes to distribution, as they are smaller and thus

have lower bandwidth cost. In essence, a container

image can be handled like a regular ﬁle and thus

be easily distributed. In addition, this technology is

widely supported (Morabito et al., 2015). Because of

these properties, we decided to use container images

as an important part of our concept (FR1, NFR2). By

utilizing container images, we can also cover the re-

quirement of being programming language indepen-

dent (NFR3). Within a container, arbitrary environ-

ments can be created and thus also different compilers

or interpreters can be used. This is intended to keep

the analytics network attractive for different types of

developers, as there is no need to learn a speciﬁc lan-

guage. In addition, this encapsulation adds an addi-

tional isolation between the host system and the ex-

ecuted analytics code. To reschedule a failed task at

any time and without side-effects, the Analysis Task

(see Fig. 1 center) itself needs to be stateless and

idempotent (FR8, NFR7). Because of this, we can

avoid the need of capturing, distributing, and recreat-

ing previous states from other nodes.

A complete analysis rarely consists of a single task

but requires various operations on a dataset. There-

fore, this set of tasks is assembled with a workﬂow

model based on a directed acyclic graph (DAG). The

DAG is expressive enough to incorporate sequences,

conditions, and parallelism as well as tasks and data

dependencies. For scientiﬁc workﬂows, this model is

often already sufﬁcient as long as the workﬂow can

be reproduced (Liu et al., 2015). To describe such

workﬂows, we use a declarative Workﬂow Deﬁnition

ﬁle (see Fig. 1 left top) (FR5).

As a general concept, we chose ﬁles to contain

the input and output data of an Analysis Task. Con-

sidering the existing amount of heterogeneous data

sources, the ubiquity of ﬁles allows to integrate a

wide range of data types (FR4). For example, tabu-

lar data, documents, and multimedia can be persisted.

This even applies to native technologies like relational

or document-oriented databases and key-value stores.

To include streaming data, e.g. for IoT analytics,

these would be batched into ﬁles. In general, anything

that can be represented as a ﬁle can be processed by

the analytics network.

4.2 Analytics Network Orchestration

The management of the available network resources is

done by an Orchestration Component (see Fig. 1 left).

It is responsible for distributing Analysis Tasks to the

Worker Nodes (see Section 4.3) in the network in a

meaningful way. To make this possible, the Worker

Nodes need to inform the Orchestration Component

in regards to their hardware properties, like memory

and processing capability, their current working sta-

tus, and their working load. Based on this, the Or-

chestration Component is responsible for ﬁnding an

adequate Worker Node to place an Analysis Task on

(FR2, FR6, NFR4).

In order to allow the Orchestration Component to

DATA 2020 - 9th International Conference on Data Science, Technology and Applications

226

Workflow

Definition

«end device»

StorageNode

«end device»

StorageNode

«end device»

StorageNode

«container»

StorageHandler

«container engine»

«end devices»

StorageCluster

«end device»

WorkerNode

«end devices»

WorkerCluster

«end device»

WorkerNode

«end devices»

GenericServer

«end devices»

GenericServer

«network paradigm»

P2PNetworkLayer

AnalysisImageFiles

AnalysisResultFiles

Files

«end devices»

GenericServer

«container»

UploadHandler

«container»

AnalysisTask

«container engine»

«container»

DownloadHandler

«end device»

WorkerNode

«application»

Orchestration

Component

WorkflowEngine

ResourceOrchestrator

Actor

«owns»

P2PAdapter

«provides storage»

P2PAdapter

«provides»

«manages»

«controls»

«replicates»

«injects»

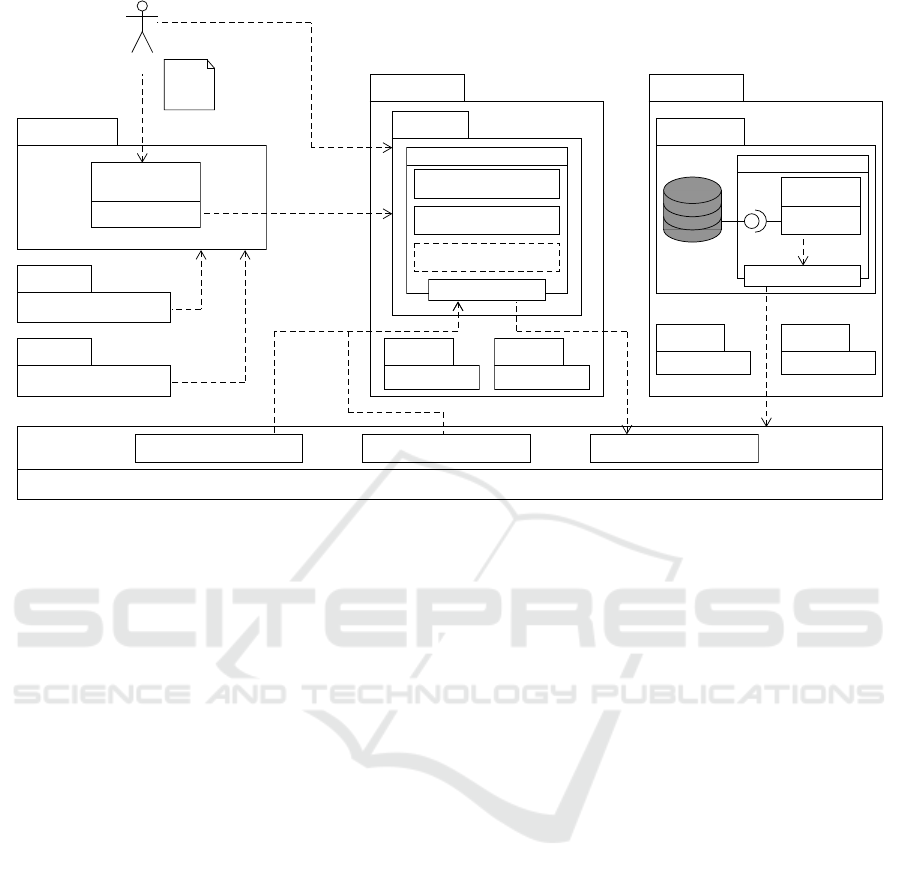

Figure 1: Architecture of the conceptual framework.

determine how analyses are to be performed and dis-

tributed in the network, it utilizes a Workﬂow Engine.

This component receives a Workﬂow Deﬁnition as in-

put and parses its structure. Based on this model, the

Workﬂow Engine ensures that the tasks are executed in

the described order and receive their input data. The

Workﬂow Deﬁnition can also contain certain restric-

tions where to place a task which is taken into con-

sideration during the scheduling process (FR7). For

instance, this can be a selection of some machines

or speciﬁc hardware requirements. In addition, the

Workﬂow Engine actively observes the status of the

individual tasks and their host machines to provide

basic fault tolerance (NFR7). A common scenario

in edge computing is the unexpected downtime of a

node. If this happens, the orchestrator can reschedule

the task (FR3). Since the Analysis Tasks are stateless

and idempotent, this is a safe operation. Because this

is the only centralized component in our concept, it

is recommended to incorporate replication strategy to

avoid this possible bottleneck.

4.3 Task Execution Environment

If an Analysis Task was implemented according to the

previous mentioned conceptual deﬁnition, we need an

environment for execution. Computers that want to

provide computing power and meet the requirements

for running Analysis Tasks can contact the Orchestra-

tion Component (FR1, FR3, NFR1). When a task

is assigned to a so-called Worker Node (see Fig. 1

center), it fetches the speciﬁc Analysis Task encap-

sulated by an analysis image and runs the respective

container. The assignment is done by the orchestra-

tor component. To keep data management operations

off the analysis image, two other containers are used

additionally. This allows developers to simply imple-

ment the Analysis Tasks without requiring knowledge

about the I/O handling. Thus, before the actual Analy-

sis Takes place, a Download Handler (see Fig. 1 cen-

ter) is spawned to provide the required input data. Af-

ter the analysis is completed, an Upload Handler (see

Fig. 1 center) is created to send the resulting ﬁles to a

Storage Cluster (see Section 4.4). That way, the data

can be made accessible for subsequent tasks of the

workﬂow, since after ﬁnishing a task, a Worker Node

restores its pristine state. We decided this way be-

cause of several reasons. On the one hand, we wanted

to prevent possible side effects when running over a

long period of time. On the other hand, we want

to claim a node’s resources only as long as needed

(NFR4). It is important to note that the Upload Han-

dler is optional if the output data is not returned to

the analytics network for further workﬂow execution.

For example, this can be useful when the last task is

executed on the actor’s machine.

A Conceptual Framework for a Flexible Data Analytics Network

227

4.4 Data Management

At the core of our conceptual framework, we want

to establish a common data management. The data

management is responsible for transferring and stor-

ing the data we work within our analytics network.

As already pointed out in the requirements, we are fo-

cusing on ﬁle-based data. Therefore, we need a data

management system that is particularly good at han-

dling ﬁles. To keep the load off a central storage,

we integrated a decentralized P2P network for the

distribution based on a distributed hash table (DHT)

(NFR6). The data on the nodes within the network is

identiﬁed with a cryptographic hash function whose

value is stored on the DHT. Peers then use the DHT

to ﬁnd the data for a given hash value and can re-

trieve it from potential multiple peers. A peer that

provides data can preprocess it before sharing it in

the network, thus ensuring its data sovereignty. Since

analysis images and the data itself can be stored as

ﬁles, we can address all required assets for a workﬂow

with this approach (NFR5). By using only content-

addressed ﬁles, we ensure that a given workﬂow al-

ways deals with the same data and code which en-

ables a reproducible execution (Nekrutenko and Tay-

lor, 2012) (FR8). An additional aspect that needs to be

covered is the storage of intermediate and, if desired,

ﬁnal results of a workﬂow. Since an edge device is not

as reliable as a server, we integrated a storage clus-

ter for longterm persistence. Powerful and reliable

devices can provide their free disk space by spawn-

ing a Storage Handler container and join a cluster of

such Storage Nodes (see Fig. 1 right). The cluster

is accessible via P2P and replicates the data between

its nodes, resulting in a scalable and reliable storage

system (NFR5). Regardless of the storage location,

the ﬁles are always content-addressed to ensure re-

producible actions later on.

4.5 Overall Picture

Now, we want to present how the individual compo-

nents interact. At ﬁrst, we have an actor who deﬁnes

a Workﬂow Description that speciﬁes which data is to

be analyzed using which Analysis Task in which or-

der. Furthermore, the actor can conﬁgure on which

node the tasks will be performed, hence enabling lo-

cal preprocessing of the data e.g. by specifying owned

machines (FR7). By deﬁnition, this machine has to be

a Worker Node to participate in the analytics network.

Subsequent tasks could share this data using the P2P

network. Then, the actor submits the Workﬂow Def-

inition to the Orchestration Component to start the

process. The component splits the workﬂow in indi-

vidual tasks that are to be executed by Worker Nodes.

The Orchestration Component triggers requirements

matching Worker Nodes and tells them which data

and which analysis image they have to utilize. After

downloading the image and data, the node executes

the task (FR1). Depending on the workﬂow, the result

is either stored on the machine or replicated by the

Storage Cluster provided by the P2P Network. While

a workﬂow is processed, the Orchestration Compo-

nent keeps track of all tasks with their generated out-

put data. Since the data management uses content ad-

dressing for analysis code and data, these assets are

always uniquely and reliably identiﬁed. In addition,

tasks can be restarted at any time because of their

idempotency. These features enable to generate a re-

producible workﬂow by extending the original Work-

ﬂow Deﬁnition with the content-addressed identiﬁer

of the intermediate and ﬁnal results (FR8).

5 IMPLEMENTATION

In this section, we will describe what speciﬁc tech-

nologies we used to implement our conceptual frame-

work. Our selection represents only one possible con-

ﬁguration. It is in the very nature of the conceptual

framework to deal with other technologies as well.

However, it is possible that when selecting other tech-

nologies, much more adaptation may be required to

meet the concept. Where appropriate, we name alter-

native technologies and explain why we have chosen

a particular one.

First, we need to decide for a container technol-

ogy. In order to provide the same image for heteroge-

neous architectures, we make use of an image index.

This index is a higher-level manifest containing a list

of references pointing to an image manifest for a spe-

ciﬁc platform. Since this feature is included in the

OCI speciﬁcation

, any compliant container engine

is sufﬁcient, for example containerd, rkt, or Docker.

We chose the latter for building the images because of

Docker’s support for ARM-builds on x86-machines.

For the P2P network, we were looking for a

content-addressed data exchange. The Interplanetary

Filesystem (IPFS)

supports both of these properties

and offers a variety of APIs to integrate it into a sys-

tem. On each node in the network, we deployed an in-

stance of an IPFS-powered component, which works

as an adapter for serving and loading the data from

the network. These instances are also containerized

for an easy deployment. Other local containers can

https://github.com/opencontainers/image-spec/blob/m

aster/image-index.md

https://ipfs.io/

DATA 2020 - 9th International Conference on Data Science, Technology and Applications

228

retrieve data from the network by sending a HTTP

request to this component, which fetches the desired

data via IPFS. Since we want to access and store anal-

ysis images in the same way, we also implemented an

image registry interface in the component. It is com-

pliant with the OCI speciﬁcation and translates regu-

lar calls to an image registry, e.g. downloading a sin-

gle layer, to corresponding IPFS fetch requests. This

enables the container engine to pull an image as usual

while it gets served from the P2P network. A mod-

iﬁcation of the container client is not needed. Since

both assets are provided by IPFS, we can use their

content-addressed identiﬁers in the workﬂow deﬁni-

tions to ensure a very strong reproducibility. The stor-

age cluster was build with the same technology. On

reliable nodes with sufﬁcient disk space, we deployed

IPFS to form a cluster

for automatic replication and

availability. There, intermediate and ﬁnal results as

well as analysis images can be stored and retrieved.

While we chose IPFS in version 0.4.20 because of its

low entry barrier and wide range of available APIs,

other technologies like DAT

or Chord (Stoica et al.,

2001) could also be great candidates in this case.

As described, the analytics network needs a way

to orchestrate the containers on the various nodes in

the network. This includes container placement ca-

pabilities and resource limitations when scheduling

tasks as well as conﬁguring new nodes and dealing

with outages. Kubernetes

is a well-known orches-

tration tool for managing containerized applications

as a cluster. It follows the client-server-architecture

and manages a set of worker nodes by a master node.

Workloads are described as declarative conﬁgurations

and are read by so-called controllers, that watch the

current cluster state and adjust it by taking actions

to match the desired state. The basic scheduling unit

for containers are so-called pods, which package one

or more related containers. Typically, Kubernetes is

used in cloud environments making use of powerful

hardware and network. Since this is not guaranteed

in our case, we aimed for a distribution designed for

use in edge computing scenarios. K3S

was a per-

fect match for this as it includes core features only

and packages them as a single binary, which speeds

up the deployment and management process greatly.

This way, each client can act as a Kubernetes node

allowing us to make full use of Kubernetes orchestra-

tion features. By conﬁguring resource limitations and

placing labels on the nodes, the scheduling process

can be adjusted to our needs. For instance, we could

https://cluster.ipfs.io

https://www.datprotocol.com

https://kubernetes.io

https://k3s.io

represent department boundaries within the nodes or

mark nodes with extra powerful hardware to assign

complex analysis tasks on these systems later on. In-

deed, other famous container orchestration solutions

like Apache Mesos

or Nomad

could be chosen, too.

However, for our use case Kubernetes and K3S of-

fered the best mix of a lightweight and powerful or-

chestration tool with a great engagement of developer

communities and companies.

Since the resource orchestration and the workﬂow

orchestration are deeply coupled, we need a container

native solution for managing our workﬂows and dis-

tributing the tasks. In addition, we want to use our

own data management system to provide P2P capabil-

ities and enable local preprocessing before sending it

to a storage, while still deﬁned as a workﬂow. The re-

quirement of a dynamic composition of custom work-

ﬂows instead of pre-deﬁned analytic pipelines lead us

to Argo

. Workﬂows are deﬁned as a DAG in form

of a custom Kubernetes resource. Argo’s own con-

trollers then take care of instructing Kubernetes to

create the pods according to the workﬂow. We ex-

tended the system in several places. First, we inte-

grated our data management system so that content-

addressed IDs can be speciﬁed for the images and

data. Second, we customized Argo’s submission of

workﬂows to generate an extra deﬁnition of the work-

ﬂow containing all the IDs of the images and the (in-

termediate) results. This workﬂow can ﬁnally be re-

submitted to reproduce the original workﬂow as it re-

lies on the same data. At last, we added support for

the workﬂow engine to deal with a sudden outage of

a node so that retry strategies can take place.

6 EVALUATION

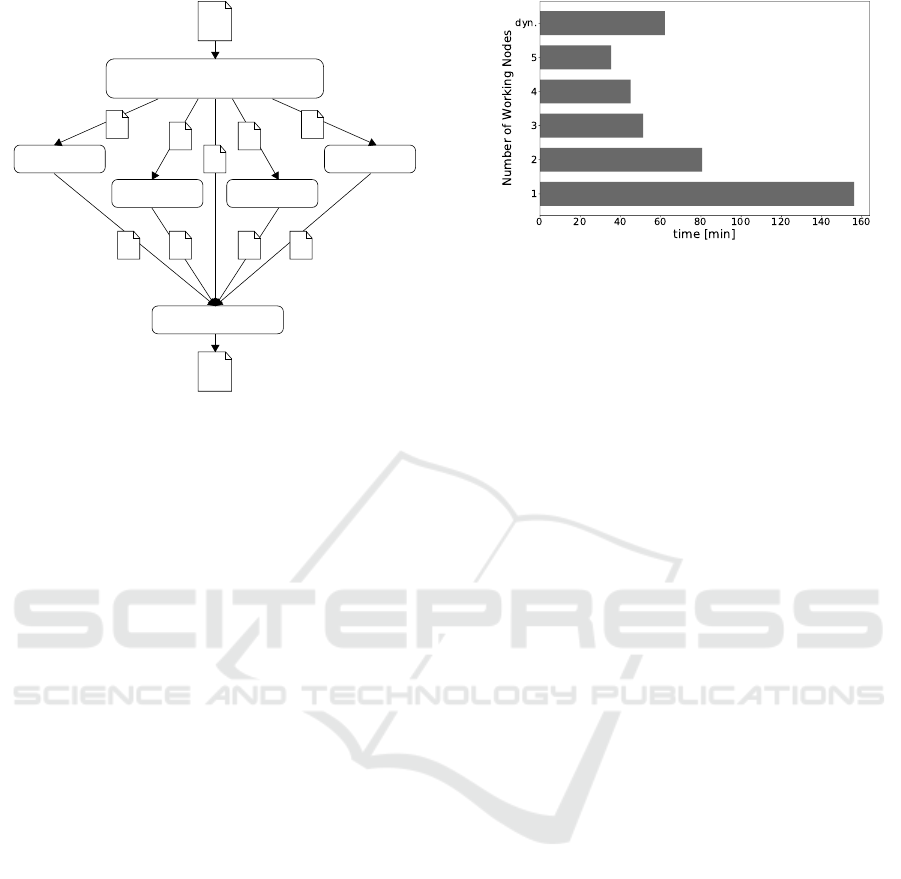

We evaluated the system on a laboratory pilot by us-

ing a testworkﬂow for a text analysis, shown in Figure

2. Its objective is to extract the text from a local PDF

document and process it with various analysis tasks,

for instance keyword extraction and summary genera-

tion. In the last step, the generated analysis results are

merged into a single result document. With this ex-

perimental setup we imitate a possible metadata ex-

traction for a data catalog as described in Chapter

2. The tasks were implemented as multi-architecture

images using Java, Node.js, and Python (NFR3) and

dealt with different data formats (e.g. PDF, TXT, and

JSON) (FR4). Indeed, other analytic workﬂows can

http://mesos.apache.org

https://www.nomadproject.io

https://argoproj.github.io

A Conceptual Framework for a Flexible Data Analytics Network

229

Detect Language

Calculate Metrics

Extract Keywords

Create Summary

Combine

Extract Raw Text

and

Metadata

Result

PDF

Figure 2: DAG of our evaluation workﬂow.

be implemented too, if they can be modeled as de-

scribed in 4.1 (FR1, FR5). To demonstrate the lo-

cal preprocessing capabilities, we enforced the ex-

ecution of the initial extraction task of a document

on its underlying node (FR7). As a testsystem, we

built a small cluster, mainly consisting of Raspberry

Pi Model 3B+. In addition, we included several x86-

PCs and could demonstrate cross-architecture support

(NFR2). However, for the actual performance eval-

uation, we restricted the execution to the Raspberry

Pis with no resource limits (FR2). We chose these

boards to represent the entire worker cluster to ensure

same speciﬁcations and have reproducible results. It

should be emphasized that an external storage was not

required (NFR6), but could be integrated. Then, we

submitted 60 instances of testworkﬂows and tracked

the overall execution time for various worker cluster

sizes (NFR2). In addition, we used a dynamic clus-

ter that gains one worker every 15 minutes by starting

Raspberry Pis gradually. The results are visualized

in Figure 3 and show that the required time and clus-

ter size are in reciprocal proportion (FR6, NFR4). It

also reveals that the systems adopts new workers auto-

matically and includes them in the scheduling process

(FR3, FR6, NFR1). Furthermore, we tested whether

the system is able to continue workﬂows when nodes

randomly crash and stay ofﬂine. To simulate such

scenario, we forced a shutdown on random worker

node while executing a task of a workﬂow. With our

extension, the workﬂow engine was capable of rec-

ognizing these situations and rescheduling the tasks

to live worker nodes (NFR7). The last tested feature

was reproducibility. First, we let the system generate

a reproducible workﬂow deﬁnition of a testworkﬂow.

Then, we submitted this deﬁnition once with modi-

Figure 3: Worker Node scaling evaluation.

ﬁed and once with the original input data. The system

behaved as expected, as the ﬁrst submission failed

while the last one succeeded and produced same re-

sults (FR8). While evaluating the prototype, we no-

ticed that loading larger ﬁles (≥ 1MB) via the P2P

network from the IPFS cluster took an unexpected

high amount of time. In fact, our tests revealed a de-

creased performance up to 75% compared to a direct

download with HTTP. Such problems when reading

large ﬁles from remote nodes in IPFS have also been

reproduced in another work (Shen et al., 2019). As

this is clearly an implementation problem from IPFS

0.4, it can maybe be overcome by updating to version

0.5 or by swapping IPFS in favor of DAT or other P2P

frameworks utilizing content addressing. Therefore,

fulﬁlling NFR5 in a bigger scale is a pending task.

7 RELATED WORK

Based on a literature analysis, we found a number

of related works in the academic world and industry

that aimed to either provide a holistic analysis plat-

form or focus on data analysis workﬂows with guar-

antees to certain execution properties. Due to the

sheer amount of existing solutions, we have selected

the most promising ones and classiﬁed them in re-

gards to their analysis workﬂow properties. The re-

sulting comparison is shown in Table 2. It should be

noted, that a comparison between all those systems

solely based on performance is not expedient due to

the wide range of their differences and qualities. Even

when using containerized tasks, it is difﬁcult to estab-

lish an equal starting point because of different ways

of distributing, used storage systems or processing

model. Therefore we will only compare on the basis

of the properties and features provided.

Especially in life sciences like bioinformatics and

biomedicine, the ability to execute scalable, repro-

ducible, and data-intensive workﬂows is an essential

task (Nekrutenko and Taylor, 2012) (Novella et al.,

DATA 2020 - 9th International Conference on Data Science, Technology and Applications

230

Table 2: Related work comparison.

Nextﬂow KNIME SnakeMake Galaxy Airﬂow Pachyderm Data Civilizer Kubeﬂow Our Solution

Workﬂow editor no yes no yes no no yes no no

Workﬂow model DAG DAG DAG DAG DAG DAG DAG DAG DAG

Data sovereignty

no no no no no no

no no yes

Distribution level task task task task task task n.a. task task

Containerized tasks yes no

yes yes yes yes

no yes

yes

Language restriction no Java no no no no

Python no no

Reproducibility medium

medium

strong

weak strong

medium strong

very strong

Automatic failover yes yes

no no yes yes no yes yes

Execution on

edge devices

no no no no no no no no yes

Decentral distribution

of code and data no no no no no no no no yes

Data can be preprocessed on their origin node without initial upload to a platform.

Import to Pachyderm’ storage required.

A KNIME instance is containerized, not a single task.

First-level sup-

port for containers.

Tasks must be deﬁned as container images.

Hash is not based on content.

Not clearly

documented how data is tracked.

Images are tracked by name and not by content.

Image and data are tracked

by hash.

Only whole workﬂow.

System designed to be executed on a cluster of heterogenous (edge) devices.

2019). Therefore, various systems and platforms,

such as Galaxy (Afgan et al., 2016), SnakeMake

(Köster and Rahmann, 2012), Nextﬂow (Di Tommaso

et al., 2017), and Pachyderm (Novella et al., 2019)

were designed to aid researchers and ease analytic

processes. All of these systems have in common that

the workﬂow are modelled as DAGs by using a cus-

tom domain speciﬁc language (DSL). Galaxy is re-

markable for a sophisticated graphical user interface

to compose such workﬂows. While this component is

clearly designed for scientiﬁc workﬂows, NextFlow

offers a more general workﬂow editor. This is a fea-

ture our system is clearly missing but left out inten-

tionally for the sake of this work’s scope. In systems

like Galaxy, SnakeMake, and NextFlow, the tasks can

not only be executed locally but on a distributed clus-

ter as well. It should be noted that a shared ﬁlesystem

for all cluster nodes is required and is not provided

by the platform itself. Such kind of storage can cause

performance problems and the data must ﬁrst be up-

loaded there. In contrast, Pachyderm and our system

distribute their workload with Kubernetes, but also

integrate their own data management solution. This

component is responsible for the storage, provenance,

and provisioning of data. While our data management

is fully decentralized, Pachyderm relies on a central-

ized repository where data must be stored before start-

ing a workﬂow. Our decentralized management al-

lows devices to preprocess data locally before making

it public to a distributed workﬂow. To our knowledge,

this data sovereignty property is missing in other sys-

tems. An interesting feature of Pachyderm’s repos-

itory is the splitting of incoming data into datums

when initially loaded. In our concept, this functional-

ity could be integrated in advance through a separate

workﬂow for data splitting. However, it is not compa-

rable because stream processing is deeply integrated

into Pachyderm. This dataﬂow programming model

is also used by NextFlow to assemble processes to

a pipeline. Other systems like SnakeMake and our

solution rely mainly on task parallelism. By utiliz-

ing containers, analysis code and its dependencies can

be packaged in a lightweight and encapsulated way

which is required for reproducible research (Novella

et al., 2019). The container virtualization for tasks

can be used in nearly all systems, but the integration

varies greatly as these containers are often not a ﬁrst-

class citizen but a way to package scripts. In Pachy-

derm and our approach, running a container is the na-

tive and only way to perform a task, thus achieving

a certain degree of encapsulation during the execu-

tion. Managing the input and output data is sepa-

rated by the data management component so devel-

opers only need to implement data processing con-

tainers. While all those systems offer a certain grade

of reproducibility, it differs in quality as truly repro-

ducible workﬂows have to be executed with the same

code and data. When the code is not directly provided

as a script but encapsulated in an external container

image, a system needs to ensure it is identical by its

content and not by its tag. By using content addresses

for images and data, our system tracks these assets in

a reliable, uniform, and precise way.

More general data analytics platforms are Kon-

stanz Information Miner (KNIME) by (Berthold et al.,

2009) and Data Civilizer (Deng et al., 2017). Both

systems are designed as a data management and work-

ﬂow system to support data scientists in their daily

work. By offering visualization, data cleaning and

preprocessing, and analytics capabilities as well as

workﬂow management (Rezig et al., 2019; Berthold

et al., 2009), they cover a much broader range of

features as our solution does. While custom analy-

sis tasks can be created, KNIME prescribes its own

A Conceptual Framework for a Flexible Data Analytics Network

231

framework in Java, utilizing the Eclipse IDE environ-

ment that has to be learned and used. Inside a task,

arbitrary commands can be executed, e.g. to create

and run a container (Fillbrunn et al., 2017). With

the newer versions of KNIME the workﬂows can also

be distributed. The Data Civilizer relies on a table-

in table-out interface while all other systems are less

restricted as they deal with generic ﬁle types. In addi-

tion, data civilizer provides a GUI for editing work-

ﬂows in conjunction with an I/O Speciﬁcation for

their workﬂow tasks. To our knowledge, a distributed

and containerized execution is not covered. In con-

trast to KNIME and Data Civilizer, our approach does

not include ready-to-use data wrangling and analytics

tools. However, if such tools are packaged as con-

tainer with a ﬁle-in ﬁle-out interface, they can be in-

tegrated seamlessly.

When dealing with workﬂow systems, Apache

Airﬂow

is a commonly used candidate. As an or-

chestration tool, it only controls and schedules the

actual tasks of a workﬂow on workers and does not

include a data management system. Workﬂows repre-

sent a DAG and are described with a Python DSL.

Therefore, it maps mostly to the workﬂow engine

component in our system. In comparison to Argo, it

does not integrate deeply into Kubernetes, but it of-

fers to execute tasks as pods. It is also possible to run

Airﬂow operators within an Argo workﬂow

. A sys-

tem that even includes Argo as its workﬂow engine

is Kubeﬂow. Kubeﬂow is a platform to perform and

deploy machine learning workﬂows in a scalable and

portable way on Kubernetes. Kubeﬂow Pipelines

its submodule for orchestrating, running, and visual-

izing workﬂows. To our knowledge, there is no extra

mechanism for reproducible workﬂows. Instead, the

metadata of a workﬂow, e.g. used containers as well

as input and output data, is recorded in a metadata

database for later inspection of provenance. In con-

trast to our system, it relies on a central repository as

storage.

An unique aspect of our systems seems to be

the inclusion of edge devices for running analysis

tasks and thus harvest existing idle resources. While

other solutions may be able to integrate edge devices

through additional effort and adjustments, this is al-

ready a fundamental part of our considerations.

https://airflow.apache.org

https://github.com/argoproj/data-pipeline

https://www.kubeﬂow.org/docs/pipelines/overview/pi

pelines-overview

8 DISCUSSION & CONCLUSION

This paper provides a conceptual framework and an

associated prototypical implementation of a ﬂexible

data analytics network. By including edge devices,

we achieve local preprocessing and are able to use the

power of existing idle resources. In order to make the

analyses more valuable and trustworthy, they are im-

plemented as reproducible workﬂows, as long as all

tasks are idempotent. For instance, our solution can

not guarantee a reproducible workﬂow if a task breaks

this rule and does something like an anonymization

that replaces data with random values. A possibil-

ity to overcome such issues is to use a separate prior

workﬂow that is responsible for preprocessing. The

resulting data can be used for a subsequent work-

ﬂow, which in turn is reproducible again. The eval-

uation revealed that the requirements of building a

ﬂexible and reliable network for data analytics, which

integrates edge resources dynamically, could be met.

Since we could only test our system in a small scale,

an evaluation in an enterprise network is a pending

task we want to cover in follow-up work. Before do-

ing so, however, it is necessary to check and solve the

performance problems that were discovered when us-

ing IPFS. Another question that arises when inspect-

ing the system’s architecture is the limits of the cen-

tralized orchestration component. Although it can be

operated in a high availability mode, it leaves a some-

what stale impression. While most of our other con-

ceptual components are P2P driven and highly scal-

able, the orchestration component’s scalability may

become a limiting factor for the whole system. If fea-

sible, we want to expand the concept in the future so

that the nodes in the analysis network divide up work-

ﬂows by consensus. Considering the current imple-

mentation, the development of a custom scheduler for

Kubernetes could be a reasonable approach to cope

with increasing numbers of worker nodes (Rausch

et al., 2019).

A screening of related work revealed many good

ideas, which are not present in our solution so far, but

can be added at a later stage or by using speciﬁc work-

ﬂow tasks. One interesting functionality is to split the

data into smaller pieces at the beginning of an analy-

sis to enable data parallel processing. For well-known

ﬁle types speciﬁc preprocessing strategies could be

provided. For instance, the rows of a CSV ﬁle could

be initially extracted by a designated task. Another

important feature, especially for end-users, would be

a graphical editor to compose workﬂows. Currently,

users are required to have deep knowledge about the

available images and how they can be arranged in a

meaningful way. By providing an intuitive graphical

DATA 2020 - 9th International Conference on Data Science, Technology and Applications

232

user interface, the system can be used by a greater

range of users with varying technical skills. Lastly, it

should be noted that the usage of the network is not

limited to analysis tasks. For instance, long-running

services could be run while making use of the uniform

deployment of software on diverse devices which the

system provides. For instance, a workﬂow could de-

ploy or update a service as the last task of an analysis.

ACKNOWLEDGEMENTS

This work was funded by the Fraunhofer-Cluster of

Excellence »Cognitive Internet Technologies«.

REFERENCES

Afgan, E., Baker, D., van den Beek, M., Blankenberg,

D. J., Bouvier, D., Cech, M., Chilton, J., Clements,

D., Coraor, N., Eberhard, C., Grüning, B. A., Guer-

ler, A., Hillman-Jackson, J., Kuster, G. V., Rasche,

E., Soranzo, N., Turaga, N., Taylor, J., Nekrutenko,

A., and Goecks, J. (2016). The galaxy platform for

accessible, reproducible and collaborative biomedical

analyses: 2016 update. Nucleic acids research, 44

W1:W3–W10.

Berthold, M. R., Cebron, N., Dill, F., Gabriel, T. R., Köt-

ter, T., Meinl, T., Ohl, P., Thiel, K., and Wiswedel,

B. (2009). Knime-the konstanz information miner:

version 2.0 and beyond. AcM SIGKDD explorations

Newsletter, 11(1):26–31.

Buyya, R., Srirama, S. N., Casale, G., Calheiros, R.,

Simmhan, Y., Varghese, B., Gelenbe, E., Javadi, B.,

Vaquero, L. M., Netto, M. A., et al. (2018). A mani-

festo for future generation cloud computing: Research

directions for the next decade. ACM Computing Sur-

veys (CSUR), 51(5):105.

Chen, M., Mao, S., and Liu, Y. (2014). Big data: A survey.

Mobile networks and applications, 19(2):171–209.

Cudahy, G., Flynn, C., Liu, J., Padmos, D., and Wanger, G.

(2016). Digital supply chain: it’s all about that data.

De Filippi, P. and McCarthy, S. (2012). Cloud computing:

Centralization and data sovereignty. European Jour-

nal of Law and Technology, 3(2).

Deelman, E. and Chervenak, A. (2008). Data management

challenges of data-intensive scientiﬁc workﬂows. In

2008 Eighth IEEE International Symposium on Clus-

ter Computing and the Grid (CCGRID), pages 687–

692.

Deng, D., Fernandez, R. C., Abedjan, Z., Wang, S., Stone-

braker, M., Elmagarmid, A. K., Ilyas, I. F., Madden,

S., Ouzzani, M., and Tang, N. (2017). The data civi-

lizer system. In Cidr.

Di Tommaso, P., Chatzou, M., Floden, E. W., Barja, P. P.,

Palumbo, E., and Notredame, C. (2017). Nextﬂow en-

ables reproducible computational workﬂows. Nature

biotechnology, 35(4):316–319.

Fillbrunn, A., Dietz, C., Pfeuffer, J., Rahn, R., Landrum,

G. A., and Berthold, M. R. (2017). Knime for re-

producible cross-domain analysis of life science data.

Journal of Biotechnology, 261:149 – 156. Bioinfor-

matics Solutions for Big Data Analysis in Life Sci-

ences presented by the German Network for Bioinfor-

matics Infrastructure.

Gandomi, A. and Haider, M. (2015). Beyond the hype: Big

data concepts, methods, and analytics. International

Journal of Information Management, 35(2):137–144.

Hoque, S., de Brito, M. S., Willner, A., Keil, O., and

Magedanz, T. (2017). Towards container orchestra-

tion in fog computing infrastructures. 2017 IEEE 41st

Annual Computer Software and Applications Confer-

ence (COMPSAC), 02:294–299.

Köster, J. and Rahmann, S. (2012). Snakemake—a scal-

able bioinformatics workﬂow engine. Bioinformatics,

28(19):2520–2522.

Liu, J., Pacitti, E., Valduriez, P., and Mattoso, M. (2015). A

survey of data-intensive scientiﬁc workﬂow manage-

ment. Journal of Grid Computing, 13(4):457–493.

Miloslavskaya, N. and Tolstoy, A. (2016). Big Data, Fast

Data and Data Lake Concepts. Procedia - Procedia

Computer Science, 88:300–305.

Morabito, R., Kjällman, J., and Komu, M. (2015). Hyper-

visors vs. lightweight virtualization: A performance

comparison. In 2015 IEEE International Conference

on Cloud Engineering, pages 386–393.

Nekrutenko, A. and Taylor, J. (2012). Next-generation

sequencing data interpretation: Enhancing repro-

ducibility and accessibility. Nature reviews. Genetics,

13:667–72.

NISO Press (2004). Understanding metadata. National In-

formation Standards, 20.

Novella, J. A., Emami Khoonsari, P., Herman, S., White-

nack, D., Capuccini, M., Burman, J., Kultima, K.,

and Spjuth, O. (2019). Container-based bioinformat-

ics with pachyderm. Bioinformatics, 35(5):839–846.

Otto, B. and Österle, H. (2016). Corporate Data Quality.

Springer.

Rausch, T., Hummer, W., Muthusamy, V., Rashed, A., and

Dustdar, S. (2019). Towards a serverless platform

for edge AI. In 2nd USENIX Workshop on Hot Top-

ics in Edge Computing (HotEdge 19), Renton, WA.

USENIX Association.

Rezig, E. K., Cao, L., Stonebraker, M., Simonini, G., Tao,

W., Madden, S., Ouzzani, M., Tang, N., and Elma-

garmid, A. K. (2019). Data civilizer 2.0: A holistic

framework for data preparation and analytics. Proc.

VLDB Endow., 12(12):1954–1957.

Shen, J., Li, Y., Zhou, Y., and Wang, X. (2019). Under-

standing i/o performance of ipfs storage: A client’s

perspective. In Proceedings of the International Sym-

posium on Quality of Service, IWQoS ’19, New York,

NY, USA. Association for Computing Machinery.

Stoica, I., Morris, R., Karger, D., Kaashoek, M. F.,

and Balakrishnan, H. (2001). Chord: A scalable

peer-to-peer lookup service for internet applications.

ACM SIGCOMM Computer Communication Review,

31(4):149–160.

A Conceptual Framework for a Flexible Data Analytics Network

233
