Domain Optimization for Hierarchical Planning based on Set-Theory

Bernd Kast

1 a

, Vincent Dietrich

1 b

, Sebastian Albrecht

1 c

, Wendelin Feiten

1 d

and Jianwei Zhang

Siemens AG, Corporate Technology, Otto-Hahn-Ring 6, 81739 Munich, Germany

University of Hamburg, Faculty of Mathematics, Informatics and Natural Sciences,

Vogt-K

olln-Str. 30, 22527 Hamburg, Germany

Keywords:

Hierarchy, Planning, Autonomy, Robotic Assembly.

Abstract:

The design of planning domains for autonomous systems is a hard task, especially when different parties are

involved. We present a domain optimization algorithm for hierarchical planners that uses a set-based formu-

lation. Due to an automatic alignment we can compose models from different sources to a larger domain for

efﬁcient planning. The combination of domain optimization and hierarchical planning can handle large scale

domains very efﬁciently. Our algorithm reduces the effects of the non-optimality that comes with the hierar-

chical approach. We demonstrate the scalability with a task and motion planning problem. In the scenario of

a robotic assembly with up to 62 parts and plan lengths of over 1000 steps the planning times are kept within

15 minutes. We show the execution of our plans on a real-world dual-robot setup.

1 INTRODUCTION

Robotic systems bring together hardware and soft-

ware components from different sources to solve a

speciﬁc task. Only for recurring tasks it is viable for

an engineer to compose the components and write or

parametrize algorithms to manage the different pieces

in a meaningful way.

However, even in an industrial environment, the

cost of setting up the system can easily exceed the

savings by the automated process. This is especially

true for smaller lot sizes or even lot size one pro-

duction. In order to address the automation of such

a highly ﬂexible production, we need algorithms for

the composition of such systems and decision making

during their runtime.

The algorithms for decision making have to han-

dle a mixed problem, which is depicted in Figure 1

with continuous geometric and discrete properties,

like attachment status or grasps. These planning prob-

lems become large for non-trivial tasks which results

in unreasonable computation times due to the curse

of dimensionality. This can be handled with a hierar-

chical approach, as presented in (Kast et al., 2019b).

https://orcid.org/0000-0001-7838-3142

https://orcid.org/0000-0003-0568-9727

https://orcid.org/0000-0002-3647-4043

https://orcid.org/0000-0002-7593-6298

Figure 1: The core operations of the process: assembly,

screw, handover, and place. Each action is planned and ex-

ecuted with the hierarchical planner.

In an industrial environment several different parties.

such as integrators or component suppliers, with vary-

ing user roles are involved to deﬁne modules, objec-

tives, and available resources. It must be possible to

provide the planner with these different pieces of in-

formation in a modular way while each module might

implement its own modeling scheme. These differ-

ent styles of expressing the declarative and procedu-

ral knowledge should not affect the performance of

the online planning.

Kast, B., Dietrich, V., Albrecht, S., Feiten, W. and Zhang, J.

Domain Optimization for Hierarchical Planning based on Set-Theory.

DOI: 10.5220/0009823007590766

In Proceedings of the 17th International Conference on Informatics in Control, Automation and Robotics (ICINCO 2020), pages 759-766

ISBN: 978-989-758-442-8

759

In this paper we propose a domain optimization al-

gorithm that aligns the models for efﬁcient planning.

We can either apply this algorithm on-demand, prior

to the planning, or as an ofﬂine step. We rely on our

set-theoretic foundation to reformulate the declarative

and procedural knowledge of the domain without in-

fringing their validity. We analyze the performance

of the optimization in a simulated setup with 800 test

runs and tasks of varying lengths. The ﬁnal experi-

ment is conducted on a real two-arm robotic system.

2 RELATED WORK

There are two strands in the literature that target do-

main optimization problems.

A recently very active branch are data-driven al-

gorithms, notably reinforcement learning approaches,

which optimize heuristics for a speciﬁc domain.

These methods show very good performances for

some easy to simulate problems, like board games

(Silver et al., 2016), (Silver et al., 2017) or com-

puter games (Mnih et al., 2013), (Vinyals et al., 2019).

However, application on real-world scenarios are still

difﬁcult due to the limited data available. Attempts

to overcome this include large scale pick and place

setups with hundreds of robots (Kalashnikov et al.,

2018) and, due to the difﬁcult nature of physics, hard

but rather short tasks (Xie et al., 2019).

In (Schmitt et al., 2019) reinforcement learning is

used in combination with an abstraction layer. This

layer allows eased simulation, ensures viability, like

collision-free movements, and provides an interface

for real-world execution that handles small devia-

tions. Still, training requires large datasets and pro-

cessing power. Additionally, the trained model is a

black box and thus hard to debug or transfer. In our

approach we rely on models and rules rather than sin-

gle data points that deﬁne the behavior of the resulting

system. The explicit representation enables introspec-

tion, which is a key feature during development and

for industrial environments. Additionally, less com-

putational power is needed for our approach. How-

ever, it lacks theoretical optimality and still requires

experts to program. In (N

agele et al., 2018) another

approach, which relies on domain speciﬁc heuristics

is proposed. In this case, however, the heuristics are

computed online by analyzing the desired goal. Ge-

ometric interdependencies are broken up and the re-

sulting plan is executed in simulation.

Another strand of related work covers optimiza-

tion of modeled domains. In (Kang and Nnaji, 1993)

a scheme for aligned and manually designed domains

is elaborated. This, however, covers a single domain

only and brings in its beneﬁts only when strictly fol-

lowed. In a real-world scenario different parties bring

in their modules, which are used for completely dif-

ferent problems as well, to compose the overall do-

main. Therefore, it is very hard to align everyone to

a common scheme. In our approach each party ful-

ﬁlls their user-role with the representation they pre-

fer. Just before planning, we harmonize the represen-

tations automatically.

For this type of optimization many algorithms that

operate on discrete, mainly PDDL domains have been

proposed. Two strands can be identiﬁed for algo-

rithms which either transform the problem to suite the

planner, or pick a planner, which can cope with the

characteristics of the original problem.

Portfolio planners, such as (Seipp et al., 2012),

(Katz et al., 2018) apply different planners with dif-

ferent heuristics on the domain and try to switch to the

most appropriate combination for the current problem

formulation.

In (Haslum et al., 2007), (Vallati et al., 2015) au-

tomated optimization algorithms for PDDL-domains

are proposed, which allow even non-experts to ap-

ply generic planning algorithms on general PDDL-

domains. In (Areces et al., 2014) a formalization for

an optimization scheme was found, that was formerly

applied manually on the domains. This even allows

an engineer to inspect the optimized formulation to

validate and further optimize it easily. However, it

comes with the difﬁculties and limitations of PDDL

to handle continuous domains.

3 APPROACH

Before we discuss our new domain optimization algo-

rithm, we highlight the properties of its set-theoretic

foundation, which was introduced in (Kast et al.,

2019a).

Our new algorithm is effective in combination

with a hierarchical planner only. We point out the rel-

evant properties of an example hierarchical planning

algorithm, which was proposed in (Kast et al., 2019b).

3.1 Declarative Knowledge

Following the line of (Kast et al., 2019a), we call el-

ements of the declarative knowledge concepts. For

us, a concept C is a subset of some concept base B

which is a set of instances that is not necessarily ﬁ-

nite. Concepts with the same concept base B

belong

to the same concept class Γ. The partial order more-

detailed than M

between two concepts holds true if

each instance described by the ﬁrst concept is also an

ICINCO 2020 - 17th International Conference on Informatics in Control, Automation and Robotics

760

Figure 2: Either the Box is the main actor and the robot

only the supporting actor, thus every property is described

product-centric, or it is vice versa and the robot has proper-

ties that describe the objects in its grippers.

element of the second one. Properties that are com-

mon to a set of instances deﬁne composite concepts.

These properties in turn can be expressed by value

ranges or sets, which are concepts themselves:

∼

r∈R

where C

with r ∈ R

are the sub-concepts and the

role set R

deﬁnes the composite structure.

Examples to this set-theoretic view, which we will

reconsider in subsection 3.4, are the concept bases of

Objects and Manipulators with exemplary concepts

of a box or a robotic arm.

The box with no property but an identiﬁer can be

detailed by concepts that deﬁne dimensions or its po-

sition, like on the table, grasped by the robot with

even more-detailed concepts that specify continuous

positions relative to some coordinate system.

The concept of the robot is detailed by concepts

that specify it’s current position and state. Part of the

state is the content of the gripper, which can be and

object, like an instance of an box, or it is empty as

nothing is currently grasped.

This example shows that some phenomena can

equivalently be expressed by instances of concepts

with different basic types, e.g. a robot holding a box

or a box in a robot’s gripper as visualized in Figure 2.

3.2 Procedural Knowledge

Planning is all about actions, which are represented

by the procedural knowledge. Only the procedures

make the declarative knowledge useful. We call these

building blocks of planning and execution operators

π. They map between given instances of input con-

cepts to instances of output concepts:

π : Π

∈R

π,in

→ Π

∈R

π,out

where the sets R

π,in

and R

π,out

describe the roles of the

respective input and output concepts. The mapping

can either be speciﬁed explicitly by a formula or im-

plicitly by a black box of code, some library, or even

a simulated or real-world experiment.

A set of operators is more-detailed than another

operator

π, when a sequence or network

π of these

operators exists with matching, more detailed outputs

compared to the original operator and inputs, which

are either a subset of the original inputs or orthogonal

to all of them, i.e. have a different concept bases and

are therefore independent to each other:

∀r

∈ R

π,in

∃r

∈ R

π,in

: (

) ∈ M

Γ(

)

∀r

∈ R

π,out

∃r

∈ R

π,out

: (

) ∈ M

Γ(

)

and for all r

∈ R

π,in

holds:

|{r

∈ R

π,in

| Γ(

) ⊆ Γ(

)}|

= |{r

∈ R

π,in

| Γ(

) ⊆ Γ(

)}|.

The more-detailed operators can consider addi-

tional information and are in general more costly to

be applied as they implement a more comprehensive

simulation or even real-world execution to tell the out-

come of the action.

This partial ordering is later used by the hierarchi-

cal planner to deﬁne new sub-planning problems.

3.3 Hierarchical Planner

The hierarchical planner, which we proposed in (Kast

et al., 2019b), is a forward state space planner that can

handle domains with both, discrete and continuous

properties efﬁciently. The basic idea of the planner

is to divide the overall planning problem into small

subproblems repeatedly, such that the curse of dimen-

sionality can be alleviated. We do this by planning in

an abstract domain ﬁrst. In this domain the goal can

be reached with a relatively small number of steps,

as the abstracted operators cover huge changes of the

state. Additionally, the branching factor is small due

to the smaller number of possible operators that can

be applied in that domain.

Once we found a solution on the coarse level, each

operator that was applied in this plan by itself de-

ﬁnes a new sub-planning problem with its inputs as

starting values and outputs as goals. The operators

that can be applied in this new, reﬁned domain are

the more-detailed operators as described in subsec-

tion 3.2. We apply this process recursively to each

of the newly generated planning problems until there

Domain Optimization for Hierarchical Planning based on Set-Theory

761

Figure 3: Geometric representation of the connection between two sets. The dark blue plane segment depicts the concept base

for all objects (a) while the yellow plane represents the manipulators concept base all robots belong to (b). The intersection

is a sphere (green). The projection of the sphere to the box-segment would miss the light green volume (c). This is due

to a possibly empty list of grasped objects for the robot, which has no representation in the original box-set. Therefore,

our algorithm extends the box-plane with the light blue segment depicting the ”no object” set (d). After this extension, the

volume can either be projected on the combination of the two blue plane segments (e) or the robot plane (f). This enables a

reformulation of the planning domain.

is no further reﬁnement for the operators. As the ab-

stracted domains and their planned solutions can only

be approximations of the real behavior, there can be

errors and unsolvable subtasks on any level. Our solu-

tion to avoid dependency on the downward reﬁnement

property is backtracking, which means that plans on

the abstract level are dismissed and new sequences

to the goal are recalculated if a reﬁnement fails. In

our system, execution is the ﬁnal reﬁnement and error

handling a case of backtracking.

Therefore the planning approach represents a

model predictive control scheme. Both execution and

error handling are ﬁrst class citizens with our plan-

ning approach. Under optimal conditions, when the

coarse level is a good approximation to the behavior

of the real-world, our planning approach can scale lin-

early with the length of the task. This, however, holds

only true if the downward reﬁnement property is al-

ways guaranteed. For a bad approximation the strat-

egy still grows exponentially as the full problem is

np-hard.

Additionally, our solutions are not necessarily op-

timal. It depends on the modeling of the coarse do-

mains to propose good intermediate goals for factor-

ization to have overall solutions close to the optimum.

This, however, can be a burden to the engineering, es-

pecially when different people model the levels of the

domain according to their respective user roles.

3.4 Optimization Algorithm

The key idea of our domain optimization algorithm

is to align the different levels of abstraction. This is

especially important, when engineers with differing

viewpoints on the problem, for example due to differ-

ent user roles, model different parts of the domain. As

described in subsection 3.3 the key to an efﬁcient fac-

torization with our hierarchical planner are the inter-

mediate goals that arise from the abstract level plan.

Remember that we need a sequence of operators

on the reﬁned level, which produces more detailed

instances than the coarser level. According to our

deﬁnition described in subsection 3.1, a concept, and

therefore an instance of that concept as well, cannot

be more-detailed than another, if their concept bases

differ.

Consider the example of the box and the robot

in subsection 3.1. Both can describe the same phe-

nomenon, but one from a product-centric view and the

other from an actor or tool-based angle. As they use

different concept bases, the robot with the box cannot

be a solution to the box in the gripper of the robot nor

of any of the abstractions of the box with the robot.

However, it is quite likely that the engineer model-

ing the coarse processing steps has a product-centric

view on the plant, while the person that designs the

cell with the robot or some other machining equip-

ment has a tool-based angle.

During planning the coarse level would deﬁne

intermediate goals, which are only reachable for

the reﬁned domain, if box and robot are separated.

This causes additional steps to be planned and exe-

cuted, which results in solutions that are farther off

the optimal plan. To overcome this issue, we can

identify concepts C

∼

r∈R

having a sub-concept

, j ∈ R

with a concept base matching our overall

goal, i.e. B

) ⊆ B

goal

). Then we reformulate

these concepts such that they have the same concept

base as the goal concept while the set that they rep-

resent is identical: Assume that C

∼

∈R

then

deﬁne the reformulated concept by

:= Π

∈R

× Π

r∈R

\{ j}

This concept is isomorph to a subset of C

and thus

has the concept base B

). This is the formal

description of the isomorphism described in subsec-

tion 3.1. With this transformation, which is depicted

in Figure 3, we can directly derive intermediate goals

and can successfully compare newly created instances

with our existing subset, as the concept bases match.

ICINCO 2020 - 17th International Conference on Informatics in Control, Automation and Robotics

762

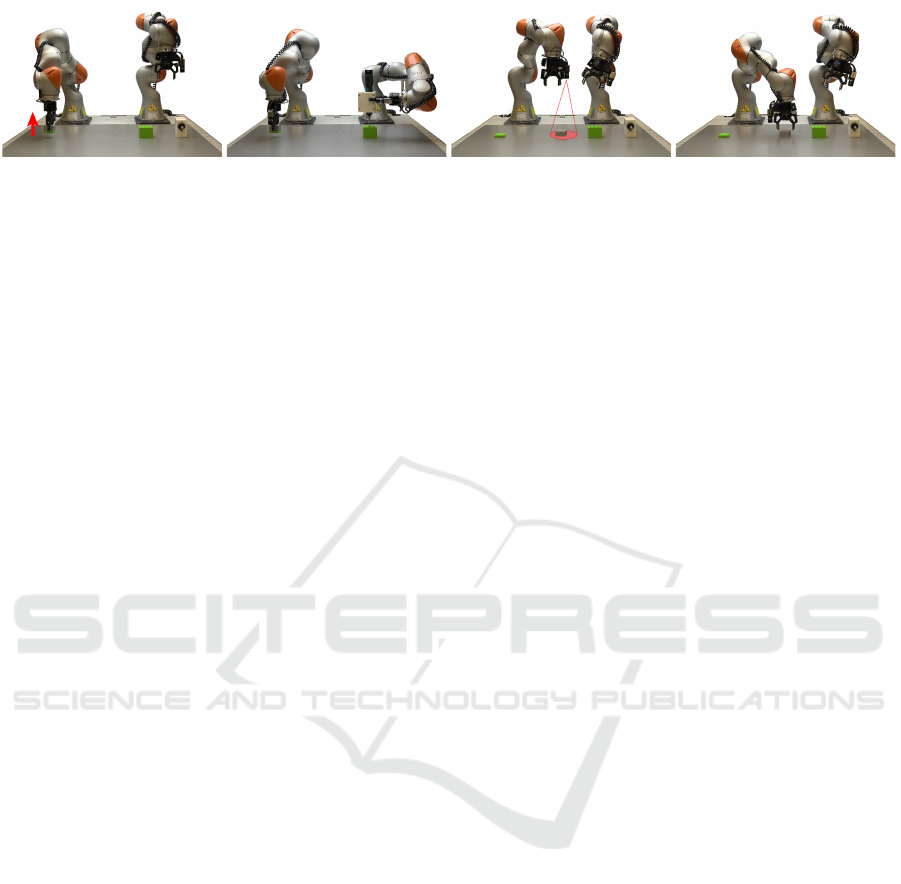

Figure 4: Extension to Figure 1 of important actions. Picking of the assembled box, localization of objects, screw out from

the magazine and initial pick of the box.

However, this is only possible if all elements of

the concept can be expressed in the other concept

base, which is not always true. Consider the example

where one concept is a composite concept having an

array of another concept type as a sub-concept. For

our robot-box-example, the composite concept with

an array is the robot and elements in this array are

of type box. Then not all composite concepts with

the array can be expressed equivalently by the sub-

concept, because the array might be empty, i.e. the

robot’s gripper is empty.

Therefore, we cannot express some instances di-

rectly in the form of the ﬁrst concept base. To over-

come this, we expand the ﬁrst concept base with a set

which contains the empty set, i.e.

∗

:= B

) ∪ {{

0}}.

Afterwards corresponding sub-concepts of all el-

ements of that extended concept base can have addi-

tional attributes:

:= {

0} × Π

r∈R

\{ j}

For example, a no-box-object can have the attribute

robot. This allows to cover empty arrays as well and

therefore include all relevant instances.

We then generated wrapping operators which re-

place the original ones that have optimizable input or

output concepts. They internally call the original op-

erators but change the type of the inputs and outputs,

such that the aligned and newly generated concepts

are returned. For a domain, which is optimized this

way, the intermediate goals deﬁned by the abstract

layers for the reﬁnement layers are relaxed, while the

speciﬁed overall goals remain ﬁrm. Therefore, the

overall result of the plan is the same for the original

and the optimized domain, while possibly less steps

are required for the optimized domain.

4 EXPERIMENT

In the real-world we conduct our experiment on a

dual arm robot with a total of 14 degrees of free-

dom. Each of the arms has a two-ﬁnger gripper and

a RGB-camera that is used to reﬁne the object poses.

The workspace is observed with a stationary 3D cam-

era, which is used to estimate the objects starting lo-

cations. We use a cordless screwdriver which is re-

motely controlled.

The assembly scenario we use to analyze the per-

formance of our algorithm includes the mounting of

a lid to a box and the insertion of multiple screws to

join them. The relevant actions that need to take place

are depicted in Figure 1 and Figure 4. It is necessary

to reﬁne the object positions with one of the wrist-

mounted cameras, before any interaction takes place,

which means prior to grasping or picking up screws.

Fastening the screws can only happen with the box

ﬁxated in one gripper and the screwdriver actuated

with the other arm. The objects (screwdriver and box

with lid) can be placed on the table which can cre-

ate loops in the state space. The box can additionally

be handed over between the two arms to change the

relative orientation in the gripper.

We generate collision-free robot trajectories with

the constraint-based solver described in (Schmitt

et al., 2019). This allows for good reachability with

relatively few intermediate positions for motion plan-

ning.

The conﬁguration of the perception system is

grounded on (Dietrich et al., 2018).

We can vary the number of screws that are inserted

to modify the difﬁculty of the task. The real box has

only four screw holes, which results in maximum of

six parts that can be assembled. In simulation we

added virtual screw holes such that we can examine

scalability of our approach for up to 62 pieces.

We analyze the performance of the optimization

algorithm on a domain that was ﬁrst designed on an

abstract, discrete layer only and later extended with

the continuous layers. There are a total of 4 modeled

abstraction layers for the task at hand. They include

two completely abstract levels, with and without lo-

calization of parts, simulated and real-world execu-

tion. Only the ﬁrst layer is workpiece centric, while

the others are robotic centric. The robot can local-

ize each object in its workspace, pick the box, place

it on the lid, localize the merged pieces again to pick

both up together. The other arm can then pick the

Domain Optimization for Hierarchical Planning based on Set-Theory

763

Pick

(Box)

Assemble

(Box, Lid)

Pick

(BoxLid)

Pick

(Screw

driver)

ScrewOut

(Magazine)

ScrewIn

(BoxLid)

Place

(Screw

driver)

Handover

(BoxLid)

Place

(BoxLid)

Frei verwendbar

Pick

(BoxLid)

Handover

(BoxLid)

Figure 5: Nominal sequence of actions for the assembly process. Localizations, which must be executed prior to each pick,

screw, or assemble are omitted in this graph, but must be added to the plan as those actions fail otherwise. Additional screws

require the repetition of the last actions actions of this sequence. For the optimized domain only the small loop with two

actions (and additional localizations) must be repeated. The original domain requires the execution of actions in the larger

loop, as the intermediate goal is more restrictive. This includes the placement of the screwdriver such that the handovers of

the box can be performed.

Figure 6: The number of steps in the successful solution for the task increases linearly. For the original domain more steps are

necessary per additional part. For the optimized domain the intermediate product is not placed and nevertheless recognized

as the interim step due to the reformulation. This is also reﬂected in the number of necessary backtracking steps shown on

the right ﬁgure. Both numbers go hand in hand, as shorter plans have less operations, that may fail during reﬁnement. Please

notice the change in step size right of the dashed line.

screwdriver, pick up a screw from the magazine, and

insert it in the air to the box with lid as depicted in

Figure 4. In order to reach the intermediate goals in

the optimized domain, the arm with screwdriver can

localize the magazine right away and continue to pick

up screws from the magazine and fasten the lid with

them. For the original domain on the other hand, the

box must be separated from the robot after each in-

termediate step to fulﬁll the intermediate goals posed

by the coarse level. This means that the box must be

placed on the table. However, the box is grasped up-

side down to allow access for the screwdriver. There-

fore, no collision-free way to place the box upright

with a single arm exists. That means an additional

handover is needed, and the planner must ﬁnd out that

the screwdriver must be placed to free the second arm

for that as highlighted in Figure 5. Afterwards the

box and the screwdriver must be localized again be-

fore the process can continue similar to the optimized

domain. In Figure 6 the resulting lengths of the suc-

cessful plans is depicted on the left hand side. We

can see that the plan lengths grow signiﬁcantly faster

for the original domain due to the described process

of additional placements. We tested each domain 100

times with increasing number of screws and a noise

of 5 cm added to the initial object positions. The vari-

ance in plan lengths is a result of additional free-space

movements to reach the goal positions. On the right

hand side the number of necessary backtracking steps

is depicted. This number grows for the original do-

main faster as well, as the additional steps that need

to take place compared to the optimized domain add

further points of possible failure during reﬁnement.

Therefore, not only the ﬁnal plan length is shorter for

the optimized domain, but also the planning process

examines less dead ends during the search. This is

also reﬂected in the planning times. Figure 7 shows

the them for each of the domains for different num-

ber of parts. We can observe that the optimized do-

main scales almost linearly even for a huge number

of parts. The original domain performs good as well,

however it has a signiﬁcantly faster increase in plan-

ning times compared to the optimized domain. Note

that even the original domain scales near linear, de-

ICINCO 2020 - 17th International Conference on Informatics in Control, Automation and Robotics

764

3 4

8 9

# of parts

500

1000

1500

2000

2500

3000

planning time [s]

original

optimized

3 4

8 9 10 11 22 32 42 52 62

# of parts

200

400

600

800

1000

1200

1400

planning time [s]

original

optimized

Figure 7: Planning times for the original and optimized domain for a task with three to 8 parts that need to be assembled. We

can observe a near linear relationship between planning times and length of the task. However, the optimized domain scales

signiﬁcantly better than the original domain. Please notice the change in step size right of the dashed line.

spite the very long plans of up to 300 steps. Non-

hierarchical planners would typically scale exponen-

tially with this plan length. The reason for this is that

the complexity is handled on the abstract levels of our

domain which results in very few calls to the very

expensive trajectory generation. The linear scaling

probably ends when the abstract planning problems

gains more weight on the overall planning times than

the problems on the reﬁned levels which individually

stay constant in size.

5 CONCLUSIONS

In this paper we presented a novel optimization algo-

rithm for planning domains, that are represented in a

set-based formulation. We use a hierarchical planner

that makes use of this formulation and provides near

linear scalability for our problem at the cost of non-

optimal solutions. Poorly modeled domains naturally

result in costly and computationally expensive solu-

tions.

Our optimization approach reduces these effects

and therefore allows for an easy composition of dif-

ferent models to an overall planning domain. This

is an indispensable prerequisite for scalable industrial

autonomy and ﬂexible manufacturing.

An alternative to this would be perfectly aligned

descriptions of each part of the overall domain. This,

however, can only be guaranteed in small demo sce-

narios, which are designed by a single person or a

small team. As soon as several groups or compa-

The presented research is ﬁnanced by the TransFit

project which is funded by the German Federal Ministry of

Economics and Technology (BMWi), grant no. 50RA1701,

50RA1702, and 50RA1703.

nies bring in modules which enable easy integration

and alignment of the models must be enabled by algo-

rithms. An important advantage of the explicit model

of the domain compared to learned heuristics is the

ease to debug and ability to explain the behavior of

the algorithm.

REFERENCES

Areces, C. E., Bustos, F., Dominguez, M., and Hoffmann,

J. (2014). Optimizing planning domains by auto-

matic action schema splitting. In Twenty-Fourth In-

ternational Conference on Automated Planning and

Scheduling.

Dietrich, V., Kast, B., Schmitt, P., Albrecht, S., Fiegert, M.,

Feiten, W., and Beetz, M. (2018). Conﬁguration of

perception systems via planning over factor graphs. In

2018 IEEE International Conference on Robotics and

Automation (ICRA), pages 1–7. IEEE.

Haslum, P., Botea, A., Helmert, M., Bonet, B., Koenig,

S., et al. (2007). Domain-independent construction of

pattern database heuristics for cost-optimal planning.

In AAAI, volume 7, pages 1007–1012.

Kalashnikov, D., Irpan, A., Pastor, P., Ibarz, J., Herzog, A.,

Jang, E., Quillen, D., Holly, E., Kalakrishnan, M.,

Vanhoucke, V., et al. (2018). Qt-opt: Scalable deep

reinforcement learning for vision-based robotic ma-

nipulation. arXiv preprint arXiv:1806.10293.

Kang, T.-S. and Nnaji, B. O. (1993). Feature representation

and classiﬁcation for automatic process planning sys-

tems. Journal of manufacturing systems, 12(2):133–

145.

Kast, B., Albrecht, S., Feiten, W., and Zhang, J. (2019a).

Bridging the gap between semantics and control for

industry 4.0 and autonomous production. In Int. Conf.

on Automation Science and Engineering. IEEE.

Kast, B., Dietrich, V., Albrecht, S., Feiten, W., and Zhang,

J. (2019b). A hierarchical planner based on set-

theoretic models: Towards automating the automation

Domain Optimization for Hierarchical Planning based on Set-Theory

765

for autonomous systems. In Int. Conf. on Informatics

in Control, Automation and Robotics. SCITEPRESS

Digital Library.

Katz, M., Sohrabi, S., Samulowitz, H., and Sievers, S.

(2018). Delﬁ: Online planner selection for cost-

optimal planning. IPC-9 planner abstracts, pages 57–

64.

Mnih, V., Kavukcuoglu, K., Silver, D., Graves, A.,

Antonoglou, I., Wierstra, D., and Riedmiller, M.

(2013). Playing atari with deep reinforcement learn-

ing. arXiv preprint arXiv:1312.5602.

agele, L., Schierl, A., Hoffmann, A., and Reif, W. (2018).

Automatic planning of manufacturing processes us-

ing spatial construction plan analysis and extensible

heuristic search. In ICINCO (2), pages 586–593.

Schmitt, P. S., Wirnshofer, F., Wurm, K. M., Wichert, G. V.,

and Burgard, W. (2019). Planning reactive manipu-

lation in dynamic environments. IEEE/RSJ Interna-

tional Conference on Intelligent Robots and Systems

(IROS).

Seipp, J., Braun, M., Garimort, J., and Helmert, M. (2012).

Learning portfolios of automatically tuned planners.

In Twenty-Second International Conference on Auto-

mated Planning and Scheduling.

Silver, D., Huang, A., Maddison, C. J., Guez, A., Sifre, L.,

Van Den Driessche, G., Schrittwieser, J., Antonoglou,

I., Panneershelvam, V., Lanctot, M., et al. (2016).

Mastering the game of go with deep neural networks

and tree search. nature, 529(7587):484.

Silver, D., Schrittwieser, J., Simonyan, K., Antonoglou, I.,

Huang, A., Guez, A., Hubert, T., Baker, L., Lai, M.,

Bolton, A., et al. (2017). Mastering the game of go

without human knowledge. Nature, 550(7676):354–

359.

Vallati, M., Hutter, F., Chrpa, L., and McCluskey, T. L.

(2015). On the effective conﬁguration of planning

domain models. In Twenty-Fourth International Joint

Conference on Artiﬁcial Intelligence.

Vinyals, O., Babuschkin, I., Czarnecki, W. M., Mathieu,

M., Dudzik, A., Chung, J., Choi, D. H., Powell, R.,

Ewalds, T., Georgiev, P., et al. (2019). Grandmas-

ter level in starcraft ii using multi-agent reinforcement

learning. Nature, 575(7782):350–354.

Xie, A., Ebert, F., Levine, S., and Finn, C. (2019). Impro-

visation through physical understanding: Using novel

objects as tools with visual foresight. arXiv preprint

arXiv:1904.05538.

ICINCO 2020 - 17th International Conference on Informatics in Control, Automation and Robotics

766
