A Distributed Checkpoint Mechanism for Replicated State Machines

Niyazi

Ozdinc¸ C¸ elikel

and Tolga Ovatman

2 a

Siemens R&D Center, Istanbul, Turkey

Department of Computer Engineering, Istanbul Technical University, 34469

Istanbul, Turkey

Keywords:

Replicated State Machines, Distributed Checkpoints, Fault Tolerance.

Abstract:

This study presents preliminary results from a distributed checkpointing approach developed to be used with

replicated state machines. Our approach takes advantage from splitting and storing partial execution history

of the master state machine in a distributed way. Our initial results show that using such an approach provides

less memory consumption for both the running replicas and the restoring replica in case of a failure. On the

other hand for larger histories and larger number of replicas it also increases the restore duration as a major

drawback.

1 INTRODUCTION

Increasing popularity of serverless software hosting

services offered by major cloud vendors boosted the

usage of state machine models in various areas of

software development for cloud. Serverless comput-

ing offers software developers to eliminate the neces-

sity to take care of many layers/aspects of software

development stack and focus on developing and ex-

pressing tasks to be executed by cloud system. It is

possible to use different expression models; however,

using state machine models to express the functional-

ity is one of the frequently preferred approaches for

serverless computing.

As well as the independence form software stack,

serverless computing also offers non functional re-

quirements such as automatic scaling, fault tolerance,

etc.. Replicating a master state machine that is go-

ing to work in a distributed way to handle and syn-

chronously process requests is a widely used model

to provide fault tolerance. Naturally, this approach

has its own challenges and limitations. A major ap-

proach that can be used in fault tolerance is check-

pointing. Checkpointing involves saving the system

state in periodic intervals to boot the system back in

time of a failure. Application of checkpointing in

replicated state machines and increasing the effective-

ness of the process is an active research area in today’s

cloud computing systems.

In this study we investigate the idea of distributing

the state machine snapshot images among the state

https://orcid.org/0000-0001-5918-3145

machine replicas to decrease the amount of memory

overhead used by each replica when saving the system

state. Our approach involves striping the request his-

tory into many pieces during the checkpointing pro-

cess so that each replica is going to store a certain

piece of the history while the whole history can be

obtained from the overall system.

We have implemented our approach using Spring

state machine framework and compared our results

with the default mechanism which Spring SM uses

to provide fault tolerance for the state machine en-

sembles. By default Spring SM stores the whole his-

tory in the ensemble communication medium among

the state machines, which is used as an Apache

Zookeeper instance in our case. This makes the

Zookeeper system a single point of failure, whenever

a failure occurs in Zookeeper system loses the check-

point snapshots that has been taken so far.

Our preliminary results show that our approach

eliminates this single point of failure by distributing

the checkpoint snapshots among the replicas. By con-

trolling the amount of redundancy, distributed snap-

shots can be gathered even if more than one replica

fails at the same time, during executions. More-

over we also decrease the amount of memory over-

head needed for the checkpoint mechanism by split-

ting the snapshot information among the replicas.

Currently, our approach, in its preliminary state pro-

duces a heavy recovery-time overhead since the failed

replica needs to collect pieces from different replicas

in order to obtain a full history of execution. Such a

trade-off is unavoidable but our future study is aimed

Çelikel, N. and Ovatman, T.

A Distributed Checkpoint Mechanism for Replicated State Machines.

DOI: 10.5220/0009797405150520

In Proceedings of the 10th International Conference on Cloud Computing and Services Science (CLOSER 2020), pages 515-520

ISBN: 978-989-758-424-4

515

towards minimizing this overhead.

In the rest of the paper, we begin by summariz-

ing the related work. Afterwards we explain our dis-

tributed checkpointing mechanism and provide an ex-

emplary architecture and experimental environment

to evaluate out approach in Section. We ﬁnalize with

conclusions and planned future work.

2 RELATED WORK

Performance of the checkpointing has always been a

widely investigated topic in the distributed comput-

ing domain. There are numerous techniques to be

used as a solution in order to minimize checkpoint

and recovery costs. (Heo, Junyoung & Yi, Sangho &

Cho, Yookun & Hong,Jiman & Shin,Sung, 2006) pro-

poses a solution for minimizing checkpointing costs

in terms of storage aspects while (Mao, Yanhua and

Junqueira, Flavio and Marzullo, K., 2008) focuses on

high network performance, in terms of throughput.

(Mao, Yanhua and Junqueira, Flavio and Marzullo,

K., 2008) propose a high-performance replicated state

machine check-pointing and recovering approach de-

rived from Paxos consensus protocol, which is out

of scope for this research. (B. Ghit and D. H. J.

Epema, 2017) propose to checkpoint only straggling

tasks in order to minimize the number of checkpoints

and hence, overall checkpointing overhead. (Naksine-

haboon, Nichamon and Liu, Yudan and Leangsuksun,

C. and Nassar, Ruba and Paun, Mihaela and Scott,

S., 2008) propose a novel checkpointing mechanism

in order to reduce the checkpoint data size by check-

pointing only dirty pages that are modiﬁed since last

checkpoint time. This novel approach named as in-

cremental check-point model which involves a deci-

sion mechanism in order to persist the minimal nec-

essary data to be check-pointed since the last check-

point time in the execution history.

There are many other efforts which is targeted

for ﬁnding a way to efﬁciently implement the check-

pointing mechanism in system level (Gioiosa, R. and

Sancho, J.C. and Jiang, S. and Petrini, Fabrizio, 2005)

or user level (Sancho, J.C. and Petrini, Fabrizio and

Johnson, G. and Frachtenberg, Eitan, 2004). (Sancho,

J.C. and Petrini, Fabrizio and Johnson, G. and Fracht-

enberg, Eitan, 2004) states the user level approach

as checkpointing is performed explicitly by exter-

nal applications and propose the approach for deter-

mining optimal checkpoint frequency as a matter-of-

fact. (Gioiosa, R. and Sancho, J.C. and Jiang, S. and

Petrini, Fabrizio, 2005) deﬁnes the system-level ap-

proach as generally-applicable approach, which can

be deﬁned as an application is unaware whether it

is checkpointed or not. Gioiose et al. also pro-

poses an innovative methodology called buffered co-

scheduling which is implemented at kernel level,

hence has unrestricted access to processor registers,

ﬁle descriptors, and states several check-pointing for-

mulations to be used, such as internal check-pointing

in which uses UNIX/LINUX signal mechanism.

The idea behind using replicated state machines in

order to model distributed check-pointing approach is

already stated by (Bolosky, William and Bradshaw,

Dexter and Haagens, Randolph and Kusters, Norbert

and Microsoft, Peng, 2011) and (Fred B. Schneider,

1990), replicated state machines can be made fault-

tolerant by running on multiple computers with feed-

ing the same inputs.

3 DISTRIBUTED

CHECKPOINTING

Distributed checkpointing approach for replicated

state machines utilizes the idea of each replica sav-

ing the state of execution history for a predesignated

period of time. This way each replica stores one or

more portions of the execution history locally, later to

be retrieved by a freshly booting replica.

Let’s assume that each state machine consists of

some states denoted as s

and some actions that trig-

ger transition between states such as s

−→ s

where

transition from state i to state j is triggered by action

k. These deﬁnitions result in a basic state machine

model in 1 that is going to be used in this paper’s con-

text. In this deﬁnition δ deﬁnes the transitions as a

function from state-action pairs to states.

M = {S, A}

S = {s

, s

, . . .}

A = {a

, a

, . . .}

δ = S × A → A

(1)

Regarding the deﬁnition in equation 1 we can ex-

emplify the execution history for a state machine as

in deﬁnition in equation 2 where the history begins

with a state and continues by action-state pairs where

each state is navigable by the related action in the state

machine deﬁnition. This example can be used to rep-

resent portions of history where the history may con-

tain only a portion of the full execution of the state

machine. However if the history begins by the initial

state (e.g. s

) than the history represents the full ex-

ecution history until the ﬁnal state of the sequence in

the history.

H = s

, a

, s

, a

, s

, . . . (2)

CLOSER 2020 - 10th International Conference on Cloud Computing and Services Science

516

The deﬁnition in equation 2 does not include

any temporal information about the execution history

other than the sequence of state transitions. To deﬁne

the time interval that the history belongs to we are go-

ing to use a superscript to indicate a discrete clock tick

interval that begins from 0 tick as the full execution’s

beginning time. In addition, we are going to use a

subscript to associate a history with the id of a replica

which currently stores the given partial history.

0−39

= s

, a

, s

, a

, s

, a

, . . . , s

, a

, s

0−9

= s

, a

, s

, a

, . . . , a

, s

10−19

= s

, a

, s

, a

, . . . , a

, s

20−29

= s

, a

, s

, a

, . . . , a

, s

30−39

= s

, a

, s

, a

, . . . , a

, s

(3)

For instance, the full history indicated as H

0−39

in equation 3 describes an execution history collected

between time ticks 0 and 39, where 21 different states

has been travelled, triggered by 20 different actions.

In order to be more illustrative all the actions and

states are chosen as distinct and numbered in se-

quence for the sake of this example. In a realistic

scenario there would have been arbitrary transitions

among the states of the state machine with arbitrary

incoming actions. In equation 3 the full history is kept

by four different replicas, each indicated with H

s−e

where i represents replica id, s represents beginning

time tick and e represents end time tick. The history

is divided into four different partial histories in this

example where each part is kept in a different replica.

In a replicated state machine, logically all the

replicas act as a logical master state machine where

any request, triggering an action, received by a replica

is synchronously communicated and reﬂected to other

replicas, causing the other replicas to execute the

same action in their local machines. This situation

results is a logical master history, which corresponds

to H

0−39

in our example, be shared between all the

replica state machines.

In our distributed checkpointing, approach we

have implemented the underlying mechanism for the

replicated machines to synchronously store, collect

and merge this logical history by the currently run-

ning replicas. Since there is a single logical history

for all the replicas, it is not required to store a real

time clock to perform fair sharing of the execution

histories; instead it is sufﬁcient to count the number

of actions in current partial history to decide when to

start/stop storing a partial history by each replica.

Brieﬂy, our distributed checkpointing approach

utilizes the discrete time depending on executing ac-

tions in replicated state machines to distribute the

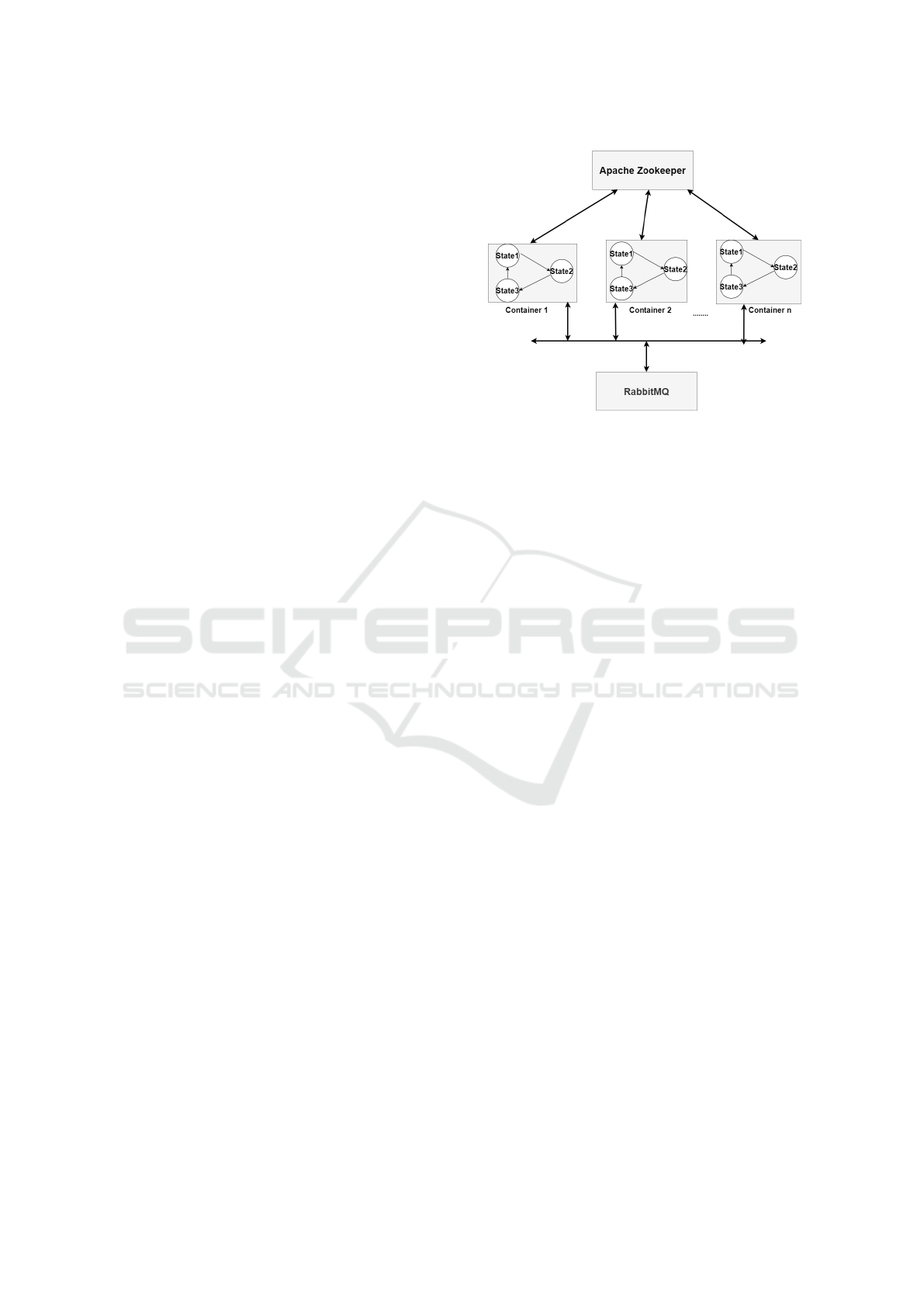

Figure 1: Overall Architecture.

checkpoint storing responsibility between the current

members of an ensemble (replica group). In this paper

we investigate the advantages and overhead of per-

forming such a distribution in a replica group. We can

perform many additional tasks such as re-distributing

histories to load balance for replicas that has just

joined an ensemble or storing redundant partial his-

tories to eliminate single point of failure in a replica

group.

4 SYSTEM ARCHITECTURE

AND EXPERIMENTAL

ENVIRONMENT

In our system architecture illustrated in Figure 1,

replicated state machines perform simpliﬁed opera-

tions on its own local variables, such as incrementing

and decrementing, and also updates shared variables

while passing from one state to another. Once all the

replicated state machines are started to run, they waits

events to be triggered in order to perform transitions

between states. When the ﬁrst event is forwarded to

any of the state machines, it processes this event, per-

forms necessary operations on its local variables, up-

dates shared variables which is shared among states

and ﬁnishes its execution in order to process the in-

coming event. Once the processing of the event is ﬁn-

ished, all the state machines will be in the same state

and then will wait next event to process. The syn-

chronization between states is established by master

machine.

In our experimentation environment base func-

tionalities used for executing distributed checkpoint-

ing mechanism are built. There are three clients

which executes replicated state machines in Figure 2

A Distributed Checkpoint Mechanism for Replicated State Machines

517

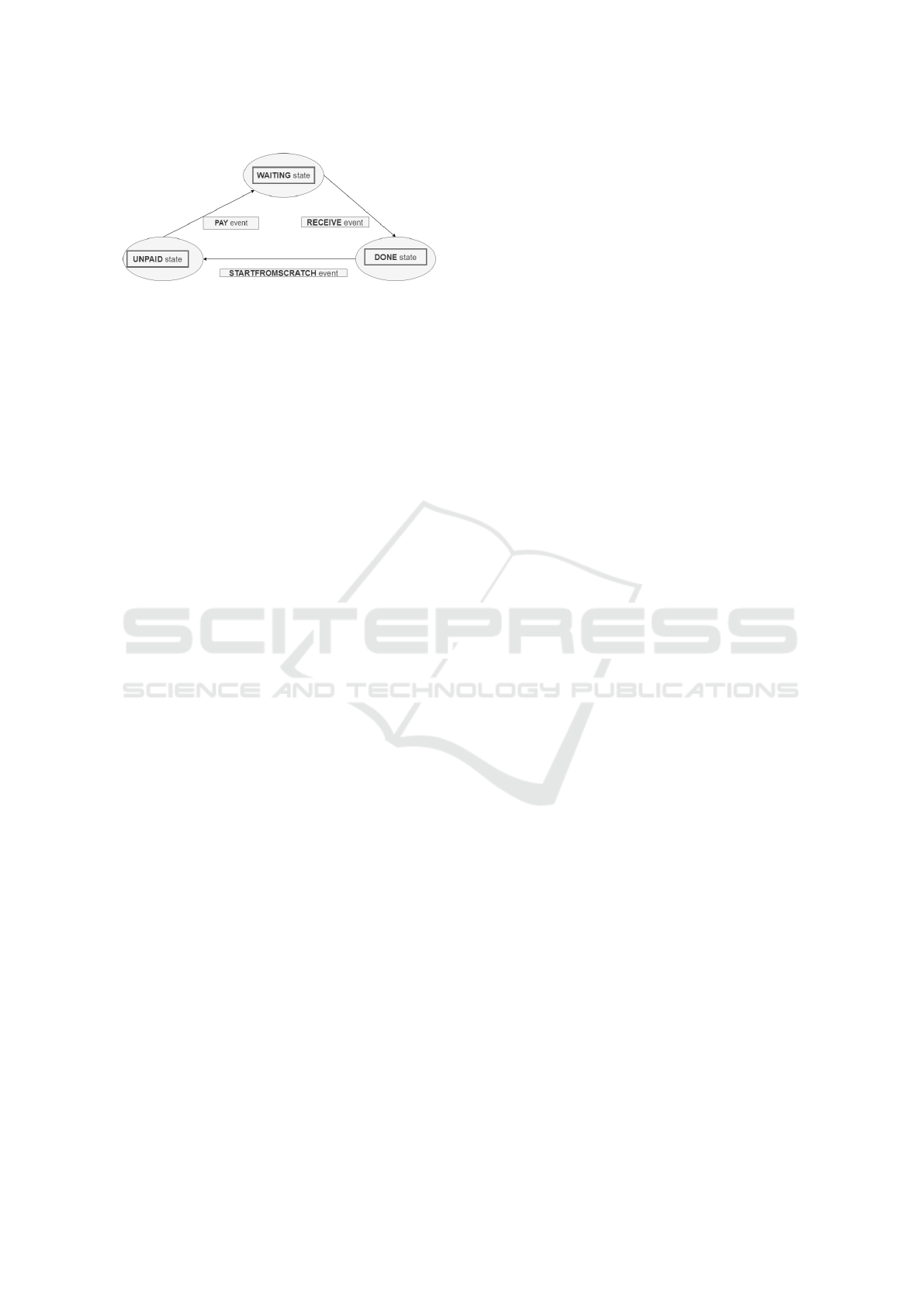

Figure 2: States and transitions of the replicated state ma-

chines.

and one master machine which hosts the Apache

Zookeeper binaries and provides coordination mech-

anism for replicated state machines.

Each of these clients and master machine runs as

containers in Docker Engine. The aim of using docker

containers is simplifying the connections between the

clients and master in an isolated network structure.

Our proposed mechanism do not need to be run in-

side containers; it can be applied to any replicated

state machine implementation. In our experimental

implementation we have chosen to use containers to

host the replicas. Moreover, by using containerization

phenomenon, clients and master can be started up in

repetition by using minimal resources of the machine

which hosts docker daemon. All the clients and mas-

ter machine runs as lightweight linux containers. In

addition to that, with the aim of starting and stopping

containers, starting and stopping replicated state ma-

chines inside containers, docker-compose tool is used

for orchestration purposes.

An example docker-compose ﬁle is provided in or-

der to start replicated state machines inside contain-

ers:

version: "3"

services:

smoc1:

build:

context: .

dockerfile: smoc/Dockerfile

networks:

- distributedWan

hostname: ${HOSTNAME_SMOC1}

environment:

- EXCHANGE=${IPC_EXCHANGE_FOR_SMOC1}

- QUEUE=${IPC_QUEUE_FOR_SMOC1}

smoc2:

build:

context: .

dockerfile: smoc/Dockerfile

networks:

- distributedWan

hostname: ${HOSTNAME_SMOC2}

environment:

- EXCHANGE=${IPC_EXCHANGE_FOR_SMOC2}

- QUEUE=${IPC_QUEUE_FOR_SMOC2}

networks:

distributedWan:

external:

name: loadbalancer_isolatedNetwork

Distributed checkpointing is continuously being

performed during the life-cycle of the replicated state

machines. Each of the state machines being executed

in each clients, does not store whole execution his-

tory -which includes state transitions, states, local and

shared variables-, they only store minimal portion of

the execution history. Once an event is forwarded to

any of replicated state machines inside the ensemble,

it is stored locally by the state machine which pro-

cessed this event on its local context. Context for

the replicated state machines can be modelled as in-

put -incoming event, event timestamp, source event-

and as output -local and shared variables, destination

state- and be stored as a whole. Hence, the replica

which processes the event is responsible for storing

related artifacts regarding this event. As a result of

checkpointing process in each client, whole execution

history is persisted in distributed manner in different

containers.

In case of any failure in any of replicated

state machines, execution history can be gath-

ered from non-faulty clients via a broadcast

message.Communications between client machines

which hosts replicated state machines are established

via remote procedure calls using the RabbitMQ mes-

sage broker tool. Once the faulty client processed the

incoming messages, sorted and applied in the exe-

cuted order on its own state machine, it is ready to

re-join the cluster again.

From that point on, experimental setup is pre-

sented. A debian-based machine is used for con-

ducting our experiments, which is equipped with

2.60 GHz Intel i5 CPU, 4 GB RAM and 100 GB

SSDs. The communication medium among contain-

ers are established via network features of the docker-

compose tool. The master node hosts the Zookeeper

binaries whereas client nodes -which are based on

alpine base image- serve as hosts for the replicated

state machines.

5 EVALUATION

We have conducted experiments with 4, 8, 12 and

16 replicas in an experiment environment described

in the previous section and measured the amount of

difference between memory consumption and restore

duration.

CLOSER 2020 - 10th International Conference on Cloud Computing and Services Science

518

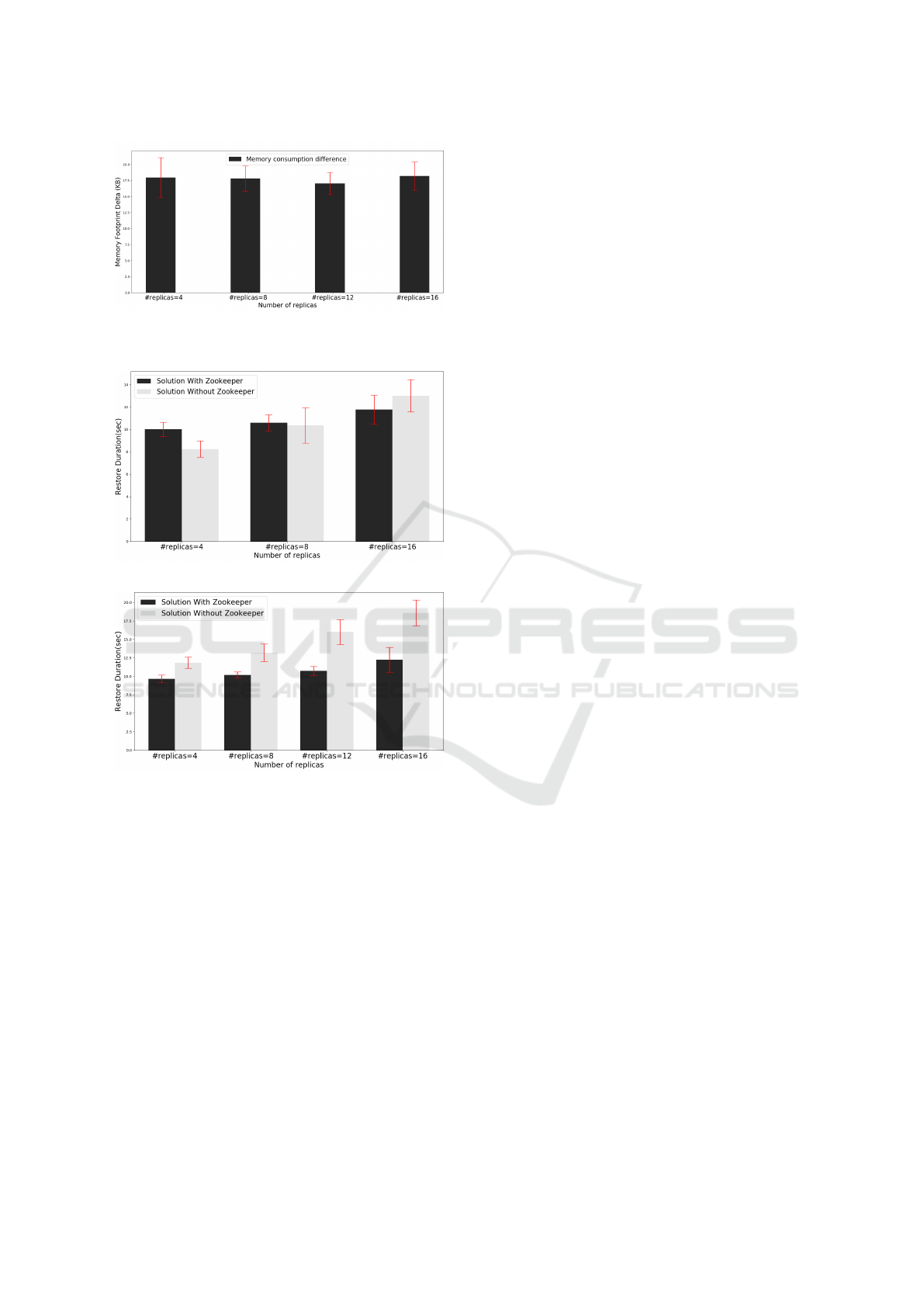

Figure 3: Memory consumption difference of the replica

being restored.

(a) 96 requests

(b) 960 requests

Figure 4: Replica restore durations.

In Figure 3, we present the difference in mem-

ory consumption of the replica that is being restored

with and without using distributed checkpoints. Each

bar in the ﬁgure represents the difference of mem-

ory consumption between conventional checkpoint-

ing and distributed checkpointing. Distributed check-

pointing mechanism provided around 17 kilobytes of

advantage compared to the conventional checkpoint

mechanism present in Spring state machine frame-

work.

In Figure 4, we present the restore duration for a

history with 96 different requests and 960 requests re-

spectively. We have used a ten-fold input in terms of

number of requests to observe the effect of large num-

ber of requests on restore duration during our compar-

ison. It can be seen that even though our approach

provides comparable results for small histories and

small number of replicas as the amount of communi-

cation need increases our approach starts to perform

poorly.

We would also like to note that using distributed

checkpoints also decreased the memory consumption

from 2 up to 7 kilobytes in each replica for the exper-

iments above. Even though there exists an advantage

in using distributed checkpoints in terms of memory

consumption, still the trade-off for restore duration

seems to be high for larger systems.

6 CONCLUSION AND FUTURE

WORK

In this preliminary work we have proposed a dis-

tributed checkpoint mechanism that can be used in

replicated state machines. Our work relies on split-

ting execution histories into multiple parts during the

execution so that each part can be stored by another

replica. This approach also allows redundant storage

of partial histories to reduce the number of critical

replicas that may render the system useless in case

of failure. Besides the mentioned advantage, our ap-

proach provided less memory usage in present repli-

cas and in the replica which is being recovered. In its

current form, recovery time is increased because of

the extra communication overhead needed for collect-

ing partial histories from replicas. We plan to work on

decreasing this overhead as much as possible to pro-

vide a better trade-off for distributed checkpointing.

Another possible area of extension is balancing the

amount of checkpoint data stored in each replica with

the addition of new replicas to an existing ensemble.

ACKNOWLEDGEMENTS

This study is supported by the scientiﬁc and tech-

nological research council of Turkey (TUBITAK),

within the project numbered 118E887

REFERENCES

B. Ghit and D. H. J. Epema (2017). Better safe than sorry:

Grappling with failues of in-memory data analytics

frameworks. HPDC, pages 105–116.

Bolosky, William and Bradshaw, Dexter and Haagens,

Randolph and Kusters, Norbert and Microsoft, Peng

(2011). Paxos replicated state machines as the basis of

a high-performance data store. NSDI’11: Proceedings

A Distributed Checkpoint Mechanism for Replicated State Machines

519

of the 8th USENIX conference on Networked systems

design and implementation, pages 141–154.

Fred B. Schneider (1990). Implementing fault-tolerant ser-

vices using the state machine approach: A tutorial.

ACM Computing Surveys, 22:299–319.

Gioiosa, R. and Sancho, J.C. and Jiang, S. and Petrini, Fab-

rizio (2005). Transparent, Incremental Checkpointing

at Kernel Level: a Foundation for Fault Tolerance for

Parallel Computers. SC ’05: Proceedings of the 2005

ACM/IEEE Conference on Supercomputing, pages 9–

Heo, Junyoung & Yi, Sangho & Cho, Yookun &

Hong,Jiman & Shin,Sung (2006). Space-efﬁcient

page-level incremental checkpointing. Journal of In-

formation Science and Engineering, 22:237–246.

Mao, Yanhua and Junqueira, Flavio and Marzullo, K.

(2008). Mencius: Building Efﬁcient Replicated State

Machine for WANs. OSDI’08: Proceedings of the 8th

USENIX conference on Operating systems design and

implementation, pages 369–384.

Naksinehaboon, Nichamon and Liu, Yudan and Leangsuk-

sun, C. and Nassar, Ruba and Paun, Mihaela and

Scott, S. (2008). Reliability-Aware Approach: An

Incremental Checkpoint/Restart Model in HPC Envi-

ronments. IEEE International Symposium on Cluster

Computing and the Grid (CCGRID), pages 783–788.

Sancho, J.C. and Petrini, Fabrizio and Johnson, G. and

Frachtenberg, Eitan (2004). On the feasibility of

incremental checkpointing for scientiﬁc computing.

Proceedings - International Parallel and Distributed

Processing Symposium, IPDPS 2004 (Abstracts and

CD-ROM), 18:58–.

CLOSER 2020 - 10th International Conference on Cloud Computing and Services Science

520
