Transformation- and Pattern-based State Machine Mining

from Embedded C Code

Andreas Grosche

, Burkhard Igel

and Olaf Spinczyk

Behr-Hella Thermocontrol GmbH, Hansastraße 40, 59557 Lippstadt, Germany

Fachhochschule Dortmund, Sonnenstraße 96, 44139 Dortmund, Germany

Universit

at Osnabr

uck, Wachsbleiche 27, 49090 Osnabr

uck, Germany

Keywords:

State Machine Extraction, Model Mining, Reverse Engineering, Program Comprehension, Refactoring.

Abstract:

Automated extraction of state machine models from source code can improve comprehension of software

system behavior required for many maintenance tasks and reuse in general. Furthermore, it can be used for

subsequent automated processing such as refactoring and model-based veriﬁcation. This paper presents an

approach based on normalizing transformations of an input program and a pattern to ﬁnd state machine im-

plementations in the program and to extract relevant information. The results are used to create state machine

models containing states, transitions, events, guards and actions. Fine-grained traceability between the model

and the source code enables navigation and refactoring of model elements. We evaluate the approach by apply-

ing a prototypical implementation to industrial automotive embedded code and show that 74 % of the expected

state machine implementations can be completely identiﬁed and 8 % partially.

1 INTRODUCTION

While model-based development, e.g., using Mat-

lab/Simulink, has been established for developing the

application software layer of automotive embedded

systems, low-level programming languages such as C

are preferably used for time-critical and basic soft-

ware to gain transparency and control over regis-

ters, memory, runtime and synchronization (Gross-

man et al., 2005). There are several reasons for the

motivation of reverse engineering such code:

Maintenance. A developer has to comprehend rele-

vant parts of a software system before changes can

be applied (von Mayrhauser and Vans, 1995). If

the documentation is obsolete or not available, the

source code has to be analyzed. Said et al. (Said

et al., 2019) show that state machine models ex-

tracted from C code help to understand embedded

software. In addition, state-based model-driven

development has been shown to improve efﬁ-

ciency during maintenance (Ricca et al., 2018).

Evolution. Small state machine implementations

that are not explicitly documented due to their

simplicity can gradually evolve over time into

larger state machines that are difﬁcult to under-

stand.

Reuse. Parts of a software system may be reused in

new projects in the original or an adapted form. A

good understanding of the interfaces and behavior

is required for correct integration.

Veriﬁcation. Comprehension of the design and im-

plementation must be available to manually de-

rive or automatically generate test cases. Further-

more, ﬁnite state veriﬁcation techniques can help

to detect deadlocks, livelocks and race conditions

among other properties. These techniques require

a formal model.

Validation. A design helps ensuring that the devel-

oped system meets the expectations of the cus-

tomer.

Refactoring. Restructuring a state machine in se-

quential code, e.g., merging two states, can be a

tedious and error-prone task compared to modify-

ing state machine diagrams. In addition, unstruc-

tured or disadvantageous implementations may be

replaced by more sophisticated realizations, us-

ages of common libraries or frameworks (Fowler,

2013).

Migration. Changing the development method-

ology to model-based design like

104

Grosche, A., Igel, B. and Spinczyk, O.

Transformation- and Pattern-based State Machine Mining from Embedded C Code.

DOI: 10.5220/0009769801040115

In Proceedings of the 15th International Conference on Software Technologies (ICSOFT 2020), pages 104-115

ISBN: 978-989-758-443-5

mbeddr

(Voelter et al., 2019) can make ex-

isting code unusable. Since legacy code typically

contains valuable expert knowledge evolved over

years, a migration of such code may be intended.

State machines are a commonly accepted docu-

mentation and implementation technique for the dy-

namic behavior of reactive systems. They are widely

used in embedded systems to react to inputs, for de-

vice drivers that handle asynchronous sequences and

to subdivide continuous processes into smaller state-

ful steps processable in discrete time slices. However,

low-level C code is too detailed for quick understand-

ing and state machine implementations can be scat-

tered over the program making manual reverse engi-

neering of state machines tedious and error-prone.

The extraction of state machine models from

source code is known as state machine mining (Said

et al., 2018). Existing approaches are either not fully

automated, do not provide enough information or pro-

vide results that cannot be used for further automated

processing like refactoring.

In this paper, we propose an approach to auto-

matically extract a speciﬁc subset of UML state ma-

chine

implementations from source code. The ex-

tracted models contain the states, transitions, events,

guards and actions of the implementations with trace-

ability between each model element and the source

code. These models can be used for program compre-

hension during maintenance, reuse, veriﬁcation and

validation as well as automated refactoring and mi-

gration. To allow the adaptation to different imple-

mentation techniques, our approach is based on ed-

itable search patterns. The transformation-based ap-

proach allows to ﬁnd implementations with several

variations.

Our evaluation using industrial automotive em-

bedded C code shows the soundness of our approach.

While the pattern matching is complete, the complete-

ness of the state machine mining depends on the spec-

iﬁed pattern and the degree of normalization.

This paper is structured as follows: Existing ap-

proaches for state machine mining, normalization and

code search are presented in Section 2. Section 3 ex-

plains the widely used state machine implementation

technique we are interested in. Our approach to ﬁnd

such implementations is introduced in Section 4. The

evaluation in Section 5 using industrial automotive

embedded code shows that 74 of 100 state machine

models could be completely extracted from the source

code. Section 6 concludes and gives an outlook.

The mbeddr approach closes the gap between high-

level graphical models and low-level C code.

UML sate machines are based on statecharts introduced

by Harel (Harel, 1987).

2 RELATED WORK

Dynamic State Machine Mining. Dynamic state

machine mining approaches typically instrument the

source code of a program to create execution traces or

log data that are analyzed to recover a state machine

from the program (Xiao et al., 2013; Ammons et al.,

2002). Many techniques are based on state merging

(Biermann and Feldman, 1972). The required infor-

mation can also be fetched from unit test executions

(Xie et al., 2006). These approaches tend to gener-

ate partial state machines without information about

how variables are modiﬁed. Walkinshaw and Hall

(Walkinshaw and Hall, 2016) address this issue by ex-

tending the dynamic analysis with a technique based

on genetic programming to extract additional infor-

mation. However, dynamic approaches are not appli-

cable to all embedded systems since code instrumen-

tation alters the execution time and could therefore

break the typical hard real-time constraints (Thums

and Quante, 2012). Our approach circumvents instru-

mentation by using static analysis techniques.

Static State Machine Mining. Static approaches

are commonly based on text, program representations

such as the abstract syntax tree, control ﬂow analy-

sis, data ﬂow analysis, symbolic execution or concolic

testing.

Prywes et al. (Prywes and Rehmet, 1996) pro-

pose a human guided approach that creates a state for

each condition as well as transitions that represent a

sequence of operations. The result is close to a con-

trol ﬂow graph and does not reﬂect stateful behavior

maintained over multiple function calls.

A technique that incorporates Cpp2XMI to ﬁnd

nested if and switch statements is proposed by van

den Brand et al. (van den Brand et al., 2008). Al-

though the implementation supports simple syntactic

variations, it has to be explicitly extended to support

further ones. Our approach supports many more vari-

ations implicitly using preceding normalization.

Som

e and Lethbridge (Som

e and Lethbridge,

2002) ﬁnd state variables by naming conventions and

use a state variable deﬁnition graph to identify and re-

verse engineer state machine implementation idioms.

Our approach is independent of names.

Walkinshaw et al. (Walkinshaw et al., 2008) dis-

cover state transitions and actions with respective

source code using symbolic execution. However,

the states have to be identiﬁed manually for this ap-

proach.

Jiresal et al. (Jiresal et al., 2011) use heuristic-

based abstractions to extract statecharts. Their ap-

proach is speciﬁc to state machine implementation

techniques that use variables for the communication

Transformation- and Pattern-based State Machine Mining from Embedded C Code

105

with the context. The proposed abstractions may hin-

der automated refactoring.

Bandera (Corbett et al., 2000) automatically ex-

tracts state machines from Java code intended to be

used for model checking. The results are not meant

to be human comprehensible or to be used, e.g., for

refactoring.

The proposal of Wang et al. (Shaohui Wang et al.,

2012) uses symbolic execution to extract state ma-

chines from graphical user interface software where

screens are represented as states. This approach is re-

stricted to user interface software.

Kung et al. (Kung et al., 1994) use symbolic ex-

ecution to extract object state behaviors from object-

oriented C++ source code. Sen and Mall (Sen and

Mall, 2016) apply this approach to Java and extend

it to address some shortcomings. Said et al. (Said

et al., 2018) further extend these approaches by using

concolic testing to overcome limitations in symbolic

execution regarding complex constraint solving and

allow user-deﬁned constraints. They further adapt the

approach for industrial automotive embedded systems

developed with the programming language C and let

the user interactively specify constraints to reduce the

complexity of the mined state machine models.

Approaches using symbolic execution or concolic

testing typically produce incomplete models, e.g.,

with missing events and actions, that are not suitable

for further automated processing like refactoring. In

contrast, our work addresses a subset of the state ma-

chines that can be found by the stated approaches that

can be automatically identiﬁed and refactored. In ad-

dition, the patterns of our approach can be adapted

to ﬁnd, e.g., framework-based implementations that

cannot be found by symbolic execution or concolic

testing.

Our approach is based on the work of Knor et

al. (Knor et al., 1998) where a pattern is matched

with the source code of a program to identify pos-

sible code fragments that implement a state machine

and may be manually refactored. In contrast to the

proposed enhanced string pattern search that requires

user interaction, our approach is based on graph rep-

resentations known from program analysis to extract

all required information from the source code for au-

tomated model construction.

Normalization. Necula et al. (Necula et al., 2002)

propose transformations to normalize C code to the

C intermediate language (CIL). This subset of C re-

duces the complexity of analysis tools since less lan-

guage concepts have to be considered.

Xu and Chee (Xu and Chee, 2003) propose

transformation-based diagnosis for comparing stu-

dent programs with reference solutions for automatic

grading in the context of programming tutoring sys-

tems. The student and model programs, i.e., refer-

ence solutions, are transformed into a subset of the

programming language using semantics-preserving

transformations. The transformed programs are rep-

resented as annotated augmented object-oriented pro-

gram dependence graphs that are used for program

matching. However, the model program does not al-

low to extract information from the matched student

program via metavariables.

We use the concepts of CIL (Necula et al.,

2002) and the transformation-based diagnosis (Xu

and Chee, 2003) to normalize the state machine

search pattern and the input program to cover mul-

tiple programs with semantics-preserving variations

using only one pattern. We extend the approaches by

introducing a ﬁne-grained traceability.

Code Search. Several tools and techniques have been

proposed for code search with placeholders for the

extraction of information from a program for further

processing. We prefer pattern-based code search with

patterns based on the input program language over

queries like ASTLOG (Crew, 1997) or A* (Ladd and

Ramming, 1995) to provide easier access to the pat-

tern language. Existing techniques range from textual

to lexical, syntactic and graph-based matching.

SCRUPLE (Paul and Prakash, 1994) analyzes the

attributed syntax tree of an input program and offers

wildcards as well as concepts in the pattern language

to cover some syntactic variations. However, these

have to be explicitly selected.

Coccinelle (Brunel et al., 2009) is a transforma-

tion tool for Linux collateral evolutions. It uses

temporal logic for matching patterns on control-

ﬂow paths and supports metavariables. While Coc-

cinelle matches simple variations such as swappable

operands using isomorphisms, it does not match more

complex variations such as if and switch statements.

Moreover, Coccinelle does not support matching of

nested conditional statements with arbitrary nesting

depth.

We adopt the ideas of SCRUPLE and Coccinelle

and extend them by normalizing the inputs to match

more syntactic variations, e.g., if statements match

equivalent switch and case statements. In addition, our

approach supports matching of recursive fragments

such as nested if statements with arbitrary nesting

depth. Our approach furthermore provides match re-

sults as a data structure with access to data analysis

results and different program representations for the

subsequent model extraction.

ICSOFT 2020 - 15th International Conference on Software Technologies

106

3 STATE MACHINE

IMPLEMENTATION

TECHNIQUES

Several techniques are used to implement state ma-

chines in source code. These include nested switch

statements, state tables, object-oriented state de-

sign patterns as well as combinations and variations

(Samek, 2009). This paper focuses on nested switch

statements because this technique is often used due to

its simplicity, although it is difﬁcult to read as it may

be scattered over the code and may contain large nest-

ing depths. Other implementation techniques can be

supported by adapting the pattern and extraction (see

Section 4).

Listing 1 shows a simpliﬁed example of a state

machine implementation of an embedded system’s

device driver that uses a serial peripheral interface

(SPI) to send a request to an external integrated cir-

cuit (IC) and waits for an acknowledgment from the

IC in the form of an external interrupt. The write op-

eration and waiting for the acknowledgment are asyn-

chronous processes that are handled by the state ma-

chine. In addition, a timeout handling is performed

that aborts the operation after 100 ms of missing write

completed or acknowledgment event.

A state variable holds the current state of the state

machine (see Line 8). The initialization value IDLE

represents the initial state. The functions Request,

Cyclic10ms, WriteCompleted and AckReceived represent

the events the state machine can process. Calling

the Request function (see Line 12) causes the reset

of a time counter (see Line 15), the start of the asyn-

chronous SPI write operation (see Line 16) and a tran-

sition to the WRITING state (see Line 17). The under-

lying SPI driver calls the WriteCompleted function (see

Line 36) on completion of the SPI transmission which

causes the reset of the time counter and a state change

to the WAITING FOR ACK state. An interrupt han-

dler calls the AckReceived function (see Line 43) if the

external IC raises the acknowledgment signal. As a

consequence, the state machine transits to the IDLE

state.

To implement the timeout handling, the Cyclic10ms

function (see Line 22) is called by the operating sys-

tem with a period time of 10 ms. If the state ma-

chine is in the WRITING or WAITING_FOR_ACK state, the

timeout handling is performed. The time counter is

incremented by 10 according to the function call pe-

riod time. If the time counter is greater than or equal

to 100 ms, a timeout is detected and notiﬁed calling

the NotifyTimeout function. In addition, a transition to

the TIMEOUT state is performed.

The example shows that if statements can be used

in combination with switch statements, the state ma-

chine implementation can be scattered over several

functions and guards are optional.

Listing 1: Running example of a state machine implementa-

tion in C code. Critical sections required to handle exclusive

access to the state variable from main and interrupt context

as well as other details are omitted for simplicity.

1 typedef enum {

2 IDLE ,

3 WRITI NG ,

4 W A ITIN G _FO R _ ACK ,

5 T I MEO U T

6 } S tate T y pe ;

8 Sta t e Type st a te = IDL E ;

9 int ti me ;

10 int i sTi m e o ut ;

12 void Req u est () {

13 switch ( st a te ) {

14 case IDLE :

15 ti me = 0 ;

16 SPI W r ite (5 ) ;

17 st a te = W RIT I N G ;

18 break;

19 }

20 }

22 void C ycli c 1 0 ms () {

23 switch ( st a te ) {

24 case W R I TIN G :

25 case WA I T I N G _ FOR_A C K :

26 ti me += 1 0;

27 isTi m e out = tim e >= 100;

28 if ( is T i meo u t ) {

29 Not i f y T i m eout () ;

30 st at e = TIM E OUT ;

31 }

32 break;

33 }

34 }

36 void W r i teCo m p l e t e d () {

37 if ( WRI T ING != s tat e )

38 return;

39 t im e = 0;

40 s tat e = W AITIN G _ F O R _ A CK ;

41 }

43 void A ckRe c e i v ed () {

44 if ( st a te == W A I TING_ F O R _ A C K )

45 st a te = IDL E ;

46 }

4 STATE MACHINE MINING

We propose a transformation- and pattern-based ap-

proach as shown in Figure 1 to support several varia-

Transformation- and Pattern-based State Machine Mining from Embedded C Code

107

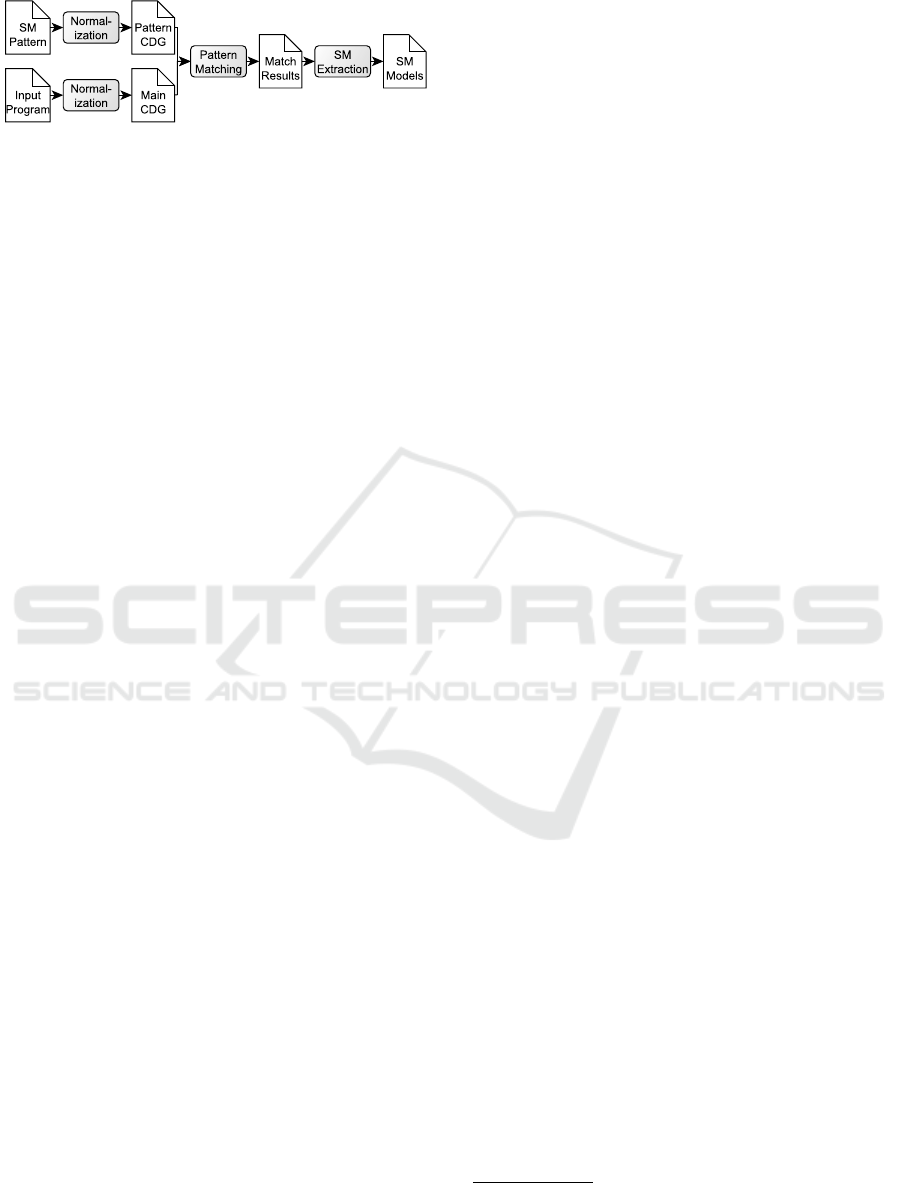

Figure 1: The state machine mining pipeline consisting of

the phases normalization, pattern matching and state ma-

chine extraction.

tions in the state machine implementation and adap-

tation of patterns to cover different state machine im-

plementation techniques. A state machine pattern

(SM pattern) and the source code of an input pro-

gram are normalized in the normalization phase. The

pattern matching phase uses the resulting control de-

pendence graphs (pattern and main CDG) to provide

match results containing code fragments that imple-

ment state machines. The state machine extraction

(SM extraction) phase uses the results to create state

machine models (SM models) containing states, tran-

sitions, events, guards and actions. This section de-

scribes the pattern deﬁnition and the phases in detail

using the nested switch state machine implementation

technique from Listing 1 as running example.

4.1 Pattern Deﬁnition

A pattern that matches the nested switch implemen-

tation technique from the running example must pro-

vide the following information as identiﬁed by Knor

et al. (Knor et al., 1998):

• The source code fragments that make up the state

machine. These fragments can be scattered over

the program, e.g., split into multiple functions as

shown in Listing 1. The pattern is designed to

cover all relevant fragments.

• The state space consisting of all possible states of

the state machine. The pattern matches statements

where a constant expression is assigned to a state

variable as well as expressions where a state vari-

able is compared to a constant expression using

the equality operator ==. The constant expressions

are interpreted as concrete states.

• The state variable that holds the current state of

the state machine. This variable is determined

by using the variable in the statements from the

aforementioned state space identiﬁcation.

• The event space consisting of all events the state

machine accepts. Som

e and Lethbridge (Som

and Lethbridge, 2002) identiﬁed two implementa-

tion techniques for event handling. Single routine

implementations use a single function that han-

dle events using a switch statement comparable to

guard handling. Multiple routine implementations

provide a distinct function for each event. Call-

ing such function lets the state machine handle

the event. The pattern in Listing 4 covers a sin-

gle function. To address the multiple routine im-

plementation from the running example (see List-

ing 1), the results of multiple matches are merged

in the extraction phase described in Section 4.4.

• The state transitions, guards and actions are

matched by the pattern using metavariables. The

values of the metavariables are used in the extrac-

tion phase (see Section 4.4) to create the transi-

tions and add the guards and actions.

To explain the concepts of the pattern and match-

ing we incrementally develop a pattern to match the

state machine implementation from Listing 1 in three

steps. Starting with a small pattern that matches only

one code fragment in the ﬁrst step, the second step

matches all but one and the last step matches all code

fragments.

4.1.1 First Step

The ﬁrst pattern (see Listing 2) is designed to match

the simplest code fragment, namely the contents of

the AckReceived function (see Listing 1 Line 43). This

code fragment changes the state to IDLE if the current

state is WAITING_FOR_ACK.

A pattern is deﬁned in the programming language

C with additional semantics. The code fragments to

be matched are wrapped in functions called pattern

declarations. Each pattern declaration annotated with

@main is matched with each function of the input pro-

gram. A pattern declaration matches a code fragment

from the input program if all statements and expres-

sions match. Variable declarations are ignored dur-

ing matching since the location of the declarations are

considered arbitrary by default and matching of the

usages is sufﬁcient

The if statement of the pattern (see Listing 2

Line 6) is matched with the if statement of the

AckReceived function from the input program (see

Listing 1 Line 44). Metavariables can be used to

match variables and constant expressions by using

the built-in types varmetavar and constmetavar, respec-

tively. The pattern in Listing 2 declares the stateVar

metavariable to match variables in the input program.

Each reference to stateVar in the pattern has to match

with a variable reference to the same variable in the

input program. Regarding the AckReceived function,

stateVar matches the state variable. The stateConst0

Variable declaration locations to be matched can be

constrained by annotating the respective declarations in the

pattern.

ICSOFT 2020 - 15th International Conference on Software Technologies

108

and stateConst1 metavariables match the constant ex-

pressions WAITING_FOR_ACK and IDLE, respectively. Dis-

tinct metavariables have to be used since the constant

expressions evaluate to different values. The values

of metavariables can be used for further processing in

the extraction phase.

Listing 2: Pattern of the ﬁrst step that matches the contents

of the AckReceived function from the input program shown

in Listing 1.

1 / * * @ma in */

2 void P S t a t e C heckAndC h a n g e () {

3 v a r m etav a r st a t eVa r ;

4 c o n s t m etav a r stat e C o n st0 ;

5 c o n s t m etav a r stat e C o n st1 ;

6 if ( stat e Var == st a teCo n s t 0 )

7 sta t e Var = s t a t eCon s t 1 ;

8 }

4.1.2 Second Step

The normalization preceding the matching transforms

the switch statement in function Request (see Listing 1

Line 13) to an if statement and the not equal operator

of function WriteCompleted (see Line 37) to an equal

operator. These normalized conditions are already

matched by the condition stateVar == stateConst0

from the ﬁrst pattern. However, the pattern matches

if statements where the then branch contains only

the assignment of a new state to the state variable.

Code fragments containing additional statements in

the then branch like in functions Request, Cyclic10ms

and WriteCompleted are not covered. The pattern

shown in Listing 3 extends the ﬁrst pattern to match

these statements which are interpreted as actions exe-

cuted during the state transition.

Sequential statements can be moved to a new pat-

tern declaration. The new pattern declaration can be

referenced using the built-in Match statement and pro-

viding a match expression. The contents of the ref-

erenced pattern declaration are matched instead of

the Match statement. Match expressions are inspired

by regular expressions where character classes like

[A-Z] are replaced with names of pattern declarations,

e.g., [PatternName] to reference a pattern declaration.

These references can be embedded in named groups

of the form (?<GroupName>[PatternName]). The code

fragment matched by the referenced pattern declara-

tion is available in the extraction phase using the spec-

iﬁed group name.

In the pattern shown in Listing 3, the assignment

of a new state to the state variable is moved to the

new pattern declaration PStateChange (see Line 12).

To match an arbitrary number of statements with an

acts[0] acts[1] sc[0]

PStateCheck

stateConst = IDLE

"if (state == IDLE)"

^PStateChange

"time = 0"

^PStateChange

"SPIWrite(5)"

PStateChange

stateConst = WRITING

"state = WRITING"

Global metavars:

stateVar = state

Figure 2: The pattern instances tree shows the instances

of the pattern declarations from Listing 3 created during

matching with the Request function from the running ex-

ample (see Listing 1).

eventual state change, the PStateChange pattern dec-

laration is referenced twice. The ﬁrst reference (see

Line 7) uses the negation operator ˆ and the quantiﬁ-

cation * known from regular expressions to match an

arbitrary number of any statement but a state change.

The second reference matches the state change, i.e.,

an assignment of a constant expression to the state

variable.

The pattern matcher creates pattern instances for

each successfully matched pattern declaration. This

includes the entry pattern declaration annotated with

@main as well as referenced pattern declarations. The

resulting pattern instances tree from matching the

pattern from Listing 3 with the Request function from

Listing 1 is shown in Figure 2.

Metavariables can be declared locally or globally.

Local metavariables are declared within a pattern dec-

laration (see Line 5 and Line 13). Local metavariables

of different pattern instances may contain different

values. Global metavariables are declared outside a

pattern declaration (see Line 1). A global metavari-

able referenced by different pattern instances must

have the same value for a successful match. For ex-

ample, the stateVar global metavariable referenced in

PStateCheck and PStateChange always match the vari-

able state from the input program (see Figure 2).

Listing 3: Pattern of the second step that matches the con-

tents of all functions but Cyclic10ms from the input program

shown in Listing 1.

1 v a r m e t a v a r s t a t e V a r ;

3 / ∗ ∗ @main ∗ /

4 v o i d P S t a t e C h e c k ( ) {

5 c o n s t m e t a v a r s t a t e C o n s t ;

6 i f ( s t a t e V a r == s t a t e C o n s t ) {

7 Match ( ” (?< a c t s > [ˆ P S t a t e C h a n g e ] ∗ ) ” ) ;

8 Match ( ” (?< s c >[ P S t a t e C h a n g e ] ) ” ) ;

9 }

10 }

12 v o i d P S t a t e C h a n g e ( ) {

13 c o n s t m e t a v a r s t a t e C o n s t ;

14 s t a t e V a r = s t a t e C o n s t ;

15 }

Transformation- and Pattern-based State Machine Mining from Embedded C Code

109

4.1.3 Third Step

The pattern from the second step does not match the

Cyclic10ms function since it does not support state

changes that are indirectly control dependent on state

checks, i.e., it does not support guards.

Listing 4: Pattern of the third step that matches the contents

of all functions from the input program shown in Listing 1.

1 var m e t avar s tat e V ar ;

3 / * * @ma in @ l eve l 0 @ cov e r a ge

part i a l t o p l evel */

4 void P Stat e C h e ck () {

5 c o n s t m etav a r stat e C o nst ;

6 if ( stat e Var == st ateC o n s t )

7 Ma t ch ( " (? < g uar dWA cts >[ P G u ardW A c t s ]) |

(? < sc >[ PS t a t e C h a n geWAct s ]) " ) ;

8 else

9 Ma t ch ( " (? < check >[ PSta t e C h eck ]?) ") ;

10 }

12 void P Guar d W A c ts () {

13 M atc h ( " (? < acts > [ˆ PG uar d ]*) " ) ;

14 M atc h ( " (? < g uard >[ PGu ard ]) " ) ;

15 }

17 void PGu a rd () {

18 e x p r m etav a r gu ard ;

19 if ( gu a rd )

20 Ma tch ( " (? < scwa >[ P S t a t e C h a ngeWAc t s ]) " ) ;

21 else

22 Ma tch ( " (? < guard >[ PG u ard ]) | (? < s tmts >[

St mt ]*) " ) ;

23 }

25 void P S t a teChan g e W A c t s ( ) {

26 M atc h ( " (? < acts > [ˆ PSt a t e C h ange ]*) " ) ;

27 M atc h ( " (? < sc >[ P S tateC h a n g e ]) " ) ;

28 }

30 void P S tate C h a n g e () {

31 c o n s t m etav a r stat e C o nst ;

32 s t a teV a r = s tate C o n st ;

33 }

The pattern in Listing 4 circumvents this limita-

tion by introducing the PGuardWActs and PGuard pattern

declarations. In addition, the two match statements

used to match actions and a state change are moved to

the new pattern declaration PStateChangeWActs. More-

over, the if statement in PStateCheck allows an op-

tional else branch by specifying a reference to the

PStateCheck pattern declaration and using the ? quan-

tiﬁer. This recursive reference matches state checks

nested in the false branch of a state check. Since

the normalization phase transforms switch statements

to nested if statements, the switch statement of the

Cyclic10ms function is matched by this pattern.

The PStateCheck pattern declaration expects either

a guard (PGuardWActs) or a state change with optional

actions (PStateChangeWActs) in the then branch. The

alternation is denoted using the or operator | known

from regular expressions.

A guard as declared in PGuard is an if statement

with an arbitrary condition. The metavariable guard

of type exprmetavar matches any expression. The then

branch consists of a state change with optional actions

(PStateChangeWActs) and the else branch consists of a

nested guard (PGuard) or arbitrary statements (Stmt).

Stmt is a built-in pattern declaration that matches any

statement.

4.2 Normalization

Searching for state machine implementations accord-

ing to the nested switch statement technique, possi-

ble code variations have to be considered. For ex-

ample, a switch statement can be replaced by if state-

ments and the operands of the equality operator == can

be swapped. Variations between two programs that

change the computational behavior while maintain-

ing the computational result are known as semantics-

preserving variations (Xu and Chee, 2003).

The normalization phase uses different program

representations to transform the input program and

the pattern to remove semantics-preserving varia-

tions. These semantics-preserving transformations

are based on Xu’s and Chee’s (Xu and Chee, 2003)

approach for comparing student programs with a

specimen program for programming tutoring systems

as well as the C intermediate language (Necula et al.,

2002). We adapt these approaches by using a sub-

set of the proposed transformations that still allow for

tracing back to the original code and the identiﬁcation

of state machine implementations.

4.2.1 Abstract Syntax Tree

The ﬁrst step of the normalization phase is parsing

the source code and representing it as an abstract syn-

tax tree (AST). This step involves textual transforma-

tions performed by the C preprocessor, tokenization

and parsing to construct the AST.

The AST represents the source code without syn-

tactic details such as formatting. Subsequent trans-

formations remove syntactic variations from the pro-

gram. These include, e.g., the replacement of switch

statements with nested if statements. Conditions of if

statements are normalized by swapping the then and

else branches if necessary. For example, the not equal

operator != in Listing 1 Line 37 is normalized to an

equal operator == by introducing an empty else branch

and swapping the then and else branches.

ICSOFT 2020 - 15th International Conference on Software Technologies

110

<0> T

<4> T

<2> F

<5> T<3> T

<3> T <4> T<2> T

<3> T <2> T

[B0 (ENTRY)]

[B1]

if (state == WRITING)

[B9]

isTimeout = 99 < time

[B12]

state = TIMEOUT

[B17]

if (state == WAITING_FOR_ACK)

[B19]

if (isTimeout)

[B21]

time = time + 10

[B23]

NotifyTimeout()

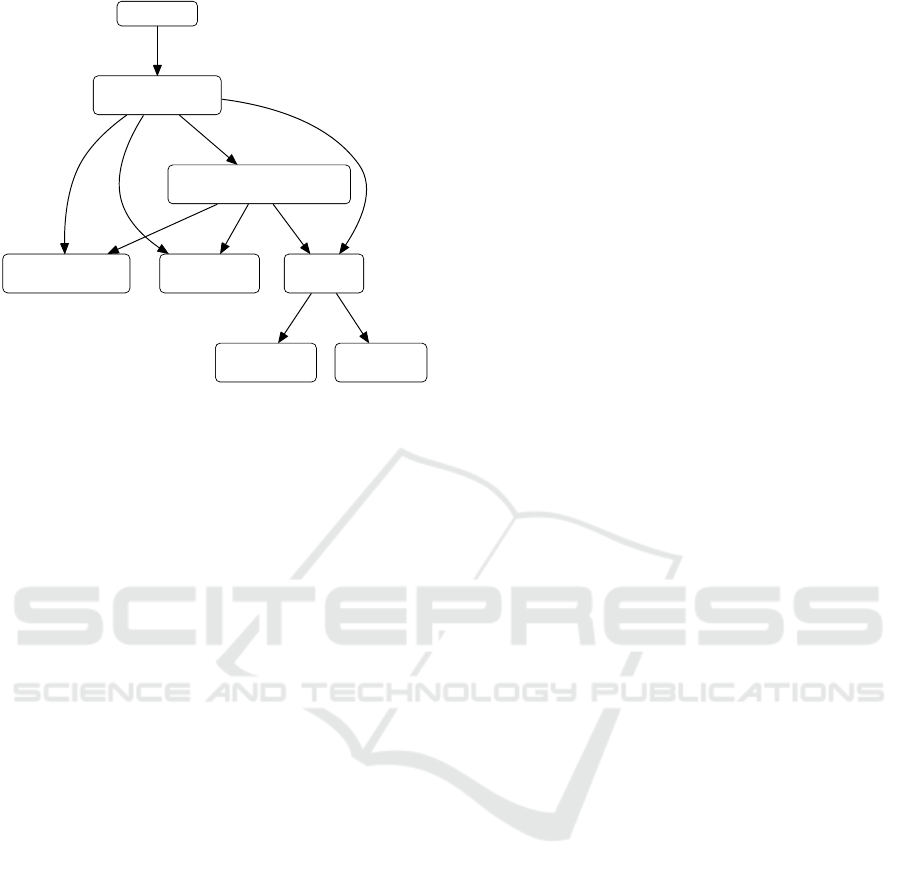

Figure 3: The control dependence graph of function

Cyclic10ms from the running example shows the control de-

pendences between the statements.

4.2.2 Control Flow Graph

The second step of the normalization is the creation

of a control ﬂow graph (CFG) based on the AST.

The CFG abstracts the sequential source code lines

by making the control ﬂow explicit and hiding goto

and label statements.

4.2.3 Control Dependence Graph

The control dependence graph (CDG) is constructed

using the control ﬂow graph by computing the post-

dominators, constructing the post-dominator tree and

determining the control dependences as proposed by

Ferrante et al. (Ferrante et al., 1987). We use a sim-

pliﬁed variant where the nodes of a CDG represent

statements and the edges represent the control condi-

tions on which the statements are executed.

Figure 3 shows the CDG of the Cyclic10ms func-

tion from the running example (see Listing 1). Nodes

containing an if statement are predicate nodes where

the conditional expression result of the if statement

determines whether the statements referenced with an

edge labeled with T (true) or F (false) are executed.

We extend the control dependence edge labels by the

execution order of the statements.

A node can be control dependent on multiple

nodes. Consider the fallthrough of case WRITING: from

Listing 1 Line 24 as an example. Nodes [B9], [B21]

and [B19] are control dependent on blocks [B1] and

[B17], i.e., the statements are executed if one of the

conditions is true which is equivalent to the semantics

of the fallthrough construct.

4.2.4 Traceability

Traceability throughout the whole normalization

phase is maintained to support forward and backward

navigation between the normalized program and the

input program source code. This is especially re-

quired to support navigation from each element of

the resulting state machine diagram to the associated

source code locations.

The C preprocessor tracks the character locations

during textual transformations. The tokens created

during tokenization refer to the expanded locations.

Each AST node created by the parser contains the lo-

cations and lengths of the represented tokens.

During the subsequent semantics-preserving

transformations, newly created AST nodes are linked

with the original AST nodes or nodes from previous

normalization iterations. Changes in the control ﬂow,

e.g., swapping the then and else branches of an if

statement to normalize the boolean condition of the

if statement are stored in the AST node representing

the if statement.

Each node of the control ﬂow graph references an

AST subtree representing a statement. Each node of

the control dependence graph references a node of the

control ﬂow graph.

The resulting chain from control dependence

graph node over control ﬂow graph node over AST

subtree over tokens to the text in the source code real-

izes the required ﬁned-grained traceability. The map-

ping maintained by the C preprocessor during the tex-

tual transformations allows AST nodes and their to-

kens to be found in preprocessor macro deﬁnitions

and the locations where they are referenced.

4.3 Pattern Matching

The pattern matching phase starts with the identiﬁca-

tion of the pattern declarations marked as entry points

using the @main annotation (see Listing 4 Line 3). Each

of these main pattern declarations is matched with

each function of the input program using the respec-

tive control dependence graphs (see Figure 4 and Fig-

ure 3). For a pair consisting of a main pattern dec-

laration and an input program function, a pattern in-

stances tree (see Figure 5) with an instance of the

main pattern declaration as root node is created. A

pattern instance stores the values of local metavari-

ables as well as the mapping of pattern CDG nodes to

input program CDG nodes.

For each pattern declaration and function pair, a

top-down analysis of the pattern control dependence

graph is performed comparing the edges and nodes of

the pattern with the corresponding elements of the in-

Transformation- and Pattern-based State Machine Mining from Embedded C Code

111

put program control dependence graph. Two nodes

are compared by comparing the AST subtrees ref-

erenced by the nodes. For example, matching of

PStateCheck with Cyclic10ms starts with matching pat-

tern node [B9] (see Figure 4) with input program node

[B1] (Figure 3). The statements referenced by the

nodes are compared traversing the AST subtrees us-

ing a depth-ﬁrst search. Two nodes match if all AST

node pairs are equivalent. For variable metavariable

references such as stateVar, the input program AST

node must be a variable reference, e.g., state. The ref-

erenced variable declaration is stored in the metavari-

able. For constant metavariable references such as

stateConst, the input program AST node must be a

constant expression, e.g., a literal or reference to an

enum member like WRITING. The successful matching

of the two CDG nodes is stored in the pattern instance

as mapping [B9]→ [B1].

When the top-down analysis reaches pattern node

[B5], a new instance of the referenced pattern dec-

laration PStateCheck is created and the matching is

continued with the control dependence graph of the

referenced pattern declaration. Pattern node [B9]

is matched with input program node [B17]. Since

the metavariable stateVar is global and has already

matched in node [B1], the variable referenced in node

[B17] has to be the same as known from the previous

match. Otherwise, the matching would not be suc-

cessful, aborted and restarted for the next location in

the program.

In contrast to stateVar, the metavariable stateConst

is local and can be different for each pattern in-

stance. In case of node [B17], state is mapped to

WAITING_FOR_ACK.

Input program nodes that are control dependent

on multiple predicate nodes can be matched multiple

times. For example, the input program node [B9] is

matched twice. The PGuard pattern instance covering

the second match refers to the node as [B9’].

The @level 0 annotation (see Listing 4 Line 3)

lets the matcher start a matching process only

at the top level of the input program. The

@coverage partialtoplevel annotation conﬁgures the

matcher so that a match of the pattern top level with

a subset of the input program top level is sufﬁcient

for success. The pattern would therefore still match

if statements were placed before or after the switch

statement in Listing 1 Line 23.

4.4 State Machine Extraction

The state machine extraction phase uses the pattern

instances tree and metavariable values provided by

the matching phase to extract relevant information

F T

[B0 (ENTRY)]

[B9]

if (stateVar == stateConst)

[B5]

Match("(?<check>[PStateCheck]?)")

[B11]

Match("(?<guardWActs>[PGuardWActs])

| (?<sc>[PStateChangeWActs])")

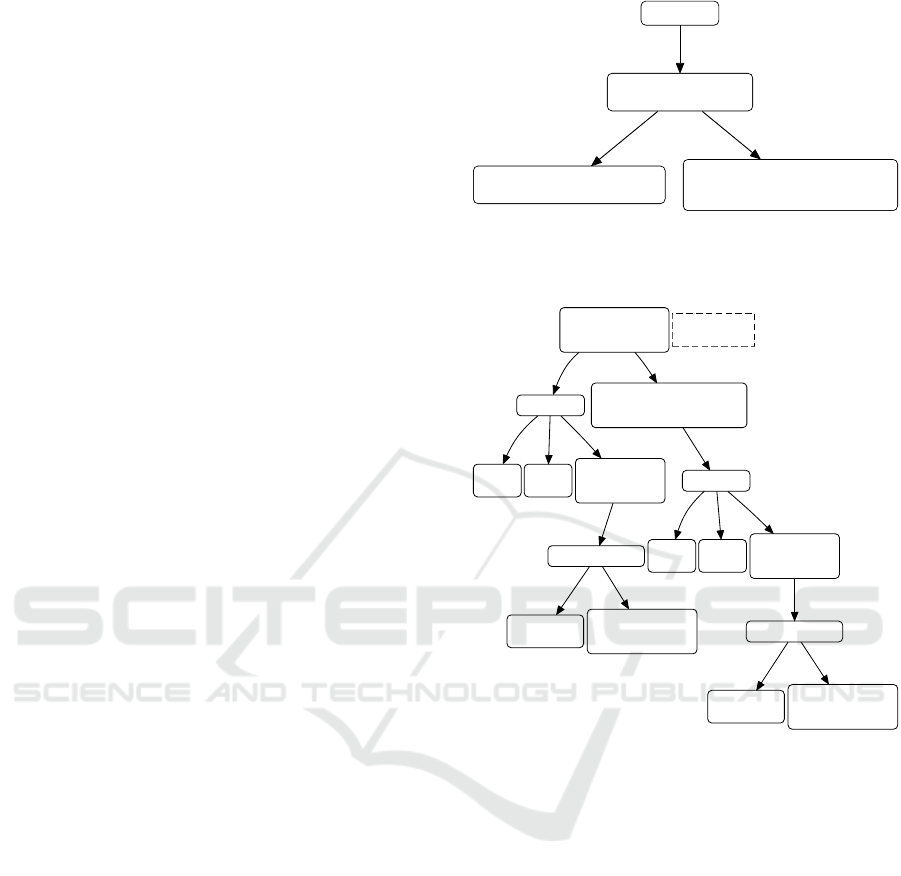

Figure 4: The control dependence graph of pattern declara-

tion PStateCheck from Listing 4. Metavariable declarations

are omitted since they are skipped during matching.

guardWActs[0] check[0]

acts[0] acts[1] guard[0]

scwa[0]

acts[0] sc[0]

guardWActs[0]

acts[0] acts[1] guard[0]

scwa[0]

acts[0] sc[0]

PStateCheck

stateConst = WRITING

[B9][B1]

PGuardWActs

^PGuard

[B21']

^PGuard

[B9']

PGuard

guard = isTimeout

[B9][B19']

PStateChangeWActs

^PStateChange

[B23']

PStateChange

stateConst = TIMEOUT

[B1][B12']

PStateCheck

stateConst = WAITING_FOR_ACK

[B9][B17]

PGuardWActs

^PGuard

[B21]

^PGuard

[B9]

PGuard

guard = isTimeout

[B9][B19]

PStateChangeWActs

^PStateChange

[B23]

PStateChange

stateConst = TIMEOUT

[B1][B12]

Global metavars:

stateVar = state

Figure 5: The pattern instances tree shows the instances

of the pattern declarations from Listing 4 created during

matching with the Cyclic10ms function from the running ex-

ample.

from the input program. Control and data ﬂow analy-

sis results are also available for more complex extrac-

tions.

The extraction phase traverses the pattern in-

stances tree (see Figure 5) using a depth-ﬁrst search

to build the state machine model. Following the

guardWActs[0] edge of a PStateCheck pattern instance

node, the current state can be inferred from the

stateConst metavariable of the node. The value of the

metavariable is the constant expression, i.e., the enum

member, that represents the state. For the root node,

the value is WRITING.

For each visited pattern instance of type PGuard,

a choice pseudostate and a transition from the cur-

rent state to the choice is created. An example for

the pattern instance node that matches the input pro-

gram node [B19’] is shown in Figure 6. The event

ICSOFT 2020 - 15th International Conference on Software Technologies

112

Cyclic10ms /

time += 10;

isTimeout = time >= 100;

[else]

[isTimeout] /

NotifyTimeout();

WRITING TIMEOUT

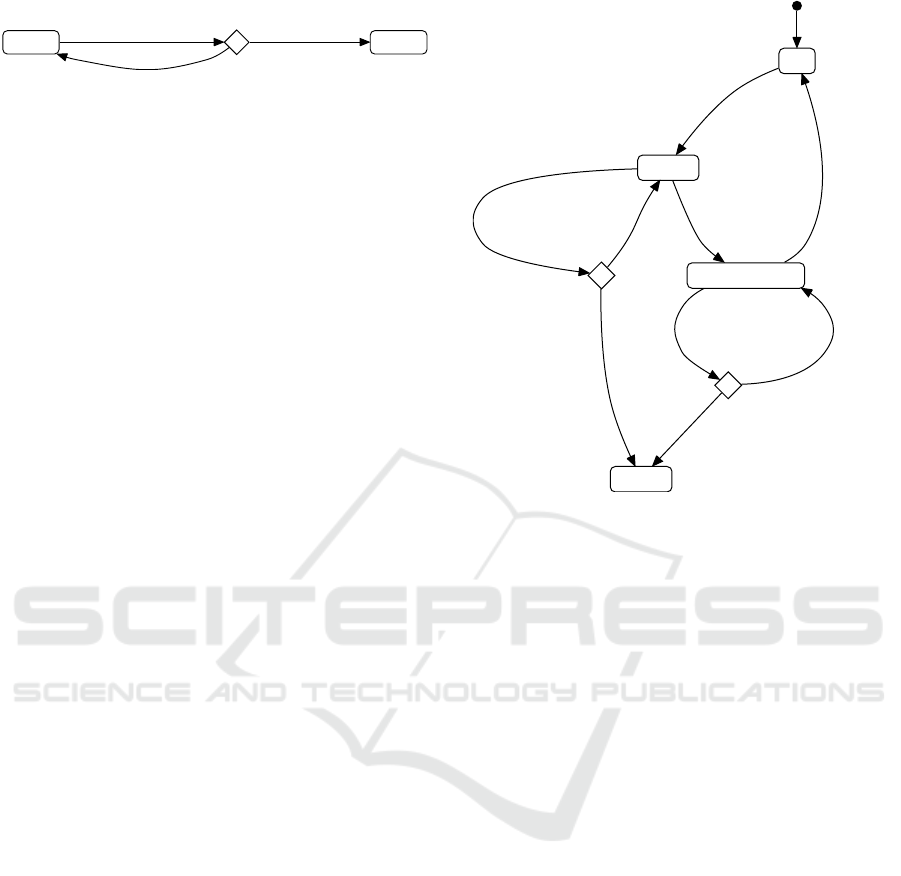

Figure 6: Transition mined from function Cyclic10ms.

of the transition is the function Cyclic10ms matched

by the pattern declaration. The siblings of the PGuard

pattern instance cover the input program nodes im-

plementing the actions to be executed if the event is

processed. The underlying statements are time += 10;

and isTimeout = time >= 100;.

The guard expression isTimeout is stored for the

eventual creation of the transition to the new state. In

addition, a default transition with guard [else] is in-

serted that terminates the state transition if isTimeout

does not evaluate to true. The aforementioned actions

are still executed in this case.

Each time the traversal reaches a pattern instance

of type PStateChange, a transition from the current state

or the last choice pseudostate to the state identiﬁed by

the stateConst metavariable is created. The previously

stored guard expression is used as guard, if any. In

this example, the guard expression isTimeout is used.

The siblings of the pattern instance, i.e., the nodes ref-

erenced by the acts[*] edges of the parent node, are

the actions executed with the newly created transition.

The action introduced in Figure 6 is NotifyTimeout();.

The state machine models are iteratively extended

by analyzing all pattern instances trees. Existing state

machines are recognized via the state variable and ex-

isting states are recognized via the associated evalu-

ated constant expression. The resulting state machine

extracted from Listing 1 is shown in Figure 7.

The traceability allows to show pretty printed AST

nodes of the AST created from the input program

source code instead of the normalized code. Since

each AST node contains the source code location, the

model can be used, e.g., to replace the state machine

implementation with a more sophisticated one. For-

mal veriﬁcation would identify TIMEOUT as a dead-

lock state.

5 EVALUATION

We implemented a prototype and used online tutorials

describing the implementation of state machines in C

code using the nested switch statement technique to

deﬁne the pattern and implement the extraction phase.

We then applied the implementation to industrial code

to evaluate our approach.

We used the ﬁrst ten example code fragments from

tutorials, which we could ﬁnd online, to ﬁne-tune the

Request /

time = 0;

SPIWrite(5);

Cyclic10ms /

time += 10;

isTimeout = time >= 100;

WriteCompleted /

time = 0;

[else]

[isTimeout] /

NotifyTimeout();

AckReceived

Cyclic10ms /

time += 10;

isTimeout = time >= 100;

[isTimeout] /

NotifyTimeout();

[else]

IDLE

WRITING

TIMEOUT

WAITING_FOR_ACK

Figure 7: The complete state machine model mined from

the C code shown in Listing 1.

pattern as well as the extraction implementation. We

deﬁned a single pattern that covers eight of these code

fragments. The remaining two fragments used tem-

porary variables and extracted the state handling in

separate functions, i.e., the state check and transi-

tion are performed in different functions. These frag-

ments could be covered using inlining and elimination

of temporary variables in the normalization phase.

However, these kind of normalizations have not been

implemented, yet. The resulting pattern and extrac-

tion implementation support different variations, e.g.,

where the state is not checked at the top level but at an

arbitrary level of nested guards. We further adapted

the pattern to cover several corner cases. The result-

ing pattern has 118 lines of code.

We applied our state machine mining approach to

handwritten industrial automotive C code from a cen-

ter information display project. The project consists

of 329 .c ﬁles containing 201,315 physical lines of

code. We removed generated ﬁles and analyzed the

remaining 286 handwritten .c ﬁles containing 147,333

physical lines of code. To deﬁne the expected results

(ground truth), we started with a simpliﬁed pattern to

extract state variable candidates possibly used to im-

plement a state machine. A state variable candidate

has to be a global or static local variable to be able to

hold a state over multiple function calls. In addition,

a state variable candidate has to be compared with a

constant expression using an if or switch statement.

At least one state change has to be directly or in-

Transformation- and Pattern-based State Machine Mining from Embedded C Code

113

directly control dependent on the stated comparison.

The state change is expected to be an assignment of a

constant expression to the state variable candidate.

The simpliﬁed pattern revealed 165 state variable

candidates. We manually investigated all usages to re-

move candidates used as counters or where the state is

fetched from external sources as well as pointers that

reference different objects. We found 100 state ma-

chine implementations our approach should be able

to extract.

We then applied our prototype to the code and

veriﬁed the resulting state machine models for cor-

rectness and completeness. While typical analysis

times range from several seconds to few minutes,

14 state machine implementations (see Table 1) lo-

cated in three ﬁles could not be extracted since these

ﬁles are too complex to be analyzed by our proto-

type. Four extracted state machine models could not

be veriﬁed, because the resulting models contained so

many transitions that the resulting diagrams could not

be read. 74 state machine implementations could be

completely extracted. Eight implementations could

be partially extracted. The uncovered code fragments

use temporary variables or are spread over multiple

ﬁles which is not supported by our prototype, yet.

Table 1: Evaluation results applying our approach to indus-

trial automotive embedded code.

Too Complex for Analysis 14

Too Complex for Veriﬁcation 4

Successful 74

Successful With Limitations 8

Total 100

In summary: Our prototype could completely ex-

tract 74 % of the expected state machine implemen-

tations automatically. The results can be improved by

introducing optimizing normalizations such as inlin-

ing and removal of temporary variables.

6 CONCLUSION AND FUTURE

WORK

In this paper, we introduced a transformation- and

pattern-based approach to extract UML state ma-

chine models from embedded code. Normalizing the

pattern and input program covers several semantics-

preserving variations. The approach can be used to

extract state machines using different implementation

techniques. We showed how to apply the approach

to the nested switch statement technique. We per-

formed an evaluation using a prototypical implemen-

tation and industrial automotive embedded code.

Future work will examine the extension of the

pattern to extract complete statecharts (Harel, 1987)

including orthogonal regions, hierarchical states and

history. In addition, it has to be shown which imple-

mentation techniques besides the nested switch can be

matched.

Further research is required to improve the seman-

tic level of matching. This includes optimizing nor-

malizations as known from compilers, e.g., inlining,

dead code elimination, removal of temporary vari-

ables and loop unrolling. However, thorough opti-

mization can break the required ﬁne-grained trace-

ability.

Complex embedded software is typically conﬁg-

urable and uses variability mechanisms using the C

preprocessor. Our current approach requires to select

a speciﬁc conﬁguration before analysis. Future work

will address variability-aware parsing (K

astner et al.,

2011) to provide state machine models covering prod-

uct lines.

The transformation- and pattern-based approach is

not restricted to state machine mining. Future work

will address other ﬁelds like the automatic evalua-

tion of student programs. This will probably require

to perform matching using the whole program de-

pendence graph (Ferrante et al., 1987) to cover per-

mutable statements.

Although the pattern is deﬁned in the same lan-

guage as the input program, the pattern deﬁnition is

not trivial when it comes to recursion. For example,

switch statements with an arbitrary number of case

statements can be currently matched using a recursive

pattern declaration with an if statement. We plan to

simplify the pattern language, e.g., by allowing to use

a switch statement with a repeatable case.

REFERENCES

Ammons, G., Bod

ık, R., and Larus, J. R. (2002). Min-

ing speciﬁcations. In Proceedings of the 29th ACM

SIGPLAN-SIGACT Symposium on Principles of Pro-

gramming Languages, pages 4–16.

Biermann, A. W. and Feldman, J. A. (1972). On the

synthesis of ﬁnite-state machines from samples of

their behavior. IEEE Transactions on Computers, C-

21(6):592–597.

Brunel, J., Doligez, D., Hansen, R. R., Lawall, J. L.,

and Muller, G. (2009). A foundation for ﬂow-based

program matching: Using temporal logic and model

checking. In Proceedings of the 36th Annual ACM

SIGPLAN-SIGACT Symposium on Principles of Pro-

gramming Languages, pages 114–126.

Corbett, J. C., Dwyer, M. B., Hatcliff, J., Laubach, S.,

Pasareanu, C. S., Robby, and Zheng, H. (2000). Ban-

dera: extracting ﬁnite-state models from java source

ICSOFT 2020 - 15th International Conference on Software Technologies

114

code. In Proceedings of the 2000 International Con-

ference on Software Engineering, pages 439–448.

Crew, R. F. (1997). Astlog: A language for examin-

ing abstract syntax trees. In Proceedings of the

USENIX Conference on Domain-Speciﬁc Languages,

pages 229–242.

Ferrante, J., Ottenstein, K. J., and Warren, J. D. (1987). The

program dependence graph and its use in optimiza-

tion. ACM Trans. Program. Lang. Syst., 9(3):319–349.

Fowler, M. (2013). Refactoring: improving the design of

existing code. Addison-Wesley Professional.

Grossman, D., Hicks, M., Jim, T., and Morrisett, G. (2005).

Cyclone: A type-safe dialect of c. C/C++ Users Jour-

nal, 23(1):112–139.

Harel, D. (1987). Statecharts: a visual formalism for com-

plex systems. Sci. Comput. Program., 8(3):231–274.

Jiresal, R., Makkapati, H., and Naik, R. (2011). Statechart

extraction from code – an approach using static pro-

gram analysis and heuristics based abstractions. In

Proc. of 2nd India Workshop on Reverse Engineering.

astner, C., Giarrusso, P. G., Rendel, T., Erdweg, S., Os-

termann, K., and Berger, T. (2011). Variability-aware

parsing in the presence of lexical macros and condi-

tional compilation. SIGPLAN Not., 46(10):805–824.

Knor, R., Trausmuth, G., and Weidl, J. (1998). Reengineer-

ing c/c++ source code by transforming state machines.

In Development and Evolution of Software Architec-

tures for Product Families, pages 97–105.

Kung, D., Suchak, N., Gao, J., Hsia, P., Toyoshima, Y., and

Chen, C. (1994). On object state testing. In Proceed-

ings Eighteenth Annual International Computer Soft-

ware and Applications Conference, pages 222–227.

Ladd, D. A. and Ramming, J. C. (1995). A*: a language

for implementing language processors. IEEE Trans-

actions on Software Engineering, 21(11):894–901.

Necula, G. C., McPeak, S., Rahul, S. P., and Weimer, W.

(2002). Cil: Intermediate language and tools for anal-

ysis and transformation of c programs. In Proceedings

of Conference on Compilier Construction, pages 213–

228.

Paul, S. and Prakash, A. (1994). A framework for source

code search using program patterns. IEEE Transac-

tions on Software Engineering, 20(6):463–475.

Prywes, N. and Rehmet, P. (1996). Recovery of software

design, state-machines and speciﬁcations from source

code. In Proceedings 2nd IEEE International Confer-

ence on Engineering of Complex Computer Systems,

pages 279–288.

Ricca, F., Torchiano, M., Leotta, M., Tiso, A., Guerrini, G.,

and Reggio, G. (2018). On the impact of state-based

model-driven development on maintainability: a fam-

ily of experiments using unimod. Empirical Software

Engineering, 23(3):1743–1790.

Said, W., Quante, J., and Koschke, R. (2018). Towards

interactive mining of understandable state machine

models from embedded software. In Proceedings

of the 6th International Conference on Model-Driven

Engineering and Software Development, pages 117–

128.

Said, W., Quante, J., and Koschke, R. (2019). Do extracted

state machine models help to understand embedded

software? In Proceedings of the 27th International

Conference on Program Comprehension, pages 191–

196.

Samek, M. (2009). Practical uml statecharts in c/c++:

Event-driven programming for embedded systems.

Sen, T. and Mall, R. (2016). Extracting ﬁnite state repre-

sentation of java programs. Software & Systems Mod-

eling, 15(2):497–511.

Shaohui Wang, Srinivasan Dwarakanathan, Oleg Sokolsky,

and Insup Lee (2012). High-level model extraction via

symbolic execution.

Som

e, S. S. and Lethbridge, T. C. (2002). Enhancing pro-

gram comprehension with recovered state models. In

Proceedings of the 10th International Workshop on

Program Comprehension, pages 85–93.

Thums, A. and Quante, J. (2012). Reengineering embed-

ded automotive software. In Proceedings of the 28th

IEEE International Conference on Software Mainte-

nance, pages 493–502.

van den Brand, M., Serebrenik, A., and van Zeeland, D.

(2008). Extraction of state machines of legacy c code

with cpp2xmi. In Proceedings of the 7th Belgian-

Netherlands Software Evolution Workshop, pages 28–

30.

Voelter, M., Kolb, B., Szab

o, T., Ratiu, D., and van Deursen,

A. (2019). Lessons learned from developing mbeddr:

a case study in language engineering with mps. Soft-

ware & Systems Modeling, 18(1):585–630.

von Mayrhauser, A. and Vans, A. M. (1995). Program com-

prehension during software maintenance and evolu-

tion. IEEE Computer, 28(8):44–55.

Walkinshaw, N., Bogdanov, K., Ali, S., and Holcombe, M.

(2008). Automated discovery of state transitions and

their functions in source code. Software Testing, Veri-

ﬁcation and Reliability, 18(2):99–121.

Walkinshaw, N. and Hall, M. (2016). Inferring computa-

tional state machine models from program executions.

In Proceedings of the IEEE International Conference

on Software Maintenance and Evolution, pages 122–

132.

Xiao, H., Sun, J., Liu, Y., Lin, S.-W., and Sun, C. (2013).

Tzuyu: Learning stateful typestates. In Proceedings

of the 28th IEEE/ACM International Conference on

Automated Software Engineering, pages 432–442.

Xie, T., Martin, E., and Yuan, H. (2006). Automatic extrac-

tion of abstract-object-state machines from unit-test

executions. In Proceedings of the 28th International

Conference on Software Engineering, pages 835–838.

Xu, S. and Chee, Y. S. (2003). Transformation-based diag-

nosis of student programs for programming tutoring

systems. IEEE Transactions on Software Engineer-

ing, 29(4):360–384.

Transformation- and Pattern-based State Machine Mining from Embedded C Code

115
