Optimizing dm-crypt for XTS-AES: Getting the Best of Atmel

Cryptographic Co-processors

Levent Demir

1,2

, Mathieu Thiery

1,2

, Vincent Roca

, Jean-Michel Tenkes

and Jean-Louis Roch

Incas ITSec, France

Univ. Grenoble Alpes, Inria, France

Univ. Grenoble Alpes, Grenoble INP, LIG, France

Keywords:

Full Disk Encryption, XTS-AES, Linux dm-crypt Module, Cryptographic Co-processor, Atmel Board.

Abstract:

Linux implementation of Full Disk Encryption (FDE) relies on the dm-crypt kernel module, and is based on

the XTS-AES encryption mode. However, XTS-AES is complex and can quickly become a performance bot-

tleneck. Therefore we explore the use of cryptographic co-processors to efﬁciently implement the XTS-AES

mode in Linux. We consider two Atmel boards that feature different cryptographic co-processors: the XTS-

AES mode is completely integrated on the recent SAMA5D2 board but not on the SAMA5D3 board. We ﬁrst

analyze three XTS-AES implementations: a pure software implementation, an implementation that leverages

the XTS-AES co-processor, and an intermediate solution. This work leads us to propose an optimization of

dm-crypt, the extended request mode, that enables to encrypt/decrypt a full 4kB page at once instead of issu-

ing eight consecutive 512 bytes requests as in the current implementation. We show that major performance

gains are possible with this optimization, a SAMA5D3 board reaching the performance of a SAMA5D2 board

where XTS-AES operations are totally ofﬂoaded to the dedicated cryptographic co-processor, while remaining

fully compatible with the standard. Finally, we explain why bad design choices prevent this optimization to

be applied to the new SAMA5D2 board and derive recommendations for future co-processor designs.

1 INTRODUCTION

Data protection is a necessity: large amounts of sensi-

tive information are stored in many different devices,

smartphones, tablets and computers. If such devices

are lost or stolen, unauthorized access to information

could have disastrous consequences (e.g., psycholog-

ical or economic (LLC, 2010)). We also have to pay

attention not only to data at rest, but also to data in

different memories like RAM and swap spaces.

One possible approach is to use Full Disk Encryp-

tion (FDE), which consists of encrypting an entire

disk, content as well as associated metadata, all in-

formation being encrypted/decrypted on-the-ﬂy trans-

parently. At the system level, data is stored either in a

logical partition or in a ﬁle container. Different tools

exist for FDE. With Linux, the native solution is based

on cryptsetup/LUKS application (Fruhwirth, 2005),

within user-space, and the dm-crypt module (Bro

et al., 2020) within kernel-space, which allows trans-

parent encryption and decryption of blocks.

A crucial aspect for FDE is the cipher mode of

operation, AES being the main cipher choice. Until

2007, the standard for data encryption in FDE was

the CBC-AES mode. But this mode has several draw-

backs. For instance, as explained in (IEEE Computer

Society, 2008): ”an attacker can ﬂip any bit of the

plaintext by ﬂipping the corresponding ciphertext bit

of the previous block” which can be dangerous. Fur-

thermore, encryption is not parallelizable which is an

issue for certain use cases.

A new mode has been introduced in 2008, XTS-

AES (IEEE Computer Society, 2008) that solved the

two previous limitations as 16-bytes block encryp-

tion/decryption is now performed independantly of

any previous 16-byte block. Each 16-byte block can

be accessed in any order and parallelization is possi-

ble during both encryption and decryption. In spite of

that, XTS-AES encryption/decryption operations are

complex and the use of this mode in lightweight envi-

ronments over huge amounts of data is challenging.

The motivation for this work is to ofﬂoad all XTS-

AES cryptographic operations to a dedicated board in

charge of FDE. This feature can be useful to design a

security board that would handle all cryptographic op-

erations required to outsource user’s data in external,

untrusted storage facilities (e.g., a Cloud). This archi-

tecture, with a security board between the client and

the storage facility, was our initial goal that triggered

the present work. The question of XTS-AES mode

Demir, L., Thiery, M., Roca, V., Tenkes, J. and Roch, J.

Optimizing dm-cr ypt for XTS-AES: Getting the Best of Atmel Cryptographic Co-processors.

DOI: 10.5220/0009767802630270

In Proceedings of the 17th International Joint Conference on e-Business and Telecommunications (ICETE 2020) - SECRYPT, pages 263-270

ISBN: 978-989-758-446-6

263

performances improvement in embedded, lightweight

environments, is therefore critical.

Choice of Atmel Boards and Importance of De-

tailed Technical Speciﬁcations: We considered

two Atmel boards, both equipped with a crypto-

graphic co-processor, the (old) SAMA5D3 board (AT-

MEL, 2017b) and the (new) SAMA5D2 board (AT-

MEL, 2017a). We chose these because of their low

price and wide acceptance in industrial systems, and

because the cryptographic co-processor documenta-

tion is publicly available, a requirement for advanced

developments. This is not always the case as we dis-

covered after buying another more powerfull board:

the provided information turned out to be too lim-

ited for our needs and our academic status did not

enable us to obtain the technical documentation from

the manufacturer, even after asking their support.

A major difference exists between these two At-

mel boards, which justiﬁes that we consider both

of them: the cryptographic co-processor of the ﬁrst

board supports common AES modes but not XTS-

AES, while the second one also supports XTS-AES.

Those constraints led us to consider different imple-

mentation options that are the subject of this work.

Scientiﬁc Approach Followed in this Work: The

ﬁrst step of our work was the experimental analysis

of three XTS-AES implementations: a pure software

implementation (the legacy baseline), an implemen-

tation that leverages the dedicated cryptographic co-

processor with XTS-AES support of the SAMA5D2

board (the most favourable case), and in between an

implementation that leverages the cryptographic co-

processor with ECB-AES support only of the old

SAMA5D3 board. Our benchmarks demonstrated

that the performance in all cases was still behind ex-

pectations and did not match our objective of efﬁcient

on-the-ﬂy encryption/decryption of large amounts of

data within the Atmel boards.

An analysis of in-kernel data paths highlighted a

limitation of plaintext sizes to a hard-coded 512 bytes

value, in particular because this is the common sector

size on most devices, and also because test vectors

are limited to a maximum of 512 bytes in the ofﬁcial

XTS-AES standard (IEEE Computer Society, 2008).

We therefore explored the possibility of having 4 KB

long requests (i.e., a page size), a rational choice and

a pretty natural idea for kernel operations. We called

this optimization ”extended request mode”, or extReq.

We therefore modiﬁed dm-crypt as well as the un-

derlying atmel-aes driver, two highly complex tasks,

in order to support extended encryption/decryption

requests. We then analyzed the performance impacts.

With this optimization, a mixed implementation with

the (old) SAMA5D3 ECB-AES co-processor features

roughly the same performance as that of the (new)

SAMA5D2 XTS-AES co-processor.

Finally we analyzed the existing XTS-AES cryp-

tographic co-processor of the SAMA5D2 board in or-

der to apply the extReq optimization to it directly. Un-

fortunately, because of bad design choices by Atmel,

this new cryptographic co-processor is not compati-

ble with this optimization, therefore limiting the op-

portunities for major performance improvements. We

explain why it is so and conclude this work with rec-

ommendations for future co-processor designs (the

interested reader is invited to refer to the full paper:

https://hal.archives-ouvertes.fr/hal-02555457).

Note that this work only considers cryptographic

operations over large data chunks, which is pretty

common with FDE use-cases. It does not consider

the opposite case, i.e., large numbers of small data

chuncks, which is not the target of our optimisation.

Contributions of this Work:

• this works explores the implementation of crypto-

graphic primitives in Linux systems, detailing the

complex interactions between software and hard-

ware components, and the dm-crypt kernel mod-

ule internals. Note that this work implied ma-

jor in-kernel low-level software developments and

complex performance evaluation campaigns.

• this work shows that signiﬁcant performance

gains are possible thanks to the ”extended request

mode”, extReq, optimization, even with boards

that do not feature cryptographic co-processors

supporting XTS-AES. Although the idea behind

this optimisation is pretty natural, we describe

the architectural implications, we apply it to sev-

eral XTS-AES implementations, depending on

the available hardware, and provide performance

evaluation results. Note that even if this work only

considers embedded boards, it will be useful to

other execution environments.

• when we tried to apply the extReq optimization

to the XTS-AES facility of the new cryptographic

co-processor, we discovered an uncompatible de-

sign. We explain why it is so, we provide likely

explanations for this situtation, as well as recom-

mendations for future co-processor designs. This

is an important outcome of this work if we want

to boost FDE cryptographic performance.

SECRYPT 2020 - 17th International Conference on Security and Cryptography

264

2 FULL DISK ENCRYPTION

(FDE) IMPLEMENTATIONS ON

LINUX

2.1 About FDE in Linux

Since Linux kernel v.2.6, FDE relies on the dm-

crypt kernel module. It provides transparent encryp-

tion/decryption of a virtual block device using the ker-

nel crypto API, in which the block device can be a

logical partition, an external disk (HDD or USB stick)

or a ﬁle container. Data written/read to/from the de-

vice is automatically encrypted/decrypted.

The kernel crypto API offers a rich set of cryp-

tographic ciphers, modes, and data transform mecha-

nisms. Natively the crypto API offers its own generic

software ciphers: since the cryptographic operations

are performed by the CPU, this cipher is portable,

without any assumption on available hardware. When

another implementation exists for the same cipher

(see section 2.3), it is used instead of the generic one.

On top of the kernel module, FDE relies on crypt-

setup, which in turn is based on Linux Uniﬁed Key

Setup (LUKS). LUKS provides a standard on-disk

header with all required information like cipher mode,

salt and hash of the master key (Fruhwirth, 2018). It

also provides a secure user management system that

allows up to eight users to share a single container.

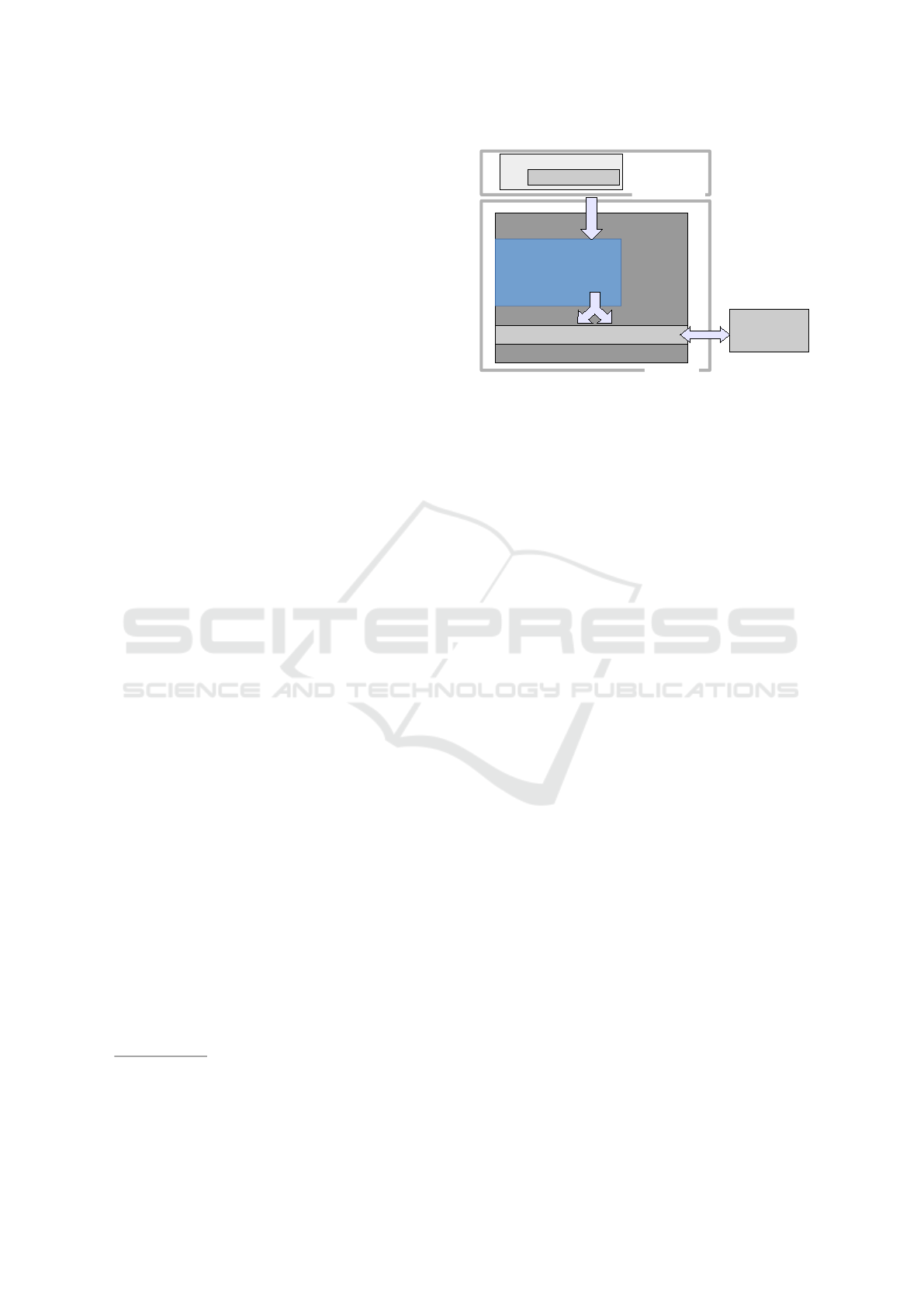

Figure 1 presents a high-level overview of the

global architecture and summarizes the various oper-

ations on data between user-space, kernel space, and

physical device.

2.2 About XTS-AES

XTS-AES is the standard cipher mode for block-

oriented storage devices since 2007 (IEEE Computer

Society, 2008). The block size of this mode matches

the block size of the storage device: 512 bytes

The sector number corresponding to a 512-byte

block is used as IV, which means that the encryp-

tion/decryption operations can be done independently

for each block, and in parallel if needed.

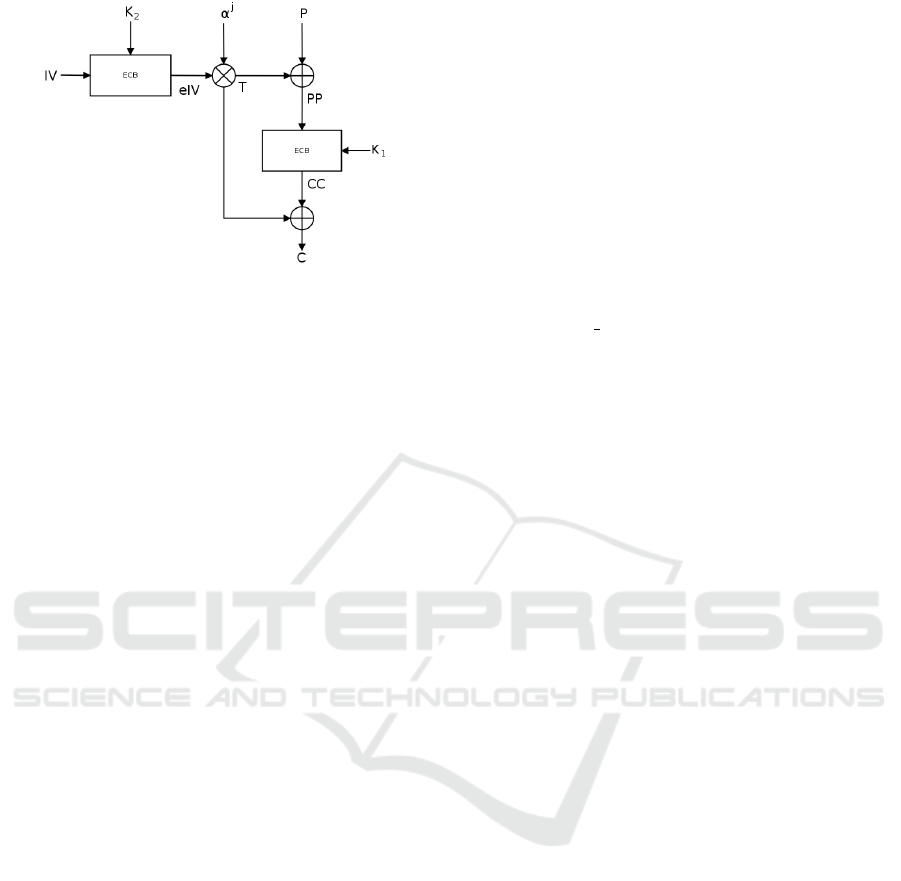

Let us consider XTS-AES encryption (refer to

(Martin, 2010; IEEE Computer Society, 2008) for de-

cryption). There are three input parameters:

• The key, K, is 256 or 512 bits long and is divided

into two equal-sized sub-keys, K

and K

. K

We discuss in the long version of this paper that this

block size value signiﬁcantly impacted the design of the At-

mel XTS-AES co-processor, thereby preventing us from ap-

plying our optimization on this board.

BLOCK

LAYER

USERSPACE

Cryptsetup / LUKS

Application:

DEVICE

MAPPER

Map IO

dm-crypt module

KERNEL

Physical device: file container, disk ...

Low level driver: atmel-aes driver

Atmel

cryptographic

co-processor

Figure 1: High-level overview of the FDE architecture in

Linux and the data paths during cryptographic operations.

Within the user-space, cryptsetup allows to create an en-

crypted disk following LUKS format. When plaintext needs

to be encrypted, data is sent to the dm-crypt module, within

the kernel space. Depending on what is available, a soft-

ware or cryptographic co-processor based implementation

is chosen. When a co-processor is available, as is the case

here, data is transferred to the speciﬁc low level driver. Fi-

nally the ciphertext is written to the physical device.

used to encrypt/decrypt data while K

is used for

IV encryption.

• The initialization vector, IV , is 128 bits/16 bytes

long and represents the sector number (i.e., the

logical position of the data unit). This IV, once

encrypted, is called eIV . After multiplication, it

forms the tweak, denoted as T .

• The plaintext P is 512 bytes long block and con-

stitutes the payload to encrypt.

A 512-byte block is composed of 32 data units of 128

bits/16 bytes each. Let j denote the sequential num-

ber of the 128 bits data unit inside this block. Figure 2

shows the encryption process for this data unit. The

ﬁrst step consists in encrypting the IV with K

using

AES-ECB to produce the eIV . The result is multi-

plied in the Galois Field with the j

power of α to

produce the tweak, T , where α is a primitive element

of GF(2

128

). Then the 128 bits data unit (plaintext) is

XORed with T and encrypted with K

using AES-ECB,

resulting in CC. The last step consists in XORing CC

with T , producing the encrypted result C for this 128

bits data unit. The same operation is performed for all

the 128 bits data units, successively.

2.3 XTS-AES Implementations

Cipher implementations are available at different lev-

els including from userspace, through libraries such

as OpenSSL, GnuTLS or Gcrypt. Within the Linux

kernel, other ciphers are used:

• some of them are pure software implementations;

Optimizing dm-crypt for XTS-AES: Getting the Best of Atmel Cryptographic Co-processors

265

Figure 2: XTS-AES encryption of the j

128 bits data unit

of a 512-byte block.

• other ciphers use speciﬁc CPU instructions like

AES-NI (Gueron, 2012) for Intel CPU, or ARMv8

Crypto Extensions for ARM processor. They offer

a clear performance beneﬁt compared to generic

software implementations;

• ﬁnally some implementations rely on a dedicated

cryptographic co-processor. This approach usu-

ally features better performance than generic soft-

ware, but on the downside, the co-processor acts

as an unmodiﬁable black box.

In the next section we introduce a fourth solution

which leverages on the SAMA5D3 cryptographic co-

processor ECB-AES support.

3 OPTIMIZING DM-CRYPT FOR

XTS-AES

3.1 Accelerating XTS-AES with an

ECB-AES Co-processor

For situations where a cryptographic co-processor is

available and supports ECB-AES but not XTS-AES

(e.g., the Atmel SAMA5D3 board, section 4.1), a

mixed approach is possible. XTS-AES is composed

of ﬁve operations: two XOR operations, a multiplica-

tion in GF(2

128

), two ECB-AES encryptions (or de-

cryptions). The idea is to ofﬂoad the two ECB-AES

operations onto the cryptographic co-processor while

other operations are performed by the CPU. Doing so

requires to modify the atmel-aes driver. The main dif-

ﬁculty is to accommodate the asynchronous nature of

the cryptographic co-processor operations: the inter-

ruption generated at the end of the ECB-AES encryp-

tion (or decryption) by the co-processor is intercepted

and triggers the remaining CPU operations.

As we will see later on, the performance gain

achieved was not as high as expected and we looked

at another possible optimization.

3.2 Extended Requests to the atmel-aes

Driver

We also analyzed the mapping between 4kB pages

managed by the dm-crpyt module and the low level

cryptographic operations within the atmel-aes driver.

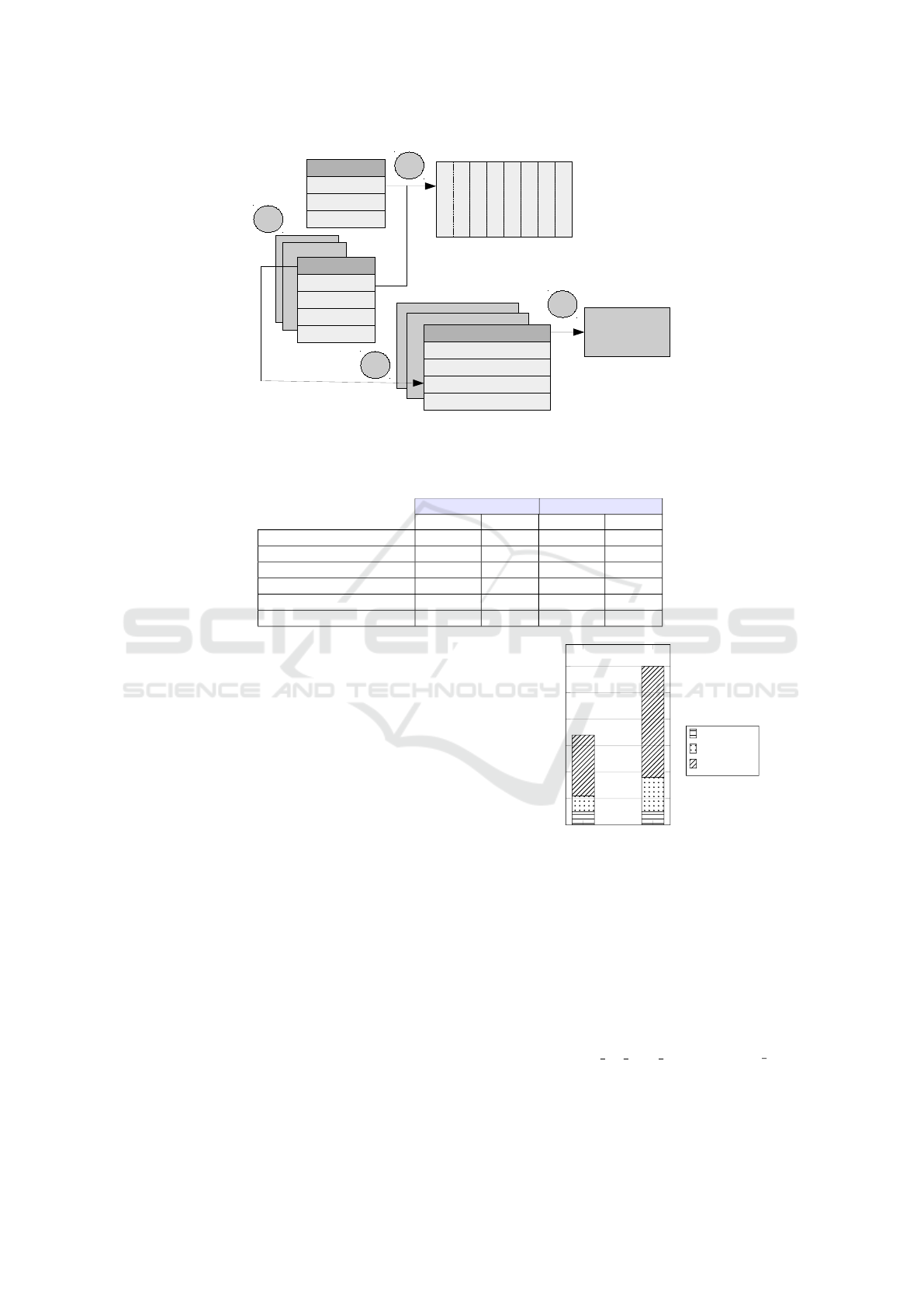

Let us consider the encryption operation in Figure 3

(decryption is similar):

• The dm-crypt module gets a description in a bio

structure of the plaintext ﬁle (this bio is not repre-

sented in Figure 3). This bio structure consists of

a list of bio vec structures, one per 4kB page.

• For each 4kB page of the list, the dm-crypt mod-

ule splits this page into eight 512-byte blocks and

initializes two scatterlist structures for each block,

respectively for source (where the plaintext is) and

destination (where to write the ciphertext). The

offset in the page is incremented for each scat-

terlist to point to the right 512-byte block.

• Then an encryption request is generated for each

block, with complementary information (like the

IV) and sent to the atmel-aes driver.

• Finally the atmel-aes driver encrypts each 512-

byte block, writing the result to the destination.

It appears that a natural optimization would consist in

working with larger requests to the atmel-aes driver,

a full 4kB page at a time. Doing so reduces by a fac-

tor eight the number of requests and reduces the im-

pact of ﬁxed overheads within the cryptographic co-

processor (e.g., when programming a DMA to move

data from a kernel buffer to the internal co-processor

memory, and vice-versa).

We also limit ourselves to 4kB pages (rather than

a list of pages) because the page size is the common

size for ﬁle processing. It follows that the various

pages are not necessarily contiguous on disk which

limits the beneﬁt of having a single request larger than

a page.

This optimization requires modifying both dm-

crypt and the atmel-aes driver. We increased the dm-

crypt 512 bytes limit to 4kB. Of course, the original

dm-crypt behavior is preserved and used if less than a

full page is concerned.

The atmel-aes driver is also modiﬁed. Again, any

request size from 512 bytes to 4kB (with a 512 bytes

step) is accepted. For instance, with an extended re-

quest for a full page, the driver computes eight IVs,

by incrementing the initial IV value for each 512-byte

block. This is in line with the way data is stored in the

page, since the eight blocks are necessarily stored se-

quentially. The driver also computes eight times more

SECRYPT 2020 - 17th International Conference on Security and Cryptography

266

tweaks from these IVs, and performs XOR and ECB-

AES encryption operations 4kB at a time.

This approach is fully backward compatible,

which we experimentally checked: a plaintext en-

crypted using this optimized extended request mode

can be decrypted with a classic XTS-AES mode im-

plementation, and vice versa.

4 EXPERIMENTS

4.1 Experimental Platform

We implemented the proposals of section 3. In order

to assess the performance of the various options, we

considered two Atmel boards: the SAMA5D3 (AT-

MEL, 2017b) and the SAMA5D2 (ATMEL, 2017a)

boards. Both cards feature the same single core Cor-

tex A5 ARM processor, 500 MHz, and a speciﬁc cryp-

tographic co-processor. The SAMA5D3 co-processor

supports ﬁve common AES modes, but not XTS-AES.

On the opposite, the SAMA5D2 co-processor, more

recent, also supports XTS-AES. Otherwise both cards

feature 256 MB of RAM, a Sandisk Class 10 SDHC

card, and run the same Linux/Debian operating sys-

tem with a 4.6 Linux kernel. During all tests, we used

the default key size of dm-crypt: a 256-bit XTS-AES

key, divided into two 128-bit sub-keys, which means

that ECB-AES-128 mode is always used.

Here are the various conﬁgurations tested:

SAMA5D3 Board:

• software: existing xts.ko linux kernel mod-

ule;

• mixed, with ECB-AES co-proc. but not ex-

tReq: atmel-aes driver modiﬁed to use the co-

processor for ECB-AES operations and CPU

for other operations, with 512-byte request

sizes;

• mixed, with ECB-AES co-proc. and extReq:

same as above, with 4kB request sizes (full

page).

SAMA5D2 Board:

• software: existing xts.ko linux kernel mod-

ule;

• with XTS-AES co-proc.: cryptographic co-

processor for the full XTS-AES processing,

with 512-byte request sizes.

In these tests the two ”full software” conﬁgurations

enable us to calibrate the two Atmel boards. As antic-

ipated from the speciﬁcations, we show in section 4.3

that these ”full software” conﬁgurations exhibit sim-

ilar performances. Therefore the results obtained on

the SAMA5D2 board can be safely compared to re-

sults obtained on the SAMA5D3 board, the main dif-

ference being the cryptographic co-processors, not the

remaining of the execution environment.

4.2 Time Breakdown with or without

Extended Requests

Let us ﬁrst focus on our mixed implementation using

the ECB-AES co-processor, with or without extended

requests. We measured the total time spent within

the atmel-aes driver for each of the ﬁve operations

of XTS-AES mode on the SAMA5D3 board, during

a large 50 MB ﬁle encryption and decryption. To

that purpose, we instrumented the driver and collected

timestamped traces with the getnstimeofday() and

printk() Linux kernel functions. In order to as-

sess the practical precision of getnstimeofday()

and printk(), we ran several consecutive calls and

measured a 330 ns overhead per measure, which is an

acceptable precision for our experiments.

The breakdown values reported in Tables 1 and

2 are obtained by summing all the elementary times

for each of the following categories over the full ﬁle

encryption or decryption:

• Total time spent in the atmel-aes driver;

• Tweak computation time;

• First XOR time;

• Second XOR time;

• DMA (to and from the co-processor) + encryp-

tion (resp. decryption) time. Note that unfortu-

nately these operations cannot be isolated from

the atmel-aes driver;

• Other time computed as the difference between

the total time and the previous four categories;

Let us focus on the encryption of this 50 MB ﬁle ﬁrst.

From Table 1 we see that the DMA plus encryption

process takes more than the half of the total time in the

default conﬁguration, with 512-byte requests: 5.31s

out of 9.09s, followed by the tweak computation, with

a total of 2.62s. Both of them amount to 87% of the

total time.

Using the extended request mode, extReq, the total

processing time is reduced by a factor 1.74, down to

5.23s. Looking at the DMA plus encryption process,

if it still represents more than half of the total time,

Looking more carefully one can notice that the ﬁrst

XOR is signiﬁcantly faster than the second one. This dif-

ference may come from cache behaviors, the second XOR

using a data area initialized by the DMA unlike the ﬁrst one.

Since the impacts are marginal compared to other process-

ing times, we did not investigate the topic more in details.

Optimizing dm-crypt for XTS-AES: Getting the Best of Atmel Cryptographic Co-processors

267

bio_vec

*bv_page

bv_len

bv_offset

page split into 8

512-byte blocks

by dm-crypt

Atmel aes driver

...

scatterlist

page_link

offset: 0

length : 512

dma_address

8 ×

cipher_request

cryptlen

struct scatterlist *src

struct scatterlist *dst

8 ×

Figure 3: Classic approach for the encryption of a 4kB page with dm-crypt.

Table 1: Time breakdown of 50 MB ﬁle encryption with the mixed implementation using the ECB-AES co-processor, without

or with extReq.

Without extReq With extReq

Time (s) % Time (s) %

Total time 9.09 100.00 5.23 100.00

Tweak computation time 2.62 28.90 1.70 32.61

First XOR time 0.31 3.41 0.31 6.08

Second XOR time 0.63 6.99 0.41 7.86

DMA + encryption time 5.31 58.46 2.75 52.72

Other time 0.20 2.24 0.03 0.73

we notice a major improvement by a factor 1.93, now

amounting to 2.75s. The tweak computation is also

signiﬁcantly reduced by a factor 1.54, now amounting

to 1.70s.

The situation is pretty similar during the decryp-

tion of this 50 MB ﬁle. These results show that the

extended request optimization has a considerable im-

pact when we use the dedicated hardware, by reduc-

ing the overhead due to the set up of the cryptographic

co-processor and the multiple data transfers, which is

not surprising.

4.3 Beneﬁts of Extended Requests to the

Global Processing Time

We now consider the global processing time with

our mixed implementation using the ECB-AES co-

processor. This global time now includes dm-crypt

processing, I/O operations, and all the remaining sys-

tem call/kernel processing overheads. In particular we

want to see to what extent the extended request mode

can improve this global time, beyond the beneﬁts it

has on the atmel-aes driver itself (section 4.2).

However the total time for the encryption and de-

cryption of ﬁle is difﬁcult to measure because of asyn-

chronous operations and the presence of caches. In

with-extReq without-extReq

time(s)

MD5

I/O + kernel

atmel driver

Figure 4: Time breakdown for the MD5 computation of a

50 MB encrypted ﬁle, with our mixed implementation using

the ECB-AES co-processor.

order to circumvent these difﬁculties, we measured

the time to compute the MD5 digest of an already en-

crypted ﬁle, i.e. the time to decrypt and then compute

the MD5 hash. Therefore the total time is composed

of the Atmel driver time (line 1 of table 2), the MD5

digest time which is constant, and the I/O and other

kernel processing time. We have:

total

= t

md5

+ t

I/0 and kernel processing

+ t

atmel driver

Here also, we focus on our mixed implementation us-

ing the ECB-AES co-processor in order to assess the

impacts of the extReq optimization.

SECRYPT 2020 - 17th International Conference on Security and Cryptography

268

Table 2: Time breakdown of 50 MB ﬁle decryption with the mixed implementation using the ECB-AES co-processor, without

or with extReq.

Without extReq With extReq

Time (s) % Time (s) %

Total time 9.30 100.00 5.13 100.00

Tweak computation time 3.05 32.78 1.46 28.61

First XOR time 0.29 3.21 0.27 5.32

Second XOR time 0.55 5.98 0.40 7.92

DMA + decryption time 5.22 56.12 2.81 54.83

Other time 0.17 1.90 0.17 3.32

Figure 4 shows the breakdown of the total time. It

conﬁrms that the MD5 hash processing is both con-

stant and small with respect to the total time: the

method followed is not negatively impacted by the

computation of a MD5 digest. Non surprisingly, de-

cryption within atmel-aes driver represents the most

important time, and is signiﬁcantly reduced as was

shown before. But we also notice that the I/0 and

other kernel processing times is divided by a factor of

almost 2: this is an additional beneﬁt of the extended

request mode.

4.4 Performance Comparison for All

Conﬁgurations

So far we only focused on our mixed implementation

using the ECB-AES co-processor. Let us now com-

pare the various ciphers listed in section 4.1, using ei-

ther the SAMA5D3 and SAMA5D2 cards. In order to

perform this comparison, we considered the IOZONE

tool (Norcott and Capps, 2003) that provides encryp-

tion and decryption throughputs for large ﬁles (256

MB and 512 MB ﬁles in our tests).

Figure 5 shows the results. First of all, the two

”full software” conﬁgurations exhibit similar perfor-

mance which means the results can be safely com-

pared even if two different Atmel boards have been

used. These experiments show that our mixed im-

plementation with ECB-AES co-processor and ex-

tReq exhibits similar performance to that of the

SAMA5D2 XTS-AES co-processor: our solution is

slightly slower during encryption, but slightly faster

during decryption, no matter the ﬁle size. All other

solutions are clearly behind.

These experiments outline that in the absence of

native XTS-AES co-processor support, an implemen-

tation that can leverage an ECB-AES co-processor

and extReq is highly competitive.

5 CONCLUSION

XTS-AES is complex and can easily become a perfor-

mance bottleneck when dealing with large amounts of

data in the context of Full Disk Encryption (FDE). If

this is a perfect target for a hardware cryptographic

co-processor, XTS-AES is also relatively recent and

not universally supported. For this work we chose two

SAMA5 Atmel boards, in parts because of the avail-

ability of technical information required by our ad-

vanced developments (this is not always the case). If

the two boards feature a cryptographic co-processor,

only the recent SAMA5D2 supports XTS-AES hard-

ware acceleration.

This work focused on FDE in Linux, where the

dm-crypt module is in charge of block device, low

level, encryption/decryption. We studied three XTS-

AES implementations, from a pure software im-

plementation (baseline) to an implementation rely-

ing on the SAMA5D2 XTS-AES cryptographic co-

processor (most favourable case), and in between an

implementation relying on the SAMA5D3 crypto-

graphic co-processor for ECB-AES and CPU for the

other operations. We benchmarked them and identi-

ﬁed that performance was behind expectations.

Therefore we explored the inner working of the

dm-crypt module and identiﬁed a possible optimiza-

tion: extended requests. Indeed, sending a single en-

cryption or decryption request to the atmel-aes driver

for a full 4kB page (instead of eight consecutive

requests) enables major performance improvements.

Although this idea is pretty natural, we describe the

architectural implications, and provide detailed per-

formance evaluations achieved with modiﬁed the low

level drivers. With this optimization, a mixed imple-

mentation limited to the old SAMA5D3 ECB-AES

co-processor features roughly the same performance

as that of the new SAMA5D2 board with an XTS-

AES co-processor. It therefore opens news perspec-

tives to accelerate FDE on Linux: old systems without

XTS-AES co-processor support will be greatly accel-

erated for intensive encryption/decryption tasks.

This work also discusses the possibility of having

an extended request mode support in the SAMA5D2

XTS-AES cryptographic co-processor. If the current

cryptographic co-processor design, limited to 512-

byte blocks maximum, prevents this optimization, we

explain how to solve the problem. We hope that the

Optimizing dm-crypt for XTS-AES: Getting the Best of Atmel Cryptographic Co-processors

269

256 512

2,000

4,000

6,000

8,000

10,000

File size (MB)

Throughput (KB/s)

Encryption (write)

D3 software

D2 software

D3 with ECB-AES co-processor(without extReq)

D3 with ECB-AES co-processor(with extReq)

D2 with XTS-AES co-processor

256 512

2,000

4,000

6,000

8,000

10,000

File size (MB)

Throughput (KB/s)

Decryption (read)

Figure 5: IOZONE benchmark, encryption and decryption

throughputs for all conﬁgurations.

design of future boards will be updated accordingly to

enable faster XTS-AES and FDE operations with the

proposed extReq optimization.

The interested reader is invited to refer to the full

paper: https://hal.archives-ouvertes.fr/hal-02555457

REFERENCES

ATMEL (2017a). SAMA5D2 board. http:

//www.atmel.com/tools/ATSAMA5D2-XULT.aspx.

ATMEL (2017b). SAMA5D3 board. http:

//www.atmel.com/tools/ATSAMA5D3-XPLD.aspx.

Bro

z, M., Kozina, O., Wagner, A., Meurer, J., and Vir-

govic, M. (2020). dm-crypt: Linux kernel device-

mapper crypto target. https://gitlab.com/cryptsetup/

cryptsetup/wikis/DMCrypt.

Fruhwirth, C. (2005). Hard disk encryption with dm-crypt,

luks, and cryptsetup. Linux Magazine, 61:65–71.

Fruhwirth, C. (2018). Luks on-disk format spec-

iﬁcation version 1.2.3. Technical report.

https://gitlab.com/cryptsetup/cryptsetup/wikis/

LUKS-standard/on-disk-format.pdf.

Gueron, S. (2012). Intel advanced encryption stan-

dard instructions set - rev 3.01. Technical re-

port. https://software.intel.com/sites/default/ﬁles/

article/165683/aes-wp-2012-09-22-v01.pdf.

IEEE Computer Society (2008). IEEE standard for cryp-

tographic protection of data on block-oriented storage

devices. IEEE std 1619-2007.

LLC, P. I. (2010). The billion dollar lost laptop prob-

lem: benchmark study of U.S. organizations.

http://www.intel.com/content/dam/doc/white-paper/

enterprise-security-the-billion-dollar-lost-laptop-

problem-paper.pdf.

Martin, L. (2010). XTS: A mode of AES for encrypting

hard disks. IEEE Security & Privacy, 8(3):68–69.

Norcott, W. D. and Capps, D. (2003). Iozone ﬁlesystem

benchmark. http://www.iozone.org/.

SECRYPT 2020 - 17th International Conference on Security and Cryptography

270
