Avoiding Network and Host Detection using Packet Bit-masking

George Stergiopoulos

, Eirini Lygerou, Nikolaos Tsalis, Dimitris Tomaras

and Dimitris Gritzalis

Information Security & Critical Infrastructure Protection Laboratory, Department of Informatics,

Athens University of Economics & Business, 76 Patission Ave., Athens GR-10434, Greece

Keywords:

Network Security, Detection, Attack, Evasion, Intrusion Detection, Host, Siem, Malware, TCP, Packet,

Transport, Layer, Payload, Shell, Data Leakage, DLP.

Abstract:

Current host and network intrusion detection and prevention systems mainly use deep packet inspection, sig-

nature analysis and behavior analytics on trafﬁc and relevant software to detect and prevent malicious activity.

Solutions are applied on both system and network level. We present an evasion attack to remotely control a

shell and/or exﬁltrate sensitive data that manages to avoid most popular host and network intrusion techniques.

The idea is to use legitimate trafﬁc and victim-generated packets that belong to different contexts and reuse it to

communicate malicious content without tampering their payload or other information (except destination IP).

We name the technique “bit-masking”. The attack seems able to exﬁltrate any amount of data and execution

time does not seem to affect detection rates. For proof, we develop the “Leaky-Faucet” software that allows us

to (i) remotely control a reverse shell and (ii) transfer data unnoticed. The validation scope for the presented

attack includes evading 5 popular NIDS, 8 of the most popular integrated end-point protection solutions and a

Data Leakage Prevention system (DLP); both on the network and host session level. We present three different

variations of the attack able to transfer (i) shell commands, (ii) large chunks of data, and (iii) malicious code to

a remote command and control (CnC) center. During experiments, we also detected an NPcap library bug that

allows resent packets to avoid logging from network analysis tools for Windows that use the Npcap library.

1 INTRODUCTION

There exists a variety of security measures for de-

tecting and preventing malicious activity, with the

purpose of both adhering to regulatory compliance

and also reducing the risk in case of malicious ac-

tivity. Security ofﬁcers use Intrusion Detection Sys-

tems (IDS) (J., 1998), both at network level (NIDS)

and host endpoint solutions (HIDS, heuristics, an-

tivirus etc.) as both software applications and/or dis-

crete hardware appliances. These systems monitor

network connections and workstations for violations

and the existence of malicious activity. (Marpaung

et al., 2012).

On the other hand, researchers and technical ex-

perts keep publishing evasion attacks while others re-

spond with more efﬁcient detection techniques, both

thus evolving the current state of the art with new

ways to avoid measures and detect malicious activity.

Any malicious information (data, commands, etc.)

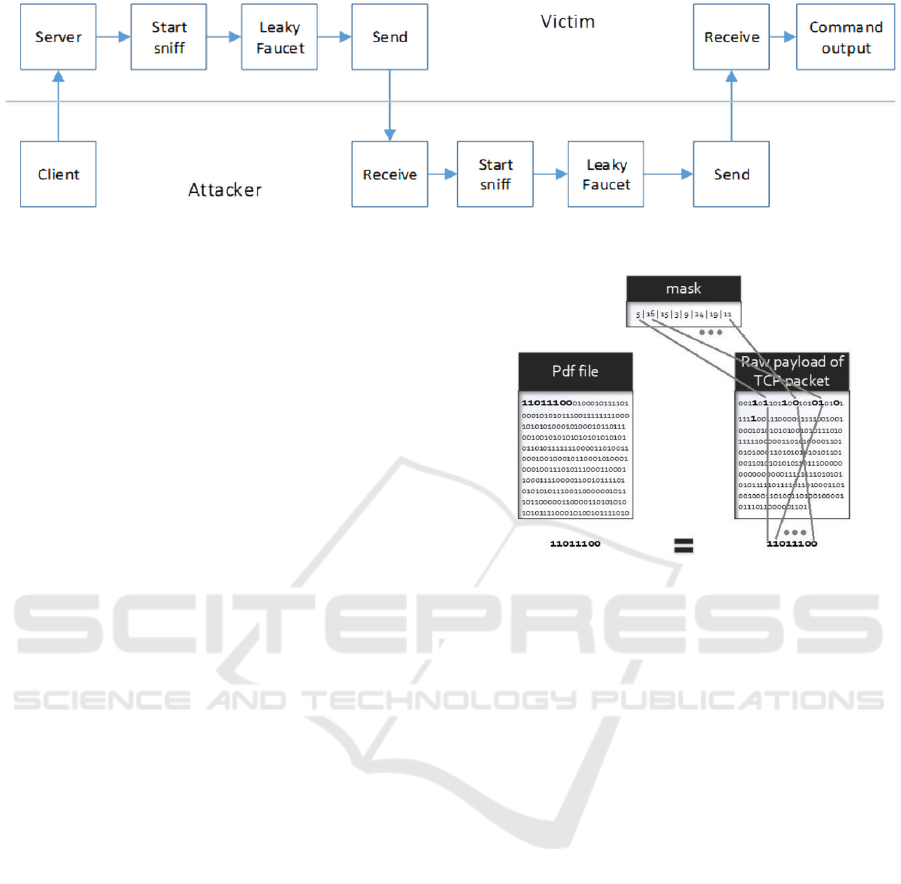

is essentially a sequence of bits. The idea is to break

https://orcid.org/0000-0002-5336-6765

this sequence into k bit blocks of length n, capture le-

gitimate TCP/IP trafﬁc from the victim’s network and

try to detect k TCP packet payloads (one for each bit

block) where each packet has the same n bits in spe-

ciﬁc positions (in binary form) with a corresponding

bit block. Essentially, we replace all k bit blocks of

malicious data into k TCP packets of legitimate traf-

ﬁc, whose payloads contain the aforementioned bit

blocks in some ﬁxed bit positions. Fixed positions

can be chosen arbitrarily by the attacker; similar to a

symmetric encryption key. Lastly, we resend the cap-

tured packet to an attacker’s listening service without

tampering (expect of course changing the destination

IP). Thus, we transfer a part of the overall intended

malicious data that we want to send. We named this

bit referencing technique, “bit-masking”.

The bit-masking algorithm is effectively a muta-

tion of a reverse-shell that connects a victim to its

attacker. The difference is that a bit-masked con-

nection uses existing legitimate trafﬁc from the vic-

tim to transfer commands and data instead of creat-

ing new trafﬁc. Payloads of legitimate TCP packets

from victim-generated trafﬁc are used as is to achieve

Stergiopoulos, G., Lygerou, E., Tsalis, N., Tomaras, D. and Gritzalis, D.

Avoiding Network and Host Detection using Packet Bit-masking.

DOI: 10.5220/0009591500520063

In Proceedings of the 17th International Joint Conference on e-Business and Telecommunications (ICETE 2020) - SECRYPT, pages 52-63

ISBN: 978-989-758-446-6

all three attack scenarios presented in this paper. We

develop a tool named Leaky-faucet as a proof of con-

cept. The validation scope for the presented evasion

attack includes detection mechanisms for malicious

activity on the network and host session connection

level (network and host IDS, endpoint security solu-

tions, antivirus). Security mechanisms failed to de-

tect Leaky-Faucet, both when executing commands

and receiving output and exﬁltrating data of any size,

given enough time for the attack to run. We tested this

for various data sizes from 40KB to 230MB ﬁles (of

course the bigger the exﬁltration, the longer the attack

has to remain active).

Through the use of raw sockets, malicious com-

mands and data are sent using entire legitimate pay-

loads, instead of being inserted on existing sessions.

This way, even if we check plain-text spoofed packets

manually, the malicious content is undetectable.

1.1 Contribution

We present a fully functional reverse shell with the

ability to hide commands and data transmitted over a

victim’s network. Our implementation takes advan-

tage of raw payloads from legitimate TCP packets to

bidirectionally transfer masked commands and data.

Our major contributions are:

1. An evasion attack named bit-masking that man-

ages to create a stable, reverse connection that

none of the tested systems managed to detect. We

send shell commands and receive output, transfer

data and exﬁltrate sensitive ﬁles in the order of

tens of megabytes undetected.

2. We perform three attack scenarios to validate our

attack performance in different implementations

with numerous security measures. The attack was

tested against 5 popular NIDS, 8 popular inte-

grated endpoint protection solutions and a Data

Leakage Prevention system; both on the network

and host session level. Scenarios use (i) regu-

lar sockets, (ii) raw sockets and (iii) raw sockets

with Npcap (Dean, 2016). If the NPCap library

is installed on the victim’s machine with default

(admin) conﬁguration, the Npcap Spoofed edition

can be executed correctly from userland without

administrator privileges.

3. During experiments, we also discovered a trafﬁc

monitoring bypass issue using the Npcap library.

Speciﬁc attacks were able to avoid all session

and packet logging from monitoring tools that use

Npcap (e.g. Wireshark).

We should note that the goal of this paper is to evade

detection of information exchange while connecting

to the attacker’s system at both the host and the net-

work level. This paper does not focus on code in-

jection and execution techniques like ROP injections,

polymorphism and other techniques that aim to evade

detection during code execution. We assume that a

script is executed on the victim’s machine using one

of the numerous existing techniques and focus on de-

tection evasion on network and host levels, both from

userland and root.

Section 2 presents related work concerning detec-

tion of malicious activity both in network trafﬁc and

in host machines. We also argue about the differences

with our presented attack. Section 3 describes the

bit-masking evasion technique and its client-server

model. Here we also present the three version of

the attack, namely the TCP version, the spoofed raw

and the spoofed NPcap version of the attack. Section

4 presents the various implementations of the attack

(Leaky-Faucet) for remote command-and-control for

all attack versions and our experiments to determine

the most efﬁcient bit-mask length, while Section 5 de-

scribes experimental results with remote commands

and data leakage. Section 6 concludes and discusses

potential solutions and future work.

2 RELATED WORK

2.1 Evasion Attacks

State-of-the-art evasion techniques include obfusca-

tion, session fragmentation or splicing, application

speciﬁc violations, protocol violations, inserting traf-

ﬁc at IDS, denial of service, and code reuse attacks

(J., 1998).

Packet fragmentation is a network level evasion

technique that utilizes the maximum transmission unit

(MTU) of packets to generate malformed TCP pay-

loads (Cheng et al., 2012; Martin, 2019). Splicing de-

livers malicious payloads over multiple network pack-

ets in a session through streams of small packets.

Other evasion techniques include desynchronizing

protocol streams (Serna, 2002) and trafﬁc injection at-

tacks. Packet-based network intrusion detection sys-

tems can be avoided by making the IDS process dif-

ferent data or the same data differently than receiv-

ing systems in sessions (Bukac, 2010). Trafﬁc injec-

tion attacks involves sending packets that will be pro-

cessed by IDS but not by target machines, thus cre-

ating different sessions states between the IDS and

target systems (J., 1998; Serna, 2002). A similar

attack dubbed “duplicate insertion” uses overlapping

segments from packets to confuse the IDS due to the

system’s ignorance on network topology.

Avoiding Network and Host Detection using Packet Bit-masking

Slow scans that fool the frequency checks of IDS

by slowing down packets, method matching that uses

alternate HTTP commands for detecting CGI scripts

and premature request ending with malicious data

hidden in headers are also evasion attacks frequently

performed against the IDS (Martin, 2019).

Denial-of-service attacks have also been used for

evading intrusion detection (Cheng et al., 2012) (Mar-

tin, 2019). These attacks try to overﬂow the net-

work connection or the IDS system’s resources to

slow down rule matching or pattern recognition (Ig-

ure and Williams, 2008).

The evasion attack that is most similar to our ap-

proach is payload mutation. In this technique, at-

tackers transform malicious packets to semantically

equivalent that look different from malicious packet

signatures (e.g. transformation of URI hexadecimal

encoding, self-reference directories etc. in payloads)

(Martin, 2019). Still, the aforementioned evasion at-

tacks only work under certain cases and not in ev-

ery situation (Cheng et al., 2012; Niemi et al., 2012).

Contrary to this, we tested our approach against nu-

merous, diverse types of security systems that imple-

ment different detection mechanisms (IDS, host end-

point security systems). Results show none of the

tested systems could either detect the malicious con-

nection or data and commands transferred over the

network.

2.2 Malicious Activity and Data

Leakage Detection Techniques

Most common host endpoint security mechanisms in-

volve host intrusion detection systems (host IDS), an-

tivirus and security solutions that utilize a range of

techniques. From simple signature analysis and API

call monitoring, sandboxing to more advanced de-

tection mechanisms like packet caching, ﬂow mod-

iﬁcation (Handley et al., 2001), active mapping

(Shankar and Paxson, 2003) and policy enforcement

(Marpaung et al., 2012; Cheng et al., 2012). The state

of the art now also considers heuristics with machine

learning.

Modern network security solutions use session

packet heuristic analysis, deep packet inspection and

session trends (like packets per min) along with botnet

architectures to detect malicious activity in networks

(Livadas et al., 2006; Binkley and Singh, 2006). Oth-

ers rely on statistical analysis for classifying vari-

ous types of trafﬁc (Crotti, 2007), session reassembly

(Martin, 2019) to detect splicing and sandboxing.

Some solutions use machine learning to detect

malicious network activity. In (Lakhina et al., 2004)

and (Stergiopoulos et al., 2018), researchers try var-

ious packet features to extract information from the

physical aspects of the network trafﬁc. Authors in

(Prasse, 2017) use malicious HTTPS trafﬁc to train

neural networks and sequence classiﬁcation to build a

system capable of detecting malware trafﬁc over en-

crypted connections. Other approaches focus on iden-

tifying target malware/botnet servers (Lokoc et al.,

2016) or web servers contacted (Kohout and Pevny,

2015), instead of understanding malicious trafﬁc of

various types. Authors in (Gu et al., 2007) and (Yen

and Reiter, 2008) use signal-processing techniques

like Principal Component Analysis to aggregate traf-

ﬁc and detect anomalous changes ﬂows. Lakhina et

al. (Lakhina et al., 2004) modelled network ﬂows

as combinations of eigenﬂows to distinguish between

short-lived trafﬁc bursts, trends, noise, or normal traf-

ﬁc. Terrell et al. (Terrell, 2005) grouped network

traces into time-series and selected features, such as

the entropy of the packet and port numbers, to detect

trafﬁc anomalies.

Concerning data leakage, authors in (Tahboub and

Saleh, 2014) surveyed DLP systems and described ex-

isting technologies for data protection, such as ID-

S/IPS, Firewalls, etc. that are using Deep Packet

Inspection (DPI) architecture. They compared them

to the DLP systems that use Deep Content Inspec-

tion (DCI) and showed how the latter are more ef-

ﬁcient on detecting potential data breaches. Authors

in (W”uchner and Pretschner, ) presented a DLP solu-

tion based on Windows API function calls using func-

tion call interposition. In (Borders and Prakash, ), re-

searchers introduced an approach for quantifying in-

formation leaks in web trafﬁc using measurement al-

gorithms for the HTTP (Hypertext Transfer Protocol)

protocol to isolate not legitimate outgoing activity.

While all aforementioned network detection and

data leakage prevention approaches are based on

models of malware behavior (not unlike signature-

based intrusion detection), our approach uses com-

pletely different packets. This way, we can avoid de-

tection by (a) not having to hide malicious informa-

tion and (b) by introducing all types of payloads from

different legitimate sessions in our malicious stream,

thus data transferred cannot be assigned to a partic-

ular distribution nor can be analyzed based on static

features.

2.3 Covert Channels and

Steganography

The bit-mask is like a symmetrical encryption key. Its

values are bit position pointers that need to be shared

between the code running at the victim’s and at-

tacker’s system prior to execution. If a mask is agreed

SECRYPT 2020 - 17th International Conference on Security and Cryptography

on both sides (victim software and attacker’s listener),

each side can either pick-and-send or receive-and-

decode TCP packets. Bit-masking attacks do not

modify any bits on the victim packets nor do they in-

ject bits into legitimate streams like in steganography.

The presented attack can be classiﬁed as a internet

covert channel attack. Similar to Handel and Sand-

for’s data hiding analysis inside an OSI layer (Han-

del and Sandford, 1996), our technique also uses the

structure of an existing layer (i.e. the TCP protocol

and transport layer) to transfer information in an il-

licit manner, disguised as a legitimate stream. Con-

trary to most current implementation though, infor-

mation is not hidden in TCP ﬂags (ica, ), but actually

creates discrete connections or sends packets like any

other network connection, while still avoiding being

ﬂagged as malicious by security measures or logged

in network activity.

3 THE BIT-MASKING ATTACK

METHODOLOGY

3.1 Bit-mask Deﬁnition

Essentially, a bit-mask is a one-dimensional vector of

length µ that indicates some bit positions inside legit-

imate payloads, where µ is the amount of bit positions

referenced by the bit-mask (i.e. mask length). For ex-

ample, the bit-mask {5, 6, 16, 1, 19, 24} with length

µ = 6, points to the 5th bit, 6th bit, 16th bit, . . . , 24th

bit of a TCP payload in binary form.

A bit-mask is shared between the attacker’s server

and client code to be used as a bit reference manual

for bit extraction. The attack model and algorithmic

steps are presented below.

3.2 Attack Model

Here we present the high-level attack model for all

following attack implementations. The model con-

sists of a single attacker that has a client-side network

program waiting for input. The server code is exe-

cuted on a victim’s workstation. Fig. 1 visualizes the

high-level attack model.

The algorithm converts malicious data to binary

form and breaks them down into k chunks of µ bits

(the size of the bit mask). Then, it sniffs legitimate

network trafﬁc and detects k TCP packets from the

ongoing legitimate trafﬁc with payloads that have the

same bits (in binary form) with the k malicious bit

chunks, at the bit positions indicated by the bit mask.

The algorithm then re-sends the legitimate packets to

the attacker as is, by changing only the packet’s des-

tination IP. Packets are sent in sequential order. Bits

indicated by the bit-mask are then extracted by the

receiver and are concatenated with previous bits re-

ceived from similar packets. The client code receives

packets and appends the extracted bit contents indi-

cated by the bit-mask to form the malicious data sent

from the victim’s system.

For the attack to be successful, the server code

needs to achieve three things.

1. First, the victim needs to run the server code in

the ﬁrst place. Server code is less than 2KB and

can exﬁltrate any data or execute any command

as if it was a shell. Execution needs either admin

priviledges, or an existing install of the NPcap li-

brary with similar uses (e.g. a PC with Wireshark

installed has this working library) If NPCap is

present, the third attack requires no administrator

priviledges. Various techniques such as droppers,

malicious links to JavaScript or simple scripts can

be used to achieve this; most of them are widely

used. Since the aim of this paper is to present net-

work detection avoidance attacks, we consider the

way that the initial code is executed out of scope

of this paper.

2. The second requirement is that the executed code

must sniff enough packets from the victim’s ev-

eryday trafﬁc, to ﬁnd payloads suitable to use with

bit masking. As presented above, the attack does

not modify victim packets.

3. The third requirement is for the client code to

manage to send the selected packets to the attacker

undetected by both client and network based de-

tection systems (SIEMs, IDS, antivirus etc.).

The two latter requirements are presented below in

subsections 3.2 and 3.3. If all requirements are met,

the attacker has a shell and an upload/download ter-

minal.

3.3 Sending Function - Victim Snifﬁng

and Pattern Matching

The detailed steps of the code running on the victim’s

system are described below:

1. Convert malicious data D into binary and break

them down to k blocks of bits of length µ, D =

k ∗ µ.

2. Capture legitimate TCP/IP trafﬁc, convert packet

payloads to binary, and iterate them to detect

packets that have the same bits with the bits from

a block k

, at positions indicated by the bit-mask.

Avoiding Network and Host Detection using Packet Bit-masking

Figure 1: Activity ﬂow of a full Leaky Faucet shell control.

3. If a suitable payload is found, replace the corre-

sponding block of malicious data with the TCP

packet.

4. Repeat until all malicious bit blocks are replaced

with captured legitimate packets.

5. Resend captured legitimate packets sequentially

to the attacker’s IP.

A graphical representation is given below in Fig.

2 and Python code respectively below.

3.4 Receiving Function – Attacker

In the receiving function, we have the snifﬁng,

pattern-matching and reassemble data operation. In

this stage the attacker software:

1. Wait until all packets from the victim’s system are

received. Last packet is indicated by a bit-masked

payload with a speciﬁc bit sequence that is used

as an end mark.

2. When ﬁnished, code applies the mask at the ﬁrst

packet received and extracts the ﬁrst chunk of bits

from its binary payload, from the positions refer-

enced by the mask.

Repeat on all received packets in sequence.

3. When bit extraction ﬁnishes, concatenate k ex-

tracted bits blocks of length µ in the same byte

array and

4. convert bits back to the original data’s format (e.g.

PDF, string for commands and output, hexadeci-

mal for code etc.).

4 IMPLEMENTATIONS

4.1 Problem Deﬁnition

Each experiment has a client and a server. The server

side is executed at the victim’s system and the client

side executes the attacker’s software. We developed

Figure 2: Using bitmask to detect a packet with bits identi-

cal to the bits from the ﬁle to be leaked.

three variations of the attack, each one with different

socket and packet implementations to test detection

by various security measures. All versions are essen-

tially a reverse shell modiﬁed with the use of the bit-

masking logic.

The code checks each packet as it is being col-

lected and only keeps those packets that pass the

check for being useful for the next chunk of data. Es-

timations show that we need on average 3.500 packets

to detect one useful payload using an 8-bit mask, see

Section 4.2 below for more details.

The reason we don’t just keep outgoing packets

is due to performance. We do not have any issues

security wise, since we have been able to craft the

source and the destination address (on the second and

third edition), so keeping both incoming and outgo-

ing packets increases our chances to ﬁnd suitable pay-

loads. Connection is made in reverse, from the victim

to the attacker system since most security measures

allow outgoing but block incoming new TCP connec-

tions.

To cope with packet loss, we opted to extend the

bit-mask by 2 bits and use the latter two as a packet se-

quence number. When bits are to be matched, the last

two bits are introduced as an incremental sequence

number that resets and continues. If the receiving

function detects erroneous sequence, it can notify the

SECRYPT 2020 - 17th International Conference on Security and Cryptography

server code for the same packet again (again using he

same bit-masking algorithm to communicate informa-

tion back).

In the unlikely scenario where both server and

client packets are lost (packet loss occurred both for

a packet sent and the request to resend it), the attack

will obviously fail, although this never happened dur-

ing experiments.

4.2 Legitimate Trafﬁc Generation

Trafﬁc used to successfully execute bit-masking was

random packets from everyday trafﬁc from two work-

stations located inside the team’s research lab. All

users were aware of the ongoing snifﬁng for experi-

mental purposes.

Workstation primary use was for coding and surf-

ing. Trafﬁc comprised of normal Windows and Linux

everyday trafﬁc (e.g. software updates and OS con-

nections), together with user trafﬁc (web browsing,

streaming, YouTube music and Git push and pulls),

on a 10/1Mbps download/upload connection.

During the snifﬁng part of the attack, worksta-

tions were used for surﬁng on web pages, coding on

platforms (which introduced no extra trafﬁc) and oc-

casional streaming of music (which augmented the

available trafﬁc up to 11MB per minute). Also, de-

fault windows OS connections would occasionally

run in the background, although no major updates

were installed so the added network trafﬁc is consid-

ered trivial ( 90MB per day). We did not notice any

differences between encrypted and unencrypted con-

nections.

Table 1: Trafﬁc generation per user activity.

Trafﬁc source

Average load

(MB/min)

Web browsing 0.35

Youtube 9.34

Spotify (160kbps) 1.2

Git 0.75

4.3 Optimal Bit-mask Selection Tests

Masks can be arbitrary and attackers can may as well

choose any mask they want. Preliminary tests on

masks show that bits inside the mask play no impor-

tant role; although the mask length greatly affects the

time needed to deploy a successful attack.

Since the attack needs to ﬁnd legitimate TCP pay-

loads that have speciﬁc bits at the speciﬁc points refer-

enced by our chosen mask, three variables affect how

long the attack will take: (i) the size of the mask, (ii)

the amount of legitimate trafﬁc present and (iii) the

amount of malicious information we want to trans-

mit. For example, if we have an 8-bit mask and 8-bit

length malicious data to send, then we need only one

TCP packet that matches our mask. For every 8-bits

or less that exceed the length of the mask we need a

new packet. Smaller masks produce more collisions

but utilize less data, so there is a trade off.

We ran tests to determine mask size and achieve

the best results in the least amount of time, depending

on the data size or/and the size of the mask. We tested

all mask lengths up to 15. Figures 3, 4 and 5 depict ex-

amples for lengths 4,8 and 10. Anything above mask

length of 10 takes too long to execute. We sampled

mask sizes of 4, 8 and 10 bits on a 10/1Mbps down-

load/upload private connection inside the team’s re-

search lab. Fig. 3 shows the time needed to execute a

full attack that included utilizing a remote shell, creat-

ing a folder and downloading a sample NTLM sample

ﬁle. Thwe x axis depicts different data sizes that we

tried to exchange or exﬁltrate (40KB, 400KB, 800KB,

8MB and 230MB ﬁles). Each size has a column that

depicts that time (in seconds) needed to complete the

attack for the aforementioned malicious data size.

Figure 3: Total Execution Times of the executable for dif-

ferent sizes of mask and data.

Mask length tests show that, if an attacker wants to

use bit-masking for scripting stuff and to establish the

foothold, this attack is useful and fast. Still, for ex-

ﬁltrating larger ﬁles (230MB), the bit-masking attack

needed 8 minutes on a PC that was generating trafﬁc

equal to 15MB/min on average (all connections in-

cluded).

Graph functions below depict execution times

(Fig. 4 and 5). Experiments suggest that using more

than 10 bits for the bit-mask length, packet detection

was getting signiﬁcantly delayed. In Fig. 5, it is clear

that going from a 4-bit to an 8-bit mask essentially

halves the time needed to execute the attack for larger

ﬁles. Still, the difference between an 8-bit and a 10-

bit mask is almost non-existent. The possibility de-

Avoiding Network and Host Detection using Packet Bit-masking

Figure 4: Execution time for snifﬁng, for different sizes of

mask and data.

creases exponentially. Tests show that using anything

above a 10-bit mask slows down execution comple-

tion rather than speeding it up.

Figure 5: Execution time for sending completion procedure

for different sizes of mask and data.

As we notice from charts above, the pattern matching

and packet crafting procedures affect total execution

time the most. Experiments show that 8-bit masks

probably provide the best overall efﬁciency, except in

the case of TCP packets with TLS Application Layer

encryption. In TLS, the payload often starts with

leading zeros (Group, 2018), and thus the mask must

either contain bigger numbers or we omit the lead-

ing zeros. We chose to implement the bit-masking

evasion attack on the TCP protocol since it is easy

to implement connection that transfer raw packets;

something we need for our second and third experi-

ments. The average time for a packet to be matched

and crafted to be ready for sending is depicted in Ta-

ble 1.

Table 2: Average time for packet matching and crafting.

4-bit mask

8-bit

mask

10-bit

mask

Time

(sec)

0.0075 0.0624 0.2414

Speed

(patterns/sec)

170.9 15.9 4.1

4.4 Implementation 1: TCP Version

In this simplest form of the attack, we utilize raw

sockets for snifﬁng packets to match and TCP sockets

to send information to the attacker. New TCP pack-

ets are created for every send and receive and we only

use the captured payload from the previously captured

packets. Readers should note that, of course, since

a handshake is occurring with the attacker, we could

simply encrypt the communicated bit strings. Still,

we present this simple implementation as a stepping

stone for the next attack variations, building up to the

third implementation which is the most sophisticated

one and eventually compare results from all three im-

plementations.

This is the ﬁrst PoC implementation and, in this

stage, admin rights are needed for snifﬁng (the third

implementation will remove this constraint). No addi-

tional restrictions exist. An active, connected socket

is bound to an attacker’s client with a particular IP

address and port number (Rhodes and Goerzen, ). We

use a known TCP port to draw less attention. Network

card is set in promiscuous mode. Every socket sends

a single packet (a condition required to send data in

order).

On the attacker’s machine, snifﬁng starts from

Ethernet frames (Data link Layer 2) (Standardization,

1996). On the victim’s machine, snifﬁng starts from

the Data link Layer 3 due to raw sockets limitations

for Windows systems (Heuschkel et al., 2017) and

also since most ﬁrewalls limit their restrictions for

outgoing packets. We had to manually ﬁlter the pack-

ets with the proto label in the IP header, because the

snifﬁng for IPPROTO

TCP is not permitted.

It is important that packets arrive in order. For this

reason, we created new connections for every packet

sent by the victim to the attacker’s machine. We ex-

ploited a socket feature that blocks the socket until a

packet is received. This way, the victim software did

not send an END signal and timeout was triggered af-

ter the last packet.

SECRYPT 2020 - 17th International Conference on Security and Cryptography

4.5 Implementation 2: Spoofed Raw

Version

In this version, we opted to test the use of raw sockets

and see what will happen. The difference with im-

plementation 1 is that, instead of crafting new packets

and inserting selected payloads, we keep the original

legitimate packet by the victim (same TCP header)

and simply change its IP address at the network layer

to match the attacker’s IP. In this implementation, ad-

ministrator privileges are required. In addition, most

commercial ﬁrewall settings only allow outgoing traf-

ﬁc to be captured in snifﬁng mode which might cause

delays.

Snifﬁng was performed similarly to the ﬁrst im-

plementation. Matched packets collected from the

snifﬁng function are sent as is, except for the spoofed

IP destination address. The Ethernet and IP head-

ers are added automatically when we send the packet.

The socket.IPPROTO RAW option allows direct in-

teraction with layer 3 (IP) to craft our custom packet

with the default IPV4 IP protocol.

Without the TCP protocol, transmission of the

packets is not reliable, although we did not get any

misses. On the server side, no external library is used.

This implementation gave us full control of a Win-

dows or Linux shell with privileges identical to the

ones owned by our victim’s python scripts.

4.6 Implementation 3: Spoofed Npcap

Version

In this version, we made use of the Npcap library

(Dean, 2016) on the victim’s side to be able to sniff

the trafﬁc behind the ﬁrewall. The library binded di-

rectly to the device interface and thus, we overcame

limitations of the previous raw sockets in Windows.

This version is similar to the spoofed raw version, but

with the added advantage of not needing raw sock-

ets server side (Dean, 2016). To access the library

we directly used the Winpcap python wrapper. This

way, the attack now required no privilege escalation

for all executions and communication and everything

ran smoothly from userland. If NPCap is installed on

the victim’s machine with default (admin) conﬁgura-

tion, this attack requires no elenated priviledges and

can be executed from userland.

5 EXPERIMENTS

The proposed system was tested on a Dell Inspiron

15-3537 (Intel Core i7-4500U, 16GB RAM). Leaky

Faucet’s code was written in Python version 3.7.2.

The ﬁrst two editions have no external dependencies

and use default python libraries. The third variations

of Leaky Faucet uses the NPcap library.

We set up an intranet lab using Oracle’s Virtual-

Box 5.2.26 and Cisco routers as depicted in Fig. 6.

Virtual machines formed a network were one Kali

Linux machine represented the attacker and multiple

MS Windows machines that represented the victims

with Windows 7 64-bit and Windows 10 64-bit sys-

tems running different host endpoint security suites,

antivirus, IDS etc.

We used the Security onion (Onion, 2019) distri-

bution for implementing and conﬁguring numerous

NIDS (see Section 5.1, Table 3). We also tested 8 of

the most popular integrated endpoint protection solu-

tions (see Section 5.2, Table 4 below) and two Data

Leakage Prevention systems (DLPs). We ran multi-

ple shell commands to test functionality, such as “net

user” commands, deleting and creating new folders,

ﬁles, altering users, registry entries etc.

Section 5.1 and 5.2 below depict results for net-

work IDS and host endpoint security systems respec-

tively.

5.1 IDS and Network Security Evasion

The network intrusion detection and monitoring sys-

tems tested were the following:

• Suricata. Suricata is capable of real time in-

trusion detection (IDS), inline intrusion preven-

tion (IPS), network security monitoring and of-

ﬂine processing (Foundation, 2019).

• Snort. A Network Intrusion Detection System

and Intrusion Prevention System (Roesch, 1999).

Performs real-time trafﬁc analysis and packet log-

ging, and is able to stop a number of probes and

attacks on a network.

• Bro. Network Security Monitor (Paxson, 1999)

that has the ability to detect events in real time.

These events are by default neutral and signify

that a notable action has taken place, regardless

of that action’s nature.

• Ossec. OSSEC (Bray et al., 2008) is a multi-

platform, open source, host-based Intrusion De-

tection System (HIDS). It has a correlation and

analysis engine, integrating log analysis, ﬁle in-

tegrity checking, Windows registry monitoring,

centralized policy enforcement, rootkit detection,

real-time alerting and active response.

• Sguil. (Visscher and Viklund, 2013) a tool that

uses a number of the installed utilities to collect,

Avoiding Network and Host Detection using Packet Bit-masking

analyze and escalate indications and warnings to

detect and respond to possible intrusions.

• Pfsense. (Buechler and Pingle, 2009) an open

source suite based on FreeBSD that supports a

number of features present in alternative commer-

cial ﬁrewall solutions including ﬁltering based on

IP and Protocol, passive OS/network ﬁngerprint-

ing and packet normalization.

Security Onion is a suite that provides popular IDS

implementations. For the Snort setup we used the

Snort VRT ruleset and for the Bro, its default rules.

The PFsense ﬁrewall used manages the internet ac-

cess through the VMs. The virtual machines are in an

internal network and can only see each other which

provides unbiased network trafﬁc. Fig. 6 below visu-

alizes the network topology of our experiment.

Figure 6: Network topology with IDS.

In the following Table 2, we present the comparison

between the three editions with the installed Antivirus

products and the network IDS.

Table 3: Detection results - NIDS.

NIDS

- NIPS

TCP Spoofed

raw

Spoofed

NPCAP

Snort warning pass pass

Zeek

(Bro)

Logged

(no warn-

ing)

Logged

(weird.log)

pass

Suricata Warning

(un-

known)

Warning

(un-

known)

pass

OSSEC pass pass pass

For Zeek, the Spoofed RAW variation of the attack

raised an entry in weird.log (Zeek stores unusual net-

work behavior in this log) with “255 unknown proto-

col entry”. It did not provide any further information,

but we know that IPPROTO RAW socket protocol in

windows has a 255 number. Consequently, the log oc-

curs when we send the packets from the server to the

client using the IPPROTO RAW socket. Suricata pro-

vided similar results. For the Npcap Spoofed Version

no logs or alerts were detected. Using this technique,

malicious packets always appeared legitimate.

Since packets selected by these techniques largely

belong to different contexts (i.e., fragments from dif-

ferent legitimate ﬂows), we opted to see if we can de-

tect them using deep content inspection. Basic func-

tionality tested did not provide any detection results

although this area needs further research to claim that

our attacks remains undetected.

5.2 Host Endpoint Security Evasion

In this experiment, we tested the three variations of

the attack against host endpoint protection, host IDS

and business antivirus suites and compared the re-

sults. We selected them based on various internet

rankings from companies and press alike (Williams,

; Haselhorst, 2019). When there was more than one

version, we installed both the Total Security (host

IDS) and the antivirus versions. Detection results for

the bit-masking attack against host endpoint security

solutions are shown in Table 4 below.

The high rate of blocking in the Spoofed ver-

sion, is due to the raw socket limitations on Win-

dows. Most endpoint systems of most companies im-

plement more ﬂexible ﬁrewall rules instead of block-

ing all incoming connections by default, thus our at-

tack can pass without any problems. We have no

detections ratings, since workstation security prod-

ucts don’t provide statistics of behavior analysis. Be-

sides ZoneAlarm PRO, no HIDS or host endpoint se-

curity solution detected or blocked our attack. The

Kaspersky HIDS Application Control system classi-

ﬁed Leaky Faucet at the “Low Restricted” trust cate-

gory. Kaspersky Total Security did not block the ex-

ecution of the application nor the packet sending pro-

cedure, although the total time needed for the attack

to be executed completely increased by 58.971 sec-

onds (+ 3.31%) when leaking megabytes of data. The

Zone Alarm PRO’s ﬁrewall blocked our attack since it

has very strict whitelisting ﬁrewall policies, disables

promiscuous mode by default and as a result blocks

our attack although does not detect it.

Our ﬁrst edition passed all installed systems (even

Zone Alarm since it doesn’t need promiscuous mode

and doesn’t use raw packets), even though it created

new TCP packets with the payload of the legitimate

ones and established numerous connections to send

SECRYPT 2020 - 17th International Conference on Security and Cryptography

Table 4: Detection results - Host endpoint security.

Host end-

point security

system

TCP Spoofed

Raw

Spoofed

NPCAP

Windows De-

fender

pass blocked pass

McAfee

AntiVirus

Plus

pass blocked pass

McAfee Total

Protection

pass pass pass

Symantec

Norton Secu-

rity Premium

pass pass pass

Kaspersky

Internet

Security

pass pass pass

ESET NOD32

Antivirus

pass blocked pass

Trend Mi-

cro Internet

Security

pass pass pass

ZoneAlarm

PRO An-

tivirus +

Firewall

pass blocked blocked

or receive packets. Still, in a real world scenario,

advanced endpoint solutions and SOCs would proba-

bly raise some warning ﬂags since the attacker’s IP is

not hidden and all those multiple reconnections would

be suspicious. Our third edition is the best choice

for most systems, because it captures the data before

any ﬁrewall can block trafﬁc and avoids logging from

NPCap tools.

5.3 DLP Evasion

In this experiment, we tested two variations of data

leakage prevention with MyDLP (MyD, 2020). We

set up an Ubuntu Server VM and used it as a proxy

through Squid, a caching and forwarding HTTP web

proxy, to monitor network trafﬁc of the test VM

(Windows 10). For testing, we used a PDF ﬁle

with credit card data and we tried to send it through

http://wetransfer.com. MyDLP recognized that sensi-

tive data were being sent and logged the activity as

conﬁgured to do in such case.

Using Leaky Faucet, MyDLP did not log any sus-

picious activity on the network, which means that it

did not recognize the patterns used for the leak of the

credit card numbers.

The total time needed for Leaky Faucet to send

the ﬁle increased by 782 seconds compared to send-

ing the ﬁle through WeTransfer, when MyDLP was

logging the trafﬁc.

5.4 Session and Packet Monitoring

Bypass with NPcap

Wireshark and most popular Windows capturing tools

use the NPcap library (or WinPcap) to capture packets

when ﬁrewalls and other host systems are in use.

Without the use of NPcap, ﬁrewall blocks packets

either way and cannot be sniffed. However, since we

use the same library, we noticed that when we send

the crafted new packets from the Victim to the At-

tacker, the library cannot simultaneously inject them

and display them on the same machine on other mon-

itoring tools. We tried to change Ethernet source and

IP Source to Wireshark and still, no software dis-

plays them. We also used WindDump (tcpDump) and,

again, capturing did not display any injected packets.

Intuitively, if a monitoring tool utilizes its own imple-

mentation of the NPcap library, monitoring will pos-

sibly work since there will be no conﬂict.

Most likely, this is a library issue, because in

Linux, when tested with raw sockets, the same mon-

itoring tools can display packets injected by Leaky

Faucet version 3 normally. Still, we found no tool

able to display injected packets in Windows.

5.5 Whitelisting Network Connections

The most effective (and probably the simplest) solu-

tion to the bit-masking attack is whitelisting outgo-

ing connections and checking the validity of software

connecting to external addresses. This is a common

and effective countermeasure against malware and re-

verse shells in general, and bit-masking attacks are

also affected by it. Still, many industrial environ-

ments or organisation workstations use blacklisting

instead of whitelisting connections, due to the inher-

ent nature of company business logic that some em-

ployees need access to the internet in general. To this

end, whitelisting and ﬁrewall restrictions on outgoing

connections will stop bit-masking attacks, but it is a

situational security measure that is not always possi-

ble to deploy.

6 CONCLUSIONS

In this paper, we presented an evasion attack able

to bypass network, and host intrusion detection and

data leakage prevention systems using a technique we

named “bit-masking”. The third edition has better

Avoiding Network and Host Detection using Packet Bit-masking

performance due to the signiﬁcant advantage of the

Npcap library and the ability to capture packets be-

fore any ﬁrewall policy is applied and thus success-

fully perform packet injection.

Spooﬁng the IP and using raw sockets is worse

than just creating a new TCP connection and em-

bedding previous, legitimate payloads inside the new

packets. Although the attacker needs to establish mul-

tiple connections, still the connection looks more le-

gitimate than raw, unintended packets being send over

the network; better use full TCP handshakes.

Using the NPCAP library in Windows tests pro-

vided interesting side effects. Monitoring tools can-

not display the injected packets due to some conﬂict

of the NPcap library being used both by Leaky Faucet

and the monitoring tools like Wireshark. Linux seems

to be unaffected of this issue, which probably is a li-

brary bug.

From a defense point of view, future work should

aim at understanding context relevance in series of

packets. DPI and relevant machine learning algo-

rithms may possibly be able to detect this attack

by understanding the completely different structure

and data type in different packets (since each packet

comes from different types of white trafﬁc).

6.1 Restrictions

Each implementation deals with loss of synchroniza-

tion (e.g. due to packet drops) between client code

and server (victim) code differently. The ﬁrst imple-

mentation uses full handshakes, so each socket con-

nection transfers one packet; a blunt but effective ﬁrst

step to test detection with multiple TCP handshakes.

in the second and third implementations, we opt to

embed a two binary digit sequence number, much like

TCP’s initial sequence number (ISN) to check for se-

quencing. This number is concatenated to data sent

with the bit-mask. Results so negligible time differ-

ences and no detection differences when using this

technique.

Also, the attack will have serious delays if a vic-

tim’s network trafﬁc is minimal. Tests show that, in

workstations with less than 20MBs of trafﬁc per hour

(i.e. idle PCs), the attacks take an estimate of ﬁve

times more time to execute. For example, the shell at-

tack that needs to transfer about 8MB of trafﬁc to fully

execute all commands and exﬁltrate all data, takes

about 5 hours to complete (instead of 86 seconds with

the tested 10MBps trafﬁc).

6.2 Future Work

Concerning the attack, future work must aim to build

a more scalable version of the attack; able to leak

larger ﬁles with greater speed, possibly by enhanc-

ing the payload matching algorithm. We also aim to

extend the system to incorporate more features like

encryption and TLS features to further enhance the

evasion mechanisms.

REFERENCES

What is an internet covert channel? https://www.icann.org/

news/blog/what-is-an-internet-covert-channel. Ac-

cessed: 2019-10-30.

(2020). Mydlp and security features. http://www.mydlp.

com/. Accessed: 2019-09-30.

Binkley, J. and Singh, S. (2006). An algorithm for anomaly-

based botnet detection. In Proceedings of the Work-

shop on Steps to Reducing Unwanted Trafﬁc on the

Internet.

Borders, K. and Prakash, A. Quantifying Information Leaks

in Outbound Web Trafﬁc. Web Tap Security Inc., Ann

Arbor, MI.

Bray, R., Cid, D., and Hay, A. (2008). OSSEC host-based

intrusion detection guide. Syngress.

Buechler, C. M. and Pingle, J. (2009). pfsense: The deﬁni-

tive guide. Reed Media Services.

Bukac, V. (2010). IDS system evasion techniques. Master.

Masarykova Univerzita.

Cheng, T.-H. et al. (2012). Evasion techniques: Sneak-

ing through your intrusion detection/prevention sys-

tems. IEEE Communications Surveys & Tutorials,

14(4):1011–1020.

Crotti, M. e. a. (2007). Trafﬁc classiﬁcation through simple

statistical ﬁngerprinting. ACM SIG- COMM Comput.

Commun. Rev, 37(1):5–16.

Dean, P. (2016). Nmap security scanner gets new scripts,

performance boosts.

Foundation, O. I. S. (2019). Suricata.

Group, N. W. (2018). The transport layer security (tls) pro-

tocol version 1.3.

Gu, G., Porras, P., Yegneswaran, V., Fong, M. W., and Lee,

W. (2007). Bothunter: detecting malware infection

through ids-driven dialog correlation. In Proceedings

of the USENIX Security Symposium.

Handel, T. G. and Sandford, M. T. (1996). Hiding data in

the osi network model. In International Workshop on

Information Hiding, pages 23–38. Springer.

Handley, M., Paxson, V., and Kreibich, C. (2001). Net-

work intrusion detection: Evasion, trafﬁc normaliza-

tion, and end-to-end protocol semantics. In Proc.

USENIX Security Symposium.

Haselhorst, D. (2019). Onion-Zeek-RITA: Improving Net-

work Visibility and Detecting C2 Activity. SANS read-

ing room, sti graduate student research edition.

SECRYPT 2020 - 17th International Conference on Security and Cryptography

Heuschkel, J. et al. (2017). Introduction to raw-sockets.

Igure, V. M. and Williams, R. D. (2008). Taxonomies of

attacks and vulnerabilities in computer systems. IEEE

Commun. Surveys Tutorials, 10(1):6–19.

J., C. (1998). Proceedings of the 1998 national information

systems security conference (nissc 98). In Artiﬁcial

neural networks for misuse detection.

Kohout, J. and Pevny, T. (2015). Automatic discovery of

web servers hosting similar applications. In Proceed-

ings of the IFIP/IEEE International Symposium on

Integrated Network Management, pages 1310–1315.

IEEE.

Lakhina, A., Papagiannaki, K., and Crovella, M. (2004).

Structural analysis of network trafﬁc ﬂows. In Pro-

ceedings of ACM SIGMETRICS/Performance.

Livadas, C., Walsh, B., Lapsley, D., and Strayer, T. (2006).

Using machine learning techniques to identify botnet

trafﬁc. In Proceedings of the IEEE LCN Workshop on

Network Security.

Lokoc, J., Kohout, J., Cech, P., Skopal, T., and Pevy, T.

(2016). k-nn classiﬁcation of malware in https trafﬁc

using the metric space approach. In M., W. and G. A.,

C. a., editors, Chau, pages 131–145. Springer, Cham,

PAISI 2016. LNCS, vol. 9650.

Marpaung, J. A. P., Sain, M., and Lee, H.-J. (2012). Survey

on malware evasion techniques: State of the art and

challenges. In 2012 14th International Conference

on Advanced Communication Technology (ICACT).

IEEE.

Martin, S. (2019). Anti-IDS tools and tactics. SANS insti-

tute.

Niemi, O.-P., Levom”aki, A., and Manner, J. (2012). Dis-

mantling intrusion prevention systems. In Proceed-

ings of the ACM SIGCOMM 2012 conference on Ap-

plications, architectures, and protocols for computer

communication. ACM. technologies.

Onion, S. (2019).

Paxson, V. (1999). Bro: A system for detecting net-

work intruders in real-time. Computer Networks,

31(23):2435–2463.

Prasse, P. e. a. (2017). Malware Detection by HTTPS Trafﬁc

Analysis.

Rhodes, B. and Goerzen, J. Foundations of python network

programming. Apress, 2014.

Roesch, M. (1999). Snort: Lightweight intrusion detection

for networks. 99(1).

Serna, F. J. (2002). Polymorphic shellcodes vs. application

IDSs. Next Generation Security Technologies.

Shankar, U. and Paxson, V. (2003). Active mapping: Re-

sisting nids evasion without alerting trafﬁc. In Proc.

IEEE Symposium on Security and Privacy.

Standardization, I. (1996). Iso/iec 7498-1: 1994 informa-

tion technology - open systems interconnection - ba-

sic reference model: The basic model. International

Standard ISOIEC, 7498:59.

Stergiopoulos, G. et al. (2018). Automatic detection of var-

ious malicious trafﬁc using side channel features on

tcp packets. In European Symposium on Research in

Computer Security. Springer, Cham.

Tahboub, R. and Saleh, Y. (2014). Data leakage/loss

prevention systems (dlp). In 2014 World Congress

on Computer Applications and Information Systems

(WCCAIS), pages 1–6. IEEE.

Terrell, J. e. a. (2005). Multivariate svd analyses for net-

work anomaly detection. In Proceeding of ACM SIG-

COMM.

Visscher, B. and Viklund, A. (2013). Sguil: The analyst

console for network security monitoring.

Williams, M. The best antivirus software 2019. TechRadar.

W”uchner, T. and Pretschner, A. Data Loss Prevention

based on data-driven Usage Control. Technische Uni-

versit”at M”unchen, Garching bei M”unchen, Ger-

many.

Yen, T.-F. and Reiter, M. K. (2008). Trafﬁc aggregation for

malware detection. In Zamboni, D., editor, DIMVA

2008, vol. 5137, pages 207–227. Springer LNCS,

Springer, Heidelberg.

Avoiding Network and Host Detection using Packet Bit-masking
