Exploring Current E-mail Cyber Threats using Authenticated

SMTP Honeypot

Luk

s Zobal

, Du

san Kol

and Jakub K

roustek

Faculty of Information Technology, Brno University of Technology, Bo

zet

echova 1/2, 612 00 Brno, Czech Republic

Faculty of Information Technology, IT4Innovations Centre of Excellence, Brno University of Technology,

zet

echova 1/2, 612 00 Brno, Czech Republic

Avast Software s.r.o., Pikrtova 1737/1A, 140 00 Prague, Czech Republic

Keywords:

Spam, Honeypot, SMTP, E-mail, Malware, Cyber Threat Intelligence.

Abstract:

Today, spam is a major attack vector hackers use to cause harm. Let it be through phishing or direct malicious

attachments, e-mail can be used to steal credentials, distribute malware, or cause other illegal activities. Even

nowadays, most users are unaware of such danger, and it is the responsibility of the cybersecurity community

to protect them. To do that, we need tools to gain proper threat intelligence in the e-mail cyber landscape. In

this work, we show how an e-mail honeypot requiring authentication can be used to monitor current e-mail

threats. We study how such honeypot performs in place of an open relay server. The results show this kind

of solution provides a powerful tool to collect fresh malicious samples spreading in the wild. We present

a framework we built around this solution and show how its users are automatically notiﬁed about unknown

threats. Further, we perform analysis of the data collected and present a view on the threats spreading in the

recent months as captured by this authentication-requiring e-mail honeypot.

1 INTRODUCTION

E-mail has become one of the primary means of com-

munication for people on the Internet. It is used mas-

sively both for commercial and personal purposes be-

cause of the ease of use and zero cost. Consequently,

e-mail has become prone to misuse in the form of

spam, also called unsolicited bulk e-mail. Accord-

ing to Symantec, more than 50% of e-mails received

in 2018 were spam (O’Gorman et al., 2019). Addi-

tionally, according to Verizon’s Data Breach Inves-

tigations Report 2018, more than 92% of the attack

vectors use e-mail (Verizon, 2019).

The malicious content in spam ranges from

unwanted advertisements, phishing, to Denial-of-

Service (DoS) attacks, and spreading malware

through URLs and attachments. The impact is also

indirect, ﬁlling up space and bandwidth of mailing

servers and decreasing employees’ efﬁciency while

dealing with unwanted e-mails.

Apparently, there is a good reason to monitor and

mitigate the current e-mail threats. To do it efﬁciently,

one has to collect data and intelligence about emerg-

ing threats. While it’s possible to gather data about

spam from the real user inboxes directly, this is con-

nected with the complex problem of spam ﬁltering as

well as privacy issues.

Honeypots are much more convenient for this pur-

pose. Using a deception strategy, we can gather spam

only, without the need to ﬁlter through legitimate traf-

ﬁc or to worry about privacy. There are generally two

approaches. The ﬁrst idea is spreading fake e-mail ad-

dresses – honeytokens, across the Internet and moni-

toring incoming e-mails. The second scenario is oper-

ating a fake open relay SMTP server, offering adver-

saries to relay their spam, while collecting the e-mails

instead.

1.1 Contribution

In this paper, we offer an alternative to a classical

open relay SMTP server. We show that using an au-

thenticated SMTP server, we can collect remarkable

threat intelligence data. An open relay server usu-

ally captures advertisements and phishing only. With

our approach, a signiﬁcant part of the trafﬁc contains

malware-spreading campaigns, including previously

unseen families and samples.

Further, we provide an analysis of the collected

data using different metrics. Because of the signif-

Zobal, L., Kolá

r, D. and K

roustek, J.

Exploring Current E-mail Cyber Threats using Authenticated SMTP Honeypot.

DOI: 10.5220/0009591002530262

In Proceedings of the 17th International Joint Conference on e-Business and Telecommunications (ICETE 2020) - SECRYPT, pages 253-262

ISBN: 978-989-758-446-6

253

icant portion of malware in the trafﬁc, we offer de-

tailed insights into the malware families using auto-

matic dynamic analysis sandbox system. Thanks to

it, we can correctly label all incoming attachments

with their corresponding names and provide a holis-

tic view of the e-mail threats spreading during recent

months. We also show how a single malicious cam-

paign can be monitored in real-time using the imple-

mented framework.

1.2 Structure of the Paper

In section 2, works related to e-mail threats analysis

as well as honeypots in general, are presented. Sec-

tion 3 describes architecture of our system. In section

4, we present our ﬁndings and results gathered from

running the honeypot. These include an analysis of

malware families captured as well as an example case

study of a single campaign in detail. Section 5 con-

cludes this paper.

2 RELATED WORK

Honeypot is a computing resource value of which lies

in being probed, attacked, or compromised (Spitzner,

2003). While the idea of studying attackers instead

of removing them from the system came in the late

1980s (Stoll, 2005), the ﬁrst appearance of the term

honeypot was used at the beginning of millennia

(Spitzner, 2001).

Since then, hundreds of honeypot tools were cre-

ated, many of which in collaboration with Honeynet

Project

. In one of the latest surveys, Nawrocki et al.

(2016) provides an extensive list of honeypots in dif-

ferent ﬁelds, both historical and current. He also dis-

cusses dozens of data categories to analyze from hon-

eypot deployments.

Honeypots have a number of advantages and dis-

advantages when compared to other cybersecurity

tools. As deﬁned by Spitzner (2003), one of the most

signiﬁcant advantages is the unique information hon-

eypots offer – the possibility to watch adversaries in

action. Flexibility and simple detection abilities are

also key features. On the other hand, the most signif-

icant drawback of honeypots is their limited visibil-

ity. When the honeypot is not targeted in the attack, it

turns out useless. What’s worse, it can be used by the

adversaries to mislead the defenders.

There are many different approaches to classify

honeypots. The most widely used method uses a level

of interactivity as a measurement (low/medium/high

https://www.honeynet.org/

interaction) (Spitzner, 2003). Other methods in-

clude honeypot purpose (research/production), be-

havior (client/server), form (physical/virtual), or the

service they are mimicking (Nawrocki et al., 2016).

Methods of detecting honeypot presence appeared

together with honeypots. Krawetz (2004) discussed

a simple tool to check the functionality of an e-mail

open relay. Zou and Cunningham (2006) presented

the idea of detecting honeypots in botnet attacks by

testing their ability to spread unmodiﬁed malicious

payload. Other honeypot detection principles may

cover honeypot ﬁngerprinting, e.g. using underlying

communication protocol

, or testing for speciﬁc hon-

eypot behaviour

. In one of the latest studies, Uitto

et al. (2017) surveys anti-honeypot research to date

and proposes used detection vectors taxonomy. Hon-

eyscore

project makes honeypot detection as easy as

looking up its IP address.

On the other hand, honeypots are improving to by-

pass the detection. Issues are getting ﬁxed and the

signatures become dynamic. In a recent study, Tsik-

erdekis et al. (2018) surveys preventive measures for

honeypot detection and discusses possible improve-

ments for the future.

2.1 Spam and E-mail Honeypots

The problem of e-mail misuse in the form of spam is

as old as e-mail itself because the issue of spam clas-

siﬁcation is complex (Brunton, 2013). Solutions for

it have evolved throughout the years with the current

trend of artiﬁcial intelligence and machine learning.

In a recent study, Bhowmick and Hazarika (2016) sur-

veys current technologies and trends in this domain.

At the same time, adversaries come with new ways to

get around spam detection. A botnet is a very power-

ful tool to surpass any kind of blacklist. Khan et al.

(2015) provides a comprehensive study on the prob-

lem of spam botnets – a phenomenon we see in our

honeypot as well.

However, with honeypots, the problem of spam

detection becomes irrelevant, as all the incoming e-

mails are considered spam. Therefore, honeypots

have become a great tool for spam harvesting and

threat intelligence collecting. Oudot (2003) describes

how honeypots can be used as open proxies to col-

lect spam. He also mentions the possibility of spread-

ing fake e-mail addresses as honeytokens. Two years

Example of a ﬁngerprinting tool capable of honeypot

detection: https://github.com/0x4D31/fatt

Example of an issue used for Cowrie honeypot detec-

tion: https://github.com/cowrie/cowrie/issues/512

https://honeyscore.shodan.io/

SECRYPT 2020 - 17th International Conference on Security and Cryptography

254

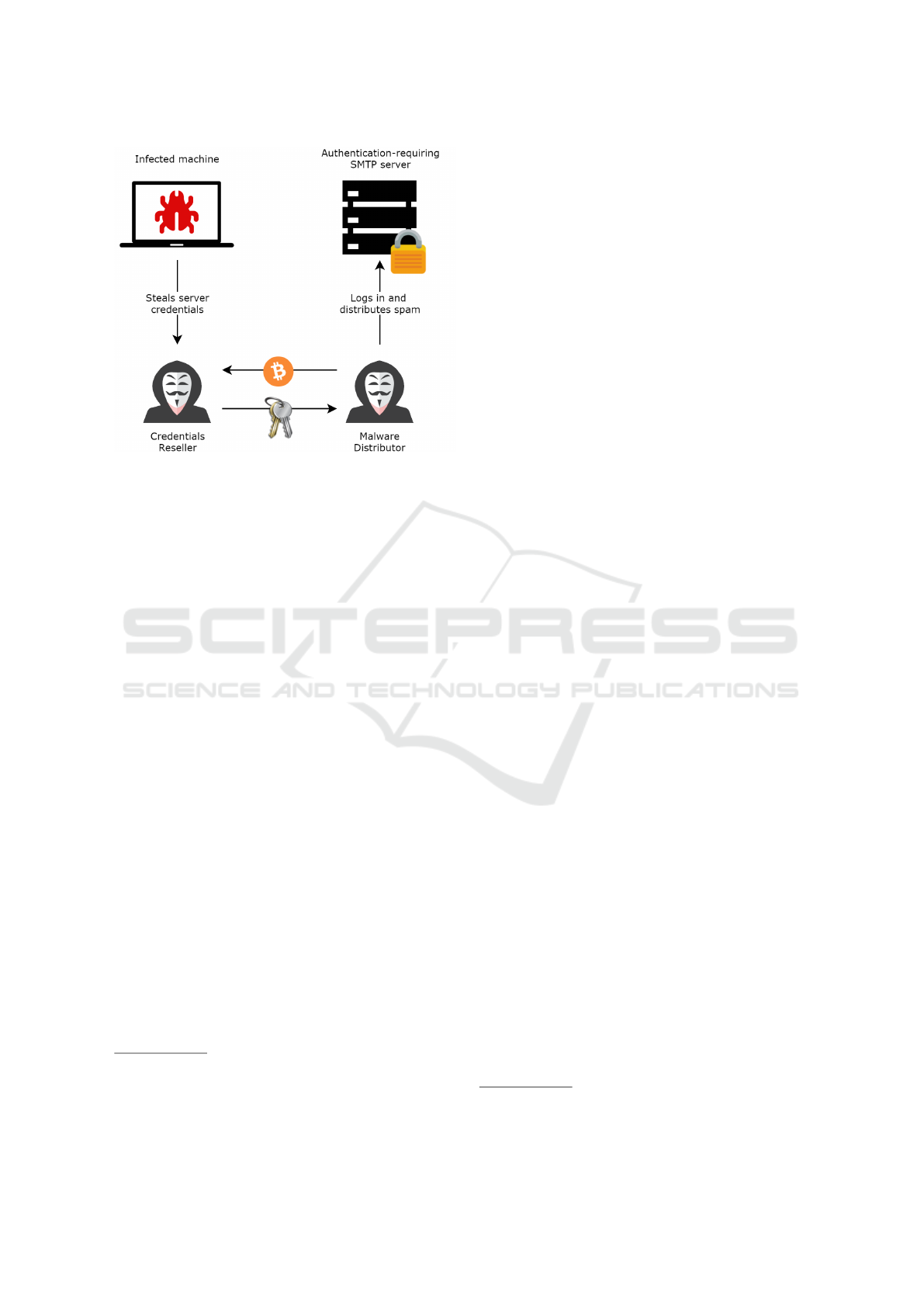

Figure 1: Distributing the SMTP server credentials.

later, Andreolini et al. (2005) describes the architec-

ture of a fake open relay honeypot called HoneySpam.

Another take on ﬁghting the spam is using

greylisting or tarpitting techniques. Practical exam-

ple is the original tarpitting honeypot LaBrea (Liston,

2003) or a spam deferral daemon spamd

. However,

these techniques do not provide any additional threat

intelligence, as they do not collect any e-mails.

Considering honeypots that collect data, there

have been several practical implementations in the

past. Jackpot, SMTPot, and Proxypot

were all im-

plemented as fake SMTP open relays, which in fact

collected incoming e-mails. Neither of these projects

is maintained anymore. One of the more recent e-mail

honeypots is SHIVA

, developed as part of Honeynet

Project. On top of open relay functionality, it offers

the possibility for authentication, which is required by

our solution. The main added value of this honeypot

is a clustering of incoming e-mails to campaigns us-

ing Context Triggered Piecewise Hashing (Kornblum,

2006), also known as fuzzy hashing.

Indeed, clustering of incoming spam to campaigns

has become an important issue for every tool col-

lecting spam. The fuzzy hashing used by SHIVA

represents the most straightforward way to cluster e-

mails, depending on e-mail body similarity. Calais

et al. (2008) proposed a hierarchical way to clus-

ter e-mails to campaigns using FP-Trees (Han et al.,

2004). A very similar approach using the Categori-

cal Clustering Tree was introduced by Alishahi et al.

(2015). Such an approach proved useful as Dinh et al.

https://man.openbsd.org/spamd.8

https://www.symantec.com/connect/articles/guide-

different-kinds-honeypots

https://github.com/shiva-spampot/shiva

(2015) presented a framework for on-the-ﬂy analysis

of incoming e-mails, using the FP-Tree approach with

slightly modiﬁed features. This framework is similar

to our architecture, as described in the following sec-

tion. In his recent Master’s Thesis, Smirnov (2018)

brings a detailed survey and classiﬁcation of different

spam clustering methods.

Studies mentioned in the previous paragraphs,

however, always use open relay servers or “trusted

third-party” to obtain the spam data set.

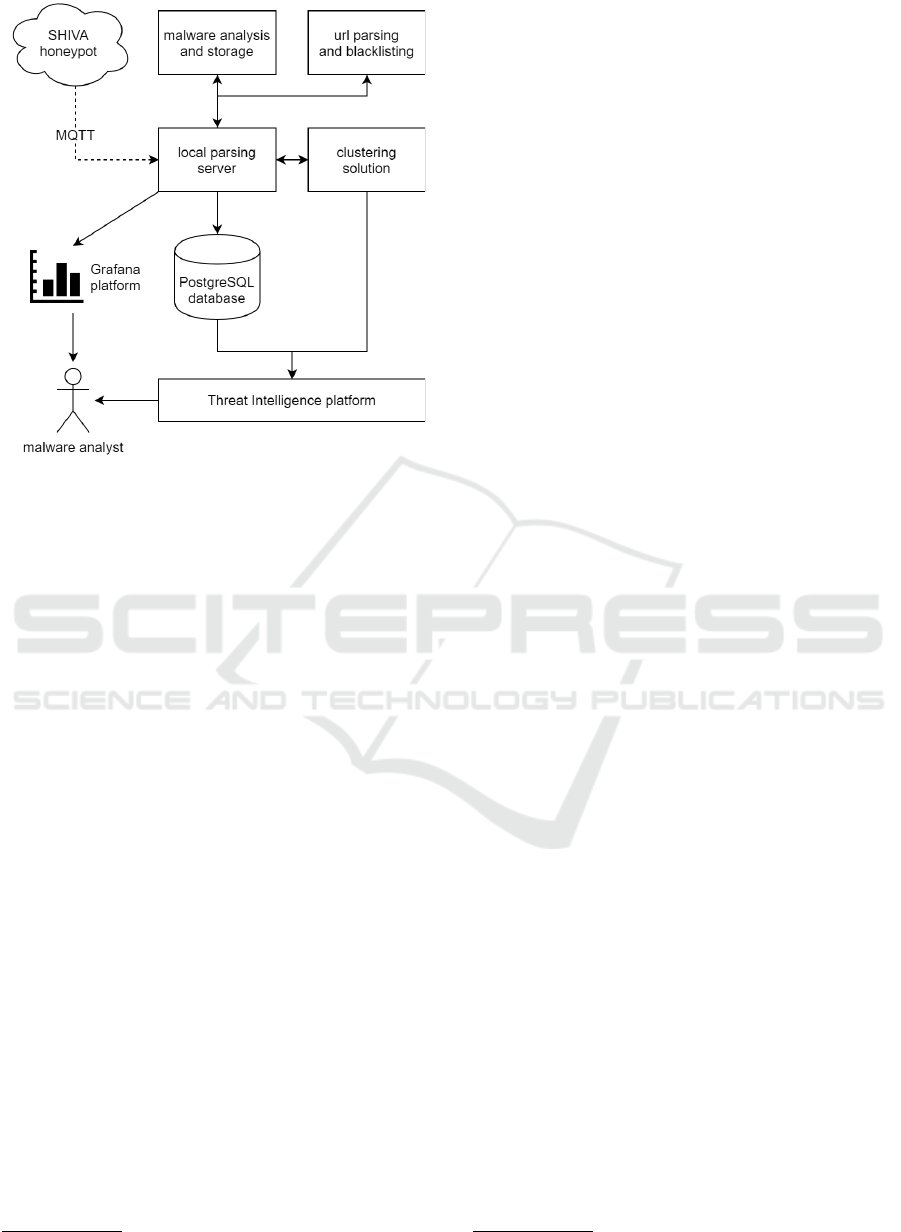

3 ARCHITECTURE

When developing the e-mail honeypot, we aimed to

obtain as many malicious e-mails as possible to gain

proper cyber threat intelligence. Another target was to

gather fresh malicious samples in the form of e-mail

attachments and links. However, when operating the

open relay SMTP honeypot, we realized the content

we are receiving is not representing the real threats.

While there were several advertising campaigns, to-

gether with general phishing campaigns present, we

haven’t seen many campaigns with malicious attach-

ments.

There might be several reasons why open relay

servers don’t relay the threats we were looking for.

Arguably, hackers are aware that many of the open

relays are, in fact, honeypots, capturing the trafﬁc.

Additionally, they might have more reliable ways to

distribute spam, e.g. using already infected victims.

In order to gain adversaries’ trust, we decided

to create an authentication-requiring SMTP server

and distribute the credentials directly to the users

we were looking for – distributors of the malware.

We achieved this by using existing malware samples,

in particular, password-stealers and similar spyware,

that is able to steal credentials from a machine. This

data is then delivered to the malware distributor. Us-

ing deception, we were able to trick hackers into be-

lieving they acquired a valuable resource to distribute

spam.

In practice, the situation is usually more compli-

cated. Typically, there are two different entities – one

collecting the credentials and offering them for sale

on hidden services

, and second entity distributing the

malware. Also, the malware distributor usually does

not use the credentials himself/herself but uses owned

botnet. This behavior can be seen in an example study

in section 4.2. The described solution of distributing

the credentials is depicted in Figure 1.

https://krebsonsecurity.com/2017/12/the-market-for-

stolen-account-credentials/

Exploring Current E-mail Cyber Threats using Authenticated SMTP Honeypot

255

In the rest of this chapter, we brieﬂy describe the

architecture of our honeypot and solution for collect-

ing and visualizing the extracted knowledge.

3.1 E-mail Gathering

To set up an SMTP server, we used SHIVA honey-

pot. As described in section 2.1, it is one of the more

recently developed e-mail honeypots from the Hon-

eynet Project. It supports both open relay and authen-

ticated mode of relaying. Its advanced feature is the

ability to cluster incoming spam to campaigns using

body similarity.

While we found this feature useful, we soon real-

ized the lightweight cloud server this honeypot was

running on is not powerful enough to both handle

incoming trafﬁc and intelligently parse the data and

maintain the database. Therefore, we decided to use

SHIVA for collecting the spam only and moved the

parsing infrastructure to our own servers. This also

has the advantage of keeping the public honeypot sep-

arated from the rest of the infrastructure. Another ad-

vantage is the possibility to run multiple instances of

SHIVA while collecting all the data to a centralized

server.

The e-mail collecting is achieved with a general

infrastructure using MQTT

protocol. This enables us

to have a heterogeneous infrastructure, possibly with

more different honeypots, publishing different pay-

loads, as well as multiple consumers. All this without

duplicating the transferred data and the possibility to

employ anonymous communication channels easily.

3.2 Data Extraction and Storage

After the batch of spam arrives, each e-mail is parsed

and features are extracted. We store a number of fea-

tures, including the following.

• E-mail subject

• E-mail body, both plain text and HTML

• Headers, including date and recipients

• Attachment information

• URLs and their payload

• Source IP address with geo-location

• Detected language

• Timestamps of campaigns, attachments, URLs,

IPs

• SHA256 and ssdeep hash of the ﬁle

Before the information is saved to a PostgreSQL

database, we compare the ssdeep hash of each e-mail

http://mqtt.org/

body, used for body similarity clustering, to the rest of

the database to check for already existing campaigns.

Because this process is performance-intensive and the

number of comparisons is signiﬁcant, we introduced

massive parallelization to the process, including sev-

eral optimizations. The most notable is the process

of “pre-clustering”, where we detect the clusters in

the batch of incoming e-mails before searching the

database. Using this approach, we limit the num-

ber of comparisons greatly, and the solution scales

well, even with millions of campaigns present in the

database.

Additionally, we upload all the malicious attach-

ments to third-party storage from Avast Software for

later analysis and labeling. The data, therefore, serves

to create better detections and improve user security

in the future.

Also, the contents of all the URLs are down-

loaded. In the case of non-HTML payloads, they are

treated as attachments – uploaded to a third-party stor-

age and labeled as well. The URLs are also sent to

automatic regular expression blocker, which has an

immediate impact on improved user security. As a re-

sult, the malicious URLs might be blocked before the

campaign arrives to users from a different source.

3.3 Data Analysis and Visualization

There is a number of third-party systems in Avast

Software consuming the incoming samples, of which

the most interesting are dynamic analysis and label-

ing tools. Using these, we can improve the threat in-

telligence and correctly label campaigns with corre-

sponding tags. What’s more, we can detect unknown

samples spreading through the honeypot and alert the

malware analysts of an unknown threat within min-

utes of the campaign commencing.

Considering visualization, we present two differ-

ent views on the current state of the honeypot. First,

there is a Grafana dashboard displaying e-mails re-

ceived per minute, IP geo-location, the most prevalent

attachments, and honeypot users in the selected time

frame. This tool serves to gain better insights into the

overall state of the honeypot.

On the other hand, when analysts want to explore

content spread through the honeypot in detail, we de-

veloped a custom Threat Intelligence platform that of-

fers several views.

• Attachments. Users are presented with a list

of attachments received. The list can be sorted

using time or sample count, and ﬁltered using

ﬁle type or date delivered. All the attachments

are tagged with a corresponding malware family.

SECRYPT 2020 - 17th International Conference on Security and Cryptography

256

Figure 2: Data ﬂow diagram overview of the honeypot in-

frastructure.

This is achieved with YARA

rules created in

Avast. What is more, the users can discover what

campaigns delivered given attachment and create

a more in-depth connection between campaigns as

well as URLs.

• Campaigns. Users are presented with a list of

spam clustered to campaigns. A list of attach-

ments and URLs is present in each campaign.

Sorting and ﬁltering options are similar to the At-

tachments view.

• URLs. Users are presented with a list of URLs,

labeled by the payload they contained while the

campaign was running.

In addition, users can view more information about

each attachment or campaign using the link to dif-

ferent Avast Software third-party services. This in-

cludes the possibility to rerun the dynamic analysis or

to check the results of the third-party clustering solu-

tion.

Using the described infrastructure, we are able to

provide the honeypot users a thorough view of the e-

mail cyber threats as they are being captured. Even

without browsing through the data, the users are auto-

matically notiﬁed about unknown threats, e.g. using

Slack or e-mail messages.

The complete solution is illustrated in Figure 2.

https://virustotal.github.io/yara/

4 RESULTS

In this chapter, we provide results from running our

authentication-requiring SMTP honeypot for the 14-

month period, from July 2018 to August 2019. Dur-

ing this interval, we captured over 31,386,000 mali-

cious e-mails. From Figure 3, it can be seen the lack

of e-mails received in the late months. We partly at-

tribute this to the fact we were not distributing any

new SMTP credentials recently. However, in the time

of writing this paper, October 2019, the honeypot is

currently very active again, as described in the case

study in section 4.2 below.

When looking at the source of the spam, it was

delivered from a total of 126,766 IP addresses. When

geo-located in the time of delivery, using the latest

MaxMind database

, they originate in a total of 213

countries, according to ISO 3166-1. The most spam

was delivered from the USA, nearly 7,450,000 unique

e-mails, followed by South Korea with 2,322,000 e-

mails and Mexico with 1,850,000 e-mails sent. In-

terestingly, Colombia and South Africa followed with

1.4 million e-mails sent from each. More than 1 mil-

lion e-mails were also delivered from India, China,

and Argentina. All the countries can be seen in map

Figure 4.

English was the most common language, with

more than 27.5 million e-mails. Next, there were

1.6 million e-mails written in German. In the third

place, we could ﬁnd nearly 800,000 e-mails in Span-

ish. Other most used languages in the collected spam

can be found in Figure 5.

Considering attachments, we captured a total of

74,071 unique attachments. The most common ma-

licious format was PDF ﬁle with nearly 30,000 sam-

ples, followed by an MS Word document with more

than 17,000 samples. However, while the MS Word

ﬁles were reused quite often for different victims and

the total e-mail count containing MS Word attach-

ments were many millions, the PDF ﬁles were often

unique, e.g. mentioning the name of the victim in the

text. The distribution of all the ﬁle types can be seen

in the pie chart Figure 6.

When looking at the targeted victims’ e-mail

addresses, more than 4.6 million different domain

names were present. It is not surprising that the

most prevalent were generic domains, like gmail.com

with 2.5 million addresses, and hotmail.com, and ya-

hoo.com, with 1.1 million addresses each. We pro-

vide the top ten attacked top-level domains (TLD) as

well as full domain names in Table 1.

https://www.maxmind.com/en/home

Exploring Current E-mail Cyber Threats using Authenticated SMTP Honeypot

257

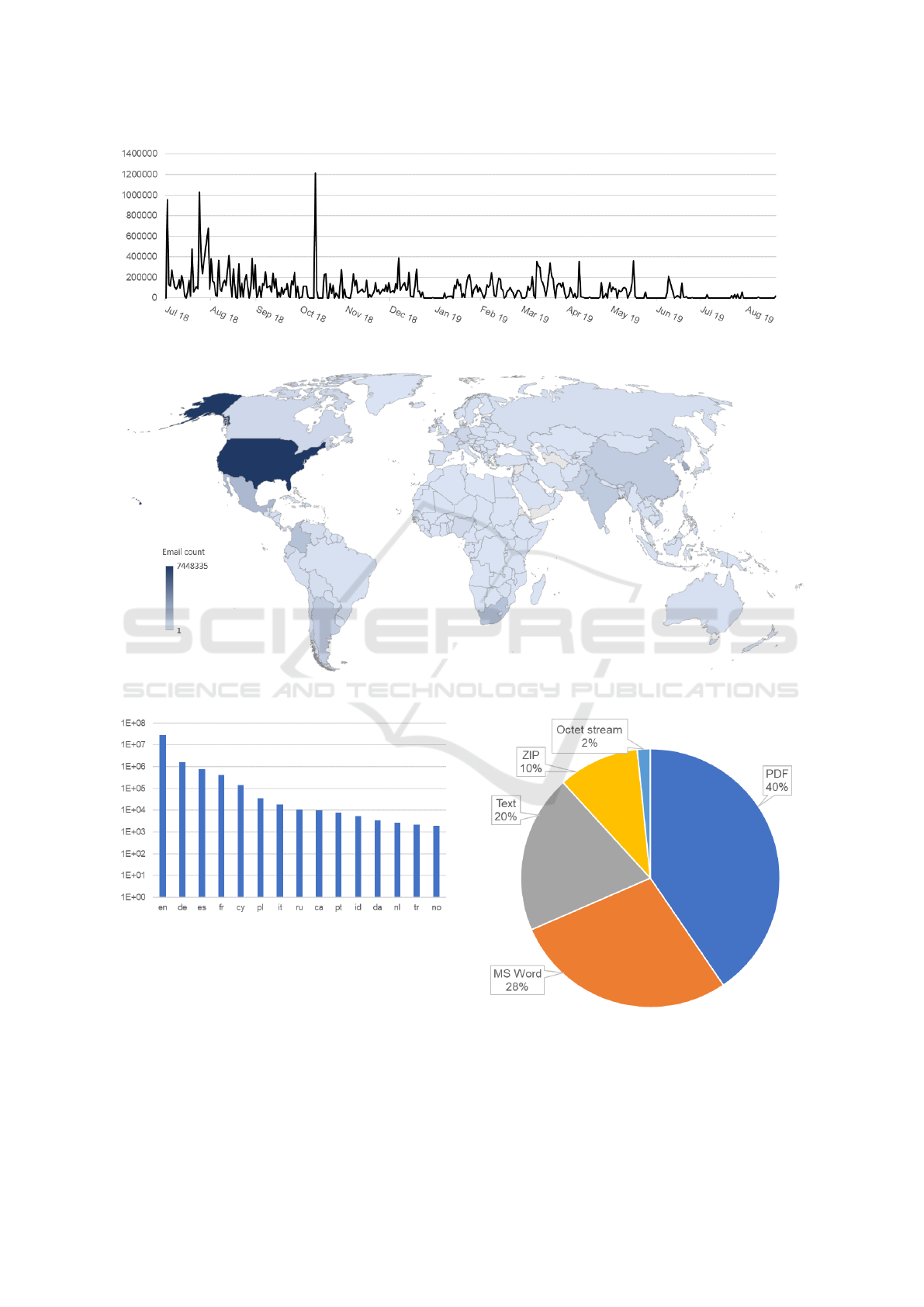

Figure 3: Number of unique e-mails captured each day from July 2018 to August 2019.

Figure 4: Number of unique e-mails received by country.

Figure 5: Distribution of languages used in spam.

4.1 Analysis of Captured Attachments

Using the third-party dynamic analysis and labeling

system, we were able to obtain knowledge about each

attachment received during the monitored period. In

this section, we present statistics on the malware fam-

ilies spreading through our honeypot, as well as dif-

ferent malware families’ speciﬁcs.

In the period of 14 months, from July 2018 to Au-

Figure 6: Distribution of attachment ﬁle types.

gust 2019, we collected over 74,000 unique attach-

ments, which were analyzed and labeled. The most

prevalent malware family spreading through our hon-

SECRYPT 2020 - 17th International Conference on Security and Cryptography

258

Table 1: Top spam recipients’ e-mail domains.

Domain Count TLD Count

gmail.com 2,520,188 com 16,593,050

hotmail.com 1,178,475 de 1,778,513

yahoo.com 1,165,326 net 1,756,130

aol.com 626,561 uk 939,508

t-online.de 192,105 org 923,466

indeedemail.com 169,215 ca 349,499

comcast.net 129,500 ch 313,862

web.de 125,372 mx 311,592

gmx.de 121,178 edu 311,347

msn.com 108,563 fr 289,616

eypot was Emotet

banking trojan. This advanced

and highly destructive malware was spread mostly

with malicious MS Word documents, but also URLs

to download such a ﬁle, which were placed directly

inside the e-mail or attached PDF. This malware fam-

ily was spreading throughout the whole monitoring

period, with several weeks pauses and many millions

of samples delivered. We are unable to state the exact

number of Emotet samples captured due to its mas-

sive spreading through PDF ﬁles, which we were un-

able to tag reliably, as well as through URLs, which

did not respond to our analysis server, arguably be-

cause of blacklisting. However, a detailed look at one

such campaign is provided in the next section 4.2.

Another banking trojan RTM

was less prevalent

with only 1,241 unique samples delivered, using more

than 10,000 e-mails totally. This family was spread-

ing in the late months of the monitored period, from

June 18th, 2019, in the form of MS Word documents

as well as executable binaries.

Another prevalent malware family was

credentials-stealing trojan Fareit

. Even though

only 35 unique samples were used to spread this

malware, more than 700,000 e-mails were captured.

Unusual attachment formats, ACE and ARJ archives,

were used to pack the binary. Similar to Emotet, the

Fareit family was repeatedly spreading throughout

both years, with several months pause after each

campaign.

Another credentials stealing malware called

FormBook

was observed in two campaigns. The

ﬁrst observed campaign spreading this malware, con-

taining only eight e-mails, appeared on February

19th, 2019. Several months later, on May 2nd,

2019, a much larger campaign containing more than

https://www.us-cert.gov/ncas/alerts/TA18-201A

https://usa.kaspersky.com/about/press-releases/

2019 rtm-banking-trojan

https://blog.talosintelligence.com/2015/09/down-

rabbit-hole-botnet-analysis-for.html

https://www.sentinelone.com/blog/formbook-yet-

another-stealer-malware/

220,000 e-mails spread another sample of this spy-

ware.

The similar behaviour was observed with infos-

tealer AgentTesla

. Only ﬁve unique samples, ei-

ther ZIP or ARJ were used in two campaigns on

April 24th and July 26th, 2019. However, nearly

95,000 malicious e-mails were captured, spreading

this malware. Yet another infostealer, LokiBot

, was

spread throughout the monitoring period in 4 different

campaigns with the total of 160,000 samples deliv-

ered. While Fortinet originally reported

spreading

through PDF ﬁles and 7-Zip archives, in our honey-

pot, we captured ARJ archive, MS Word document,

as well as executable binaries.

There were also smaller one-time campaigns,

spreading different types of malware. On April 4th

2019, spreading of another banking trojan Qakbot

was detected. MS Word attachments were used to

send about 500 e-mails throughout a single hour. On

April 26th, a ransomware delivering downloader Ne-

mucod

was captured in a 2000 e-mails large cam-

paign. On June 18th, 2019, we captured several

samples of SmokeLoader

downloader, which cor-

related with the worldwide resurgence of this old

malware family. On July 22nd, 2019, at that time,

a brand new ransomware Sodinokibi

was captured

in a small campaign of 30 e-mails.

We also captured several backdoor and remote ac-

cess trojans (RAT), including Valyria

and REM-

COS

, spreading in February 2019 using MS Word

documents, and ZIP ﬁles respecitvely. Another cam-

paign of REMCOS was captured on July 3rd 2019 us-

ing executable binary attachments. NanoCore RAT

was observed on September 4th 2019 in small num-

bers.

Many of the malware samples were identiﬁed as

https://krebsonsecurity.com/2018/10/who-is-agent-

tesla/

https://www.fortinet.com/blog/threat-research/new-

infostealer-attack-uses-lokibot.html

https://www.fortinet.com/blog/threat-research/new-

loki-variant-being-spread-via-pdf-ﬁle.html

https://blog.talosintelligence.com/2016/04/qbot-on-

the-rise.html

https://www.cisecurity.org/blog/malware-analysis-

report-nemucod-ransomware/

https://research.checkpoint.com/2019-resurgence-of-

smokeloader/

https://www.cybereason.com/blog/the-sodinokibi-

ransomware-attack

https://threatpoint.checkpoint.com/ThreatPortal/

threat?threatType=malwarefamily&threatId=164669

https://www.fortinet.com/blog/threat-research/

remcos-a-new-rat-in-the-wild-2.html

Exploring Current E-mail Cyber Threats using Authenticated SMTP Honeypot

259

different kinds of Crypter

malware. These fami-

lies employ obfuscation techniques in order to make

automatic analysis hard or even impossible.

Some of the attached MS Word documents failed

to download the malicious payload and were there-

fore identiﬁed generally as a downloader family, such

as Donoff

and SAgent

. We also identiﬁed ex-

ploiting several MS Word vulnerabilities to run ma-

licious code, namely CVE-2017-11882 and CVE-

2012-0158.

Additionally, a signiﬁcant part of the attachments

(33,280 samples) received no label. When looking at

the data, one may divide them into several categories

and discover further insights. Most of them, about

twelve thousand, were benign plain text and image

attachments, like icons. Therefore, a missing label is

appropriate.

Nearly nine thousand unique unlabeled samples

were PDF ﬁles. From our analysis, these ﬁles were

either a document containing phishing content (e.g.

lottery winner) or were part of the campaign spread-

ing Emotet. Although missed by the detections, the

malicious payload, downloaded from the URL inside

PDF, would be caught correctly.

More than ﬁve thousand unique unlabeled attach-

ments were ZIP archives. These ﬁles were encrypted.

Therefore, the automatic analysis was unable to ex-

tract and label their payload. However, the archive is

easily opened by humans as the password was sup-

plied inside the e-mail. From the manual analysis, we

discovered these encrypted attachments were used to

spread Emotet. As further work, we plan to imple-

ment a dictionary attack against these ﬁles, with the

dictionary containing words inside the e-mail, there-

fore including the correct password. This way, it will

be possible to analyze the encrypted archives auto-

matically.

The last signiﬁcant category of unlabelled sam-

ples, about four thousand, contained MS Word docu-

ments. These ﬁles were either corrupted and couldn’t

be opened or didn’t include any malicious payload at

all, arguably by mistake. The missing malware label

is, therefore, in place.

https://blog.malwarebytes.com/cybercrime/malware/

2017/03/explained-packer-crypter-and-protector/

https://blog.talosintelligence.com/2018/11/threat-

roundup-1123-1130.html

https://blog.talosintelligence.com/2018/09/threat-

roundup-0921-0928.html

4.2 Studying Malicious Campaign in

Detail

Using our honeypot, one can also watch a single ma-

licious campaign in detail. As an example, we study

one of the latest Emotet-spreading campaigns which

launched during the writing of this paper, on Wednes-

day, October 9th, 2019, and ran for 78 hours. During

the mentioned period, we captured 83,134 e-mails,

most of them spreading Emotet. Detail can be seen in

Figure 7, which shows e-mails received per minute.

Even though the campaign continued after the 2-

day weekend break, for the sake of this study, we

present statistics for the ﬁrst week only. It is inter-

esting to observe, however, the users of our honeypot

generally mimic the workdays, not distributing spam

during weekends. We argue it is not for their conve-

nience but to better target their victims who are not

checking their e-mail folders during weekends. Spam

distribution is, therefore, inefﬁcient in such times.

The payload was delivered in one of three ways –

direct malicious MS Word e-mail attachment, URL to

download the malicious ﬁle, and PDF ﬁle, which con-

tained the URL. During the campaign period, we cap-

tured 72,728 attachments, from which 66,108 (859

unique) were MS Word ﬁles and 6,619 (511 unique)

were PDF ﬁles. This demonstrates the observation

above, PDF ﬁles being more distinctive than MS

Word documents. While a single PDF was delivered

to approximately 13 recipients, an MS Word docu-

ment is sent to 77 recipients, on average.

Additionally, 31,305 e-mails contained a total of

41,541 unique URLs. From those, only 70% were

responding in the time of e-mail relaying. Fur-

ther, 16,336 (406 unique) URLs were distributing MS

Word ﬁles, and 329 (293 unique) URLs were dis-

tributing a PDF ﬁle. Other URLs contained HTML

or images.

One could also observe a strategy called thread

hijacking, which was ﬁrst observed in 2017 used by

North Korean hackers, adopted by Emotet in April

2019

. The authors of Emotet use stolen e-mail con-

versations to create highly customized and targeted e-

mails with the malicious payload. We also noticed the

language of the malicious text often corresponds to

the original conversation. Thanks to this method, ev-

ery e-mail received is unique and the clustering tech-

niques based of body similarity fail to detect the cam-

paign.

If we look at the source of this campaign, it was

delivered from a total of 3,726 unique IP addresses.

These originate in 132 different countries. However,

https://www.zdnet.com/article/emotet-hijacks-email-

conversation-threads-to-insert-links-to-malware/

SECRYPT 2020 - 17th International Conference on Security and Cryptography

260

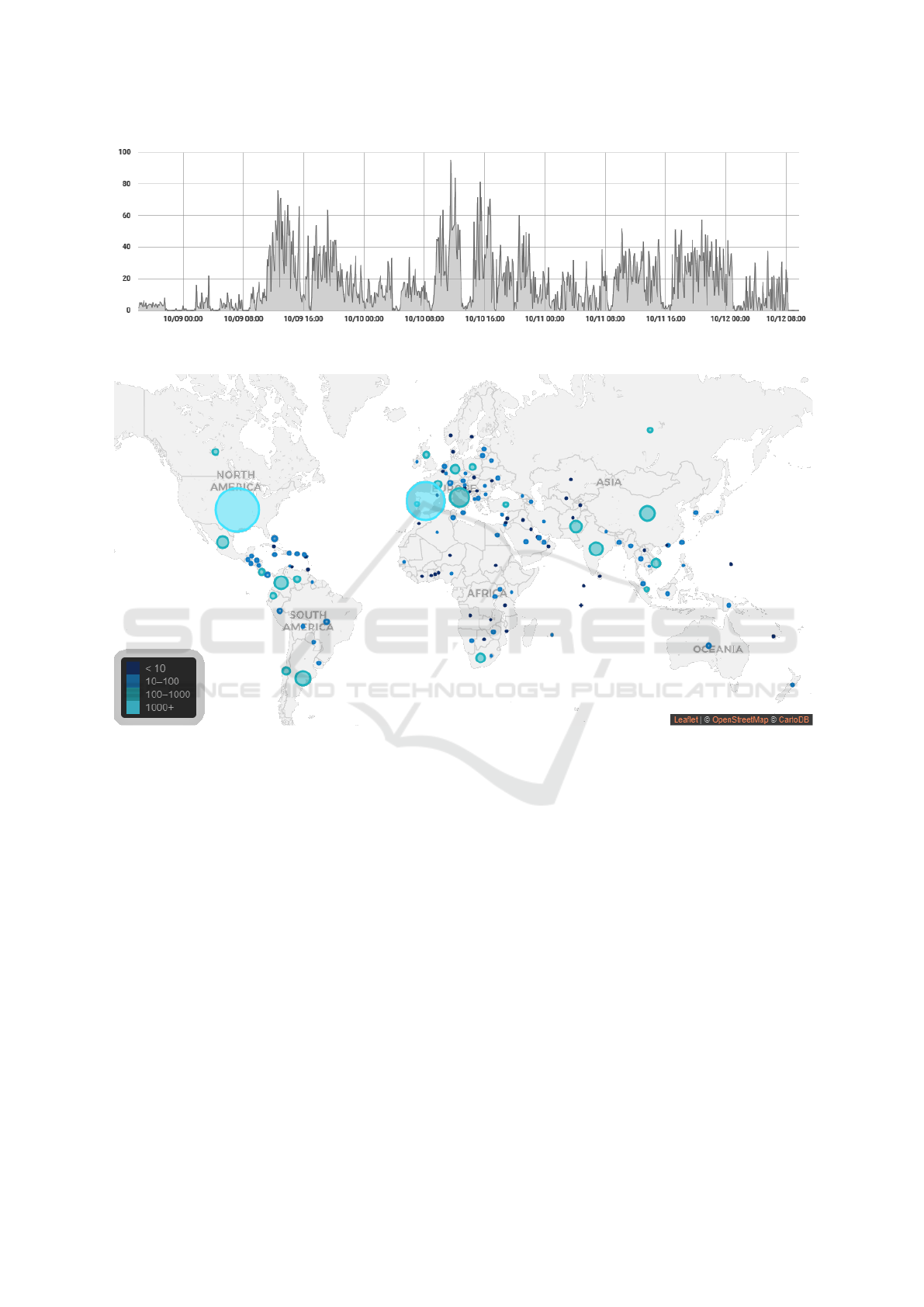

Figure 7: E-mails received per minute during the Emotet-spreading campaign, from Oct 9th to Oct 12th 2019.

Figure 8: Country of origin of IP addresses spreading Emotet from Oct 9th to Oct 12th 2019, as depicted in the Grafana

platform.

a large portion of the spam came from the US, Spain,

and Italy, as seen in map Figure 8. Arguably, adver-

saries use their botnet, existing victims, to spread the

infection.

When comparing the language used in this cam-

paign to global statistics, English is still the most

prevalent, however, only about four times as much

as other languages like Italian, German, and Spanish.

Similar data can be seen in victims’ domains. While

gmail.com remains the top domain, libero.it, popu-

lar Italian portal occupies the second place. Also,

domains like yahoo.it, hotmail.it, and tiscalli.it are

present in the top 10 domains.

5 CONCLUSION

E-mail plays a crucial role in today’s cyber criminal

activities. As presented in this work, when credentials

are distributed accordingly, authentication-requiring

e-mail honeypot provides a powerful tool to collect

intelligence about emerging e-mail threats. With the

information gathered, one can stay informed about

malicious campaigns spreading throughout the world.

Samples collected from the honeypot can serve an ex-

cellent value for any cybersecurity entity, e.g. for cre-

ating updated detections to protect their users, as well

as discovering previously unseen malware families.

Furthermore, within our architecture, all the e-

mails are parsed, analyzed, and submitted to central

storage automatically. The knowledge from this hon-

eypot is then visualized in several ways. Grafana

platform serves a high-level overview of the hon-

Exploring Current E-mail Cyber Threats using Authenticated SMTP Honeypot

261

eypot activity, while the internal Threat Intelligence

platform provides malware analysts an in-depth look

into each of the samples gathered. Thanks to the

third-party real-time dynamic analysis of the mali-

cious samples, we can alert the analysts about un-

known sample spreading in the wild within minutes

of capturing.

5.1 Future Work

In further research, we would like to focus on the way

honeypot credentials are distributed. Indeed, this has

a vital role in the kind of content we are capturing.

When we gain more insight into this ﬁeld, it will be

possible to connect different malicious samples steal-

ing the credentials, with various malicious campaigns

spreading through the honeypot. We could improve

the knowledge of the credentials reselling ecosystem

or even reveal adversaries’ identity. Cooperation with

law enforcement agencies could bring them to justice.

ACKNOWLEDGEMENTS

This work was supported by the “Avast Scholarship”

project, granted by Avast Software s.r.o., and by Min-

istry of Education, Youth and Sports of the Czech Re-

public from the National Programme of Sustainability

(NPU II) project “IT4Innovations excellence in sci-

ence” LQ1602.

REFERENCES

Alishahi, M. S., Mejri, M., and Tawbi, N. (2015). Clus-

tering Spam Emails into Campaigns. In 2015 Inter-

national Conference on Information Systems Security

and Privacy (ICISSP), pages 90–97. IEEE.

Andreolini, M., Bulgarelli, A., Colajanni, M., and Mazzoni,

F. (2005). HoneySpam: Honeypots Fighting Spam at

the Source. SRUTI, 5.

Bhowmick, A. and Hazarika, S. M. (2016). Machine Learn-

ing for E-mail Spam Filtering: Review, Techniques

and Trends. arXiv preprint arXiv:1606.01042.

Brunton, F. (2013). Spam: A Shadow History of the Inter-

net. The MIT Press.

Calais, P. H., Pires, D. E., et al. (2008). A Campaign-Based

Characterization of Spamming Strategies. In Proceed-

ings of the 5th Conference on E-mail and Anti-Spam

(CEAS).

Dinh, S., Azeb, T., Fortin, F., Mouheb, D., and Debbabi,

M. (2015). Spam Campaign Detection, Analysis,

and Investigation. Digital Investigation, 12:12 – 21.

DFRWS 2015 Europe.

Han, J., Pei, J., Yin, Y., and Mao, R. (2004). Mining

Frequent Patterns without Candidate Generation: A

Frequent-Pattern Tree Approach. Data mining and

knowledge discovery, 8(1):53–87.

Khan, W. Z., Khan, M. K., Bin Muhaya, F. T., Aalsalem,

M. Y., and Chao, H. (2015). A Comprehensive Study

of Email Spam Botnet Detection. IEEE Communica-

tions Surveys Tutorials, 17(4):2271–2295.

Kornblum, J. (2006). Identifying Almost Identical Files Us-

ing Context Triggered Piecewise Hashing. Digital in-

vestigation, 3:91–97.

Krawetz, N. (2004). Anti-honeypot technology. IEEE Se-

curity Privacy, 2(1):76–79.

Liston, T. (2003). Tom Liston talks about LaBrea. http:

//labrea.sourceforge.net/Intro-History.html. Accessed

in April 2020.

Nawrocki, M., W

ahlisch, M., Schmidt, T. C., Keil, C.,

and Sch

onfelder, J. (2016). A Survey on Honey-

pot Software and Data Analysis. arXiv preprint

arXiv:1608.06249.

O’Gorman, B. et al. (2019). 2019 Internet Security Threat

Report. Technical report, Symantec.

Oudot, L. (2003). Fighting Spammers With Hon-

eypots. https://www.symantec.com/connect/articles/

ﬁghting-spammers-honeypots-part-1. Accessed in

April 2020.

Smirnov, M. (2018). Clustering and Classiﬁcation Methods

for Spam Analysis. Master’s thesis, Aalto University,

02150 Espoo, Finland.

Spitzner, L. (2001). The Value of Honeypots, Part

One: Deﬁnitions and Values of Honeypots.

https://www.symantec.com/connect/articles/value-

honeypots-part-one-deﬁnitions-and-values-

honeypots. Accessed in April 2020.

Spitzner, L. (2003). Honeypots: Tracking Hackers, vol-

ume 1. Addison Wesley.

Stoll, C. (2005). The Cuckoo’s Egg: Tracking a Spy

Through the Maze of Computer Espionage. Simon and

Schuster.

Tsikerdekis, M., Zeadally, S., Schlesener, A., and Sklavos,

N. (2018). Approaches for Preventing Honeypot

Detection and Compromise. In 2018 Global In-

formation Infrastructure and Networking Symposium

(GIIS), pages 1–6. IEEE.

Uitto, J., Rauti, S., Laur

en, S., and Lepp

anen, V. (2017). A

survey on anti-honeypot and anti-introspection meth-

ods. In Recent Advances in Information Systems and

Technologies, pages 125–134, Cham. Springer Inter-

national Publishing.

Verizon (2019). 2018 Data Breach Investigations Report.

Technical report, Verizon.

Zou, C. C. and Cunningham, R. (2006). Honeypot-Aware

Advanced Botnet Construction and Maintenance. In

International Conference on Dependable Systems and

Networks (DSN’06), pages 199–208.

SECRYPT 2020 - 17th International Conference on Security and Cryptography

262
