SEAPORT: Assessing the Portability of Serverless Applications

Vladimir Yussupov

, Uwe Breitenb

ucher

, Ayhan Kaplan

and Frank Leymann

Institute of Architecture of Application Systems, University of Stuttgart, Germany

iC Consult GmbH, Stuttgart, Germany

Keywords:

Serverless, Function-as-a-Service, FaaS, Portability, Decision Support System.

Abstract:

The term serverless is often used to describe cloud applications that comprise components managed by third

parties. Like any other cloud application, serverless applications are often tightly-coupled with providers, their

features, models, and APIs. As a result, when their portability to another provider has to be assessed, appli-

cation owners must deal with identiﬁcation of heterogeneous lock-in issues and provider-speciﬁc technical

details. Unfortunately, this process is tedious, error-prone, and requires signiﬁcant technical expertise in the

domains of serverless and cloud computing. In this work, we introduce SEAPORT, a method for automatically

assessing the portability of serverless applications with respect to a chosen target provider or platform. The

method introduces (i) a canonical serverless application model, and (ii) the concepts for portability assess-

ment involving classiﬁcation and components similarity calculation together with the static code analysis. The

method aims to be compatible with existing migration concepts to allow using it as a complementary part for

serverless use cases. We present an architecture of a decision support system supporting automated assessment

of the given application model with respect to the target provider. To validate the technical feasibility of the

method, we implement the system prototypically.

1 INTRODUCTION

The term serverless often refers to applications com-

prising third party-managed components, which re-

sults in reduced maintenance costs and faster time

to market (Baldini et al., 2017). Function-as-a-

Service (FaaS) is a cloud service model allowing to

host business logic as ﬁne-grained, executable func-

tions managed by providers. Functions can be used

within applications, e.g., for data formats conversion,

or as standalone components, e.g., single HTTP end-

points. The invocation is mainly event-driven, making

functions a reactive mechanism for processing various

events, e.g., database insert events triggering genera-

tion of thumbnails (Cloud Native Computing Founda-

tion (CNCF), 2018). In addition to provider-managed

scaling with an unbounded number of instances, func-

tions are also scaled to zero when they are idle.

By scaling to zero, FaaS eliminates the expenditures

for idle components, which is not the case for, e.g.,

PaaS deployments. However, despite the beneﬁts,

serverless architectures are even more prone to var-

ious kinds of lock-in issues due to the relinquished

control over the infrastructure and thus stronger de-

pendence on provider’s conﬁgurations and features,

e.g., not supported memory limit or a speciﬁc event

source integration. As a result, porting such applica-

tions requires solving cumbersome serverless-speciﬁc

issues (Yussupov et al., 2019a). Particularly manual

portability assessment is inefﬁcient and error-prone,

e.g., search of alternatives for unsupported compo-

nents or analyze required code modiﬁcations.

In this work, we introduce the SErverless

Applications PORtability assessmenT (SEAPORT)

method helping to assess the portability of server-

less applications. SEAPORT enables automated as-

sessment of a provided application using a canonical

serverless application format, and involves checking

the component architecture’s portability to the chosen

provider and analyzing the included source code ar-

tifacts to provide a comprehensive overview of porta-

bility issues. We discuss the method’s steps, introduce

a canonical serverless application model based on the

idea of pipes and ﬁlters pattern (Hohpe and Woolf,

2004), and present a decision support system’s archi-

tecture enabling the method. Moreover, to make the

method compatible with existing migration concepts,

as an integration point we discuss the boilerplate mod-

els and code generation, and validate the presented

concepts via a prototypical implementation.

456

Yussupov, V., Breitenbücher, U., Kaplan, A. and Leymann, F.

SEAPORT: Assessing the Portability of Serverless Applications.

DOI: 10.5220/0009574104560467

In Proceedings of the 10th International Conference on Cloud Computing and Services Science (CLOSER 2020), pages 456-467

ISBN: 978-989-758-424-4

 2020 by SCITEPRESS – Science and Technology Publications, Lda. All rights reser ved

2 BACKGROUND AND PROBLEM

STATEMENT

In this section, we provide the relevant background,

describe the problem and formulate the research ques-

tion we intend to answer.

2.1 Serverless Computing and FaaS

In general, as serverless applications comprise com-

ponents managed by third parties, developers are no

longer required to deal with managing the underlying

infrastructure (Cloud Native Computing Foundation

(CNCF), 2018; Baldini et al., 2017). Tasks such as

resource provisioning and scaling become provider’s

burden, which allows focusing more on business logic

implementation and reducing the overall time to mar-

ket. The Function-as-a-Service cloud service model is

one of the essential parts in serverless application de-

velopment as it allows hosting application’s business

logic in a form of event-driven functions that are often

short-lived, stateless and are scaled automatically by

cloud providers. One of the main advantages of FaaS

is that functions can be scaled to zero after a certain

inactivity period, which eliminates the need to pay

for idle instances (Baldini et al., 2017; Cloud Native

Computing Foundation (CNCF), 2018; Castro et al.,

2019). However, FaaS also has some known limita-

tions, e.g., certain FaaS platforms impose quotas on

the function execution time, making it more difﬁcult

to implement more complex use cases (Hellerstein

et al., 2018). Since functions are scaled to zero, typi-

cally, it is often recommended making them stateless

while storing the application state in, e.g., database

services, which is also an example of a restriction im-

posed by the FaaS cloud service model.

2.2 Lock-in and Portability

The problem of becoming dependent on properties

and requirements of a chosen product, i.e., lock-in,

is well-known (Greenstein, 1997) and can be encoun-

tered in various situations, e.g., choosing certain hard-

ware, or software development framework. Cloud

computing is also an example of a ﬁeld with multiple

lock-in issues (Satzger et al., 2013; Beslic et al., 2013;

Opara-Martins et al., 2014), which occur on vari-

ous levels including provider-speciﬁc runtimes and

packaging formats. For instance, applications can

be locked into a provider-speciﬁc REST API or cus-

tom message format requirements, allowed memory

and storage limits, or custom deployment automation

technologies like AWS Cloud Formation

https://aws.amazon.com/cloudformation

There are various reasons, why changing a provider

becomes necessary, e.g., change of technology, costs

optimization, decrease in the quality of service,

bankruptcy of a provider, legal issues or simply ter-

mination of the contract (Petcu, 2011). While cus-

tomers choose providers willingly and lock-in per se

is not a daily problem, the process of migrating ex-

isting serverless applications can become a serious

lock-in resolution issue because (i) cloud applications

are often built without portability in mind (Opara-

Martins et al., 2014), (ii) lock-in issues are very het-

erogeneous, e.g., vendor, product, version, or archi-

tecture lock-ins (Hohpe, 2019), and (iii) major parts

of serverless applications are prone to lock-in due to

reduced control over the infrastructure. For example,

the business logic hosted as FaaS functions gets cou-

pled with the speciﬁcs of a chosen FaaS platform,

e.g., different event formats and triggers conﬁgura-

tion for AWS Lambda and Microsoft Azure Func-

tions. Additionally, similar issues occur in other com-

ponent types in serverless applications, e.g., provider-

managed databases which have varying APIs and un-

derlying models. As a result, application owners must

face classic portability and interoperability issues in

the cloud (Bozman and Chen, 2010; Petcu, 2011;

Stravoskoufos et al., 2014) combined together with

serverless-speciﬁc lock-in issues (Yussupov et al.,

2019a) which require a good understanding of, e.g.,

component mappings, provider-speciﬁc development

guidelines and requirements, and packaging formats.

2.3 Problem Statement

Unfortunately, assessing the portability for server-

less applications across providers manually is an in-

efﬁcient and error-prone process since (i) the avail-

able component mappings are often not known in ad-

vance which requires investing time into analyzing

provider’s offerings, and (ii) the hosted function code

can contain incompatible fragments which might be

easily overlooked, e.g., usage of a non-portable li-

brary. The evaluation phase of a serverless migration

process for a given application can, therefore, ben-

eﬁt from an automated portability assessment which

can help to minimize the organizational efforts and

estimate the needed actions before proceeding with

actual migration. However, such evaluation often re-

quires an in-depth knowledge of multiple topics in-

cluding (i) serverless- and FaaS-related technical de-

tails such as trigger speciﬁcations, event formats, and

conﬁguration requirements, (ii) deployment model-

ing options with respect to the chosen provider, and

(iii) the knowledge of possible provider-speciﬁc code

fragments that require attention. Moreover, to facili-

SEAPORT: Assessing the Portability of Serverless Applications

457

SEAPORT CASE

Model

Retrieve

Deployment

Model

Automated step

Manual step

Source

Deployment

Package

Code

Artifacts

Transform

Into SEAPORT

CASE Model

Evaluate

Model’s

Portability

Analyze

Code Artifacts

Generate & Refine

Target Deployment

Boilerplate Code

Evaluated

SEAPORT CASE

Model

Annotated

Code Artifacts

Specify

Target Platform

Method

Integration

Point

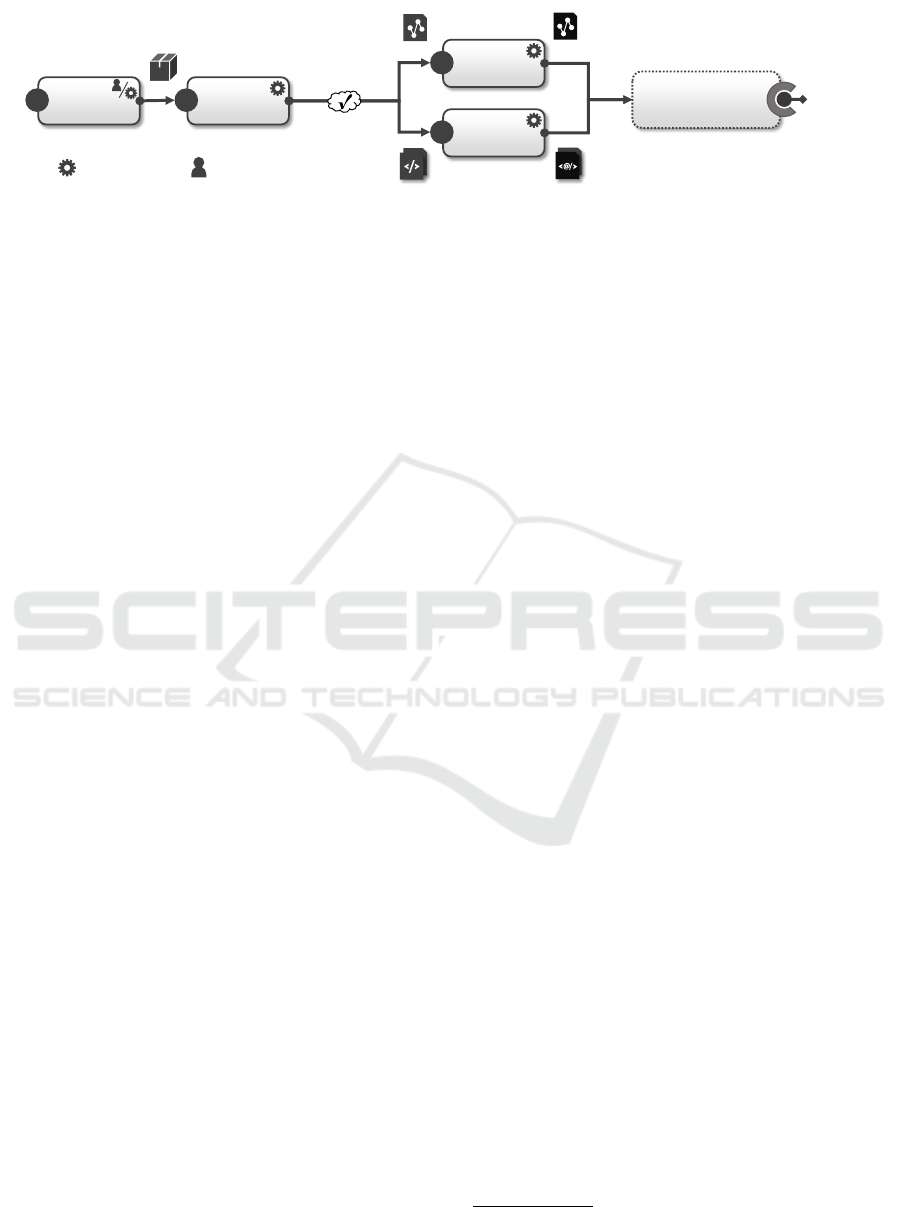

Figure 1: An overview of the SEAPORT method’s steps.

tate the method usage as a part of existing migration

concepts there should be a feasible method integra-

tion point allowing to reuse the obtained portability

knowledge as a part of the larger migration process,

e.g., recommended code modiﬁcations and highlight-

ing portability pitfalls. In this work, we formulate and

answer the following research question: “How to au-

tomatically assess the portability of a given serverless

application’s component architecture and the avail-

able source code with respect to the selected target

provider and allow reusing the obtained knowledge

as a part of the overall migration process?”

3 THE SEAPORT METHOD

In this section, we introduce the SEAPORT method

that allows automatically assessing the portability of a

given serverless application by (i) checking the com-

patibility of its component architecture with the se-

lected target provider, and (ii) analyzing the source

code of components that host business logic, i.e.,

FaaS-hosted functions. To answer the research ques-

tion formulated in Section 2.3, we start with the

description of SEAPORT method which comprises

three steps shown in Figure 1, together with the

method integration point relying on boilerplate code

generation to allow using it as a complementary part

for migration of serverless use cases.

3.1 Step 1: Retrieve Deployment Model

Obtain the application’s deployment model describ-

ing application components and their conﬁguration,

together with the corresponding code artifacts.

In the ﬁrst step, the deployment model of a given

serverless application is retrieved together with code

artifacts, e.g., FaaS components’ code. Essentially, a

serverless application can be deployed using (i) man-

ual deployment, e.g., deploying components sep-

arately without having any deployment model, or

(ii) model-based deployment, e.g., via provided CLI

or GUI, or using provider-speciﬁc and third-party de-

ployment automation technologies like AWS Cloud

Formation, Terraform

, or Serverless Framework

The model-based deployment relies either on impera-

tive or declarative models (Endres et al., 2017), where

the former deﬁnes a set of required actions and the

latter describes the desired state for all related appli-

cation components (Wurster et al., 2019b). Typically,

deployment automation technologies like Terraform

or Serverless Framework rely on declarative deploy-

ment models, which provide all relevant information

for application’s portability assessment.

Firstly, the application’s provider-speciﬁc deploy-

ment model contains necessary structural details, e.g.,

which types of components are used, their intercon-

nections, event bindings, and other conﬁguration de-

tails. In cases when applications are deployed using

a provider-speciﬁc interface, e.g., AWS GUI, the de-

ployment model has to be crawled, e.g., by querying

the deployment model-related data using AWS CLI.

Another possible option is to extract the application

topology of a running instance (Binz et al., 2013).

The reason why source code artifacts must be

available is that the source code might contain poten-

tial portability pitfalls, e.g., lock-in into unsupported

library versions or incompatible service calls. Here,

deployment models are helpful for components’ code

discovery as well, since the source code artifacts are

either contained in the deployment package or refer-

enced in the deployment model.

In the next steps, we assume that

(1) a declarative deployment modeling is used and the

deployment model is available,

(2) source code is accessible either because it is con-

tained in deployment package or referenced in the

model, and

(3) a deployment automation tooling is used to exe-

cute the deployment.

https://www.terraform.io

https://serverless.com

CLOSER 2020 - 10th International Conference on Cloud Computing and Services Science

458

Pipe

+ protocol: String

+ sourceID: String

+ targetID: String

Function

+ language: String

...

Service

+ provider: string

Conﬁguration

+ origin: string

+ author: string

EventTransmitter

+ event

DirectCall

+ protocol: string

Comprises

Has

0..*

<<enumeration>>

PipeDirection

 Incoming

 Outgoing

ConnectedWith

Has

ApplicationMetadata

ServerlessApplication

Filter

+ direction

<<enumeration>>

EventSourceCategory

 Endpoint

 Scheduler

 ObjectStore

 ...

+ category

EventSource

CloudEvent

Conveys

FunctionConﬁguration

ServiceConﬁguration

1..*

Figure 2: A UML class diagram of the SEAPORT CASE model.

3.2 Step 2: Transform Into the

SEAPORT CASE Model

Transform the deployment model into a canonical

serverless application format for checking target

provider’s compatibility.

In the second step, we transform the obtained de-

ployment model into a provider-agnostic format. The

main reason for transforming provider-speciﬁc de-

ployment models into a canonical format is to sim-

plify evaluating the portability of application’s com-

ponents and enable the results reuse. For exam-

ple, if several target platforms are to be evaluated,

the canonical format eliminates unnecessary point-to-

point transformations. To abstract away provider de-

tails, as a part of the SEAPORT method we introduce

the CAnonical SErverless (CASE) model. Although

there exist modeling approaches for serverless appli-

cations, e.g., focusing on the detailed deployment and

conﬁguration modeling (Wurster et al., 2018; Kri-

tikos et al., 2019; Samea et al., 2019) or abstract de-

pendency graph representation (Winzinger and Wirtz,

2019), the SEAPORT CASE model intends to be a

compromise between too detailed and too high-level

views while at the same time keeping the topological

information together with conﬁguration details. This

would allow using the model as a generic serverless

application representation that can be mapped to more

technology-speciﬁc use cases or abstracted away to

plain dependency graph representation. The CASE

model is based on the idea of pipes and ﬁlters pat-

tern that describes an architectural style in which a

large task is split into smaller processing components

called ﬁlters that are interconnected using channels,

i.e., pipes (Hohpe and Woolf, 2004). Similarly, a typ-

ical serverless application topology comprises a set of

processing components, e.g., FaaS-hosted functions,

storage or messaging services, connected by means

of various types of channels, e.g., representing event

transmission or direct invocations. Therefore, it is

possible to represent a serverless application as a set

of interconnected ﬁlters and pipes of various types

that have different feature sets.

A UML class diagram shown in Figure 2 de-

picts the introduced CASE model. Essentially, in

this model a serverless application comprises one or

more ﬁlters of different type, e.g., functions or service

components. Filters of type Function are described

with various function-related properties, e.g., source

code’s programming language. Similarly, ﬁlters of

type Service represent different kinds of services in a

serverless application topology, e.g., databases, mes-

sage queues or streaming platforms. In addition, a

service might also serve as an event source of var-

ious categories such as schedulers or object stores,

which is described using a service type EventSource.

Each ﬁlter has zero or more incoming and outgoing

pipes representing different communication mecha-

nisms, e.g., event-driven with the speciﬁcation of

which events trigger the function using the relation-

based event speciﬁcation approach (Wurster et al.,

2018) or direct invocations. The events are speci-

ﬁed using CloudEvents, a provider-agnostic event for-

mat

. One additional connection type that is often not

shown in the model explicitly is when a function con-

nects to service from the source code. This type of

connections can be identiﬁed either by analyzing the

security credentials deﬁned/used in the deployment

model, or via the static code analysis. In addition, ev-

ery ﬁlter has a type-speciﬁc conﬁguration, e.g., func-

tion memory limits and invocation schedule.

https://cloudevents.io

SEAPORT: Assessing the Portability of Serverless Applications

459

3.3 Step 3: Assess Portability of the

Application’s Model and Code

Assess the portability of a given deployment model to

the target provider and analyze the source code of its

artifacts for possible migration pitfalls.

To assess portability of a given application to the se-

lected target provider or platform, two parallel tasks

have to be performed: (i) the deployment model has

to be analyzed with respect to its components’ suit-

ability, and (ii) code artifacts have to be analyzed to

identify dependencies not covered by the SEAPORT

CASE model such as provider-speciﬁc SDKs usage

or direct HTTP calls to third-party services. CASE

model is used as an input for deployment model suit-

ability evaluation, whereas the provider-speciﬁc code

artifacts from the application’s deployment package

serve as an input for code analysis. During the model

suitability assessment, the components of the appli-

cation are classiﬁed, e.g., functions, database and

messaging services, mapped to the service alterna-

tives of the target platform, followed by the deploy-

ment model similarity score calculation. The source

code analysis task serves multiple purposes includ-

ing library dependencies identiﬁcation, code patterns

search to ﬁnd provider-speciﬁc fragments to facilitate

the boilerplate code generation.

Step 3a: Model Portability Evaluation

As a preliminary step, we describe how components

of the application are classiﬁed to allow identiﬁcation

of target provider’s service alternatives.

Service Classiﬁcation. Essentially, each service

can (i) be an event source producing events that trig-

ger one or more functions in the application topology,

(ii) an invoked service, which can communicate with

other components but does not trigger any functions,

or (iii) combine both roles. There are multiple possi-

ble categories of event sources relevant for serverless

applications, including various storage types, mes-

saging and streaming platforms, or endpoints. Ta-

ble 1 demonstrates exemplary service alternatives for

a set of commonly-used event source categories of-

fered by several commercial platforms as well as an

example of alternatives for OpenFaaS, an open source

Kubernetes-based FaaS platform. We describe these

categories and list their basic properties relevant for

calculation of the coverage score in the following.

A. Endpoints. One of the most common ways to in-

voke FaaS-hosted functions is via HTTP calls. Often,

functions are exposed as endpoints by means of an

API Gateway, which is responsible for calling func-

tions that are bound to a particular event type, e.g.,

HTTP GET event. Note that there is subtle difference

between an event-driven HTTP-based invocation and

a direct HTTP call. The former is typically achieved

via subscribing functions to speciﬁc HTTP events that

are processed by an API Gateway. In contrast, the

latter is achieved by invoking endpoints from within

the source code, e.g., AWS Lambda Invoke API. The

endpoint event source type covers only event-driven

HTTP calls. The main properties that characterize

this event source are:

- Method: request method for the given endpoint

- Path: request path for triggering given functions

- Auth: authentication-related conﬁgurations.

The service alternatives for this category shown in Ta-

ble 1 can be described using a combination of these

generic properties serving as an assessment baseline

for endpoint event sources.

B. Object Stores. The next common event source cat-

egory is the object storage, a cloud data store type fo-

cusing on ﬁle-level data abstractions (Mansouri et al.,

2018), e.g., AWS S3 or Azure Blob Storage. As a

baseline, we consider the following properties, shared

by services in this category:

- DataContainer ID: storage instance identiﬁer,

e.g., S3 bucket or Azure blob

- Event types: list of events triggering functions,

e.g., PUT or DELETE events

- API: interfaces supported by the service.

Exemplary alternatives for the object storage category

are listed in Table 1.

C. Non-relational Stores. Non-relational data store

type, which groups together NoSQL databases such

as AWS DynamoDB or Apache Cassandra, is one

more service category common for serverless applica-

tions. As a baseline set of properties for the category

of non-relational stores, we deﬁne:

- Database ID: unique identiﬁer of the database in-

stance/partition

- Type: supported database models, since one ser-

vice might support more than one like CosmosDB

provides functionalities of, e.g., document, key-

value, or wide column stores

- API: interfaces supported by the service

- Query languages: supported query languages.

Table 1 shows example alternatives for the non-

relational store category.

CLOSER 2020 - 10th International Conference on Cloud Computing and Services Science

460

Table 1: Exemplary service alternatives for common event source categories offered by several well-known FaaS platforms.

Category AWS Lambda

IBM Cloud

Functions

Azure Functions OpenFaaS

Endpoint AWS API Gateway IBM API Gateway API Management

OpenFaaS

API Gateway

Schedule

AWS CloudWatch

Events

IBM Alarms

Azure Timer

Trigger

Cron

Object Storage AWS S3 Object Storage

Azure Blob

Storage

Min.io

NoSQL AWS DynamoDB Cloudant CosmosDB

Cassandra,

MongoDB

PubSub Messaging AWS SNS Event Streams Event Grid NATS

Event Streaming AWS Kinesis Event Streams Event Hubs Kafka

Point-to-Point

Messaging

AWS SQS Event Streams Queue Storage RabbitMQ

D. Schedulers. Another type of event sources are

time-based job schedulers such as cron

. Sched-

uled invocation of functions is a common use case

for serverless applications (Cloud Native Computing

Foundation (CNCF), 2018) offered as an option by

most FaaS platforms. Typically, provider use vari-

ous mechanisms supporting scheduled function invo-

cations, e.g., AWS CloudWatch events or Azure Time

Trigger which internally might also rely on cron, but

the format of cron expressions might differ, e.g., the

speciﬁcation of time intervals. For schedulers, we de-

ﬁne the following baseline set of properties:

- Cron: describes, whether cron jobs are supported

- Cron type: which cron format is supported, e.g.,

cron for .NET or crontab(5)

- Interval: support for recurring jobs execution

based on speciﬁed time intervals

- Once: once-in-a-lifetime jobs support.

Alternative ways to specify scheduled jobs for differ-

ent FaaS platforms are listed in Table 1.

E. Streaming and Messaging. One more essen-

tial category of event sources for serverless applica-

tions comprises various streaming and messaging so-

lutions. Various providers implements these prod-

ucts differently, e.g., Amazon provides AWS SQS for

implementing point-to-point messaging, AWS SNS

for implementing publish-subscribe messaging, and

AWS Kinesis for streaming, whereas IBM allows im-

plementing all of them using its Event Streams ser-

http://man.openbsd.org/cron.8

vice. To describe this category of services, we deﬁne

the following baseline properties:

- Queue/Topic: name or location of the given

queue/topic

- Batch size: deﬁnes the number of events delivered

as a bundle

- Filter: describes the event ﬁltering policy.

Table 1 lists possible alternatives for different mes-

saging and streaming options.

F. Invoked Services. Due to heterogeneity of invoked

services, it is often impossible to ﬁnd a suitable alter-

native, e.g., AWS Alexa, IBM Watson, or third-party

services like GitHub. As a result, the same service

must be also used in a ported application, preferably

as-is. However, these components have to be ana-

lyzed in detail as in some cases using them as-is will

not work, e.g., different authorization and authentica-

tion conﬁguration requirements.

Deployment Model’s Similarity Measure. Eval-

uating how portable the given application’s model

to the target provider, similarity of each component

needs to be checked against available alternative of-

ferings. This implies the descriptions of possible

provider offerings are present and can be used for

comparison. We envision the usage of knowledge

bases that provide such information for similarity

measure calculation, as in existing cloud migration

works (Andrikopoulos et al., 2013b; Andrikopoulos

et al., 2014). We elaborate more on this topic in the

system architecture description in Section 4.

SEAPORT: Assessing the Portability of Serverless Applications

461

To verify that a given application A with K distinct

service categories is portable to the selected target

provider X, we deﬁne the similarity measure as a

weighted sum of portability scores for every involved

service category:

∑

κ∈K

· w

(1)

Where:

: is the portability score for the service of type κ

: is the relevance factor for the service of type κ

While the assessment of a given component’s porta-

bility also requires the static code analysis, from the

structural similarity’s perspective, at least two condi-

tions must hold for the target provider: (i) one or more

alternative categories for the given service must be of-

fered by the target provider, and (ii) alternatives must

support the same level of conﬁgurations, e.g., allow-

ing speciﬁcation of identical even triggers or other pa-

rameters. Therefore, we deﬁne the portability score

S of a service of type κ with P

distinct conﬁgured

properties with respect to the given alternative cate-

gory α with T

distinct properties as follows:

∑

ρ∈P

· w

(2)

Where:

(

1, iff ∃t ∈ T

s.t. ρ ≡ t

0, otherwise

: is the relevance factor for the property ρ.

While it is possible to include the fact that several

alternatives are present in the ﬁnal similarity mea-

sure, we consider only the alternative with the highest

portability score. In addition, the relevance factors for

both, properties and service categories are introduced

to make the decision making process more ﬂexible.

In the default state, we assume that all categories and

properties have the same relevance factor.

Step 3b: Code Artifacts Analysis

As a next step after assessing model’s portability,

the available function’s source code has to be ana-

lyzed. There are several important aspects needed to

be checked including used libraries, embedded third-

party component calls, and provider-speciﬁc code

fragments, e.g., implementation of speciﬁc interfaces.

The identiﬁed snippets are automatically annotated

during static code analysis to be used for boilerplate

code generation and model reﬁnement steps. One im-

portant outcome of code artifacts analysis that can af-

fect overall portability score is identiﬁcation of a code

fragment that completely prevents migration of the

corresponding component, e.g., usage of incompati-

ble libraries or calls to unsupported remote services.

Same as with model’s similarity, the analysis of

provider-speciﬁc code fragments must rely on the

knowledge base which comprises positive and neg-

ative facts about target providers. Moreover, to aug-

ment this step, an interactive code exploration can fol-

low the automated code analysis to allow users to an-

notate more advanced fragments and add them to the

knowledge base for reuse.

Deciding on Application’s Portability

The data resulting from model’s similarity calcula-

tion and code analysis are combined and presented

before generating the target application model. In

many cases, making a strong conclusion based on

these metrics is not possible, e.g., even if a service

category has its portability score equal to zero, there

might exist ways to move the component to a new tar-

get environment. For example, the component can be

hosted using another cloud service model or reengi-

neered. Therefore, the outcome of the evaluation step

is presented to the user in a form of the portability

report, i.e., components with portability score equals

to zero, code snippets that are annotated as problem-

atic or non-portable, and possible recommendations,

which can be used as a complimentary input of the

employed migration methodology.

3.4 Method Integration Point: Generate

and Reﬁne the Boilerplate Code

After verifying that the given application is portable

and code artifacts have no incompatible fragments, a

target application model can be generated. Hence, the

evaluated CASE model is used to generate a deploy-

ment model structure for a target deployment automa-

tion technology, e.g., AWS Cloud Formation. One

possible way to support multiple target transforma-

tions out-of-the-box is to use the Essential Deploy-

ment Meta Model (EDMM) (Wurster et al., 2019b;

Wurster et al., 2019a) as an output of this step, i.e.,

transform the evaluated CASE model into a corre-

sponding instance of EDMM and use the available

tooling to generate the target deployment model. The

annotated code artifacts obtained after the source

code analysis step are used to generate the boilerplate

code for respective function components in the tar-

get platform, e.g., generating prepared fragments that

wrap the business logic in a provider-speciﬁc manner

including implementation of speciﬁc interfaces and

handling of events pre-processing to avoid locking

into a provider-speciﬁc event format (Yussupov et al.,

CLOSER 2020 - 10th International Conference on Cloud Computing and Services Science

462

2019a). The resulting deployment package can then

be reﬁned to include, e.g., security-related conﬁgura-

tions, and used for further processing as a part of the

employed cloud migration methodology.

4 ARCHITECTURE AND

PROTOTYPICAL VALIDATION

In this section, we elaborate on the system architec-

ture enabling SEAPORT method and describe its pro-

totypical implementation. Additionally, we show pro-

totype’s output examples for a simple thumbnail gen-

eration application with respect to the method’s steps.

4.1 System Architecture

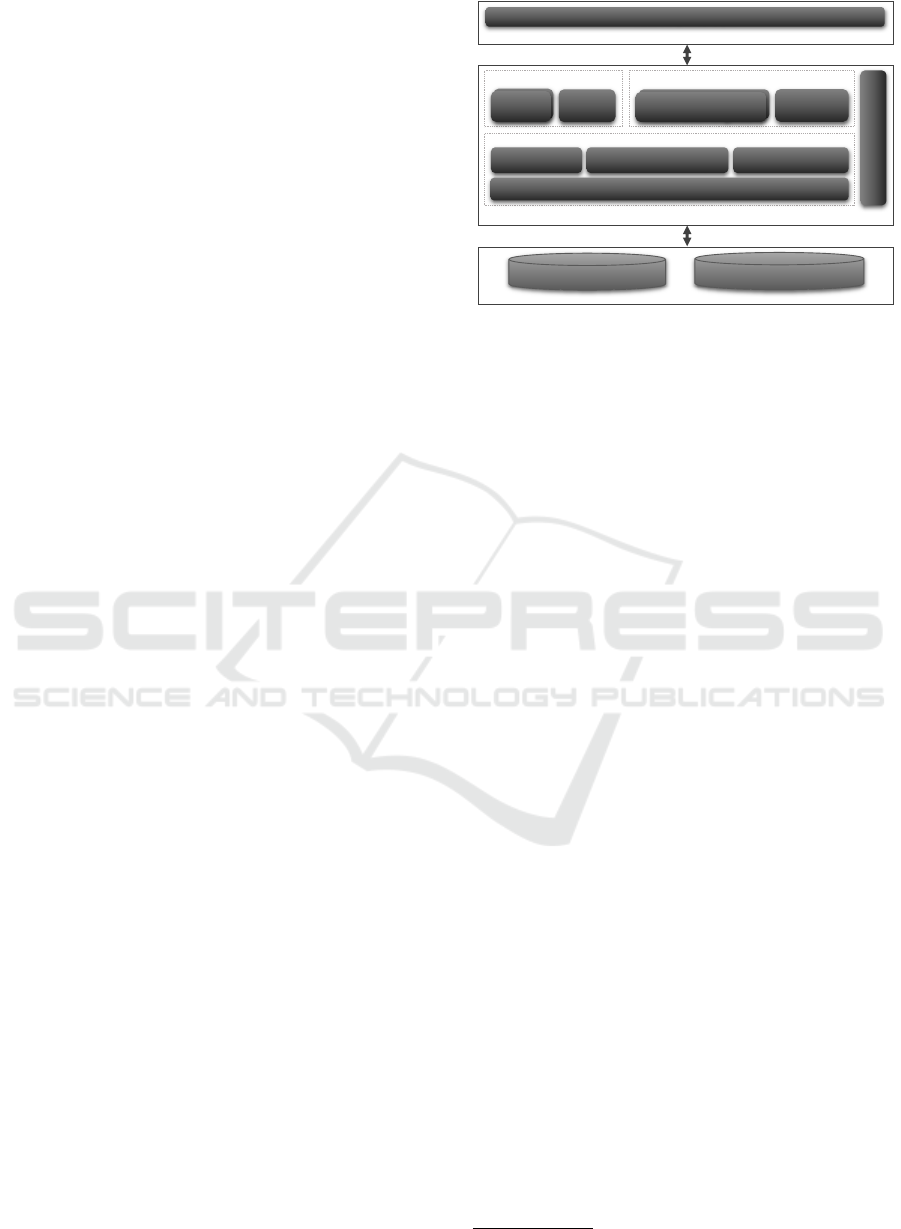

Figure 3 shows the conceptual system architecture

comprising three layers of components that enable the

SEAPORT method. The interfaces layer is responsi-

ble for interaction with the system, e.g., by means of

a command-line or graphical user interface. The busi-

ness logic layer comprises three core components re-

sponsible for (i) Model Retrieval, (ii) Model Assess-

ment, and (iii) Model Generation.

While model retrieval is not always needed, as

discussed in Section 3.1 there might be cases when

a model can be retrieved using the provider’s inter-

faces. To support this, the architecture comprises a

set of crawlers, e.g., allowing to crawl deployed AWS

applications, managed by the retrieval controller.

The application portability assessment includes

the assessment controller that manages (i) model as-

sessment engine that calculates similarity measures

for given deployment models with respect to the tar-

get provider and provides component mappings, and

(ii) code analysis engine that consists of language-

speciﬁc plugins for identifying important code frag-

ments and annotating them. In addition, to simplify

the mapping process, the system provides a mapping

engine which supports deﬁning technology-speciﬁc

mapping rules in a form of templates, e.g., mapping

rules for Terraform or AWS SAM.

The model generation components contains a re-

spective controller that is responsible for managing

model and code generation engines. These engines

comprise technology-speciﬁc plugins for model and

code generation, e.g., for generating an EDMM or

Serverless model based on the given evaluated canon-

ical model, or generating a Java boilerplate code frag-

ments for wrapping the existing business logic and

hosting it on a new provider.

Finally, the Resources layer includes the Artifacts

Repository which is responsible for storing interme-

Business Logic Layer

Artifacts Repository

Interfaces Layer

REST API, Web UI, …

Model Retrieval

Model Generation

Model

Crawlers

Retrieval

Controller

Generation

Controller

Plugins

Model Assessment Manager

Mapping Engine

Portability Knowledge Base

Model Assessment Engine Code Analysis Engine

Assessment Controller

Model & Code

Generation Engines

Resources Layer

Figure 3: A conceptual system architecture of the portabil-

ity evaluation and preparation system.

diate and ﬁnal results, and the Portability Knowl-

edge Base. The latter stores several different types

of facts. Firstly, the knowledge base stores provider-

speciﬁc descriptions of service offerings that are used

for identiﬁcation of suitable alternatives and the over-

all model evaluation process. Moreover, it stores such

information as provider-speciﬁc mapping rules, e.g.,

for used libraries, function signatures, or code frag-

ments. Additionally, the offered interfaces must pro-

vide users with the possibility to register new and

modify existing facts in the knowledge base to im-

prove the coverage of possible portability cases.

4.2 Prototypical Implementation and

Example Code Excerpts

To validate the introduced SEAPORT method and

system architecture, we implemented Skywalker

, an

open source web application which consists of the

frontend and backend components, and is available

on GitHub. In Skywalker, the backend component im-

plemented using Java Spring communicates by means

of a REST API with the frontend developed in Angu-

lar. For the runtime processing tasks we use a com-

bination of the ﬁle system and H2, an in-memory

database. Additionally, as a persistence layer we use

MongoDB which is repsonsible for two repositories,

namely for (i) Service Mappings, and (ii) Service

Property Mappings. For the static code analysis we

use JavaParser, a library for parsing and analysis of

Java code. The source-to-target model assessment

and boilerplate code generation is implemented for

models deﬁned using Serverless Framework for AWS

Lambda and Azure Functions.

In the following, we show excerpts of model and

code snippets related to porting a simple thumbnail

https://github.com/iaas-splab/skywalker-prototype

SEAPORT: Assessing the Portability of Serverless Applications

463

generation application (Yussupov et al., 2019a) from

AWS Lambda to Azure Functions. Listing 1 shows

the input model deﬁned using Serverless Framework,

which speciﬁes a function for uploading images into

an images bucket, and a function for generating

thumbnails and storing them in the output bucket.

Listing 1: Input deployment model of a thumbnail genera-

tion application for AWS Lambda deﬁned using Serverless

Framework.

s e r v i c e : t h u m b n a i l −g e n e r a t o r

cu sto m : { i n : ima ge s−bucke t , o u t : t h m b n a i l s −b u c k e t }

p r o v i d e r :

name : aws

r u n t i m e : j a v a 8

r e g i o n : us−e a s t −1

i a m R o l e S t a t e m e n t s :

− E f f e c t : All ow

A c t i o n :

− s3 :

R e s o u r c e : ”

”

e n v i r o n m e n t :

INBKT: $ { s e l f : c ust om . i n }

OUTBKT: ${ s e l f : c us t om . o u t }

pack a g e : { a r t i f a c t : t a r g e t / thmb−ge n . j a r }

f u n c t i o n s :

u p l o a d :

h a n d l e r : t s t . U p l o adHand l e r

e v e n t s :

− h t t p :

p a t h : u p l o a d

method : p o s t

t h u m b n a i l −g e n e r a t o r :

h a n d l e r : t s t . G e n e r a t i o n H a n d l e r

e v e n t s :

− s3 :

b u c k e t : $ { s e l f : c ust om . i n }

e v e n t : s 3 : O b j e c t C r e a t e d :

r e s o u r c e s :

R e s o u r c e s :

Th u m b n ail B u c k et :

Type : AWS : : S3 : : B u cke t

P r o p e r t i e s :

BucketName : ${ s e l f : c us t om . o u t }

When the input model is analyzed and transformed

into the CASE model instance, the provider-speciﬁc

information is abstracted away and the involved com-

ponents are classiﬁed using generic category names

as described in Section 3. An excerpt of the resulting

generic model which describes component types and

their required properties is shown in Listing 2.

Listing 2: CASE model obtained from the input deployment

model of a thumbnail generation application.

{

” i d ” : ” th u m b n a i l −g e n e r a t o r ” ,

” ev e n t S o u r c e s ” : {

” h t t p ” : [ ” p a t h ” , ” met ho d s ” ] ,

” s t o r a g e ” : [ ” r e s o u r c e I d ” , ” e v e n t s ” ]

} ,

” f u n c t i o n s ” : {

” t h u m b n a i l −g e n e r a t o r ” : [ ” h a n d l e r ” , ” e v e n t s ” ] ,

” up l o a d ” : [ ” h a n d l e r ” , ” e v e n t s ” ]

} ,

” i n v o k e d S e r v i c e s ” : {

” Ac t i o n ” : [ ] , . . .

} , . . .

/ / sy s t e m p r o p e r t i e s

}

To generate the target boilerplate model, the CASE

model is analyzed and mapped to the required

provider-speciﬁc structure. Listing 3 shows a boiler-

plate model for porting the thumbnail generation ap-

plication to Azure Functions using Serverless Frame-

work in which the components and properties are

mapped to the suitable alternatives. All models are

stored separately in MongoDB and can eventually be

reused, e.g., for generating the boilerplate model code

for another target provider or platform.

Listing 3: A template of the output deployment model for

Azure Functions deﬁned using Serverless Framework.

s e r v i c e : th u m b n a i l −g e n e r a t o r

cu sto m : { i n : ima ge s−bucke t , o u t : t h m b n a i l s −b u c k e t }

p r o v i d e r :

e n v i r o n m e n t :

INBKT: $ { s e l f : c ust om . i n }

OUTBKT: ${ s e l f : c us t om . o u t }

s t a g e : d ev

name : a z u r e

r u n t i m e : j a v a 8

l o c a t i o n : West US

pack a g e : { a r t i f a c t : t a r g e t / thmb−ge n . j a r }

f u n c t i o n s :

t h u m b n a i l −g e n e r a t o r :

h a n d l e r : t s t . G e n e r a t i o n H a n d l e r

e v e n t s :

− b l o b : { p a t h : ’ ’}

u p l o a d :

h a n d l e r : t s t . U p l o adHand l e r

e v e n t s :

− h t t p : { r o u t e : ’ ’ , met ho d s : ’ ’}

Listing 4: Example snippets of the annotated source code.

i m p o r t . . . lambda . r u n t i m e . C o n t e x t ; / / <=={C o n t e x t }

i m p o r t . . . s 3 . mo del . S 3 O b j e c t ; / / <=={S3Obj e c t }

p u b l i c c l a s s T h u m b n a i l G e n e r a t i o n H a n d l e r i m p l e m e n t s

R e q u e s t H a n d l e r<S3Eve nt , Void> { / / <=={ R e q u e s t H a n d l e r }

/ / <=={S3E v en t }

. . .

p r i v a t e O bje c t Map p e r ma ppe r = new O b jec t M a pp e r ( ) ;

p r i v a t e Am azo nS3 Cl i en t c= . . . ; / / <=={Am azo nS3 Cl i en t } . . .

Additionally, the prototype annotates functions’

source code to highlight usage of provider-speciﬁc

libraries. Examples of annotated Java function for

AWS Lambda are shown in Listing 4.

5 RELATED WORK

To the best of our knowledge, there exist no works

on serverless portability assessment, also with no re-

lated mentions in a relevant, recently-published sys-

tematic mapping study (Yussupov et al., 2019b). Sev-

eral works focus on deployment and conﬁguration

modeling, e.g., using cloud modeling languages like

TOSCA (Wurster et al., 2018) or CAMEL (Kri-

tikos et al., 2019), or UML Proﬁle (Samea et al.,

2019) which also deﬁnes events including provider-

speciﬁc types, e.g., AWS Kinesis. An abstract, graph-

based model representing a serverless dependency

CLOSER 2020 - 10th International Conference on Cloud Computing and Services Science

464

graph (Winzinger and Wirtz, 2019) is used for test-

ing and veriﬁcation purposes. The SEAPORT CASE

aims to describe serverless applications in a language-

and technology-agnostic way, and independently of

context to enable translation into, e.g., more concrete

deployment models or abstract representation models.

A systematic study by Silva et al. (Silva et al.,

2013) investigates how cloud lock-in is solved in re-

search literature. Opara-Martins et al. (Opara-Martins

et al., 2014) discuss several kinds lock-in and such

problems as integration and data portability. Lip-

ton (Lipton, 2012) discusses how vendor lock-in can

be avoided by using TOSCA, the cloud modeling lan-

guage standardized by OASIS. Hohpe (Hohpe, 2019)

presents different lock-in types, with vendor lock-

in problem being one of them. Miranda et al. (Mi-

randa et al., 2012) present software adaptation meth-

ods for overcoming the vendor lock-in problem. Au-

thors describe the relations between service mismatch

types and suitable adaptation approaches on the high

level. As a possible application, this work can be

used as a basis for extending the assessment mech-

anisms. Andrikopoulos et al. (Andrikopoulos et al.,

2013a; Andrikopoulos et al., 2013b; Andrikopoulos

et al., 2014) provide an analysis of migration chal-

lenges of the decision-making process for migrating

applications to the cloud. Various classes of require-

ments, e.g., multi-tenancy, elasticity, quality of ser-

vice, are analyzed and combined into a decision sup-

port framework for cloud migration. Frey and Hassel-

bring (Frey and Hasselbring, 2011) introduce a multi-

phase approach for migrating legacy software systems

to IaaS and PaaS, including such phases as extraction,

selection, evaluation, transformation and adaptation.

Binz et al. (Binz et al., 2011) present the cloud migra-

tion framework that analyzes possible hosting options

for the provided model of an application. Strauch

et al. (Strauch et al., 2015) elaborate on a vendor-

agnostic multi-phase process enabling the migration

of a database layer to the cloud. Beslic et al. (Beslic

et al., 2013) propose a multi-phase approach for mi-

grating components across providers comprising dis-

covery, transformation, and migration steps. In this

work, we rely on existing knowledge to introduce a

method covering the speciﬁcs of serverless portability

assessment and which can be used as a complemen-

tary part in larger migration approaches.

6 CONCLUSION

In this work, we presented SEAPORT, a multi-step

method for assessing the portability of serverless ap-

plications. The core contributions of this work are

(i) a canonical serverless application model, (ii) porta-

bility assessment concept relying on the deployment

model similarity measure and static code analysis,

and (iii) a system architecture enabling the method.

We validated SEAPORT by implementing an open

source prototype available via GitHub. As the next

step, we plan to add support for more providers,

and evaluate our method using several heterogeneous

serverless use case applications. In future work, we

will extend the SEAPORT CASE model to support

additional usage scenarios, e.g., reasoning on plat-

form selection with respect to speciﬁc platform fea-

tures such as function orchestration support. Another

important enhancement is to introduce additional ap-

plication similarity measures, and standardize the for-

mat of knowledge bases with serverless portability

facts by adapting existing migration methodologies.

The latter can also help deﬁning a set of thorough

guidelines for improving portability of serverless ap-

plications. Additionally, we plan to support user-

driven boilerplate code generation which requires en-

hancing the system with additional user interfaces.

ACKNOWLEDGMENTS

This work is partially funded by the European

Union’s Horizon 2020 research and innovation

project RADON (825040). We would also like

to thank the anonymous referees, whose feedback

helped improving this paper.

REFERENCES

Andrikopoulos, V., Binz, T., Leymann, F., and Strauch, S.

(2013a). How to adapt applications for the cloud en-

vironment. Computing, 95:493–535.

Andrikopoulos, V., Darsow, A., Karastoyanova, D., and

Leymann, F. (2014). Clouddsf–the cloud decision

support framework for application migration. In Eu-

ropean Conference on Service-Oriented and Cloud

Computing, pages 1–16. Springer.

Andrikopoulos, V., Song, Z., and Leymann, F. (2013b).

Supporting the migration of applications to the cloud

through a decision support system. In Proceedings

of the 6th IEEE International Conference on Cloud

Computing (CLOUD 2013), June 27-July 2, 2013,

Santa Clara Marriott, CA, USA, pages 565–572. IEEE

Computer Society.

Baldini, I., Castro, P., Chang, K., Cheng, P., Fink, S.,

Ishakian, V., Mitchell, N., Muthusamy, V., Rabbah,

R., Slominski, A., et al. (2017). Serverless comput-

ing: Current trends and open problems. In Research

Advances in Cloud Computing, pages 1–20. Springer.

SEAPORT: Assessing the Portability of Serverless Applications

465

Beslic, A., Bendraou, R., Sopenal, J., and Rigolet, J.-Y.

(2013). Towards a solution avoiding vendor lock-in to

enable migration between cloud platforms. In MDH-

PCL@ MoDELS, pages 5–14. Citeseer.

Binz, T., Breitenb

ucher, U., Kopp, O., and Leymann, F.

(2013). Automated Discovery and Maintenance of

Enterprise Topology Graphs. In Proceedings of the

6th IEEE International Conference on Service Ori-

ented Computing & Applications (SOCA 2013), pages

126–134. IEEE Computer Society.

Binz, T., Leymann, F., and Schumm, D. (2011). Cmotion:

A framework for migration of applications into and

between clouds. In 2011 IEEE International Con-

ference on Service-Oriented Computing and Applica-

tions (SOCA), pages 1–4. IEEE.

Bozman, J. and Chen, G. (2010). Cloud computing: The

need for portability and interoperability. IDC Execu-

tive Insights.

Castro, P., Ishakian, V., Muthusamy, V., and Slominski, A.

(2019). The server is dead, long live the server: Rise

of serverless computing, overview of current state and

future trends in research and industry. arXiv preprint

arXiv:1906.02888.

Cloud Native Computing Foundation (CNCF)

(2018). CNCF Serverless Whitepaper v1.0.

Available online: https://github.com/cncf/wg-

serverless/tree/master/whitepapers/serverless-

overview.

Endres, C. et al. (2017). Declarative vs. imperative: Two

modeling patterns for the automated deployment of

applications. In Proceedings of the 9

International

Conference on Pervasive Patterns and Applications,

pages 22–27. Xpert Publishing Services (XPS).

Frey, S. and Hasselbring, W. (2011). The cloudmig ap-

proach: Model-based migration of software systems

to cloud-optimized applications. International Jour-

nal on Advances in Software, 4(3 and 4):342–353.

Greenstein, S. M. (1997). Lock-in and the costs of switch-

ing mainframe computer vendors: What do buyers

see? Industrial and Corporate Change, 6(2):247–273.

Hellerstein, J. M., Faleiro, J., Gonzalez, J. E., Schleier-

Smith, J., Sreekanti, V., Tumanov, A., and Wu, C.

(2018). Serverless computing: One step forward, two

steps back. arXiv preprint arXiv:1812.03651.

Hohpe, G. (2019). Don’t get locked up

into avoiding lock-in. Available online:

https://martinfowler.com/articles/oss-lockin.html.

Hohpe, G. and Woolf, B. (2004). Enterprise integration pat-

terns: Designing, building, and deploying messaging

solutions. Addison-Wesley Professional.

Kritikos, K., Skrzypek, P., Moga, A., and Matei, O. (2019).

Towards the modelling of hybrid cloud applications.

In 2019 IEEE 12th International Conference on Cloud

Computing (CLOUD), pages 291–295. IEEE.

Lipton, P. (2012). Escaping vendor lock-in with tosca, an

emerging cloud standard for portability. CA Labs Re-

search, 49.

Mansouri, Y., Toosi, A. N., and Buyya, R. (2018). Data

storage management in cloud environments: Taxon-

omy, survey, and future directions. ACM Computing

Surveys (CSUR), 50(6):91.

Miranda, J., Murillo, J. M., Guill

en, J., and Canal, C.

(2012). Identifying adaptation needs to avoid the ven-

dor lock-in effect in the deployment of cloud sbas.

In Proceedings of the 2nd International Workshop

on Adaptive Services for the Future Internet and 6th

International Workshop on Web APIs and Service

Mashups, pages 12–19. ACM.

Opara-Martins, J., Sahandi, R., and Tian, F. (2014). Criti-

cal review of vendor lock-in and its impact on adop-

tion of cloud computing. In International Conference

on Information Society (i-Society 2014), pages 92–97.

IEEE.

Petcu, D. (2011). Portability and interoperability between

clouds: challenges and case study. In European Con-

ference on a Service-Based Internet, pages 62–74.

Springer.

Samea, F., Azam, F., Anwar, M. W., Khan, M., and Rashid,

M. (2019). A uml proﬁle for multi-cloud service con-

ﬁguration (umlpmsc) in event-driven serverless appli-

cations. In Proceedings of the 2019 8th International

Conference on Software and Computer Applications,

pages 431–435.

Satzger, B., Hummer, W., Inzinger, C., Leitner, P., and

Dustdar, S. (2013). Winds of change: From vendor

lock-in to the meta cloud. IEEE internet computing,

17(1):69–73.

Silva, G. C., Rose, L. M., and Calinescu, R. (2013). A

systematic review of cloud lock-in solutions. In 2013

IEEE 5th International Conference on Cloud Comput-

ing Technology and Science, volume 2, pages 363–

368. IEEE.

Strauch, S., Andrikopoulos, V., Karastoyanova, D., and

Vukojevic-Haupt, K. (2015). Migrating escience ap-

plications to the cloud: methodology and evaluation.

Cloud Computing with e-Science Applications, pages

89–114.

Stravoskoufos, K., Preventis, A., Sotiriadis, S., and Pe-

trakis, E. G. (2014). A survey on approaches for in-

teroperability and portability of cloud computing ser-

vices. In CLOSER, pages 112–117.

Winzinger, S. and Wirtz, G. (2019). Model-based analysis

of serverless applications. In 2019 IEEE/ACM 11th

International Workshop on Modelling in Software En-

gineering (MiSE), pages 82–88. IEEE.

Wurster, M., Breitenb

ucher, U., Brogi, A., Falazi, G.,

Harzenetter, L., Leymann, F., Soldani, J., and Yus-

supov, V. (2019a). The EDMM Modeling and Trans-

formation System. In Service-Oriented Computing –

ICSOC 2019 Workshops. Springer.

Wurster, M., Breitenb

ucher, U., K

epes, K., Leymann, F.,

and Yussupov, V. (2018). Modeling and Automated

Deployment of Serverless Applicationsusing TOSCA.

In Proceedings of the IEEE 11th International Confer-

ence onService-Oriented Computing and Applications

(SOCA), pages 73—80. IEEE Computer Society.

Wurster, M. et al. (2019b). The Essential Deployment Meta-

model: A Systematic Review of Deployment Automa-

tion Technologies. SICS Software-Intensive Cyber-

Physical Systems.

Yussupov, V., Breitenb

ucher, U., Leymann, F., and M

uller,

C. (2019a). Facing the Unplanned Migration of

CLOSER 2020 - 10th International Conference on Cloud Computing and Services Science

466

Serverless Applications: AStudy on Portability Prob-

lems, Solutions, and Dead Ends. In Proceedings of

the 12th IEEE/ACM International Conference onU-

tility and Cloud Computing (UCC 2019), pages 273–

283. ACM.

Yussupov, V., Breitenb

ucher, U., Leymann, F., and Wurster,

M. (2019b). A Systematic Mapping Study on En-

gineering Function-as-a-Service Platforms and Tools.

In Proceedings of the 12th IEEE/ACM International

Conference onUtility and Cloud Computing (UCC

2019), pages 229–240. ACM.

SEAPORT: Assessing the Portability of Serverless Applications

467
