First Experience and Practice of Cloud Bursting Extension to OCTOPUS

Susumu Date

, Hiroaki Kataoka

, Shuichi Gojuki

, Yuki Katsuura

Yuki Teramae

and Shinichiro Kigoshi

Cybermedia Center, Osaka University, Japan

1st Government and Public Solutions Division, NEC, Japan

Customer Success Unit, Microsoft Japan Co., Ltd., Japan

Department of Information and Communication Technology Service, Osaka University, Japan

Keywords:

Cloud Bursting, Supercomputer, High-performance Computing, Job Scheduler.

Abstract:

In the Cybermedia Center at Osaka University, OCTOPUS (Osaka university Cybermedia cenTer Over-

Petascale Universal Supercomputer) has provided for providing a high performance computing environment

for scientists and researchers in Japan since April 2017. OCTOPUS enables a stable operation with only a few

technical problems. However, due to higher and higher computing demands, the users’ waiting time from job

submission to job completion has been increasing. In this research, we explore the feasibility of solving this

problem by oﬄoading the computational workload to IaaS Cloud services, in the hope that we can alleviate

the high utilization on OCTOPUS. Technically, we build a cloud bursting environment where OCTOPUS as an

on-premise computing environment and Microsoft Azure as an IaaS Cloud service are integrated. Therefore,

we investigate whether the cloud bursting environment is useful and practical for avoiding high utilization on

OCTOPUS. In this paper, we summarize the ﬁrst experience and practice of our cloud-bursting solution.

1 INTRODUCTION

In the Cybermedia Center at Osaka University

(CMC), OCTOPUS (Osaka university Cyberme-

dia cenTer Over-Petascale Universal Supercomputer)

(CMC, Osaka University, 2019b), which is a hybrid

cluster system of heterogeneous architectures, was in-

stalled in December 2017, in the hope that it could

accommodate a variety of computing needs and de-

mands on a scalar-type supercomputer and then pro-

vide scientists and researchers as users with a higher

computing performance stably and constantly. As a

result, OCTOPUS has operated with a fairly high uti-

lization. However, this situation has given a rise to a

new problem; namely, that users’ waiting time from

job submission to job completion has been long. Al-

though the waiting time depends on the degree of par-

allelism users request for computation, the waiting

time often reaches three days, and sometimes even a

week.

Recently, however, the IaaS (Infrastructure as a

Service) cloud service, which has allowed us to use

a necessary amount of computing resources with our

own preferable software stack based on our comput-

ing needs and requirements, has approached maturity.

Amazon AWS (Mathew, 2019), Microsoft Azure (Mi-

crosoft, 2019b), and Oracle Cloud (Gong and Amin,

2018) are just some examples of IaaS cloud ser-

vices delivered by public cloud vendors. Today, users

can easily build a large-scale computing environment

through the use of an intuitive graphical user inter-

face on such IaaS cloud services, even if such users do

not have any detailed knowledge on high performance

computing, distributed computing, or networking, for

example. Furthermore, users do not need be aware

of the amount and utilization of computing resources

on the cloud because of the enourmous amount of

computing resources provided by such public cloud

vendors. Moreover, users can purchase computing re-

sources on the cloud anytime with ease through credit

card transactions. On-demand features, simplicity

and ease, brought by IaaS cloud services, have calmed

scientists’ fears about using IaaS cloud services in-

stead of a part or all of computing resources in the

supercomputing centers located in academic research

institution and universities.

In this paper, we explore a cloud bursting environ-

ment where the computational workload on OCTO-

PUS as an on-premise environment is temporarily and

urgently oﬄoaded to the IaaS cloud when OCTOPUS

448

Date, S., Kataoka, H., Gojuki, S., Katsuura, Y., Teramae, Y. and Kigoshi, S.

First Experience and Practice of Cloud Bursting Extension to OCTOPUS.

DOI: 10.5220/0009573904480455

In Proceedings of the 10th International Conference on Cloud Computing and Services Science (CLOSER 2020), pages 448-455

ISBN: 978-989-758-424-4

is overloaded. More technically and speciﬁcally, we

aim to oﬄoad the computational workload on OCTO-

PUS to Microsoft Azure through the use of the cloud

bursting technologies. Also, this research investigates

the feasibility of the OCTOPUS-Azure cloud bursting

environment as well as the technical issues that need

to be tackled for the future use of IaaS Cloud for the

future supercomputing environment at the CMC.

The structure of this paper is as follows. In Sec-

tion 2, we brieﬂy describe the structure of OCTOPUS

and detail the current problems. Next, the technical

requirements towards the envisioned cloud bursting

functionality to be deployed on OCTOPUS are sum-

marized. Section 3 presents the cloud bursting func-

tionality which we have developed in this research. In

Section 4, the experience and practice which we have

obtained through this research are described as well as

the evaluation result of the cloud bursting functional-

ity. Section 5 describes related works and Section 6

concludes this paper.

2 TECHNICAL REQUIREMENTS

2.1 OCTOPUS Overview

Table 1: OCTOPUS System Conﬁguration.

Compute 236 General purpose CPU: 2 Intel Xeon Gold 6126

Node CPU nodes (SkyLake/2.6GHz/12C)

(471.24 TFlops) Memory: 192 GB

37 GPU nodes CPU: 2 Intel Xeon Gold 6126

(858.28 TFlops) (SkyLake/2.6GHz/12C)

GPU: 4 NVIDIA Tesla P100(SXM2)

Memory: 192 GB

44 Xeon Phi nodes CPU: Intel Xeon Phi 7210

(117.14 TFlops) (Knights Landing/1.3GHz/64C)

Memory: 192 GB

2 Large-scale shared CPU: 8 Intel Xeon Platinum 8153

memory nodes (Skylake/2.0 GHz/16C)

(16.38 TFLOPS) Memory: 6TB

Storage DDN EXAScaler (Lustre /3.1 PB)

Interconnect InﬁniBand EDR (100Gbps)

OCTOPUS is a 1.46 PFlops hybrid cluster system

composed of general-purpose CPU (Intel Skylake)

nodes, GPU (NVIDIA Tesla P100) nodes, many-core

(Intel Knights Landing) nodes, large-scale shared-

memory (6 TB memory) nodes, frontend servers and

3 PB Storage (Table 1). These nodes and storage

are connected on an Inﬁniband EDR network and

thus each node can take advantage of 100 Gbps full

bi-directional bandwidth. Also, a Mellanox CS7500

switch, which is a 648-port EDR 100Gbps InﬁniBand

switch, houses all of the compute nodes and storage

servers. This connection conﬁguration allows each

node to communicate with each other with 1-hop la-

tency. All of compute nodes except the large-scale

shared memory nodes have introduced DLC (direct

liquid cooling) to cool their processers and accelera-

tors to stably provide high performance.

For the operation of OCTOPUS, we charge users

for the use of compute nodes on a per-node-hour ba-

sis. In other words, the CMC has introduced a ser-

vice charge rule for OCTOPUS based on the cost

for power consumed by using a compute node for an

hour. For this reason, the CMC controls and operates

OCTOPUS to avoid a situation where a job request

cannot use a compute node simultaneously with other

job requests from a perspective of fairness in service

charge rules.

To allow users to eﬃciently and eﬀectively use the

computational resources of OCTOPUS as well as per-

form the above-mentioned operational manner, NEC

NQSII and JobManipulator (NQSII/JM), which are

the proprietary job management servers from NEC,

has been adopted as the job management server in

OCTOPUS. This NQSII/JM has the functionality of

receiving job requests from users and then assign-

ing them to an appropriate set of compute nodes.

As described above, since OCTOPUS is composed

of heterogenous architectures, NQSII/JM sends job

requests to an appropriate queue for one of the job

classes, each of which prescribes the degree of paral-

lelism, set for each type of compute node. This mech-

anism is in charge of constantly maintaining higher

job throughput as well as reducing user waiting time.

For the actual daily operation of OCTOPUS, we dy-

namically change the conﬁguration of the queue of

the NQSII/JM to reduce user waiting time by moni-

toring the current status of job submission and user

waiting time.

2.2 Problem in OCTOPUS

Despite the administrators’ eﬀorts to avoid the high

utilization and a long user waiting time, general-

purpose CPU nodes and GPU nodes, in particular,

have been faced with extremely high utilization since

their beginning of operation. In 2019, the second

operational academic year, the general-purpose CPU

and GPU nodes have been operated between 80 and

90 percent on average. Also, many-core nodes have

been operated with high utilization due to the ten-

dency of users to utilize many-core nodes as alternate

compute nodes for the general-purpose CPU nodes

for the purpose of workload oﬄoading. In short, some

of users prefer to get their own job completed quickly

on many-core nodes without waiting long even if their

jobs cannot obtain better performance than general-

purpose CPU nodes. The administrators at the CMC

welcomed this high utilization situation of OCTO-

PUS at ﬁrst because we recognized that the procure-

ment of OCTOPUS was successful. Currently, how-

First Experience and Practice of Cloud Bursting Extension to OCTOPUS

449

ever, we see that this high utilization is a serious prob-

lem to be avoided because the CMC is expected to de-

liver a high performance computing environment in a

national joint-use facility to scientists and researchers

in Japan.

2.3 Technical Requirements to Cloud

Bursting Functionality

In this research the following ﬁve technical re-

quirements have been determined for the realization

of cloud bursting functionality on OCTOPUS: On-

demandness, Transparency, Selectivity, Equality, and

High-throughput.

2.3.1 On-demandness

As described in section 2.2, long user waiting time

as a result of high utilization on OCTOPUS has be-

come a serious problem. For this reason, the admin-

istrators prefer to forward a part of the user submitted

job requests to the cloud resources that the CMC pre-

pares in advance. Also, when the administrators learn

that high utilization and waiting time is alleviated,

they prefer to stop the forwarding of job requests.

Furthermore, they expect the job management server

to automatically stops the forwarding of job requests

when the cloud resources prepared in advance are al-

most consumed by the execution of job requests on

the cloud. To support the above-mentioned adminis-

trators’ scenario, the envisioned cloud bursting func-

tionality must provide the cloud resources in an on-

demand fashion only when the administrators want to

make the cloud open to the users, by assuming that the

administrators want the users to use OCTOPUS as the

on-premise environment for monetary cost saving.

2.3.2 Transparency

The CMC wants to control the use of the cloud re-

sources dynamically and forwards the submitted job

requests waiting in a queue of the job management

server to the cloud based on their judgement. In

this way, the user’s submission way of job requests

should not diﬀer between on-premise and cloud en-

vironments. For example, the diﬀerence of user IDs

and passwords requires the additional development of

a technical solution that maps user IDs and passwords

in the on-premise environment to the environment in

the cloud. Furthermore, since OCTOPUS is a service

system that charges users as described in section 2.1,

the peripheral systems essential for actual operation

of OCTOPUS, such as user and statics management

and portals for user support, also need to be modi-

ﬁed and redeveloped if the diﬀerences in user ID and

password occur. In addition, the diﬀerences of the job

management server used in the cloud and in the on-

premise environment force the users to be aware of

the diﬀerences in job script description. Furthermore,

the diﬀerences in system disk image views from users

cannot be easily accepted because users are forced

to be aware of the diﬀerences in data location. For

these reasons, in our envisioned cloud bursting envi-

ronment, it is ideal that the users do not have to be

aware of any diﬀerences between the on-premise en-

vironment and the cloud environment.

2.3.3 Selectivity

Even in the case that the cloud resource is available

when OCTOPUS as the on-premise environment is

overloaded, some users might prefer the use of an

on-premise environment rather than the cloud envi-

ronment due to their concerns about exposing data to

the cloud environment. Taking this situation into con-

sideration, the cloud bursting functionality on OCTO-

PUS requires some means of checking the user’s pref-

erences and judgement regarding the use of the cloud

environment.

2.3.4 Equality

The computational results should be identical or

within a margin of error between on-premise and

cloud environments, especially when the cloud burst-

ing functionality allows users to submit jobs to the

on-premise and cloud environments in a transparent

manner. For example, many users check and verify

the correctness and preciseness of their own compu-

tation on the on-premise OCTOPUS. Therefore, we

cannot forward their job requests to the cloud without

conﬁrming that these criteria are satisﬁed.

2.3.5 High Throughput

The cloud bursting functionality has to actually re-

duce users waiting time even if it can alleviate an

overloaded situation on the on-premise environment.

3 CLOUD BURSTING

FUNCTIONALITY

3.1 Overview of OCTOPUS-Azure

Cloud Bursting Environment

Microsft Azure is an IaaS cloud service that deliv-

ers a variety of virtual machines composed of Intel or

AMD processors, NVIDIA GPU (Kepler, Maxwell,

CLOSER 2020 - 10th International Conference on Cloud Computing and Services Science

450

Pascal and Volta), and InﬁniBand in the world region.

Today through the use of Azure, users can easily build

their own supercomputers that satisfy their computing

requirements and needs. Also, when any HPC-related

technology such as brand-new processors, accelera-

tors, and interconnects is released, Microsoft Azure

plans to promptly deliver the corresponding virtual

machine to users. In addition, Osaka University has

tied an EES contract with Microsoft for improving

the quality of the educational environment and there-

fore it is relatively easy to add Azure service to the

contract. For this reason, we have adopted Microsoft

Azure as an IaaS cloud service to realize the cloud

bursting functionality on OCTOPUS.

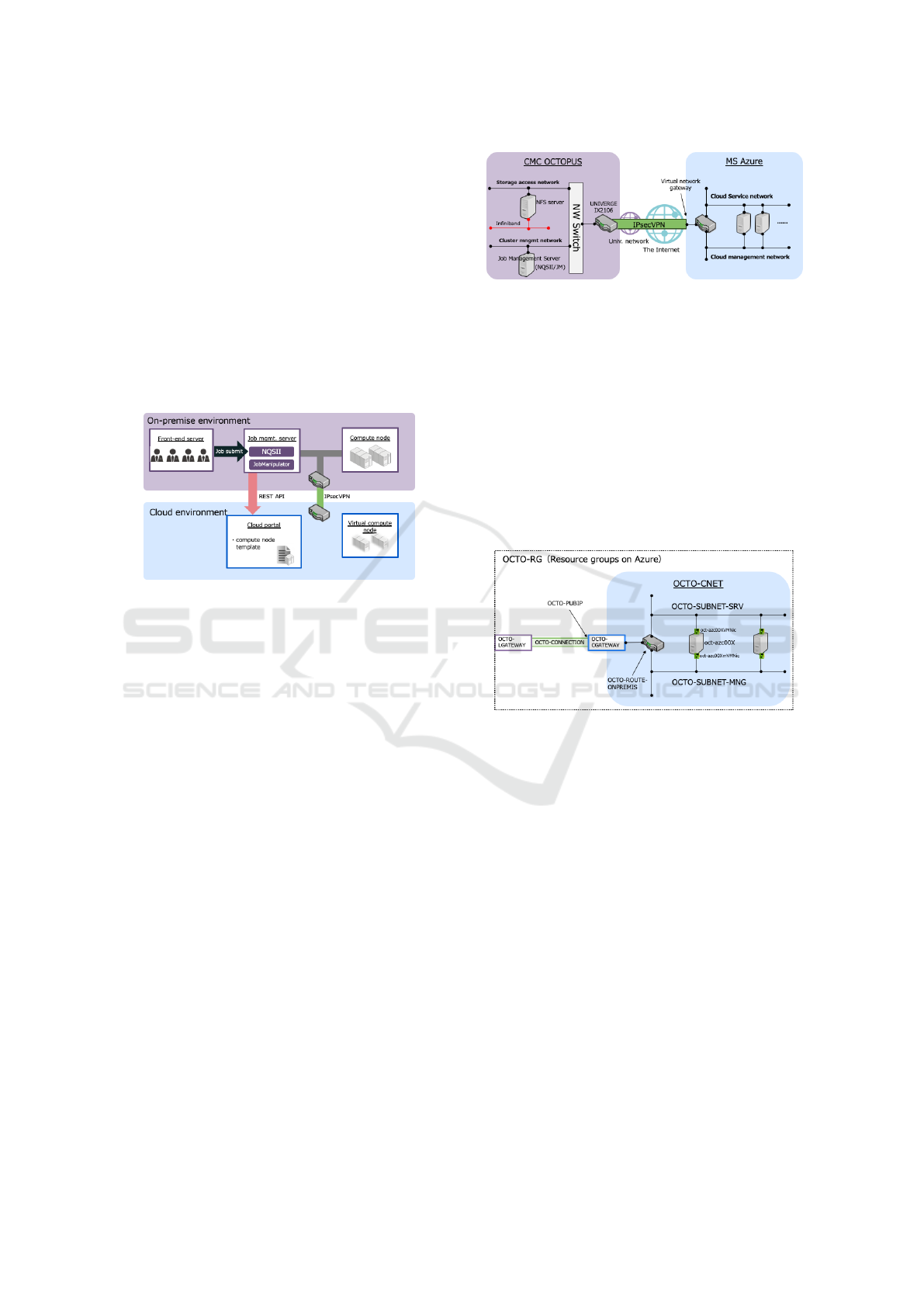

Figure 1: Overview of OCTOPUS-Azure Cloud Bursting

Environment.

Figure 1 shows an overview of OCTOPUS-Azure

cloud bursting environment which we have built in

this research. To embody our envisioned cloud burst-

ing functionality, we have developed the following

three main extensions: (1) cloud bridge network, (2)

job management server, and (3) deployment of com-

pute node image on OCTOPUS to the cloud.

3.2 Cloud Bridge Network

As described in section 2.3, the envisioned

OCTOPUS-Azure cloud bursting environment

has to allow users to transparently use on-premise

and cloud environments in the same way. To perform

this, the virtual compute nodes deployed on Azure

needs to be monitored, managed and controlled in

the same way as the compute nodes on OCTOPUS.

Also, the software stack needs to be identical on

both the compute nodes on OCTOPUS and the

virtual compute nodes on Azure. Furthermore, the

large-scale storage on OCTOPUS needs to be used on

both in an identical fashion. Taking this requirement

into consideration, the virtual compute nodes to be

deployed on Azure should be on the same logical

network as the compute nodes on OCTOPUS.

Figure 2 shows an overview of the cloud bridge

network between OCTOPUS and Azure. In this re-

Figure 2: Structure of Cloud Bridge Network.

search, we have adopted IPSec VPN to connect the

private logical network in OCTOPUS to the virtual

network in Azure. For this purpose, NEC Univerge

IX2106 has been newly deployed so that the traﬃc

goes through the public Internet between the virtual

network gateway on Azure and the IX2106 gateway

on OCTOPUS. On the Azure side, the cloud man-

agement network used for the management of virtual

compute nodes, and the cloud service network used

for interprocess communication among virutal com-

pute nodes and acccess traﬃc to storage on OCTO-

PUS have been built and conﬁgured.

Figure 3: Structure of Network in Azure.

Figure 3 details the structure of the network

built in Azure. OCTO-LGATEWAY and OCTO-

CGATEWAY and OCTO-CONNECTION are Azure

resources for the above-mentioned VPN connection

between Azure and OCTOPUS. OCTO-CNET is a

virtual network composed of two subnets: OCTO-

SUBNET-SRV as the service network and OCTO-

SUBNET-MNG as the cloud management network.

Each of virtual compute nodes (oct-azx00X) on Azure

is conﬁgured to have a virtual NIC for each subnet.

OCTO-ROUTE-ONPREMIS is the routing table con-

ﬁgured so that the traﬃc from the virtual NIC on vir-

tual compute nodes is conﬁgured to ﬂow to the net-

work on OCTOPUS.

3.3 Job Management Server Extension

As described in section 2.3, it is ideal for users that

there be no diﬀerence in terms of the way to submit

jobs to the on-premise environment or the cloud en-

vironment. Also, it is desirable that the execution of

First Experience and Practice of Cloud Bursting Extension to OCTOPUS

451

their jobs is completed quickly and promptly. It does

not matter which the cloud or the on-premise envi-

ronments on which the job is executed on. For this

reason, the job management server needs to dynam-

ically control job execution based on the utilization

status of the on-premise and the cloud environment.

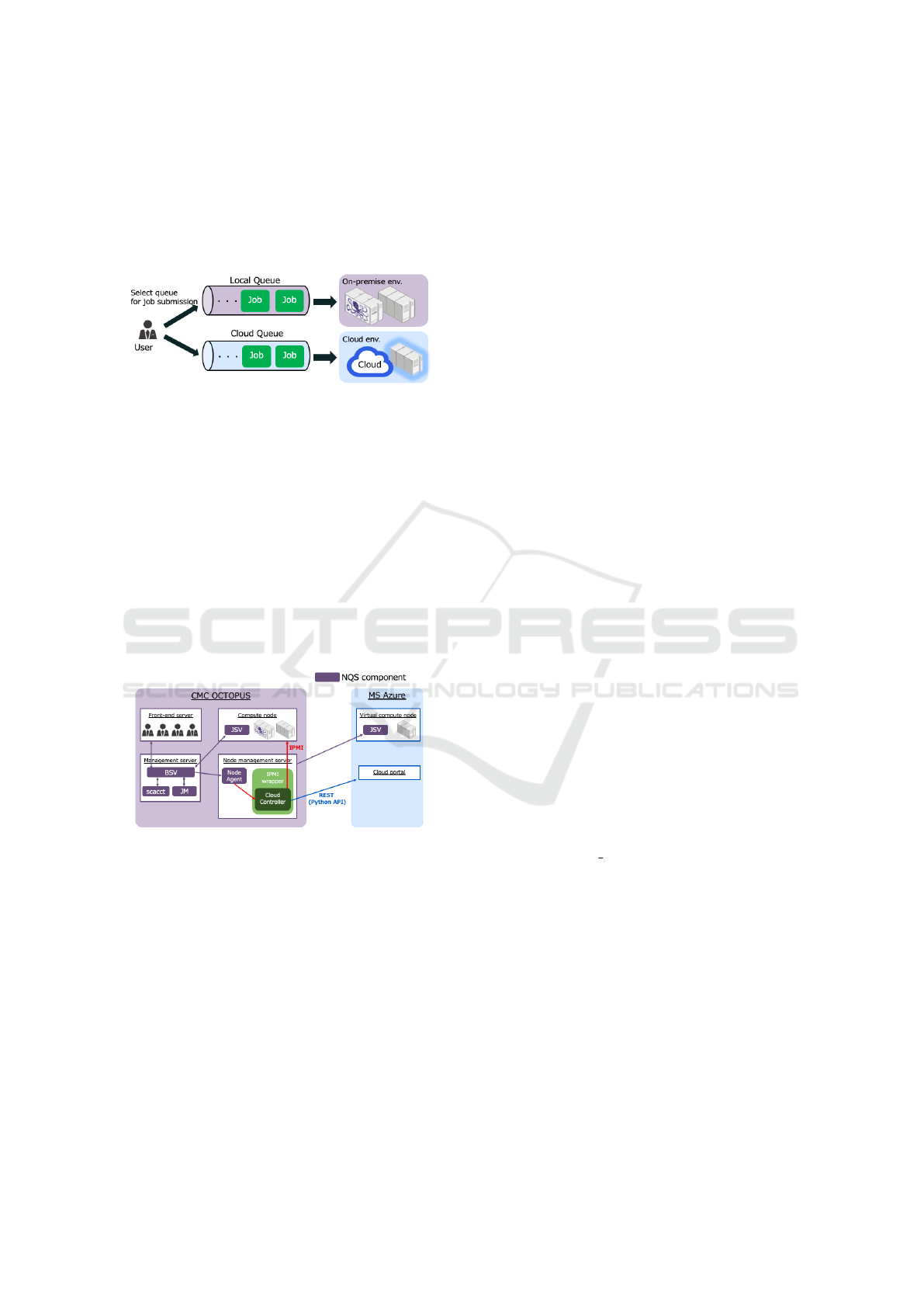

Figure 4: Queue Structure on Job Management Server.

In this stage of the research, however, we have not

implemented any algorithm and operation policy for

deciding which job requests in the queue should be

forwarded to the cloud resources to improve the job

throughput in the entire system. Therefore, in this re-

search, we have set and conﬁgured a queue dedicated

for job submission to the cloud in the job management

server in addition to the queues for job submission to

OCTOPUS as on-premise resources (Fig. 4). In the

actual operation of OCTOPUS, we envision that the

administrators enable and disable the cloud bursting

functionality based on their consideration and judge-

ment

Figure 5: Structure of Job Management Server on the

OCTOPUS-Azure environment.

Figure 5 shows the structure of the job manage-

ment server on the OCTOPUS-Azure environment.

NQSII/JM is composed of a batch server (BSV) that

has the responsibility of receiving and executing jobs,

a scheduler (JM) that is in charge of job scheduling, a

job server (JSV) that monitors the compute nodes to

be managed, an accounting (SCACCT) that manages

the statics of compute node usage and a node manage-

ment agent (NodeAgent) that is in charge of fault or

failure detection and power management on compute

nodes.

To satisfy the on-demandness requirement listed

in section 2.3, we need to implement some function

that invokes virtual compute nodes on Azure when

any job request is submitted to the queue dedicated

for job submission to the cloud and then stops the re-

quests when virtual compute nodes are not used for

a while. In this research, we have immplemented

such a function on NQSII/JM because we can lever-

age the energy-saving function built into NQSII/JM

that allows us to operate the compute node on the on-

premise environment with less power consumption by

turning on and oﬀ the compute nodes. Furthermore,

we have developed an IPMI Wrapper and Cloud Con-

troller triggered by the NodeAgent by extending this

energy-saving function.

3.4 Deployment of the Compute Node

A general-purpose CPU node is composed of 2 In-

tel Xeon Gold 6126 (Skylake / 1.6GHz 12 cores)

with 192 GB memory. On OCTOPUS, 236 general-

purpose nodes are connected on an InﬁniBand EDR

network. In this research, we explore the oﬄoading of

the computational workload on these general-purpose

nodes which have the highest utilization on OCTO-

PUS to the cloud. To allow all of the users’ job re-

quests submitted to OCTOPUS to be forwarded to the

Azure cloud, the compute nodes to be deployed on

Azure need to have higher performance in terms of

memory size and the number of cores which users

specify when requesting compute resources in their

job script ﬁle in submitting their job requests. Also,

the network between the on-premise and the cloud en-

vironments needs a higher bandwidth and low latency

in the OCTOPUS-Azure environment for data com-

munication between such environments. For this rea-

son, we have adopted the Azure service provided in

the western Japan region, since the western Japan re-

gion is the nearest region where the CMC is located

and is expected to provide higher network perfor-

mance. For the use of a virtual machine on Azure, we

have selected F48s v2 Linux virtual machine, which

has 48 virtual processor cores with 96 GB memory

on the top of Intel Xeon Platinum 8168 (Skylake /

2.7 GHz 24 cores) to make 32 virtual machines (oct-

azc001 – oct-azc032) based on the OCTOPUS com-

pute node image. Simultaneously, we have general-

ized the compute node image on Azure, so that users

can perform their job executions with the same user

ID and password regardless of the job executions on

the cloud or the on-premise environment.

CLOSER 2020 - 10th International Conference on Cloud Computing and Services Science

452

4 EVALUATION AND

DISCUSSION

4.1 On-demandness

To oﬄoad the computational workload to the cloud

environment, just enabling the queue for job submis-

sion to the cloud on the job management server is re-

quired. The conﬁguration of enabling and disabling

the queue can be easily conducted by the adminis-

trator through the use of qmgr, a command provided

by NQSII/JM. Figure 6 shows an example of qmgr

execution for enabling the queue for job submission

to the cloud. This ﬁgure shows two queues of INT-

AZT and O-AZT are conﬁgured targetting the virtual

compute node on Azure. As this ﬁgure shows, the

administrator can perform this operation quickly and

promptly in response to the utilization or user waiting

time status of OCTOPUS. For this reason, the admin-

istrator can reduce the cost for the cloud resources, by

enabling the use of the cloud only when it is neces-

sary.

octopus $ qmgr -Pm

Mgr: enable interactive_queue=INT-AZT

Mgr: start interactive_queue=INT-AZT

Mgr: enable interactive_queue=O-AZT

Mgr: start interactive_queue=O-AZT

Mgr: exit

Figure 6: Control of Queue for Job submission to Cloud.

4.2 Transparency

As described in Section 2.1, the job submission to

OCTOPUS is conducted through the use of the qsub

NQSII/JM command with a job script. Figure 7 shows

an example of the job script ﬁle. Also, in the current

OCTOPUS-Azure environment where we have built

in this research, the users can submit jobs to the cloud,

just by specifying INT-AZT or OCT-AZT as the name

of queue for job submission.

#!/bin/bash

#PBS -q (Queue Name)

#PBS -l elapstim_req=1:00:00

cd $PBS_O_WORKDIR

./a.out

Figure 7: Example of Job Script File.

In the current stage of this research, as described

by the above example, the current OCTOUS-Azure

environment does not have high transparency for

users in terms of using the cloud-bursting environ-

ment because users cannot help being aware of the

existence and diﬀerence of the cloud and on-premise

environments. We recognize that this transparency is-

sue needs to be reconsidered in addition to selectivity

issue described next.

4.3 Selectivity

In the computing environment at supercomputing

centers, users exist who cannot permit nor approve the

use of the cloud for their own computation because,

for example, they just do not want to use cloud or they

are aware of data security. Under the OCTOPUS-

Azure enviroment as of the writing this paper, users

can specify the use of cloud or on-premise environ-

ments for job submission in the job script ﬁle and

thus, users have selectivity in job submission to some

degree. Since our research goal is to alleviate the high

utilization of OCTOPUS, however, it is desirable that

the job management server automatically choose and

transfer user submitted job requests that users submit

to OCTOPUS, to the cloud so that OCTOPUS utiliza-

tion is lowered.

From this above viewpoint, we have to extend the

user interaface to the job management server so that

users can specify whether they want to use the cloud

or not in submitting jobs. A possible solution might

be to let users describe, for example, ”PBS -cloud yes”

in the job script ﬁle shown in Fig. 7. A tradeoﬀ be-

tween transparency and selectivity issues in users’ us-

ing the cloud is an important future issue in the cloud

bursting functionality.

4.4 Equality

In this research, to make sure that there is no diﬀer-

ence in the computation result between OCTOPUS

and Azure, we have used cpi.c, which is a sample pro-

gram shipped with MPICH 3.3.1, and a Fortran MPI

code used at the CMC. cpi is coded to use an intern-

ode parallelism and our user’s code only uses intran-

ode parallelism.

These two programs were executed on both OC-

TOPUS and Azure. As a result, these two programs

output the same result.

4.5 High Throughput

To evaluate whether the OCTOPUS-Azure environ-

ment can contribute to the alleviation of high utiliza-

tion on OCTOPUS, we measured the performance of

the OCTOPUS-Azure cloud bridge netowrk, in other

words, communication performance between the vir-

tual compute node on Azure and the computational

First Experience and Practice of Cloud Bursting Extension to OCTOPUS

453

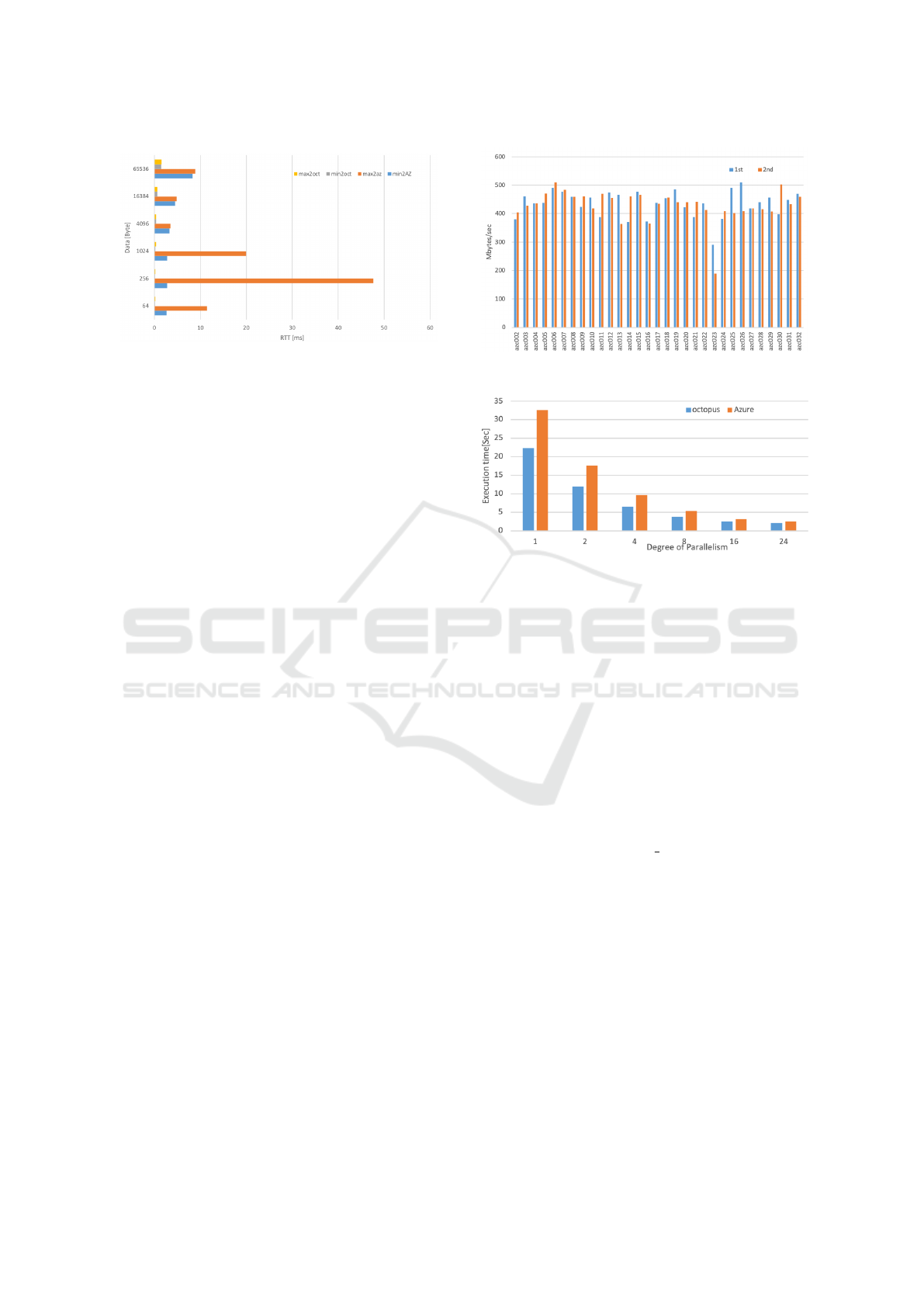

Figure 8: RTT from OCTOPUS Frontend server.

performance of the virtual compute node from an OC-

TOPUS Frontend server

4.5.1 Performance of Cloud Bridge Network

In this measurement test, we measured RTT (round-

trip time) from a front-end server of OCTOPUS to the

general-purpose compute node on OCTOPUS and the

virtual compute node on OCTOPUS using the ping

command. The measurement to each server was con-

ducted 100 times on each packet size. Also, we re-

peated this measurement 5 times each in the morning,

noon, and evening.

Figure 8 shows the measurement results. The

graph in the ﬁgure plots the observed maximum

and minimum RTT to OCTOPUS compute node and

Azure virtual compute node. This result indicates that

the RTT between the frontend server and the compute

node on OCTOPUS was small and stable while the

one between the frontend server and virtual compute

node on Azure ﬂuctuated greatly.

4.5.2 Communication Performance between

Virtual Compute Node on Azure

To observe the communication performance among

32 virtual compute nodes on Azure deployed in this

research, we measured the communication perfor-

mance from oct-azc001 to each of the remaining

virtual compute nodes with MPI PingPong. Fig-

ure 9 shows the measurement result when the size

of data was 4 MB. This result indicates that there

were variations in throughput performance. The max-

imum throughput performance observed was 510.35

MB/sec, and the minimum throughput performance

was 188.6 MB/sec. The average performance was

432.687 MB/sec.

The observed variation in performance could im-

pact on the total execution time of user jobs. Also, we

observed that the performance also ﬂuctuated depend-

ing on time factors. As the result of our investigation

Figure 9: MPI PingPong Result (data size = 4MB).

Figure 10: Performance Comparison with GROMACS.

after the measurement test, we believe that this perfor-

mance characteristics was partly caused from the de-

fault virtual switch built into the virtual compute node

on Azure. In the next step, we plan to perform the

measurement test using an Accelerated Network (Mi-

crosoft, 2019a) conﬁguration provided by Microsoft

Azure.

4.5.3 Computational Performance of Virtual

Compute Node on Azure

We measured the computational performance of

GROMACS (GROMACS, 2019), used at the CMC,

on an OCTOPUS general-purpose CPU node and a

virtual compute node (F48s v2) on Azure. The ver-

sion of GROMACS used for this comparison is GRO-

MACS 2016.1 installed onto OCTOPUS (CMC, Os-

aka University, 2019a).

Figure 10 shows the measurement result. The X

axis shows the number of cores used for intranode

parallelism, and the Y axis shows the execution time.

Although virtual compute nodes built in this research

have higher performance processors than the ones on

OCTOPUS, the performance of GROMACS was not

higher than that on OCTOPUS. As of the writing of

this paper, we have not ﬁnished the investigation of

performance bottleneck in GROMACS, but we plan

to continue the investigation. Also, we still need

to verify whether the OCTOPUS-Azure environment

can alleviate the high utilization of OCTOPUS in op-

CLOSER 2020 - 10th International Conference on Cloud Computing and Services Science

454

eration and then reduce user waiting times by oﬄoad-

ing the computational workload to the cloud.

5 RELATED WORK

Many studies that aim to integrate computational re-

sources from multiple administrative domains have

been reported until today. Grid computing is an ex-

ample of such studies. The Globus grid toolkit (Fos-

ter and Kesselman, 1997) was developed to integrate

computational resources, each of which may be lo-

cated on diﬀerent administrative domains on the In-

ternet to realize a world-wide supercomputing envi-

ronment that solves unsolved scientiﬁc problems. For

this purpose, the grid toolkit provides a suite of com-

ponent services and APIs to allow the users and devel-

opers to use the underlying computational resources

without being aware of the heterogeneity and com-

plexity. GSI (Butler et al., 2000), GRAM (Stelling

et al., 1998), and MDS (Fitzgerald et al., 1997) are

just examples of such component services for meta-

computing. The research summarized in this paper

shares this vision, but the integration management of

computational resources diﬀers from the research in

the Grid era. In this research we envision the emer-

gent and on-demand use of computational resources

in response to user demands, rather than the mutual

sharing of computational resources.

6 CONCLUSION

In this paper we explored the feasibility of the cloud

bursting environment composed of OCTOPUS and

the IaaS cloud service. Speciﬁcally, we presented the

OCTOPUS-Azure environment and show the evalua-

tion result which we have obtained so far in terms of

the following criteria: On-demandness, Transparency,

Selectivity, Equality and High-throughput. Although

conﬁrming the feasibility of the cloud bursting func-

tionality from OCTOPUS to the cloud, we have also

shown that there are still several unsolved problems

related to the unstable and ﬂuctuating performance of

virtual compute nodes on the cloud. In addition, there

are selectivity and transparency issues of the cloud

bursting functionality when actually deploying and

operating the cloud bursting functionality as a service

of the CMC. Furthermore, whether this functionality

alleviates the workload on OCTOPUS in actual oper-

ation and then reduces user waiting time or not must

still be evaluated.

ACKNOWLEDGEMENTS

This work was partly supported by JSPS KAKENHI

Grant Number JP16H02802. Also, this work was

achieved through the use of OCTOPUS at the Cyber-

media Center, Osaka University.

REFERENCES

Butler, R., Welch, V., Engert, D., Foster, I., Tuecke, S., Vol-

mar, J., and Kesselman, C. (2000). A national-scale

authentication infrastructure. Computer, 33(12):60–

66.

CMC, Osaka University (2019a). How to use GROMACS

(OCTOPUS). http://www.gromacs.org/.

CMC, Osaka University (2019b). OCTOPUS. http://www.

hpc.cmc.osaka-u.ac.jp/en/octopus.

Fitzgerald, S., Foster, I., Kesselman, C., von Laszewski,

G., Smith, W., and Tueck, S. (1997). A directory

service for conﬁguring high-performance distributed

computations. In Proceedings of 6th IEEE Symposium

on High-Performance Distributed Computing, pages

365–375.

Foster, I. and Kesselman, C. (1997). Globus: A metacom-

puting infrastructure tookit. High Performance Com-

puting Applications, 11(2):115–128.

Gong, C. and Amin, A. (2018). Best practices for deploying

high availability architectures on Oracle Cloud Infras-

tructure. In Oracle Technical White Paper.

GROMACS (2019). GROMACS. http://www.gromacs.

org/.

Mathew, S. (2019). Overview of amazon web services. In

AWS White paper.

Microsoft (2019a). Create a Linux virtual machine

with Accelerated Networking using Azure CLI.

https://docs.microsoft.com/bs-latn-ba/azure/virtual-

network/create-vm-accelerated-networking-cli.

Microsoft (2019b). Microsoft Azure. https://azure.

microsoft.com.

Stelling, P., Foster, I., Kesselman, C., Lee, C., and von

Laszewski, G. (1998). A resource management ar-

chitecture for metacomputing systems. In Proceeding

of 7th IEEE Symposium on High Performance Dis-

tributed Computing, pages 268–278.

First Experience and Practice of Cloud Bursting Extension to OCTOPUS

455
