Combining Semi-formal and Formal Methods for Safety Control in

Autonomous Mobility-on-Demand Systems

Mohamed Naija, Rihab Khemiri and Ernesto Exposito

Univ. Pau & Pays Adour, E2S UPPA, LIUPPA, Anglet, France

Keywords: AMoD, Adaptability, Safety, Net Condition/Event Systems (NCESs), Simulation.

Abstract: Ensuring the safety control of Autonomous Mobility-on-Demand systems is one of the biggest challenges

facing designers to successful deployment. The addition of adaptability to such systems further hardens and

delays modelling and validating phase, especially due to the current lack of design models and tools. The

formal methods have proven to be useful for making the development process reliable at early design stages.

Based on this approach, this paper proposes a mixed process to specify, design and verify safety requirements

in adaptive AMoD Systems. This process provides analytical proofs of safety requirements during the design

stage of a system when changes are cheap. This contribution deals with combining the UML MARTE profile

for modelling the workload behaviour of the system and the formalism Net Condition Event System for

consistency validation of safety properties. To verify the effectiveness of our proposal, several formal analyses

are carried out using the model checker SESA. The evaluation of the proposed architecture, simulated by the

Sumo software, proves the impact of the number of autonomous vehicles on the global performance and the

intended quality of service (QoS) in the framework of the TORNADO project.

1 INTRODUCTION

Autonomous Mobility-on-Demand (AMoD) appears

as a complementary solution to intelligent transport

system. Specifically, an AMoD system is a fleet of

driverless cars that can be accessed at specific

locations in a city providing public transport. Such

systems are considered as high-assurance systems

since run-time errors could result in fatal accidents

(Chao et al., 2019). Consequently, a stronger form of

verification is likely to be needed to ensure the

correctness of the system and provide sufficient

evidence for safety certification.

In AMoD systems, each autonomous vehicle

(AV) clearly needs to communicate with the fleet

operator in order to control and manage change in

their operating environment (i.e., location change,

new trip request, and undesirable event). This global

control requires reliable V-2-I (Vehicle-to-

Infrastructure) communication. When

communication faults occur, the autonomous vehicle

must be able to operate without the fleet's instructions

while remaining secure and controllable. This

property called adaptability allows the vehicle to

continue its intended mission, possibly at a reduced

level, rather than failing completely. When adapting

to new operational mode, the autonomous vehicle

may have to switch from a source mode to a target

mode and modify the software configuration

according to predefined rules and conditions. Hence,

the specification of the dynamic behaviour by

enumerating all the system's operational modes

constitutes a first step in the definition of a structure

able to fulfil the requirements of the system.

After building a Workload model, it is necessary

to verify and validate the safety requirements (i.e.

efficiency, reliability, robustness, stability, and

vivacity) of the adaptive AMoD system before its

implementation. Thus, an analysis carried out earlier

makes it possible to ensure that the system functions

in a safe state during and after adaptation. In such

systems, we need an approach that provides analytical

proofs of safety, rather than checking traffic

situations using simulation (Schwarting, 2018).

To address this need, it is recommended to use

model checking formalism to automatically

analyzing models for compliance to formal

proprieties (Zhang et al., 2009)(Li et al., 2013).

Formal safety proofs can be obtained using a variety

of methods. In particular, the Net Condition Event

System (NCES) (Rausch and Hanisch, 1995) offers a

promising solution for this kind of analysis, its

514

Naija, M., Khemiri, R. and Exposito, E.

Combining Semi-formal and Formal Methods for Safety Control in Autonomous Mobility-on-Demand Systems.

DOI: 10.5220/0009570005140521

In Proceedings of the 15th International Conference on Evaluation of Novel Approaches to Software Engineering (ENASE 2020), pages 514-521

ISBN: 978-989-758-421-3

hierarchical composition allows a considerable

reduction of the size and complexity of the nets

(Zhang et al., 2009)(Li et al., 2013). In addition, it

provides one useful and robust model checker called

SESA (Vyatkin, 2007) that allows performing

analysis of typical properties and computing sets of

reachable states exactly and effectively.

In this paper, we present a novel approach to

safety control in AMoD that relies on combining

semi-formal and formal method in order to modeling

and providing formal guarantees that runtime physics

matches the model of the system. We focus on

analyzing all possible modes and configurations of

the system by (i) representing modes, (ii) specifying

adaptation conditions and (iii) verifying which of the

architecture characteristics are valid or not in a given

mode. Our contribution adopts model-driven

engineering and model checking for modeling and

verifying safety properties at early design stages to

achieve design-time assurance guarantees. Indeed,

the workload behavior of the AMoD system that is in

response to external stimuli is annotated with

MARTE (OMG, 2008) profile stereotypes. This input

model is then mapped into NCES formalism to

generate a well-formed analyzable model. Finally, we

call the model checker SESA to check functional

properties and verify safety requirements. Since

unpredictability of the dynamic environment delay

the complete understanding of the system at design

time and is resolved only when the system will face

to concrete and specific pre-defined configurations,

we extend the process of safety verification to

runtime phase using well-defined simulations tests.

The outline of this paper is as follows. First, we

provide an overview of the formalisms NCES and

CTL in section 2. Next, section 3 outlines the

proposed methodology as well as the formal

verification results. In section 4, we present

experimental validation. In section 5 state of the art

is discussed. Finally, section 6 concludes the paper.

2 BACKGROUND

We present in this section enough information about

NCES formalism that will be useful for presenting the

paper’s contribution.

2.1 Definition

The Net Condition/Event Systems (NCES) is a

special extended class of Petri net. It consist of

modules whose dynamic behaviour is modelled by

means of Petri nets. According to definition reported

in (Rausch and Hanisch, 1995), NCES is described by

the following tuple:

NCES = {P, T, F, M

,  , CN, EN}

(1)

where:

 P : is an ordered set of n places p;

 T : is an ordered set of m transitions t;

 F : is the incidence matrix;

 M

: is the initial marking;

  : is the input/output structure;

 CN ⊆ (P × T) is a set of condition signals;

 EN:⊆(T×T) is a set of event signals.

The semantics of NCES are defined by the firing rules

of transitions (Vyatkin, 2007). A transition t has three

degrees of enabling (Li et al., 2013). First, as it is in

ordinary Petri nets, a transition t

ϵ T is marking

enabled if min (M - Fm(., i))> 0. That means that all

pre-places have to be marked with at least one token

before firing. Furthermore, a transition t

ϵ T may

have incoming condition arcs from places and event

arcs from other transitions. A transition t

ϵ T is a

condition enabled if min (M - CN(.,j))> 0. The third

possibility on the firing can be described by event

signals EN which allows connecting two or more

transitions. A transition is said to be event enabled if

max (EN (.,i)) = 0. Transitions are spontaneous if

there are no incoming event arcs to the transition,

otherwise they are considered as forced. A transition

can fire spontaneously if it is marking enabled and

condition enabled and if max (E

)) = 0. A forced

transition is enabled if it has token concession and it

is enabled by condition and event signals.

2.2 Computational Tree Logic

The Computational tree logic (CTL) and its

extensions extended CTL (eCTL) or Timed CTL

(TCTL) are well used for the definition of non-

functional properties of complex systems that must be

checked. In this paper, CTL and eCTL are used to

describe the safety properties of an AMoD system,

and TCTL is used to specify temporal constraints.

The CTL queries are formed of pairs of path

quantifiers A (Always) or E (Exists) and a path

operators G (Globally) or F (Finally) and are denoted

by the satisfaction relation |=. For example, the query

EF p (respectively AF p) means that there exists at

least one state satisfying the property p on at least one

path (respectively on all paths) starting from the

initial state (Arcile et al., 2019). In TCTL clock

constraints allows specifying of the delay time that

must elapse before certain transitions can be enabled

to fir.

Combining Semi-formal and Formal Methods for Safety Control in Autonomous Mobility-on-Demand Systems

515

3 METHODOLOGY

The proposed methodology addresses the safety

control at the early design stage of adaptive AMoD

systems. The methodology defines a flow depicted on

Figure 1: (i) the first activity consists in building the

workload model able to fulfil requirements of the

system. This high-level model specifies end-to-end

scenarios of the system annotated with MARTE

profile, (ii) this model is then mapped into NCES

formalism in order to generate a well-formed

analyzable model and finally, (iii) the safety analysis

results of the evaluated model is given as an artefact.

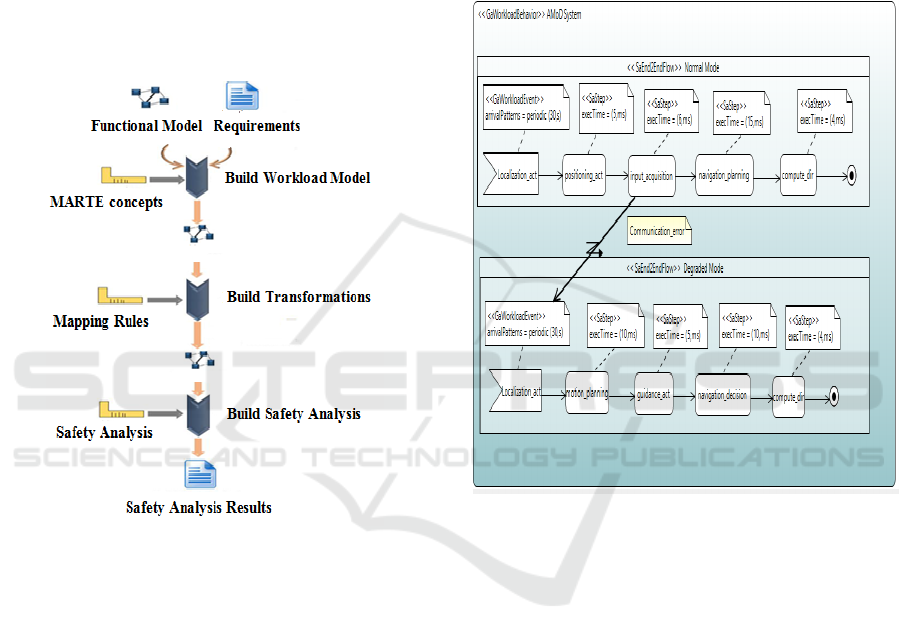

Figure 1: Proposed Methodology flow.

The main idea of starting from a MARTE model to

ensure safety analysis assumes that all the required

information for verification of adaptive behaviour is

already part of the MARTE model (Naija el al.,

2015). The MARTE model allows modelling of inter-

behaviour information (e.g. events, tasks, shared

resources, execution time, etc.) and intra-behaviour

information (e.g. transitional modes and adaptation

condition). In the followings subsections, we present

more details of the intermediate models generated by

our methodology.

3.1 Workload Model

In high-level design, software components are used to

manage complexity. This functional model is in

providing whole system functions, which are sharply

enlarging (

Niang et al., 2017).

Once the gathering of components structure is

realized, it is necessary to build the workload

behaviour of the system. The latter describes end-to-

end flow of the executed actions during a certain

system mode (Naija el al., 2015). When the system is

in a given mode, it provides a subset of system

features (Naija el al., 2016) (Mansour el al., 2019). In

this work, we study the behaviour of autonomous

vehicle in normal mode (NM) and degraded mode

(DM) as shown in Figure 2.

Figure 2: Workload Behavior of the AMoD system.

The end-to-end scenarios, stereotyped

«saEndtoEndFlow», are activated by external event.

However, the event Localization_act actives the GPS

component every 30 milliseconds and is annotated

with MARTE «GaWorkloadEvent» stereotype. The

property «arrivalPattern» allows defining its period.

In both modes, multiple operations must be

performed to achieve system computations. Each

operation is extended with «saStep» stereotype and

has an execution time (execTime property). In NM,

the step positioning_act sends the current position of

the vehicle to the fleet manager. The latter sends the

guidance instructions to the vehicle through the

input_acquisition activity. After that, the vehicle

plans the necessary maneuvers

(navigation_planning) to complete its mission by

sending instructions to be executed to the control

system via the compute_dir step. In DM, the

autonomous vehicle plans the maneuvers

(motion_planning) without waiting for the fleet

ENASE 2020 - 15th International Conference on Evaluation of Novel Approaches to Software Engineering

516

manager. The steering commands are calculated from

the speed of the vehicle (guidance_act) and sent to

the control system (compute_dir). The behaviour of

each mode should not include information about each

other. The switching mode is specified with an

Exception Handlers from the interruptible activity

(input_acquisition) to the destination process.

3.2 Mapping Workload Behaviour to

NCES

At this level, a preliminary transformation of the

workload model to NCES formalism is required to

enhance formal analysis. In this paper, the mapping

of end-to-end flow into formal models is inspired

from previously published works (Kacem et al., 2012)

(Yang et al., 2010). Therefore, each end-to-end

scenario is represented with an oriented graph of

places and transitions. After mapping each scenario

to an NCES component (Figure 3), it is necessary to

specify the intra-behaviour of each component and

adaptation rules.

These are conditions that should be respected

before and after adaptation scenario. In this work, each

condition C is modelled in the normal form C and

negative form ¬C and should be linked to the source

and/or target configuration to fulfil adaptation

requirements. Thus, we model the adaptation

condition of the AMoD system in its normal form

(communication_established) and in its negative form

(communication_faults). In addition, we transform the

exception handlers of the activity diagram to an event

signal to specify transitional modes.

The use of event signal arcs makes it possible to

model the possible links between the configurations.

In our case, initially the vehicle is in the normal mode.

It can switch as soon as it detects a communication

problem to the degraded mode (DM). Likewise, if the

vehicle turn in a degraded mode, it can return to the

normal mode if communication with the fleet

management station is re-established. The complete

transformation is illustrated in Figure 4.

3.3 Safety Analysis

Once the mapping process is realized, the final stage

consists of analyzing the NCES model in order to

verify

and validate safety properties of finite-state

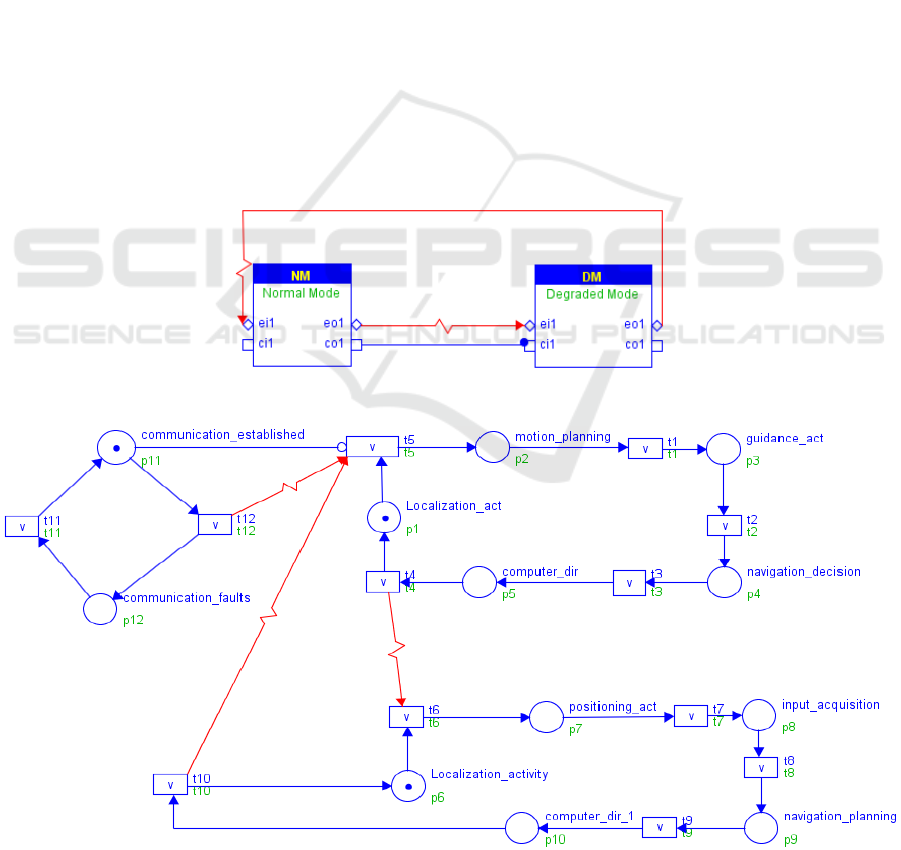

Figure 3: NCES Components Model of the AMoD System with switching modes.

Figure 4: Dynamic Behaviour of the NCES Based-Components Model.

Combining Semi-formal and Formal Methods for Safety Control in Autonomous Mobility-on-Demand Systems

517

systems. As already mentioned, the advantage with

NCES-based models is that offers an effective

solution based on their reachability graph to reduce the

verification cost. The safety of an AMoD system

requires the correctness of each configuration and of

the reconfiguration scenarios. The verification process

is to check the reconfiguration scenarios (inter-

verification) and the internal behaviour of each

configuration (intra-verification). As part of

verification, we start by checking the vivacity of the

net, dead transitions or states and boundedness in

order to prove correctness, stability, and consistency

of the AMoD system. If these behavioural properties

are well verified, other safety requirements are

specified by the computation tree logic (CTL) as well

as its extensions (eCTL and TCTL) and are verified

using the model-checker SESA.

In the next paragraphs, three examples illustrate

the checking properties using CTL formulas will be

presented. The three important checked properties are

(1) verify when an adaptation signal is received, the

system can respond and select a proper configuration

(2) verify that all modes are achievable and no

deadlock will occur and (3) verify that after

adaptation scenario timing constraint are respected.

Example 1: The following CTL formula is proposed

to control adaptation scenario in Figure 4:

|= AGA t

XAFE t

X p

(2)

This formula is checked true by SESA. Firing t

means that if an adaptation signal is received at run-

time, the Degraded Mode must be executed.

Example 2: The eCTL formula below is applied to

control behaviour of the AMoD system:

|= AGA t

XAFE t

AND t

X TRUE (3)

This formula is proven false. When t

fires, either

or t6 will eventually fire. The system cannot be in

Normal Mode and Degraded Mode at the same time.

Example 3: The TCTL formula below is applied to

check timing constraint before switching between

modes behaviour:

|= EF [19, 25] p

= 1 (4)

This formula has been proven true by SESA. The

communication faults can be detected before or after

running the input_acquisition step. Thus, the

Degraded Mode can be activated (i.e, M (p

) = 1) in at

least 19 time units after the system starts.

The evaluation of the AMoD system requirements

is provided as an output of our methodology in the

form of a Safety Analysis Results. This artefact

provides a guideline for designer to detect errors in

adaptive logic before implementation and

deployment. The safety concept presented in this

paper consists in verifying if the controlled system

can be or not exposed to dangerous states leading to

human and equipment damage (

Jharko, 2019).

4 EXPERIMENTAL VALIDATION

In this section, we fulfil the goal of extending safety

verification to the level of simulation to provide

evidence that the system goals are satisfied during

operation (Makartetskiy, 2019). We are interested in

exploring the impact of the adaptability on the

Quality of Service (QoS) with a large number of

vehicles.

4.1 Experimental Design

We use the SUMO (Behrischet al., 2011) simulator to

validate the adaptive behaviour of the AMoD. It is an

open-source simulator including a realistic simulation

of road dynamics. The simulator is able to represent

unlimited network size and vehicles number with

different configurations.

In this study, we focus on the transportation

network of Paris city with an exact customer request.

This scenario is representative of the challenges

targeted by our research project (Tornado, 2020). For

each depart time, autonomous vehicles become

available for servicing passengers. The vehicle drives

a distance of 5181 meters from pickup to drop-off for

one trip. We assumed that each vehicle can transport

up to four passengers at the same time. The vehicles

are identical in the fleet and are modelled with

realistic physics properties. The vehicle's speed and

safety distance varies according to the operating

mode and configurations. In order to demonstrate the

advantage of our proposal, we have performed several

simulations for both normal and degraded mode. First,

we have followed realistic scenarios to estimate the

trip time with different fleet size. Second, we have

interested in calculating the number of messages

exchanged between the fleet manager and vehicles for

each trip.

4.2 Results

The obtained results are interesting and subject of

several interpretations.

In normal mode, the communication quality

between the fleet management and vehicles is stable

and no disturbances occur. The safety distance (inter-

vehicle distance) is predefined to 10 m and the average

ENASE 2020 - 15th International Conference on Evaluation of Novel Approaches to Software Engineering

518

speed is up to 50Km/h for the entire trip (5181 m). The

simulations are shown that the average trip time is

equal to 6.66 minutes (Figure 5).

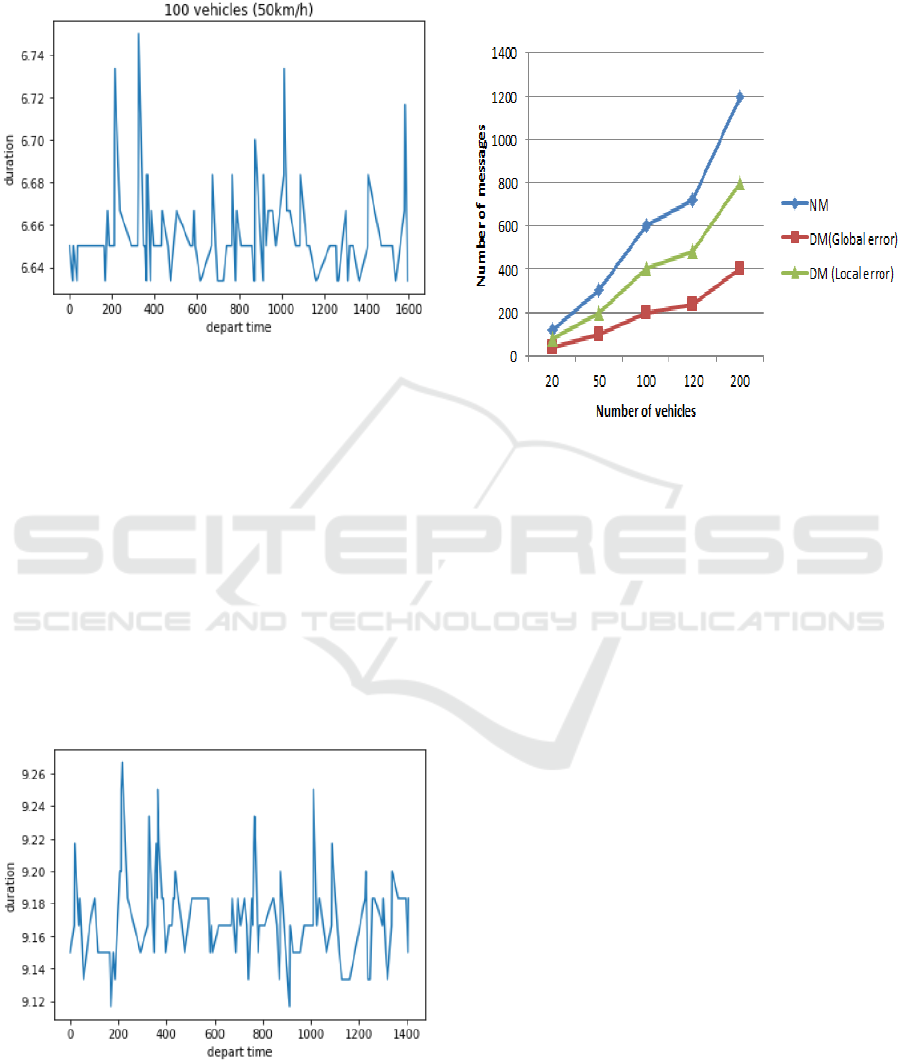

Figure 5: Estimated trip time in normal mode with 100

Vehicles in a straight two-lanes road.

In the degraded mode, the behaviour of the vehicles

can be affected regarding communication degradation.

We simulate this malfunction using the Bernoulli

distribution (Marshal and Olkin, 1985). Since we

study the worst case, we apply a strong probability of

packet loss equal to 50% (implying only 50% of

vehicles can communicate correctly with the fleet

operator) and all the vehicles are switching from the

normal mode to degraded mode at the same time.

When vehicle changes to DM, the speed has to be

reduced to 30Km/h and the safety distance is

predefined to 8m. The simulation are shown that the

average trip time is equal to 9.17 minutes. These

metrics are plotted for 100 vehicles in Figure 6.

Figure 6: Estimated trip time in degraded mode with 100

Vehicles in a straight two-lanes road.

We have also conducted other simulation tests to

quantify the number of messages exchanged between

the fleet manager and the vehicles for each trip

(Figure 7). The simulations are assessed for both

normal and degraded modes.

Figure 7: Tracking results of exchanging data between

vehicles and fleet. The Tracking curve is color-coded blue

for NM, red for DM with a global error and green for DM

with a local error.

In normal mode, each vehicle exchanges 6 messages

with the fleet during one trip. This exchange starts

from the parking lot, where the autonomous vehicle

is parked waiting for its next mission, to the drop-off.

The simulations are carried out with different number

of vehicles (20, 50, 100, 120, and 200 vehicles) in

order to have relevant results.

In the degraded mode, we studied the worst case

for both local and global communications failure. In

local error, communication with the fleet is possible

for some autonomous vehicles but not for others. This

failure is due to the hardware crash or the entry of

some vehicles in a non-covered network area. We

conducted these simulations with the probability of

only 50% of the vehicles that can communicate with

the fleet, which is considered as a worst-case in the

Tornado mobility project, that we are working on. In

global error, the fleet manager is out of order and no

AV can send/receive notifications and alerts with the

control center after receiving his mission.

From these results, we conclude that ideally the

trip between the pickup to drop-off takes 6.66 minutes.

If a disturbance problem has occurred, the estimated

trip time can reach up to 9.17 minutes for 50% of the

passengers in the worst case. This is tolerable in our

project where the safety of passengers comes first.

Compared to classical AMoD approaches, only 50%

Combining Semi-formal and Formal Methods for Safety Control in Autonomous Mobility-on-Demand Systems

519

of passengers will reach their destination and 50% of

passengers will be blocked or in danger. Thereby, the

adaptive architecture allows the vehicle to continue its

intended mission, when abrupt threats appear, at a

reduced level of QoS, rather than failing completely.

This contribution facilitates complex autonomous

vehicles modelling and checking, reduces the

development time, cost, and improves software

process quality.

5 STATE OF THE ART

In the past decades, the robotics community has

extensively studied verification of safety requirements

in intelligent transport. We will discuss in the

following the methodologies that particularly use

formal verification.

In (Althoff and Dolan, 2014) the authors propose

an online verification approach using reachability

analysis in order to capture all future possible

scenarios. Safety is guaranteed with respect to the

modelled uncertainties and behaviours if the

occupancy of the autonomous vehicle does not

intersect that of other traffic participants for all times.

To allow a faster verification in an emergency

situation, specific maneuvers can be stored in a

database. Nevertheless, online verification cannot

predict safety for infinitely many states such as offline

verification (Bohrer, 2019).

Instead of safety online verification, (Liebenwein

et al., 2017) propose an alternative framework based

on building a library of local and verified road models

that are composed together to certify safety for entire

road networks. Since the number of configurations can

be very large, this combinatorial explosion makes the

autonomous behaviour difficult to analyze or

inapplicable.

In (Iftikhar and Weyns, 2014), the authors propose

a formal approach for self-adaptation in robotic

transport systems. The system is presented as a

collection of Timed Automaton (TA) models, which

are executed by a virtual machine to realize

adaptation. The model checking verification assures

that the adaptation goals that are verified offline are

guaranteed at runtime. Unfortunately, safety

verification is not considered.

In (Arcile et al., 2019) a framework called

VerifiCar is detailed. It is designed to allow modelling

and checking of safety properties in communicating

autonomous vehicles (CAVs) against their decision

policy using UPPALL model checker. Although, the

uses of UPPAAL based-model in this work limit the

exposition of the state space, but is not always suitable

for complex situations and can carry to inaccurate

checking.

Other efforts have been specifically tailored to

platoon system (enabling vehicles to travel as a group

on the roads), in which vehicle-to-vehicle

communication is permitted.

In (Kamali et al., 2017), a mixed strategy is

devoted to ensure that the autonomous behaviour

never violates the safety requirements but only for

one-mode system.

In (Karoui et al., 2017) authors adopt a switching

approach between two platoon modes to solve

disturbance problems. This closest work allows

reconfiguration to manage communication quality

degradation with clear safety assumptions. Although

this contribution supports safety inter-behaviour

verification, stronger intra-behaviour verification is

mandatory in order to check the entire system before

and after adaptation.

6 CONCLUSION

Automotive systems are playing an increasingly

crucial role in smart cities while becoming more

complex and dangerous. This highlights the need for

considering the safety of such systems as a core

requirement in the design stage. In this paper, a new

methodology for safety control in AMoD system is

proposed. We use the UML MARTE profile for

modelling all configuration of the system as an end-

end flow. This high-level requirement model is then

mapped into NCES formalism, which allows an

efficient checking of safety properties, expressed in

CTL formulas. The main advantage of this

contribution is the ability to verify entire system

behaviour at early design stages.

As a main line of future work, we will investigate

in proposing an agent-based architecture to better

control V-2-I communication and manage the system

reconfiguration according to the fleet operator

requirements. Another open line is to automate as

much as possible the generation of a formal model

from a semi-formal model, which extends this

methodology to become a perfect framework for

safety modelling and checking.

ACKNOWLEDGEMENTS

This work is financed by national funds FUI 23 under

the French TORNADO project focused on the

interactions between autonomous vehicles and

infrastructures for mobility services in low-density

ENASE 2020 - 15th International Conference on Evaluation of Novel Approaches to Software Engineering

520

areas. Further details of the project are available at

https://www.tornado-mobility.com/.

REFERENCES

Althoff, M., & Dolan, J. M., 2014. Online verification of

automated road vehicles using reachability analysis.

IEEE Transactions on Robotics, 30(4), 903-918.

Arcile, J., Devillers, R., & Klaudel, H., 2019. VerifCar: a

framework for modeling and model checking

communicating autonomous vehicles. Autonomous

agents and multi-agent systems, 33(3), 353-381.

Behrisch, M., Bieker, L., Erdmann, J., & Krajzewicz, D. ,

2011. SUMO–simulation of urban mobility: an

overview. In Proceedings of SIMUL 2011, The Third

International Conference on Advances in System

Simulation. ThinkMind.

Ben Mansour, A., Naija, M., & Ben Ahmed, S., 2019. A

MARTE-Based Design Pattern for Adaptive Real-Time

Embedded Systems. In Proceedings of the 14th

International Conference on Evaluation of Novel

Approaches to Software Engineering (pp. 242-248).

SCITEPRESS-Science and Technology Publications,

Lda.

Bohrer, B., Tan, Y. K., Mitsch, S., Sogokon, A., & Platzer,

A., 2019. A Formal Safety Net for Waypoint-Following

in Ground Robots. IEEE Robotics and Automation

Letters, 4(3), 2910-2917.

Chao, Q., Jin, X., Huang, H. W., Foong, S., Yu, L. F., &

Yeung, S. K., 2019. Force-based heterogeneous traffic

simulation for autonomous vehicle testing. In 2019

International Conference on Robotics and Automation

(ICRA). pp. 8298-8304. IEEE.

Iftikhar, M. U., & Weyns, D., 2014. Activforms: Active

formal models for self-adaptation. In Proceedings of the

9th International Symposium on Software Engineering

for Adaptive and Self-Managing Systems (pp. 125-134).

Jharko E. (2019). Formalizing the Safety Functions to

Assure the Software Quality of NPP Safety Important

Systems.In Proceedings of the 16th International

Conference on Informatics in Control, Automation and

Robotics - Volume 2: ICINCO, ISBN 978-989-758-380-

3, pages 637-644. DOI: 10.5220/ 0007922506370644

Kacem, Y. H., Mahfoudhi, A., Magdich, A., Mraidha, C., &

Karamti, W., 2012. Using mde and priority time petri

nets for the schedulability analysis of embedded systems

modeled by uml activity diagrams. In 19

International

Conference and Workshops on Engineering of

Computer-Based Systems (pp. 316-323). IEEE.

Kamali, M., Dennis, L. A., McAree, O., Fisher, M., & Veres,

S. M., 2017. Formal verification of autonomous vehicle

platooning. Science of computer programming, 148, 88-

106.

Karoui, O., Khalgui, M., Koubâa, A., Guerfala, E., Li, Z., &

Tovar, E., 2017. Dual mode for vehicular platoon safety:

Simulation and formal verification. Information

Sciences, 402, 216-232.

Liebenwein, L., Schwarting, W., Vasile, C. I., DeCastro, J.,

Alonso-Mora, J., Karaman, S., & Rus, D., 2020.

Compositional and contract-based verification for

autonomous driving on road networks. In Robotics

Research (pp. 163-181). Springer, Cham.

Makartetskiy, D., Marchetto, G., Sisto, R., Valenza, et al.

2019. (User-friendly) formal requirements verification

in the context of ISO26262. Engineering Science and

Technology, an International Journal.

Marshall, A. W., & Olkin, I., 1985. A family of bivariate

distributions generated by the bivariate Bernoulli

distribution. Journal of the American Statistical

Association, 80(390), 332-338.

Naija, M., & Ahmed, S. B., 2016. A New MARTE

Extension to Address Adaptation Mechanisms in

Scheduling View. In International Conference on

Evaluation of Novel Approaches to Software

Engineering (pp. 27-43). Springer, Cham.

Naija, M., Ahmed, S. B., & Bruel, J. M., 2015. New

schedulability analysis for real-time systems based on

MDE and petri nets model at early design stages. In 2015

10th International Joint Conference on Software

Technologies (ICSOFT) (Vol. 1, pp. 1-9). IEEE.

Niang M., Philippot A., Gellot F., Coupat R., Riera B. and

Lefebvre S. (2017). Formal Verification for Validation

of PSEEL’s PLC Program.In Proceedings of the 14th

International Conference on Informatics in Control,

Automation and Robotics - Volume 1: ICINCO, ISBN

978-989-758-304-9, pages 567-574. DOI: 10.5220/

0006418705670574.

OMG Object Management Group, 2008. A UML Profile for

MARTE: Modeling and Analysis of Real-Time

Embedded systems, Beta 2.

Rausch, M., & Hanisch, H. M., 1995. Net condition/event

systems with multiple condition outputs. In Proceedings

1995 INRIA/IEEE Symposium on Emerging

Technologies and Factory Automation. ETFA'95 (Vol.

1, pp. 592-600). IEEE.

Schwarting, W., Alonso-Mora, J., & Rus, D., 2018. Planning

and decision-making for autonomous vehicles. Annual

Review of Control, Robotics, and Autonomous Systems.

Tornado Mobility FUI Project. [online]. [Accessed

10/01/2020]. Available from: https://www.tornado-

mobility.com/

Vyatkin. V., 2007. “Modeling and verification of discrete

control systems”.

Yang, N., Yu, H., Sun, H., & Qian, Z., 2010. Mapping uml

activity diagrams to analyzable petri net models. In 10th

International Conference on Quality Software (pp. 369-

372). IEEE.

Zhang, J., Goldsby, H. J., & Cheng, B. H., 2009. Modular

verification of dynamically adaptive systems. In

Proceedings of the 8th ACM international conference on

Aspect-oriented software development pp. 161-172.

Zhang, J., Khalgui, M., Li, Z., Mosbahi, O., & Al-Ahmari,

A. M., 2013. R-TNCES: A novel formalism for

reconfigurable discrete event control systems. IEEE

Transactions on Systems, Man, and Cybernetics:

Systems, 43(4), 757-772.

Combining Semi-formal and Formal Methods for Safety Control in Autonomous Mobility-on-Demand Systems

521
