Microservice Decompositon: A Case Study of a Large Industrial

Software Migration in the Automotive Industry

Heimo Stranner, Stefan Strobl, Mario Bernhart and Thomas Grechenig

Research Group for Industrial Software, Vienna University of Technology, Vienna, Austria

Keywords:

Microservices, Decomposition Approach, Maintainability, Scalability, Bounded Contexts, Facades.

Abstract:

In a microservice architecture a set of relatively small services is deployed, who communicate with each

other only over the network. Monoliths regularly suffer from poor scalability and maintainability. Several

approaches for decomposing them into microservices have been proposed with the aim to improve these char-

acteristics. However, precise descriptions of these approaches in combination with large scale industrial eval-

uations are still rare in academic literature. This case study focuses on a large ERP system in the automotive

industry. We applied an approach based on the concept of bounded contexts for one such decomposition and

documented necessary changes to the system, like the introduction of facades to facilitate incremental migra-

tion towards microservices in a non-distruptive manner. Further we conduct expert interviews to evaluate our

ﬁndings. While the migration is still ongoing, we were able to achieve signiﬁcant adoption rates of the new

paradigm and a clear preference of architects and developers to use it. Development speed has also drastically

improved.

1 INTRODUCTION

Large monolithic software systems commonly have a

number of problems. Among the most prominent and

pressing ones are increasing difﬁculty in maintaining

and scaling them. Horizontal scaling of monoliths can

only be done in discrete steps for the whole applica-

tion and is not ﬂexible. Relational databases shared

among all instances may become bottlenecks (Poko-

rny, 2013).

Recently microservices have rapidly gained pop-

ularity. They can be seen as a variant of Service-

oriented architecture (SOA) but others claim it is a

new architecture. Technically it can be described

as a more ﬁne grained SOA (Zimmermann, 2017).

In a microservice architecture there is a high num-

ber of small services that each solves only one

task (Xiao et al., 2017). There is no universal con-

sensus how big such a task and the corresponding

microservice should be. Microservices communicate

over lightweight protocols without complicated logic,

commonly referred to as “dumb pipes” (Alpers et al.,

2015).

A good microservice architecture improves main-

tainability because one can more easily reason about a

single microservice in isolation (Dragoni et al., 2016).

Every single service can be scaled independently of

the other services. Highly scaleable data stores can

be used instead of relational databases. Another ben-

eﬁt is reduced technology lock-in. Different microser-

vices only have to be able to communicate with each

other over the network, using mutually understood

protocols. In a monolith all parts of the system are

packaged in one executable and there is far less free-

dom in experimenting with different programming

languages or technologies. Using this freedom is not

without costs unfortunately. Employing a variety of

different tools requires greater know how and there is

a larger potential for running into problems with one

of them. Maintenance also can become more costly

as experts for all used technologies are required. An-

other disadvantage is that this architecture introduces

a distributed system which incurs additional complex-

ity compared to a monolith (Bakshi, 2017).

Creating a well suited software system for a given

task is not easy. Especially if the system is a dis-

tributed system in general or based on a microservice

architecture. The granularity of the services need to

be determined and the borders need to be deﬁned. It

is sensible to draw borders where there are only few

and well deﬁned interactions between modules in a

system. If there is no prior system or given company

structure that can be mimicked, it is challenging to

predict what borders will lead to the most maintain-

498

Stranner, H., Strobl, S., Bernhart, M. and Grechenig, T.

Microservice Decompositon: A Case Study of a Large Industrial Software Migration in the Automotive Industry.

DOI: 10.5220/0009564604980505

In Proceedings of the 15th International Conference on Evaluation of Novel Approaches to Software Engineering (ENASE 2020), pages 498-505

ISBN: 978-989-758-421-3

able, scalable or performant result (Hassan and Bah-

soon, 2016).

Conventional criteria for software modularization

proposed by academics like coupling and cohesion

can theoretically be applied to such microservice de-

compositions. However they generally do not satisfy

practitioners. In practice more diverse characteristics

of the software are relevant and not just such one-

dimensional considerations (Carvalho et al., 2019).

Many big corporations already have one or more

monoliths in use which suffer from various problems

such as poor maintainability and scalability (Hassel-

bring and Steinacker, 2017; Villamizar et al., 2015;

Supulniece et al., 2015). It can be desirable to re-

place them with a microservice architecture but doing

this in the most efﬁcient way and achieving good re-

sults is far from trivial. Having access to a number

of well applicable approaches, that have been empir-

ically evaluated and help making the right decisions,

are essential.

2 RELATED WORK

Academics as well as practitioners in the software in-

dustry proposed a number of different approaches to

decompose monoliths (Balalaie et al., 2015; Newman,

2015). While there exist some academic evaluations

of decomposition approaches, they cover academic or

small industrial projects that are refactored into a mi-

croservice architecture (

upulniece et al., 2015). De-

composing large projects is complicated by having to

understand a big system in order to determine where

to draw borders between the newly split parts and the

refactoring effort to do so. Most academic approaches

which are focusing on a few formal criteria to decom-

pose monoliths are rarely used in practice. The avail-

able tooling support is not considered helpful by prac-

titioners (Carvalho et al., 2019).

Conway’s law is cited repeatedly in the context of

microservice decomposition. It states that organiza-

tions are bound to create system designs which re-

semble their communication structures (Alpers et al.,

2015; Dragoni et al., 2016).

A migration can cut along existing boundaries be-

tween domain entities. This follows the Bounded

Context (BC) pattern employed by Domain Driven

Design (DDD) (Balalaie et al., 2016; Balalaie et al.,

2015). The BCs should be incrementally decreased

in size. At the beginning the monolith constitutes one

BC and these are iteratively split up to match smaller

domain concerns (Balalaie et al., 2015). A BC should

have relatively few interdependencies with other BCs.

Microservice decomposition is a complex topic

and there are no universal approaches that lead to

good and efﬁcient results for every project. There-

fore a repository of patterns that can be used and that

are proven to be useful under some circumstances is

proposed (Balalaie et al., 2018).

3 METHODOLOGY

The case described below gives us the chance to eval-

uate the approach of utilizing the concept of bounded

contexts to decompose a monolith into a series of mi-

croservices in the setting of a large industrial appli-

cation. We observed how changes to the system are

made and documented them. In order to evaluate the

effects of the decomposition on the day to day devel-

opment work we conducted expert interviews.

3.1 Research Objective

We describe the approach which is used for microser-

vice decomposition in detail in section 4.

We shall focus on the quality aspects of maintain-

ability and scalability because improving them is a

major motivation to decompose large industrial sys-

tems and was crucial in this case.

• RQ1: How is a large industrial monolith affected

by decomposing according to bounded contexts

and introducing facades?

– RQ1a: How is the maintainability affected?

– RQ1b: How is the scalability affected?

• RQ2: Are there other decomposition approaches

for large industrial monoliths that promise better

decomposition results?

3.2 Case Study Subject

We apply the approach for decomposing a monolith

into a microservice architecture to a large Enterprise

Resource Planning (ERP) system in the automotive

industry. The system is a Dealership management

system (DMS) handling both the sales process of cars

and the after sales and maintenance tasks commonly

performed by car retailers. Interoperability with vast

amounts of third party systems is provided both to

comply with local regulations and to exchange infor-

mation with other systems in the automotive ecosys-

tem. In order to satisfy the needs of diverse cus-

tomers from various countries, the system is very con-

ﬁgurable including the ability to enable and disable

various components and integrations. Said system is

under active development and suffers from poor main-

tainability and scalability. Its monolithic architecture

Microservice Decompositon: A Case Study of a Large Industrial Software Migration in the Automotive Industry

499

has been identiﬁed as major problem and as a result

the decision to decompose the system in smaller parts

and gradually move towards a microservice architec-

ture has been made.

There are two major functional parts of the soft-

ware corresponding with the main process areas of

car dealerships: the processes of selling a car referred

to as sales and the processes of providing services to

customers afterwards, called after sales. No formal

requirements or speciﬁcations exists, but only infor-

mal descriptions in different formats spread over mul-

tiple systems including wikis and issue trackers.

The development of the new software began about

ten years ago. Back then the project name was differ-

ent and has since been changed once again. At the

start Subversion (SVN) was used as version control

system but in 2012 Git took over this role. Technol-

ogy wise Java and the Spring Framework are used. As

frontend framework Apache Tapestry is used. Several

deployable web applications are built from the same

code base through a complex graph of Maven depen-

dencies and Spring conﬁgurations.

One major issue with the project is slow develop-

ment time. This is to a large extent caused by the size

of the biggest Git repository containing the code for

several executables with lots of shared dependencies

and lots of dependencies on other services. Histori-

cally there was one large SVN source code repository.

Now there is a desire to reduce the size or use multiple

repositories in order to improve the build granularity

and development speed. Due to the monolithic nature

of the application, this is not an easy task. Building

the largest project on a developer workstation takes

about ten minutes at the point of writing and starting

one service takes about another ﬁve minutes. Contin-

uous Integration (CI)-builds take between around 45

minutes to an hour, depending on server load. The

high latency between making changes and being able

to run them or having it tested in a reliable CI infras-

tructure makes developing much slower than desired.

Both management and the developers consider

continuous delivery as desirable in the company. The

progress towards fully employing continuous delivery

has not progressed very far however.

3.3 Case Study Design

In order to answer the research questions about the

current approach, a number of developers apply it to

the system at hand and we observe changes to the

system during a period of over two years. This is

possible as the primary author is part of the group

of developers tasked with implementing changes and

new features in the system as well as to modularize

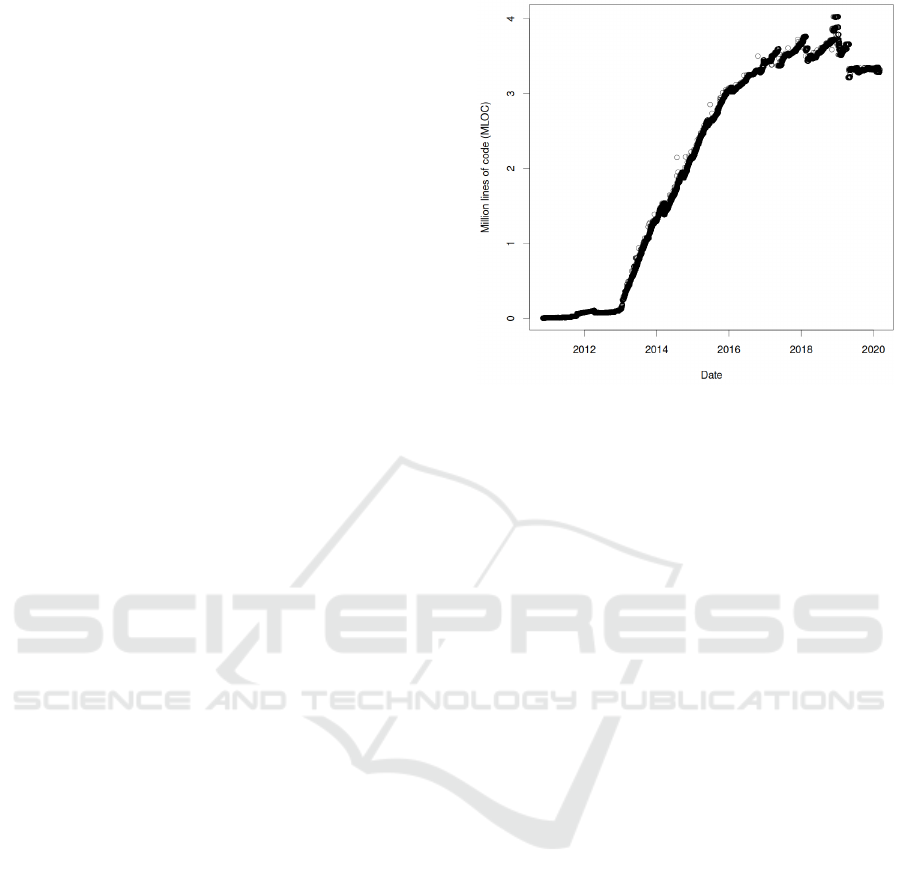

Figure 1: Loc history of the monolith.

its old monolithic architecture into a microservice ar-

chitecture. This allows us to check if the approach is

indeed well suited to the decomposition of large in-

dustrial monoliths following the case study method-

ology (Runeson et al., 2012). We also measure parts

of the research questions, which can be directly mea-

sured, like the duration of a build on the CI server.

In order to answer the research question about al-

ternative approaches, these need to be found which is

done by performing a literature review.

Like any system, the system at hand has some

properties. Primarily there is no formal speciﬁca-

tion available, which is very common in the indus-

try (Ozkaya, 2018).

We assess the approaches for decomposing mono-

liths into microservices found by searching for

“microservice decomposition approach” on Google

Scholar. Their applicability for decomposing the sys-

tem at hand is determined considering the systems

properties. To limit the search extend, only the 25

most relevant entries from the search query are con-

sidered.

4 USED DECOMPOSITION

APPROACH

There are efforts to reduce the size of the current

monolith and split out separate services belonging to

business units which have their own bounded context.

This is intended to increase the speed of development,

the maintainability and scalability. Management ex-

pects teams to more independently own “their” part

of the whole software system. These extraction ef-

forts can be seen starting from 2017 as the number of

ENASE 2020 - 15th International Conference on Evaluation of Novel Approaches to Software Engineering

500

lines of code is abruptly reduced several times. Figure

1 shows that the number of lines of code has started

to repeatedly swiftly decrease by signiﬁcant amounts.

This stems from the fact that some modules are al-

ready moved out to dedicated services.

4.1 Moving Existing Functionality out

of the Monolith

In order to move a part of a monolith out into a

microservice, architects identify a suitable part ﬁrst.

They take business considerations into account fol-

lowing the approach and identify a bounded context

within the monolith that is suitable to be moved into a

dedicated microservice or set of services. To make the

migration easier, the bounded context should not be

central in the monolith with huge amounts of chatty

interactions but rather some bordering functionality.

A bounded context with only incoming calls but with

no outgoing calls into the rest of the system would be

ideal. Technical architects make an intuitive decision

supported by dependency statistics and integrated de-

velopment environments (IDEs).

Once the decision is made which bounded context

should become its own microservice, a process con-

sisting of several steps begins.

Lets assume there are three services. Service A

calls Service B which calls Service C. Only Service B

is inside the bounded context which should be trans-

formed to a new service.

4.1.1 Deﬁnition of Facades

Generally a facade hides the complex internal matters

behind a clean interface. From the outside the system

should only be accessed through this facade.

For the system at hand the desired communication

pattern are rest calls. Therefore, the facades used have

the form of rest interfaces.

Developers create new Maven modules contain-

ing the application programming interface (API) in

the form of Representational state transfer (REST) in-

terfaces and Data transfer objects (DTOs), which are

transmitted.

Technical architects search for common usage pat-

terns and try to deﬁne a small but usable REST API

that can replace all prior usages.

4.1.2 Facade Implementation

As the second major step in the migration process the

facades in the form of REST services have to be im-

plemented.

When the same functionality already exists, this

process is trivial. In most cases simple mappings and

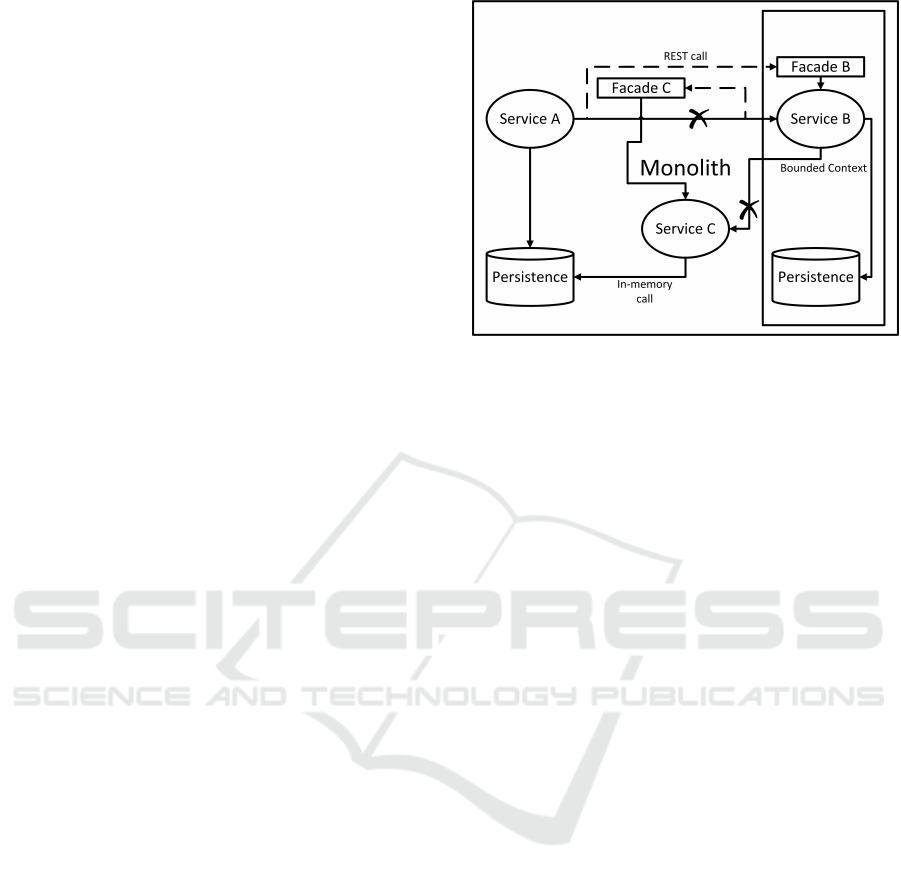

Figure 2: Facade calls are added.

service calls are sufﬁcient but in others more complex

logic has to be implemented.

4.1.3 Using the Facades

The third major step in splitting out a part of a mono-

lith into a microservice is to actually use the facades

in the form of REST endpoints and clients.

Developers search the rest of the monolith with

IDEs for direct usages of the part which is about to

be split out of it. The found usages circumvent the

deﬁned REST facade and have to be replaced.

Figure 2 shows the process of replacing in-

memory calls across the new border with REST fa-

cade calls. Normal arrows represent in-memory calls

and REST calls have arrows with dotted lines.

Many usages can very easily be replaced by REST

calls and the corresponding DTOs. Transactions how-

ever become more complex. Distributed transactions

are not desirable and also not supported in the sys-

tem at hand. In many cases it is possible to move the

whole transaction to one service and to provide aggre-

gated data from the other service.

The visualized case also assumes that the database

tables can be cleanly partitioned between the re-

maining monolith and the new microservice. Since

bounded contexts are used, this is likely the case. In

the remaining few cases the technical architects make

intuitive decisions on how to proceed.

4.1.4 Moving out the Separated Service Part

The ﬁnal part during the separation process ﬁnally re-

sults in a new microservice.

Developers create two separate Git repositories

containing the API and the implementation of new

service. Public and private code and data structures

are cleanly separated that way.

Microservice Decompositon: A Case Study of a Large Industrial Software Migration in the Automotive Industry

501

The new application is also build on Jenkins,

Sonar and the artifacts are deployed. Docker images

are build and Helm Charts conﬁgure how the service

should run in a cluster. The Uniform Resource Lo-

cators (URLs) for accessing the new microservices

functionality is changed, as it is no longer a part of

the monolith and therefore has a new base-URL.

4.2 Rewriting Part of the Monolith as a

Microservice

The software quality is better in some areas and worse

in others. Particularly problematic pieces with bad

maintainability lend themselves well not to be moved

out to their own microservice but to be replaced by

a completely new microservice. In the short term it

may be more effort to rewrite that functionality but the

reward is substantial as the bad old code is completely

replaced.

4.2.1 Facade Introduction and Implementation

In the beginning there are a set of services which

should be removed. Lets assume this is just service

B1. Service B2 in the microservice provides similar

functionalities and it is destined to replace B1. Figure

3 visualizes this scenario.

As a ﬁrst step facades around the functionalities

in the monolith which are about to be replaced are

required. Again these facades also have to be imple-

mented. The ﬁrst implementation delegates to the ex-

isting implementation within the monolith.

The Facade E is added around the functionality of

the services which are about to be replaced. For sim-

plicity’s sake the example this is just one service, but

in most cases there is more than just one service. The

REST endpoint facade (Facade F) is also added. This

is the interface describing the corresponding REST

endpoint of the new microservice. These facades have

to be implemented.

4.2.2 REST Client Facade Implementation

Since a new microservice is not expected to immedi-

ately have all functionalities the old monolithic imple-

mentation has, the migration process takes some time.

During this time one can use Spring proﬁles to switch

between the old monolithic implementation and the

new implementation which calls a microservice.

This is possible by providing a second implemen-

tation to Facade E which calls Facade F via REST.

In the end developers remove the old implementa-

tion (Service B1) and the implementation which for-

wards to the other service becomes the only imple-

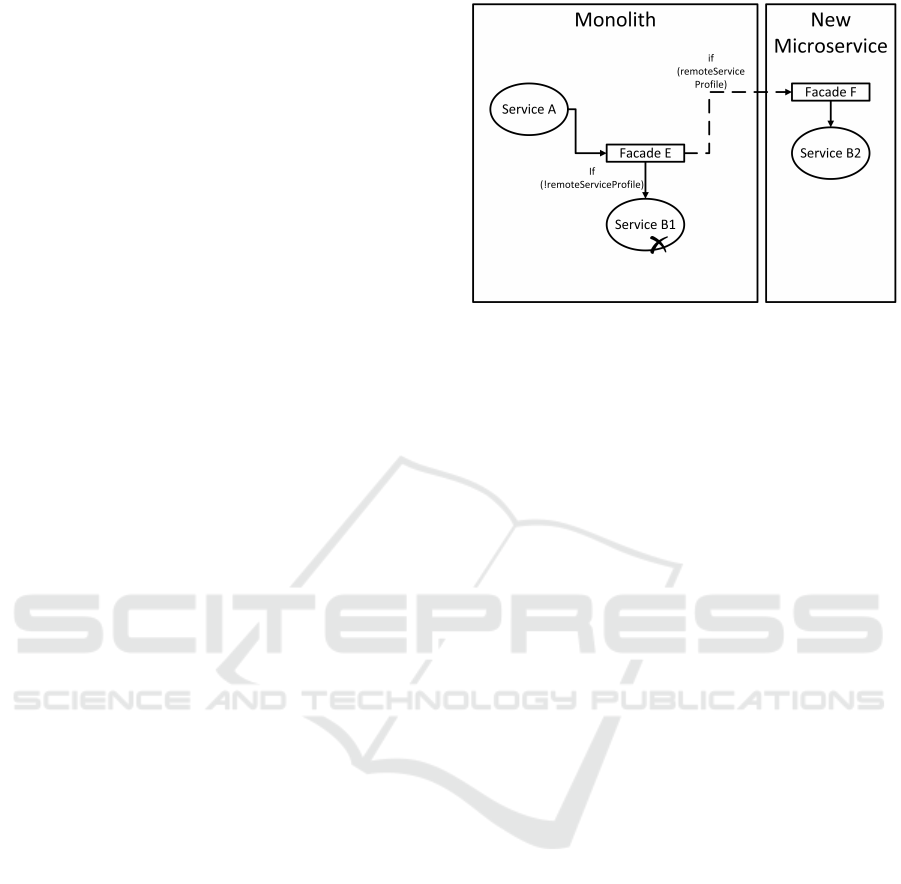

Figure 3: Proﬁle controlling local or remote implementa-

tion.

mentation. Then the new implementation is always

active, independent from Spring proﬁles.

4.3 Considering Alternative

Approaches

The used approach is not necessarily optimal. There-

fore, alternative approaches are also considered in the

form of a literature review. The requirements for the

program are rather loose and there is no speciﬁcation

available, even less so a formal one. It is not econom-

ically viable to create one for this project. It is also

not common practice for projects of such a size (Car-

valho et al., 2019). This rules out some more formal

and automated approaches.

We ﬁnd a lot of support for using bounded con-

texts. Several papers recommend using business

capabilities and organizational boundaries as inspi-

ration for where the monolith should be split into

microservices, as already practiced. They describe

boundaries between bounded contexts as excellent

choices for microservice boundaries because the de-

sired tight coupling inside a proper bounded con-

text and thus a microservice is implied (Krylovskiy

et al., 2015; Hasselbring and Steinacker, 2017;

Shadija et al., 2017; Newman, 2015; Bakshi, 2017).

One also recommends microservice boundaries be-

tween bounded contexts and additionally more ﬁne

grained boundaries between different storage and per-

sistence requirements and maturities (Carneiro and

Schmelmer, 2016). DDD is recommended in or-

der to get a basic microservice architecture and to

analyse usage patterns to further reﬁne the architec-

ture afterwards (Mustafa et al., 2018). While the

focus of two papers is not about the decomposi-

tion, the papers shortly mention the same approach

favourably (Alpers et al., 2015; Zimmermann, 2017).

Employing service facades are also recommended

ENASE 2020 - 15th International Conference on Evaluation of Novel Approaches to Software Engineering

502

as a ﬁrst step to recover the architecture within a

monolith. The decisions in which parts to cut follows

DDD (Knoche and Hasselbring, 2018).

More formal approaches also exist and are often

recommended. For large industrial systems without

speciﬁcation they are not feasible however (Carvalho

et al., 2019).

5 RESULTS

In order to evaluate the answers given to the research

questions, we interview experts on the system at hand

and the modularization procedure. This procedure

follows the well established methodology of an expert

interview.

The experts answers conﬁrm that the chosen ap-

proach is indeed well suitable to improve the situation

at hand.

Nevertheless there are problems with the imple-

mentation of it. Non-technical reasons like a very

limited budget and high pressure to release new fea-

tures quickly cause most problems. Since only lim-

ited resources are used for the modularization effort,

progress is slow.

The experts are content with focussing on busi-

ness capabilities and bounded contexts as a basis for

the modularization. The requirement for good Tech-

nical Architects (TAs) and Product Owners (POs) is

stressed and that technical contexts are also impor-

tant.

The experts consider more formal approaches in-

feasible for a project of the given size and budget.

Creating formal models and speciﬁcations is esti-

mated to be prohibitively expensive. While some help

is considered helpful, it should not be too restrictive

to the developers. Another two interviewed develop-

ers state that the overhead would be simply too high

for a sizeable project. Since there is more complexity

involved, the result is not expected to be any better by

one interviewee.

They judge the usage of facades generally in a

positive way, but mention that some issues were

encountered when paired with insufﬁcient domain

knowledge and test automation.

The experts state that scaling the modularization

effort up to multiple teams is easily possible as long as

clear separations between different areas exist. Dur-

ing the modularization, a lot of ﬁles are changed and

this leads to hard to solve merge conﬂicts if multiple

persons are active on the same part of the source code.

Developers perceive working with the newer

smaller services very positively. The main reasons

are easier understandability, greatly improved devel-

opment speed and faster feedback cycles. These qual-

ities have a large positive impact on maintainability.

One interviewee even calls the split inevitable but

warns of overdoing it and creating too much tiny ser-

vices. Those are less maintainable when any reason-

able work spans multiple services and the API has to

be changed all the time.

Working with a smaller service also allows to up-

grade the code more easily as fewer dependencies

have to be taken into consideration. This leads in

the long term to a more modern application with

which developers are more satisﬁed and prefer work-

ing with.

From a testers perspective the microservice ap-

proach is also preferable as a microservice can be

more easily tested. Test automation is simpler as ser-

vices can be tested in a more isolated way than the

monolith.

5.1 Maintainability

RQ1a: asks how the maintainability is affected.

There is a general consensus that the situation im-

proves a lot, but there is still much to do.

For the new modules the feedback of the experts is

very promising. Smaller modules are easier to under-

stand, start and debug. Testing a smaller application

also becomes easier and more efﬁcient.

As testers primarily use quality assurance deploy-

ments and do not need to work with local code, de-

ployment speed is an important part of the latency

with which a tester can start to examine changes

which also improves maintainability. The newer

smaller modules can be deployed much faster than the

remaining monolith.

A negative aspect mentioned is that some actions

like version updates have to be repeated for many

applications instead of only one monolith. This is

not hard but cumbersome. Maintenance is greatly re-

duced per module but is required for more modules.

Developers understand smaller modules more eas-

ily and thus new developers get productive faster.

This in turn improves the maintainability of these

parts.

When the boundaries of a module are left, debug-

ging becomes harder compared to a monolith where

it is possible to debug across the whole application

inside an IDE.

When developers change the API between mod-

ules, the effort is generally larger than in a monolith

where such an API does not formally exist. As long

as changes are internal to an application, the main-

tainability improves but as soon as multiple applica-

tions are affected the advantages diminish and new

Microservice Decompositon: A Case Study of a Large Industrial Software Migration in the Automotive Industry

503

problems arise. For backwards compatible changes

a new API version has to be released in addition to

the code changes. Other applications have no stress

to upgrade. If a change is not backwards compatible

however, all applications depending on the function-

ality have to upgrade at the same time or API versions

have to be used. The effort is multiplied by the num-

ber of usages. For this reason it is crucial to keep the

number of API changes minimal.

5.2 Scalability

RQ1b: is about how the scalability is affected. Scala-

bility is also a widely given reason for a microservice

architecture. In the project mixed results are reported.

Theoretically once the modularization is ﬁnished it

should allow to scale all applications very well ac-

cording to interviewee D, but it is not experienced in

the project yet as the system overall is perceived as

rather slow regardless of the load and more replicas

do not help directly with latency problems. If parts

of the system are identiﬁed as under particular high

stress, it is advantageous if this is a microservice, as

administrators can independently scale it up.

While the scalability of a single service in isola-

tion becomes easier, the whole orchestration becomes

more complicated. Once this is properly taken care

of however, the beneﬁts of being able to scale ev-

ery service according to its needs becomes prevalent.

Container platforms and other operational details are

therefore crucial for the success of the scalability im-

provements.

6 THREATS TO VALIDITY

For case studies it is always crucial to ensure the aca-

demic scalability. The results should not be speciﬁc

to the system at hand but have to be generally appli-

cable.

A literature review and the judgment of alternative

approaches would come to the same result when con-

ducted independently from the system at hand. Any

approach that is not deemed applicable as potential

alternative to the current approach, is also not appli-

cable to most other large scale industrial monoliths as

well.

Other approaches on more formal methods are

deemed unsatisfactory both by the experts and in the

academic papers (Ozkaya, 2018).

7 FUTURE WORK

Since the decomposition of the system at hand is not

completed at the point of writing and it is expected

that this will take a long time, another analysis once

it is done could provide further insights. Long term

effects of the modularization could be observed and

the scalability improvements better evaluated when

the system is deployed with a much larger user base

and thus higher scalability demands.

Future work may include performing more case

studies, further evaluating the chosen approach for

other large scale industrial systems and combining the

knowledge in larger meta analyses that generate re-

sults with statistical signiﬁcance.

Since some alternative approaches found in the

literature lack good tool support required for their

widespread application to large systems, fully devel-

oping these tools, integrating them with practitioners

tools like IDEs and performing case studies to evalu-

ate their practical applicability could be further stud-

ies.

8 CONCLUSION

The evaluated large ERP system in the automotive in-

dustry was historically developed as monolith. It suf-

fered from poor maintainability and scalability. In or-

der to improve the situation, management made the

decision to migrate to a microservice architecture.

The chosen approach is to use bounded business

contexts in order to determine what should become

a microservice. Developers then either rewrite rele-

vant parts of the system as a microservice or extract

them from the existing monolith. In order to minimize

the disruption and allow gradual changes, they use fa-

cades to switch between different implementations of

the same functionality as desired.

Developers started to move out pieces of the

monolith into microservices while also rewriting

some parts in the form of a completely new microser-

vice. When a new microservice is created, which re-

places old functionality, both implementations have to

be maintained until the migration is complete. There-

fore it is desirable that any such migration ﬁnishes

soon.

Performing changes to a microservice is faster

compared to a monolith. When working with the

monolith, the IDE often lags, startup times are high

and newer developers need to understand a lot about

the architecture in order to be productive. The newer

microservices in contrast are easier to understand,

state of the art technologies are used and developers

ENASE 2020 - 15th International Conference on Evaluation of Novel Approaches to Software Engineering

504

get faster feedback both from local tools as well as the

CI server.

To evaluate the results, we conducted expert in-

terviews of stakeholders involved in the development

of the system. They are familiar or directly involved

with the modularization effort.

They agree that maintainability for the already

modularized parts has greatly improved. Drastic

changes in scalability are currently not visible but

they agree that in general the smaller services are

much more scalable.

The developers greatly prefer working on smaller

services and are content with the applied approach.

More formal approaches are largely disliked by the

interviewed experts.

REFERENCES

Alpers, S., Becker, C., Oberweis, A., and Schuster, T.

(2015). Microservice based tool support for busi-

ness process modelling. Proceedings of the 2015

IEEE 19th International Enterprise Distributed Ob-

ject Computing Conference Workshops and Demon-

strations, EDOCW 2015, (January 2017):71–78.

Bakshi, K. (2017). Microservices-based software archi-

tecture and approaches. IEEE Aerospace Conference

Proceedings.

Balalaie, A., Heydarnoori, A., and Jamshidi, P. (2015). Mi-

croservices Migration Patterns. (1):1–21.

Balalaie, A., Heydarnoori, A., and Jamshidi, P. (2016).

Microservices Architecture Enables DevOps: Migra-

tion to a Cloud-Native Architecture. IEEE Software,

33(3):42–52.

Balalaie, A., Heydarnoori, A., Jamshidi, P., Tamburri,

D. A., and Lynn, T. (2018). Microservices migra-

tion patterns. Software - Practice and Experience,

48(11):2019–2042.

Carneiro, C. and Schmelmer, T. (2016). Microservices

From Day One.

Carvalho, L., Garcia, A., Assuncao, W. K., De Mello, R.,

and Julia De Lima, M. (2019). Analysis of the Cri-

teria Adopted in Industry to Extract Microservices.

Proceedings - 2019 IEEE/ACM Joint 7th International

Workshop on Conducting Empirical Studies in Indus-

try and 6th International Workshop on Software Engi-

neering Research and Industrial Practice, CESSER-

IP 2019, pages 22–29.

Dragoni, N., Giallorenzo, S., Lafuente, A. L., Mazzara, M.,

Montesi, F., Mustaﬁn, R., and Saﬁna, L. (2016). Mi-

croservices: yesterday, today, and tomorrow. pages

1–17.

Hassan, S. and Bahsoon, R. (2016). Microservices and their

design trade-offs: A self-adaptive roadmap. Proceed-

ings - 2016 IEEE International Conference on Ser-

vices Computing, SCC 2016, pages 813–818.

Hasselbring, W. and Steinacker, G. (2017). Microservice

architectures for scalability, agility and reliability in

e-commerce. Proceedings - 2017 IEEE International

Conference on Software Architecture Workshops, IC-

SAW 2017: Side Track Proceedings, pages 243–246.

Knoche, H. and Hasselbring, W. (2018). Using Microser-

vices for Legacy Software Modernization. IEEE Soft-

ware, 35(3):44–49.

Krylovskiy, A., Jahn, M., and Patti, E. (2015). Designing a

Smart City Internet of Things Platform with Microser-

vice Architecture. Proceedings - 2015 International

Conference on Future Internet of Things and Cloud,

FiCloud 2015 and 2015 International Conference on

Open and Big Data, OBD 2015, pages 25–30.

Mustafa, O., Marx G

omez, J., Hamed, M., and Pargmann,

H. (2018). GranMicro: A Black-Box Based Ap-

proach for Optimizing Microservices Based Applica-

tions. In Otjacques, B., Hitzelberger, P., Naumann,

S., and Wohlgemuth, V., editors, From Science to So-

ciety, pages 283–294, Cham. Springer International

Publishing.

Newman, S. (2015). Building Microservices.

Ozkaya, M. (2018). Do the informal & formal software

modeling notations satisfy practitioners for software

architecture modeling? Information and Software

Technology, 95(May 2017):15–33.

Pokorny, J. (2013). NoSQL databases: A step to database

scalability in web environment. International Journal

of Web Information Systems, 9(1):69–82.

Runeson, P., Host, M., Rainer, A., and Regnell, B. (2012).

Case Study Research in Software Engineering.

Shadija, D., Rezai, M., and Hill, R. (2017). Towards an

understanding of microservices. In 2017 23rd Inter-

national Conference on Automation and Computing

(ICAC), pages 1–6.

upulniece, I., Pol¸aka, I., B

erzi

sa, S., Ozolin¸

s, E., Palacis,

E., Meiers, E., and Grabis, J. (2015). Source Code

Driven Enterprise Application Decomposition: Pre-

liminary Evaluation. Procedia Computer Science,

77:167–175.

Supulniece, I., Polaka, I., Berzisa, S., Meiers, E., Ozolins,

E., Grabis, J., and Supulniece, I., Polaka, I., Berzisa,

S., Meiers, E., Ozolins, E., & Grabis, J. (2015). De-

composition of Enterprise Application: A Systematic

Literature Review and Research Outlook. Information

Technology and Management Science, 18(1):30–36.

Villamizar, M., Garc

es, O., Castro, H., Verano, M., Sala-

manca, L., and Gil, S. (2015). Evaluating the Mono-

lithic and the Microservice Architecture Pattern to

Deploy Web Applications in the Cloud Evaluando el

Patr

on de Arquitectura Monol

ıtica y de Micro Servi-

cios Para Desplegar Aplicaciones en la Nube. 10th

Computing Colombian Conference, pages 583–590.

Xiao, Z., Wijegunaratne, I., and Qiang, X. (2017). Reﬂec-

tions on SOA and Microservices. Proceedings - 4th

International Conference on Enterprise Systems: Ad-

vances in Enterprise Systems, ES 2016, pages 60–67.

Zimmermann, O. (2017). Microservices tenets: Agile ap-

proach to service development and deployment. Com-

puter Science - Research and Development, 32(3-

4):301–310.

Microservice Decompositon: A Case Study of a Large Industrial Software Migration in the Automotive Industry

505
