Reading Students’ Multiple Mental States in Conversation

from Facial and Heart Rate Cues

Shimeng Peng

, Shigeki Ohira

and Katashi Nagao

Department of Intelligent Systems, Graduate School of Informatics, Nagoya University, Nagoya, Japan

Information Technology Center, Nagoya University, Nagoya, Japan

Keywords: Mental States Recognition in Conversation, Multimodal Feature Analysis, Educational Data Analysis,

Facial Data, Heart Rate, Machine Learning, Learning Analytics.

Abstract: Students’ mental states have been widely acknowledged as crucial components for inferring their learning

processes and are closely linked with learning outcomes. Understanding students’ complex mental states

including concentration, confusion, frustration, and boredom in teacher-student conversation could benefit a

human teacher’s perceptual and real-time decision-making capability in providing personalized and adaptive

support in coaching activities. Many lines of research have explored the automatic measurement of students’

mental states in pre-designed human-computer tasks. It still remains a challenge to detect the complex mental

states of students in real teacher-student conversation. In this study, we made such an attempt by describing

a system for predicting the complex mental states of students from multiple perspectives: facial and

physiological (heart rate) cues in real student-teacher conversation scenarios. We developed an advanced

multi-sensor-based system and applied it in small-scale meetings to collect students’ multimodal conversation

data. We demonstrate a multimodal analysis framework. Machine learning models were built by using

extracted interpretable proxy features at a fine-grained level to validate their predictive ability regarding

students’ multiple mental states. Our results provide evidence of the potential value of fusing multimodal data

to understand students’ multiple mental states in real-world student-teacher conversation.

1 INTRODUCTION

There has been increasing attention on students’

complex affective and mental states exposed during

learning interactions from the educational research

community. In the past few years, much research has

validated the correlation of students’ mental states

with measures of their short-term or long-term

learning achievements (Craig et al., 2004; Pardos et

al., 2014; Rodrigo et al., 2012; Calvo & D’Mello,

2010; Feidakis et al., 2013). Holding a small group

meeting composed of teacher-student conversations

is one of the most common ways of coaching

interactions. (Bell & Cowie, 2001; Shepard, 2005)

named this method “assessment conversation,” and it

is an important link in scaffolding learning. In

coaching done in academic small-group meetings, the

teacher tends to strike up task-oriented conversations

to diagnosis students’ learning progress and provide

https://orcid.org/0000-0002-9510-2549

https://orcid.org/0000-0001-9445-4457

https://orcid.org/0000-0001-6973-7340

appropriate intervention by giving comments or

problem solution strategies. It is essential for human

teachers to be sensitive to changes in the mental states

of students order to make real-time decisions on what

kind of support to provide and at what times.

(D’Mello & Graesser, 2012) proposed a typical

resolution cycle that characterizes dynamic changes

in students’ mental states, which has been used as a

classical, theoretically grounded model in

understanding students’ complex mental states

experienced in learning activities. This dynamic

mental-states theory suggests that a student

commonly enters interactive learning activities with a

state of engaged concentration, and this state will

remain until challenges or difficulty emerges, which

may result their state transitioning to one of

confusion. At this point, the student may transition to

one of two paths, go back to being concentrated if

they resolve this confusion. Alternatively, the student

may transition to frustration at which point, the

Peng, S., Ohira, S. and Nagao, K.

Reading Students’ Multiple Mental States in Conversation from Facial and Heart Rate Cues.

DOI: 10.5220/0009564000680076

In Proceedings of the 12th International Conference on Computer Supported Education (CSEDU 2020) - Volume 1, pages 68-76

ISBN: 978-989-758-417-6

student is unlikely to transition back to confusion or

concentration and may be more likely to transition to

boredom and then quit learning.

Developing an effective monitoring agent that

could sense the occurrence and transition of students’

complex mental states, that is, concentration,

confusion, frustration, boredom, will be beneficial to

helping teachers improve their perceptual and

reasoning capabilities and resolve instances of

“assistance dilemma” in coaching. An intelligent

negative-states-awareness agent could precisely

recognize negative mental states in students,

especially confused and frustrated ones, infer that

students need help catching up with the class, and

alert the teacher to direct their coaching resources and

aim to help students get out of this learning dilemma.

Much research has used univariate modalities

such as video (Grafsgaard et al., 2013), audio

(Forbes-Riley & Litman, 2011) and physiological

measures (Hussain et al., 2011) to detect affective or

mental states in learning activities. Modern sensors

have rendered opportunities to support novel

methodological approaches to measure students’

mental states from multiple perspectives. (Kapoor &

Picard, 2005; Whitehill et al., 2011) adopt

multimodal approaches for mental state detection that

have been explored to improve recognition accuracy.

In this study, a multi-sensor-based data collection

system was developed to record students’ facial

expressions, physiological signals (heart rate), and

audio when holding structured conversations with

teachers in regular small-group meetings at

universities as well as a real-time label annotation

tool for collecting the results of observing meeting

participants for an evaluation regarding speakers’

mental states during conversation. We then propose a

multimodal framework for detecting the complex-

states of speaker-students, that is, concentration,

confusion, frustration, and boredom, by analyzing

multimodal features. Machine learning models were

also generated to validate the predictive performance

of our extracted multimodal features.

2 RELATED WORK

Most research regarding emotion recognition in

conversation (ERC) has been seen as a Natural

Language Process (NLP) task due to the availability

of large-scale conversations datasets related to ERC

on social media platforms like YouTube, Facebook,

Reddit, and Twitter (Poria et al., 2019). Due to the

specific character of social media datasets, ERC has

been developing into a textual emotion recognition

problem. ERC in educational applications mainly

carried out based in human-computer interaction

setups, in which researchers analyzed students’

mental or affective states when they are interacting

with an online tutor system (D’Mello et al., 2006;

D’Mello et al., 2008). The few popular available

multimodal datasets for mental-state recognition in

human-human conversation are based on pre-

designed conversation transcripts, such as IEMOCAP

(Busso et al., 2008), where actors perform scripted

scenarios specifically selected to elicit emotional

expressions, and DailyDialog (Li et al., 2017) in

which chit-chat data generated in daily life is

recorded.

Teacher-student conversation is considered to be

a type of task-oriented human-human conversation

that is generally carried out around a topic and

developed with argumentation logic or through the

guidance of a teacher. It is necessary to use teacher-

student conversations in real coaching scenarios and

explore students’ complex mental states from more

reliable multiple perspectives, which would provide

practical advice for teacher coaching in the real world.

Given the validated and precise prediction

performance regarding students’ mental states done

using facial expression or physiological signals, in

this paper, we attempted to take advantage of sensory

signals including facial and heart rate cues to

challenge the task of predicting students’ mental

states, that is, concentration, confusion, frustration,

and boredom in real teacher-student conversation.

2.1 Physiological-signal-based

Detection

Physiological signals have been commonly used in

analyzing mental states because affective or mental

states are associated with thoughts and feelings,

which are controlled by the autonomic nervous

system, and changes in them can be observed by

physiological signals such as the heart rate (HR) and

brainwaves. (Stevens et al., 2007) used heart rate

signals for detecting engage while students interacted

with a computer. In our previous work (Peng et al.,

2019; Peng et al., 2019), we took advantage of the use

of heart rate signals to predict the appropriateness

students’ answers, and we suggested that students’

mental confidence toward correctly giving answers

could be indicted by their heart rate features. Several

pieces of work (Stevens et al., 2007; Cowley et al.,

2013; Luft et al., 2013; Burt & Obradović, 2013)

analyzed brainwave EEG signals to understand the

cognitive states of students during the learning

process.

Reading Students’ Multiple Mental States in Conversation from Facial and Heart Rate Cues

2.2 Facial-signal-based Detection

With the development of computer vision

technologies, human mental states have usually been

detected on the basis of facial signals extracted from

video streams. Among them, eye related features like

eye blinking and eye-gaze analysis have been used to

help understand students’ concentration states

(Koning et al., 2010; Gomes et al., 2013). (L.

Devillers & L. Vidrascu, 2007) characterize human

smiles and laughter by monitoring mouth-noise

related features. (Grafsgaard et al., 2013) used mouth

features to predict overall levels of concentration,

frustration, and learning gain.

2.3 Novelty and Contributions

There are several aspects in which this study is

different from relevant studies. The contributions we

make are (1) instead of students in computer tutor

interaction or pre-designed script-based human-

human conversation activities, we are interested in an

“unplugged” scenario in which a student and his or

her advisor teacher have a conversation in real

coaching activities. We recorded a 3-month long

conversation between students and a teacher held

weekly in a face-to-face small-group meeting. In

these conversations, students started by stating their

research progress, and the teacher initiated the

conversation by asking questions to check students’

learning situations or look for detailed explanations

on uncertain content. Therefore, our research work

was applied and validated on a real-world dataset,

guaranteeing our results’ applicability and

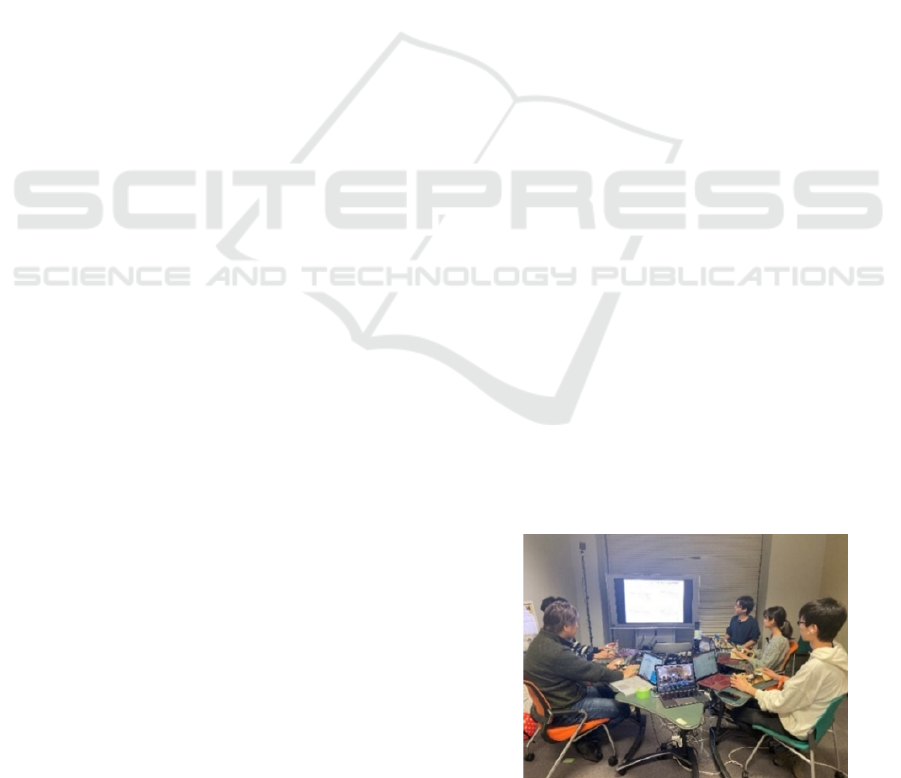

practicality in real-world coaching activities. (2) A

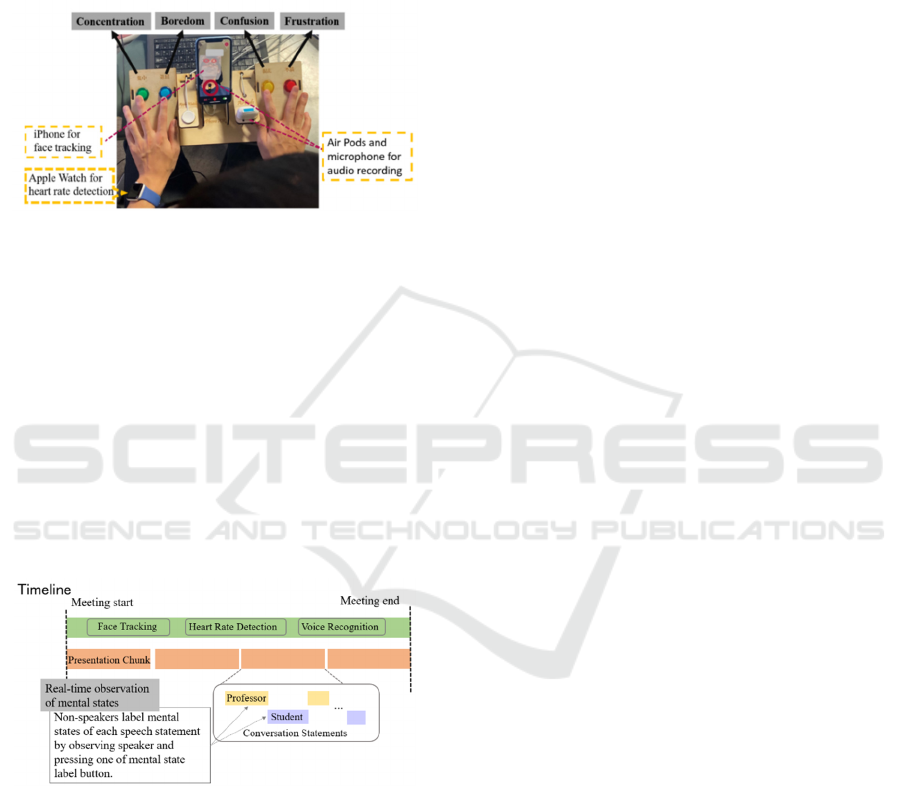

multi-sensor data collection system was developed

and applied in a small group meeting held in a lab, in

which we used the iPhone to track the facial

information of each meeting participant and used the

Apple watch to detect their heart rate signals. Audio

of the entire conversation was recorded and

transcribed into statements by Google Cloud Speech-

to-Text. A real-time mental-state label annotation tool

was built and launched for our system, and meeting

participants were asked to observe and annotate a

speaker’s mental states while the speaker was

speaking. Our multimodal data collection system

could support a 2-3 hours long group meeting

composed of conversation activities held amongst

multiple participants. Participants’ facial data,

physiological data, heart rate, audio, and the context

of the conversation as well as a speaker’s mental

states labels are synchronized, captured, and stored

structurally, and this shows the potential utility of our

system for long-term multimodal dataset collection as

well as for supporting the analysis of real-world

teacher-student conversation; (3) With few

exceptions, most existing work relies on univariate

modality, while our study attempts to propose a

multimodal framework based on multiple data

streams, that is, facial and heart rate signals used for

predicting students’ complex mental states:

concentration, confusion, frustration, and boredom. A

series of aggregated level features were extracted and

discussed as facial and physiological patterns in

characterizing students’ mental sates in conversation.

We generated several machine learning predictive

models to validate the precognitive ability of our

proposed multimodal framework and achieved good

results.

3 MULTIMODAL

CONVERSATION DATA

COLLECTION

3.1 Participants

The participants were 4 undergraduate/graduate

students and their advisor professor, and they ranged

in age from 21 to 24 years. The professor has been

guiding these 4 students for 1 to 2 years by holding

regular small-group progress report meetings every

week. Data for our multimodal dataset was collected

on the basis of these 4 students when they had a

conversation with the professor, in which they

reported their weekly study progress in a small-group

meeting held in a lab.

3.2 Data Collection System and

Procedure

In these conversation-based small group meetings,

students sat in a circle as shown in Fig. 1.

Figure 1: Conversation-based small group meeting.

CSEDU 2020 - 12th International Conference on Computer Supported Education

Before the meeting, as shown in Fig. 2, all

participants were asked to start a face tracking

function developed for the iPhone XR, which was

placed on the desk in front of each of them, by

choosing their name and pressing the recording

button. A paired Apple Watch worn on their wrist was

started synchronously to detect their heart rate.

Figure 2: Multi-sensors for multimodal data collection.

An AirPods earphone and a microphone on the chest

were also worn in order to collect the audio data when

they had a conversation with the teacher.

Students reported their research progress while

displaying content related in the form of a

presentation, and the whole meeting was segmented

into four presentation chunks according to the first

and last presentation slides for each student detected

by our system as shown in Fig. 3. For each chunk,

there would be continuous conversation between the

presenting student and teacher in which the teacher

started by asking questions regarding the content

being presented and the student answered them.

Figure 3: Structured meeting content.

A real-time label annotation tool was designed to

collect a speaker’s mental state annotations within the

speech of the conversation. Label annotation could be

generally categorized into self-reporting or

observation by a third party. Self-reporting method

carried out with student answering survey questioners

or watching video after experiments, and recalling

their mental states occurred in experiment (O'Brien &

Toms, 2010, D’Mello & Mills, 2014). Other streams

of work rely on external human observation and

annotation (Parsons & Taylor, 2012), in which

teachers or peers observe students’ mental states on

site or off site and evaluate their mental states.

Since we aimed to collect real-time mental state

labels without interrupting the speaker, we made

mental-state label buttons placed with the other

sensors on the desk. As shown in Fig. 2, there are four

buttons representing four mental states from left to

right: concentration, boredom, confusion, and

frustration. We adopt third party observation method

in which we asked all of the non-speakers (for each

presentation chunk, conversation only occurs

between the presenting student and teacher, so the

other non-presenting students and the listener in

conversation are non-speakers) to observe a speaker’s

mental states during his or her speech and press one

of the buttons to record the start time for observing

the mental states and press the same button again

when they observed the end or transition of the state.

Using our multimodal data collection system, we

recorded and generated structured meeting minutes

including a multimodal dataset of the participants

comprised of facial and heart rate data taken during

the whole meeting. Fig. 3 presents our structured

meeting content as well as rich conversation data

including audio and text information transcribed by

Google Transcribe, speaker information, and mental

state labels within the speech of the conversation.

We collected a total of 11 small-group meetings

for a total of 1320 minutes with a mean length of 330

minutes of multimodal data per student including

video of their face and their heart rate during the

whole meeting. For a single meeting, each student

had a mean of 25-30 minutes per presentation chunk

including research progress statements and

conversations with teacher, with the longest continues

conversation lasting 17 minutes and the shortest only

about 7.2 minutes. Audio and transcript information

for each conversation were also recorded.

Reading Students’ Multiple Mental States in Conversation from Facial and Heart Rate Cues

Figure 4: Example of annotated mental states within continues teacher-student conversation. Area with pink is students’

speech, while grey area is teacher’s speech, which is segmented by start and end time along meeting timeline using dotted

line. Horizontal lines inside each speech chunk represent annotated mental states at this speech clip annotated by one non-

speaker. State transition paths: (A) concentrated, confused, frustrated, and back to concentrated; (B) confused, frustrated,

confused, concentrated, confused, and back to concentrated.

4 METHODOLOGY FOR

PREDICTING MULTIPLE

MENTAL STATES

4.1 Qualitative Analysis on Mental

State Annotation

All non-speakers were asked to annotate speaker’s

mental states during speech by pressing one of the

labeled buttons and to press the same button again

when the conclusion or transition of the state was

observed. As shown in Fig. 4, we give an example of

annotated mental states within a continuous teacher-

student conversation. From the information shown in

the figure, (1) annotations mainly occurred for longer

speech. (2) As shown in (A), there is a clear transition

shift from concentration, confusion, frustration, and

back to concentration. (B) The speaker’s mental state

started from confused and transited to frustrated and

then back to confused and then to concentrated. These

two paths support the students’ dynamic mental-state

change theory we introduced at the beginning of this

paper, which guarantees the analyzability of our

experimental dataset. (3) There were fewer

annotations within the teacher’s speech, which may

indicate that the teacher intended to show sparse

mental state changes or their mental states were not

clear enough to be observed.

There were two types of annotators: participant-

student and the teacher, who was also a participant of

the conversation. We adopted Cohen’s Kappa (Landis

& Koch, 1977) to measure the inter-rater agreement

of the two different annotators. If the kappa varies

from 0.41 to 0.6, the agreement level is considered to

be moderate, and if it falls within the range of 0.6–0.8,

the issue is considered to be in substantive agreement

between different subjective opinions. If the kappa is

in the range 0.81–0.99, the two participants can be

considered to have almost reached perfect agreement

We randomly selected 60 speech clips (at least 10 sec

apart) annotated by the teacher and two graduate

school students, and we computed the Kappa value

between teacher and student A, teacher and Student

B, and student A and student B for each mental state

annotation. The results are shown in Table 1.

Table 1: Inter-rater agreement (Cohen’s Kappa) of mental

state annotation between teacher and student.

Teacher

Student A

Teacher

Student B

Student A

Student B

Concentration 0.60 0.57 0.59

Confusion 0.58 0.61 0.53

Frustration 0.42 0.42 0.33

Boredom 0.35 0.39 0.37

As seen in Table 1, the inter-rater agreement value for

concentration, confusion, and frustration were

relatively higher than boredom for all annotator

CSEDU 2020 - 12th International Conference on Computer Supported Education

groups. This is perhaps because, in teacher-student

conversations, students do not easily show that they

are bored. Due to the higher inter-rater agreement

level between teacher and student B, we selected the

first frame of the annotation and the next 150 frames

(5 seconds) as one mental state predictive segment.

4.2 Quantitative Analysis

4.2.1 Facial Feature Analysis

We implemented face tracking on the iPhone by

employing ARKit packages (ARKit, 2017), which

utilizes depth sensor data to generate a single facial

mesh over a user’s face and detects various

information of the user’s face, including its position,

orientation, and a series of blend shape coefficients to

represent a corresponding value of specific facial

features recognized by ARKit. The blend shape

coefficient is a floating-point number indicating the

current position of the respective feature relative to its

neutral configuration, ranging from 0.0 (neutral) to

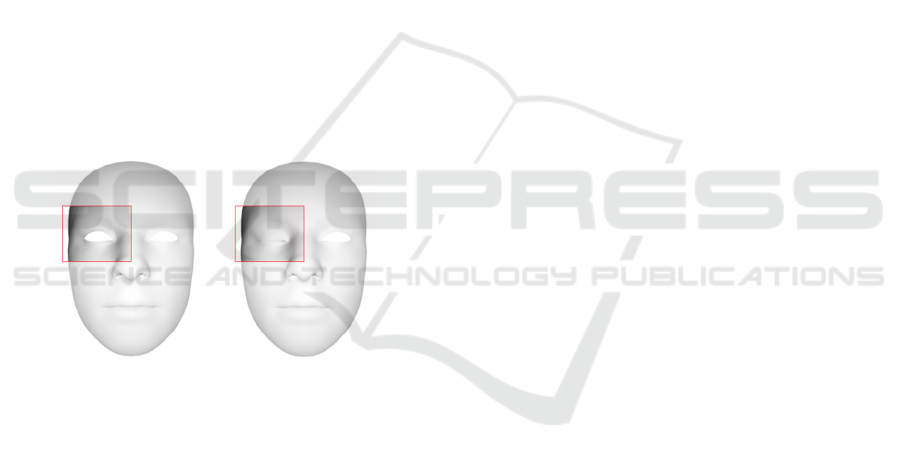

1.0 (maximum movement). Fig. 5 shows an example

using the feature to characterize the eye blinking of

the right eye by measuring the closure of the eyelid.

(a) Natural expression (b) Eye blink right

Figure 5: (a) Natural expression with coefficient = 0.0, (b)

maximum movement of right eye blinking with coefficient

= 1.0 (eyeBlinkRight, 2017).

We extracted a series of facial features describing the

movement patterns of eyes and mouth at an average

frequency of 30 Hz. The first 300 (10 seconds) from

each conversation were used as a baseline for

computing the features.

Eye-related Features: Eye blink action has always

been used in predicting mental states, and we used the

eyeBlinkLeft and eyeBlinkRight coefficients for

describing the closure of the eyelids over the left and

right eyes. The Pearson r score was computed to

measure the correlation coefficients between the two

eyes and was 0.995, which indicates consistency

between the movements of the two eye, and we

calculated the average of eyeBlinkLeft and

eyeBlinkRight coefficient values to characterize eye-

blink patterns. A Savitzky-Colay filter was applied

with a filtering window size of 15 frames to remove

spike artefacts within the eyeBlink time series data.

Eye blink rates were calculated through peak

detection.

We measured several features relative to the eyes

as patterns for describing relative eye movement,

including eyeBlink action frequency, the proportion

of time a student had their eyes closed during blinking

(closure time), the proportion of time the students’

eyes were open, and the amplitude value of eyeBlink.

Mouth-related Features: To characterize the 2D

movement of the mouth, we employed the

mouthOpen/Close coefficients to characterize mouth

movement along the vertical direction with

mouthSmileLeft and mouthSmileRight coefficients

which measure the upward movement of both corner

of the mouth, together with mouthFrownLeft and

mouthFrownRight coefficients which measure

downward movement of both corner of the mouth to

describe the mouth corner movement within four

quadrants. We took the average of mouthSmileRight

and mouthFrownRight to compute the movement of

right corner of the mouth and the average of

mouthSmileLeft and mouthFrownLeft for the left

corner movement. We also took the mean value of

mouthOpen and Close to compute the lip movement.

As shown in Fig. 6, we give an intuitive example

of one student’s mouth actions during conversation

using the features we introduced above: (a) mouth

open, (b) mouth closed, (c) smile (both corners of

mouth shows clear upward movement), and (d)

mouth frown (both corners clear downward

movement).

We then computed the velocity, acceleration of

the lips and both mouth corners, and the proportion of

time students spent smiling and frowning.

4.2.2 Heart Rate Feature Analysis

The heart rate data we collected was at a frequency of

1 Hz. We computed the time domain features

including the mean, standard deviation (std.), root

mean square successive difference (RMSSD), max,

min, variance, and the heart rate trend by calculating

the difference between two adjacent heart rate points.

If the number of positive differences was more than

the negative one, we assumed that this heart rate

period showed an upward trend; if not, it showed a

downward one. We also computed spectral entropy as

frequency domain features. In Table 2, we summarize

the features derived from facial and heart rate signals.

Reading Students’ Multiple Mental States in Conversation from Facial and Heart Rate Cues

Figure 6: Visualization of mouth actions using mouth related features.

Table 2: Summary of features.

Feature descriptions

Eye-related

features

Eye blink frequency

Proportion of time closed

Proportion of time open

Mean, Std., Max, Min, range

of eye blink amplitude

Mouth-

features

Lips

mouth

corner

Mean, Std., Max, Min,

range of velocity

Mean, Std., Max, Min,

range of acceleration

Proportion of “smile” time

Proportion of “frown” time

Heart rate-

features

Mean, Std. Max, Min, RMSSD,

HR trend

4.3 Predicting Multiple Mental States

In this section, we evaluate the predictive utility of a

combination of feature sets derived from the facial

signals and heart rate signals in predicting the

students’ mental states in conversation. We adopted

Softmax Regression (SR), Multilayer Perceptron

Neural Network (MLP), and Random Forest (RF)

machine learning methods to build multi-class

classifiers for each combination of feature sets and a

leave-conversation block-out method to evaluate the

predictive performance for each multi-class classifier.

We started from the baseline model by using the

raw facial features, mouth and eye related raw signals,

and we then used the aggregated level facial related

features summarized in Table 2. We finally estimated

the performance for a complete set features fusing

multiple modalities by adding raw HR data to raw

facial features and adding aggregated statistic HR

features to aggregated facial features. In Table 3, we

report the macro F1-scores for each classifier.

Table 3: Summary of macro F1-score for each classifier for

different feature sets.

Raw

facial

Aggregated

facial

Raw

facial

and

Aggrega

-ted

facial

and

SR 0.54 0.59 0.51 0.59

MLP 0.64 0.64 0.67 0.63

RF 0.59 0.63 0.62 0.68

From the results shown in Table 3, for raw facial

features, we achieved an F1-score of 0.64 for the

MLP model and 0.59 for the RF model, which

indicates that MLP can better learn interpretable

features from facial raw signals as proxies for the task

of predicting mental states than random forest. Our

proposed aggregated facial features improved the

predictive ability from 0.59 to 0.63 for RF model,

while they did not provide additional information for

the MLP model, which maintained the same F1-score.

Raw HR added additional utility over the raw facial

features, with F1-scores that increased from 0.64 to

0.67 for MLP and from 0.59 to 0.62 for the RF model.

Moreover, the aggregated HR features helped the

aggregated facial features improve the predictive

ability for the RF model but decreased the ability for

the MLP model. These results show that our proposed

feature extraction method could provide a more

interpretable description of students’ different mental

states than as traditional machine learning model, that

CSEDU 2020 - 12th International Conference on Computer Supported Education

is, random forest. Finally, the SR model showed an

overall lower predictive ability than the other two

models. We think that this may indicate the non-linear

relationship between these two modalities, which is

valuable to validate in the future.

5 CONCLUSION AND FUTURE

WORK

In this paper, we aimed to predict students’ complex

mental states, that is, concentration, confusion,

frustration, and boredom in real-world student-

teacher conversation from a multimodal data stream

that included facial and heart rate signals. A multi-

sensor-based multimodal data collection system was

developed and applied in a real group meeting in a lab,

where task-oriented conversation activities occurred

between 4 graduated students and their teacher. We

recorded 11 group meetings to create a dataset for

over 1320 minutes of multimodal data on the basis of

facial and heart rate signals as well as the audio and

textual information of the conversation. A real-time

mental state annotation tool was designed. We asked

all non-speakers in the meeting to annotate mental

state labels for speakers while they made a

presentation. The inter-rater agreement for each

annotated mental state class between the teacher and

student was measured, and we used a teacher and one

student who had a higher consistency level in terms

of annotation for the mental-state annotation results.

We then proposed a multimodal framework for

exploring interpretable multimodal patterns in

predicting students’ mental states in conversation.

Several visual features were extracted for

characterizing eye and mouth movements including

eye blink frequency, the proportion of time for which

eyes are closed or open, the mean, std., max, min, and

range of eye blink amplitude. We measured the

movement of the lip and mouth corners vertically and

in four quadrants, along with the proportion of time

for “mouth smile” and “mouth frown.” We also took

advantage of heart rate data as our physiological

proxy for mental state prediction.

Last, we generated several machine learning

models including Softmax Regression (SR),

Multilayer Perceptron Neural Network (MLP), and

Random Forest (RF) using different multimodal

feature sets. Our proposed multimodal features

(aggregated facial and heart rate features) achieved

the best predictive ability regarding students’ mental

states when using the random forest model. These

results validated our proposed multimodal framework.

The framework could provide fine-grained

interpretable features as a proxy in predicting students’

complex mental states in conversation and also

illustrated the utility of fusing information from

multiple modalities in this prediction task. In addition,

MLP performed well in automatically learning

features from raw facial and heart rate signals, which

may provide evidence for potential possibilities of

predicting students’ real-time mental states.

There are multiple types of future work that could be

considered for our scalable multimodal dataset and

the current prospective experiment’s results. (1) The

teacher (conversation partner)’s multimodal data

were also collected, which we are going to take a deep

dive and analyze the potential utility of interaction

behavior patterns in predicting presenter-students’

mental states. (2) In addition to facial and heart rate

signals, audio and textual information from the

conversation were also collected. We plan to extend

our multimodal framework by adding the

conversation data to improve our prediction ability.

(3) In terms of application, we are going to launch our

mental-state prediction model for use with our data

collection system. We aim to alert teachers when

students are facing an “assistance dilemma” shown

through their confusion and frustration, in order to let

teachers provide a timely and suitable intervention to

improve students’ learning outcomes.

REFERENCES

Apple Inc., Arkit — Apple developer documentation,

https://developer.apple.com/documentation/arkit,

Accessed: 2017-12-04

Busso, C., Bulut, M., Lee, C.-C., Kazemzadeh, A. Mower,

E., Kim, S., Chang, J. N., Lee, S., & Narayanan, S. S.

(2008). IEMOCAP: Interactive emotional dyadic motion

capture database, In: Language Resources and

Evaluation, 42(4), 335.

Bell, B. & Cowie, B. (2001). The characteristics of formative

assessment in science education. In: Science Education,

85(5), 536-553.

Burt, K. B. & Obradović, J. (2013). The construct of

psychophysiological reactivity: Statistical and

psychometric issues. In: Developmental Review, 33(1),

29-57.

Craig, S., Graesser, A., Sullins, J., & Gholson, B. (2004).

Affect and learning: an exploratory look into the role of

affect in learning with AutoTutor. In: Journal of

Educational Media, 29(3), 241-250.

Calvo, R. A. & D'Mello, S. (2010). Affect detection: An

interdisciplinary review of models, methods, and their

applications. In: IEEE Transactions on Affective

Computing, 1(1), 18-37.

Reading Students’ Multiple Mental States in Conversation from Facial and Heart Rate Cues

Cowley, B., Ravaja, N. & Heikura, T. (2013). Cardiovascular

physiology predicts learning effects in a serious game

activity. In: Computers & Education, 60(1), 299–309.

D’Mello, S. K., Craig, S. D., Sullins, J., & Graesser, A. C.

(2006). Predicting affective states expressed through an

emote-aloud procedure from AutoTutor’s mixed-

initiative dialogue. In: International Journal of Artificial

Intelligence in Education, 16(1), 3-28.

Devillers, L. & Vidrascu, L. (2007). Real-life emotion

recognition in speech. In: Speaker Classification II. pp.

34–42. Springer, Berlin, Heidelberg.

D’Mello, S. K., Craig, S. D., Witherspoon, A., Mcdaniel, B.,

& Graesser, A. (2008). Automatic detection of learner’s

affect from conversational cues. In: User Modeling and

User-adapted interaction, 18(1-2), 45-80.

D’Mello, S. & Graesser, A. (2012). Dynamics of affective

states during complex learning. In: Learning and

Instruction, 22(2), 145–157.

D’Mello, S. (2013). A selective meta-analysis on the relative

incidence of discrete affective states during learning with

technology. In: Journal of Educational Psychology,

105(4), 1082.

D’Mello, S. & Mills, C. (2014). Emotions while writing

about emotional and non-emotional topics. In:

Motivation and Emotion, 38(1), 140-156.

EyeBlinkRight, Apple developer documentation,

https://developer.apple.com/documentation/arkit/arfacea

nchor/blendshapelocation/2928262-eyeblinkright.

Forbes-Riley, K. & Litman, D. (2011, June). When does

disengagement correlate with learning in spoken dialog

computer tutoring? In: International Conference on

Artificial Intelligence in Education. pp. 81–89. Springer,

Berlin, Heidelberg.

Feidakis, M., Daradoumis, T., & Caballé, S. (2013, January).

Building emotion-aware features in computer supported

collaborative learning (CSCL) systems. In: Alpine

Rendez-Vous (ARV) Workshop on Tools and

Technologies for Emotion Awareness in Computer-

Mediated Collaboration and Learning (ARV 2013).

Gomes, J., Yassine, M., Worsley, M., & Blikstein, P. (2013,

July). Analysing engineering expertise of high school

students using eye tracking and multimodal learning

analytics. In: Educational Data Mining.

Grafsgaard, J. F., Wiggins, J. B., Boyer, K. E., Wiebe, E. N.,

& Lester, J. C. (2013, July). Embodied affect in tutorial

dialogue: student gesture and posture. In: International

Conference on Artificial Intelligence in Education. pp. 1–

10. Springer, Berlin, Heidelberg.

Grafsgaard, J., Wiggins, J. B., Boyer, K. E., Wiebe, E. N., &

Lester, J. (2013, July). Automatically recognizing facial

expression: Predicting engagement and frustration. In:

Educational Data Mining.

Hussain, M. S., AlZoubi, O., Calvo, R. A., & D’Mello, S. K.

(2011, June). Affect detection from multichannel

physiology during learning sessions with AutoTutor. In:

International Conference on Artificial Intelligence in

Education. pp. 131–138. Springer, Berlin, Heidelberg.

Kapoor, A. & Picard, R. W. (2005). Multimodal affect

recognition in learning environments, In: Proceedings of

the 13th Annual ACM International Conference on

Multimedia, pp. 677–682.

Koning, B. B. de, Tabbers, H. K., Rikers, R. M., & Paas, F.

(2010). Attention guidance in learning from a complex

animation: Seeing is understanding?, In: Learning and

Instruction

, 20(2), 111–122.

Landis, J. R. & Koch, G. G. (1977). The measurement of

observer agreement for categorical data. In: Biometrics,

159-174.

Li, Y., Su, H., Shen, X., Li, W., Cao, Z., & Niu, S. (2017).

DailyDialog: A manually labelled multi-turn dialogue

dataset. In: arXiv preprint arXiv: pp. 1710-03957.

Luft, C. D., Nolte, G., & Bhattacharya, J. (2013). High-

learners present larger mid-frontal theta power and

connectivity in response to incorrect performance

feedback. In: The Journal of Neuroscience, 33(5), 2029–

2038.

O'Brien, H. L. & Toms, E. G. (2010). The development and

evaluation of a survey to measure user engagement. In:

Journal of the American Society for Information Science

and Technology, 61(1), 50-69.

Pardos, Z. A., Baker, R. S., San Pedro, M. O., Gowda, S. M.,

& Gowda, S. M. (2014). Affective states and state tests:

Investigating how affect and engagement during the

school year predict end-of-year learning outcomes. In:

Journal of Learning Analytics, 1(1), 107-128.

Parsons, J. & Taylor, L. (2012). Student engagement: What

do we know and what should we do? In: University of

Alberta.

Poria, S., Majumder, N., Mihalcea, R., & Hovy, E. (2019).

Emotion recognition in conversation: Research

challenges, datasets, and recent advances. In: IEEE

Access, 7, 100943-100953.

Peng, S., Ohira, S., Nagao, K. (2019). Prediction of Students’

Answer Relevance in Discussion Based on their Heart-

Rate Data, In: International Journal of Innovation and

Research in Educational Sciences (IJIRES), 6(3), 414-

424.

Peng, S., Ohira, S., Nagao, K. (2019). Automatic Evaluation

of Students’ Discussion Skills Based on their Heart Rate.

In: Computer Supported Education, 1022, 572-585,

Springer.

Rodrigo, M. M. T., Baker, R. S., Agapito, J., Nabos, J.,

Repalam, M. C., Reyes, S. S., & San Pedro, M. O. C.

(2012). The effects of an interactive software agent on

student affective dynamics while using; an intelligent

tutoring system. In: IEEE Transactions on Affective

Computing, 3(2), 224-236.

Shepard, L. A. (2005). Linking formative assessment to

scaffolding. In: Educational Leadership, 63(3), 66-70.

Stevens, R. H., Galloway, T., & Berka, C. (2007, July). EEG-

related changes in cognitive workload, engagement and

distraction as students acquire problem solving skills. In:

International Conference on User Modeling. pp. 187–

196. Springer, Berlin, Heidelberg.

Whitehill, J., Serpell, Z., Foster, A., Lin, Y. C., Pearson, B.,

Bartlett, M., & Movellan, J. (2011, June). Towards an

optimal affect-sensitive instructional system of cognitive

skills. In: CVPR 2011 Workshops. pp. 20–25. IEEE.

CSEDU 2020 - 12th International Conference on Computer Supported Education
