TermIt: A Practical Semantic Vocabulary Manager

Martin Ledvinka, Petr K

remen, Lama Saeeda and Miroslav Bla

sko

Department of Computer Science, Faculty of Electrical Engineering, Czech Technical University in Prague,

Technick

a 2, Prague 6 - Dejvice, Czech Republic

Keywords:

Vocabulary Management, Glossary, Semantic Search, SKOS.

Abstract:

Many organizations already beneﬁt from using semantic vocabularies which help them systematize, search

and reuse their data. However, to efﬁciently manage such vocabularies, appropriate and adequate tools are

needed. In this paper, we present TermIt, an integrated system for managing a set of interconnected vocabu-

laries, identiﬁcation of individual concepts in source documents, and using such terms for semantic data asset

annotation and subsequent search. We relate TermIt to other relevant tools and present usage scenarios we

have identiﬁed so far.

1 INTRODUCTION

Consider the following sentences: “The construction

of the Large Hadron Collider took ten years.” and

“The construction of the Large Hadron Collider is

hidden in a 27 km-long underground tunnel.” The

word construction is used in different meanings con-

veyed by the context – an event/process in the former

case and its outcome in the latter. Now consider an-

other example: according to the Energy Management

Act of the Czech Republic, a building is a construc-

tion both above and below ground with heating. On

the other hand, according to the Land Registry Act,

a building is a construction above ground with solid

foundations. It can be seen that the words denote pos-

sibly different underlying concepts. Contemporary

search engines are based on words and would make no

distinction between documents using the word build-

ing in either sense.

Such issues lead to the need for building (pun in-

tended) glossaries of terms with precise deﬁnitions of

the concepts they represent. These glossaries can then

be used as a reference and disambiguate the meaning

of plain language words, and are of crucial impor-

tance when delivering well-deﬁned search over data

assets (e.g., open data sets provided by the public ad-

ministration) – both for query speciﬁcation and result

presentation. A glossary may start as a ﬂat list of

terms with deﬁnition and label, but usually at least

a basic hierarchical structure specifying that some

terms are more general (in various senses) than others

can be derived. In this case, organizational schemes

like SKOS (Miles and Bechhofer, 2009) need to be

used to describe this structure. Once a glossary exists,

the relationships between its terms can be reﬁned – an

ontological model of the domain is built. The glos-

sary, containing a hierarchy of terms, and the model,

specifying concrete relationships between the terms,

comprise the vocabulary of the domain in discourse.

1.1 Motivation

While it is reasonable to expect that domain experts

will be able to create a glossary, the task of building

a domain model from this glossary is far more com-

plex. In our experience, most domain experts need

to be guided through this process, or even worse –

they just validate model proposals offered by knowl-

edge engineers (K

remen and Ne

cask

y, 2019). This is

mostly because a model is typically built using a spe-

ciﬁc formalism, which gives its elements and their re-

lationships a predeﬁned semantics. Such formalisms

may range from purely technical like UML (Rum-

baugh et al., 2004) or OWL (Motik et al., 2012) to

more abstract like the Uniﬁed Foundational Ontology

(UFO) (Guizzardi, Giancarlo, 2005). Domain experts

are rarely proﬁcient in these modeling formalisms and

a modeling expert is needed for the task of transform-

ing the glossary into a model.

The goal of this work is to streamline the process

of vocabulary creation and management by giving do-

main experts TermIt – a tool for efﬁcient glossary

management. In addition, the glossary terms can be

utilized to provide a more precise resource (data as-

Ledvinka, M., K

remen, P., Saeeda, L. and Blaško, M.

TermIt: A Practical Semantic Vocabulary Manager.

DOI: 10.5220/0009563707590766

In Proceedings of the 22nd International Conference on Enterprise Information Systems (ICEIS 2020) - Volume 1, pages 759-766

ISBN: 978-989-758-423-7

759

set) search, in which the meaning of the terms rather

than their label is used to describe the resources.

The rest of the paper is structured as follows: Sec-

tion 2 introduces the theoretical foundations of our

terminology editor, whereas Section 3 presents the

tool itself. Section 4 reviews related work and Sec-

tion 5 discusses our experience with using the tool.

The paper is concluded in Section 6.

2 ONTOLOGICAL

FOUNDATIONS

Semantic Web ontologies, thanks to their ability

to uniquely identify and formally specify concepts

and their relationships (Guarino et al., 2009), share

schema deﬁned in standard languages, and allow in-

ference of implicit knowledge thanks to expressive

underlying formalisms, are a natural choice for build-

ing domain vocabularies. In such a scenario, a vocab-

ulary is an ontology which can be split into a glossary

and a model, which are ontologies themselves, albeit

at a different level of complexity. However, ontology-

based terminology editors and modeling tools add yet

another layer of knowledge required from their users.

While ontology engineers can take care of modeling,

domain experts may not appreciate having to learn

this new formalism.

Nevertheless, one should not give up the bene-

ﬁts of Semantic Web technologies so easily. That is

why the terminology editor presented in this work has

strong ontological foundations, whilst providing an

easy to use interface even for users without Semantic

Web background. TermIt stores the vocabularies as

RDF (Cyganiak et al., 2014) under a well-deﬁned on-

tological model which is itself based on several other

more general ontologies. This hierarchy is visualized

in Figure 1 and described below.

2.1 Uniﬁed Foundational Ontology

The Uniﬁed Foundational Ontology (UFO) (Guiz-

zardi, Giancarlo, 2005) is an upper-level ontology –

an ontology of generic terms (Mascardi et al., 2007).

It allows more speciﬁc ontologies to share a common

meta-model of basic concepts and relationships. This

allows, for example, someone with the knowledge of

UFO to quickly gain an insight into a domain by ex-

amining how its elements relate to the generic UFO

model. UFO draws inspiration from philosophy and

modal logic and introduces class stereotypes (essen-

tially, classes of classes) such as Kind, Phase, Role,

or Relator, and relationship stereotypes like Media-

tion, Characterization, and several part-whole types.

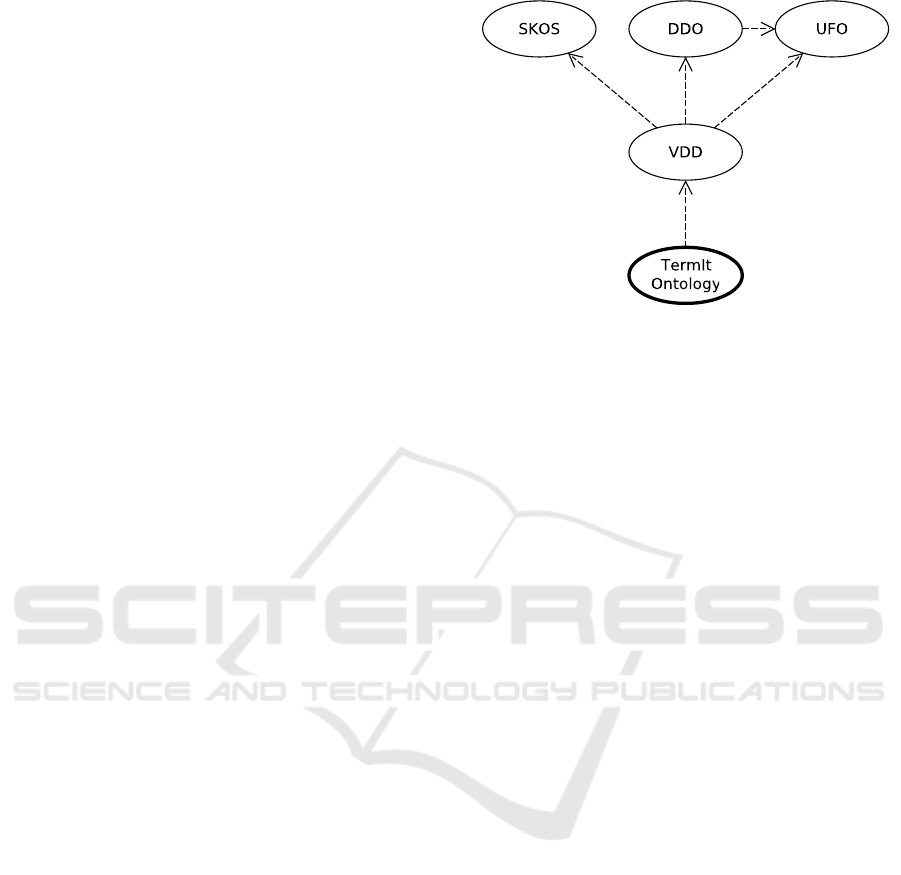

Figure 1: Hierarchy of ontologies on which TermIt is based.

Arrows represent dependency. The TermIt ontology is em-

phasized. Acronyms are explained in the text.

As mentioned, using UFO allows to ground an

ontology in a common, well-deﬁned and computable

structure of basic concepts.

2.2 Simple Knowledge Organization

System

The Simple Knowledge Organization System

(SKOS) (Miles and Bechhofer, 2009) provides a sim-

ple and generic vocabulary for organizing knowledge

in a wide range of domains. SKOS recognizes two

main classes – a Concept which represents a notion

in the domain of discourse, and a Concept scheme,

representing a collection of concepts. Concepts can

then be characterized by a number of properties,

like preferred and alternative label, and put into a

hierarchy using the broader and narrower properties.

The meaning of all the SKOS notions is intentionally

vague, so that it ﬁts various use cases.

The difference between use cases of SKOS and

UFO is analogous to our ideas of glossary and model.

While a glossary uses SKOS for domain decompo-

sition due to its simplicity, a model uses UFO, which

gives the ontology engineer greater power to precisely

describe the understanding of the domain.

2.3 Dataset Descriptor Ontology

The Dataset Descriptor Ontology can be used to char-

acterize datasets (Bla

sko et al., 2016). The original

idea is that every dataset can be described using a de-

scriptor – an easy to interpret and visualize RDF sum-

mary. Such a descriptor can provide, for example, in-

formation about the number of concepts and their us-

age in the dataset. In the case of TermIt, vocabularies

as well as resources are considered datasets.

ICEIS 2020 - 22nd International Conference on Enterprise Information Systems

760

2.4 Vocabulary for Data Description

The Vocabulary for Data Description (VDD)

is a

general-purpose ontology for describing vocabular-

ies, data sources and their attributes. For example,

it recognizes three kinds of vocabularies: agenda (de-

scribing an operational area), data (describing a data

source), and document (stemming from a normative

document) vocabularies.

The TermIt ontology relies on the VDD and adds

more application-speciﬁc classes and properties nec-

essary for the proper functionality of the system.

3 TermIt

TermIt is an easy-to-use vocabulary manager and

glossary editor. It allows domain experts to deﬁne

their own terms (SKOS concepts with deﬁning meta-

data), organize them in (SKOS) hierarchies and use

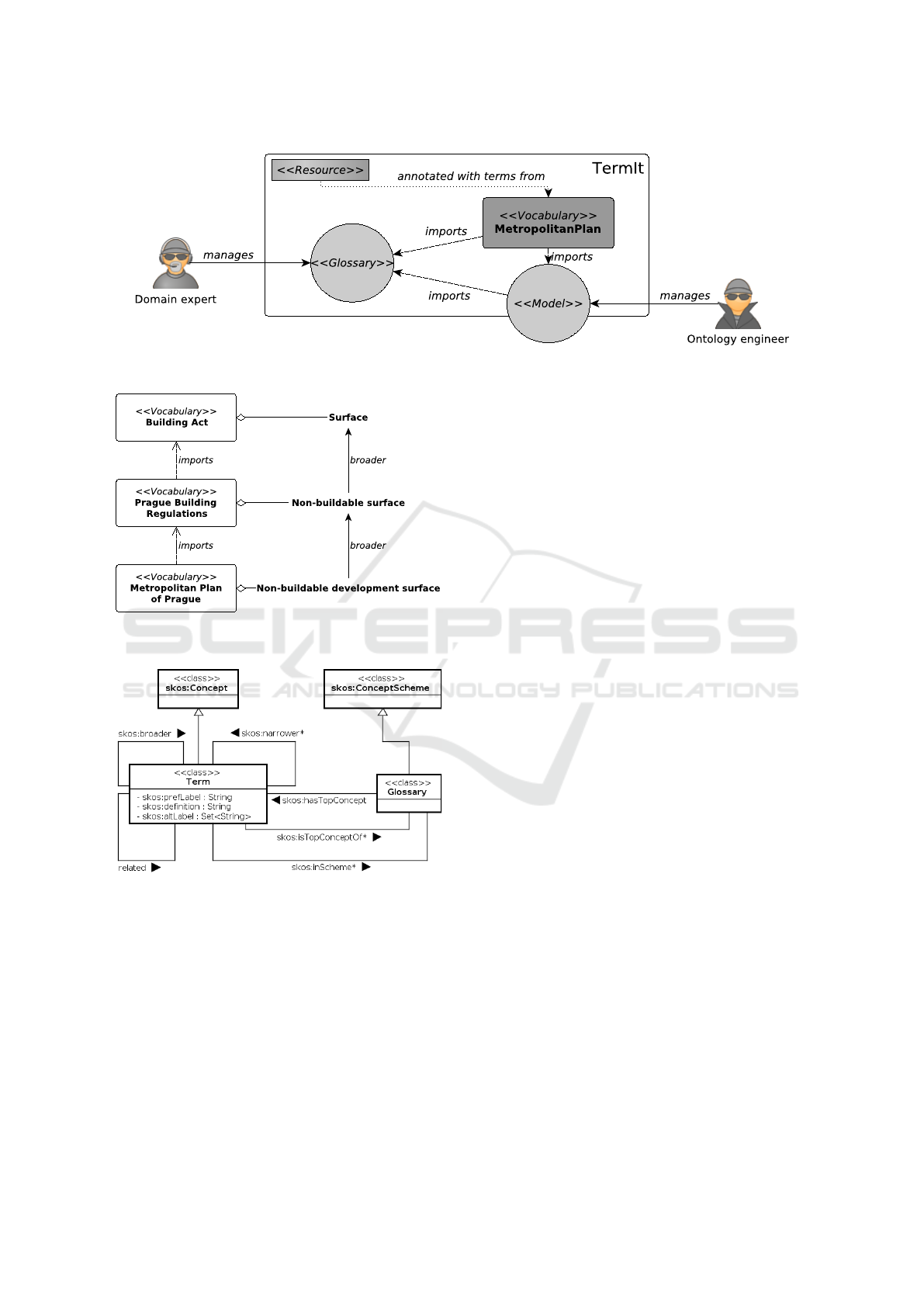

them for resource annotation and search. A simpliﬁed

schema of TermIt’s approach can be seen in Figure 2.

The two main functional areas of TermIt are:

• Vocabulary management

• Resource annotation and search

3.1 Vocabulary Management

TermIt allows its users to manage vocabularies and,

primarily, edit their glossaries. The glossaries have

SKOS-compatible structure. That is, the terms are ar-

ranged in a (potentially ambiguous – the relationships

can be of different nature) hierarchy. For each term,

basic data like label, deﬁnition, source of the deﬁ-

nition, and additional commentary can be provided.

Moreover, the terms can be classiﬁed using a simpli-

ﬁed, UFO-based vocabulary. This classiﬁcation vo-

cabulary is conﬁgurable, so, for example, for the area

of legislation document vocabularies, more speciﬁc

types are available. For instance, a term can thus be

classiﬁed not only as a relationship, but, more pre-

cisely, a legal relationship.

Vocabularies managed by TermIt can be related

to each other, typically also in a hierarchical man-

ner. The term hierarchy can then span a hierarchy

of vocabularies as well. For instance, in one of the

use cases in the urban planning domain, there exists

a hierarchy of three vocabularies: the Building Act,

the Prague Building Regulations and the Metropolitan

Available at http://onto.fel.cvut.cz/ontologies/slovnik/

agendovy/popis-dat/current/index-en.html, accessed

2020-03-15.

plan of Prague. Figure 3 then shows how a hierarchy

of selected terms may cross the boundaries between

these vocabularies.

Structuring vocabularies and terms in a hierarchy

is natural, but it is of course possible to relate them

without assuming any broader-narrower relationship.

Therefore, a vocabulary simply imports another vo-

cabulary. As far as terms are concerned, one can use

the SKOS related property to specify an associative

relationship between terms without giving its details

(which may be provided later by the ontology engi-

neer).

TermIt currently supports regular vocabularies

and document vocabularies. Document vocabularies

are associated with a document which may consist of

several ﬁles (see Section 3.2). The idea is that a doc-

ument vocabulary is typically based on a normative

document, whose text is the source of the terms in

the vocabulary and their deﬁnitions. For instance, the

vocabularies from Figure 3 are all document vocabu-

laries.

Besides the aforementioned SKOS-based at-

tributes and provenance data (author, date of creation

etc.), a term can have additional properties. These

properties can be used to provide further information

about the terms, for example, the department respon-

sible for maintenance of a speciﬁc term. Furthermore,

it allows TermIt to partially cross the boundary into

the modeling realm. For instance, consider the SKOS

broader relationship between Non-buildable surface

and Surface from Figure 3. Using these additional

properties, it is possible to declare that Non-buildable

surface is actually a specialization of Surface. Of

course the ergonomics of this interface is far worse

than that of a modeling tool, but it can provide at least

a basic insight into the model to a more advanced user.

The glossary editing part of TermIt does not cover

the whole SKOS vocabulary, instead, a selected set of

classes and properties deemed relevant is used. This

set can be seen in Figure 4. Some of the relation-

ships (e.g., the SKOS inScheme property) need not

be explicitly stated in the data. Instead, reasoning ca-

pabilities of the underlying triple store and the TermIt

ontology schema are utilized to infer them.

3.2 Resource Annotation and Search

TermIt allows to register resources in order to support

two main scenarios: 1) creating vocabularies based on

normative documents; 2) semantic search of resources

facilitated by terms assigned to them.

Four types of resources exist in TermIt:

Resource base type of data assets without any closer

characterization,

TermIt: A Practical Semantic Vocabulary Manager

761

Figure 2: Simpliﬁed schema of TermIt usage.

Figure 3: Vocabulary and term hierarchy example. Border-

less nodes represent terms.

Figure 4: UML class diagram illustrating the use of SKOS

classes and properties in TermIt. Preﬁx-less classes are lo-

cal to TermIt (they actually come from the VDD). Properties

marked with an asterisk are inferred.

Dataset a set of arbitrary data, which may or may not

be in a Semantic Web-compatible format. For in-

stance, many public organizations nowadays pub-

lish their datasets as part of the open data initia-

tive, yet, a lot of these datasets are in the form of

CSV ﬁles,

Document a logical container consisting of zero or

more ﬁles. Document vocabularies are based on

documents,

File represents a single ﬁle whose content may be up-

loaded into the system and, in case of textual ﬁles,

analyzed.

Documents and textual ﬁles are relevant for scenario

1), whereas scenario 2) covers all the four types of

resources.

3.2.1 Creating Vocabularies based on

Documents

This use case represents a situation when one wants

to create a vocabulary based on a document. Since

normative documents often rely on auxiliary ﬁles, a

document, in the understanding of TermIt, is primar-

ily a logical container of ﬁles. In this scenario, the

user creates a document vocabulary and uploads the

relevant ﬁle(s) into TermIt. Afterwards, it is possi-

ble to run an automated text analysis service on these

ﬁles. This service is able to suggest new terms based

on their signiﬁcance in the ﬁle content. The text anal-

ysis service will be discussed in further detail in Sec-

tion 3.3.1.

The user can then open the annotated ﬁle in Ter-

mIt, review the suggestions (marked in text), create

terms from them, or mark and create new terms.

3.2.2 Resource Annotation

This scenario assumes that a non-empty vocabulary

already exists. This vocabulary can be used to anno-

tate arbitrary resources registered in TermIt and thus

provide a term-based resource search.

It is possible to assign terms to resources, indicat-

ing that they are relevant for the resource in question.

For example, datasets published online can be regis-

tered in TermIt, assigned terms and searched for.

In addition, for textual ﬁles, the text analysis ser-

vice can also be used to discover mentions of terms

in the content. The service will suggest the men-

tions, so that the user may approve or discard them. If

ICEIS 2020 - 22nd International Conference on Enterprise Information Systems

762

the mention has sufﬁcient conﬁdence score (see Sec-

tion 3.3.1), the term is also assigned to the resource.

With this, one can use TermIt as a catalogue of

resources and search them more accurately thanks to

the terms. Consider an example related to the mo-

tivational scenario in the beginning: a user is inter-

ested in resources mentioning “construction” as the

process of building something. They open TermIt and

run regular full-text search for the word “construc-

tion”. TermIt ﬁnds terms and vocabularies whose rel-

evant attributes (label, deﬁnition, description) match

the search string. The user selects the appropriate

term. On the term detail screen, TermIt offers the

user to view resources to which the term is assigned,

effectively eliminating cases where “construction” is

meant as a physical artifact.

Such a functionality can go even further in that

the user may discover related resources – resources

sharing common terms. This is currently not im-

plemented directly in the TermIt user interface, but

rather provided as a Web service for other tools. An

experimental instance of the Czech National Open

Data Catalog

is able to ﬁnd related datasets via the

terms they share. Another example of annotating re-

sources concerns vocabulary models – ontology engi-

neers responsible for modeling a vocabulary register

a resource representing the model’s diagram in Ter-

mIt and annotate it with the terms it contains. TermIt

users can then immediately see the topic of the model

just by looking at the terms it is annotated with.

3.3 Technical Viewpoint

TermIt is an open source Semantic Web-based infor-

mation system consisting of an ontological model and

a regular Web application. The application itself has

a backend

written in Java and a frontend

written in

TypeScript using the React framework.

The system

stores its data in a triple store with a custom set of

rules for inference tasks. As far as expressiveness of

this ruleset is concerned, it supports RDFS (Brickley

and Guha, 2014) and selected OWL features such as

inverse properties. The frontend communicates with

the backend via a REST API using JSON-LD as the

data format (plain JSON is supported as well). The

REST API is documented using Swagger.

https://data.gov.cz/english/, accessed 2020-03-15.

Source code available at https://github.com/kbss-cvut/

termit, accessed 2020-03-15.

Source code available at https://github.com/kbss-cvut/

termit-ui, accessed 2020-03-15.

https://reactjs.org/, accessed 2020-03-15.

https://app.swaggerhub.com/apis/ledvima1/TermIt/,

accessed 2020-03-15.

Since the data in TermIt are stored in a triple store,

it is easy to provide them as Linked Data (Wood

et al., 2013). The current instances achieve this via

a Pubby (Cyganiak and Bizer, 2007) instance which

is pointed to the underlying repository.

3.3.1 Annotace

Annotace,

a text annotation service, is implemented

and used in the context of TermIt. Annotace enhances

the process of building vocabularies that are related

to textual resources in the two scenarios already dis-

cussed in Sections 3.2.1 and 3.2.2:

• In the ﬁrst scenario, a new document (or, more

precisely, a set of ﬁles comprising the document)

is uploaded into the TermIt document manager,

and a newly created vocabulary is associated with

it. The vocabulary is empty at this point. The

task is to help the user start building the vocab-

ulary based on the text present in the document.

Annotace starts analyzing the text based on statis-

tical methods, namely, it uses the keyword extrac-

tor tool (KER) (Libovick

y, 2016) to extract the

most signiﬁcant mentions from the text as candi-

date concepts in the vocabulary. This step does

not involve any semantic technology since there

is no semantic information present in the knowl-

edge base yet. The extracted information is then

presented to the user by TermIt as highlighted text

with actions. These actions allow the user to cre-

ate a new term in the vocabulary or reject the sug-

gested term if it is irrelevant to the associated vo-

cabulary.

• The second scenario has a lot in common with the

previous one, but it assumes that the vocabulary

already has seed terms. Besides the steps intro-

duced in the ﬁrst scenario, Annotace starts ana-

lyzing the document using the concepts in the as-

sociated vocabulary to ﬁnd mentions in the text

that refer to speciﬁc entities in the vocabulary and

provides links between them. These mentions are

also presented as highlighted text in the document,

but differ from the extracted terms in the statisti-

cal step by providing a link to the associated term

directly. Similar to create and reject actions, the

user is allowed to approve the suggested associa-

tion or change it to a different term.

Both scenarios suggest human interaction with the

system to approve or reject the output of Annotace.

The semi-automatic approach is paramount to keep-

ing high precision of building the ontology and sav-

ing the user time and effort needed to be spent with

Source code is at https://github.com/kbss-cvut/annotace,

accessed 2020-03-15.

TermIt: A Practical Semantic Vocabulary Manager

763

the manual process. Annotace produces data in the

HTML format and the annotations are created using

RDFa (Adida et al., 2015) – an extension to HTML 5

that allows injecting Linked Data annotations into the

structure of an HTML document. Whenever a token

is recognized as a mention of an entity in the vocab-

ulary, a new annotation is injected around this token

with properties like a unique identiﬁer, the resource

attribute referring to the identiﬁer of the vocabulary

term, the type of the annotation in the ontology model,

and the accuracy of the prediction represented by the

score attribute.

3.3.2 Demo

The current deployments of TermIt are in Czech, but

an English deployment has been created for demon-

stration purposes.

It contains two urbanism-related

vocabularies – the Prague Building Regulations vo-

cabulary and the vocabulary of the Metropolitan Plan

of Prague. Both vocabularies were created based on

the respective normative documents (only in Czech)

and translated to English as well.

Since the demo repository also contains vocabu-

lary models, additional properties are available for the

terms in the user interface, e.g., more precise speciﬁ-

cation of the broader/narrower relationships.

It is possible to log into the demo deployment and

explore the functionalities of TermIt under the user-

name demo and with password demo.

4 RELATED WORK

Related work can be split based on the two use cases

supported by TermIt – generic vocabulary manage-

ment (as opposed to existing domain-speciﬁc vocabu-

lary management tools like SnowOwl/Snowstorm for

SNOMED CT), and resource annotation and search.

4.1 Vocabulary Management

There exist several glossary editors and vocabulary

management tools. Their common problem is that

they expect knowledge of the Semantic Web princi-

ples from their users. This represents a signiﬁcant

barrier for most domain experts. Compared to TermIt,

non-commercial tools also provide limited support for

linking the terms to their source documents.

VocBench (Stellato et al., 2015) is a tool for col-

laborative SKOS thesauri management. It supports

many advanced features like vocabulary versioning

Available at https://kbss.felk.cvut.cz/termit-demo, ac-

cessed 2020-03-15.

and user access control. However, its interface is ar-

guably hard to use even for people with Semantic Web

background. Also, it does not support resource man-

agement.

iQvoc (Bandholtz et al., 2010) is an open source

Web-based vocabulary management tool for SKOS-

XL (SKOS eXtension for Labels) which supports

publication of glossaries, multilingual labels, and a

simple term management workﬂow focused on the

end user. It internally stores data in a relational

database, but is able to provide vocabularies as Linked

Data as well thanks to integration with a triple store.

It does not address resource management.

Skosmos (Suominen et al., 2015) is a tool for pub-

lishing and exploring SKOS vocabularies. It does

not allow to directly edit the vocabularies, it rather

imports a SKOS-compatible vocabulary and provides

access to it. It concentrates on searching for the most

appropriate terms and providing Linked Data access

to the concepts. Multilingual concept labels are sup-

ported, but resource annotation is not.

Prot

e (Musen, 2015) is a desktop ontology ed-

itor allowing to model all aspects of a vocabulary.

It also supports using a reasoner for knowledge base

consistency validation. One of Prot

e’s biggest ben-

eﬁts is its large community and modular design (over

one hundred plugins). Recently, WebProt

e (Tudo-

rache et al., 2013) was introduced as a collaborative

ontology engineering platform, featuring, e.g., con-

cept tagging. Once again, while the breadth of fea-

tures allows users of Prot

e to maintain both glos-

saries and models, the user interface for editing the

model is relatively cumbersome and knowledge of the

underlying Semantic Web principles is necessary.

PoolParty Semantic Suite

is a commercial set of

tools mainly focused on workﬂow-backed design and

management of vocabularies based on text corpora. It

provides additional services such as resource annota-

tion, Linked Data management, semantic search, text

mining, data integration, analytics and visualization.

TopBraid Composer

and other applications from

the TopBraid family are commercial tools which al-

low, among other things, to create and manage seman-

tic vocabularies and use them to annotate resources.

The annotation is automatic and uses terms from vo-

cabularies managed by the platform. Vocabulary glos-

saries are based on SKOS, but TopBraid also allows

to maintain the corresponding vocabulary models.

Finland approaches public administration vocab-

ulary management by developing proprietary tools

https://www.poolparty.biz/, accessed 2020-01-23.

https://www.topquadrant.com/products/

topbraid-composer/, accessed 2020-01-23.

ICEIS 2020 - 22nd International Conference on Enterprise Information Systems

764

which are similar to TermIt.

They involve thesaurus

management as well as UML modeling. The user

interface seems more enhanced than that of TermIt,

but the tool does not seem to have support for semi-

automated vocabulary construction based on existing

documents or resource annotation. Also the ontology

modeling part is based on pure UML class diagrams,

without any grounding in top-level ontologies, thus,

for instance, lacking the capability to express the ex-

amples of meaning ambiguities mentioned in the in-

troduction of this paper.

4.2 Resource Annotation and Search

Enterprise search is a vast domain with many com-

mercial and non-commercial vendors. However, most

of the tools provide keyword-based search which may

give imprecise results due to the lack of explicit

semantics of the keywords associated with the re-

sources. Various vendors, for example, Google, Mi-

crosoft, IBM, Oracle, provide such search as a fea-

ture of their products. On the other hand, there exist

specialized search solutions. Among the best known

is Apache Lucene

– a text search engine library.

Lucene is the foundation of many other popular so-

lutions, including Apache Solr

and Elasticsearch.

Indexing and search based on semantic terms as-

sociated with resources provide, for example, the

aforementioned PoolParty Semantic Suite and Top-

Braid. Semantic technologies are also partially sup-

ported by the Rosette Text Analytics platform,

al-

though the amount of relevant information for this

commercial tool is limited.

5 EXPERIENCE

The original goal of TermIt was to build an easy-to-

use glossary editor based on Semantic Web technolo-

gies. Text analysis was supposed to be used to help

build new vocabularies from normative documents.

Over time, it turned out that resource annotation us-

ing existing terms is as important a goal as creation of

new vocabularies.

Thus, two main scenarios for using TermIt to build

and manage vocabularies and use them in connection

with resources have been identiﬁed:

https://yhteentoimiva.suomi.ﬁ/en/, accessed 2020-03-15.

https://lucene.apache.org/, accessed 2020-03-15.

https://lucene.apache.org/solr/, accessed 2020-03-15.

https://www.elastic.co/, accessed 2020-03-15.

https://www.basistech.com/text-analytics/rosette/, ac-

cessed 2020-03-15.

Vocabulary Creation. In this scenario, the users

start with an empty vocabulary and a normative doc-

ument relevant to the vocabulary. They use Annotace

to discover possible new terms in the document, re-

view the suggestions, and create the new terms. Ad-

ditional new terms are created manually.

Resource Annotation. Resource annotation as-

sumes that a vocabulary with terms already exists.

These terms are assigned, either manually, or using

Annotace, to resources registered in the system. Ter-

mIt can then be used for semantic search – ﬁnding

resources based on terms instead of words, getting re-

lated resources, etc.

TermIt has been used in two domains – urban

planning and healthcare – and is being tested for ap-

plication in another important domain – public ad-

ministration. Vocabularies of laws and ofﬁce agendas

would be created and maintained through TermIt at

the Ministry of the interior of the Czech Republic.

So far, several relevant features have been identi-

ﬁed as lacking in TermIt:

Term creation workﬂow representing a term’s life-

cycle. In many domains, new terms are not cre-

ated based on a single preexisting normative re-

source. They emerge from a collaborative effort

of multiple users, who need to discuss the mean-

ing of the term and eventually arrive at an agree-

ment acknowledged by an authorized supervisor.

Synonyms and alternative labels allow users to

gather alternative textual representations of a

term.

Multilingual labels are required in cases where

terms exist in an international context. For in-

stance, a term like Network administration from

a public administration vocabulary may have its

origin in an ISO standard, but a local translation

is needed for usability with resources not written

in English.

6 CONCLUSIONS

We have presented TermIt – a practical open source

vocabulary manager intended for domain experts with

possibly limited knowledge of the Semantic Web. The

system provides the ability to manage SKOS-based

glossaries, annotate resources with terms, link the

terms to their mentions in documents, and perform

semantic search based on the annotations. Moreover,

the ontological model backing TermIt is rooted in a

top-level formalism – UFO – improving its interoper-

ability.

TermIt: A Practical Semantic Vocabulary Manager

765

TermIt is still under development and there are

several important features planned in the near future.

One is the ability to link the deﬁnition of a term di-

rectly to a part of a normative ﬁle. The other is sup-

port for accessing remote vocabularies, so that a dis-

tributed network of TermIt instances can be created.

This is especially important for the public administra-

tion case, where different departments (or even min-

istries) maintain their own sets of vocabularies which

often depend on other vocabularies under a different

jurisdiction. Other important tasks include term cre-

ation and approval workﬂow, vocabulary versioning,

user access control, visualization of relationships be-

tween terms, and support for multilingual attributes.

ACKNOWLEDGEMENTS

This work was supported by grant

No. SGS19/110/OHK3/2T/13 Efﬁcient Vocabu-

laries Management Using Ontologies of the Czech

Technical University in Prague.

REFERENCES

Adida, B., Birbeck, M., McCarron, S., and Herman, I.

(2015). RDFa Core 1.1 – Third Edition. W3C recom-

mendation, W3C. https://www.w3.org/TR/rdfa-core/,

accessed 2020-02-03.

Bandholtz, T., Schulte-Coerne, T., Glaser, R., Fock, J., and

Keller, T. (2010). iQvoc - Open Source SKOS(XL)

Maintenance and Publishing Tool. In Proceedings of

the Sixth Workshop on Scripting and Development for

the Semantic Web, Crete, Greece, May 31, 2010. http:

//ceur-ws.org/Vol-699/Paper2.pdf, accessed 2020-01-

23.

Bla

sko, M., Kostov, B., and K

remen, P. (2016). Ontology-

based dataset exploration – a temporal ontology use-

case. In Proceedings of the Intelligent Exploration of

Semantic Data (IESD’16).

Brickley, D. and Guha, R. (2014). RDF Schema 1.1.

W3C recommendation, W3C. https://www.w3.org/

TR/rdf-schema/, accessed 2020-01-20.

Cyganiak, R. and Bizer, C. (2007). Pubby – A

Linked Data Frontend for SPARQL Endpoints. on-

line. http://wifo5-03.informatik.uni-mannheim.de/

pubby/, accessed 2020-01-23.

Cyganiak, R., Wood, D., and Lanthaler, M. (2014). RDF

1.1 Concepts and Abstract Syntax. W3C recommen-

dation, W3C. http://www.w3.org/TR/rdf11-concepts/,

accessed 2020-01-20.

Guarino, N., Oberle, D., and Staab, S. (2009). What Is an

Ontology?, chapter 1, pages 1–17. Springer-Verlag

Berlin Heidelberg.

Guizzardi, Giancarlo (2005). Ontological Foundations for

Structural Conceptual Models. PhD thesis, University

of Twente.

remen, P. and Ne

cask

y, M. (2019). Improving discov-

erability of open government data with rich metadata

descriptions using semantic government vocabulary.

Journal of Web Semantics, 55:1 – 20.

Libovick

y, J. (2016). KER - keyword extractor. LIN-

DAT/CLARIN digital library at the Institute of Formal

and Applied Linguistics (

UFAL), Faculty of Mathe-

matics and Physics, Charles University.

Mascardi, V., Cord

ı, V., and Rosso, P. (2007). A Com-

parison of Upper Ontologies. In WOA 2007: Dagli

Oggetti agli Agenti. 8th AI*IA/TABOO Joint Work-

shop ”From Objects to Agents”: Agents and Industry:

Technological Applications of Software Agents, 24-25

September 2007, Genova, Italy.

Miles, A. and Bechhofer, S. (2009). SKOS Simple

Knowledge Organization System Reference. W3C

Recommendation, W3C. http://www.w3.org/TR/

skos-reference, accessed 2020-01-20.

Motik, B., Patel-Schneider, P. F., and Parsia, B. (2012).

OWL 2 Web Ontology Language Structural Speciﬁ-

cation and Functional-Style Syntax (Second Edition).

W3C recommendation, W3C. https://www.w3.org/

TR/owl2-syntax/, accessed 2020-01-20.

Musen, M. A. (2015). The Prot

e Project: A Look Back

and a Look Forward. AI Matters, 1(4):4–12.

Rumbaugh, J., Jacobson, I., and Booch, G. (2004). Uni-

ﬁed Modeling Language Reference Manual, The (2nd

Edition). Pearson Higher Education.

Stellato, A., Rajbhandari, S., Turbati, A., Fiorelli, M.,

Caracciolo, C., Lorenzetti, T., Keizer, J., and

Pazienza, M. T. (2015). VocBench: A Web Appli-

cation for Collaborative Development of Multilingual

Thesauri. In Proceedings of the 12th European Se-

mantic Web Conference on The Semantic Web. Lat-

est Advances and New Domains - Volume 9088, pages

38–53, New York, NY, USA. Springer-Verlag New

York, Inc.

Suominen, O., Ylikotila, H., Pessala, S., Lappalainen, M.,

Frosterus, M., Tuominen, J., Baker, T., Caracciolo, C.,

and Retterath, A. (2015). Publishing SKOS vocabular-

ies with Skosmos. Manuscript submitted for review.

Tudorache, T., Nyulas, C., Noy, N. F., and Musen, M. A.

(2013). WebProt

e: A Collaborative Ontology Edi-

tor and Knowledge Acquisition Tool for the Web. Se-

mantic Web, 4(1):89–99.

Wood, D., Zaidman, M., Ruth, L., and Hausenblas, M.

(2013). Linked Data: Structured Data on the Web.

Manning Publications Co., Shelter Island, NY, USA.

ICEIS 2020 - 22nd International Conference on Enterprise Information Systems

766
