Challenges with Teaching and Learning Theoretical Query Languages

Jalal Kawash and Levi Meston

Department of Computer Science, University of Calgary, 2500 University Dr. NW, Calgary, Alberta, Canada

Keywords:

Computer Science Education, Tools for Education, Database Systems, SQL.

Abstract:

Relational algebra and relational calculus are often taught as part of the topics of a typical database course in

Computer Science and Engineering degrees. The teaching of these theoretical languages not only provide the

students with the theoretical foundation for learning SQL, but also serve as a vehicle for students to sharpen

their problem solving skills. SQL, the most commonly used database language, also serves as a substantial

part of any course on databases. SQL was supposed to be an implementation of relational calculus; however,

the language ended up being a hybrid implementation of both the calculus and the algebra. One challenge

that faces students and educators alike is that unlike SQL where queries can be tested and validated with

existing databases, the calculus and the algebra remain theoretical with very limited support for such testing or

validation. In addition, not all theoretical constructs in both the algebra and the calculus have a straightforward

implementation in SQL. After discussing these challenges, we make the case in this paper for the need to better

computer tools that support the teaching and learning of these two theoretical query languages. We also present

the features/objectives of such a tool that we are currently developing.

1 INTRODUCTION

Computer Science, Software Engineering, and simi-

lar programs include database systems as a core topic

that students need to master before they are ready for

their future jobs. The Structured Query Language

(SQL) constitutes a substantial part of any course on

database systems. It is by far the most commonly

used query language in Relational Database Manage-

ment System implementations. Oracle, MySQL, SQL

Server, and Microsoft Access are just a few exam-

ples. Hence, it is not a surprise that database text-

books allocate a substantial space for the topic. More-

over, many introductory textbooks on database man-

agement (such as (Elmasri and Navathe, 2015; Silber-

schatz et al., 2019; Connolly and Begg, 2014)) also

includes discussion of what is called theoretical query

languages.

These theoretical query languages are relational

calculus and relational algebra. The calculus has

two types: the domain calculus and the tuple calcu-

lus. The former is not very popular; so, we restrict

the discussion in this paper to the tuple relational cal-

culus. Furthermore, the concepts in these two calculi

are the same, but the range of calculus variables is

what makes them different: one ranges over domains

(columns) and the other over tuples (rows). Histori-

cally, SQL was meant to be an informal rendering of

tuple relational calculus (Codd, 1972). Yet, anyone

can easily see that SQL turned out to be a hybrid im-

plementation of both the calculus and the algebra.

The calculus and the algebra have opposite de-

sign philosophies. The former is non-procedural or

declarative, where queries are expressed using pred-

icate logic to deﬁne the set of tuples that satisfy the

query condition. Hence, the way the query is formu-

lated does not inﬂuence the way it is executed. The

algebra is procedural and the way an algebra routine

is written affects how it is executed.

McMaster et al. make the case for teaching

these theoretical languages in database courses by dis-

cussing several beneﬁts to students (Mcmaster et al.,

2008). There are three major beneﬁts for learning

these two theoretical languages. First, they provide

a theoretical mechanism for students to develop their

problem solving skills, especially in the query for-

mulation domain. Second, they provide a theoreti-

cal foundation for learning SQL. Finally, they pro-

vide an opportunity to contrast procedural versus non-

procedural query language design, allowing for im-

portant discussion on query processing. However as

noted by McMaster et al. (Mcmaster et al., 2008),

the coverage of these languages in leading database

textbooks (such as (Elmasri and Navathe, 2015; Sil-

382

Kawash, J. and Meston, L.

Challenges with Teaching and Learning Theoretical Query Languages.

DOI: 10.5220/0009471103820389

In Proceedings of the 12th International Conference on Computer Supported Education (CSEDU 2020) - Volume 2, pages 382-389

ISBN: 978-989-758-417-6

berschatz et al., 2019; Connolly and Begg, 2014)) is

purely mathematical and the provided problems are

“pencil and paper” exercises rather than being of the

programming nature.

Our experience is consistent with others (Kessler

et al., 2019; Mcmaster et al., 2008) and shows that

students struggle with these languages due to the lack

of computer tools that can validate their queries. In

SQL, the students can test their SQL scripts against a

concrete database and verify the correctness of their

code. However, this luxury is not often available with

the calculus or the algebra. Our future objective is

to provide a Web-enabled tool that utilizes a visual

program language(Guo et al., 2008) in order to al-

low users to (visually) formulate calculus and algebra

query statements. The system translates these state-

ments to SQL and then validates them through exe-

cution against a concrete database. This intermedi-

ate step consisting of translating algebra and calculus

statements to SQL is crucial for achieving the most

beneﬁts of learning these languages through drawing

the relationship with practical database programming,

typically with SQL as a major component.

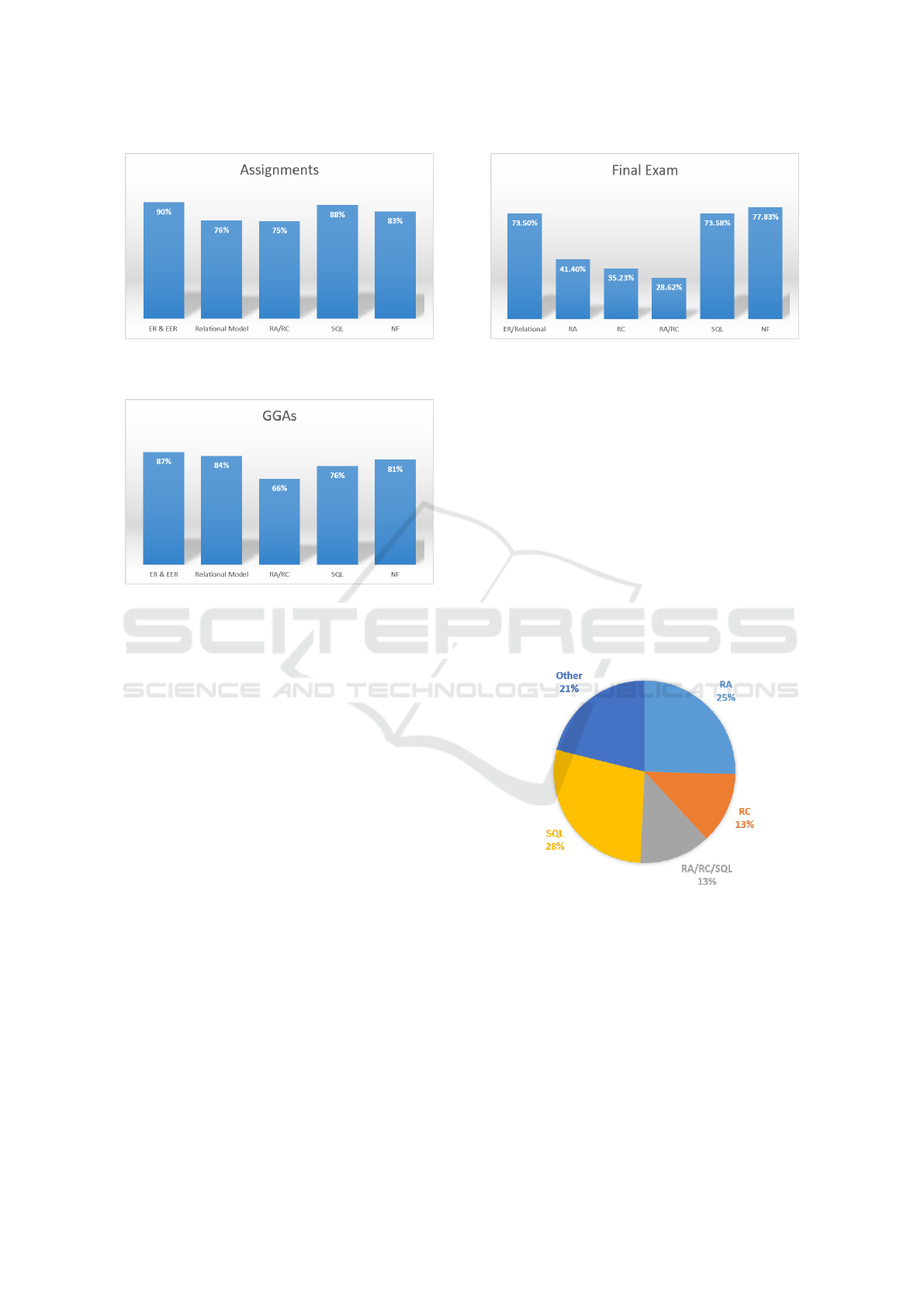

In this paper, we present grade and survey anal-

ysis to support the claim that these topics are chal-

lenging to students. We also analyze qualitative feed-

back from students that point at the lack of computer-

based tools which can help the student learn these lan-

guages better by validating and executing their theo-

retical queries against concrete databases, much like

SQL. Another conclusion form this feedback is often

the lack of ability to associate algebra and calculus

queries with SQL adds to their learning challenges.

Our future tool is designed to answer all of these chal-

lenges.

Some previous tools have been implemented to

address this shortcoming of theoretical query lan-

guages (Kessler et al., 2019; Eckberg, ; Yang, ;

Muehe, ; Kawash, 2014; Mcmaster et al., 2008).

There are shortcomings of these tools as we will dis-

cuss in Section 6. First, we provide some necessary

technical background about these languages in Sec-

tion 2. A brief description of the course in which the

data is collected and analyzed in given in Section 3.

Challenges faced by students are discussed in Section

5.The requirements of our future tool are described in

Section 7 (we do not describe the tool in this paper)

and Section 8 concludes the paper.

2 THEORETICAL QUERY

LANGUAGES

2.1 Relational Calculus

Relational calculus (RC) is a non-procedural, declara-

tive language. A query statement is a speciﬁcation of

the resulting set from a query using predicate logic.

Hence, it relies on the existential (∃) and universal

quantiﬁers (∀) to describe this set. SQL has a direct

support for the existential quantiﬁer (∃) through its

EXISTS function. However, universal quantiﬁers (∀)

are not directly supported in SQL and must be also

expressed in terms of EXISTS. This is due to the fact

that the predicate ∀xP(x) is equivalent to the predi-

cate ¬∃x¬P(x). This is normally a huge source for

confusion for students learning SQL (Kawash, 2014).

A hypothetical RC statement of the following form:

{x|A(x) ∧ ∀y(B(y) → x.a = y.b)}

translates to the following equivalent statement:

{x|A(x) ∧ ¬∃y(B(y) ∧ x.a 6= y.b)},

and the latter translates to the following equivalent

SQL query:

SELECT ∗ FROM A WHERE NOT EXISTS

(SELECT ∗ FROM B WHERE A.a != B.b)

We provide an example query in relational calcu-

lus to highlight the difﬁculties with formulating such

queries and constructing their equivalent SQL code.

Our example assumes the following relations:

Species(sname, maxht)

Tree(tid, yplanted)

Measurement(mid, mdate, tid, height, nbranches)

A calculus statement to retrieve the name for each

species with a maximum height exceeding 20 meters

such that every tree of that species that was planted

before 1950 has had every measurement showing a

height greater than 10 meters would be:

{s.sname|Species(s) ∧ s.maxht > 20 ∧

(∀t)((Tree(t) ∧ t.sname = s.sname ∧ t.yplanted <

1950) → (∀m)((Measurement(m) ∧ m.tid = t.tid) →

m.height > 10))}

This statement needs to be transformed to a form that

does not contain universal quantiﬁers or implication

to simplify the SQL translation. As mentioned

earlier, the predicates of the form ∀xP(x) are replaced

by the form ¬∃x¬P(x). An implication a → b is

replaced by ¬a ∨ b. The end result is:

Challenges with Teaching and Learning Theoretical Query Languages

383

{s.sname|Species(s) ∧ s.maxht > 20 ∧

(¬∃t)((Tree(t) ∧ t.sname = s.sname ∧ t.yplanted <

1950) ∧ (∃m)((Measurement(m) ∧ m.tid =

t.tid) ∧ m.height ≤ 10))}

Now, this can be translated to SQL as follows:

SELECT s.sname

FROM Species AS s

WHERE s.maxht > 20

AND NOT EXISTS(

SELECT ∗

FROM Tree AS t

WHERE t.sname = s.sname

AND t.yplanted < 1950

AND EXISTS(

SELECT ∗

FROM Measurement AS m

WHERE m.tid = t.tid

AND m.height <= 10))

2.2 Relational Algebra

All of the relational algebra operations except divi-

sion (÷) are directly supported in SQL. These are

summarized in Table 1.

Let R

and R

be relations. Meant to capture

a restricted form of universal quantiﬁcation, the

division operation R

(Z) ÷ R

(X) requires the sets of

attributes Z and X to have the property X ⊆ Z. Let

Y = Z − X = {a

, a

, ··· , a

}, R

(Z) ÷ R

(X) can be

written in SQL as follows:

SELECT Y FROM R

WHERE NOT EXISTS

(SELECT * FROM R

WHERE R

!= R

OR R

!= R

···

OR R

!= R

)

Alternatively, R

(Z) ÷ R

(X) can be expressed

using the following algebra routine, and this routine

can be translated to SQL. In either case, division

queries are a source of struggle for most students.

Res

← π

)

Res

← π

((R

× Res

) − R

)

Resul t ← Res

− Res

Finally, the assignment statement (←) can be

implemented in SQL in different ways. One obvious

way is to use virtual tables, or views. For instance,

the previous algebra routine can be written in SQL

as:

CREATE VIEW Res

SELECT Y FROM R

;

CREATE VIEW tmp AS

(

SELECT ∗ FROM R

, Res

MINUS

SELECT ∗ FROM R

);

CREATE VIEW Res

SELECT Y FROM tmp;

SELECT ∗ FROM Res

MINUS

SELECT ∗ FROM Res

;

3 THE COURSE

The context of this study is a third-year elective

course in Database Systems at the University of Cal-

gary. The main audience for this course are from

Computer Science and Software Engineering. Other

students, such as Bioinformatics majors, also take this

course. The course constitutes of six modules:

1. Introduction: 1 unit

2. Entity Relationship (ER) and Enhanced Entity

Relationship (EER) models: 2 units

3. Relational model and Mapping ER and EER mod-

els to the relational model: 3 units

4. Relational Algebra (RA) and Relational Calculus

(RC): 3 units

5. SQL: 4 units

6. Normal forms and decomposition (NF): 2 units

Each unit is equivalent to 75 minutes of lectures

and 50 minutes of tutorials. The latter are conducted

by teaching assistants. The six modules sum up to

15 units. However, a semester is 11 weeks, allow-

ing for 22 units. The remaining 7 units are reserved

for a form of in-class group activities to re-enforce

the material in each of modules 2 to 6. We call these

group exams graded group activities (GGAs). Each

module is concluded with a take-home assignment to

be performed individually by students. There is a ﬁ-

nal exam and a group project due at the end of the

course. The group project is irrelevant to this study

and will not be discussed further. The focus of this

paper are modules 3 and 4 dealing with theoretical

CSEDU 2020 - 12th International Conference on Computer Supported Education

384

Table 1: Relational Algebra Operations.

Name Algebra Operation SQL Implementation

Select σ

(R) SELECT * FROM R

WHERE <condition>

Project π

(R) SELECT <attributes> FROM R

Theta Join R



SELECT ∗ FROM R

INNER JOIN ON R

WHERE <condition>

Natural Join R

∗

SELECT ∗ FROM R

NATURAL JOIN ON R

WHERE <condition>

Left Outer Join R



SELECT ∗ FROM R

LEFT OUTER JOIN ON R

WHERE <condition>

Right Outer Join R



SELECT ∗ FROM R

RIGHT OUTER JOIN ON R

WHERE <condition>

Full Outer Join R



SELECT ∗ FROM R

FULL OUTER JOIN ON R

WHERE <condition>

Union R

∪ R

SELECT ∗ FROM R

UNION SELECT ∗ FROM R

Intersection R

∩ R

SELECT ∗ FROM R

INTERSECT SELECT ∗ FROM R

Difference R

− R

SELECT ∗ FROM R

MINUS SELECT ∗ FROM R

Cartesian Product R

× R

SELECT ∗ FROM R

, R

Division R

÷ R

No direct implementation

Rename ρ

S(a

,···,a

)

, ρ

, or ρ

,···,a

)

Implemented through AS

query languages. Speciﬁcally in the next section, we

will support our thesis that student struggle in these

modules by comparing the GGA, assignment, and ﬁ-

nal exam marks for various modules or topics. GGAs

have two stages. In the ﬁrst stage, each student indi-

vidually attempts a set problems. Then, they team up

to attempt the same set of problems as a group. We

already discussed GGAs in a previous paper (Kawash

et al., 2020).

4 GRADE ANALYSIS

We analyzed the grades from 125 students enrolled in

one semester in this course. It is worth noting that

students are given a full week to individually com-

plete each assignment, and these assignments consti-

tute a collection of constructive-response questions.

For RA/RC and SQL assignments, each consists of

10 English query statements that need to be written

in RA, RC, and SQL. During the duration of an as-

signment, the students have access to feedback from

the instructor and TA on their attempts. GGAs are of

the multiple choice format, and they utilize immedi-

ate feedback instruments in the form of “scratchies”

(ifa, ). Students scratch a card to discover if their

answers were correct, allowing multiple-attempts for

each question. This yes-no feedback is characteristi-

cally different from the feedback that can be received

for attempts to answer assignment questions. With as-

signments, students can have lengthy discussions with

the instructor or the TA over why or why not a certain

attempt is an acceptable solution. Such lengthy feed-

back is available for GGAs only after the fact and not

while taking the group exam. For the ﬁnal exam, the

questions are of the constructive-response type, and

the students do not have any opportunity for feedback

during the exam.

Average grades from the assignments are depicted

in Figure 1. The standard deviations are 7.77 (ER),

18.89 (Relational), 16.72 (RA/RC), 11.42 (SQL), and

6.71 (NF). While the RA/RC assignment has the low-

est average, there is no substantial difference between

the RA/RC assignment and the rest of the topics.

We emphasize the difference between the averages

of the RA/RC and SQL assignment. These two as-

signments are of the same nature: the students are

asked to formulate queries. However, SQL queries

can be validated using any database management sys-

tem, while in the theoretical languages assignment,

the only feedback available to students is that given

when they seek it from the instructor or the TA.

The story is slightly different for GGAs. The

RA/RC GGA records the lowest score compared to

the remaining GGAs as is shown in Figure 2. This

is in spite of the exploitation of the limited immedi-

Challenges with Teaching and Learning Theoretical Query Languages

385

Figure 1: Comparison of average marks for different assign-

ments.

Figure 2: Comparison of average marks for different GGAs.

ate feedback mechanism. The standard deviations are

8.47 (ER), 10.28 (Relational), 13.79 (RA/RC), 18.35

(SQL), and 24.11 (NF).

When feedback disappears completely such as in

the ﬁnal exam, Figure 3 shows a substantial dip in

the RA and RC exam questions. We separated these

questions into three categories: RA for relational al-

gebra questions, RC for relational calculus questions,

and RA/RC is for questions that combine both. The

standard deviations are 18.76 (ER/Relational), 29.17

(RA), 28.86 (RC), 30.42 (RA/RC), 16.97 (SQL), and

21.55 (NF). In all of these categories, the average is at

least 32% points lower than other categories. Contrast

these averages with that of SQL questions. Theoreti-

cal query questions and SQL questions are of exactly

the same type (constructive-response) and they are at

the same level of complexity. Yet, we see that the stu-

dents are doing better in SQL questions, in spite of

the absence of immediate feedback during the exam.

We conjecture that students are better at formu-

lating queries in SQL than formulating these in RA or

RC is due to their ability to practice and validate these

queries through executing them against a DBMS im-

plementation. Such an opportunity is not available for

RA and RC queries.

Figure 3: Comparison of average marks for ﬁnal exam ques-

tions grouped by topic.

5 STUDENT FEEDBACK

In a previous study, we asked the students to create

an educational video about topics that they thought

were challenging or ones they struggled with (Kawash

and Sailunaz, 2020). A summary of the chosen topics

by all 97 students who took part in this experiment

is shown in Figure 4. A total of 46% of surveyed

students identiﬁed RA and RC as challenging topics

compared with 28% for SQL. In addition, 13% iden-

tiﬁed subjects that are common to RA, RC, and SQL

as challenging. Hence, a total of 59% of the surveyed

students selected subjects from theoretical languages.

Figure 4: Difﬁcult topics as identiﬁed by students.

Our anonymous post-semester feedback from stu-

dents gives us insights as to why the students ﬁnd RA

and RC to be difﬁcult subjects. This feedback has two

converging themes:

1. Lack of Opportunity for Validation: Students

constantly reported their frustration with the lack

of tools that allow them to validate and test the

correctness of their queries. The only way to val-

idate their queries is to refer them to the instruc-

tor or the teaching assistant for feedback. How-

CSEDU 2020 - 12th International Conference on Computer Supported Education

386

ever, there is often a large turn-around time for

this feedback. They expressed their desire for a

tool that provides this feedback instantaneously as

is the case when testing SQL queries.

2. Challenge for Associating Complex Theoreti-

cal Queries with SQL: Students stressed in their

feedback the importance of the ability to asso-

ciate theoretical query statements with SQL state-

ments. This was particularly true for more com-

plex queries. After all, simple queries may not

justify the development of tools to validate them.

These are needed more when the logic becomes

complex. Students argued that the ability to as-

sociate or map theoretical queries to SQL not

only allowed them to feel more conﬁdent about

their understanding of the subject matter, but also

thought that it forced them into reﬂecting on all

three language design philosophies. Some stu-

dents reported that this also opened their eyes to

the subject of query processing.

We have shown that students struggle in the RA

and RC topics more than any other topic in the course,

including SQL. The marks in RA/RC assessment is

constantly lower regardless of the incorporated as-

sessment method. In addition, student feedback con-

ﬁrmed the challenges they face when learning these

theocratic languages. Hence, we believe that we have

made the case for the need of a computer-based tool

that allow the students to validate and execute their

RA and RC queries.

6 EXISTING TOOLS

Previous tools have been implemented to address this

shortcoming of theoretical query language validation.

McMaster et al. (Mcmaster et al., 2008) describe two

programming approaches for the algebra and the cal-

culus. For the ﬁrst, they developed a function library

using Visual FoxPro. For the latter, a Prolog library

is implemented. While they argue it is minimal, some

knowledge in FoxPro and Prolog is required from stu-

dents to use these libraries. In addition, a setup over-

head, such as deﬁning the predicates that represent a

database mode in Prolog, is required from students. In

both cases, for RA and RC, no equivalent SQL code

is generated.

IRA (Muehe, ) is a web-enabled tool and RA

(Yang, ) is a stand-alone application. Both are limited

to RA and do not support RC. They also have other

limitations, including lack of support to some impor-

tant algebra operators, limited data sets, and limited

user interface capabilities. Both IRA and RA gener-

ate an equivalent SQL statement.

RelaX (Kessler et al., 2019) is also dedicated to

RA, and it is Web-based. However, it simply pro-

vides the result set of the query statement. It does

not provide an equivalent SQL statement for the al-

gebra statement as an intermediate step. Seeing the

relationship between these two statements is beneﬁ-

cial for the understanding of both statements as the

student feedback indicated. Some of the relational al-

gebra constructs are directly supported in SQL, but

others have no direct support. Understanding how to

formulate such a query in SQL can be cumbersome

for students. The division operation is one such ex-

ample.

There are even fewer tools for the calculus. Cal-

culus Emulator (Eckberg, ) is a stand-alone applica-

tion that generates the equivalent SQL code. QuantX

(Kawash, 2014) is also a stand-alone application, but

it simply teaches the users how to translate a complex

calculus query to SQL without providing any valida-

tion.

Finally none of these tools uses a visual program-

ming language approach, such as tile-based program-

ming (Guo et al., 2008). In addition, none of them

provide support for quizzes and challenges and they

do not collect information about their pattern of usage

either. Such information can be valuable for instruc-

tors and researchers alike.

7 OUR PROPOSED TOOL

We are currently developing a tool that allows stu-

dents to develop and validate theoretical queries, an-

swering all the limitations of previous tools. In sum-

mary, the tool:

1. Is Web-based: Unlike most existing tools (RA,

calculusEM, & QuantX), our tool is a Web-based

application, alleviating any complexities from the

user the need to install it or to install any required

packages.

2. Validates Queries against Any Database: Most

previous tools limit the data sets a user can work

with (IRA, RA, QuantX). Our tool allows the user

to incorporate any existing database or to create a

new database from scratch. Hence, students can

work with any examples presented in their lec-

tures, course material, or textbook.

3. Supports Both Algebra and Calculus: Most

existing tools support one of the two theoretical

query languages, but not both. Our tool has sup-

port for both relational algebra and relational cal-

culus. In addition, it has support for all operations

of these two languages.

Challenges with Teaching and Learning Theoretical Query Languages

387

4. Generates SQL: Based on student feedback, it

is beneﬁcial to see the correspondence between

an algebra or calculus query with the SQL query.

Our tool provides the corresponding query, in ad-

dition to the result set once the query is executed

against a database instance. This is especially im-

portant for complex queries, where the relation-

ship between the theoretical query and the SQL

statement is not straight forward. In Section 2,

we have provided some examples of such com-

plex queries.

5. Uses Tile-based Programming: The tool utilizes

visual programming, through tile-based program-

ming. No other tool provides this feature. Tile-

based programming does not only make it eas-

ier for students to write their programs, but also

has many other beneﬁcial side effects (Guo et al.,

2008). Similar to other algorithms, algebra and

calculus can be expressed naturally using tiles.

Tiles also allow for better execution performance

because the approach a very effective way to ex-

ploit locality (Guo et al., 2008). Finally, they can

also be used to express data distribution and par-

allel computation (Guo et al., 2008). In one word,

they provide students with exposure to concepts

outside the database topics.

6. Supports Customized Quizzes and Challenges:

The tool allows educators and researchers to cre-

ate quizzes and challenges for students.

7. Collects and Logs Usage Information: Un-

like all other tools, the tool collects and logs

all types of information for educators and re-

searchers to analyze. It will help educators and

researchers look for certain patterns, identifying

student weaknesses, areas of struggle, and hence-

forth.

8 CONCLUSION

Learning theoretical query languages has beneﬁts to

students since they help improve problem solving

skills. In addition, both relational algebra and rela-

tional calculus provide the theoretical foundation for

the design of SQL. Mastering these languages im-

proves the skills needed to formulate SQL queries,

speciﬁcally for queries that incorporate challenging

logic. Unlike SQL, a common challenge that impedes

the teaching and learning of these theoretical query

languages is the limited opportunity for students to

execute and validate their query statements against

an existing database. In addition, students indicated

that it would be more beneﬁcial to them if they can

also see a corresponding SQL code to the queries for-

mulated in the theoretical languages. To the best of

our knowledge, there are very few existing tools that

support the execution of either algebra or calculus

queries. These tools have many limitations, and we

are developing a tool that answers all of these limita-

tions. Namely, our tool is Web-based, supports both

languages, not speciﬁc to a ﬁxed database, generates

SQL for comparison purposes, utilizes tile-based pro-

gramming, and creates analysis logs.

ACKNOWLEDGMENTS

We are thankful to the anonymous referees. Their

feedback helped us improve the paper.

REFERENCES

Epstein Educational Enterprises: What is IF-AT? http:

//www.epsteineducation.com/home/about/. Accessed:

2019-07-30.

Codd, E. F. (1972). Relational completeness of data base

sublanguages. IBM Research Report, RJ987.

Connolly, T. and Begg, C. E. (2014). Database Systems:

A Practical Approach to Design, Implementation and

Management. Pearson, USA, 6th edition.

Eckberg, C. Relational Calculus Emulator. https://edoras.

sdsu.edu/

∼

eckberg/relationalcalculusemulator.html.

Accessed: 2020-01-04.

Elmasri, R. and Navathe, S. B. (2015). Fundamentals of

Database Systems. Pearson, 7th edition.

Guo, J., Bikshandi, G., Fraguela, B. B., Garzaran, M. J.,

and Padua, D. (2008). Programming with tiles. In

Proceedings of the 13th ACM SIGPLAN Symposium

on Principles and Practice of Parallel Programming,

PPoPP’08, page 111–122, New York, NY, USA. As-

sociation for Computing Machinery.

Kawash, J. (2014). Formulating second-order logic condi-

tions in SQL. In Proceedings of the 15th Annual Con-

ference on Information Technology Education, SIG-

ITE 2014, Atlanta, Georgia, USA, October 15-18,

2014, pages 115–120.

Kawash, J., Jarada, T., and Moshirpour, M. (2020). Group

exams as learning tools: Evidence from an undergrad-

uate database course. In SIGCSE ’20: The 51st ACM

Technical Symposium on Computer Science Educa-

tion, Portland, OR, USA, March 11-14, 2020, pages

626–632.

Kawash, J. and Sailunaz, K. (2020). Learning by creat-

ing instructional videos: An experience report from a

database course. In Proceedings of EDUCON 2020

– IEEE Global Engineering Education Conference.

IEEE CS Press.

Kessler, J., Tschuggnall, M., and Specht, G. (2019). Re-

lax: A webbased execution and learning tool for rela-

tional algebra. In Grust, T., Naumann, F., B

ohm, A.,

CSEDU 2020 - 12th International Conference on Computer Supported Education

388

Lehner, W., H

arder, T., Rahm, E., Heuer, A., Klettke,

M., and Meyer, H., editors, BTW 2019, pages 503–

506. Gesellschaft f

ur Informatik, Bonn.

Mcmaster, K., Anderson, N., and Blake, A. (2008). Teach-

ing relational algebra and relational calculus: A pro-

gramming approach. Information Systems Education

Journal.

Muehe, H. IRA - interaktive relationale algebra. http://db.

in.tum.de/people/sites/muehe/ira/. Accessed: 2020-

01-04.

Silberschatz, A., Korth, H. F., and Sudershan, S. (2019).

Database System Concepts. McGraw-Hill, Inc., USA,

7th edition.

Yang, J. RA (radb). https://users.cs.duke.edu/

∼

junyang/

radb/. Accessed: 2020-01-04.

Challenges with Teaching and Learning Theoretical Query Languages

389
