Web Services-based Report Generation System from Big Data in the

Manufacturing Industry based on Agile Software Development

Plueksaporn Kattiyawong and Sakchai Tangprasert

Department of Mathematics, Faculty of Applied Science, King Mongkut's University of Technology North Bangkok,

1518 Pracharat 1 Road, Wongsawang, Bangsue, Bangkok, 10800, Thailand

Keywords: Big Data,

Web Services, Agile.

Abstract: In the manufacturing industry, there are many information technology (IT) systems and machines connected

to different databases with complex big data. In this study, the web service system is developed by using

different programming languages consisting of C#, Javascript, HTML, CSS, Ext JS and

structured query

language (SQL). In addition to these programming languages, model view controller (MVC), a software

design pattern is also used for developing a database interface. The development of this system allows the

web service system

to search for reports that meet the user needs and also has the user interface (UI) for

convenience and speed. In this study, agile software development method is used in accordance with scrum

framework, which consist of 4 steps: 1) product backlog creation, 2) sprint backlog creation, 3) sprint or the

system development and testing and test case writing and 4) daily scrum. Sprint review is held to report the

results of unit test, functional test, integration test and user acceptance test (UAT). This sprint review

enables the development of an appropriate and comprehensive system and results in collaboration and

understanding among stakeholders, including technology adoption among users.

1 INTRODUCTION

At present, the manufacturing industry uses

information technology (IT) systems for production

management and machine control. Each machine

records an event log of each transaction. There are

also information technology systems for other

operational processes within the organization

(Wilschut et al., 2014), resulting in massive amounts

of data stored in a variety of databases with separate

independent database management system (DBMS).

When information is needed for organization

operations such as detection of processing errors,

evaluation of production costs or profits, production

planning decisions, financial decisions, warehouse

management for both raw materials and products

obtained from production process, etc., (Neves and

Bernardino, 2015) this makes it impossible to search

for related reports. This is because there is no

connection between different databases (Gu et al.,

2019). Therefore, the data cannot be processed in

combination across these databases. For this reason,

a web services-based report generation system from

big data is developed to meet the information

requirements from the operational level to the top

executives in the manufacturing industry.

2 SYSTEM DEVELOPMENT

This study aims to study the development of a web

services-based report generation system to facilitate

the searching between different databases which

contained big data. To achieve the objectives of

system development process, agile method is used in

the development of an appropriate and

comprehensive system so that system errors can be

resolved in time (Miyachi, 2011).

2.1 Big Data

Big data is a collection of data sets that are too large

or complex to be dealt with by existing DBMS

(Emmanuel and Stanier, 2016), including recording,

storage, search, sharing, and trend analysis of

various data sets (Neves and Bernardino, 2015) in

order to process a large set of related data by

compiling several separate data subsets (Podhoranyi

and Vojacek, 2019) which requires software or

platform to dealt with large amounts of data. In this

study, web service is used in the processing (Borkar

et al., 2012) of big data in the manufacturing

industry.

226

Kattiyawong, P. and Tangprasert, S.

Web Services-based Report Generation System from Big Data in the Manufacturing Industry based on Agile Software Development.

DOI: 10.5220/0009459102260232

In Proceedings of the 22nd International Conference on Enterprise Information Systems (ICEIS 2020) - Volume 1, pages 226-232

ISBN: 978-989-758-423-7

2.2 Web Service

Web service is a software system designed for data

exchange between computers via a network. It uses

various programming languages to communicate

between computers (Hu et al., 2007) based on HTTP

and XML to exchange information over the internet.

In addition, in the development of web service, C# is

used as the main programming language to develop

the primary structure of the web services-based

report generation system from big data. C# provides

full support for object-oriented programming. In

addition, javascript is used in script coding on the

Internet in combination with HTML and CSS for the

development of this system (Cho, 2013). Ext JS, a

javascript framework (Ni et al., 2012) is used to

manage the user interface (UI). In addition,

structured query language (SQL) is used to manage

the data in the relational database management

system (RDBMS) (Witkowski et al., 2005) with an

ability of SQL data manipulation language (DML)

for insertion, query, updating and deletion (Polster,

1978) of data contained in the table.

In addition to the use of programming languages

in system development, model view controller

(MVC) is also used. MVC design pattern technology

is used to separate the functions of the application

for convenience, speed and ease in developing and

expanding additional systems (Charoenporn, 2019).

MVC consists of model for communicating with the

databases (Selfa et al., 2006); view for displaying

the data from model; and controller for receiving the

input and commands view and model to run data

processing (Jailia et al., 2016) as shown in figure 1.

Response

HTML, RSS,

XML, JSON

etc.

Request

HTTP etc.

Demand

Data

Model View

Controller

Figure 1: MVC technology architecture.

2.3 Agile Methodology

Agile refers to a group of software development

methodologies based on system development,

especially in IT, technology and software (Gelperin,

2008). It is an alternative to the original concept, like

waterfall. Agile is centered around the idea of

iterative development (Houston, 2014), where the

project is divided into sections and each section is

progressively developed through the next section.

Each iteration must result in a working software,

which will be further developed (Hoda et al., 2010).

Agile methodology is based on scrum framework

involving cross functional team, which is a group of

people with different functional expertise working

toward a common goal of producing product from

the software. Assignment of specific tasks to team

members is not necessary because members are

simultaneously responsible for their cross-functional

team duties (Quaglia and Tocantins, 2011). The

workflow of scrum framework is shown in figure 2.

Sprint

planning

Sprint

backlog

Daily

scrum

Sprint

review

Increment

Sprint

Retrospecive

Scrum meeting

Product

backlog

Figure 2: Scrum framework (Maier et al., 2017).

As shown in the figure, scrum framework

divides the development into 4 steps as follows

(Maier et al., 2017):

1) Product backlog is the creation of a list of

features or requirements to work on based on user

needs that is known to be needed in the product

(ambition) (Boerman et al., 2015). The product

owner is responsible for deciding and assigning

different tasks in the sprint process based on their

priorities.

2) Sprint backlog is a list of tasks identified by

the team to complete a feature. The development

team is responsible for planning and deciding on

what features are required.

3) Sprint is to deliver the tasks based on what the

product owner has prioritized to deliver to the end

user within a period of time.

4) Daily scrum is a stand-up meeting held by the

team to obtain feedback from stakeholders and to

update the project progress with sprint review by

Web Services-based Report Generation System from Big Data in the Manufacturing Industry based on Agile Software Development

227

focusing on what each member accomplished

yesterday and will accomplish today and the

problems encountered for smoother operation and

constant and comprehensive troubleshooting.

3 AGILE DEVELOPMENT

The development of web services-based report

generation system from big data in the

manufacturing industry using agile software

development process are as follows (Gelperin,

2008):

3.1 Requirements Gathering

By gathering problems and requirements for report

generation from big data in the manufacturing

industry, it is revealed that the web services-based

report generation system must be able to query the

data from many sources with different storage

methods and DBMS. In addition, the existing

systems include both non-windows applications and

windows applications, so users have to search for the

reports on the client with software installed, causing

inconvenience. The new system must be able to

operate via a web browser for speed and consistency

with existing corporate environments and has an

ability to process and display the reports that meet

the needs of users from the operational level to the

top management. In addition, strict control of access

rights is necessary to prevent unauthorized access to

information.

3.2 System Analysis

The diagram of web services-based report

generation system from big data shows the creation

of report profile. The report center function is

responsible for adding and managing reports as well

as managing the schedule of report function. The

schedule information must also be added to the 24x 7

function. After that, the 24x7function commands the

report manager function to run the report programs

function and to receive and store the operational

information from report function on the database.

Then, the auto resubmit function reads the

operational information of the report function. When

an unsuccessful report is detected, this function

automatically commands the report manager

function to reprocess such report. In addition to

using the auto resubmit function to command the

report function to automatically re-execute the failed

report, users can also use the report center function

to manage and complete the reports as shown in

figure 3.

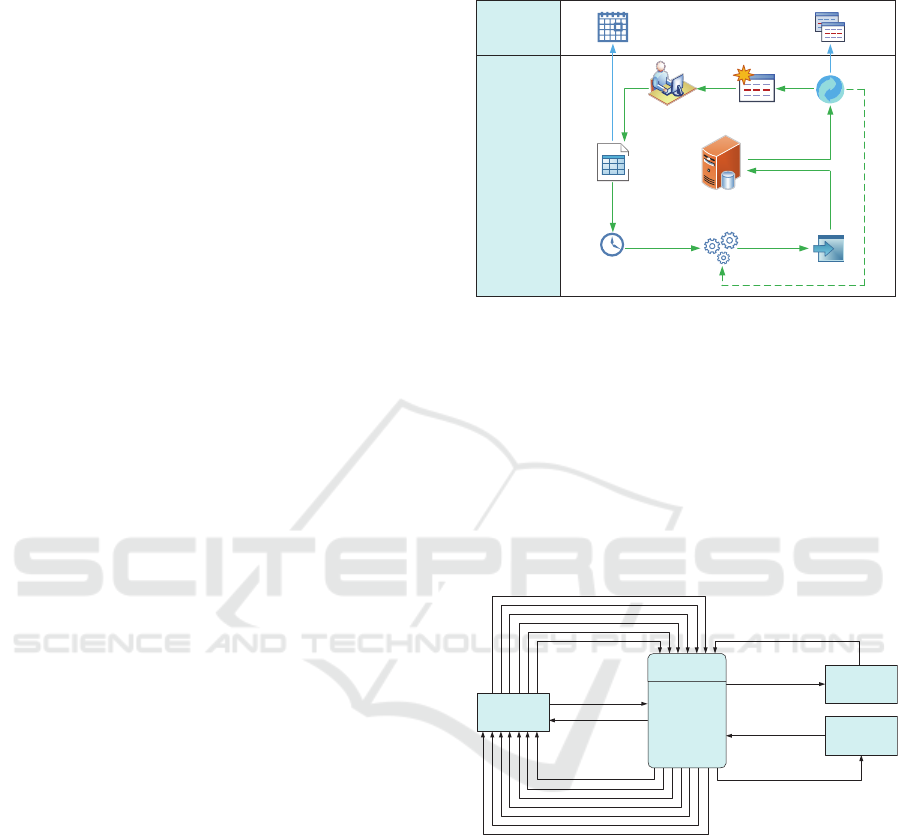

Report profile

Related user

and software

User

Database

Report center

Report profile table

Monitoring

log

>_ 24x7

Report manager

Report data

Auto

resubmit

Report program

Figure 3: System diagram of report profile generation.

3.3 System Design

The design of web services-based report generation

system from big data is based on the context

diagram according to the design principle of the data

flow diagram (DFD) in order to represent the

external entity related to the system and data flow at

the input and output of the system as shown in figure

Report profile

Users authentication data

Production data

Customer data

Material data

Enterprise resource planning (ERP) data

Report scheduling data

Report processing data

Report scheduling data

Report processing data

Report profile

Users authentication data

Repor t manager

Authentication

and authorization

system

Web Services-

Based Report

Generation System

from Big Data in

the Manufacturing

Industry

Users authentication data

Users

Figure 4: DFD level 0 context diagram.

The operation of this web services-based report

generation system is divided into 3 parts as follows:

1) Users: users can access different types of

report such as customer information, customer group

information, operational information, etc. In

addition, users can check the priority of the report as

well as export data in various file formats such as

.pdf, .xls and .csv, etc.

2) Authentication authorization system: it is a

function used to determine the access rights,

including the abilities to use the system and manage

report access.

ICEIS 2020 - 22nd International Conference on Enterprise Information Systems

228

3 ) Report management system: it is a function

used to command the report processing, collect the

data related to production process and store the

obtained data on the database. Report manager

function can access the report data to be used to

manage the Report Profile process and display the

report results.

3.4 Scrum Development Process

From the concept of software development based on

the scrum framework and the use of the model view

controller in this system development, the system

development process can be divided into 4 steps as

follows:

Step 1 Create product backlog or an ordered list

of items to be programmed. The product backlog is

divided into 2 parts, the first part shows the

numbers, names, priorities of the main tasks as well

as the names of the person responsible for such tasks

and the status of the tasks while another part shows

the sub-tasks and details of each task, priorities,

names of person responsible and status of the task,

etc.

Step 2 Sprint backlog: a total of 10 sprints are

defined from the sub-tasks based on the number of

functions of the system with an agreement with the

users to deliver the tasks in each sprint. The

development period for each sprint is set at 2 weeks.

Step 3 Sprint: a system is developed base on the

sprints in order to develop the software. Within 2

weeks of system coding, programming languages are

stored in subversion software (SVN) in order to

store various versions of the system and record

changes in programming languages for each sprint.

After the development of subsystem, test case is

performed to prepare sprint review in the test case

document.

Step 4 Daily scrum: the system development

results are presented in the meeting using sprint

review in order to assess the results of step 3 and

progress into the next sprint immediately after the

previous sprint is finalized. Step 2-4 is repeated until

the software is complete.

3.5 Software Testing

With the use of scrum system development with

Sprint behavior, test cases are used in every

development iteration according to the system

design with DFD for both input, process and output

of the system.

4 RESEARCH RESULTS

The workflow of web services-based report

generation system from big data in the

manufacturing process begins with the user login as

shown in Figure 5.

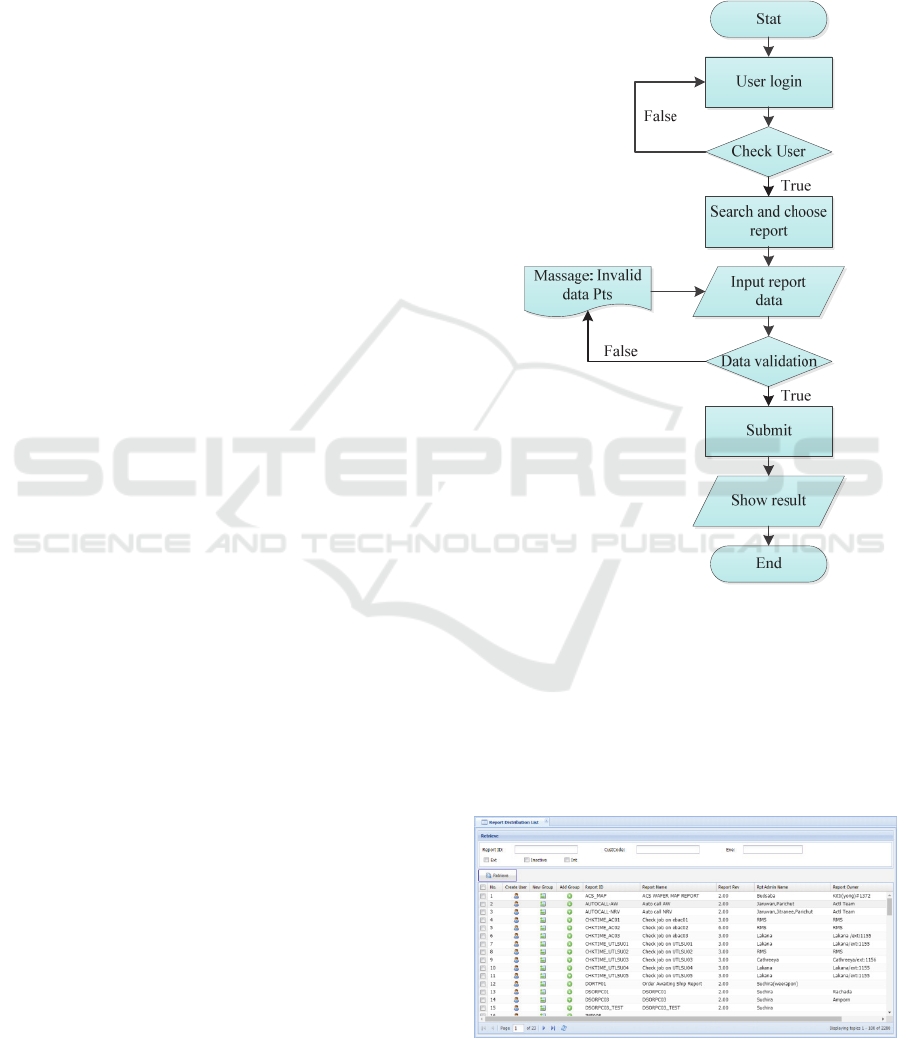

Figure 5: Workflow of the web service-based system.

According to the figure, user login requires

username and password. The access right is

determined by creating the group policy. Each group

has different access right to the reports. The

members of each group are the users who are

entitled according to group policy as shown in figure

Figure 6: Authentication authorization.

Web Services-based Report Generation System from Big Data in the Manufacturing Industry based on Agile Software Development

229

The system consists of 3 main parts. The first

part is the header of the window for displaying the

information of the application such as application

name, names of connected databases, username and

group. The second part is the menu bar located on

the left side of the window showing the entire menu

of the report management system application. The

last part is the content for displaying data obtained

from the database. These three parts are shown in

figure 6.

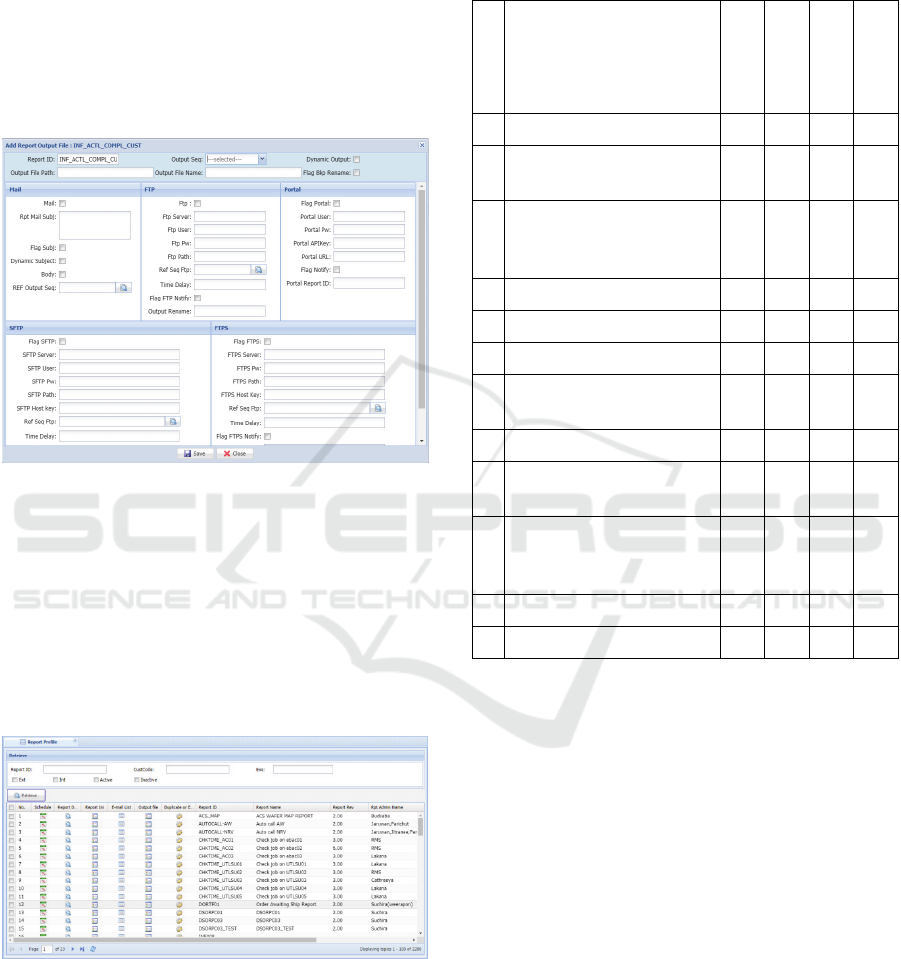

Figure 7: Performance display of web services-based

report generation system from big data.

This web service-based system has 9 menus,

including report profile, report distribution list,

manage user, mange group, user hold profile, report

hold profile, report priority profile, report monitor

seq and report monitor. each menu is displayed as

grid or table and form which is a remarkable feature

of the software development using Ext JS as shown

in figure 8.

Figure 8: Menu display in tabular form system test results.

For test case in each sprint where the unit test is

performed by the programmer, the tester performs

the functional test, integration test and the user

acceptance test (UAT) and the results reveals that

the system can operate according to the requirements

of users, where 1 = passed and 0 = failed as shown

in table 1.

Table 1: Test case of each function.

ID Test Case

Unit Test

Functional

tes

Integration

tes

UAT

1 Log in testing 1 1 1 1

Report information

testing

1 1 1 1

Report ini, report db

table and email list

testing

1 1 1 1

4 Report schedule testing 1 1 1 1

5 Report output file testing 1 1 1 1

6 Report user testing 1 1 1 1

Report distribution

testing

1 1 1 1

8 Report group testing 1 1 1 1

Hold profile and priority

report testing

1 1 1 1

Report monitor and

report monitor seq

testing

1 1 1 1

Total 10 10 10 10

Percentage 100 100 100 100

From the test case of each function based on

agile software development method, it can be

observed that in the testing process, feedback is

received from the stakeholders to edit the task with

value 0 = failed until the test is complete as required

and then replaced with value 1 = passed. A short

meeting of about 10 – 15 minutes is held at every

morning for sprint review and the operation in each

sprint stops when each function passes the test case.

5 DISCUSSION AND

CONCLUSION

In this study a web services-based report generation

system from big data is developed by using various

programming languages and technologies. For

complete and effective development process, agile

method is used. According to the results, it can be

summarized in following 2 aspects:

ICEIS 2020 - 22nd International Conference on Enterprise Information Systems

230

1) Programming: different programming

languages are used to develop the web service-based

system by using HTTP protocol and XML is used to

exchange data over the Internet. In addition, C# is

used as the main programming language to develop

the primary structure of the report generation system

from big data and javascript is used in script coding

on the Internet in combination with HTML and CSS.

Ext JS is used to manage the UI and SQL is used to

manage the data in the RDBMS. MVC, a software

design pattern is also used for developing a database

interface and display to meet the needs of users and

to solve the problems in adding new entries to the

database. The result is an easy-to-access web

application that is accessible via a web browser with

a copy function for creating new report

corresponding to user behavior. There is also the

user interface, which can add and update the data on

the database. This application has a simple structure

and is easy for further development.

2) Agile software development method: in this

study, 5 agile processes are used, consisting of

requirement gathering, system analysis, system

design, scrum development process and software

testing. The scrum development process is based on

the scrum framework, in which daily scrum is held

for the sprint review. This process provides the

feedback on needs and outstanding issues and allows

the team to summarizes and finds an agreement on

the operation. With daily scrum, the problems found

in the system development process can be resolved

faster. In addition, sprint review allows the

stakeholders to see the progress of each task and fix

it on time, resulting in a comprehensive system that

meets the user needs. It allows the users to

understand the system development process, focus

on cooperation, understand the problems and solve

the problems the programmer encountered after

sprint is completed which resulting in technology

adoption and acceptance.

6 FUTURE WORK

This study aims to develop a report generation

system from big data by using various web service

techniques that allows the manufacturing industry to

search for the reports from different databases. In

further work, different query methods may be used

to determine the relationship of the data to be used

in an analysis in order to support and facilitate the

production process using data science techniques.

REFERENCES

Boerman, Martin P., Lubsen, Zeeger, Tamburri, Damian

A., & Visser, Joost. (2015). Measuring and

monitoring agile development status. Florence, Italy:

IEEE Press.

Borkar, Vinayak R., Carey, Michael J., & Li, Chen.

(2012). Big data platforms: What’s next? (Vol. 19):

Association for computing machinery.

Charoenporn, Pattama. (2019). Designing web services

with MVC for classification rice system. Tokyo, Japan:

Association for computing machinery.

Cho, Junhee. (2013). Rewriting javascript module system.

Fukuoka, Japan: Association for computing

machinery.

Emmanuel, Isitor, & Stanier, Clare. (2016). Defining big

data. Blagoevgrad, Bulgaria: Association for

computing machinery.

Gelperin, David. (2008). Exploring agile. Leipzig,

Germany: Association for computing machinery.

Gu, Yuanhu, Malicdem, Alvin R., Cruz, Josephine S.

Dela, & Palaoag, Thelma Domingo. (2019). Using big

data analysis to retain customers for telecom industry.

Paper presented at the proceedings of the 2019 5th

international conference on computing and artificial

intelligence, Bali, Indonesia.

Hoda, Rashina, Kruchten, Philippe, Noble, James, &

Marshall, Stuart. (2010). Agility in context.

Reno/Tahoe, Nevada, USA: Association for

computing machinery.

Houston, Dan X. (2014). Agility beyond software

development. Nanjing, China: Association for

computing machinery.

Hu, S. X. K., Wang, X., & Martin, D. (2007). Context

modeling to enforce interoperability in web service

definition. Paper presented at the IEEE international

conference on services computing (SCC 2007).

Jailia, Manisha, kumar, Ashok, Singhal, Himani, &

Agarwal, Manisha. (2016). Development and

performance analysis of cloud and MVC based web

application. Udaipur, India: Association for

computing machinery.

Maier, Patrik, Ma, Zhendong, & Bloem, Roderick. (2017).

Towards a secure scrum process for agile web

application development. Reggio Calabria, Italy:

Association for computing machinery.

Miyachi, Christine. (2011). Agile software architecture

(Vol. 36): Association for computing machinery.

Neves, Pedro, & Bernardino, Jorge. (2015). Big data

issues. Yokohama, Japan: Association for computing

machinery.

Ni, Jun-hong, Zhang, Li, & Yang, Yu-juan. (2012). The

research and implement of power communication

alarm management system based on MVC and Ext JS.

Paper presented at the 2012 international conference

on information management, innovation management

and industrial engineering.

Podhoranyi, Michal, & Vojacek, Lukas. (2019). Social

media data processing infrastructure by usingapache

Web Services-based Report Generation System from Big Data in the Manufacturing Industry based on Agile Software Development

231

spark big data platform: twitter data analysis. Tokyo,

Japan: Association for computing machinery.

Polster, F. J. (1978). Using a preprocessor to implement a

data manipulation language for a minicomputer data

base system: Association for computing machinery.

Quaglia, Eduardo J., & Tocantins, Claudia A. (2011).

Simulation projects management using scrum.

Phoenix, Arizona: Winter simulation conference.

Selfa, D. M., Carrillo, M., & Boone, M. Del Rocio. (2006).

A database and web application based on MVC

architecture. Paper presented at the 16th international

conference on electronics, communications and

computers (CONIELECOMP'06).

Wilschut, T., Adan, I. J. B. F., & Stokkermans, J. (2014).

Big data in daily manufacturing operations. Paper

presented at the proceedings of the winter simulation

conference 2014.

Witkowski, Andrew, Bellamkonda, Srikanth, Bozkaya,

Tolga, Folkert, Nathan, Gupta, Abhinav, Haydu, John,

Subramanian, Sankar. (2005). Advanced SQL

modeling in RDBMS (Vol. 30): Association for

computing machinery.

ICEIS 2020 - 22nd International Conference on Enterprise Information Systems

232
