Integrating Multiscale Deformable Part Models and Convolutional

Networks for Pedestrian Detection

Wen-Hui Chen

, Chi-Wei Kuan

and Chuan-Cho Chiang

Graduate Institute of Automation Technology, National Taipei University of Technology, Taipei, Taiwan

Keywords: Advanced Driver Assistance Systems, Convolutional Neural Networks, Deformable Part Models, Pedestrian

Detection.

Abstract: Pedestrian detection has many real-world applications, such as advanced driver assistance systems, security

surveillance, and traffic control, etc. One of the pedestrian detection challenges is the presence of occlusion.

In this study, a jointly learned approach using multiscale deformable part models (DPM) and convolutional

neural networks (CNN) is presented to improve the detection accuracy of partially occluded pedestrians. Deep

convolutional networks provide a framework that allows hierarchical feature extraction. The DPM is used to

characterize non-rigid objects on the histogram of oriented gradients (HoG) feature maps. Scores of the root

and parts filters derived from the DPM are used as deformable information to help improve the detection

performance. Experimental results show that the proposed jointly learned model can effectively reduce the

miss rate of CNN-based object detection models tested on the Caltech pedestrian dataset.

1 INTRODUCTION

According to the World Health Organization (WHO)

report, road traffic accidents are the leading cause of

death and injury. It indicated that several hundred

thousand people lost their lives on roads each year

(World Health Organization, 2013). The growth of

automobiles over the past decade has contributed to

the rise of the accident rate.

With the pervasion of digital technology,

advanced driver assistance systems (ADAS) have

gained popularity in the automotive industry in recent

years. Nowadays, many modern vehicles have

equipped with some sort of ADAS functions to

provide drivers with safer, better, and more

comfortable driving experience. Pedestrian detection

is one of the key ADAS functions to safety control

and collision avoidance.

The main challenges of pedestrian detection

include human body articulation, occlusion, the

changes of illumination and angle of view, and

varying in appearance as well as scales. For example,

people look different when wearing different clothes

or taking different poses. In addition, lighting

https://orcid.org/0000-0003-2015-5256

https://orcid.org/0000-0003-2269-8158

https://orcid.org/0000-0002-2535-6121

variations can also influence the image pixel values

of an object, leading to the challenge of the object

detection tasks in computer vision (Stefan Schnürle et

al, 2017; Ortalda et al., 2018).

In the early stage, most detection algorithms were

developed on designing handcrafted features.

Deformable part models (DPM) that use the

histogram of oriented gradients were the state-of-the-

art approach in this period. Although many

approaches have demonstrated some promising

results, they were usually not robust and lack the

generalized discriminative capability and some were

even computationally intensive.

In 2012, the rise of convolutional neural networks

(CNN) ignited the progress of object detection and

became the mainstream of pedestrian detection

research. In general, deep learning-based approaches

have better performance over traditional learning

models using handcrafted features on object detection

but they heavily rely on training data to achieve

qualified performance. In addition, most deep

learning-based detection models were pre-trained on

public datasets that lack occluded pedestrians, leading

Chen, W., Kuan, C. and Chiang, C.

Integrating Multiscale Deformable Part Models and Convolutional Networks for Pedestrian Detection.

DOI: 10.5220/0009459005150521

In Proceedings of the 6th International Conference on Vehicle Technology and Intelligent Transport Systems (VEHITS 2020), pages 515-521

ISBN: 978-989-758-419-0

515

to a poor detection rate on partially occluded

pedestrians.

In this study, we integrate the DPM and CNN to

handle the occluding problem in pedestrian detection.

The DPM is to provide a description of flexible

human body models that can help detect partially

occluded pedestrians.

The remainder of this paper is organized as

follows. A review of the related work on pedestrian

detection is provided in Section 2. The proposed

approach and an overview of DPM are described in

Section 3. The experimental setup and results are

presented in Section 4. Finally, conclusions are drawn

in Section 5.

2 RELATED WORKS

The study of pedestrian detection has been an active

research topic for many years due to its potential

applications. In this section, the related works on

vision-based pedestrian detection are discussed. The

development of pedestrian detection algorithms is

closely related to the evolution of object detection as

it is an application of computer vision. Numerous

approaches have been proposed in the past decades,

but some issues still remain unsolved and need to be

addressed.

In the early stage, traditional pedestrian detection

approaches highly rely on domain knowledge to

design sophisticated features. Viola and Jones (2001)

introduced a detection algorithm with Haar-like

features and an AdaBoost cascade framework. The

Viola-Jones (VJ) algorithm was originally proposed

for face detection. Shortly afterward, it has been

further applied to other detection problems, including

pedestrian detection (Viola et al., 2003). The VJ

detection algorithm was considered the first approach

that can reach real-time performance, but it has some

limitations including sensitive to lighting conditions

and ineffective to encode the variance of a pedestrian

in posture and appearance.

In 2005, the histogram of oriented gradients

(HoG) was proposed as the features for human

detection (Dalal & Triggs, 2005). This approach first

divides an image into blocks and further divided each

block into cells. The concept of HoG is to convert a

pixel-based representation into a gradient-based one

by calculating the gradient of each cell and building

the histogram for all the orientations in a cell with

discrete orientation bins.

HoG can be considered as the object information

compressed and encoded in the orientation histogram

that is ready to be fed into a classifier, such as support

vector machines. However, HoG is very sensitive to

image orientation and unable to characterize

information well in a smooth region (Cheon et al.,

2011).

The human body is a non-ridge object.

Felzenszwalb et al. (2008) proposed deformable part

models (DPM) that take the object deformation into

consideration by including the deformable cost

according to the displacement of each object part

relative to its root location. DPM is a learning-based

object detection algorithm defined by a constrained

part-based model. It won the PASCAL VOC

challenges (Felzenszwalb et al., 2010) and is

considered the state-of-the-art algorithm for object

detection before deep learning becomes popular.

During 2010-2012, the research of pedestrian

detection reached a period of the plateau without

significant performance improvement (Zhao et al.,

2019). The reasons for the stagnant include: (1)

sliding-based bounding boxes generation is

inefficient and inaccurate; (2) manually designed

features are not robust.

Since 2012, the resurgence of neural networks

with deep architecture and the growth of computing

power from hardware acceleration have led deep

learning to great success in various fields, especially

in computer vision. Instead of using handcrafted

features, one of the advantages of deep learning is its

ability to learn high-level features automatically.

In 2014, a pioneer work by applying deep learning

to object detection was proposed (Girshick et al.,

2014). The authors cleverly introduced the regions

with CNN features to boost the mean average

precision in object detection accuracy. Since then, the

development of object detection begins to grow

(Rasmussen et al., 2017). Now, there are many CNN-

based object detection approaches including Fast R-

CNN (Girshick, 2015), Faster R-CNN (Ren et al.,

2015), SSD (Liu et al., 2016), and YOLO (Redmon et

al., 2016; Redmon & Farhadi, 2018). Deep learning

to pedestrian detection in this period also achieved

promising results (Sermanet et al., 2013; Ouyang &

Wang, 2013; Luo et al., 2014). In addition to CNN,

recurrent neural networks (RNNs) were also

successfully applied to pedestrian detection to

improve the average precision (Zhang & Kim, 2018).

One of the main challenges of pedestrian

detection comes from the occlusion of the human

body and has yet to discover an effective approach to

deal with this issue. Ouyang and Wang (2012)

proposed a DPM based method to improve the

detection accuracy in occlusion. They used the

restricted Boltzmann machine (RBM) to build the

leaning model. However, the stacked RBMs as

VEHITS 2020 - 6th International Conference on Vehicle Technology and Intelligent Transport Systems

516

multiple layers of architecture lack semantic

meanings.

Although deep architectures outperform shallow

models in many challenging tasks, there are some

ideas in state-of-the-art shallow models that are still

useful and can be used to further improve the results

achieved by deep learning models. In this study, we

include the combined response derived from the DPM

as the deformable score maps to improve the

detection accuracy of the CNN-based models.

3 THE PROPOSED APPROACH

In this section, we describe how to improve the

performance of pedestrian detection by adopting the

deformable score maps from DPM and applying them

to a CNN-based detection model. The computation

flow of the proposed approach is illustrated in Figure

At first, we collect training images with

pedestrians and compute their transformed responses

as deformable score maps from the DPM inference

procedure. In this study, we use the Caltech

pedestrian dataset to conduct the experiments. Then,

we use the derived deformable score maps as

additional information and feed them into the deep

learning model in the learning stage to have the model

learn the deformable information of a pedestrian.

Start

Caltech

Dataset

Combined Dataset

with Score Maps

Deep Learning

Models

(SSD, Faster R-CNN)

Output

Deformable

Score Maps

Figure 1: Flowchart of the proposed approach.

3.1 An Overview of DPM

The DPM recognizes objects involved with three

major components: a root filter, a group of part filters,

and a scoring mechanism. The root filter defines the

detection window that covers the object to detect. Part

filters are used to define a set of parts for the detected

object. The connection between the root filter and its

associated part filters is evaluated by a scoring

mechanism that quantifies the spatial association with

a deformable cost.

As the DPM learning model is built based on HoG

features, the computation of HoG is the first step to

the DPM inference. Here is the procedure to obtain

HoG features of an image. Suppose that l(x, y) is the

pixel value at location (x, y). The gradient vector of

the pixel (x, y) can be obtained as follows:

  

,1,1,

Gxy lx y lx y 

(1)

  

,,1,1

Gxy lxy lxy

(2)

  

,,,

Gxy G xy G xy

(3)



,y tan

Gxy













(4)

where G

and G

are the partial derivatives on the x-

direction and y-direction, respectively. The

magnitude and direction of an image gradient vector

are described in Equations (3) and (4).

Then, we divide the image into 8-by-8 pixel cells,

where the magnitude values are stored cumulatively

and added into nine bins for unsigned angles. Finally,

we slide a block containing the size of 2-by-2 cells

across the whole image. Histograms of the four cells

in each block are concatenated into a vector and

normalized with L2-norm. The HoG features are

obtained by concatenating all the block vectors. As

our target object is a pedestrian, we use eight part

filters as components of a human body as illustrated

in Figure 2.

To detect objects in various scales, we use image

pyramids in four different scales as shown in Figure

3 to obtain a multi-scale DPM to represent the local

shape descriptor generated by combining the

histogram of edge orientations of each cell (Grauman

& Darrell, 2005).

(a) (b)

Figure 2: (a) The root filter and (b) part filters of an upright

pose pedestrian in a DPM model.

Integrating Multiscale Deformable Part Models and Convolutional Networks for Pedestrian Detection

517

Figure 3: The pyramid of image. The full image resolution

is taken at the bottom level.

3.2 Computation of Deformable Score

Maps

The deformable scores in the DPM provide essential

information for a possible displacement of object

parts. It is beneficial to have this information added

into a deep learning-based object detection models.

The rest of this section describes the computation of

deformable scores.

Suppose that the pedestrian model based on the

DPM structure, M

, is described by Equation (5).



p01

, ,....., ,

MFP PB

(5)

where F

is the root filter, N is the number of part

filter, and B is the bias term. P

is used to model part

filters defined by a 5-tuple (F

, v

, s

, a

, b

). The five

elements of the tuple are listed below,

: the i-th part filter

: the box center of the i-th part relative to the root

location

: the box size

, b

: coefficients of a quadratic function measuring

the deformable score of the i-th part

The response of a filter is computed by taking the

dot product of the filter weights and the features in the

HoG pyramid (Felzenszwalb et al., 2010; Cai, 2018).

The deformable score is given by Equation (6).

  

SCORE , ,

iiidii

F H P d dx dy B





  



(6)



,(,)(2(,))

ii ii i

dx dy x y x y v 

(7)

(,,,)

iiiii

dFsab

(8)



,,,,

dii ii

dx dy dx dy dx dy





(9)

The first term





in Equation (6) describes a

sub-window in the HoG pyramid H with the upper left

corner in each part model P

, while



dx dy

in the

second term describes the displacement of the i-th

part and is defined in Equation (7). Hence, the

deformable score can be expressed in terms of the dot

product between d

and



defined in Equations (8)

and (9), respectively. Figure 4 illustrates the

procedure of deformable scores computation.

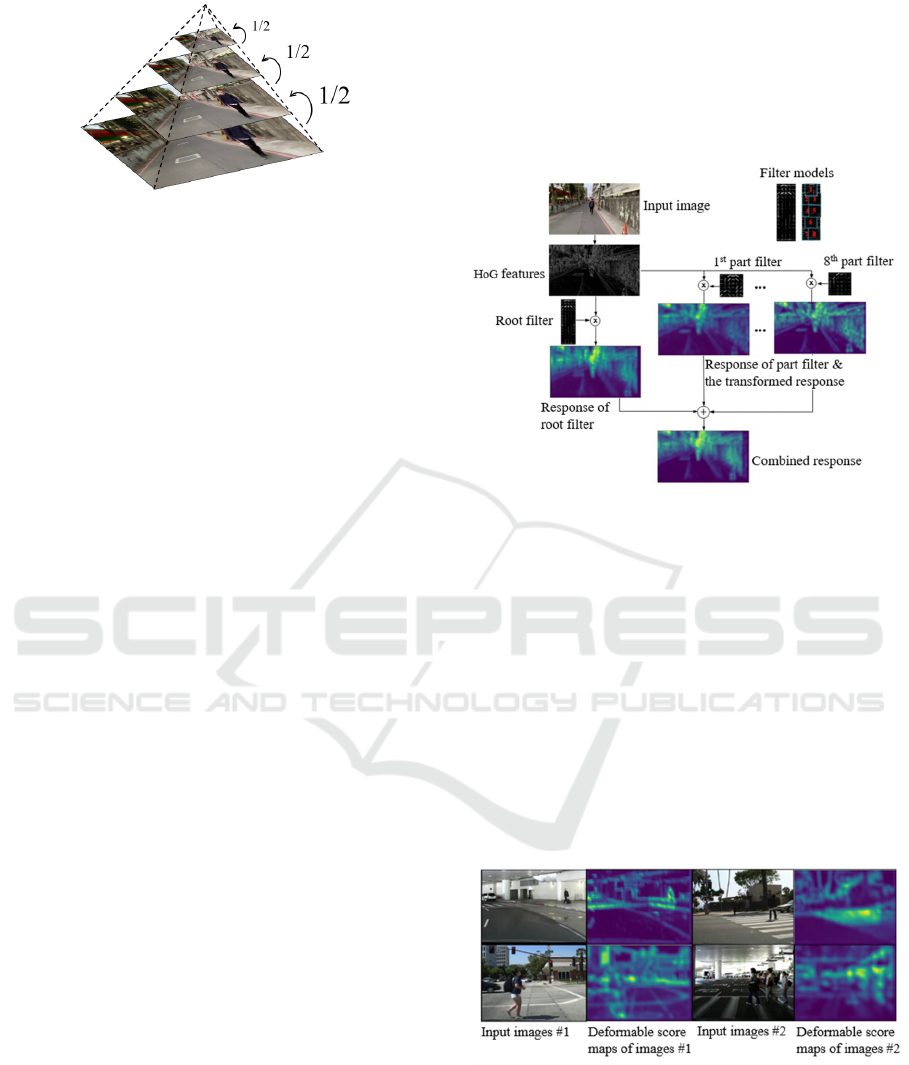

Figure 4: Illustration of computing deformable score maps.

The procedure of computing the deformable score

maps is summarized as follows.

(1) Compute the pyramid of HoG features.

(2) Compute the response of the root filter by filtering

the HoG pyramid features with the root filters

leaned by the latent SVM.

(3) Compute the response of each part filter and the

transformed responses.

(4) Sum up the response from multiple parts to obtain

the combined response as deformable score maps

Figure 5 shows sample images from the Caltech

dataset and their corresponding deformable score

maps.

Figure 5: The first and the third columns show sample

images from the Caltech dataset. The second and fourth

columns show the corresponding score maps.

VEHITS 2020 - 6th International Conference on Vehicle Technology and Intelligent Transport Systems

518

4 EXPERIMENTAL RESULTS

4.1 The Caltech Pedestrian Dataset

In this experiment, we use the Caltech pedestrian

dataset (Dollar et al., 2012) to examine the proposed

approach. The dataset contains videos approximately

10 hours collected from an urban traffic environment.

There are about 2,300 pedestrians and a total of

350,000 bounding boxes labeled. The dataset was

divided into 11 sessions, where six sessions for

training and five sessions for the test.

The pedestrian instances are grouped into three

scales: near (80 pixels or more in height), medium

(30-80 pixels), and far (30 pixels or less). The subset

reasonable in the dataset contains pedestrians that

have 50 pixels or more in height. The training data in

this study contains 128,419 images, while the test

data contains 4,024 images.

In the training stage, we include the deformable

score maps described in Section 3. Note that the

original DPM filter parameters were trained on

PASCAL VOC07. As the VOC07 dataset is lack of

pedestrian samples, we re-trained DPM filter

parameters with the Caltech pedestrian dataset.

4.2 Experimental Setup

We separate color channels of an image and obtain

three corresponding score maps, namely R-score

map, G-score map, and B-score map from R, G, and

B channels, respectively. We conducted experiments

and found that the inclusion of all the three score

maps shows better results compared to the results

derived only from a single channel score map or

without score maps. Therefore, we include all the

score maps derived from three channels in the

training data.

CNN-based object detection models can be

roughly divided into two categories: one-stage and

two-stage frameworks. In order to verify the

effectiveness of the proposed approach, two popular

CNN-based detection models were used, namely SSD

(one-stage model) and Faster R-CNN (two-stage

model). The size of the root filter and part filters is set

to 15×5 and 6×6, respectively throughout the

experiments.

4.2.1 Tested on SSD

SSD is a popular one-stage detection model that has

real-time detection ability without losing its detection

accuracy. Unlike most detectors that run detection on

the top layer of the network, SSD detects different

object scales on different network layers. There are

some variations in SSD. In this experiment, we use

MobileNet-v2 as the lightweight backbone. The

framework of detecting pedestrians is illustrated in

Figure 6.

Figure 6: The framework of detecting pedestrians with

deformable score maps on the SSD architecture.

When evaluating the proposed approach on SSD

models, we observed that the performance in terms of

miss rate is improved among all the pedestrian scales,

as listed in Table 1. It has an improvement of 1.9% of

miss rate in the scale of medium.

Table 1: Comparison of miss rate improvement on SSD

models.

Scale

Models

Far Medium Near Reasonable

SSD 96.0% 83.1% 29.4% 57.7%

Our Approach 95.8% 81.2% 28.8% 56.4%

Improvement 0.2% 1.9% 0.6% 1.3%

4.2.2 Tested on Faster R-CNN

Faster R-CNN is a popular two-stage detection model. We

use ResNet50 as the base network for feature extraction.

The framework of detecting pedestrians with deformable

score maps on the Faster R-CNN architecture is illustrated

in Figure 7.

Figure 7: The framework of detecting pedestrians with

deformable score maps on the Faster R-CNN architecture.

Integrating Multiscale Deformable Part Models and Convolutional Networks for Pedestrian Detection

519

When evaluating the proposed approach on Faster R-

CNN models, we observed that the miss rate is also

improved among all the pedestrian scales, as listed in

Table 2. It has an improvement of 2.7% of miss rate

on the scale of near.

Table 2: Comparison of miss rate improvement on Faster

R-CNN models.

Scale

Models

Far Medium Near Reasonabl

Faster R-CNN 93.1% 57.8% 7.1% 25.3%

Our Approach 92.6% 56.8% 4.4% 22.8%

Improvement 1.5% 1.0% 2.7% 2.5%

Figure 8 shows examples of detection results. It

can be seen that the proposed approach is able to

detect partially occluded pedestrians that have been

missed in the original Faster R-CNN model.

(a) (b)

Figure 8: Examples of detected results. (a) Detection results

in Faster R-CNN models. (b) Detection results obtained by

the proposed approach.

In order to evaluate the impact of occlusion

percentage on detection accuracy, we further

experiment with more occlusion setups and listed the

results in Table 3 and Table 4 for SSD and Faster R-

CNN, respectively.

From Table 3 and Table 4, it is clear that the

proposed approach can help reduce the miss rate even

in the case of heavy occlusion by providing the

information of deformable scores. The miss rate was

reduced from 1.3% to 2.6% in the Faster R-CNN

architecture and from 1.7% to 2.1% in the SSD

architecture. This is because non-rigid objects can be

spatially organized in a deformable configuration of

parts, and DPM is able to provide information that

helps find partially occluded objects.

Table 3: Comparison of miss rate improvement at different

percentages of occlusion on Faster R-CNN.

Occlusion

Models

25% 50% 75%

Faster R-CNN 20.0% 24.9% 54.2%

Our Approach 17.4% 22.5% 52.9%

Improvement 2.6% 2.5% 1.3%

Table 4: Comparison of miss rate improvement at different

percentages of occlusion on SSD.

Occlusion

Models

25% 50% 75%

SSD 49.9% 57.7% 83.7%

Our Approach 47.8% 56.3% 82%

Improvement 2.1% 1.4% 1.7%

5 CONCLUSIONS

Pedestrian detection is an active research topic for the

automotive and security industries. In this study, we

have demonstrated a simple but effective jointly

learned approach by including the deformable score

maps derived from DPM into deep learning-based

object detection models. The experimental results

tested on the Caltech pedestrian dataset showed that

the proposed approach is able to reduce a miss rate of

2.1% on SSD and 2.6% on Faster R-CNN in the case

of 25% partial occlusion.

ACKNOWLEDGMENTS

This work is supported by the Taiwan Ministry of

Science and Technology (MOST) under Grant No.

MOST 108-2218-E-035-013

REFERENCES

Cai, Y., Liu, Z., Wang, H., Chen, X., & Chen, L. (2018).

vehicle detection by fusing part model learning and

semantic scene information for complex urban

surveillance. Sensors, 18(3505). 1-19.

Cheon, M., Lee, W., Hyun, C. H., & Park, M. (2011).

Rotation invariant histogram of oriented gradients.

International Journal of Fuzzy Logic and Intelligent

Systems, 11(4), 293-298.

Dalal, N., & Triggs, B. (2005). Histograms of oriented

gradients for human detection. Proceedings of the IEEE

Conference on Computer Vision and Pattern.

Recognition.

VEHITS 2020 - 6th International Conference on Vehicle Technology and Intelligent Transport Systems

520

Dollar, P., Wojek, C., Schiele, B., & Perona, P. (2012).

Pedestrian detection: An evaluation of the state of the

art. IEEE Transactions on Pattern Analysis and

Machine Intelligence, 34(4), 743-761.

Felzenszwalb, P., Girshick, R., McAllester, D., &

Ramanan, D. (2010). Object detection with

discriminatively trained part based models. IEEE

Transactions on Pattern Analysis and Machine

Intelligence, 32(9), 1627-1645.

Felzenszwalb, P., McAllester, D., & Ramanan, D. (2008).

A discriminatively trained, multiscale, deformable part

model. IEEE Conference on Computer Vision and

Pattern Recognition.

Girshick, R. (2015). Fast R-CNN. Proceedings of the IEEE

International Conference on Computer Vision.

Girshick, R., Donahue, J., Darrell, T., & Malik, J. (2014).

Rich feature hierarchies for accurate object detection

and semantic segmentation. IEEE Conference on

Computer Vision and Pattern Recognition.

Grauman, K., & Darrell, T. (2005). The pyramid match

kernel: discriminative classification with sets of image

features. Proceedings of the Tenth IEEE International

Conference on Computer Vision.

Lin, T., Dollar, P., Girshick, R., He, K., Hariharan, B., &

Belongie, S. (2017). Feature pyramid networks for

object detection. arXiv:1612.03144v2

Liu, W., Anguelov, D., Erhan, D., Szegedy, C., Reed, S.,

Fu, C., Berg, A. (2016). SSD: single shot multibox

detector. Proceedings of the 14th European Conference

on Computer Vision.

Luo, P., Tian, Y., Wang, X., & Tang, X. (2014). Switchable

deep network for pedestrian detection. Proceedings of

the IEEE Conference on Computer Vision and Pattern

Recognition.

Ortalda, A., Moujahid, A., Hina, M., Soukane, A. &

Ramdane-Cherif, A. (2018). Safe driving mechanism:

detection, recognition and avoidance of road obstacles.

Proceedings of the 10

International Joint Conference

on Knowledge Discovery, Knowledge Engineering and

Knowledge Management.

Ouyang, W., & Wang, X. (2012). A discriminative deep

model for pedestrian detection with occlusion handling.

Proceedings of the IEEE Conference on Computer

Vision and Pattern Recognition.

Ouyang, W., & Wang, X. (2013). Joint deep learning for

pedestrian detection. Proceedings of the IEEE

International Conference on Computer Vision.

Rasmussen, C., Nasrollahi, K. & Moeslund, T. (2017). R-

FCN object detection ensemble based on object

resolution and image quality. Proceedings of the 9

International Joint Conference on Computational

Intelligence.

Redmon, J., Divvala, S., Girshick, R., & Farhadi. A. (2016).

You only look once: unified, real-time object detection.

Proceedings of the IEEE Conference on Computer

Vision and Pattern. Recognition.

Redmon, J., & Farhadi, A. (2018). YOLOv3: An

incremental improvement. arXiv:1804.02767v1

Ren, S., He, K., Girshick, R., & Sun, J. (2015). Faster R-

CNN: Towards real-time object detection with region

proposal networks. Advances in Neural Information

Processing Systems.

Schnürle, S., Pouly, M., vor der Brück, T., Navarini, A. &

Koller, T. (2017). On using support vector machines for

the detection and quantification of hand eczema.

Proceedings of the 9th International Conference on

Agents and Artificial Intelligence.

Sermanet, P., Kavukcuoglu, K., Pedestrian, S., & LeCun,

Y. (2013). Pedestrian detection with unsupervised

multi-stage feature learning. Proceedings of the IEEE

Conference on Computer Vision and Pattern.

Recognition.

Viola, P., & Jones, M. (2001). Rapid object detection using

a boosted cascade of simple features, Proceedings of

the IEEE Conference on Computer Vision and Pattern.

Recognition.

Viola, P., Jones, M. J., & Snow, D. (2003). Detecting

pedestrians using patterns of motion and appearance.

Proceedings of the Ninth IEEE International

Conference on Computer Vision.

World Health Organization. (2013). More than 270 000

pedestrians killed on roads each year. Retrieved Oct.

2019 from https://www.who.int/mediacentre/news/

notes/2013/make_walking_safe_20130502/en/

Zhang, C. & Kim, J. (2018). Multi-scale spatial context

features using 3-d recurrent neural networks for

pedestrian detection. Proceedings of the 21

International Conference on Intelligent Transportation

Systems.

Zhao, Z. Q., Zheng, P., Xu, S. T., & Wu, X. (2019). Object

detection with deep learning: a review. IEEE Trans. On

Neural Networks and Learning Systems, 30(11), 3212-

3232.

Integrating Multiscale Deformable Part Models and Convolutional Networks for Pedestrian Detection

521
