Preliminary Evaluation of the Utility of Deep Generative

Histopathology Image Translation at a Mid-sized NCI Cancer Center

Joshua J. Levy

1,2,3,* a

, Christopher R. Jackson

, Aravindhan Sriharan

, Brock C. Christensen

2 b

and Louis J. Vaickus

Program in Quantitative Biomedical Sciences, Geisel School of Medicine, Dartmouth, Lebanon, U.S.A.

Department of Epidemiology, Geisel School of Medicine, Dartmouth, Lebanon, U.S.A.

Department of Pathology, Dartmouth Hitchcock Medical Center, Dartmouth, Lebanon, U.S.A.

Keywords: Deep Learning, Histopathology, Image Translation.

Abstract: Evaluation of a tissue biopsy is often required for the diagnosis and prognostic staging of a disease. Recent

efforts have sought to accurately quantitate the distribution of tissue features and morphology in digitized

images of histological tissue sections, Whole Slide Images (WSI). Generative modeling techniques present a

unique opportunity to produce training data that can both augment these models and translate histologic data

across different intra-and-inter-institutional processing procedures, provide cost-effective ways to perform

computational chemical stains (synthetic stains) on tissue, and facilitate the creation of diagnostic aid

algorithms. A critical evaluation and understanding of these technologies is vital for their incorporation into

a clinical workflow. We illustrate several potential use cases of these techniques for the calculation of nuclear

to cytoplasm ratio, synthetic SOX10 immunohistochemistry (IHC, sIHC) staining to delineate cell lineage,

and the conversion of hematoxylin and eosin (H&E) stain to trichome stain for the staging of liver fibrosis.

1 INTRODUCTION

The field of histopathology is the study of disease

using morphological and spatial distributions of

tissue features observed under a microscope as

performed by a board-certified pathologist. Tissue is

biopsied or excised, fixed via a combination of

formalin and heat processing, embedded in paraffin

to create formalin-fixed and paraffin-embedded

tissue blocks (FFPE). The tissue is then sectioned via

a microtome into thin sheets (typically 2µM-8µM in

thickness), and chemically stained with various

reagents (most commonly hematoxylin and eosin,

H&E). Slides and tissue blocks are typically stored

for at least 10 years (depending on legal and

institutional regulations), although there is no

effective limit to their shelf life beyond slow

bleaching of dyes and degradation of DNA/RNA and

many academic institutions retain all tissue

indefinitely. Despite advancements in “gold-

https://orcid.org/0000-0001-8050-1291

https://orcid.org/0000-0003-3022-426X

*Address correspondence to: joshua.j.levy.gr@dartmouth.

edu

standard” scoring metrics for tissue examination,

some diagnoses have a high inter-observer

disagreement between pathologists. Like other

medical professionals, pathologists are increasingly

overworked and reporting high levels of burnout

(Miller & Brown, 2018) which can significantly

impact turn-around-time (TAT) and in severe cases,

diagnostic accuracy. Moreover, maintaining a CLIA-

certified (Raab, 2000) histopathology laboratory

capable of performing special stains and

immunohistochemistry (IHC) is expensive and

requires specialized technologists, licenses,

instruments and reagents. Thus, there is a great need

for the development of accurate, interpretable,

quantitative medical decision aid algorithms and

workflows (Levy et al., 2020). In this article, we

evaluate the application of generative, quantitative

techniques in a variety of common scenarios in the

application of digital pathology to current analogue

workflows.

302

Levy, J., Jackson, C., Sriharan, A., Christensen, B. and Vaickus, L.

Preliminary Evaluation of the Utility of Deep Generative Histopathology Image Translation at a Mid-sized NCI Cancer Center.

DOI: 10.5220/0009427603020311

In Proceedings of the 13th International Joint Conference on Biomedical Engineering Systems and Technologies (BIOSTEC 2020) - Volume 3: BIOINFORMATICS, pages 302-311

ISBN: 978-989-758-398-8; ISSN: 2184-4305

Generative modelling techniques aim to produce

partially or wholly synthetic data that has a similarly

high fidelity as the original or target data source. In

some cases, data produced by these generative

models can be used to enhance the performance of a

variety of downstream prediction or inference tasks

without the need to acquire additional, expensive,

expert annotated data. These modelling techniques

are useful in a wide variety of domains, including

inferring ties in social networks for modelling the

spread of healthy behaviors, robust translation for

hundreds of languages, and the imputation of

genomics data for the inference of more favorable

disease prognosis as it relates to therapy choices

(Lotfollahi et al., 2019; O’Malley, 2013; Young et al.,

2018).

An important application of these generative

techniques is the use of deep learning in medical

imaging. Deep learning approaches are data-driven

computational heuristics that “learn” to specify a

large set of nonlinear interactions between predictors

to understand their relationship with clinical

outcomes of interest through the use of artificial

neural networks (ANN) (Krizhevsky et al., 2012).

ANN are comprised of layers of nodes that represent

levels of abstraction of the data, where nodes

aggregate weighted information from the previous

layer of nodes, transform the data, and pass it to

downstream layers of nodes to characterize the tissue

image. We focus on a subclass of these methods,

generative adversarial networks (GANs).

GANs simultaneously train two ANN. The first

network generates an image of, for instance,

histological tissue, from a latent data distribution

(generator), and the other ANN discriminates whether

the supplied image is “real” or “fake”

(discriminator/critic). The number of publications on

GANs in medical imagery has rapidly increased in

recent years, with topics spanning medical image

segmentation, nucleus detection, style translation,

and upsampling of images (Yi et al., 2019).

A growing collection of studies have used GANs

to synthetically stain images of histological tissue

sections, which can save institutions time and money

(both in reagents and technologists’ time)

(Bayramoglu et al., 2017; Borhani et al., 2019; De

Biase, 2019; Lahiani et al., 2018; Quiros et al., 2019;

Rana et al., 2018; Rivenson, Liu, et al., 2019;

Rivenson, Wang, et al., 2019; Xu et al., 2019). GAN

models have also been used to remove artificial and

natural discolorations in images of stained

histological tissue sections that could perturb deep

learning analyses (Bentaieb & Hamarneh, 2018;

Ghazvinian Zanjani et al., 2018; Pontalba et al.,

2019). Other studies have sought to use GANs to

generate synthetic training data to increase the

generalizability of deep learning histopathology

models (Wei et al., 2019). A few studies used deep

generative techniques to derive nucleus masks

without the use of physician supplied annotations

(Bug et al., 2019; Gadermayr et al., 2019; Hollandi et

al., 2019; Mahmood et al., 2018).

Traditional unconditional GANs generate data by

using the discriminator to estimate and match the

distribution of the generated data to the real data.

Conditional GANs such as Pix2Pix (Isola et al., 2018)

are conditioned on the original labelled data while

attempting to directly match the target image. This

requires the pairing of images to learn the mapping

from source to target domain (Figure 1a). In

histopathology, perfectly registered paired images of

differentially stained tissue can often be difficult to

acquire (even when stereotactic sections are only

separated by 5µM) and therefore require accurate

annotation and registration, in which the images must

be warped, rotated and translated to most accurately

match the source domain. These registrations are not

entirely accurate and assume that the matched tissue

has no artifacts present (Borovec et al., 2019).

Additionally, the computational resources required to

80,000x80,000 pixels per color channel can be

exceedingly high. Another GAN architecture resolves

these issues: unconditional image-to-image

translation models such as CycleGAN (Zhu et al.,

2018) and UNIT (Zhu et al., 2018). In addition to

distributional matching of the real and synthetic target

and source domains, CycleGAN models learn to

recapitulate the source/target domain after using a

generator to construct the target/source image and

another generator to reconstruct the original image

(Figure 1b), which obviates the need to include

matched images. A mathematical description of these

two deep learning techniques have been included in

the appendix.

In light of the successes of these GAN techniques

in other domains, we sought to explore their

applications to the WSI’s generated during clinical

operations at the Dartmouth-Hitchcock Medical

Center Department of Pathology and Laboratory

Medicine (DHMC-PLM, a mid-sized National

Cancer Institute Cancer Center, NCI-CC). In this

study, we present preliminary results for the

application of the CycleGAN and Pix2Pix techniques

in calculating the nuclear to cytoplasm ratio of cells

in urine cytology specimens, the conversion of H&E

stains to predicted SOX10 immunohistochemistry,

Preliminary Evaluation of the Utility of Deep Generative Histopathology Image Translation at a Mid-sized NCI Cancer Center

303

and the trichrome staining of liver tissue for fibrosis

analysis.

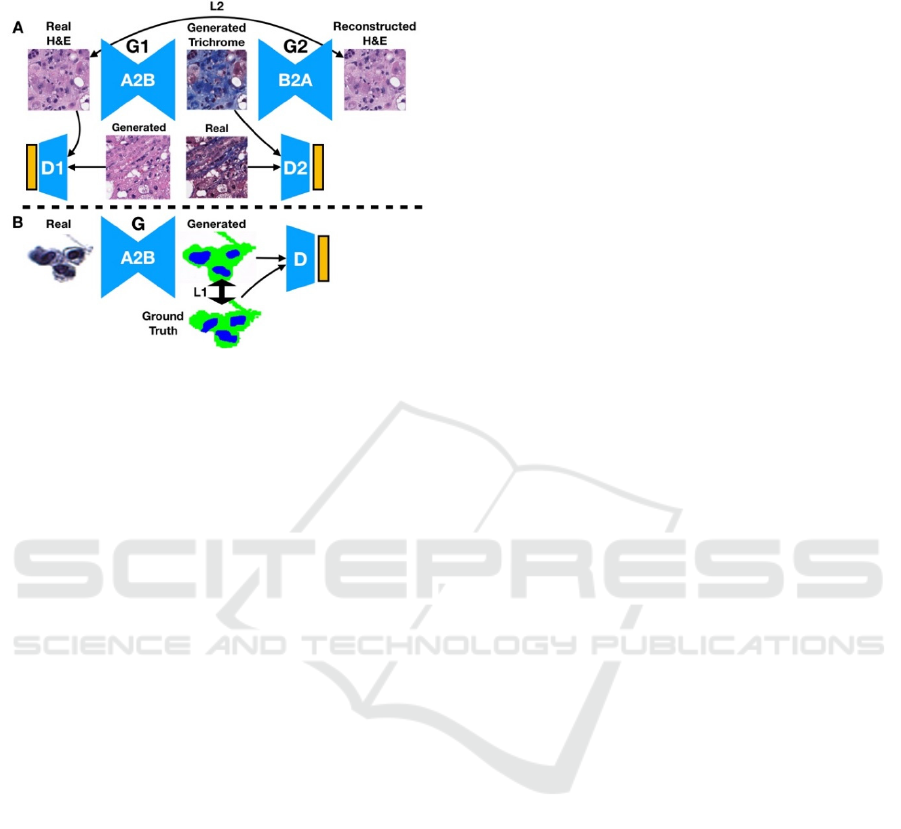

Figure 1: Illustration of (A) CycleGAN and (B) Pix2Pix

Deep Learning Techniques. (A) Trichrome stain is

generated from an H&E input image, which is in turn is

used to generate a reconstruction of the original H&E

image. The reconstructed image is compared to the original

via a reconstruction loss: the distribution of generated stains

are compared to the distribution of original stains via a

discriminator. The same process is used when converting

trichrome to H&E. (B) The urine segmentation mask is

generated from the real image. Real and generated

distributions are parameterized and compared both via the

discriminator and directly between paired generated masks

and ground truth segmentation masks.

2 METHODS

2.1 Data Preparation

Liver core needle biopsies obtained by various

approaches were fixed in formalin and processed into

FFPE tissue blocks; tissue sections were cut at 5μm

thickness and stained with H&E and trichrome stains

on adjacent levels, then scanned using the Leica

Aperio-AT2 scanner at 20x magnification. The

resulting images were stored natively as SVS files

and then converted to NPY and ZARR files for

preprocessing using PathFlowAI (Levy et al., 2020).

An SQL database was created containing patches

with 95% or greater non-white space. We extracted

500,000 and 290,000, unpaired, 256 pixel x 256 pixel

subimages from 241 H&E and Trichrome stained

WSI respectively as training data for a CycleGAN

model. Seventy-five percent of the liver WSI (n=178

specimens with both H&E and trichrome WSI) were

used to train the model, while 25% of the data was

reserved for testing (n=63 specimens with both H&E

and trichrome WSI).

For the urine cytology dataset, a total of 217

ThinPrep® urine cytology slides were collected and

scanned at 40x magnification using a Leica Aperio-

AT2 scanner to 80K x 80K SVS files. These files

were extracted to TIF images and resized to 40K x

40K. Via a process of background deletion and

connected component analysis (Vaickus et al., 2019)

we created libraries of cells from each of the WSI and

randomly sampled 10,936 cell images from the

25×10

extracted cellular objects. Manually

annotated and algorithmically (AutoParis) derived

segmentation masks delineating pixel-by-pixel areas

of the nucleus, cytoplasm and background were

paired with the original cell images (Vaickus et al.,

2019). The cell images were separated into 60%

training, 20% validation and 20% testing sets for

Pix2Pix.

For the SOX10 IHC, an unpaired dataset

containing a total of 15,000 H&E and 15,000 IHC,

256 pixel x 256 pixel subimages of skin and lymph

node histology were acquired to train a CycleGAN

model. Next, 30,000 paired H&E and IHC patches

were registered to each other using an alignment

technique that constructs a coarse pose

transformation matrix to perform an initial alignment

of the tissue, then dynamically warps and finetunes

the IHC to the respective H&E tissue. Alignments

with significantly poor warping were filtered out to

yield 15,000 paired images for training a Pix2Pix

model. The Pix2Pix IHC model data was split into

60% training, 20% validation and 20% testing. The

CycleGAN model data was split into 60% training

and 20% validation sets and shared the same test set

with the Pix2Pix model. An additional 20 melanoma

and 18 nevus cases (split into 224 x 224 pixel

subimages) were processed for subjective grading of

Pix2Pix and CycleGAN model outputs.

2.2 Analytic Approach

A CycleGAN model was fit on the liver dataset with

the purpose of converting H&E stained images into

trichrome stained images. We prioritized the ability

of the model to identify pronounced fibrous tissue

(portal tracts, large central veins, cirrhosis:

highlighted in blue by the trichrome stain).

Accordingly, highly blue patches were upsampled (as

determined by blue color channel thresholds) and the

reconstruction loss of trichrome stained tissue of the

CycleGAN was upweighted to 0.8 versus H&E

reconstructions (a process we are still fine-tuning).

The model was trained for a total of 6 epochs and then

the resulting model was utilized to construct entire

C2C 2020 - Workshop on COMP2CLINIC: Biomedical Researchers Clinicians Closing The Gap Between Translational Research And

Healthcare Practice

304

synthetic trichrome WSI from H&E WSI in the test

set. As a preliminary analysis, these synthetic images

were qualitatively evaluated for their fidelity to the

original trichrome (understain, equivalent, overstain)

and then a pathologist scored the synthetic and real

trichromes for the presence or absence of advanced

fibrosis (bridging fibrosis or cirrhosis).

Pix2Pix was used to predict nucleus and

cytoplasm segmentation masks for cells contained in

urine cytology specimens. The Pix2Pix model was

trained for 200 epochs using the default settings of a

publicly available repository and then evaluated on a

ground truth, hand-annotated test set. Pixel-level

accuracy, sensitivity and specificity of each

segmentation assignment (nucleus, cytoplasm,

background) to the original ground truth was

calculated and then the nucleus to cytoplasmic ratio

(NC) was compared using the R

correspondence.

We utilized 1000-sample nonparametric bootstrap

estimates to derive 95% confidence intervals for each

of these estimates.

For the SOX10 dataset, both CycleGAN and

Pix2Pix models were fit to the synthetic IHC dataset

and each model was trained for approximately 150

epochs. These models were then utilized to convert

H&E images into SOX10 IHC stained images. Color

deconvolution algorithms were able to decompose

both the real and generated IHC stained images into

SOX10-positive (via 3,3 ′ -Diaminobenzidine

(DAB) color deconvolution) and SOX10-negative

(via hematoxylin color deconvolution) binary masks

using color thresholding. Since there was imperfect

registration between the H&E and IHC images, the

resultant binary masks for each of the stains could not

be directly compared. Instead, the area of the SOX10

positive and SOX10 negative stains were compared

between the real and generated images across the test

set via 1000-sample nonparametric bootstrap

estimates of the 95% confidence intervals of the

correlation coefficient between the area of real and

generated positive and negatively stained tissue.

The architectures for the generators for both the

CycleGAN and Pix2Pix models utilized residual

neural network blocks (He et al., 2015).

3 PRELIMINARY RESULTS

Herein, we present our initial results from the

application of the aforementioned tasks:

3.1 Cytology Segmentation

Figure 2: Examples of original cell images (left), ground

truth segmentation masks (middle), and predicted

segmentation masks (right) for: (A) poor segmentation and

(B) excellent segmentation.

Table 1: Performance of Pix2Pix Urine Cell Nuclear and

Cytoplasm Segmentation.

Annotation

Type

Accuracy ±

Sensitivity ±

Specificity ±

Background

0.98 ± 0.01 0.98 ± 0.01 0.98 ± 0.01

Cytoplasm

0.93 ± 0.05 0.91 ± 0.07 0.95 ± 0.05

Nucleus

0.94 ± 0.05 0.85 ± 0.16 0.96 ± 0.05

The NC ratio of urothelial cells is a metric that is

estimated by pathologists and considered in

combination with subjective measures of atypia to

screen urine cytology specimens for urothelial

carcinoma (bladder cancer) according to the gold

standard Paris System for Urine Cytology (Barkan et

al., 2016). The authors recently published a hybrid

morphometric and deep learning approach to

automating the Paris System utilizing a series of

specialists semantic segmentation networks for NC

ratio calculation requiring thousands of hand

annotated images (Vaickus et al., 2019). Improving

the quality and automation of cell compartment

segmentation could provide significant performance

gains to this and other automated techniques for the

performance of cytological cancer screening tests

(Layfield et al., 2017; Wang et al., 2019). Pix2Pix,

utilizing a rather small training set, achieved

remarkable segmentation performance, yielding an

macro-accuracy of 0.95 and an R

value of

0.74±0.019 between the ground truth and predicted

NC ratios across the test set (Table 1; Figure 2).

Preliminary Evaluation of the Utility of Deep Generative Histopathology Image Translation at a Mid-sized NCI Cancer Center

305

3.2 Synthetic IHC

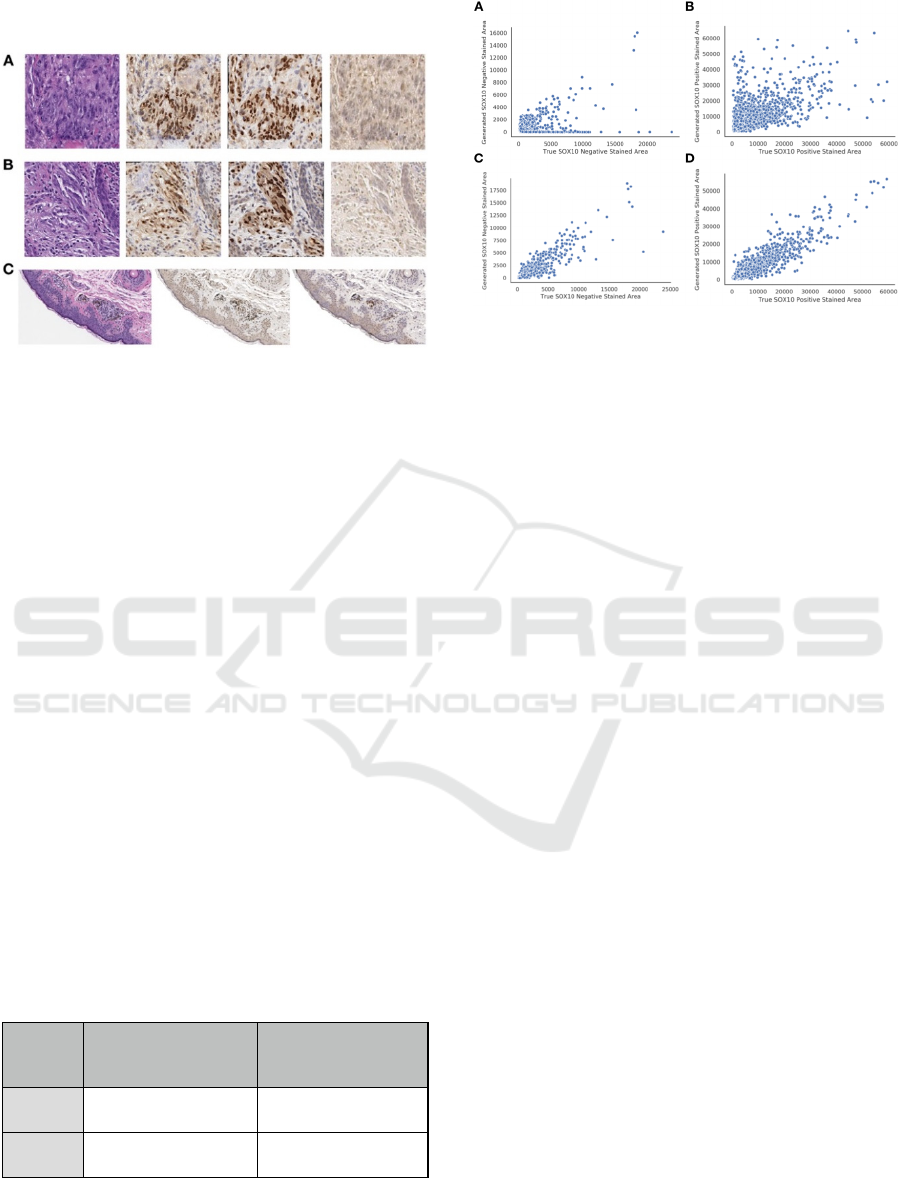

Figure 3: Examples of Synthetic IHC Staining Technique

on: (A-B) Select image patches, organized by original H&E

(left), Pix2Pix generated IHC (left-center), True Registered

IHC (right-center), and CycleGAN generated IHC (right);

generated from large section of H&E stained tissue (left).

SOX10 is a nuclear transcription factor that is used in

IHC for the identification of cells with melanocytic/

Immunohistochemical stains generate a distinctive

brown color (DAB) on counterstained (hematoxylin)

tissue sections allowing for relatively simple color

deconvolution. Previous deep learning approaches

have been able to utilize mappings between H&E and

IHC tissue to learn antibody driven features in the

H&E that may be correspondent to the separation of

tumorous/non-tumorous tissue (Bulten & Litjens,

2018; Mohamed et al., 2013, p. 10; Willis et al.,

2015). The ability of a deep learning model to predict

the expression of DAB immunohistochemistry for a

nuclear transcription factor (SOX10) from an HE

stained image was first demonstrated by a resident

pathologist in our research program (Christopher

Jackson, MD) and presented at the 2019 meeting of

the American Society of Dermatopathology (full

manuscript currently in review) (Jackson, 2019).

Table 2: Comparison of CycleGAN versus Pix2Pix

performance on synthetic SOX10 IHC staining.

Method Positive SOX10 Stained

Area Predicted vs True

PearsonR ± SE

Negative SOX10 Stained

Area Predicted vs True

PearsonR ± SE

CycleGAN

0.66±0.021 0.39±0.065

Pix2Pix

0.93±0.0061 0.90±0.013

Utilizing CycleGAN, we found that the area of

SOX10 positive and negative staining was weakly

associated between the predicted and true IHC stains

Figure 4: Breakdown of true versus predicted SOX10

stained area for: (A, B) CycleGAN; (C, D) Pix2Pix; (A, C)

SOX10 Negative Staining; (B, D) SOX10 Positive

Staining.

(Table 2; Figures 3-4). However, when we trained on

pairs of imperfectly registered images using Pix2Pix,

we found much stronger correlations in the area of

SOX10 staining between predicted and true IHC

stains (Table 2; Figure 4). We also investigated each

algorithm’s ability to identify melanocytic tissue for

subjective analysis by pathologists and residents, in

which the superior performance of the Pix2Pix model

was consistently noted (Table 2; Figure 3-4).

3.3 Synthetic Trichrome Staining of

Liver Tissue

Non-alcoholic steatohepatitis (NASH) is

characterized by steatosis and chronic inflammation

causing progressive liver injury and fibrosis in

patients where no alcoholic, genetic, metabolic, or

medication-based causes for hepatitis have been

identified (Masugi et al., 2017). Progressive NASH

can lead to cirrhosis with morbidities including

ascites, sepsis, coagulopathies, and nutritional

deficiencies, and a markedly increased risk of

hepatocellular carcinoma (HCC). End stage cirrhosis

requires transplantation which has a tremendous

financial impact on the healthcare system and is

associated with substantial patient morbidity and

mortality. Fibrosis progression is typically assessed

via liver biopsy. After core needle or wedge biopsies

of the liver are obtained, pathologists score the tissue

for features of NASH (percentage steatosis, presence

of inflammatory cells and ballooning hepatocytes)

using an H&E stain, then stage the degree of fibrosis

with a trichrome stain, on which collagen (fibrous

tissue) is highlighted blue. Here, we used CycleGAN

to convert an H&E stain to a synthetic trichrome stain

on small image patches and combined these patches

C2C 2020 - Workshop on COMP2CLINIC: Biomedical Researchers Clinicians Closing The Gap Between Translational Research And

Healthcare Practice

306

to recapitulate the entire WSI (Figure 5). In visual

assessment of gross trichrome stained area by a

pathologist, the model showed a propensity for

overcalling fibrosis with 58% deemed subjectively

overstained, 37.5% deemed subjectively equivalent

to the real trichrome, and 4.1% deemed subjectively

understained. When a pathologist staged each

synthetic and real trichrome stain for the presence or

absence of advanced fibrosis (bridging fibrosis,

cirrhosis), the accuracy of the synthetic trichromes

was 79%, the sensitivity was 100% and the specificity

was 67% (n=24, Table 3).

Table 3: Confusion matrix for synthetic trichrome in

pathologist scoring of advanced fibrosis (bridging fibrosis,

cirrhosis) versus non-advanced fibrosis.

N = 24 Real + Real - Accuracy

0.79

Synth +

11 6

Sensitivity

1.00

Synth -

0 12

Specificity

0.67

Figure 5: Examples of liver tissue specimen.(A) Original

H&E stained tissue; (B) generated trichrome stain; (C)

original matched trichrome stain.

4 DISCUSSION

In this study, we illustrated a few potentially useful

applications of CycleGANs and Pix2Pix in the

clinical workflow of a pathology department at a mid-

sized NCI Cancer Center. We found these synthetic

staining and segmentation techniques to yield

satisfactory performance in some situations, which

we will continue to evaluate with larger datasets in

the future. GANs are relatively difficult to train,

partially in light of the non-convergence of the

model’s objective function after training for a long

period of time. The oscillation of the model loss

during training reflects the dynamic min-max

objective function between the generator and

discriminator. For incorporation into the clinical

workflow, these technologies will have to be

packaged in ways that are accessible to the clinical

researcher and clinician through simple GUIs and

common workflow specifications (Amstutz et al.,

2016) as well as provide for robust model validation.

We noted that Pix2Pix was able to accurately

differentiate nuclei from cytoplasm in cells from

urine cytology specimens. However, we noticed

instances where the model both over and under-called

nuclear area. This may be remedied by training the

model on larger datasets with a more diverse

sampling of nuclear and cytoplasmic morphologies.

Automated conversion of H&E to IHC presents an

exciting opportunity to directly train models off of

objective molecular targets which may decrease the

bias present in physician annotations. Our

preliminary results highlight the importance of using

registration to assist with the accurate conversion of

H&E to IHC. Regardless, we plan to investigate more

robust measures of tissue similarity between ground

truth and predicted stains (e.g. correspondence in

circular objects detected using SURF and SIFT

features) (Bay et al., 2006; Lowe, 2004). Current

image registration techniques are also

computationally intensive and imperfect (in this study

it took 5 days to register 12 HE WSI to their

respective IHC WSI). Further improvements in

registration accuracy are likely to improve the

synthetic IHC staining accuracy and we intend to

invest significant research time in this area.

Our initial attempt at training a liver H&E to a

synthetic trichrome staining model led to the gross

under-prediction of liver fibrosis. We remedied this

deficiency by supplying more images of highly

fibrous tissue areas in the training set and by

weighting to emphasise the reconstruction of fibrotic

tissue. As a result of this, the overall accuracy of

synthetic trichromes increased, but, perhaps

predictably, led to a moderate degree of

overestimation of fibrous tissue. Accordingly the

sensitivity of the model for advanced fibrosis was

high but the specificity was subpar. This result would

likely be acceptable for a screening test, but given that

the consequences of both over and under-calling liver

fibrosis level are severe, synthetic trichromes for liver

fibrosis staging would require very high sensitivity

and specificity to be clinically usable. Further tuning

of the model hyperparameters, architectures and/or

the application of other generative techniques will be

necessary to achieve better accuracy (Xu et al., 2019).

Given the superiority of the Pix2Pix in the synthetic

IHC task, we intend to attempt to register the H&E

Preliminary Evaluation of the Utility of Deep Generative Histopathology Image Translation at a Mid-sized NCI Cancer Center

307

and trichrome training images (however imperfectly).

Considering that in every case the HE section is only

stereotactically separated from the trichrome section

by a 5 µM, this approach may prove successful,

however, it is largely reliant on expert sectioning and

placement of tissue slices by our histotechnologists.

Regardless, our results provide a framework to

improve upon these synthetic staining techniques for

incorporation into the clinical workflow.

In light of these investigations, we find that

generative models (CycleGAN, Pix2Pix) are well-

positioned to supplement engineering solutions that

are being developed to improve the efficiency and

accuracy of histopathological diagnosis. Generally,

clinicians at our institution are most interested in

digital aids that either cut-down on cost and time to

render a diagnosis or that automate tedious, error-

prone tasks (such as IHC quantitation). These

concerns are well met by our initial investigations. In

the future, we will consider applications of generative

models for the detection of cells for our clinical

workflow, for standardizing stains from a collection

of different institutions by translating to a common

synthetic stain, and for superresolution techniques

that may enable high-precision digital pathology from

low fidelity source material.

5 CONCLUSIONS

In this study, we assessed the ability of deep learning

image-to-image translation models to perform

nucleus/cytoplasm segmentation in cells from urine

cytology specimens, and synthetic trichrome and IHC

staining on liver and skin WSI respectively. These

initial investigations provide further evidence in favor

of the incorporation of generative models into the

core clinical workflow of a hospital pathology

service. These methods may reduce the costs and time

associated with chemical staining and manual image

annotations while providing unbiased means for the

molecular assessment of tissue. We will continue to

assess additional applications of these technologies

on new use cases with more robust measures of

concordance and larger repositories of data.

ACKNOWLEDGEMENTS

This work was supported by NIH grant

R01CA216265 and a grant from the DHMC Norris

Cotton Cancer Center, Cancer Fellows Program. JL is

supported through the Burroughs Wellcome Fund Big

Data in the Life Sciences at Dartmouth.

REFERENCES

Amstutz, P., Crusoe, M. R., Tijanić, N., Chapman, B.,

Chilton, J., Heuer, M., Kartashov, A., Leehr, D.,

Ménager, H., Nedeljkovich, M., Scales, M., Soiland-

Reyes, S., & Stojanovic, L. (2016). Common Workflow

Language, v1.0. https://doi.org/10.6084/m9.figshare.

3115156.v2

Barkan, G. A., Wojcik, E. M., Nayar, R., Savic-Prince, S.,

Quek, M. L., Kurtycz, D. F. I., & Rosenthal, D. L.

(2016). The Paris System for Reporting Urinary

Cytology: The Quest to Develop a Standardized

Terminology. Acta Cytologica, 60(3), 185–197.

https://doi.org/10.1159/000446270

Bay, H., Tuytelaars, T., & Van Gool, L. (2006). SURF:

Speeded Up Robust Features. In A. Leonardis, H.

Bischof, & A. Pinz (Eds.), Computer Vision – ECCV

2006 (pp. 404–417). Springer. https://doi.org/10.1007/

11744023_32

Bayramoglu, N., Kaakinen, M., Eklund, L., & Heikkila, J.

(2017). Towards Virtual H&E Staining of

Hyperspectral Lung Histology Images Using

Conditional Generative Adversarial Networks. 64–71.

https://doi.org/10.1109/ICCVW.2017.15

Bentaieb, A., & Hamarneh, G. (2018). Adversarial Stain

Transfer for Histopathology Image Analysis. IEEE

Transactions on Medical Imaging, 37(3), 792–802.

https://doi.org/10.1109/TMI.2017.2781228

Borhani, N., Bower, A. J., Boppart, S. A., & Psaltis, D.

(2019). Digital staining through the application of deep

neural networks to multi-modal multi-photon

microscopy. Biomedical Optics Express, 10(3), 1339–

1350. https://doi.org/10.1364/BOE.10.001339

Borovec, J., Kybic, J., & Muñoz-Barrutia, A. (2019, April

11). Automatic Non-rigid Histological Image

Registration challenge. https://doi.org/10.13140/

RG.2.2.12974.77126/2

Bug, D., Gräbel, P., Feuerhake, F., Oswald, E., Schüler, J.,

& Merhof, D. (2019). Supervised and Unsupervised

Cell-Nuclei Detection in Immunohistology.

Bulten, W., & Litjens, G. (2018). Unsupervised Prostate

Cancer Detection on H&E using Convolutional

Adversarial Autoencoders. https://openreview.net/

forum?id=Syoj0k2iG

De Biase, A. (2019). Generative Adversarial Networks to

enhance decision support in digital pathology.

http://urn.kb.se/resolve?urn=urn:nbn:se:liu:diva-

158486

Gadermayr, M., Gupta, L., Klinkhammer, B. M., Boor, P.,

& Merhof, D. (2019). Unsupervisedly Training GANs

for Segmenting Digital Pathology with Automatically

Generated Annotations. International Conference on

Medical Imaging with Deep Learning, 175–184.

http://proceedings.mlr.press/v102/gadermayr19a.html

Ghazvinian Zanjani, F., Zinger, S., Ehteshami Bejnordi, B.,

van der Laak, J., & With, P. (2018). Stain normalization

of histopathology images using generative adversarial

networks. 573–577. https://doi.org/10.1109/

ISBI.2018.8363641

C2C 2020 - Workshop on COMP2CLINIC: Biomedical Researchers Clinicians Closing The Gap Between Translational Research And

Healthcare Practice

308

He, K., Zhang, X., Ren, S., & Sun, J. (2015). Deep Residual

Learning for Image Recognition. ArXiv:1512.03385

[Cs]. http://arxiv.org/abs/1512.03385

Hollandi, R., Szkalisity, A., Toth, T., Tasnadi, E., Molnar,

C., Mathe, B., Grexa, I., Molnar, J., Balind, A., Gorbe,

M., Kovacs, M., Migh, E., Goodman, A., Balassa, T.,

Koos, K., Wang, W., Bara, N., Kovacs, F., Paavolainen,

L., … Horvath, P. (2019). A deep learning framework

for nucleus segmentation using image style transfer.

BioRxiv, 580605. https://doi.org/10.1101/580605

Isola, P., Zhu, J.-Y., Zhou, T., & Efros, A. A. (2018).

Image-to-Image Translation with Conditional

Adversarial Networks. ArXiv:1611.07004 [Cs].

http://arxiv.org/abs/1611.07004

Jackson, C. (2019, October 17). Sox-10 Virtual

Immunohistochemistry: An Application of Artificial

Intelligence Using a Convolutional Neural Network.

ADSP 56th annual meeting.

Krizhevsky, A., Sutskever, I., & Hinton, G. E. (2012).

ImageNet Classification with Deep Convolutional

Neural Networks. In F. Pereira, C. J. C. Burges, L.

Bottou, & K. Q. Weinberger (Eds.), Advances in Neural

Information Processing Systems 25 (pp. 1097–1105).

Curran Associates, Inc. http://papers.nips.cc/paper/

4824-imagenet-classification-with-deep-

convolutional-neural-networks.pdf

Lahiani, A., Gildenblat, J., Klaman, I., Albarqouni, S.,

Navab, N., & Klaiman, E. (2018). Virtualization of

tissue staining in digital pathology using an

unsupervised deep learning approach.

ArXiv:1810.06415 [Cs]. http://arxiv.org/abs/

1810.06415

Layfield, L. J., Esebua, M., Frazier, S. R., Hammer, R. D.,

Bivin, W. W., Nguyen, V., Ersoy, I., & Schmidt, R. L.

(2017). Accuracy and Reproducibility of

Nuclear/Cytoplasmic Ratio Assessments in Urinary

Cytology Specimens. Diagnostic Cytopathology, 45(2),

107–112. https://doi.org/10.1002/dc.23639

Levy, J., Salas, L. A., Christensen, B. C., Sriharan, A., &

Vaickus, L. J. (2020). PathFlowAI: A High-Throughput

Workflow for Preprocessing, Deep Learning and

Interpretation in Digital Pathology. Pacific Symposium

on Biocomputing, 25, 403–414. https://doi.org/

10.1101/19003897

Lotfollahi, M., Wolf, F. A., & Theis, F. J. (2019). ScGen

predicts single-cell perturbation responses. Nature

Methods, 16(8), 715–721. https://doi.org/10.1038/

s41592-019-0494-8

Lowe, D. G. (2004). Distinctive Image Features from Scale-

Invariant Keypoints. International Journal of

Computer Vision, 60(2), 91–110. https://doi.org/

10.1023/B:VISI.0000029664.99615.94

Mahmood, F., Borders, D., Chen, R., McKay, G. N.,

Salimian, K. J., Baras, A., & Durr, N. J. (2018). Deep

Adversarial Training for Multi-Organ Nuclei

Segmentation in Histopathology Images.

ArXiv:1810.00236 [Cs]. http://arxiv.org/abs/

1810.00236

Masugi, Y., Abe, T., Tsujikawa, H., Effendi, K.,

Hashiguchi, A., Abe, M., Imai, Y., Hino, K., Hige, S.,

Kawanaka, M., Yamada, G., Kage, M., Korenaga, M.,

Hiasa, Y., Mizokami, M., & Sakamoto, M. (2017).

Quantitative assessment of liver fibrosis reveals a

nonlinear association with fibrosis stage in

nonalcoholic fatty liver disease: Masugi, Abe, et al.

Hepatology Communications, 2. https://doi.org/

10.1002/hep4.1121

Miller, D. D., & Brown, E. W. (2018). Artificial

Intelligence in Medical Practice: The Question to the

Answer? The American Journal of Medicine, 131(2),

129–133. https://doi.org/10.1016/

j.amjmed.2017.10.035

Mohamed, A., Gonzalez, R. S., Lawson, D., Wang, J., &

Cohen, C. (2013). SOX10 Expression in Malignant

Melanoma, Carcinoma, and Normal Tissues. Applied

Immunohistochemistry & Molecular Morphology,

21(6), 506. https://doi.org/10.1097/

PAI.0b013e318279bc0a

O’Malley, A. J. (2013). The analysis of social network data:

An exciting frontier for statisticians. Statistics in

Medicine, 32(4), 539–555. https://doi.org/10.1002/

sim.5630

Pontalba, J. T., Gwynne-Timothy, T., David, E., Jakate, K.,

Androutsos, D., & Khademi, A. (2019). Assessing the

Impact of Color Normalization in Convolutional Neural

Network-Based Nuclei Segmentation Frameworks.

Frontiers in Bioengineering and Biotechnology, 7, 300.

https://doi.org/10.3389/fbioe.2019.00300

Quiros, A. C., Murray-Smith, R., & Yuan, K. (2019).

Pathology GAN: Learning deep representations of

cancer tissue. ArXiv:1907.02644 [Cs, Eess, Stat].

http://arxiv.org/abs/1907.02644

Raab, S. S. (2000). The Cost-Effectiveness of

Immunohistochemistry. Archives of Pathology &

Laboratory Medicine, 124(8), 1185–1191.

https://doi.org/10.1043/0003-

9985(2000)124<1185:TCEOI>2.0.CO;2

Rana, A., Yauney, G., Lowe, A., & Shah, P. (2018).

Computational Histological Staining and Destaining of

Prostate Core Biopsy RGB Images with Generative

Adversarial Neural Networks. 2018 17th IEEE

International Conference on Machine Learning and

Applications (ICMLA), 828–834. https://doi.org/

10.1109/ICMLA.2018.00133

Rivenson, Y., Liu, T., Wei, Z., Zhang, Y., Haan, K. de, &

Ozcan, A. (2019). PhaseStain: The digital staining of

label-free quantitative phase microscopy images using

deep learning. Light: Science & Applications, 8(1), 1–

11. https://doi.org/10.1038/s41377-019-0129-y

Rivenson, Y., Wang, H., Wei, Z., Haan, K., Zhang, Y., Wu,

Y., Gunaydin, H., Zuckerman, J., Chong, T., Sisk, A.,

Westbrook, L., Wallace, W., & Ozcan, A. (2019).

Virtual histological staining of unlabelled tissue-

autofluorescence images via deep learning. Nature

Biomedical Engineering, 3. https://doi.org/10.1038/

s41551-019-0362-y

Vaickus, L. J., Suriawinata, A. A., Wei, J. W., & Liu, X.

(2019). Automating the Paris System for urine

cytopathology—A hybrid deep-learning and

Preliminary Evaluation of the Utility of Deep Generative Histopathology Image Translation at a Mid-sized NCI Cancer Center

309

morphometric approach. Cancer Cytopathology,

127(2), 98–115. https://doi.org/10.1002/cncy.22099

Wang, S., Yang, D. M., Rong, R., Zhan, X., & Xiao, G.

(2019). Pathology Image Analysis Using Segmentation

Deep Learning Algorithms. The American Journal of

Pathology, 189(9), 1686–1698. https://doi.org/10.1016/

j.ajpath.2019.05.007

Wei, J., Suriawinata, A. A., Vaickus, L., Ren, B., Liu, X.,

Wei, J., & Hassanpour, S. (2019). Generative Image

Translation for Data Augmentation in Colorectal

Histopathology Images. ArXiv, abs/1910.05827.

Willis, B. C., Johnson, G., Wang, J., & Cohen, C. (2015).

SOX10: A Useful Marker for Identifying Metastatic

Melanoma in Sentinel Lymph Nodes. Applied

Immunohistochemistry & Molecular Morphology,

23(2), 109. https://doi.org/10.1097/

PAI.0000000000000097

Xu, Z., Fernández Moro, C., Bozóky, B., & Zhang, Q.

(2019). GAN-based Virtual Re-Staining: A Promising

Solution for Whole Slide Image Analysis.

Yi, X., Walia, E., & Babyn, P. (2019). Generative

adversarial network in medical imaging: A review.

Medical Image Analysis, 58, 101552. https://doi.org/

10.1016/j.media.2019.101552

Young, T., Hazarika, D., Poria, S., & Cambria, E. (2018).

Recent Trends in Deep Learning Based Natural

Language Processing [Review Article]. IEEE

Computational Intelligence Magazine, 13(3), 55–75.

https://doi.org/10.1109/MCI.2018.2840738

Zhu, J.-Y., Park, T., Isola, P., & Efros, A. A. (2018).

Unpaired Image-to-Image Translation using Cycle-

Consistent Adversarial Networks. ArXiv:1703.10593

[Cs]. http://arxiv.org/abs/1703.10593

APPENDIX

Mathematical Description of CycleGAN

and Pix2Pix Objective Functions

GANs are tasked with learning a source/target

domain Y from latent noise vector Z via mapping G.

The loss function for a GAN is specified by:







,





















1











(1)

The ideal generator is acquired through

alternating updates to the generator and discriminator

parameters:

∗

argmin



max









,



(2)

The objective is minimized with respect to the

generator parameters to maximize the discriminator’s

output for generated data D(G(z)) to attempt to fool

the discriminator, which aims to maximize the

separation between the real and generated data, as

parameterized by the discriminator. The loss is

maximized with respect to the discriminator’s

parameters. GANs can be difficult to train, thus

alterations to the objective such as the Wasserstein

distance and gradient penalties have been introduced.

The goal of Image-to-Image translation is to learn

a mapping from source domain/observed image X to

a target domain Y via a generator G: X →Y.

The generator for both of the Pix2Pix and

CycleGAN models compress input data X into a latent

subspace Z by subsequent applications of

convolutional and pooling/aggregation operators,

then decompress the latent information Z into the

target Y via upsampling and deconvolution operators.

Pix2Pix accomplishes the mapping G through

generation of Y from X and Z. The original image X

and target image Y are concatenated together, and

original image X and generated image G(x,z) are

concatenated. Both of these images are passed

through the discriminator via the objective:







,





,





,







,

1

,



,





)

This loss function is supplemented by an L1-Loss

that compares the generated image with the target

image:













,,







,

|







(4)

The optimization process is identical to the GAN

training process and is performed on a weighted

combination of the conditional GAN (cGAN) and L1

objectives.

The CycleGAN model trains two generators, G: X

→ Y and F: Y→X, and utilizes discriminators, 



and





for the source and target domains respectively.

The CycleGAN objective utilizes a cycle-consistent

loss, which assumes that original data X, mapped to Y

via G, then mapped back via F, should resemble the

original data source. This is expressed as:







,

























λ























(5)

There two weighting terms control the importance

of generating from one domain versus the other. The

final objective adds the cycle-consistent loss to

adversarial losses for the source and target domains:

C2C 2020 - Workshop on COMP2CLINIC: Biomedical Researchers Clinicians Closing The Gap Between Translational Research And

Healthcare Practice

310





,,



,













,









,











,





(6)

A similar minmax optimization of the objective is

used to obtain the ideal parameterization of G and F

to realize the translation from X to Y when images are

unpaired.

Code and Data Availability

The CycleGAN and Pix2Pix models that were

utilized in this study were trained using PyTorch

1.3.0, code was adopted from GitHub repository

https://github.com/junyanz/pytorch-CycleGAN-and-

pix2pix. Additionally, we provide helper scripts and

small test datasets, which will undergo continuous

updating, in our GitHub repository:

https://github.com/jlevy44/PreliminaryGenerativeHi

stoPath. PathFlowAI, which was utilized to prepare

the data for the H&E to Trichrome analysis is

available at: https://github.com/jlevy44/PathFlowAI.

Preliminary Evaluation of the Utility of Deep Generative Histopathology Image Translation at a Mid-sized NCI Cancer Center

311
