Using BERT and XLNET for the Automatic Short Answer Grading Task

Hadi Abdi Ghavidel, Amal Zouaq and Michel C. Desmarais

Department of Computer Engineering and Software Engineering, Polytechnique Montr

eal, Montreal, Canada

Keywords:

Automatic Short Answer Grading, SciEntBank, BERT, XLNET.

Abstract:

Over the last decade, there has been a considerable amount of research in automatic short answer grad-

ing (ASAG). The majority of previous experiments were based on a feature engineering approach and used

manually-engineered statistical, lexical, grammatical and semantic features for ASAG. In this study, we aim

for an approach that is free from manually-engineered features and propose an architecture for deep learning

based on the newly-introduced BERT (Bidirectional Encoder Representations from Transformers) and XL-

NET (Extra Long Network) classiﬁers. We report the results achieved over one of the most popular dataset for

ASAG, SciEntBank. Compared to past works for the SemEval-2013 2-way, 3-way and 5-way tasks, we ob-

tained better or competitive performance with BERT Base (cased and uncased) and XLNET Base (cased) using

a reference-based approach (considering students and model answers) and without any type of hand-crafted

features.

1 INTRODUCTION

Automatic grading of natural language answers is

a highly desired goal in education. Advances in

machine learning bring this goal closer to reality.

Large classes and the success of Massive Open Online

Courses (MOOCS) in education contribute to making

this goal even more attractive. Open-ended answers

provide teachers with a more accurate and detailed

understanding of how a student comprehends domain-

speciﬁc knowledge (Badger and Thomas, 1992). This

is compared to traditional types of answers like

multiple-choice questions or ﬁll-in-the-gap items in

which the student’s understanding is restricted to the

choices that are presented and thus not examined

deeply. (Riordan et al., 2017).

For automatic grading, natural language answers

can be divided into essays or short answers. Ac-

cording to Burrows et al. (2015), short answers have

the following characteristics: The answer should not

be guessed from the words in the question (external

knowledge); the answer should be given in natural

language; the length of the answer should be about

one phrase to one paragraph; the content of the an-

swer is domain-related; and the answer should be

close-ended.

In both short answers and essays, each student an-

swer is evaluated based on a nominal, ordinal or ratio

scale (Roy et al., 2018). In the nominal scale, grades

are in the format of labels like correct, incorrect, etc.

Ordinal grades are in the letter format like A+, A-,

etc. and ratio grades are in the numerical format like

1, 1.5, etc.

Besides grades, the student answer is usually as-

sociated with the question and a model (also called

reference) answer(s). Sakaguchi et al. (2015) de-

ﬁned two general types of grading approaches. When

automatic grading is done based only on the stu-

dent answer and label, this is called a response-based

approach. Otherwise, the grading is done using a

reference-based approach in which the whole con-

text is considered (model answer or question, or both

along the student answer and the label). In this case,

the system compares the student’s answer with the

model answer using several types of similarity met-

rics. The other approaches are hybrid, in which both

response- based and reference-based techniques are

taken into account simultaneously.

In a majority of natural language processing(NLP)

tasks such as ASAG, language model (LM)s have

proven to be successful. In essence, these models help

determine the probability of a sequence of words and

can predict words given previous words within a se-

quence (Goldberg, 2017). Traditional language mod-

els such as n-gram language models use count meth-

ods. Vector-space models based on counting n-grams

have often been used for the ASAG task. For exam-

ple, Mantecon et al. (2018) compared bag of n-grams

Ghavidel, H., Zouaq, A. and Desmarais, M.

Using BERT and XLNET for the Automatic Short Answer Grading Task.

DOI: 10.5220/0009422400580067

In Proceedings of the 12th International Conference on Computer Supported Education (CSEDU 2020) - Volume 1, pages 58-67

ISBN: 978-989-758-417-6

representations with bags of semantic annotations for

ASAG.

In modern approaches, LMs are trained using neu-

ral networks. Neural language models alleviate the

problems of traditional approaches in a number of

ways (Goldberg, 2017). Firstly, they expand the con-

text taken into account. Secondly, these models ex-

hibit a generalization capability across different con-

texts. Initial neural models were based on recurrent

neural networks (RNN) like long short term memory

networks (LSTMs and BiLSTm). The most recently

introduced neural models for language modeling like

BERT (Bidirectional Encoder Representations from

Transformers) (Devlin et al., 2018) and XLNET (Ex-

tra Long Network) (Yang et al., 2019) are based on

the transformer architecture. They are reported by

Devlin et al. (2018) to have robustly increased the

performance of several NLP tasks like GLUE (Gen-

eral Language Understanding Evaluation) or question

answering on SQuAD (Stanford Question Answering

Dataset) (Rajpurkar et al., 2016). We aim to expand

the application of these transformer models to the cur-

rent ASAG task.

In this paper, we adopt a reference-based ap-

proach to train a machine learning model on one of

the most challenging datasets provided in SemEval

2013, which is SciEntBank (Nielsen et al., 2008). We

deﬁne two grading models based on BERT and XL-

NET and show that both either match or improve the

performance of the state of the art (SOTA) on this

dataset. The main advantage of the approach pre-

sented here is that grading is performed without man-

ually extracting features, contrary to what has been

generally done in the state of the art.

The structure of the paper is as follows: In section

2, we review previous approaches to grading applied

on the SciEntBank dataset. Then, we explain BERT

and XLNET in the context of ASAG. In section 4,

we specify the experimental setup and the evaluation

measures. The next section analyzes the results ob-

tained in all our experiments. We discuss how BERT

and XLNET boost the ASAG on SciEntBank dataset

in section 6. The last section describes our conclu-

sion, limitations and future work.

2 PREVIOUS WORKS

In 2013, SemEval (Dzikovska et al., 2013) established

a competition for ASAG, framed as a textual entail-

ment task where grading the answers requires seman-

tic inference. Semantic inference helps to identify if

Semantic Evaluation Competition

the content of student answers and model answers are

similar or dissimilar and goes beyond a mere word

overlap. Two datasets namely BEETLE (Dzikovska

et al., 2010) and SciEntBank were provided for this

challenge. In this paper, we trained a model on the

SciEntBank dataset. According to the results of the

SOTA (Dzikovska et al., 2010), this dataset is the

most challenging of the two.

The SciEntBank dataset is gathered from 3rd-6th

grade students (Nielsen et al., 2008). The general

topics for this dataset include Life Science, Physical

Science and Technology, Earth and Space Science,

and Scientiﬁc Reasoning and Technology. Based on

the classiﬁcation from SemEval-2013, there are three

ways of labeling students’ responses:

• 2-way task: correct and incorrect

• 3-way task: correct, contradictory or incorrect

• 5-way task: correct, partially correct, contradic-

tory, irrelevant or not in the domain

For evaluation purposes, SemEval-2013 provided

three test sets: test of unseen-answers (TUA), test of

unseen-questions (TUQ), and test of unseen-domains

(TUD) scenarios. The TUA is used for the evaluation

of the system based on questions already seen in the

training set (Dzikovska et al., 2013). By contrast, the

questions in the TUQ are totally new and not observed

in training set. Finally, questions related to domains

unseen in the training set are proposed in the TUD

scenario. The size of the test data is 540, 733 and

4562 answers respectively. Overall, there are 10,804

responses to 197 questions in the whole train and test

datasets.

The ﬁrst results on this dataset were published in

SemEval-2013 (Dzikovska et al., 2013). In this com-

petition, nine teams participated with various mod-

els. Almost all the teams beneﬁted from using sim-

ilarity metrics such as BLEU (Bilingual Evaluation

Understanding) (Papineni et al., 2002) between ques-

tions, student answers and model answers. These

metrics were sometimes applied to dense vectors ob-

tained using LSA (Latent Semantic Analysis) (Deer-

wester et al., 1990) or similar dimension reduction

techniques. Considering all the tasks in all the test

sets, the overall best performance was obtained with

the following systems:

• ETS (Heilman and Madnani, 2013): In this sys-

tem, n-gram features and similarity features are

used together with a domain adaptation technique

called Daume (III, 2009) to adapt features to the

context of the answers across domains.

• CoMet (Ott et al., 2013): Syntactic features like

parts of speech, dependency relations and con-

stituent structures are used in this system. It

Using BERT and XLNET for the Automatic Short Answer Grading Task

also combined several other features and built a

stacked classiﬁer. The meta-classiﬁer used was

logistic regression.

• SOFTCARDINALITY (Jimenez et al., 2013):

This system modeled the overlap between stu-

dent and model answer through soft cardinality,

a method proven by Jimenez et al. (2010) to boost

the accuracy in measuring textual similarity.

Since the creation of the SemEval-2013 challenge,

several other researchers also evaluated their systems

on the SciEntBank dataset. For example, Ramachan-

dran et al. Ramachandran and Foltz (2015) aug-

mented the ASAG dataset by generating model an-

swers. To accomplish this task, the authors summa-

rized the answers of the top students. The features

used were mostly similarity measures between their

generated model answer, the student answer and the

question. These features include word overlap, cosine

similarity and Lesk similarity. When evaluated on the

TUA test, their approach outperformed past works in

the 3-way and 5-way tasks, but not in the 2-way task.

Sultan et al. (2016) applied a feature ensemble ap-

proach in which the authors combined text alignment,

semantic similarity, question demoting, term weight-

ing, and length ratios. They were able to achieve

slightly better results than the SOTA on the 2-way

task for the TUD test set.

In one of the most recent works, Saha et al. (2018)

suggested a new set of features in which they parti-

tioned the similarities into histogram bins instead of

one single overall similarity. These partial similarities

are based on tokens and part-of-speech tags. In addi-

tion to these similarities, the authors considered ques-

tion types (like where, when, how, etc.) as another

feature in their evaluation process. They combined

these token features (TF) with sentence embeddings

features (SF) based on InferSent (Conneau et al.,

2017)) and achieved better or competitive results on

three datasets, including SciEntBank. Roughly at the

same time, Marvaniya et al. (2018) created a scor-

ing rubric for ASAG. Instead of considering only the

model answers as a perfect example for the compar-

ison, the authors deﬁned the scoring rubric as the

ranked clusters of student answers for each grade. In

their research, the scoring rubric, in conjunction with

a student answer and question, is converted to core

features such as lexical overlap and sentence embed-

dings extracted by InferSent (Conneau et al., 2017)).

Finally, the most similar work to ours is the ap-

proach of Sung et al. (2019) in which they conducted

an experiment on only the 3-way SciEntBank dataset

using BERT and improved the results over the SOTA.

Since there is no access to the input setup and all the

hyperparameters of the paper, their results are hardly

reproducible. In contrast to this work, we tested

BERT and XLNET on all the SemEval-2013 tasks (2-

way, 3-way and 5-way).

In this work, we adopt the reference-based ap-

proach of using student and model answers. We pro-

pose to learn the entailment between the student an-

swer and the model answer using BERT (Devlin et al.,

2018) and XLNET (Yang et al., 2019). Our approach

differs from top ASAG systems in that we carry out

the task of grading without using any type of hand-

crafted features. We also do not use questions as input

in our experiments.

3 ASAG WITH BERT AND XLNET

As the grades in the SciEntBank dataset are based

on a nominal scale, we consider grading the answers

as a supervised classiﬁcation task. There has been

a vast body of methods for representing input (to-

kens within student answers, model answers or ques-

tions). These representations, such as n-grams, (Heil-

man and Madnani, 2013; Mantecon et al., 2018) are

usually learned or extracted from training data. How-

ever, deep learning networks require a large amount

of data to be trained adequately. The fact that the

size of SciEntBank dataset is relatively small hinders

a robust training process. To relieve this issue, mod-

ern language model architectures make use of transfer

learning (Goodfellow et al., 2016). In fact, one of the

strengths of models such as BERT and XLNet is that

they are pre-trained on very large corpora. They can

then be ﬁne-tuned on small corpora such as SciEnt-

Bank. These recent language models are built on the

transformer architecture (Vaswani et al., 2017).

BERT is a bidirectional model which is trained

to build a language model using a Transformer en-

coder (Vaswani et al., 2017; Devlin et al., 2018).

The corpora used for pretraining are BooksCorpus

(800M words) and Wikipedia (2,500M words). Over-

all, BERT beats the other similar transformer models

like OpenAI (Radford et al., 2018) in that it considers

both left and right contexts given a target word. BERT

is pretrained using a masked language model (MLM)

task and next sentence prediction (NSP) task. MLM

(Taylor, 1953) is used to randomly mask some of the

tokens and then predict them. In NSP, two consecu-

tive sentences are used to gain discourse knowledge.

Another transformer model which is even more re-

cent than BERT is XLNET. XLNET is inspired from

BERT and Transformer-XL (Dai et al., 2019) but dif-

fers in the following ways:

• XLNET and BERT: XLNET is based on a bidi-

rectional AR (autoregressive) language model,

CSEDU 2020 - 12th International Conference on Computer Supported Education

while BERT is built upon bidirectional AE (au-

toencoder) model. In this regard, XLNET is pre-

trained based on the potential permutations of

context words surrounding a target word. Also,

XLNET takes into account dependencies between

words.

• XLNET and Transformer-XL: Two fundamen-

tal features of Transformer-XL are integrated into

XLNET permutation language modeling: relative

positional embeddings and the recurrence mecha-

nism.

Overall, ASAG using transformer-based architectures

can be seen as learning the textual entailment between

a student answer and a model answer. In what fol-

lows, we brieﬂy present the model architecture and

input representation for both BERT and XLNET.

3.1 Model Architecture

Both BERT and XLNET are available with two model

sizes:

• BERT Base and XLNET Base: There are 12 lay-

ers, 12 attention heads and 768 neurons for these

two models. The number of total parameters is

110 millions. For BERT, cased and uncased ver-

sions are trained and released. However, only the

cased version is released with XLNET.

• BERT Large and XLNET Large: In contrast to

BERT Base, these models include 24 layers, 16 at-

tention heads and 1024 neuron. Similar to BERT

Base, there are cased and uncased versions while

only the cased version exist for the XLNET large

model.

Since we ran our experiments on Google Colab

and due to our limited computing power, we chose

the lighter BERT and XLNET base models.

3.2 ASAG Input Representation and

Architecture

In our models (called graders), the input is the student

answer, model answer and the grades (labels) associ-

ated with each student answer. Our goal is to train

a model in which the relationship between student

answers and model answers is learned in association

with the grade assigned to each student answer.

Similar to SemEval-2013 as discussed in Sec-

tion 2, we consider ASAG as a textual entailment task.

Inspired by the textual entailment literature (Dagan

et al., 2005), we hypothesize that a correct student an-

swer (text) entails the model answer (hypothesis) and

we note it as follows:

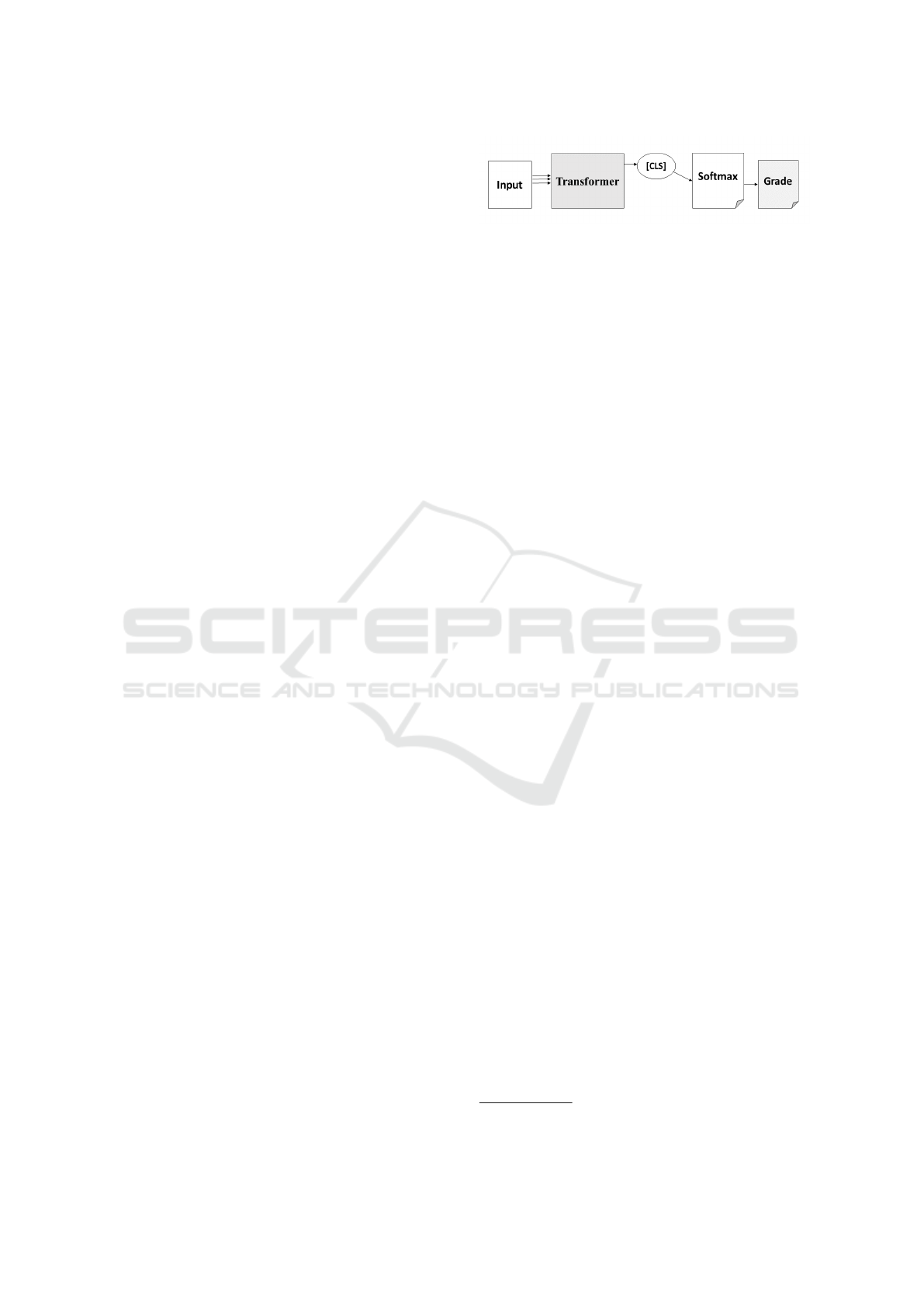

Figure 1: Overall Grading Process by Transformers.

student answer S → model answer M

In other words, the correct grade is assigned to an

answer if the answer entails the model answer. We

also explored the results of the reverse experiment in

which the model answer entails the student answer.

The results of these reverse experiments are not re-

ported in this paper because they are not extraordi-

narily different from the results of the S→M experi-

ments.

The overall process is summarized in Figure 1.

No pre-processing is applied to the raw answer texts.

Overall, the input sequence is fed to the Transformer

model. Then, the output of the classiﬁcation model

token ([CLS

] in Figure 1) is passed to the softmax

function and a grade is assigned to the answer.

Both BERT and XLNET have a maximum num-

ber of tokens in an input sequence (max sequence

lengths). In fact, each model includes different to-

kenizers that output different tokens. What makes

these lengths dissimilar is visible in the tokenization

output of the following example from model answers

in SciEntBank train set:

Rub the minerals together and see which one

scratches the other.

• BERT Base Uncased: [’rub’, ’the’, ’miner-

als’, ’together’, ’and’, ’see’, ’which’, ’one’,

’scratches’, ’the’, ’other’, ’.’]

• BERT Base Cased: [’R’, ’##ub’, ’the’, ’min-

erals’, ’together’, ’and’, ’see’, ’which’, ’one’,

’scratch’, ’##es’, ’the’, ’other’, ’.’]

• XLNET Base Cased: [’ ’, ’Rub’, ’the’, ’min-

erals’, ’together’, ’and’, ’see’, ’which’, ’one’,

’scratches’, ’the’, ’other’, ’.’]

In the above examples, the lengths are 12, 14 and 13.

We observe that the words Rub and scratches are to-

kenized in a different way, which produced different

lengths.

4 EXPERIMENTS

In this section, we describe the experimental setup.

classiﬁcation

Using BERT and XLNET for the Automatic Short Answer Grading Task

4.1 Experimental Setup

There are 135 questions in the SciEntBank train

dataset. Each question is a tuple composed of: ques-

tion, model answer, student answer, and label. We

divided this dataset into train and validation set. As

question-blind division of the dataset could bias the

ﬁnal trained model towards one (or a number of) spe-

ciﬁc question, we randomly selected 20% of the tu-

ples from each question for the validation set and 80%

for the train set. The test sets were provided sep-

arately by SemEval-2013. BERT and XLNet were

ﬁne-tuned on the SemEval train datasets, and tested

on the test sets.

We conducted our experiments using the max se-

quence lengths of 165, 185 and 175 (considering the

[CLS] and [SEP

] tokens) for BERT Base uncased,

BERT Base cased and XLNET cased respectively.

These parameter values were chosen based on the

longest tokenized answer in the dataset.

4.2 Training the Grader with BERT

and XLNET

Our hyperparameters for all the 2-way, 3-way and 5-

way grading were experimentally selected and are as

follows:

• Epochs = 10

• Dropout probability for all the layers = 0.1

• Warmup Proportion = 0.1

• Mini Batch size = 16

• Learning rate = 5e-6 for BERT and 5e-5 for XL-

NET

To avoid overﬁtting/underﬁtting, we employed

one of the most common regularization techniques,

which is to stop the training process on a set of ini-

tial epochs before full convergence. This is done in

combination with the dropout technique. We set the

number of epochs to 10 experimentally and trained

our model for the full number of epochs. Then, we

analyzed the ﬂow of loss change per epoch to control

the overﬁtting and underﬁtting. In the end, we eval-

uated our models on the validation sets and stopped

the training process before the occurrence of any of

these two problems. We stopped the training at the

2-4 epoch for all the models.

4.3 Evaluation Measures

We evaluate our ASAG system using the SemEval-

2013 challenge measures:

separator

• Accuracy (ACC): Proportion of correctly graded

answers.

• Macro Average F1 score (M-F1): Precision, re-

call and F1 scores are calculated independently

for each grade label and then averaged over all

grade labels.

• Weighted Average F1 score (W-F1): Weighted

average of M-F1. It takes into account the size of

the classes related to each grade label.

5 RESULTS

In this section, we report the results of BERT Base

uncased, BERT Base cased and XLNET Base cased.

Then, we compare the performance of BERT and

XLNET with the best graders in the SOTA. We do

not consider the question in our ASAG task because

BERT and XLNET classiﬁers only accepts two input

sequences (student answer and model answer in our

case).

5.1 Proposed Graders

The results from both experiments in all our proposed

models are provided in Figure 2.

As shown in Figure 2, the results of the 2-way ex-

periments show that BERT Base uncased is slightly

better than the other two models in the S→M conﬁg-

uration. As expected, all evaluation measures indicate

a stronger performance for TUA than TUQ and TUD.

XLNET Base cased for the 3-way task dominates

almost in all the datasets in terms of F1-Macro and

F1-weighted. For Acc, BERT Base uncased and

XLNET Base cased behave almost in an identical

manner. Overall, the results obtained with the TUD

dataset are comparable with that of TUA.

Finally for the 5-way task (S→M), the perfor-

mance of grading using BERT Base cased model is

always better than other models. BERT Base cased

and XLNET Base cased behave similarly to a certain

extent in all the datasets. Overall, the results for the

5-way task are not as high as for the other tasks. How-

ever, they are still competitive with the SOTA (we re-

turn to these results in section 5.2).

Overall, all the proposed models seem to have bet-

ter performance for TUA. For TUQ and TUD, the

models behave roughly in the same way.

CSEDU 2020 - 12th International Conference on Computer Supported Education

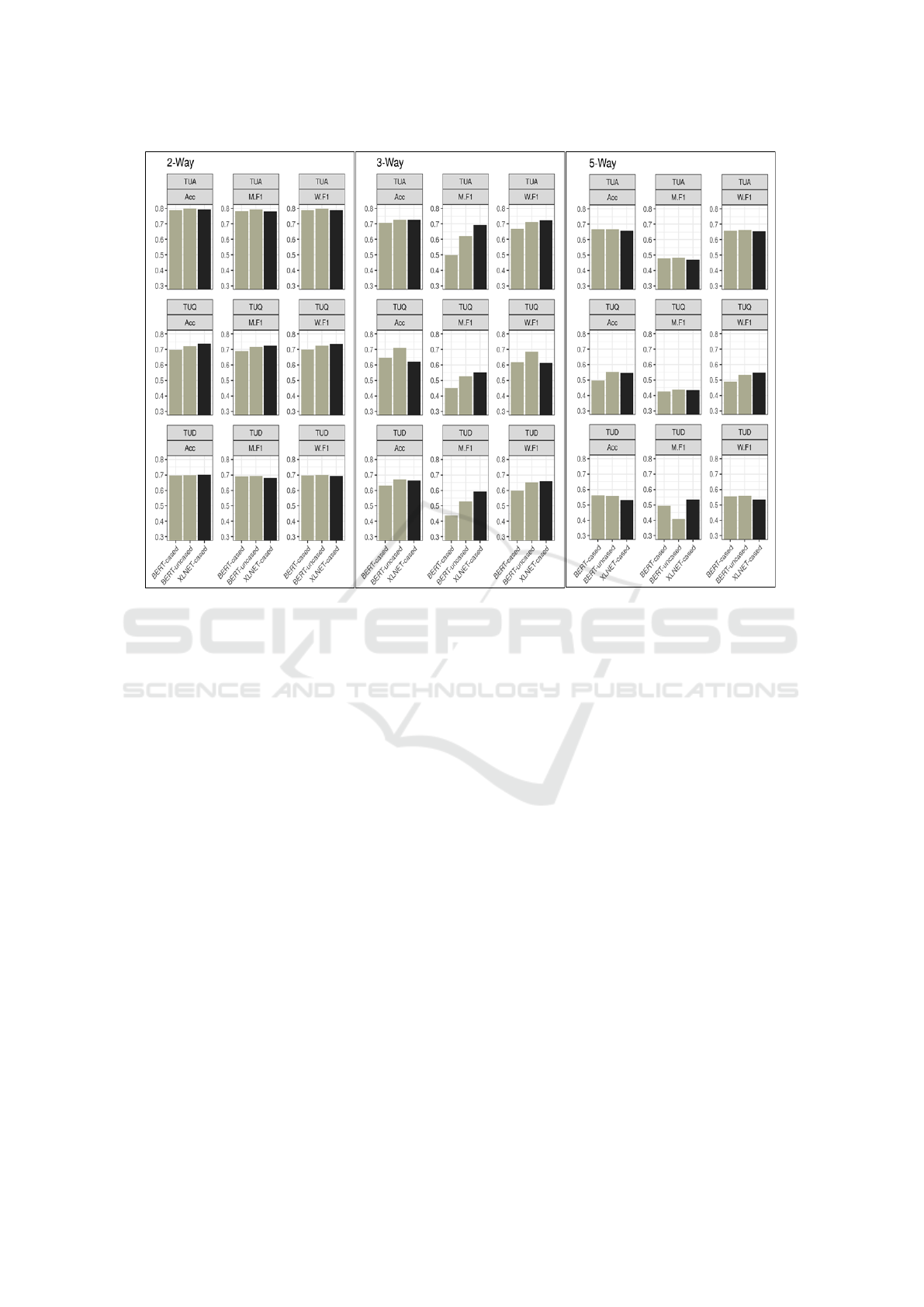

Figure 2: Comparing BERT and XLNET in the context of S→M for 2way, 3way and 5way task.

5.2 Comparison of Proposed Graders

with SOTA

In this subsection, we compare the performance of all

our proposed models to the other systems in SOTA.

Tables 1, 2 and 3 report the results for 2-way, 3-

way and 5-way tasks respectively. Regarding the

SemEval-2013 (Dzikovska et al., 2013) systems, it

should be noted that we include in the Tables 1, 2 and

3 only the best performing systems. In what follows,

we explain the differences and similarities of our re-

sults for all the tasks. Given that (Saha et al., 2018)

is the best performing system, most of our compar-

isons involve with its two main conﬁgurations (with

or without questions (+/- Q)):

• 2-way

– TUA: BERT Base uncased is slightly better

than (Saha et al., 2018) (+Q) in terms of Acc,

M-F1 and W-F1 scores. XLNET Base cased

and (Saha et al., 2018) obtain a similar accu-

racy. If we compare our models with that of

(Saha et al., 2018) (-Q) (as we do not consider

the question in our model), all our proposed

models outperform the SOTA.

– TUQ: (Saha et al., 2018) (-Q) is better than all

our proposed models in terms of ACC, M-F1

and W-F1 scores. Only XLNET Base cased

comes close.

– TUD: Again (Saha et al., 2018) (-Q) achieved

the best results for all our metrics. Like for

TUQ, the results obtained with XLNET Base

cased are similar.

• 3-way

– TUA: For all the evaluation measures, (Sung

et al., 2019) achieved the best results in the

SOTA. Except (Sung et al., 2019), BERT Base

uncased and XLNET Base cased are the best

in terms of accuracy. When not considering

(Sung et al., 2019), XLNET Base cased per-

formed better than all the other systems in the

SOTA for the other two measures.

– TUQ: BERT Base uncased performed the best

based on all the measures, except when com-

pared to (Sung et al., 2019) for M-F1.

– TUD: For this test set, we achieved the best

results in the SOTA with XLNET Base cased

by all the measures. Followed by this model,

BERT Base uncased is slightly better than XL-

NET Base cased only for the accuracy. In terms

of W-F1, BERT Base uncased can be ranked

second after XLNET Base cased.

Using BERT and XLNET for the Automatic Short Answer Grading Task

Table 1: Comparison of the proposed system with SOTA on 2-way SciEntBank dataset: The highlighted numbers are the best

in the SOTA.

TUA TUQ TUD

Acc M-F1 W-F1 Acc M-F1 W-F1 Acc M-F1 W-F1

COMET (Ott et al., 2013) 0.774 0.768 0.773 0.603 0.579 0.597 0.676 0.67 0.677

ETS (Heilman and Madnani, 2013) 0.776 0.762 0.77 0.633 0.602 0.622 0.627 0.543 0.574

SOFTCARDINALITY (Jimenez et al., 2013) 0.724 0.715 0.722 0.745 0.737 0.745 0.711 0.705 0.712

Sultan et. al. (Sultan et al., 2016) 0.708 0.676 0.69 0.705 0.678 0.695 0.712 0.703 0.712

Graph (Ramachandran and Foltz, 2015) - 0.644 0.658 - - - - - -

MEAD (Ramachandran and Foltz, 2015) - 0.631 0.645 - - - - - -

TF+SF [-question] (Saha et al., 2018) 0.779 0.771 0.777 0.749 0.738 0.747 0.708 0.690 0.702

TF+SF [+question] (Saha et al., 2018) 0.792 0.785 0.791 0.702 0.685 0.698 0.719 0.708 0.717

Mavarniya (Marvaniya et al., 2018) - 0.773 0.781 - - - - - -

BERT Base uncased 0.798 0.792 0.797 0.723 0.718 0.724 0.699 0.693 0.7

BERT Base cased 0.79 0.783 0.788 0.697 0.690 0.698 0.698 0.689 0.697

XLNET Base cased 0.792 0.781 0.788 0.736 0.724 0.734 0.702 0.679 0.693

Table 2: Comparison of the proposed system with SOTA on 3-way SciEntBank dataset: The highlighted numbers are the best

in the SOTA.

TUA TUQ TUD

Acc M-F1 W-F1 Acc M-F1 W-F1 Acc M-F1 W-F1

COMET (Ott et al., 2013) 0.713 0.64 0.707 0.546 0.38 0.522 0.579 0.404 0.55

ETS (Heilman and Madnani, 2013) 0.72 0.647 0.708 0.583 0.393 0.537 0.543 0.333 0.461

SOFTCARDINALITY (Jimenez et al., 2013) 0.659 0.555 0.647 0.652 0.469 0.634 0.637 0.486 0.62

Sultan et. al. (Sultan et al., 2016) 0.604 0.443 0.569 0.642 0.455 0.615 0.626 0.451 0.603

Graph (Ramachandran and Foltz, 2015) - 0.438 0.567 - - - - - -

MEAD (Ramachandran and Foltz, 2015) - 0.429 0.554 - - - - - -

TF+SF [-question] (Saha et al., 2018) 0.718 0.666 0.714 0.613 0.491 0.628 0.632 0.479 0.611

TF+SF [+question] (Saha et al., 2018) 0.718 0.657 0.711 0.653 0.489 0.636 0.640 0.452 0.61

Marvaniya (Marvaniya et al., 2018) - 0.636 0.719 - - - - - -

Sung et. al. (Sung et al., 2019) 0.759 0.72 0.758 0.653 0.575 0.648 0.638 0.579 0.634

BERT Base uncased 0.726 0.622 0.714 0.708 0.528 0.686 0.672 0.528 0.6514

BERT Base cased 0.707 0.5 0.667 0.645 0.45 0.616 0.63 0.438 0.6

XLNET Base cased 0.726 0.7 0.723 0.622 0.55 0.61 0.665 0.6 0.657

• 5-way

– TUA: BERT Base uncased performed better

than all the other systems in the SOTA in terms

of all the evaluation measures. Also, BERT

Base cased and XLNET Base cased performed

well in terms of accuracy and W-F1 when com-

pared to the other systems.

– TUQ: Similar to TUA, BERT Base uncased

dominated the SOTA followed by XLNET Base

cased. It should be noted the W-F1 for XLNET

Base cased is slightly better than that of BERT

Base uncased. However, BERT Base cased per-

forms better in terms of M-F1.

– TUD: The results from all our proposed models

are signiﬁcantly better than those of the SOTA.

Among our models, BERT Base cased is the top

model in terms of accuracy and W-F1. XLNET

Base cased is better in terms of M-F1.

6 DISCUSSION

According to the results described in Section 5, our

ﬁndings suggest that BERT and XLNET graders

achieve better or competitive results compared to the

SOTA. This is true especially on the TUA test set for

all the tasks, except for (Sung et al., 2019) on the 3-

way task. For all the other test sets in all the tasks,

our proposed models perform better in terms of all

the measures.

For the 2-way task on TUQ, XLNET Base cased

compete with the best system (Saha et al., 2018) in

the SOTA. The difference is around 0.1. The same is

true for TUD, except the M-F1. Overall, the value of

all the evaluation metrics are almost equal or above

0.7 using our proposed models.

For the 3-way grading task, XLNET Base cased

grade well generally. This is highlighted in TUA and

CSEDU 2020 - 12th International Conference on Computer Supported Education

Table 3: Comparison of the proposed system with SOTA on 5-way SciEntBank dataset: The highlighted numbers are the best

in the SOTA.

TUA TUQ TUD

Acc M-F1 W-F1 Acc M-F1 W-F1 Acc M-F1 W-F1

COMET (Ott et al., 2013) 0.6 0.441 0.598 0.437 0.161 0.299 0.421 0.121 0.252

ETS (Heilman and Madnani, 2013) 0.643 0.478 0.64 0.432 0.263 0.411 0.441 0.38 0.414

SOFTCARDINALITY (Jimenez et al., 2013) 0.544 0.38 0.537 0.525 0.307 0.492 0.512 0.3 0.471

Sultan et. al. (Sultan et al., 2016) 0.489 0.3298 0.487 0.480 0.302 0.467 0.506 0.344 0.484

Graph (Ramachandran and Foltz, 2015) - 0.372 0.458 - - - - - -

MEAD (Ramachandran and Foltz, 2015) - 0.379 0.461 - - - - - -

TF+SF [-question] (Saha et al., 2018) 0.644 0.480 0.642 0.5 0.316 0.488 0.508 0.357 0.492

TF+SF [+question] (Saha et al., 2018) 0.629 0.472 0.630 0.506 0.376 0.471 0.51 0.342 0.486

Mavarniya (Marvaniya et al., 2018) - 0.579 0.61 - - - - - -

BERT Base uncased 0.66 0.484 0.662 0.552 0.437 0.533 0.557 0.41 0.558

BERT Base cased 0.66 0.478 0.658 0.5 0.424 0.487 0.562 0.5 0.552

XLNET Base cased 0.658 0.47 0.655 0.544 0.435 0.545 0.532 0.535 0.535

TUQ for all the measures. For TUQ, BERT Base un-

cased dominates the SOTA. It should be noted that the

accuracy for BERT Base uncased is always the high-

est. Overall, the proposed models seem to improve

the SOTA.

In the 5-way task, all our models work robustly

compared to the SOTA. Among them, BERT Base un-

cased achieved the top values for all the evaluation

measures. Close to BERT Base uncased, it is XLNET

and BERT Base cased. XLNET Base cased even per-

forms slightly better than our other models for TUD.

As we explore grading (or classiﬁcation) from 2-

way to 5-way, the performance becomes weaker. Al-

though we improve the performance in 3-way and 5-

way tasks, the value for all the evaluation measures

(Acc, M-F1 and W-F1) does not exceed 0.75, espe-

cially in the 5-way task. Besides, most of the mea-

sures in the 5-way task show that the models are not

robust in the SOTA (including the current study) and

predicts the answers randomly to certain extent.

We explored the dataset to try to understand its

challenges. One possible reason for lower classiﬁca-

tion results is that we found it difﬁcult to differen-

tiate classes like correct from partially correct, and

irrelevant from not in the domain. In fact, we found

some ambiguity in the labels associated to some an-

swers, which adds to the complexity of grading. For

instance, in the following example extracted from Sci-

EntBank (Nielsen et al., 2008), it is a complicated

to assign a partially correct label based only on the

”scratch” concept:

• Question: ”Georgia found one brown mineral and

one black mineral. How will she know which one

is harder?”

• Model Answer: ”The harder mineral will leave

a scratch on the less hard mineral. If the black

mineral is harder, the brown mineral will

have a scratch.”

• Student Answer: ”The one with a scratch.”

Consequently, it seems likely that the performance of

machine scoring systems would improve if the grade

labels were more clearly deﬁned and annotated.

Finally, the type of the test sets adds to the com-

plexity of the task. The SOTA and our evaluation re-

sults show that TUA is the least difﬁcult dataset, fol-

lowed by TUQ and TUD. In fact, the challenge seems

to increase with unknown questions or when there is

a need for domain adaptation.

7 CONCLUSION AND FUTURE

WORK

In this paper, we proposed approaches based on the

BERT and XLNET classiﬁers for the ASAG task.

Overall, we showed the approaches can be considered

as better or comparable to SOTA satisfactory graders

on the SemEval-2013 SciEntBank dataset. Our ﬁnd-

ings further suggest that XLNET and BERT seem to

be strong baselines for ASAG for the 3way and 5way

tasks respectively, with the exception of the 2-way

TUQ and TUD conditions.

These overall good results of language models

such as BERT and XLNet on ASAG seem to indi-

cate that modern language models succeed in build-

ing a semantic representation of student answers and

model answers and classifying them correctly. BERT

and XLNet seem to either equal or outperform the re-

sults obtained with human engineered features. These

features, however, help to explain classiﬁcation re-

sults, a task that is more difﬁcult with transformer-

based models. For pedagogical purposes, the ability

Using BERT and XLNET for the Automatic Short Answer Grading Task

to explain grading results is a must and further work

should be directed towards the combination of mod-

ern language models with explainable capabilities.

The current work has a number of limitations. One

of the most important is that our experiment was car-

ried out on only one dataset. Other datasets like BEE-

TLE or DT-Grade (Banjade et al., 2016) could also

be used to conﬁrm the promising characteristics of

BERT and XLNET for ASAG. Another limitation is

that that we did not use the largest BERT model due

to limited computing power. We also note that we

could not go beyond 10 epochs, and as a result ad-

justed our early stopping based on the observation on

this 10 epoch experiment.

We plan to address the above-mentioned limita-

tions in future work. We also intend to explore ensem-

bling BERT with other classiﬁers to boost the grading

performance, especially by considering features that

were successful in the SOTA.

ACKNOWLEDGMENTS

The current research is supported by an INSIGHT

grant from the Social Sciences and Humanities Re-

search Council of Canada (SSHRC).

REFERENCES

Badger, E. and Thomas, B. (1992). Open-ended questions

in reading. Practical assessment, research & evalua-

tion, 3(4):03.

Banjade, R., Maharjan, N., Niraula, N. B., Gautam, D.,

Samei, B., and Rus, V. (2016). Evaluation dataset

(dt-grade) and word weighting approach towards con-

structed short answers assessment in tutorial dialogue

context. In Proceedings of the 11th Workshop on In-

novative Use of NLP for Building Educational Appli-

cations, pages 182–187.

Burrows, S., Gurevych, I., and Stein, B. (2015). The eras

and trends of automatic short answer grading. Interna-

tional Journal of Artiﬁcial Intelligence in Education,

25(1):60–117.

Conneau, A., Kiela, D., Schwenk, H., Barrault, L., and Bor-

des, A. (2017). Supervised learning of universal sen-

tence representations from natural language inference

data. arXiv preprint arXiv:1705.02364.

Dagan, I., Glickman, O., and Magnini, B. (2005). The

pascal recognising textual entailment challenge. In

Machine Learning Challenges Workshop, pages 177–

190. Springer.

Dai, Z., Yang, Z., Yang, Y., Cohen, W. W., Carbonell, J.,

Le, Q. V., and Salakhutdinov, R. (2019). Transformer-

xl: Attentive language models beyond a ﬁxed-length

context. arXiv preprint arXiv:1901.02860.

Deerwester, S., Dumais, S. T., Furnas, G. W., Landauer,

T. K., and Harshman, R. (1990). Indexing by latent

semantic analysis. Journal of the American society

for information science, 41(6):391–407.

Devlin, J., Chang, M. W., Lee, K., and Toutanova, K.

(2018). Bert: Pre-training of deep bidirectional trans-

formers for language understanding. arXiv preprint

arXiv:1810.04805.

Dzikovska, M. O., Moore, J. D., Steinhauser, N., Campbell,

G., Farrow, E., and Callaway, C. B. (2010). Beetle

ii: a system for tutoring and computational linguis-

tics experimentation. In Proceedings of the ACL 2010

System Demonstrations, pages 13–18. Association for

Computational Linguistics.

Dzikovska, M. O., Nielsen, R. D., Brew, C., Leacock, C.,

Giampiccolo, D., Bentivogli, L., Clark, P., Dagan,

I., and Dang, H. T. (2013). Semeval-2013 task 7:

The joint student response analysis and 8th recogniz-

ing textual entailment challenge. Technical report,

NORTH TEXAS STATE UNIV DENTON.

Goldberg, Y. (2017). Neural network methods for natural

language processing. Synthesis Lectures on Human

Language Technologies, 10(1):1–309.

Goodfellow, I., Bengio, Y., and Courville, A. (2016). Deep

learning. MIT press.

Heilman, M. and Madnani, N. (2013). Ets: Domain adapta-

tion and stacking for short answer scoring. In Second

Joint Conference on Lexical and Computational Se-

mantics (* SEM), Volume 2: Proceedings of the Sev-

enth International Workshop on Semantic Evaluation

(SemEval 2013), volume 2, pages 275–279.

III, H. D. (2009). Frustratingly easy domain adaptation.

arXiv preprint arXiv:0907.1815.

Jimenez, S., Becerra, C., and Gelbukh, A. (2013). Soft-

cardinality: Hierarchical text overlap for student re-

sponse analysis. In Second Joint Conference on Lex-

ical and Computational Semantics (* SEM), Volume

2: Proceedings of the Seventh International Workshop

on Semantic Evaluation (SemEval 2013), volume 2,

pages 280–284.

Jimenez, S., Gonzalez, F., and Gelbukh, A. (2010). Text

comparison using soft cardinality. In International

symposium on string processing and information re-

trieval, pages 297–302. Springer.

Mantecon, J. G. A., Ghavidel, H. A., Zouaq, A., Jovanovic,

J., and McDonald, J. (2018). A comparison of features

for the automatic labeling of student answers to open-

ended questions. In TEMPLATE’06, 1st International

Conference on Template Production. International Ed-

ucational Data Mining Conference.

Marvaniya, S., Saha, S., Dhamecha, T. I., Foltz, P., Sind-

hgatta, R., and Sengupta, B. (2018). Creating scor-

ing rubric from representative student answers for im-

proved short answer grading. In Proceedings of the

27th ACM International Conference on Information

and Knowledge Management, pages 993–1002. ACM.

Nielsen, R. D., Ward, W. H., Martin, J. H., and Palmer, M.

(2008). Annotating students’ understanding of science

concepts. In LREC.

CSEDU 2020 - 12th International Conference on Computer Supported Education

Ott, N., Ziai, R., Hahn, M., and Meurers, D. (2013). Comet:

Integrating different levels of linguistic modeling for

meaning assessment. In Second Joint Conference

on Lexical and Computational Semantics (* SEM),

Volume 2: Proceedings of the Seventh International

Workshop on Semantic Evaluation (SemEval 2013),

volume 2, pages 608–616.

Papineni, K., Roukos, S., Ward, T., and Zhu, W. (2002).

Bleu: a method for automatic evaluation of machine

translation. In Proceedings of the 40th annual meeting

on association for computational linguistics, pages

311–318. Association for Computational Linguistics.

Radford, A., Narasimhan, K., Salimans, T., and Sutskever,

I. (2018). Improving language understanding by gen-

erative pre-training.

Rajpurkar, P., Zhang, J., Lopyrev, K., and Liang, P. (2016).

Squad: 100,000+ questions for machine comprehen-

sion of text. arXiv preprint arXiv:1606.05250.

Ramachandran, L. and Foltz, P. (2015). Generating refer-

ence texts for short answer scoring using graph-based

summarization. pages 207–212.

Riordan, B., Horbach, A., Cahill, A., Zesch, T., and Lee,

C. M. (2017). Investigating neural architectures for

short answer scoring. In Proceedings of the 12th

Workshop on Innovative Use of NLP for Building Ed-

ucational Applications, pages 159–168.

Roy, S., Rajkumar, A., and Narahari, Y. (2018). Selection

of automatic short answer grading techniques using

contextual bandits for different evaluation measures.

International Journal of Advances in Engineering Sci-

ences and Applied Mathematics, 10(1):105–113.

Saha, S., Dhamecha, T. I., Marvaniya, S., Sindhgatta, R.,

and Sengupta, B. (2018). Sentence level or token level

features for automatic short answer grading? use both.

In International Conference on Artiﬁcial Intelligence

in Education, pages 503–517. Springer.

Sakaguchi, K., Heilman, M., and Madnani, N. (2015). Ef-

fective feature integration for automated short answer

scoring. In Proceedings of the 2015 conference of the

North American Chapter of the association for com-

putational linguistics: Human language technologies,

pages 1049–1054.

Sultan, M. A., Salazar, C., and Sumner, T. (2016). Fast and

easy short answer grading with high accuracy. In Pro-

ceedings of the 2016 Conference of the North Amer-

ican Chapter of the Association for Computational

Linguistics: Human Language Technologies, pages

1070–1075.

Sung, C., Dhamecha, T. I., and Mukhi, N. (2019). Improv-

ing short answer grading using transformer-based pre-

training. In International Conference on Artiﬁcial In-

telligence in Education, pages 469–481. Springer.

Taylor, W. L. (1953). “cloze procedure”: A new

tool for measuring readability. Journalism Bulletin,

30(4):415–433.

Vaswani, A., Shazeer, N., Parmar, N., Uszkoreit, J., Jones,

L., Gomez, A. N., Kaiser, L., and Polosukhin, I.

(2017). Attention is all you need. In Advances in

Neural Information Processing Systems, pages 5998–

6008.

Yang, Z., Dai, Z., Yang, Y., Carbonell, J., Salakhutdinov, R.,

and Le, Q. V. (2019). Xlnet: Generalized autoregres-

sive pretraining for language understanding. arXiv

preprint arXiv:1906.08237.

Using BERT and XLNET for the Automatic Short Answer Grading Task
