Towards an Automated DEMO Action Model Implementation using

Blockchain Smart Contracts

Marta Apar

ıcio

1,2

, S

ergio Guerreiro

1,2

and Pedro Sousa

1,2,3

Instituto Superior T

ecnico, University of Lisbon, Av. Rovisco Pais 1, 1049-001 Lisbon, Portugal

INESC-ID, Rua Alves Redol 9, 1000-029 Lisbon, Portugal

Link Consulting SA, Av. Duque de

Avila 23, 1000-138 Lisbon, Portugal

Keywords:

Automatic Generation, Blockchain, DEMO, DEMO Action Model, Smart Contract.

Abstract:

Blockchain (BC) is a technology that introduces a decentralized, replicated, autonomous, and secure databases.

A Smart Contract (SC) is a transaction embedded in BC that contains executable code and its internal storage,

offering immutable execution and record keeping. A SC has enormous potential in automating traditional

paper contracts and encoding contract logic into program code. Therefore, replacing the role of a central

authority and reducing the time and money spent on the enforcement of such contracts. This paper intends

to determine the sufﬁciency or insufﬁciency of ontology to support the automatic generation of SCs code

from text, in particular, DEMO Action Model. A new way to capture the SC in a user-friendly way could be

proposed. With this, it is intended to eliminate the errors associated with programming since the SC code is

automatically generated from models.

1 INTRODUCTION

Since ancient times, binding agreements that recog-

nize and manage the rights and duties between par-

ties have been consummated. These binding agree-

ments, in which an exchange of value is made, are

now known as contracts and serve as protection for

both parties. These contracts are written or spoken

and require the parties to trust each other to fulﬁl their

side of the commitment. The massively complex set

of contractual agreements that are created, due to the

way society is structured, lead to enforce trust by cen-

tralized organizations like banks. Making the same

society, dependent upon third parties to manage and

enforce those contractual agreements.

In (Nakamoto, 2009) proposed a peer-to-peer net-

work where transactions are hashed into an ongoing

chain, forming a record that cannot be changed with-

out redoing the Proof-of-Work, naming it BC. Later

on, a BC called Ethereum was speciﬁcally created and

designed to support SCs, that allowed to create con-

tracts between parties. Nowadays, SCs are enforced

by the network of computers that makes up the BC,

guaranteeing the adequate execution of the code that

composes the SCs, based on proven cryptographic

algorithms. These new technologies are undeniable

faster, cheaper and more secure than many traditional

systems, which helps with the handling of this mas-

sive amount of complex contractual agreements and

transactions that are nowadays created. However,

building systems on BC is non-trivial due to the steep

learning curve of the BC technology.

Model-driven engineering tools can generate well-

tested code implementing best practices and help de-

velopers manage software complexity by only fo-

cusing on building high-level models without requir-

ing expert development knowledge (Schmidt, 2006).

Thus, it would be expected that when using Model-

driven engineering tools to produce BC SCs this

would decrease the slope of the learning curve, mak-

ing the production faster.

As explained in (Norta, 2017), referencing a

crowdfunding project that was hacked as it contained

security ﬂaws, resulting in a considerable monetary

loss. “The incident shows it is not enough to merely

equip the protocol layer on top of a Blockchain with a

Turing-complete language such as Solidity to realize

smart-contract management. Instead, we propose in

this keynote paper that is crucial to address a gap for

secure smart-contract management pertaining to the

currently ignored application-layer development”.

A solution to this referred problem would be to

generate SCs automatically, which would add a level

of security. However, as novelties, these entail ab-

762

Aparício, M., Guerreiro, S. and Sousa, P.

Towards an Automated DEMO Action Model Implementation using Blockchain Smart Contracts.

DOI: 10.5220/0009417907620769

In Proceedings of the 22nd International Conference on Enterprise Information Systems (ICEIS 2020) - Volume 2, pages 762-769

ISBN: 978-989-758-423-7

sence of formal models and systematization (de Krui-

jff and Weigand, 2017b). To deal with such degree of

ambiguity and inconsistency Ontology seems a good

ﬁt to deal with the automation task of creating SCs

(Guarino et al., 2009).

The main goals for this paper derive from the

fact that there are already papers (Horn

ckov

a et al.,

2019), (de Kruijff and Weigand, 2017b) that suggest

the automatic generation of SCs resorting to DEMO

Ontology, but they don’t prove its sufﬁciency or even

apply them to a sizable sample of real SCs. This paper

aims to infer if by using Ontology, more speciﬁcally

the DEMO Ontology and the DEMO Action Model,

it is possible to extract automatically the knowledge

required to generate SCs on BC, allowing it to ensure

the correctness of these same SCs.

The main contributions of this paper, considering

the main question, are: 1) Determine whether Ontol-

ogy builders are sufﬁcient for the automatic genera-

tion of SCs; If insufﬁcient, the missing knowledge

will have to be acquired; If sufﬁcient, with that knowl-

edge proceed; 2) Through the knowledge acquired,

proceed to formalize principles of translating DEMO

Action Models into contract code; 3) Make the cre-

ation of SCs more accessible to whom may desires.

2 BACKGROUND

2.1 Blockchain

BC was originally described in 1991, by a group of

researchers and was originally intended to timestamp

digital documents so that it was impossible to tamper

them (Haber and Stornetta, 1991). It went by mostly

unused until it was adapted by (Nakamoto, 2009), to

create the digital cryptocurrency Bitcoin. Nakamoto

described BC as an architecture that gives participants

the ability to perform electronic transactions with-

out relying on trust. It started as the usual frame-

work of coins made from digital signatures, which al-

lows strong control of ownership. But still required

a trusted third party to prevent the Double-Spending

Problem, which was solved by a peer-to-peer net-

work approach. This network timestamps transac-

tions by hashing them into an ongoing chain of hash-

based Proof-of-Work, forming a record that cannot be

changed without redoing the Proof-of-Work.

What makes this possible it that, each block con-

tains some data, the hash of the block and the hash

of the previous block. The data that is stored in-

side a block depends on the type of BC, but normally

stores the details of multiple transactions, each with

an identiﬁcation for the sender, the receiver and the

asset. A block also has a hash that identiﬁes its con-

tent and it’s always unique. If something is changed

inside a block, that would cause the hash to change.

That’s why hashes are very useful to detect changes

in blocks. The hash of the previous block effectively

creates a chain of blocks and it’s this technique that

makes a BC so secure. However, the hashing tech-

nique is not enough, with the high computational ca-

pacity that exists today, where a computer as the ca-

pacity of calculate hundreds of thousands of hashes,

per second. To mitigate this problem, BC has a con-

sensus mechanism called Proof-of-Work. This mech-

anism slows down the creation of new blocks since, if

a block is tempered the Proof-of-Work of all the pre-

vious blocks has to be recalculated. So, the security

of BC comes from its creative use of hashing and a

Proof-of-Work mechanism. As long as a majority of

CPU power is controlled by nodes that are not cooper-

ating to attack the network, they’ll outpace attackers.

Of course, its distributive nature also adds a level of

security, since instead of using a central entity to man-

age the chain, BC uses a peer-to-peer network where

anyone can join. Information is broadcast on a best ef-

fort basis, and nodes can leave and rejoin the network

at will, accepting the longest Proof-of-Work chain as

proof of what happened while they were gone.

2.2 Smart Contract

(Szabo, 1997) , long before Bitcoin was created, drew

up the term “Smart Contracts” and explains them as

follows: “A smart contract is a set of promises, spec-

iﬁed in digital form, including protocols within which

the parties perform on these promises”.

In the context of BC, in particular second-

generation BC, SCs are just like contracts in the real

world. The only difference is that they are completely

digital, in the sense that they are both deﬁned by soft-

ware code and executed or enforced by the code itself

automatically without discretion. The trust issue is

also addressed, once SCs are stored on a BC, they in-

herit some interesting properties: immutable and dis-

tributed. Being immutable means that once a SC is

created, it can never be changed again. So, it isn’t

possible to tamper the code of the contract. Being dis-

tributed means that the output of the contract is vali-

dated by every node on the network. So, a single node

cannot force the behavior of the contract since it is de-

pendent of the other nodes. Like all algorithms SCs

may require input values, and only act if certain pre-

deﬁned conditions are met. When a particular value

is reached the SC changes its state and executes the

functions, that are programmatically predeﬁned algo-

rithms, automatically triggering an event on the BC.

Towards an Automated DEMO Action Model Implementation using Blockchain Smart Contracts

763

If false data is inputed to the system, then false results

will be outputed (Bahga and Madisetti, 2016).

2.3 Enterprise Ontology

In order to really cope with the current and the fu-

ture challenges, of the social and economic struc-

ture, conceptual models of the enterprises are needed.

These models are known as ontological models,

and most comply with these ﬁve properties: coher-

ence, comprehensiveness, consistency, conciseness,

and essence, collectively abbreviated as C

E. By co-

herence its mean that the distinguished aspect models

constitute a logical and truly integral whole. By com-

prehensive its mean that all relevant issues are cov-

ered, that the whole is complete. By consistent its

mean that the aspect models are free from contradic-

tions or irregularities. By concise its mean that no

superﬂuous matters are contained in it, that the whole

is compact and succinct. The most important prop-

erty, however, is that this conceptual model is essen-

tial, that it shows only the essence of the enterprise. In

particular, it means that the model abstracts from all

realization and implementation issues (Dietz, 2006).

A complete enterprise ontology consists of four

related aspect models. The Construction Model it is

the most concise model, and speciﬁes the identiﬁed

transaction types and the associated actor roles (with

speciﬁc authority and responsibility, but not a speciﬁc

person), as well as the information links. The Pro-

cess Model contains, for every transaction type in the

Construction Model, the speciﬁc transaction pattern

of the transaction type. It also contains the causal and

conditional relationships between transactions. The

Action Model speciﬁes the action rules that serve as

guidelines for the actors in dealing with their agenda.

The Fact Model speciﬁes the state space of both the

production world and the coordination world of the

enterprise.

With Ontology it’s possible to make a common

interpretation of data across organizations, making it

easier and cheaper to exchange transactions.

2.4 DEMO Theory

DEMO, is an enterprise modelling methodology for

(re)designing and (re)engineering organizations. In

DEMO, an enterprise is seen as a system of people

and their relations, authority and responsibility. The

usage of a strongly simpliﬁed models that focus on

people forms the basis of DEMO. By using a lan-

guage that is common in the enterprise, the under-

standing of such models are guaranteed, even though

they’re abstract and have a conceptual nature. DEMO

describes the construction and operation of the organ-

isation, while completely abstracting from implemen-

tation and realisation. The core concept of DEMO is

a transaction and is fully based on the ψ −theory.

According to ψ − theory, in the standard pattern

of a business transaction exists two actor roles, the

initiator and the executor. The obtained fact when

performing a business transaction, is originated by

the collaboration of production and coordination acts.

These acts contain three phases each one with spe-

ciﬁc steps. (1) The Order phase that contains the re-

quest (rq); promise (pm); decline (dc); quit (qt) steps.

(2) The Execution phase that contains only the execu-

tion (ex) step. (3) The Result phase that contains the

states (st); reject (rj); accept (ac) steps. The following

four steps are present in every transaction and repre-

sent the happy ﬂow: request, promise, state, accept.

Each of these steps can be revoked (rv) anytime dur-

ing the transaction. The other party can either allow

(al) this, or refuse (rf) it. The ψ −theory is supported

by four axioms. The Operation Axiom abstracts from

the subjects in order to focus on the different actor

roles they fulﬁll. An actor is a subject fulﬁlling an ac-

tor role. Actors perform two kinds of acts: production

acts and coordination acts. By performing production

acts they contribute to achieving the purpose or the

mission of the enterprise. By performing coordination

acts they enter into and comply with mutual commit-

ments about production acts. The Transaction Axiom

states that production and coordination acts occur in

patterns, called transactions. The Composition Axiom

states that every transaction is either enclosed in some

other transaction or it is a customer transaction or it is

a self-activating transaction. At last, the Distinction

Axiom is about the integrating role that human beings

play in constituting an enterprise. Three human abil-

ities are distinguished, called performa, informa, and

forma.

As a methodology, DEMO has four models al-

ready mentioned: the Construction Model, the Pro-

cess Model, Action Model and the Fact Model.

3 RELATED WORK

The work of (Kim and Laskowski, 2016) was con-

sidered since, it believed that ontologies could con-

tribute to develop BC applications. In fact, argued

that ontology-based BC modeling would result in

a BC with enhanced interpretability, stating even

that ”A modeling approach based on formal ontolo-

gies can aid in the formal speciﬁcations for auto-

mated inference and veriﬁcation in the operation of

a blockchain”. This only reinforced the initial idea

ICEIS 2020 - 22nd International Conference on Enterprise Information Systems

764

of this work, where it is believed that a modeling

approach based on formal ontologies can aid in the

development of SCs that execute on the BC. Going

further (Kim and Laskowski, 2016) even a Proof-of-

Concept did, where the translation of TOVE Trace-

abiliy Ontology axioms into SCs that could execute a

provenance trace and enforce traceability constraints

on the BC.

”Towards a Blockchain Ontology” (de Kruijff and

Weigand, 2017a) and ”Understanding the Blockchain

Using Enterprise Ontology” (de Kruijff and Weigand,

2017b), used Enterprise Ontology and DEMO to de-

scribe the BC Ontology from a Datalogical, Infologi-

cal and Essential (Business) perspective. This papers

suggests that by specifying the BC application on the

business level ﬁrst, it will be possible to generate the

BC implementation automatically, with some design

parameters to be set.

In particular, (de Kruijff and Weigand, 2017b)

highlights the distinction axiom as highly relevant for

the BC. Following the three abilities already men-

tioned in section 2 three ontological layers are distin-

guished. Starting from the Datalogical layer that de-

scribes BC transactions at the technical level in terms

of blocks and code. From there, an Infological ab-

straction is done, in order to describe the BC transac-

tions as effectuating an (immutable) open ledger sys-

tem. This layer aims to abstract from the various im-

plementations that exist today or will be developed

in the future. To describe the economic meaning of

the Infological transactions the Essential layer is used.

This last, is the preferred level of speciﬁcation for a

BC application as it abstracts from the implementa-

tion choices. An overview is provided for the UML

classes that are used to construct the domain Ontology

for BC at the Datalogical abstraction layer. The sub-

ject matter in this paper are SCs, so it should be noted

that these are seen as a type of transaction, at this level

of abstraction. In regards to the Infological level, the

SCs are enforced by rules of engagement that are im-

plemented as BC code. At last, for the Essential level,

a contract is an agreement between agents consisting

of mutual commitments. A SC is a contract in which

the commitment fulﬁllment is completely or partially

performed automatically. In fact, Kruijff et al. didn’t

validate their Ontology and the focal point was the BC

as a whole.

There have been attempts at raising the level of

abstraction from code-centric to model-centric SCs

development. The different approaches tried so far,

can be divided into three: the Agent-Based Approach,

the State Machine Approach and the Process-Based

Approach. The Agent-Based Approach described by

(Frantz and Nowostawski, 2016) proposes a modeling

approach that supports the semi-automated translation

of human-readable contract representations into com-

putational equivalents in order to enable the codiﬁca-

tion of laws into veriﬁable and enforceable computa-

tional structures that reside within a public BC. They

identify SC components that correspond to real world

institutions, and propose a mapping using a domain-

speciﬁc language in order to support the contract

modeling process. The concept Grammar of Institu-

tions (Crawford and Ostrom, 1995) is used to decom-

pose institutions into rule-based statements. These

statements are then compiled in a structured formal-

ization. In this case, the statements are constructed

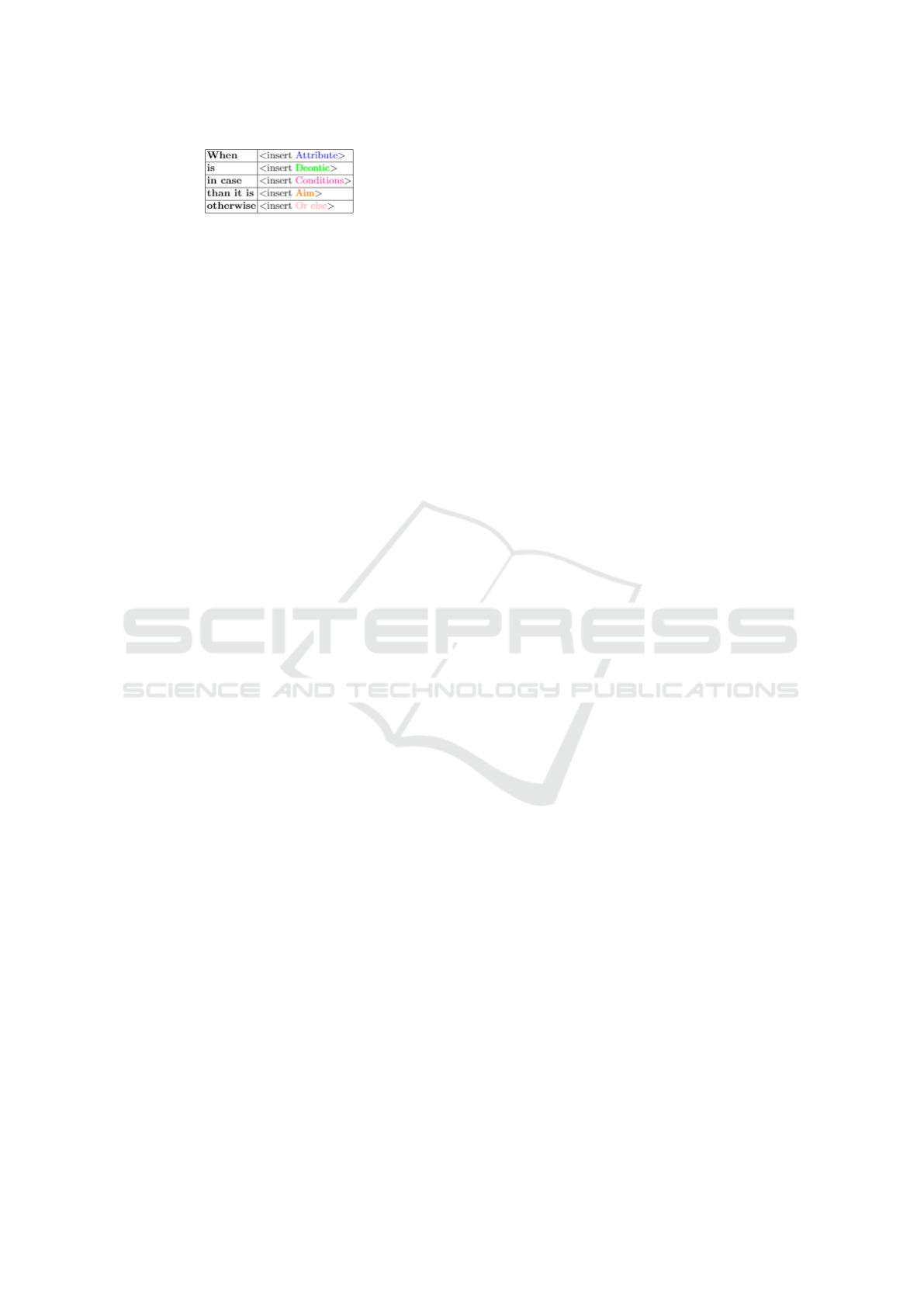

from ﬁve components, abbreviated to ADICO. The

Attributes describing an actor’s characteristics or at-

tributes. The Deontic describing the nature of the

statement as an obligation, permission or prohibi-

tion. The AIm describing the action or outcome that

this statement regulates. The Conditions describing

the contextual conditions under which this statement

holds. And the Or else describing consequences as-

sociated with non-conformance. Using these compo-

nents, statements on the execution of the smart con-

tract are made. The statements are then linked by the

structure of Nested ADICO (Boella et al., 2013), a

variant of ADICO in which the institutional functions

are linked by the operators AND, OR, and XOR to

create a simple set of prescriptions. The set of pre-

scriptions is then transformed into a contract skeleton

which has to be ﬁnished manually. Furthermore, it is

argued that the Grammar of Institutions invites non-

technical people to the SC development process.

The State Machine Approach is based on the ob-

servation that SCs act as state machines. A SC is in

an initial state and a transaction transitions the con-

tract from one state to the next. The possibility of

SCs as state machines is also described in the Solid-

ity speciﬁcation. (Mavridou and Laszka, 2018) show

that the transformation of the Finit State Machine to

Solidity is partly automated, since to ensure Solidity

code quality, some manual coding might be necessary

or added though plugins.

For Process-Based Approaches, both DEMO and

BPMN are well established for modelling business

processes. (Weber et al., 2016), describes a proposal

to support inter-organizational processes through BC

technology. Weber et al. developed a technique to

integrate BC into the choreography of processes in

order to maintain trust. The BC enabled to store

the status of process execution across all involved

participants, as well as to coordinate the collabora-

tive business process execution. Validation was made

against the ability to distinguish between conform-

ing and non-conforming traces. (Garc

ıa-Ba

nuelos

Towards an Automated DEMO Action Model Implementation using Blockchain Smart Contracts

765

et al., 2017) presents an optimization for (Weber et al.,

2016). In this work, to compile BPMN models into a

SC in Solidity Language, the BPMN model is ﬁrst

translated into a reduced Petri Net. Only after this

ﬁrst step, the reduced Petri is compiled into a Solid-

ity SC. Compared to (Weber et al., 2016) this work

(Garc

ıa-Ba

nuelos et al., 2017) managed to decrease

the amount paid of resources and achieve a higher

throughput. Caterpillar, ﬁrst presented in (Pintado,

2017) and further discussed in (Pintado et al., 2018),

is an open-source Business Process Management Sys-

tem - BPMS - that runs on top of the Ethereum BC.

Like any BPMS, Caterpillar supports the creation of

instances of a process model (captured in BPMN) and

allows users to track the state of process instances and

to execute tasks thereof. The speciﬁcity of Caterpil-

lar is that the state of each process instance is main-

tained on the Ethereum BC, and the workﬂow rout-

ing is performed by SCs generated by a BPMN-to-

Solidity compiler. Given a BPMN model (in stan-

dard XML format), it generates a SC (in Solidity),

which encapsulates the workﬂow routing logic of the

process model. Speciﬁcally, the SC contains vari-

ables to encode the state of a process instance, and

scripts to update this state whenever a task completes

or an event occurs. Caterpillar supports not only ba-

sic BPMN control ﬂow elements (i.e. tasks and gate-

ways), but also includes advanced ones, such as sub-

processes, multi-instances and event handling. (Tran

et al., 2018), on other hand can automatically cre-

ate well-tested SC code from speciﬁcations that are

encoded in the business process and data registry

models based on the implemented model transforma-

tions. The BPMN translator can automatically gen-

erate SCs in Solidity from BPMN models while the

registry generator creates Solidity SC based on the

registry models. The BPMN translator takes an ex-

isting BPMN business process model as input and

outputs a SC. This output includes the information

to call registry functions and to instantiate and exe-

cute the process model. The registry generator takes

data structure information and registry type as ﬁelds,

and basic and advanced operations as methods, from

which it generates the registry SC. Users can then de-

ploy the SCs on BC. This work builds up on already

seen works, such as (Garc

ıa-Ba

nuelos et al., 2017)

(Weber et al., 2016), for the BPMN translation algo-

rithms. However, BPMN doesn’t adequately support

the articulation of business rules, that would be es-

sential for the automatic generation of SCs. Process

modellers normally, have to use workarounds, as ad-

ditional tools, to include business rules in their pro-

cesses.

Lastly, (Horn

ckov

a et al., 2019), proved to be

a really important related work, due to its complete

alignment with the purpose of this work. Actually

its Further Research section, makes reference to one

of the things this work is trying to reach: formaliza-

tion of principles of translating DEMO models into

contract code. In (Horn

ckov

a et al., 2019) work, an

IT system based on Enterprise Engineering integrat-

ing SCs is proposed. Also, a Proof-of-Concept im-

plementation of a SC of a mortgage process using a

DEMO methodology was developed, to demonstrate

the feasibility of the proposed concepts. Proving this

way that BC SCs can be used in the implementation

of an enterprise information system (EIS) based on

DEMO methodology. Further, shares the same be-

lieve that by applying the DEMO methodology a re-

duction of unwanted states, the prevention of errors

and a improvement of security, which is crucial for

SCs, since they are representing valuable assets, can

be reached. However, never formalizes the principles

or even applies this beliefs to a sizable sample of use

cases.

4 PROPOSED SOLUTION

4.1 Ontology for Smart Contracts

The concept of data independence designates the

techniques that allow data to be changed without

affecting the applications that process it (Markov,

2008). It is the ability to modify a scheme deﬁnition

in one level without affecting a scheme deﬁnition in a

higher level. It is believe that a similar separation is

highly needed for SCs, in order to achieve the goals

set in this work. DEMO is based on explicit speciﬁed

axioms characterized by a rigid modeling methodol-

ogy, and is focused on the construction and operation

of a system rather than the functional behavior. It

emphasizes the importance of choosing the most ef-

fective level of abstraction during information system

development, in order to establish a clear separation

of concerns. The adoption of the Distinction Axiom

of Enterprise Ontology, presented in section 2, is pro-

posed as an ontological basis for this separation.

In a ﬁrst approach to the problem, it is believed

that, for the Datalogical Layer a SC can be deﬁned as

a piece of code contained on a node of the BC. For

the Infological layer a SC is enforced by a set of rules

implemented on the BC through code. And lastly, for

the Essential layer, the SC is a contract in which the

commitment fulﬁllment is completely or partially per-

formed automatically in BC.

This step allows to defend Ontology, and in partic-

ular DEMO, as a good way towards a model-driven

ICEIS 2020 - 22nd International Conference on Enterprise Information Systems

766

approach in regards to the automatic generation of

software artifacts. However doesn’t make it achiev-

able.

4.2 Automatic Extraction Process

The work that is here trying to be achieved is very

much aligned with the one Hornackova, Skotnica and

Pergl did in ”Exploring a Role of Blockchain Smart

Contracts in Enterprise Engineering” (Horn

ckov

et al., 2019), to some extent. Their workwas applied

to a ﬁnancial transaction and so as our will be for a

more trivial parallelism. The chosen ﬁnancial trans-

action is a mortgage process. With this use case the

advantages and compatibilities between DEMO and

SCs are going to be presented. It is composed of 14

action rules all with a similar structure to the struture

presented on ﬁgure 1.

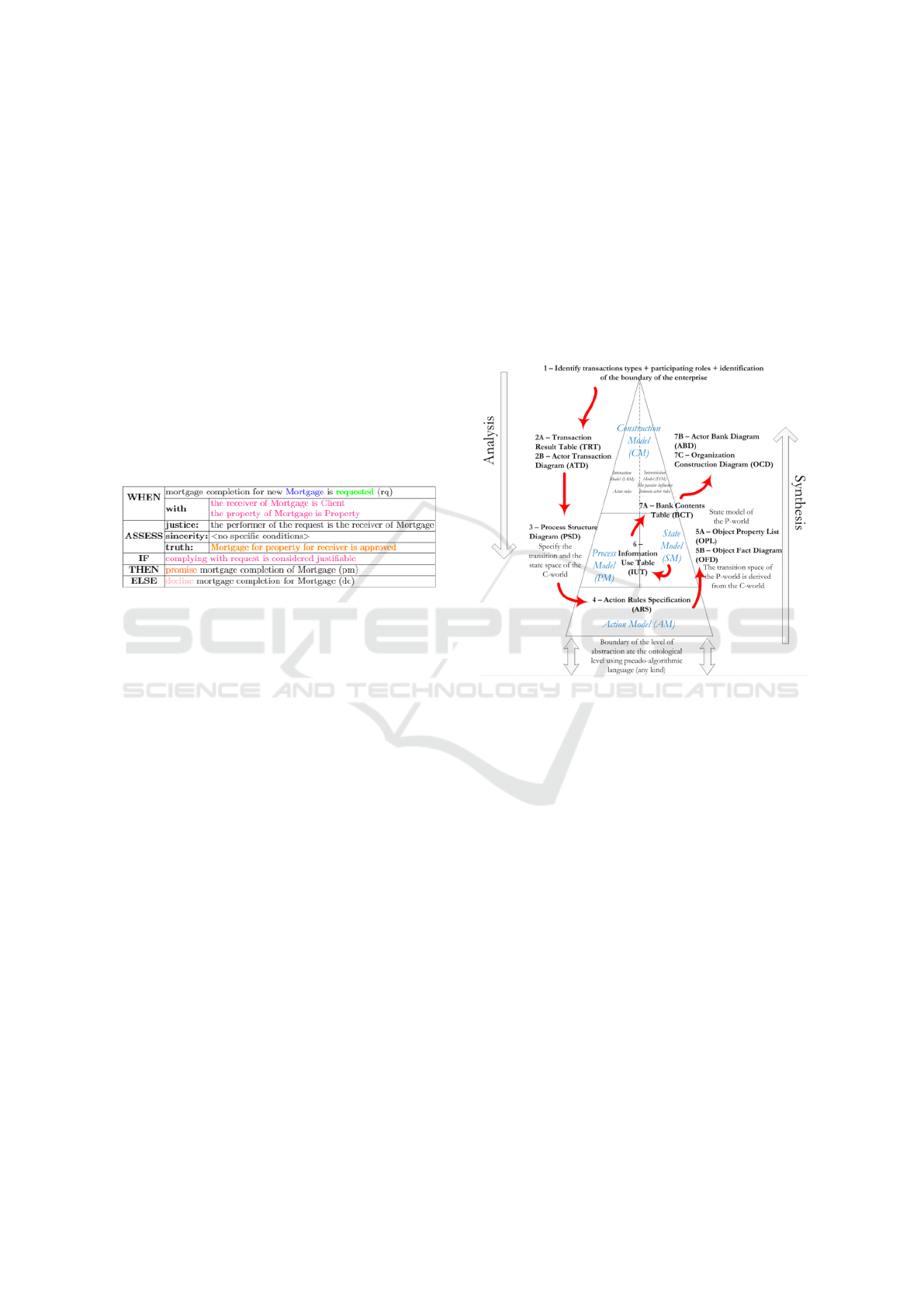

Figure 1: The Action Rule 1, for the Mortgage Use Case.

Both works start with a believe that a DEMO transac-

tion is represented as a contract in a BC. The contract

has its own address, internal storage, attributes, meth-

ods and it is callable by either an external actor or

another contract, as mentioned in section 2. This is

the functionality needed to represent a DEMO trans-

action. However, the divergence between the work

made in (Horn

ckov

a et al., 2019) and this is in how

the automatic extraction process is done.

Now, this present work argues that SCs automated

generation could be done directly form the Action

Model with no need for the generation of the remain-

ing DEMO models. It believes that the structure and

content of a SC can be directly mapped to each ac-

tion rule. Since that by creating the action rules it is

also being created the logic on which the SCs oper-

ate. This change presents a clear improvement over

the process presented by (Horn

ckov

a et al., 2019)

considering that with this new process the SC creator

does not have to have any knowledge of the DEMO

methodology.

In fact, the action rules contain all the decomposed

detail of the above models, in fact the basis of the

DEMO methodology is exactly the Action Model, as

can be seen in ﬁgure 2. The Construction Model spec-

iﬁes the construction of the organization, speciﬁes the

identiﬁed transaction types and the associated actor

roles, as well as the information links between the ac-

tor roles and the information banks. By occupying the

top of the triangle it is suggested that is the most con-

cise model. The Process Model contains, for every

transaction type in the Construction Model, the spe-

ciﬁc transaction pattern of the transaction type. And,

also contains the causal and conditional relationships

between transactions. The Process Model is put just

below the Construction Model in the triangle because

it is the ﬁrst level of detailing of the Construction

Model, namely, the detailing of the identiﬁed trans-

action types.

Figure 2: DEMO Methodology, from (Guerreiro, 2012).

The Action Model speciﬁes the action rules that serve

as guidelines for the actors in dealing with their

agenda. The Action Model is put just below the Pro-

cess Model in the triangle because it is the second

level of detailing of the Construction Model, namely,

the detailing of the identiﬁed steps in the Process

Model of the transaction types in the Construction

Model. At the ontological level of abstraction there

is nothing below the Action Model. The Fact Model

is put on top of the Action Model in ﬁgure 2 because

it is directly based on the Action Model; it speciﬁes

all object classes, fact types, and ontological coex-

istence rules that are contained in the Action Model.

The Action Model is in a very literal sense the ba-

sis of the other aspect models since it contains all in-

formation that is (also) contained in the Construction

Model, Process Model, and Fact Model; but in a dif-

ferent way. The Action Model is the most detailed and

comprehensive aspect model. It’s like the other three

aspect models are derived from the Action Model. The

language and processes from which an Action Model

is created, are simple. Normally, an Action Model is

represented in Action Rule Speciﬁcations and Work

Towards an Automated DEMO Action Model Implementation using Blockchain Smart Contracts

767

Figure 3: The Proposed Template for Specifying Action

Rules.

Instruction Speciﬁcations. This two speciﬁcations are

human-readable behaviour speciﬁcations, with a stan-

dard structure.

The proposed task would be to translate formal-

izations from a human-readable behaviour speciﬁca-

tion, in this case action rules, to a contractual structure

in the form of a SC. To do so, it will be used a Gram-

mar of Institutions (Crawford and Ostrom, 1995),

that captures essential institutional characteristics, as

DEMO does. This idea comes from (Frantz and

Nowostawski, 2016) work, already mention. With

this representation it is possible to decompose spec-

iﬁcations into simple rule-based statements. These

statements are constructed with the ﬁve components

(ADICO): Attributes, Deontic, AIm, Conditions and

Or else, described more in detail in section 3. Tak-

ing as an example the ﬁrst action rule deﬁned for the

mortgage process, in ﬁgure 1. The Blue color repre-

sents the Attribute component. The color Green rep-

resents the Deontic. The color Magenta represents the

Conditions. The color Orange represents the AIm

component. And at last, the color Pink represents

the Or else component. To make the detection of

each element simpler a template is proposed in ﬁg-

ure 3. Where the Deontic, AIm and Or else compo-

nents can have one of the following values: request

(rq), promise (pm), decline (dc), quit (qt), state (st),

reject (rj) and accept (ac). Only the AIm and Or else

conditions can have the execute (ex) value. To de-

compose complex prescription into simpler ones the

Nested ADICO (Boella et al., 2013) may be used.

Mapping these components into structures sup-

ported by the Solidity language can be done. The

Attributes components are structures; the Deontic

components are equivalent to function modiﬁers; the

AIm components are mapped though functions and

events; the Conditions though function modiﬁers; and

at last the Or else components though throw statement

or alternative control ﬂow.

5 WORK EVALUATION

METHODOLOGY

Further, validation is to be done with applications as

well as by establishing mappings to existing imple-

mentations of BC. This work has two main compo-

nents. A more theoretical one, where is necessary to

prove the sufﬁciency of ontological concepts to repre-

sent a SC. And the other component where the auto-

matic generation of a SC from a DEMO Action Model

will be attempted. For the theoretical component an

ontological validation will be performed. Both ”Val-

idating domain ontologies: A methodology exempli-

ﬁed for concept maps” (Steiner and Albert, 2017)

and ”Ontological Evaluation and Validation” (Tartir

et al., 2010) will be used. However, it is important to

ensure that this possible validity applies to any and all

SC. For this will be used a database containing SCs

from real contexts.

As with any programming task, the human-

readable contract and associated obligations need to

be codiﬁed, and then subsequently veriﬁed, to ensure

that the machine-readable representation, in this case

Solidity, conforms to speciﬁed behaviour. For the

more practical component, where the automatic gen-

eration of a SCs from a DEMO Action Model will be

attempted, validation will be based on a tool (http://

smartcontracts.azurewebsites.net/) presented on ”Ex-

ploring a Role of Blockchain Smart Contracts in

Enterprise Engineering” (Horn

ckov

a et al., 2019).

This tool already generates SC from DEMO models,

as detailed in section 3.To ensure that this mapping

between DEMO Action Models and SCs is possible

for any and all SC the already mentioned database

will be used.

6 CONCLUSIONS

Non-technical people, that do not comprehend soft-

ware code are once again dependent on a third party

to write them contracts. The low level of semantics

of software code makes it challenging to have a high

level of comprehension and reasoning, which makes it

more prone to errors. There are already some research

towards raising the level of abstraction from code-

centric to model-centric SCs development. However,

either unintuitive processes are created that do not

meet the goal of facilitating development, or use mod-

els that are not very commendable because of their

nature, such as BPMN.

To address this problem we propose a template

with a simple structure, and where some elements are

strict to predeﬁned values, that allows to model and

develop a SC in Solidity. With this template it will

be more intuitive for non-technical people to develop

their own SC without needing third-parties. To date,

an Ontology for SC is proposed for all layers: Dat-

alogical, Infological and Essential, although the lat-

ter is the most recommended to achieve the intended

ICEIS 2020 - 22nd International Conference on Enterprise Information Systems

768

purpose. With the validation of the Ontology it will

be possible to verify other works similar to this, that

already use Ontology but don’t prove it’s sufﬁciency

and support the idea of extracting SCs from Ontolog-

ical models such as the Action Model. Furthermore, a

template, based on action rules structure, is proposed

and a mapping between the templates elements and

Solidity language elements is proposed.

For future work, the Ontologial validation will be

attempt, if Ontology proves to be sufﬁcient an soft-

ware artefact will be implemented. This prototype

will allow from a DEMO Action Model extract a SC

written in Solidity.

ACKNOWLEDGEMENTS

This work was supported by national funds through

FCT, Fundac¸

ao para a Ci

encia e a Tecnologia, un-

der project UIDB/50021/2020 and by the European

Commission program H2020 under the grant agree-

ment 822404 (project QualiChain).

REFERENCES

Bahga, A. and Madisetti, V. (2016). Blockchain platform

for industrial internet of things. Journal of Software

Engineering and Applications, 09:533–546.

Boella, G., Elkind, E., Savarimuthu, B. T. R., Dignum, F.,

and Purvis, M. K. (2013). Prima 2013: Principles and

practice of multi-agent systems. In Lecture Notes in

Computer Science.

Crawford, S. E. S. and Ostrom, E. (1995). A grammar

of institutions. American Political Science Review,

89(3):582–600.

de Kruijff, J. and Weigand, H. (2017a). Towards a

blockchain ontology.

de Kruijff, J. and Weigand, H. (2017b). Understanding the

blockchain using enterprise ontology.

Dietz, J. L. G. (2006). Enterprise Ontology: Theory and

Methodology. Springer-Verlag, Berlin, Heidelberg.

Frantz, C. K. and Nowostawski, M. (2016). From in-

stitutions to code: Towards automated generation of

smart contracts. In 2016 IEEE 1st International Work-

shops on Foundations and Applications of Self* Sys-

tems (FAS*W), pages 210–215.

Garc

ıa-Ba

nuelos, L., Ponomarev, A., Dumas, M., and We-

ber, I. (2017). Optimized execution of business pro-

cesses on blockchain.

Guarino, N., Oberle, D., and Staab, S. (2009). What Is an

Ontology?, pages 1–17.

Guerreiro, S. (2012). Enterprise dynamic systems control

enforcement of run-time business transactions using

demo: principles of design and implementation. Insti-

tuto Superior T

ecnico-Universidade T

ecnica de Lis-

boa, Lisboa.

Haber, S. and Stornetta, W. S. (1991). How to time-stamp a

digital document. J. Cryptol., 3(2):99–111.

Horn

ckov

a, B., Skotnica, M., and Pergl, R. (2019). Explor-

ing a role of blockchain smart contracts in enterprise

engineering. In Aveiro, D., Guizzardi, G., Guerreiro,

S., and Gu

edria, W., editors, Advances in Enterprise

Engineering XII, pages 113–127, Cham. Springer In-

ternational Publishing.

Kim, H. and Laskowski, M. (2016). Towards an ontology-

driven blockchain design for supply chain provenance.

Markov, K. (2008). Data independence in the multi-

dimensional numbered information spaces.

Mavridou, A. and Laszka, A. (2018). Designing Secure

Ethereum Smart Contracts: A Finite State Machine

Based Approach, pages 523–540.

Nakamoto, S. (2009). Bitcoin: A peer-to-peer elec-

tronic cash system. Cryptography Mailing list at

https://metzdowd.com.

Norta, A. (2017). Designing a smart-contract application

layer for transacting decentralized autonomous orga-

nizations. In Singh, M., Gupta, P., Tyagi, V., Sharma,

A.,

Oren, T., and Grosky, W., editors, Advances in

Computing and Data Sciences, pages 595–604, Sin-

gapore. Springer Singapore.

Pintado, O. (2017). Caterpillar: A blockchain-based busi-

ness process management system.

Pintado, O., Garc

ıa-Ba

nuelos, L., Dumas, M., Weber, I.,

and Ponomarev, A. (2018). Caterpillar: A business

process execution engine on the ethereum blockchain.

Schmidt, D. C. (2006). Guest editor’s introduction: Model-

driven engineering. Computer, 39(2):25–31.

Steiner, C. M. and Albert, D. (2017). Validating domain

ontologies: A methodology exempliﬁed for concept

maps. Cogent Education, 4(1):73–82.

Szabo, N. (1997). Formalizing and securing relationships

on public networks. First Monday, 2(9).

Tartir, S., Arpinar, I., and Sheth, A. (2010). Ontological

Evaluation and Validation, pages 115–130.

Tran, A. B., Lu, Q., and Weber, I. (2018). Lorikeet: A

model-driven engineering tool for blockchain-based

business process execution and asset management. In

BPM.

Weber, I., Xu, X., Riveret, R., Governatori, G., Ponomarev,

A., and Mendling, J. (2016). Untrusted business pro-

cess monitoring and execution using blockchain. In

La Rosa, M., Loos, P., and Pastor, O., editors, Busi-

ness Process Management, pages 329–347, Cham.

Springer International Publishing.

Towards an Automated DEMO Action Model Implementation using Blockchain Smart Contracts

769
