How Machine Learning Has Been Applied in Software Engineering?

Olimar Teixeira Borges

, Julia Colleoni Couto

, Duncan Dubugras A. Ruiz

and Rafael Prikladnicki

1 d

School of Technology, PUCRS, Porto Alegre, Brazil

Keywords:

Software Engineering, Machine Learning, Mapping Study.

Abstract:

Machine Learning (ML) environments are composed of a set of techniques and tools, which can help in solving

problems in a diversity of areas, including Software Engineering (SE). However, due to a large number of

possible conﬁgurations, it is a challenge to select the ML environment to be used for a speciﬁc SE domain

issue. Helping software engineers choose the most suitable ML environment according to their needs would

be very helpful. For instance, it is possible to automate software tests using ML models, where the model

learns software behavior and predicts possible problems in the code. In this paper, we present a mapping study

that categorizes the ML techniques and tools reported as useful to solve SE domain issues. We found that

the most used algorithm is Na

ıve Bayes and that WEKA is the tool most SE researchers use to perform ML

experiments related to SE. We also identiﬁed that most papers use ML to solve problems related to SE quality.

We propose a categorization of the ML techniques and tools that are applied in SE problem solving, linking

with the Software Engineering Body of Knowledge (SWEBOK) knowledge areas.

1 INTRODUCTION

Machine Learning (ML) is an Artiﬁcial Intelligence

(AI) sub-ﬁeld composed of several algorithms for

approximating patterns in data discovery (Mitchell,

1997). ML-based systems learn from experience, and

its algorithms have proved to be of great practical im-

portance to automate several Software Engineering

(SE) tasks, such as refactoring (Kumar et al., 2019),

software defects detection (Al-Nusirat et al., 2019),

and effort estimation (Choetkiertikul et al., 2018).

SE projects are highly complex and often unpre-

dictable because they depend on interrelated factors

to succeed (De Rezende et al., 2018). Mostly, soft-

ware development projects depend on people and the

tools they have to work. As we know, human actions

are subject to failure, mainly because of the inherent

differences related to knowledge and experience (Anu

et al., 2018).

The unpredictability inherent to software projects

can lead to time-wasting, mostly related to re-

work (Sedano et al., 2017), which increases the

project cost. There are a lot of SE tasks that can be

https://orcid.org/0000-0002-2567-2570

https://orcid.org/0000-0002-4022-0142

https://orcid.org/0000-0002-4071-3246

https://orcid.org/0000-0003-3351-4916

automated to reduce human effort and project cost.

However, to automate these tasks using ML, we need

to have the SE project’s data to explore. Fortunately,

there is a vast amount of software project data avail-

able in public repositories. This data can be widely

used to extract knowledge and improve efﬁciency and

quality in software development projects (Liu et al.,

2018). We can use a variety of ML techniques for

each type of SE problem. However, to effectively use

these techniques, we need to have a clear understand-

ing of what are the problems with SE, what are the

problems 5 that can be solved using ML, and what

are the techniques and tools that can be used (Zhang

and Tsai, 2003).

In this paper, we report how ML techniques and

tools are used in SE projects, according to the anal-

ysis of scientiﬁc papers. We also map the main SE

problems that are being solved using ML. To do so,

we perform a mapping study, searching for papers

in eight different electronic databases. We follow

the steps suggested by (Kitchenham and Charters,

2007), and we use PICO (Murdoch, 2018) to formu-

late the research question. Additionally, we apply

the Cohen Kappa (Landis and Koch, 1977) method

to measure and help to improve the agreement be-

tween the researchers. To reduce ambiguity and use a

well-established guide (Duarte, 2019), we adopted the

306

Borges, O., Couto, J., Ruiz, D. and Prikladnicki, R.

How Machine Learning Has Been Applied in Software Engineering?.

DOI: 10.5220/0009417703060313

In Proceedings of the 22nd International Conference on Enterprise Information Systems (ICEIS 2020) - Volume 2, pages 306-313

ISBN: 978-989-758-423-7

Guide to the SWEBOK (Bourque et al., 2014) Knowl-

edge Areas (KA) to categorize SE domain issues.

We found 177 papers that present solutions based

on ML for domain issues in SE. We discovered the

most commonly used techniques, composed by algo-

rithms, libraries, and programming languages, and we

also map the tools most researchers report to use dur-

ing its experiments. We also mapped the 86 SE do-

main issues most frequently beneﬁted from using ML.

These domains include prediction of software design

defects and failures, effort and cost estimation, and

SE requirements classiﬁcation.

2 MATERIALS AND METHODS

Systematic literature reviews or mappings are often

used to structure a research area, mapping, and clas-

sifying topics to ﬁnd research patterns and gaps (Pe-

tersen et al., 2015). According to (Kitchenham and

Charters, 2007), a literature mapping is composed of

three main processes, named planning, conducting,

and reporting. Each process has subsequent steps,

which we follow and present from now on.

2.1 Research Questions

We developed three Research Questions (RQ) to in-

vestigate the application of ML in SE domain issues:

RQ1: How has machine learning been used in soft-

ware engineering?

RQ2: Which software engineering domain issues can

beneﬁt most from using machine learning?

RQ3: What computational machine learning tech-

niques and tools are most used to solve software en-

gineering problem domains?

Based on the research questions, we used the

PICO technique to elaborate the ﬁrst search string,

searching for the terms (”software engineering” AND

”machine learning” AND ”tool” AND ”technique”

AND ”domain”) in the papers title, abstract, or key-

words. Using this string, we got 61 papers in the ﬁ-

nal accepted set. Because we aim to broadly map the

literature about ML for SE, we decided to alter the

search string so that we could improve the number of

papers accepted. Then we searched only for the terms

(”software engineering” AND ”machine learning”)

in the same places. Thus, we accepted 177 papers in

the second string, 116 more than in the ﬁrst one. For

this reason, we kept the results we obtained from the

second search string.

To answer RQ1, we classify the papers using two

approaches: one automatically clustering the papers

using ML and another using the SWEBOK KA. In

the ﬁrst classiﬁcation approach, we use ML tech-

niques to cluster the papers we accepted using Orange

tool

. We create a Corpus containing the title, ab-

stract, and keywords and used it as input for Orange.

For text preprocessing, we use the WordNet Lemma-

tizer parameter for normalization, remove regular ex-

pressions and stopwords, select only words that are

30-90% frequency and only the 500 most frequent

tokens. Along with stopwords, we removed words

that appear in all papers and their radicals, such as

”soft”, ”softw”, ”softwar”, ”software”, ”thi”, ”use”,

”using”, ”learn”, ”learning”, ”machin”, ”machine”,

”engineer”, and ”engineering”. Then, we created a

Bag of Words and set the Document Frequency pa-

rameter to IDF (Inverse Document Frequency), which

measures the importance of a word in a given doc-

ument. We used the Silhouette coefﬁcient from K-

means to identify an optimal amount of clusters. The

best score was 0.236 for 2 clusters. Then we use the

Cosine’s Distances to create the clusters. Lastly, we

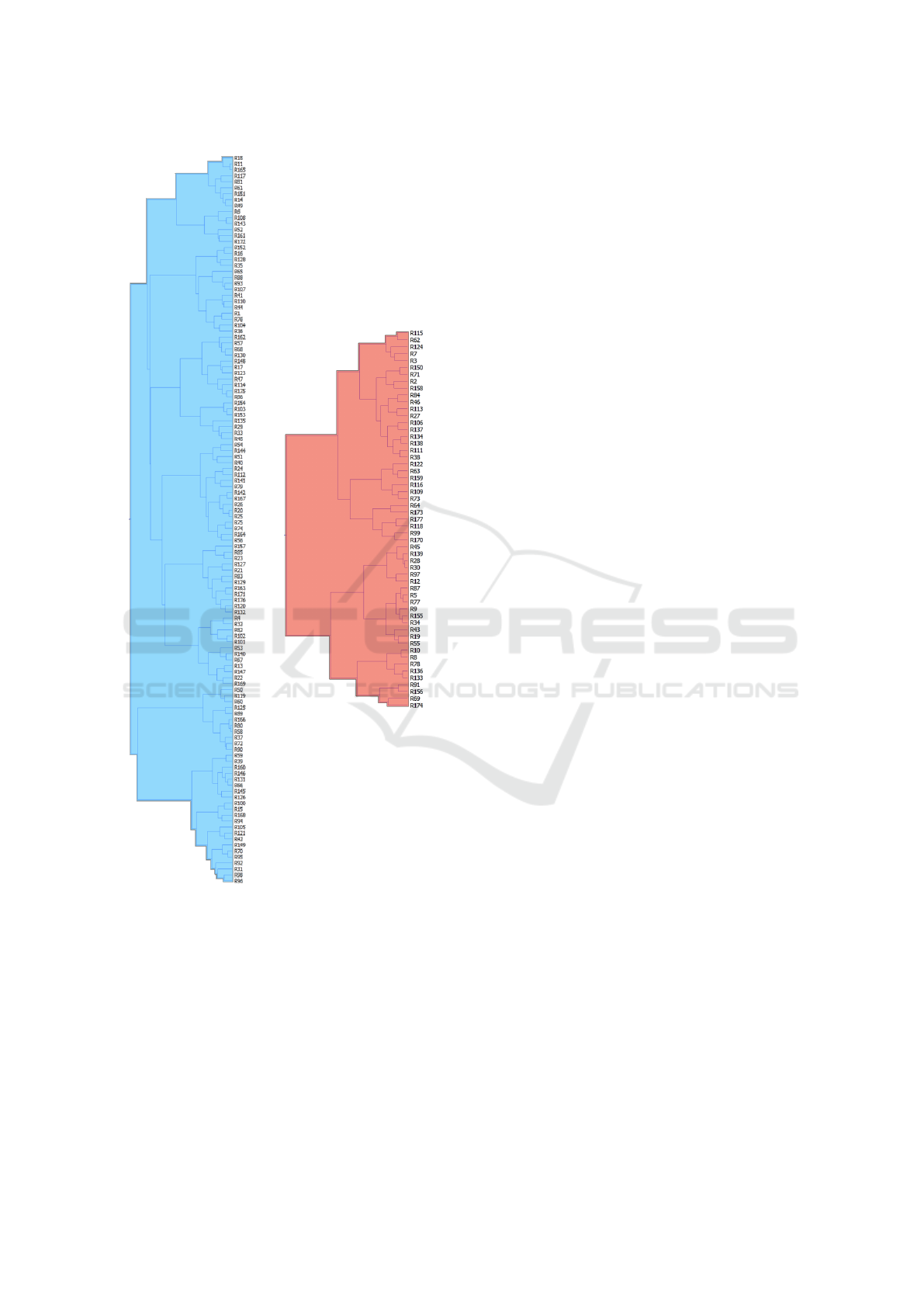

create a Hierarchical Clustering to represent the data

visually.

Then, in our second approach, we classiﬁed the

papers manually using the ten SWEBOK KA. We use

SWEBOK used because it is a well recognized and

widely accepted standard in the SE community. Ta-

ble 1 presents the SWEBOK KA.

For answering RQ2, we consider domain issues as

the contexts and tasks in SE the papers explore, such

as software defect detection, software behavior, and

reverse engineering. To answer RQ3, we use the def-

initions of the terms provided by International Stan-

dard - Systems and software engineering – Vocabu-

lary (ISO/IEC/IEE, 2010) for the terms ”tools” and

”techniques”. According to the Standard, a tool is a

software product used to help in some activity, while a

technique is a systematic procedure or method, such

as an algorithm. Therefore, in this paper, ML tech-

niques are any algorithm or statistical methods used

to make predictions, classiﬁcations, and clustering.

2.2 Study Screening

To increase the quality of our ﬁndings, we deﬁne in-

clusion and exclusion criteria. We associate each pa-

per to at least one criterion. The papers we select

match all the following criteria:

• (I1) Qualitative or quantitative research about SE

using ML.

• (I2) Presents complete study in electronic format.

• (I3) Conference or journal paper.

https://orange.biolab.si

How Machine Learning Has Been Applied in Software Engineering?

307

Table 1: 10 SWEBOK (Bourque et al., 2014) Knowledge Areas (KA).

Knowledge Areas (KA) Description

1. Software Requirements Comprise requirements process, elicitation, analysis, speciﬁcation, and validation.

2. Software Design Present processes to create the software structure and architecture, introduces how to create,

analyze, and evaluate user interface design.

3. Software Construction Presents tools and technologies for software development.

4. Software Testing Addresses test levels, tools, techniques, processes, and test-related measures.

5. Software Maintenance Comprise processes, techniques, and main issues related to software development mainte-

nance.

6. Software Conﬁguration

Management

Presents how to plan and control the software development environment.

7. Software Engineering

Management

Introduces processes related to software project management, such as planning, scope deﬁ-

nition, enactment, review and evaluation, closure, and how to measure the project progress.

8. Software Engineering

Process

Addresses process deﬁnition, software life cycles, how to asses and improve software

projects, and tools to be used in the SE process.

9. Software Engineering

Models and Methods

Presents the types of models, how to analyze the models, and SE methods, such as heuristic,

formal, prototyping, and agile.

10. Software Quality Introduces processes to manage and maintain the software quality process.

Table 2: Number of papers rejected due to exclusion crite-

ria.

Exclusion Criteria Amount

(E1) Short paper (6 3 pages) 28

(E2) Paper is unavailable for download 4

(E3) Paper non matching at least one

451

(E4) Duplicate paper 0

(E5) Written in a language other than

English

(E6) Conference proceedings index 100

(E7) Book or book chapter 24

(E8) Literature Review or Mapping 5

We started the study having 1314 papers to ana-

lyze. For all papers, we read the title, abstract, and

keywords. From the 1314 papers, 522 are duplicated,

and we accepted 177 papers in the ﬁnal set. Among

the 613 remaining papers we reject, they match at

least one of the criteria described in Table 2.

We used the Cohen Kappa method to improve

the quality of the results and measure the level of

agreement among the researchers. To do so, two

researchers analyzed separately a sample containing

140 (10%) of the 1314 papers. We performed four

reviews iterations, having 35 papers double-analyzed

in each iteration. After each cycle, we discussed the

papers where we had a different opinion about accept-

ing or rejecting until we reach an agreement. Table 3

presents Kappa values. At the end of the fourth re-

view cycle, we reached an almost perfect agreement,

which suggests that researchers are aligned and can

follow screening the papers independently.

We use StArt (State of the Art through systematic

Table 3: Kappa results, based on (Landis and Koch, 1977).

Kappa values Agreement 1st 2nd 3rd 4th

<0 Poor

0 - 0.20 Slight

0,21-0,40 Fair 0.38 0.27

0,41-0,60 Moderate 0.55

0,61-0,80 Substantial

0,81-1 Almost

perfect

0.82

review)

to assist us in the data extraction phase. Af-

ter completing data extraction using StArt, we export

the results to a Google Sheets, so that we can col-

laboratively analyze the data. At the end of this pro-

cess, we accept a set containing 177 accepted articles,

which are in our Technical Report (TR) (Borges et al.,

2020).

3 RESULTS

In this section, we present how we classify the 177 pa-

pers we accepted, and also the data we extracted from

the papers. We applied the search string in July/2019

on the following web search engines: ACM, IEEE,

Springer, arXiv, Science Direct, Web of Science,

Google Scholar, and Scopus. We do not limit the

years to retrieve the papers because we want to un-

derstand how this area developed since the beginning.

Table 4 presents the amount of papers per database.

Scopus is the search engine that returned most pa-

pers because it indexes multiple databases, although

Available at http://lapes.dc.ufscar.br/tools/start tool

ICEIS 2020 - 22nd International Conference on Enterprise Information Systems

308

more than half the papers we accepted are from IEEE

and ACM. We have to mention that regarding the pre-

sented percentages of domains, techniques, and tools,

some papers presented more than one of the items,

so the sum of the percentage is always greater than

100%, for all the answers.

3.1 Data Extraction

We thoroughly read the 177 papers so that we could

analyze and classify them. We retrieved 113 jour-

nals and 64 papers published in conferences/events.

The oldest ones are from 1992 and 1993, written by

the same authors, Lionel C. Briand, Victor Basili, C.

J. Hetmanski, and W. Thomas. The papers [R29,

R28, R30] use a Decision Tree-based approach to Op-

timized Set Reduction (OSR) for SE data analysis.

These papers perform software cost estimation and

failure classiﬁcation in software projects and software

components. Since then, the number of related papers

has remained stable until 2008. In 2009, there was a

growth in publications related to the use of ML tech-

niques in SE, reaching a peak of 42 papers in the year

2018. This scenario shows that the use of ML tech-

niques in SE is feasible and quite useful for solving

signiﬁcant problems in the area due to its diversity of

available applications.

3.2 Classiﬁcation Schema

We created a schema to present our results. We divide

the schema according to each research question. We

now present the resulting analysis and how we answer

each research question.

RQ1: How has Machine Learning been used in

Software Engineering? Using ML, we create two

hierarchical clusters (Figure 1), setting Ward as the

Linkage parameter. A hierarchical clustering diagram

is a form of visualization that uniﬁes the most related

to the least related items. The weighted link used by

the Orange tool to create hierarchical clustering is the

WPGMA (Weighted Pair Group Method with Averag-

ing) method, as described in (Dubes and Jain, 1988).

In this paper, the diagram presents the grouping of the

most related papers. Initially, it uniﬁes in pairs that re-

late more strongly and from this union, will be united

with the other papers. In one example, papers R80

and R58 initiate a cluster within Cluster 01. Both pa-

pers deal with software effort estimation. From this

union, the remaining papers are grouped by similarity

of this context. Below we describe the clusters.

A) Cluster 1 - 122 Papers

Most frequent terms: model (248), prediction (221),

project (206), data (197), technique (187), based

Table 4: Papers per electronic databases.

Source Initial Selection Accepted

Scopus 395 30 17 papers

IEEE Xplore 307 115 62 papers

Web of Science 283 61 35 papers

ACM 158 66 32 papers

Springer 69 14 5 papers

arXiv 42 18 7 papers

Science Direct 42 21 19 papers

Google Scholar 18 3 0 papers

1314 328 177 papers

(138), and result (136).

Most papers in Cluster 1 are related to the Soft-

ware Quality KA (66 papers) and Software Engineer-

ing Management (40 papers). The most mentioned

context in these papers is defect/bug prediction (25

papers), and the ML technique most used is LR (40

papers). WEKA is the most used tool (38 papers).

B) Cluster 2 - 55 Papers

Most frequent terms: approach (114), based (73),

system (73), model (47), technique (45), analysis (42),

and problem (39).

Papers in Cluster 2 are mainly about Software

Quality (25 papers), and Software Test (15 papers).

Once again, WEKA is the most frequently used tool

(18 papers). NB is the most used ML technique (16

papers) to solve problems in the defect classiﬁcation

context (6 papers).

Cluster 1 contains the papers most related to pre-

diction, while Cluster 2 has the most related to clas-

siﬁcation. We found that the word predict appears

392 times, considering all 177 papers. It suggests that

most papers work to address problems in SE using

prediction techniques. The word defect appears 199

times, which is consistent with software defect being

the most common reported domain issue.

In the second paper classiﬁcation approach we

adopted, we link the ML tools and techniques to the

SE domain. To do so, we use the ten SWEBOK KA

presented in Table 1. We present the results in de-

scending order, according to the number of papers:

• Software Quality: 91 papers: [R1, R3, R4, R7,

R11, R19-R21, R23-R25, R28, R30, R32, R35,

R36, R40, R45, R48-R54, R56, R57, R61-R65,

R68, R70, R71, R74-R78, R80-R86, R89, R90,

R91, R96, R97, R99, R101, R102, R104, R107,

R108, R110, R112, R115, R116, R120, R121,

R125, R127-R132, R136-R138, R144, R146,

R148, R149, R151, R156, R157, R159, R161,

R164-R166, R169-R171, R174, R176].

• Software Engineering Management: 46 papers:

How Machine Learning Has Been Applied in Software Engineering?

309

(a) Cluster 1

(b) Cluster 2

Figure 1: Clustering of papers.

[R2, R10, R13, R15-R17, R20, R29, R31, R36,

R39-R42, R46, R47, R55, R60, R66, R67, R72,

R83, R89, R92-R94, R96, R98, R103, R112,

R114, R122, R123, R126, R129, R140, R141,

R143, R147, R152-R155, R162, R163, R175].

• Software Testing: 28 papers: [R5, R6, R19, R24,

R27, R28, R40, R43, R58, R61, R63, R69, R78,

R87, R91, R100, R105, R134, R135, R137-R139,

R157, R160, R165, R168, R171, R177].

• Software Engineering Models and Methods:

22 papers: [R6, R22, R28, R42, R55, R62, R69,

R72, R73, R106, R108, R110, R111, R117, R118,

R120, R139, R152, R165, R170, R172, R175].

• Software Conﬁguration Management: 15 pa-

pers: [R2, R12, R37, R44, R54, R70, R111, R113,

R124, R142, R158, R167, R172, R173, R18].

• Software Maintenance: 13 papers [R8, R33,

R50, R51, R52, R57, R81, R88, R102, R115,

R139, R166, R170].

• Software Requirements: 8 papers: [R9, R41,

R79, R109, R114, R117, R121, R150].

• Software Engineering Process: 8 papers: [R14,

R38, R46, R90, R95, R123, R145, R169].

• Software Design: 6 papers [R34, R40, R79,

R117-R119].

• Software Construction: 2 papers [R76, R167].

During the classiﬁcation process, we identify that

more than half of the papers discuss the use of ML for

Software Quality (52%). The second KA most bene-

ﬁted from ML is Software Engineering Management

(26%), followed by Software Testing (16%).

RQ2: Which Software Engineering Domain Is-

sues can Beneﬁt most from using Machine Learn-

ing? We analyze the papers and identify 86 differ-

ent domains. The 8 most frequent domains were:

Software Defect (56 papers), Software Effort (16 pa-

pers), Bug Report (6 papers), Risk Management (5

papers), Software Cost (4 papers), Software Require-

ments (4 papers), Source Code Refactoring (4 pa-

pers), and Change Prone Parts (4 papers). We high-

light the three most frequent ones:

• Software Defect (31%): the papers we classify

in the software defect domain present the use

of ML for bug classiﬁcation, prediction, and re-

trieval. Papers: [R3, R7, R10, R11, R20, R21,

R23, R24, R28, R35, R49, R50, R53, R54, R57,

R59, R61, R63, R64, R66, R74, R75, R78, R80,

R82, R83, R84, R85, R86, R89, R91, R99-R101,

R104, R107, R110, R112, R120, R125, R127,

R128, R130, R132, R136, R137, R138, R144,

R149, R151, R157, R161, R165, R168, R171, and

R176].

• Software Effort (9%): ML tools and techniques

used to predict software effort, helping in software

project management. Papers: [R13, R16, R20,

R67, R92, R96, R103, R140, R141, R143, R147,

R153, R154, R162, R163, and R175].

• Bug Report (3%): In the bug report domain, they

use ML for bug deduplication. Papers: [R1, R5,

R45, R148, R146, and R156].

RQ3: What Computational Machine Learning

Techniques and Tools are Most used to Solve Soft-

ware Engineering Problem Domains? From the

ICEIS 2020 - 22nd International Conference on Enterprise Information Systems

310

0 10 20 30 40 50 60 70

OneR (OR)

Recurrent Neural Network (RNN)

Convolutional Neural Network (CNN)

Support Vector Regression (SVR)

K-Means (KM)

Boosting (Bo)

AdaBoost (AB)

Bagging (Ba)

Regression Tree (CART)

Radial Basis Function Network (RBF)

Bayes Network (BN)

Logistic Regression (LR)

Artificial Neural Network (ANN)

Decision Tree (DT)

Multi Layer Perceptron (MLP)

C4.5 (J48)

K-Nearest Neighbor (KNN)

Random Forest (RF)

Support Vector Machine (SVM)

Naive Bayes (NB)

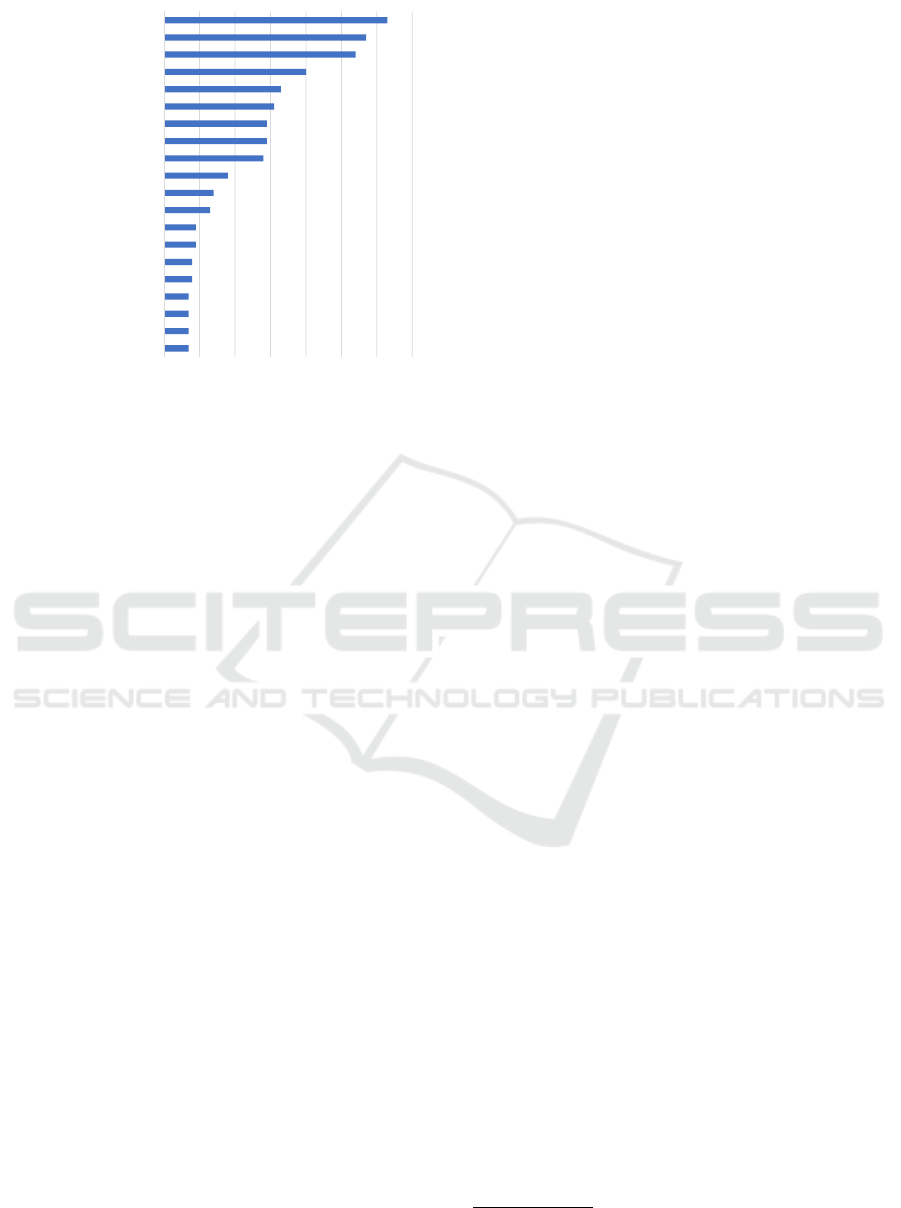

Figure 2: 20 most frequent ML techniques used in SE do-

main.

problem domains presented, we identiﬁed 328 ML

techniques and 35 tools used to assist in solving SE

problems. We list ML techniques, as described in the

papers. Even though some techniques such as neural

networks (ANN, CNN, and RNN) and tree classiﬁ-

cation algorithms (C4.5 (J48), DT, and CART) could

be grouped, we choose to keep the original descrip-

tions we found in the papers, to know exactly the most

used algorithms. Figure 2 presents the 20 most used

techniques and Figure 3 illustrates the 12 most used

tools. Below we list the most frequently mentioned

techniques and tools.

• Techniques/Methods:

1. Na

ıve Bayes (Rish et al., 2001) (36% of Pa-

pers): NB is a classiﬁer that keeps statistics

about each column of data in each class. New

examples are classiﬁed by a statistical anal-

ysis that reports the closest class to the test

case. NB classiﬁers are computationally ef-

ﬁcient and tend to perform well on relatively

small datasets. Papers: [R1, R2, R3, R5, R7,

R11, R13, R14, R21, R23, R24, R31, R36-R38,

R56, R57, R60, R64, R66, R73, R74, R75,

R77, R82, R83, R88, R91, R97, R99, R100,

R102, R105, R107, R110, R111, R115-R120,

R122, R126, R128, R129, R131, R132, R142,

R145-R150, R152, R154, R155, R161, R162,

R164, R168, and R172].

2. Random Forest (Liaw et al., 2002) (30%

of Papers): RF is a joint learning process

that combines multiple weaker learners into a

stronger learner. RF have a better general-

ization and are less susceptible to overﬁtting

(Breiman, 2001). They can be used for classi-

ﬁcation and regression problems. Papers: [R3,

R4, R11, R13, R21, R31, R37, R39, R49, R51,

R54, R56, R57, R59, R60, R61, R62, R65,

R73, R75, R80, R82, R83, R88, R99, R100,

R102, R104, R105, R109, R110, R112, R115-

R119, R122, R123, R127, R128, R129, R131,

R132, R134, R140, R145, R148-R150, R152,

R159, and R171].

3. Support Vector Machine (Cristianini et al.,

2000) (32% of Papers): It is responsible for

creating a linear discrimination function using

a small number of critical threshold instances

(called support vectors) of each class, ensur-

ing maximum possible separation (Liu et al.,

2002). SVM is known as SMO in the WEKA

tool. Papers: [R1, R2, R4, R7, R11, R16, R22,

R24, R31, R32, R38, R42, R51, R57, R59,

R60, R61, R62, R63, R66, R67, R68, R70,

R73, R74, R77, R80, R82, R83, R84, R86,

R89, R90, R91, R94, R105, R108, R110, R111,

R115, R119, R120, R122, R124, R125, R126,

R128, R143, R145, R146, R161, R162, R164,

R165, R171, R172, R174].

• Tools:

1. WEKA (32% of Papers) (Hall et al., 2009):

WEKA is a uniﬁed work environment that

allows researchers access to ML techniques

previously implemented and easily conﬁgured.

Besides providing a learning algorithm tool-

box, WEKA also provides a framework so re-

searchers can implement new algorithms with-

out having to worry about infrastructure sup-

port for data manipulation and schema evalua-

tion. Papers: [R1- R5, R7, R10, R14, R17, R19,

R21, R23, R24, R27, R31, R34, R36, R47,

R49, R51, R53, R54, R56, R57, R64, R67,

R75, R77, R82-R86, R99-R101, R103, R109,

R110, R117-R119, R121, R124, R128, R129,

R131, R134, R135, R142, R145, R152, R154,

R155, R161, R164, and R177].

2. MATLAB (9% of Papers)

: Platform to

solve scientiﬁc and engineering problems. The

matrix-based MATLAB language serves to ex-

press computational mathematics. It is used

for ML, signal processing, image processing,

machine vision, communications, computer ﬁ-

nance, control design, robotics, and many other

ﬁelds. Papers: [R2, R3, R8, R35, R48, R55,

R81, R85, R92, R93, R127, R140, R141, R144,

R149, and R160].

3. SCIKIT-LEARN

(8% of Papers): A Python

module that integrates a wide range of ML al-

gorithms for medium-scale supervised and un-

Available at: http://la.mathworks.com/

Available at: https://scikit-learn.org/stable

How Machine Learning Has Been Applied in Software Engineering?

311

0 10 20 30 40 50 60

TensorFlow

RNNLM Toolkit

RapidMiner

Mulan

libsvm library

R language

Java-based

Python

Scikit-learn

MATLAB

WEKA

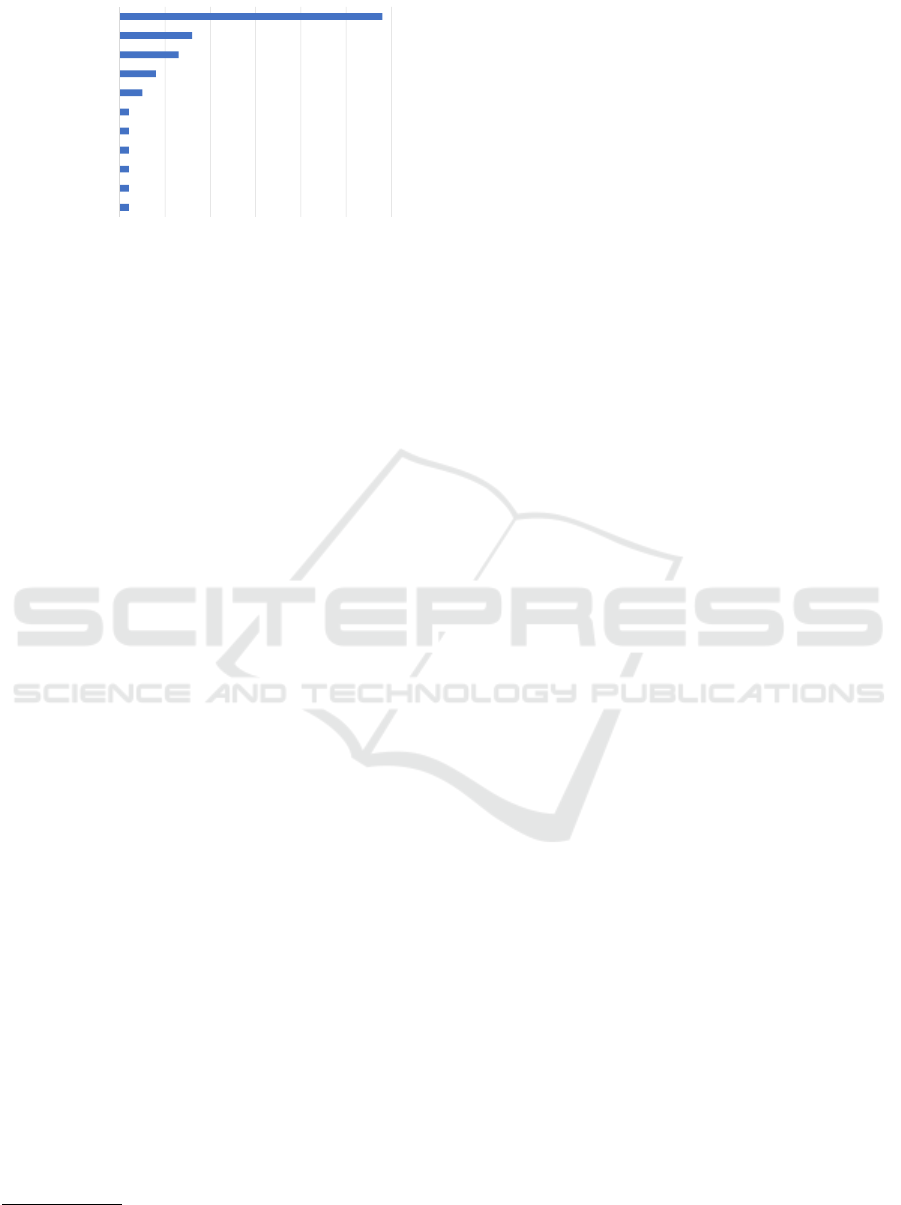

Figure 3: 11 most frequent ML tools used in SE domain.

supervised problems. This package focuses on

bringing ML to non-specialists using a high-

level language for general use. Papers: [R63,

R65, R69, R73, R80, R104, R105, R115, R116,

R122, R148, R150, and R168].

On the most used tools, we found 19 papers

(11%) reporting the programming language Python

or Python-based Scikit-learn, libsvm, and TensorFlow

(R45, R51, R63, R65, R69, R73, R80, R94, R104,

R105, R115, R116, R122, R148, R150, R157, R166,

R168, R170).

4 CONCLUSION

In this paper, we presented a mapping study devel-

oped to understand how SE beneﬁts from using ML

tools and techniques. In the ﬁnal set, we accepted 177

papers that answer our research questions.

During papers’ analysis, we found more than three

hundred ML techniques, although only ten are present

in more than 10% of the papers: NB, RF, SVM, KNN,

C4.5, DT, ANN, LR, and BN. NB is used in 36% of

papers, and it is because the algorithm performs well

tasks related to text classiﬁcation. NB is widely used

in SE to classify data related to source code, bugs, and

reports. All top 10 algorithms are classiﬁers or classi-

ﬁers/regression, and they are in the supervised learn-

ing paradigm. Thence, we noticed there is an oppor-

tunity to expand the exploration of unsupervised and

reinforcement learning techniques for the SE domain.

We identify 35 different ML tools in 111 papers,

being WEKA the most used. According to a survey

performed by Kaggle

, Python is the most recom-

mended programming language for data science (75%

of respondents). In our study, we found Python or

Python-based tools in 11% of papers. As 67 papers

do not mention the used tools, this number could be

Available at https://www.kaggle.com/kaggle/kaggle-

survey-2018

bigger. The papers that present ML techniques (37%),

but not the tools, libraries, and frameworks make

it difﬁcult to replicate the experiments presented, as

well as to understand the environment conﬁguration.

We also cluster the papers using ML to identify

and rank the most similar papers in terms of content.

We identify two hierarchical clusters, one focused on

prediction (69%) and the other on classiﬁcation (31%)

tasks. The word predict is the most frequent in all

papers, which leads us to conclude that ML is mainly

used to make predictions in SE. We also found that

Software Quality is the most frequent SWEBOK KA

target for both clusters (51%).

ML provides a set of advantageous features for

software quality assessment and prediction. One of

the most common ways to analyze quality is through

the use of software metrics. They assist in decision

making and serve as input to ML models to propose

predictions or ratings about software quality. In this

sense, we ﬁnd that DT, NN, NB, and Classiﬁcation

and Regression Tree algorithms are most used for cre-

ating models for design artifacts prediction. Quality

analysts use these models to measure design artifacts

to assist in quality assessment early in the develop-

ment process. With these models, it is possible to gen-

erate a more objective and automated project quality

assessment. Project metrics are also used in quality

prediction, generating models from DT, RF, LR, and

NB algorithms. However, to speed up the models, the

input metrics need to be speciﬁc to a particular project

context, which is the case of the prediction of the fail-

ure propensity of speciﬁc modules of the software. As

a result of this type of forecasting, the test analyst can

predict software quality even before implementation.

Being a qualitative research, our paper has some

limitations. To minimize the risk of not having a

broad and diverse range of documents, we conducted

our research on eight popular web search engines.

However, this is not a guarantee that all events and

magazines in the area are covered. The fact that pa-

pers that work on related topics appear in different

locations may lead to different results. In the selec-

tion phase, we did not delimit an initial year for the

papers, so it could bring tools and techniques that are

no longer being used. Since we wanted to map ML

to SE from the beginning, it was an acceptable limi-

tation, but to ensure exciting results, we also looked

at the algorithms described in new papers since 1992

as OSR, and are still used in recent papers. We apply

the Kappa method to improve agreement and reduce

interpretability bias. Two researchers worked in par-

allel, and we had two other researchers to discuss in

case of disagreement.

For future work, we want to map the challenges

ICEIS 2020 - 22nd International Conference on Enterprise Information Systems

312

related to using ML in SE projects. We also sug-

gest exploring the use of ML in areas that are little

explored, such as Software Construction (1%), Soft-

ware Design (3%), Software Requirements (5%), and

Software Engineering Process (5%). Additionally, we

suggest there is an opportunity to increase the appli-

cation of reinforcement and unsupervised learning for

SE tasks.

ACKNOWLEDGEMENTS

This study was ﬁnanced in part by the Coordenac¸

de Aperfeic¸oamento de Pessoal de Nivel Superior –

Brasil (CAPES) – Finance Code 001. This work is

partially funded by FAPERGS (17/2551-0001/205-4)

and CNPq.

REFERENCES

Al-Nusirat, A., Hanandeh, F., Kharabsheh, M., Al-Ayyoub,

M., and Al-dhufairi, N. (2019). Dynamic detection of

software defects using supervised learning techniques.

Int. Journ. of Comm. Net. and Info. Secy., 11:185–191.

Anu, V., Hu, W., Carver, J. C., Walia, G. S., and Bradshaw,

G. (2018). Development of a human error taxonomy

for software requirements: a systematic literature re-

view. Info. and Soft. Technol., 103:112–124.

Borges, O., Couto, J., Ruiz, D., and Priklad-

nicki, R. (2020). Technical report - how ma-

chine learning has been applied in software

engineering? https://ﬁgshare.com/articles/

TR-MUNDDOS-2020 ICEIS Olimar pdf/11874231.

Bourque, P., Fairley, R. E., et al. (2014). Guide to the soft-

ware engineering body of knowledge (SWEBOK (R)):

Version 3.0. IEEE.

Breiman, L. (2001). Random forests, machine learning 45.

Journ. of Clinical Microbiology, 2:199–228.

Choetkiertikul, M., Dam, H. K., Tran, T., Pham, T. T. M.,

Ghose, A., and Menzies, T. (2018). A deep learn-

ing model for estimating story points. IEEE Trans. on

Soft. Eng., 45:637–656.

Cristianini, N., Shawe-Taylor, J., et al. (2000). An intro-

duction to support vector machines and other kernel-

based learning methods. Cambridge university press.

De Rezende, L. B., Blackwell, P., and Pessanha Goncalves,

M. D. (2018). Research focuses, trends, and major

ﬁndings on project complexity: a bibliometric net-

work analysis of 50 years of project complexity re-

search. Proj. Mgmt. Journ., 49:42–56.

Duarte, C. H. C. (2019). The quest for productivity in

software engineering: A practitioners systematic lit-

erature review. In Int. Conf. on Soft. and Syst. Proc.,

pages 145–154. ACM.

Dubes, R. C. and Jain, A. K. (1988). Algorithms for clus-

tering data.

Hall, M., Frank, E., Holmes, G., Pfahringer, B., Reutemann,

P., and Witten, I. H. (2009). The weka data mining

software: an update. SIGKDD Explor. Newsletter,

11:10–18.

ISO/IEC/IEE (2010). Iso/iec/ieee international standard

- systems and software engineering – vocabulary.

ISO/IEC/IEEE 24765:2010(E), pages 1–418.

Kitchenham, B. and Charters, S. (2007). Guidelines for

performing systematic literature reviews in software

engineering. Technical Report EBSE-2007-01, Dep.

Comp. Sci, University of Durham, Durham, UK.

Kumar, L., Satapathy, S. M., and Murthy, L. B. (2019).

Method level refactoring prediction on 5 open source

java projects using machine learning techniques. In

Innov. on Soft. Eng. Conf., page 7. ACM.

Landis, J. R. and Koch, G. G. (1977). The measurement of

observer agreement for categorical data. Biometrics,

33:159–174.

Liaw, A., Wiener, M., et al. (2002). Classiﬁcation and re-

gression by randomforest. R news, 2:18–22.

Liu, B.-B., Dong, W., and Wang, J. (2018). Survey on in-

telligent search and construction methods of program.

Journ. of Soft., 29:2180–2197.

Liu, H., Li, J., and Wong, L. (2002). A comparative study

on feature selection and classiﬁcation methods us-

ing gene expression proﬁles and proteomic patterns.

Genome Inform., 13:51–60.

Mitchell, T. (1997). Machine Learning. McGraw-Hill.

Murdoch, U. (2018). Systematic reviews: Using pico or

pico. https://goo.gl/fqPoCY. Accessed: 2018-12-20.

Petersen, K., Vakkalanka, S., and Kuzniarz, L. (2015).

Guidelines for conducting systematic mapping stud-

ies in software engineering: An update. Info. and

Soft.Technol., 64:1 – 18.

Rish, I. et al. (2001). An empirical study of the naive bayes

classiﬁer. In Wksh. on Emp. Meth. in AI, pages 41–46.

CiteSeer.

Sedano, T., Ralph, P., and P

eraire, C. (2017). Software de-

velopment waste. In Int. Conf. on Soft. Eng., pages

130–140. IEEE.

Zhang, D. and Tsai, J. J. (2003). Machine learning and

software engineering. Soft. Qual. Journ., 11:87–119.

How Machine Learning Has Been Applied in Software Engineering?

313
