Accounting and Billing Challenges in Large Scale Emerging Cloud

Technologies

Piyush Harsh

and Oleksii Serhiienko

Zurich University of Applied Sciences, Winterthur, Switzerland

Keywords:

Accounting, Billing, IoT, Edge, Fog, Cloud, Architecture.

Abstract:

Billing models which can easily adapt with emerging market opportunities is essential in long term survival

of any business. Accounting and billing is also one of the few processes which has wide impact on legal and

regulatory compliance, revenue lines as well as customer retention models of all businesses. In the era of rapid

technology shifts, with emergence of Fog and Edge deployment models, and marriage of IoT and cloud which

promises smart-everything everywhere, it is paramount to understand what new challenges must be addressed

within any billing framework. In this paper we list several emerging challenges which should be overcome

in architecting any future-ready billing platform. We also present brieﬂy an analysis of few technologies

which could be used in prototyping such a solution. We present our proof of concept experiment along with

initial results highlighting the feasibility of our proposed architecture towards a scalable billing framework for

massively distributed IoT applications at the edge.

1 INTRODUCTION

Figures 1 and 2 shows the latest Gartner hype cycle

for emerging technologies and cloud computing. The

report highlights a few technologies such as server-

less PaaS, Edge computing, IoT platforms, connected

homes, among others which should mature within

early-mid part of the coming decade.

Figure 1: Gartner hype cycle: emerging tech (August 2018).

Image source: http://tiny.cc/0uquvy

With the emergence of infrastructure (IaaS) and

platform (PaaS) clouds, the service sectors embraced

and rapidly adopted quick service prototyping, 12-

https://orcid.org/0000-0002-7787-1176

Figure 2: Gartner hype cycle for cloud computing (August

2019). Image source: http://tiny.cc/zlbwvy

factor application design patterns, dev-ops and agile

best practices. This itself led to rapidly changing ser-

vice ecosystems, highly agile competition landscape,

and increasingly discerning customers who always

wish more for the value of their money.

In (Patanjali et al., 2015), (Skoviera et al., 2017)

authors have discussed architecture and initial proto-

type of a billing framework designed primarily for us-

age based billing, support for converged telco+cloud

billing, among other features. Their work left out

critical discussions such as support for independent

audits, scalability of collectors in light of potentially

millions of data sources, framework scalability, etc.

390

Harsh, P. and Serhiienko, O.

Accounting and Billing Challenges in Large Scale Emerging Cloud Technologies.

DOI: 10.5220/0009415403900399

In Proceedings of the 10th International Conference on Cloud Computing and Services Science (CLOSER 2020), pages 390-399

ISBN: 978-989-758-424-4

which are crucial elements for success when consid-

ering the deployment scales targeted in some of the

emerging technologies.

The speciﬁc aim of our work is to identify key

aspects of some of the emerging technologies, iden-

tify common requirements for a billing framework

in general, and discuss potential challenges in meet-

ing such requirements in the context of these emerg-

ing paradigms. The remainder of this paper is orga-

nized as follows: section 2 discusses key elements of

targeted emerging technologies namely, Fog-, Edge-

computing and discuss speciﬁc elements of IoT de-

ployments; section 3 discusses generic requirements

for any accounting and billing solution that deals with

heterogeneous services, data sources, etc. ; section 4

catalogues some of the speciﬁc challenges one must

overcome in order to create a solution ready to sup-

port up and coming cloud supported technologies;

and ﬁnally section 5 very brieﬂy touches upon some

of the recent technological trends that may help over-

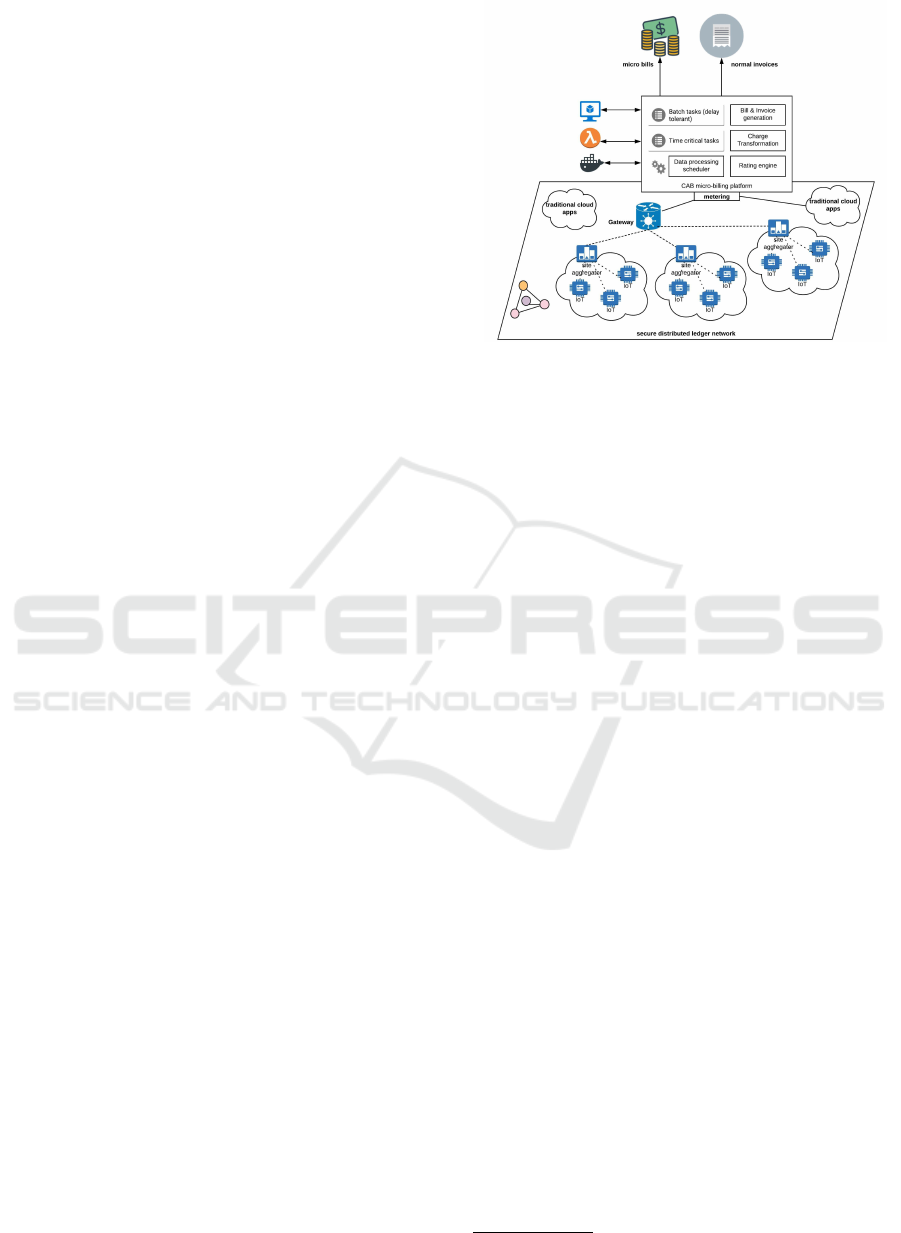

come challenges outlined in this paper. In section 6

we present a very early stage architecture proposal as

a basis of our ﬁrst prototype solution. Section 8 and 9

presents a proof of concept experiment that validates

use of serverless as one possible building block to-

wards realizing our proposed architecture. This paper

closes with some of the recent work in this ﬁeld in

section 10 and outlines our upcoming R&D agenda in

section 11.

2 EMERGING TECHNOLOGIES

In this section we describe key technological as well

as deployment characteristics of some of the emerg-

ing cloud assisted technologies. To provide uniform

treatment in a concise manner, each of the targeted

technologies / paradigms are covered along the fol-

lowing dimensions: current deﬁnition, business own-

ership model, involvement/interconnection with large

cloud data-centres, users’ involvement in data man-

agement, etc.

2.1 Edge Computing

Edge computing (Shi et al., 2016) (Shi and Dustdar,

2016) (Satyanarayanan, 2017) is deﬁned by the neces-

sity of doing part of data processing at the edge of the

network rather than completely in the cloud in order

to address latency concerns, alleviate limited compute

and battery capacity in users’ end devices, and en-

ables management of security and privacy concerns

of end users by granting more control to them. Table

1 captures key observations and characteristics.

Table 1: Key characteristics of Edge computing.

Dimension Description

business own-

ership

Cloudlets at the edge could re-

side within the user’s adminis-

trative domain under her man-

agement

cloud connec-

tivity

Cloudlets are usually 1 logical

hop away from a cloud ingress,

cloud connectivity could be in-

termittent

data manage-

ment control

user can have ﬁner control

over data anonymization before

sending to cloud

app diversity

at edges

usually similar applications at

edges

unique ac-

counting

observation

large usage streams, uniform

billing and pricing models, au-

dit trails may be challenging to-

wards end devices or nodes de-

ployed in different organization

2.2 Fog Computing

If Edge computing main focus is on responsive, low

latency applications running at scale at the network

edges of Telco networks, the focus of Fog Computing

(Yi et al., 2015) (Vaquero and Rodero-Merino, 2014)

(Dastjerdi and Buyya, 2016) is to extend the cloud

like services at all edges thereby further generalizing

the principles originally proposed by Edge comput-

ing research community. It stitches SDN, software

managed storage, heterogeneous compute elements

together into providing a distributed on-demand pro-

visioning and deployment management of compet-

ing and heterogeneous applications along the entire

data-ﬂow chain from the end devices to edge ele-

ments, intermediate gateways and to large private

and/or public cloud data centers. Both Edge and Fog

computing paradigms support end-devices as active

data generators whereas in many of traditional cloud

use-cases end-users/end-devices are usually data con-

sumers (think Netﬂix, Dropbox, etc.). But, in Fog-

computing, predominant programming models are

sense-process-actuate and stream processing models

(Dastjerdi and Buyya, 2016). Still it shares the same

concerns outlined in 2.1. Table 2 captures key obser-

vations and characteristics.

2.3 Serverless PaaS

Gartner (Walker, ) deﬁnes Serverless PaaS as “A PaaS

offering delivered with serverless characteristics is

serverless PaaS.”. Use of Serverless PaaS frees the de-

veloper from any maintenance as the Serverless PaaS

Accounting and Billing Challenges in Large Scale Emerging Cloud Technologies

391

Table 2: Key characteristics of Fog computing.

Dimension Description

business own-

ership

multi-organization ownership

where business arrangement

exists allowing sharing of com-

pute, network, storage resources

via well deﬁned APIs

cloud connec-

tivity

brings cloud-like services at all

stages, standardized APIs, on-

demand orchestration and au-

tomated life-cycle management

supporting heterogeneous apps

with adequate isolation

data manage-

ment control

user can have ﬁner control

over data anonymization before

sending to cloud

app diversity

at edges

potentially large number of het-

erogeneous apps

unique ac-

counting

observation

heterogeneity of usage data

streams, need for harmoniza-

tion, numerous billing and pric-

ing models, difﬁculty is main-

taining audit trails to the end de-

vices

Table 3: Key characteristics of Serverless PaaS.

Dimension Description

business own-

ership

Usually owned by a single

provider, although micro-fPaaS

deployments at edge belonging

to different organization is tech-

nically feasible

cloud connec-

tivity

typically tightly integrated with

IaaS cloud infrastructure

data manage-

ment control

state is typically not cached in

Serverless so less chances of

data abuse

app diversity

at edges

potentially large number of het-

erogeneous functions deployed,

capability limited by service re-

strictions normally

unique ac-

counting

observation

micro-billing, tracking execu-

tion lasting milliseconds or even

microseconds

provider shields all internals from the user. Using

Serverless PaaS is more economical as one pays usu-

ally for the actual time taken for a function to exe-

cute. Depending on the access pattern, an application

can see wide variability in latency. Serverless PaaS is

also being offered at the Edges by prominent public

cloud providers

. Table 3 captures key observations

and characteristics.

Lambda Edge: https://aws.amazon.com/lambda/edge/

2.4 IoT Frameworks

IoT framework refers to a collection of standards,

software and hardware components that enables data

acquisition from sensors, pre-processing and aggre-

gation within local / edge gateways, connectivity with

data-centres for in-depth analytic and long term data

storage, communication channels and signalling to

actuators based on outcome of local or remote anal-

ysis of sensor data (i SCOOP, ). IoT gateways are

becoming more capable and able to perform variety

of tasks depending on use cases. Standards include

M2M communication standards, messaging proto-

cols, etc. to name a few. Sensors and actuators comes

in variety of size and shapes but are usually charac-

terized by low cost and high volume of deployments.

Table 4 captures key observations and characteristics.

Table 4: Key characteristics of IoT frameworks.

Dimension Description

business own-

ership

managed IoT platforms allow

multi-organization owner-

ship model between devices,

platforms and gateways

cloud connec-

tivity

long term storage and deep ana-

lytics is increasingly being con-

ducted in private/public clouds

data manage-

ment control

local IoT gateways may allow

better data control to users, it is

possible to perform aggregation

on anonymous data up the chain

app diversity

at edges

potentially large number of het-

erogeneous IoT sensors and ac-

tuators can be connected via

same messaging infrastructure

unique ac-

counting

observation

potentially large variety of

data-streams, high volume data

spread over large geographical

swaths

Having analyzed these up and coming cloud as-

sisted, potentially large scale technologies, it is clear

that the scale of data volumes, variety of data, low

latency requirements for adequate control, different

scope of data privacy controls, billed amounts deal-

ing from micro-units to large sums, will result in new

challenges which must be addressed right from the

architecture design phase in any sensible accounting,

billing and invoicing system for such technologies.

CLOSER 2020 - 10th International Conference on Cloud Computing and Services Science

392

3 ACCOUNTING AND BILLING:

REQUIREMENTS

Let us assume that a reasonable resource monitor-

ing infrastructure is in place for the service under

consideration. We can analyze the requirements on

billing infrastructure depending on whether real time,

pay-as-you-go billing and accounts settlement is de-

sired, or if periodic accounts settlement is sufﬁcient.

Some requirements can also be derived if micro-

billing (Robert et al., 2016) capability is needed in

the solution or not.

3.1 Real Time Billing

Unlike telecommunication services which are nor-

mally linked with one device, in Edge-/Fog- deploy-

ment scenarios, the same billing account may be

linked to numerous agents, services running in dif-

ferent geographical locations. In real time billing,

the service consumption must be tracked in almost

real time and depending on whether enough money

is present in a pre-paid account, services are allowed

or blocked. With this perspective the collection of re-

quirements are presented in table 5 below.

Table 5: Requirements for enabling real time billing.

Name Short description

Fast acquisi-

tion

relevant billable events and us-

age data acquisition by the

billing framework must to rea-

sonably fast

Alerting ability to inform service end-

point of lack of funds in a given

account

Fast process-

ing

fast on-line processing of in-

coming data stream

Sustainable self operating cost should be

low in order to make micro-

billing viable

Awareness System design must support

near real time awareness of dis-

tributed data fragments belong-

ing to same account

3.2 Off-line/Periodic Billing

With periodic billing, the usage data need not be pro-

cessed immediately. The data can be processed in a

batch after the invoicing window has elapsed. The

requirements in this case are not too divergent from

earlier case although the emphasis on timeliness of

processing is not so critical. We can still list a few

requirements (table 6):

Table 6: Requirements for enabling off-line / periodic

billing.

Name Short description

Storage the usage data points needs to

be reliably stored until invoice is

generated

Tamper-proof the storage system should

provide reasonable protection

against data tampering

3.3 Universally Valid

There are a few requirements which are universally

valid irrespective of whether the focus is on real-time

or off-line billing and also irrespective of the vertical

use cases. These are captured in table 7.

Table 7: Universal requirements.

Name Short description

Safety the system must not lose any bil-

lable metrics

De-

duplication

the system must be robust

enough to handle repeated data

without inﬂating the ﬁnal in-

voice

Usable the system must have adequate

user interfaces, cli as well as UI

to allow users to interact in a

meaningful way

Harmonization system should be able to sup-

port billable events from variety

of services so as to produce uni-

ﬁed, composite invoices

Flexibility accounting and billing engine

should be ﬂexible enough

to support new tarrif plans,

seasonal promotions, changing

portfolio of products, etc.

Versioning potential to roll back to an ear-

lier known good version of pric-

ing and billing models in case of

errors in updates

4 CHALLENGES TO CONSIDER

Having seen the requirements list as well as general

characteristics of few emerging technologies, let us

analyze some of the challenges which one must ad-

dress properly in order to create a practical solution

with greater probability of user acceptance. Our anal-

ysis will cover the following aspects -

Accounting and Billing Challenges in Large Scale Emerging Cloud Technologies

393

• Computation at edge or in central data-centers

• Centralized wallet management vs distributed ap-

proach for real time cost control

• Feasibility of robust audit trails

4.1 At Edge or in the Core

With large scale IoT deployments, spread geographi-

cally, assimilating large data streams is a known chal-

lenge. The problem becomes acute when large dis-

tance networking pipes are involved. Managing la-

tency in such an uncontrolled environment becomes a

complex challenge. In such situations one must eval-

uate possibility of processing data at the edges versus

centrally somewhere distant. With different organi-

zational units wishing to retain more control over ﬁne

grained data sets, processing increasingly at the edges

is becoming more acceptable, but it brings with it the

challenge of managing heterogeneity in data formats

dynamically (as one can not assume a-priory the full

variety of applications to be handled by the billing ser-

vice at such a wide deployment ranges where multiple

independent organizations may be involved) from the

accounting framework perspective.

Managing data heterogeneity for harmonization

purposes will remain a challenge until all potential

Fog/Edge/IoT applications prepare billable data using

a common global standard. OGF

“Usage Record”

format standard - GFD.098 (Mach et al., 2007), and

GFD.204 (Gordon et al., 2013), is a concrete step

along this direction, but it suffers from format limita-

tion as it only supports XML whereas micro-services

increasingly seem to adopt formats such as JSON,

YAML to name some.

4.2 Wallet Management Challenges

One of the challenges gains in prominence for pre-

paid usage of distributed resources. The challenge

increases in difﬁculty in Edge/Fog deployment sce-

narios where numerous instances of micro-services

belonging to an application may be running in dif-

ferent geographical locations, in data-centers, at the

edge and so on.

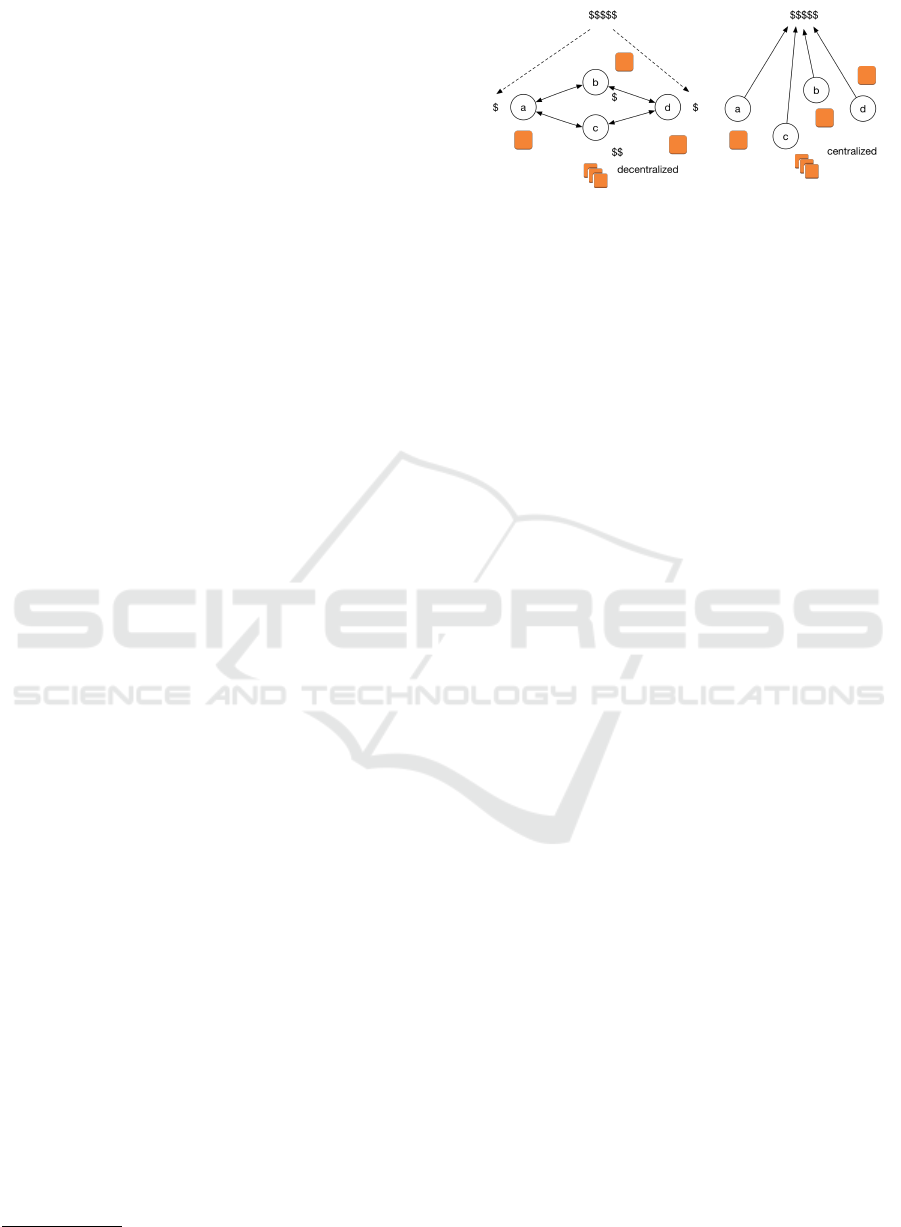

Figure 3 shows two extreme approaches where in

centralized mode, all control actions must check with

a centralized wallet to verify whether enough balance

is there to allow an action to proceed. This approach

would lead to increased latency in decision making,

thereby making it inappropriate for several use cases

including IoT deployments. The other approach is de-

centralized whereas the overall prepaid fund is intelli-

https://www.ogf.org/

Figure 3: Wallet management strategies.

gently distributed among regions where parts of appli-

cations are running and control decisions can be taken

quickly. Here the fund re-balancing is a challenge

and several predictive approaches exists in the liter-

ature which could be utilized for near-optimal strat-

egy. Several strategies in between these two extremes

must be evaluated to come to a reasonable approach

for prepaid account and service management.

4.3 Reasonable Auditing Capabilities

Audit trails within billing services are required by

several government regulations as a measure for con-

sumer protection. Maintaining a veriﬁable audit trail

is a complex process involving trust chains, PKI in-

frastructures, etc. In a global scale deployments

which is foreseeable in IoT/Edge/Fog deployment

models, this problem becomes more challenging. Au-

dit trail disruptions at administrative / organizational

boundaries, at various aggregation points, are some

interesting challenges that one should address. Ag-

gregation operation invariably looses individuality of

component samples. Similarly, if there is trust deﬁcit

among independent org units at edge / core of the data

processing trail, it impacts the audit process credibil-

ity.

5 PROMISING TECHNOLOGIES

Based on the described challenges, it’s possible to

provide examples of technologies among existing so-

lutions. In this case serverless area is especially

promising. By its deﬁnition, it would cover such

requirements as the low price of computations and

vast scaling possibilities. Many cloud providers al-

ready have IoT platforms based on FaaS technolo-

gies, which allow running functions on the edge de-

vices. There are excellent candidates in the list of

open-source solutions, like OpenWhisk(IBM, ). It is

a serverless platform that can be involved to solve

active devices number grow for a reasonable price.

OpenWhisk has several advantages that lead to reach-

CLOSER 2020 - 10th International Conference on Cloud Computing and Services Science

394

ing the discussed target:

• High-level auto-scale possibilities due to good uti-

lization solution

• Flexible pay-as-you-go billing model

• Event-based execution model

Knative(Google, ) is another Kubernetes-based

platform to build, deploy, and manage serverless

workloads. It extends Kubernetes to provide a set

of middleware components that are essential to build

source-centric, and container-based applications that

can run anywhere: on premises, in the cloud, or even

in a third-party data center.

Also in the IoT where data transmits between mul-

tiple networks administrated by different organiza-

tions, the question of security becomes signiﬁcant.

Blockchain technology would be able to solve this is-

sue and cover a few more e. g., reliability, m2m trans-

actions handling, scalability. IOTA(IOTA, ) presents

their open source solution for IoT platform based on

the blockchain with shared economy. Blockchain

technology promises a compelling vision: decentral-

ized networks allowing open innovation and peer-

to-peer transactions without intermediaries or fees.

However, together with beneﬁts, distributed ledgers

might create the following challenges to overcome:

• Storage - without the central server, all the data

needs to to be stored at the nodes themselves

• Processing power - extra time is required for op-

erated objects encryption

Nevertheless, overcoming these leads to appearing an

optimal platform for IoT with a scalable, decentral-

ized and secure approach.

6 INITIAL ARCHITECTURE

Having seen the potential in some of the upcoming

technologies, in this section we aim to leverage these

for fulﬁlling some of the goals we are targeting in the

architecture draft speciﬁcation. The goals of current

architecture speciﬁcation are listed below -

• Aggregation at the edge as mush as possible

• Dynamic injection of aggregation and harmoniza-

tion functions at the edges

• Decentralized maintenance of audit trails

Wherever possible, candidate technologies are

also shown in the ﬁgure 5 below.

We plan to leverage decentralized ledger wherein

all elements in the architecture that handle bill-

able data must participate as (blockchain) nodes.

Figure 4: Architecture proposal v1.0.

The ledgers themselves will provide the veriﬁable

audit capability allowing traceable analysis of all

data transformation from usage reports till invoicing

stages. We plan to push usage report aggregation, for-

mat harmonization, to the network edges as dynam-

ically deployed functions, capable of being executed

in a FaaS framework. This FaaS layer which will be

setup within IoT gateways or Edge nodes. The data

which will ﬂow into larger data-centers thus will be

highly aggregated samples.

Rest of the processing could then be easily han-

dled by existing billing frameworks including our

own creation “Cyclops”

. This architecture being

a work-in-progress will subsequently be modiﬁed to

bring in other aspects which have been identiﬁed ear-

lier in this paper.

7 DEMONSTRATOR DESIGN

AND ARCHITECTURE

The demonstrator was designed and implemented to

get more insight into IoT/Edge billing use-case. The

architecture of demonstrator is shown in picture 5.

Any IoT devices can be placed to any place with

the access to the internet and connected to the shared

message queue, which represents the role of the typi-

cal endpoint.

Cloud function platform provides the possibility

to manage cloud functions. The functions can be di-

vided for three types:

• Billing functions: generate the bill from the cur-

rent platform, storage and queue usages.

• Admin functions: store and manage all incoming

messages as deﬁned by the platform provider.

https://cyclops-billing.readthedocs.io/en/latest/

Accounting and Billing Challenges in Large Scale Emerging Cloud Technologies

395

Figure 5: Demonstrator design.

• Custom functions: perform user and use-case spe-

ciﬁc actions required for usage data management

like usage aggregation, an event notiﬁcation or

more complex logic.

All messages coming from the queue processed by

admin functions and stored locally, storing one IoT-

message would execute at least one function. Further

actions on the dataset stored in the storage entirely

depend on user implementation.

The Billing functions take into account the usage

of executed functions, message queue and storage and

generate the bill on the call. The user has access

to API/GUI to create and manage custom functions,

public message queue where all IoT devices can be

connected, see the generated usage, etc.

8 IMPLEMENTATIONS

For the implementation of the prototype was cho-

sen MQTT Mosquitto broker, 3 RaspbeeryPi devices

located in the same building with sound, tempera-

ture and motion sensors. As the provider of cloud

functions was used OpenSource self-managed Open-

Whisk platform running in OpenStack cloud plat-

form.

Raspberry Pi devices generated records and pub-

lishing them into MQTT broker; motion sensor was

sending the message if the move happened next to it,

temperature sensor average value in some deﬁned pe-

riod, and ﬁnally sound sensor regularly sending the

sound metrics. These sensors were chosen to cover

three different use-cases like constant, periodic and

random time metrics sending.

The OpenWhisk platform had one admin function

responsible for storing all incoming messages to in-

ﬂuxdb database and two user-speciﬁc ones for alert-

ing if motion is happening and aggregation which

includes aggregation data-points from the database,

send to the next endpoint and delete all aggregated

metrics. Billing functions generate the bills for us-

ages of both - total execution time of all functions and

load of MQTT message queue.

OpenWhisk has no native support for triggering

messages from the queue but it can be solved by cre-

ating a standalone service for keeping the connection

to the event bus and Openwhisk custom feed. The

workﬂow of the messages is shown in picture 6.

Figure 6: Record ﬂow.

Each message depending on the topic where it

published triggers the corresponding trigger, this trig-

ger is ”clued” to the executable function via the rule.

And in the end, the running function performs the

needed action. Both sound and temperature records

rules trigger the store function for farther aggrega-

tion. The aggregation is done periodically by trigger-

cronjob and activates ibm-composer which is, in this

case, responsible for consequential execution of mul-

tiple functions:

1. Get records and aggregate them

2. Send records to the deﬁned user endpoint

3. Clean the database

All data, code and information about the running

system can be accessed publicly.

CLOSER 2020 - 10th International Conference on Cloud Computing and Services Science

396

9 EVALUATION

Openwhisk and evaluation scripts were running on

the same machine on Openstack Platform with the

following characteristics of computational power and

docker:

RAM 4 GB

VCPUs 2 with 2500 Mhz

Disk 40 GB

OS Ubuntu 18.04 bionic

Docker 18.09.0, build 4d60db4

docker-compose 1.21.2, build a133471

The ﬁrst experiment was done on the evaluation

of the execution time of the billing function com-

pare to the number of messages consumed from the

mosquitto server. The data is collected from system

topic which has a variety of information like size of

all records, speed, number, etc. The graph is shown in

picture 7.

Figure 7: MQTT billing function execution time.

The data into the system topic is coming period-

ically every 5 seconds so the number of messages

doesn’t affect the execution time.

The second experiment was done on the evalu-

ation of billing functions for Openwhisk. Graph 8

shows how the dependency of the execution time of

the billing function to the number of users and number

of function invocations for all of them. In Openwisk,

there is no user concept, for now, so for evaluation

purpose, each workspace was considered as a single

user.

The bill generation is done by querying the Open-

Whik endpoint. By default, only 30 last records can

be displayed but in practice, it is possible to return

the maximum 200. Most of the billing time execu-

tion coming from Openwhisk querying time and more

queries are performed more time for bill generation is

taken. Coming from our use-case(trigger invoke the

action) we have two times more activations(trigger

invokes action) which also increase time for billing

action execution. For the test purpose was used the

Figure 8: Openwhisk billing function execution time.

standard limit for activations query(30 per list) which

lead to increasing the execution time for around 4

times for each dataset and increasing deviation of re-

sults. Increasing the size of the machine to 8 GB of

RAM and 4 CPUs leads to decreasing of execution

time for billing to around 20%. With the initial con-

ﬁguration, we can notice that 1 functions invocation

billed approximately for 1 millisecond. In our use-

case(datapoint store) an average store point execution

took 60 ms. It gives a conclusion that the billing of

one invocation takes 1.5%. If function execution takes

longer the percentage will decrease.

10 RELATED WORK

In this section we wil deﬁne some of the concepts

used throught this paper, and also derive inspiration

from related research done in the community. In (Shi

et al., 2016) & (Shi and Dustdar, 2016) the authors de-

ﬁne edge computing together with examples of case

studies, future and present challenges and opportuni-

ties whereas in (Satyanarayanan, 2017) authors an-

swer the question why has edge computing emerged,

what new capabilities does it enable, and where is it

headed.

Together with an edge, fog computing has plenty

of recent publications. The paper(Dastjerdi and

Buyya, 2016) present the hierarchical architecture of

fog computing and its characteristics, compare it with

cloud computing in similarity and differentiation; also

the author covers some challenges and open issues.

The authors have offered a comprehensive deﬁnition

of the fog, comprehending technologies as diverse as

cloud, sensor networks, peer-to-peer networks, net-

work virtualisation functions or conﬁguration man-

agement techniques in (Vaquero and Rodero-Merino,

2014). In (Yi et al., 2015) authors offer deﬁnition,

Accounting and Billing Challenges in Large Scale Emerging Cloud Technologies

397

characteristics, components and architecture of fog in

the context of IoT.

There is signiﬁcant amount of research work done

concerning accounting and billing in numerous IT

sectors. The paper (Fleck, 1999) describes an ar-

chitecture for a near real-time billing system for

use in a next-generation communications environ-

ment. The architecture was designed using a Dis-

tributed Processing Environment incorporating light-

weight hierarchical focused trading and a lightweight

transactional engine. The authors in (Jamil et al.,

2004) proposes a model with practical experimen-

tal results utilising serial communication for metering

and billing system for spatially distributed electrical

power clients. Different publication(Loeb, 1995) of-

fer the usage information collection and management

paradigm together with an essential component of

meeting the billing needs for new, distributed broad-

band and multimedia services. The work(Elmroth

et al., 2009) presents a summary of the analysis of

existing Grid accounting systems, including brief de-

scriptions of the different technologies also it offers

accounting and billing for the RESERVOIR project.

The authors in (Lakew et al., 2014) presents a mech-

anism to synchronise accounting records among dis-

tributed accounting system peers. Runtime resource

usage generated from different clusters is synchro-

nised to maintain a single cloud-wide view of the data

so that the system creates a single bill. The paper de-

ﬁnes a set of accounting system requirements and an

evaluation which veriﬁes that the solution fulﬁls these

requirements. The paper(Kloeck et al., 2005) intro-

duce a distributed, dynamical and combined pricing,

allocation and billing system, suitable for wireless in-

frastructure communications systems which are capa-

ble of managing multi-homing.

11 CONCLUSION

In this paper we have analyzed a few emerging cloud-

assisted technologies along common dimensions to

identify accounting and billing challenges inherent

in them. We derived general as well as speciﬁc re-

quirements for a billing framework suitable for the

agility and diversity requirements of such technolo-

gies and in the process also identiﬁed speciﬁc chal-

lenges which must be addressed for meaningful pro-

totypes to be developed. We have brieﬂy proposed

an architecture (which remains a work in progress)

which could be the starting point for prototyping

a viable solution to the challenges outlined above.

Our limited experiments of using popular serverless

framework (Openwhisk) shows the potential of this

technology as a low cost computing platform for

billing related computations, both at the edges and at

the core.

In the near term our goal is to validate some of the

emerging technologies such as distributed ledgers as a

means to support large scale distributed audit require-

ments, and explore possibilities of serverless concepts

embedded in traditional IoT gateways as a means to

push and execute variety of aggregation as well as

usage records collection to the edges, and its further

distribution to remote data processing silos. Detailed

performance and run-time cost analysis must be con-

ducted to verify suitability for special needs of micro-

billing in above identiﬁed use case scenarios; and this

we plan to conduct post prototyping of our solution.

The architecture speciﬁcation will be enhanced to

bring in the elements of distributed wallet manage-

ment to allow low latency control tasks in real-time

prepaid consumption mode.

ACKNOWLEDGMENT

This work is partially funded by the Swiss State

Secretariat for Education, Research and Innovation

(SBFI) in association with the European Union Hori-

zon 2020 research and innovation programme via

grant agreement #731535, for the ElasTest project.

The authors would like to express gratitude for addi-

tional funds provided by Innosuisse - the Swiss Inno-

vation Agency via their grant 27189.1 PFES-ES for

project “COMBuST: Container Micro-Billing Simu-

lation Toolkit” for supporting part of the work carried

out.

REFERENCES

Dastjerdi, A. V. and Buyya, R. (2016). Fog computing:

Helping the internet of things realize its potential.

Computer, 49(8):112–116.

Elmroth, E., Marquez, F. G., Henriksson, D., and Fer-

rera, D. P. (2009). Accounting and billing for fed-

erated cloud infrastructures. In 2009 Eighth Interna-

tional Conference on Grid and Cooperative Comput-

ing, pages 268–275.

Fleck, J. (1999). A distributed near real-time billing en-

vironment. In Telecommunications Information Net-

working Architecture Conference Proceedings, 1999.

TINA ’99, pages 142–148.

Google. Knative – kubernetes-based platform to build,

deploy, and manage modern serverless workloads.

https://cloud.google.com/knative/. accessed: 2018-

08-26.

CLOSER 2020 - 10th International Conference on Cloud Computing and Services Science

398

Gordon, J., Jones, M., Kennedy, J. A., and M

uller-

Pfefferkorn, R. (2013). Usage Record – Format Rec-

ommendation. GFD 204, Open Grid Forum.

i SCOOP. Iot technology stack – from iot devices,

sensors, actuators and gateways to iot platforms.

https://www.i-scoop.eu/internet-of-things-guide/iot-

technology-stack-devices-gateways-platforms/.

accessed: 2018-07-26.

IBM. Apache openwhisk – open source serverless cloud

platform. https://openwhisk.apache.org/. accessed:

2018-08-26.

IOTA. Iota – a permissionless distributed ledger for a new

economy. https://www.iota.org/. accessed: 2018-08-

26.

Jamil, M., Munir, F., Khan, A. A., and Mirza, A. (2004).

Telemetering billing system for spatially distributed

electrical power clients. In E-Tech 2004, pages 35–

40.

Kloeck, C., Jaekel, H., and Jondral, F. K. (2005). Dynamic

and local combined pricing, allocation and billing sys-

tem with cognitive radios. In First IEEE International

Symposium on New Frontiers in Dynamic Spectrum

Access Networks, 2005. DySPAN 2005., pages 73–81.

Lakew, E. B., Xu, L., Hern

andez-Rodr

ıguez, F., Elmroth,

E., and Pahl, C. (2014). A synchronization mecha-

nism for cloud accounting systems. In 2014 Interna-

tional Conference on Cloud and Autonomic Comput-

ing, pages 111–120.

Loeb, S. (1995). Interactive billing for broadband and mul-

timedia services. In Community Networking, 1995. In-

tegrated Multimedia Services to the Home., Proceed-

ings of the Second International Workshop on, pages

221–223.

Mach, R., Lepro-Metz, R., and Jackson, S. (2007). Usage

Record – Format Recommendation. GFD 98, Open

Grid Forum.

Patanjali, S., Truninger, B., Harsh, P., and Bohnert, T. M.

(2015). Cyclops: A micro service based approach for

dynamic rating, charging amp; billing for cloud. In

2015 13th International Conference on Telecommuni-

cations (ConTEL), pages 1–8.

Robert, J., Kubler, S., and Traon, Y. L. (2016). Micro-

billing framework for iot: Research amp; technologi-

cal foundations. In 2016 IEEE 4th International Con-

ference on Future Internet of Things and Cloud (Fi-

Cloud), pages 301–308.

Satyanarayanan, M. (2017). The emergence of edge com-

puting. Computer, 50(1):30–39.

Shi, W., Cao, J., Zhang, Q., Li, Y., and Xu, L. (2016). Edge

computing: Vision and challenges. IEEE Internet of

Things Journal, 3(5):637–646.

Shi, W. and Dustdar, S. (2016). The promise of edge com-

puting. Computer, 49(5):78–81.

Skoviera, M., Harsh, P., Serhiienko, O., Belmonte, M. P.,

and Bohnert, T. M. (2017). Monetization of infrastruc-

tures and services. In 2017 European Conference on

Networks and Communications (EuCNC), pages 1–5.

Vaquero, L. M. and Rodero-Merino, L. (2014). Finding

your way in the fog: Towards a comprehensive deﬁni-

tion of fog computing. SIGCOMM Comput. Commun.

Rev., 44(5):27–32.

Walker, M. J. Hype cycle for emerging technologies,

2017. https://www.gartner.com/document/3768572.

accessed: 2018-07-26.

Yi, S., Li, C., and Li, Q. (2015). A survey of fog comput-

ing: Concepts, applications and issues. In Proceed-

ings of the 2015 Workshop on Mobile Big Data, Mo-

bidata ’15, pages 37–42, New York, NY, USA. ACM.

Accounting and Billing Challenges in Large Scale Emerging Cloud Technologies

399
