Self-Contained Service Deployment Packages

Michael Zimmermann, Uwe Breitenb

ucher, Lukas Harzenetter, Frank Leymann

and Vladimir Yussupov

Institute of Architecture of Application Systems, University of Stuttgart, Universit

atsstrasse 38, 70569 Stuttgart, Germany

Keywords:

Deployment Model, Deployment Automation, Provisioning, Self-Contained, Dependency Resolving,

TOSCA.

Abstract:

Complex applications are typically composed of multiple components. In order to install these components all

their dependencies need to be satisﬁed. Typically these dependencies are resolved, downloaded, and installed

during the deployment time and in the target environment, e.g., using package manager of the operating sys-

tem. However, under some circumstances this approach is not applicable, e.g., if the access to the Internet is

limited or non-existing at all. For instance, Industry 4.0 environments often have no Internet access for security

reasons. Thus, in these cases, deployment packages without external dependencies are required that already

contain everything required to deploy the software. In this paper, we present an approach enabling the trans-

formation of non-self-contained deployment packages into self-contained deployment packages. Furthermore,

we present a method for developing self-contained deployment packages systematically. The practical feasi-

bility is validated by a prototypical implementation following our proposed system architecture. Moreover,

our prototype is evaluated by provisioning a LAMP stack using the open-source ecosystem OpenTOSCA.

1 INTRODUCTION

Cloud computing is of vital importance for the re-

alization of modern IT systems focusing on au-

tomated deployment and management (Leymann,

2009). Cloud properties, for instance, scalability, pay-

on-demand pricing, or self-service as well as new

paradigms, such as edge or fog computing (Mahmud

et al., 2018) enable developers to build ﬂexible and

automated cloud applications (Leymann, 2009). A

wide range of domains can beneﬁt from these new op-

portunities, for example, mobility (Guo et al., 2017),

health care (Haque et al., 2014), energy manage-

ment (Shrouf and Miragliotta, 2015), and scientiﬁc

computing in general (Iosup et al., 2011). However,

installing, conﬁguring, and running complex soft-

ware on a remote IT infrastructure is a challenging

task that requires detailed expertise (Breitenb

ucher

et al., 2013). First, the middleware as well as all de-

pendencies required by the software need to be in-

stalled. Secondly, the software itself needs to be

deployed. And ﬁnally, the software and its compo-

nents need to be conﬁgured as well as connected with

each other. Dependent of the involved software, these

tasks can get complex, are time-consuming and error-

prone, and, therefore, are not efﬁcient if done manu-

ally (Eilam et al., 2006; Breitenb

ucher et al., 2013).

The deployment as well as the management of

applications can be automated using various deploy-

ment technologies (Wurster et al., 2019): (i) provider-

speciﬁc systems, (ii) provider-independent, but

platform-speciﬁc technologies, (iii) general-purpose

technologies, or furthermore, (iv) provider- and

technology-agnostic standards, such as the Topology

and Orchestration Speciﬁcation for Cloud Applica-

tions (TOSCA) (OASIS, 2013a; OASIS, 2013b).

Typically, regardless of whether the deployment

of the application is executed manually or automat-

ically, external dependencies have to be resolved,

downloaded, and installed during the deployment

of the application within the respective environ-

ment (Wettinger et al., 2014). For example, often

the Linux package handling utility apt-get is used in

scripts to install required dependencies, e.g., apt-get

install python. This enables the creation of light-

weighted deployment packages, since external depen-

dencies are resolved and downloaded during the de-

ployment phase and don’t need to be added to it in

advance. Besides minimizing the package size, this

also allows to only use scripts. Two different types

of external dependencies can be distinguished: (i) de-

pendencies that are required in order to deploy and

manage the application and (ii) dependencies of the

application itself, required for properly executing it.

Zimmermann, M., Breitenbücher, U., Harzenetter, L., Leymann, F. and Yussupov, V.

Self-contained Service Deployment Packages.

DOI: 10.5220/0009414903710381

In Proceedings of the 10th International Conference on Cloud Computing and Services Science (CLOSER 2020), pages 371-381

ISBN: 978-989-758-424-4

371

However, resolving and downloading external de-

pendencies can slow down the deployment signiﬁ-

cantly and furthermore, when access to the Internet

is limited, unstable, or non-existing at all, this can

prevent the deployment of the application. More-

over, the download from external sources could com-

promise the security of applications. For example,

a use case is in the area of Industry 4.0, when soft-

ware should be provisioned in remote environments

with no or only restricted Internet access for security

reasons (Tsuchiya et al., 2018). Another use case is

in the ﬁeld of eScience, where dependencies need to

be packaged together with the research software in

order to archive them and thus, enable the reusabil-

ity of the software, because the external dependencies

might get stale over time (Zimmermann et al., 2018a).

Thus, in such cases, fully self-contained deployment

packages are required, i.e., archives without external

dependencies, containing everything required for the

deployment and management of the application.

In this paper, we tackle these issues. We present

a system architecture supporting the automated trans-

formation of a non-self-contained deployment pack-

age into a self-contained deployment package. More-

over, we present a method, utilizing our provided

system architecture, enabling the systematic devel-

oping of self-contained deployment packages in or-

der to ease the development of them. Our approach

is useful for both cloud and IoT applications, since

for both, use cases exist which beneﬁt from our ap-

proach. To validate the practical feasibility of the ap-

proach, we present a prototypical implementation of a

Self-Containment Packager Framework based on the

TOSCA standard. TOSCA enables the modeling and

automated execution of the deployment and manage-

ment of cloud applications. Furthermore, we evalu-

ate our approach by comparing the time required for

provisioning a non-self-contained TOSCA-based de-

ployment package with the time required for the trans-

formation and the provisioning of a self-contained

TOSCA-based deployment package. For provision-

ing, we are using the open-source tool OpenTOSCA.

The remainder of this paper is organized as fol-

lows. In Section 2, background and fundamentals of

this work are introduced, e.g., deployment models.

Moreover, this section motivates our approach by pre-

senting existing problems and limitations we tackle in

this work. Section 3 introduces our system architec-

ture of a Self-Containment Packager Framework and

presents our method for developing self-contained de-

ployment packages. In Section 4, we present our pro-

totypical implementation based on the TOSCA stan-

dard. In Section 5, related work is discussed. Sec-

tion 6 concludes this paper and discusses future work.

2 FUNDAMENTALS,

BACKGROUND &

MOTIVATION

Since our approach and our prototype is based on

deployment models, in the following subsection, we

ﬁrst introduce some basic information about them.

Furthermore, we illustrate the problems of creating

deployment packages enabling the deployment and

management of cloud and IoT applications in remote

IT environments, that take place when utilizing them,

by means of three different use cases in the area of

eScience, automotive, and Industry 4.0. For example,

deploying an application into an environment without

Internet access or preserving dependencies. More-

over, we present an overview of state-of-the-art ap-

proaches for creating such deployment packages for

cloud and IoT applications. A deployment package,

in our case, speciﬁes the deployment of an applica-

tion and can contain arbitrary artifacts and ﬁles for

achieving that, for example, Bash scripts, Chef Cook-

books, or Dockerﬁles, depending on the used deploy-

ment technology as well as deployment language.

2.1 Deployment Models & Topologies

The manual deployment of services consisting of

multiple components is complex, hard to repeat, and

error-prone (Eilam et al., 2006; Breitenb

ucher et al.,

2013). Therefore, the automation of application de-

ployment and management over its entire lifecycle,

e.g., install, start, stop, or update is essential. By

using maintainable and reusable deployment models,

describing the software components as well as the

infrastructure components of an application, an au-

tomated and reliably repeatable deployment solution

can be created. Various deployment automation sys-

tems are available, supporting the model-based and

automated deployment of applications (Bergmayr

et al., 2018). Deployment models can be imperative

or declarative (Endres et al., 2017). Imperative de-

ployment models describe all the single steps required

for the deployment of an application. Declarative de-

ployment models, on the other hand, describe the de-

sired state of an application that shall be deployed.

These models, called topologies, are graph-based and

describe the structure of an application consisting of

its components, their relations to each other, and prop-

erties. Declarative deployment models are widely ac-

cepted in industry and research, as the most appropri-

ate approach for the automated deployment of appli-

cations and conﬁguration management (Herry et al.,

2011). Various technologies are following this ap-

proach, for example, Kubernetes, Puppet, and Chef.

CLOSER 2020 - 10th International Conference on Cloud Computing and Services Science

372

IP: 192.168.4.3

User: Prod

PW: ******

[…]

OpenStack

install.sh

Java 1.8

ansible_install.zip

Port: 80

[…]

Flink 1.9

RAM: 16 GB

[…]

Ubuntu 16.04

start.sh

pred_service.py

PredictionService

hostedOn

dependsOn

connectsTo

IP: 192.168.1.1

Port: 8086

DBName: Prod_Data

State: Running

[…]

InfluxDB 1.7

install.sh

Python 3.5

install.sh

SciPy 1.3.1

Figure 1: Exemplary declarative deployment model.

In Fig. 1 an exemplary declarative deployment

model is depicted consisting of various components,

such as Ubuntu, Flink, and InﬂuxDB. The compo-

nents are connected using relations, e.g., hostedOn or

connectsTo. For instance, Flink is hosted on Ubuntu,

which is provided by OpenStack. Properties are used

to provide information, such as the endpoint and cre-

dentials of OpenStack or to specify that the InﬂuxDB

is already running. The ﬁgure also shows how re-

quired dependencies, such as the SciPy library for sci-

entiﬁc computing, can be speciﬁed within a deploy-

ment model. Different kinds of artifacts can be at-

tached to nodes. For installing the python runtime, a

Bash script (install.sh) is provided, which, for exam-

ple, could execute the command apt-get install python

in order to fetch and install the required ﬁles. The ﬁle

pred service.py is part of the PredictionService node

and represents the business logic of this component.

2.2 Use Cases & Problems

Typically, when deploying an application in a remote

IT environment, required components and dependen-

cies are resolved, downloaded, and installed on the

ﬂy during the deployment of the application in the re-

spective environment – regardless of whether the de-

ployment is executed manually or automatically by

using technologies, such as conﬁguration manage-

ment tools (Wettinger et al., 2014). Therefore, a de-

ployment package typically only describes the steps

required to deploy an application, for example, which

speciﬁc ﬁles need to be downloaded and installed,

e.g., apt-get install python to install a python run-

time, or how the components need to be conﬁgured

in order to work properly. This allows to have light-

weighted deployment packages, since external depen-

dencies are only resolved and fetched during the de-

ployment phase of the application and don’t have to

be added to the deployment packages in advance.

Moreover, this also eases the maintenance of such de-

ployment packages. For example, if a new version

of a required component is released, in the deploy-

ment description only the reference of this component

needs to be adapted in order to reﬂect the new ver-

sion, but no ﬁles need to be downloaded and replaced

in the deployment package. However, there are some

use cases where this approach of resolving and down-

loading required external dependencies during the de-

ployment time results in serious problems, which can

prevent the successful deployment of the application.

One use case is in the ﬁeld of eScience, with

the problem of reusability, reproducibility, and re-

peatability of scientiﬁc software (Mesnard and Barba,

2016; Fehr et al., 2016). Often research software is

only implemented for a speciﬁc experiment by the re-

searcher himself and is not maintained and managed

like a professionally developed software. If some time

later the software shall be reused in order to reproduce

the research results, the experiment needs to be exe-

cuted in the same environment. This not only includes

using the same version of the software itself, but also

using the identical versions of dependencies, as using

a different library, for example, could lead to a differ-

ent result. Furthermore, it is possible that some de-

pendencies will cease to be available over time. Thus,

in such use cases, the required artifacts should be bun-

dled together with the deployment description in or-

der to provide a self-contained deployment package.

In the area of automotive, the resolving of external

dependencies is also important. For example, if a new

update should be installed on a component of a car

while it is operated, there are situations in which an

update is more sensible than in another. For instance,

it is not useful to update the start-stop system of a car

when it is located within a city with a lot of trafﬁc

lights or on a road with a trafﬁc jam, because these

are situations in which the start-stop system should

work properly. Thus, a better time to update the start-

stop system might be, when the car is operated on a

highway outside of a city without trafﬁc. Or regard-

ing the car radio, it makes sense to update its software

when it has no radio reception anyway, for example,

when the car is inside a tunnel. However, although

these are situations in which an update would be sen-

Self-contained Service Deployment Packages

373

sible from a contextual point of view, there might

be circumstances that prevent updates in these situ-

ations. For instance, in a tunnel or in a rural coun-

tryside without mobile Internet connection, an over-

the-air update is technically not possible. Thus, the

update and required dependencies should be resolved

and fetched when a stable Internet connection is avail-

able and only installed when the situation allows it.

Another use case is in the ﬁeld of Industry 4.0,

where, e.g., analysis software should be shipped and

deployed into manufacturing environments to opti-

mize production lines or for enabling predictive main-

tenance (Zimmermann et al., 2017). For security rea-

sons, these environments often have no Internet ac-

cess. Thus, in such environments it is not possible to

deploy software by using a technology that needs In-

ternet access in order to download external artifacts

that are required for installing the application as well

as for the properly execution of the application.

To sum up, there are use cases in which no In-

ternet access is available and thus, no dependencies

can be downloaded and installed during the deploy-

ment. Also, external dependencies can cease to be

available over time, not only hindering the download,

but also the successful execution of the entire deploy-

ment. Therefore, in this work we present an approach

for building self-contained deployment packages.

2.3 State of the Art Approaches

In the following, we want to give and overview of

state-of-the-art approaches and existing technologies

for the deployment of cloud and IoT applications in

remote IT environments. Furthermore, we want to

discuss their applicability for the three previously de-

scribed use cases as well as their capabilities for creat-

ing completely self-contained deployment packages.

Of course, the simplest approach is to manually

download the required artifacts and install and conﬁg-

ure the application by hand. However, dependent of

the complexity of the software, these tasks typically

requires immense expertise, are time-consuming as

well as error-prone, and, therefore, are not efﬁcient if

done manually (Breitenb

ucher et al., 2013). Another

approach is to bundle the entire application together

with all required dependencies into a virtual machine

image or a container using container technologies

such as Docker. While this resolves the problem of

creating a self-contained deployment package, this

approach comes with other problems. For example, if

packaged as a monolithic image or container, an ap-

plication may not beneﬁt from cloud properties such

as scaling (Leymann et al., 2017). Also, if the com-

ponents of the application are split, for example, into

single Docker containers, the management and or-

chestration of these containers is a new challenge and

requires the use of additional technologies such as

Docker Swarm or Kubernetes. However, these tech-

nologies are categorized as platform-speciﬁc deploy-

ment technologies (Wurster et al., 2019), since they

are restricted regarding the use of speciﬁc platform

bundles for realizing deployable components, e.g.,

Kubernetes only supports container images. Also,

these technologies not only have some constraints

regarding the orchestration and wiring of different

kinds of application components (Zimmermann et al.,

2018b), but also regarding the deployment and man-

agement of components on bare metal, which can be

important, especially when IoT devices are involved.

Conﬁguration management technologies, such as

Chef, Ansible, or Puppet can also be used to automate

the deployment of applications in remote IT environ-

ments. These kind of deployment technologies are

categorized as general-purpose technologies (Wurster

et al., 2019). They use scripts to deﬁne the required

deployment steps in order to reach the desired state

and to execute the provisioning and conﬁguration of

the application. However, since their focus is not

on the creation of deployment packages that can be

shipped to the target environment as a whole, but on

conﬁguration ﬁles describing the deployment steps or

the desired system state, these technologies typically

require an Internet connection in order to download

and install the deﬁned components and dependencies

in the target environment. Another approach for de-

ploying and managing cloud and IoT applications is

the usage of provider- and technology-agnostic stan-

dards, such as TOSCA. TOSCA enables to describe

the structure of an application, the dependencies, and

required infrastructure resources in a portable man-

ner. Furthermore, TOSCA allows the integration

of all kinds of technologies, such as Bash scripts,

Docker, or Ansible, and thus, represents a technology

independent and interoperable deployment approach.

Moreover, with the Cloud Service Archive (CSAR),

TOSCA speciﬁes a format, for packaging all required

ﬁles for provisioning and managing the described ap-

plication. However, typically these archives contain

scripts in order to install external dependencies, e.g.,

by using the Linux package handling utility apt-get.

How a non-self-contained deployment package

with external dependencies can be transformed into

a self-contained deployment package is shown in this

work. Our approach enables to use the same deploy-

ment model for creating a light-weighted deployment

package and for creating a bigger, but completely self-

contained deployment package. Therefore, the topol-

ogy of the application can be modeled uniformly.

CLOSER 2020 - 10th International Conference on Cloud Computing and Services Science

374

System

Design

Implementation Testing

Create

Deployment

Model

Fetch External

Dependencies

V VIIVIIIII

Self-Contained

Testing

Deployment

VII VIII

Requirement

Analysis

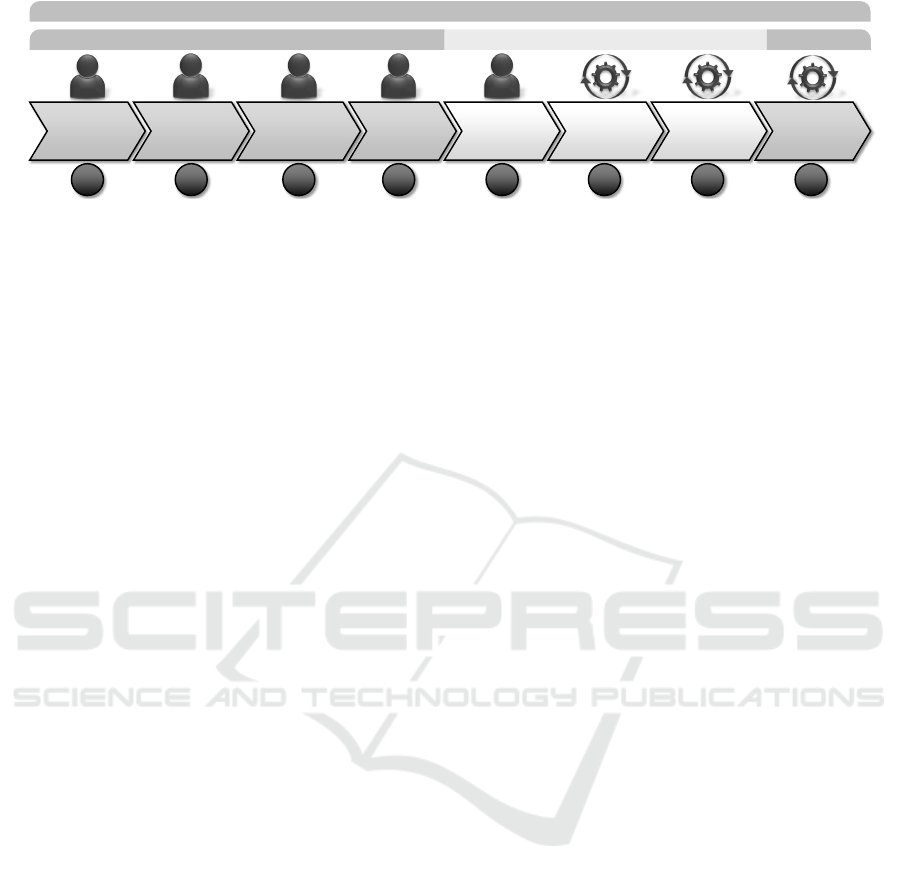

Novel process for developing self-contained deployment packages

Current development process

Figure 2: Our method for developing self-contained deployment packages.

3 APPROACH FOR CREATING

SELF-CONTAINED

DEPLOYMENT PACKAGES

In this section, we present our approach for creating

self-contained deployment packages. First, we give a

brief overview of our proposed approach. After that,

we describe our method for systematically develop-

ing completely self-contained deployment packages,

and moreover, present the system architecture of our

proposed Self-Containment Packager Framework.

3.1 Overview of the Approach

To recap, typically deployment automation technolo-

gies have external dependencies that are downloaded

and installed during the deployment time of the appli-

cation. For example, the Advanced Packaging Tool

(APT) is often used for resolving and installing re-

quired software components on Linux distributions,

for instance, apt-get install python, in order to install

a python runtime. Moreover, with the emergence of

container technologies such as Docker or Kubernetes,

also Dockerﬁles describing the container to be built,

are often used within deployment models in order to

containerize single components or entire applications.

Therefore, the goal of our approach is to enable

the automatic transformation of a non-self-contained

deployment package in a self-contained deployment

package, and thus, support the creation of deployment

packages in a uniform way. To realize the transfor-

mation, all artifacts need to be analyzed in order to

ﬁnd external dependencies. Furthermore, these exter-

nal dependencies need to be resolved, downloaded,

and packaged into the deployment package. More-

over, references in the deployment model need to be

adapted in order to reﬂect the made changes. There-

fore, by following our method, our approach enables

the developer to create both variants of deployment

packages – light-weighted, but non-self-contained de-

ployment packages as well as a fully self-contained

deployment packages – without any additional effort.

3.2 Method for Developing

Self-Contained Deployment

Packages

In this subsection, we present our new method for

systematically developing self-contained deployment

packages. We explain the general advantages of our

proposed method and show how typical non-self-

contained deployment packages can be automatically

transformed in self-contained deployment packages.

Our method to develop a self-contained deploy-

ment package is oriented on the waterfall software en-

gineering process and extends it by additional steps.

The method is illustrated in Fig. 2. The ﬁrst step (I)

is to capture all requirements of the system to be de-

veloped. Furthermore, the purpose and the provided

functionality of the application to be packaged is de-

ﬁned in this step. The second step (II) is to prepare

a system design based on the previously deﬁned re-

quirements speciﬁcation. So, in this step, for ex-

ample, the required components as well as the re-

quired infrastructure resources are deﬁned. The third

step (III) is the implementation of required compo-

nents, for example, a service for analyzing manufac-

turing data. For example, this could be a .jar which

needs to be deployed on some data processing frame-

work, such as Apache Flink. Moreover, this Apache

Flink component could be realized by using a Dock-

erﬁle. In the forth step (IV), the previously imple-

mented components are tested. Here, the functional-

ity of the components can be tested separately as unit

tests as well as the entire system as a whole. The new

ﬁfth step (V) is the creation of a deployment model of

the entire system. The deployment model represents

the conﬁguration and relations of the employed nodes

at run-time and enables the automatically deployment

of the described application. Furthermore, required

management operations, e.g., to start virtual machines

or install a component, are deﬁned and implemented

in this step. The sixth step (VI) is the fetching of ex-

ternal dependencies. Thus, in this step the single ar-

Self-contained Service Deployment Packages

375

Import Export

Deployment Package

with external

dependencies

apt-get

…

Self-Contained

Deployment Package

dpkg –i

…

*.py

*.deb

Self-Containment Packager Framework

Deployment

Package

Handler

Artifact

Handler

Technology

Manager

Bash Plugin

Docker Plugin

. . .

References

Resolver

Download

Manager

Dependency

Manager

Aptitude Plugin

Apt-get Plugin

. . .

References

Resolver

Download

Manager

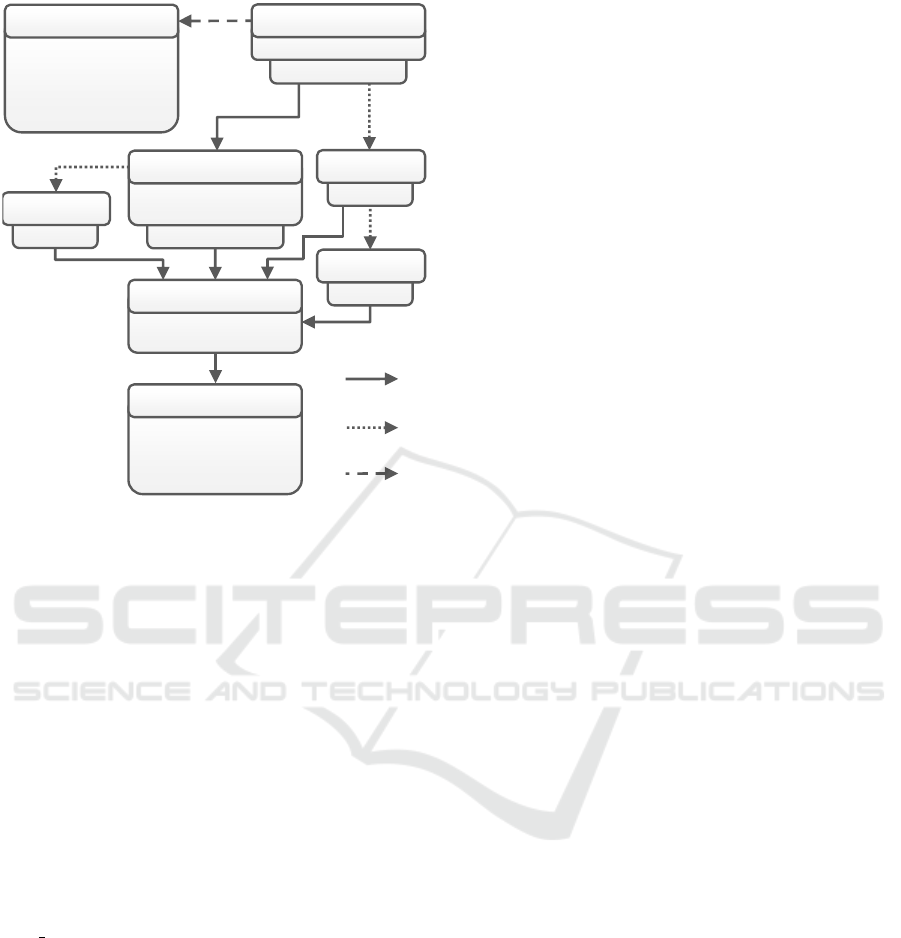

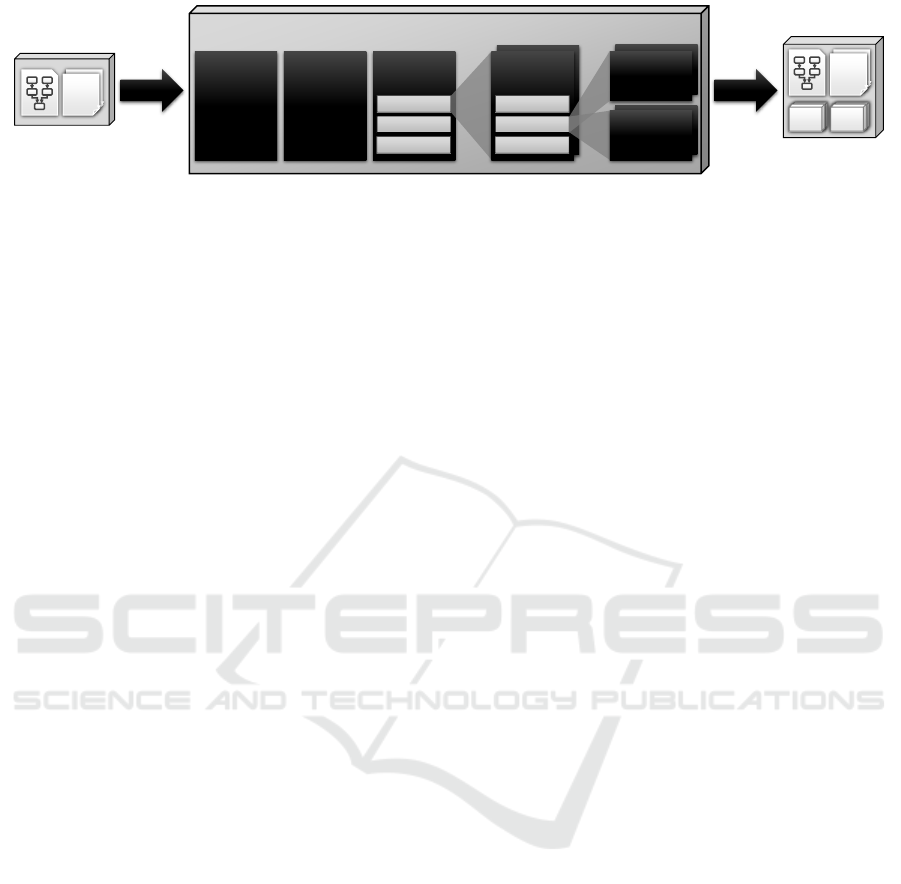

Figure 3: Simpliﬁed system architecture of the Self-Containment Packager Framework that enables the transformation of

non-self-contained deployment packages into self-contained deployment packages.

tifacts are analyzed by a Self-Containment Packager

Framework and if external dependencies are found,

they are resolved and downloaded. Moreover, the

downloaded ﬁles are packaged into the deployment

package and the respective artifacts are adapted in or-

der to utilize them. Since various technologies can

be used to create these artifacts, this is highly depen-

dent of the concrete implementation of each artifact.

For example, if such an artifact is implemented as a

Bash script using the command apt-get install python

to install python on an Ubuntu virtual machine, this

command will be replaced with dpkg -i <*.deb-ﬁles>

in order to use the downloaded software packages for

installing the python runtime. If a Dockerﬁle is used,

ﬁrst the Docker image described by this Dockerﬁle

needs to be build, then this image must be exported

as a ﬁle and put into the deployment package. Thus,

in this step, a non-self-contained deployment pack-

age is transformed into a self-contained deployment

package, which can be executed in an environment

without Internet access. Details are presented in the

following subsection. In the seventh step (VII), the

transformation of the deployment package can be au-

tomatically tested. Therefore, the now self-contained

deployment package is automatically executed in a lo-

cal environment with limited network access. If the

deployment of the described and modeled application

ﬁnishes without failures, the transformation was suc-

cessful. The eight step (VIII) is the automatically de-

ployment of the packaged application in the target en-

vironment, by using a compliant deployment tool or

the release of the created package into a marketplace.

From our three additionally added steps (V -

VII), only step ﬁve, the creation of the deployment

model, needs to be done manually. However, this task

typically needs to be done manually, nevertheless,

if a non-self-contained deployment package should

be created or the self-contained counterpart. Steps

six and seven can be automated by using a Self-

Containment Packager Framework for the transfor-

mation and a compliant deployment tool for the de-

ployment. Therefore, for the developer, no extra ef-

fort is needed for developing the self-contained vari-

ant in comparison with the non-self-contained variant.

3.3 System Architecture of the

Self-Containment Packager

Framework

In this subsection, we present a system architecture

supporting the automatic transformation of non-self-

contained deployment packages into self-contained

deployment packages. Our proposed system archi-

tecture, supporting the presented method, is shown in

Fig. 3. The main components of the Self-Containment

Packager Framework are: (i) the Deployment Package

Handler, (ii) the Artifact Handler, (iii) the Technology

Manager, (iv) several Dependency Manager, (v) Ref-

erences Resolver, and (vi) Download Manager. All

these mentioned components as well as the overall

procedure to transform a deployment package with

external dependencies into a self-contained deploy-

ment package are explained in the following.

Typically, deployment packages are archives, e.g.,

ZIP archives, containing the description of an appli-

cation as well as further required executable artifacts.

Thus, a deployment package with external dependen-

cies, that should be transformed into a self-contained

deployment package, ﬁrst needs to be unpacked and

prepared for processing the content. Moreover, at

the end of the entire transformation process, when

all external references are resolved, the adapted con-

tent as well as the downloaded ﬁles must be packaged

again appropriately. Therefore, the Deployment Pack-

age Handler provides methods for unzipping and zip-

ping of deployment packages, accessing the contained

ﬁles, and maintaining the consistency of the package.

In order to be able to resolve external depen-

dencies preventing the provisioning of an application

in an environment without Internet access, all arti-

facts contained in a deployment package need to be

checked for speciﬁed external references. Thus, the

Artifact Handler searches the deployment package for

all kinds of contained executable artifacts, such as,

Bash scripts or Dockerﬁles, potentially specifying ex-

ternal dependencies. All found artifacts are forwarded

to the Technology Manager for further processing.

CLOSER 2020 - 10th International Conference on Cloud Computing and Services Science

376

Since, the Self-Containment Packager Framework

should be able to handle different technologies, e.g.,

conﬁguration management tools and script languages,

the framework is designed to be easily extensible, re-

garding its capabilities to support various languages

and tools. Therefore, the Technology Manager com-

ponent provides a plugin system for handling the tech-

nology speciﬁc plugins, supporting, for instance, An-

sible playbooks, Bash scripts, or Dockerﬁles. Each

artifact is analyzed by a plugin responsible for this

speciﬁc artifact type, checking the artifact for speci-

ﬁed external dependencies and how they are deﬁned.

Dependent on that, the artifacts are forwarded for fur-

ther processing to the responsible plugins, which are

managed by the Dependency Manager component.

Since these mentioned technologies can support

different kinds of technologies again, for example,

package manager for specifying external dependen-

cies in case of Bash scripts, each speciﬁc language

plugin has its own Dependency Manager. To enable a

high extensibility, the Dependency Manager provides

a plugin system as well, for handling the speciﬁc plu-

gins supporting different kinds of technologies. For

example, in case of Bash scripts, typically one of the

both package manager Aptitude or apt-get is used.

To ﬁnally resolve the speciﬁed external dependen-

cies and download all required ﬁles, each Dependency

Manager plugin holds its own References Resolver

and Download Manager. The References Resolver is

responsible for resolving the explicitly speciﬁed ex-

ternal dependencies and further required implicit de-

pendencies. For example, the command apt-get in-

stall python will not only install python, but also some

further packages required in order to install python.

Thus, the References Resolver analyzes every depen-

dency which is explicitly speciﬁed within an artifact

and, if necessary, determines the dependency tree for

each detected dependency. Since this step is highly

technology speciﬁc, there is no generic references re-

solver available and this component needs to be im-

plemented for each single technology that should be

supported. For instance, in case of required software

packages on an Ubuntu virtual machine, the tool apt-

get provides the functionality to determine the de-

pendency tree of a software that should be installed.

Afterwards, the dependency tree is forwarded to the

Download Manager, which is responsible for down-

loading the determined dependencies. The Download

Manager component is reusable within the frame-

work, since different deployment technologies can

use the same method for specifying external depen-

dencies. For example, the utility Wget to download

ﬁles from the Web is supported by various deploy-

ment technologies, such as Ansible or Bash scripts.

4 VALIDATION & EVALUATION

In this section, we provide details about our proto-

typical implementation of the Self-Containment Pack-

ager Framework. In order to evaluate our prototype,

we also compare the time required for the provision-

ing of both, a self-contained deployment package and

a non-self-contained deployment package describing

the provisioning of a LAMP stack. Moreover, we

evaluate the time required for transforming a non-self-

contained deployment package into a self-contained

deployment package and compare the size of both.

4.1 Validation

For validating the practical feasibility of our ap-

proach, we use the deployment modeling language

TOSCA for the following reasons: (i) it provides a

vendor- and technology-agnostic modeling language,

(ii) it is ontologically extensible (Bergmayr et al.,

2018), and (iii) it is fully compliant with the Essen-

tial Deployment Metamodel (EDMM) (Wurster et al.,

2019). In the course of a systematic review, the es-

sential parts supported by declarative deployment au-

tomation technologies were derived and showed how

they can be mapped to EDMM. Therefore, EDMM

provides a technology-independent baseline for de-

ployment automation research and a common under-

standing of declarative deployment models (Wurster

et al., 2019). For testing the resulting deployment

packages of our prototype, we use the OpenTOSCA

ecosystem (Breitenb

ucher et al., 2016), a standard-

compliant open-source toolchain, used for provi-

sioning and managing of TOSCA-based deployment

packages, called Cloud Service Archives (CSARs)

. In

particular we use Winery

(Kopp et al., 2013), an ap-

plication enabling to model TOSCA-based topologies

graphically and OpenTOSCA Container

for deploy-

ing the modeled and packaged applications.

Our TOSCA-based prototype

of the Self-

Containment Packager Framework is implemented

using Java version 1.8. It is capable of resolving ex-

ternal dependencies speciﬁed using Apt-get and Apti-

tude for Bash scripts, Apt-get for Ansible playbooks,

as well as the creation of Docker images containing

all dependencies based on a Dockerﬁle. For exam-

ple, in order to ﬁnd artifacts implemented as a script,

the framework iterates over all artifacts contained in

a CSAR and checks if their ﬁle endings matches

Additional information about the ecosystem and docu-

mentation can be found at http://opentosca.org

https://github.com/OpenTOSCA/winery

https://github.com/OpenTOSCA/container

https://github.com/zimmerml/TOSCA packager

Self-contained Service Deployment Packages

377

“*.sh” or “*.bash”. Next, the found scripts will

be searched for deﬁned “apt-get install” commands,

since these commands indicate that the CSAR is non-

self-contained and has speciﬁed external dependen-

cies. If so, the respective ﬁle will be forwarded to

the “apt-get” plugin for further processing. There, the

“apt-get install” command is analyzed and checked

which installation ﬁles are required for installing the

deﬁned component. These installation ﬁles, for ex-

ample, Debian packages (*.deb), are downloaded and

packaged into the CSAR. However, since each de-

pendency can have its own dependencies again, de-

ﬁned external dependencies are resolved recursively.

For creating Docker images based on Dockerﬁles, our

prototype utilizes the Docker CLI. Therefore, Docker

needs to be installed on the same machine as our pro-

totype is used on. After all external dependencies are

resolved, downloaded, and packaged into the CSAR,

this now resulting self-contained CSAR can be tested

automatically (Wurster et al., 2018) by using it as in-

put of the OpenTOSCA Container in order to deploy

it into an environment without Internet access.

4.2 Evaluation

For evaluating our prototype we created a CSAR for

provisioning a LAMP stack on our in-house hypervi-

sor vSphere (CSAR A). The corresponding TOSCA-

based deployment model is illustrated in Fig. 4. The

CSAR contains two artifacts implemented as Web

Services (“HypMngmt.war” and “VMMngmt.war”)

for creating a virtual machine using the web ser-

vice API of the hypervisor vSphere as well as to up-

load ﬁles and run commands on this virtual machine

using SFTP and SSH protocol. Furthermore, the

CSAR contains three artifacts implemented as Bash

scripts (all named “Install.sh”) for installing Apache,

MySQL, and PHP. Technically, the “transferFile” op-

eration of the Ubuntu node is used in order to upload

these three scripts to the virtual machine. Further-

more, the “runScript” operation is used in order to in-

voke them directly on the virtual machine. Internally,

the scripts are using the “apt-get install” command

in order to install Apache, MySQL, and PHP. Thus,

the described CSAR is non-self-contained, since the

components and their dependencies need to be down-

loaded ﬁrst on the virtual machine in order to be in-

stalled. For evaluating our framework with a second

CSAR, we additionally created a CSAR with a con-

tained Dockerﬁle (CSAR B). As Dockerﬁle, we used

an image also realizing a LAMP stack

. How the

transformation effects the provisioning time as well

as the size of the CSARs, is presented in Table 1.

https://hub.docker.com/r/tutum/lamp

(vSphere)

VMMngmt.war

runScript

transferFile

(MySQL)

(Ubuntu14.04)

(ApacheServer)

(PHP)

HypMngmt.war

createVM

Install.sh

install

Figure 4: LAMP stack modeled as declarative deployment

model used for evaluating our approach.

The transformation of CSAR A into a self-

contained deployment package using our prototype

took in average 55 seconds. Basically, this is the

time required for downloading the components and

its dependencies as well as to adapt the CSAR accord-

ingly. Furthermore, since all required installation ﬁles

and dependencies are added to the CSAR, the over-

all size of the CSAR grew from 28 MB to 143 MB.

The provisioning of the LAMP stack using the non-

self-contained CSAR took in average 164 seconds,

while the provisioning using the self-contained CSAR

took in average 160 seconds. In average 51 seconds

were required for creating the virtual machine. Thus,

the pure installation took 113 seconds in case of the

non-self-contained CSAR and 109 seconds in case

of the self-contained CSAR. While for the non-self-

contained CSAR all installation ﬁles and dependen-

cies need to be downloaded from the Internet, for the

self-contained CSAR, these ﬁles need to be uploaded

to the virtual machine. Thus, the overall provisioning

time remained almost equal for both CSAR variants.

For CSAR B, the size grew from 72 MB to 212 MB

and the transformation took 68 seconds in average. In

this test, the virtual machine was already running and

a Docker engine was installed on it. The provisioning

of the CSAR containing the Dockerﬁle took 48 sec-

onds in average, while the self-contained CSAR con-

taining the docker image took 60 seconds in average.

Table 1: Evaluation results.

CSAR Size

Transformation Provisioning

Time Time

CSAR A

28 MB

55 s

113 s

CSAR A

143 MB 109 s

CSAR B

72 MB

68 s

48 s

CSAR B

212 MB 60 s

non-self-contained;

self-contained

CLOSER 2020 - 10th International Conference on Cloud Computing and Services Science

378

5 RELATED WORK

Discovery and management of software dependencies

have been in the focus of numerous research papers.

One particular direction we are interested in is how

to achieve the portability of software by analyzing

and materializing its dependencies. Thus, in this sec-

tion, we complete our discussion about related work,

which we already discussed partially in Section 2.

Keller et al. (Keller et al., 2000) present a clas-

siﬁcation of dependencies and propose a technique

of how the management information can be collected

for IP-based services and applications. More specif-

ically, the authors describe the derivation of applica-

tions characteristics and interdependencies by analyz-

ing the system information repositories, such as Win-

dows Registry or Linux Red Hat Package Manager.

The main idea is to make use of the information avail-

able in system repositories by constructing functional

service dependency models which can be used for au-

tomatic dependency generation. In the context of self-

contained deployment packages, the idea to leverage

from system information repositories might be use-

ful in case the archive’s constituents installation re-

lies only on the usage of operating systems’ package

managers. However, the package manager installa-

tion command is not the only possible way to specify

how a required deployment artifact can be deployed.

Mugler et al. (Mugler et al., 2005) discuss the us-

age of Open Source Cluster Application Resources

(OSCAR) toolkit and its meta-packaging system for

distribution and installation of software for clus-

ters. So-called OSCAR packages might consist of bi-

nary software, e.g., RPM packages, plus additional

conﬁgurations, tests, and documentation. The au-

thors distinguish between native package systems like

RPM and meta-packaging system which operates on

a higher level to avoid coupling with a certain Linux

distribution by including native package system ﬁles

into the OSCAR packages. In the context of our

work, the idea to include various representations of a

particular software artifact is useful in order to sup-

port a broad spectrum of target platforms. How-

ever, this particular approach is not suitable for au-

tomatically transforming non-self-contained deploy-

ment packages into completely self-contained deploy-

ment packages, since the proposed OSCAR packages

need to be created in advance as well as manually.

Guo and Engler (Guo and Engler, 2011) intro-

duce a system called CDE which provides means to

achieve software portability by packaging the code,

data, and environment which are necessary for execu-

tion on x86 Linux machines. This approach is suit-

able for the cases where an application is available

for execution and is bound to Linux and a x86 ar-

chitecture. While this approach is based on building

virtual machine images, in contrast, our approach en-

ables the creation of technology-agnostic deployment

packages, supporting, e.g., cloud-native applications.

Etchevers et al. (Etchevers et al., 2011) present a

process for modeling and deploying distributed appli-

cations in the cloud. The process starts with mod-

eling a target application using an extended version

of Open Virtualization Format, a standard which pro-

vides means to describe software based on virtual sys-

tems. Again, this approach is mainly based on vir-

tual machines. However, bundling applications into a

virtual machine image is not enough for creating real

cloud-native applications (Leymann et al., 2016).

Fischer et al. (Fischer et al., 2012) describe the

process of complex application stacks conﬁguration,

installation, and management using a system called

Engage. The main idea is similar to conﬁguration

management systems like Chef or Puppet, with ad-

ditional enhancements. Based on the provided par-

tial installation speciﬁcations, Engage can generate

installation speciﬁcations which then will be used for

the deployment process. However, required pack-

ages are downloaded during the deployment process,

whereas, our goal is to materialize external dependen-

cies already beforehand of the deployment time.

Meng and Thain (Meng and Thain, 2015) demon-

strate how sophisticated execution environments can

be speciﬁed and materialized by using a tool called

Umbrella. The goal is to let user run a task via Um-

brella by providing all the required information in-

cluding an execution environment speciﬁcation. After

the task submission, Umbrella makes a decision re-

garding an execution engine, e.g., Docker or Amazon

EC2 suitable for running the task. Software depen-

dencies necessary for task’s execution are obtained by

the system. However, again this approach utilizes vir-

tual machine images and containers in order to create

self-contained execution environments, and ignores

other deployment technologies, for example, Ansible

or Chef. Furthermore, required ﬁles are downloaded

during the deployment time and not in advance.

Di Cosmo et al. (Di Cosmo et al., 2015) introduce

a toolchain called Aeolus Blender, which provides

means to automatically deploy cloud applications in

OpenStack. From the user’s perspective, the process

starts with providing initial application-related infor-

mation which triggers the computation of the com-

plete application’s installation architecture. In case

some conﬁguration information is missing the user

will be asked to provide it. Afterwards, the resulting

conﬁguration is used for the deployment of the appli-

cation in OpenStack. However, Blender is limited to

Self-contained Service Deployment Packages

379

OpenStack environments, and moreover, dependen-

cies are resolved during the deployment process, thus,

self-contained deployment packages are not created.

Further related research work in the area of

TOSCA is available from Brogi et al. (Brogi

et al., 2018a; Brogi et al., 2018b) and Kehrer

and Blochinger (Kehrer and Blochinger, 2018). In

their approaches, they try to synergically combine

TOSCA and Docker together, in order to enable au-

tomated deployment and orchestration support for

multi-component applications consisting of container

artifacts. However, while they are using the CSAR

format, their proposed approaches do not consider the

creation of self-contained deployment packages, in

contrast they use repositories, such as Docker Hub or

GitHub, to retrieve artifacts when they are required.

6 CONCLUSION

In this paper, we presented an approach for transform-

ing non-self-contained deployment packages into

self-contained deployment packages. With our ap-

proach, we enable to automatically deploy applica-

tions into an environment without Internet access, like

for example, into manufacturing environments which

for data security and privacy reasons often have no In-

ternet connection. Furthermore, our approach enables

the preserving of required software components and

dependencies, for instance, for research software used

in eScience. Therefore, we presented a system archi-

tecture of a Self-Containment Packager Framework

enabling this transformation by searching for artifacts

specifying external dependencies. Furthermore, these

dependencies are resolved, downloaded, as well as

packaged into the ﬁnal deployment package. More-

over, we introduced a method describing the system-

atically developing of such self-contained deployment

packages. The presented approach is validated by a

prototypical TOSCA-based implementation and eval-

uated, by comparing the time required for provision-

ing two exemplary non-self-contained CSARs with its

self-contained counterparts. Moreover, we compared

the size of the different TOSCA archive variants.

We plan to extend our approach to also cope with

other artifacts that can be contained in a deployment

package, e.g., process models, i.e., workﬂows, de-

scribing the steps to manage an application, e.g., to

scale or update it. For instance, instead of download-

ing external dependencies by artifacts, these process

models could be used for that. Therefore, in future

work we also want to check these process models, for

example, for outgoing requests to external resources.

ACKNOWLEDGEMENTS

This work was partially funded by the BMWi project

IC4F (01MA17008G), the DFG project SustainLife

(641730), and the European Union’s Horizon 2020 re-

search and innovation project RADON (825040).

REFERENCES

Bergmayr, A., Breitenb

ucher, U., Ferry, N., Rossini, A.,

Solberg, A., Wimmer, M., and Kappel, G. (2018).

A Systematic Review of Cloud Modeling Languages.

ACM Computing Surveys (CSUR), 51(1):1–38.

Breitenb

ucher, U., Binz, T., Kopp, O., Leymann, F., and

Wettinger, J. (2013). Integrated Cloud Application

Provisioning: Interconnecting Service-Centric and

Script-Centric Management Technologies. In On the

Move to Meaningful Internet Systems: OTM 2013

Conferences, pages 130–148. Springer.

Breitenb

ucher, U., Endres, C., K

epes, K., Kopp, O., Ley-

mann, F., Wagner, S., Wettinger, J., and Zimmermann,

M. (2016). The OpenTOSCA Ecosystem - Concepts

& Tools. European Space project on Smart Systems,

Big Data, Future Internet -Towards Serving the Grand

Societal Challenges -Volume 1: EPS Rome, pages

112–130.

Brogi, A., Neri, D., Rinaldi, L., and Soldani, J. (2018a). Or-

chestrating incomplete tosca applications with docker.

Science of Computer Programming, 166:194–213.

Brogi, A., Rinaldi, L., and Soldani, J. (2018b). TosKer: A

synergy between TOSCA and Docker for orchestrat-

ing multicomponent applications. Software: Practice

and Experience, 48(11):2061–2079.

Di Cosmo, R., Eiche, A., Mauro, J., Zacchiroli, S., Za-

vattaro, G., and Zwolakowski, J. (2015). Automatic

Deployment of Services in the Cloud with Aeolus

Blender. In Service-Oriented Computing. Springer.

Eilam, T., Kalantar, M., Konstantinou, A., Paciﬁci, G., Per-

shing, J., and Agrawal, A. (2006). Managing the Con-

ﬁguration Complexity of Distributed Applications in

Internet Data Centers. Communications Magazine,

44(3):166–177.

Endres, C., Breitenb

ucher, U., Falkenthal, M., Kopp, O.,

Leymann, F., and Wettinger, J. (2017). Declarative vs.

Imperative: Two Modeling Patterns for the Automated

Deployment of Applications. In Proceedings of the 9

International Conference on Pervasive Patterns and

Applications, pages 22–27. Xpert Publishing Services.

Etchevers, X., Coupaye, T., Boyer, F., and De Palma, N.

(2011). Self-conﬁguration of distributed applications

in the cloud. In 2011 IEEE International Conference

on Cloud Computing, pages 668–675. IEEE.

Fehr, J., Heiland, J., Himpe, C., and Saak, J. (2016).

Best Practices for Replicability, Reproducibility and

Reusability of Computer-Based Experiments Exem-

pliﬁed by Model Reduction Software. AIMS Math-

ematics, 1(3):261–281.

CLOSER 2020 - 10th International Conference on Cloud Computing and Services Science

380

Fischer, J., Majumdar, R., and Esmaeilsabzali, S. (2012).

Engage: A Deployment Management System. In

ACM SIGPLAN Notices, pages 263–274. ACM.

Guo, P. J. and Engler, D. R. (2011). CDE: Using

System Call Interposition to Automatically Create

Portable Software Packages. In Proceedings of the

2011 USENIX Annual Technical Conference, page

247–252. USENIX Association.

Guo, Y., Hu, X., Hu, B., Cheng, J., Zhou, M., and Kwok, R.

Y. K. (2017). Mobile Cyber Physical Systems: Cur-

rent Challenges and Future Networking Applications.

IEEE Access, 6:12360–12368.

Haque, S. A., Aziz, S. M., and Rahman, M. (2014). Re-

view of Cyber-Physical System in Healthcare. In-

ternational Journal of Distributed Sensor Networks,

10(4):217415.

Herry, H., Anderson, P., and Wickler, G. (2011). Automated

Planning for Conﬁguration Changes. In Proceedings

of the 25

International Conference on Large Instal-

lation System Administration, pages 57–68. USENIX.

Iosup, A., Ostermann, S., Yigitbasi, M. N., Prodan, R.,

Fahringer, T., and Epema, D. (2011). Performance

Analysis of Cloud Computing Services for Many-

Tasks Scientiﬁc Computing. IEEE Transactions on

Parallel and Distributed Systems, 22(6):931–945.

Kehrer, S. and Blochinger, W. (2018). TOSCA-based Con-

tainer Orchestration on Mesos. Computer Science -

Research and Development, 33(3):305–316.

Keller, A., Blumenthal, U., and Kar, G. (2000). Classiﬁca-

tion and Computation of Dependencies for Distributed

Management. In Proceedings of the Fifth IEEE Sym-

posium on Computers and Communications, pages

78–83. IEEE.

Kopp, O., Binz, T., Breitenb

ucher, U., and Leymann, F.

(2013). Winery – A Modeling Tool for TOSCA-based

Cloud Applications. In Proceedings of the 11

Inter-

national Conference on Service-Oriented Computing

(ICSOC 2013), pages 700–704. Springer.

Leymann, F. (2009). Cloud Computing: The Next Revolu-

tion in IT. In Proceedings of the 52

Photogrammet-

ric Week, pages 3–12. Wichmann Verlag.

Leymann, F., Breitenb

ucher, U., Wagner, S., and Wet-

tinger, J. (2017). Native Cloud Applications: Why

Monolithic Virtualization Is Not Their Foundation. In

Cloud Computing and Services Science, pages 16–40.

Springer.

Leymann, F., Fehling, C., Wagner, S., and Wettinger, J.

(2016). Native Cloud Applications: Why Virtual Ma-

chines, Images and Containers Miss the Point! In

Proceedings of the 6

International Conference on

Cloud Computing and Service Science, pages 7–15.

SciTePress.

Mahmud, R., Kotagiri, R., and Buyya, R. (2018). Fog Com-

puting: A Taxonomy, Survey and Future Directions,

pages 103–130. Springer.

Meng, H. and Thain, D. (2015). Umbrella: A Portable

Environment Creator for Reproducible Computing on

Clusters, Clouds, and Grids. In Proceedings of the 8th

International Workshop on Virtualization Technolo-

gies in Distributed Computing, pages 23–30. ACM.

Mesnard, O. and Barba, L. A. (2016). Reproducible

and Replicable Computational Fluid Dynamics: It’s

Harder Than You Think. Computing in Science Engi-

neering, 19(4):44–55.

Mugler, J., Naughton, T., and Scott, S. L. (2005). OSCAR

Meta-Package System. In 19th International Sympo-

sium on High Performance Computing Systems and

Applications, pages 353–360. IEEE.

OASIS (2013a). Topology and Orchestration Speciﬁcation

for Cloud Applications (TOSCA) Primer Version 1.0.

Organization for the Advancement of Structured In-

formation Standards (OASIS).

OASIS (2013b). Topology and Orchestration Speciﬁcation

for Cloud Applications (TOSCA) Version 1.0. Organi-

zation for the Advancement of Structured Information

Standards (OASIS).

Shrouf, F. and Miragliotta, G. (2015). Energy management

based on Internet of Things: Practices and framework

for adoption in production management. Journal of

Cleaner Production, 100:235–246.

Tsuchiya, A., Fraile, F., Koshijima, I.,

Ortiz, A., and Poler,

R. (2018). Software deﬁned networking ﬁrewall for

industry 4.0 manufacturing systems. Journal of Indus-

trial Engineering and Management, 11(2):318–333.

Wettinger, J., Breitenb

ucher, U., and Leymann, F. (2014).

Compensation-based vs. Convergent Deployment Au-

tomation for Services Operated in the Cloud. In

Proceedings of the 12

International Conference

on Service-Oriented Computing, pages 336–350.

Springer.

Wurster, M., Breitenb

ucher, U., Falkenthal, M., Krieger, C.,

Leymann, F., Saatkamp, K., and Soldani, J. (2019).

The Essential Deployment Metamodel: A System-

atic Review of Deployment Automation Technolo-

gies. Software-Intensive Cyber-Physical Systems.

Wurster, M., Kopp, U. B. O., and Leymann, F. (2018). Mod-

eling and Automated Execution of Application De-

ployment Tests. In Proceedings of the IEEE 22

In-

ternational Enterprise Distributed Object Computing

Conference, pages 171–180. IEEE Computer Society.

Zimmermann, M., Breitenb

ucher, U., Falkenthal, M., Ley-

mann, F., and Saatkamp, K. (2017). Standards-based

Function Shipping – How to use TOSCA for Ship-

ping and Executing Data Analytics Software in Re-

mote Manufacturing Environments. In Proceedings

of the 21

International Enterprise Distributed Object

Computing Conference, pages 50–60. IEEE Computer

Society.

Zimmermann, M., Breitenb

ucher, U., Guth, J., Hermann,

S., Leymann, F., and Saatkamp, K. (2018a). To-

wards Deployable Research Object Archives Based on

TOSCA. In Papers from the 12

Advanced Summer

School on Service-Oriented Computing, pages 31–42.

IBM Research Division.

Zimmermann, M., Breitenb

ucher, U., and Leymann, F.

(2018b). A Method and Programming Model for De-

veloping Interacting Cloud Applications Based on the

TOSCA Standard. In Enterprise Information Systems,

volume 321 of Lecture Notes in Business Information

Processing, pages 265–290. Springer.

Self-contained Service Deployment Packages

381
