State Management and Software Architecture Approaches in

Cross-platform Flutter Applications

Michał Szczepanik

and Michał Kędziora

Faculty of Computer Science and Management,

Wroclaw University of Science and Technology, Wroclaw, Poland

Keywords: Mobile, Flutter, Software Architecture, State Management.

Abstract: Flutter is an open-source cross-platform development framework. It is used to develop applications for

Android, iOS, Windows, Mac, Linux, and web. This technology was released on December 4, 2018, and it is

quite young technology with a lack of good architectural patterns and concepts. In this paper authors compared

state management approaches used for Flutter applications development and architecture. They also proposed

a combination of two approaches that solve the main problem of existing approaches related to global and

local state management. The proposed solution can be used for development even complex and big Flutter

applications.

1 INTRODUCTION

Nowadays, almost all type of business needs a mobile

application to existing. The cost of its development

depends on complexity and requirements according

to market coverage. To reduce it usually hybrid or

multiplatform (cross-platform) solutions are used.

Unfortunately, this kind of solution usually uses

totally different patterns and architectural concepts

compared to native Android or iOS applications.

There is typically a blocker, or the main reason of

project delays or even fail. There were a lot of hybrid

(cross-platform) technologies like PhoneGap,

Sencha, Cordova, Ionic, Xamarin and many more.

Most of them are not in use or it is their endgame now,

mostly because they were limited and needed

knowledge from many areas including framework

itself and platforms natively. Currently, only React

Native and Flutter are in the game for most of the new

hybrid projects.

1.1 React Native vs Flutter

The way how these two frameworks work is totally

different: React Native uses the same fundamental UI

building blocks as regular iOS or Android apps and

https://orcid.org/0000-0001-9801-992X

https://orcid.org/0000-0002-7764-1303

the Java Script code runs in a separate thread and

communicates with native modules through a bridge.

Flutter, on the other hand, is ahead of time

compiled to a machine code (arm/x86) and provides

better performance and even security related to

difficulties of reverse engineering (Kedziora, 2019).

Not only the UI components are compiled, but the

whole logic also. Sometimes Flutter apps are even

faster than native Android application, but it depends

mostly on device type and operating system version.

Figure 1: Flutter and React Native search trend during last

3 years, based on https://trends.google.com/.

A developer can use JavaScript for React Native

and Dart for Flutter. The biggest mistake done by

many companies is to ask JS/React developers to

design and develop a big and complex mobile app.

Szczepanik, M. and K˛edziora, M.

State Management and Software Architecture Approaches in Cross-platform Flutter Applications.

DOI: 10.5220/0009411604070414

In Proceedings of the 15th International Conference on Evaluation of Novel Approaches to Software Engineering (ENASE 2020), pages 407-414

ISBN: 978-989-758-421-3

407

Web and mobile are different worlds and

understanding of iOS and Android ecosystem is much

more difficult to learn than React Native.

Additionally, for most of the hybrid applications there

is a risk that some parts of functionalities will need

separate native implementation and developer who

knows it is a big value. For React Native application

the knowledge about the mobile operating system and

even its edge cases is mandatory. For Flutter

applications, components code is system

independent, which does not require that deep level

of platform knowledge. That why the popularity of

this platform and its community growing that fast, see

figure 1.

1.2 Why Flutter

Flutter as a framework is very promising and right

now has a big dev community. Even currently we can

find complex apps in the market which are based on

Flutter, like Alibaba, Google Ads, Reflectly, Birch

Finance, Hamilton Musical, Hookle (Skuza, 2019).

In the Authors opinion, this technology is a good

choice for small and medium-size applications or

when content and basic features require constant

iteration.

The technology potential is also big as during Flutter

interact conference Google introduces support for

web applications (Sneath, 2019). Dart language is

also the fastest-growing programming language

nowadays. Its list features added during the last two

years is also big and includes extension functions,

null safety support.

2 SOFTWARE ARCHITECTURE

There are many definitions of software architecture.

According to The Institute of Electrical and

Electronics Engineers Standards Board definition

(IEEE std 1471-2000, 2007) it is the basic structure

of the system which includes its components,

interrelationships, way of work and rules establishing

the way of its construction and development. Other

definitions from literature (Knodel, 2017) (Abboud,

2017) (Martin, 2017) are similar to general one:

software architecture is the defining and structuring

of a solution that meets technical and operational

requirements. Software architecture optimizes

attributes involving a series of decisions, such as

security, performance, and manageability. These

decisions ultimately impact application quality,

maintenance, performance, and overall success. For

current research Authors define it as a structure of

structures of the system which comprise the software

elements, the externally visible properties of those

elements and relationships among them.

3 EXISTING STATE

MANAGEMENT APPROACHES

In Flutter everything is a widget and additionally, user

interface (UI) depends on the state (Zammetti, 2019).

Most of the samples and first Flutter applications

were designed in a way where logic and UI are mixed,

this caused that code was really difficult to manage

and maintain (Fayzullaev, 2018). That why managing

state in an application is one of the most important

and necessary processes in the life cycle of a Flutter

application. Unfortunately, this technology is very

young and there are no general patterns and good

practices defined. During the last two years only, few

patterns mostly form React world (Paul, 2016) was

ported to Flutter:

 ScopedModel,

 Redux (Paul, 2019),

 BLoC,

 MocX.

They mostly use data flow and reactive programming.

Each of them supports global or local state. Global

state is the main state which can be accessed in the

whole app for example a user is logged in. Local state

is related to only one component of the application for

example screen or widget.

3.1 ScopedModel

ScopedModel is a set of utilities that allow passing a

data Model from a parent Widget down to its

descendants. It is one of the most basic concepts for

Flutter application and was designed by the Fuchsia

OS development team. ScopedModel concept uses 3

classes:

 Model,

 ScopedModel,

 ScopedModelDescendant.

A Model is a class that holds the data and business

logic related to the data. It is implemented as an

observable (listenable) interface and can notify others

who might be interested in knowing when a change

was applied.

ScopedModel is a main component, similar to a

Provider, which holds the Model and allows:

 the retrieval of the Model,

ENASE 2020 - 15th International Conference on Evaluation of Novel Approaches to Software Engineering

408

 the registration of the context as a dependency

of the underlying InheritedWidget, when it is

requested.

The ScopedModel is based on an

AnimatedBuilder which listens to notifications sent

by the Model and then rebuilds an InheritedWidget

which, will be requested all the dependencies needed

to rebuild.

ScopedModelDescendant is used to find the

appropriate ScopedModel in the Widget tree. It will

automatically rebuild it whenever the Model notifies

that change has taken place.

This concept is good for small applications when

only a few shared (global) states are used.

3.2 Redux

Redux is an Application State Management

framework and its main objective is to manage a

global state in the application (Paul, 2019). Mainly

used in React applications, but it also ported to the

Flutter framework.

Redux architecture uee the following principles:

 Unidirectional data flow,

 one Store,

 Actions,

 MiddleWare,

 Reducers.

A Store acts like the orchestrator of Redux. The

Store mainly:

 stores only one State,

 exposes one entry point, called dispatch which

only accepts Actions in arguments,

 exposes one getter to fetch the current State,

 allows to register or unregister to be notified

via StreamSubscription of any changes applied

to the State,

 dispatches the actions and the store to the first

MiddleWare

 dispatches the actions and the current state to a

Reducer (which might be a façade for several

reducers)

Actions are the only types of input accepted by the

Store access point. Actions, combined with the

current State are used by the Middleware and Reducer

to process some function, which could lead to

amending the State. Actions only describe what

happened and do not store any data.

A Middleware is a function which is usually

running asynchronously, based on an Action or state.

A Middleware simply uses a State or an Action as a

trigger but does not change the State itself.

A Reducer is a synchronous function which does

some processing based on the Action and the State.

The outcome of the process might lead to set a new

State. The Reducer is the only component allowed to

change the State.

It is important to note that, according to Redux

recommendations and good practices, there can be

only one single state store per application. To split the

data handling logic, it is advised to use reducer

composition instead of many stores. It is also not

recommended for application which required

integration with cloud base storage like Firebase

according to limited state management and usually

complex data storage which need to be managed.

3.3 BLoC

The Business Logic Component pattern or as it is

widely known the BLoC pattern is a state

management system for Flutter. It is recommended by

Google developers to be used in the applications. It

helps in managing state and make access to data from

a central place in your project.

The BLoC pattern does not require any external

library or package as it simply relies on the use of the

Streams. The concept is very similar to MVVM

(Model – View – ViewModel) but required usage of

streams. However, for more friendly features (e.g.

Subject), it is very often used with the RxDart

(ReactiveX extension for Dart) package. In this

pattern data are flowed from the BLoC to the UI or

from UI to the BLoC in the form of streams.

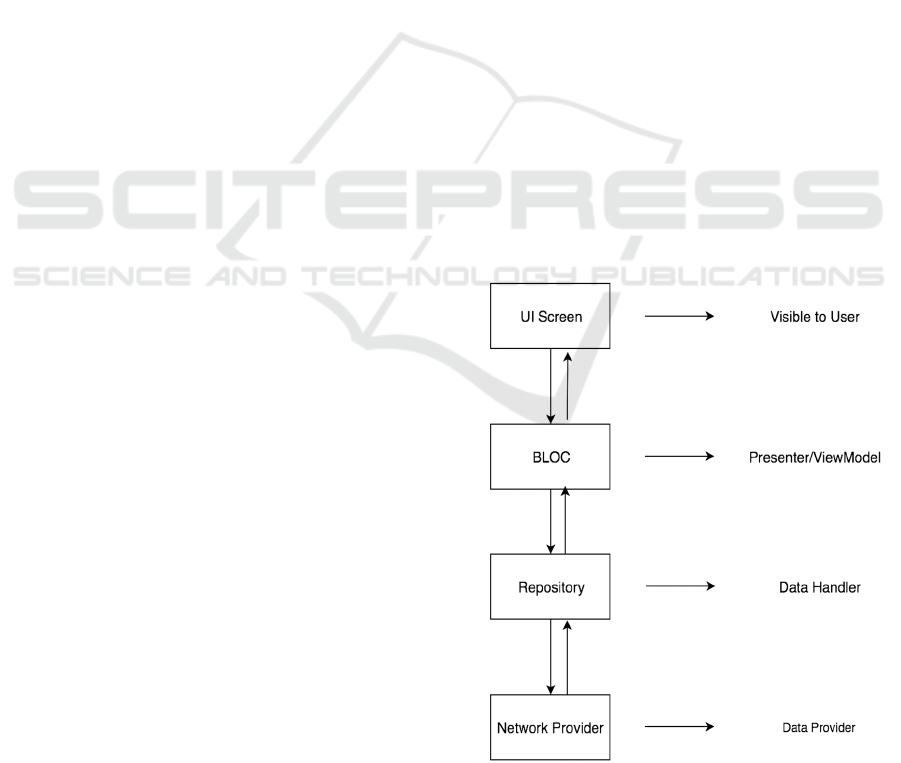

Figure 2: BLoC architecture schema.

State Management and Software Architecture Approaches in Cross-platform Flutter Applications

409

The Flutter version of BLoC pattern relies on:

 StreamController

 StreamBuilder

 StreamSubscription

 BlocProvider

A StreamController exposes a StreamSink to

inject data into the Stream and allow Stream to listen

to data which are inside the Stream.

A StreamBuilder is a Widget which listens to a

stream and rebuilds when new data is emitted by the

it.

A StreamSubscription is a interface that allows to

listen to the data being emitted by a stream and react.

A BlocProvider is a convenient Widget, used to

hold a business logic and rules. It makes them

available to descendant Widgets.

3.4 MobX

MobX is a state management solution that helps in

managing the local state within Flutter application.

Some of the core principles of MobX are:

 it can have multiple stores to handle the state of

the application,

 anything that can be derived from the state

without any further interaction is a derivation,

 action is any piece of code that can change the

state,

 all derivations are updated automatically and

atomically when the state changes.

Unlike other state management patterns in Flutter

such as BLoC, which was built on the principle of

using streams to propagate changes, and Redux,

which was built on the philosophy that an application

possesses a single source of truth from which widgets

inherit, MobX was built on the simple philosophy that

anything that can be derived from the application

state, should be derived. It uses transparent functional

reactive programming, MobX provides coverage for

all properties in an application state that are defined

with the likelihood to change and rebuilds the UI only

when properties change. Unfortunately,

implementation of this pattern without any external

library is very difficult, which provide some

limitations and additional dependencies

4 BLoC WITH REDUX LIKE

STORE

Both most popular state management concepts, which

are BLoC and Redux, have some disadvantages.

BLoC should not be responsible to keep the

application’s state. It was designed to control many

more local states. Pure BLoC should delegate this

responsibility to some other component which is

dedicated to state management in way which Redux

concept is better.

The BLoC pattern is a great way to encapsulate

business logic and Redux is a great state management

paradigm. Combining the two of them can create a

clean logic layer in the application, see figure 3.

Combination of BLoC which use many state stores in

Redux design way should allow developers to design

clean and easy to maintain code (Martin, 2008).

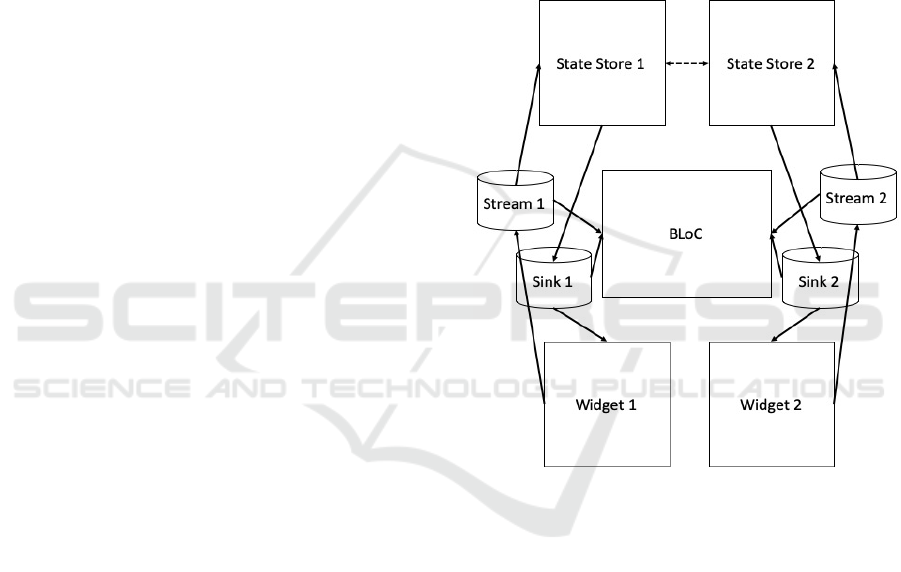

Figure 3: BLoC with multi state stores (own work).

5 ARCHITECTURES

COMPARISON

The comparisons of the architecture approaches is

done on two samples Flutter project. Each project is

written in four versions:

 ScopedModel,

 Redux

 BLoC,

 BloC with store (proposed).

The MobX solutions required specific library

which hide most of the complexity, so it cannot be

correctly compared with other solutions. Each

architecture will be compared based on: code

complexity, code execution, architecture and flow

ENASE 2020 - 15th International Conference on Evaluation of Novel Approaches to Software Engineering

410

complexity, number of rebuilds (UI performance) and

code isolation.

5.1 Case 1: User Login Screen

This common use-case for many applications is very

interesting since it involves some type of application

State. In this example the page to act as follows:

before login

 two text areas to provide username and

password with error handling,

 login button which start process,

 progress indicator which simulated

authentication process is on-going,

 the username of the authenticated user together

with a button to log out.

5.1.1 Code Complexity

There is no big difference in code complexity because

this sample is basic. It handles only few states like

password and username are incorrect, user is logged

in or not. There are only two logic points which are

changing the state login button and logout which can

be done from any scree in the application. For both

ScopedModel and BLoC solutions there were need to

inject their respective model and bloc on top of the

MaterialApp, to be available to logout from anywhere

later on.

In Redux, the solution needs to use to many more

files compered to otherers even when all actions are

stored in one place. The ScopedModel solution

requires fewer files as the model control and store

both the data and the logic. The BLoC solution

requires one additional file, compared to the

ScopedModel, because it requires to split model and

logic. Proposed solution which is BLoC with store

works in similar way as standard BLoC, but depends

on components in the app the number of file can be

increased, additionally sharing of user login state can

provide some complexity in the application.

5.1.2 Code Execution

The number of lines of code which is executed is the

biggest in Redux. It is mostly caused by the way how

a reducer is written which based on condition

evaluations such as: “if action is … then”, and the

same applies to the MiddleWares.

Because of the implementation made by the

flutter_redux package, a StoreConnector requires a

converter, which sometimes is not necessary. This

converter is meant to provide a way of producing a

ViewModel.

Other solutions like ScopedModel and both BLoC

based solutions seem to be the ones which require less

code execution.

5.1.3 Architecture and Flow Complexity

In case of Redux the code is relatively simple and

easy to follow because there is only an Action that

triggers all MiddleWares to be run in sequence and

then the Reducer which needs to do things based on a

comparison on an Action type. Unfortunately, when

additional logic and use cases will be added to the

application, it will require refactoring and usage of

reducer composition.

The ScopedModel solution is the one which leads

to the simplest code: there is only call a method which

updates the model that notifies the listeners.

However, it is not obvious for the listeners to know

the reason why they are being notified since any

modification to the model generates notifications,

even when it is not required by current listener.

The BLoC solutions are a bit more complex as it

involves the notion of Streams.

5.1.4 Number of Widgets Rebuilds

The number and part of Widgets tree which is

affected by rebuilds is one of the mandatory

parameters for the architecture. Flutter was designed

to provide 60 and more frame per seconds, that why

it is important to reduce number of Widgets which are

rebuild after any state change in the application. Each

rebuild may affected performance of the application

an reduce number of frames.

The ScopedModel solution is the one that

produces the more builds since each time a Model

notifies its listeners, it rebuilds the whole tree under

the ScopedModel.

The flutter_redux library internally uses the

notion of Streams to react on changes applied to the

State, so for basic implementation without context

only the StoreConnector will be rebuilt. This makes

the flutter_redux implementation the most optimal for

that case from a rebuild perspective.

In the BLoC solutions which based on

StreamBuilder there is similar situation as for Redux

– only related to current state part of widget tree will

be rebuilt.

5.1.5 Code Isolation

In Redux Reducers and MiddleWares are mostly top-

level functions and methods and not part of a class.

As a consequence, nothing would prevent calling

State Management and Software Architecture Approaches in Cross-platform Flutter Applications

411

them outside of the Redux Store scope and it can

difficult to manage in big, complex applications.

ScopedModel and BLoC tend to prone code

isolation: one specific class for the model or the

BLoC.

5.1.6 Conclusions

For this specific case in which there was mostly

global state the Redux solution can be used, but the

advantage of it is only little. It was the best in case of

performance and number of rebuilds, but the code

isolation can be problematic for maintenance.

For ScopedModel and BLoC some additional

effort is required for implementation to handle logout

functionality in proper way. Proposed solution which

is BLoC with storage do not provide any benefits and

works in similar way as standard known form

literature BLoC patter.

5.2 Case 2: Dashboard Application

This case is application in which user can

dynamically add some panels to the dashboard which

presents different source of data. In the sample

application user can see currency exchange rate.

Additionally, the user may turn on or off the real-time

data fetching for each of panels, individually.

5.2.1 Code Complexity

Pure Redux principle required to use one Store per

application which caused that this application is really

difficult to implement in pure Redux.

ApplicationState required to remember and handle

each individual panel. When multiple Storage will be

used (break Redux principle) the implementation is

simpler, and the code is cleaner.

The ScopedModel and BLoC versions are very

similar. Proposed solution (BLoC with storages)

additionally provides isolations between panels and

their states which allow to reduce complexity of data

synchronization.

5.2.2 Code Execution

This is similar to case 1 (chapter5.1.2).

Redux executes much more code than

ScopedModel and both BLoC solutions as the reducer

is based on condition evaluations. In addition, three

instances of StoreConnector are needed: to add new

panel, to fetch currency data and to control

synchronization status.

ScopedModel requires additional code execution

than BLoC, because it relies on listenable widget to

rebuild each time the Model changes. This requires,

additionally injector (ScopedModel) and two

ScopedModelDescendant (for history and

synchronisation status) per Panel.

BLoC is the solution which executes the less code.

Per Panel, it requires: StreamBuilder to display the

stats and additional StreamBuilder to handle the

synchronization status.

For proposed solution compered to bloc

additional store is needed per panel, but it allows to

reduce data synchronisation complexity and call

update of the UI only when data are really changed.

5.2.3 Architecture and Flow Complexity

The Redux solution is the most complex as it requires

the dispatching of Actions at 3 different levels: to add

new panel, to fetch currency data and to control

synchronization status.

The complexity of ScopedModel and BLoC

solutions is only located at the Model and BLoC

levels. Each panel has its own Model or BLoC and

the code is much less complex end easier to maintain

compared to Redux. In proposed solution

architectural complexity is similar.

5.2.4 Number of Widgets Rebuilds

Pure Redux solution is the one that causes the most of

rebuilds. As the implementation, based on one Store

per Application, each time a change applies to the

ApplicationState and everything need to be rebuilt.

No meter which action user do add new panel or turn

off/on synchronization for one of them or there will

be an update of data for one of currency the widgets

tree will get information about changed state.

In non-standard implementation of Redux with

multi stores the number of rebuild will be reduced and

separated per panels.

As regards the ScopedModel solution, the number

of rebuilds is more limited than in Redux and it is

done only per panel.

The standard BLoC block is the one that requires

rebuilds only for specific widgets not whole panel as

for ScopedModel.

The proposed solution additionally can reduce

number of rebuilds which are additionally limited to

cases when data related to state is really change.

5.2.5 Code Isolation

The problem of code isolation occurs only for Redux

as data (state) can be changed from each part of the

code. For other solutions they are isolated by Model

or BLoC.

ENASE 2020 - 15th International Conference on Evaluation of Novel Approaches to Software Engineering

412

5.2.6 Conclusions

For this specific case, from both code complexity and

rebuilds perspectives the BLoC and proposed BloC

with storages are the best.

The Redux architecture is not optimal for this

solution, but it is still possible to use it, mostly with

multiple storages.

6 TESTABILITY

Automated testing falls into a few categories:

 A unit test tests a single function, method, or

class.

 A widget test (in other UI frameworks referred

to as component test) tests a single widget.

 An integration test tests a complete app or a

large part of an app.

A well-tested app has many unit and widget tests,

tracked by code coverage, plus enough integration

tests to cover all the important use cases. This advice

is based on the fact that there are trade-offs between

different kinds of testing, seen below.

Table 1: Tests levels comparison.

Uni

Wid

Inte

ration

Confidence low hi

hes

Maintenance

cos

low higher highest

Dependencies low more mos

Execution spee

quic

slow

For all architectures testability is on similar level.

The only difference is between unit and widgets type

of tests. For ScopeModel and Redux the logic

isolation is minimal and most of test cases requires

Widget level or on unit level with mocking. For

BLoC and proposed solution logic is separated and

implemented on pure Dart level which allow to easily

implement unit level test even without mock.

7 COMPARISON SUMMARY

7.1 ScopedModel

Pros:

 ScopedModel allows to easily regroup the

Model and its logic in a single location.

 ScopedModel does not require any knowledge

of Streams, which is good entry point for

beginners.

 ScopedModel can control global and local

states.

Cons:

 ScopedModel does not provide any logic which

allow to provide knowledge which parts of the

Model were changed.

 Cause too many rebuilds – each time when a

Model notifies its listeners.

 It can be used only for small not complex

application.

 Requires the use of an external package with

the risks that the package evolves with breaking

changes.

7.2 Redux

Pros:

 Redux allows to centralize the management of

state.

 Makes the state transition perfectly predictable

and thoroughly testable.

 Support for MiddleWares in the flow to track

logs or statistics.

 It forces the developer to structure the

application and use Event, Action and MVVM.

Cons:

 One single Store (pure version).

 Use of top-level functions/methods.

 Too many “if then” comparisons at Reducers

and MiddleWares levels.

 Too many rebuilds related to changes in stare.

 Lack of logic isolation.

 It can be used mostly for global state

management.

7.3 BLoC

Pros:

 It allows easy to regroup the business logic in a

single location.

 BLoC allows to determine with precision the

nature of any changes.

 It allows to reduce the number of rebuilds.

 It uses streams which allows to add

middlewares like logging or statistic collectors.

 It could be used for global and local state and

logic control

 It does not require the use of any external

package, as it can be easily implemented.

 It can be used for complex.

Cons:

 Required knowledge of streams

 Control of global state can be problematic

State Management and Software Architecture Approaches in Cross-platform Flutter Applications

413

7.4 BLoC with Storage

Pros:

 It allows easy to regroup the business logic in a

single location.

 It allows to separate storage per application

component

 It allows to determine with precision the nature

of any changes.

 It allows to determine real changes of data

(according to store changes).

 It allows to provide store to control global state.

 It allows to reduce the number of rebuilds.

 It uses streams which allows to add

middlewares like logging or statistic collectors.

 It could be used for global and local state and

logic control.

 It does not require the use of any external

package, as it can be easily implemented.

 It can be used for complex.

Cons:

 Required knowledge of streams.

8 CONCLUSIONS

The main goal of this research was a comparison of

architectures and state management approaches,

which can be used in Flutter applications. The

proposed solution additionally reduces the number of

rebuilds in a similar way as Redux for the global state,

but it allows to work with both global and local state-

oriented applications.

REFERENCES

Abboud M. 2017. Software Architecture Extraction: Meta-

model, model and tool. Génie logiciel [cs.SE].

Université de Nantes.

Fayzullaev, J., 2018. Native-like cross-platform mobile

development: Multi-os engine & kotlin native vs flutter.

IEEE std 1471-2000, 2007. The Institute of Electrical and

Electronics Engineers Standards Board: Recommended

Practice for Architectural Description of Software-

Intensive Systems, ISO/IEC 42010:2007(E) IEEE Std

1471-2000, 2007

Kedziora, M., Gawin, P., Szczepanik, M., & Jozwiak, I.,

2019. Malware Detection Using Machine Learning

Algorithms and Reverse Engineering of Android Java

Code. International Journal of Network Security & Its

Applications (IJNSA) Vol, 11.

Knodel J. and Naab M., 2017. How to Evaluate Software

Architectures: Tutorial on Practical Insights on

Architecture Evaluation Projects with Industrial

Customers. In IEEE International Conference on

Software Architecture Workshops (ICSAW),

Gothenburg, 2017, pp. 183-184.

Martin, R. C., 2017. Clean architecture. Prentice Hall

Martin, R. C., 2008. Clean code. Prentice Hall

Paul A., Nalwaya A. (2016) React Native Supplements. In:

React Native for iOS Development. Apress, Berkeley,

Paul A., Nalwaya A. (2019) Solving Problems Differently

with Flux and Redux. In: React Native for Mobile

Development. Apress, Berkeley, CA

Skuza B., Mroczkowska A., Włodarczyk D., 2019. Flutter

vs React Native – what to choose in 2020?,

https://www.thedroidsonroids.com/blog/flutter-vs-

react-native-what-to-choose-in-2020 (last accessed

12/30/19).

Sneath T., Scaramuzzi R., Fabbro A., 2019, Product

Keynote (Flutter Interact '19), https://

www.youtube.com/watch?v=ukLBCRBlIkk (last

accessed 12/30/19).

Zammetti F., 2019. Practical Flutter: Improve your Mobile

Development with Google’s Latest Open-Source SDK,

Apress.

APPENDIX

Code of tested applications in all variants is available

on github https://github.com/pwr-mszczepanik/

flutterarch.

ENASE 2020 - 15th International Conference on Evaluation of Novel Approaches to Software Engineering

414
