Integrating Model-Driven Development Practices into Agile Process:

Analyzing and Evaluating Software Evolution Aspects

Elton Figueiredo da Silva

, Rita Suzana Pitangueira Maciel

and Ana Patr

ıcia F. Magalh

aes

2,3

PGCOMP Computac¸

ao, UFBA Universidade Federal da Bahia, Salvador, Bahia, Brazil

Exact and Earth Science Department, UNEB Universidade do Estado da Bahia, Salvador, Bahia, Brazil

Post Graduated Program in Computing and Systems, Salvador University, Salvador, Brazil

Keywords:

Agile Methodology, Metamodeling in Agile Methods, Evolution of Software, Evolution of User Stories,

Software Process Model, Model-Driven Development, Metaprocess and Metamodeling, MDD and SCRUM

Integration.

Abstract:

Software use is increasing in different areas of society, and new proposals of development processes have been

presented to support this demand focusing on increase productivity and reduce time to market. In this context,

some software development processes emphasize source code production, such as agile processes, others focus

on modeling, such as Model-Driven Development (MDD). ScrumDDM is a hybrid metaprocess that integrates

MDD practices into the SCRUM method aiming to specify software processes instances which models can be

used in the agile development context. This paper presents a controlled experiment conducted to analyze the

effectiveness of a ScrumDDM instance of its ability to support the agility and the evolutionary aspects of this

software process. The results of the experiment showed that the models used in ScrumDDM gave extra support

for evolution without compromising the development agility by executing a set of model transformations while

preserving project code and documentation updated to support future software maintenance.

1 INTRODUCTION

Over the years, increasing demand for software prod-

ucts has been observed in different areas of our soci-

ety. To support this demand and reduce time to mar-

ket, high productivity in software development be-

comes essential. In this scenario, several software

development approaches are being proposed, such as

agile methods (Beck et al., 2001) and the Model-

Driven Development (MDD) (OMG, 2014).

Agile development aims to fast delivery of prod-

ucts, which adds value to the client business, i.e., the

software is incrementally developed and continuously

delivered. This approach reduces documentation and

considers code as the main artifact of the software de-

velopment process (Tom

as, 2009).

However, the possibility of building minimum

software documentation can bring some disadvan-

tages like the difﬁculty of software evolution and

maintenance, and understanding about the software

aspects by new development team members. Inade-

quate documentation of software developed by some

agile methods makes hard the product maintenance,

the changes traceability, and, consequently, proper

product evolution (Heeager, 2012)

On the other hand, in the MDD approach, mod-

els are central artifacts in the development: models in

high abstraction level are speciﬁed and (semi) auto-

matically converted into models in lower abstraction

levels until generating system source code (Brambilla

et al., 2012). MDD favors productivity increase by

automating the development process through the con-

version of abstract models into other models until

generating software code for different platforms. Ad-

ditionally, it provides detailed documentation to assist

maintenance (Brambilla et al., 2012). However, MDD

may not be agile enough to assure fast client software

delivery together with its documentation.

Hybrid processes proposals that integrate different

software development approaches represent alterna-

tives to increase the software life cycle (Alfraihi and

Lano, 2017a).

In this direction, (Sales, 2017) proposes a

metaprocess, named ScrumDDM, that integrates

MDD practice into the SCRUM agile process.

ScrumDDM allows hybrid processes instances to be

speciﬁed for model usage during agile development.

Thereby, models can be used for both project docu-

da Silva, E., Maciel, R. and MagalhÃ

ces, A.

Integrating Model-Driven Development Practices into Agile Process: Analyzing and Evaluating Software Evolution Aspects.

DOI: 10.5220/0009392501010110

In Proceedings of the 22nd International Conference on Enter prise Information Systems (ICEIS 2020) - Volume 2, pages 101-110

ISBN: 978-989-758-423-7

101

mentation and as input artifacts in code generation for

different platforms. ScrumDDM advances the state

of the art because the hybridization proposal is not

related to a speciﬁc domain, and also aspects related

to software evolution were considered, for example,

the documentation produced during software devel-

opment.

As a metaprocess, ScrumDDM must be instanti-

ated to a speciﬁc process to be used for the desired

domain. Therefore, processes for two different do-

mains were instantiated: (Braga, 2011) for Service

Oriented Architecture(SOA) and Qualitas (Almeida

et al., 2014) for MDD and TDD (Test Driven Devel-

opment).

This paper presents a controlled experiment that

measures the efﬁciency, software evolution, and

agility aspects of ScrumDDM through the ArqPro-

jProcess instance (Sales, 2017). The experiment re-

sults show that ScrumDDM is a promising approach

as its process instance could guide developers to cor-

rect source code and proposed models without signif-

icant development time increase.

The rest of the paper is organized as following:

section 2 introduces the concepts necessary for a bet-

ter understanding of the work and section 3 presents

the related works that integrate Agile Process and

MDD. Section 4 presents the proposed ScrumDDM

metaprocess. Section 5 presents the detailing of the

controlled experiment developed. Finally, section 6

presents the conclusion and future work.

2 BACKGROUND

Several approaches deal with software process devel-

opment. In this paper, we emphasize agile processes

and model-driven development (MDD).

2.1 Agile Processes

Agile processes ideas were proposed in the early 2000

base in the agile manifest (Beck et al., 2001). In con-

trast to the software development methodologies at

that time, agile processes promise software develop-

ment faster for enabling better adaptability and ﬂex-

ibility to the new user’s requests, allowing delivery

within the stipulated time by the users.

Agile processes follow the incremental process

model and are characterized by the valuing individ-

uals rather than pre-deﬁned processes and tools, con-

stant running software deliveries instead of compre-

hensive documentation; valuing collaboration with

the client, and fast response to change (Beck et al.,

2001). An example of an agile process widely used is

SCRUM (Schwaber and Sutherland, 2016).

The SCRUM differential is its focus on project

management, which allows the integration of agile

processes to other practices. The SCRUM framework

allows:

• to describe software functionality from the user

point of view and then generate software code;

• to specify user stories, describing necessary soft-

ware features. User software requirements are or-

ganized according to their priority in a product

backlog.

• to accommodate requirements changes of product

backlog along the software development (Press-

man and Maxim, 2016).

2.2 Model-Driven Development (MDD)

MDD is an approach that considers models as the

main element in software development (Maciel et al.,

2013). This approach tends to make software de-

velopment easier by elevating the problem abstrac-

tion level by modeling and transforming the soft-

ware requiremts, also documenting the system, stake-

holder’s attention concentrates on the software spec-

iﬁcation in detriment of code (Pressman and Maxim,

2016). MDD foments the increases of productivity

by reusing models in the generation of multiplatform

applications contributing to reducing the cost of de-

velopment and also creating software product docu-

mentation.

3 RELATED WORKS

This section presents proposals for the integration

of MDD and SCRUM approaches: (i) agility in the

MDD process; and (ii) MDD practice into agile meth-

ods.

The works proposed by (Ambler, 2006) and (Mel-

lor, 2004) propose the integration of Agile methods

and MDD. Thus, they use MDD as the main process

in addition to agile practices. The goal is to integrate

agile processes to specify models iteratively, i.e., con-

vert them, test, and modify in short, interactive, and

incremental cycles. Models should be as complete as

possible to be run by themselves.

The proposal of (Braga and Leal, 2013) integrates

MDD practices during the agile process life cycle.

Therefore, this proposal presents the Agile MDD con-

cept, and so the practices of MDD as metamodeling,

modeling, and use of transformations are added to

the SCRUM process. Transformations are used to

ICEIS 2020 - 22nd International Conference on Enterprise Information Systems

102

automate tasks in the phases Pregame, Game, and

PostGame of the scrum. Besides these already men-

tioned papers, others propose the integration of MDD

practices to agile processes (Ambler, 2003), (Santos

et al., 2018), (Mellor et al., 2005).

ScrumDDM uses an agile process SCRUM as the

primary approach, adding practices MDD to software

development. So it adopts the second strategy pre-

sented above. Its main difference from the other

works is that ScrumDDM, as metaprocess, can be

used for multiple domains (e.g., SOA, MDD, TDD,

Informations Systems, Web Application) to support

software maintenance and evolution. Neither of these

papers covers software evolution aspects as an objec-

tive to be achieved in their development. Addition-

ally, the metaprocess was evaluated by a controlled

experiment.

4 ScrumDDM METAPROCESS

ScrumDDM is a metaprocess that integrates a set of

practices from MDD to the agile method Scrum. It was

developed trying not to deviate the principles and val-

ues of agile methodology, affording the development

projects in different technologies, documentation, and

making possible that the software development occurs

quickly.

ScrumDDM is speciﬁed using the Software Pro-

cess Engineering Metamodel (SPEM) (OMG and

Notation, 2008) and implemented in Eclipse Pro-

cess Framework Composer (EPF, 2014). Software

Processes can be instantiated from ScrumDDM and

adapted to different domains. As recommended

in Scrum, ScrumDDM comprises three phases,

PreGame, Game, and PostGame. The ﬁrst two phases

integrate Model-Driven Development practices while

the PostGame phase does not hold any activity related

to MDD; it follows the SCRUM standard.

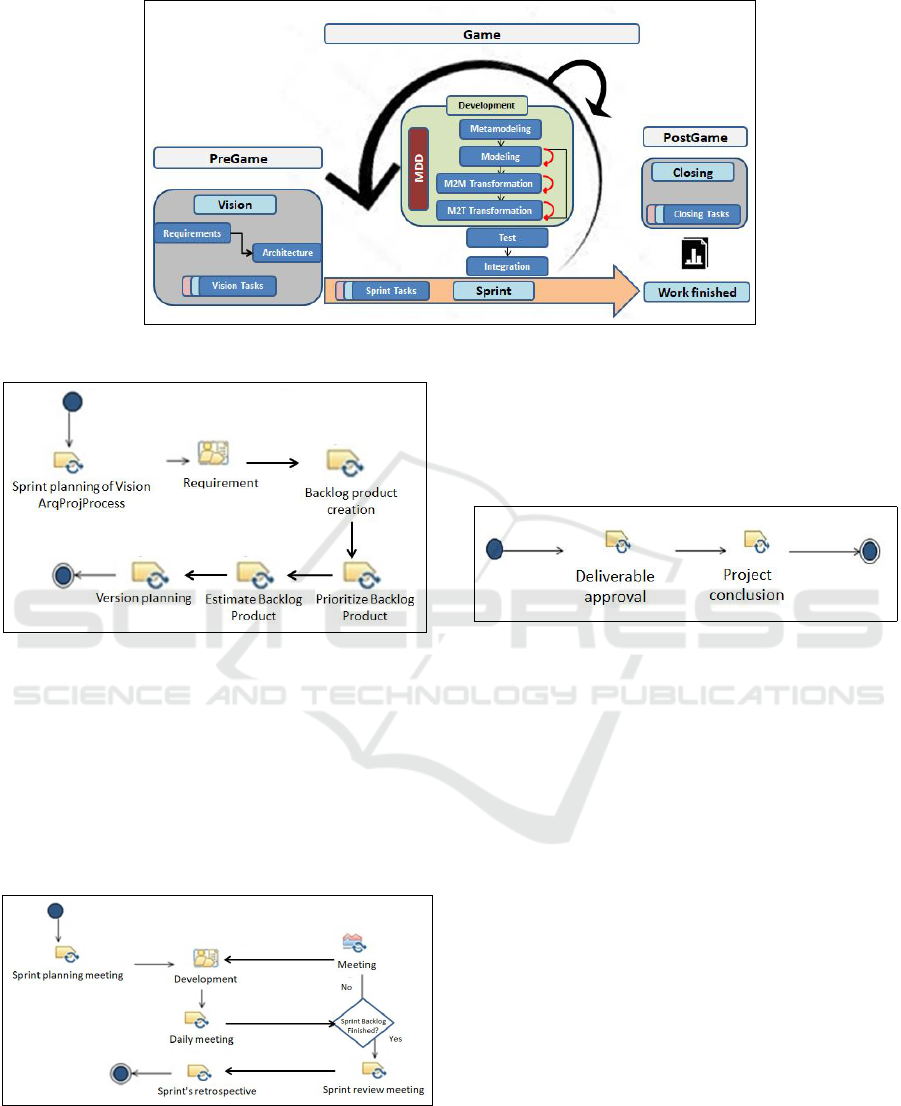

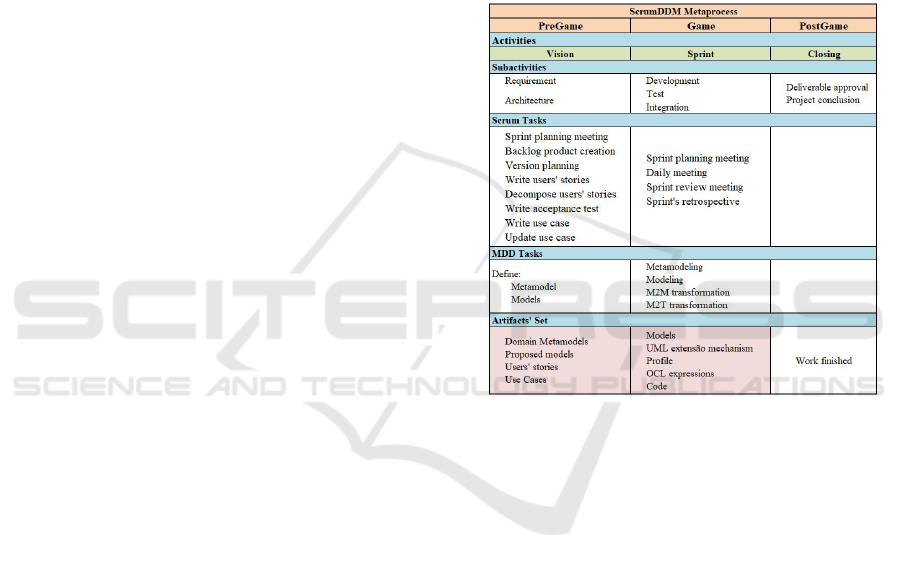

Figure 1 illustrates the life cycle of ScrumDDM

(Sales, 2017). After the software architecture and re-

quirements are deﬁned in PreGame phase, the phase

Game starts to develop a new iteration of the software

(called sprint) according to the requirements previ-

ously deﬁned to it. Each sprint comprehends, besides

activities originated from the agile methods (Planning,

Development, Testing, and Integration Meeting), the

activities related to MDD, e.g. Modeling and Run the

Transformations.

The main goal of the PreGame phase is to collect

the requirements that will be used as input to the ac-

tivities of the Game phase, as well as select / build the

metamodels, models and transformations (Model-to-

model (M2M) / Model-to-text (M2T)), which will be

used in software development.

In the Game phase, models are converted into other

models through the task running and models M2M

transforming. The execution of this phase occurs it-

eratively through the models reﬁnement until attend-

ing the goal deﬁned in the Vision activity or until the

model is converted into code.

In PostGame phase here are not any activities or

tasks related to MDD. It focuses on ﬁnalizing the

project and deliver it to the client.

Table 1: Summary of the ScrumDDM: Phases (PreGame,

Game and PostGame), activities (Vision, Sprint, and Clo-

sure), subactivities (Development, Testing, and Integration)

and tasks.

4.1 ArqProjProcess Instance

This section presents the ArqProjProcess (Sales,

2017), an MDD development process for SOA instan-

tiated according to the ScrumDDM and used in our

controlled experiment (Section 5).

ArqProjProcess comprises three phases PreGame,

Game, and PostGame according to our metaprocess

and it integrates into them the following activities:

Specify Trade Model, Analyze Services, Project Ser-

vices, and Development, from the ArqProjProcess

original process (Braga, 2011).

The PreGame phase in Figure 2 of ScrumDDM

instance (Sales, 2017) is initialized in Vision activ-

ity, with the Sprint Planning Meeting task. Its goal is

to build the Product Backlog through the tasks, Cre-

ate, Estimate, and Prioritize Product Backlog. The

user stories and the use cases developed are the input

artifacts for model building, such as the functional-

ity model and the business information model. Even

though you can use the Update and Write Use Case

tasks.

Integrating Model-Driven Development Practices into Agile Process: Analyzing and Evaluating Software Evolution Aspects

103

Figure 1: ScrumDDM Metaprocess Lifecycle (Adapted from Sales, 2017).

Figure 2: Activity Flow Vis

aoArqProjProcess (Adapted

from Sales, 2017).

The Game phase in Figure 3 of ScrumDDM instance

(Sales, 2017) starts with the task Planning Meeting. It

comprises subtasks related to software Development,

such as Specify Business Model, Analyze Service and

Design Service(not showed in the ﬁgure). After these,

the Daily Meeting task is triggered, and the Sprint

Review Meeting will later be executed. Finally, the

Sprint Retrospective task will be executed.

Figure 3: Activity Flow Sprint the phase of the Game

(Adapted from Sales, 2017).

The PostGame phase in Figure 4 of ScrumDDM in-

stance (Sales, 2017) aims to deliver the software to

the client. This project and the generated documen-

tation must comply with the needs speciﬁed by the

client in the Pregame phase and developed during the

Game phase. This phase consists of the Closing ac-

tivity and comprises the tasks Deliverables Approval

and Project Conclusion.

Figure 4: Activity Flow Closing. Activity Flow Closing

(Adapted from Sales, 2017).

In the end of PostGame phase, Stakeholders perform

the assessment according to the requirements devel-

oped and any nonconformities are adjusted before

delivery. Therefore, at this stage, the activities and

project closure are ﬁnalized.

5 ScrumDDM EVALUATION

Methods and processes for validation that involve hu-

mans are very challenging, and they should be carried

out in phases. Each phase should be an evolution from

the previous one. So, we used an incremental strategy

to evaluate ScrumDDM metaprocess. Initially, (Sales,

2017) analyzed the hybridization capability between

the agile method SCRUM and the MDD approach.

This paper presents the second study, which analyzes

aspects of the software evolution of ScrumDDM. For

this, three attributes were deﬁned in the controlled ex-

periment: correctness, completeness of code as well

as timing of development. So, we developed a new

release of an existing software adding new user sto-

ries as well as evolving stories from the early releases.

The evaluation was performed as a controlled experi-

ICEIS 2020 - 22nd International Conference on Enterprise Information Systems

104

ment and followed the phases: Scope, Planning, Run-

ning, and Data Interpretation and Analysis (Wohlin

et al., 2012).

5.1 Scope: Goal

The controlled experiment aimed to analyze

ScrumDDM about its capacity to evolve the software

and its development agility while performing this

evolution.

In order to assess the software evolution, we

analyzed the source code generated using the Ar-

qProjProcess process (ScrumDDM) compared to the

source code developed in an ad-hoc way, using a

standard release of Scrum, regarding correctness and

completeness attributes. To analyze the agility of the

evolutions, we used the timing attribute in minutes.

Figure 5 presents the experiment goal deﬁni-

tion according to the template Goal Question Metric

(GQM) (Caldiera and Rombach, 1994). To guide the

experiment, we also deﬁned the following research

questions (RQ):

• RQ1: Do the artifacts generated by ScrumDDM

inﬂuence in the amount of user stories correctly

developed compared to the development per-

formed directly in code? This question aims to

investigate if ScrumDDM inﬂuenced the number

of user stories correctly developed facing the same

stories developed using only Scrum;

• RQ2: Do the artifacts generated by ScrumDDM

inﬂuence the completeness of the user stories

compared to the development performed directly

in code? This question aims to investigate if

ScrumDDM inﬂuenced in the amount of the user

stories wholly developed compared to the same

stories developed with Scrum;

• RQ3: Do the artifacts generated by ScrumDDM

inﬂuence the time spent in developing the user

stories compared to the development performed

directly in code for the same users stories? This

question aims to investigate if ScrumDDM inﬂu-

enced in the agility of the development when com-

pared to the development performed by Scrum.

The metric used to measure correctness, completeness

and timing works as follows: for correctness, the de-

velopment of the evolution is considered correct if the

number of stories implemented divided by the total

number of stories evolved is equal to 1. For com-

pleteness, the development is considered complete if

all the user stories are implemented. In this case we

considered the completeness value as 1, otherwise it

is 0. The timing is measured in minutes.

5.2 Planning: Context Deﬁnition

The controlled experiment was conducted in an aca-

demic environment composed by undergraduate and

graduate students attending courses related to com-

puter science and professionals from the software de-

velopment area. In this experiment, besides knowl-

edge in UML and Java language, it was also required

from the participants, basic expertise in MDD. To

guarantee that the students presented those require-

ments, we selected only those who were/are part of

a scientiﬁc initiation project at the MDD area. Once

the participants preselection was made, it was applied

a survey so that this knowledge could be attested.

5.3 Experiment Planning

The design model used in this experiment covered

one factor, the development method, and two treat-

ments, the ScrumDDM approach, and the SCRUM

approach. Thus, the experiment was performed by

two groups, ScrumDDM Group, to develop software

evolution through modeling in ScrumDDM; and Con-

trolled Group, to perform the software evolution using

only Scrum. For both groups a presentation with all

the steps to be followed had been made.

The scenario of a bank conciliation software was

utilized for both groups and proposed changes in the

current user stories and new ones.

5.4 Planning: Variable Selection

In the performed experiment, the independent vari-

able was constituted in the method used to implement

stories and took two levels, the ScrumMMD approach

and the SCRUM approach. The dependent variables

were deﬁned as the user stories correctness, complete-

ness, and development timing.

5.5 Experiment Running

The study was conducted in an academic setting

with undergraduate and graduate students and some

technology professionals selected according to a pre-

deﬁned proﬁle. A group of 25 people answered the

survery which evoluated the proﬁle of the candidates.

Among them, 20 ones were selected and randomly di-

vided in two groups of 10. The others did not have the

minimum knowledge required to perform the study or

were unavailable.

The experiment was performed between October

and December 2018, and lasted, on average, 55 min-

utes of running time to Controlled Group and 38 min-

utes of running time to ScrumDDM Group.

Integrating Model-Driven Development Practices into Agile Process: Analyzing and Evaluating Software Evolution Aspects

105

Figure 5: Goal of the ScrumDDM metaprocess validation.

5.6 Data Collect

The data collected during the experiment was used as

input for the experiment analysis. We used the scale

in Table 2 to analyze the experiment data containing

the expected results after the experiment conclusion

by each participant.

Table 2: Template evaluation of results obtained after the

conclusion of experiment by each participant.

In Table 2, the columns (A) to (G) represent the

evolved or modiﬁed user stories, and the values at-

tributed to these columns represent the number of

changes expected to the development of each user

story in the existing software. For example, based

on the deﬁnition of the researcher, for the user story

represented by column D (i.e., Perform bank concil-

iation), the participant should perform 4 (four) evo-

lutions considering implementations in methods and

attributes.

5.7 Data Interpretation and Analysis

The collected data was analyzed considering each at-

tribute (metric), Group (ScrumDDM, Controlled) and

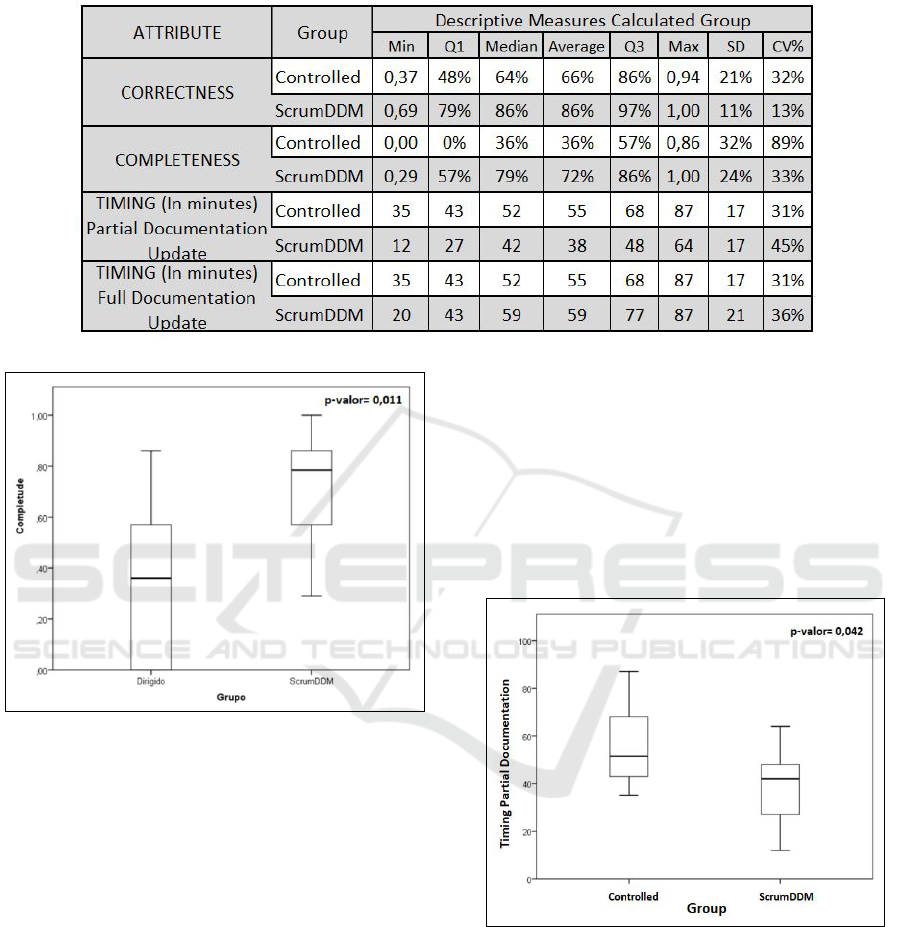

user stories (requirements) according to what is pre-

sented in Table 3: the minimum value observed (Min),

the ﬁrst quartile (Q1), median, the average, the third

quartile (Q3), the maximum amount observed(max),

the standard deviation (SD) and the coefﬁcient of

variation (CV).

In Table 3, we observed the calculated descriptive

measures based on the collected data, considering the

deﬁned and analyzed attributes of each group.

For correctness attribute, the average descrip-

tive measure of correctly developed stories of each

group points that the development performed by the

ScrumDDM Group (median= average = 86%) had

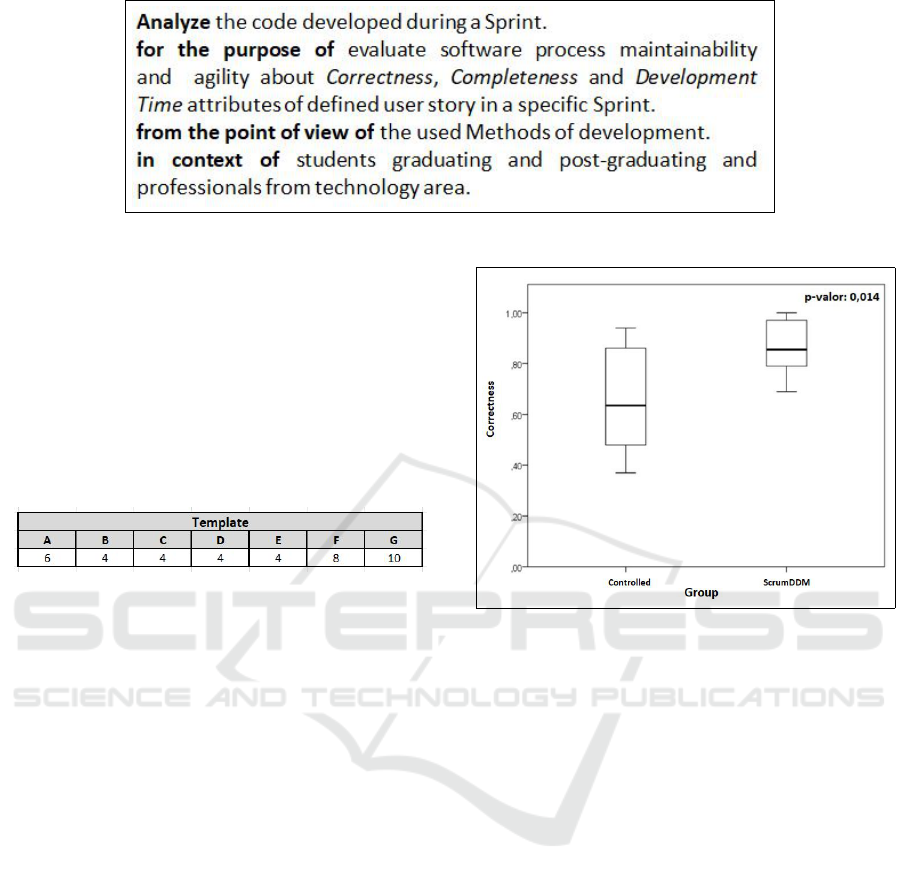

Figure 6: Comparison between ScrumDDM Group and the

Controlled Group for attribute correctness.

more correctly developed stories than the Controlled

Group (median= 64%; average= 66%), matching the

HP1 hypothesis (average correctness attribute per-

centage to ScrumDDM Group was larger than average

correctness attribute percentage to Group Controlled).

It is noticeable if we analyze the coefﬁcient of varia-

tion (CV), a dispersion measure that covers both av-

erage and standard deviation, we observed that the

stories developed by the ScrumDDM Group (13%)

showed less variation than the ones developed by the

Controlled Group (32%).

This variation can also be seen in the boxplot chart

in Figure 6 because the amplitude of the box for the

Controlled Group was larger than the amplitude of

the Group ScrumDDM. If we compare the median

of the two groups, we observe that the development

performed by the ScrumDDM Group was also supe-

rior to the one performed by the Controlled Group,

conﬁrming a better user stories evolution concision

in the results of the Group ScrumDDM. In the Con-

trolled Group, 75% of the participants got a number

of hits below 86% compared to the hits obtained by

ScrumDDM Group that exceeded this number.

For completeness attribute in Figure 7, the mean

descriptive measure of the stories correctly developed

ICEIS 2020 - 22nd International Conference on Enterprise Information Systems

106

Table 3: Measures for the attributes correctness, completeness and timing about the participant Groups (ScrumDDM and

Controlled).

Figure 7: Comparison between ScrumDDM Group and the

Controlled Group for the attribute completeness.

of each group points that the development performed

by the ScrumDDM Group (median= 79%, average

= 72%) had more correctly developed stories than

the stories developed by the Controlled Group (me-

dian = average = 36%), matching the HP1 hypoth-

esis (the average percentage of user stories devel-

oped in a complete way to Group ScrumMMD was

larger than average completeness attribute percentage

to Controlled Group). This is conﬁrmed if we analyze

the coefﬁcient of variation (CV), we observe that the

stores developed by ScrumDDM Group (33%) pre-

sented less variation than the ones produced by the

Controlled Group (89%). The results obtained by

ScrumDDM Group may point that these group re-

sults were more uniform than the results obtained by

Controlled Group. Therefore, the lower variability

of the ScrumDDM Group can evidence it presented

more standardized behavior compared to the Con-

trolled Group.

The development timing attribute was analyzed

considering two aspects: (i) when partial documen-

tation (Class Diagram) was updated and (ii) when

all the documentation (System Architecture Diagram,

Component Diagram, Sequencing Diagram, Archi-

tecture Diagram, Use Case Diagram) were updated,

besides the documentation that generates the project

source code.

Figure 8: Evaluation of timing attribute, when the

ScrumDDM Group partially updated the documentation.

Concerning only update of (i) documentation par-

tial (Class Diagram) in Figure 8, the central ten-

dency measures (median and average) for timing at-

tribute of the users stories developed by each group

points that the ScrumDDM Group (median= 42 min-

utes; average = 38 minutes) performed the evolution

faster and more agile than the Controlled Group (me-

dian= 52; average= 55 minutes), matching HP2 hy-

Integrating Model-Driven Development Practices into Agile Process: Analyzing and Evaluating Software Evolution Aspects

107

pothesis. The timing taken in software evolution by

ScrumDDM Group was shorter than the timing taken

by the Controlled Group. However, if we analyze

the coefﬁcient of variation (CV) in Figure 8, we see

that ScrumDDM Group development timing (43%)

presents larger variability than the Controlled Group

(31%). ScrumDDM Group presented asymmetry by

the left, fact explained by the shorter timings obtained

by half of the participants from this group that were

more agile than (75%) the participants of the Con-

trolled Group.

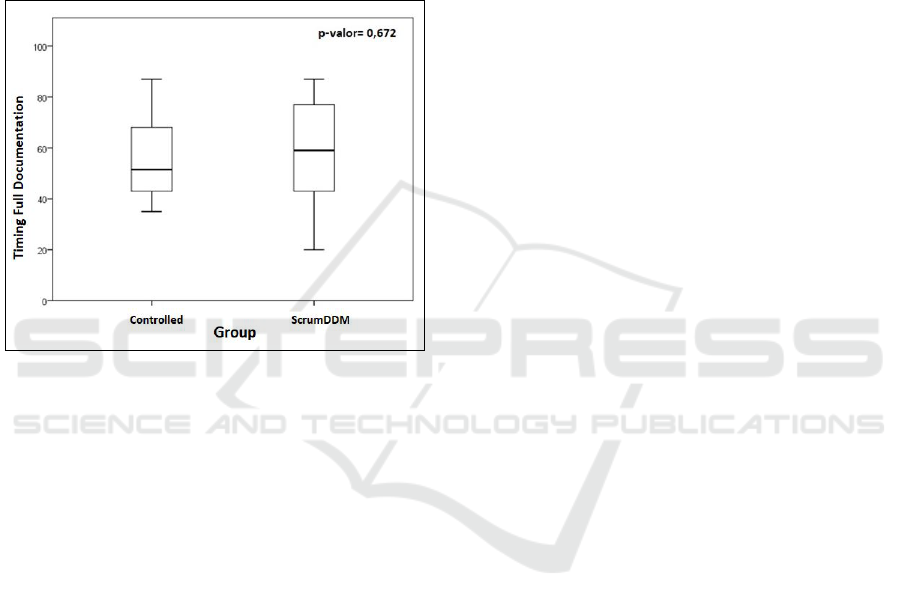

Figure 9: Evaluation of attribute timing, when the

ScrumDDM Group has updated all documentation.

Concerning update of (ii) all the documentation (Sys-

tem Architecture Diagram, Component Diagram, Se-

quencing Diagram, Architecture Diagram, Use Case

Diagram), besides the documentation that generates

the project source code in Figure 9, the central ten-

dency measures revealed that Controlled Group (me-

dian= 52; average = 55 minutes) presented shorter

timing to solicited evolutions development than the

development timing used by ScrumDDM Group

(median = average = 59 minutes), matching the

HP1 hypothesis. The development timing taken by

ScrumDDM Group was longer than the development

timing taken by Controlled Group. This group pre-

sented lower variability with a coefﬁcient of variation

equals 31%, while ScrumDDM Group presented a co-

efﬁcient of variation equals 36%. We can see that

even ScrumDDM Group having used more timing and

varied more, it did not mean that this timing increase

(4 min) inﬂuenced in the velocity of the metaprocess

usage; we may consider that all project documenta-

tion, not only the source code, was updated.

5.8 Hypothesis Analysis

Aiming to verify the existence of a signiﬁcant differ-

ence in the code developed by the two groups, the hy-

pothesis test was run (Wohlin et al., 2012) through the

Student’s t-test.

The meaningfulness difference between

ScrumDDM and Controlled group was analyzed

trough Student t-test to independent samples. These

statistic method assumptions, the distribution nor-

mality and the homogeneity of variations in both

groups were analyzed, respectively, using Shapiro

Wilk’s test (SW) (Miot, 2017). For the (SW(10)

ScrumDDM Group >0,932; p= 0,471; SW(10)

Controlled Group>0.932; p= 0,471) and the average

differences whose p-value in the test was less than or

equal to 0,05 were considered statistically signiﬁcant.

For correctness attribute, t-Student test, the differ-

ences observed (0,200) (what means that ScrumDDM

Group obtained 20% more hits in face of Group Con-

trolled) are statistically signiﬁcant (t(18)= -2,72; p-

value= 0,014; d= 0,54). The attribute correctness ef-

fect dimension to ScrumDDM Group is high (d=0,54)

and according to IC a 95% ] -0,35; -0,05[, the partici-

pants of ScrumDDM Group got a hit average between

0,05 (5%) and 0,35 (35%) more comparing to Con-

trolled Group participants.

For completeness attribute, ScrumDDM Group

obtained on average 72% (standard deviation: 24%)in

the amount of completely evolved stories, while Con-

trolled Group got on average 36% (standard devi-

ation: 32%).According to t-Student test the differ-

ences observed (0,360)(what means that ScrumDDM

Group obtained 36% of completeness compared to

Controlled Group) are statistically signiﬁcant t(18)=

-2,83; p-value= 0,011; d= 0,55. The effect/conﬁdence

difference of completeness attribute to ScrumDDM

Group is high (d=0,55) and according to IC at 95%]

-0,62; -0,09[. This dimension means that ScrumDDM

Group developed on average between (9%) and (62%)

more stories completely developed than the partici-

pants of the Controlled Group.

For timing attribute, when updated/evolved part

of documentation, the ScrumDDM Group obtained an

average of 38 minutes (standard deviation: 17 min-

utes) while participants of Controlled Group run the

evolution utilizing, on average, 55 minutes (standard

deviation: 17 minutes). According to t-Student test

the observed differences between both groups of av-

erage timings shows that this difference is statistically

signiﬁcant (t(18)= -2,18; p-value= 0,042; d=0,45).

The timing attribute dimension effect to ScrumDDM

Group is high (d=0,45) and according to IC at a 95%]

-30,2; -0,6[, the ScrumDDM Group participants, to

ICEIS 2020 - 22nd International Conference on Enterprise Information Systems

108

part of the documentation, took on average is between

0,6 and 30,2 minutes less than participants of Con-

trolled Group.

For timing attribute, when updated/evolved all

documentation, ScrumDDM Group took on average

59 minutes (standard deviation: 21 minutes), while

participants of the Controlled Group took 55 minutes

on average (standard deviation: 17 minutes). Ac-

cording to t-Student test, the differences observed

(4 minutes) between both groups for average timing

are not statistically signiﬁcant t(18)= 0,43; p-value=

0,672 d= 0,10). The timing attribute dimension ef-

fect to ScrumDDM Group is low (d=0,10) and ac-

cording to IC at 95%] -14,3; 21,7[ in minutes, the tim-

ing differences variation among the participants were

not enough to highlight any difference between the

groups.

5.9 Threats to Validity

To minimize possible threats about Internal validity a

survey was applied for identify the level of knowledge

of the participants about UML, and Java (Eclipse).

The participants only had known about the experi-

ment goal in the end of the development. In addi-

tion, the researcher accompanied both groups, and in-

teraction between participants was not allowed. To

minimize possible threats about External validity 20

(twenty) people were selected and randomly divided

in two group (10 people each). The inability to ex-

periment in the industry was minimized by select-

ing technology area professionals in both groups. To

minimize possible threats about Construction valid-

ity several documents and transformations were made

available to the participants.

6 CONCLUSION AND FUTURE

WORKS

Combining MDD practices with agile development

process aim to keep software development cycle time

short and increase productivity and quality. By hav-

ing short iterations, developers managed to build the

system incrementally and early software veriﬁcation,

which contribute to saving time. Generating code

and other artifacts from models (semi) automatically

helped to speed up development process by reducing

efforts in developing code. Requirements changes can

be easily reﬂected in code since it is generated from

model transformations (Alfraihi and Lano, 2017b).

Additionally, integrate these aspects into a process

metamodel helps software process reuse, customiza-

tion, and domain independence

In the controlled experiment developed in this pa-

per, the metaprocess ScrumDDM was analyzed about

its capacity of evolving software and to maintain

the agile methodology quickness characteristic while

developing.Pre-existing software code already devel-

oped within a ScrumDDM instance, named ArqPro-

jProcess was used as a base. A new version of the

software was developed covering new user stories or

user stories modiﬁcations.

The experiment performed pointed the capacity

of evolving software and maintain the agility from

the presented data. The group that used ScrumDDM

metaprocess, for example, enacted the process more

completely and produced the sofwtare artifacts more

correctly than the Controlled group. Besides that,

the evolutions occurred quickly, indicatong that the

metaprocess maintained the agile methodology as-

pect. The usage of the metaprocess made possible to

update the documentation artifacts and the software

product source code. Additonally, by the end of the

experiment running, it was shown that the metapro-

cess provided the software evolution, generating a

correct code and with a more signiﬁcant number of

completely developed stories.

We intend to perform other studies with students

and professionals from technology in the area, aim-

ing to amplify the usage possibility of ScrumDDM.

It would be interesting to test it for different domains

and purposes. Besides that, even having technology

area professionals as participants of the experiment,

it would be relevant that ScrumDDM was evaluated

in an industry scenario, the inclusion of a metamod-

eling engineer in the development process, aiming to

build the MDD elements before developing the soft-

ware, optimizing the work. Thus, we identify for fu-

ture work:

• Instance ScrumDDM to other purposes and do-

mains, different from the ones that were men-

tioned in this paper, like SOA and MDD, to

make the evaluation/analysis of more aspects of

instanced process possible.

• Reanalyze ScrumDDM in a real scenario, outside

the academic environment.

• Analyze other software quality aspects. Besides

the code and documentation generation aspects, it

might be important to seek the software develop-

ment process quality.

REFERENCES

Alfraihi, H. and Lano, K. (2017a). The integration of

agile development and model driven development.

Integrating Model-Driven Development Practices into Agile Process: Analyzing and Evaluating Software Evolution Aspects

109

In Proceedings of the 5th International Conference

on Model-Driven Engineering and Software Devel-

opment, pages 451–458. SCITEPRESS-Science and

Technology Publications, Lda.

Alfraihi, H. and Lano, K. (2017b). Practical aspects of the

integration of agile development and model-driven de-

velopment: An exploratory study. In MODELS (Satel-

lite Events), pages 399–404.

Almeida, C. C. d. J. et al. (2014). Qualitas: uma modelo de

processo de desenvolvimento de software orientado a

modelos.

Ambler, S. W. (2003). Agile model-driven development is

good enough. IEEE Software, 20(5):71–73.

Ambler, S. W. (2006). Agile model-driven development

(amdd). page 13.

Beck, K., Beedle, M., Bennekum, A., Cockburn, A., Cun-

ningham, W., Fowler, M., Grenning, J., Hunt, A., Jef-

fries, R., Kern, J., et al. (2001). Manifesto para desen-

volvimento agil de software. AGILE manifesto.

Braga, A. d. A. and Leal, R. d. S. (2013). Estudo sistem

atico

em dependabilidade e m

etodos

ageis: uma an

alise de

falhas e defeitos.

Braga, V. (2011). Um Processo para Projeto Arquitetural de

Software Dirigido a Modelos e Orientado a Servic¸os.

PhD thesis, Dissertac¸

ao, Universidade Federal de Per-

nambuco, Brasil.

Brambilla, M., Cabot, J., and Wimmer, M. (2012). Model-

driven software engineering in practice. Synthesis

Lectures on Software Engineering, 1(1):1–182.

Caldiera, V. R. B.-G. and Rombach, H. D. (1994). Goal

question metric paradigm. Encyclopedia of software

engineering, 1:528–532.

EPF, E. F. (2014). Eclipse process framework composer.

Eclipse Foundation.

Heeager, L. T. (2012). Introducing agile practices in a

documentation-driven software development practice:

a case study. Journal of Information Technology Case

and Application Research, 14(1):3–24.

Maciel, R. S. P., Gomes, R. A., Magalh

aes, A. P., Silva,

B. C., and Queiroz, J. P. B. (2013). Supporting model-

driven development using a process-centered software

engineering environment. Automated Software Engi-

neering, 20(3):427–461.

Mellor, S. (2004). Agile mda, a white paper.

Mellor, S. J., Scott, K., Uhl, A., and Weise, D. (2005).

Mda destilada: Princ

ıpios de arquitetura orientada por

modelos. Ci

encia Moderna Ltda.

Miot, H. A. (2017). Assessing the normality of data

in clinical and experimental trials. Jornal Vascular

Brasileiro, 16(2):88–91.

OMG (2014). Model object management group model-

driven architecture.

OMG, S. and Notation, O. (2008). Software & systems

process engineering meta-model speciﬁcation. OMG

Std., Rev, 2:18–71.

Pressman, R. and Maxim, B. (2016). Engenharia de

Software-8

Edic¸

ao. McGraw Hill, Brasil.

Sales, P. M. (2017). Integrando pr

aticas do desenvolvimento

dirigido a modelos ao scrum, dissertac¸

ao de mestrado.

pages 1–162.

Santos, N., Pereira, J., Ferreira, N., and Machado, R. J.

(2018). Modeling in agile software development:

Decomposing use cases towards logical architecture

design. In International Conference on Product-

Focused Software Process Improvement, pages 396–

408. Springer.

Schwaber, K. and Sutherland, J. (2016). The scrum guide.

pdf document.

Tom

as, M. R. (2009). M

etodos

ageis: caracter

ısticas, pon-

tos fortes e fracos e possibilidades de aplicac¸

ao.

Wohlin, C., Runeson, P., H

ost, M., Ohlsson, M. C., Reg-

nell, B., and Wessl

en, A. (2012). Experimentation in

software engineering. Springer Science & Business

Media.

ICEIS 2020 - 22nd International Conference on Enterprise Information Systems

110
