Predicting Crime by Exploiting Supervised Learning on Heterogeneous
Data
´
Ursula R. M. Castro
a
, Marcos W. Rodrigues
b
and Wladmir C. Brand
˜
ao
c
Pontifical Catholic University of Minas Gerais (PUC Minas), Belo Horizonte, Brazil
Keywords:
Crime Analysis, Crime Prediction, Machine Learning, Supervised Learning, Supervised Classification.
Abstract:
Crime analysis supports law-enforcing agencies in preventing and resolving crimes faster and efficiently by
providing methods and techniques to understand criminal behavior patterns. Strategies for crime reduction rely
on preventive actions, e.g., where perform street lighting and police patrol. The evaluation of these actions
is paramount to establish new security strategies and to ensure its effectiveness. In this article, we propose a
supervised learning approach that exploits heterogeneous criminal data sources, aiming to understand crim-
inal behavior patterns and predicting crimes. Thus, we extract crime features from these data to predict the
tendency of increase or decrease, and the number of occurrences of crimes types by geographic regions. To
predict crimes, we exploit four learning techniques, as k-NN, SVM, Random Forest, and XGBoost. Exper-
imental results show that the proposed approach achieves up to 89% of accuracy and 98% of precision for
crime tendency, and up to 70% of accuracy and 79% of precision for crime occurrence. The results show that
Random Forest and XGBoost usually perform better when trained with a short time window, while k-NN and
SVM perform better with a longer time window. Moreover, the use of heterogeneous sources of data can be
effectively used by supervised techniques to improve forecast performance.
1 INTRODUCTION
Crime is a violation of law and order that unbalances
life in society and contributes to insecurity, promot-
ing the increase of the sense of chaos and anarchy.
According to the Universal Declaration of Human
Rights, security is a guarantee, a fundamental right
of citizens, allowing for the dignity of the human be-
ing (United Nations, 2015).
In contemporary society, public safety is one
of the most critical problems, since recently the
insecurity feeling has been increasing around the
world (Oberwittler et al., 2010). Besides, crime con-
trol and prevention is not a trivial activity, demanding
effective use of law-enforcing agencies resources. For
example, the Brazilian Federal Constitution (Consti-
tution, 1988) guarantees the security right for all citi-
zens and assigns public safety as a duty of the State,
and a right and responsibility of all. There is a gen-
eral feeling that the government is unable to address
the population’s demand for public safety, especially
a
https://orcid.org/0000-0002-0024-9362
b
https://orcid.org/0000-0002-5329-3367
c
https://orcid.org/0000-0002-1523-1616
in larger cities, both that violence is among the top
major concerns of the Brazilians.
Misinformation on crimes is a problem that im-
pairs the efforts against violence. Official statistics
on violence in Brazil are far from reality, e.g., ac-
cording to the National Secretary of Public Security
(SENASP ), only 30% of victims report crimes. The
main reasons are the lack of trust in the police, the
idea that the law-enforcing agencies do not take effec-
tive actions to solve crimes and punish the criminals,
and the sense that they reporting have no positive im-
pact on society. Thus, the actual number of crimes
is higher than the officially reported ones. Neverthe-
less, some Web platforms, such as WikiCrimes and
Onde Fui Roubado,
1
have been used to capture data
on criminal actions. Also, social networks, such as
Facebook and Twitter, can help to fill this information
gap, since it is typical behavior among the victims to
report crime incidents on their profile.
Thus, we propose a criminal prediction approach
that exploits four different supervised learning tech-
niques. We use k-NN (k-Nearest Neighbor), SVM
(Support Vector Machine), RF (Random Forest), and
1
http://www.ondefuiroubado.com.br
524
Castro, Ú., Rodrigues, M. and Brandão, W.
Predicting Crime by Exploiting Supervised Learning on Heterogeneous Data.
DOI: 10.5220/0009392005240531
In Proceedings of the 22nd International Conference on Enterprise Information Systems (ICEIS 2020) - Volume 1, pages 524-531
ISBN: 978-989-758-423-7
Copyright
c
2020 by SCITEPRESS Science and Technology Publications, Lda. All rights reserved
XGBoost (eXtreme Gradient Boosting) to predict the
tendency of increase or decrease and the number of
occurrences of types of crimes by geographic regions.
Further, we evaluate the effectiveness of the super-
vised techniques by contrasting their performance in
three different crime datasets. The datasets are built
from the OFF (Official Records) provided by Brazil-
ian government, and UOF (Unofficial Records) from
Onde Fui Roubado website. The third dataset, the
CRIME, is a combination of OFF and UOF records.
Experiments attest to the effectiveness of our
crime prediction approach, as well as of the features
extracted from the heterogeneous data sources for
prediction. Experimental results show that our ap-
proach achieves up to 84% of precision for crime ten-
dency prediction in the UOF dataset, and 98% in the
OFF dataset. Our approach achieves up to 79% of
precision for a more difficult task of crime occurrence
prediction in the UOF dataset, and 67% in the OFF
dataset. Moreover, in the third dataset, some tech-
niques such as XGBoost significantly improve their
performance compared to the performance in the sin-
gle datasets. Our main contributions are: a) We build
a crime dataset (UOF) with public crime records ex-
tracted from the Onde Fui Roubado website; b) We
characterize the OFF and UOF datasets, identify-
ing relevant features about crime occurrences. Par-
ticularly, we exploit the gender and temporal aspects
of crimes for crime prediction; c) We evaluate four
different machine learning techniques for predicting
trends and the crime’s occurrence.
This article is organized as follows: In Section 2,
we review the related literature on supervised learn-
ing, as k-NN, SVM, RF and XGBoost. In Section 3,
we present related works on crime prediction. In
Section 4, we present our crime prediction approach.
In Section 5, we introduce the heterogeneous data
sources used in our methodology. In Sections 6 and 7,
we present the experimental setup and the results of
the evaluation of our crimes prediction in heteroge-
neous datasets. Finally, in Section 8 we conclude this
article by showing the strengths and weaknesses of
our approach, laying directions for future research.
2 BACKGROUND
There are several techniques reported in the scien-
tific literature that can be used to predict and classify
events. In this article, we focus on four well-known
supervised techniques that usually provide effective
results when used for classification tasks.
The k-Nearest Neighbor (k-NN) is a versatile and
robust classifier often used as a reference for more
complex classifiers, such as neural networks. In par-
ticular, it is a non-parametric supervised learning ap-
proach that classifies instances based on the similarity
between them. Predictions are made for a new in-
stance by searching the entire training set, to get the
k most similar cases (neighbors) (Duda et al., 2001).
The k-NN has a single hyper-parameter, the number
of nearest neighbors (k) of an instance that one needs
to classify. Some authors suggest k =
N/2, where N
represents the number of samples in the training set.
However, an improved solution is to estimate the k
value through k-fold cross-validation, minimizing the
validation error (Celisse and Mary-Huard, 2018)
The Support Vector Machines (SVM) is a su-
pervised classifier that uses a hyperplane to split
the class representation, maximizing the distance be-
tween the instances of different classes (Hsu et al.,
2008). SVM is efficient for many classification
tasks, but presents a high computational cost for high-
dimensional datasets. SVM classifiers have some
hyper-parameters, such as the kernel function, the
regularization parameter (C) to avoid misclassifica-
tion, and the Gamma parameter. The kernel func-
tion maps the original data to find the best separation
of the mapped space (hyperplane), and the Gamma
parameter manage the influence of the training in-
stances, i.e., low Gamma considers distant instances
of the hyperplane, while a high value only finds the
close instances of the hyperplane (Syarif et al., 2016).
For high C, one selects a small margin for the hyper-
plane, and for low C, one selects a large margin for
the hyperplane. Commonly, the Gamma parameter is
estimated as γ = 1/p, where p is the number of at-
tributes (data dimensions).
Random Forest (RF) is another robust supervised
bagging approach commonly used for classification
tasks (Breiman, 2001). Notably, a random forest is
composed of a set of decision trees (weak predictors),
where each tree depends on the values of a random
vector sampled and with equal distribution among
the trees. The output of each tree in the set con-
verges to a single result that matches with the most
trees (Ho, 1995). RF approaches have two hyper-
parameters that impact in the behavior of the classi-
fication model, the number of trees (ntree), and the
number of attributes (mtry) used in each division (Ko-
havi and John, 1997). For classification tasks, the lit-
erature suggests mtry =
p, where p is the number
of attributes in N samples.
The eXtreme Gradient Boosting (XGBoost) is a
highly robust supervised classifier that has recently
been dominating applied in machine learning (Chen
and Guestrin, 2016). The popularity of XGBoost
comes from its scalability in all scenarios, and the
Predicting Crime by Exploiting Supervised Learning on Heterogeneous Data
525
ability to solve many data science problems in a fast
and accurate way. XGBoost is an implementation of
gradient-boosted decision trees (GBDT) designed for
speed and performance. The basic idea of boosting
is to combine hundreds of simple trees with low ac-
curacy to build a more accurate model. Every itera-
tion generates a new tree for the model. The Gradi-
ent Boosting machine utilizes the gradient descent to
generate the new tree based on all previous trees, driv-
ing the objective function towards the minimum di-
rection (Friedman, 2001). The XGBoost classifier has
some hyper-parameters, such as the tree size (stree),
the learning rate (lr) and Gamma. The choice of lr
is not crucial but should be significantly small (lr =
0.1) (B
¨
uhlmann and Yu, 2010), while the Gamma
parameter specifies the minimum loss reduction re-
quired to make a node split.
3 RELATED WORK
Different approaches to predict crimes using machine
learning have been reported in the literature. In (Bo-
gomolov et al., 2014), the authors propose an ap-
proach that uses human behavioral data from mobile
network activity combined with demographic infor-
mation to predict crimes. In especial, they evalu-
ate Logistic Regression, SVM, Neural Networks, De-
cision Trees, and different implementations of en-
sembles of tree classifiers on three different datasets.
They conclude that the RF outperforms the others,
achieving 70% of accuracy. One of the datasets used
has the geographic division of the London, the other is
the Criminal cases dataset, including the geo-location
of the reported crimes without temporal data, and the
last is an official dataset with metrics about the popu-
lation of each geographic area.
In the same line, another prediction approach ex-
ploits five classification algorithms to predict crime
locations in Manila (Baculo et al., 2017). The au-
thors use official crime records from 2012 to 2016,
with nine attributes to evaluate the effectiveness of
the BayesNet, Naive Bayes, J48, Decision Stump, and
Random Forest algorithms. Their experimental re-
sults show that the RF classifier outperforms the other
algorithms in precision when trained with crime in-
stances composed by the following attributes: type of
crime, day of the week, year, location and location
category, latitude, longitude, isholiday, and raining.
Recently, (Pradhan et al., 2019) proposes a predic-
tion model to identify the type of crime that can oc-
cur in the city.They use an official crime dataset from
2003 to 2018 of San Francisco and propose a data pre-
processing method to improve the prediction for the
highly imbalanced dataset. To deal with this problem,
the authors used three techniques: oversampling the
minority classes, undersampling the majority class,
and adjusting weights on the classifiers. Despite that,
none of them showed a significant improvement in
the recall or precision scores with k-NN, Multi-class
Logistic Regression, Decision Tree, RF, and Naive
Bayes algorithms.
The recent studies use time and space attributes
for crime prediction, but the use of geographic fea-
tures is under-exploited (Lin et al., 2018). The au-
thors incorporated eighty-four types of geographic in-
formation related to vehicle theft in Taiwan. They use
in their experiments a dataset from 2015 to 2018, and
compare the performance of five approaches for crime
prediction: k-NN, SVM, Random Forest, Deep Neu-
ral Networks. The results show that the Deep Neural
Networks, with geographic features, outperforms the
other approaches to predict vehicle theft occurrences.
In order to improve the crime prediction, (Belesi-
otis et al., 2018) studie how data from multiple het-
erogeneous sources can be used to make predictions
about the spatial distribution of crime in large urban
regions. The authors use six different datasets to learn
models for predicting crime rates of fourteen types of
crime. They exploit three techniques to investigate
the impact of regression algorithms on their approach:
Ridge regression, RF, and Support Vector Regression.
Experiments show that Ridge and RF present a ten-
dency to overestimate predictions, while SVM made
balanced predictions. They argue that all datasets and
types of data can potentially contribute to better pre-
diction accuracy when appropriately combined.
DeepCrime (Huang et al., 2018) is a crime pre-
diction framework that uncovers under-exploited dy-
namic crime patterns by using the evolving inter-
dependencies between crimes with other present data
in urban space. This framework enables to predict
the crime occurrences of different types in each re-
gion of a city. The authors evaluate the framework us-
ing a dataset collected from New York in 2014, com-
paring the results against SVM, Auto-Regressive In-
tegrated Moving Average, Logistic Regression, Mul-
tilayer Perceptron, Tensor Decomposition, Wide and
Deep Learning, and Gated Recurrent Unit. Experi-
mental results show that the DeepCrime framework
outperforms the other baseline approaches.
Different from the previous related work reported
in the literature, we exploit unofficial crime records
collected from Web and an official crime record as a
joint source of features about criminal patterns, test-
ing and evaluating supervised learning techniques to
predict the tendency and occurrence of different types
of crimes in geographic locations. In the next sec-
ICEIS 2020 - 22nd International Conference on Enterprise Information Systems
526
tion, we present the architecture and components of
our prediction approach.
4 CRIME PREDICTION
We present our approach to predict the tendency and
occurrence of crimes which the workflow is illus-
trated in Figure 1. From Figure 1, we observe that,
in the first step, the Web Crawling component col-
lect unofficial crime records from the UOF website,
storing them into the UOF dataset. Additionally, the
OFF records are also collected and stored in the OFF
dataset. In particular, the official crime reports come
from the Brazilian government, which we obtained
with the Department of State of Minas Gerais of De-
fense, and these reports build the OFF corpus.
In the second step, the Feature Extraction com-
ponent filters crime records previously crawled, ex-
tracting from them crime-related features useful in
prediction tasks. In particular, it discards incomplete
records, e.g., records with no time or space infor-
mation, as well as records outside a geographic re-
gion of interest. Additionally, a preprocessing proce-
dure removes errors, including duplicated and noisy
data, and performs text and encoding transformations.
This procedure is paramount to improve the train-
ing and prediction effectiveness of the learning tech-
niques used in the next step.
In the third step, the Feature Transformation phase
performs transformations in the extracted features,
deriving from the new features, such as the day of the
week and the month in which the crime occurred, and
whether the day is a holiday in the city. Moreover,
it derives the neighborhood from the address, the pe-
riod of the day from time, e.g., morning, afternoon,
night, dawn, and it categorizes the city neighborhood
in geographic regions. The goal of the new features is
to characterize crime records better. Crimes that oc-
cur during the week may have different characteris-
tics from crimes that occur on weekends, just as each
month of the year and public holidays in the city have
different frequencies and particulars related to the oc-
currence of crimes. We used the feature month to sep-
arate the training and test sets to make the predictions.
About the period of the day, we believe that the crimes
which happened in the same interval of time have a
similar pattern. The idea of using the region as a fea-
ture is aiming to cluster the neighborhoods with the
same characterizes and behavior patterns.
In the fourth step, our approach analyzes the fea-
tures characterizing the OFF and UOF datasets by
performing a complementarity analysis. Notably, it
checks if both datasets are complementary, i.e., if the
Table 1: Attributes used as prediction features.
Attribute Description
Crime’s type Crime category, e.g., robbery and theft
Gender Gender of the victim
Is Holiday (1) if crime occurs in a holiday; (0) otherwise
Weekday (1) if crime occurs in the weekend; (0) otherwise
Period Period of the day the crime occurred
Region Geographic location where the crime occurred
Figure 1: The workflow of our crime prediction.
datasets are almost entirely different. In the end, our
approach builds the CRIME dataset composed of the
merging of the other two datasets. The attributes used
as prediction features are presented in Table 1.
In the fifth step, the prediction features are used
to train supervised classifiers. The Crime Modeling
component provides a classification model used to
predict the tendency and occurrence of crimes by type
of crime and geographic location. To tackle crime
prediction as a classification problem, we follow the
general framework of discriminative learning (Liu,
2009). Crimes reported in cities can vary signifi-
cantly from month to month, and it is common for
law-enforcing agencies to conduct crime analysis and
comparison for months, and an interval of months.
So, in particular, our goal is to learn an optimal hy-
pothesis h : X Y , mapping the input space X to the
output space Y . To this end, a plethora of learning
algorithms could be deployed. In this work, we used
k-NN, SVM, RF, and XGBoost. Finally, in the sixth
step, the Crime Prediction Evaluation phase evaluates
the effectiveness of the prediction models.
5 CRIME DATA SOURCES
We present the crime datasets for the criminal predic-
tion, cover a complementarity analysis, and prepro-
cessing procedures for effective supervised training.
5.1 The OFF Dataset
The OFF dataset has 520,378 records regarding Jan-
uary 2012 to November 2017, which is presented in
Predicting Crime by Exploiting Supervised Learning on Heterogeneous Data
527
Figure 2 by over time and type of crime.

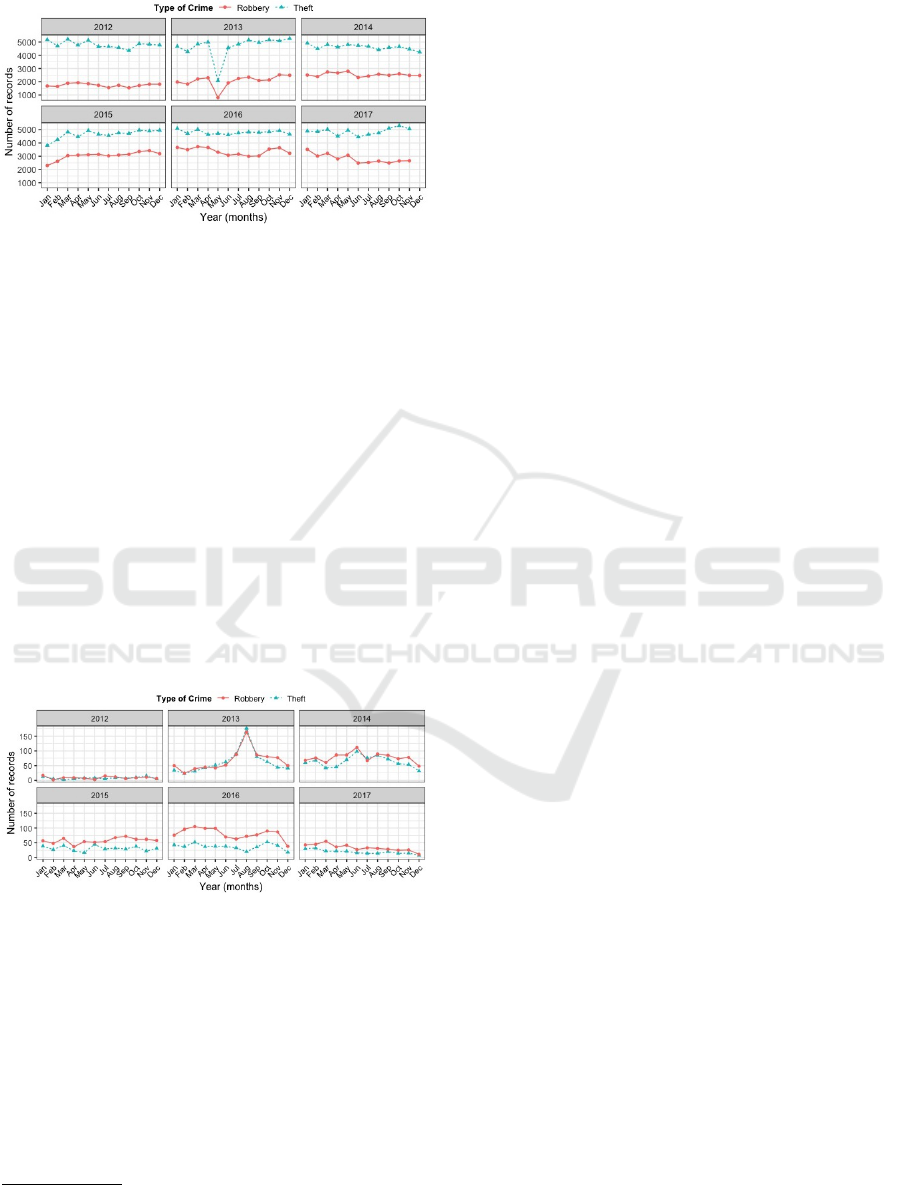

Figure 2: The composition of the OFF dataset.
From Figure 2, we can observe that theft records are
the majority, accounting for more than 64% of the
total number of records, and robbery has been in-
creasing over the years, while thefts remain almost
stable. In 2017, the robbery records dropped signif-
icantly. Additionally, more than 57% of victims are
men, the crimes occur mostly on Mondays, their oc-
currences increase on holidays, one geographic region
concentrates the most significant number of criminal
records, and the criminals usually act in the afternoon
and night.
5.2 UOF Dataset
The UOF dataset
2
has 6,529 regarding January 2012
to December 2017, which is presented in Figure 3 by
over time and type of crime.
Figure 3: The composition of the OFF dataset.
The 2014 year concentrates the highest number of
records, while the lowest number was in 2012. From
Figure 3, we observe that similarly to the OFF
dataset, robbery records are the majority, accounting
for more than 59% of the total number of records,
and robbery has been increasing over the years, while
thefts remain almost stable, except for two peaks in
August 2013 and June 2014. Also, more than 61% of
victims are men, the crimes occur mostly on Wednes-
days, their occurrences increase on holidays, one geo-
2
Available at http://dx.doi.org/10.5281/zenodo.3673834.
graphic region concentrates the most significant num-
ber of criminal records, and the criminals were usu-
ally acting at night.
5.3 Complementarity Analysis
We provide a complementarity analysis of the crime
datasets. In particular, we check how the datasets
complement each other by checking if there is an
intersection between their records. To perform this
analysis, we use the following record attributes: lati-
tude, longitude, date, and the period of the day, which
of the crime occurred, victim’s sex and, crime type.
The address entered in different systems, and the
way the systems handle each address may result in
the same criminal record with different latitudes and
longitudes. To determine the existence of records ref-
erencing the same crime in the two datasets, we use
the latitude and longitude of the criminal record with
the precision of one geographical block.
We performed the complementarity analysis using
the following attributes: date, the period of the day,
victim’s gender, type of crime, and latitude and lon-
gitude with the precision of one geographical block.
The result of this analysis shows that the UOF and
OFF datasets have only thirty-six common records,
meaning they are significantly complementary to each
other. Therefore, from the combination of the records
of the two datasets, we obtained a combined dataset
that we call the CRIME dataset. By combination, we
mean merging the two datasets from the union of their
records by removing the duplicate records.
5.4 Preprocessing Procedures
Supervised learning techniques often require input
data transformation for effective training. To train
each one of the learning techniques used in our crime
prediction approach we perform the following data
transformations in the three datasets: i) encode the
day of the week attribute in one of the weekdays
(Monday, Tuesday, Wednesday, Thursday and Friday)
or weekend days (Saturday and Sunday); ii) encode
the regions attribute according to the density of each
geographic region provided by IBGE (Census 2010);
iii) converts the attributes period, day of the week,
type of crime and region into numerical data.
6 EXPERIMENTAL SETUP
To evaluate our approach, we run experiments aiming
to answer the research questions: i) how effective are
the supervised learning techniques to predict crime
ICEIS 2020 - 22nd International Conference on Enterprise Information Systems
528
occurrences, i.e., the number of occurrences of differ-
ent types of crimes by geographic region? ii) how ef-
fective are the supervised learning techniques to pre-
dict crime tendency, i.e., a particular type of crime
tends to increase or decrease by geographic region?
We use four different techniques to generate pre-
diction models: k-NN, SVM, RF, and XGBoost. Be-
sides, we report effectiveness in terms of precision
and accuracy, i.e., the percentage of true positives for
all positive predictions, and the hit rate or the num-
ber of instances correctly classified, respectively. To
realize the experiments, we filter the crime dataset to
get the year with records in all geographic regions,
i.e., 2016 for the UOF dataset and 2017 for the OFF
dataset. Furthermore, we use seven configurations for
training and test sets for each dataset. In the case
of the CRIME dataset, we replicate the settings of
UOF and OFF datasets due to the difference of the
year chosen in the others datasets. Besides, we set
the hyper-parameters of each machine learning tech-
nique in each training and test configuration schema
presented in Table 2.
For k-NN, we set the Manhattan distance. Also,
we performed 10-fold cross-validation (Jain, 1991)
to set the k-NN and RF hyper-parameters. The k-
fold cross-validation divides the training set (resam-
pling) into k subsets. From these subsets, the hold-out
method is repeated k times, so that each time, one of
the k subsets is used for the test, while the remainder
(k-1) is used for model training. The hold-out method
stores the accuracy metric at each iteration, return-
ing the best parameters with the best accuracy. For
XGBoost, we set the learning rate as lr = 0.1, and
use grid-search method (Hsu et al., 2008) to set stree
and Gamma hyper-parameters. Also, we use the grid-
search method to set the C and Gamma parameters
for SVM, and the ntree and mtry parameters for RF.
The grid-search method obtains the best parameters
set by combining a given range of parameters for each
model. It stores the accuracy metric of each iteration,
returning the best parameters with the best accuracy.
7 EXPERIMENTAL RESULTS
As we mentioned in Section 6, for each dataset, we
evaluate different configuration schemes of training
and test, reporting the accuracy and precision metrics,
which the results are in Table 3. The outperforming
results for each configuration are highlighted.
From Table 3, we observe that all learning tech-
niques perform well to predict occurrence and the ten-
dency in all datasets. Referring to the occurrence pre-
diction, the k-NN and RF achieve up to 70% of accu-
racy in the UOF dataset, and the k-NN and XGBoost
achieve up to 69% of accuracy in the OFF dataset.
In the CRIME dataset, all techniques achieve up to
68% of accuracy in 2017, and the k-NN and the XG-
Boost perform better in 2016, achieving up to 64%
of accuracy. Likewise, concerning the precision, the
k-NN and SVM achieve up to 79% of precision in
the UOF dataset, and the k-NN and XGBoost achieve
up to 67% of precision in the OFF dataset. In the
CRIME dataset, the XGBoost achieve up to 65% of
precision in 2016 and, together with k-NN and SVM,
up to 67% of precision in 2017.
About the tendency prediction, they achieve up
to 84% of precision in the UOF dataset and up to
98% in the OFF dataset. In the CRIME dataset, they
achieve up to 98% of precision (2017), and the k-NN
technique achieves up to 92% of precision (2016).
Likewise, concerning the accuracy, they achieve up
to 78% in the UOF dataset and up to 89% in the OFF
dataset. In the CRIME dataset, the k-NN, RF and
XGBoost achieve up to 78% and 89% of tendency’s
accuracy in 2016 and 2017, respectively, outperform-
ing the SVM approach in up to 23.61%.
In summary, for crime occurrence prediction, the
k-NN usually performs better than the other three
techniques in accuracy and precision, except for XG-
Boost precision in the CRIME dataset. Additionally,
for crime tendency prediction, the k-NN sometimes
outperforms the other three techniques in precision
in UOF and OFF datasets, and in CRIME dataset,
the k-NN and the RF mostly outperform the other
two techniques. Moreover, the performance of all the
techniques in the CRIME dataset was many times
better and at least closer to the performance in the
separate datasets, attesting that the use of heteroge-
neous sources of data can help to improve prediction
performance. Recalling our research questions pre-
sented in Section 6, the previously observations attest
the effectiveness of our prediction approach to predict
crime occurrence and tendency.
The experimental results show that the four pre-
dictive techniques usually perform better in the OFF
dataset, which is almost 80 times bigger than the
UOF dataset. The same behavior is observed for
the year 2017 of the CRIME dataset compared to
the year 2016 of the same dataset. Thus, with more
records for training, the supervised learning tech-
niques can better adjust the learning bias, providing
better predictions. Furthermore, we observe that the
performance of the predictive approaches decreases
as the ratio of the amount of training and test data
decreases, showing some temporal and density rela-
tionship of training data with performance.
According to the results, our prediction approach
Predicting Crime by Exploiting Supervised Learning on Heterogeneous Data
529
Table 2: Estimated hyper-parameters for our predictive models of crime.
Configuration Schema k-NN SVM RF XGBoost
Training Test k C Gamma ntree mtry Gamma stree
UOF
Nov/2016 Dec/2016 6 1.00 0.07 2 100 0.50 3
Sep - Nov/2016 Dec/2016 8 0.10 0.0005 2 7 0.30 4
Jun - Nov/2016 Dec/2016 11 0.07 0.0005 17 8 0.50 2
Jan - Nov/2016 Dec/2016 13 0.07 0.0005 2 50 0.50 2
Jan - Sep/2016 Oct - Dec/2016 8 2.50 0.09 2 115 0.30 2
Jan - Jun/2016 Jul - Dec/2016 29 1.00 0.0007 25 5 0.50 4
Jan - Mar/2016 Apr - Dec/2016 16 2.50 0.10 15 25 0.30 3
OFF
Oct/2017 Nov/2017 146 9.30 0.01 2 5 0.50 2
Aug - Oct/2017 Nov/2017 119 3.30 0.01 2 5 0.50 2
May - Oct/2017 Nov/2017 70 0.30 0.30 2 40 0.50 4
Jan - Oct/2017 Nov/2017 134 0.30 0.30 9 96 0.30 3
Jan - Sep/2017 Oct - Nov/2017 12 35.00 0.005 2 7 0.50 3
Jan - Jun/2017 Jul - Nov/2017 2 1.50 0.03 2 5 0.50 4
Jan - Mar/2017 Apr - Nov/2017 2 4.30 0.03 13 73 0.30 2
CRIME
Nov/2016 Dec/2016 215 0.50 0.09 11 5 0.30 2
Sep - Nov/2016 Dec/2016 118 0.10 0.0001 2 5 0.40 3
Jun - Nov/2016 Dec/2016 6 0.10 0.20 55 9 0.50 3
Jan - Nov/2016 Dec/2016 11 6.90 0.10 2 2 0.40 2
Jan - Sep/2016 Oct - Dec/2016 383 6.20 0.10 11 5 0.50 2
Jan - Jun/2016 Jul - Dec/2016 114 90.00 0.05 25 3 0.50 2
Jan - Mar/2016 Apr - Dec/2016 50 50.00 0.03 2 5 0.30 2
Oct/2017 Nov/2017 144 6.30 0.10 11 80 0.50 2
Aug - Oct/2017 Nov/2017 110 4.70 0.07 2 98 0.30 2
May - Oct/2017 Nov/2017 185 20.00 0.005 3 95 0.50 3
Jan - Oct/2017 Nov/2017 193 17.00 0.05 70 5 0.30 2
Jan - Sep/2017 Oct - Nov/2017 4 8.40 0.03 2 55 0.50 4
Jan - Jun/2017 Jul - Nov/2017 453 68.00 0.01 23 4 0.50 4
Jan - Mar/2017 Apr - Nov/2017 383 0.30 0.0007 15 30 0.30 3
Table 3: The effectiveness of the predictive approaches.
Configuration Schema Prediction’s Accuracy Prediction’s Precision Tendency’s Accuracy Tendency’s Precision
Training Test k-NN SVM RF XGB k-NN SVM RF XGB k-NN SVM RF XGB k-NN SVM RF XGB
UOF
Nov/2016 Dec/2016 0.66 0.68 0.70 0.66 0.57 0.46 0.69 0.61 0.78 0.78 0.78 0.78 0.84 0.84 0.84 0.84
Sep - Nov/2016 Dec/2016 0.68 0.68 0.68 0.66 0.63 0.46 0.46 0.59 0.78 0.78 0.78 0.72 0.84 0.84 0.84 0.72
Jun - Nov/2016 Dec/2016 0.68 0.68 0.68 0.68 0.63 0.46 0.46 0.46 0.78 0.78 0.78 0.78 0.84 0.84 0.84 0.84
Jan - Nov/2016 Dec/2016 0.70 0.68 0.68 0.68 0.79 0.46 0.46 0.46 0.78 0.78 0.78 0.78 0.84 0.84 0.84 0.84
Jan - Sep/2016 Oct - Dec/2016 0.67 0.67 0.64 0.64 0.65 0.68 0.57 0.58 0.48 0.44 0.46 0.45 0.34 0.44 0.49 0.49
Jan - Jun/2016 Jul - Dec/2016 0.69 0.68 0.68 0.67 0.69 0.46 0.60 0.62 0.54 0.50 0.49 0.57 0.61 0.50 0.51 0.61
Jan - Mar/2016 Apr - Dec/2016 0.70 0.69 0.69 0.67 0.66 0.79 0.47 0.59 0.60 0.53 0.52 0.56 0.71 0.57 0.54 0.65
OFF
Oct/2017 Nov/2017 0.69 0.68 0.68 0.68 0.67 0.66 0.66 0.66 0.89 0.78 0.78 0.89 0.97 0.96 0.96 0.97
Aug - Oct/2017 Nov/2017 0.68 0.68 0.68 0.69 0.67 0.66 0.66 0.67 0.89 0.89 0.89 0.89 0.97 0.97 0.97 0.97
May - Oct/2017 Nov/2017 0.68 0.68 0.68 0.68 0.66 0.66 0.66 0.67 0.78 0.83 0.83 0.83 0.98 0.98 0.98 0.98
Jan - Oct/2017 Nov/2017 0.69 0.68 0.68 0.69 0.67 0.66 0.66 0.67 0.83 0.83 0.83 0.83 0.98 0.98 0.98 0.98
Jan - Sep/2017 Oct - Nov/2017 0.66 0.66 0.66 0.66 0.63 0.65 0.43 0.43 0.64 0.61 0.61 0.78 0.96 0.95 0.95 0.51
Jan - Jun/2017 Jul - Nov/2017 0.65 0.67 0.66 0.66 0.60 0.63 0.61 0.44 0.69 0.56 0.56 0.48 0.82 0.84 0.84 0.48
Jan - Mar/2017 Apr - Nov/2017 0.66 0.66 0.66 0.66 0.60 0.63 0.44 0.44 0.69 0.61 0.61 0.58 0.78 0.78 0.78 0.52
CRIME
Nov/2016 Dec/2016 0.62 0.62 0.62 0.61 0.62 0.62 0.62 0.60 0.72 0.72 0.78 0.78 0.81 0.81 0.83 0.78
Sep - Nov/2016 Dec/2016 0.59 0.60 0.59 0.59 0.56 0.59 0.60 0.56 0.72 0.67 0.72 0.67 0.92 0.82 0.77 0.82
Jun - Nov/2016 Dec/2016 0.63 0.64 0.63 0.64 0.63 0.65 0.64 0.65 0.78 0.72 0.72 0.72 0.84 0.81 0.81 0.81
Jan - Nov/2016 Dec/2016 0.59 0.59 0.59 0.59 0.59 0.59 0.59 0.58 0.78 0.67 0.56 0.67 0.84 0.81 0.70 0.81
Jan - Sep/2016 Oct - Dec/2016 0.61 0.62 0.61 0.61 0.60 0.62 0.61 0.61 0.37 0.50 0.56 0.43 0.47 0.61 0.64 0.51
Jan - Jun/2016 Jul - Dec/2016 0.62 0.62 0.62 0.62 0.61 0.62 0.62 0.61 0.48 0.56 0.63 0.56 0.61 0.59 0.66 0.65
Jan - Mar/2016 Apr - Dec/2016 0.63 0.63 0.61 0.61 0.63 0.63 0.61 0.61 0.56 0.58 0.57 0.54 0.72 0.70 0.57 0.65
Oct/2017 Nov/2017 0.68 0.68 0.68 0.68 0.66 0.66 0.66 0.66 0.89 0.84 0.89 0.89 0.97 0.96 0.97 0.97
Aug - Oct/2017 Nov/2017 0.68 0.68 0.68 0.68 0.66 0.66 0.66 0.67 0.83 0.72 0.83 0.83 0.98 0.98 0.98 0.98
May - Oct/2017 Nov/2017 0.68 0.68 0.68 0.68 0.66 0.66 0.67 0.67 0.83 0.67 0.83 0.83 0.86 0.85 0.86 0.86
Jan - Oct/2017 Nov/2017 0.68 0.68 0.68 0.68 0.67 0.66 0.65 0.66 0.78 0.72 0.78 0.78 0.86 0.85 0.86 0.86
Jan - Sep/2017 Oct - Nov/2017 0.65 0.65 0.66 0.65 0.62 0.62 0.63 0.62 0.89 0.72 0.81 0.75 0.94 0.97 0.98 0.98
Jan - Jun/2017 Jul - Nov/2017 0.63 0.64 0.64 0.59 0.60 0.59 0.61 0.65 0.50 0.48 0.65 0.51 0.67 0.63 0.69 0.71
Jan - Mar/2017 Apr - Nov/2017 0.59 0.59 0.54 0.48 0.59 0.59 0.60 0.55 0.47 0.47 0.70 0.65 0.67 0.67 0.76 0.76
can exploit supervised learning techniques and a set of
spatial and temporal features extracted from hetero-
geneous sources of crime records to provide effective
models for crime occurrence and tendency prediction.
8 CONCLUSIONS
We exploited supervised learning on heterogeneous
data extracted form official and unofficial crime re-
ports for crime prediction. Notably, we proposed a
predictive approach that collects crime reports from
the Web and used them as a source of features use-
ful to predict the tendency of increase or decrease and
the number of occurrences of types of crimes by ge-
ographic regions. Additionally, we thoroughly eval-
uated the techniques used by our approach, and the
results of this evaluation showed that all methods per-
form well, with a slight advantage to k-NN and XG-
Boost in some cases. They provide an accuracy of up
to 89% and a precision of up to 98% for crime ten-
dency prediction and, for occurrences prediction, the
accuracy of up to 70% and a precision of up to 79%.
ICEIS 2020 - 22nd International Conference on Enterprise Information Systems
530
Experimental results showed that there are quantita-
tive, temporal, and density relationship between train-
ing data and performance, i.e., with more records for
training, the supervised learning techniques can better
adjust the learning bias, providing better predictions.
As strengths of this article, we highlight: i) we
used heterogeneous data sources, official and unoffi-
cial crime records, to predict crimes; ii) we provided
a complementarity analysis showing the feasibility of
using different data sources by combining them into
a single and bigger dataset; iii) we proposed a predic-
tive approach capable of predicting the tendency and
occurrence of different types of crimes in different ge-
ographic regions; iv) we evaluated four different ma-
chine learning techniques used by our crime predic-
tion approach; v) the authorities can use our approach
to plan crime preventive actions, such deciding where
to perform street lighting and police patrol.
Contrasting the predictive techniques presented
in this article and other recent crime prediction ap-
proaches reported in the literature, we observed that
there is still room for further improvements. There-
fore, for future work we plan to evaluate other learn-
ing techniques, such as latent factor models and neu-
ral networks for crime prediction. Also, we want to
exploit different geographic properties of crimes as
features within our predictive approach, and extend
the datasets to cover more types of crimes. Finally,
we also intent to use more sources of heterogeneous
data, specially crime records with judgment data.
ACKNOWLEDGEMENTS
The present work was carried out with the support
of the Coordenac¸
˜
ao de Aperfeic¸oamento de Pessoal
de N
´
ııvel Superior - Brazil (CAPES) - Financing
Code 001. The authors thank CNPq, FAPEMIG,
PUC Minas and SESP-MG (Secretaria de Estado de
Seguranc¸a P
´
ublica de Minas Gerais) for the partial
support in the execution of this work.
REFERENCES
Baculo, M. J. C., Marzan, C. S., de Dios Bulos, R., and
Ruiz, C. (2017). Geospatial-temporal analysis and
classification of criminal data in manila. In Interna-
tional Conference on Computational Intelligence and
Applications, ICCIA’17, pages 6–11. IEEE.
Belesiotis, A., Papadakis, G., and Skoutas, D. (2018). An-
alyzing and predicting spatial crime distribution using
crowdsourced and open data. ACM Transactions on
Spatial Algorithms and Systems, 3(4):12:1–12:31.
Bogomolov, A., Lepri, B., Staiano, J., Oliver, N., Pianesi,
F., and Pentland, A. (2014). Once upon a crime: To-
wards crime prediction from demographics and mo-
bile data. In International Conference on Multimodal
Interaction, ICMI’14, pages 427–434. ACM.
Breiman, L. (2001). Random forests. Machine Learning,
45(1):5–32.
B
¨
uhlmann, P. and Yu, B. (2010). Boosting. Wiley Interdis-
cipl. Reviews: Computational Statistics, 2(1):69–74.
Celisse, A. and Mary-Huard, T. (2018). Theoretical analy-
sis of cross-validation for estimating the risk of the k-
nearest neighbor classifier. Journal of Machine Learn-
ing Research, 18:1–54.
Chen, T. and Guestrin, C. (2016). Xgboost: A scalable
tree boosting system. In ACM SIGKDD International
Conference on Knowledge Discovery and Data Min-
ing, KDD’16, pages 785–794. ACM.
Constitution, B. (1988). Constitution of the Federative Re-
public of Brazil.
Duda, R. O., Hart, P. E., and Stork, D. G. (2001). Pattern
Classification. Wiley-Interscience, 2ed edition.
Friedman, J. H. (2001). Greedy function approximation: A
gradient boosting machine. The Annals of Statistics,
29(5):1189–1232.
Ho, T. K. (1995). Random decision forests. In International
Conference on Document Analysis and Recognition,
ICDAR’95, pages 278–282. IEEE.
Hsu, C.-W., Chang, C.-C., and Lin, C.-J. (2008). A practical
guide to support vector classication. Technical report,
National Taiwan University, Taipei, Taiwan.
Huang, C., Zhang, J., Zheng, Y., and Chawla, N. V. (2018).
Deepcrime: Attentive hierarchical recurrent networks
for crime prediction. In ACM International Confer-
ence on Information and Knowledge Management,
CIKM’18, pages 1423–1432. ACM.
Jain, R. (1991). The art of computer systems performance
analysis. Wiley-Interscience.
Kohavi, R. and John, G. H. (1997). Wrappers for feature
subset selection. Artificial Intelligence, 97(1):273–
324.
Lin, Y.-L., Yen, M.-F., and Yu, L.-C. (2018). Grid-based
crime prediction using geographical features. Inter-
national Journal of Geo-Information, 7(8).
Liu, T.-Y. (2009). Learning to rank for information re-
trieval. Foundations and Trends in Information Re-
trieval, 3(3):225–331.
Oberwittler, D., Hummelsheim, D., Hirtenlehner, H., and
Jackson, J. (2010). Social insecurities and fear of
crime: A cross-national study on the impact of wel-
fare state policies on crime-related anxieties. Euro-
pean Sociological Review, 27(3):327–345.
Pradhan, I., Potika, K., Eirinaki, M., and Potikas, P. (2019).
Exploratory data analysis and crime prediction for
smart cities. In International Database Applications
& Engineering Symposium, IDEAS’19, pages 4:1–
4:9. ACM.
Syarif, I., Prugel-Bennett, A., and Wills, G. (2016). Svm
parameter optimization using grid search and ge-
netic algorithm to improve classification performance.
Telecommunication Computing Electronics and Con-
trol, 14:1502–1509.
United Nations (2015). Universal declaration of human
rights.
Predicting Crime by Exploiting Supervised Learning on Heterogeneous Data
531
