Security for Distributed Smart Meter: Blockchain-based Approach,

Ensuring Privacy by Functional Encryption

Artem Yurchenko

, Mahbuba Moni

, Daniel Peters

, Jan Nordholz

1,2

and Florian Thiel

Physikalisch-Technische Bundesanstalt, Berlin and Brunswick, Germany

Institute of Software Engineering and Theoretical Computer Science, Technical University of Berlin, Germany

Keywords:

Legal Metrology, Smart Meter, Functional Encryption, Distributed Ledger Technology, Blockchain.

Abstract:

Today the trend towards a completely distributed measuring device is progressing and increasing numbers of

measuring instruments have already a cloud connection. This development requires new solutions to cover the

requirements laid down by legal metrology. These new challenges could be tackled by designing innovative

solutions which extend and merge novel technologies. The aim of this publication is to use blockchain tech-

nology and functional encryption to develop a model of a secure smart metering system, demonstrating the

capabilities and limitations of these technologies in a practical scenario in the framework of legal metrology.

1 INTRODUCTION

The trend towards networking and distribution of sys-

tem components is increasingly affecting broad sec-

tors of the economy: terms such as IoT, SmartMeter,

SmartHome, SmartFabric are often used in this con-

text. The ﬁeld of legal metrology is affected by these

changes as well. An increasing number of measuring

instruments are connected to the internet, the mea-

surement data is partially stored in the cloud and

the device operation could even be controlled via a

browser interface.

All these developments expose legal metrology to

new challenges to guarantee a level of metrological

security comparable to a concentrated measuring de-

vice. The example case of a smart meter shows im-

pressively what efforts have to be made to guaran-

tee the required level of metrological security with

conventional means, leading to a rather complex sys-

tem, e.g. in Germany (BSI, 2019). This publica-

tion presents an alternative model of a smart meter-

ing system based on the use of blockchain technol-

ogy and functional encryption. This approach aims at

reducing the complexity of the system while achiev-

ing the required adequate level of metrological se-

curity. Therefore, the goal of this publication is to

examine the limits and possibilities of blockchain

and functional encryption on a simpliﬁed smart me-

ter model. The model presented contains measuring

sensors, consumer and service provider entities.While

the customer is entitled to entire measurement data,

the service provider is only allowed to see the accu-

mulated consumption. Our aim is to guarantee the

data authenticity and privacy as well as the integrity

of the algorithm by using a combination of blockchain

and functional encryption establishing conﬁdence in

the correctness of measurements, which is one of the

main goals of the legal metrology. But ﬁrst the con-

text of legal metrology should be described in more

detail.

2 CONTEXT OF LEGAL

METROLOGY

Legal metrology establishes conﬁdence in the correct-

ness of measurements and protects the users of mea-

suring instruments and their customers (Thiel, 2018).

There are more than 130 million of measurement in-

struments in Germany which are employed for com-

mercial or administrative purposes, such as water me-

ters, gas meters, weighing instruments, taximeters,

thermal energy meters and electricity meters (Esche

and Thiel, 2015). About 345 million measurement in-

struments (7 billion in sales) are sold annually in the

EU, with most of them being subject to legally regu-

lations (Thiel, 2018).

292

Yurchenko, A., Moni, M., Peters, D., Nordholz, J. and Thiel, F.

Security for Distributed Smart Meter: Blockchain-based Approach, Ensuring Privacy by Functional Encryption.

DOI: 10.5220/0009377702920301

In Proceedings of the 10th International Conference on Cloud Computing and Services Science (CLOSER 2020), pages 292-301

ISBN: 978-989-758-424-4

2.1 The Framework of Legal Metrology

The International Organization of Legal Metrology

(OIML) was founded to harmonize the regulations

across national borders and thus to reduce barriers

to trade and innovation. For this purpose, the orga-

nization publishes various guides and recommenda-

tions. From the perspective of metrological software,

the document OIML D31 plays the most important

role (OIML, 2008). The WELMEC Software Guide

7.2 (WELMEC, 2018) is mostly used on the European

level, as it contains practical recommendations for im-

plementing the requirements of the Measuring Instru-

ments Directive (2014/32/EU). This directive serves

as the basis of national legislation for measuring in-

struments in the European Union.

The WELMEC 7.2 Software Guide deﬁnes six risk

classes, which vary in terms of the necessary software

protection, software examination and software con-

formity. Software examination is usually done by no-

tiﬁed bodies prior to market launch. Thereafter, veri-

ﬁcation is periodically carried out by market surveil-

lance. Often, this veriﬁcation process is limited to vi-

sual inspection of hardware seals, veriﬁcation of the

software identiﬁer, and sample measurements.

In the process of software conformity assessment,

a distinction between the legally relevant and non-

legally relevant software must be made. According to

WELMEC 7.2 all software modules that contribute to

or inﬂuence measurement results are legally relevant.

This not only includes software modules that generate

and process, but also those that transfer, store and dis-

play the measurement data. This makes a large part of

the software legally relevant, which could, potentially,

lead to an increased testing effort and corresponding

market launch delay.

WELMEC and OIML propose the use of modulariza-

tion and clear software separation to increase the se-

curity and simplify the software assessment. Works

such as (Peters et al., 2015) substantiate and extend

this approach and seek to achieve the highest level

of security using separation kernels and virtualiza-

tion technologies. Such solutions typically require

the presence of a full-ﬂedged operating system on

the measurement instruments and require secure hard-

ware.

2.2 Current State in Software

Veriﬁcation and Future Challenges

The current methods to establish conﬁdence in the

correctness of measurements are based on system in-

tegrity. The hardware is physically sealed, and the

software integrity is veriﬁed by calculating check-

sums over all relevant ﬁles and modules. This ap-

proach provides a temporal security which holds until

a software or hardware vulnerability suitable to ex-

ploit the security system is found.

For measurement instruments not connected to net-

works the exploitation of the vulnerability requires

the physical presence of the attacker, but with de-

vices connected to the internet the situation is radi-

cally changing since the circle of potential attackers

gets signiﬁcantly larger. The network connectivity

increases the complexity of the overall system and

thus expands the possible attack surface. It also of-

fers a new way of inﬂuencing the device so that even

the calculation of the checksum might be manipu-

lated without breaking any seal. To prevent this situa-

tion measurement instruments need to undergo regu-

lar updates. However, each update itself constitutes a

(deliberate) manipulation of the software, which usu-

ally requires recertiﬁcation and is inconvenient for all

stakeholders. On the other hand, outﬁtting measuring

devices with an internet connection allows completely

new usage scenarios and business models which range

from connecting to the manufacturer’s cloud infras-

tructure to creating a fully distributed measuring de-

vice.

These usage scenarios lead to the emergence of new

device architectures whose software integrity can-

not be adequately secured by checksum methods. It

would therefore be desirable to have a veriﬁcation

method which does not verify the binary image it-

self, but the functionality contained therein. Since the

functionality to be tested so far can be very extensive

and complex, it makes sense to subject these to a log-

ical separation. Essentially, a distinction can be made

between the core measuring algorithm, which is re-

sponsible for the conversion of the raw sensor data

into the displayed measured value, and the remaining

software. The guarantee of correct execution of the

core algorithm thus fulﬁlls the basic requirement for

the correctness of a measurement, even if the struc-

tural integrity of the software image is not present.

The indispensable prerequisite for this is the correct-

ness of the result display as well as the authenticity of

the raw sensor data.

Another aspect, which is not yet part of the metro-

logical requirements, but which plays a central role,

especially for the customer, is the data privacy. The

current encryption methods only guarantee security

during transport and storage of the data. Since the

data often has to be further processed on its way, the

processing system has to decrypt the data, process it

and re-encrypt the result. If no separate cryptographic

hardware is used the secret keys and data are exposed

at least to the system operator. It would therefore be

Security for Distributed Smart Meter: Blockchain-based Approach, Ensuring Privacy by Functional Encryption

293

advantageous to be able to do calculations with en-

crypted data without ﬁrst having to decrypt them ﬁrst.

The above considerations result in the following mini-

mum security requirements for a distributed measure-

ment device to establish conﬁdence in the correctness

of measurements:

• Privacy and authenticity of measurement data

• Authenticity (implying integrity) of the core mea-

surement algorithm

Based on these requirements, possible building blocks

for a solution are presented below. Finally, a simple

model of a smart metering system based on selected

blocks is presented and evaluated.

3 OVERVIEW OF SECURITY

PRIMITIVES

The usual way to ensure privacy and authenticity is

the use of cryptography. The purpose of this section

is to give the overview of the existing cryptographi-

cal primitives which can be utilized in our smart me-

ter example to ensure the authenticity and privacy of

measurement data as well as the authenticity and in-

tegrity of the core measurement algorithm.

3.1 Re-execution of Core Algorithm by

Trusted Third Party

The simplest way to verify the correctness of a cal-

culation result is to re-execute it. At ﬁrst glance, the

re-execution of the core algorithm appears to be an

elegant and simple solution, but a closer look reveals

some serious issues. The re-executing party must be

supplied with a copy of the manufacturer’s algorithm

as well as the relevant measurement data, thus it has

to be trusted by all stakeholders which is not easy to

achieve. Assuming the use of encryption and signa-

tures to provide data authenticity and transport pri-

vacy this platform also contains all the secret keys.

This combination makes the platform a popular target

for cyberattacks. If this platform is operated by the

device manufacturer, the question arises if the core

algorithm on the re-execution platform and the mea-

surement device are the same as that has been certi-

ﬁed by the notiﬁed body. It can be summed up that

this simple approach has some structural and practi-

cal vulnerabilities that cannot be easily circumvented.

Therefore, this approach has no practical relevance

and can be discarded.

3.2 Homomorphic Encryption

Homomorphic encryption allows calculations to be

performed on encrypted data without having to de-

crypt it ﬁrst which primarily addresses the problem

of data privacy mentioned before. Formally homo-

morphic encryption could be described as a tuple of

algorithms [Gen, Enc, Dec, Eval]:

• (pk, sk, evk) ← Gen(1

, α) is the key generation

algorithm, λ the unary security parameter and α

denotes auxiliary inputs. The result of key gener-

ation is a key-triple, where pk is the public key, sk

is a secret key and evk is an evaluation key. Usu-

ally the evaluation key is considered to be part of

the public key.

• c ← Enc(m, pk) describes the encryption algo-

rithm, where m ∈ P is the plain text message and

c ∈ X is the ciphertext, where P and X are the cor-

responding plaintext and ciphertext spaces.

• c

← Eval(c

...c

, evk, f ) is the evaluation algo-

rithm. It takes as inputs a tuple of encrypted val-

ues and the evaluation key and produces an en-

crypted result C

∈ X . The input f formally de-

ﬁnes the function to be evaluated.

• m ← Dec(c, sk) deﬁnes the decryption function

While some ciphers have homomorphic properties re-

lated to a single arithmetic operation, such as (un-

padded) RSA, Paillier, and ElGamal cryptosystems,

for a long time there was no fully homomorphic en-

cryption that theoretically enabled the execution of ar-

bitrary functions. The situation changed in 2009 as

Craig Gentry proposed the ﬁrst fully homomorphic

encryption scheme(Gentry, 2009). Since then, nu-

merous other schemes have been proposed and suc-

cessfully implemented, for instance(Brakerski et al.,

2012) and (Smart and Vercauteren, 2010). From a

practical perspective, two classes of homomorphic

encryption schemes could be distinguished, the lev-

elled and bootstrapped schemes. In the ﬁrst case, the

depth of the circuit (function) cannot be subsequently

changed, so that the number of operations to be per-

formed is limited in advance. In the second case, the

circuit depth is theoretically unlimited, but requires an

additional computationally expensive operation, the

bootstrapping, which renews the encryption on a reg-

ular basis. One possible application of a bootstrapped

scheme is privacy protection in the area of cloud com-

puting. An example would be a distributed measur-

ing instrument consisting of several sensors, a cloud-

based computing unit and secure displays. The en-

tire calculation in the processing unit is encrypted and

the secure display has the only secret key to decrypt

the result.(Oppermann et al., 2017) While this method

CLOSER 2020 - 10th International Conference on Cloud Computing and Services Science

294

ensures the anonymity of the measurement data, no

statement can be made regarding the integrity of the

algorithm.

3.3 Proof Systems

The veriﬁcation of correctness in case of outsourced

computations is an important general distributed com-

puting issue. One possible solution is provided by

proof systems, whereby the server executing the com-

putation provides proof of its correctness in addition

to the result of the computation. Formally, such a

proof system can be generally described as a tuple of

probabilistic polynomial-time algorithms:

• (vk, sk, evk) ← Gen(1

, f ) is the key generation

algorithm, λ the unary security parameter and f

denotes the algorithm to be proven. The result of

key generation is a key-triple, where vk is the ver-

iﬁcation key, sk is a secret key and evk is a public

evaluation key.

• σ

← InputEncode(x, sk) describes the process of

encoding a given input x.

• σ

← Prove(σ

, evk) is the proof generation algo-

rithm, which generates a proof of correctness for

the calculation determined by ek and encoded in-

put data.

• y or ⊥← Veri f y(σ

, pk) conﬁrms or refutes the

correctness of the calculation.

Roughly, such proof systems can be differenti-

ated into interactive and argument-based systems.

While interactive systems assume a super-polynomial

prover, the argument-based systems establish a

polynomial-bound prover and are thus more practice-

oriented. The argument-based approaches can also

be realized as non-interactive proof systems, which is

important from a practical point of view, since the ad-

ditional communication between the veriﬁer and the

prover can ideally be limited to sending the proof.

Especially the efﬁciency of such processes plays an

important role in their practical application. In this

context, the literature distinguishes between absolute

efﬁciency and amortized efﬁciency. In the ﬁrst case,

the total computation time for calculating and evalu-

ating the proof is set in relation to the computational

time required by the algorithm to be veriﬁed. In the

second case, only the time necessary for veriﬁcation

is considered. Many practical implementations there-

fore distinguish between the setup phase, which is ex-

ecuted once for each algorithm and involves a high

computational effort and the proof and veriﬁcation

phase, which is set in relation to the computation time

of the algorithm to be tested and serves as an impor-

tant efﬁciency measure. Some of the approaches have

already gained practical importance and offer imple-

mentation evaluations such as Pinocchio(Parno et al.,

2016), SNARKS for C(Ben-Sasson et al., 2013) and

Geppetto(Costello et al., 2015). The main purpose

of such proof systems is to prove the correctness of

the (unencrypted) execution of an algorithm, there-

fore they could serve as a replacement to the soft-

ware integrity hashes, especially in cloud environ-

ments. Even if they solve the problem of algorithm

integrity checking, the core algorithm must continue

to run with unencrypted data in the distributed system,

which will not solve the privacy problem.

It is conceivable to combine such a proof method (in-

put privacy assumed) with homomorphic encryption

in order to take advantage of the beneﬁts of both ap-

proaches. From a practical point of view, it must be

said that proof methods and homomorphic encryp-

tion require considerable computational resources and

generally have a strong dependency on the depth of

the circuit which represents the core algorithm. How-

ever, in environments where computing power does

not matter much, such a solution may be applicable.

3.4 Functional Encryption

Functional encryption, similar to homomorphic en-

cryption, allows calculations to be performed on en-

crypted data. The main difference, however, is that

the functional encryption provides a plaintext result

of the calculation. Formally, a functional encryption

can be deﬁned as a tuple of probabilistic polynomial

time algorithms:

• (pk, sk) ← Setup(1

) is the key generation algo-

rithm, λ the unary security parameter. The result

of key generation is a key tuple, where pk is the

public key and sk is a secret key.

• ek ← Gen(sk, f ) generates an evaluation key with

respect to a function f

• c ← Enc(x, pk) encrypts a value x

• f (x)or ⊥← Dec(c, ek) computes f (x) and pro-

vides the decrypted result.

The functional encryption was proposed in 2005 (Sa-

hai and Waters, 2005) and formalized in 2011 (Boneh

et al., 2011). Theoretically, the functional encryption

allows execution of arbitrary functions on encrypted

data, but in practice there are only a few implemen-

tations with a strong limitation on the functions to be

performed. In contrast to homomorphic encryption,

the calculations cannot be cascaded because the result

is decrypted directly after an (albeit complex) opera-

tion, which also undermines output privacy.

Nevertheless, such a method offers many advantages.

First, it guarantees privacy of the input data, if we as-

Security for Distributed Smart Meter: Blockchain-based Approach, Ensuring Privacy by Functional Encryption

295

sume that the function f (x) is difﬁcult to invert. At

the same time, it guarantees the integrity of the algo-

rithm because the evaluation key is tied to the func-

tion. Thus, it combines the properties of homomor-

phic encryption and the proof systems. Another ad-

vantage is that the input data can only be decrypted

in the context of functions for which the evaluation

keys have been generated. If the secret key is securely

deleted after a single use, the encrypted data cannot be

used for purposes other than the speciﬁc function(s).

All these features serve to create trust between the

executing party and the data provider. A key weak-

ness of functional encryption for its use in distributed

computation lies in the fact that the calculation result

is unencrypted. Thus, the executing party can falsify

the result. However, there is the possibility of sepa-

rating the calculation execution and the result decryp-

tion, depending on the scheme used. In our construc-

tion, such a separation is possible, but not necessary.

An essential class of functional encryption is offered

by the inner-product schemes (Abdalla et al., 2015),

(Agrawal et al., 2016). They allow the calculation of

a scalar product of two vectors, where one of the vec-

tors is encrypted and the second represents the func-

tion f (x). In the following, the scheme based on De-

cisional Difﬁe-Hellman from the Cifer library (Cifer,

2019) is used: due to its relatively simple implemen-

tation of the encryption and a relatively small cipher-

textsize it is a viable candidate even for the integration

on resource-limited devices.

3.5 Blockchain Technology

Recent years have seen the evolution from central-

ized computational storage to decentralized architec-

tures and systems. Distributed ledger technology in-

novation is one of the key developments making this

move conceivable which includes smart contracts and

blockchain technologies. Smart contracts are the self-

executing software into the ledger. As a peer-to-

peer electronic cash system, the blockchain technol-

ogy ﬁrst came up with the Bitcoin cryptocurrency,

published by an author under the pseudonym Satoshi

Nakamoto (Nakamoto, 2008).

In blockchain technology, blocks are linked in se-

quential order and having a valid network since each

block contains the cryptographic hash of previous

block. To authenticate and verify the data, each block

holds a permanent timestamp. There can be two

forms of blockchain platform named as permission-

less and permissioned. In permissionless blockchain,

anybody can join and take part in the network consen-

sus while in permissioned blockchain consensus can

be achieved by known identiﬁers. For achieving bet-

ter transaction latency and throughput, permissioned

blockchain consensus protocol needs less computa-

tional resources (Melo et al., 2019). This enables

blockchain technology to store not only data but also

to deﬁne inter-participant roles and rules. The im-

mutability feature makes the blockchain more useful

once a transaction is written onto the blockchain and

cannot be erased or, at least, it would be extremely

difﬁcult to change.

Our blockchain implementation setup will take ad-

vantages of these features. Taking the speciﬁc con-

straints of legal metrology into consideration we

have chosen the permissioned blockchain Hyper-

ledger Fabric (Hyperledger Project) for our proof of

concept implementation. Hyperledger Fabric has a

modular architecture that enables the conﬁguration of

smart contracts (called also chaincode in Hyperledger

terminology) which are then executed within the

Docker containers. In our experiments we have used

version 1.4 of Hyperledger Fabric (Fabric, 2019).

4 SMART METER MODEL

A classic smart metering system consists of several

sensors that produce measurement values in given

time intervals. The sensors are connected to a gate-

way, which is used for storing and further processing

of the measurement data. The gateway thus repre-

sents a central unit for which special security precau-

tions must be taken. Customers as well as the energy

provider are able to make requests to the gateway. A

special role in this construct is the gateway adminis-

trator, who has privileged access to the gateway and

can change the conﬁguration.

4.1 Proposed Approach

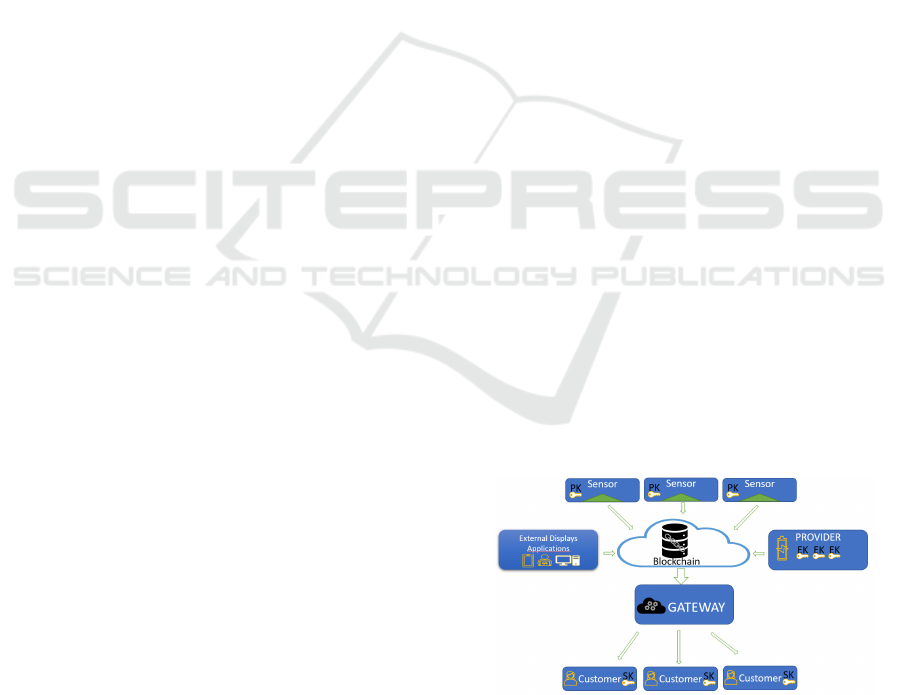

Figure 1: Proposed Smart Metering Model.

The proposed model (see Fig. 1) closely follows the

existing smart metering model but has a different dis-

tribution of the component roles. The central assump-

tion is that the customer is a proprietor of the gener-

CLOSER 2020 - 10th International Conference on Cloud Computing and Services Science

296

ated measurement data and that the energy provider is

only interested in learning the total consumption for

billing purposes in a given time period. The sensors

are classiﬁed as trustworthy and are regularly checked

for manipulation by market surveillance. The distri-

bution and storage of measurement data is done on the

blockchain. In the following, the entire process is out-

lined as an example in order to clarify the functioning

of the proposed overall system.

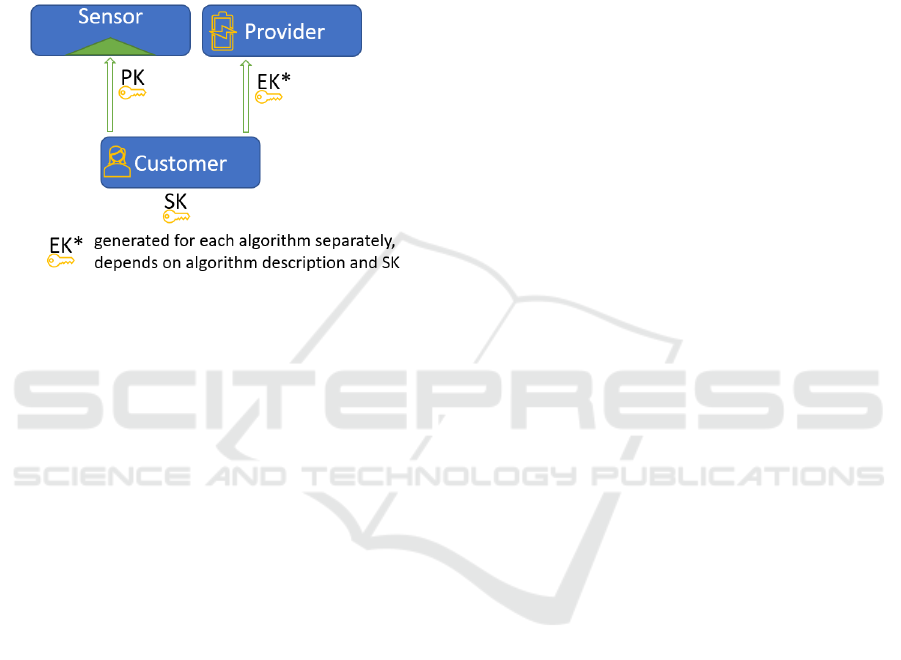

Figure 2: FE-Key Setup Procedure.

In an initial setup step the consumer securely gen-

erates a key pair consisting of a secret (SK) and

a public functional key (PK). The public functional

key is transmitted to the sensor via a secure chan-

nel (provided by the gateway). In the second step

the consumer and the provider agree on a suitable

tariff model, according to which the consumer gen-

erates an evaluation functional key (EK). This key is

transferred to the provider by means of another secure

channel (see Fig. 2). In the last step the sensor is reg-

istered on the blockchain and on the gateway.

The blockchain plays the role of a central distributed

storage for encrypted measurement data. The sen-

sors periodically encrypt their measurements using

their public key (PK) and store the result into the

blockchain. After a ﬁxed period of time, these en-

crypted consumption values are read by the energy

supplier from the blockchain and the total sum is cal-

culated with the aid of the corresponding evaluation

key (EK). If the function speciﬁed by the evaluation

key differs from that used by the manufacturer for the

calculation and decryption of the sum, the decryp-

tion fails. This ensures that both the customer and

the provider reach consensus about the function to be

performed. The provider has no knowledge of the

individual measured values, while the customer can

decrypt the individual values and calculate the total

consumption on his own. The application of the de-

scribed method ensures conﬁdence in the algorithm

to be executed between the customer and the provider.

At the same time, the privacy of the customer is main-

tained.

In addition to data storage, calculations can be de-

ﬁned to take place within the scope of the blockchain;

such programs are generally called smart contracts.

These can also be statistical surveys, whereby the cus-

tomer would have to be asked explicitly each time to

generate a corresponding evaluation key. Similar ap-

proaches already exist for solutions based on homo-

morphic encryption (Stan et al., 2018). Also, the up-

date process of existing tariff models can be realized

much more easily by using smart contracts and issu-

ing new functional keys, as this does not require any

updates of the actual gateway software. The gateway

must accommodate less functionality and can there-

fore be made simpler and possibly with relaxed secu-

rity requirements while still providing its interfaces to

the customer and the energy provider. The adminis-

tration of the blockchain network can still be done by

the original gateway administrator.

The public and redundant nature of the blockchain

provides transparency and data authenticity, while the

use of functional encryption guarantees data privacy

and algorithm authenticity.

4.2 Threat Model

Our approach protects the privacy of customer mea-

surement data and establishes trust between the cus-

tomer and the service provider regarding the use of the

data. In our threat model, service providers are con-

sidered to run a trustworthy security infrastructure, in-

cluding the PKI, but are potentially curious to learn

individual usage numbers of their customers, mak-

ing them attackers on the ”privacy” aspect. Further-

more, we consider the network and third parties as un-

trusted, so we have to choose a protocol scheme that

is resistant to eavesdropping, message manipulation

and replay from others. Indeed, our chosen functional

encryption scheme is secure under the s-IND-CPA as-

sumption; however, careless generation of evaluation

keys may allow third parties to gather information

through means of statistical inference. Thus the re-

sponsibility of maintaining the security of the mea-

surement data lies with the customer who holds the

secret key and is not restricted in any use of his mea-

surement data.

5 IMPLEMENTATION DETAILS

To evaluate the performance, we ran our experiments

on an Intel Server S2600CW with 256 GB RAM and

two Xeon E5-2650 v4 CPUs running at 2,2 GHz with

Security for Distributed Smart Meter: Blockchain-based Approach, Ensuring Privacy by Functional Encryption

297

24 physical and 48 virtual cores in total. Our soft-

ware environment is based on Ubuntu Bionic Beaver

(18.04.1 LTS). This server hosts the blockchain net-

work along with the client application.

The functional tests were performed on top of Docker

containers as Hyperledger Fabric is using docker for

containerization and network virtualization. The sys-

tem was conﬁgured as minimal setup with 1 peer, 1

orderer container with solo-orderer service which de-

rives solo consensus mechanism.

Peer (peer0 container) used in our experimental setup

was conﬁgured both as an endorser and a commit-

ter. Therefore, for executing the transaction’s required

chaincode, an additional chaincode container (dev) is

used. The Orderer container is necessary to order

transactions and create new blocks establishing con-

sensus. CouchDB has been used to keep the peer

ledger state. Additionally, we have created a CLI

(command line interface) container to interact with

the network.

For both the customer and provider application, we

have used one of the available APIs (fabric-java-sdk)

to generate a transaction proposal. The SDK sends

the transaction proposal to peer0. peer0 plays the spe-

cial role as the trusted peer which is able to execute

smart contracts. It also veriﬁes whether the transac-

tion proposal is well-formed and has not been sub-

mitted already in the past (replay-attack protection),

and checks the authorization of the customer and

provider to perform the proposed operation (Fabric,

2019). The peer0 instance and the peer ”dev” (which

executes the chaincode) gets assigned one CPU core

each. Orderer peers and our client applications are

freely distributed over remaining CPU cores.

Such a conﬁguration makes it possible to explore the

limits of the smallest possible Hyperledger installa-

tion, which in principle can be implemented on a

middle-class consumer computer.

In addition to the blockchain installation, there are

two applications developed by us (Java) that simu-

late measuring instruments and the provider applica-

tion. Both applications are multithreaded, which al-

lows multiple parallel instances to be simulated. Each

meter (instance) generates random measurement val-

ues, which are then individually encrypted and writ-

ten to the blockchain. To simulate maximum utiliza-

tion of the system, the encryption and sending of the

data is not done in a 15-minute cycle (BSI, 2019), but

directly after receiving the conﬁrmation that the pre-

vious data was written to the blockchain. The number

of parallel application instances (threads) is varied ac-

cordingly, as well as the key length of the functional

encryption, which directly affects the size of the ci-

phertext.

6 RESULTS

When evaluating the results, it should be noted that

the generation of each key is a one-time process and

therefore not time-critical. The calculation and the

decryption of the result takes place monthly and is

therefore also less time-critical. The encrypting and

storing a single measurement value in the blockchain

should not exceed the sensor reading intervall (e.g. 15

minutes for electricity meters) (BSI, 2019), which is

a natural limit to the number of possible sensors. The

evaluation of the results is done in the order of the

processes and is structured according to the respec-

tive of an active participant (consumer, measurement

sensor and provider client).

6.1 Setup Step

The ﬁrst initial step concerns the commissioning of

the device and is carried out once. The generation of

functional key us carried out by customer and takes

most of the time in the registration procedure for the

sensor(ﬁg. 3). Depending on the size of the key, the

time increases signiﬁcantly. Since this process runs

only once, this effort is acceptable, but requires at

least a consumer-grade computer (mobile platforms

would be less suitable).

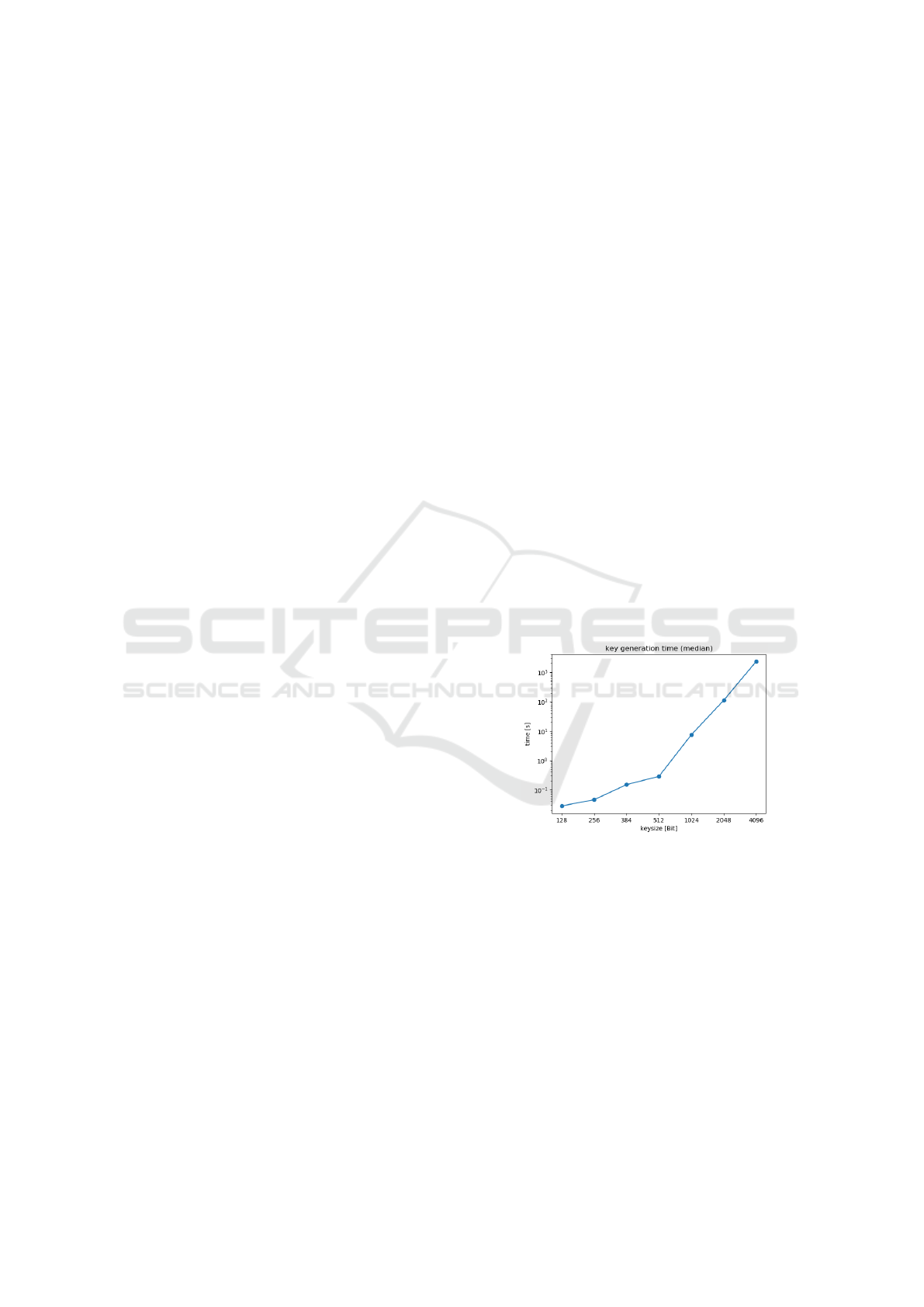

Figure 3: Keygeneration Time.

6.2 Measurement Instrument

The measurement instrument calculates the actual

measurement value, encrypts it with functional public

key and puts the value on the blockchain using REST

protocol. From the ﬁgure 4 it can be seen that the en-

cryption time in relation to the time necessary to store

the value on the blockchain does not play a signiﬁcant

role.

It should be taken into account that encryption is done

on a relatively low-computing device, so the encryp-

tion times could be signiﬁcantly higher. However, the

ﬁgure 4 shows that the current encryption time could

increase by up to the factor 20,000, without exceeding

CLOSER 2020 - 10th International Conference on Cloud Computing and Services Science

298

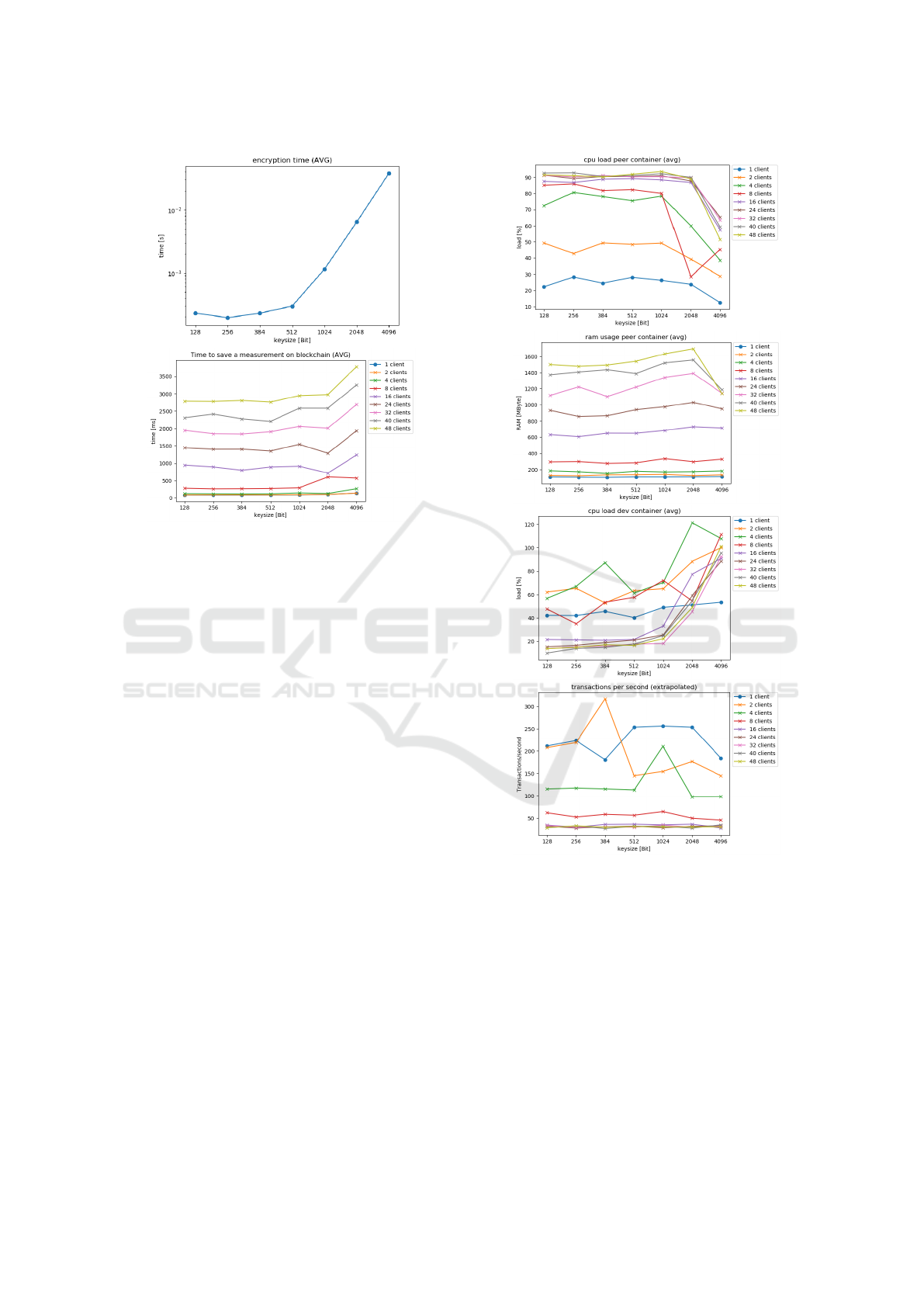

Figure 4: Encryption Time and Time to Store the Value on

the Blockchain.

the interval of 15 minutes between successive read-

outs. The time required for a value to be stored on the

blockchain depends heavily on the utilization of the

blockchain and does not show any signiﬁcant depen-

dence on the size of the value to be stored (key size).

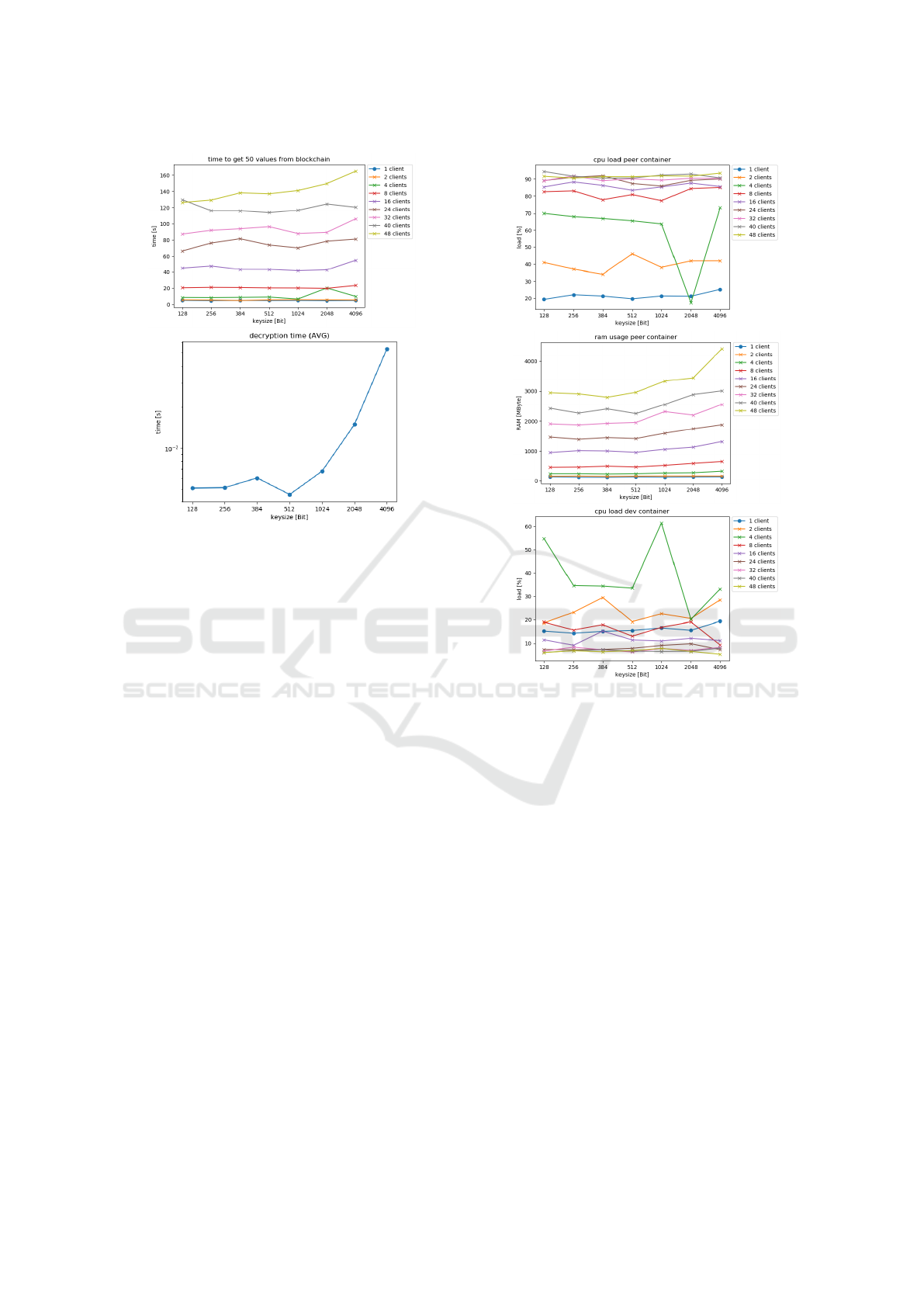

Considering the performance data of the two contain-

ers peer0 and dev (ﬁg. 5), a clear dependency on the

number of connected measurement devices (clients)

could be seen. While the utilization of the peer in-

creases with increasing number of measuring devices,

the utilization of the dev container decreases, which

indicates a bottleneck in the peer container.

It can be concluded that an increase in the number of

peers would have a positive effect on the overall per-

formance. At the same time there is a dependency

on the value size in the dev container, so that a larger

key size might require more dev containers. Similar

statements can be made when considering the num-

ber of transactions per second. The transaction rate

seems to break down from at least 8 simultaneous

client applications, which can primarily be explained

by the high load of the peer container. Nevertheless,

in case of optimal system utilization with 8 simultane-

ous blockchain transactions and assuming the transac-

tion time of 500 ms 1800 measurement sensors could

be served at the same time without violating the max-

imum sensor reading intervall of 15 minutes (cf. ﬁg.

4). Admittedly, it is an ideal case that requires perfect

synchronization, in reality the limit would be corre-

spondingly lower.

Figure 5: Blockchain Statistics.

6.3 Provider Client

The provider client application is used to collect all

the measurement values for each of the measurement

instrument at the end of a billing period and to de-

crypt the overall consumption. Since this operation

is performed only at the end of a billing cycle, it is

less time-critical and the provider usually has access

to higher computing capacity than the customer. At

the same time, the blockchain allows parallel access,

so billing can be done on multiple parallel instances.

Nonetheless, efﬁciency also plays an important role.

Security for Distributed Smart Meter: Blockchain-based Approach, Ensuring Privacy by Functional Encryption

299

Figure 6: Provider Application (Time to Get All Values and

Decryption Time).

The decryption time is short in relation to the time

it takes to read a value from the blockchain and the

latter has an approximately linear dependence on the

number of measured values. We have determined a

number of measured values to be 50 to reduce the

simulation time (ﬁg. 7). Especially the peer serves

as a performance bottleneck as the number of par-

allel instances increases. Similarly to the cpu load

the memory consumption in the peer increases signif-

icantly compared to the consumption caused by me-

ter accesses (ﬁg. 7 ), while the memory consump-

tion of dev container remains below 500 MByte. It is

therefore worth increasing the capacity of the peer to

ensure optimal throughput and utilization of the dev

container.

7 CONCLUSION

It can generally be concluded that the application of

functional encryption in combination with blockchain

technology opens new perspectives in the ﬁeld of le-

gal metrology. It allows the customer to determine

the use of his data while at the same time giving him

the security and conﬁdence in the correctness of mea-

surement results, thereby fulﬁlling the basic require-

ments of legal metrology. By using the logical sep-

aration presented in this publication, it is possible to

deﬁne the protected algorithm core, which gets cryp-

tographically secured to provide algorithm authentic-

Figure 7: Blockchain Statistics Provider Application.

ity as well as privacy and data authenticity. The con-

cept presented in this publication uses a combination

of functional encryption and blockchain technology

to achieve these goals. The results of the simulations

show the advantages and limitations of both technolo-

gies. Furthermore, we have proven that a practical,

energy efﬁcient system can be designed even with re-

stricted computing capacity of intelligent sensors and

without requiring high computing power from the ser-

vice provider.

REFERENCES

Abdalla, M., Bourse, F., Caro, A. D., and Pointcheval, D.

(2015). Simple Functional Encryption Schemes for

Inner Products. In Lecture Notes in Computer Science,

pages 733–751. Springer Berlin Heidelberg.

Agrawal, S., Libert, B., and Stehl

e, D. (2016). Fully Se-

cure Functional Encryption for Inner Products, from

Standard Assumptions. In Advances in Cryptology –

CRYPTO 2016, pages 333–362. Springer Berlin Hei-

delberg.

CLOSER 2020 - 10th International Conference on Cloud Computing and Services Science

300

Ben-Sasson, E., Chiesa, A., Genkin, D., Tromer, E., and

Virza, M. (2013). SNARKs for C: Verifying Program

Executions Succinctly and in Zero Knowledge. In Ad-

vances in Cryptology – CRYPTO 2013, pages 90–108.

Springer Berlin Heidelberg.

Boneh, D., Sahai, A., and Waters, B. (2011). Functional

Encryption: Deﬁnitions and Challenges. In Theory of

Cryptography, pages 253–273. Springer Berlin Hei-

delberg.

Brakerski, Z., Gentry, C., and Vaikuntanathan, V. (2012).

(Leveled) Fully Homomorphic Encryptionwithout

Bootstrapping. In ITCS Proceedings of the 3rd Inno-

vations in Theoretical Computer Science Conference.

BSI (2019). Technische Richtlinie BSI TR-03109-1: An-

forderungen an die Interoperabilit

at der Kommunika-

tionseinheit eines intelligenten Messsystems.

Cifer (2019). https://github.com/fentec-project/CiFEr re-

trieved 28. oct. 2019.

Costello, C., Fournet, C., Howell, J., Kohlweiss, M.,

Kreuter, B., Naehrig, M., Parno, B., and Zahur, S.

(2015). Geppetto: Versatile Veriﬁable Computation.

In 2015 IEEE Symposium on Security and Privacy.

IEEE.

Esche, M. and Thiel, F. (2015). Software Risk Assessment

for Measuring Instruments in Legal Metrology. Fed-

CSIS, Vol. 5.

Fabric, H. (2019). https://hyperledger-

fabric.readthedocs.io/en/release-1.4/txﬂow.html

retrieved 9. dec. 2019.

Gentry, C. (2009). Fully homomorphic encryption using

ideal lattices. In Proceedings of STOC.

Melo, W. S., Bessani, A., Neves, N., Santin, A. O., and

Carmo, L. F. R. C. (2019). Using Blockchains to

Implement Distributed Measuring Systems. IEEE

Transactions on Instrumentation and Measurement,

68(5):1503–1514.

Nakamoto, S. (2008). Bitcoin: A Peer-to-Peer Electronic

Cash System. Bitcoin: A Peer-to-Peer Electronic

Cash System.

OIML (2008). General requirements for software con-

trolled measuring instruments, OIML, 2008.

Oppermann, A., Grasso-Toro, F., Yurchenko, A., and

Seifert, J. P. (2017). Secure Cloud Computing: Com-

munication Protocol for Multithreaded Fully Homo-

morphic Encryption for Remote Data Processing. In

IEEE International Symposium on Parallel and Dis-

tributed Processing with Applications (IEEE ISPA

2017).

Parno, B., Howell, J., Gentry, C., and Raykova, M. (2016).

Pinocchio. Communications of the ACM, 59(2):103–

112.

Peters, D., Thiel, F., Peter, M., and Seifert, J.-P. (2015).

A secure software framework for Measuring Instru-

ments in legal metrology. In IEEE International In-

strumentation and Measurement Technology Confer-

ence (I2MTC) Proceedings.

Sahai, A. and Waters, B. (2005). Fuzzy Identity-Based En-

cryption. In Lecture Notes in Computer Science, pages

457–473. Springer Berlin Heidelberg.

Smart, N. P. and Vercauteren, F. (2010). Fully Homomor-

phic Encryption with Relatively Small Key and Ci-

phertext Sizes. In Public Key Cryptography – PKC

2010, pages 420–443. Springer Berlin Heidelberg.

Stan, O., Zayani, M.-H., Sirdey, R., Hamida, A. B.,

Leite, A. F., and Mziou-Sallami, M. (2018). A

New Crypto-classiﬁer Service for Energy Efﬁciency

in Smart Cities. In Proceedings of the 7th Interna-

tional Conference on Smart Cities and Green ICT Sys-

tems. SCITEPRESS - Science and Technology Publi-

cations.

Thiel, F. (2018). Digital transformation of legal metrology

- the European Metrology Cloud. OIML Bulletin, Vol.

LIX, Nr. 1.

WELMEC, . (2018). WELMEC 7.2 Software Guide (Mea-

suring Instruments Directive 2014/32/EU1), 2018.

Security for Distributed Smart Meter: Blockchain-based Approach, Ensuring Privacy by Functional Encryption

301
