Verifying Sanitizer Correctness through Black-Box Learning:

A Symbolic Finite Transducer Approach

Sophie Lathouwers

1 a

, Maarten Everts

2 b

and Marieke Huisman

1 c

Formal Methods and Tools, University of Twente, Enschede, The Netherlands

Services and Cybersecurity, University of Twente & TNO, Enschede, The Netherlands

Keywords:

Automata Learning, Sanitizers, Symbolic Finite Transducers, Injection Attacks, Software Veriﬁcation.

Abstract:

String sanitizers are widely used functions for preventing injection attacks such as SQL injections and cross-

site scripting (XSS). It is therefore crucial that the implementations of such string sanitizers are correct. We

present a novel approach to reason about a sanitizer’s correctness by automatically generating a model of the

implementation and comparing it to a model of the expected behaviour. To automatically derive a model of the

implementation of the sanitizer, this paper introduces a black-box learning algorithm that derives a Symbolic

Finite Transducer (SFT). This black-box algorithm uses membership and equivalence oracles to derive such a

model. In contrast to earlier research, SFTs not only describe the input or output language of a sanitizer but

also how a sanitizer transforms the input into the output. As a result, we can reason about the transformations

from input into output that are performed by the sanitizer. We have implemented this algorithm in an open-

source tool of which we show that it can reason about the correctness of non-trivial sanitizers within a couple

of minutes without any adjustments to the existing sanitizers.

1 INTRODUCTION

Injection ﬂaws have been identiﬁed as the most se-

rious web application security risk by the OWASP

Top Ten project (OWASP Foundation, 2017). Some

examples of injection vulnerabilities include cross-

site scripting (XSS), code injection, command injec-

tion and SQL injection. Injection vulnerabilities oc-

cur when untrusted data is interpreted by the system,

which can result in the execution of a user-given com-

mand or the injection of malicious data into the sys-

tem. This may have consequences such as disclo-

sure of personal information, modiﬁcation of data and

even deletion of data. To prevent exploitation of injec-

tion vulnerabilities one can aim to detect vulnerabil-

ities on time and repair them, reject malicious input,

limit the privileges of users or modify the given input.

This research focuses on the approach where input,

given by the user to the system, is modiﬁed such that

dangerous characters are removed.

Sanitizers, also called string manipulating pro-

grams, are programs that remove or replace

https://orcid.org/0000-0002-7544-447X

https://orcid.org/0000-0002-5302-8985

https://orcid.org/0000-0003-4467-072X

such unwanted characters. For example, the

FILTER SANITIZE EMAIL function in PHP (The PHP

Group, 2018b) removes all characters that are not

allowed in email addresses. Sanitizers are widely

used in practice, however, writing them is quite difﬁ-

cult. This is because sanitizers are used in a security-

sensitive environment where a small mistake can al-

ready introduce a vulnerability in the application. To

address this problem, we investigate how we can eas-

ily verify the correctness of existing sanitizers.

Figure 1 gives an overview of the methodology

that we use to reason about the correctness of sanitiz-

ers. We developed a black-box learning algorithm that

can automatically deduce a model, called a Symbolic

Finite Transducer (SFT), from a sanitizer by inspect-

ing the input and output. We compare the learned

model to a speciﬁcation written by the user to rea-

son about the correctness of a sanitizer. As far as we

are aware, this is the ﬁrst approach to automatically

derive a model that reasons about the input-output be-

haviour in a black-box manner. Moreover, aside from

writing the speciﬁcation, the approach is fully auto-

matic and can be applied to existing sanitizers written

in any language. We have evaluated this approach by

analysing the correctness of existing real-world san-

itizers. We identify what types of sanitizers can be

784

Lathouwers, S., Everts, M. and Huisman, M.

Verifying Sanitizer Correctness through Black-Box Learning: A Symbolic Finite Transducer Approach.

DOI: 10.5220/0009371207840795

In Proceedings of the 6th International Conference on Information Systems Security and Privacy (ICISSP 2020), pages 784-795

ISBN: 978-989-758-399-5; ISSN: 2184-4356

Specification

Learning

algorithm

Check

consistency

User

Learned model

Specification

Distinguishing

input or ‘OK’

Sanitizer

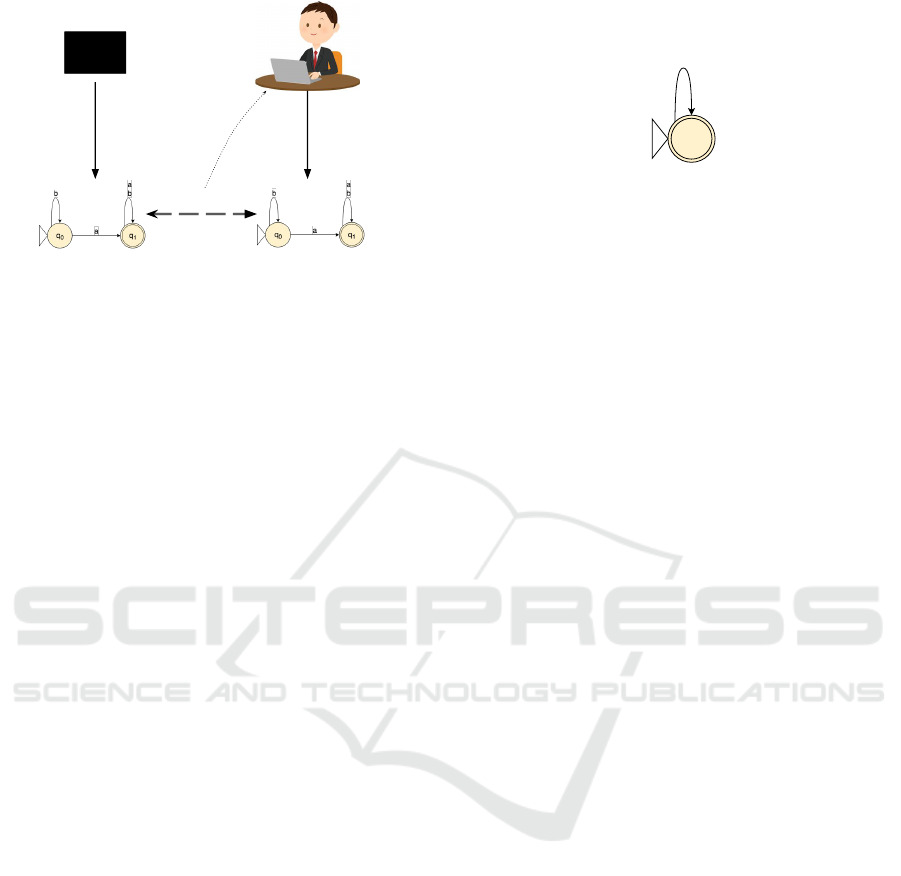

Figure 1: An overview of the methodology that we use to

reason about the correctness of sanitizers. We use a black-

box learning algorithm to derive a model from the sanitizer

which is compared to a speciﬁcation written by the user. Af-

terward, any discrepancies between the models are reported

to the user.

learned using this approach and what the bottlenecks

of the current implementation are.

Contributions:

1. A novel approach to study the correctness of san-

itizers by comparing learned models to a speciﬁ-

cation.

2. A black-box SFT learning algorithm that uses

equivalence and membership queries.

3. Implementation of the black-box SFT learning al-

gorithm and evaluation of its performance and ap-

plicability.

2 SYMBOLIC FINITE

AUTOMATA AND

TRANSDUCERS

For this research we used automata to represent san-

itizers. Mealy machines are unfortunately not suit-

able to represent sanitizers because it would need one

transition per input character per state in the automa-

ton. If this is applied in a setting with strings, with

many possible input characters, this would result in

very large and cluttered automata. For example, if

we only reason about the generic alphabet (a-z), this

would already lead to 26 transitions per state. To

make the automata more concise, we turn to symbolic

ﬁnite automata (SFAs) and symbolic ﬁnite transduc-

ers (SFTs) which can concisely represent similar tran-

sitions for many different input characters. For exam-

ple, all characters that are not changed by a sanitizer

can be represented by a single transition per state in

an SFT. SFAs can be used to reason about behaviour

that is only related to the input or the output language.

x != '>' ^ x != '&' ^ x != '<' / [x]

x == '>' / [&, g, t, ;]

x == '&' / [&, a, m, p, ;]

x == '<' / [&, l, t, ;]

Figure 2: An SFT that encodes <, > and & into their

HTML references <, > and &. This describes the

behaviour of the python method escape with the optional

ﬂag set to False (Python Software Foundation, n.d.).

SFTs can be used to reason about the relation between

the input and the output.

A Symbolic Finite Transducer (SFT) can be de-

scribed using the tuple (Q, q

,F, ι, o, ∆) (Bjørner and

Veanes, 2011) where:

• Q is the ﬁnite set of states

• q

∈ Q is the initial state

• F ⊆ Q is the set of accepting states

• ι is the input sort

• o is the output sort

• ∆ is a function consisting of ∆

∪ ∆

– ∆

denotes all transitions in the automaton la-

belled with a ﬁrst-order predicate (which is the

input condition) and the set of output functions.

The output functions describe what output is

generated when this transition is taken.

– ∆

denotes all transitions in the automaton la-

belled with ε as the input condition and the set

of output functions. ε-transitions are transitions

that can be taken without consuming an input at

any point in time.

An example of an SFT can be seen in Figure 2.

Each transition is labelled y/z where y denotes the

input condition and z denotes the set of output func-

tions. The initial state is indicated by an arrow and

accepting states are encircled twice in the ﬁgure. To

check whether an SFT accepts a certain input, we

start in the initial state. For each character of the in-

put, denoted by x in the input condition, we evaluate

the predicates of the transitions starting in the cur-

rent state. We will then follow the transition whose

predicate evaluates to true for this input character and

generate the corresponding output. If we end in an

accepting state, then the input is accepted.

An SFA is an SFT that produces empty outputs

(Bjørner and Veanes, 2011). Thus, an SFA looks sim-

ilar to an SFT, the only difference is that there are no

output functions for transitions.

Verifying Sanitizer Correctness through Black-Box Learning: A Symbolic Finite Transducer Approach

785

3 SPECIFICATIONS

To reason about the correctness of sanitizers, we es-

tablish what behaviour is considered correct by writ-

ing a speciﬁcation which describes how the sanitizer

is supposed to behave. In this section, we there-

fore ﬁrst discuss what types of speciﬁcations can be

checked with our approach (see Section 3.1). Fol-

lowed by Section 3.2 which describes how the cor-

rectness of the speciﬁcations can be checked.

Instead of comparing the speciﬁcation and imple-

mentation, it is also possible for the user to inspect

the learned model itself without writing a speciﬁca-

tion. However, we think that writing a speciﬁcation

is important since it forces the user to think about

what correct behaviour would be. Moreover, it is easy

to overlook mistakes in a model. Aside from that,

speciﬁcations can also be reused for similar sanitiz-

ers whereas manual inspection would be required for

each new implementation.

3.1 Type of Speciﬁcations

To discover the type of behaviours that users are in-

terested in, we looked at the literature (Hooimeijer

et al., 2011) and organised a brainstorming session

with employees of a security company called North-

wave (Northwave, n.d.), that specialises in, among

other things, security testing.

The following type of speciﬁcations can be

checked with our approach:

• Blacklisting: Specify which (sequences of) char-

acters are not allowed in the input or output.

• Whitelisting: Specify which (sequences of) char-

acters are allowed in the input or output.

• If z then x → y: If condition z is satisﬁed, then all

occurrences of x are replaced by y. Note that this

can also be used to specify that something must

not change, in that case, you specify “if z then x →

x”. If z is replaced by True then the speciﬁcation

means that x should always be changed into y.

• Length: Specify the allowed length of the input or

output.

• Equivalence, Idempotency and Commutativity:

Check whether two sanitizers behave the same,

whether a sanitizer is idempotent or whether a

sanitizer commutes with another sanitizer.

• Bad Output: Given a bad output, search for an

input that leads to this output.

We can divide these types of speciﬁcations into

two categories: input/output-only and input-output

related.

x != '<'

x != 's' ^ x != '<'

x == '<'

x != 'c' ^ x != '<'

x == 's'

x != 'r' ^ x != '<'

x != 'i' ^ x != '<'

x == 'c'

x != 'p' ^ x != '<'

x != 't' ^ x != '<'

x == 'r'

x != '>' ^ x != '<'

x == 'i'

x == '<'

x == 'p'

x == '<'

x == 't'

x == '<'

true

x == '>'

Figure 3: An SFA that accepts all inputs that contain

<script>.

Input/output-only Speciﬁcations are speciﬁcations

that only reason about the input language or the output

language. Speciﬁcations that are input/output-only,

and should be expressed with SFAs, include: black-

listing, whitelisting and length speciﬁcations.

Input-output Related Speciﬁcations reason about

the transformation from the input into the output.

Input-output related speciﬁcations, that should be ex-

pressed with SFTs, include: If z then x → y, equiv-

alence, idempotency, commutativity and bad output

speciﬁcations.

3.2 Checking Speciﬁcations

Next, we explore what users need to specify to check

each type of speciﬁcation mentioned in the previous

section. It also explains how each speciﬁcation is

compared to the learned model using the information

provided by the user. It is important that if a speciﬁ-

cation is in the form of an SFT, then the SFT needs

to be single-valued, i.e., it always produces the same

output upon a given input. This is necessary in order

to determine equivalence. While determinism of the

SFT implies that it is single-valued, nondeterministic

SFTs can also be single-valued (Veanes et al., 2012).

In case the speciﬁcation is in the form of an SFA, we

can compare this to an SFA of the input or output lan-

guage which can be derived from an SFT.

Blacklisting: The user needs to construct an SFA that

accepts all unacceptable inputs or outputs as speciﬁed

on the blacklist. To check the speciﬁcation, compute

the union of the speciﬁed SFA with the SFA that rep-

resents the input or output language. If the union is

equal to the empty automaton, then no disallowed in-

put or output is accepted. For example, if the text

“<script>” is disallowed, then we specify an automa-

ton that accepts everything containing this text (see

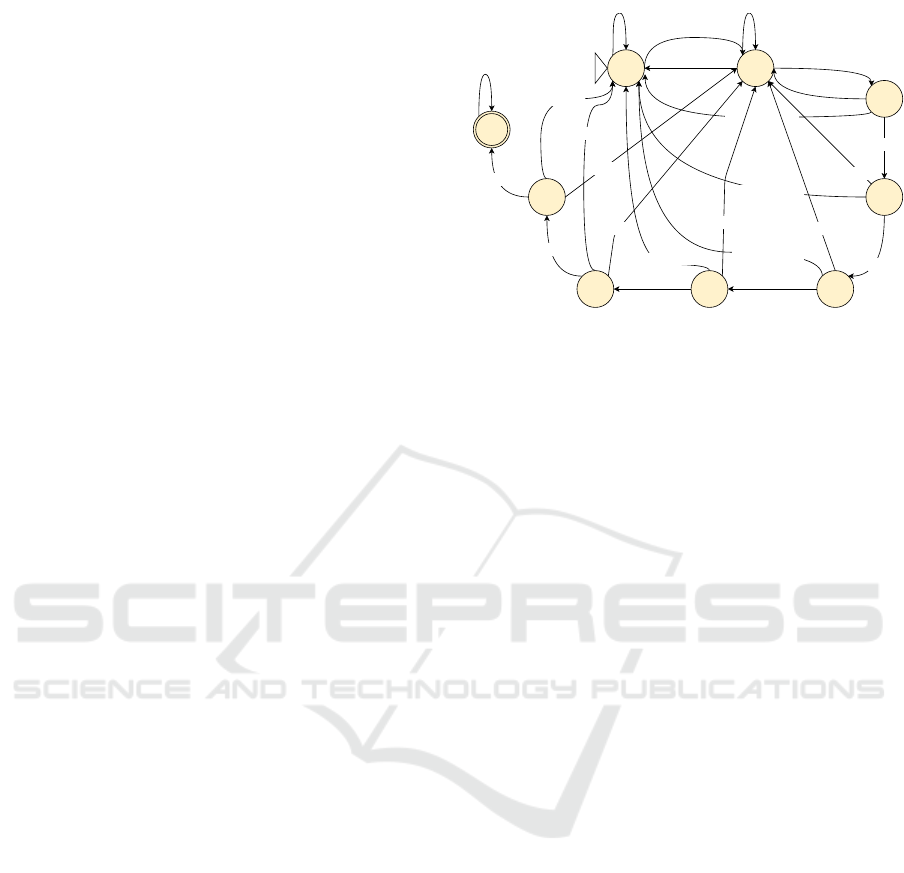

ForSE 2020 - 4th International Workshop on FORmal methods for Security Engineering

786

true

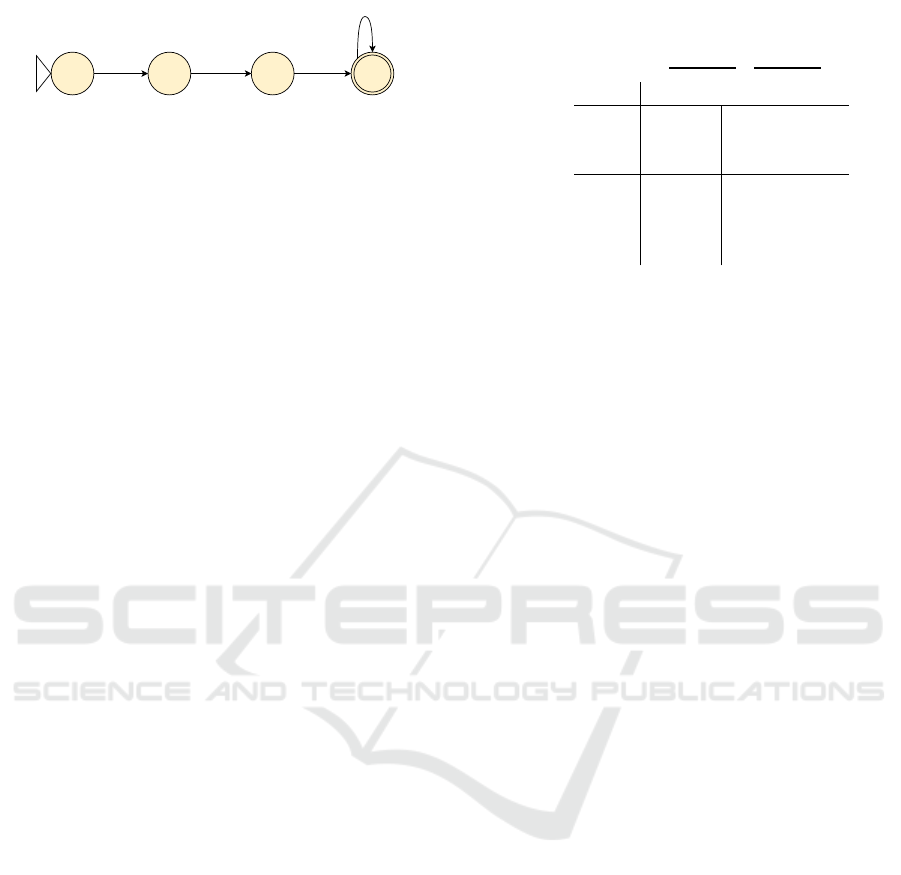

Figure 4: An SFA that accepts all inputs that consist of at

least three characters.

Figure 3).

Whitelisting: The user needs to construct an SFA that

accepts all acceptable inputs or outputs as speciﬁed

in the whitelist. The speciﬁcation can be checked in

one of the following two ways: (1) check if the two

SFAs are equivalent, if so, then they accept the same

inputs or outputs, or (2) check if the learned SFA is

a subset of the speciﬁed SFA, if so, then the sanitizer

accepts some, perhaps all, inputs or outputs from the

whitelist.

Length: The user needs to specify an SFA that ac-

cepts all words of length x. To check the speciﬁca-

tion, ﬁrst, compute the complement of the speciﬁed

automaton. Next, compute the union of the comple-

ment and the SFA that represents the input or output

language. If the union is non-empty, then there ex-

ists a word with a length that is not x. Otherwise, all

words have length x. The user can also specify an

SFA that accepts all words of length < x, ≤ x, > x,

≥ x to check whether all words have the correspond-

ing length. For example, if we only allow text which

consists of at least three characters, then we specify

the automaton in Figure 4.

If z then x → y: For this, the user needs to specify

the complete system in the form of an SFT. To check

the speciﬁcation, we check for equivalence between

the learned model and the speciﬁcation. For exam-

ple, if the characters <, > and & are translated into

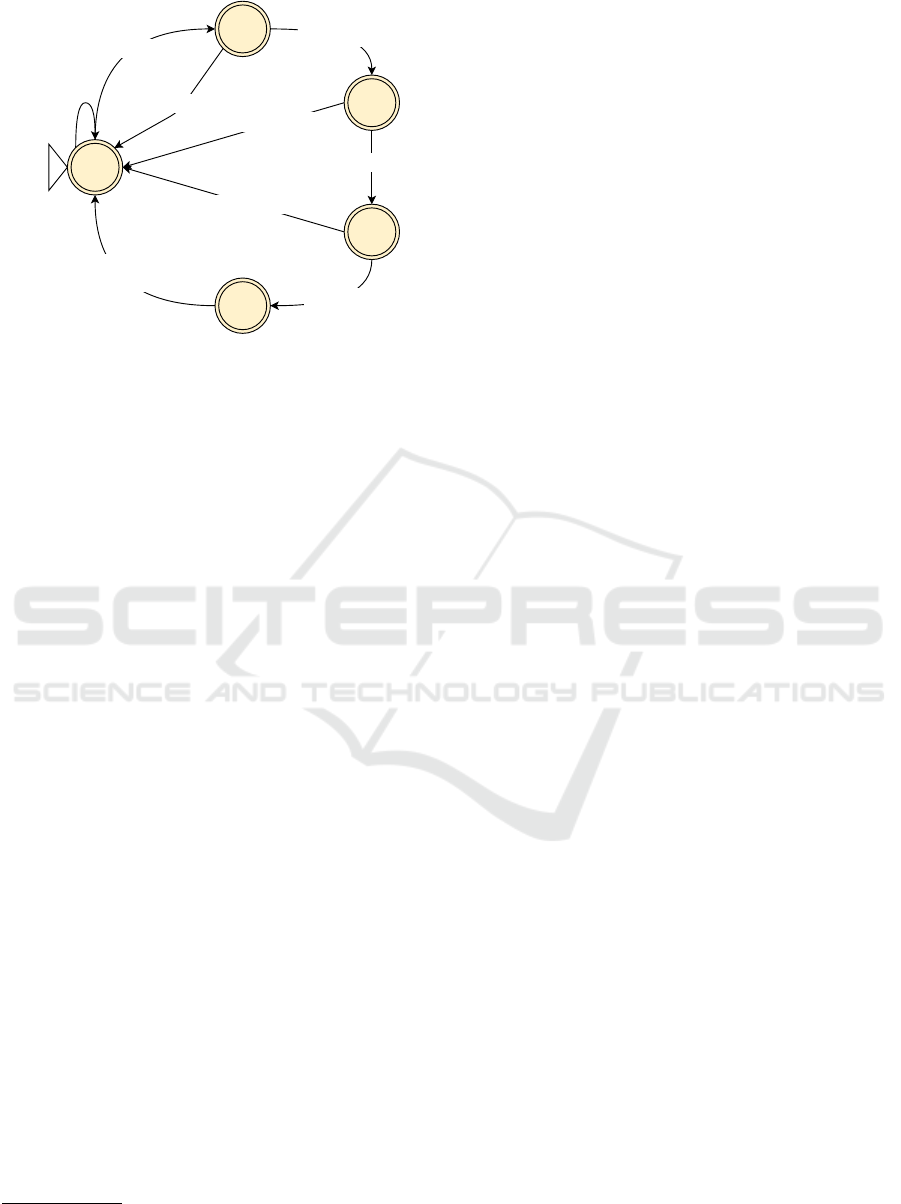

their HTML references, we write a speciﬁcation as in

Figure 2.

Equivalence, Idempotency and Commutativity:

For equivalence, the user needs to specify which sani-

tizers should be compared. To check equivalence, we

check whether domain and partial equivalence hold

(Hooimeijer et al., 2011). To check for idempotency,

we compose the learned SFT that represents the san-

itizer with itself. If the composed SFT is equivalent

to the SFT that represents the sanitizer, then the san-

itizer is idempotent. When checking commutativity,

the user needs to specify between which two sanitiz-

ers, A and B, (s)he wants to check for commutativity.

Then, we compute the composition of A with B as

well as the composition of B with A. If the composi-

tions are equal, then the sanitizers A and B commute.

Bad Output: The user needs to specify the bad out-

put in the form of a string. For example, the user

might be looking for an input that leads to the out-

Table 1: Example of an SOT. ID is an abbreviation of the

IDENTITY function type.

z }| {

Input ε







ε f = ε T = [ID]

\ f =\\ T = [ID, ID]

\\ f = T = [ ]











a f = a T = [ID]

f = a T = [ID]

\\\ f = \\ T = [ID, ID]

\\a f = a T = [ID]

put “<script>”. To ﬁnd such an input, we use a pre-

image computation over the SFT that represents the

sanitizer. This can be implemented with a backward

breadth-ﬁrst search.

4 LEARNING ALGORITHM FOR

SFTs

In this section, the black-box learning algorithm for

SFTs is explained. This algorithm allows us to derive

a model of the sanitizer’s implementation to which the

speciﬁcation can be compared.

Firstly, some necessary background information

is introduced in Section 4.1. Secondly, the main al-

gorithm for learning SFTs is shown in Section 4.2.

Thirdly, details about the hypothesis generation in the

main algorithm are discussed in Section 4.3. Finally,

the implementation of the equivalence oracle that is

used in the algorithm is discussed in Section 4.4.

4.1 Preliminaries

The automata-based string analysis technique that we

have developed is a black-box learning algorithm in-

spired by Angluin’s L* algorithm (Angluin, 1987).

Our algorithm learns the behaviour of the System Un-

der Learning (SUL) without needing access to the im-

plementation. In order to do this, the algorithm can

ask two types of questions:

• Membership Queries: What is the output of the

SUL when it is given the string s?

• Equivalence Queries: Given a hypothesis automa-

ton, either obtain a conﬁrmation that it is a correct

hypothesis automaton or obtain a counterexample

that distinguishes the hypothesis and the SUL.

We store the results of these queries in a Symbolic

Observation Table (SOT). The SOT is represented by

the tuple (S,W,Λ, f , T ). In this deﬁnition we also use

Verifying Sanitizer Correctness through Black-Box Learning: A Symbolic Finite Transducer Approach

787

Σ and Γ which represent the input and output alphabet

respectively:

• S ⊆ Σ

∗

is a set of access strings (Argyros et al.,

2016).

• W ⊆ Σ

∗

is a set of distinguishing strings (Argyros

et al., 2016).

• Λ ⊆ S · Σ is a set of one-step extensions of S, i.e.,

this is a (sub)set of access strings which are con-

catenated with a character from the input alpha-

bet.

• f : Σ

∗

×Σ

∗

→ Γ

∗

is a partial function that results in

the sufﬁx of the output. The sufﬁx is equal to the

output corresponding to the input string sd when

we have removed the largest common preﬁx of the

output corresponding to the input string s. sd con-

sists of some input string s followed by a single

character d from the input alphabet.

• T : Σ

∗

× Σ

∗

→ {IDENTITY,CONSTANT}

∗

is a

partial function that results in a set of types of

output functions. It corresponds to an encoding

of the output found in f . For each character in the

output, T speciﬁes whether it corresponds to an

identity function or a constant (compared to the

input character).

Note that this is a different SOT as used by Ar-

gyros et al. (Argyros et al., 2016). The difference is

that we store the output in f and its encoding in T

whereas Argyros et al. only store the output for their

SFA learning algorithm. This encoding is necessary

to ensure that similar inputs are represented by one

state in the SFT.

Next, we discuss an example of an SOT for a sani-

tizer that escapes all (unescaped) backslashes with an-

other backslash. In Table 1, you can see the ﬁnal SOT

that was generated when learning. Consider the input

“\a”. When giving this to the sanitizer, this should

result in “\\a” as output. In the SOT we store the out-

put that was generated for the last character, in this

case “a”, in f . As output we generated the same char-

acter as the input character, therefore the stored en-

coding is ID (which represents the identity function)

in T . If you want to deduce the complete output, we

would need to have a look at all preﬁxes of the input

“\a”: {ε, \, \a} and their corresponding generated

output functions. For ε the generated output is the

identity function, which is equal to the empty string.

This is then followed by twice the identity function

for \which results in the output \\. And ﬁnally, the

identity function corresponding to the last character

a generates a as output. If we concatenate all these

outputs, then we get that the ﬁnal output is “\\a”.

Function Types: Note that an important design

choice for this algorithm is to use the function types

{IDENTITY,CONSTANT} to identify different out-

put characters. The minimal set of function types

which can represent all outputs would consist of only

CONSTANT. This would, however, not allow us to

effectively group transitions since each different in-

put character would need a different output function.

Therefore, we have chosen to add the type IDENTITY

which represents all characters that are not modiﬁed.

Using many different function types would result in

SFTs with more states therefore we limited our num-

ber of function types to two for our experiments. It

is, however, possible to deﬁne other function types.

For example, if you want to learn a model of a sani-

tizer that shifts all letters with an offset of 1, then one

could deﬁne the function type OFFSET + 1.

The black-box algorithm also uses the concept of

closedness of the observation table. Let OT be an ob-

servation table. Then OT is closed if, for all t ∈ S · Σ,

there exists an s ∈ S such that all entries in the rows

of s and t in the OT are equal (Angluin, 1987).

4.2 The SFT Learning Algorithm

The SFT learning algorithm is described in

Algorithm 1. More details on this algorithm, in-

cluding an example of how the algorithm works

and more speciﬁcation examples, can be found in

the Master’s thesis on which this paper is based

(Lathouwers, 2018).

4.3 From SOT to Hypothesis

Automaton

Line 12 of the SFT learning algorithm calls an al-

gorithm to generate a hypothesis automaton from the

SOT. This algorithms is described in Algorithm 2.

Final States: We observe that different sanitizer

implementations can handle rejecting an input dif-

ferently, e.g., returning “null” or returning an empty

string. Considering that we are using a black-box al-

gorithm, the user would not know how the program

acts upon an unacceptable input. Therefore, as in

other research (Botin

can and Babi

c, 2013; Shahbaz

and Groz, 2009), we assume that all states of the SFT

are ﬁnal.

Generating Guards: On line 9 of the hypothesis

generation algorithm, a guard generating algorithm is

used. This algorithm generates guards, also called in-

put conditions, for all transitions that start in the same

state q

. To generate the guards, it uses a set of ev-

idence and the corresponding outputs. The evidence

is the input character upon which a transition is taken

to move to a next state in the automaton. The guard

generator works as follows:

ForSE 2020 - 4th International Workshop on FORmal methods for Security Engineering

788

Algorithm 1: The SFT Learning algorithm.

Data: SUL to which we can pose

membership and equivalence queries

Result: SFT that represents the SUL

1 SOT = (S = {ε},W {ε},Λ =

0,T =

0, f =

2 Fill the SOT with entries by posing

membership queries to the SUL.

3 while no equivalent hypothesis automaton has

been found do

4 while SOT is not closed do

5 Find the shortest t ∈ Λ such that for all

s ∈ S it holds that row(s) 6= row(t).

6 Let S = S ∪ {t}

7 if there is no b ∈ Σ such that

t · b ∈ S ∪ Λ then

8 add t · b to Λ

9 end

10 Fill the missing entries in T and f by

posing membership queries.

11 end

12 Create hypothesis automaton from the

SOT.

13 Pose equivalence query for the generated

hypothesis automaton.

14 if there exists a counterexample z then

15 Let i

∈ {0,1,...,|z| − 1} such that the

response of the target machine is

different for the strings s

and

16 Deﬁne the distinguishing string d as

17 Let b be an arbitrary character from

the input language

18 if row(s

b) = row(s

) when d is

added to W for some j 6= i

+ 1. then

19 Add s

b to Λ

20 else

21 Add d to W .

22 end

23 Update the missing entries in T and f .

24 end

25 end

26 Return the hypothesis automaton

• If the set of evidence is empty, generate one tran-

sition with the guard True. The set of output

functions of this transition will consist only of the

identity function.

• If the set contains one piece of evidence, then

one transition will be generated with the guard

True. The set of output functions will be gener-

ated based on the output associated with the evi-

dence. It will generate either the identity function

Algorithm 2: Algorithm that describes how a hy-

pothesis automaton is derived from a closed SOT.

Data: Closed SOT

Result: Hypothesis automaton

1 for s ∈ S do

2 Create a ﬁnal state q

3 end

4 Set the initial state to q

, which is the state

corresponding to the empty string

5 foreach q

6 Find its one-step extensions in Λ in the

rows of the SOT

7 end

8 foreach q

9 (φ,ψ,q) = guardGeneratingAlgorithm(...)

/* Call the guard generating

algorithm with all one-step

extensions of q

10 Add transition q

φ/ψ

−−→ q to the set of

transitions

11 end

or a constant for each character in the output. The

identity function will be generated if the character

is the same as the evidence, otherwise a constant

with the value of the output character is generated.

• Otherwise, the set contains multiple pieces of evi-

dence. Pieces of evidence are grouped together if

they lead to the same state. The largest group of

evidence is chosen to act as a sink transition. This

means that all characters for which no evidence

exists will be grouped into this sink transition. For

each generated guard, the term generator is called.

Generating Terms: The term generator is a novel

addition to the algorithm that generates terms, i.e.,

output functions, for all transitions. It takes a pred-

icate, i.e., a guard, and the starting state of the transi-

tion as an argument (see Algorithm 3).

4.4 Equivalence Oracle

In practice, there is no all-knowing entity that can

check whether a hypothesis automaton is equivalent

to the speciﬁed black-box system because we assume

that the user cannot access the implementation of the

system. Therefore, an equivalence oracle, as used

in step 5 of the learning algorithm, is approximated

using membership queries. If no counterexample is

found, then we assume that the hypothesis automaton

is a correct description of the program’s behaviour.

Some ways in which an equivalence oracle can be im-

Verifying Sanitizer Correctness through Black-Box Learning: A Symbolic Finite Transducer Approach

789

Algorithm 3: Algorithm that describes how terms

are generated for a speciﬁc guard and state.

Data: State q

and a guard g

Result: (Set of) guards with corresponding

terms.

1 for all one-step extensions of q

that satisfy

guard g do

2 Let s be the string that represents state q

3 Let s · b the string that represents state

· b.

4 Compute the sufﬁx of the output such that

it is equal to o

s·b

− o

where o

denotes

the output of the automaton upon

input s. /* The suffix

represents the output that is

generated for character b.

5 Let T = {}

6 foreach c ∈ sufﬁx do

7 if c == b then

8 Extend T with the identity

function

9 else

10 Extend T with the constant

function c

11 end

12 end

13 end

14 if T is the same for all one-step extensions

then Return T

/* There exist two one-step

extensions, q

· b and q

· c, of q

for

which the set of term functions

differ, therefore the predicate

needs to be split. */

17 Split the predicate into two predicates such

that q

· b satisﬁes only one of the two

predicates and q

· c satisﬁes only the other

predicate.

18 foreach generated predicate do

19 termGenerator(q

, generated predicate)

20 end

plemented include the following (which are all imple-

mented in our tool):

• Random testing (Hamlet, 2002): Generate strings

of a speciﬁed length randomly.

• Random preﬁx selection (Smeenk, 2012): Take

the access string of a randomly chosen state as a

preﬁx and append a sufﬁx of randomly generated

characters.

• State coverage (Simao et al., 2009): Generate a

set of strings such that each state in the automaton

is visited at least once.

• Transition coverage (Simao et al., 2009): Gen-

erate a set of strings such that each transition is

taken at least once.

• Predicate coverage (Offutt et al., 2003): Generate

a set of strings such that each predicate, including

sub-predicates, is satisﬁed at least once.

5 RESULTS

5.1 Validation of SFT Learning

Algorithm

To validate our approach, we have tried to learn mod-

els of existing real-world sanitizers. The following

sanitizers have been chosen to evaluate our approach:

1. Encode (from the he project (Bynens, 2018))

2. Escape (from the cgi python module (Python Soft-

ware Foundation, 2018))

3. Escape (from the escape-string-regexp project

(Sorhus, 2016))

4. Escape (from the escape-goat project (Sorhus,

2017))

5. Unescape (from the escape-goat project (Sorhus,

2017))

6. Unescape (from the postrank-uri project (Pos-

tRank Labs, 2017))

7. To Lowercase (from the CyberChef project

(GCHQ (Government Communications Head-

quarters), n.d.))

8. htmlspecialchars (built-in PHP function (The PHP

Group, 2018a))

9. ﬁlter sanitize email (built-in PHP function (The

PHP Group, 2018b))

10. Remove tags (from the govalidator project (Saske-

vich, 2018))

These speciﬁc sanitizer implementations have been

found by searching on GitHub among all projects

for the keywords “escape”, “encode”, and “sanitize”,

which are keywords often used to describe sanitizers.

The results on GitHub were sorted by “Most stars”

after which the top 20 repositories have been cho-

sen. Then, the repositories have been ﬁltered so that

only string sanitizers were left which had clear docu-

mentation on how they should work, which could be

used and for which we could write a speciﬁcation in

ForSE 2020 - 4th International Workshop on FORmal methods for Security Engineering

790

at most 10 minutes. Aside from sanitizers that have

been found this way, three other sanitizers have also

been tested of which two have been written in PHP

and one in Python. These have been added so that we

tested sanitizer implementations written in different

languages.

An implementation of the algorithm, as well

as all tested programs and corresponding speciﬁca-

tions, are available at: https://github.com/Sophietje/

SFTLearning.

The tests have been run on a MacBook Pro, run-

ning Mojave 10.14.2 with a 2.3GHz Intel Core i5 (4

cores) and 16 GB of memory available. We have cho-

sen the input alphabet consisting of the Unicode char-

acters represented by the decimals 32 up to 400 (un-

less stated otherwise). This includes the Basic Latin

alphabet, the Latin-1 Supplement, Latin Extended-A

and part of Latin Extended-B. We used an equivalence

oracle that guarantees predicate coverage; it generates

3000 tests per (sub-)predicate. Also, a time-out was

set that interrupts the process if it did not deduce a

model within 10 minutes. See Table 2 for the results

of the SFT learning algorithm on existing sanitizers.

The learned models have all been compared to a

speciﬁcation of the program to check whether they are

correct. No mistakes were found in these implemen-

tations.

Most of the sanitizers could be automatically in-

ferred with our SFT learning algorithm within two

minutes. Overall, the sanitizers can be divided into

two main categories:

• Sanitizers that act based on the occurrence of a

single character (sanitizers 1, 2, 3, 4, 7, 8, 9).

• Sanitizers that act based on the occurrence of mul-

tiple characters (sanitizers 5, 6, 10).

From the results we conclude that we can fully

automatically learn models of existing sanitizers that

act based on occurrences of single characters within

a couple of minutes. Learning models of sanitizers

that act based on the occurrence of multiple characters

is not yet feasible with this approach. This is what

we expected since the underlying model, SFT, cannot

represent these.

To explain why SFTs cannot represent sanitizers

that act based on the occurrence of multiple charac-

ters, we have a look at an example. Consider a speciﬁ-

cation for a sanitizer that encodes the character &, if it

is not yet encoded, into its HTML reference ”&”

(see Figure 5). This speciﬁcation does not perfectly

model the behaviour of the sanitizers. If a string ends

with ”&a”, ”&am” or ”&amp” then it will only output

the encoding of & and ignore the characters after this.

We need to recognize the end of the input to be able to

Table 2: Results of the SFT learning algorithm on exist-

ing sanitizers. a means that the model has been correctly

derived for the Basic Latin alphabet. b means that we are

only able to learn this model when acting as an equivalence

oracle ourselves. When automatically learning this automa-

ton, the counterexamples are not minimal, thus resulting in

a timeout because the automaton becomes too complex.

Sanitizer Total

running

time(s)

Time spent in

mem. oracle

(ms)

Time spent in

eq. oracle (ms)

# mem.

queries

# eq.

queries

# states

learned

# states

speciﬁed

# transitions

learned

# transitions

speciﬁed

Can be

learned?

1. Encode (he) 7 3919 4870 129733 336 3 1 21 7 Yes

2. Escape (cgi) 4 1971 2635 88442 241 3 1 12 4 Yes

3. Escape (escape-string-regexp) 75 18945 27137 680560 1328 3 1 14 2 Yes

4. Escape (escape-goat) 40 13882 21138 536243 1121 5 1 30 6 Yes

5. Unescape (escape-goat) - - - - - 14 - 22 - No

6. Unescape (postrank-uri) - - - - - 7 - 40 - No

7. To Lowercase (CyberChef) 23 8087 9079 192865 919 2 1 54 27 Yes

8. htmlspecialchars (php) 20 8581 16392 484277 316 4 1 20 5 Yes

9. ﬁlter sanitize email (php) - - - - - 1 - 12 - No

10. Remove tags (govalidator) - - - - - 8 - 18 - No

Verifying Sanitizer Correctness through Black-Box Learning: A Symbolic Finite Transducer Approach

791

x == '&' / [encode(x)]

x == ';' / [ ]

x != ';' / ['a', 'm', 'p', x]

x == 'a' / [ ]

x != 'a' / [x]

x != 'm' / ['a', x]

x == 'm' / [ ]

x != 'p' / ['a', 'm', x]

x == 'p' / [ ]

x != '&' / [x]

Figure 5: An SFT which encodes & into its HTML refer-

ence ”&”, unless it is part of an encoded &. Note that

this SFT does not precisely model the sanitizer.

solve this problem. This can be modelled by adding ε-

transitions to the automaton, which are currently not

inferred. This would, however, result in an automa-

ton that is not single-valued. Therefore, we would be

unable to check whether the automaton is equivalent

to another automaton which is necessary to compare it

to speciﬁcations. Another solution would be to extend

this algorithm to deduce SFTs with lookback, looka-

head or registers, which is an extension we leave for

future work.

5.2 Finding Bugs in Sanitizers

We also wanted to evaluate whether our method can

be used to automatically ﬁnd errors in the implemen-

tations of sanitizers (since no bugs were found in pre-

vious experiments). To do this, we have asked an indi-

vidual with a security and programming background

to implement the sanitizers that we were able to au-

tomatically learn from the previous section. He pro-

vided us with two implementations for each sanitizer,

one that was intended to be correct, and one in which

he (might have) introduced mistakes on purpose. He

wrote down which errors have been introduced such

that we could, after learning and (possibly) identify-

ing errors, check whether we found all mistakes.

We learned models from his provided implemen-

tations

using our SFT learning algorithm. This learn-

ing process has been done with the same settings,

namely input alphabet, equivalence oracle implemen-

tation, and time-out, as were used for the previous

experiments. Then, we checked for any mistakes

in these implementations by comparing the learned

Available at https://github.com/Sophietje/

SFTLearning/tree/master/Sanitizers/implementationsJ

models to the speciﬁcation that we had already writ-

ten for the previous experiment. If these were not

equal then a counterexample was produced for which

the two models behave differently. Such a counterex-

ample gives an idea of what the error in the program

is, which can then be used to perform a detailed man-

ual inspection of the learned model to identify the

problem.

We identiﬁed the following errors in the imple-

mentations that were supposed to be correct:

• Encode (he): Wrong ﬁrst output function for sev-

eral characters and incorrect encodings of all char-

acters.

• Escape (Escape-string-regexp): Two characters

(\, $) should have been escaped and one character

(-) should not have been escaped.

• Escape (escape-goat): Wrong order in applying

the encodings.

• htmlspecialchars (php): Character encoding of ”

misses the character ;.

Next, we tried to ﬁnd errors in the programs in

which mistakes were introduced on purpose. The fol-

lowing errors were found:

• Encode (he): Wrong ﬁrst output function for sev-

eral characters and a wrong encoding of & and <.

• Escape (cgi): Double substitution of &.

• Escape (escape-string-regexp): Two characters

(\, $) should have been escaped and one character

(-) should not have been escaped.

• Escape (escape-goat): Wrong order in applying

encodings.

• htmlspecialchars (php): Two single quotes are

wrongly encoded instead of encoding a double

quote.

We compared the errors found with the list de-

scribing the intended errors. We correctly identiﬁed

the cause of all mistakes.

There were two cases in which the error that we

identiﬁed was not completely accurate. Firstly, in the

case of escape (cgi), we identiﬁed that the charac-

ter & was substituted twice. In the actual implemen-

tation the characters < and > were also substituted

twice. However, these second substitutions do not

change the string because the ﬁrst substitution already

removed all < and > characters. So, while the dou-

ble substitution of the & character results in incorrect

output, which we identiﬁed correctly, the double sub-

stitution of < and > does not result in incorrect out-

put. Secondly, the model could not accurately repre-

sent the error that was introduced in htmlspecialchars

because the sanitizer’s behaviour for the character ’

ForSE 2020 - 4th International Workshop on FORmal methods for Security Engineering

792

depended on the character that followed. Therefore,

although we misinterpreted the error, we were still

able to identify the cause of the problem.

6 DISCUSSION

As shown previously, our approach for reasoning

about the correctness of sanitizers can effectively be

used to ﬁnd errors in the implementations of sanitiz-

ers. There are, however, a number of limitations one

should be aware of.

For instance, no black-box learning algorithm has

access to an exact equivalence oracle, i.e., we cannot

precisely determine equivalence between the imple-

mentation and the model. Such an equivalence ora-

cle is therefore simulated by testing a large number

of test cases. If all test cases succeed, we assume

that the model correctly represents the implementa-

tion. However, if the number of test cases is too small,

then the model will not accurately represent the sani-

tizer. As a result, any analysis done on such a model

may also not accurately reﬂect the behaviour of the

sanitizer. We have shown that we can deduce correct

models when using enough test cases. Users of the

tool should, however, be aware that if it is used to

analyse more complex sanitizers, then a larger num-

ber of test cases is likely required to deduce correct

models.

Also, when learning a sanitizer, the user needs to

specify which input alphabet (s)he considers. This

means that if an error occurs outside of the speciﬁed

alphabet, then this cannot be found using our method.

Fortunately, our approach can handle large input al-

phabets.

Additionally, the user is asked to write a speci-

ﬁcation that accurately describes the sanitizer’s be-

haviour. If the user makes any mistakes in this spec-

iﬁcation, then the corresponding errors in the sani-

tizer may not be uncovered. Moreover, writing such

a speciﬁcation can take a lot of time and may not be

feasible for larger models. It is, however, also possi-

ble for the user to inspect a graphical representation of

the learned model to ﬁnd errors. We leave it as future

work to minimise these graphical representations.

Finally, we note that the proposed SFT learning

algorithm cannot accurately represent all sanitizers.

Speciﬁcally, it is unable to precisely represent sanitiz-

ers whose behaviour depends on multiple characters.

Thus, if our approach is used to reason about sanitiz-

ers whose behaviour depends on multiple characters,

then the results will be inaccurate. One could reason

about such sanitizers by extending the current algo-

rithm to SFTs with lookahead.

7 RELATED WORK

Black-box automata learning was ﬁrst introduced by

Angluin with the L* algorithm (Angluin, 1987). L*

derives deterministic ﬁnite automata using equiva-

lence and membership queries. A similar approach,

using such queries, has been developed for many

other types of automata such as: Mealy machines

(Shahbaz and Groz, 2009), register automata (Cassel

et al., 2014), and SFAs (Argyros et al., 2016; Drews

and D’Antoni, 2017). We extend this list by devel-

oping a learning algorithm for SFTs. Moreover, au-

tomata learning has shown to be a valuable technique

to derive models from large real-world systems by

several case studies (Smeenk et al., 2015; Bohlin and

Jonsson, 2008).

Automata learning has also been used to detect

vulnerabilities in TLS implementations (De Ruiter

and Poll, 2015). Similar to how we reason about

input-output behaviour, De Ruiter and Poll reason

about TLS implementations using messages between

a client and server. They use Mealy machines to

represent the implementations which use one transi-

tion per input per state. As the input and output al-

phabet they use an abstraction of the possible mes-

sages, which amounts to 12 messages for servers and

13 messages for clients. After they have inferred a

Mealy machine, they minimise the representation by

combining similar transitions and then the model is

inspected manually to ﬁnd errors. In the case of sani-

tizers, we are interested in much larger alphabets; for

our experiments we reasoned about ±370 possible in-

put characters. Due to the size of the input alphabet,

Mealy machines are not an ideal representation be-

cause the automata would be very large. Therefore,

rather than minimising afterwards, we try to learn a

symbolic ﬁnite transducer immediately. And while

manual inspection of the model is possible, we advo-

cate writing speciﬁcations which can be reused and

automatically checked.

This work is an extension of the work by Argyros

et al. (Argyros et al., 2016) who presented a black-

box learning algorithm that infers SFAs from sanitiz-

ers. Unfortunately, SFAs can only describe the input

or output language and not the relation between the

input and the output language. Argyros et al. mention

that their SFA learning algorithm can be adapted to

learn SFTs. In our research, we have developed and

implemented such an algorithm for deducing SFTs

which allows us to reason about the correctness of

transformations between the input and the output lan-

guage. We allow the user to check types of speci-

ﬁcations such as blacklisting or length whereas Ar-

gyros et al. only allow the checks that are provided

Verifying Sanitizer Correctness through Black-Box Learning: A Symbolic Finite Transducer Approach

793

for BEK (Hooimeijer et al., 2011) programs such as

equivalence, idempotency and commutativity, which

are included in our tool as well.

BEK (Hooimeijer et al., 2011) is a language that

can be used to develop sanitizers and analyse their

correctness. However, this cannot be used to reason

about the correctness of existing sanitizers without re-

implementing them.

Botin

can and Babi

c (Botin

can and Babi

c, 2013)

present a technique Sigma* that learns symbolic look-

back transducers from programs. This model can

represent more sanitizers than the SFTs that we use.

However, they use a white-box learning technique,

meaning that they need access to the source code

whereas we only need to be able to observe the input

and output of the program. Extending the algorithm

that we present in this paper to symbolic lookback

transducers that Botin

can and Babi

c use is a topic for

future work.

There exist several other methods to reason about

sanitizers’ correctness most of which focus on detect-

ing vulnerabilities (Balzarotti et al., 2008; Moham-

madi et al., 2015; Shar and Tan, 2012). Our approach

can be used to detect vulnerabilities similar to these

methods. However, we are also able to reason about

their input-output behaviour in terms of, e.g. idempo-

tency and commutativity.

Aside from correct implementation of sanitizers,

the placement of sanitizers also inﬂuences the correct-

ness of an application. If sanitizers are not placed

correctly then applications may still be vulnerable.

Several researchers have therefore focused on either

repairing the placement of sanitizers, or automati-

cally placing sanitizers (Saxena et al., 2011; Weleare-

gai and Hammer, 2017; Yu et al., 2011). These ap-

proaches are considered complementary research to

the ideas discussed in this paper.

Aside from sanitization, there are also

sanitization-free defences. For example, Scholte

et al. (Scholte et al., 2012) show that automatically

validating input can be a good alternative to output

sanitization for preventing XSS and SQL injection

vulnerabilities. Similarly, Costa et al. (Costa et al.,

2007) have presented the tool Bouncer which pre-

vents exploitation of software by generating input

ﬁlters that drop dangerous inputs.

8 CONCLUSION AND FUTURE

WORK

To conclude, we have presented a new approach to

reason about the correctness of sanitizers. First of

all, we developed a new learning algorithm, which

uses equivalence and membership queries, to auto-

matically derive SFTs of existing sanitizers. This au-

tomaton describes how the sanitizer transforms an in-

put into its corresponding output. Then, we wrote a

speciﬁcation of the sanitizer, in the form of an SFA

or SFT. This speciﬁcation is compared to the learned

model of the sanitizer in order to ﬁnd any discrepan-

cies between the models. With a case study, we have

shown that we can use our approach to automatically

reason about real-world existing sanitizers within a

few minutes.

As future research, we think that extending the

learning algorithm to support epsilon transitions and

SFTs with lookahead, lookback or registers is most

important. This would allow us to reason about more

complex sanitizers. One can also look into improving

the user experience of the approach by letting users

write the speciﬁcations in ways that are more familiar

to them such that they do not need to understand how

SFTs work. Another option is to present users with

a minimised graphical representation of the learned

models for manual correctness inspection.

REFERENCES

Angluin, D. (1987). Learning regular sets from queries

and counterexamples. Information and computation,

75(2):87–106.

Argyros, G., Stais, I., Kiayias, A., and Keromytis, A. D.

(2016). Back in black: towards formal, black box

analysis of sanitizers and ﬁlters. In 2016 IEEE Sym-

posium on Security and Privacy, pages 91–109. IEEE.

Balzarotti, D., Cova, M., Felmetsger, V., Jovanovic, N.,

Kirda, E., Kruegel, C., and Vigna, G. (2008). Saner:

Composing static and dynamic analysis to validate

sanitization in web applications. In 2008 IEEE Sym-

posium on Security and Privacy, pages 387–401.

IEEE.

Bjørner, N. and Veanes, M. (2011). Symbolic transduc-

ers. Technical Report MSR-TR-2011-3, Microsoft

Research.

Bohlin, T. and Jonsson, B. (2008). Regular inference

for communication protocol entities. Technical re-

port, Technical Report 2008-024, Uppsala University,

Computer Systems.

Botin

can, M. and Babi

c, D. (2013). Sigma*: symbolic

learning of input-output speciﬁcations. In ACM SIG-

PLAN Notices, volume 48, pages 443–456. ACM.

Bynens, M. (2018). he. https://github.com/mathiasbynens/

he. Accessed on: 19-12-2019.

Cassel, S., Howar, F., Jonsson, B., and Steffen, B. (2014).

Learning extended ﬁnite state machines. In Interna-

tional Conference on Software Engineering and For-

mal Methods, pages 250–264. Springer.

Costa, M., Castro, M., Zhou, L., Zhang, L., and Peinado, M.

(2007). Bouncer: Securing software by blocking bad

ForSE 2020 - 4th International Workshop on FORmal methods for Security Engineering

794

input. In ACM SIGOPS Operating Systems Review,

volume 41, pages 117–130. ACM.

De Ruiter, J. and Poll, E. (2015). Protocol state fuzzing

of tls implementations. In Proceedings of the

24th USENIX Security Symposium, pages 193–206.

USENIX Association.

Drews, S. and D’Antoni, L. (2017). Learning symbolic

automata. In International Conference on Tools and

Algorithms for the Construction and Analysis of Sys-

tems, pages 173–189. Springer.

GCHQ (Government Communications Headquarters)

(n.d.). Cyberchef. https://github.com/gchq/

CyberChef. Accessed on: 19-12-2019.

Hamlet, R. (2002). Random testing. Encyclopedia of soft-

ware Engineering.

Hooimeijer, P., Livshits, B., Molnar, D., Saxena, P., and

Veanes, M. (2011). Fast and precise sanitizer anal-

ysis with BEK. In Proceedings of the 20th USENIX

Security Symposium. USENIX Association.

Lathouwers, S. (2018). Reasoning about the correctness

of sanitizers. Master’s thesis, University of Twente,

Enschede, the Netherlands.

Mohammadi, M., Chu, B., and Ritcher Lipford, H. (2015).

POSTER: Using unit testing to detect sanitization

ﬂaws. In Proceedings of the 22nd ACM SIGSAC Con-

ference on Computer and Communications Security,

pages 1659–1661. ACM.

Northwave (n.d.). https://northwave-security.com/. Ac-

cessed on 19-12-2019.

Offutt, J., Liu, S., Abdurazik, A., and Ammann, P.

(2003). Generating test data from state-based speci-

ﬁcations. Software testing, veriﬁcation and reliability,

13(1):25–53.

OWASP Foundation (2017). Owasp top 10 application se-

curity risks - 2017. https://www.owasp.org/index.php/

Top 10-2017 Top 10. Accessed on 19-12-2019.

PostRank Labs (2017). PostRank URI. https://github.

com/postrank-labs/postrank-uri. Accessed on: 19-12-

2019.

Python Software Foundation (2018). 20.2. cgi — common

gateway interface support. https://docs.python.org/2/

library/cgi.html. Accessed on: 19-12-2019.

Python Software Foundation (n.d.). 20.1. html — Hyper-

Text Markup Language support. https://docs.python.

org/3/library/html.html#html.escape. Accessed on 19-

12-2019.

Saskevich, A. (2018). govalidator. https://github.com/

asaskevich/govalidator/. Accessed on: 19-12-2019.

Saxena, P., Molnar, D., and Livshits, B. (2011). SCRIPT-

GARD: automatic context-sensitive sanitization for

large-scale legacy web applications. In Proceedings

of the 18th ACM conference on Computer and com-

munications security, pages 601–614. ACM.

Scholte, T., Robertson, W., Balzarotti, D., and Kirda, E.

(2012). Preventing input validation vulnerabilities

in web applications through automated type analysis.

In Computer Software and Applications Conference

(COMPSAC), 2012 IEEE 36th Annual, pages 233–

243. IEEE.

Shahbaz, M. and Groz, R. (2009). Inferring mealy ma-

chines. In International Symposium on Formal Meth-

ods, pages 207–222. Springer.

Shar, L. K. and Tan, H. B. K. (2012). Mining input saniti-

zation patterns for predicting sql injection and cross

site scripting vulnerabilities. In Proceedings of the

34th International Conference on Software Engineer-

ing, pages 1293–1296. IEEE Press.

Simao, A., Petrenko, A., and Maldonado, J. C. (2009).

Comparing ﬁnite state machine test coverage criteria.

IET software, 3(2):91–105.

Smeenk, W. (2012). Applying automata learning to com-

plex industrial software. Master’s thesis, Radboud

University Nijmegen.

Smeenk, W., Moerman, J., Vaandrager, F., and Jansen, D. N.

(2015). Applying automata learning to embedded con-

trol software. In International Conference on Formal

Engineering Methods, pages 67–83. Springer.

Sorhus, S. (2016). escape-string-regexp. https://github.com/

sindresorhus/escape-string-regexp. Accessed on: 19-

12-2018.

Sorhus, S. (2017). escape-goat. https://github.com/

sindresorhus/escape-goat. Accessed on: 19-12-2019.

The PHP Group (2018a). htmlspecialchars. http://php.net/

manual/en/function.htmlspecialchars.php. Accessed

on: 19-12-2019.

The PHP Group (2018b). Sanitize ﬁlters. http://php.net/

manual/en/ﬁlter.ﬁlters.sanitize.php. Accessed on: 19-

12-2019.

Veanes, M., Hooimeijer, P., Livshits, B., Molnar, D., and

Bjorner, N. (2012). Symbolic ﬁnite state transducers:

Algorithms and applications. In ACM SIGPLAN No-

tices, volume 47, pages 137–150. ACM.

Welearegai, G. B. and Hammer, C. (2017). Idea: Optimized

automatic sanitizer placement. In International Sym-

posium on Engineering Secure Software and Systems,

pages 87–96. Springer.

Yu, F., Alkhalaf, M., and Bultan, T. (2011). Patching vul-

nerabilities with sanitization synthesis. In Proceed-

ings of the 33rd International Conference on software

engineering, pages 251–260. ACM.

Verifying Sanitizer Correctness through Black-Box Learning: A Symbolic Finite Transducer Approach

795
