Assisted Generation of Privacy Policies using Textual Patterns

Nazila Gol Mohammadi, Jens Leicht, Ludger Goeke and Maritta Heisel

Paluno - The Ruhr Institute for Software Technology, University of Duisburg, Essen, Germany

Keywords:

Data Protection, Pattern-based Approach, Textual Patterns, Privacy Policy.

Abstract:

To comply with data protection legislation, privacy policies are a widely used approach and an important legal

foundation for data handling. These policies are created by service providers. The creation of a privacy policy

for a service is time consuming and compliance with legislation is hard to ensure. According to the General

Data Protection Regulation of the European Union, service providers should provide a transparent privacy

policy in a comprehensible way for end-users. This paper provides an approach for Assisted Generation of

Privacy Policies Using Textual Patterns. We also provide a proof of concept implementation of a tool for

the privacy policy generation approach. The proposed approach supports service providers in their task of

providing a comprehensible privacy policy which allows better transparency.

1 INTRODUCTION

Nowadays, internet-based services, e.g. health-care

services, collect information from various sources,

like cellphones or watches, and process the collected

information. Services collect a wide range of data

about their end-users that allow conclusions about,

e.g. their habits, behavior and lifestyle. By fur-

ther processing this information, a lot of information

can be inferred, which end-users may not even know

about. Furthermore, many different stakeholders may

use these information and data.

Data protection and privacy preservation are the

main goals of legal regulations like the European

General Data Protection Regulation (GDPR) (Euro-

pean Commission, 2016). Due to these regulations,

service providers are obliged to provide insights into

the processing of personal data to their end-users and

to communicate their practice for protecting privacy.

To comply with data protection legislation, privacy

policies are widely used as an important legal founda-

tion for data handling. Privacy policies should assist

end-users by providing information about “what in-

formation will be collected, how it will be used, and

with whom it will be shared” (Bhatia et al., 2019).

Yet, a review of current privacy policies shows that

privacy policies do not provide appropriate informa-

tion to the end-users (Kelley et al., 2009; Kelley et al.,

2010; Probst and Hansen, 2013; Bhatia et al., 2019).

The key issues are that they are not well understand-

able and not sufﬁciently transparent. They overwhelm

end-users with a wall of text. Our privacy policy gen-

eration approach has to improve the awareness as-

pect of privacy policies and assist service providers

in generating an appropriate privacy policy document

that complies to the data protection legislation and is

comprehensible to end-users. Furthermore, incom-

plete privacy policies make it difﬁcult for end-users

to have control over their data and to know when

any other stakeholder has access to their data. Con-

sequently, information given in privacy policies can

affect end-users’ perception of their privacy (Bhatia

et al., 2019; Acquisti et al., 2008). In addition, in-

completeness in privacy policies prevents users from

knowing the potential consequences of such disclo-

sures. Service providers can improve the quality of

their privacy policies to help end-users make more

informed decisions about using their services. How-

ever, service providers and end-users have different

perspectives on privacy policies:

Service Provider’s Perspective. The service

provider’s duty is to ensure the lawful implemen-

tation of data protection and the practice of pro-

viding accessible information about the handling

of end-users’ data by using privacy policies. Thus,

the service providers have an incentive to address

their end-users’ privacy concerns for ﬁnancial or

reputational success. However, in social network-

ing service providers depend on large amounts of

data to deliver their services accurately. The more

data is available, the more reliable the data analy-

sis is and the higher the added value for the service

Mohammadi, N., Leicht, J., Goeke, L. and Heisel, M.

Assisted Generation of Privacy Policies using Textual Patterns.

DOI: 10.5220/0009371103470358

In Proceedings of the 15th International Conference on Evaluation of Novel Approaches to Software Engineering (ENASE 2020), pages 347-358

ISBN: 978-989-758-421-3

347

(Alexander Rossnagel, 2016). Service providers

often exploit the legal limits of data protection

to collect as much data as possible. For conve-

nience, most service providers inform their end-

users about their privacy policy electronically. Be-

fore using an application, end-users need to ac-

cept the terms of use and privacy policy to gain

access to the service’s functionalities. Through

this procedure, the service provider complies with

the data protection regulation and gets the right

for the usage of all data collected during the use

of the service. Similarly, for the purpose of trans-

parency of data processing, websites obtain end-

users’ agreements to the storage of cookies by the

implementation of pop-ups before fully display-

ing their service.

End-user’s Perspective. To protect the end-users

from losing their freedom of self-determination

and from unwanted intrusion into their personal

data, regulations are speciﬁed to stipulate the right

to be informed before accepting the terms of a ser-

vice. Consequently, end-users are confronted with

privacy policies whenever they use a service or

interact with a website. Privacy concerned indi-

viduals are given the opportunity to read through

lengthy texts of privacy policies as supplied by

most service providers to accommodate the gov-

ernmental regulations. Still, the majority does not

seem to be interested in informing themselves on

the consequences of creating a new user account

at more or less reputable service providers. Ac-

cepting privacy policies has become a type of rit-

ual that is being performed before access to a ser-

vice is granted (Jeanette Hofmann and Benjamin

Bergemann, 2016): scroll down, tick checkbox,

continue. Most end-users are overwhelmed by

the exercise of their rights. Furthermore, they

conﬁde in the legislative power to control service

providers and feel safe when accepting all terms

of use without proper study of the text.

In this paper, we provide the Pattern-based Privacy

Policy Generation (3PG) approach. It assists service

providers in generating privacy policies for their ser-

vices. Our approach aims to satisfy the GDPR re-

quirements. It is tool-supported and based on textual

patterns. 3PG allows to instantiate textual patterns for

creating a privacy policy for a speciﬁc service. The

tool also allows to build or modify patterns that can be

used later in the instantiation process. Although, the

approach assists service providers, our patterns also

consider end-users’ needs. The statements generated

using our patterns have fewer complex constructs,

which also enhances comprehensibility for end-users.

The remainder of this paper is structured as fol-

lows: Section 2 introduces fundamental concepts of

data protection. Section 3 discusses our pattern-based

how 3PG helps to create comprehensible and GDPR

compliant privacy policy statements for privacy poli-

cies. Section 4 presents the proof of concept imple-

mentation of our proposed approach along with a run-

ning example. We present related work in Section

5. Section 6 discusses our approach and gives hints

about limitations and beneﬁts and compares it to re-

lated work. Section 7 concludes this paper and gives

some outlines for future work.

2 DATA PROTECTION

In this section, we brieﬂy introduce the fundamental

concepts for our approach.

General Data Protection Regulation of the Euro-

pean Union. The GDPR extends the range of appli-

cation to all companies and institutions that process

data of individuals, that are located in the EU. With

this regulation, service providers not only have to en-

sure secure data processing, but they also must prove

a proper implementation of it. Specifying rights for

end-users, the GDPR declares amongst other things

that the end-user must be informed about the data pro-

cessing, its purpose and its manner. End-users can

request access to processed personal data or even ob-

ject to the processing. Latter may result in the service

provider’s obligation to delete end-users’ data.

Terminology. A data subject is “an identiﬁable nat-

ural person, who can be identiﬁed directly or indi-

rectly, in particular by reference to an identiﬁer such

as a name, identiﬁcation number, location data, on-

line identiﬁer or to one or more factors speciﬁc to the

physical, physiological, genetic, mental, economic,

cultural or social identity of that natural person” (Eu-

ropean Commission, 2016). The term “data subject”

is called ”personally identiﬁable information” (PII)

principal in ISO/IEC 29100.

The data controller is “the natural or legal per-

son, public authority, agency or other body which,

alone or jointly with others, determines the purposes

and means of the processing of personal data” (Euro-

pean Commission, 2016). The term “data controller”

is called ”PII controller” in ISO/IEC 29100. The ser-

vice provider, in this work, acts as data controller and

is responsible for the legal and compliant operation of

the services.

ENASE 2020 - 15th International Conference on Evaluation of Novel Approaches to Software Engineering

348

protection goals for privacy engineering deﬁned by

Hansen et al. (Hansen et al., 2015). It describes the

understanding and reconstruction of legal, technical

and organizational conditions that should be consid-

ered before, during, and after the process of data han-

dling. Transparency can be achieved by deﬁning pri-

vacy policies (Probst and Hansen, 2013). The lat-

ter assists end-users by disclosing “which informa-

tion will be collected, how it will be used, and with

whom it will be shared” (Kelley et al., 2009). Fur-

thermore, privacy policies should aid and inform end-

users about possible options in controlling, remov-

ing, or modifying gathered information during the use

of a service. To fulﬁl these requirements, a well-

designed and structured privacy policy should support

end-users with their inquiry about data processing and

their validation of its importance.

3 PATTERNS FOR GENERATION

OF PRIVACY POLICIES

Our approach of privacy policy patterns is to provide

guidance on the speciﬁcation of common types of pri-

vacy policy statements and their relevant obligation

statements. The obligation statements are required by

data protection regulations on particular actions per-

formed by a service on end-users’ data. This approach

decreases the creation time of privacy policies and

makes them easier to draft. It also improves the qual-

ity of these statements in terms of comprehensibility

and the completeness of information that should be

made available to the end-users.

Our privacy policy patterns contain ﬁxed text pas-

sages that mostly address either privacy requirements

or data protection regulations, e.g. the GDPR. In addi-

tion to the ﬁxed text passages, the structure of textual

patterns may contain placeholders. These placehold-

ers are replaced with information regarding the ac-

tions on personal data of end-users performed by the

considered service during the instantiation of a pat-

tern. In the structure of a privacy policy statement, the

following information shall be provided: 1) actions

performed on the end-user’s data, 2) the condition un-

der which an action is performed on the end-user’s

data, and 3) the purpose for which the end-user’s data

is used.

We ﬁrst present a simpliﬁed conceptual model of

our approach. Afterwards, we explain the process

of our approach, followed by a description of ele-

ments necessary in the construction of statements that

should be included in privacy policies.

is about

addresses

Privacy

Requirements

Data

Protection

Regulation

uses

Service

reads

End-User

instance of

instantiates

Pattern

provides

Service

Provider

Statement

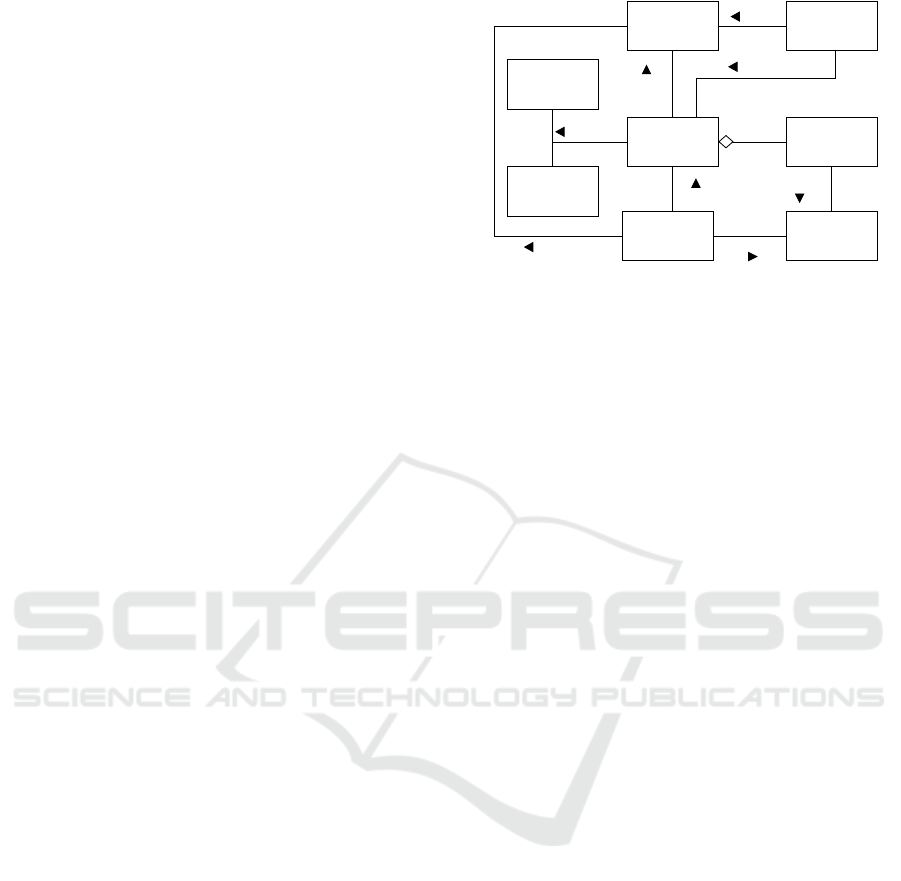

Figure 1: Simpliﬁed Conceptual Model.

3.1 Conceptual Model

Figure 1 shows the simpliﬁed conceptual model of our

pattern-based approach. The privacy policy and con-

sequently the service itself are restricted by Data Pro-

tection Regulation, e.g. the GDPR. These regulations

state the rights and duties with regard to the end-user’s

privacy. The service provider is interested in adhering

to the data protection regulations because substantial

penalties are the consequence of disobeying the regu-

lations. In addition to the data protection regulation,

the privacy policy of a service should address Privacy

Requirements. End-users use the service and provide

their personal data to the service. A Service is pro-

vided by a service provider and processes end-users’

data.

A service provider represents a data controller as

a legal entity providing a service which stores and/or

processes personal data. The service provider has,

with respect to the stored/processed data, the obliga-

tions stipulated by the GDPR. The service provider

that acts as data controller shall manage the pri-

vacy policies together with the data and data protec-

tion practices and other involved third-party service

providers in a way that the services provided by these

providers only perform actions that are permitted.

The privacy policies are used by the service providers

as legal foundation for data handling. The end-users

read privacy policies to raise awareness about the pro-

vided service and how their data is handled by this

service.

In this work, the end-user has the role of the data

subject as deﬁned in data protection regulation. The

data subject is a person whose data is stored and/or

processed by the service. The end-user has, with re-

spect to his/her personal data, the rights stipulated by

the GDPR.

A privacy policy consists of one or several Privacy

Policy Statements, which address Privacy Require-

ments as well as Data Protection Regulation. Service

Assisted Generation of Privacy Policies using Textual Patterns

349

Elements

Purpose

Time

Constraints

Service

Service Provider

Third-Party

Service Provider

End-User

Service

Provider

End-User's

Data

Collect

Share/

Disclose

Migrate

Notify

Process

Service

Provisioning

Analytics

Marketing

Advertising

Transfer

Store

ObjectActionActor Condition Target

Statement

Obligation

Statement

Consequence

Service

Provider

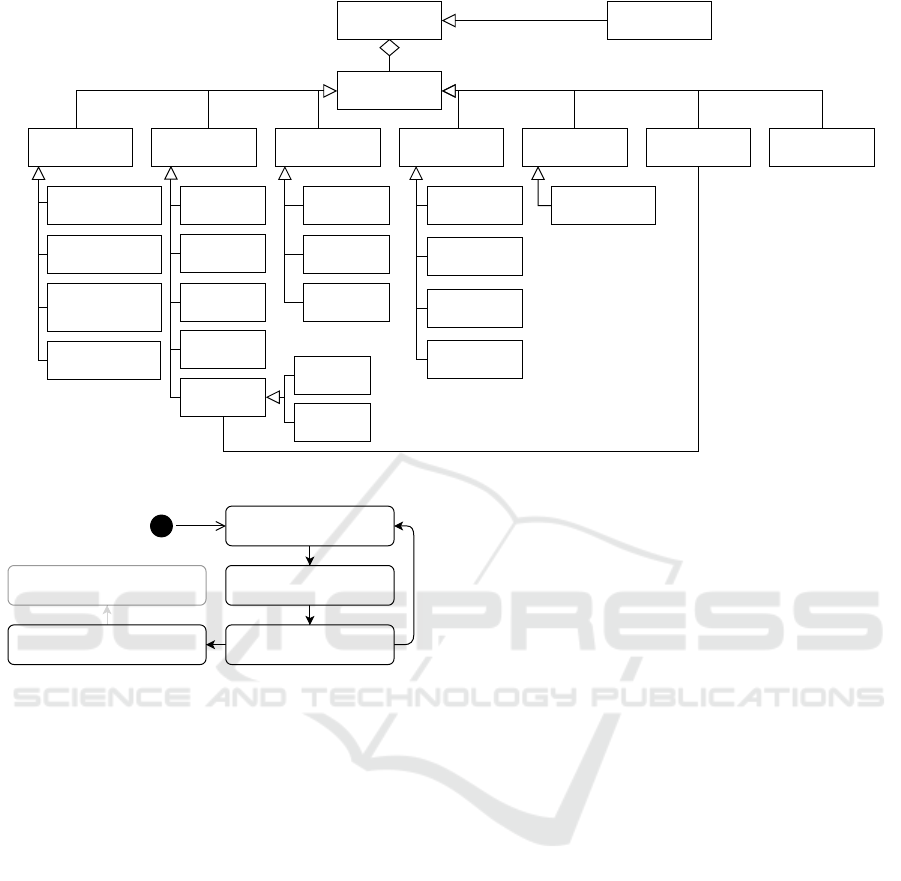

Figure 3: Elements of a Privacy Policy Statement.

1. - Pattern Deﬁnition

2. - Service Deﬁnition

3. - Pattern Instantiation

4. - Privacy Policy Export

5. - Privacy Policy Understanding

<End-User>

Figure 2: Policy Generation Process.

providers may use privacy policy patterns to generate

privacy policies by instantiating these patterns. Each

vacy policy pattern.

3.2 Process

The policy generation process involves two par-

ties (see Figure 2), privacy experts and the service

provider or their representatives. The experts are re-

sponsible for the deﬁnition of privacy policy patterns.

Service providers are responsible for the deﬁnition of

a model of the provided service (cf. Section 4), which

includes all information about data that is handled

and purposes for data collection and processing. In

a next step, the service provider instantiates the given

privacy and obligation patterns. In case the service

provider notice a gap in the existing patterns, service

providers can either give feedback to the experts or di-

rectly deﬁne new patterns. The last step of the policy

generation is the export of the ﬁnished privacy policy.

This can be done in the well-known textual format

or in alternative formats, e.g. nutrition label (Kelley

et al., 2009) (cf. Section 5). Finally, the result of

the process is the end-user being able to understand

the privacy policy. Thus, the approach achieves trans-

parency, which is required by data protection legisla-

tion.

3.3 Structure and Elements of

Statements

Figure 3 illustrates the different elements that a pri-

vacy policy statement may contain. End-User’s Data

is a type of Object, which is one of the Elements that

should be included in Privacy Policy Statements as a

key element to specify which data of the end-user is

used by the service. There are different categories of

End-User’s Data, e.g. health information, which we

described in previous work (Gol Mohammadi et al.,

2019). Conditions (e.g. Time Constraints) and rules

refer to the Actions that are performed by the Ser-

vice. The association of End-User’s Data, Actions,

and Purposes is important, because it is necessary to

track which Actions are allowed to be performed for

which Purpose.

The different categories of Actions deﬁne what

can be done with End-Users’ Data that is provided

to the Service. Categories of Actions are as follows:

• Collect: Collection of End-Users’ Data that is di-

rectly or indirectly supplied by the end-user

• Process: Processing of data resulting in new data

• Notify: Notiﬁcation of the end-user of speciﬁc

events

ENASE 2020 - 15th International Conference on Evaluation of Novel Approaches to Software Engineering

350

• Store: Storing of data supplied by the end-user

• Transfer: Transferring data to other locations

– Share/Disclosure: Sharing data with other par-

ties (is a kind of Transfer action)

– Migrate: Migrating is a kind of transfer action

that changes the location of data. This action

has been considered separately because of the

special requirement of the GDPR on migration.

Each of these Actions can be included in the Privacy

Policy Statement as one of its elements. The Trans-

fer action requires a Target element, which describes

where the data is transferred.

Every Action has a Purpose. The Purpose of an

Action is another category of information that is part

of a Privacy Policy Statement (see Figure 3). We dis-

tinguish the following four categories of purposes:

• Service Provisioning as purpose deﬁnes whether

the Action is necessary for service provision. It

means that the Action is necessary to be able to

provide the service, e.g. account information for

online banking.

• Analytics as purpose deﬁnes whether end-users’

data is used for performing data analytics, which

means the usage of End-Users’ Data for the cre-

ation of statistics.

• Marketing as purpose deﬁnes whether the data

supplied by the end-user is used for marketing.

• Advertising as purpose deﬁnes whether End-

Users’ Data is used or shared with others for ad-

vertising.

Because of this purpose-binding of Actions, it is pos-

sible to decide whether the usage of the End-User’

Data is actually necessary to provide the service or

whether the end-user can decide whether to use this

service. Marketing, Analytics, and Advertising are op-

tional purposes, stating that the action is not actually

necessary for the service to function. The difference

between Marketing and Analytics is as follows. Mar-

keting means the usage of end-users’ data to inform

new end-users about the Service, whereas, Advertis-

ing means the usage of the data to provide advertise-

ments to the end-user that provides the data.

Some Actions may have certain consequences for

the End-User, which can be expressed with the Con-

sequence element.

Using the privacy policy, Service Providers can

communicate their privacy protection practices to the

End-Users. In addition to the Privacy Policy State-

ments, the generated privacy policy contains further

statements e.g. information about the data protec-

tion ofﬁcer and applied obligations. These obligation

statements can, for example, specify the prohibitions

in the processing (Action) of the data for speciﬁc pur-

poses or retention/deletion conditions (see Figure 4).

We provide textual patterns for generic privacy

policy statements, as well as more speciﬁc privacy

policy statements. Examples of speciﬁc privacy pol-

icy statements (see Figure 4) are as follows:

• A Notiﬁcation Statement speciﬁes the rules and

conditions regarding the question about what the

End-User needs to be informed and how.

• A Consent Statement describes in which cases and

under which condition the End-Users are required

to give their consent.

• A Collection Statement speciﬁes which data is al-

lowed to be collected by the Service Provider.

This means, it will restrict the Collect Action of

the Service Provider.

• A Usage Statement speciﬁes for which Purpose

End-Users’ Data is allowed to be used and pro-

cessed.

• A Storage Statement speciﬁes how long and

where the data will be stored.

• A Share/Disclosure Statement deﬁnes the rules

and conditions specifying which data of the End-

Users is allowed to be disclosed to which audi-

ence.

• A Migration Statement describes the rules and

conditions for the migration of the data to differ-

ent locations.

Depending on a speciﬁc Privacy Policy Statement

with its concerned action types, one or more obliga-

tions can be relevant to the statement. For example,

upon a Storage Statement the Obligation Statement

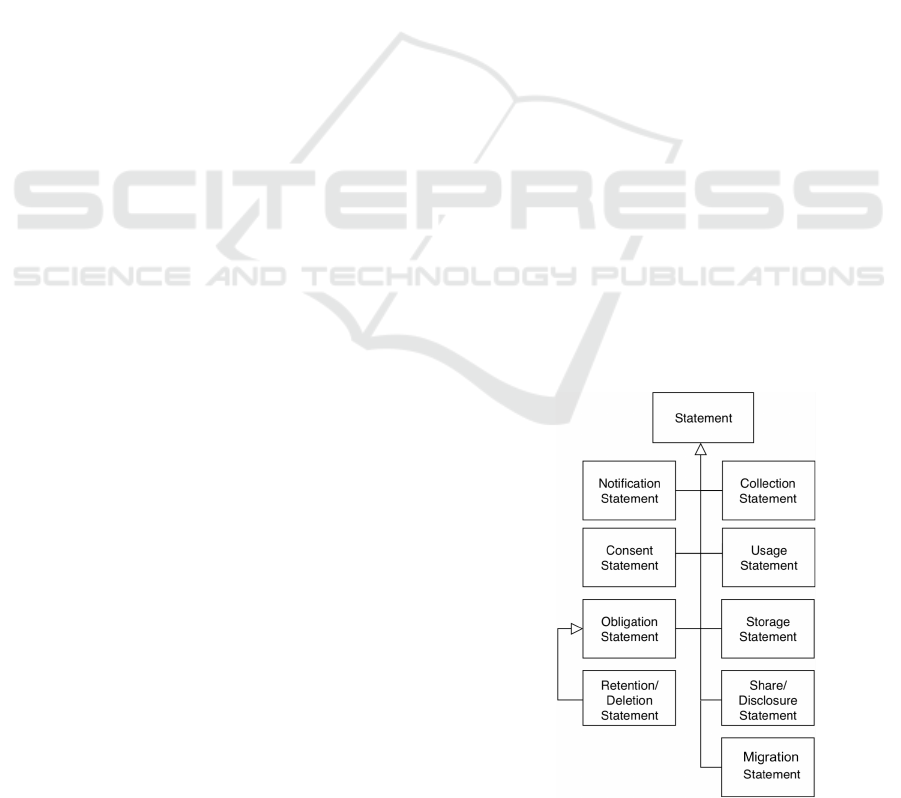

Figure 4: Different Types of Statements.

Assisted Generation of Privacy Policies using Textual Patterns

351

should be added to specify when and how the service

provider deletes this data. In our work, we also pro-

vide patterns for Obligation Statements that can be

part of privacy policy patterns. The structure of obli-

gation statement patterns is similar to the structure of

Both types of patterns include the following con-

structs:

• Fixed text: Text passages of a pattern that cannot

be modiﬁed during the instantiation of the pattern.

• Generic placeholders: References to certain types

of elements of the considered service. During

the instantiation of a pattern a generic placeholder

is replaced by information of a service element,

whose type corresponds to the referenced type in

the generic placeholder. Generic placeholders are

marked by opening and closing square brackets

“[”, “]”. As an example, the generic placeholder

“Action” within square brackets in the privacy

policy pattern in Example 1. references all ele-

ments of the category Action. During the instanti-

ation of the privacy policy pattern, the designer of

a speciﬁc service can replace the placeholder with

the information of a service element of a subtype

of Action. Example 2. shows a more speciﬁc col-

lection statement pattern and an instance of the

given pattern.

Example 1. A Generic Statement Pattern: The

[Actor] will [Action] [Object] for [Purpose].

Example 2. A Collection Statement Pattern: The

[Service] will [Collect] [End-User’s Data] for [Ser-

vice Provisioning].

An Instance of the Collection Statement Pattern:

The navigation service will collect your location data

for service provisioning.

For structuring both, ﬁxed and appropriate generic

parts of our patterns, we have identiﬁed a number of

keywords for each of the elements, e.g. for express-

ing actions or conditions such as time constraints. We

have analyzed the state of the art and terminologies

used in current privacy policies. Then, we created a

mapping of synonym words to the terms used in the

GDPR (Gol Mohammadi et al., 2019). For example,

multiple terms may be used in order to express “col-

lecting” end-users’ data, e.g. obtain, gather, get, re-

ceive, etc. In our patterns, we use our identiﬁed key-

words (in this case “collect”), which are based on the

GDPR terminology. In this way, the privacy policies

created using our textual patterns will be consistent

and uniform.

Further examples for privacy policy and obliga-

tion statement patterns are presented in the next sec-

tion.

4 PROOF OF CONCEPT

IMPLEMENTATION

We provide tool support for our textual privacy pol-

icy patterns and obligation statement patterns, namely

Pattern-based Privacy Policy Generation (3PG)-tool.

This tool provides two editors: 1) the Pattern-Editor,

and 2) the Pattern-Instantiation-Editor. The Pattern-

Editor supports the creation and management of pri-

vacy policy patterns and obligation statement pat-

terns. The Pattern-Instantiation-Editor supports the

instantiation of privacy policy and obligation state-

ment patterns and the management of corresponding

pattern instances.

Both editors are realized as Eclipse plugins by us-

ing the Eclipse Modeling Framework (EMF)

. Eclipse

plugins are implemented in the programming lan-

guage Java. EMF supports the implementation of

Eclipse plugins by providing a model-driven ap-

proach. Therefore, the framework provides a set of

language constructs for the creation of metamodels

that enable the speciﬁcation of an abstract syntax of

model information. The provided constructs corre-

spond to the elements of class models that are part of

the Uniﬁed Modeling Language (UML). Thus, EMF-

metamodels contain elements like classes and associ-

ations.

Information about the service and the data used by

the service is necessary for the instantiation of privacy

policy patterns. To make these data usable, a model

of the service is created, using a metamodel. The tool

provides a tree editor, that allows the service provider

to create a model of the service. Figure 6 shows the

service deﬁnition editor with some example data.

The Pattern-Editor and Pattern-Instantiation-

Editor are explained in the Sections 4.2 and 4.3.

The description of the editors is illustrated with the

Pay-As-You-Drive (PAYD) Insurance example, which

is presented in Section 4.1 below.

4.1 The Pay-As-You-Drive Case Study

This section presents an example of a real-life cloud

computing service that is studied in the RestAssured

project.

The PAYD case study is a cloud computing ser-

vice for automotive insurance companies. PAYD en-

ables insurers to offer innovative, cost-effective and

usage-based automotive insurance products. This is

achieved by collecting and analyzing the driving data

of insurance customers. Since these driving data are

https://www.eclipse.org/modeling/emf/

See https://restassuredh2020.eu

ENASE 2020 - 15th International Conference on Evaluation of Novel Approaches to Software Engineering

352

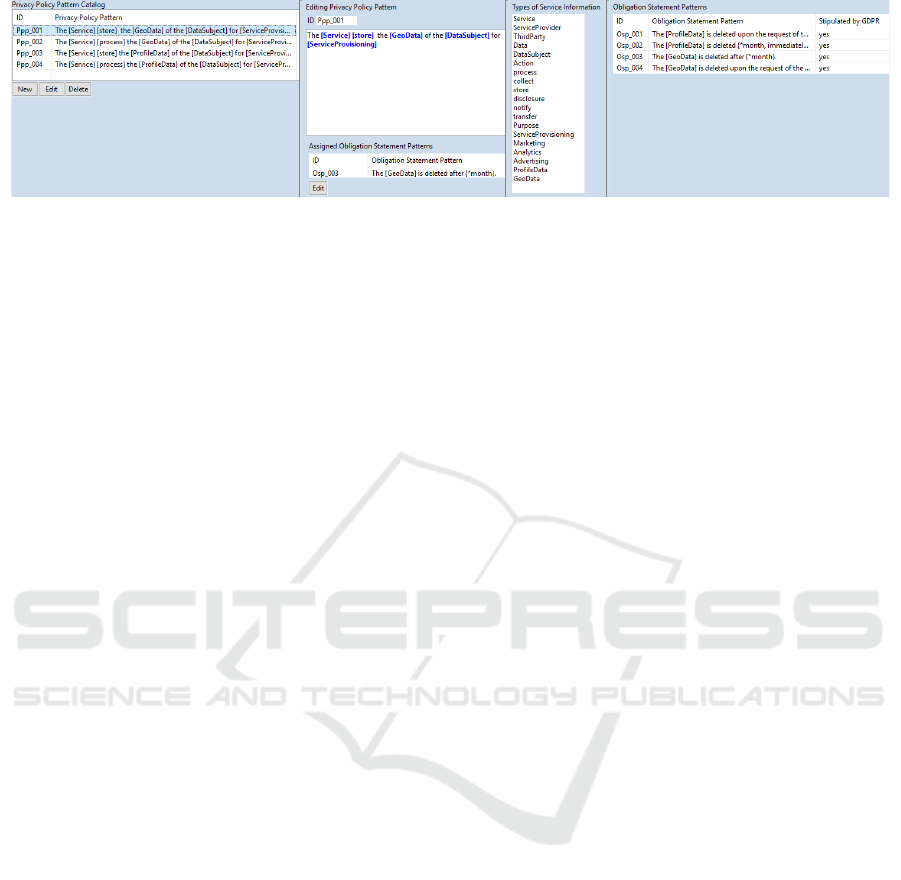

Figure 5: Pattern-Editor Tab for Creation and Management of Privacy Policy Patterns.

personal data of the insurance customers, the require-

ments concerning data protection and data security

are very high. The GDPR is one of the effective regu-

lations for the provided services. Accordingly, insur-

ers take the data controller role from GDPR. The in-

surance customers as the end-users (the drivers) have

the role of data subjects from GDPR.

The ﬁrst service that is provided is the PAYD web

application. This web application is used by the in-

surance customers (end-users). By using the PAYD

web application, the insurance customers are able to

about their current insurance conditions. The end-

users provide their personal data as insurance cus-

tomer data to the PAYD web application. The ac-

cess, processing and storage of the insurance cus-

tomer data is described in the provided privacy pol-

icy.

The second service involved in this scenario is a

telematic service. This service is responsible for re-

ceiving the driving data of the insurance customers.

The collected driving data is transferred to the cloud

infrastructure of the corresponding insurer. There, the

driving data is analyzed by insurance analysts to de-

termine the individual insurance premiums for insur-

ance customers.

The privacy policy should include information on

the access, processing and restrictions provided by

the service providers with regard to the amount of the

driving data.

In the description of the Pattern-Editor (Section

4.2) and Pattern-Instantiation-Editor (Section 4.3),

the processing of personal customer data and driving

data within the PAYD insurance scenario is consid-

ered as a running example. Since the focus lies on

the design of patterns and their instances, only partial

data from the PAYD insurance scenario is considered.

4.2 The Pattern-Editor

The Pattern-Editor of the 3PG-tool allows privacy ex-

perts to create and manage privacy policy patterns

and obligation statement patterns. For this purpose,

the 3PG-tool provides an editor tab for each type of

pattern. In the following, we describe the main con-

structs of a pattern.

A pattern, which is identiﬁed by a unique identi-

ﬁer, consists of ﬁxed text and generic text. The ﬁxed

text represents the text in a pattern that cannot be

changed during the instantiation of the pattern. In

contrast to the ﬁxed text part of a pattern, different

types of generic text are replaced by appropriate in-

formation during the pattern instantiation. A generic

text has a length and is inserted at a certain position

in the ﬁxed text (marked with placeholders). In the

following, the different types of generic text are de-

scribed.

Patterns are instantiated in a semi-automatic man-

ner by using the aforementioned service deﬁnition

model. A service element placeholder deﬁnes a

placeholder that references one or several types of ser-

vice elements. During the instantiation of a pattern, a

service element placeholder is replaced by the infor-

mation represented by a service element of the appro-

priate type (see Section 4.3). Such a placeholder in a

pattern is indicated by an opening and closing square

bracket ([, ]).

Another type of generic text is a text choice. A

text choice contains one or more text choice elements.

During the instantiation of a pattern, one of the spec-

iﬁed text choice elements can be selected to replace

the text choice placeholder. A text choice element

represents either an invariable keyword or a piece of

text that contains a placeholder that should be re-

placed with appropriate information. This informa-

tion is supplied by the service provider, who instan-

tiates the pattern. Such a text choice placeholder is

indicated by the symbol “*”.

Free text is the last type of generic text. It can

be replaced with any appropriate information by the

service provider, during the pattern instantiation. It

contains only a description that explains the domain

of information that the service provider should spec-

ify. Free text is indicated by angle brackets (<, >).

Figure 5 shows the deﬁnition of a privacy policy

pattern for services in the dedicated tab of the Pattern-

Assisted Generation of Privacy Policies using Textual Patterns

353

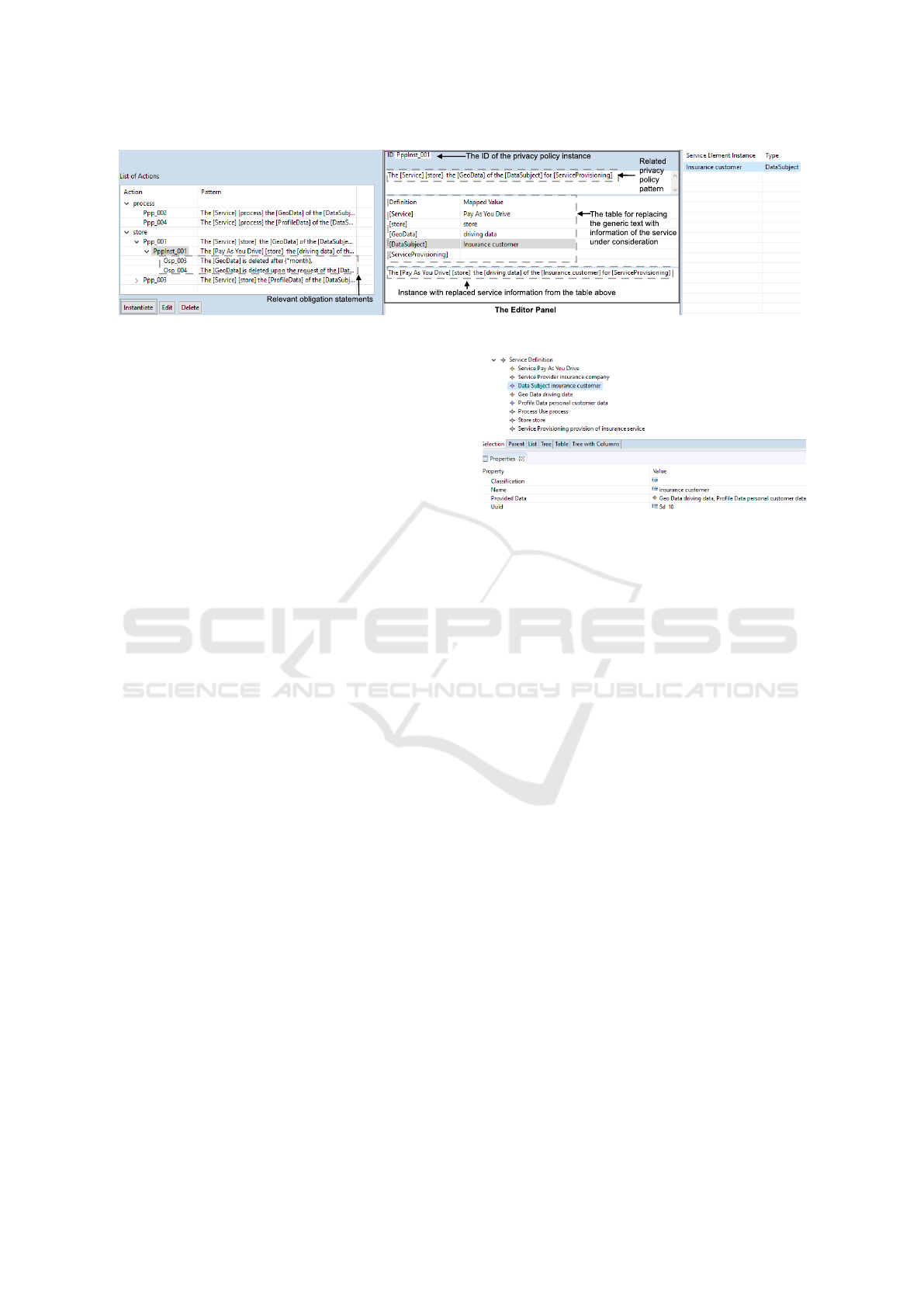

Figure 7: Instantiation of a Privacy Policy Pattern in the Pattern-Instantiation-Editor.

Editor. The middle part in the editor tab enables edit-

ing of privacy policy patterns. It contains a list named

Types of Service Information. This list includes all

types of service element instances that can be refer-

enced by a service element placeholder. The list is

created, when the appropriate service deﬁnition meta-

model, which corresponds to the 3PG-metamodel (cf.

Section 4), is loaded into the Pattern-Editor for the

ﬁrst time. For the actual editing of a privacy policy

pattern, a text ﬁeld is provided, which is placed below

the text ﬁeld for depicting the pattern ID. A service

information type can be inserted into a privacy policy

pattern by double-clicking on the corresponding list

item or manually typing it into the text ﬁeld. In case

of a manual entry by pattern designers, a syntax check

ensures that incorrect type names and other syntax er-

rors are detected. Figure 5 shows the deﬁnition of a

age that is performed in the context of a service. The

storage action concerns geodata that belongs to end-

users of the service for service provisioning.

The table below the stylized text ﬁeld for editing

ment patterns that are related to the current privacy

policy pattern. The relations of a privacy policy pat-

tern to obligation statement patterns can be added and

removed through a dialog that is started by clicking

the “Edit” button.

On the left-hand side of the editor tab, the catalog

of privacy policy patterns is shown. It provides func-

tionalities for starting the development or modiﬁca-

tion of privacy policy patterns, as well as the deletion

of privacy policy patterns.

The right-hand part of the editor tab displays the

speciﬁed obligation statement patterns. These obli-

gation statement patterns have been deﬁned using

the second editor tab of the Pattern-Editor. In con-

trast to privacy policy patterns, the obligation state-

ment patterns specify the additional information that

indicates whether an obligation is stipulated by the

GDPR. Since the functionalities and techniques for

developing and managing obligation statement pat-

terns are quite similar to corresponding features for

Figure 6: EMF-Tree Editor of PAYD Insurance Service.

explained.

4.3 Pattern-Instantiation-Editor

The Pattern-Instantiation-Editor allows the instantia-

tion of existing privacy policy patterns and their cor-

responding obligation statement patterns, which are

deﬁned with the Pattern-Editor (cf. Section 4.2). Dur-

ing the instantiation, the generic text of a pattern is re-

placed by concrete information from the service deﬁ-

nition model.

In our example, service element placeholders are

replaced by service element instances that represent

service elements from the PAYD use case (cf. Sec-

tion 4.1). Figure 6 shows the deﬁnition of the service

elements of the PAYD use case in the corresponding

EMF-tree editor. The upper tree view lists the differ-

ent service elements. A service element comprises of

the actual service information and its type. The ser-

vice information displayed in the tree editor, is con-

tained in the service element instances created by the

Pattern-Instantiation-Editor. During the instantiation

of privacy policy and obligation statement patterns for

the PAYD use case, service element placeholders are

replaced by service element instances of the appro-

priate type. For clarity, only a partial extract of the

PAYD service information is represented in the tree.

The properties of the currently selected service el-

ement are displayed in the lower property panel of

the tree editor. These properties include the name of

the selected service element and its unique identiﬁer

ENASE 2020 - 15th International Conference on Evaluation of Novel Approaches to Software Engineering

354

(Uuid), as well as associations of the service element

with other service elements.

Figure 6 shows the properties for the service ele-

ment “insurance customer” of the type data subject. It

contains the reference Provided Data that implements

the association of a data subject to the data that is pro-

vided to the relevant service. Within the PAYD use

case, insurance customers provide their driving data

and personal data to the service.

Figure 7 shows the instantiation of the privacy

policy pattern Ppp 001 in the Pattern-Instantiation-

Editor.

stances are assigned to the types of actions in the ser-

vice under consideration. For the PAYD use case, the

appropriate privacy policy patterns are assigned to the

actions store and process (see Figure 6). This assign-

ment is indicated by a tree in the left-hand side of the

editor (see Figure 7). The tree for the PAYD use case

in Figure 7 shows that only such privacy policy pat-

terns are assigned to a certain action, when a privacy

policy pattern contains a service element placeholder

that refers to the type of the action. For example, all

contain the service element placeholder “[process]”.

A privacy policy pattern for a particular action can

be instantiated by selecting the pattern in the tree and

clicking the Instantiate-button (bottom left in Figure

7). The created instance can then be edited in the

middle panel of the editor. In the following, the dif-

ferent components of editing are explained in a top-

down order. First, the editor panel provides a text

ﬁeld for editing the ID of the privacy policy instance.

Another text ﬁeld displays the related privacy policy

pattern. The table (in the middle of the editor panel)

allows replacing the generic text with information of

the service under consideration. To do so, the table

lists all deﬁnitions of generic text in the associated

pattern in the Deﬁnition column. The Mapped Value

column contains the information that instantiates the

corresponding placeholder in the instance. In the in-

stantiation of the privacy policy pattern Ppp 001 (see

Figure 7), the Deﬁnition column contains only ser-

vice element placeholders. Thus, the Mapped Value

column contains only service element instances. The

service element placeholders “Service”, “store” and

“GeoData” have already been replaced by appropriate

service element instances. The value for the place-

holder “store” that represents the action is assigned

automatically. The replacement of a generic text is

started by a double-click on the appropriate row in the

table. All suitable service elements are then displayed

in the table on the right, where the desired element

can be selected by double-clicking on the appropriate

row. Figure 7 shows the substitution for the place-

holder “[DataSubject]”. In the right-hand part of the

editor, the table provides the only relevant service el-

ement instance, the “insurance customer”, as a data

subject.

At the bottom in the middle of the editor, the text

ﬁeld displays the current text of the privacy policy in-

stance during the instantiation process. If a generic

text is not replaced yet, the generic text of the related

pattern is displayed.

After the instantiation of a privacy policy pat-

tern, the relevant obligation statement patterns are

displayed in the tree view under the created privacy

policy instance. The obligation statement patterns

Osp 003 and Osp 004 are associated to this instance

in Figure 7 (left-hand side), which correspond to the

stance of the privacy policy pattern Ppp 001.

The instantiation of obligation statement patterns

is similar to the previously described instantiation of

5 RELATED WORK

In software engineering, patterns are an adequate

approach for solving problems that occur frequently

in a speciﬁc domain. There are various types of

patterns, for example design patterns, requirements

patterns, and risk patterns (Buschmann et al., 1996;

Brambilla et al., 2010).

Privacy Policies. A variety of research approaches

address deﬁciencies of privacy policies. Poll-

mann and Kipker suggest a competitive rating sys-

tem, where end-users and experts can rate service

providers in their attitude towards personal data pro-

cessing (Pollmann and Kipker, 2016). This approach

encourages the service providers in respecting end-

users’ privacy.

There are several works that address the improve-

ment of comprehensibility of privacy policies by re-

designing the structure of privacy policies. Kelly et

al. discovered that lengthy full-text policies cause

disadvantages in comprehension and retrieval of re-

quired information by end-users (Kelley et al., 2009).

The authors developed the Privacy Nutrition Label

approach, that displays privacy policies in an easier

to understand way using a grid layout. A study con-

ﬁrmed that the presentation and comprehension of in-

formation within the Privacy Nutrition Label is less

time-consuming and less complex compared to the

scanning of lengthy full-text policies (Kelley et al.,

2009; Kelley et al., 2010).

Assisted Generation of Privacy Policies using Textual Patterns

355

Ghazinour et al. (Ghazinour et al., 2009) devel-

oped a Model for Privacy Policy Visualization that

improves comprehensibility of privacy policy state-

ments. Their Model for Privacy Policy Visualization

deﬁnes different elements (e.g. entity, relation, pri-

vacy notation, group attributes, and default values)

that are displayed using various symbols (Ghazinour

and Albalawi, 2016).

Our work differs from this kind of visual repre-

sentation approaches, since we aim at improving the

quality of privacy policy documents using textual pat-

terns. We also address the obligation from the reg-

ulation that comprehensibility of textual versions of

privacy policies should be improved. Our pattern ap-

proach can be combined with the nutrition label repre-

sentation of privacy policies, with the full text policies

as legal background.

Bhatia et al. analyze and identify semantic roles

in the privacy practice statements provided by service

providers (Bhatia et al., 2019). We considered their

analysis and results in the structure of our textual pat-

terns for the privacy policy statements.

IBM developed a tool for P3P privacy policy gen-

eration (IBM Corp., 2000). This tool was abandoned

together with the P3P language. The “IBM P3P Pol-

icy Editor” was developed to support owners of web-

sites in the creation of P3P policies. The editor is of

no use today, as P3P is discontinued, and does not

improve comprehensibility of the created policies.

Reidenberg et al. developed a scoring system to

evaluate ambiguity in privacy policies (Reidenberg

et al., 2016). In other work the authors showed that

end-users and privacy experts interpreted the same

policy differently (Reidenberg et al., 2015). With our

approach we envision to reduce ambiguity in privacy

policies and assist service providers in creating under-

standable privacy policies.

Da Silva et al. proposed a framework and tool for

assistance in privacy policy generation and manage-

ment (da Silva et al., 2016). The tool can be used

to analyze existing privacy policies using natural lan-

guage processing. The tool however does not pro-

vide any information on what statements the policy

should contain, whereas the framework we propose

in this paper provides statements, which just need to

be ﬁlled with the service information. The authors

of the RSLingo4Privacy approach make use of for-

mal languages, which allows for reasoning about the

policies. A combination of these languages with our

textual pattern approach may improve our framework.

Many online privacy policy generators exist, but

these generators do not help in creating compliant

privacy policies. These websites clearly state that

the created policies are no legal advice and should

not simply be added to websites. Our approach is

no automatic generator but should assist service

providers in creating compliant and easily under-

standable privacy policies. A combination of our

pattern-based approach with the automatic generators

could improve policy generator websites.

Textual Patterns. Textual patterns are used in the

speciﬁcation of requirements (Withall, 2007). With-

all identiﬁes 37 requirement patterns, that are di-

vided into eight domains: fundamental requirement

patterns, information requirement patterns, data en-

tity requirement patterns, user function requirement

patterns, performance requirement patterns, ﬂexibil-

ity requirement patterns, access control requirement

patterns, and commercial requirement patterns. The

author provides guidelines and examples for formu-

lating requirements in natural language. He aims at

writing textual requirements, which also consider do-

main knowledge. Our work differs from Withall’s,

because we provide patterns for privacy policy state-

ments based on the GDPR.

Pohl introduces patterns which describe scenar-

ios in a structured textual format. Pohl’s require-

ments templates (Pohl, 2010) include possible excep-

tion scenarios.

In agile software development, for specifying re-

quirements there are textual patterns for drafting the

user stories (Cohn, 2004).

The idea of using a structured textual format in our

requirements templates. These works do not pro-

vide speciﬁc notations to document data protection

requirements nor any other non-functional require-

ments, and only consider functional requirements.

Del-R

ıo-Ortega et al. develop some textual pat-

terns for deﬁning process performance indicators in

business process management (Del-R

ıo-Ortega et al.,

2012). The authors do not provide speciﬁc notations

to document and model privacy policies or even pri-

vacy requirements and only consider key performance

indicators in business processes.

Beckers et al. present a method for the speci-

ﬁcation of security requirements for cloud comput-

ing systems (Beckers et al., 2011). The authors pro-

vide textual security requirement patterns. We build

our approach upon this work and present more spe-

ciﬁc patterns for privacy policy statements and obli-

gations. For this purpose, our work extends the ap-

proach presented by Beckers et al. by adding ele-

ments that address privacy requirements and data pro-

tection requirements. The added elements conform to

the GDPR.

ENASE 2020 - 15th International Conference on Evaluation of Novel Approaches to Software Engineering

356

6 DISCUSSION

The procedure presented in this paper was developed

based on discussions with practitioners from a Euro-

pean project on data protection. Parts of our approach

have been discussed with privacy consultants. The

privacy consultants mentioned that this structured ap-

proach supports the speciﬁcation of privacy policies,

as well as the generation of privacy requirements for

requirements speciﬁcation.

It increases the usage of models of the service and

generating privacy policies in a semi-automatic man-

ner instead of texts from standards and law, which

eases the effort of understanding the service and its

data handling process and data protection practices.

Additionally, it facilitates the comprehension of the

gies in documentation signiﬁcantly. Furthermore, our

approach provides the means for abstraction of a com-

plex system and structured reasoning for data pro-

tection. It also ensures that the privacy policy state-

ments describe concretely and explicitly which ac-

tions are performed for which purpose on end-users’

data. Accordingly, instead of long, complex and ab-

stract statements, our approach leads to simple, short

and more comprehensible statements for end-users.

Furthermore, privacy policies are uniform and con-

sistent through the adoption of a set of pre-deﬁned,

GDPR-compliant terms and keywords for describing

data protection matters.

One issue that needs further investigation is scal-

ability, both, in terms of effort needed, by the privacy

experts and service providers, in order to enter all in-

formation about the service, as well as the tool sup-

port. We will use the approach for different scenarios

to investigate if the method scales for different do-

mains and applications.

In this paper we focused on the generation of sim-

ple and easily understandable privacy policy state-

ments, however in previous work we also considered

the structured representation of privacy policies (Gol

Mohammadi et al., 2019).

We aim to conduct an empirical study with our

tool in order to analyze the amount of time that can

be saved when using our approach. Furthermore, we

will analyze the achieved user experience (in terms

of comprehensibility) when reading such documents

generated using our approach. We aim to compare it

against conventional text-based approaches. Our ap-

proach will also undergo a series of further usability

tests, which shall discover issues with its use in a pro-

ductive environment. We aim to identify usability is-

sues and resolve these in order to further improve the

user experience (for designers of the service).

7 CONCLUSIONS AND FUTURE

WORK

In this paper we presented a textual pattern-based

approach for the generation of privacy policy state-

ments. These privacy policy patterns can be used to

improve comprehensibility of text in privacy policies

and address incompleteness in the information pre-

sented to the end-users with respect to privacy prac-

tices. In this work, we analyzed GDPR obligations

with respect to the transparency of information. Fur-

thermore, we analyzed the structure of privacy pol-

icy statements and identiﬁed (i) the important infor-

mation in each privacy policy statement, (ii) obliga-

tions deﬁned in the GDPR, e.g. retention, and (iii)

keywords that are used in these statements for ex-

pressing conditions. In addition, we deﬁned several

keywords that can be instantiated for a speciﬁc ser-

vice.

The developed tool will be further extended in or-

der to address all the different types of privacy pol-

icy requirements captured from the GDPR. Our tex-

tual pattern-based approach can be used by service

providers to semi-automatically generate privacy pol-

icy documents and align them with the software’s de-

sign and also with data protection regulations. Ques-

tion wizards can also be developed to support users of

our tool in instantiating privacy policy patterns. These

question wizards could be used by requirements engi-

neers or designers. Example questions can include

“Which actions are performed on the personal data

provided by the end-users?”, “Which personal data of

the end-users are logged?”. In addition, designers can

use our tool to developed further patterns that can be

used to ensure that end-user’s privacy is protected and

to provide more concrete information about privacy

protection practices.

Furthermore, the tool support for the deﬁnition of

service information will be improved. In this context,

a new graphical user interface will be implemented

that enables the representation of service information

in the form of service diagrams.

ACKNOWLEDGMENTS

Research leading to these results received funding

from the European Union’s Horizon 2020 research

and innovation programme under grant agreement

number 731678 (RestAssured).

We gratefully acknowledge constructive discus-

sions with our project partners.

Assisted Generation of Privacy Policies using Textual Patterns

357

REFERENCES

Acquisti, A., Gritzalis, S., Lambrinoudakis, C., and

di Vimercati, S., editors (2008). Digital Privacy: The-

ory, Technologies, and Practices. New York: Auer-

bach Publications, 1st edition.

Alexander Rossnagel (2016). Datenschutz. Eine Zukunft

ohne Selbstbestimmung? Spektrum der Wissenschaft

Kompakt: Der digitale Mensch, pages 41–49.

Beckers, K., Schmidt, H., K

uster, J., and Faßbender, S.

(2011). Pattern-based support for context establish-

ment and asset identiﬁcation of the ISO 27000 in the

ﬁeld of cloud computing. In 6th Intl. Conf. on Avail-

ability, Reliability and Security, pages 327–333.

Bhatia, J., Evans, M. C., and Breaux, T. D. (2019). Iden-

tifying incompleteness in privacy policy goals us-

ing semantic frames. Requirements Engineering,

24(3):291–313.

Brambilla, M., Campi, A., Ceri, S., and Quarteroni, S.

(2010). Semantic resource framework. In Search

Computing - Trends and Developments [outcome of

the 2nd SeCO Workshop on Search Computing], pages

73–84. Springer.

Buschmann, F., Meunier, R., Rohnert, H., Sommerlad, P.,

and Stal, M. (1996). Software Patterns. John Wiley &

Sons.

Cohn, M. (2004). User Stories Applied: For Agile Software

Development . Addison-Wesley, 1st edition.

da Silva, A. R., Caramujo, J., Monfared, S., Calado, P., and

Breaux, T. (2016). Improving the speciﬁcation and

analysis of privacy policies. In Proceedings of the

18th International Conference on Enterprise Informa-

tion Systems - Volume 1: ICEIS,, pages 336–347. IN-

STICC, SciTePress.

Del-R

ıo-Ortega, A., Resinas Arias de Reyna, M.,

Dur

an Toro, A., and Ruiz-Cort

es, A. (2012). Deﬁn-

ing Process Performance Indicators by Using Tem-

plates and Patterns. In Business Process Management,

volume 7481 of Lecture Notes in Computer Science,

pages 223–228. Springer.

European Commission (2016). Regulation 2016/679 of the

European General Data Protection Regulation. https:

//gdpr-info.eu. Accessed: 2018-03-02.

Ghazinour, K. and Albalawi, T. (2016). A usabil-

ity study on the privacy policy visualization model.

In IEEE 14th International Conference on Depend-

able, Autonomic and Secure Computing, 14th Intl.

Conf. on Pervasive Intelligence and Computing, 2nd

Intl. Conf. on Big Data Intelligence and Comput-

ing and Cyber Science and Technology Congress,

DASC/PiCom/DataCom/CyberSciTech, pages 578–

585.

Ghazinour, K., Majedi, M., and Barker, K. (2009). A model

for privacy policy visualization. In Proceedings of the

33rd Annual IEEE International Computer Software

and Applications Conference, COMPSAC, pages 335–

340.

Gol Mohammadi, N., Leicht, J., Ulfat-Bunyadi, N., and

Heisel, M. (2019). Privacy policy speciﬁcation frame-

work for addressing end-users’ privacy requirements.

In Proc. of the 16th Intl. Conf. on Trust, Privacy

and Security in Digital Business - TrustBus 2019.

Springer.

Gol Mohammadi, N., Pampus, J., and Heisel, M. (2019).

Pattern-based incorporation of privacy preferences

into privacy policies:: Negotiating the conﬂicting

needs of service providers and end-users. In 24th

European Conference on Pattern Languages of Pro-

grams, EuroPLoP. ACM.

Hansen, M., Jensen, M., and Rost, M. (2015). Protection

goals for privacy engineering. In IEEE Symposium

on Security and Privacy Workshops, SPW, pages 159–

166.

IBM Corp. (2000). IBM P3P Policy Editor.

Jeanette Hofmann and Benjamin Bergemann (2016). Die

informierte Einwilligung: Ein Datenschutzphantom.

Spektrum der Wissenschaft Kompakt, “Der Digitale

Mensch”, pages 50–59.

Kelley, P. G., Bresee, J., Cranor, L. F., and Reeder, R. W.

(2009). A “nutrition label” for privacy. In Proceedings

of the 5th Symposium on Usable Privacy and Security,

SOUPS. ACM.

Kelley, P. G., Cesca, L., Bresee, J., and Cranor, L. F. (2010).

Standardizing privacy notices: an online study of the

nutrition label approach. In Proceedings of the 28th

International Conference on Human Factors in Com-

puting Systems, CHI, pages 1573–1582. ACM.

Pohl, K. (2010). Requirements Engineering: Fundamen-

tals, Principles, and Techniques. Springer Publishing

Company, Incorporated, 1st edition.

Pollmann, M. and Kipker, D. (2016). Informierte einwilli-

gung in der online-welt. Datenschutz und Daten-

sicherheit, 40(6):378–381.

Probst, T. and Hansen, M. (2013). Privacy protection goals

in privacy and data protection evaluations. Technical

report, Working paper, Unabh

angiges Landeszentrum

ur Datenschutz Schleswig-Holstein.

Reidenberg, J. R., Bhatia, J., Breaux, T. D., and Norton,

T. B. (2016). Ambiguity in privacy policies and the

impact of regulation. The Journal of Legal Studies,

45(S2):S163–S190.

Reidenberg, J. R., Breaux, T., Cranor, L. F., French, B.,

Grannis, A., Graves, J. T., Liu, F., McDonald, A., Nor-

ton, T. B., and Ramanath, R. (2015). Disagreeable

privacy policies: Mismatches between meaning and

users’ understanding. Berkeley Tech. LJ, 30:39.

Withall, S. (2007). Software Requirement Patterns. Mi-

crosoft Press, Redmond, WA, USA, 1st edition.

ENASE 2020 - 15th International Conference on Evaluation of Novel Approaches to Software Engineering

358
