Detection of Crawler Traps: Formalization and Implementation

Defeating Protection on Internet and on the TOR Network

Maxence Delong

, Baptiste David

and Eric Filiol

2,3

Laboratoire de Virologie et de Cryptologie Op

erationnelles, ESIEA, Laval, France

Department of Computing, ENSIBS, Vannes, France

High School of Economics, Moscow, Federation of Russia

Keywords:

Crawler Trap, Information Distance, Bots, TOR Network.

Abstract:

In the domain of web security, websites want to prevent themselves from data gathering performed by auto-

matic programs called bots. In that way, crawler traps are an efﬁcient brake against this kind of programs.

By creating similar pages or random content dynamically, crawler traps give fake information to the bot and

resulting by wasting time and resources. Nowadays, there is no available bots able to detect the presence of

a crawler trap. Our aim was to ﬁnd a generic solution to escape any type of crawler trap. Since the random

generation is potentially endless, the only way to perform crawler trap detection is on the ﬂy. Using machine

learning, it is possible to compute the comparison between datasets of webpages extracted from regular web-

sites from those generated by crawler traps. Since machine learning requires to use distances, we designed our

system using information theory. We used wild used distances compared to a new one designed to take into

account heterogeneous data. Indeed, two pages does not have necessary the same words and it is operationally

impossible to know all possible words by advance. To solve our problematic, our new distance compares two

webpages and the results showed that our distance is more accurate than other tested distances. By extension,

we can say that our distance has a much larger potential range than just crawler traps detection. This opens

many new possibilities in the scope of data classiﬁcation and data mining.

1 INTRODUCTION

For most people, surﬁng the web is done via a web

browser where it is just about to click on a few links.

But the ecosystem is not only made of humans. In-

deed, there are automatic programs, called bots, that

allow you to automatically browse websites. Brows-

ing motivations of the latter are multiple. Indeed, they

can be used for archiving, search engine optimization,

content retrieval, user information collection — with

or without agreement —search for non-posted and po-

tentially conﬁdential documents, intelligence gather-

ing for attack preparation... Usually, bots are efﬁcient

and largely faster than humans to collect all informa-

tion. If the motivations of such tools are more or less

legitimate, it is understandable that some sites do not

wish to be analyzed in such a way.

To counter these unwanted automatic analysts,

websites have implemented different strategies. From

the detection of bots with basic methods, to chal-

lenges offered that only humans (Turing test) can

solve (or supposed to be), various methods have

emerged across the last years. In a few cases, the

most advanced ones have the ability to neutralize the

importune bot. The main technique used to deceive

and hinder bots’ operations is generically described as

“Crawler traps”. As always in IT security, what refers

to detection measures and protection on one side, also

refers to bypass techniques symmetrically. Hence the

aim of our paper is to formalize the concept of crawler

trap detection and management, to present different

techniques capable of interfacing with anti-bot coun-

termeasures and to present our detection results.

More than trying to be stealthy (it would result in

reducing the bot’s performance and therefore losing

its main interest), we want to counter the measures

put in place to neutralize bots. The objective is to have

ways to pass where the other widely used bots gener-

ally stop and fail, trapped by the website’s defenses.

Our whole problem is to have the operational means

to be able to detect whenever a website traps our bot

and therefore to be able to avoid it. Surprisingly, there

are neither no research no real public operational so-

lutions on the subject, which means we are going to

Delong, M., David, B. and Filiol, E.

Detection of Crawler Traps: Formalization and Implementation Defeating Protection on Internet and on the TOR Network.

DOI: 10.5220/0009367207750783

In Proceedings of the 6th International Conference on Information Systems Security and Privacy (ICISSP 2020), pages 775-783

ISBN: 978-989-758-399-5; ISSN: 2184-4356

775

explore a new ﬁeld.

This paper is therefore organized to address this

problem. Section 2 presents the state of the art on the

different website protection mechanisms. Section 3

addresses te formalization we have considered and

presents the solutions implemented based on the theo-

retical aspects we have considered. Section 4 presents

the results we have obtained from our solutions dur-

ing a large number of experiments both on the Inter-

net and on the TOR network (aka Darkweb). Finally,

Section 5 resumes our approach and possible uses.

2 STATE OF ART

As far as web bots are concerned, there is a great di-

versity of uses. If the majority of bots as chatbots

(Rouse, 2019) or Search Engine Optimization (SEO)

bots as Googlebot (Google, 2019) are very helpful for

websites owners, some of them are malicious. The

purpose of malicious bots can be multiple. Among

many example, we can mention spambots which col-

lect email addresses to prepare phishing campaigns.

Subsequently to ﬁght against botnets’ activities, many

security measures have been developed.

Most solutions degrade the user experience or

come to be impractical from a user point of view. An

example of a repressive solution is the IP banishment.

If the web server guessed that a bot is crawling it,

an error code can be returned on legitimate webpages

thus disallowing content access. In the case where the

website has incorrectly guessed and real user has been

blocked, the frustration is high. Another example of

common impractical security on the web are captchas

(Hasan, 2016). Indeed, if originally, most of captcha

were used to validate speciﬁc operation where a hu-

man user was mandatory (online payment, registra-

tion...), nowadays, websites more and more condition

the access to the total content of the website by re-

solving a captcha ﬁrst. But this is not a sufﬁcient so-

lution since there exists practical ways to automati-

cally bypass them (Sivakorn et al., 2016). As a conse-

quence, other security systems have been developed

to be more efﬁcient.

Usually, the ofﬁcial way to prevent web-crawlers

is to create a ﬁle named ”robot.txt” put at the root

of the website. In this ﬁle, all the section forbid-

den for crawling are referenced to prevent legitimate

bots from falling into them. This ﬁle is only declara-

tive and there is no deeper protection to forbid crawl-

ing. In a way, it is a gentleman’s agreement that

determined bots shamelessly bypass. Moreover, the

”robot.txt” give direct information to the attacker on

sensitive parts of the website.

The new trend to provide real protection is fo-

cused on systems called ”spider trap” or ”crawler

trap”. The goal is to ambush the malicious bot on a

dedicated trap inside the website. The intent is to im-

prison the bot in a speciﬁc place where it is supposed

continue to operate endless false information (or the

same one, again and again) in order to ﬁnally waste

time and resources. There are many ways to create

and deploy a crawler trap.

Involuntarily Crawler Traps. Surprisingly, the

notion of crawler trap exists from a long time, since

some of them were not designed to be a crawler trap.

This is what we call involuntarily crawler trap. For

instance, for management purpose, we can ﬁnd online

interactive calendar which are constituted by an inﬁ-

nite number of page, one for each month, generated

on the ﬂy by the webserver. Nowadays, most of cal-

endars are developed in javascript but this language is

prohibited on the TOR network for security reasons.

This is why we can still ﬁnd such objects online. An-

other example stands in some website which generate

pages on the ﬂy from a general link but with differ-

ent parameters. Incorrectly managed by the bot, it is

possible to make them endlessly loop on this type of

link.

Inﬁnite Depth or Inﬁnite Loop. In contrast, we

can ﬁnd intentional crawler which are designed for

that purpose. The most used solutions stands in the

automatically generated pages when the system de-

tects a bot. The content generated does not matter as

long as the crawler hits the trap and that it crawls fake

sub-pages. In the majority of cases, a loop with rela-

tive URL is created and the bot will crawl the same set

of two pages. For instance, we can use two twin direc-

tories referencing each other such as the bots comes

to one to go to the other and vice-versa:

http :// www . exam p le . com / f oo / bar / foo /

bar / foo / bar / s o mepag e . php

Identiﬁers. For some website, the strategy is to

generate a unique identiﬁer store in the page URL.

This one is assigned to each client visiting it in order

to track him. This one is usually called a session ID.

The bot — as any user —will receive such identiﬁer.

The trap lies in the fact that the user ID is changing

randomly at random time. Such a way, the bot can be

redirected to already visited webpages but with a dif-

ferent ID — an transparent action a regular user will

not perform. The session ID is usually implemented

in the URL as follows:

ForSE 2020 - 4th International Workshop on FORmal methods for Security Engineering

776

http : // ex a mple . com / page ? s e ssio n id =3

B9 593 022 97 0 93 4 1E 9 D8 D7C 245 10E 383

http : // ex a mple . com / page ? s e ssio n id =

D2 7E5 22 C BF B FE 7 24 57F 547 911 7E3 B7 D 0

There exists countermeasures to bypass such pro-

tection for bots, starting by registering hashes of al-

ready visited webpages to a smarter implementation

of URL management.

Random Texts. A different solution, which — in

addition to its deployment —is more effective than

others, stands in random generation of text in a web-

page. With simple script from webserver side, one

page can be randomly generated with random text and

random links referencing the same page. Once this

page is hit, the bot will treat what looks to it as differ-

ent webpage, since it comes from different links with

a different page’s name, over and over.

But whatever is the level of sophistication of the

crawler trap, it can only generate pages that respect

the strategies for which it has been designed. It means

that each crawler trap has speciﬁc characteristics. Ei-

ther the web page is created automatically on the ﬂy

and the content is fully random, or it starts from an

existing webpage whose content is randomly derived.

In other words, the crawler can be working on to-

tally fake platforms, where the pages are similar to

the original site in terms of shape, HTML architec-

ture, even some key words, part of content...

This is this last category of crawler trap which

matters for us. Indeed, the involuntary one can be

avoided by a bot aware of such objects. And about

intentional ones, where they are based on URL man-

agement, it is possible to bypass the security with a

speciﬁc management of already visited pages. But the

last technique with random text generation cannot be

managed in the same way and it requires a speciﬁc

approach to handle it. This is the purpose of our pa-

per.

From an operational point of view, we are visiting

websites, page after page. The main difﬁculty lies in

the fact that the trap generates random pages after the

bot has visited a certain number of pages (based on

the speed of the visit, the number of visits, the logic

of the order of the links visited, etc). In a way, we can

only base our decisions on the already visited pages

and the ones we are going to visit next. This is the

operational context in which we operate. Our whole

approach is not to avoid being detected by the website

(crawling performance would be too downgraded) but

to detect whenever the website starts setting a trap.

For this reason, we need to measure the distance be-

tween regular and irregular webpages.

3 USE OF DISTANCES

The objective is to measure the distance between sev-

eral data sets to perform a distinction between several

families. This can be done in section 3.1 in order to

deﬁne precisely what we are really trying to measure

and the approach which drives our forthcoming anal-

yses. Subsequently, we will be able to present some

of the existing distances in the section 3.2 and then

we will discuss the contributions proposed by our dis-

tance to answer our problematic.

3.1 Approach to Resolve the Problem

From a generic point of view, we have two ethnic

groups: pages extracted from regular website and

pages generated by crawler traps. In each of the ethnic

group, it is possible to ﬁnd different families. In the

case of regular websites, it means that all the pages of

a family come from the same website. The same ap-

plies for pages generated from different crawler traps.

In our case, we are trying to detect whenever there

is a webpage generated from a crawler trap in a set of

regular webpages. According to our operational con-

text, we are aggregating webpages on the ﬂy, which

means we cannot know the full dataset in advance. It

means we have to check the difference of a new web-

page from a set of already visited webpages. This

is doable by computing a distance D between the

new webpage and the current set. In that sense, we

can assume that a family F composed of n samples,

∀i, j ∈N

+∗

such as 1 ≤i ≤ j ≤n we have the random

value X which models the distance between two sam-

ples s

and s

such as X = D (s

, s

). Since all samples

belong to the same family, there is no reason that the

distance between two samples is different to a third

one, that is to say ∀i, j, k ∈ N

+∗

where i 6= j 6= k we

have D (s

, s

) ≈ D (s

, s

For optimization purposes, we cannot compute a

distance between the new one and all pages of the cur-

rent set. Since the distance between webpages of a

single family is supposed to be the same, we can con-

sider the mean (expected value) as a good estimator.

This mean is computed on the ﬂy by updating it with

each new value which belong to the family. It means

that our detector system is based on the fact that the

distance between a new sample s and the mean of a

family m is based on the fact that D (s

, s

) ≤ ε where

ε is distinctive for each each family.

The challenge is therefore to deﬁne a distance D

that respects the property deﬁned bellow. It means

that our distance must be discriminating in the sense

that each family must have its own mean of distance.

And it should be accurate which means that the stan-

Detection of Crawler Traps: Formalization and Implementation Defeating Protection on Internet and on the TOR Network

777

dard deviation from the mean is supposed to be as

small as possible.

The reduction of the mean makes sense in

terms of conﬁdence intervals. Indeed, when ap-

plied to our case, such intervals are composed by



¯x −t

√

; ¯x + t

√



where ¯x is the mean of the

family, t

is the conﬁdent level selected, s the stan-

dard deviation observed and n the size of the current

family. The goal is to avoid the overlapping of several

conﬁdence intervals and the best way to achieve such

a goal when we cannot increase the size of the family

(since it could introduce crawler-trapped pages) is to

reduce the standard deviation.

3.2 Distances Evaluated

As part of our research, we studied many distances.

Among those selected, we kept two of them with the

requested properties as described in section 3.1: the

Jensen-Shannon distance (JSD) and the Hellinger dis-

tance (HD). Moreover we have designed a custom dis-

tance to solve our problem more efﬁciently.

For all distances, we consider the content of two

webpages as a random value X and Y composed of

words. Each word (or group of words) in a page has a

probability of occurrence. The set of all of these prob-

abilities constitutes a probability distribution usually

noted P and Q from the same space X .

3.2.1 Jensen-Shannon

The Jensen-Shannon divergence (JSD) (Lin, 1991) is

based on the idea that we should be able to balance

the different distributions involved in the divergence,

according to their importance. As for previous distri-

butions, it aims at measuring the diversity (or the dis-

similarity) between two populations. With π

, π

≥ 0

real positive numbers such as π

+ π

= 1 which are

the weights of the two probability distributions, we

deﬁne the Jensen-Shannon divergence as:

(P, Q) = H (π

P + π

Q) −π

H (P) −π

H (Q)

where H is the entropy function as deﬁned by

Shannon (Shannon, 1948) on a random variable such

as:

H (X) = −

∑

x∈X

p(x)log

p(x)

In order to manipulate a true metric, it is common

to compute the square root of the JSD divergence such

as:

, p

) =

, p

)

3.2.2 Hellinger

The Hellinger distance (although known under the

name of Matusita measure (Matusita, 1955)) has been

designed to check if one probability distribution fol-

lows another probability distribution and if it is a true

metric (Comaniciu et al., 2003). The normalized ver-

sion (the values are between 0 and 1) is as follows

(Nikulin, 2011):

(P, Q) =

√

∑

i=1

(

√

−

√

)

3.2.3 Custom Distance - Shark

The main drawback of the existing distances we ob-

served is that the random variables they consider are

deﬁned on the same space X . It makes sense in sim-

ple cases but our one is a bit more speciﬁc. Indeed,

we are computing the set of words page after page

and it means we do not have access to the set of all

words. In a page, we can ﬁnd words which are not a

present in the next page (and vice-versa) for the sake

of example.

The main issue when we use existing distance is

that, to be mathematically exact, we must remove

unique words from each page. The possibility to

preload all possible words from website is out of

scope in our operational context since we compute

the set of words, page after page, on the ﬂy and con-

sidering unknown words on a page with a probabil-

ity of zero does not fulﬁll all mathematical designs

(we artiﬁcially increase the number of words and we

change the probability distributions to remain con-

sistent). Such a loss deprives us of information and

therefore a loss of accuracy for our measurements.

The idea of our measure has its roots in this simple

observation.

The idea of one of our measures, called Shark

(others will be provided in an extended version) is

based on the rate of the entropy of the symmetric

difference on the entropy from the two distributions.

In other words, we look at the information contri-

bution of the exclusive words from the two pages

on all the information embedded in these two pages.

Considering P ∈ X and Q ∈ Y we have P \Q =

{

∀x ∈ X where x 6∈Y

}

where we deﬁne our measure

such as:

D(P, Q) =

H (P \Q) + H (Q \P)

H (P) + H (Q)

ForSE 2020 - 4th International Workshop on FORmal methods for Security Engineering

778

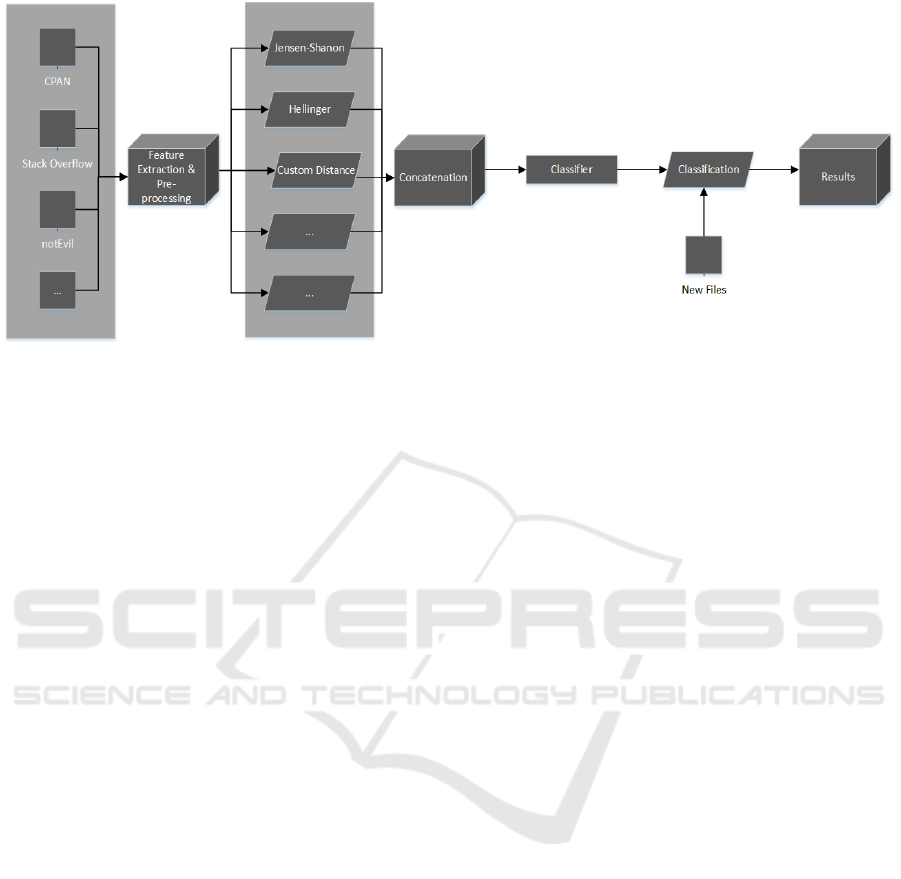

Figure 1: Full process to determine a page family.

4 EXPERIMENTS

When we have conducted these experiments, we did

not forget the main objective of detecting a crawler

trap automatically. From an operational point of view,

the crawler processes a website, page after page, and

can fall into a crawler trap at any time. It is nearly

impossible to detect a crawler trap with only two con-

secutive pages. The concept we developed is to train a

classiﬁer progressively with n consecutive pages then

to detect whenever a page is too different or too simi-

lar from the previous ones.The process is schematized

in Figure 1. At the time, only the creation of a more

discriminating measureis presented. The implementa-

tion or the choice of a classiﬁcation algorithm and the

operational tests will be the outcome of future works

or an extended version.

Since we have deﬁned properties and the protocol

to evaluate different distances, it is relevant to focus

on which data we are going to process. First, we pro-

pose to explain which are the websites used to help

our procedure to distinguish between regular websites

(for what it could mean) from crawler traps. Then, we

propose to explain which data are relevant in a web

page so that it will help to build efﬁcient detection

system.

4.1 Experimental Dataset

The approach we propose is requiring the presence of

a dataset, which will be presented in the section 4.1.1.

More than explaining the context of our paper and the

different actors involved, the idea is also to open our

approach to make it reproducible and leave the results

being critically analyzed, by anyone, as we did in sec-

tion 4.2.

4.1.1 Websites

As there is no dataset available for our problematic

— it has not been studied in the past —, we created

our own. In this dataset, we chose to collect webpages

from 13 distinct sources, each with different linguis-

tic properties. To gather the dataset, we used a sim-

pliﬁed version of our crawler. For some webpages

like Wikipedia, we ”clicked” on the random genera-

tion of article on the left side of the page (available in

all languages) to have various panel of subjects. The

inescapable component is that all pages are one click

away (from a bot point of view) from the previous and

next one, hence they all are consecutive pages.

In the collected set, 4 sources are from a crawler

trap and 9 are from ”classic” websites. We collected

500 pages from each sources. There are divided in

two main categories: regular websites and crawler

trap ones. The ﬁrst is about ”classic” websites

that anyone can easily ﬁnd online. We wanted to

have enough material from ”spoken-language” to

have relevant tests. Among the different websites

evaluated for this purpose, we have selected the

following detailed list:

• CPAN - 1 Set (F1): ”Comprehensible Perl

Archive Network” is a documentation for each

Perl libraries. It can be a very long explanation

or just few lines of codes. People wrote the docu-

mentation in a good English.

• Jeuxvideo.com - 1 Set (F2): JeuxVideo.com is a

well known French website for news and discus-

sions about video games. A part of the website is

a forum for teenagers with very few moderation.

The language used is an approximate French, not

Detection of Crawler Traps: Formalization and Implementation Defeating Protection on Internet and on the TOR Network

779

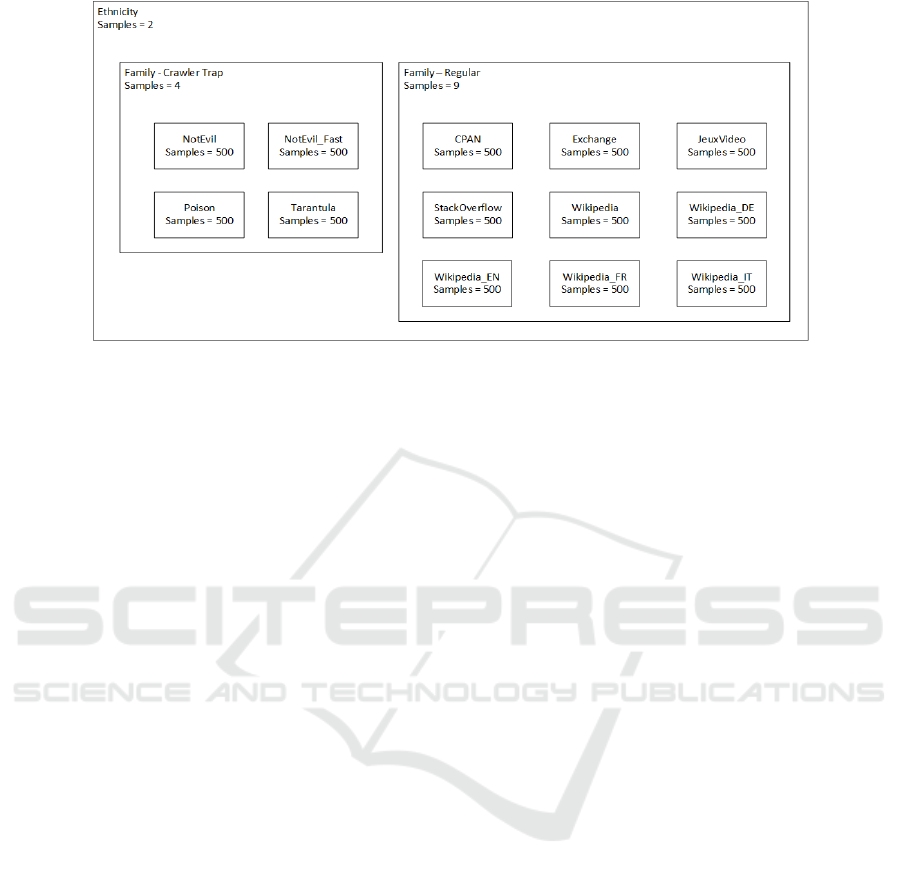

Figure 2: Summary of data.

well mastered but still understandable for native

speakers.

• Stack Exchange - 1 Set (F3): Network composed

of 174 communities. The topics covered are var-

ious and range from science to religion through

history, literature or mathematics. A proper En-

glish is mandatory for the validation of the ques-

tion asked.

• Stack Overﬂow - 1 Set (F4): One of the network

in Stack Exchange specialized in computer pro-

gramming questions. There is less English sen-

tences and more sources codes as an example of

their issues.

• Wikipedia - 5 Sets: Wikipedia is the most known

free encyclopedia. The language is very accu-

rate. We have downloaded 5 sets, one by language

(German (F5), English (F6), French (F7) and Ital-

ian (F8)) and the last one is composed of a com-

bination of this four previous languages (F9).

The second category is about crawler-trap web-

sites. We have to admit that it exists really few

crawler-traps, at least identiﬁed. Why? Because most

of the techniques used are based on simple values

saved in cookies in web browsers. They are not hard

to bypass for a trained enough bot. The real difﬁcul-

ties arise when the targeted website adapts the content

of the webpage when it is close to detect a bot instead

of a real human. To achieve such a goal, it exists few

scripts or programs able to perform this task. More

than a long list, the following one aims to represent

all the diversity we have found about:

• notEvil - 2 Sets: notEvil is originally a search en-

gine in the TOR network. On this website, there is

an embedded game named Zork. This game is as-

sociated with an identiﬁer and, on the page, there

are three links to a new game. Hence, a crawler

trap is created because once the bot hits this link,

it will play games indeﬁnitely. On the same page,

a small part is for ”Recent Public Channels” and

changes every time a channel is created or some-

one responds to an old one. To determine if this

change has an impact on your classiﬁcation, we

collected two sets: one is composed of webpages

downloaded (F10) as the bot does (everything is

collected in the same minute) and one set (F11)

is for a long time gathering process (one webpage

per hour). This changing part is usually spambots,

URL links or unethical topics.

• Poison - 1 Set (F12): Poison (poi, ) is the

most random crawler trap we ever met. There

is no practical example available online, there-

fore we have downloaded the software (developed

in 2003) and generated our sample of 500 pages.

Through this, we had the possibility to play with

several coefﬁcients to generate a real random sam-

ple of pages:

– Number of paragraphs [1:10]

– A CSS background (adding HTML tags and

data to create a colorful page) [0:1]

– Minimum number of words per paragraph

[25:75]

– Number of words added to the minimum num-

ber of words per paragraph [25:100]

This crawler trap is based on the operating sys-

tem dictionary, thus, a lot of words are uncom-

mon and very advanced, even for native speakers

(ex:thionthiolic). In this system, the probability

of picking up the word ”house” is the same as the

word ”chorioretinitis”.

• Tarantula - 1 Set (F13): This is the name of a

ForSE 2020 - 4th International Workshop on FORmal methods for Security Engineering

780

PHP crawler trap available on GitHub (tar, ). It

generates a simple page with 1 to 10 new links

and a text that contains between 100 and 999

words chosen randomly in a list of 1000 prede-

ﬁned words. Tarantula is not online so we have

conﬁgured it on our local web server and gener-

ated 250 samples from the root address and 250

by following a random link of the page.

In order to ensure reproducibility (Nosek et al.,

2015) of results presented here, the dataset (514.3

MiB uncompressed) will be made available on the

third author’s webpage.

4.1.2 Relevant Data in a Webpage

There is no deﬁned rules for a functioning crawler

trap. It can be located on a small part of the web-

page just as it can be on the whole page. And, as

explained previously in section 1, a web page is com-

posed of different parts. A crawler trap can have an

impact on all of these different parts. The shape of the

page (more precisely the way or the style in which it

is written) and the content (words which are displayed

to user’s eyes) are equally relevant to classify. There-

fore, we divided the page in three parts and created

four main features:

– A list of words contains in the <body> tag of

the page. To collect them, we used the follow-

ing regex: m/\w+/. We convert all words in lower

case to normalized data.

– The HTML tag architecture starting at the

<body> tag. To remove all text between each tag,

we used the regex s/>[ˆ<]+</></. We also re-

moved comments and links found in <src> and

<href> tags.

– The metadata of the page located in the <head>.

Comments and text between tags were removed.

– For comparison purposes, the fourth category is

composed of the list of words and the HTML ar-

chitecture. The same pre-processing were applied

for each part.

If the content and the HTML tag architecture

seems to be the most relevant data to exploit, some

crawler traps are not smart enough to change the

header for example. In that case, the metadata are

signing and distinct features. We did not add coefﬁ-

cient between each feature to keep them with an equal

weight.

4.2 Experimental Results

Since the content of the material used for experiment

has been described, it matters to evaluate our measure

comparing to existing ones. Empirical results that we

have been able to evaluate, using words split one by

one does not necessarily give very precise results. In-

deed, words are often used in a given context, which

means that they are linked each others. It is for this

reason that we decided to evaluate the probability of

clusters of consecutive words. Our best results are in

the case where we are using bi-grams with overlap-

ping extraction. Provided results are given in the fol-

lowing tables, where columns represent each a family

as described in section 4.1 and rows the means and the

associated standard deviation for the given distances.

The ﬁrst point to note is that each distance does

not give the same values, even for the same family. In

truth, what matters is that each family, for a given dis-

tance, has more or less a unique value to be enough

accurate. It is the standard deviation that allows us to

discuss accuracy. The results clearly show that, on av-

erage, the standard deviation of the proposed measure

is smaller than that of other distances.

Indeed, in the case of Jensen-Shannon distance,

when we are looking at the raw date from the page

(the most relevant information we can extract here),

values of distance are usually located around the av-

erage value of 0.25 with an average standard devia-

tion of 0.10. This is almost the same situation for

Hellinger distance which has, on the same type of

data, all its distances close to an average of 0.18 with

an average standard deviation of 0.08. The situation

differs with Shark. Indeed, the average distance is

0.95 and the standard deviation is about 0.03 with a

range of values larger than others. This is the differ-

ence of range between vales from the group of reg-

ular web pages and those coming from crawler trap

worlds which is relevant to perform the discrimination

between the two groups thanks to a small standard de-

viation. This consequence avoids the phenomenon of

overlapping between families..

One interesting point lies in the ability for Shark

measure to produce bigger values than one. This is

due to the way we decide to design of the probabili-

ties in the set resulting of the symmetrical difference.

Indeed, those ones can be build intrinsically which

means probabilities are computed internally in each

set resulting of the difference or extrinsically which

means probabilities are computed considering all the

different sets (exclusive ones and the common one).

Going beyond unity is a rare phenomenon that can be

observed on large sets where the ratio of common and

different words is enough strong (which is the case on

crawler traps) when using probabilities designed in an

intrinsically way.

Considering the average of the distances as the

sum of normalized random variables, it becomes pos-

Detection of Crawler Traps: Formalization and Implementation Defeating Protection on Internet and on the TOR Network

781

JSD F1 F2 F3 F4 F5 F6 F7 F8 F9 F10 F11 F12 F13

Content

0.30 0.13 0.18 0.26 0.15 0.16 0.19 0.18 0.16 0.00 0.12 0.22 0.19

0.16 0.09 0.07 0.08 0.09 0.09 0.09 0.09 0.10 0.00 0.03 0.14 0.06

HTML

0.00 0.00 0.00 0.00 0.41 0.52 0.48 0.47 0.48 0.00 0.03 0.25 0.00

0.00 0.00 0.00 0.00 0.14 0.15 0.14 0.14 0.15 0.00 0.02 0.13 0.00

Header

0.00 0.00 0.00 0.06 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00

0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00

Raw

0.26 0.13 0.18 0.26 0.31 0.42 0.38 0.38 0.41 0.00 0.08 0.28 0.19

0.15 0.09 0.07 0.08 0.14 0.16 0.14 0.14 0.16 0.00 0.02 0.11 0.06

Hellinger F1 F2 F3 F4 F5 F6 F7 F8 F9 F10 F11 F12 F13

Content

0.22 0.09 0.13 0.19 0.11 0.12 0.14 0.13 0.12 0.00 0.09 0.16 0.89

0.12 0.07 0.05 0.06 0.06 0.07 0.07 0.06 0.08 0.00 0.02 0.10 0.28

HTML

0.00 0.00 0.00 0.00 0.30 0.38 0.35 0.35 0.35 0.00 0.02 0.18 0.00

0.00 0.00 0.00 0.00 0.10 0.12 0.11 0.11 0.12 0.00 0.02 0.10 0.00

Header

0.00 0.00 0.00 0.04 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00

0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00

Raw

0.19 0.09 0.13 0.19 0.23 0.31 0.28 0.28 0.30 0.00 0.05 0.20 0.13

0.11 0.06 0.05 0.06 0.11 0.12 0.11 0.11 0.12 0.00 0.02 0.08 0.04

Shark F1 F2 F3 F4 F5 F6 F7 F8 F9 F10 F11 F12 F13

Content

0.94 0.84 0.92 0.93 0.94 0.94 0.94 0.95 0.97 0.37 0.98 1.00 0.00

0.04 0.05 0.03 0.03 0.02 0.02 0.03 0.02 0.02 0.03 0.09 0.01 0.00

HTML

0.71 0.00 0.00 0.00 0.96 1.00 0.99 0.98 0.98 0.74 0.73 0.56 0.00

0.15 0.00 0.00 0.00 0.05 0.07 0.05 0.06 0.05 0.00 0.01 0.19 0.00

Header

0.75 0.48 0.85 0.72 0.66 0.66 0.65 0.68 0.79 0.00 0.00 0.71 0.00

0.02 0.02 0.03 0.02 0.03 0.04 0.04 0.02 0.08 0.00 0.00 0.09 0.00

Raw

0.94 0.83 0.92 0.93 0.95 0.97 0.96 0.97 0.98 0.62 1.23 1.02 1.00

0.04 0.05 0.03 0.03 0.03 0.04 0.03 0.03 0.03 0.02 0.11 0.02 0.00

Figure 3: Detection Results for JSD, Hellinger and Shark distances.

sible to apply the consequences of the central limit

theorem which says that the resulting variable (av-

erage of distances, in our case) tends towards the

normal distribution. Thus, the interval [ ¯x −σ; ¯x + σ]

should contain 68 % of the observed values of mea-

sures inside elements from given family and the inter-

val [¯x −3σ; ¯x + 3σ] should hold 99 % .

For this reason, a small standard deviation allows

us to have a more efﬁcient distance than those evalu-

ated here. This is the main idea of our evaluation of

different measures we have used to perform an efﬁ-

cient detection. More details will be provided in an

extended version.

5 CONCLUSION

In our study, we have deﬁned a new measure to com-

pare two objects (from a family to a single sample)

and we have applied it to the case of crawler trap de-

tection. We can decide with a reasonable accuracy if

a web page belongs to a given family (crawler trap

ForSE 2020 - 4th International Workshop on FORmal methods for Security Engineering

782

or not) with better results compared to existing infor-

mation distances. Our results are characterized with

a lower standard deviation which mean less overlap-

ping between families.

Since we can detect that we are about to be trapped

by the targeted website, the ability to avoid it can be

computed not so hardly. For the sake of simplicity

about the procedure to use , it would require to check

a subset of previously visited websites and to avoid to

go on pages with a distance value too far from the one

actually measured in the current set. Consequently,

we can focus on relevant links and avoid trapped ones.

Of course, just talking about distance efﬁciency

is not enough to claim the accuracy of our results.

But we wanted to present the way we designed mea-

sure and procedure we develop to solve this problem

which does not already exist in academic world. In an

extended version, we will present our system coupled

with statistical tests able to say if a new sample can be

integrated to an existent family (since its distance with

it is enough small) or not. The most important part

has been covered with conﬁdence intervals on which

tests are based. The notion of overlap rates from con-

ﬁdence intervals is central to assessing and explaining

the effectiveness of our distances from existing ones.

This one needs to be further developed in future work.

In addition with the extended version of the cur-

rent paper , we would present more distances and

more details about how to use them in the case of de-

tection. Extended results will be provided to deﬁni-

tively prove efﬁciency of methods we are using. This

future work would aim to complete the theoretical

background which stands behind our concepts of en-

tropy based on symmetrical difference from different

sets.

Of course, this new concept of distance can be ap-

plied to different ﬁelds of datamining and anywhere

machine learning is relevant, as Hellinger or Jensen-

Shannon distances are usually used . If the goal is still

to provide better and more efﬁcient ways to break-

through against crawler traps in order to allow bots to

escape them, the area of exploitation can be expanded

to different ﬁelds. Actually, it should be relevant to

any problem based on a dataset crafted on the ﬂy (or

which cannot be known in advance) or where manip-

ulated data are heterogeneous in their characteristics.

From a general point of view, applications and further

developments can be inﬁnitely vast.

REFERENCES

Stickano/tarantula: Spider trap. https://github.com/

Stickano/Tarantula. Accessed: 2019-11-21.

Sugarplum – spam poison. http://www.devin.com/

sugarplum/. Accessed: 2019-11-21.

Comaniciu, D., Ramesh, V., and Meer, P. (2003). Kernel-

based object tracking. IEEE Transactions on Pattern

Analysis and Machine Intelligence, 25(5):564–577.

Google (2019). Googlebot deﬁnition.

Hasan, W. (2016). A survey of current research on captcha.

International Journal of Computer Science & Engi-

neering Survey, 7:1–21.

Lin, J. (1991). Divergence measures based on the shannon

entropy. IEEE Trans. Information Theory, 37:145–

151.

Matusita, K. (1955). Decision rules, based on the distance,

for problems of ﬁt, two samples, and estimation. The

Annals of Mathematical Statistics, 26.

Nikulin, M. (2011). Hellinger distance. Encyclopedia of

Mathematics.

Nosek, B., Alter, G., Banks, G., Borsboom, D., Bowman,

S., Breckler, S., Buck, S., Chambers, C., Chin, G.,

Christensen, G., Contestabile, M., Dafoe, A., Eich,

E., Freese, J., Glennerster, R., Goroff, D., Green, D.,

Hesse, B., Humphreys, M., and Yarkoni, T. (2015).

Promoting an open research culture. Science (New

York, N.Y.), 348:1422–5.

Rouse, M. (2019). Chatbot deﬁnition.

Shannon, C. E. (1948). A mathematical theory of communi-

cation. Bell System Technical Journal, 27(3):379–423.

Sivakorn, S., Polakis, J., and Keromytis, A. D. (2016). I ’

m not a human : Breaking the google recaptcha.

Detection of Crawler Traps: Formalization and Implementation Defeating Protection on Internet and on the TOR Network

783
