OKIoT Open Knowledge IoT Project: Smart Home Case Studies of

Short-term Course and Software Residency Capstone Project

Victor Takashi Hayashi, Vinicius Garcia, Renato Manzan de Andrade and Reginaldo Arakaki

Polytechnic School, University of São Paulo, Luciano Gualberto Venue, São Paulo, Brazil

Keywords: Internet of Things, Arduino, Education, Smart Speaker, Smart Home.

Abstract: The emergence of smart environments built on top of Internet of Things (IoT) solutions demand new skills

and knowledge for developers. Dealing with inherent complexity of IoT architecture, constrained device

limitations, communication faults and vendor lock-in can be drawbacks for successful deploy of IoT projects.

With the objective of sharing knowledge between IoT developers, OKIoT project focuses on project-oriented

education in Short-term and Long-term modes based on Software Engineering methodology. First qualitative

results on a 6-week course on MBA subject offering and a case study of an open architecture for smart speaker

executed with 1-year mentoring of a capstone project are summarized. Future steps based on case studies

insights are presented.

1 INTRODUCTION

Cisco (2016) expects more than 25 billion devices to

be connected to the internet by 2020, integrated in

solutions like smart home, connected car and smart

cities. Even though the opportunities are large, the

question of whether there are enough expert

developers to build these solutions still remains open.

Building reliable systems is one of incoming

challenges with the Internet of Things (IoT) trend.

Applicability of Software Engineering methods and

knowledge such as quality analysis should be

addressed. For example, trade-offs between simple

devices and robust computational platforms are

common studies found on literature (Baresi, Mottola,

& Dustdar, 2015; Gubbi et al, 2013; Lu et al, 2015;

Matharu, Upadhyay, & Chaudhary, 2014).

From a practical standpoint, developers could face

challenges such as:

● Complexity: how to integrate heterogeneous

interfaces, services and devices?

● How can one deal with faults like internet

unavailability to maintain a desired level of

service?

● How to develop considering constrained devices?

● When considering software developers, is it

possible to overcome the hardware initial learning

curve?

Open Knowledge Internet of Things Project

(OKIoT) aims to be an accelerator for smart

environment innovation. It is based on non-functional

requirements of availability, usability and

rastreability on top of a fault tolerant IoT architecture.

OKIoT is based on three pillars:

● Conceptual Modelling: developers can

understand Software Engineering fundamentals,

technologies used in existing solutions in order to

understand constituent parts (hardware, software,

communication) and its integration;

● Hardware Accelerator: encapsulates power

control over smart plug appliance, rastreability

components and serial communication used to

integrate this solution with Arduino projects, as

well as fault-tolerant architecture, provided with

its documentation;

● Software Solutions: projects should be hosted on

platforms like GitHub, together with their

components, libraries, programs, apps,

maintenance, build and deploy procedures, so

future developers could understand, use,

collaborate and advance existing solutions.

These IoT hardware, software and solutions

combined build a growing knowledge project. This

material may be widely used for teaching purposes in

specialist training courses, higher education courses,

technical training courses, and other types of special-

purpose education related to digital transformation.

Students, teachers, professionals can help the project

Hayashi, V., Garcia, V., Manzan de Andrade, R. and Arakaki, R.

OKIoT Open Knowledge IoT Project: Smart Home Case Studies of Short-term Course and Software Residency Capstone Project.

DOI: 10.5220/0009366002350242

In Proceedings of the 5th International Conference on Internet of Things, Big Data and Security (IoTBDS 2020), pages 235-242

ISBN: 978-989-758-426-8

235

with positive feedback, improvement points,

benchmark with market solutions and system

specifications.

OKIoT was created based on:

Elderaid Project architecture had redundancies for

critical communication paths. The system was

intended for elderly care, but had few developments

on fault tolerance (Hayashi, 2016);

Hedwig Capstone Project main deliverable was a

proof of concept of a fault-tolerant smart home

architecture, with three levels of functionality: direct

to module, local and internet (Hayashi, 2017);

By 2018, Hedwig was put into practice by

continuous development and deployment on a real

smart home, which enabled it to start domus open

data smart home repository (Hayashi, 2019);

A study on open architecture for smart speakers,

further extended Hedwig Project, integrating it with

conversational interface (Garcia et al, 2019). A short

course was also supported (Hayashi, 2019b).

Figure 1: IoT Projects Timeline: past developments were

the basis for OKIoT.

2 RELATED WORK

Smart speaker market leaders like Google and

Amazon (Statista, 2017) make voice interfaces

available on more than 200 million devices (Canalys,

2019). Though natural language commands become

accessible through these commercial products, the

imposition of a closed architecture limits user

interaction. Compulsory use of pre-set wake word

(e.g. “Alexa”) raises problems for users whose names

resemble the wake word (e.g. “Alex”). On

developer ́s side, lock-in is clear: backend services

and natural language understanding modules are

attached to vendor platform. Portability becomes a

challenge, as the assistants would be duplicated on

different platforms and could have different

responses for similar questions. with only cloud-

based solutions available, other common concern

regards privacy: an American Alexa user reported

that the smart speaker recorded a conversation

without consent and sent it to another user, present on

contact ́s list (The Guardian, 2018).

Some projects were created to address mentioned

existing smart speaker limitations:

SpeechRecognition (Zhang, 2019) library makes it

easy to use different speech recognition services. It is

possible to choose, by command-line interface, which

service the developer would like to use for speech

recognition. Snowboy (Chen, 2019) is an open

alternative for wake word creation, and “An Open

Voice Command Interface Kit” (Ansari,

Sathyamurthy, & Balasubramanyam, 2016)

developed a low cost hardware and used

PocketSphinx for speech recognition process. Alias

Project (Karmann & Knudsen, 2019) created a

hardware that blocks what existing smart speakers

listen to with a white noise. When a personalized

wake-word is called, the additional hardware then

stops the white noise, triggers the interaction with the

commercial smart speaker by playing vendor ́s wake

word and letting the user complete the query. How to

integrate these projects in order to create a smart

speaker with an open architecture (and additionally

perform a performance evaluation analysis) still

remains an open question.

On a broad IoT perspective, there are several

commercial platforms (Amazon, 2019; IBM, 2019;

Oracle, 2019) with support to cloud computing,

machine learning and big data services, easy

integration with voice interfaces like chatbots on

smartphones and smart speakers like Alexa. They

share a common drawback: vendor lock-in.

Developers (and systems, by consequence) tend to

have low flexibility on the system architecture.

Some open IoT platforms have also been

launched, such as DeviceHive, Mainflux,

ThingsBoard, WSO2, Sitewhere, ThingSpeak, Zetta,

Helix Sandbox and KnoT (DeviceHive, 2018; Helix

Sandbox, 2018; KnoT, 2019; Mainflux, 2018;

Thingsboard, 2018; ThingSpeak, 2010; Sitewhere,

2018; WSO2, 2017; Zetta, 2015), just to name a few.

They provide integration based on Representational

State Transfer API (REST API), websockets and

Message Queuing Telemetry Transport (MQTT), also

support Big Data and Machine Learning services;

different hardware platforms (Arduino, Raspberry Pi,

Intel Edison, ESP8266); programming languages like

C/C++, JavaScript and python; security mechanisms

and personalized dashboards. They focus entirely on

development skills for system development. Besides

the open aspect of these platforms, developers face

the great challenge of discontinued support for some

low-engagement platforms, as there is no unified

platform to date.

Some institutions create their own tools for

educational purposes, like IoTaaP and Copernicus

(MVT Solutions, 2019; Szydlo & Brzoz-Woch,

IoTBDS 2020 - 5th International Conference on Internet of Things, Big Data and Security

236

2019). As there is limited communication across

institutions, expertise become constrained as well.

The multiplicity of languages, communication

protocols, hardware boards and interfaces make it a

challenge to build a unified platform for IoT.

Engaging and retaining a broad developer community

is no easy task. As the applications have different

system requirements, it is difficult to wonder about a

platform that could be flexible enough to support all

applications.

Our hypothesis is built on the premise that

knowledge is an intangible asset easy to share,

agnostic to technology choice and not subject to

vendor lock-in. Our objective is to build an open

knowledge sharing community that engages

developers and enthusiasts, skilful on different

technologies, taking smart home as the starting field.

With the focus on knowledge, the key differential is

the integration of Software Engineering methodology

with IoT education.

An open architecture for smart speakers that

allows developers to choose between different

services on each step of the voice interaction process

(speech-to-text, natural language understanding and

text-to-speech), with the objective to optimize its end-

to-end performance.

3 METHOD

We validate our approach by taking qualitative

feedback on proposed project-oriented methods:

short-term course and capstone project throughout

one year.

On September-October 2019, a short-term course

on an MBA course offering was supported. An

accelerator kit and its manual were given to each of

the 5 groups.

One training session of 4 hours was implemented

on each of the 6 weeks. As the opening class was

based only on introduction of the accelerator kit, and

the last had the final presentations, 4 hands on

experiments were performed on the remaining 4

weeks.

Project proposals had a common theme: smart

home. Groups of 2-3 people each had to choose an

environment (e.g. kitchen, living room, bathroom), a

value proposition and a persona. Initial brainstorming

was based on smart home major areas of interest

found on literature (Batalla, Vasilakos, & Gajewski,

2017).

A key aspect of project proposals was the user-

centric approach. IoT was presented as a supporting

technology that must be centred on user interactions

that create value. As smart homes are shared

environments with different user profiles and goals,

designing IoT systems based on value proposition

was a must.

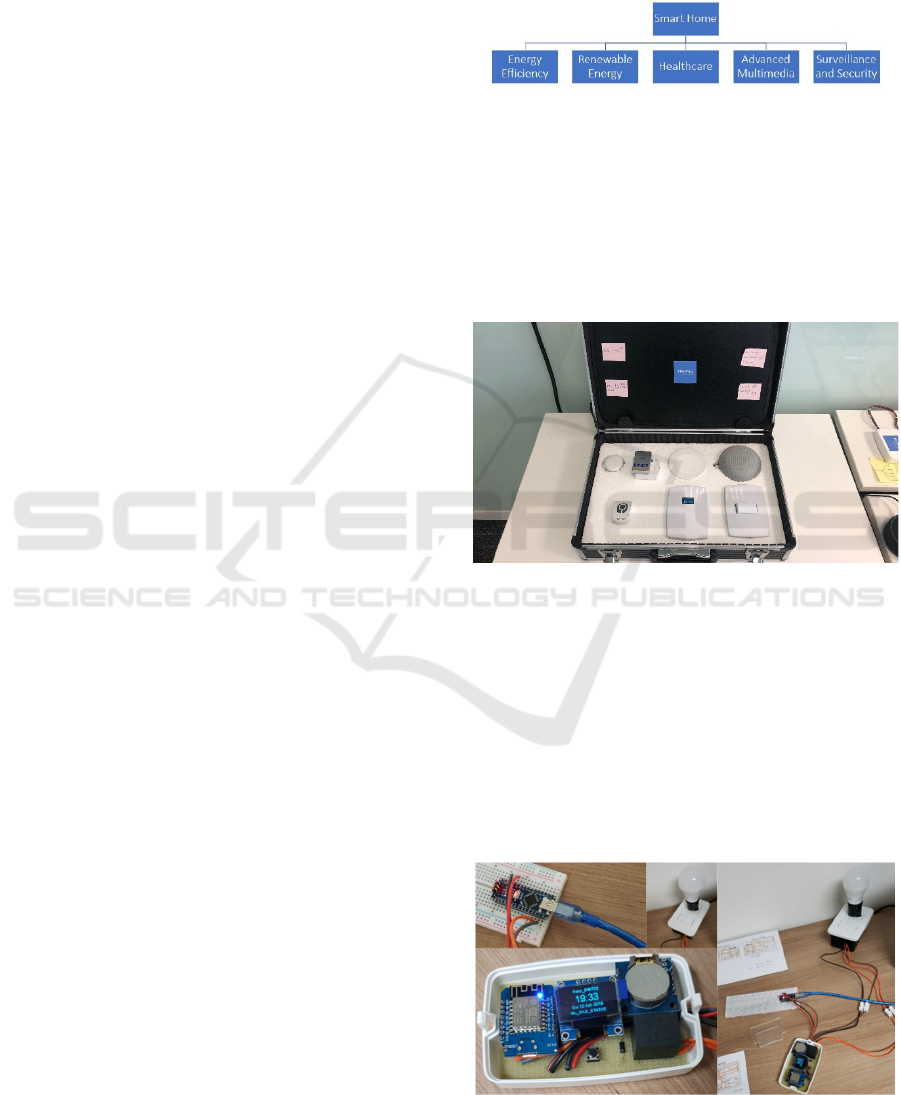

Figure 2: Smart Home major interest areas.

On first class, Hedwig Project IoT modules were

presented in order to inspire the students (see Figure

3). The presentation was focused on accessibility and

fault tolerance over the different interfaces of a smart

switch for smart lightning system (namely, presented

interfaces were voice, switches, sensors and radio

frequency controls).

Figure 3: Hedwig Project demonstration case.

The accelerator kit (as depicted in Figure 4) was

handcrafted on this initial offering. It was developed

based on past Hedwig capstone project infrastructure,

and had the objective of easy transformation of

Arduino projects into IoT projects, with a black box

module that is integrated with Arduino modules

through a serial protocol, has a smart plug for power

appliance control and has a fault-tolerant architecture

(e.g. tolerates internet unavailability). For cloud,

Blynk Cloud IoT Platform was used (Blynk, 2019).

Figure 4: Hedwig IoT Kit.

OKIoT Open Knowledge IoT Project: Smart Home Case Studies of Short-term Course and Software Residency Capstone Project

237

The kit is composed by:

● Relay: physical actuator;

● Switch: local control of the device;

● OLED Display: Used to view module's address

after connecting to Wi-Fi network;

● RTC: date/time synchronization, if offline

operation is required;

● Wemos D1 R2: ESP8266 based development

board with built-in Wi-Fi (hotspot and client

connection), responsible for direct

communication, local network and internet

connectivity. Performs serial communication

with Arduino Nano, and it is used as a black box

by developers;

● Arduino Nano with protoboard: Development

board to be programmed through Arduino IDE,

with USB connection to a computer. Responsible

for domain-specific rules, sensors and actuators.

Figure 5: Hedwig IoT Kit Components.

The accelerator has three-level fault tolerant

architecture (module, local area network, and

internet). Its communication channel redundancies

allow for greater usability and accessibility

(interfaces for different personas, at different times),

as well as fault tolerance itself (local interfaces).

Figure 6: Hedwig IoT Kit Architecture.

Each hands-on procedure performed on class was

matched to a communication level:

0. User controls smart plug module on offline

mode through physical switch, which is interpreted

by black box;

1. Direct communication between smartphone

and black box allows local monitoring and control on

a web interface, with support to HTTP requests to

monitorate and control the smart plug. With this

setup, black box operates as a Wi-Fi hotspot and the

smartphone connects to it, with an integrated web

server deployed entirely on the IoT module itself;

2. Through the interface of procedure 1, the black

box is connected to a local Wi-Fi network. The same

requests can now be made to multiple modules, and

the mobile phone becomes an integrated interface for

all modules in the same Wi-Fi network;

3. After account and project creation on Blynk

platform, the match between the black box power

module will occur through project auth token and

V20 virtual pin mapping. With this setup, the module

will be connected to the internet via local Wi-Fi

network, and therefore connected to the Blynk server.

Through mobile network, your mobile phone can

access Blynk's server and control / monitor the black

box. Blynk also offers a REST API for integrating

other applications, like Google Assistant if you use it

with IFTTT (IFTTT, 2019).

All procedures are described step-by-step on

specific document and videos (Hayashi, 2019b).

Figure 7: Video tutorial example with subtitles. Local web

interface is accessed on smartphone.

For final evaluation, a qualitative questionnaire

was given to each student at the end of the 6-week

subject. This quick survey had 6 questions:

1. What is your overall course evaluation?

2. In your opinion, what were the main concepts

learned?

3. Based on your perspective, how important are the

architectural concepts explored in the course?

4. What did you think about the pedagogical

approach of the course (learning software

engineering concepts through IoT)?

IoTBDS 2020 - 5th International Conference on Internet of Things, Big Data and Security

238

5. Suggestions for course improvements

6. Free comments:

A Software Residency program was deployed

over February-December 2019 for a long-term

approach for OKIoT. It was composed of the

following steps:

1. User-centric Value Proposition: it was proposed

a smart home for elderly care, but with a focus

on user ́s independence and ease of use;

2. Software Engineering Modelling Method: user

journeys, prioritization of critical aspects with

system modelling and specification by

description of functional and non-functional

requirements, along with architecture and

sequence diagrams (for static and dynamic

modelling);

3. Iteration: with chosen qualitative and

quantitative programmed tests, iterative

development was performed, with some relevant

changes on initial scope value proposition and

system specification;

4. Results and Analysis: documentation of results

and analysis. For OKIoT, this is the most

important step, as it is how the knowledge will be

passed on.

A main contribution of the software residency for

OKIoT Project was the study of an open architecture

for a smart speaker, whose development and

evaluation method are described below.

An API was created in order to provide flexibility

for the developer to choose between 2 services on

each of the basic services of a smart speaker. With the

setup shown in Figure 8, the objective was to propose

a method to evaluate possible combinations of these

basic services (Amazon, 2019b; Dialogflow, 2019;

Google, 2019a; Google, 2019b; IBM, 2019b; Rasa,

2019).

Figure 8: Smart Speaker Basic Services API.

The API was run on a Dell Inspiron 15 7000 series

notebook, 16GB RAM, 7th generation Core i7

processor running Windows 10 operating system and

connecting via ethernet cable to a 60mb internet.

Connection quality was monitored by using

SpeedTest (Speedtest, 2019).

Quantitative results for each scenario were

obtained by using the average of 50 tests. Four

different audios were analysed, for a total of 200 tests.

The audios were chosen in order to considerate the

clarity of speech and the noise of the environment:

● On first audio, the speech is loud and clear,

without external interference and with very little

ambient noise;

● The second recording contains a song that is

played along with the speech;

● An old recording is accompanied by a certain

echo and an ambient noise;

● On fourth recording, it is possible to understand

the speech, but some effort is necessary due to

the low volume of the speech and the

environment noise.

Speech-to-text assertiveness was evaluated

qualitatively in relation to the expected transcription

performed by a human.

Time markers were inserted in the API code for

the quantitative evaluation. It was possible to measure

the interval between the activation of a service and its

response. Results were recorded in a log file in CSV

format. These times are represented by “t0” and “t1”

present in the interaction arrows between the API and

the services in Figure 8.

4 RESULTS

Short term course projects are described in brief:

1. Bathroom: people with visual impairments have

difficulties finding the towel after taking a

shower. Sound-based offline feedback was

designed;

2. Kitchen: gas leakage, temperature, humidity and

presence sensors were used together in order to

detect safety threatening situations;

3. Home Office: redundancy of temperature

monitoring with external data source for thermal

comfort;

4. Room: automatic light bulb for children going to

the bathroom at night, parent monitoring and

control with smartphone;

5. Living room: accessibility for the physically

handicapped through curtain automation,

through voice and smartphone app.

OKIoT Open Knowledge IoT Project: Smart Home Case Studies of Short-term Course and Software Residency Capstone Project

239

Feedbacks obtained by quick surveys run at the

end of the short-term course were:

● More classes must be integrated, as the content

and hands on procedures were passed very

quickly;

● Projects could be more related to everyday life;

● Smart home area generated interest of some

students to continue with some home automation

projects;

● Hands on approach was approved by most

students, but some of them had some difficulties

(e.g. students without technical background);

● Explain some practical cases concerning the

Software Engineering methodology in a dynamic

and critical way.

Smart speaker results supported initial

proposition that combining different vendor’s basic

services could be the best option for an efficient smart

speaker, with minimized response time.

Google’s speech-to-text and IBM Watson

qualitative results are given below:

● First Audio (loud and clear speech): no

significant difference;

● Second Audio (speech with song): IBM Watson

delivered an incomplete transcription. Google

performed a complete transcription, with some

mistakes

● Third Audio (echo and ambient noise): Google

could understand some words, while IBM

Watson could not deliver any word;

● Fourth Audio (low volume and ambient noise):

similar result to third audio.

As for the quantitative evaluation, average

response time difference was ~7,021ms, which

represents an approximately 68% greater response

from Google speech-to-text than IBM Watson.

Higher response times were observed when the audio

had a lot of noise (third and fourth audios). Regarding

Natural Language Understanding (NLU) modules,

Dialog Flow's performance was over 7000% higher

than rasa's performance, with a difference of

approximately 1103ms between them. It was

expected, as Rasa is a local service.

For instance, a developer building a smart

speaker could choose to combine three basic services

from different vendors: Google Speech-to-text,

RASA and Amazon Polly. Proposed evaluation

method provides some possible reasons: RASA and

Amazon Polly showed better response times and no

clear disadvantage.

Even though the method provides a base to

evaluate smart speaker basic services, the results are

not absolute. When analysing speech-to-text services,

there was a better performance of Google's service in

the qualitative approach and better performance of

IBM's service in the quantitative approach. The

developer could choose the best speech-to-text that

better fits its application environment: he could

choose IBM because of lower response time if the

ambient noise is not relevant; or choose Google

because of its higher accuracy on environments with

high noise.

Figure 9: Response times (seconds) for smart speaker basic

services.

Figure 10: Response time (seconds) comparison for open

architecture (up) and closed architecture (bottom).

5 CONCLUSIONS

OKIoT Project initial results were presented.

Proposed IoT education method, project-oriented

with Software Engineering methodology was

evaluated on short term course and long-term

IoTBDS 2020 - 5th International Conference on Internet of Things, Big Data and Security

240

capstone project mentoring. A study on the open

architecture for smart speakers and associated

evaluation method were also presented as one initial

contribution to OKIoT.

As future steps, OKIoT roadmap include:

1. Support to developers: creation of forum and

blog, aimed to complement existing GitHub and

videos;

2. Online course: future creation of specific courses

on online platforms after some presential course

iterations;

3. Undergraduate course: future support for

undergraduate course, project-oriented, with

more classes than the MBA;

4. Hackathon: future sessions of hackathons in

order to test IoT education with Software

Engineering concepts;

Additionally, Problem Based Learning (PBL) as

an alternative to black-box approach is being

considered for future OKIoT deployments. Regarding

smart speaker study, local alternatives to basic

services could be a way to preserve user privacy and

reduce response time.

REFERENCES

Amazon (2019). AWS IoT. Retrieved from

https://aws.amazon.com/iot/

Amazon Polly (2019) Amazon Polly - Text to Speech in 47

Voices and 24 Languages. Retrieved from

https://aws.amazon.com/polly/

Ansari, J. A., Sathyamurthy, A., Balasubramanyam, R.

(2016). An Open Voice Command Interface Kit. IEEE

Transactions on Human-Machine Systems 46 (3), 467-

473.

Baresi, L., Mottola, L., & Dustdar, S. (2015). Building

Software for the Internet of Things. IEEE Internet

Computing, 6-8.

Batalla, J. M., Vasilakos, A., & Gajewski, M. (2017).

Secure Smart Homes: Opportunities and Challenges.

ACM Comput. Surv. 50, 5, Article 75.

https://doi.org/10.1145/3122816

Blynk (2019). Blynk IoT Platform. Retrieved from

https://blynk.io/

Canalys. (2019, April 15). Canalys: Global smart speaker

installed base to top 200 million by end of 2019.

Retrieved from https://www.canalys.com/newsroom/

canalys-global-smart-speaker-installed-base-to-top-

200-million-by-end-of-2019

Chen, G., et al. (2019, November 5). Snowboy Hotword

Detection. Retrieved from https://snowboy.kitt.ai/

Cisco. (2016). Global - 2020 Forecast Highlights - Cisco.

Retrieved from https://www.cisco.com/c/dam/m/en_

us/solutions/service-provider/vni-forecast-highlights/

pdf/Global_2020_Forecast_Highlights.pdf

DeviceHive (2018). DeviceHive. Retrieved from

https://devicehive.com/

Dialogflow (2019) Dialogflow. Retrieved from

https://dialogflow.com/

Garcia, V., et al. (2019, December 8). Smart Home for

Elderly. Retrieved from https://github.com/

ViniciusGarciaSilva/ speaker-API

Google (2019). Google Speech-to-text. Retrieved from

https://cloud.google.com/speech-to-text/

Google (2019) Google Text-to-speech. Retrieved from

https://cloud.google.com/text-to-speech/

Gubbi, J., et al. (2013). Internet of Things (IoT): A vision,

architectural elements, and future directions. Future

Generation Computer Systems, 29.7, 1645-1660.

Hayashi, V. T. (2019, December 8). OKIoT Open

Knowledge Internet of Things. Retrieved from

https://github.com/vthayashi/OKIoT

Hayashi, V. T., et al. (2016, September 28). Elderaid.

Retrieved from https://github.com/usp-labsoft/Home-

Elderaid/

Hayashi, V. T., et al. (2017, December 21). Hedwig

Connected Home. Retrieved from https://github.com/

hedwig-project

Hayashi, V. T., et al. (2019, June 23). Domus Smart Home

Testbed. Retrieved from https://github.com/vthayashi/

domus

Helix Sandbox (2018). Helix Sandbox

. Retrieved from

https://github.com/helix-iot/helix-sandbox

IBM (2019). Watson IoT. Retrieved from

https://www.ibm.com/internet-of-things

IBM (2019). IBM Watson Speech-to-text. Retrieved from

https://www.ibm.com/watson/services/speech-to-text/

IFTTT (2019). IFTTT. Retrieved from https://ifttt.com/

Karmann, B., Knudsen, T. (2019, January 14). Project

Alias. Retrieved from https://bjoernkarmann.dk/

project_alias

KnoT (2019). KNoT Network of Things. Retrieved from

https://knot.cesar.org.br/

Lu, J., et al. (2015) Roundtable: The Future of Software

Engineering for Internet Computing. Software, IEEE

32.1, 91-97.

Mainflux (2011). Mainflux Open Source IoT Platform.

Retrieved from https://www.mainflux.com/

Matharu, G. S., Upadhyay, P., & Chaudhary, L. (2014). The

Internet of Things: Challenges & Security Issues.

Emerging Technologies (ICET), 2014 International

Conference.

MVT Solutions (2019). IoTaap Connectivity platform.

Retrieved from https://iotaap.mvt-solutions.com/

Oracle (2019). Internet of Things (IoT) | Oracle. Retrieved

from https://www.oracle.com/internet-of-things/

Rasa (2019). RASA: Open source conversational AI.

Retrieved from https://rasa.com/

Sitewhere (2018). SiteWhere Open Source Internet of

Things Platform. Retrieved from https://sitewhere.io/

Speedtest (2019) Speedtest by Ookla. Retrieved from

https://www.speedtest.net/

Statista. (2017) Global intelligent assistant market share

2017-2020 | Statista. Retrieved from

OKIoT Open Knowledge IoT Project: Smart Home Case Studies of Short-term Course and Software Residency Capstone Project

241

https://www.statista.com/statistics/789633/worldwide-

digital-assistant-market-share/

Szydło, T., Brzoza-Woch, R. (2019) AGH Copernicus.

Retrieved from http://galaxy.agh.edu.pl/~tszydlo/

copernicus/

The Guardian (2018, May 24). Amazon's Alexa recorded

private conversation and sent it to random contact.

Retrieved from https://www.theguardian.com/

technology/2018/may/24/amazon-alexa-recorded-

conversation

Thingsboard (2018). Thingsboard. Retrieved from

https://thingsboard.io/

ThingSpeak (2010). ThingSpeak. Retrieved from

https://thingspeak.com/

WSO2 (2017). IoT - WSO2. Retrieved from

https://wso2.com/iot

Zetta (2015). Zetta. Retrieved from http://www.zettajs.org/

Zhang, A. (2019, July 2). Uberi/speech_recognition -

GitHub. Retrieved from https://github.com/Uberi/

speech_recognition

IoTBDS 2020 - 5th International Conference on Internet of Things, Big Data and Security

242
