Bi-directional Transformation between Normalized Systems Elements

and Domain Ontologies in OWL

Marek Such

anek

1 a

, Herwig Mannaert

, Peter Uhn

3 b

and Robert Pergl

1 c

Faculty of Information Technology, Czech Technical University in Prague,

akurova 9, Prague, Czech Republic

Normalized Systems Institute, University of Antwerp, Prinsstraat 13, Antwerp, Belgium

NSX bvba, Wetenschapspark Universiteit Antwerpen, Galileilaan 15, 2845 Niel, Belgium

Keywords:

Ontology, Normalized Systems, Transformation, Model-driven Development, Ontology Engineering,

Software Modelling.

Abstract:

Knowledge representation in OWL ontologies gained a lot of popularity with the development of Big Data,

Artiﬁcial Intelligence, Semantic Web, and Linked Open Data. OWL ontologies are very versatile, and there

are many tools for analysis, design, documentation, and mapping. They can capture concepts and categories,

their properties and relations. Normalized Systems (NS) provide a way of code generation from a model of

so-called NS Elements resulting in an information system with proven evolvability. The model used in NS

contains domain-speciﬁc knowledge that can be represented in an OWL ontology. This work clariﬁes the

potential advantages of having OWL representation of the NS model, discusses the design of a bi-directional

transformation between NS models and domain ontologies in OWL, and describes its implementation. It

shows how the resulting ontology enables further work on the analytical level and leverages the system design.

Moreover, due to the fact that NS metamodel is metacircular, the transformation can generate ontology of NS

metamodel itself. It is expected that the results of this work will help with the design of larger real-world

applications as well as the metamodel and that the transformation tool will be further extended with additional

features which we proposed.

1 INTRODUCTION

Ontologies are widely used in the software engi-

neering domain to describe the meaning of data in

a machine-actionable and yet ﬂexible format (Bha-

tia et al., 2016). The usage of ontologies and re-

lated technologies such as the Web Ontology Lan-

guage (OWL) or the Resource Description Frame-

work (RDF) can vary – Semantic Web, integration of

databases, or ontology-driven conceptual modelling.

An ontology forms a graph of terms, their relations

and properties that represent knowledge of a particu-

lar domain. Graphs of different ontologies can also be

connected using relations of their terms. This versatil-

ity and modularity bring many exciting opportunities

in terms of integrations and transformations (Isotani

https://orcid.org/0000-0001-7525-9218

https://orcid.org/0000-0003-1057-6073

https://orcid.org/0000-0003-2980-4400

et al., 2015). As ontologies are crucial in current soft-

ware engineering, a discipline of ontology engineer-

ing is becoming more prominent(Hitzler et al., 2016).

Normalized Systems (NS) theory (Mannaert et al.,

2016) targets the evolvability of systems as ﬁne-

grained modular structures. Although the theory is

applicable to various domains, for example, civil en-

gineering, it describes how to build evolvable-proven

software using so-called Elements. The realization

of this theory exists in the form of code expanders

and related tool Prime Radiant to streamline the pro-

cess. Using expanders, the NS model, composed of

Elements and related entities, is used together with

custom code fragments to produce the evolvable en-

terprise information system. When change occurs in

a model or technologies, the application can be eas-

ily expanded again with the new changes. Normal-

ized Systems has been applied to several real-world

and large-scale applications (Huysmans and Verelst,

2013; De Bruyn, 2011; Oorts et al., 2014).

Suchánek, M., Mannaert, H., Uhnák, P. and Pergl, R.

Bi-directional Transformation between Normalized Systems Elements and Domain Ontologies in OWL.

DOI: 10.5220/0009356800740085

In Proceedings of the 15th International Conference on Evaluation of Novel Approaches to Software Engineering (ENASE 2020), pages 74-85

ISBN: 978-989-758-421-3

Currently, two problems lie in the NS models.

First, NS models tie domain-speciﬁc knowledge such

as entities, their attributes, processes, or views on en-

tities together with implementation-speciﬁc conﬁgu-

rations such as form-rendering details, visibility of at-

tributes, or timed triggers and integrations with other

systems. The second and related issue is the absence

of explicit compatibility or mappings with different

modelling languages that are often used for domain

analysis such as UML, OntoUML, ORM, or BPMN.

Elimination of those issues would allow to re-use do-

main models from other languages and to create mod-

els without the knowledge of implementation details.

In this work, we present ﬁrst systematic approach

of providing model interoperability of the domain-

speciﬁc part of any NS model using transformation

to OWL ontology and back. By choosing OWL we

open the NS model to a wide set of tools and fur-

ther ontology engineering. Bi-directionality of trans-

formation is essential as models exist on both sides.

First, we want to transform NS models (including the

NS metamodel itself) into ontology in OWL. On the

other hand, we may edit and compose models in OWL

using other models and ontology mappings. The gen-

eral hypothesis is that if we carefully select domain-

speciﬁc parts and expose them using OWL, it will

(1) allow analysis and further work with the model

on ontology level free from implementation details,

(2) make mappings from other modelling languages

possible through existing OWL technologies, and (3)

provide useful insights to NS metamodel.

This paper starts in Section 2 by introducing rel-

evant topics with references to related work. Based

on the related work, Section 3 describes the design of

the bi-directional transformation and discusses vari-

ous options and possible outcomes. Design serves for

its implementation that is summarized in Section 4

and then evaluated in Section 6 together with propos-

als of future steps.

2 METHODOLOGY AND

RELATED WORK

In this section, we present overview of the most rel-

evant topics related to our work. The overview pro-

vides a necessary context for our approach.

2.1 Conceptual Modelling in Software

Engineering

Conceptual modelling is a vital activity used in soft-

ware engineering as well as other domains to pro-

mote understanding and communication related to the

selected problem domain. It is primarily intended

for human beings to model the domain using spe-

ciﬁc modelling language and with a focus on certain

aspects. That, together with abstractions, helps to

understand and overview the true essence (Verdonck

et al., 2015). Some of the modelling languages, e.g.

OntoUML, are called “ontology-driven” because they

are tightly related to general concepts from some up-

per ontology – in case of OntoUML, it is UFO (Uni-

ﬁed Foundation Ontology) (Guizzardi, 2005).

Notwithstanding, conceptual models are intended

for humans; they are often used for other purposes

as well. Some tools provide transformations of mod-

elling languages to other languages or various for-

mats including OWL. The more critical part of soft-

ware engineering related to models is model-driven

development. It uses models to automatically gener-

ate code fragments, skeletons, parts of applications,

or even complex information systems. (Embley and

Thalheim, 2012)

The usual problem with model-driven develop-

ment (MDD) is that it does not handle changes over

time well, and consistency between model and im-

plementation is easily broken. It uses multiple lay-

ers of models: computation-independent, platform-

independent, and platform-speciﬁc. MDD tries to

limit the inconsistency issue but add levels of com-

plexity to the whole process. (Tolvanen and Kelly,

2016)

2.2 Ontology Engineering

Ontology engineering is a discipline of computer and

information science which deals with methods for de-

signing and building ontologies. It covers the use

of various formal languages for expressing ontolo-

gies, not just OWL – but also, for example, SHACL,

OntoUML, Gellish. The main goals are to offer a

direction towards solving the inter-operability prob-

lems brought about by semantic obstacles and well-

describe the knowledge of a particular domain. The

most often uses of ontology engineering are currently

in ﬁelds of life sciences, data/system integration, and

artiﬁcial intelligence. (Hitzler et al., 2016)

2.3 Normalized Systems

Normalized Systems Theory (Mannaert et al., 2016)

targets the development of highly evolvable in-

formation systems where combinatorial effects are

eliminated or systematically under control. The

book (Mannaert et al., 2016) also describes how to

build such software systems based on four elemen-

Bi-directional Transformation between Normalized Systems Elements and Domain Ontologies in OWL

tary principles: Separation of Concerns, Data Version

Transparency, Action Version Transparency, and Sep-

aration of States. It results in a ﬁne-grained mod-

ular structure composed of so-called Elements. To

make the development of evolvable information sys-

tems possible and efﬁcient, it applies a code gen-

eration technique producing skeletons from the NS

model and custom code fragments.

NSX spin-off uses this theory in practice to de-

velop and maintain evolvable enterprise information

systems for various customers. For the code genera-

tors, the Expanders are used that take the NS model,

custom code fragments, technology and other conﬁg-

urations, and using code templates expand the infor-

mation system. To automate the whole process, Prime

Radiant tool serves to design the models in compo-

nents, conﬁgure the application, and maintain deploy-

ments. (NSX bvba, 2019)

There are ﬁve types of NS Elements: Data, Task,

Flow, Connector, and Trigger. Data Elements carry

structural information about entities and their at-

tributes and relationships. Transformation of Data El-

ements is the primary concern of this paper. Remain-

ing Elements are concerned with behavior, orchestra-

tion, and interaction. The core of NS metamodel de-

scribes these NS Elements and is itself described by

them, thus forming a metacircular model. Prime Ra-

diant tool is also an evolvable application. (NSX bvba,

2019; Mannaert et al., 2019)

2.4 The Web Ontology Language

The Web Ontology Language (OWL) is a declarative

language for expressing ontologies, i.e. sets of pre-

cise descriptive statements about some domain of in-

terest (Hitzler et al., 2009). The overlap between on-

tologies and conceptual modelling is signiﬁcant. Both

share the same goal to capture the semantics. Addi-

tionally, conceptual models capture some domain on-

tology using a modelling language. OWL provides

a machine-actionable and straightforward way of de-

scribing a domain using classes, properties, and in-

dividuals. In OWL, everything forms a triple: state-

ment with subject, predicate, and object. This triplet

is similar to RDF schemas, as OWL itself is based on

RDF at a technical level

. However, OWL is a higher

conceptual languages and provides additional seman-

tics not available in RDF. Also, OWL uniquely iden-

tiﬁes every object using international resource identi-

ﬁers (IRIs).

OWL documents can be captured using various

syntaxes such as RDF/XML, Turtle, Manchester, or

OWL/XML. Another aspect that is vital for Semantic

uses RDF as an interchange/persistence mechanism

Web but also other use cases of OWL is the ability

to link terms from other ontologies or use ontology

mapping and alignment techniques for integration or

transformation of knowledge in ontologies. Ontolo-

gies, together with OWL and RDF, are very ﬂexible

and enable to capture any knowledge to be further

used, re-used, or linked to other knowledge. It is cru-

cial in the domain of software engineering where se-

mantics capture in machine-actionable and standard

way streamline integration and data processing (Bha-

tia et al., 2016).

2.5 Ontology-driven Software

Development

Ontologies as domain description are used in the soft-

ware development cycle similarly to model-driven

development already for several years in various

ways. First, there are libraries and frameworks, e.g.

RDF4J (Eclipse Foundation, 2019), rdﬂib (RDFLib

Team, 2019), or Apache Jena (The Apache Software

Foundation, 2019), that allow using OWL and RDF

speciﬁcations in software. Then there are persistence

libraries that allow integrating data classes with OWL

ontologies and store instances in various triple-stores.

Example of this approach is, for instance, JOPA (Led-

vinka et al., 2016). Ontologies can also be used dur-

ing the design and speciﬁcation of information sys-

tems (K

remen and Kouba, 2011). Such ontology can

provide semantics to multiple applications and cor-

rectness of data integration.

Related to the transformations of various con-

ceptual and other models to OWL ontologies and

back, several attempts for UML and especially its

Class Diagrams has been made in (Gasevic et al.,

2004), (Zedlitz et al., 2011), and (Sadowska and

Huzar, 2019). There is also a working transforma-

tion from already-mentioned OntoUML to OWL and

SWRL (Barcelos et al., 2013). Even closer to our

work is the transformation of Extended ER models

into OWL described in (Telnarova, 2018). It will be

possible to take advantage of existing to-OWL trans-

formations once we enable bi-directional conversion

between NS and OWL.

2.6 Bi-directional Transformations

Bi-directional transformations (often called BX) are

means of maintaining consistency between two or

more representations of information used in various

disciplines (Czarnecki et al., 2009). There are already

existing languages and other means for the speciﬁca-

tion of bi-directional transformations between some

representations, i.e. between models using certain

ENASE 2020 - 15th International Conference on Evaluation of Novel Approaches to Software Engineering

metamodels. The most work has been done for XML,

for example, biXid (Kawanaka and Hosoya, 2006)

based on programming-by-relation paradigm for re-

lations over XML documents, or Multifocal (Pacheco

and Cunha, 2012) for XML schemas using algebraic

rewrite system. In the ﬁeld of model-driven develop-

ment, JTL (Cicchetti et al., 2010) is a language de-

signed to support non-bijective transformations and

change propagation. BOTL (Braun and Marschall,

2003) uses a different approach with a focus on the

transformation of objects.

Although our requirements are very speciﬁc and

implementation follows certain constraints, existing

bi-directional transformations are a valuable source of

information for our design. Eventually, our transfor-

mation will be rewritten into a model and code for

executing transformation will be generated according

to the NS approach.

3 OUR APPROACH

This section explains the goals and design of their ful-

ﬁlment in order to achieve the bi-directional transfor-

mation between OWL and NS models. It also brieﬂy

describes the background and necessary details of NS

metamodel.

3.1 Goals and Resources

First, we need to summarize the problem statement,

set the goals, and describe the available resources us-

able for their fulﬁlment. The problem is allowing NS

models to be transformable from its XML represen-

tation into OWL ontologies and back. Ideally, the

bi-directional transformation should be lossless, i.e.

all domain-speciﬁc parts will be transformed in both

directions, if present in the model or the ontology, re-

spectively. Moreover, in both NS model and OWL on-

tology, relations of NS models to NS metamodel are

needed to provide the semantics (e.g. capture that as

Aircraft in NS model is an instance of Data Element

from NS metamodel, Aircraft as an class in ontology

is instance of class Date Element from NS metamodel

ontology).

1. Create a subset of NS metamodel that holds

domain-speciﬁc and implementation-agnostic

knowledge.

2. Allow transformation of NS model from its XML

format to OWL with all domain-speciﬁc informa-

tion provided and relations to NS metamodel.

3. Allow transformation of OWL with relations to

NS metamodel to the XML format of NS model

with all domain-speciﬁc information provided.

As for the resources, libraries to work efﬁciently

with both OWL ontologies and NS metamodels using

XML import and export are available. NS metamodel

itself is supplied as a standard NS model in XML

format (Mannaert et al., 2019). By transforming the

domain-speciﬁc part of the metamodel to OWL, we

will get all the terminology to that the models refer.

3.2 Domain-speciﬁc Parts

Before devising the transformation architecture, we

need to select the domain-speciﬁc parts of the NS

metamodel, i.e. the entities, relations, and attributes

that carry the semantics of the domain and are not

implementation-related details. The core selected

parts are:

• Application – integrates together Components for

some particular purpose and has its metadata such

as name or description among implementation de-

tails.

• Component – is reusable encapsulation of a

model that can be bound to multiple Applications.

Among its metadata, it also has Component De-

pendencies and links to Data Elements.

• Data Element – represents an entity or a concept.

In contrast to Task, Flow, and Service Elements

who are tightly related to implementation, Data

Elements carry the structural domain knowledge.

• Fields – are describing properties of a Data El-

ement and are also the most complex part of

domain-related metamodel section. There are

Link Fields to form relationships between Data

Elements and Value Fields to serve as tradi-

tional attributes. Optionally, Value Field can

also be Calculated Field, which means that the

value is computed from others (e.g. age using

birthdate). This concept is similar to a derived

attribute in UML.

• Data Projection – is a speciﬁed view on a Data

Element, i.e. a subset of its original Fields using

Reference Field together with possible other Cal-

culated Fields.

• Options – for Components, Data Elements, and

Fields, it is possible to specify options of certain

pre-deﬁned type with name-value pair. Although

Options serve for implementation details, they can

be used to store domain knowledge as well.

Another important part is Value Field Type, that

serves to assign data types to value ﬁelds. These types

can be deﬁned on the level of Components, but there

are also several pre-deﬁned types with its counterparts

Bi-directional Transformation between Normalized Systems Elements and Domain Ontologies in OWL

Table 1: Concept transformation from NS to OWL.

NS Metamodel OWL Ontology

Component Ontology

Component Dependency Imported Ontology

Data Element Class

Value Field Datatype Property

Link Field Object Property

* (all) Individual (of NS:*)

in code. We consider this currently as an implemen-

tation detail and use default type String. On the other

hand, for Link Types, we need to distinguish differ-

ent types of links (one-to-many, many-to-many, and

directions) as it is crucial for domain modelling.

3.3 Architecture

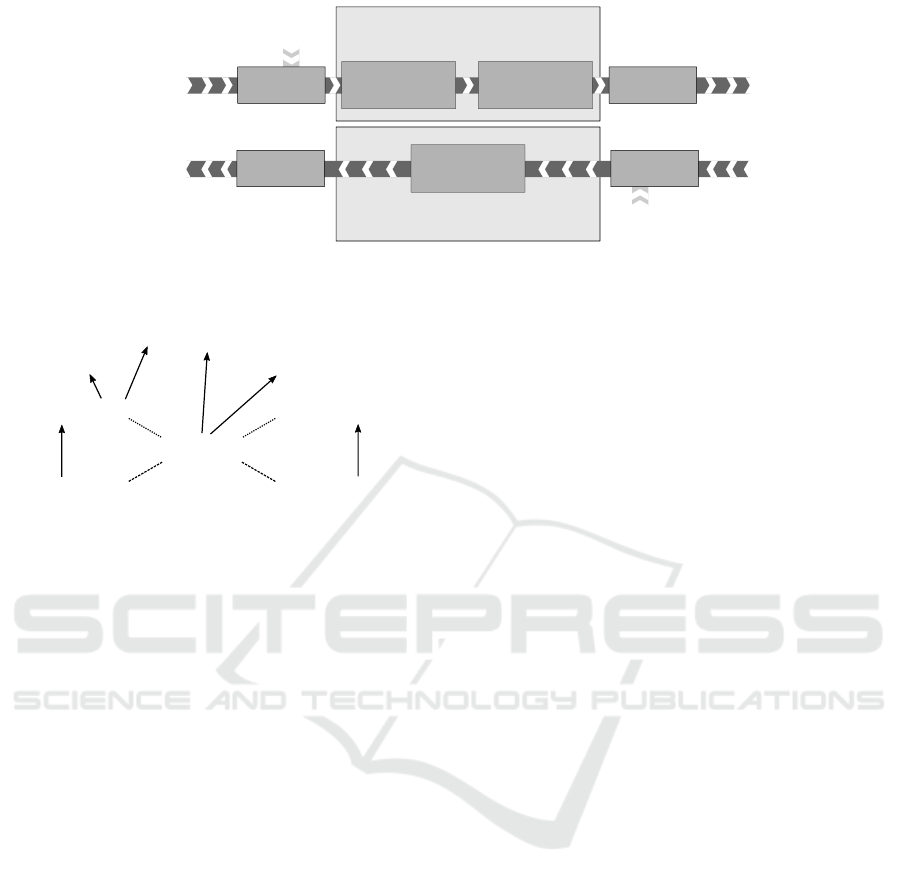

The overall architecture of our proposed solution is

depicted in Figure 1. For the direction towards the

OWL ontology, after loading the NS Elements model

of an Application, we process separate Components

and their domain-speciﬁc parts which lie in the Data

Elements subtree of the metamodel. As the tree

of component is processed, individuals are added

to the ontology (e.g. Aircraft with rdf:type of

NS:DataElement). Those individuals represent the

NS Elements model and will provide the transforma-

tion back to the XML.

In addition to transformation into individuals,

some parts of the model can also have other

special meaning in the OWL ontology. For

example, Aircraft as NS:DataElement is also

OWL:Class and its callSign as NS:ValueField is

OWL:DatatypeProperty. It enables to have individ-

uals on the ontological level of this domain-speciﬁc

model. With this approach it is possible, for instance,

to create an individual of Aircraft with callSign

of literal "BEL812" as described in Figure 2.

The equivalent concepts for the mapping of NS

Elements and OWL metamodels can be found in Ta-

ble 1. As a Component forms an Ontology, the ﬁelds

of a Component, such as a name, description, or ver-

sion, should become annotations of the transformed

Ontology. This level of transformation allows instan-

tiation of the model and interrelating with other on-

tologies by imports or using ontology matching tech-

niques. Produced OWL ontology can be exported to

a ﬁle.

For the other direction, an Ontology is loaded

from OWL a ﬁle, and backward re-construction of

an NS Elements Component can start. Everything

is retrieved only from individuals representing each

NS Component. Individual of a Component has its

value ﬁelds such as name, description, or version en-

coded using datatype properties. Component’s link

ﬁelds are encoded using object properties. One of the

properties of a Component is a link ﬁeld to Data El-

ements. These elements, and generally any other el-

ements connected via link ﬁelds, are processed in the

same way as a Component. Once a Component is

completely transformed from the Ontology, it can be

again exported to XML for further work in NS tools.

3.4 NS Elements Metamodel

Transformation

With the described architecture and the homoiconicity

of NS metamodel (Mannaert et al., 2019), some inter-

esting consequences need to be pointed out. In the

NS Elements metamodel, Component, Data Element,

Field, Link Field, Data Option, Data Option Type, and

others are modelled as Data Elements. According to

Table 1, we expect the generated ontology to contain

Data Element (from NS metamodel) both as an OWL

Class DataElement and an OWL Individual of type

OWL Class DataElement, i.e. itself. This principle

of treating a Class as an Instance (of a Metaclass) is

called punning (Hitzler et al., 2009).

NS models do not allow inheritance due to combi-

natorial effect concerns (Mannaert et al., 2016), there-

fore models are “ﬂat”, i.e. without any hierarchy.

However, there are Taxonomy Data Elements in the

metamodel that specify certain types of entities, e.g.

Data Element Type speciﬁes types of Data Elements.

These taxonomy instances are not directly encoded

as parts of the Component model. Instead, they are

stored separately inside ”prime-data” model as de-

picted in Figure 1.

To make transformations lossless in both direc-

tions, it is required to use the ontology of metamodel

so individuals are bound by its semantics. To make

this possible, we bootstrap by manually declaring a

minimum subset of elements necessary to automat-

ically read all identiﬁers of NS metamodel. After

reading of those elements, we can discard the manual

bootstrap, and rely only on continuous regeneration.

4 TRANSFORMATION

IMPLEMENTATION

In this section, we describe the implementation of the

bi-directional transformation between NS models and

OWL ontologies. We focus on the key parts and tech-

niques used to achieve extensible transformation ac-

cording to the design that we discussed above.

ENASE 2020 - 15th International Conference on Evaluation of Novel Approaches to Software Engineering

NS Elements

Application

XML

Domain

Ontology

OWL

Export

Import

Export

Individuals

Classes +

Properties

Build Ontology

Build Component

Individuals

NS Elements

Metamodel

NS Elements

Metamodel

ontology

+ prime-data

Figure 1: Architecture of NS-OWL bi-directional transformation.

xsd:string

NS:ValueField

OWL:Class

callSign

"BEL812"

NS:DataElement OWL:DatatypeProperty

myAircraft

Aircraft

range

domain

subject

predicate

object

type

typetype

Figure 2: Example of class and related individual.

4.1 Technology Stack

Because of interoperability with the current NS tech-

nology stack, we use Java as the core technology. The

NS library used is capable of XML import, export,

and representation using Tree classes. In terms of NS,

both XML and Tree representations are data projec-

tions, i.e. different views on a NS model. Tree projec-

tions are designed to be Plain Old Java Objects (PO-

JOs) – therefore does not bound any special restric-

tions. With this library, the boxes Import and Export

on the left side in Figure 1 are trivially covered. Im-

port requires a path to a model folder or XML ﬁle and

gives Application tree representation object (it links

to other objects according to the metamodel). For

the other direction, export requires application object

and target folder (and optionally additional options)

to write the model.

There are multiple options for working with OWL

ontologies in Java. We identiﬁed a free and open-

source framework Apache Jena (The Apache Soft-

ware Foundation, 2019), which targets Semantic Web

and Linked Data applications, as the most suitable for

our purpose. Its multiple APIs are well-documented

and capable of working with Individuals, all types of

Properties, Ontologies, and Models as well as with

representation using Graphs, Nodes, and Statements.

An ontology model in Jena is an extension of the RDF

model, providing extra capabilities for handling on-

tologies.

For both ontology and RDF models, there is a pos-

sibility of import and export using a wide variety of

formats including Turtle, RDF/XML, JSON-LD, N-

Quads, or RDF binary. This functionality covers the

right-hand side export/import in Figure 1. Also, the

framework helps signiﬁcantly with building ontology

models and querying the individuals.

4.2 URI Resolution

With the ability to import and export NS models

and ontologies, it remains to implement the trans-

formation itself between NS Tree projections and

Jena’s ontology model. Every single entity in an

ontology model needs to have a unique identiﬁer

– typically random for anonymous/nameless nodes

and Uniform Resource Identiﬁer (URI) for other.

For this purpose, our URI resolver creates a URI

composed of a conﬁgured preﬁx, Component name,

entity name (e.g. data element name), and in some

cases also “parent” name(s). An example of such

URI for data element Flight in Airlines compo-

nent with https://normalizedsystems.org preﬁx is

https://normalizedsystems.org/airlines/

Flight (for further example we leave out the pre-

ﬁx). In the case of ﬁelds or similar parent-child

related entities where unique naming in the NS

model is limited to a parent’s scope, we need

a parent or eventually more parent names to be

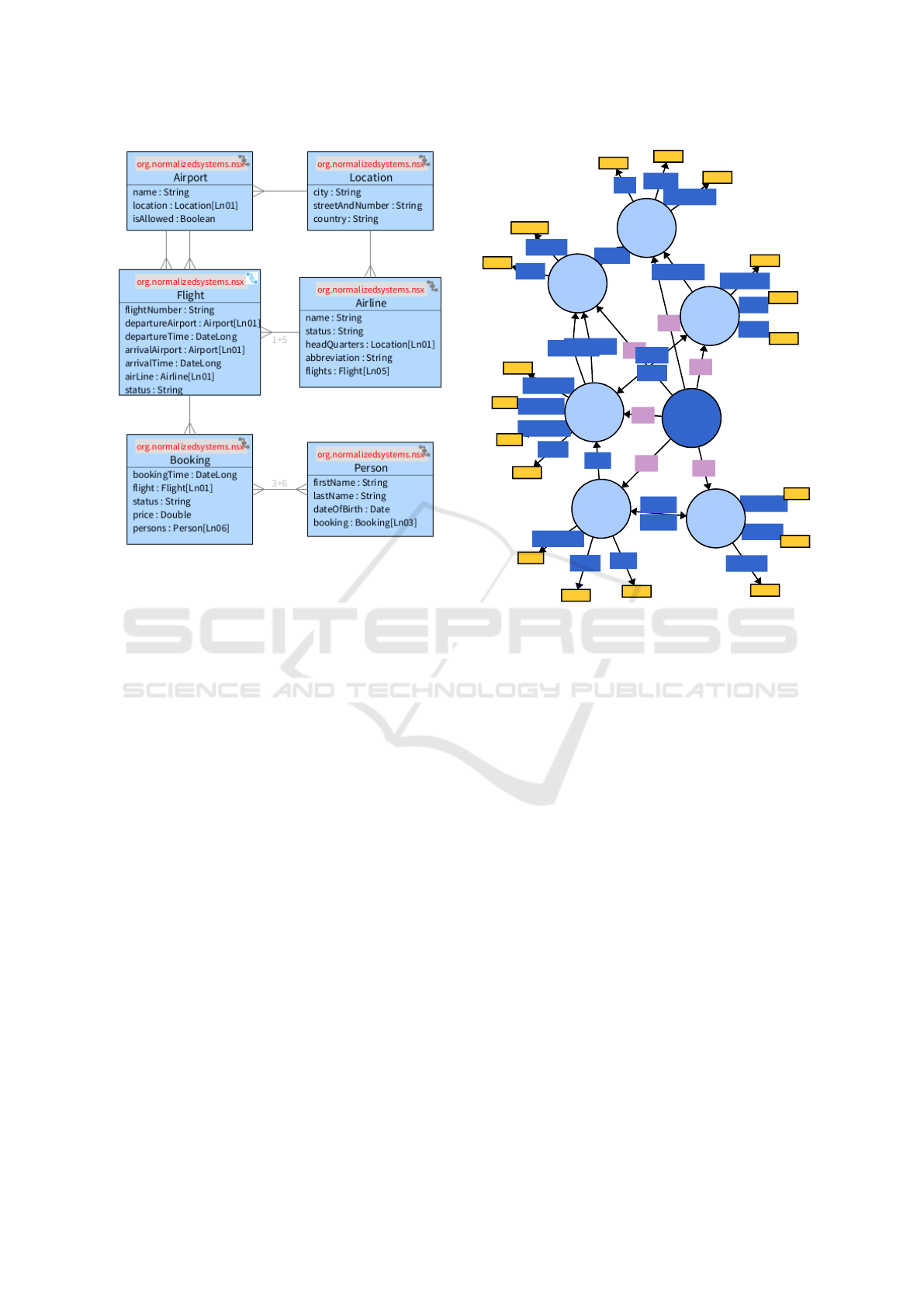

included. For instance, a number of the Flight

from an example depicted in Figure 3 would

have URI airlines/Flight/flightNumber.

To avoid name clashes with instances,

those are separated by hash symbol, e.g.

elements/DataElementType#Primary.

For relating entities of an NS model to the meta-

model, having all URIs of metamodel entities used in

transformation is necessary. Although the metamodel

is metacircular and transformable into ontology with

its URIs, we need to deﬁne them manually as an NS

Bi-directional Transformation between Normalized Systems Elements and Domain Ontologies in OWL

vocabulary (at least) for the initial transformation. A

similar approach is used in Apache Jena framework

for well-known vocabularies such as OWL, RDFS,

DCTerms, SKOS, or FOAF (The Apache Software

Foundation, 2019). Generation of this vocabulary is

possible due to its simplicity – it is just naming of re-

sources, e.g. resource name DataElement has deﬁned

constant URI elements#DataElement. It may tempt

to use more ﬂexible dynamic URI composing but in-

consistencies must be avoided.

Another option would be to generate persistent

URIs, e.g. using UUID – airlines#<UUID>. In this

case, URI remains the same even when the underlying

construct is renamed. On the other hand, there is al-

ways a need to query the name and any rename in the

model must still be solved by three-way merging even

when using UUIDs because they are not currently en-

coded in the NS metamodel. In case of a change in

the metamodel, it is only a question of changing the

URI resolver component to change the whole logic of

URIs.

4.3 NS to OWL Transformation

With Apache Jena, the transformation in the direc-

tion from NS tree POJOs to an ontology model com-

posed of Individuals, Classes, and Properties is very

straightforward and systematic as shown in Source

Code 1. We implemented it using a combined builder

and visitor pattern. A transformation class encapsu-

lates the addition of a single entity from the meta-

model. Each transformation class is instantiated with

some context information (such as uriResolver utility,

or mutable target ontology model), and executed with

the element that is currently being transformed. Then

the method contains a “recipe” of its inclusion to the

given ontology model:

1. Create an individual of a speciﬁc class from meta-

model using URI from the NS vocabulary and

with own URI generated by the URI resolver of

the context.

2. Convert data and object properties using URIs

from the NS vocabulary. For object properties,

the targets are also added to the ontology model

(propagates transformation through the tree) or

looked up in case of backlinks.

3. Add speciﬁc transformation based on Table 1, e.g.

an ontology class for a data element using still the

same URI.

4. Return resulting individual for further processing,

e.g. for object properties.

A somewhat different treatment is applied to

Fields

. Different types of Fields (Value Field, Link

Field) are implemented via composition inside the NS

Field element. Therefore, the returned individual is of

multiple types at once and has properties according to

the types. Secondly, the transformation of link ﬁelds

requires the addressing of data elements. There are

numerous possible implementations, but to ensure the

existence of target, we ﬁrst process all data elements

and then try to ﬁnd the adequate using a lookup table.

Finally, we also implemented a mechanism to ﬁnd the

inversed object properties, i.e. the matching link ﬁeld

from the target element.

This code may appear verbose, and one could be-

lieve that it may be hard to maintain and keep con-

sistent. However, our goal is to generate the code in

both directions based on the NS metamodel, and man-

ually intervene only where necessary by adding cus-

tom code between // anchor:custom-* comments,

that will be preserved between code regenerations.

4.4 OWL to NS Transformation

As explained in the design, the direction back from

OWL ontology to the NS model is driven by individ-

uals with NS metamodel compliant types and proper-

ties. The implementation is using the same patterns

as the other direction explained above. A transforma-

tion class encapsulates construction of a single tree

POJO. Each transformation object takes an ontology

model, URI, and optionally context information as in-

puts of constructor and method call. The method con-

tains the “recipe” of composing the POJO according

to NS metamodel:

1. Find an individual based on a given URI and ver-

ify its type using the NS vocabulary.

2. Create a corresponding tree POJO.

3. Set all properties that are available in the ontology

model. If missing a required one, throw an appro-

priate exception. In the case of links, transform

the linked resource(s). All backlinks are ignored

and left empty as those are optional in NS model

– computed when necessary.

4. Return the tree POJO for further processing, e.g.

for linking.

The transformation process starts on the level of

application where it tries to query the model for ap-

plication individual according to the type; then com-

ponents are processes, then its data elements and de-

NS Fields and relations between Data Elements is cur-

rently being redesigned, but the design have not been ﬁnal-

ized before publishing of this paper.

ENASE 2020 - 15th International Conference on Evaluation of Novel Approaches to Software Engineering

Source Code 1: Example of Data Element to ontology model transformation in Java with Apache Jena.

public class DataElementTreeToOwl implements TreeToOwlTransformer<DataElementTree, ComponentTree>

{,→

public DataElementTreeToOwl(OwlModel owlModel, UriResolver uriResolver) {

// ...

}

@Override

public Individual transform(DataElementTree dataElementTree, URI parentURI) {

URI dataElementURI = uriResolver.uriFor(parentURI, dataElementTree.getName());

// anchor:custom-uri:start

// anchor:custom-uri:end

// Individual

Individual individual = owlModel.createIndividual(dataElementURI, NS.DataElement);

individual.addProperty(NS.DataElement_name, dataElementTree.getName());

// DataElement/dataOptions link field

DataOptionTreeToOwl dataOptionTreeToOwl = new DataOptionTreeToOwl(owlModel, uriResolver);

ArrayList<RDFNode> dataOptionNodes = new ArrayList<>();

for (DataOptionTree dataOption : dataElementTree.getDataOptions()) {

dataOptionNodes.add(dataOptionTreeToOwl.transform(dataOption, dataElementURI));

}

individual.addProperty(NS.DataElement_dataOptions, owlModel.createList(dataOptionNodes));

// Class

OwlClass owlClass = ontModel.createClass(dataElementURI);

owlClass.setSuperClass(OWL2.Thing);

owlClass.addProperty(RDF.type, NS.DataElement);

// anchor:custom-transformation:start

// custom code that will be preserved by code generator

// anchor:custom-transformation:end

return individual;

}

pendencies, etcetera. Currently, other additional in-

formation stored in the given ontology model is ig-

nored. If there is, for example, an individual of the

data element type that is not linked from any compo-

nent, it will not be transformed into a data element

POJO. Similarly, all additional information such as

classes, properties, inversed properties, or extra anno-

tations, are ignored as well. It produces the same NS

model (more speciﬁcally, the same part that we identi-

ﬁed as domain-speciﬁc) when transformed into OWL

and then back again.

Although transformation from OWL to NS is

lossy with respect to OWL-speciﬁc information, we

are interested in keeping both representations. One of

our aims is to use OWL to contain additional knowl-

edge which has no execution semantics and thus is not

directly applicable to NS code generation. Therefore

this limitation is not applicable, as we can transform

the NS-compatible ontology subset, whilst preserving

additional OWL knowledge.

5 TRANSFORMATION EXAMPLE

In this section, we provide an example to illustrate

the functionality of the transformation. The example

explains the usefulness by showing the resulting ap-

plication and use of existing tools for both NS models

and OWL ontologies. The summary of the presented

example is in Section 6.

5.1 Flight Booking Model

For this example, we will start with a simple model

of Flight Booking domain. In terms of the NS model,

it is a single component with six data elements and

several value/link ﬁelds. The diagram of this model is

shown in Figure 3. The model includes both many-

to-many and one-to-many relationships. Also, var-

ious types of value ﬁelds are being used, including

Date, Double, and Boolean. With all this, the exam-

ple model covers the most commonly used structural

constructs of the NS model.

Bi-directional Transformation between Normalized Systems Elements and Domain Ontologies in OWL

Figure 3: The example NS model for ﬂight booking domain.

5.2 Transformed Ontology

Figure 4 shows the result of NS-to-OWL transforma-

tion in WebVOWL tool. All six data elements be-

came classes (light blue circles) with is-a relation-

ship to external DataElement from the metamodel on-

tology (dark blue circle). The link ﬁelds (i.e. re-

lationships) are also present in the ontology as ob-

ject properties with navigation between classes, e.g.

headQuarters between Airline and Location. Both bi-

directional relationships (Person-Booking and Flight-

Airline) are present and connected as inverse ob-

ject properties. Finally, matching datatypes (yellow

boxes) were used for generated datatype properties

based on value ﬁelds.

5.3 Adjustments in Ontology

With OWL ontology for our model, we can take ad-

vantage of tooling for analysing and editing ontolo-

gies. To demonstrate this, we can split streetAndNum-

ber property to two using Prot

e. First, we rename

the existing property to street. Then, we create a new

datatype property number with domain Location and

range xsd:int. We additionally need to create a new in-

dividual of type ValueField to capture other necessary

details according to the metamodel ontology such as

if it is an info ﬁeld. Similarly, we could edit classes

and object properties to improve our model. Finally,

name

status

booking

persons

city

is a

bookingTime

headQuarters

location

arrivalTime

flightNumber

streetAndN...

status

departureTime

isAllowed

price

country

firstName

flight

arrivalAirport

departureAir...

is a

airLine

flights

status

name

abbreviation

dateOfBirth

lastName

string

Flight

date

string

Person

string

date

boolean

string

date

string

Airport

Booking

date

Location

string

Airline

DataElement

(external)

Figure 4: The generated OWL ontology for ﬂight booking

domain.

we can transform back to NS model – it queries the

individuals according to the metamodel ontology.

5.4 Information System from Ontology

Our example model can then serve for expanding an

enterprise information system for ﬂight booking man-

agement. NS tooling takes care of generating the ap-

plication, injecting harvested code fragments, build-

ing, and then maintaining the application instance.

The fragment of changed entity Location where street

and number are separate arguments is shown in Fig-

ure 5. With the use of Normalized Systems, we can

continually update and improve the model (or ontol-

ogy) as we need and re-generate the application.

Data in the application instances will be migrated

as long as the naming remains. For example, with our

change of street, all records of Location would remain

with its city and country but divided street and num-

ber would be empty as those are new attributes with-

out any connection to the previous streetAndNumber.

If we need some more complicated data migration, it

has to be done using a separate OWL-OWL transfor-

mation, or in case of migration of a running system

using e.g. ETL workﬂows.

ENASE 2020 - 15th International Conference on Evaluation of Novel Approaches to Software Engineering

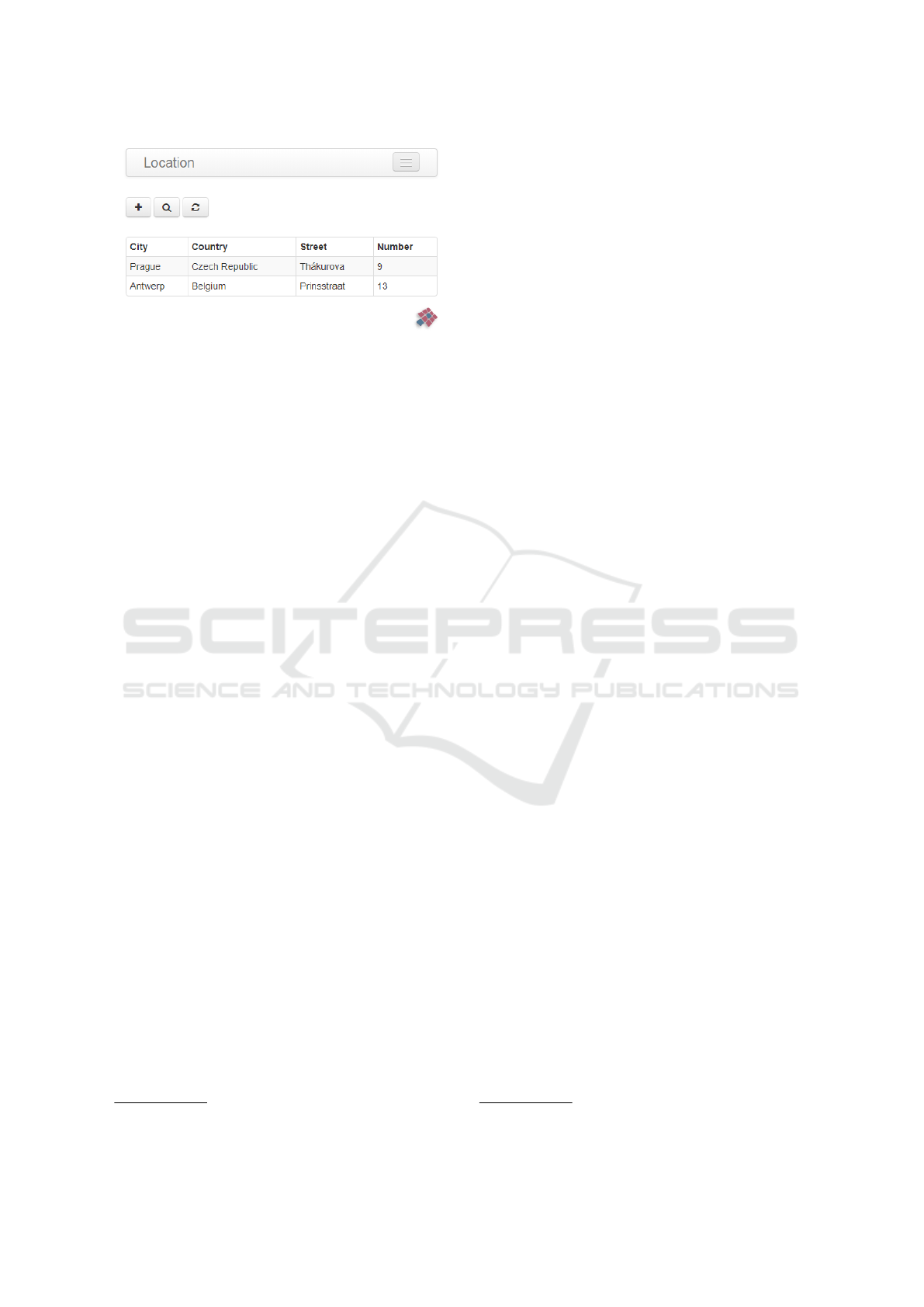

Figure 5: Screenshot from generated NS application.

6 RESULTS DISCUSSION AND

FUTURE WORK

The features of the designed and implemented trans-

formation are discussed in this section. We focus

mainly on its evolvability and outcomes. We also pro-

vide thoughts about future development.

6.1 Model Openness

OWL representation of NS models increases its open-

ness and enables the use of a wide variety of exist-

ing tools for OWL analysis, design, transformation,

documentation, and others. The entities from OWL

based on an NS model can be easily related to other

domain-speciﬁc ontology or to describe data. Annota-

tion tools provide developers and analysts with a way

of capturing additional knowledge that is not possible

to achieve in current NS tools. A considerable advan-

tage is that those annotations can be based on stan-

dard ontologies for metadata such as Dublin Core

but also a speciﬁc one can be created. Tools such

as Widoco (Garijo, 2017), Prot

e (Musen, 2015), or

WebVOWL (Lohmann et al., 2014) allows different

views on the model (as shown in Figure 6) and its

documentation which should improve the efﬁciency

of the development process. However, it must be ver-

iﬁed in practice on real-world and large-scale NS ap-

plications.

6.2 NS Metamodel Ontology

The transformation tool has been used for various

tests of NS models in order to verify the function-

ality of different transformation rules and mainly for

the NS metacircular metamodel. For the metamodel,

the resulting ontology contains 1493 individuals, 132

https://dublincore.org/speciﬁcations/

classes, 468 datatype properties, and 484 object prop-

erties. The generated documentation using Widoco

tool is now experimentally used together with cus-

tom annotations added to the ontology for its analy-

sis and serves as another developers documentation

of the metamodel. Longer-term use of the documen-

tation is needed prior to making conclusions about its

advantages. With this ontology, it is possible to com-

pose an NS model purely in OWL as individuals and

then turn it into a domain-speciﬁc part of an NS appli-

cation. For future development, metacircularity can

be reﬂected in the transformation where static NS vo-

cabulary can be checked using generated ontology or

derived from it directly.

6.3 Ontology Evolvability

A resulting ontology of an NS model can be re-

generated via XML representation when there is a

change in an NS model and vice versa. The version

number of an NS component is used for versioning its

OWL counterpart. Although there is no mechanism of

merging changes done in both representations, if an-

notations to the ontology are linking from a different

ﬁle using URIs, the re-generation can still use them.

Other veriﬁcation procedures may be implemented in

the future to check the consistency of models and even

merge the changes when loading both an NS model

and related OWL ontology using comparison and user

interaction.

Concerning the development of NS metamodel it-

self, there might be a need for edits in the transforma-

tion tool. The library used for import, export, and tree

objects can be then upgraded and recipes of transfor-

mations changed. The only important aspect is that

transformation recipes need to be consistent in both

directions. It is desirable to have a NS expander for

OWL that would ensure the evolvability as OWL on-

tology is practically just a different view on the same

model, i.e. data projection. Still, we need the other

direction to be consistent.

6.4 Ontology Enrichment and Mapping

Using the ontology of an NS model, it is possible to

enrich it and capture aspects that are not allowed with

current NS metamodel. For example, it is possible

to use inheritance between classes in ontology, or link

other ontologies such as FOAF

. Also, ontology map-

ping methods can be used to ﬁnd correspondences be-

tween an NS model represented as ontology and other

domain ontologies. All of this could result in propos-

als of NS metamodel enhancements related to its ex-

http://xmlns.com/foaf/spec/

Bi-directional Transformation between Normalized Systems Elements and Domain Ontologies in OWL

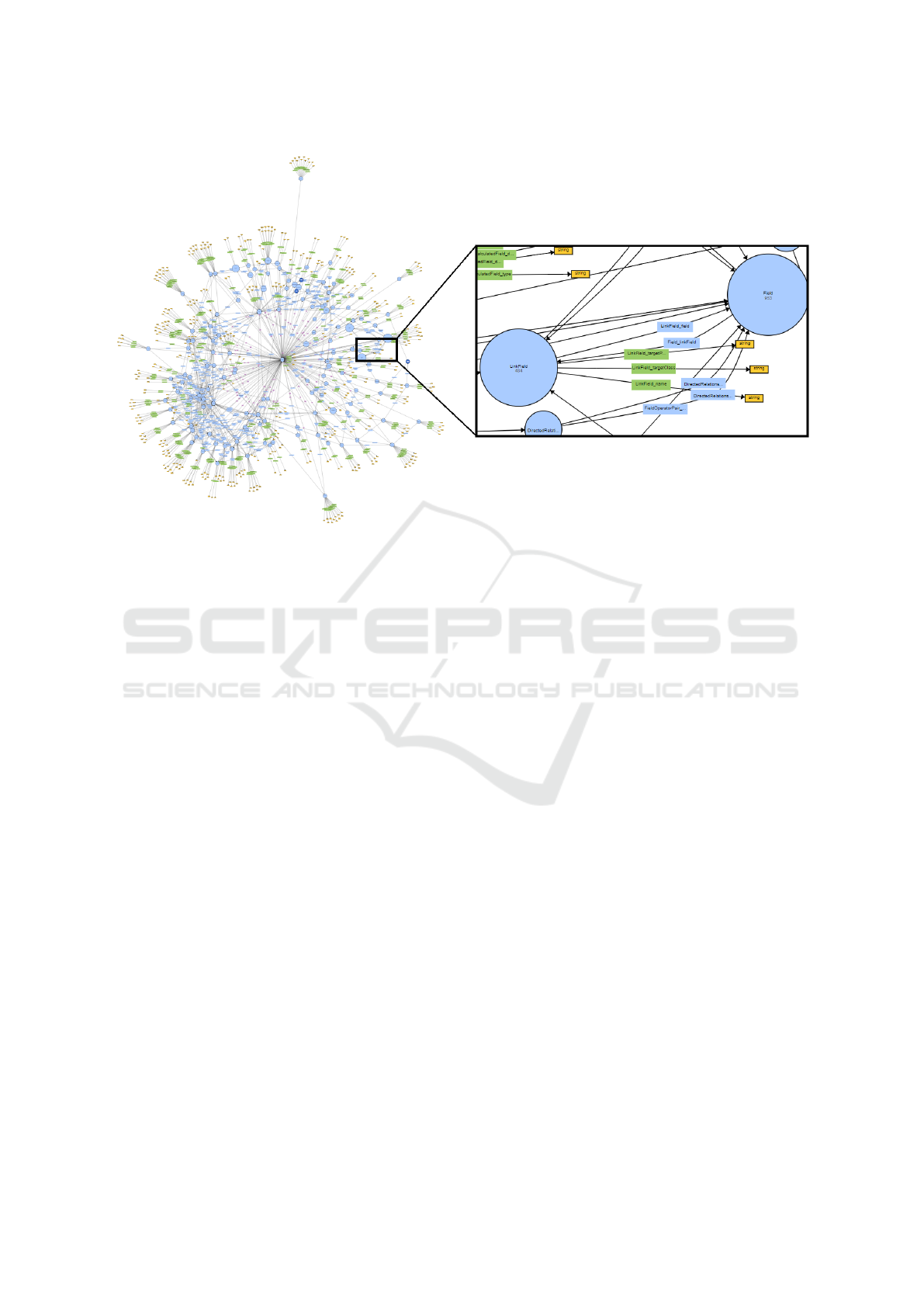

Figure 6: Example of WebVOWL visualization of generated ontology for NS metamodel.

pressiveness. Another possible future improvement is

the transformation of other parts of NS models related

to behaviour or even application settings.

7 CONCLUSIONS

In this paper, we ﬁrst discussed the need for a way

how to represent Normalized Systems domain mod-

els in OWL ontologies. We brieﬂy explained the core

terminology and methods related to the topic. As Nor-

malized Systems provide a way of building evolvable

information systems based on an NS model using ex-

panders. As OWL ontologies allow ﬂexible knowl-

edge representation with various existing tools, we

designed and implemented the bi-directional trans-

formation between those model representations. It

can be used to transform any domain-speciﬁc part

of NS application to OWL and vice versa. Owing

to the homoiconicity of the NS metamodel, we were

able to transform it into an OWL ontology as well

and use documentation tool together with other OWL

techniques to create and maintain a ﬂexible develop-

ers documentation. We demonstrated the use of bi-

directional transformation on a simple example that

concludes by generating an NS application. Finally,

we also discussed other advantages brought by the

transformation, its evolvability, and suggested possi-

ble future development. Nevertheless, the real usage

with large-scale NS application will verify the value

of the transformation and reveal opportunities for im-

provement.

ACKNOWLEDGEMENTS

This research was done thanks to the collaboration be-

tween Czech Technical University in Prague, Univer-

sity of Antwerp, and NSX bvba. The research was

also supported by the grant of Czech Technical Uni-

versity in Prague No. SGS17/211/OHK3/3T/18.

REFERENCES

Barcelos, P. P. F., dos Santos, V. A., Silva, F. B., Monteiro,

M. E., and Garcia, A. S. (2013). An Automated Trans-

formation from OntoUML to OWL and SWRL. On-

tobras, 1041:130–141.

Bhatia, M., Kumar, A., and Beniwal, R. (2016). Ontologies

for Software Engineering: Past, Present and Future.

Indian Journal of Science and Technology, 9(9):1–16.

Braun, P. and Marschall, F. (2003). Botl the bidirectional

object oriented transformation language.

Cicchetti, A., Di Ruscio, D., Eramo, R., and Pierantonio,

A. (2010). Jtl: a bidirectional and change propagating

transformation language. In International Conference

on Software Language Engineering, pages 183–202.

Springer.

Czarnecki, K., Foster, J. N., Hu, Z., L

ammel, R., Sch

urr, A.,

and Terwilliger, J. F. (2009). Bidirectional transforma-

tions: A cross-discipline perspective. In International

ENASE 2020 - 15th International Conference on Evaluation of Novel Approaches to Software Engineering

Conference on Theory and Practice of Model Trans-

formations, pages 260–283. Springer.

De Bruyn, P. (2011). Towards Designing Enterprises for

Evolvability Based on Fundamental Engineering Con-

cepts. In OTM Confederated International Confer-

ences” On the Move to Meaningful Internet Systems”,

pages 11–20. Springer.

Eclipse Foundation (2019). rdf4j.

Embley, D. W. and Thalheim, B. (2012). Handbook of Con-

ceptual Modeling: Theory, Practice, and Research

Challenges. Springer.

Garijo, D. (2017). WIDOCO: A Wizard for Documenting

Ontologies. In International Semantic Web Confer-

ence, pages 94–102. Springer.

Gasevic, D., Djuric, D., Devedzic, V., and Damjanovi, V.

(2004). Converting uml to owl ontologies. In Pro-

ceedings of the 13th international World Wide Web

conference on Alternate track papers & posters, pages

488–489. ACM.

Guizzardi, G. (2005). Ontological Foundations for Struc-

tural Conceptual Models.

Hitzler, P., Gangemi, A., and Janowicz, K. (2016). Ontology

Engineering with Ontology Design Patterns: Founda-

tions and Applications, volume 25. IOS Press.

Hitzler, P., Kr

otzsch, M., Parsia, B., Patel-Schneider, P. F.,

Rudolph, S., et al. (2009). OWL 2 Web Ontology Lan-

guage Primer. W3C recommendation, 27(1):123.

Huysmans, P. and Verelst, J. (2013). Towards an

Engineering-Based Research Approach for Enterprise

Architecture: Lessons Learned from Normalized Sys-

tems Theory. In International Conference on Ad-

vanced Information Systems Engineering, pages 58–

72. Springer.

Isotani, S., Bittencourt, I. I., Barbosa, E. F., Dermeval, D.,

and Paiva, R. O. A. (2015). Ontology Driven Software

Engineering: A Review of Challenges and Opportuni-

ties. IEEE Latin America Transactions, 13(3):863–

869.

Kawanaka, S. and Hosoya, H. (2006). bixid: a bidirectional

transformation language for xml. ACM SIGPLAN No-

tices, 41(9):201–214.

remen, P. and Kouba, Z. (2011). Ontology-Driven Infor-

mation System Design. IEEE Transactions on Sys-

tems, Man, and Cybernetics, Part C (Applications and

Reviews), 42(3):334–344.

Ledvinka, M., Kostov, B., and K

remen, P. (2016). JOPA:

Efﬁcient Ontology-Based Information System De-

sign. In European Semantic Web Conference, pages

156–160. Springer.

Lohmann, S., Link, V., Marbach, E., and Negru, S. (2014).

WebVOWL: Web-based visualization of ontologies.

In International Conference on Knowledge Engineer-

ing and Knowledge Management, pages 154–158.

Springer.

Mannaert, H., De Cock, K., and Uhnak, P. (2019). On the

Realization of Meta-Circular Code Generation: The

Case of the Normalized Systems Expanders. In IC-

SEA 2019, The Fourteenth International Conference

on Software Engineering Advances. IARIA.

Mannaert, H., Verelst, J., and De Bruyn, P. (2016). Normal-

ized Systems Theory: From Foundations for Evolvable

Software Toward a General Theory for Evolvable De-

sign. Koppa, Kermt (Belgium).

Musen, M. A. (2015). The Prot

e Project: A Look Back

and a Look Forward. AI Matters, 1(4):4–12.

NSX bvba (2019). NS Foundation.

Oorts, G., Huysmans, P., De Bruyn, P., Mannaert, H.,

Verelst, J., and Oost, A. (2014). Building Evolvable

Software Using Normalized Systems Theory: A Case

Study. In 2014 47th Hawaii International Conference

on System Sciences, pages 4760–4769. IEEE.

Pacheco, H. and Cunha, A. (2012). Multifocal: A strate-

gic bidirectional transformation language for xml

schemas. In International Conference on Theory and

Practice of Model Transformations, pages 89–104.

Springer.

RDFLib Team (2019). RDFLib.

Sadowska, M. and Huzar, Z. (2019). Representation of

UML Class Diagrams in OWL 2 on the Background

of Domain Ontologies. e-Informatica Software Engi-

neering Journal, 13(1):63–103.

Telnarova, Z. (2018). Transformation of Extended Entity

Relationship Model into Ontology. In Asian Con-

ference on Intelligent Information and Database Sys-

tems, pages 256–264. Springer.

The Apache Software Foundation (2019). Apache Jena: A

free and open source Java framework for building Se-

mantic Web and Linked Data applications.

Tolvanen, J.-P. and Kelly, S. (2016). Model-Driven Devel-

opment Challenges and Solutions: Experiences with

Domain-Speciﬁc Modelling in Industry. In 2016 4th

International Conference on Model-Driven Engineer-

ing and Software Development (MODELSWARD),

pages 711–719. IEEE.

Verdonck, M., Gailly, F., de Cesare, S., and Poels, G.

(2015). Ontology-Driven Conceptual Modeling: A

Systematic Literature Mapping and Review. Applied

Ontology, 10(3-4):197–227.

Zedlitz, J., J

orke, J., and Luttenberger, N. (2011). From

UML to OWL 2. In Knowledge Technology Week,

pages 154–163. Springer.

Bi-directional Transformation between Normalized Systems Elements and Domain Ontologies in OWL
