3D Convolutional Neural Network for Falling Detection

using Only Depth Information

Sara Luengo S

anchez, Sergio de L

opez Diz, David Fuentes-Jim

enez

, Cristina Losada-Guti

errez

Marta Marr

on-Romera

and Ibrahim Sarker

Department of Electronics, University of Alcal

a, Polytechnics School, Campus Universitario S/N, Alcal

a de Henares, Spain

Keywords:

Depth Information, Fall Detection, 3D-CNN, Top-view, Healthcare.

Abstract:

Nowadays, one of the major challenges global society is facing is population aging, which involves an in-

crement of the medical expenses. Since falls are the major cause of injuries for elderly people, the need of

a low-cost falling detector has increased rapidly over the years. In this context, we propose a fall-detection

system based on 3D Convolutional Neural Networks (3D-CNN). Due to the fact that the system only uses

depth information obtained by a RGB-D sensor placed in a overhead position to avoid occlusions, it results

in a less invasive and intrusive fall-detection method for users than systems based on wearables. In addition,

depth information preserves the privacy of people since they cannot be identiﬁed from this information. The

3D-CNN obtains spatial and temporal features from depth data, which allows to classify users’ actions and

detect when a fall appears. Since there are no other available datasets for action recognition using only depth

data from a top-view camera, the authors have recorded and labeled the GOTPD3, that has been made avail-

able to the scientiﬁc community. Thus, training and evaluation of the network has been carried out within the

GOTPD3 dataset, and the achieved results validate the proposal.

1 INTRODUCTION

A fall is deﬁned as “an unexpected event in which

the participant comes to rest on the ground, ﬂoor, or

lower level” (Ballinger and Payne, 2002). It is esti-

mated that approximately, the third of people in the

world over the age of 65 fall each year, and this pro-

portion increases with the age (Organization, 2012).

These falls can cause other health problems such as

post-fall syndrome (Mathon et al., 2017) which may

cause confusion, immobilization and depression, or

even more serious injuries which may need surgery.

At all events, the result is a loss of independence

and autonomy for the person that falls. Moreover,

when the fall occurs at home to a person who is

alone, it may take a long time before any assistance

arrives, which may aggravate the health condition of

the person. To avoid this scenario, many researches

have been working over the last decade to develop a

low-cost fall-detection system (Mubashir et al., 2013;

Pierleoni et al., 2015; Amin et al., 2016; Gia et al.,

https://orcid.org/0000-0001-6424-4782

https://orcid.org/0000-0001-9545-327X

https://orcid.org/0000-0001-7723-2262

2018; Lapierre et al., 2018)

To address this topic, many research works have

been carried out with different kinds of sensors. Most

of the current work involves wearable inertial sen-

sors such as accelerometers and gyroscopes (Pierleoni

et al., 2015; Wu et al., 2015). However, these systems

provide many false positives and fail when the per-

son forgets to put the wearable on. In addition, if the

person has circulatory problems, swelling limbs can

become a problem when wearing these sensors.

To reduce the problem of false positives, several

researches have developed systems with multiple sen-

sors, mainly cameras and accelerometers (Ozcan and

Velipasalar, 2016; Zerrouki et al., 2016). Although

this kind of systems have proved to reduce the num-

ber of false positives, these are worse in other aspects

since privacy is no longer preserved and wearables are

still needed.

To avoid the problems associated to wear-

ables, many works use cameras for falling detec-

tion (Baptista-R

ıos et al., 2016; De Miguel et al.,

2017). These systems provide high accuracy in suit-

able situations but their performance drops when

lighting conditions change or occlusions occur. More-

over, privacy issues may appear considering that peo-

590

Luengo Sánchez, S., de López Diz, S., Fuentes-Jiménez, D., Losada-Gutiérrez, C., Marrón-Romera, M. and Sarker, I.

3D Convolutional Neural Network for Falling Detection using Only Depth Information.

DOI: 10.5220/0009356205900597

In Proceedings of the 15th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2020) - Volume 5: VISAPP, pages

590-597

ISBN: 978-989-758-402-2; ISSN: 2184-4321

ple can be recognized in the images. It has to be

highlighted that privacy is specially important in envi-

ronments in which a falling detector can be installed,

such as hospitals (Banerjee et al., 2014) or elderly

homes (Rougier et al., 2011).

In the last years, since RGB-D and depth cameras

emerged in the sensors market, they have had a major

role in solving privacy issues because people cannot

be identiﬁed in depth maps. Furthermore, depth cam-

eras include an infrared light source, so they do not

require an external one, being more resilient to light-

ing changes in the captured scene. These properties

have made depth cameras widely used in security sys-

tems (Chou et al., 2018; Luna et al., 2017).

There are several papers that deal with the detec-

tion of actions from depth information (Megavannan

et al., 2012; Liang and Zheng, 2015), both from skele-

tal joints and depth maps. However, very few of them

do so with the camera in zenithal position (Lin et al.,

2015; Tang-Wei Hsu et al., 2016), as in the proposal

described in this work. In (Lin et al., 2015; Tang-Wei

Hsu et al., 2016), the authors propose a novel feature

for activity recognition from top-view depth image se-

quences, based on representative body points, that is

then validated using their own dataset. However, as

far as the authors of are concerned, the dataset used

in (Lin et al., 2015; Tang-Wei Hsu et al., 2016) is not

available for comparing the obtained results.

Recently, researches have started applying novel

deep learning techniques to improve the results ob-

tained with classic approaches. In this context, 2D-

CNN have been used in a frame-by-frame basis to

perform image classiﬁcation. These networks do

not have the capacity to obtain motion features since

their input is a still image. Some authors propose

the use of descriptors that include data from sev-

eral frames, such as Depth Motion Maps (DDM) de-

scribed in (Yang et al., 2012), or multi-view dynamic

images (Wang et al., 2017; Wang et al., 2018), that

summarise video-temporal features.

On the other hand, to take advantage of temporal

features, traditional Deep Neural Networks (DNNs)

have been replaced by Recurrent Neural Networks

(RNNs), Long Short Term Memory (LSTM) and 3D

Convolutional Neural Networks (3D-CNN). In partic-

ular, 3D-CNN are able to analyze a video or set of im-

ages as a single input and apply ﬁlters to get tempo-

ral information as well as spatial characteristics from

it. These features improve the system performance in

video applications (Ji et al., 2012).

DNNs are classiﬁers that extract low level features

in the ﬁrst layers and complex characteristics in the

next ones. Then, in the last layer, the network makes

a prediction about each class occurrence probability.

To obtain adequate features, the network is trained so

ﬁlters learn each class characteristics features.

In this paper, we propose a 3D-CNN based fall-

detection system which only uses depth information

acquired by a Time of Flight (ToF) sensor placed in

an overhead position of the scene to analyze. The top-

view conﬁguration reduces occlusions, and with the

use of depth information preserves people’s privacy.

Furthermore, the proposal detects not only when

a person falls down, but also other of his daily ac-

tions such as ‘Walk’, ‘Run’ or ‘Stand up’. The spa-

tial and temporal feature extraction is carried out by

“3D Convolutional” (“Conv 3D”) and “Max Pool-

ing” layers, while the fall (and other actions) detec-

tion is done through a classiﬁcation stage based on

two “Fully Connected” (dense) layers. The entire ar-

chitecture of the proposed neural network is shown in

ﬁgure 1, and it is explained in detail in section 2.

Due to the lack of available datasets for action

recognition from a top-view depth image sequences, it

has been necessary to record and label a new dataset,

called GOTPD3 (Macias-Guarasa et al., 2018) which

has been made available to the scientiﬁc community.

This new GOTPD3 dataset has been used for train-

ing, validating and testing the proposal. This dataset

provides several sequences for 5 actions, that are per-

formed by 7 different people: ‘Walk’, ‘Walk fast’,

‘Run’, ‘Fall down’ and ’Stand up under the sensor’.

It is worth highlighting that the provided dataset in-

cludes walking at different speeds (normal and fast),

as well as running because of the strong relationship

between walking speed and the people’s health, tired-

ness and sadness (Sundelin et al., 2015)

The rest of the paper is organized as follows. Sec-

tion 2 explains the network architecture and its inter-

nal operations. After that, in section 3 the training

phase is described, including a brief description of the

GOTPD3 dataset. Then, the results obtained in the

test stage are presented in section 4. Finally, section 5

introduces the main conclusions and future work.

2 NETWORK ARCHITECTURE

As mentioned in the introduction, the proposed sys-

tem for falling detection is based on a 3D Convolu-

tional Neural Network (3D-CNN), which allows the

extraction of temporal and spatial features, and has

has proven its effectiveness for action recognition in

RGB and RGB-D image sequences (dipakkr, 2018).

The general architecture of the used DNN can be

seen in Figure 1, whereas a summary including the

different layers of the network, as well as their output

sizes and fundamental parameters is shown in Table 1.

3D Convolutional Neural Network for Falling Detection using Only Depth Information

591

Figure 1: 3D Convolutional Neural Network (3D-CNN) architecture.

Table 1: Proposed network architecture and tensor sizes at

each layer.

3D Convolutional Neural Network layers

Layer Output size Parameters

Input 64 ×64 × 30 × 1 -

Conv3D 1 64 × 64 × 30 × 32

kernel=(3, 3, 3)

strides=(1, 1, 1)

Activation ReLU

Conv3D 2 64 × 64 × 30 × 32

kernel=(3, 3, 3)

strides=(1, 1, 1)

Activation ReLU

MaxPooling 22 ×22 ×10 ×32 size=(3, 3, 3)

Dropout 0.15

Conv3D 3 22 × 22 × 10 × 64

kernel=(3, 3, 3)

strides=(1, 1, 1)

Activation ReLU

Conv3D 4 22 × 22 × 10 × 64

kernel=(3, 3, 3)

strides=(1, 1, 1)

Activation ReLU

MaxPooling 8 × 8 × 4 × 64 size=(3, 3, 3)

Dropout 0.15

Flatten 16384 -

Dense 1 256 -

Activation ReLU

Dropout 0.35

Dense 2 5 -

Activation SoftMax

The network input has been tuned to be a set of 30

depth images (corresponding to one second of video)

with a size of 64x64 pixels. The length of the video-

segments (one second) has been set experimentally to

get a compromise between the processing time, which

increases as the length of the video-segment grows,

and the precision of the action recognition procedure.

Since images from the dataset have a size of 512x424

pixels, a preprocessing stage is required in which the

original depth input images are cropped to a square

image and then resized to the required dimensions.

The system has been designed to operate through a

long sequence where multiple actions may appear (as

in a real scenario). To achieve this goal, the proposal

has to be able to recognize an action with just a part

of its execution. In addition, since the network input

is a group of 30 depth images, the input sequence has

to be divided into 30-frames segments that are ana-

lyzed by the 3D-CNN. The designed algorithm, thus,

employs a sliding window to select the frames to be

inserted at each time to the network. The window has

a size of 30 frames with a stride of 15, creating an

overlap of 15 frames between consecutive input sets.

Each 30-frame segment is then processed to obtain a

ﬁnal vector including its classiﬁcation probability of

belonging to each of the ﬁve possible actions.

In the proposed network (in Figure 1), the ﬁrst

two layers (“Conv3D 1” and “Conv3D 2”) are con-

volutional layers with 32 ﬁlters each, and a kernel of

dimensions (3,3,3). These two layers extract spatio-

temporal features from the input depth sequence. To

avoid reducing the dimensionality here, padding is

used in both of them. Next, there is a pooling layer

(“Max Pooling 1”) for reducing the dimensionality.

The output tensor generated is then introduced into

another pair of convolutional layers “Conv3D 3” and

“Conv3D 4” with 64 ﬁlters each and a kernel of di-

mensions (3,3,3), in order to extract features with a

VISAPP 2020 - 15th International Conference on Computer Vision Theory and Applications

592

higher level of abstraction. Again, padding is used at

this stage to avoid dimensionality reduction. These

high-level features are then introduced in the “Max

Pooling 2” layer to reduce their dimensionality, fol-

lowed by the layer “Flatten” and two dense lay-

ers, “Dense 1” and “Dense 2”, with 256 and 5 neu-

rons respectively.

The output of “Dense 2” layer is a vector (S(a)

in equation 1), including 5 classiﬁcation probability

real values (a

to a

, one for each action). This vector

is then introduced into the ﬁnal “Softmax” layer that

normalizes it through the probability distribution in

equation 2, in order to obtain the ﬁnal 5 probabilities

to S

) in equation 1.

S (a) =







...







→







...







(1)

∑

k=1

j ∈ 1..5 (2)

The four “Conv 3D” and “Dense 1” layers use

ReLU (“Rectiﬁed Linear Unit”) activation functions

at their outputs, due to its high efﬁciency. Moreover,

this kind of activation provides the non-linearity nec-

essary in the classiﬁer for action detection. It is also

used “Dropout” to ignore nodes in the network ran-

domly at each training stage, to prevent over-ﬁtting in

the learning process.

3 TRAINING STAGE

In this work, the chosen dataset for training and

evaluating the proposal is GOTPD3 (Macias-Guarasa

et al., 2018), recorded and labeled by the authors.

It includes 34 video sequences, with a resolution of

512x424 pixels, which represent 7 different people

performing 5 different daily activities. At each frame,

pixels represent the distance from a 3D point in the

scene to the sensor in millimeters, coded in 16 bits

unsigned integer.

The actions in the dataset correspond to be-

haviours that can be commonly seen in the smart

spaces scenarios of interest: ‘Walk at normal speed’,

‘Walk fast’, ‘Run’, ‘Fall down’ and ‘Stand up for

a while under the sensor’. Thus, the proposed sys-

tem has been trained to recognize other actions of the

dataset in addition to the falling one.

Each sequence has a single ground truth label as-

sociated although more than one action may appear

along it. This occurs with actions ‘Fall down’ and

‘Stand up’, where there is a part of the sequence

with a person walking before and after performing the

main action. Since the network analyzes only a part

of the sequence at a time, and not the whole one, some

of its images do not belong to the main action.

For training, each input sequence should include

only one action. Hence, it has been necessary to trim

the training sequences. In consequence, the frames in

which the person is walking in sequences labeled as

’Standing up’ and ’Falling down’ are removed.

Information about the number of frames in ﬁnal

trimmed sequences is shown in Table 2. Its column

“Original” presents the total number of frames of the

sequences corresponding to each action in the dataset

before any process is carried out, whereas the col-

umn “Trimmed” shows the number of frames after the

trimming process.

Since the dataset size is small, data augmentation

has been needed to perform a correct training. In or-

der to do that, images in each sequence have been

mirrored vertically, horizontally and vertically plus

horizontally at the same time. After this data aug-

mentation process, the dataset contains 136 video-

sequences where people may appear from different

angles and go through different paths, which, in addi-

tion, improves the generalization of the network and

increases its invariability against rotations. The result

in the number of frames can be seen in the column

“Augmented” of Table 2.

Table 2: Number of frames for each action in the original

dataset (column 2), after the trimming process (column 3)

and after the data augmentation (column 4).

Action Original Trimmed Augmented

Walk 2820 1324 5296

Run 1377 462 1848

Walk fast 1737 690 2760

Fall down 1932 711 2844

Stand up 1883 546 2184

Total 9749 3733 14932

In Table 2, it can be observed that the number of

frames in the training dataset varies signiﬁcantly from

one action to another. Action ‘Walk’ includes double

of frames (∼5300) than ‘Walk fast’ or ‘Fall down’

(∼2800), which has a signiﬁcantly larger number of

frames than ‘Run’ and ‘Stand up’ (∼2000). This im-

balance in the classes size makes the network predict-

ing some classes more often than others, leading to

wrong classiﬁcation results. To avoid that, a weight-

ing of the classes is done (Blamire, 1996).

As mentioned in previous section, images are pre-

processed before being inserted in the neural network.

As in other works, such as (Lin et al., 2015), ﬁrst, each

image is cropped out to a square shape of 355 × 355

3D Convolutional Neural Network for Falling Detection using Only Depth Information

593

pixels, then, it is resized to the network input size

(64 × 64 pixels). Figure 2 shows some examples of

different input images (on the left) and their corre-

sponding cropped ones (on the right column), includ-

ing several people performing diverse actions. In par-

ticular, the ﬁrst and second images correspond to a

person walking, whereas the third and fourth ones

presents a person falling down and standing up re-

spectively.

Figure 2: Before and after the preprocessing.

The dataset is divided into three separated parts

for training, validating and testing the proposal. First,

75% of the available sequences is used for train-

ing (50%) and validating (25%) the neural network,

whereas the other 25% is employed for testing and

obtaining the experimental results. Each part contains

sequences from the original dataset and from the aug-

mented one, which increases the system robustness,

by improving its generalization capability. The ﬁnal

number of frames of each division are shown in Ta-

ble 3, that also includes a number (code) identifying

each action in the dataset.

To evaluate the performance of the network, it has

been employed the Categorical Cross-Entropy (CCE)

Table 3: Number of frames per action for each stage of the

proposal.

Action Code Train Val. Test

Walk 000 2648 1324 1324

Run 001 913 473 462

Walk fast 002 1380 690 690

Falling down 003 1350 783 711

Standing up 004 1092 546 546

Total - 7383 3816 3733

as the loss function to compare the predictions made

by the system with the ground-truth, using equation 3.

The value P

is the network output after the “Soft-

Max” layes, that is, the proposal predicted probability

for each class, whereas t

is the one hot vector value

that represents the corresponding correct class in the

ground-truth.

CCE = −

∑

i=0

log (P

) (3)

To optimize the loss function, it has been chosen

the algorithm Adam (Kingma and Ba, 2014), because

it provides an adaptive method to adjust the learning

rate based on its gradient ﬁrst and second moments.

This method starts with a learning rate provided by

the user and extracts information of the loss function

to calculate the next learning rates. Thus, the training

speed is boosted allowing a fastest training phase.

The batches for the network are produced by a

generator which selects sets of 30 frames and adapts

them to the network input. The sets are selected ran-

domly among the sequences related to each stage.

The batch size is set experimentally to 25, through

an exhaustive analyses, taking into account the size

of the dataset. This value may be enough for Adam

algorithm to get accurate information for the adaptive

learning rate calculus. To make sure Adam is training

correctly, an external decay factor is applied to the

learning rate.

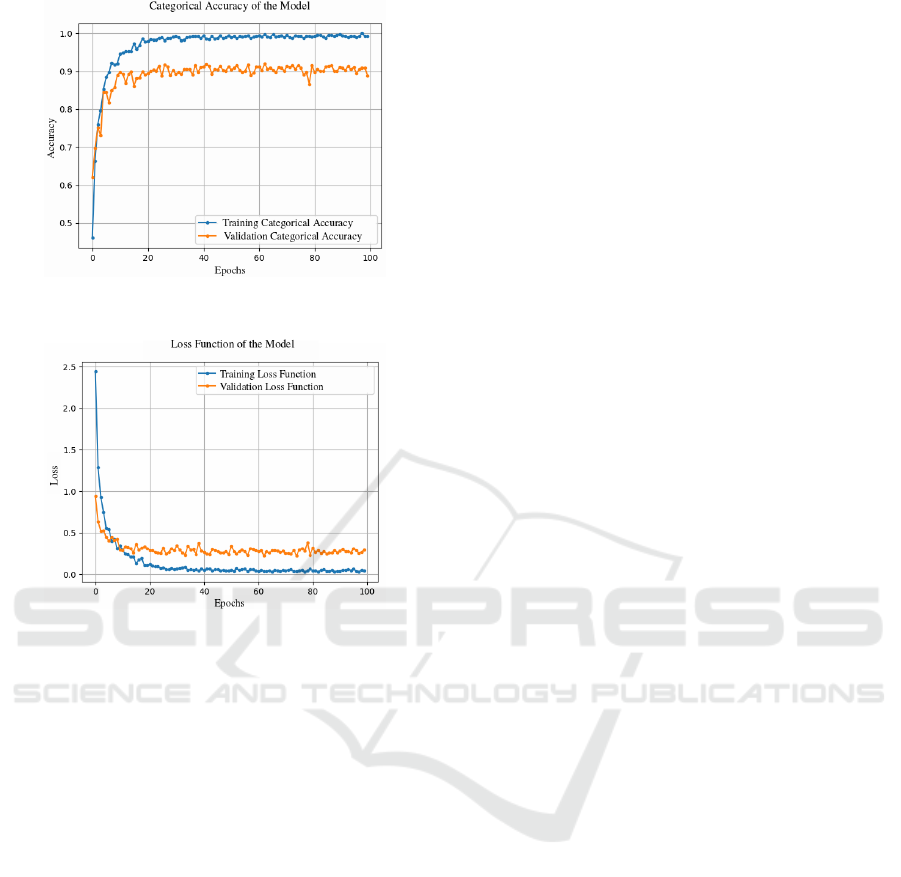

Figure 3 and 4 show the accuracy and loss func-

tion of the proposed model. By comparing training

(in blue color) and validation (in orange) results in

each chart it can be concluded that the system does

not overﬁt and achieves a high level of generaliza-

tion during the training stage. Moreover, it can be

observed that the system stabilizes at 60 epoch with

optimal performance.

VISAPP 2020 - 15th International Conference on Computer Vision Theory and Applications

594

Figure 3: Categorical accuracy curves obtained in the train-

ing stage.

Figure 4: Loss function curves obtained in the training

stage.

4 EXPERIMENTAL RESULTS

As it has been said in the introduction, as far as the au-

thor are concerned, there are no other public dataset

for action recognition from top-view depth data avail-

able for comparison. Due to that, in order to eval-

uate the fall-detection system, the GOTPD3 (Macias-

Guarasa et al., 2018) dataset has been used, which has

been labeled and recorded by the authors and made

available to the scientiﬁc community.

The have been used the 25% of the GOTPD3

videos reserved for test. Due to the fact that the sys-

tem also provides an action detection feature that al-

lows the recognition of multiple activities, the results

for the complete functionality are shown ﬁrst. Further

on, fall results will be analyzed in depth. Finally, it is

addressed the results for the other actions.

The performance of the system has been measured

through its accuracy in the test data. The accuracy

has been computed comparing the predicted label of

each set of 30 the frames with the label assigned to

the whole sequence. It is worth highlighting that,

at this point there may appear problems if the input

sequences include actions different from the one la-

beled, for example if a falling down sequence include

some frames in which the person is walking. This

could be solved assigning to each video the label that

obtained for most of the segments, instead of provid-

ing an individual label for each of these segments.

However, it would prevent the proposal for working

in a real scenario in which multiple actions may exist

in a given period of time.

As it has been explained before, each video-

sequence is processed using a sliding window, obtain-

ing a result (label) for each window. This sliding win-

dow has a size of 30 frames and a stride of 15, hence

some frames are processed in two different windows,

obtaining two possible results. If the results in the

two analysis differ, the probabilities for each action

are obtained by computing the arithmetic mean over

the two results. Then, the system assigns the label of

the action with the highest calculated probability.

Regarding the computational cost of the proposal,

the average time for processing a 30-frames segment

of video (that corresponds to 1 second) is 7 millisec-

onds on a conventional Linux desktop PC, with a Pro-

cessor Intel

Core(TM) i7-6700K CPU @ 4.00 GHz

with 64 GB of RAM, and an NVIDIA GTX-1080 TI

GPU. Furthermore, the maximum time it takes to pro-

cess a 30-frames segment is 18 milliseconds, thus, it

is able to work in real time.

The results of the test are shown in Figure 5. In

this confusion matrix, the true actions are presented

in the rows whereas the predicted actions are shown

on the columns. In this image, each action has been

represented by their code from Table 3.

It can be observed that all classes have an accu-

racy over 75%. In particular, ‘Fall-down’ (003) are

detected 84% of the time of the sequences. It should

be noted down that the system barely confuses ‘Fall

down’ with ‘Walk’ (000), and when it happens it is

always due to the fact that the person walks before

and after falling down. It is important to highlight

that, although there can be some wrong detections

at the beginning and ending of the falling sequences,

the system always correctly detects the ‘Fall down’ in

the middle frames of every falling sequence. In ad-

dition, it should be pointed out that there are close

to none false positives, making the falling detections

extremely reliable. The same situation happens with

the action ‘Walk+Stop’ (004), where the person walks

before and after stopping below the camera.

The worst accuracy corresponds to the ‘Walk fast’

action (002). Here, the confusion appears with ‘Walk’

(000) and ‘Run’ (001), which can be expected since

the difference lies in the walking speed of the per-

son. Thus, if someone walks faster or slower than

the average the system might confuse this action with

3D Convolutional Neural Network for Falling Detection using Only Depth Information

595

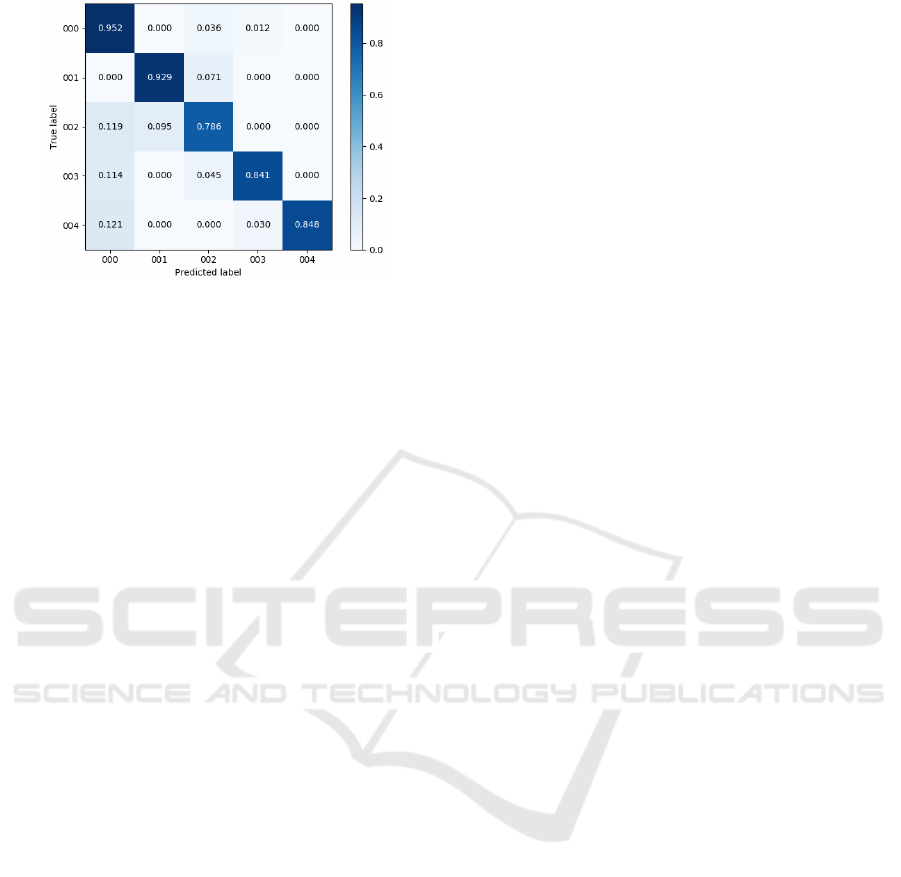

Figure 5: Confusion matrix of the 3D-CNN depth based

action recognition classiﬁcation proposal.

‘Run’ (001) or ‘Walk’ (000) respectively. The accu-

racy would improve signiﬁcantly by fusing the ac-

tions: ’Walk’, and ’Walk fast’ or ’Walk fast’ and

’Run’ in the same class, but since this work is focused

on falling detection, specially for old people, and it

has been proved that the walking speed is strongly

related with the general health of people (Sundelin

et al., 2015), we have considered that it is important

differentiating between the three classes.

The results obtained during the test stage allows

validating the proposal, showing a high accuracy de-

spite the complicated task. In particular, the fact that

the system always detect a fall in falling sequences

and that there are almost no false positives, make this

system a great option for falling detection.

In addition, since the only information used by the

network comes from depth maps, this proposal pro-

tects people privacy, not intruding in their daily life.

Also, other actions which may be useful to recog-

nize are detected by the network with a high accuracy,

complementing the main function of the system.

Overall, the proposal achieves great results taking

into account the difﬁculty introduced by the use of

overhead position as observation point of view, and

the use of only depth information to complete the pri-

vacy protection of the surveillance system.

5 CONCLUSIONS

This paper propose a fall detection system based on a

3D Convolutional Neural Network (3D-CNN) which

employs convolutions over spatial and temporal di-

mensions to predict the action in the scene from

only depth information acquired by a RGB-D sensor

placed in an overhead conﬁguration.

The use of depth maps and the top-view position

of the sensor make it possible to preserve the privacy

of the people, since their identity cannot be recog-

nized. This fact is crucial due to the application scope,

where some privacy requirements may be demanded

(private houses, nursing homes, hospitals, etc.)

The evaluation of the system has been carried out

using the GOTPD3 dataset, provided by the GEIN-

TRA research group, that has been available to other

researches. The results allow us to validate the pro-

posal with a 84% accuracy in falling detection (being

most of the errors due to frames in which the person

appears walking in sequences labeled as ‘Fall down’).

Moreover, considering the results for the whole se-

quences (not for each 30-frame window), in the 100%

of the falling sequences the falling down action is cor-

rectly detected in more than one 30-frame window.

It is important to note that these results are achieved

with close to none false positives. The system also

predicts other actions which may be interesting to

recognize, such as walking or running, with an ac-

curacy over 90% for those two actions and around

80% for the others. In addition, the proposal can work

in real scenarios, since it allows obtaining results for

each 30-frames video segment, hence processing se-

quences that includes different actions.

The fall detection is an open research line where

people are still working on with multiple fronts such

as the reduction of false positives through different

techniques, the increase of generalization during the

training phase (so it can be applied in different envi-

ronments with a higher accuracy) and the implemen-

tation and test in real environments.

Besides, another line of future work is the time

labeling of the dataset, in order to have information

about the starting and ending times for each action in

the available sequences, which will allow improving

the experimental evaluation.

ACKNOWLEDGEMENTS

This work has been supported by the Spanish

Ministry of Economy and Competitiveness under

project HEIMDAL-UAH (TIN2016-75982-C2-1-R),

by the University of Alcal

a under project ACERCA

(CCG2018/EXP-029) and under the Initiation to Re-

search Grant.

REFERENCES

Amin, M. G., Zhang, Y. D., Ahmad, F., and Ho, K. D.

(2016). Radar signal processing for elderly fall detec-

tion: The future for in-home monitoring. IEEE Signal

Processing Magazine, 33(2):71–80.

VISAPP 2020 - 15th International Conference on Computer Vision Theory and Applications

596

Ballinger, C. and Payne, S. (2002). The construction of the

risk of falling among and by older people. Ageing &

Society, 22(3):305–324.

Banerjee, T., Enayati, M., Keller, J. M., Skubic, M.,

Popescu, M., and Rantz, M. (2014). Monitoring pa-

tients in hospital beds using unobtrusive depth sen-

sors. In 2014 36th Annual International Conf. of the

IEEE Engineering in Medicine and Biology Society,

pages 5904–5907. IEEE.

Baptista-R

ıos, M., Mart

ınez-Garc

ıa, C., Losada-Guti

errez,

C., and Marr

on-Romera, M. (2016). Human activity

monitoring for falling detection. a realistic framework.

In 2016 International Conf. on Indoor Positioning and

Indoor Navigation (IPIN), pages 1–7.

Blamire, P. A. (1996). The inﬂuence of relative sample size

in training artiﬁcial neural networks. International

Journal of Remote Sensing, 17(1):223–230.

Chou, E., Tan, M., Zou, C., Guo, M., Haque, A., Milstein,

A., and Fei-Fei, L. (2018). Privacy-preserving action

recognition for smart hospitals using low-resolution

depth images. arXiv preprint arXiv:1811.09950.

De Miguel, K., Brunete, A., Hernando, M., and Gambao, E.

(2017). Home camera-based fall detection system for

the elderly. Sensors, 17(12).

dipakkr (2018). 3d-cnn for action recogni-

tion. https://github.com/dipakkr/3d-cnn-action-

recognition.

Gia, T. N., Sarker, V. K., Tcarenko, I., Rahmani, A. M.,

Westerlund, T., Liljeberg, P., and Tenhunen, H.

(2018). Energy efﬁcient wearable sensor node for iot-

based fall detection systems. Microprocessors and Mi-

crosystems, 56:34–46.

Ji, S., Xu, W., Yang, M., and Yu, K. (2012). 3d convolu-

tional neural networks for human action recognition.

IEEE transactions on pattern analysis and machine

intelligence, 35(1):221–231.

Kingma, D. P. and Ba, J. (2014). Adam: A method for

stochastic optimization. CoRR, abs/1412.6980.

Lapierre, N., Neubauer, N., Miguel-Cruz, A., Rincon, A. R.,

Liu, L., and Rousseau, J. (2018). The state of knowl-

edge on technologies and their use for fall detection:

A scoping review. International journal of medical

informatics, 111:58–71.

Liang, B. and Zheng, L. (2015). A survey on human action

recognition using depth sensors. In 2015 International

Conf. on Digital Image Computing: Techniques and

Applications (DICTA), pages 1–8.

Lin, S., Liu, A., Hsu, T., and Fu, L. (2015). Representative

body points on top-view depth sequences for daily ac-

tivity recognition. In 2015 IEEE International Conf.

on Systems, Man, and Cybernetics, pages 2968–2973.

Luna, C. A., Losada-Gutierrez, C., Fuentes-Jimenez,

D., Fernandez-Rincon, A., Mazo, M., and Macias-

Guarasa, J. (2017). Robust people detection using

depth information from an overhead time-of-ﬂight

camera. Expert Systems with Applications, 71:240–

256.

Macias-Guarasa, J., Losada-Gutierrez, C., and Fuentes-

Jimenez, D. (2018). GEINTRA Overhead ToF Peo-

ple Detection 3 (GOTPD3) database: Human activ-

ity detection. Available online: http:// www.geintra-

uah.org/datasets/gotpd3 (Last accessed: 09-Oct-2019.

Mathon, C., Beaucamp, F., Roca, F., Chassagne, P.,

Thevenon, A., and Puisieux, F. (2017). Post-fall syn-

drome: Proﬁle and outcomes. Annals of Physical and

Rehabilitation Medicine, 60:e50–e51.

Megavannan, V., Agarwal, B., and Babu, R. V. (2012). Hu-

man action recognition using depth maps. In 2012

International Conf. on Signal Processing and Com-

munications (SPCOM), pages 1–5.

Mubashir, M., Shao, L., and Seed, L. (2013). A survey on

fall detection: Principles and approaches. Neurocom-

puting, 100:144–152.

Organization, W. H. (2012). Good health adds life to years.

global brief for world health day 2012. 2012.

Ozcan, K. and Velipasalar, S. (2016). Wearable camera-

and accelerometer-based fall detection on portable de-

vices. IEEE Embedded Systems Letters, 8(1):6–9.

Pierleoni, P., Belli, A., Palma, L., Pellegrini, M., Pernini, L.,

and Valenti, S. (2015). A high reliability wearable de-

vice for elderly fall detection. IEEE Sensors Journal,

15(8):4544–4553.

Rougier, C., Auvinet, E., Rousseau, J., Mignotte, M.,

and Meunier, J. (2011). Fall detection from depth

map video sequences. In International Conf. on

smart homes and health telematics, pages 121–128.

Springer.

Sundelin, T., Karshikoff, B., Axelsson, E., H

oglund, C. O.,

Lekander, M., and Axelsson, J. (2015). Sick man

walking: Perception of health status from body mo-

tion. Brain, Behavior, and Immunity, 48:53 – 56.

Tang-Wei Hsu, Yu-Huan Yang, Tso-Hsin Yeh, An-Sheng

Liu, Li-Chen Fu, and Yi-Chong Zeng (2016). Pri-

vacy free indoor action detection system using top-

view depth camera based on key-poses. In 2016 IEEE

International Conf. on Systems, Man, and Cybernetics

(SMC), pages 004058–004063.

Wang, P., Li, W., Gao, Z., Tang, C., and Ogunbona, P. O.

(2018). Depth pooling based large-scale 3-d action

recognition with convolutional neural networks. IEEE

Transactions on Multimedia, 20(5):1051–1061.

Wang, P., Wang, S., Gao, Z., Hou, Y., and Li, W. (2017).

Structured images for rgb-d action recognition. In

Proceedings of the IEEE International Conf. on Com-

puter Vision, pages 1005–1014.

Wu, F., Zhao, H., Zhao, Y., and Zhong, H. (2015). De-

velopment of a wearable-sensor-based fall detection

system. Int. J. Telemedicine Appl., 2015:2:2–2:2.

Yang, X., Zhang, C., and Tian, Y. (2012). Recognizing ac-

tions using depth motion maps-based histograms of

oriented gradients. In Proceedings of the 20th ACM

international Conf. on Multimedia, pages 1057–1060.

ACM.

Zerrouki, N., Harrou, F., Sun, Y., and Houacine, A.

(2016). Accelerometer and camera-based strategy for

improved human fall detection. Journal of Medical

Systems, 40(12):284.

3D Convolutional Neural Network for Falling Detection using Only Depth Information

597
