A New Programming Environment for Teaching Secure

C Programming and Assessment

Dieter Pawelczak

Institute of Software Engineering, University of the Bundeswehr München, Germany

Keywords: Tool based Learning, Teaching Programming, Secure Programming, Programming Environments, Automated

Assessment System, Computer-supported Collaborative Learning, Computer Science Education.

Abstract: Learning programming is a barrier for many students enrolled in engineering degree programs. In addition,

students need to develop an awareness of security aspects in programming, especially with respect to

robustness and correctness. Professional integrated development environments might overwhelm students

with many options and features and distract them from learning. In order to lower the burden for novice

programmers, we developed the Virtual-C IDE, a programming environment designed for programming

beginners, which embeds some rules of the CERT secure C coding standard, provides memory visualizations

to foster the students’ understanding of the memory model of C and integrates a testing framework that enables

programming exercises and automated assessment. The paper shows the benefits of learning and teaching

with the Virtual-C IDE, describes our experience with integrating secure coding in an introductory course and

presents the students’ evaluation of that course.

1 INTRODUCTION

Many students enrolled in our electrical engineering

bachelor’s degree program struggle with learning

programming. Independent from our university, these

difficulties are widespread and range from lack of un-

derstanding syntax to conceptual and strategic mis-

conceptions (Qian and Lehman, 2017). In addition,

new challenges arrive with our emergent technolo-

gies: learning programming requires addressing secu-

rity aspects (Tabassum et al., 2018).

Although modern integrated development

environments (IDE) support software developers

with template-based programming and code

completion (Vihavainen et al., 2014), the high

number of features, menus and dialogs in those IDEs

might overburden students and divert effort from the

actual learning target (Dillon et al., 2012).

Furthermore, modern IDEs print many notifications

on errors or give advice for alternations during the

editing, which might irritate novice programmers.

To lower the burden for our students we

developed a programming environment called the

https://orcid.org/0000-0002-1742-2520

The IDE is freely available for Windows, macOS and

Linux at: https://sites.google.com/site/virtualcide/

Virtual-C IDE

, which runs C programs in a virtual

machine, allows to easily include secure program-

ming aspects in our introductory course, and supports

teaching by visualizing many concepts during the

execution of a C program. The main requirements for

developing a new IDE were:

 a single installation without any configuration,

 same behavior on different computer systems,

 easy to use for students and teachers,

 support for secure programming aspects,

 integration of exercises with direct feedback

for individual learning,

 automatic assessment for lab work,

 support for collaborative learning,

 available for standard computer platforms.

Other aspects for creating our own programming en-

vironment were changes in license models of existing

professional IDEs as well as platform specific beha-

viour or fast-moving modifications from one version

to the next version of an IDE.

We have been using the Virtual-C IDE in the

introductory programming course for more than 5

years now and are continuously developing it further.

374

Pawelczak, D.

A New Programming Environment for Teaching Secure C Programming and Assessment.

DOI: 10.5220/0009354003740381

In Proceedings of the 12th International Conference on Computer Supported Education (CSEDU 2020) - Volume 1, pages 374-381

ISBN: 978-989-758-417-6

This paper discusses related work (Section 2), the be-

nefits for teaching and learning (Section 3), a short

evaluation of the IDE and the new course design with

respect to secure C coding (Section 4) and concludes

with an outlook (Section 5).

2 RELATED WORK

2.1 Educational Programming

Environments

Many educational programming environments have

evolved to counteract the difficulties for program-

ming beginners. The most common are BlueJ, Alice

and Scratch

. BlueJ

allows users to write Java code

by guiding the programmer with a model of the pro-

gram structure; thus, focusing on the modelling as-

pect during learning programming. Alice and Scratch

are block-based and more designed for children’s

education. Block-based programming is performed

visually by drag and drop of specific blocks and there-

fore does not require any knowledge about a language

syntax, which is a typical barrier for learning pro-

gramming (Lahtinen et al., 2005). Block-C incorpo-

rates this idea for an introductory C course: programs

can be dragged together on a block base, the resulting

functions can be exported to C program code, edited

and reversely translated back to blocks (Kyfonidis et

al., 2017). Although this concept sounds promising,

we prefer students to work with an IDE, which differs

not too much from available professional IDEs (com-

pare Vihavainen et al., 2014).

Another interesting project is ICE, an automated

tool for teaching advanced programming with an

integrated assessment system, which provides quite

similar functionality compared to the Virtual-C IDE,

yet with the focus on advanced topics (Gonzalez,

2017). Other introductory courses use professional

IDEs configured or modified by plugins. An

extensive overview is found in (Luxton-Reilly, 2018).

2.2 Integration of Secure Coding Rules

Since the turn of the millennium, the ACM (Associa-

tion for Computing Machinery) has been calling for

computer science education to be adapted to secure

software development. Usually, this takes place in ad-

vanced courses such as IT security or secure software

engineering (ACM, 2016). Due to the high impor-

tance of the topic (Williams et al., 2014) suggest

https://www.alice.org/

https://scratch.mit.edu

introducing security aspects already in introductory

programming courses. These aspects mainly focus on

robustness and correctness. It is important to teach

students programming with security awareness from

the beginning, because it is difficult to adapt bad ha-

bits or to eliminate misunderstandings later. In ad-

dition, many textbooks on programming provide little

information on security or may even contain vulner-

abilities (Zhu et al., 2013). In addition, more and more

compilers print warnings about security issues, so stu-

dents need to learn how to deal with them. ASIDE -

an eclipse plugin for secure coding in Java addresses

this subject by explaining such compiler warnings

and showing proper solutions to fix the code (Zhu et

al., 2013).

Of course, dealing with security aspects in the

introductory programming course cannot replace an

advanced course on IT security (Bandi et al., 2019).

The security subjects have to be carefully chosen, to

fit in with the scope of known concepts for the novice

programmers. Although previous research reports on

successful integration of secure coding into introduc-

tory courses (Williams et al., 2014), even without

changing the workload of the students (Bandi et al.,

2019), we propose that some security issues might

even help with understanding the execution of a

computer program.

3 BENEFITS OF THE IDE

3.1 Benefits for Teaching

3.1.1 Usability and Scalability

The Virtual-C IDE starts with a clearly arranged set

of windows for editing and debugging C programs.

Each view has a zoom-in and zoom-out option and is

freely locatable to easily fit to different video beamer

solutions. Window arrangements can be stored for

different applications or varying lecture rooms.

Compiler, linker and debugger are configured for

instant debugging – thus a lecturer can directly debug

a correct C program without the need for a project

configuration. While for many examples in introduc-

tory programming a single source file is sufficient, the

Virtual-C IDE also supports projects with multiple

files. We use the IDE for beginners and advanced pro-

gramming courses, as well as for the compiler con-

struction course. Therefore, the compiler generators

flex and bison can be directly integrated. The IDE

https://bluej.org

A New Programming Environment for Teaching Secure C Programming and Assessment

375

supports platform independent ISO C18, including

C18 threads and provides a subset of the Simple

DirectMedia Layer to work with hardware access

(graphics, keyboard and mouse events). Therefore, it

offers a wide variety of possibilities for course design.

3.1.2 Memory Visualization

Understanding different memory segment types is far

more important for learning C as compared to other

programming languages like e.g. Java or Python,

which hide low level memory operations from the

programmer or provide a garbage collector.

Figure 1: Examples of memory visualization.

During debugging, the memory is visualized in the

IDE with a colour scheme for memory segments;

(Figure 1) shows a code snippet in which a variety of

different memory segments are addressed through

pointers: light green/ yellow marks visible variables

on the stack (e.g. s), whereas valid stack in general is

shown in yellow. This applies to sIn (Figure 1)

which is passed as a parameter. Invalid memory is

painted in red, constant memory in blue (contents of

sp) memory on the heap in purple (contents of shp)

and memory in the data segment in green, which

applies to global variables like e.g. stdin (not

shown in Figure 1).

3.1.3 Secure Programming

In addition to the compiler, a static code analyser is

enabled per default, which currently checks about 17

rules from the SEI CERT C Coding Standard (Cert,

2016) and is extended with every new version. As the

usage of the static code analyser is optional, the

lecturer can show insecure code first and then adapt it

https://code.google.com/p/googletest/

to fit the requirements from (Cert, 2016) by enabling

the checks, which are reported as warnings (compare

Figure 2).

Figure 2: Security warning example for STR31-C and

FIO47-C (Cert, 2016).

3.1.4 Simple Exercises

The Virtual-C IDE integrates a testing framework

which allows lecturers to hand out simple exercises to

their students. The testing framework is adapted from

the Google C++ Testing Framework

for C and pro-

vides additional test methods to simplify writing tests.

In contrast to standard software tests, randomized test

data in particular can be used to prevent students from

cheating in tests (compare e.g. Kratzke, 2019).

In addition to standard assertions, the testing

framework supports reference tests, which compare

the return value or output parameters of a function

under tests with a given reference function. Simple

I/O-tests stimulate the standard input and checks the

standard output against simple text content or regular

expressions. A unique feature of the Virtual-C IDE is,

that all functions of the program under test (PUT) are

linked dynamically. Thus, functions can be relinked

during the test in order to inject mock functions or to

test if functions are called with the right parameters.

Although the use of mock functions is common for

testing, mock functions are usually linked statically

Re-linking during the test is possible without any

modifications of the PUT as it runs in a virtual ma-

chine. Additionally for each test case, global variables

are re-linked dynamically, and the heap is reset in

order to provide a consistent test environment.

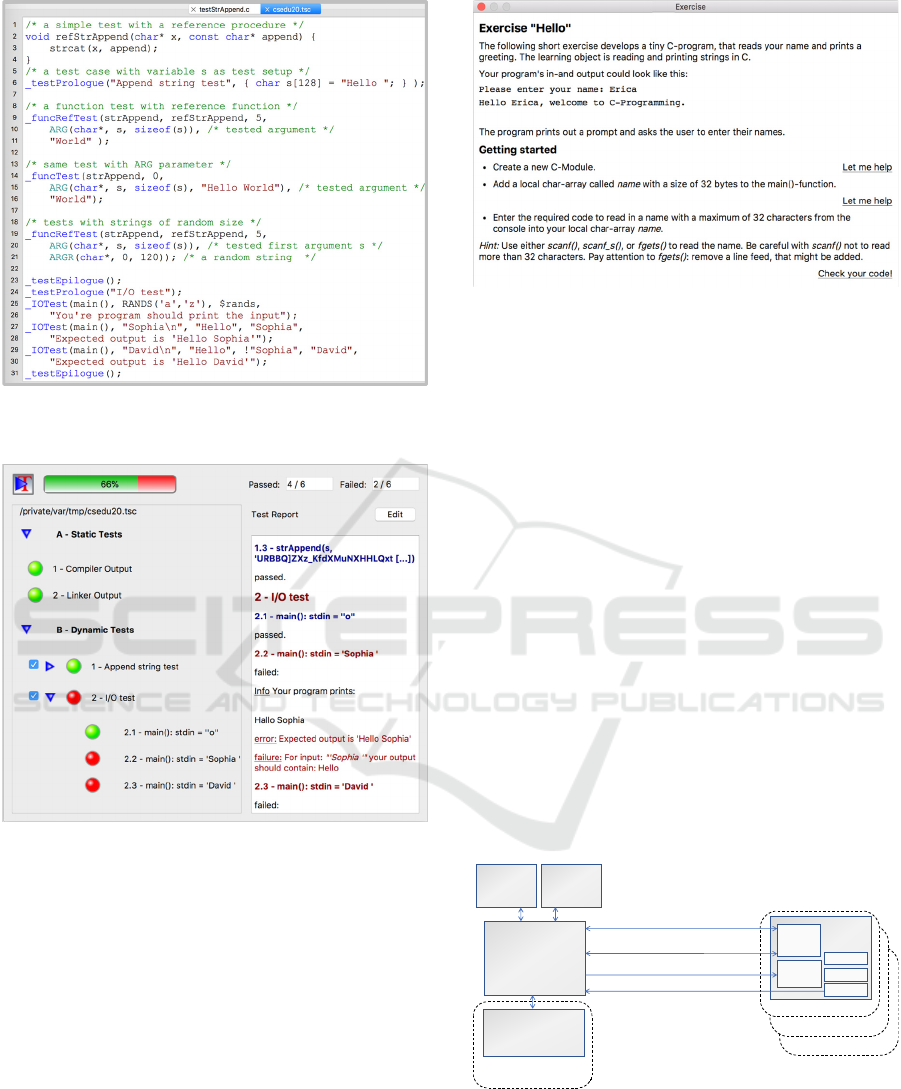

(Figure 3) shows the description of two test cases

with function and I/O tests; the exemplary result of

such a test run is depicted in (Figure 4).

Compare e.g. CMocka: https://cmocka.org

a) Stack visualization of function foo() at the return statement

b) Corresponding code snippet

CSEDU 2020 - 12th International Conference on Computer Supported Education

376

Figure 3: Example for two test cases with reference

function and I/O tests.

Figure 4: Exemplary test report for the test cases described

in (Figure 3).

The ARG macro defines arguments for testing. The

macro can either specify the expected result or

address the result from a reference function, as for

instance used (in line 10, Figure 3) with the reference

function refStrAppend(). The ARGR macro and

the RANDS macro generate random data. The !-oper-

ator in the I/O tests defines strings or regular

expressions, that shall not match the output. Other-

wise, students can simply print all of the expected

output and pass without providing the requested

functionality (compare e.g. Kratzke, 2019).

Beyond simple tests, the testing framework can

access a lot of statistical information about the PUT,

e.g.: loop depth, number of execution steps per test,

number of function calls, etc.

Figure 5: Excerpt from an example exercise dialog.

3.1.5 Complex Exercises and Assessment

The Virtual-C IDE is equipped with a web interface,

that allows exercises from a web server to be down-

loaded into the IDE. While simple test files require a

separate description, the web interface enables the

combination of an exercise description and the exe-

cution of automated tests in a single view. (Figure 5)

shows an example, which guides the user step by step

through an exercise. Almost all functions of the IDE

can be automated through the web interface, so that

exercises can provide assistance to the students such

as the “Let me help”-link (Figure 5).

We use the web interface in our introductory

course to embed the programming assignments

directly into the IDE: the students log in to the

assignments from within the Virtual-C IDE, solve

their tasks and get feedback on their solutions. Once

registered the students can access their course

checklist and select their exercises for the

assignments. The web server is responsible for the

user management.

Figure 6: Automated assessments by integrating the

Virtual-C IDE into a web environment.

The IDE runs tests on the students’ source files and

loads the sources to the server. This allows students

to interrupt their work and to continue later, (compare

Student

Tea c h er

WebServer

Virtual‐C

IDE

Userdependentchecklist

load&store

Usermanagement,coursechecklist

load&store

Course/User

Management

Downloadexercisesandtestfiles

Uploadsourcefiles

Plagiarism

Detection

Code

Quality

Analysis

Web

View

Tes t

View

Editor

Compiler

Debugger

A New Programming Environment for Teaching Secure C Programming and Assessment

377

Figure 6). We also use the uploaded files to check for

plagiarism. Advantages of an automatic plagiarism

detection system are that teachers are released from

manually checking the sources and that each student

is treated equally. A disadvantage of such a system is

that it prevents students from sharing or discussing

their solutions. Details about the plagiarism detection

system are found in (Pawelczak, 2018).

3.2 Benefits for Learning

3.2.1 Focus on Learning Programming

In contrast to professional IDEs, which focus on fast

development and teamwork, the programming envi-

ronment provides a pure and intuitive interface for

learning programming. A program skeleton helps stu-

dents to start writing their first programs. The IDE

does not provide autocompletion or automatic error

fixes and checks for errors only, when the user com-

piles or debugs the program in order to give the stu-

dents control on their individual workflow.

On the other hand, students get everything they

need by installing the Virtual-C IDE: there is no need

to install compilers, plugins, or to configure projects

etc. Programs run in a virtual machine; thus, all

programs behave equally independent of the

platform, the IDE runs on. Students therefore can

concentrate on the C programming language and do

not need to take platform specific concepts into

account.

3.2.2 Individual Time Management

Students can work on exercises or tests independent

of the course hours, as the automatic generated test

reports provide feedback to them. We often experi-

ence that students access our exercises on the server

once more before the course examinations.

3.2.3 Competition and Collaboration

Automated assessment systems decide on students’

solutions in a rather binary way, i.e. a certain number

of tests must pass before the assignment is marked as

passed. Unfortunately, even clumsy solutions often

pass, as the tests are primarily based on input-output-

behaviour and less on performance characteristics.

Although the IDE supports performance tests, such

kind of tests are elaborate to develop and teachers can

usually assess a student’s solution much better

(compare Pieterse and Liebenberg, 2017). So ideally,

we should combine the automatic assessment with a

teacher’s review. With this combination, we expe-

rienced that students are often sufficiently content

when they pass the assignment and are not willing to

accept change proposals to their programs by the

teachers. Besides, we also found out, that students

spend more time on their programming assignment,

when they notice, that their fellow students get better

results. In our case, the programming assignments re-

port the results in percent and whereas above 80 % is

sufficient to pass, some students still want to reach

100 %, because they see the automatic assessment

system more as a computer game and want to receive

the best results.

In order to utilize the competitive aspects on the

one hand and on the other hand not to hinder weaker

students, we extended our assessment system with a

code quality analysis module (compare Figure 6),

which is located on the server. This module runs the

compiler and the static code analysis first, and then

executes the students’ program with a given set of test

data. During the run, it monitors the execution steps

for each function and checks the memory allocation

on the heap. From this data collection it generates a

report on the quality of the program with respect to

coding style, security (static code analysis), efficien-

cy (required execution steps for a given input, cyclo-

matic complexity) and memory management. In

addition to the report, the metrics are stored per stu-

dent on a function basis. This allows links to be in-

cluded into the report to solutions of other students

with a better quality (compare Figure 11 in the

appendix). We intend students to use this as an ex-

change platform and to foster the competition among

the students. To avoid a conflict with plagiarism, the

students must pass the plagiarism check once before

they can access the quality report.

4 EVALUATION

4.1 General Data

About 65 students enrol in the introductory course

each year. In addition to the standard course evalu-

ation, we asked our students in 2019 for their opinion

about the programming environment and secure C

coding. We received feedback from 45 students in

total. About 80 % of the students stated that they had

already gathered experience with programming and

programming environments before their studies.

Figure 7 gives an overview of the programming lan-

guages students encountered before enrolment to

university.

CSEDU 2020 - 12th International Conference on Computer Supported Education

378

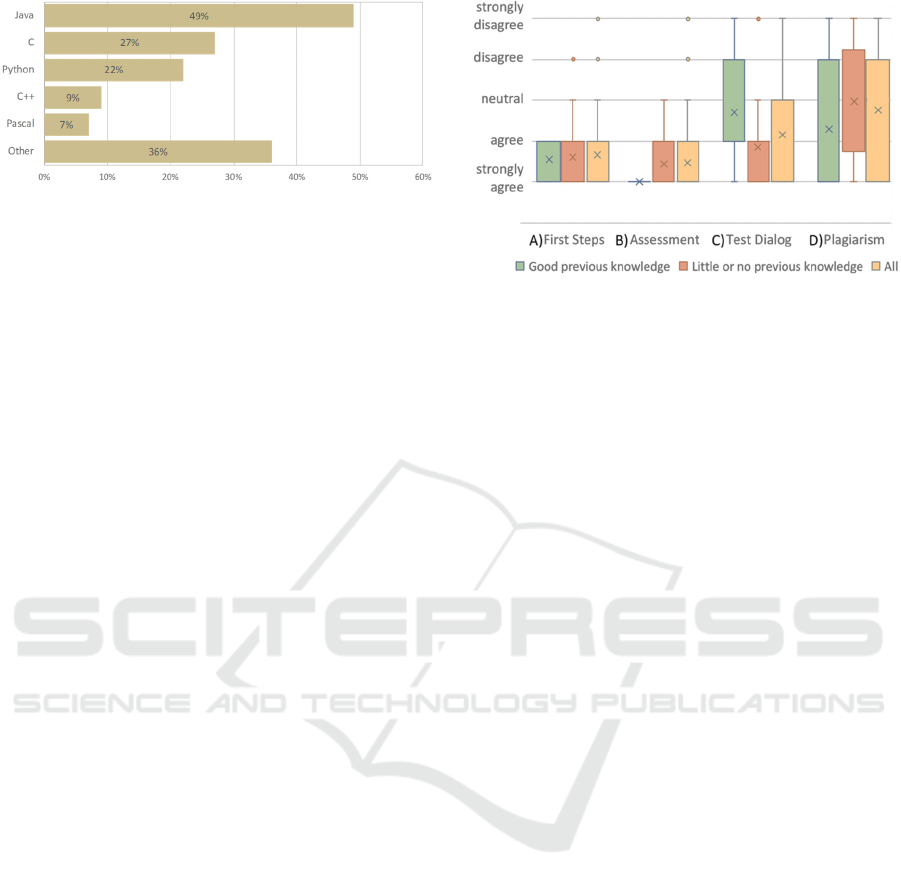

Figure 7: Knowledge of different programming language

before enrolment.

Although the percentage of students with previous

knowledge is higher compared to the years before,

only 16 % assessed themselves as skilled program-

mers before the course, while 58 % had little or no

previous knowledge. As the feedback from students

with only little experience in programming is parti-

cularly interesting, we divided our results into two

groups: 1. good previous knowledge and 2. little or no

previous knowledge.

4.2 Evaluation of the IDE

With respect to the programming environment we

asked our students to answer four questions on a 5

level Likert scale:

A) First steps in the programming environment

were generally easy.

B) I like the automated assessment system.

C) The test dialog helped to understand imple-

mentation errors.

D) The plagiarism check is useful, and its usage

should be extended.

The results from the students’ evaluation are shown

in (Figure 8). For the first two questions, the answers

did not vary much within the groups: About 87 %

agreed or strongly agreed that the first steps with the

programming environment were easy (Question A).

All students from group 1 strongly agreed that they

liked the automated assessment system. In total, 89 %

agreed on that (Question B). For students with little

or no previous knowledge about programming (group

2), the majority of this group agreed or strongly

agreed that the test dialog was helpful (Question C).

During the analysis of the students’ answers we found

an ambiguity in (Question C): students might answer

in a sense, that they solved their implementation

errors without the help of the test dialog, that they

made no implementation errors, or that the dialog was

not useful for them. This might explain the big devi-

ation for the answers from the experienced group 1.

Figure 8: Results from the students’ evaluation questions

A-D for the two groups and the whole class (Likert scale);

the “x” represents mean values and “o” outliners.

The highest diversity of answers was found in

(Question D) about the plagiarism checks. On the one

hand, some students with good programming skills

strongly appreciate them for the sake of justice, whilst

other students from the same group feel restricted by

their freedom. Over 70 % of this group disagreed on

using solutions from their fellow students, while in

group 2 about 54 % agreed on that. As stated before

(Section 3.2.3), we encourage students to look at

solutions from others as reading and understanding

them helps to develop better programming skills.

4.3 Evaluation of Secure Coding

Students gave us feedback with respect to secure

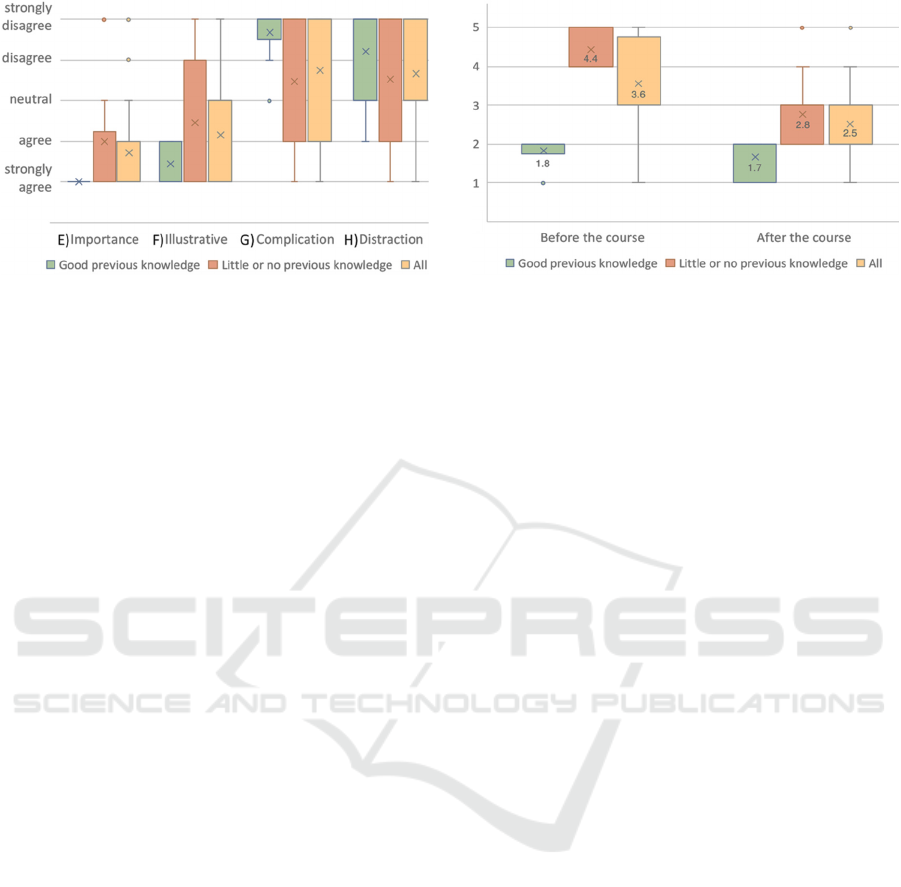

coding on the following four questions (Figure 9):

E) Course contents regarding secure coding are

very important.

F) Examples of security vulnerabilities deepens

my understanding how C works.

G) Course content regarding secure coding com-

plicate my understanding on C programming.

H) Compiler warnings on security issues are more

distracting.

Most students (83 %) were aware of the importance

of security aspects in the C programming (Question

E). Students with good programming knowledge

(group 1) all agreed that examples of security vulner-

abilities are helpful to explain how C programs are

executed (Question F). The answer of the group 2

show a big deviation in their answer. Of course,

knowledge on C and knowledge about possible

vulnerabilities are closely interwoven; knowing the

memory model of C allows to easily understand a

buffer overrun.

A New Programming Environment for Teaching Secure C Programming and Assessment

379

Figure 9: Results from the students’ evaluation questions

E-H for the two groups and the whole class (Likert scale);

the “x” represents mean values and “o” outliners.

About 27 % of group 2 disagreed with our proposal

that showing e.g. a buffer overrun helps to understand

the C memory model. Still, 67 % of that group agreed

with that. There is a big difference in answers be-

tween both groups with respect to (Question G).

While almost all students of group 1 disagreed that

additional course content about secure coding com-

plicates their understanding on C programming, about

33 % of the second group agreed. Some students even

state in their evaluation, that this is an add-on, they

have to learn for the examination. The answers to

(Question H) showed the biggest deviation in both

groups. Even some students from group 1 agreed that

warnings about security issues distracts them during

programming. Still, over 54 % of all students disa-

greed on this point. Asking the students about their

self-assessment before and after the course, group 2

declared the highest learning output: In average, they

estimated on a 5 level scale from 1 (excellent) to 5

(insufficient) their programming skills 1.6 grades

better (Figure 10).

Adding security aspects to our introductory

course had no directly measurable effect on the

overall examination results. Still, the results were not

inferior to the preceding examinations, although

additional subject matters were assessed.

5 CONCLUSION AND OUTLOOK

We have been using the Virtual-C IDE successfully

in our introductory C programming course for over

five years now. An important factor is the integration

of all course activities into a single tool: teaching with

live coding, exercises at home and automated assess-

ment of programming assignments.

Figure 10: Self-assessment in grades from 1 (excellent)

to 5 (insufficient) before and after the course; the “x”

represents mean values and “o” outliners.

Including secure coding into introductory courses is

challenging while it is doubtless necessary (Williams

et al., 2014). The latest integration of some rules of

the CERT C secure coding standard into the Virtual-

C IDE supports teaching security aspects. Although a

few students felt distracted by these additional

warnings, the majority of the students agreed that

showing vulnerabilities can illustrate the memory

model of C and help consolidate their knowledge on

programming. To enhance the automatic assessment

system, we added a quality report for the submitted

solutions that allows student to view and analyse

better rated solutions from their fellow students. Our

research at the Institute of Software Engineering is

focused on teaching methods and tools that help

students to better grasp programming concepts and to

build better programming skills with less burden. In

future we want to analyse the effects of the quality

report on students’ learning behaviour during the lab

work, and enhance the feedback of the compiler, the

test and the assessment system.

REFERENCES

ACM, 2016. Computer Engineering Curricula 2016 – Cur-

riculum Guidelines for Undergraduate Degree Pro-

grams in Computer Engineering. Tech. Rep., Assoc. for

Comp. Machinery (ACM)/ IEEE Comp. Society.

Bandi, A., Fellah, A., Bondalapati, H., 2019. Embedding

security concepts in introductory programming courses.

J. Comput. Sci. Coll. 34, 4 (April 2019), 78-89.

Cert, 2016. SEI CERT C Coding Standard: Rules for

Developing Safe, Reliable, and Secure Systems. Online

available: https://resources.sei.cmu.edu/library/asset-

view.cfm?assetID=454220 [accessed 2020-02-27]

Dillon, E., Anderson, M., Brown, M., 2012. Comparing

feature assistance between programming environments

CSEDU 2020 - 12th International Conference on Computer Supported Education

380

and their "effect" on novice programmers. J. Comput.

Sci. Coll. 27, 5 (May 2012), 69-77

Gonzalez, R., 2017. ICE: An Automated Tool for Teaching

Advanced C Programming. In Proc. Int. Conf. on

Educational Technologies, Sydney, Australia, 137-144

Kratzke, N., 2019. Smart Like a Fox: How Clever Students

Trick Dumb Automated Programming Assignment

Assessment Systems. In Proc. of the 11

Int. Conf. on

Computer Supported Education, SCITEPRESS

Kyfonidis, C., Moumoutzis, N., Christodoulakis, S., 2017.

Block-C: A block-based programming teaching tool to

facilitate introductory C programming courses. In IEEE

Global Eng. Educ. Conf. (EDUCON), Athens, 570-579.

Lahtinen, E., Ala-Mutka, K., Järvinen, H.-M., 2005. A

study of the difficulties of novice programmers.

SIGCSE Bull. 37, 3 (June 2005), 14-18

Luxton-Reilly, A., Simon, Albluwi, I., Becker, B. A.,

Giannakos, M., Kumar, A. N., Ott, L., Paterson, J.,

Scott, M. J., Sheard, J., Szabo. C., 2018. Introductory

programming: a systematic literature review. In Proc.

Companion of the 23

ACM Conf. on Innovation and

Technology in Comp. Science Educ. (ITiCSE Com-

panion), ACM, 55–106

Jansen, P., 2019. The TIOBE Quality Indicator - a prag-

matic way of measuring code quality. TIOBE Software

BV, Netherlands.

Pawelczak, D., 2018. Benefits and drawbacks of source

code plagiarism detection in engineering education. In

IEEE Global Eng. Educ. Conf. (EDUCON), Santa Cruz

de Tenerife, 1048-1056.

Pieterse, V., Liebenberg, J., 2017. Automatic vs manual

assessment of programming tasks. In Proc. of the 17

Koli Calling Int. Conf. on Computing Educ. Research

(Koli Calling '17), ACM, 193-194.

Qian, Y., &. Lehman, J., 2017. Students’ Misconceptions

and Other Difficulties in Introductory Programming: A

Literature Review. ACM Trans. Comput. Educ. 18 (1),

1-24

Tabassum, M., Watson, S., Chu, B., Richter-Lipford, H.

2018. Evaluating Two Methods for Integrating Secure

Programming Education. In Proc. of the 49

ACM

Technical Symp. on Comp. Science Educ. (SIGCSE

'18), ACM, 390-395.

Vihavainen, A., Helminen, J., Ihantola, P., 2014. How

novices tackle their first lines of code in an IDE:

analysis of programming session traces. In Proc. of the

Koli Calling Int. Conf. on Computing Educ.

Research (Koli Calling '14). ACM, 109-116.

Williams, K. A., Yuan, X., Yu, H., Bryant, K., 2014.

Teaching secure coding for beginning programmers. J.

Comput. Sci. Coll. 29, 5 (May 2015), 91–99

Zhu, J., Lipford-Richter, H., Chu, B., 2013. Interactive

support for secure programming education. In Proc. of

the 44

ACM technical Symp. on Comp. Science

education (SIGCSE '13), ACM, 687-692.

APPENDIX

Figure 11: Excerpt from an example quality report (adapted from Jansen, 2019).

A New Programming Environment for Teaching Secure C Programming and Assessment

381
