A Reinforcement Learning QoS Negotiation Model for IoT

Middleware

Itorobong S. Udoh and Gerald Kotonya

School of Computing and Communications, Lancaster University, Bailrigg, Lancaster, U.K.

Keywords: QoS, Internet of Things, Negotiation, IoT Services, Reinforcement Learning.

Abstract: A large number of heterogeneous and mobile devices interacting with each other, leading to the execution of

tasks with little human interference, characterizes the Internet of Things (IoT) ecosystem. This interaction

typically occurs in a service-oriented manner facilitated by an IoT middleware. The service provision

paradigm in the IoT dynamic environment requires a negotiation process to resolve Quality of Service (QoS)

contentions between heterogeneous devices with conflicting preferences. This paper proposes a negotiation

model that allows negotiating agents to dynamically adapt their strategies using a model-based reinforcement

learning as the QoS preferences evolve and the negotiation resources changes due to the changes in the

physical world. We use a simulated environment to illustrate the improvements that our proposed negotiation

model brings to the QoS negotiation process in a dynamic IoT environment.

1 INTRODUCTION

The IoT ecosystem emerges from a core of a

heterogeneous mix of several technologies. The

identification, sensing, communication and

middleware technologies form the fundamental

building blocks required to incorporate “intelligence”

into “things” (Patel and Patel, 2016). Several research

initiatives have structured these IoT enabling

technologies into n-layered technology architectures.

Most of the proposed technology architectural models

add more abstractions to the primary 3-layer

architecture, which consists of the

application/service, communication/network and

perception/physical layers as illustrated in Figure 1.

Alongside these layers, it is important to address

QoS management concerns to avoid situations that

may lead to serious problems especially in IoT

systems that are characterised by stringent QoS needs

such as embedded IoT medical devices and

autonomous vehicle control systems. Beyond these

are many IoT systems for which providing best-effort

QoS may not be adequate for the successful operation

of such systems.

Guaranteeing the QoS requirements demands that

all the layers in the IoT architecture provide both

effective and efficient QoS management strategies

(Duan, Chen and Xing, 2011). A recent survey by

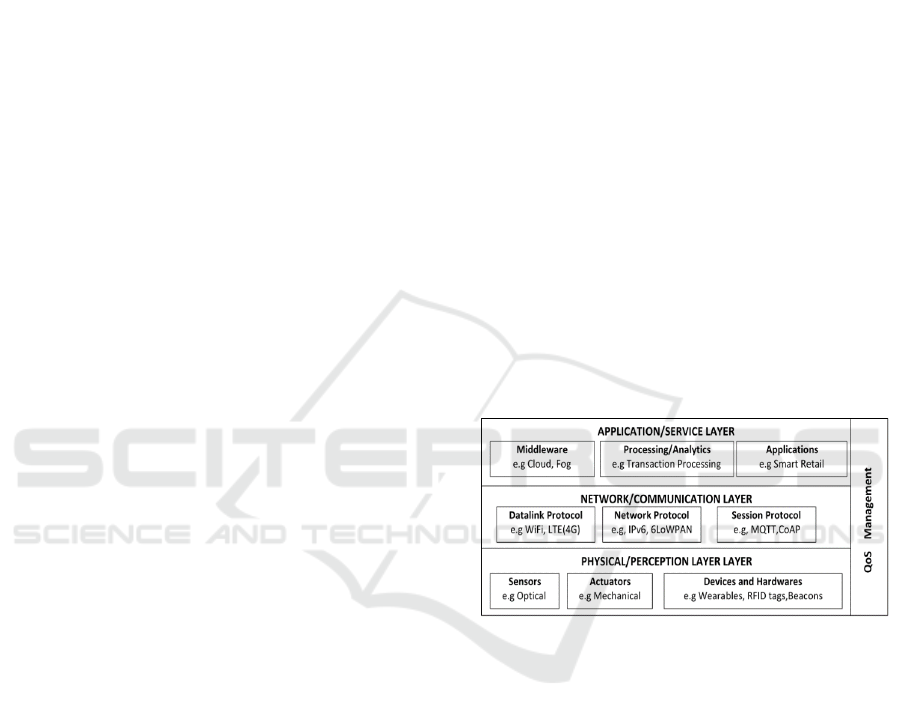

Figure 1: The IoT technology layer.

White, Nallur and Clarke (2017) shows that the

current QoS research initiatives largely focuses on the

perception/physical and communication/network

layers in the IoT architecture with minimal attention

paid to the application/service layer. According to the

authors, the application/service layer accounts for

only 13 per cent of all the published works that

examine the QoS in IoT.

This paper focuses on the QoS in the

application/service layer. Given that the

functionalities of the interconnected devices in IoT

can be provided as a service, this layer provides the

framework that allows these devices to interact with

each other in a service-oriented manner (Thoma,

Meyer, Spenser, Meissner and Braun, 2012). The IoT

middleware, a key technology in this layer provides

both functional services (e.g service abstraction,

Udoh, I. and Kotonya, G.

A Reinforcement Learning QoS Negotiation Model for IoT Middleware.

DOI: 10.5220/0009350102050212

In Proceedings of the 5th International Conference on Internet of Things, Big Data and Security (IoTBDS 2020), pages 205-212

ISBN: 978-989-758-426-8

205

discovery, composition and semantic

interoperability) and non-functional support (e.g QoS

negotiation and monitoring) (Razzaque, Milojevic-

Jevric, Palade and Clarke, 2015).

QoS has been identified as a pivotal element that

must be considered in IoT middleware in order to

provide useful IoT services to end-user applications

and actuators in critical IoT infrastructures. As IoT

becomes increasingly dynamic, due to the changes in

the physical world, there have been growing concerns

about the best way to ensure QoS. As service

consumers with varied QoS requirements (e.g hard

QoS and soft QoS) interact with service providers

with different QoS policy-driven behaviours (e.g

energy conscious and resource-conscious), in a

dynamic environment (e.g high resources and low

resources), it is important to provide a mechanism

that allows service providers and consumers with

different QoS requirements and expectations to reach

a mutually agreeable QoS resolution.

This paper presents a QoS negotiation model that

uses reinforcement learning to reach a QoS agreement

in an IoT dynamic environment. Considering the

importance of QoS negotiation in IoT middleware,

this paper presents related works in Section II,

followed by the description of the negotiation

environment, main assumptions and components of

the QoS model. Section IV models the QoS

negotiation process and section V provides details of

the reinforcement learning-based QoS solution.

While Section VI describes the experimental setup

and the evaluation of the simulation results, section

VII summarizes the paper and discusses future

research directions.

2 RELATED WORKS

Negotiation is becoming an increasingly popular

mechanism in maintaining QoS in IoT. Current

negotiation approaches use software agents for the

formation of Service Level Agreement (SLA)

between service consumer and providers in IoT (Bala

and Chishti, 2017). SLA-based negotiation is an

important mechanism to manage the variety of

requirements that characterise the IoT environment.

Ghumman, Schill and Lassig (2016) designed a flip-

flop negotiation strategy using the concession

extrapolation and 3D utility for generation of SLA.

The proposed model is useful in applications where

time is a critical resource during negotiation as an

agreement is reached quickly. However, this

approach is characterised with a low social

welfare(the sum of the utility gained by each agent)

as each negotiating participant reduces their utility

until the contention is resolved. Zheng, Martin,

Brohman and Xu (2014) used game theory to resolve

QoS contention between IoT devices and

applications. This approach demonstrates a good

balance between success rate and social welfare.

However, it ignores the changes that may occur in the

negotiating environment as it only considers the

negotiating participant's action.

Alanezi and Mishra (2018) allowed negotiating

parties to define their privacy requirements. while this

QoS solution satisfies the privacy requirements of the

negotiating participants, it is difficult for the

negotiation model to be used in multi-parameter

scenarios. Li and Clarke (2019) designed a QoS

model that integrates a mixed negotiation strategy

with the WS-Agreement Negotiation protocol for IoT

service providers and consumers with intersected

negotiation space. The authors considered the

domain-specific properties of IoT services in their

approach. However, in a multi-attribute negotiation

scenario, the adopted negotiation model increases the

overhead time.

Several QoS negotiation mechanisms have been

proposed for web service-oriented systems such as

the works of Zulkerine and Martin (2011) and Al-

Aaidroos, Jailani and Mukhtar, (2011). However, due

to several differences between web services and IoT

services, web service negotiation methods may not

be able to address the idiosyncrasies of IoT. For

instance, resource-constrained and mobile devices

provide IoT services, while stationary data-centres

with immense computing capabilities usually host

traditional web services. Thus, QoS parameters in

web service systems are relatively stable and are not

affected by changes that might occur in the real

world, unlike the IoT ecosystem that is highly

dynamic and characterised with uncertainties.

Given the dynamism of the negotiating

environment of IoT, we proposed a QoS negotiation

model that uses reinforcement learning and software

agents to generate SLA. The idea of using

reinforcement learning for QoS negotiation has been

explored in the telecommunication domain. For

example, Pouyllau and Carofiglio (2013) used

reinforcement learning to find a QoS guaranteed path

in a network that satisfies the QoS requirements and

maximizes the long term goals. While their focus is

on a network federation environment, our approach is

directed towards the IoT middleware. Using

reinforcement learning, our approach allows agents to

learn how to negotiate by choosing the appropriate

negotiating strategy at each stage of the negotiation

process based on the changes observed in the

IoTBDS 2020 - 5th International Conference on Internet of Things, Big Data and Security

206

negotiation environment and the agent’s opponent

offer. This approach tends to lead to a negotiation

process in which an agreement is found before the

deadline and offers a better balance between success

rate and social welfare compared to other existing

approaches.

3 QoS NEGOTIATION IN IoT

MIDDLEWARE

The primary goal of this paper is to design a

negotiation model that addresses the QoS contention

in a dynamic environment. In order to do this, It is

important we describe the environment in the

middleware which the negotiation process takes

place. The negotiation environment is characterized

by the following:

(1) The environment contains software agents that

represent IoT service providers and consumers. The

service providers are IoT devices that provide sensing

capabilities while the service consumers are IoT

devices that provide actuation capabilities or end-user

applications that provides an interface through which

an IoT service can be accessed.

(2) The agents negotiate over a set of negotiable

QoS parameters e.g response time and availability

(3) The environment is dynamic in nature as the

QoS parameters profile, negotiation deadline and

negotiation resources(e.g. CPU time and memory

allocation) could change due to changes that may

occur in the physical world. For example, the battery

of an IoT device running low can automatically

change the QoS parameters profile and an increased

workload on the CPU of the IoT edge node can

change the CPU time for a negotiation process.

(4) The environment is characterized by some

uncertainties as agents do not have complete

information about the state transitions in the

environment and the preferences of other agents.

(5) Agents can only observe actions taken

previously by other agents during the negotiation

process and the negotiation deadline.

Having described the negotiation environment,

we now focus our attention on the underlying

assumptions our QoS negotiation model is based on

Assumption1 (Utility function-based offers).

Agents take turns in a making offer in each round in

the set {R = 0,1…R

deadline

}.An offer contains an n

number of negotiable QoS parameters and each QoS

parameter can take a value of (



) within its range of

permissible values ( 





... 





) in the

QoS profile. We adopted the microeconomics utility

function described in Besanko and Braeutigam

(2010) for the agents to generate offers. To model the

non-linear changes associated with the QoS

parameters of IoT devices, the negotiating agents use

the general exponential function to map each QoS

parameter value to a utility value (



(



)) as seen in

(1):









)







×(





−



)





(







−1

)



where 



is a real number (0≤ 



≤1)

With the utility value of each parameter defined,

we assume that the utility of each of the QoS

parameter is linearly additive. Thus the utility value

of an offer can be defined as the weighted sum of the

individual utility as in (2):

U(s) =

∑





×



(



)





(2)

where 



= normalized weight for each QoS

parameter (

∑







=1)

Based on equation (2), an agent reserved offer is the

sum of the utility value derived from 





and an

agent preferred offer is the sum of the utility value

derived from 





Assumption 2 (Difference in Preference). We

assume agents have different, sometimes opposite

preferences over QoS parameters and pursue their

self-interests.

Assumption 3(Dynamic and Unknown Agreement

Zone ). For all negotiation sessions, there exists an

agreement zone which can change during the

negotiation process and the agents are unaware of its

location or presence.

Assumption 4 (Termination of Negotiation). The

negotiation process terminates only when an

agreement is found or the deadline elapses as agents

are not permitted to withdraw from the negotiation

process.

Now that the assumptions have been highlighted,

the main components of the proposed model are

described below

 QoS parameter: These are the non-

functional attributes of an IoT service over

which agents negotiate over. Agents can

negotiate over more than one attributes in a

negotiation session;

 Negotiation Protocol: This specifies the set

of rules that characterise the interaction

between agents (Parkin, Kuo and Brooke,

A Reinforcement Learning QoS Negotiation Model for IoT Middleware

207

2006). It defines the negotiation states,

events that can cause a change in the

negotiation state and the valid actions of the

agents in the different states. In our model,

we adopted the stacked alternating offer

protocol (Aydogan, Festen, Hindriks and

Jonker, 2017). This protocol was chosen

because of its support for both bilateral and

multilateral negotiations as the IoT

middleware is required to support both

forms of negotiation;

 Negotiation Strategy: This is the function

that enables agents to generate offers. In our

model, agents can decide to choose either

the concession strategy or the trade-off

strategy(Zheng, Martin and Brohman,

2012). These strategies use the utility

function to generate an offer. Agents are

required to decide which strategy to use for

each step in the negotiation process, that will

maximize their utility and reach an

agreement before the deadline elapses.

4 MODELLING THE QoS

NEGOTIATION

The dynamism that characterizes the negotiation

environment necessitated the modelling of the QoS

negotiation as a Markov Decision Process (MDP) as

agents are required to make decisions under these

conditions. MDP presents a standard formalism to

describe multistage decision making in a dynamic

environment (Puterman, 2005). MDP is defined by

the following elements:

 S = a set of possible states, known as the

state- space, with an initial state s

;

 A = a set of possible actions in a state s,

known as the action-space;

 P = the transition model, where P(s′|s,a) is

the probability that action a∈A executed in

state s∈S will transition to state s′∈S;

 R = the reward function, where R(s|a) is the

reward function received by executing

action a∈A in state s∈S;

 π = the sequence of decisions(policy) that is

responsible for the mapping of states to

actions. The policy can be stationary (π = π,

π…. π) or non-stationary(π = π

0 ,

… π

The objective in a standard MDP is to find the

optimum policy (π*) that yields the maximum sum of

discounted rewards over an infinite period.

Based on these key concepts of MDP, we model

the QoS negotiation as a set of n MDPs. We have n

processes with each agent having its own view of the

dynamics of the negotiating environment. Given the

description of the negotiation environment and the

assumptions made, the MDP inspired negotiation

process is characterized by the following:

 Finite deadline: Unlike the standard MDP,

the negotiation process has a finite deadline,

so agents are required to maximise the

expected reward over a finite timeframe;

 Discrete state-space: The negotiation space

is defined by the availability of resources for

the negotiation process, negotiation deadline

and QoS profile parameters. The changes

associated with the elements of the

negotiation state-space results in the

transition from one discrete state to another;

 Non-stationary policy: Since the negotiation

environment is dynamic, the policy

associated with the negotiation process is

non-stationary. The optimum policy is

determined by a reinforcement learning

method;

 Estimated transition model: Due to the

dynamics of the negotiation environment,

agents do not exactly know the probability

of state transition. In modelling this

uncertainty in this QoS negotiation context,

we defined a non-stationary estimation

function, T

to estimate the transition model

and is given as:

(s, a, s′): P

(s, a, s′) → [0,1] (3)

where n ∈ 0,1……N (n

time-step);

 Action-space: This defines the negotiation

strategy. In our negotiation problem, agents

can choose either the concession strategy or

the trade-off strategy. The concession

strategy enables an agent to generate offers

that are of lower utility value to the offer

received. Selecting the tradeoff strategy

allows an agent to generate offers that are

attractive to other agents while maintaining

its desired utility value. This is achieved by

yielding on its less preferential QoS

parameters and demanding more on its more

preferential QoS parameters;

 Reward function: Agents are rewarded based

on the strategy chosen at a given state. An

agent is rewarded for choosing the trade-off

strategy when there is sufficient time and

IoTBDS 2020 - 5th International Conference on Internet of Things, Big Data and Security

208

resources for the negotiation process and the

current range of permissible values of the

QoS parameters is large. Similarly, an agent

is rewarded for choosing the concession

strategy if the time and resources for the

negotiation process is running out and the

current range of permissible values of the

QoS parameters are small.

5 THE REINFORCEMENT

LEARNING NEGOTIATION

ALGORITHM

In this section, we begin by first introducing how we

can to approximately compute the optimal policy, the

optimal sequence of strategies to be adopted by the

negotiating agents during the negotiation process to

generate a QoS agreement. To achieve this, we

adopted a model-based reinforcement learning

method, value iteration in estimating the optimum

policy (Schwartz, 2014). The value iteration method

was chosen based on the fact that it is not

computationally expensive and it uses less time to

compute the optimal policy.

The first step in computing the optimal policy is

to introduce the concept of state value-function. In

reinforcement learning, the state value-function

defines the expected cumulative reward for an agent

beginning at a particular state s and under a specific

policy π (Alpaydin, 2014). Formally, the state value-

function at the n

time-step during the negotiation

process is defined as:

(s, π)=

∑

(



(









)|



=) (4)

where s

is the system state at the n

time-step, R

the reward at the n

time-step and E(R

,π)|s

= s) is

the expected reward value at state s

= s and based on

policy π

. Equation (4) can be rewritten as:

(s, π)= R(s,a) +

∑





(s,a,



)×



(





π) (5)

where 



∈ S

n+1

and a is the action (strategy)

determined by policy π. Amidst all the possible state

value functions, it has been proven that an optimal

policy π* that has the highest value exists for any

s ∈S.Additionally, for an arbitrary V

, the sequence

of V

has been proven to converge to V* under the

same conditions that guarantee the existence of V*

(Russell and Norvig, 2014).The state value-function

of the optimal policy is given by:

(s,π*)=max

(s,a)+

∑

(s,a,



)×



(





π*)]

(6)

Given the uncertainty of the state-transition in the

negotiation process, we adapted equation (3) to

determine the expected transition model, which is

given by:

(s, a, s′))=

∑

(



(,,



)×





(s, a, s′)) (7)

Combining Equation (6) and (7), we have:

(s,π*)=max

(s,a)+

∑





(



(s,a,



)×







(



,π*)} (8)

Apart from the state value-function, reinforcement

learning presents another function known as the Q-

function, which is a function of a state-action pair

that returns a real value. The fundamental notion of

the optimal Q-function is that it can be defined by the

right-hand side of equation (8) as :

Q*(s,a) = R

(s,a)+

∑





(



(s,a,



)×



(





π*)

(9)

By this definition, the optimal Q-function Q*(s,a)

equals the sum of the immediate reward carrying out

action a in state s and the discounted expected reward

after transiting to the next state 



. Thus we can

obtain the relationship between V

(s,π*) and Q*(s,a)

and this is expressed as :

(s,π*) = max

[Q*(s,a)] (10)

Once the Q*(s,a) for all the states is known, then the

optimal policy can be found. Based on this, an agent

can always select an action a that maximizes Q*(s,a)

in each state.

Based on the negotiation environment state-space

and the agent’s opponent’s offer, an agent is required

to either accept the opponent offer or decide which

strategy(concession or trade-off) to adopt to generate

an offer. An offer is accepted by an agent if the utility

value of the received offer is far greater than its utility

value of its reserved offer. The algorithmic

descriptions of both the concession and trade-off

strategy are presented in (Zheng et al., 2012). These

strategies were chosen in our proposed algorithm

because we can control the rate at which they

converge.

Having specified the negotiation strategies for

generating offers and reinforcement method for

selecting at a strategy at a specific time-step, we now

introduce our reinforcement learning negotiation

algorithm as shown in Algorithm1. This algorithm

A Reinforcement Learning QoS Negotiation Model for IoT Middleware

209

will enable negotiating agents to appropriately map a

strategy to a negotiation state resulting in the timely

discovery of a QoS solution. The algorithm begins by

allowing an agent to observe the negotiating

participant’s offer which is usually an offer with a

high utility for the agent’s opponent. Given that the

condition in line 2 is true, it proceeds to iteratively

compute V

(s,π*) for each time-step and all the states

Algorithm 1: Reinforcement Learning Negotiation

Algorithm.

Input : - The negotiating opponent offer (Y

)

- The deadline criterion

- Array B with the best and worst values for n QoS

parameters

- Array C with the weights of n QoS parameter

- Array D with flags of n QoS parameter; A flag

indicates if a QoS parameter preferred value is

greater than its reserved value.

-The reward function R

(s,a) for each (s,a)

-Parameter λ

and λ

(0 < λ

), indicating the

degree of concession and trade-off at instant n

respectively

-The estimation function for the state transition,

(s, a, s′)) at instant n

Output: true if it is a success, otherwise false.

1. Offer Y

is presented

2. while Y

is not accepted

3. Compute iteratively

4. select the action that

maximises V

(s,π*)

5. if a=concession then

6. k

←k

7. Y

i+1

← concession(A,B,C,k

)

8. else

9. k

←k

10. Y

i+1

← trade-off (A,B,C,k

,λ

)

11. k ← k

12. if Y

i+1

is out of bounds or

deadline criterion is reached

then

13. return FALSE

14. else

15. offer Y

i+1

is presented

16. return TRUE

including the terminal states((i.e states. indicating

that the deadline is reached, an agreement is found or

the negotiating resources in the IoT middleware are

exhausted). With the present state of the system

determined, it selects the action(i.e concession

strategy or trade-off strategy) that maximizes the

optimum Q function. The selected strategy is used in

generating a counter-offer. If the generated offer is

beyond the defined bounds or the deadline criterion is

reached, FALSE is returned; otherwise, TRUE is

returned and the counter-offer is presented. A QoS

solution is found when the condition in line 2 is true.

The reinforcement learning paradigm described in

Russel et al. (2014) and Zheng, et al. (2012) provides

proof that the reinforcement learning negotiation

algorithm converges and terminates after a finite

number of time-steps.

6 EVALUATION

To evaluate our algorithm, we considered a simple

bilateral negotiation scenario involving two

negotiation agents where the first agent represents the

IoT service provider and the other agent represents

the IoT service consumer. These agents were

implemented using the open-source project, Java

Agent DEvelopment Framework (JADE)

(Bellifemine, Giovanni and Dominic, 2007). We

implemented the reinforcement learning negotiation

algorithm using Java and all the experiments were

conducted on a Lenovo laptop with a 2.50GHz Intel

i5 processor with 8GB memory running Windows 10.

The concept of multi-threading in Java was used to

model the behaviour of both agents as we utilize the

thread synchronization method to model the

exchange of offers and counter-offers. We developed

a QoS profile in a JSON format based on the ideas in

the IoT literature of Villalonga, Bauer, Aguilar,

Huang and Strohbach (2010), which defines its

service and three QoS parameters: response-time

(RT), availability(AVAL) and throughput(TP). The

agents preference over these QoS parameters are kept

private and the negotiation process begins with the

IoT service consumer presenting its preferred offer.

We compared the reinforcement learning negotiation

model with the mixed strategy negotiation model

described in Zheng et al. (2014) that uses a random

probabilistic model for the selection of a strategy

during the negotiation process. This strategy was

chosen for the comparison because it inspired our

algorithm and it provides a good balance between the

success rate and social welfare. We used three metrics

for the comparison: negotiation turns, success rate

and social welfare.

To simulate the dynamics in the negotiation

environment, we had 8 states(2 negotiation

deadlines[D

, D

], 2 states of resource availability

[low, high] and 2 utility values for the reserved [U

]) and 64 state transitions. Each of the state

transitions is associated with a strategy, estimation

IoTBDS 2020 - 5th International Conference on Internet of Things, Big Data and Security

210

function and reward function. Table 1 below shows a

snippet of this association. We conducted a series of

experiment with different permissible values and

weights for each of the QoS parameters of each agent.

In all the experiments, the values of λ

and λ

were

fixed at 0.10. While the difference between the

preferred value of both agents for the RT, AVAL and

TP was set at a maximum 0.45, 0.60 and 0.55, that of

the reserved value was set to a maximum of 0.30,0.23,

0.15 respectively. Similarly, the difference in the

deadline criterion was set at 15. Table 2 shows an

example of a specific set of values for the negotiation

parameters.

Table 1: The State Transitions Table.

Current

State

(s)

State (s′)

Action

(strategy) EF

Concession P

Trade-off P

EF→ Estimation Function P

(s, a, s′)

RD→Reward Definition R(s,s′|a)

Table 2: Sample Negotiation Parameters.

IoT Service

Consumer

IoT Service

Provider

RT weight 0.3 0.4

range ~0.92 - 0.76* 0.95* - 0.74~

AVAIL weight 0.2 0.4

range ~0.95 - 0.81* 0.93* - 0.81~

TP weight 0.5 0.2

range ~0.90 - 0.83* 0.91* - 0.76~

Deadline criterion 35 rounds 50 rounds

* indicates the preferred value and ~ indicates the

reserved value

In these experiments, we observed that the

reinforcement learning model consistently had a

better performance compared to the mixed strategy

negotiation model. The average round taken to

discover an agreement using our algorithm was 38%

less than average rounds of the mixed strategy

negotiation algorithm. In terms of social welfare,

there was an average increase of 19% in the utility

gained with our algorithm. These improvements in

performance are primarily based on the selection of a

reward scheme that maintained a balance between

reaching an agreement before the deadline and a high

social welfare thereby making the agents select the

appropriate strategy based on the changes that occur

in the negotiation environment. To demonstrate this,

Figure 2 and Figure 3 illustrates the results of some

selected negotiation sessions comparing both

approaches in terms of social welfare and negotiation

turns. Since the reinforcement learning model and

the mixed strategy model made use of algorithms that

have been proven to converge at a finite period, they

achieved roughly the same average success rate of

98.74% and 95.12% respectively.

Figure 2: Negotiation rounds results for reinforcement

learning model and mixed strategy model.

Figure 3: Social welfare results for reinforcement learning

model and mixed strategy model.

7 CONCLUSION

This paper introduces a model-based reinforcement

learning algorithm for the QoS negotiation in the IoT

ecosystem. The algorithm selects the best strategy to

be used by negotiating agents at each time-step during

the negotiation process when the IoT environmental

dynamics are probabilistically known. This selection

is based on the observed changes in the negotiation

environment. Preliminary results demonstrate that

our approach of using reinforcement learning tends to

lead to a negotiation process in which an agreement

is found before the deadline and offers a better

success rate and social welfare compared to the

approach that uses a random a probabilistic

algorithm.

Although in this paper we restricted our

negotiation model to bilateral negotiation scenario, it

[low, U

]

[low, U

]

[high, U

]

[low, U

]

[high, U

]

[high, U

]

[low, U

]

[low, U

]

A Reinforcement Learning QoS Negotiation Model for IoT Middleware

211

can be easily extended to multilateral negotiation

scenario given that the negotiation protocol adopted

supports multilateral negotiation. In the future, we

plan to extend the QoS model that takes into account

situations where system dynamics is not

probabilistically known.

REFERENCES

Patel, K. K., and Patel, S. M. (2016). Internet of Things -

IoT: Definition, characteristics, architecture, enabling

technologies, application & future challenges.

International Journal of Engineering Science and

Computing, 6(5), 6122-6131.

Duan, R., Chen, X., and Xing, T. (2011). A QoS

architecture for IoT. 2011 International Conference on

Internet of Things and 4th International Conference on

Cyber, Physical and Social Computing, 717-720.

White, G., Nallur, V., and Clarke, S. (2017). Quality of

service approaches in IoT: A systematic mapping.

Journal of Systems and Software, 186-203.

Thoma, M., Meyer, S., Sperner, K., Meissner, S., and

Braun, T. (2012) On IoT-services: Survey,

Classification and Enterprise Integration. 2012 IEEE

International Conference on Green Computing and

Communications, 257-260.

Razzaque, M. A., Milojevic-Jevric, M., Palade, A., and

Clarke, S. (2015) Middleware for Internet of Things: A

Survey. In IEEE Internet of Things Journal, 3(1), 70-

95.

Issarny, V., Bouloukakis, G., Georgantas, N., and Billet, B.

(2016). Revisiting Service-Oriented Architecture for the

IoT: A Middleware Perspective. International

Conference on Service-Oriented Computing,1-16.

Bala, M. I., and Chishti, M. A.(2017) A model to

incorporate automated negotiation in IoT. 2017 IEEE

International Conference on Advanced Networks and

Telecommunications Systems (ANTS), 1-4.

Ghumman, W. A., Schill, A., and Lässig, J. (2016). The

Flip-Flop SLA Negotiation Strategy Using Concession

Extrapolation and 3D Utility Function. 2016 IEEE 2nd

International Conference on Collaboration and

Internet Computing (CIC), 159-168.

Zheng, X., Martin, P., Brohman, K., and Da Xu, L. (2014).

Cloud Service Negotiation in Internet of Things

Environment: A Mixed Approach. In IEEE

Transactions on Industrial Informatics, 10(2), 1506-

1515.

Alanezi, K. and Mishra, S. (2018). A privacy negotiation

mechanism for IoT. 2018 IEEE 16th Intl Conf on

Dependable, Autonomic and Secure Computing, 16th

Intl Conf on Pervasive Intelligence and Computing, 4th

Intl Conf on Big Data Intelligence and Computing and

Cyber Science and Technology

Congress(DASC/PiCom/DataCom/ CyberSciTech),

512-519.

Li, F. and Clarke, S. (2019). A Context-Based Strategy for

SLA Negotiation in the IoT Environment. 2019 IEEE

International Conference on Pervasive Computing and

Communications Workshops (PerCom Workshops)

208-213.

Zulkernine, F. H. and Martin, P. (2011). An adaptive and

intelligent SLA negotiation system for web services.

IEEE Transactions on Services Computing, 4(1), 31–

43.

Al-Aaidroos, M., Jailani, N. and Mukhtar, M. (2011).

Agent-based negotiation framework for web services

SLA. 2011 7th International Conference on

Information Technology in Asia, 1-7.

Pouyllau, H., & Carofiglio, G. (2013). Inter-carrier SLA

negotiation using Q-learning. Telecommunication

Systems,

52(2), 611-622.

Besanko, D. and. Braeutigam, R. R.(2010)

Microeconomics, Wiley. New Jersey, USA, 4

edition.

Parkin, M., Kuo, D., and Brooke, J. (2006). A Framework

and Negotiation Protocol for Service Contracts. 2006

IEEE International Conference on Services Computing

(SCC'06), 253-256.

Aydoğan, R., Festen, D., Hindriks, K. V., and Jonker C.

M. (2017). Alternating Offers Protocols for Multilateral

Negotiation. In Modern Approaches to Agent-based

Complex Automated Negotiation. Studies in

Computational Intelligence, Springer, Switzerland,

153-167.

Zheng, X., Martin, P., and Brohman, K. (2012). Cloud

service negotiation: Concession vs. tradeoff

approaches. In Proc. 12th IEEE/ACM Int. Symp.

Cluster, Cloud Grid Comput. (CCGrid 2012). pp. 515–

522.

Puterman, M. L. (2005). Markov Decision Processes:

Discrete Stochastic Dynamic Programming, Wiley &

Sons. New Jersey, USA.

Schwartz, H. M. (2014). Multi-Agent Machine Learning: A

Reinforcement Approach, Wiley & Sons. New Jersey,

USA.

Alpaydin, E. (2014). Introduction to Machine Learning,

MIT Press. Cambridge, MA, USA, 3

edition.

Russell S., and Norvig, P. (2014). Artificial Intelligence: A

Modern Approach, Pearson. Essex, England, 3

edition

Bellifemine, F. L., Caire, G., and Greenwood, D. (2007).

Developing Multi-Agent Systems with JADE, Wiley &

Sons. England.

Villalonga, C., Bauer, M., Aguilar, F. L., Huang, V. A.,

and Strohbach, M. (2010). A resource model for the real

world internet. In European Conference on Smart

Sensing and Context. 163–176.

IoTBDS 2020 - 5th International Conference on Internet of Things, Big Data and Security

212
