Scene Understanding and 3D Imagination: A Comparison between

Machine Learning and Human Cognition

Michael Schoosleitner

and Torsten Ullrich

1,2

Institute of Computer Graphics and Knowledge Visualization, Graz University of Technology, Austria

Fraunhofer Austria Research GmbH, Visual Computing, Austria

Keywords:

3D Imagination, Scene Understanding, Assistance System, Computer-aided Design, Machine Learning,

Computer-aided Manufacturing, Artiﬁcial Intelligence, Human Cognition.

Abstract:

Spatial perception and three-dimensional imagination are important characteristics for many construction tasks

in civil engineering. In order to support people in these tasks, worldwide research is being carried out on

assistance systems based on machine learning and augmented reality.

In this paper, we examine the machine learning component and compare it to human performance. The test

scenario is to recognize a partly-assembled model, identify its current status, i.e. the current instruction step,

and to return the next step. Thus, we created a database of 2D images containing the complete set of instruction

steps of the corresponding 3D model. Afterwards, we trained the deep neural network RotationNet with these

images. Usually, the machine learning approaches are compared to each other; our contribution evaluates the

machine learning results with human performance tested in a survey: in a clean-room setting the survey and

RotationNet results are comparable and neither is signiﬁcantly better. The real-world results show that the

machine learning approaches need further improvements.

1 INTRODUCTION

Assistance systems ﬁnd a multitude of applications

in practically all areas of everyday life. In the con-

text of cyber-physical systems (Tao et al., 2019), they

can be used to support technicians: technical details,

construction plans, manuals and other kinds of infor-

mation can be displayed at the right time in their ﬁeld

of vision; i.e., they can have the next step of a repair

directly displayed in their view. Exactly this applica-

tion scenario is examined in this evaluation – a ma-

chine learning, computer-vision system shall recog-

nize a partly-assembled model and the last, completed

instruction step.

In detail, the long-term goal of this assistance sys-

tem is to support a technician during the assembly of

a complex device, which is manufactured in a small

series or is even unique. In this setting, an augmented

reality (AR) system might observe the assembly via

video camera, determine the current state of the work

piece (i.e., which construction step was carried out

last) and display the next step of the construction

manual. Consequently, the main components of the

new support system are an augmented reality, head-

mounted display (Kress and Cummings, 2017) with

an integrated camera system (Evans et al., 2017), a

database with the construction plans of a computer-

aided design (CAD) model, and a machine learning

component to analyze the images taken by the cam-

era returning the current construction status.

In this paper we focus on the computer vision, ma-

chine learning component that has been trained with

the assembly of a CAD model using the correspond-

ing construction and assembly plans. The results of

such a component are then compared to human per-

formances.

2 RELATED WORK

The problem to identify the current status of an as-

sembly (by identifying the correct step number) can

be approached using 3D techniques based on depth

images and reconstruction algorithms (H

ane et al.,

2017), or using 2D image-based methods. This dis-

tinction is blurred because 3D depth information can

not only be extracted from several 2D images (Hartley

and Zisserman, 2004), but can also be learned from a

single 2D image (Saxena et al., 2006), (Kuznietsov

Schoosleitner, M. and Ullrich, T.

Scene Understanding and 3D Imagination: A Comparison between Machine Learning and Human Cognition.

DOI: 10.5220/0009350002310238

In Proceedings of the 15th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2020) - Volume 2: HUCAPP, pages

231-238

ISBN: 978-989-758-402-2; ISSN: 2184-4321

231

et al., 2017), (Mahjourian et al., 2018). Since ma-

chine learning approaches (if necessary) can implic-

itly learn the depth information, the explicit handling

of depth information is not necessary with image-

based approaches on a machine-learning basis.

If each intermediate step represents a separate

class, the problem of visual recognition of the cur-

rent state can be considered as an image classiﬁcation

problem (Deng et al., 2009). An overview of the state-

of-the-art in machine learning in general and image

classiﬁcation in particular can be found in “A State-

of-the-Art Survey on Deep Learning Theory and Ar-

chitectures” (Alom et al., 2019).

According to the long-term goal, the new assis-

tance system will be used in the ﬁeld of mechani-

cal engineering; due to intellectual property protec-

tion regulations, a LEGO Technic

model of com-

parable complexity is used instead of real CAD data:

the “Airport Rescue Vehicle” (no. 42068) consists of

1094 parts and measures over 42cm high, 45cm long

and 15cm wide. The corresponding CAD model has

a sequence of 137 construction steps and has been au-

thored by PHILIPPE HURBAIN. It is published un-

der the license CCAL VERSION 2.0 at LDRAW.ORG.

Figure 1 (left) shows a semi-transparent rendering of

the model including its inner parts.

In order to learn the construction of this CAD

model, a multi-view convolutional neural network

(MVCNN) is used. The method used for the practi-

cal implementation is called RotationNet (Kanezaki

et al., 2018). It is inspired by the concepts of

MVCNN (Su et al., 2015), a multi-view convolutional

neural network to classify 3D objects from 2D im-

ages, and by the pose estimation technique of “Con-

volutional Models for Joint Object Categorization and

Pose Estimation” (Elhoseiny et al., 2016). These two

concepts are combined and extended by RotationNet:

MVCNN uses different view points and camera po-

sitions distributed over a sphere to get 2D images of

Figure 1: The test set of the new assistance system is a

LEGO Technic

model consisting of 1094 parts that are

assembled in 137 construction steps. The assembly of the

“Airport Rescue Vehicle” has been video recorded. While

the image on the left hand side shows the complete model,

the image on the right hand side shows the CAD model at

an early stage.

a 3D object. These images are trained with the net-

work structure of AlexNet (Krizhevsky et al., 2012).

The MVCNN approach demands for each class that

all camera positions are available as images; i.e. for

every pre-deﬁned view point all 3D objects must be

captured. This is, however, hard to realize in a real-

world scenario, where view positions are often limited

and not precise. Therefore, RotationNet removes this

limitation of MVCNN by repositioning the pooling

layer and combining it with the method of (Elhoseiny

et al., 2016). They propose to use object prediction

and pose estimation with one 2D image as input for

the classiﬁcation process.

To estimate unknown poses of a 3D object during

the training process, an unsupervised pose estimation

is used, which is inﬂuenced by (Zhou et al., 2017).

This is a “meta” task which is conducted in every

training step. Another beneﬁt is that it is possible to

predict a class with a speciﬁc set of images captured

from one view position region. This is important for

estimating new positions and simultaneously classi-

fying objects. To get a low error rate, this step is of

signiﬁcant importance.

As mentioned above, the camera positions used

in RotationNet are highly inﬂuenced by MVCNN.

RotationNet uses a camera distribution on a dodec-

ahedron for the image benchmark data sets.

3 PROPOSED METHOD

The ModelNet benchmark consists of two databases,

namely ModelNet10 and ModelNet40 (Wu et al.,

2015). These two databases comprehend CAD mod-

els with 10 and 40 classes. This benchmark (see

modelnet.cs.princeton.edu) provide researchers in

computer vision, computer graphics, robotics and

cognitive science, with a comprehensive clean col-

lection. Furthermore, the benchmark lists the classi-

ﬁcation accuracy of state-of-the-art algorithms. Ta-

ble 1 shows a comparison of selected methods (as

of September 2019). Based on this benchmark, we

choose the RotationNet framework to solve the CAD

classiﬁcation problem; respectively, the assembly as-

sistance task.

Due to the fact that the CAD model in the

assembly assistance scenario is not similar to the

existing dataset used by RotationNet at the Ima-

geNet Large Scale Visual Recognition Competition

(ILSVRC) in 2012 (Russakovsky et al., 2015), we

created a new database using the LEGO Technic

model mentioned before. The LEGO model data for-

mat (LDRAW) stores the model data as instruction

steps which ﬁt to the proposed use case. Every in-

HUCAPP 2020 - 4th International Conference on Human Computer Interaction Theory and Applications

232

Table 1: Selection of methods compared with the Model-

Net Benchmark as of Sep. 2019. RotationNet has the best

accuracy on both datasets.

Algorithm ModelNet40 ModelNet10

RotationNet 97.37% 98.46%

(Kanezaki et al., 2018)

PANORAMA-ENN 95.56% 96.85%

(Sﬁkas et al., 2018)

MVCNN-MultiRes 91.40% –

(Qi et al., 2016)

VRN-Ensemble 95.54% 97.14%

(Brock et al., 2016)

struction step corresponds to one object class in Ro-

tationNet. In total, there are 137 steps; in every class

20 different 2D images are rendered from spherical

distributed camera positions on a dodecahedron as

shown in Figure 2. The RGB color space is used

for the images without any additional textured back-

ground. In this way, our test differs from (Kanezaki

et al., 2018) as they use gray-scaled 3D models with-

out any background from the ModelNet database.

Furthermore, RotationNet adds a so-called incor-

rect view class for a better stability of the unsuper-

vised pose estimation. Together with the 137 instruc-

tion step classes, the total number of classes sums up

to 138.

According to the use case of an AR system the

Figure 2: For each of the 137 instruction steps of the “Air-

port Rescue Vehicle”, 20 views are rendered. The shown

images depict the complete model; i.e. the result of the last

instruction step.

network structure of the machine learning framework

has been adopted: the input layer is extended to ﬁt

our model database, which consists of 137 classes and

one additional class for the incorrect view. The output

layer supports all numbers of classes and 20 views per

class which results in 2 760 output parameters. The

hidden layers and the order remain. (Kanezaki et al.,

2018) compare different CNN structures on their ac-

curacy using the ModelNet database. The main re-

sults are listed in Table 2. The best compromise be-

tween accuracy, memory size and number of parame-

ters is AlexNet (Krizhevsky et al., 2012). Its accuracy

is 1% lower than the best one but uses fewer parame-

ters and has less memory consumption.

Table 2: Comparison of four different algorithms, which

are used by RotationNet on ModelNet10 and ModelNet40

database.

Algorithm Parameters Memory Accuracy

AlexNet 60.2M 1.8GB 96.4%

(Krizhevsky et al., 2012)

VGG-M 102.2M 5.3GB 97.4%

(Chatﬁeld et al., 2014)

ResNet-50 24.2M 7.1GB 96.9%

(He et al., 2016)

ResNet-18 11.6M 2.5GB 96.0%

(He et al., 2016)

The learning rate and momentum for the training

process in our setting are the same as published in

RotationNet. Without using any GPUs the training

process with our database takes about two days using

54 Intel Xeon



CPUs at 2.60GHz with batch size 52.

The network output layer values are the probabil-

ities for every class, including the incorrect view and

all pose estimations per class. The best view position

is chosen by taking the highest probability value of a

class without the incorrect view; i.e., inter-class prob-

abilities are taken into account. This means not only

one speciﬁc class is used to predict the pose, but more

than one can be used for one prediction result.

The decision, which class matches best is calcu-

lated by the maximum value of the probability prod-

uct of the views and classes. The product of all view

probabilities gives the prediction for the class and its

viewpoint; i.e., the prediction of the class and pose is

a probability maximization over a set of images.

4 EVALUATION

In order to evaluate the machine learning system,

three experiments have been designed using different

Scene Understanding and 3D Imagination: A Comparison between Machine Learning and Human Cognition

233

test sets; i.e. with different views on the “Airport Res-

cue Vehicle” CAD model. In each test, a set of im-

ages form the input for the classiﬁcation task. Every

set merely contains images from one class, one in-

struction step respectively, with different, known and

unknown view positions.

4.1 Training Positions

In the ﬁrst test series, all the images that have already

been used to train the system are reused to test the

system. In detail, for each class (137 in total) the 20

images of the pre-deﬁned dodecahedron camera posi-

tions (see Figure 2) are used, and the system should

return the correct class (main objective) and the cor-

rect pose (secondary objective).

4.2 Unknown Positions

The second test series uses the same CAD model with

new camera positions. 24 view positions, which are

not included in the training set, are distributed equally

on a sphere according to the distribution suggested

by (Schinko et al., 2011). In other words, the test set

is disjunct to the training set.

4.3 Real Images

The ﬁnal test series consists of real-life captured im-

ages. Using a video camera a sequence of images

is captured of one instruction step and the sequen-

tial frames are used as input for the trained net-

work. Each image has been converted to RGB color

space, cropped to aspect ratio 1 : 1, and re-sampled to

256 × 256 pixels to meet the requirements of the sys-

tem for input images. Figure 1 (right) shows an ex-

ample frame, which has been extracted from a video

at an early stage of the assembly.

4.4 Results

For every experiment the success rates for the cor-

rectly identiﬁed construction step is referred to as

Top-1; the correct construction step within the clas-

siﬁcation set with the ﬁve highest probabilities is re-

ferred to as Top-5. The results of our experiments are

listed in Table 3.

The Top-1 success rate of the test series using im-

ages already used to train the system is 8.03%. The

Top-5 success rate of this test series is 27, 74%, which

is a rise compared to the Top-1 rate by a factor of

3.45. If the test series comprehends newly rendered

images exclusively used for testing purposes with un-

known positions the success rates drop to 4.38% for

Table 3: Top-1 and Top-5 accuracy rates of the three test

series with (1) rendered images already used for training,

with (2) newly rendered images exclusively used for testing

purposes, and with (3) real images captured using a video

camera.

Test Set Top-1 Accuracy Top-5 Accuracy

Training Positions 8.03% 27.74%

(see Section 4.1)

Unknown Positions 4.38% 7.30%

(see Section 4.2)

Real Images 0.73% 0.73%

(see Section 4.3)

Top-1 and to 7.30% for Top-5, respectively. In the

real-world scenario, the success rates drop to 0.73%

in both categories, Top-1 and Top-5. A detailed anal-

ysis of these results reveals several challenges.

The ﬁrst problem is the strong reduction of the

success rate due to external inﬂuences. The real video

sequences do not only show the CAD model, but

sometimes also not yet assembled parts, packaging

material, and everyday objects that happen to be in the

video. These things have not been learned and there-

fore lead to false classiﬁcation results. A reduction of

external inﬂuences signiﬁcantly improves the result;

nevertheless, deviations in the video image from the

trained data remain: light settings, shadows, distor-

tion, etc.

The second problem is the homogeneous data

space. The homogeneity can be illustrated by two

Figures: Figure 3 shows the ImageNet benchmark and

Figure 4 shows the instructions to assemble the CAD

model.

The differences between any two images of the

ImageNet benchmark (Deng et al., 2009) are much

greater than the differences in the construction man-

ual; there, only a few pixels change per class, and de-

pending on the view point even no pixels may change

at all. This degree of homogeneity is also a challenge

for humans.

Furthermore, this problem is intensiﬁed by the

used metric. From an application point of view, the

subdivision into 137 classes may seem reasonable due

Figure 3: A random selection of two root-to-leaf branches

of the ImageNet benchmark. Image source: (Deng et al.,

2009).

HUCAPP 2020 - 4th International Conference on Human Computer Interaction Theory and Applications

234

step #1 step #5 step #9 step #13 step #17 step #21

step #25 step #29 step #33 step #37 step #41 step #45

step #49 step #53 step #57 step #61 step #65 step #69

step #73 step #77 step #81 step #85 step #89 step #93

step #97 step #101 step #105 step #109 step #113 step #117

step #121 step #125 step #129 step #133 step #137

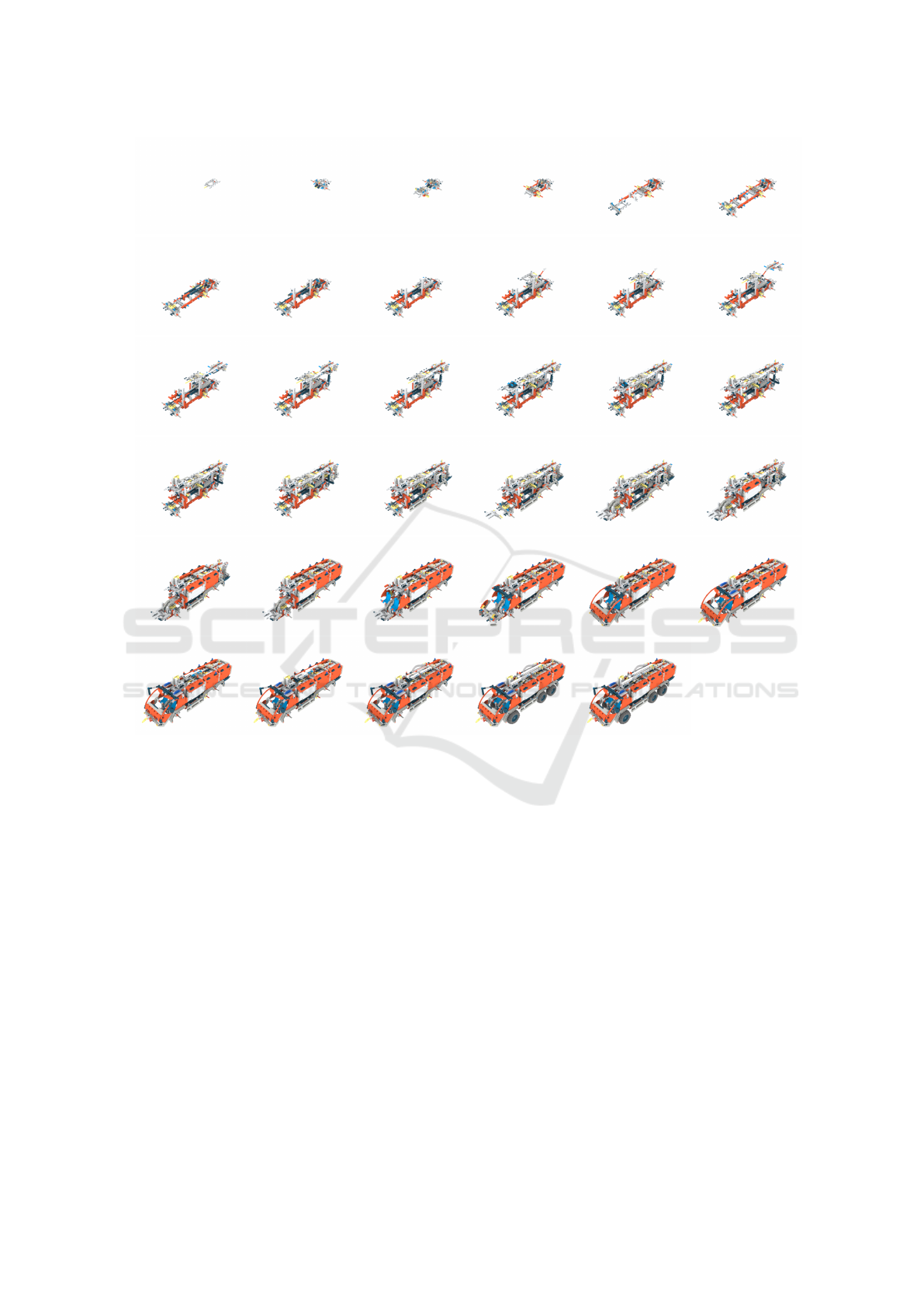

Figure 4: The construction of the “Airport Rescue Vehicle” comprehends 137 instruction steps. This overview shows the

result after every fourth instruction step. All views are rendered with the same camera perspective. Differences between

individual steps are not always apparent from all views.

to the corresponding number of construction steps;

from a machine learning point of view, this large num-

ber of classes with marginal differences makes little

sense. For example, the construction steps #69 to #77

show only minimal visual changes; even if the image

classiﬁcation returns all Top-5 hits within this inter-

val, in 4/9 (44%) of the cases the correct result is not

present.

5 SURVEY

In order to interpret the gained results appropriately,

a survey has been performed to compare its perfor-

mance with humans. The intention is to have a ref-

erence success rate on how well humans estimate the

presented instruction step. The survey results are then

compared with the experiments described in the Sec-

tions 4.1 and 4.2. Due to the metric problem men-

tioned above, we measure the distance (number of

steps) between the predicted result and the ground

truth.

5.1 Set-up

The survey consists of a simple questionnaire con-

taining two parts. The ﬁrst part is a simpliﬁed con-

struction manual similar to Figure 4. It comprehends

M = 40 different 2D images rendered from one spe-

ciﬁc camera position. The camera position is the same

for all 40 images. As in Figure 4, the views were

selected at equal distances between the construction

steps. The second part is the answer sheet with Q = 16

different 2D images at different assembly stages with

Scene Understanding and 3D Imagination: A Comparison between Machine Learning and Human Cognition

235

Table 4: This overview lists the results of the machine learning approach based on RotationNet compared to test persons

as assessed in the survey. It shows the error distribution measured as deviation between the correct instruction step and the

estimated instruction step by the machine learning system resp. the guessed instruction step in the survey.

Test Set

Minimum

First

Quartile

Median

Third

Quartile

Maximum

Mean

Standard

Deviation

Training Positions 0 0 1 4 24 3.219 4.828

(test size n = 2740)

Unknown Positions 0 3 8 16 36 10.175 8.875

(test size n = 2740)

Survey 0 0 1 5 56 4.329 7.108

(test size n = 1056)

varying camera positions. The stages and the camera

view points have been chosen randomly.

All participants were asked to ﬁnd the best corre-

spondence between the 16 question images to the 40

construction images. A single choice had to be made

for each question, whereas the same answer could be

given multiple times on different questions. There has

been no time limit to answer the questionnaire.

5.2 Evaluation

The survey was printed on paper in high quality and

in high resolution. They have been completed by em-

ployees and members of the institute as well as by

master students. N = 69 attendees took part in the

survey; from these, A = 66 completed and fully ﬁlled

out questionnaire forms were returned. Three ques-

tionnaires were not completed in full or did not return

at all. As a consequence, the return rate is r = 95.7%.

deviation / error

training

positions

unknown

positions

survey

Figure 5: The error distribution as listed in Table 4 as Box-

and-Whisker plot. The many outliers in the survey show

that some people have clear problems with the 3D imagina-

tion task.

The results of the machine-learning-based ap-

proach using RotationNet and the survey are com-

pared to each other: the results of the conﬁgurations

described in Section 4.1 and in Section 4.2 are re-

ferred to as Training Positions and Unknown Posi-

tions, respectively; the survey results are referred to

as Survey. All results are listed in Table 4 and visual-

ized in a Box-and-Whisker plot in Figure 5.

With real images the RotationNet algorithm has

an accuracy on the scale of a random process. Using

rendered images, the accuracy improves signiﬁcantly

(see Table 3). As a consequence, only the tests with

rendered images are analyzed further: testing the ma-

chine learning system with images already used dur-

ing the training phase, the system achieves an error of

3.219 on average; i.e. the prediction of the instruction

step is on average 3.219 steps off. In case of new im-

ages, which are unknown to the trained system, the

error rises to a difference of 10.175 steps on average.

The average human error measured by the survey is

4.329 steps; i.e. the human performance is clearly bet-

ter than the machine learning system with untrained

images. With trained images, the machine learning

system is slightly better. However, the improvement

is not signiﬁcant: since both data sets do not follow

a normal distribution, and no common distribution

can be assumed either (according to Kolmogorov-

Smirnov tests), we determine the conﬁdence intervals

of the expected values according to (Oliphant, 2006).

The conﬁdence intervals of the expected errors remain

disjunct up to p = 91.9% – a value, which is usually

considered to be non-signiﬁcant.

6 CONCLUSIONS

The aim of the paper is to test machine learning ap-

proaches represented by the best algorithm according

to the ModelNet benchmark (as Sep. 2019) in a prac-

HUCAPP 2020 - 4th International Conference on Human Computer Interaction Theory and Applications

236

tical application in order to ﬁnd out its real-life us-

ability. For this use-case we generated a database of

an instruction step-based 3D CAD model and used it

to train the instructions using RotationNet. The ob-

jective is to predict the current instruction step based

on a simple image of the current assembly stage. As a

second means for the test, the prediction success rate

of humans is tested in a survey. The combined inter-

pretation of machine learning results and survey re-

sults reveals limited applicability of RotationNet for

real-life purposes.

6.1 Lessons Learned

We have identiﬁed some challenges that RotationNet

faces. A vast amount of difﬁculties have to do with

the image resolution used. The input image resolu-

tion of RotationNet is limited to a size of 256 × 256

pixels. This leads to the fact that important details are

hardly visible in many CAD renderings in this reso-

lution. Furthermore, common cameras are featured

with a much higher resolution and their captured im-

ages have to be scaled down for RotationNet. The

down-scaling process affects the details in the target

image negatively.

The viewpoints of the training data are equally

distributed but the amount of the overall viewpoints

is not very high. Considering the fact that arbitrary

viewpoints of CAD models can be rendered with lim-

ited effort (compared to taking photographs), we sug-

gest a higher resolution of viewpoints on a sphere. We

expect that the training data per class rises and that the

number of unknown positions will be reduced. This

might lead to a better recognition of minimal details

of the object model.

Another issue is the invisibility of certain assem-

bly steps. The result of neighboring instruction steps

look almost identical when the model is near to com-

pletion. This effect occurs when added bricks are oc-

cluded by others in the actual view.

Furthermore, when applying the machine learning

system to a real-life scenario, there is always a back-

ground behind the object model. The background

information includes background noise and indirect

model information such as local or global illumina-

tion and shading. The used training images, however,

do not contain any background information or noise at

all. Currently, it is not clear how to train a network to

handle background noise without having to manually

capture many different backgrounds at unacceptably

high costs.

Finally, the survey shows that it is difﬁcult for the

human eye to distinguish the instruction steps from

each other as well and to assign them to the right im-

age. The viewpoints have a strong inﬂuence on the de-

tection of the right step and the low resolution makes

it difﬁcult to identify the right images.

6.2 Improvements

Using a higher resolution for the images is the most

important step when improving RotationNet in order

to get more detailed information of the model per im-

age. This improvement effects the granularity of de-

tails and the distinction between the instruction steps;

this means that the differences between the single in-

struction steps raises. In a real-world scenario the im-

ages captured by a camera have a higher resolution

and must be down-scaled, which has negative inﬂu-

ences on the preservation of details. To improve Ro-

tationNet, the input size and the parameters must be

adapted to a higher resolution which needs, however,

higher computational power.

The resolution of the viewpoints on the sphere is

equally distributed on a dodecahedron but the amount

of viewpoints is not sufﬁcient for real-world use. A

higher resolution would lead to more training data

which can be learned by the system which would re-

sult in a better prediction. This improvement needs

higher computational power only during training and

not in the prediction phase which is a beneﬁt for the

application of the system.

An overall challenge of all methods is the in-

ﬂuence of the background on the recognition of the

model. The recognition and reduction of background

information may improve the prediction. At the train-

ing it is hardly possible to know in advance how the

background will look like in the productive applica-

tion. The captured scene can be indoor or outdoor,

with various illumination conﬁgurations. One option

may be a pre-segmentation of an image and to pass

only the extracted foreground to the prediction sys-

tem. An advantage of this approach is to leave the

network input image size untouched and crop the in-

teresting image parts to this size. A downside is the

difﬁculty to ﬁnd the right segment within the image.

6.3 Contribution and Beneﬁt

The presentation of the problems and the lessons

learned are an important contribution. Furthermore,

the provision of the LEGO

CAD data set and

its renderings is a valuable beneﬁt to the com-

munity. The CAD model is converted to a se-

quence of 3D models in Alias Wavefront OBJ for-

mat, and all sequence steps are available in com-

monly used image formats. They will be available

at: https://github.com/FhA-VC.

Scene Understanding and 3D Imagination: A Comparison between Machine Learning and Human Cognition

237

ACKNOWLEDGEMENTS

The authors acknowledge the generous support of the

Carinthian Government and the City of Klagenfurt

within the innovation center KI4Life.

REFERENCES

Alom, M. Z., Taha, T. M., Yakopcic, C., Westberg, S.,

Sidike, P., Nasrin, M. S., Hasan, M., Van Essen, B. C.,

Awwal, A. A. S., and Asari, V. K. (2019). A State-of-

the-art Survey on Deep Learning Theory and Archi-

tectures. Electronics, 8:292ff.

Brock, A., Lim, T., Ritchie, J. M., and Weston, N. (2016).

Generative and Discriminative Voxel Modeling with

Convolutional Neural Networks. International Con-

ference on Neural Information Processing Systems /

3D Deep Learning Workshop, 30:1–9.

Chatﬁeld, K., Simonyan, K., Vedaldi, A., and Zisserman,

A. (2014). Return of the Devil in the Details: Delving

Deep into Convolutional Nets. British Machine Vision

Conference, 6:1–12.

Deng, J., Dong, W., Socher, R., Li, L.-J., Li, K., and Fei-Fei,

L. (2009). Imagenet: A Large-scale Hierarchical Im-

age Database. IEEE Conference on Computer Vision

and Pattern Recognition (CVPR), 12:248–255.

Elhoseiny, M., El-Gaaly, T., Bakry, A., and Elgammal,

A. M. (2016). A Comparative Analysis and Study of

Multiview CNN Models for Joint Object Categoriza-

tion and Pose Estimation. International Conference

on Machine Learning (ICML), 33:888–897.

Evans, G., Miller, J., Pena, M. I., MacAllister, A., and

Winer, E. (2017). Evaluating the Microsoft Hololens

through an Augmented Reality Assembly Applica-

tion. Degraded Environments: Sensing, Processing,

and Display (Proceedings of SPIE Defense and Secu-

rity), 10197:1–16.

ane, C., Zach, C., Cohen, A., and Pollefeys, M. (2017).

Dense Semantic 3d Reconstruction. IEEE Transac-

tions on Pattern Analysis and Machine Intelligence,

39:1730–1743.

Hartley, R. and Zisserman, A. (2004). Multiple View Geom-

etry in Computer Vision. Cambridge University Press.

He, K., Zhang, X., Ren, S., and Sun, J. (2016). Deep

Residual Learning for Image Recognition. IEEE Con-

ference on Computer Vision and Pattern Recognition

(CVPR), 19:770–778.

Kanezaki, A., Matsushita, Y., and Nishida, Y. (2018). Ro-

tationNet: Joint Object Categorization and Pose Es-

timation Using Multiviews from Unsupervised View-

points. IEEE Conference on Computer Vision and Pat-

tern Recognition (CVPR), 21:5010–5019.

Kress, B. C. and Cummings, W. J. (2017). Towards the Ul-

timate Mixed Reality Experience: Hololens Display

Architecture Choices. Digest of Technical Papers, So-

ciety for Information Display, 48:127–131.

Krizhevsky, A., Sutskever, I., and Hinton, G. E. (2012). Im-

ageNet Classiﬁcation with Deep Convolutional Neu-

ral Networks. International Conference on Neural In-

formation Processing Systems, 25:1097–1105.

Kuznietsov, Y., St

uckler, J., and Leibe, B. (2017). Semi-

supervised Deep Learning for Monocular Depth Map

Prediction. IEEE Conference on Computer Vision and

Pattern Recognition (CVPR), 20:2215–2223.

Mahjourian, R., Wicke, M., and Angelova, A. (2018). Un-

supervised Learning of Depth and Ego-motion from

Monocular Video Using 3d Geometric Constraints.

IEEE Conference on Computer Vision and Pattern

Recognition (CVPR), 21:5667–5675.

Oliphant, T. E. (2006). A Bayesian perspective on esti-

mating mean, variance, and standard-deviation from

data. Brigham Young University (BYU) Faculty Pub-

lications, 1877-438:http://hdl.lib.byu.edu/1877/438.

Qi, C. R., Su, H., Nießner, M., Dai, A., Yan, M., and

Guibas, L. (2016). Volumetric and Multi-view CNNs

for Object Classiﬁcation on 3D Data. IEEE Con-

ference on Computer Vision and Pattern Recognition

(CVPR), 19:5648–5656.

Russakovsky, O., Deng, J., Su, H., Krause, J., Satheesh,

S., Ma, S., Huang, Z., Karpathy, A., Khosla, A.,

Bernstein, M., Berg, A. C., and Fei-Fei, L. (2015).

ImageNet Large Scale Visual Recognition Challenge.

International Journal of Computer Vision (IJCV),

115:211–252.

Saxena, A., Chung, S. H., and Ng, A. Y. (2006). Learn-

ing Depth from Single Monocular Images. Advances

in Neural Information Processing Systems, 18:1161–

1168.

Schinko, C., Ullrich, T., and Fellner, D. W. (2011). Simple

and Efﬁcient Normal Encoding with Error Bounds.

Theory and Practice of Computer Graphics, 29:63–

66.

Sﬁkas, K., Pratikakis, I., and Theoharis, T. (2018). Ensem-

ble of PANORAMA-based convolutional neural net-

works for 3D model classiﬁcation and retrieval. Com-

puters & Graphics, 71:208–218.

Su, H., Maji, S., Kalogerakis, E., and Learned-Miller, E.

(2015). Multi-view Convolutional Neural Networks

for 3d Shape Recognition. IEEE International Con-

ference on Computer Vision (ICCV), 11:945–953.

Tao, F., Zhang, M., and Nee, A. Y. C. (2019). Digital Twin

Driven Smart Manufacturing. Academic Press.

Wu, Z., Song, S., Khosla, A., Yu, F., Zhang, L., Tang, X.,

and Xiao, J. (2015). 3d ShapeNets: A Deep Repre-

sentation for Volumetric Shapes. IEEE Conference

on Computer Vision and Pattern Recognition (CVPR),

18:1912–1920.

Zhou, T., Brown, M., Snavely, N., and Lowe, D. G. (2017).

Unsupervised Learning of Depth and Ego-Motion

from Video. IEEE Conference on Computer Vision

and Pattern Recognition (CVPR), 20:1851–1860.

HUCAPP 2020 - 4th International Conference on Human Computer Interaction Theory and Applications

238
