Aspect Phrase Extraction in Sentiment Analysis with Deep Learning

Joschka Kersting and Michaela Geierhos

Semantic Information Processing Group, Paderborn University, Warburger Str. 100, Paderborn, Germany

Keywords: Deep Learning, Natural Language Processing, Aspect-based Sentiment Analysis.

Abstract: This paper deals with aspect phrase extraction and classification in sentiment analysis. We summarize current

approaches and datasets from the domain of aspect-based sentiment analysis. This domain detects sentiments

expressed for individual aspects in unstructured text data. So far, mainly commercial user reviews for products

or services such as restaurants were investigated. We here present our dataset consisting of German physician

reviews, a sensitive and linguistically complex field. Furthermore, we describe the annotation process of a

dataset for supervised learning with neural networks. Moreover, we introduce our model for extracting and

classifying aspect phrases in one step, which obtains an F1-score of 80%. By applying it to a more complex

domain, our approach and results outperform previous approaches.

1 INTRODUCTION

Aspect-based Sentiment Analysis (ABSA) aims at

finding expressed opinions towards attributes of

products or services. Sentiment analysis (or opinion

mining) experienced a large interest during the last

years due to a growing amount of user-generated

content and missing methods to make use of them.

However, the focus so far was on identifying an

overall sentiment of full documents or sentences. This

is, however, not sufficient when it comes to

conflicting sentiments on different aspects of a

product or service. Consequently, ABSA was

invented in order to identify aspects in natural

language texts and calculate the corresponding

sentiment expressed by users. This has led to

numerous studies (Liu and Zhang 2012; Sun, Huang,

and Qiu 2019; Tang et al. 2016) and shared tasks

(Wojatzki et al. 2017; Pontiki et al. 2015; Toh and Su

2016; Danda et al. 2017). Yet the research so far, has

mostly neglected or omitted the existence of aspects

represented implicitly by phrases rather than directly

and only by nouns. What is more, in order to make

use of the widely available reviews, an understanding

of why users rate how is required (McAuley,

Leskovec, and Jurafsky 2012). Hence, ABSA is an

important field to be investigated.

There are three main approaches in sentiment

analysis research. These are document, sentence-

level as well as aspect-based sentiment analysis.

While the first only covers an overall sentiment for a

whole document, the latter supposes that there is just

one sentiment expressed per sentence. Hence, cases

are neglected in which even opposing sentiments for

the same aspect or opinions regarding different

aspects in a sentence are expressed. The following

sentence serves as an example: “The doctor was very

friendly but he did not offer to shake my hand.” In

this sentence, the friendliness of a physician is rated

two times by the bold printed expressions. Finding an

expression such as the latter may be easy for a human

but hard for a machine.

1.1 Domain of Research

This paper deals with the domain of physician

reviews. ABSA in this domain cannot be performed

by keyword spotting, because of implicit mentions

and the use of phrases for expressing opinions about

the usually personal, trustful and sensitive services

(Bäumer et al., 2017; Kersting, Bäumer, and

Geierhos, 2019). However, most of ABSA research

proposes that nouns are representative for aspects or

at least settles with nouns (and noun phrases)

explicitly mentioned as aspect indicators (Pontiki et

al., 2016b; Nguyen and Shirai, 2015; Qiu et al., 2011;

Hu and Liu, 2004; Blair-Goldensohn et al., 2008;

Chinsha and Shibily, 2015). This has reasons: Many

reviews are written about products or services. There

exist search goods, i.e., products such as smartphones

or keyboards (e.g., smartphone: battery, memory),

which can be interchanged and will roughly be the

Kersting, J. and Geierhos, M.

Aspect Phrase Extraction in Sentiment Analysis with Deep Learning.

DOI: 10.5220/0009349903910400

In Proceedings of the 12th International Conference on Agents and Artiﬁcial Intelligence (ICAART 2020) - Volume 1, pages 391-400

ISBN: 978-989-758-395-7; ISSN: 2184-433X

391

same every time. And there are experience goods,

whose performance can only be evaluated after

experiencing them due to their subjective, every time

different nature (Zeithaml, 1981). However, most of

ABSA research was done focusing on products (De

Clercq et al., 2017) or such services using rather

simple vocabulary. Even experience goods such as

hotels receive reviews based on nouns describing the

breakfast, bed, etc. These can be characterized as

experience domains rather than services.

The area of physician reviews is characterized by

experience goods, but its nature is that of very special

services with private and personal components. Each

treatment performed by a health care provider is

unique. Personally provided services are usually

reviewed on the basis of the behavior of the staff.

Components of this are empathy, reliability, but also

the ambiance of the rooms (Zeithaml et al. 1990). The

reviews can be found on Physician Review Websites

(PRW). Examples for PRWs are Ratemds

in English,

Jameda

in German or Pincetas in Lithuanian

. On a

PRW, users can rate their physician quantitatively

using stars or grades and qualitatively by writing a

review text. Typically, the grades can be assigned to

different aspects such as the competence of the

physician. Besides grading, the PRWs also offer

blogging functionality, appointment services and

more. However, while many physicians feel unfairly

treated and to not want to be rated, legal repercussions

are the consequences. Users feel anonymous even

though they can be identified by the PRW or by the

physician on the basis of the review texts. Trust is an

important issue regarding PRWs (Kersting, Bäumer,

and Geierhos 2019; Bäumer et al. 2017; Apotheke-

Adhoc 2018).

1.2 Contributions

In general, ABSA has three subtasks of which this

paper addresses two: Aspect term extraction and

aspect category classification, but not aspect polarity

classification (De Clercq et al., 2017). What is more,

we contribute by advancing the field of ABSA with

phrases implicitly indicating rating aspects. These

phrases are often complex and in their form of

appearance not frequent. Additionally, we use

German as a complex and morphologically rich

language. We use the service domain of physician

reviews due to its broad variety of fields (professions

and diseases) and sensitive, health-related nature.

Here, we contribute by presenting our dataset in

Available at http://ratemds.com

Jameda can be accessed at http://jameda.de

Pincetas can be found at http://pincetas.lt

general and the annotated texts. Moreover, we present

a neural network for aspect phrase extraction and

evaluate it in one step without separating the step of

identifying phrases and classifying them in contrast to

the procedures used at shared tasks such as (Pontiki

et al., 2016b).

The outline is as follows: The second section

presents related literature and the third section our

dataset. Here, we present the whole dataset as well as

the aspect categories and our annotated data. The

fourth section deals with our method and the

implementation of a neural network aimed at

identifying aspect phrases in German physician

review texts. The fifth deals with the evaluation and

discussion of our proposed dataset, domain and

system. The last section concludes the paper and

draws implications for future work.

2 STATE-OF-THE-ART

The identification and extraction of aspects

from

texts is the core task in ABSA (Chinsha and Shibily,

2015). This distinguishes it from tasks such as

classification where grades for a text document are

predicted. Further steps are the identification of

opinion words related to aspects and their polarity

(positive or negative sentiment) (Chinsha and

Shibily, 2015). Besides, sentiment analysis has to

tackle other issues such as the detection of sarcasm or

analyzing emotions (Zhang, Wang, and Liu 2018).

Hu and Liu (2004) published one of the earlier

works on ABSA. Typical examples of such works

deal with products such as smartphones: “The screen

is perfect, but the voice quality sucks.” When this

review is published on the online shop page of a

smartphone model, recognizing the aspects is trivial,

e.g., by focusing on noun phrases (Pontiki et al.,

2016b; 2016a) or using topic modeling based on a list

of seed words as it was performed by earlier studies

(Mukherjee and Liu, 2012; Zhao et al., 2010). Some

researchers stated in their annotation guidelines that

“[a]n opinion target expression [...] is an explicit

reference (mention) to the reviewed entity [...]. This

reference can be a named entity, a common noun or a

multi-word term” (Pontiki et al., 2016a). They used

annotated datasets in several languages (not German)

in order to extract aspect terms, polarity, etc. for

domains such as hotels or restaurants. For the

extraction of aspect phrases and their classification,

the results vary and are almost all below 50% (Pontiki

Also referred to as feature, topic or target extraction or

identification (Chinsha and Shibily, 2015).

NLPinAI 2020 - Special Session on Natural Language Processing in Artiﬁcial Intelligence

392

et al., 2016b). Other researchers used constituency

and dependency parsing in order to identify relevant

words which are mostly nouns, too (Nguyen and

Shirai, 2015). However, the problem with nouns is the

assumption that aspects are mostly directly

mentioned by words. There are explicit mentions of

aspects that come in the form of nouns and noun

phrases, and there are implicit mentions coming with

every other possible construction such as adjectives,

verbs, etc. For instance, “expensive” would refer to

the price of a smartphone (Liu, 2012). The data of the

current paper, which will be presented in the next

section, contains implicit aspect mentions by all kinds

of word types and forms. Some scholars go as far as

extracting only the most frequent nouns and grouping

them into synonym classes for the aspect phrase

extraction (Chinsha and Shibily, 2015).

There are other works like Wojatzki et al., (2017),

who use customer reactions from different channels

such as twitter instead of reviews. They annotated a

dataset in order to identify aspects in texts. And try to

find the corresponding words or phrases. Still, they

neither use customer reviews nor data from a

sensitive domain such as the health care sector. What

is more, all aspects in Wojatzki et al., (2017) are

related to the main German railway company and are

thus not as diverse as those related to all physicians,

their professions, possible diseases and the sensitive

patient-physician relationship (Kersting, Bäumer, and

Geierhos, 2019). Many aspects can be described with

nouns (e.g., atmosphere, train ride, connectivity).

Hence, this approach touches the field of the present

paper, but has still a different domain, approach and

dataset. However, De Clercq et al. (2017) build an

ABSA pipeline for Dutch retail, banking and human

resources data in order to contribute to ABSA by

using data form service domains. They rely on earlier

studies that recommend seeing aspect term extraction

as a sequential labelling task using Inside, Outside,

Beginning (IOB) tags (Bird, Klein, and Loper 2009)

for marking the beginning, inside and outside tokens

of aspect phrases. They use more than 20 classes per

domain. Their data are annotated manually. While

they achieve very high scores for aspect term

extraction, their category classification results are in

part below 50%. According to their chosen domains

and examples, the aspect terms seem to be nouns.

Other scholars follow an unsupervised path for

building an ABSA system (Garcia-Pablos, Cuadros,

and Rigau 2018; Mukherjee and Liu 2012; Zhao et al.

2010). Garcia-Pablos, Cuadros, and Rigau (2018) use

a list of seed words in order to find aspects in large

data quantities. A problem with such approaches is

that topic models find clusters and topics that are not

comprehensive for humans and thus miss the point for

ABSA (Mukherjee and Liu, 2012).

When it comes to physician reviews and PRWs,

there are numerous studies dealing with them in

general and with their sensitive data (Emmert,

Sander, and Pisch, 2013; Emmert et al., 2012;

Bäumer et al., 2018; 2017; Kersting, Bäumer, and

Geierhos, 2019). Medical diagnoses are among the

hardest things to evaluate (Zeithaml, 1981) and

physician reviews are utterly important for the choice

of the right physician (Emmert et al., 2013), while

most ratings are positive (Emmert, Sander, and Pisch,

2013). These studies underline the importance of

physician reviews. What is more, physician reviews

have a specific vocabulary and PRWs require trust

(Kersting, Bäumer, and Geierhos, 2019).

3 DATA

The dataset consists of German-language physician

reviews from several PRWs located in three German

speaking countries (Austria, Germany, Switzerland).

3.1 Data Collection and Overview

Data collection took place in mid-2018, from March

to July. For downloading the data, a distributed

crawler framework was developed. At first, the

websites were manually checked for an index. The

index sites were collected in order to directly access

the physician’s (sub-)sites and save the corresponding

reviews and ratings. We followed the rule of not

causing too much traffic in order to keep the costs for

the community as low as possible. Thus, data

collection took several weeks (Cordes, 2018). All

results were saved in a relational database.

We collected reviews, ratings and additional

information concerning the physician and the office:

e.g., opening hours, address and further training. We

regard this information as useful for the future.

Additionally, we collected data from an English, a

Lithuanian and a Spanish PRW which enables

qualitative comparisons, e.g., regarding the use of

rating classes. The German-language PRWs are

Jameda, Medicosearch

and Docfinder

. General

statistics can be found in Table 1.

Medicosearch can be reached at http://medicosearch.ch

Docfinder can be found at http://docfinder.at

Aspect Phrase Extraction in Sentiment Analysis with Deep Learning

393

Table 1: Statistics for German-language PRWs.

PRW Jameda Docfinder

Medico-

Physicians 413,218 20,660 16,146

Review Texts 1,956,649 84,875 8,547

Professions 293 51 139

Avg. Rating 1,68 4,31 4,82

Rating System

(best to worst)

1 – 6 5 – 1 5 – 1

Men/Women 53/47% 71/29%

No Data

Length (Char.) 383 488 161

As can be seen, most physicians are listed on

Jameda, while fewer are available on Docfinder and

Medicosearch. However, the Austrian Docfinder and

German Jameda are visited much more than

Medicosearch, according to reviews. The ratings are,

as stated before, very good on average. Interestingly,

Jameda and Medicosearch have a higher number of

professions, which may come from listing non-

official professions and specializations. Non-German

reviews were excluded for further steps.

3.2 Rating Categories

The aspect categories to be annotated were identified

on the basis of qualitative methods. Here, we used the

available categories that can be assigned on Jameda,

Docfinder and Medicosearch, e.g., “friendliness”,

“explanation”, etc. A set of rating categories were set

up by discussing them in the team and semantically

merging them. In Table 2, we present a selection of

the categories given on the websites, which built the

basis for our choice. Jameda has the most categories,

but it presents only a selection for certain professions

on its website (Table 2).

For the aspect term extraction and aspect category

classification, we built a manually annotated dataset

in order to use it for supervised machine learning. For

this paper, a first set of categories was chosen which

consequently was annotated in 11,237 sentences:

“friendliness”, “competence”, “time taken”,

“explanation”

. All categories apply to the physician

as the aspect target (/entity target/opinion target).

In most cases, systems combine aspect target

extraction and aspect extraction (Zhang, Wang, and

Liu 2018). In general, we identified three opinion

targets in our data: the physician, the team and the

doctor’s office (e.g., “parking situation”).

Only few data were available.

All translated from German: "Freundlichkeit”, “Kompetenz”,

“Zeit genommen”, “Aufklärung.”

Additionally, we have the target of a general

evaluation with only one aspect; an example sentence

is the following: “Satisfied all round.”

Table 2: Rating classes on PRWs (selection; translated from

German) (Cordes 2018).

PRW Rating Classes

Jameda

Treatment, counselling/care,

commitment, discretion, explanation,

relationship of trust, entering into

concerns, time taken, friendliness,

anxiety patients, waiting time for

appointment, waiting time in the

practice, opening hours, consultation

hours, entertainment in the waiting

room […]

Example:

profession

“dentist” on

Jameda

(limited

classes

available)

Treatment, explanation, mutual trust,

time taken, friendliness, anxiety

patients, waiting time for an

appointment, waiting time in the

practice, consultation hours, care,

entertainment in the waiting room,

alternative healing methods, child-

friendliness, barrier-free access,

practice equipment, accessibility by

telephone, parking facilities, public

accessibilit

Docfinder

Overall assessment, empathy of the

physician, trust in the physician,

peace of mind with treatment, range

of services offered, equipment of the

practice/premises, care by medical

assistants, satisfaction in waiting time

for appointment, satisfaction in

waitin

time in the waitin

roo

Medicosearch

Relationship of trust (the service

provider has taken my problem

seriously), relationship of trust (the

service provider has taken time for

me), information behavior (the

service provider has informed me

comprehensively), information

behavior (the declarations of the

service provider were understandable

for me), recommendation (the service

provider has fulfilled my

expectations), recommendation (I

recommend this service

rovider

)

The four named classes are distinguished clearly

before we describe the annotation process in detail:

 “Friendliness” refers to the degree of devotion of

the physician. That is, does the physician treat

his/her patients respectfully and kindly, is he/she

NLPinAI 2020 - Special Session on Natural Language Processing in Artiﬁcial Intelligence

394

nice or nasty when greeting them, does he/she

look them in the eye? Examples (aspect phrases in

bold, translated from German):

 “He was very friendly and his assistants are very

efficient.”

 “She did not even greet and did not listen.”

 “Competence” deals with the (subjective)

expertise of the physician. It asks whether the

raters felt that the doctor knows what to do and

how to do it. It does not ask for the treatment

quality in general and it does not ask for

friendliness, empathy, etc. The general

competence is also included by this category. This

means that whether a physician is good in his/her

profession, “knows his job” or knows how to

reduce anxiety is regarded as competence.

 “He was very competent and has a conscientious

manner.”

 “Time taken” refers to the time a physician uses

in his appointments. Time is crucial for a

treatment and the felt quality of a treatment.

Patients may see it as positive, negative or even as

a necessity that a health care provider takes

enough time to treat them. In German, especially

when it comes to this category, there are words

which are between words such as “take” and

“time”, comparable to the English phrase:

 “She took a lot of time and […].”

 “The only drawback is that the practice is always

overcrowded, so the personal consultation is

rather short.”

 “Explanation” describes the way the physician

explains diseases and treatments to his patients.

Here, patients want to be informed well. This class

should be differed from the class “time taken”

accordingly, as a long conversation indicates the

amount of time used but the details mentioned or

the questions the physicians asks deal with the

explanation.

 “After a detailed clarification, the treatment was

started immediately.”

 “I was very well informed about my disease

pattern, the consultation was excellent.”

The classes can be distinguished clearly. In most

cases, muli-word phrases need to be annotated, only

nouns or single words do not indicate a category.

However, there are cases in which a distinction

between classes is not natural even for human beings

and thus we provide the brief explanations above.

However, for annotators, we created guidelines and

documented cases that are on the edge. The

annotation process is still very complicated because

the phrases and the complexity of German sentence

structure make it more difficult (e.g., word order may

be changed quite freely).

3.3 Annotation Process

The process started by splitting the language reviews

into sentences using the spaCy library (ExplosionAI,

2019). Annotation at the sentence-level instead of the

document level is more efficient, especially when

having aspects represented by complex phrases. What

is more, Pontiki et al., (2016b) also annotated at the

sentence level. However, we have roughly over 2

million sentences of reviews.

We then annotated 10,000 sentences to indicate

whether they contain an evaluative statement. Based

on this, after having achieved a high agreement

among annotators, we built a Convolutional Neural

Network (CNN) classifier in order to calculate a

probability for every sentence to determine whether it

contains an evaluation or not. We saved all sentences

with a probability of over 50% randomized to a file

and used them for the annotation of aspect phrases

and their categories. We regarded this as a better

approach compared to the use of seed words as

performed by other scholars (Cieliebak et al., 2017).

Our vocabulary, when it comes to the description of

aspect classes, is complex and oftentimes consists of

longer phrases. Thus, we expect a narrowed selection

of sentences when using seed words for our dataset.

The dataset was annotated mainly by one person

while two other people contributed. The annotators

are all specialists who discussed and reviewed the

annotations. Of 11,237 sentences, 6,337 contained at

least one of the four classes, 4,900 did not. It was

possible to annotate several aspects in one sentence.

Our annotations are stored to a database and were

exported into text files for further processing.

Tokenization is saved here, too. The average sentence

length in tokens can be found in Figure 1. Most

sentences are short, while there is a certain number of

longer ones as well.

The following sentence is a good example based

on sentences from the dataset (translated from

German): “Competence [competence] and

connectedness [friendliness], a good match: Dr.

Meyer knows what he is doing [competence] and is

cordial [friendliness] and takes time [time taken]

for the patient, his explanations are great

[explanation].” The aspect phrases are printed in

bold, categories bold and in brackets. Here, the

example delivers an idea of common phrases. Mostly,

users write the way they speak. They rate the same

thing with longer phrases or short words – often not

Aspect Phrase Extraction in Sentiment Analysis with Deep Learning

395

nouns – even several times in the same sentence. This

is different in comparison to Pontiki et al. (2016b) and

Wojatzki et al. (2017). However, compared to Pontiki

et al. (2016b), our dataset is larger (e.g., for English

in the laptop domain: 3,308 sentences; Dutch in the

restaurant domain: 2,286 sentences). Furthermore,

Pontiki et al. (2016a) includes only one of potentially

several mentions of the same opinion target phrase or

aspect entities. The dataset of Wojatzki et al. (2017),

however, seemed larger at first to us, but reducing it

to sentences with annotated aspect phrases reveals

that it is only slightly larger than ours (roughly 2,000

sentences more).

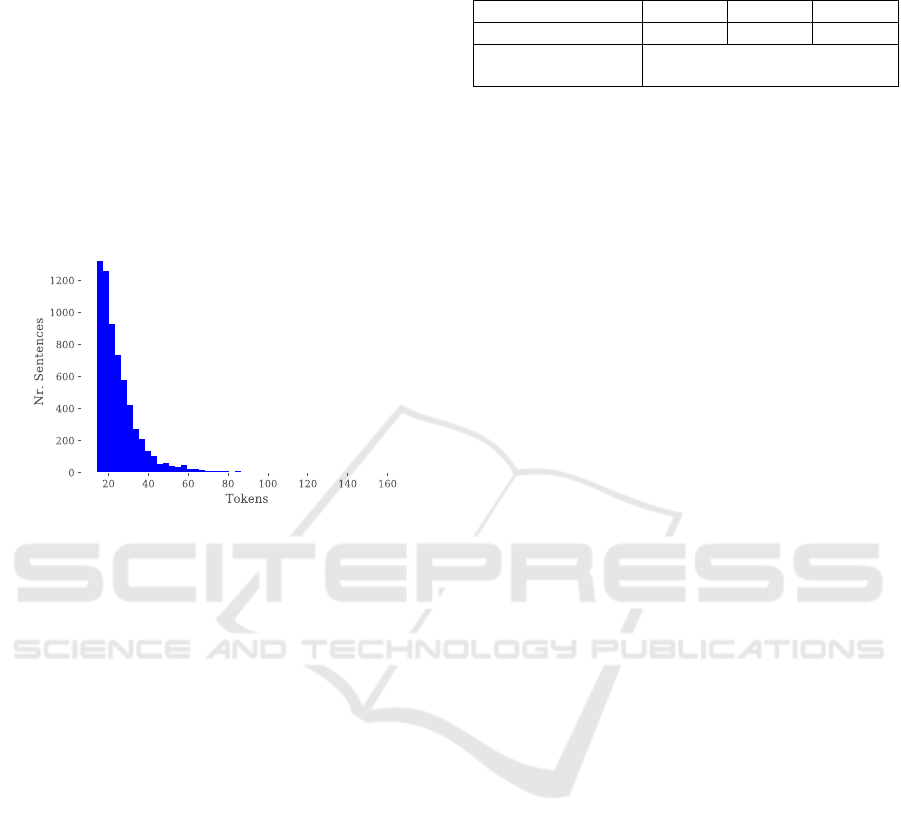

Figure 1: Number of tokens per sentence.

The annotation task was serious due to the nature

of our data and we calculated the inter-annotator

agreement on the basis of tagging, that is, every word

received a tag with its class and every word not being

annotated received a tag with a “None-class” (see

Section 4). We randomly selected 337 (3%) of the

data that were annotated by the main annotator

before. Then, the other two, re-annotated them from

scratch. We achieved sufficient agreement scores as

can be seen in Table 3. We calculated Cohen’s Kappa

(Cohen 1960) for each two of three annotators using

Scikit-learn (Pedregosa et al., 2011). The agreement

among annotators is substantial with a minimum of

0.722 and a maximum between R and J of 0.857.

According to Landis and Koch (1977), all values

between 0.61 and 0.80 can be considered as

substantial agreement, values above 0.81 as almost

perfect. We regard those values as good for our

dataset. What is more, we calculated Krippendorf’s

Alpha (Krippendorff, 2011) using NLTK (Bird et al.,

2009) for all three annotators at once. Here, we

achieve a score of 0.771 which can be seen as a good

value, where 1.0 would be the best. Alpha provides

several advantages such as calculating it for many

annotators at once (not only two). Missing data and

any number of categories can also be used

(Krippendorff, 2011).

Table 3: Inter-annotator agreement between annotators R,

B and J.

Annotators R & B R & J B & J

Cohen’s Kappa 0.722 0.857 0.730

Krippendorf’s

(

for all 3

)

0.771

4 METHOD

In this section, we briefly describe our approach to

perform aspect phrase extraction and the

classification of aspect phrases on the basis of our

annotated dataset. At first, we describe paths we

followed in search for a working system. We scanned

the literature for building the ideal extraction system.

For example, Liu (2012) proposes four approaches to

extract aspects: Extraction (1) using frequent noun

(phrases), (2) by making use of opinion and target

relations (3) by supervised learning (4) based on topic

modeling (Liu, 2012). We tried them and had to

conclude that only supervised approaches are

promising. This came from test results as well as from

the related literature section. For instance, topic

modeling did not find clearly separated topics as

humans would define them. Frequent nouns lead to an

extremely low detection rate for aspects and the

extraction of relations produced no usable results. We

used spaCy (ExplosionAI, 2019) for dependency

parsing and results of Kitaev and Klein (2018) for

constituency parsing to find candidate phrases.

Moreover, we built several machine learning

architectures for IOB tagging of which our final

approach was the best.

Literature indicated a superiority of IOB tagging

(De Clercq et al., 2017). This seems unsuitable for our

case, as we have long phrases with differing start

words that may not be as predictable as in named

entities. Examples are “Mr John Doe” and “John

Doe” in comparison to our data (in German): “Dr.

Müller hat sich viel Zeit genommen” (translated: “Dr.

Müller took a lot of time”) in comparison to “Dr.

Müller nimmt sich für seine Patienten viel Zeit.”

(translated: “Dr. Müller takes a lot of time for his

patients.”; In German, “for his patients” must be

annotated along as it stands in the middle of the

phrase.) However, while IOB tagging does not fit, the

idea is sufficient when leaving out the Beginning (B)

tag in favor of only I and O. We tried both and the

binary IO tagging proved to be the best solution.

When it comes to sequential labeling tasks, studies

suggest using a Conditional Random Field (CRF) in

combination with a bidirectional Recurrent Neural

Network (RNN) (Toh and Su, 2016) that extracts

NLPinAI 2020 - Special Session on Natural Language Processing in Artiﬁcial Intelligence

396

features, which we did. We did not use additional

features as mentioned by other scholars, e.g., named

entity information or token lemmas, as we rely on

user-generated content that has too many mistakes

and nouns are not dominant for us. Nevertheless, tests

with Part-of-Speech tags and other common features

did not improve our results. The architecture of our

system can be found in Figure 1.

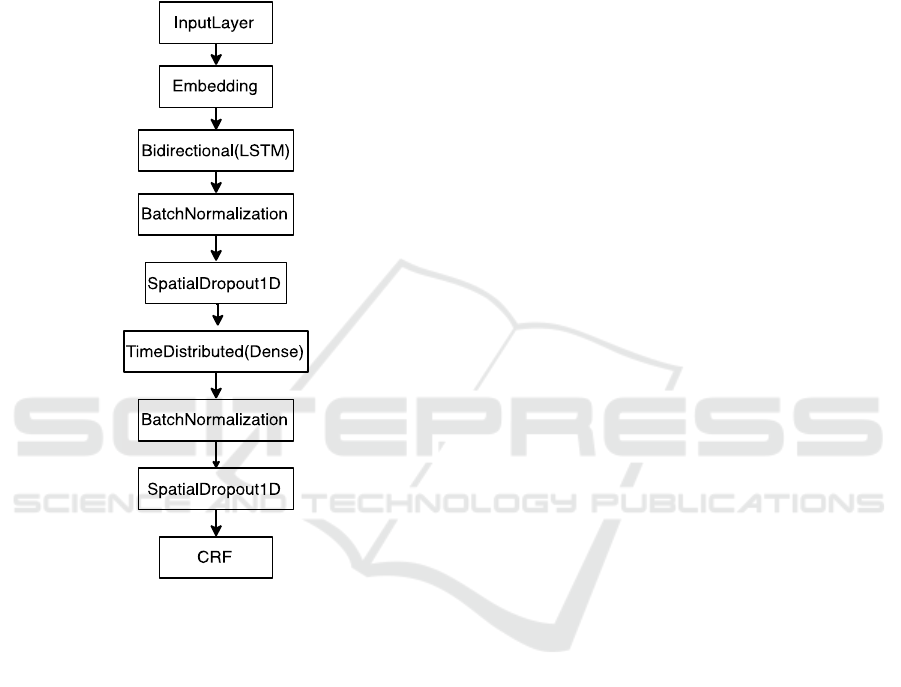

Figure 2: Model architecture.

Our architecture builds mainly on a bidirectional

Long Short-Term Memory (LSTM) (Hochreiter and

Schmidhuber, 1997) for extracting features from the

sequential text data in both directions, using words

before and after the current one. A time-distributed

dense layer aligns all those features, before we hand

them over to a CRF that considers the whole sentence

in order to assign tags. The “BatchNormalization”

layers are meant to keep the activation smaller, i.e.,

normalized. The dropout layers are used to prevent

overfitting as our manually annotated dataset is

relatively small. The input consists of sentences

whose tokens were vectorized. At first, we used our

tokens together with their tags in the form of “I-

friendliness” or “O” for a non-relevant word.

That is, we directly trained the system for

detecting aspect phrases together with their category.

Secondly, it was crucial to have pretrained vectors.

We trained our vectors on all of our sentences with

further measures for avoiding incorrectly split words

and using only lowercase. Interestingly, vectors with

300 dimensions turned out to work best for the model.

This dimensionality helps to avoid overfitting and

increasing recall, especially in comparison to a

smaller dimensionality such as 25. What is more,

current solutions such as BERT (Devlin et al., 2018)

(in its German, cased version by Deepset (2019))

were outperformed by our vectors, which may be

caused by the user generated nature of our data, its

specific vocabulary and the better knowledge

embedded in our vectors. The embedding layer in

Figure 1 does contain all vectors. We trained our own

vectors using FastText (Bojanowski et al., 2017). As

user-generated content contains a lot of mistakes, we

lowercased it to exclude such errors. Our embeddings

are enriched with subword information (character n-

Grams), which is helpful when dealing with user-

generated content to cover mistakes. We used the

skipgram algorithm proposed by Bojanowki et al.,

(2017). It learns vector representations of words that

can predict words appearing in the context. We spent

time for parameter tuning and testing other model

architectures using CNNs, more RNN layers, other

types of RNNs, models without CRF layers, etc. Our

parameters showed best results with values such as a

dropout of 0.3, a small unit size of 30 in the LSTM

layer, RMSprop as optimizer, a small epoch size due

to a small dataset and a batch size of about 10.

5 EVALUATION AND

DISCUSSION

Table 2 presents our evaluation results such as

precision, recall, F1-score per label as well as

accuracy and an average per measure. While our

accuracy of 0.95 is high, we regard our F1-score as

more important. The F1-value of 0.80 is unweighted

and can be regarded as good, especially in

comparison to results in Pontiki et al., (2016b) or

Wojatzki et al., (2017) who barely reach values of

0.50 in a domain with less complex wording and

language while they separate extraction of phrases

and classification of them which leads to forward

propagation of errors. Furthermore, authors such as

Toh and Su (2016) trained separate models for each

category which may leads to better results, but we

trained a unified model that obtains superior scores.

We also did this in order to do not get overlapping

aspect phrases for different categories.

Aspect Phrase Extraction in Sentiment Analysis with Deep Learning

397

Table 4: Evaluation results

of our model (self-trained and

BERT embeddings.

Measures P R F1 P (B) R (B) F1 (B)

I-explanation 0.81 0.71 0.76 0.73 0.67 0.70

I-friendliness 0.75 0.74 0.75 0.75 0.69 0.72

I-competence 0.68 0.67 0.67 0.69 0.65 0.67

I-time_taken 0.85 0.80 0.82 0.87 0.77 0.82

O 0.97 0.98 0.97 0.97 0.98 0.97

Accuracy 0.95 0.94

Average 0.81 0.78 0.80 0.80 0.75 0.78

However, our precision scores are generally better

than our recall scores. We think that this comes from

a rather small amount of annotated training data.

During training, overfitting was an issue and thus it

was a goal to improve the recall: We want our model

to be applicable to new data and therewith contain a

relevance in application. Next to our self-trained

embeddings, we tried BERT embeddings. Still, our

own embeddings achieve better recall and overall

scores: The current recall values of 0.67 to 0.80 (and

0.98 for label “O”) are regarded as favorable,

especially when taking into consideration that F1-

scores of 0.76, 0.75, 0.67, 0.82 and 0.97 are more than

satisfying when considering the domain and data. The

accuracy shows a very high value of 0.95 which can

be explained by the fact that generally, the “O” label

appears mostly and thus boosts the accuracy score,

thus we relate on F1. Furthermore, we regard it as

crucial that precision and recall are not too far apart.

This is the reason why we prefer our model with

embedding layer and self-trained word vectors over

BERT vectors. As Table 4 reveals, BERT

embeddings (Devlin et al., 2018) enable our model to

achieve an F1-score of 0.67 for “competence”, the

same as for our embeddings. While on average, the

precision scores are 0.80 compared to 0.81, the recall

is lower with 0.75 to 0.78. This is why we prefer our

model which, as we think, also reflects our user-

generated data better. However, BERT embeddings

are remarkable while being not trained on our domain

and it is helpful to have embeddings that are

calculated for every word depending on its context

words (Devlin et al., 2018).

To discuss our evaluation scores, it can be said

that a direct comparison to other models and studies

is not possible. This comes from the dataset we built

and presented earlier in the third section. However, a

comparison as indicated to the commonly presented

values in studies dealing with shared tasks and their

numerous results achieved in them indicates the

superiority of our approach. While IO tagging

combined with an LSTM-CRF model lead to success,

self-trained word vectors finally enabled the

P = Precision, R = Recall, F1 = F1-score, B = BERT

evaluation scores in Table 2. Numerical scores can be

misleading. Hence, we regard a manual evaluation as

crucial. We wrote several sentences that we regard as

edge-cases and cases that can be hard to classify in

general. However, the aspect extraction and

classification performed by our model is more than

satisfying.

Additionally, we annotated a dataset with high

inter-annotator agreement scores. Having used fewer

human resources, we achieved comparable Cohen’s

Kappa scores to Wojatzki et al., (2017), even though

they do not clearly indicate scores for the aspect

spans. Their inter-annotator agreement for aspects

lies between 0.79 and 1.0. Pontiki et al., (2016b) use

the F1-score for the annotator agreement. We

consider this score to be difficult to compare.

6 CONCLUSION

At first, we introduced the topic of ABSA. Here we

indicated issues that are currently not sufficiently

addressed. What is more, we enhanced this

understanding in the literature section by presenting

current approaches and general ideas from the area of

ABSA. However, there is still much work to be done

in order to expand research from common reviews for

products and services to linguistically cover more

complex review areas and languages, before ABSA

can serve for further domains. Then, we present our

data. Here, we collected a large number of review

texts of which we use the German-language texts to

train word embeddings and extract a number of

sentences that were annotated. We annotate four

classes related to a physician performing a health care

service: “friendliness”, “competence”, “time taken”,

“explanation.” Our annotated dataset currently

consists of 11,237 sentences. We plan to further

expand the process to other categories and opinion

targets such as the doctor’s office and the team. We

also provided examples and comparisons to other

datasets, named details of the category differentiation

and calculated an inter-annotator agreement that

achieves good scores.

We then described our method for extracting and

classifying aspect phrases. This includes the model

building process as well as the process of parameter

tuning and details regarding word embedding

training. However, we mention what has not led to

success as well as difficulties for aspect extraction

performed by a machine learning system.

NLPinAI 2020 - Special Session on Natural Language Processing in Artiﬁcial Intelligence

398

Lastly, we evaluate and discuss our performance

scores. Here, we compare our model with self-trained

word embeddings to BERT embeddings. In opposite

to other scholars, our approach performs two steps in

one: aspect phrase extraction and classification.

Nevertheless, we outperform other approaches such

as Pontiki et al., (2016b) though we use another

domain and dataset. However, we regard this domain

as a complex one using the morphologically rich

German language.

In the future, we not only plan to build more

annotated datasets, but want to include the opinion

extraction part, too.

ACKNOWLEDGEMENTS

This work was partially supported by the German

Research Foundation (DFG) within the Collaborative

Research Centre On-The-Fly Computing (SFB 901).

REFERENCES

Apotheke-Adhoc. 2018. Von Jameda zur Konkurrenz

geschickt. [Sent by Jameda to the competitors] URL:

https://www.apotheke-adhoc.de/nachrichten/detail/

apothekenpraxis/von-jameda-zur-konkurrenz-

geschickt-bewertungsportale/ (visited on 10/28/2019).

Bird, S.; Klein, E.; and Loper, E. 2009. Natural Language

Processing with Python. O’Reilly Media, 1. Edition.

Blair-Goldensohn, S.; Hannan, K.; McDonald, R.; Neylon,

T.; Reis, G. A.; and Reynar, J. 2008. Building A

Sentiment Summarizer For Local Service Reviews. In

Proceedings of the WWW Workshop NLP Challenges in

the Information Explosion Era, 14, 339–348. ACM.

Bäumer, F. S.; Grote, N.; Kersting, J.; and Geierhos, M.

2017. Privacy Matters: Detecting Nocuous Patient Data

Exposure In Online Physician Reviews. In Proceedings

of the 23rd International Conference on Information

and Software Technologies,, 756, 77–89. Druskininkai,

Lithuania: Springer.

Bäumer, F. S.; Kersting, J.; Kuršelis, V.; and Geierhos, M.

2018. Rate Your Physician: Findings From A

Lithuanian Physician Rating Website. In Proceedings

of the 24th International Conference on Information

and Software Technologies, Communications in

Computer and Information Science, 920, 43–58.

Vilnius, Lithuania: Springer.

Bojanowski, P., Grave, E., Joulin, A. & Mikolov, T. (2017).

Enriching Word Vectors with Subword Information.

Transactions of the ACL, 5, 135–146. ACL.

Cieliebak, M., Deriu, J. M., Egger, D. & Uzdilli, F. (2017).

A Twitter Corpus and Benchmark Resources for

German Sentiment Analysis. In Proceedings of the 5th

International Workshop on Natural Language

Processing for Social Media. 45–51. Valencia, Spain:

ACL.

Chinsha, T. C., and Shibily, J. 2015. A Syntactic Approach

for Aspect Based Opinion Mining. In Proceedings of

the 9th IEEE International Conference on Semantic

Computing. 24–31. Anaheim, CA, USA: IEEE.

Cohen, J. (1960). A Coefficient of Agreement for Nominal

Scales. Educational and Psychological Measurement,

20(1), 37–46.

Cordes, M. 2018. Wie bewerten die anderen? Eine

übergreifende Analyse von Arztbewertungsportalen in

Europa. [What do the others think? An overarching

analysis of doctor rating portals in Europe] Master

Thesis. Universität Paderborn.

Danda, P.; Mishra, P.; Kanneganti, S.; and Lanka, S. 2017.

IIIT-H at IJCNLP-2017 Task 4: Customer Feedback

Analysis Using Machine Learning and Neural Network

Approaches. In Proceedings of the 8th International

Joint Conference on Natural Language Processing,

Shared Tasks, 155–160. Taipei, Taiwan: AFNLP.

Deepset. 2019. Deepset – Open Sourcing German BERT.

URL: https://deepset.ai/german-bert. / (visited on

11/28/2019).

De Clercq, O.; Lefever, E.; Jacobs, G.; Carpels, T.; and

Hoste, V. 2017. Towards an Integrated Pipeline for

Aspect-based Sentiment Analysis In Various Domains.

In Proceedings of the 8th ACL Workshop on

Computational Approaches to Subjectivity, Sentiment

and Social Media Analysis. 136–142, Copenhagen,

Denmark: ACL.

Devlin, J.; Chang, M.-W.; Lee, K.; and Toutanova, K. 2018.

BERT: Pre-Training of Deep Bidirectional

Transformers for Language Understanding. arXiv

preprint.

Emmert, M.; Sander, U.; Esslinger, A. S.; Maryschok, M.;

and Schöffski, O. 2012. Public Reporting In Germany:

The Content of Physician Rating Websites. Methods of

Information in Medicine. 51(2):112–120.

Emmert, M.; Meier, F.; Pisch, F.; and Sander, U. 2013.

Physician Choice Making and Characteristics

Associated With Using Physician-Rating Websites:

Cross-Sectional Study. Journal of Medical Internet

Research 15(8):e187.

Emmert, M.; Sander, U.; and Pisch, F. 2013. Eight

Questions About Physician-Rating Websites: A

Systematic Review. Journal of Medical Internet

Research 15(2):e24.

ExplosionAI. 2019. Release de_core_news_sm-2.1.0

explosion/spacy-models GitHub. URL:

https://github.com/explosion/spacy-models/releases//

tag/de_core_news-sm-2.1.0 (visited on 11/13/2019).

Garcia-Pablos, A.; Cuadros, M.; and Rigau, G. 2018.

W2VLDA: Almost Unsupervised System for Aspect-

based Sentiment Analysis. Expert Systems with

Applications 91:127–137.

Hochreiter, S., and Schmidhuber, J. 1997. Long Short-Term

Memory. Neural Computation 9(8):1735–1780.

Hu, M., and Liu, B. 2004. Mining and Summarizing

Customer Reviews. In Proceedings of the 10th ACM

SIGKDD International Conference on Knowledge

Aspect Phrase Extraction in Sentiment Analysis with Deep Learning

399

Discovery and Data Mining, 168–177. Seattle, WA,

USA: ACM.

Kersting, J.; Bäumer, F.; and Geierhos, M. 2019. In

Reviews We Trust: But Should We? Experiences With

Physician Review Websites. In Proceedings of the 4th

International Conference on Internet of Things, Big

Data and Security, 147–155. Heraklion, Greece:

SCITEPRESS.

Kitaev, N., and Klein, D. 2018. Constituency Parsing with

a Self-attentive Encoder. In Proceedings of the 56th

Annual Meeting of the ACL, 2676–2686. Melbourne,

Australia: ACL.

Krippendorff, K. (2011). Computing Krippendorff’s Alpha-

Reliability. University of Pennsylvania. Retrieved from

https://repository.upenn.edu/asc_ papers/43

Landis, J. R., and Koch, G. G. (1977). The Measurement of

Observer Agreement for Categorical Data. Biometrics,

33(1): 159–174

Liu, B., and Zhang, L. 2012. A Survey of Opinion Mining

and Sentiment Analysis. In Aggarwal, C. C., and Zhai,

C. X., eds., Mining Text Data. 415–463. Springer.

Liu, B. 2012. Sentiment analysis and opinion mining.

Synthesis Lectures on Human Language Technologies

5(1):1–167.

McAuley, J.; Leskovec, J.; and Jurafsky, D. 2012. Learning

Attitudes and Attributes From Multi-Aspect Reviews.

In Proceedings of the 12th IEEE International

Conference on Data Mining, 1020–1025. Brussels,

Belgium: IEEE.

Mukherjee, A., and Liu, B. 2012. Aspect Extraction

Through Semi-Supervised Modeling. In Proceedings of

the 50th Annual Meeting of the ACL, 1, 339–348. Jeju,

South Korea: ACL.

Nguyen, T. H., and Shirai, K. 2015. PhraseRNN: Phrase

Recursive Neural Network for Aspect-based Sentiment

Analysis. In Proceedings of the 2015 Conference on

Empirical Methods in Natural Language Processing,

2509–2514. Lisbon, Portugal: ACL.

Pedregosa, F., Varoquaux, G., Gramfort, A., Michel, V.,

Thirion, B., Grisel, O., … Duchesnay, E. (2011). Scikit-

learn: Machine Learning in Python. Journal of Machine

Learning Research, 12, 2825–2830.

Pontiki, M.; Galanis, D.; Papageorgiou, H.; Manandhar, S.;

and Androutsopoulos, I. 2015. Semeval-2015 task 12:

Aspect-based Sentiment Analysis. In Proceedings of

the 9th International Workshop on Semantic

Evaluation, 486–495. Denver, CO, USA: ACL.

Pontiki, M.; Galanis, D.; Papageorgiou, H.; Manandhar, S.;

and Androutsopoulos, I. 2016a. Semeval 2016 Task 5

Aspect Based Sentiment Analysis (ABSA-16)

Annotation Guidelines.

Pontiki, M.; Galanis, D.; Papageorgiou, H.;

Androutsopoulos, I.; Manandhar, S.; AL-Smadi, M.;

Al-Ayyoub, M.; Zhao, Y.; Qin, B.; De Clercq, O.;

Hoste, V.; Apidianaki, M.; Tannier, X.; Loukachevitch,

N.; Kotelnikov, E.; Bel, N.; Jime ́nez-Zafra, S. M.; and

Eryig ̆it, G. 2016b. Semeval-2016 Task 5: Aspect Based

Sentiment Analysis. In Proceedings of the 10th

International Workshop on Semantic Evaluation, 19–

30. Denver, CO, USA: ACL.

Qiu, G.; Liu, B.; Bu, J.; and Chen, C. 2011. Opinion Word

Expansion and Target Extraction Through Double

Propagation. Computational Linguistics 37(1):9–27.

Sun, C.; Huang, L.; and Qiu, X. 2019. Utilizing BERT for

Aspect-based Sentiment Analysis Via Constructing

Auxiliary Sentence. arXiv preprint.

Tang, D.; Qin, B.; Feng, X.; and Liu, T. 2016. Effective

LSTMs for Target-Dependent Sentiment

Classification. In Proceedings of the 26th COLING.

Osaka, Japan: ICCL.

Toh, Z., and Su, J. 2016. NLANGP at Semeval-2016 Task

5: Improving Aspect Based Sentiment Analysis Using

Neural Network Features. In Proceedings of the 10th

International Workshop on Semantic Evaluation. 282–

288. San Diego, CA, USA: ACL.

Wojatzki, M.; Ruppert, E.; Holschneider, S.; Zesch, T.; and

Biemann, C. 2017. Germeval 2017: Shared Task On

Aspect-based Sentiment In Social Media Customer

Feedback. In Proceedings of the GermEval 2017 –

Shared Task on Aspect-based Sentiment in Social

Media Customer Feedback, 1–12. Berlin, Germany:

Springer.

Zeithaml, V. A.; Parasuraman, A.; Berry, L. L.; and Berry,

L. L. 1990. Delivering Quality Service: Balancing

Customer Perceptions and Expectations. Free Press.

Zeithaml, V. 1981. How Consumer Evaluation Processes

Differ Between Goods and Services. Marketing of

Services 9(1):186–190.

Zhang, L.; Wang, S.; and Liu, B. 2018. Deep Learning for

Sentiment Analysis: A Survey. Wiley Interdisciplinary

Reviews: Data Mining and Knowledge Discovery

8(4):1–25.

Zhao, W. X.; Jiang, J.; Yan, H.; and Li, X. 2010. Jointly

Modeling Aspects and Opinions With A Maxent-LDA

Hybrid. In Proceedings of the Conference on Empirical

Methods in Natural Language Processing, 56–65.

Cambridge, MA, USA: ACL.

NLPinAI 2020 - Special Session on Natural Language Processing in Artiﬁcial Intelligence

400
