Performance Modeling in Predictable Cloud Computing

Riccardo Mancini, Tommaso Cucinotta

and Luca Abeni

Scuola Superiore Sant’Anna, Pisa, Italy

Keywords:

Cloud Computing, Real-time Scheduling, Temporal Isolation, Performance Modeling, Network Function

Virtualization.

Abstract:

This paper deals with the problem of performance stability of software running in shared virtualized infras-

tructures. The focus is on the ability to build an abstract performance model of containerized application

components, where real-time scheduling at the CPU level, along with trafﬁc shaping at the networking level,

are used to limit the temporal interferences among co-located workloads, so as to obtain a predictable dis-

tributed computing platform. A model for a simple client-server application running in containers is used as

a case-study, where an extensive experimental validation of the model is conducted over a testbed running a

modiﬁed OpenStack on top of a custom real-time CPU scheduler in the Linux kernel.

1 INTRODUCTION

The relentless evolution of information and commu-

nication technologies brought to a wide diffusion of

cloud computing technologies (Armbrust et al., 2010)

in the last decade. These are being adopted more

and more in industrial and commercial settings, for

various reasons. For example, they enable ﬂexible

and efﬁcient use of hardware resources that are multi-

plexed over multiple customers (tenants). Moreover,

they decrease the problems related to hardware obso-

lescence and the need of having expensive data cen-

ters operated by specialized personnel, sized for peak-

hour workloads. As a result, the ICT (Information

and Communications Technology) infrastructure and

services, operated 24/7, can be rented on-demand as

needed.

Not only public cloud providers are seeing a con-

tinuous growth of their business, but private cloud

computing is also emerging as an increasingly used

paradigm within an organization. This allows to opti-

mize the use of ICT infrastructures by multiplexing a

number of heterogeneous services on the same phys-

ical infrastructure providing computing, networking

and storage services. In this context, hybrid cloud

computing is emerging as an increasingly interesting

solution taking the best of the two approaches (Arm-

brust et al., 2010).

A set of technologies that played a key and en-

https://orcid.org/0000-0002-0362-0657

https://orcid.org/0000-0002-7080-9601

abling role in cloud computing have been the ones

related to virtualization of resources. Disk virtualiza-

tion has been historically used to support disk parti-

tioning, aggregation and reliability (think of RAID)

in mainframes and personal computers. Network vir-

tualization has been at the heart of employing sep-

aration and security in networking for data centers.

Machine virtualization has been greatly leveraged to

build nowadays’ cloud services able to host a num-

ber of heterogeneous Operating Systems (OSes) on

the same physical nodes. Virtualization technologies

pose the foundation for a ﬂexible and adaptable use of

the underlying infrastructure, enabling seamless mi-

gration of virtual machines and services throughout

the physical infrastructure as needed, including the

possibility to live migrate them, causing unnoticeable

down times in the range of a few hundred millisec-

onds.

1.1 Problem Presentation

This explosion in the use and adoption of cloud com-

puting services led to a corresponding evolution of the

users’ needs. Nowadays, cloud services are not only

used for storage or batch activities, but they are in-

creasingly used for on-line and (soft) real-time appli-

cations, where customers and users of the shared in-

frastructure exhibit higher and higher requirements in

terms of responsiveness and timeliness of the hosted

applications and services.

While the use of virtualization leads to the in-

crease in ﬂexibility and security (Ardagna et al.,

Mancini, R., Cucinotta, T. and Abeni, L.

Performance Modeling in Predictable Cloud Computing.

DOI: 10.5220/0009349400690078

In Proceedings of the 10th International Conference on Cloud Computing and Services Science (CLOSER 2020), pages 69-78

ISBN: 978-989-758-424-4

2015) of multi-tenant cloud infrastructures, it hurts

performance due to its associated overheads. This

problem, particularly nasty in machine virtualization,

has been tackled either in hardware by adding ac-

celeration capabilities available in hardware-assisted

virtualization, or in software by employing solutions

based on para-virtualization, requiring modiﬁcations

and customization of the guest OS. More recently, an

increasingly interesting alternative of the latter kind

is the one of using lightweight OS-level virtualiza-

tion, a.k.a., containers. These are effectively an ex-

tension of an OS kernel services with additional en-

capsulation capabilities that let users run completely

independent user-space software stacks. While mul-

tiple containers on the same physical machine share

the same OS kernel, achieving lower security and re-

silience levels when compared to machine virtualiza-

tion, they are also capable of accessing the underly-

ing hardware at bare-metal performance. As a result,

containerization technologies are used in a number

of application domains, ranging from serverless com-

puting (Akkus et al., 2018) (especially when dealing

with big-data processing services with such solutions

as AWS Lambda and Fargate or Google Functions)

to Network Function Virtualization (NFV) (Aditya

et al., 2019; Cucinotta et al., 2019).

Traditional cloud services tackle the problem of

performance control by deploying scalable virtual-

ized services, able to dynamically request and obtain

additional physical resources from the infrastructure

as needed, due to the typically dynamic nature of the

submitted workloads over time. This approach can

be effective only if the performance

of the single in-

stance, e.g., the single virtual machine (VM) or con-

tainer, is sufﬁciently stable. However, multi-tenancy

in public clouds is well-known to cause unforeseeable

interferences among co-located workloads. A similar

problem occurs also in private cloud infrastructures,

when hosting services from different heterogeneous

departments of an organization. In that case, over-

provisioning, i.e. scheduling two (or more) contain-

ers on a single CPU core, may be used to achieve a

higher degree of efﬁciency in the use of the underly-

ing infrastructure. For example, if two containers are

known to run, in average, less than half of the CPU

time each, they could be placed on the same CPU core

to reduce costs, at the cost of predictability.

Unfortunately, scaling horizontally a service after

detecting some performance degradation is not suf-

ﬁcient to grant a predictable performance to inter-

active cloud applications with tight timing require-

ments, due to the time needed to employ the moni-

Expressed, for example, in terms of amount of work

performed in a time interval.

tor/decide/scale control loop. For example, a new VM

might require minutes in order to boot and be ready to

join an elastic group.

The classical way to provide a predictable perfor-

mance/quality of service to a container or VM is by

recurring to hardware partitioning. This means that

virtual cores (that is, the cores of a VM or container)

are pinned onto physical cores, and subsets of the

available physical cores are dedicated to speciﬁc VMs

or containers. This kind of approach forbids any pos-

sibility of over-provisioning, decreasing the effective-

ness of a cloud infrastructure to manage its resources

efﬁciently. Some researchers investigated on the use

of real-time scheduling in the hypervisor or OS kernel

for virtualized services (Abeni et al., 2018; Cucinotta

et al., 2009; Xi et al., 2011).

This last strand of research is the context in which

our investigation is located, as explained in what fol-

lows.

1.2 Contributions

This paper deals with the problem of performance

modeling in shared containerized infrastructures, pre-

senting an extensive and detailed validation of a per-

formance model from the literature (Cucinotta et al.,

2019). Such a model is based on a real-time schedul-

ing strategy providing temporal isolation at the pro-

cessing level, jointly with trafﬁc shaping for isolation

of multiple networking ﬂows. The model validated

in this paper currently consider only single-core con-

tainers, but extensions to multi-core/multi-processor

containers are currently being considered.

Since the scheduler has already been shown to

provide temporal isolation between containers (Abeni

et al., 2018), the performance evaluation can be per-

formed in isolation, running one single container per

node (the container-based real-time scheduler guar-

antees that the performance of a container is not af-

fected by the interference of other containers running

on the same node). Several experiments have been

performed in order to extensively validate all the as-

pects of the considered probabilistic analysis, includ-

ing the networking model (that did not receive too

much attention in previous works).

Moreover, this work presents a realistic deploy-

ment by using OpenStack containers to orchestrate

the distributed client-server application used for the

experiments.

CLOSER 2020 - 10th International Conference on Cloud Computing and Services Science

2 RELATED WORK

There is an increasing interest in providing a stable

and predictable Quality of Service (QoS) to applica-

tions running in cloud computing environments, rep-

resenting an interesting issue for researchers, both

from a theoretical and a practical point of view.

Some prior works focused on addressing these is-

sues through a better placement of network functions

on virtualized nodes (Rankothge et al., 2017; Sang

et al., 2017) and their dynamic migration (Gilesh

et al., 2018), or using elastic auto-scaling strate-

gies that cannot provide performance guarantees (Ali-

Eldin et al., 2012; Roy et al., 2011; Fernandez et al.,

2014).

Other works advocated the use of real-time

scheduling techniques to make the execution of virtu-

alized and distributed computing environments more

predictable, and easier to analyze (Xi et al., 2015; Xi

et al., 2011; Lee et al., 2012; Drescher et al., 2016;

Cucinotta et al., 2010). However, the theoretical anal-

ysis proposed in such works has often been extremely

simplistic, for example only considering worst-case

behaviors and ignoring communications among dif-

ferent virtualized activities (Li et al., 2016).

The mentioned real-time scheduling techniques

are based on CPU reservations, which are similar

to the well-known trafﬁc shaping techniques (Geor-

giadis et al., 1996) used in computer networks. Both

reservation-based scheduling and trafﬁc shaping are

based on the idea of enforcing a limit to the fraction

of resources a service/connection can use, and trafﬁc

shapers (based on token bucket or similar) are often

used in cloud computing to limit the network band-

width a VM can use.

A promising ﬁrst step towards more realistic

application models can be based on queuing the-

ory (Allen, 1978; Gross and Harris, 1985) that enables

probabilistic analysis (instead of simply considering

the worst case). Works going in this direction exist,

for example performing the probabilistic analysis of

client-server applications (Cucinotta et al., 2017) or

extending such an analysis to containerized execution

environments (when real-time scheduling techniques

are applied (Abeni et al., 2018)) to achieve predictable

QoS in private clouds (Cucinotta et al., 2019).

However, the correctness and accurateness of the

analysis has been veriﬁed through experiments lim-

ited to simpliﬁed setups, omitting (for example) net-

work delays (which the theoretical model and the

analysis can account for).

Finally, it is worthwhile to mention that some au-

thors (Mian et al., 2013) tried to build performance

models for applications running in public clouds, e.g.,

through the use of linear classiﬁers. However, using

effective techniques for temporal isolation among co-

located services, one could increase accuracy of this

kind of models.

3 SYSTEM MODEL

This section presents a summary of the model from

literature (Cucinotta et al., 2019) that is going to be

validated in the presented experiments.

The model assumes some kind of isolation be-

tween applications, that can be achieved (for ex-

ample) by using a container-based real-time sched-

uler (Abeni et al., 2018). This scheduler, based on

some modiﬁcations to the SCHED DEADLINE policy,

provides the real-time containers abstraction.

Using real-time containers, each containerized ap-

plication is reserved a runtime Q (meaning that it is

allowed to execute for a time Q and is guaranteed to

receive such an amount of execution time) every pe-

riod P, under the condition that

∑

≤ 1 among

all real-time containers hosted on each CPU core.

These real-time containers are used to execute a

set of server applications S

...S

receiving (and serv-

ing) requests from clients through network connec-

tions.

A server S receives a pattern of requests modeled

as a Poisson stochastic process. Namely, requests of

size z

are sent by the client with exponential and i.i.d.

inter-request times with average rate λ and exponen-

tial and i.i.d. packet processing times with average

rate µ (the processing time is measured when a whole

CPU core is dedicated to the processing of requests).

The end-to-end Round-Trip Time (RTT) for re-

quests is thus a stochastic variable R

= t

+ t

where t

is the time needed to send a request from the

client to the server, t

is the time needed by the server

to process the request and t

is the time needed by the

response to go back from the server to the client.

When a server S is deployed as a real-time con-

tainer with runtime Q and period P, its processing

time t

can easily be approximated if P is sufﬁciently

small:

∼

Q/P

. (1)

where R is the processing time when the server runs

on a dedicated physical CPU core in isolation (with-

out reservation or equivalently with Q = P).

The transmission and response times can be de-

tailed as:

Performance Modeling in Predictable Cloud Computing

= q

+ δ +

= q

+ δ +

(2)

where:

• q

) is the queuing time during which a request

is waiting to be transmitted (sent back), δ is the

client-server transmission latency (measurable as,

e.g., half the ping time between the client and the

server)

• z

/σ (z

/σ) is the time needed to transmit a re-

quest (reply) of size z

) on a medium with

speed σ.

If the network is not congested, δ has very little

variability, the queuing times when sending requests

and replies are negligible (q

∼

0), z

is con-

stant and z

∼

0 (because the server sends back to the

client just a success/error code), then Eq. (2) simpli-

ﬁes in t

∼

δ+

∼

δ (where Z = Z

is the network-

ing time). Hence, the transmission and response times

can be substantially ignored, adding back the constant

2δ +

to the processing time t

in the ﬁnal expres-

sion of the RTT. Considering for example a negligi-

ble bandwidth requirement Z u 0, Poissonian arrivals

with average rate λ and exponentially distributed ser-

vice times with average rate µ, the average end-to-end

response-time E[R

] and its φ

percentile P

] can

be approximated as:

E[R

] = 2δ +

−λ

] = 2δ −

ln(1 −φ)

−λ

(3)

If the request sizes z

are distributed exponentially

with average E[s] (so the transmission times t

are

also exponentially distributed with rate ν =

E[s]

> λ)

and t

∼

δ, then the average round-trip time E[R

] and

its φ

percentile P

] can be approximated as:

E[R

] = 2δ +

ν −λ

−λ

] ≤ 2δ −



1 −

√



(4)

where α , (

ν−λ

−λ

)

−1

. Note that the formula for

] is a conservative bound, where ν → ∞ leads to

an expression similar to Eq. (3), just with

√

φ rather

than φ, providing an insight into the approximation

implications. Refer to (Cucinotta et al., 2019) for ad-

ditional details.

4 IMPLEMENTATION AND

EXPERIMENTAL SETUP

To validate the performance model presented in (Cu-

cinotta et al., 2019) (as recalled in Section 3), an im-

plementation of the container-based real-time sched-

uler used in the original paper has been used. While in

previous works the containers were created and con-

ﬁgured manually, in this paper the practical usabil-

ity of the technique is demonstrated by deploying the

containers through OpenStack

The experiments have been carried out using

distwalk

, a simple yet realistic open-source dis-

tributed application able to impose a conﬁgurable

client-server networking trafﬁc and processing work-

load on the server. In particular, the application client

sends requests to the server with a random interarrival

rate (λ) and random request size (z

). The server then

simulates the execution of the request for a random

amount of CPU time (1/µ) before sending a reply

packet to the client of random size (z

). The distri-

bution of the random variables λ, µ, z

and z

can be

conﬁgured from the client application interface (e.g.

constant, uniform, exponential).

4.1 Implementation

The container-based real-time scheduling patches

from (Abeni et al., 2018) enable the user to set run-

time and period for every cgroup. To use this new

feature through OpenStack, some modiﬁcations to its

“compute” component have been necessary. Nova

is the OpenStack “compute” component, that allows

to create virtual servers (based on different kinds of

VMs or containers). If the virtual server is imple-

mented using containers, Nova uses libvirt to interact

with the user-space tools used to manage the contain-

ers, such as LXC

The modiﬁcations to Nova added the following

functionalities:

• Real-time parameters for the containers can be set

directly from the command line user interface;

• User-deﬁned parameters are set in the container’s

cgroup at container creation time;

• A simple allocation algorithm (worst-ﬁt) is used

in order to choose the CPU in which to schedule

More information can be found at: https://www.

openstack.org/.

Available on GitHub: https://github.com/tomcucinotta/

distwalk.

More information can be found at: https:

//linuxcontainers.org/lxc/

CLOSER 2020 - 10th International Conference on Cloud Computing and Services Science

the container (only single CPU containers are con-

sidered in this proof-of-concept setup);

• Parameters are periodically retrieved from the

container cgroup to monitor the utilization.

To implement such functionalities, the following

modiﬁcations to the Nova component have been re-

quired:

• New database columns have been added, to store

the container-speciﬁc real-time parameters and

the compute server metrics;

• A new ﬂavor property and a new scheduler hint

have been added, to allow setting the real-time

parameters at both creation time and ﬂavor deﬁ-

nition;

• The Nova scheduler has been modiﬁed to choose

only RT-enabled compute servers when deploy-

ing a real-time container, making sure that the re-

sulting set of real-time containers in the server is

schedulable;

• The container creation method of the Libvirt

Driver has been modiﬁed to set the correct cgroup

parameters as well. This has been done by directly

setting the cgroup parameters through the ﬁlesys-

tem (an alternative solution is to modify Libvirt

too, adding the real-time parameters in the virtual

server description);

• The container creation method of the Libvirt

Driver has also been modiﬁed to choose the CPU

in which to pin the real-time container using a

worst-ﬁt strategy;

• The possibility to read the real-time parameters

from the cgroup has been added for monitoring

the server utilization. This has been done by

adding a new monitoring method in the Libvirt

Driver.

4.2 Experimental Setup

As shown in ﬁg. 1, the experimental setup consisted

of three nodes:

• A compute node, in which the application’s server

ran;

• A client node, in which the client ran

• A controller node, which is required by Open-

Stack to deploy and manage the virtual machines

but has no inﬂuence on the experiments.

The application’s server ran inside a real-time

container on a computer with Linux kernel v5.1.0.

The server container was restricted to use only one

CPU core and its reservation period was always set to

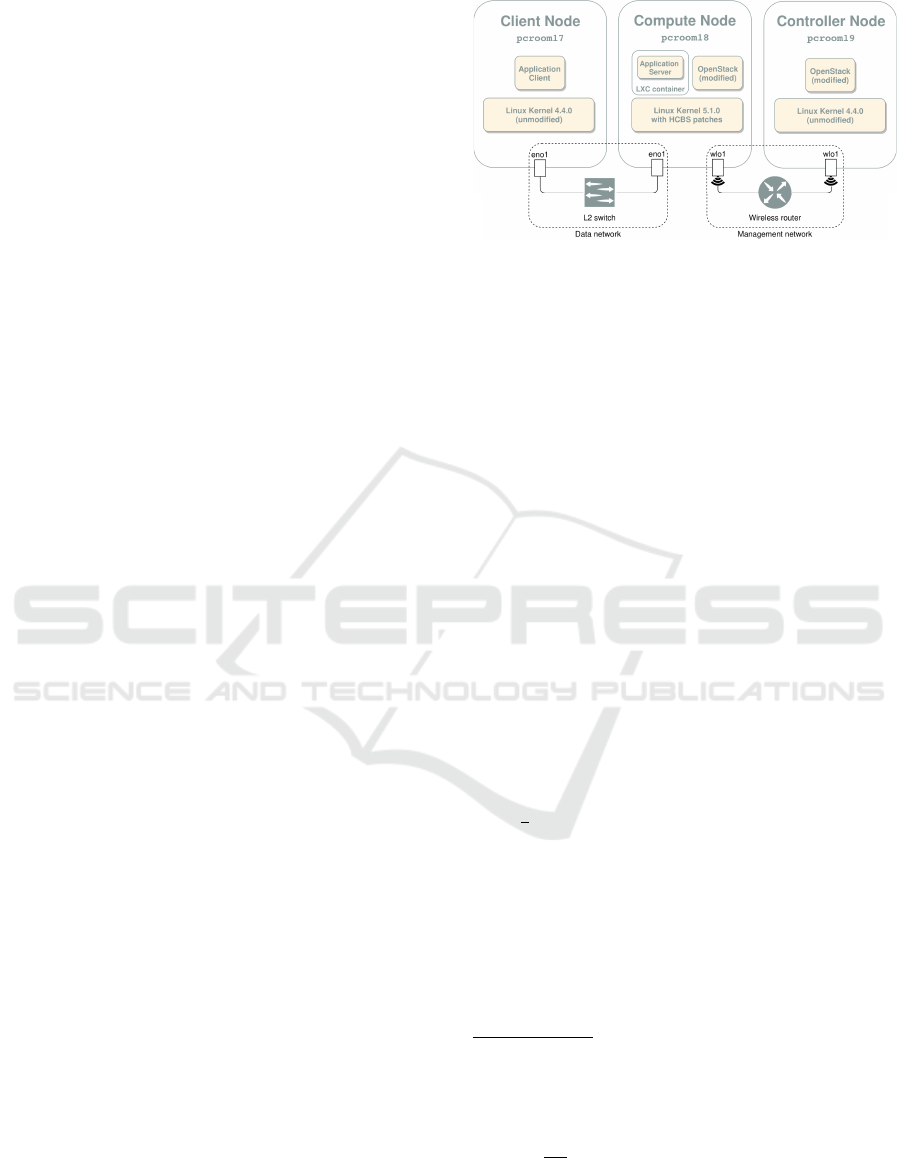

L2 switch

Figure 1: Schematization of the Experimental Setup. In

Reality, All Nodes Have Both wlo1 and eno1 Interfaces but

Some Are Not Relevant to the Experiments and Thus Have

Been Omitted for Simplicity Sake.

P = 2ms, a value small enough to enable the approxi-

mation of Eq. (1). The client ran on another machine

with Linux kernel v4.4.0. Both machines were iden-

tical, with an Intel(R) Core(TM) i5-4590S CPU @

3.00GHz and 8GB of RAM. They both had a 1Gbps

NIC connected to an L2 switch. The client-server la-

tency has been measured using ping and gathering

10K samples, obtaining δ = 363/2 = 181.5µs. Fur-

thermore, in both machines high resolution timers and

HRTICK

were enabled and HZ

was set to 1000

(1ms), in order to obtain more accurate results.

In what follows, every measurement has been ob-

tained from 10K samples over each run, with the af-

fected machines running with CPU frequency switch-

ing and hyper-threading disabled.

Network bandwidths lower than 1Gbps were ob-

tained using a token bucket trafﬁc shaper set-up using

the tc tool with the smallest possible buffer size

and

latency set to 100ms

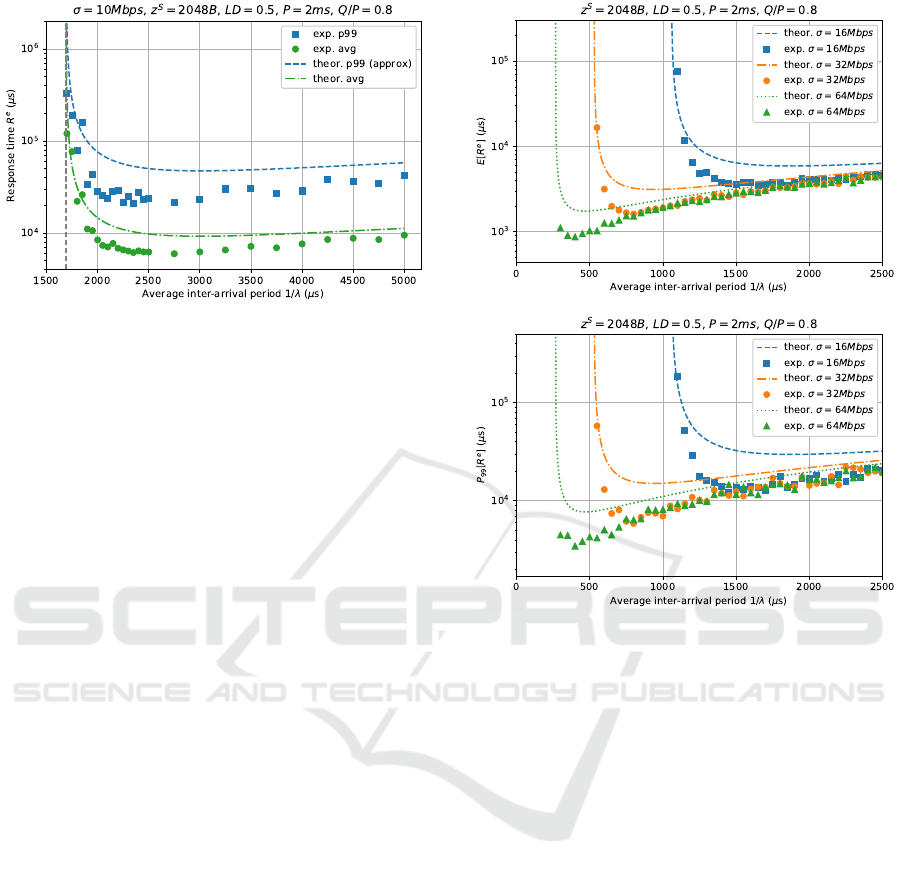

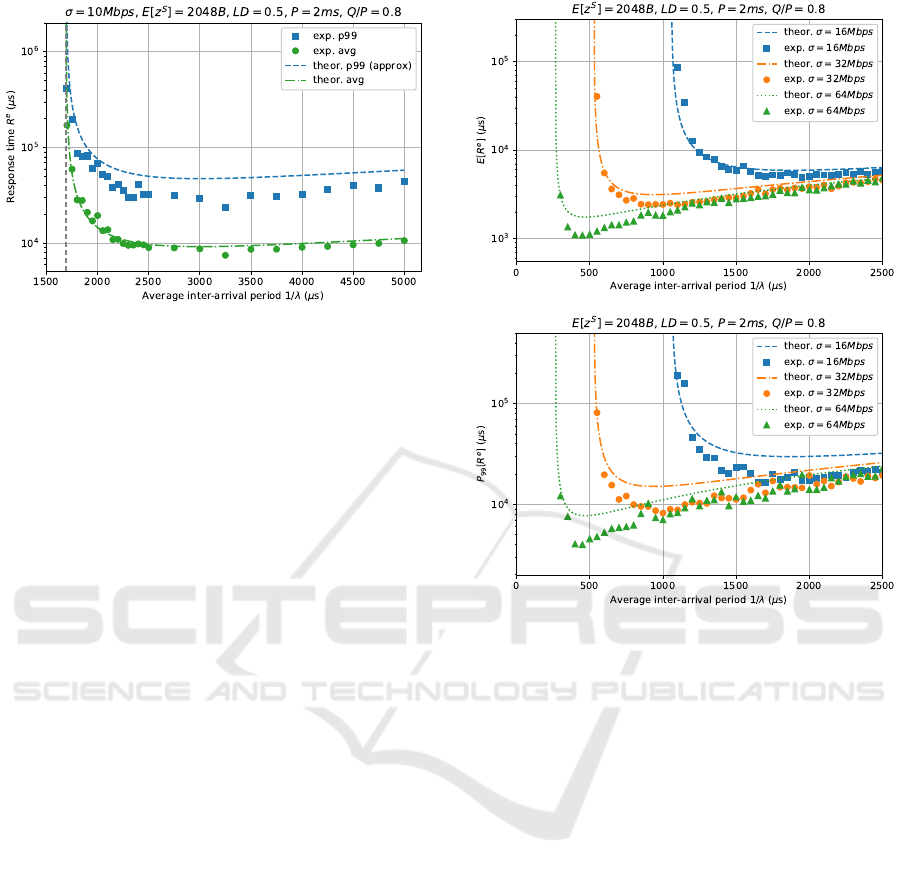

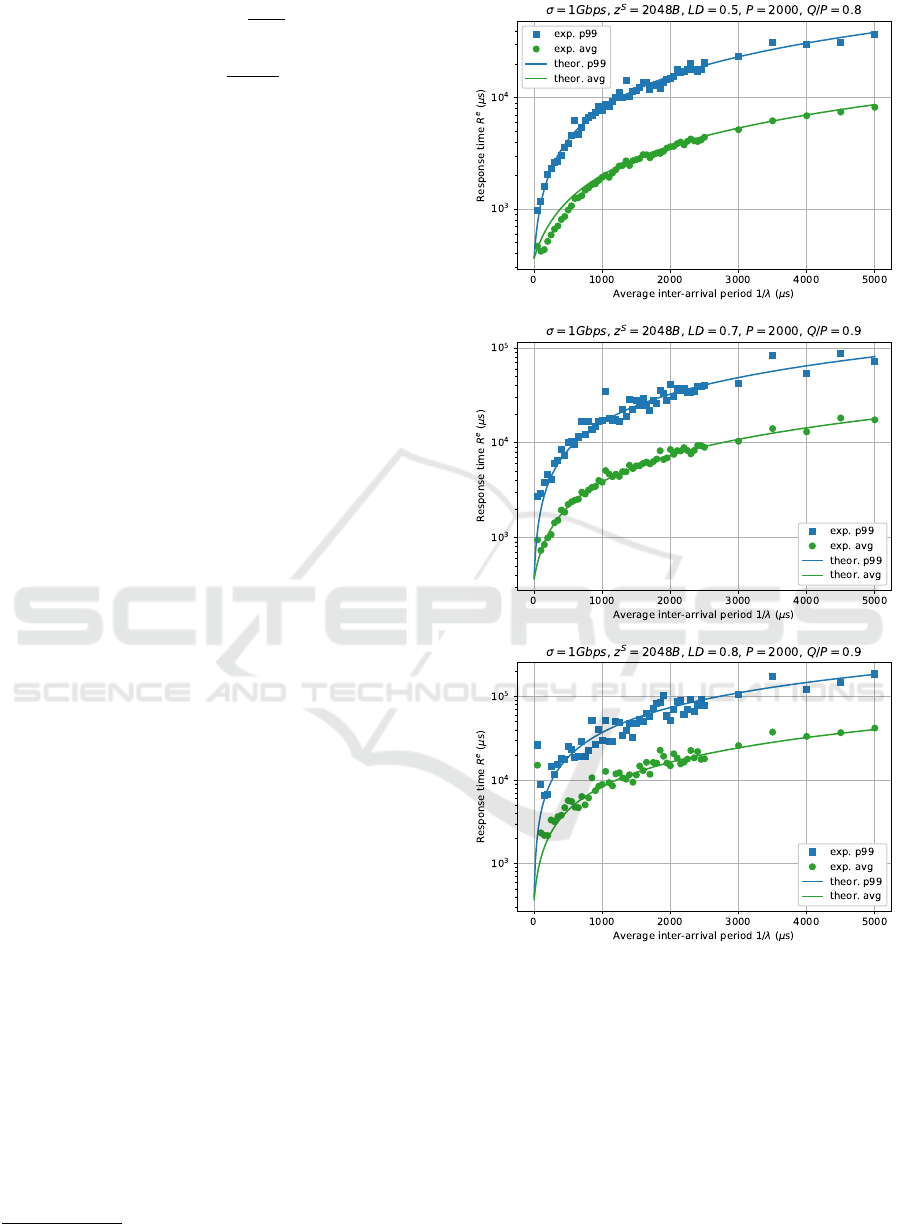

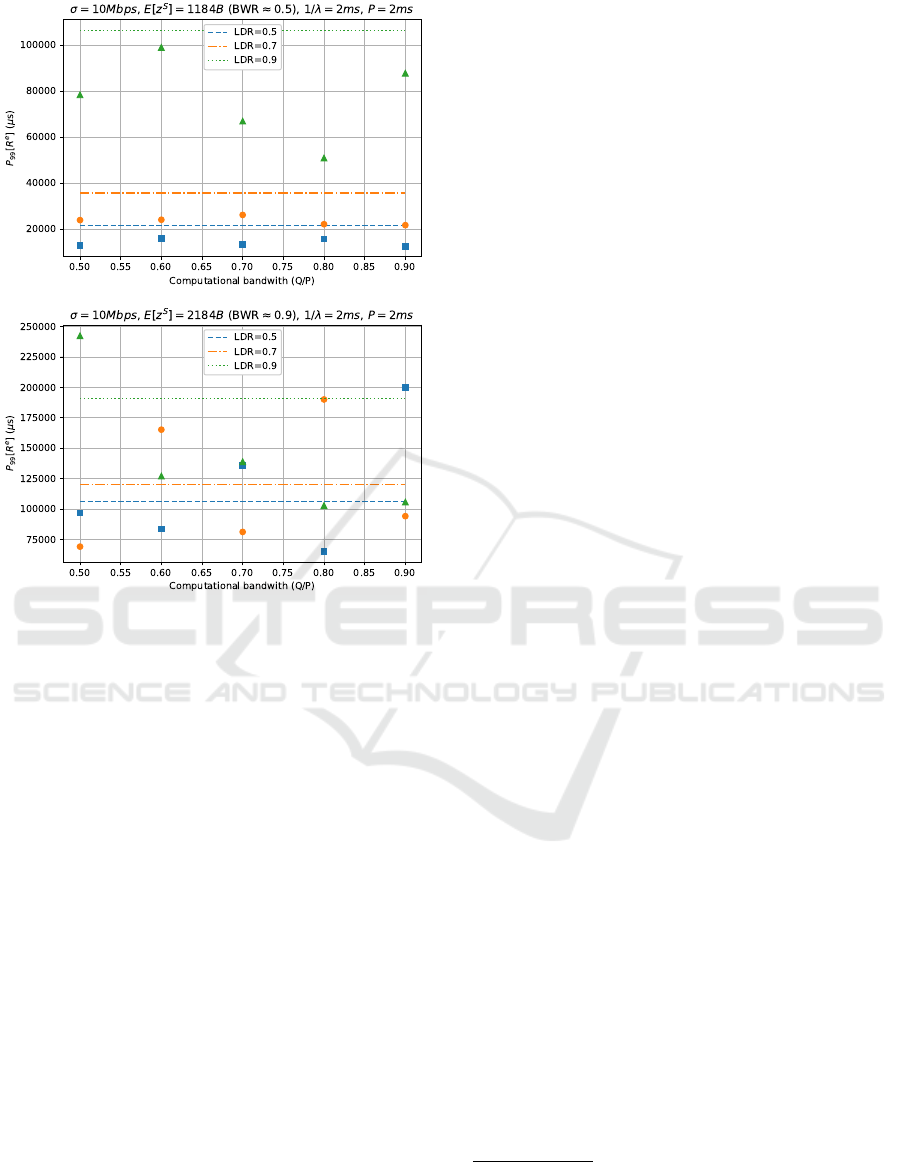

In the following ﬁgures, LD represents the CPU

load (

), z

is the packet size, the average inter-arrival

period corresponds to 1/λ and the response time is R

as in Section 3. Furthermore, we introduce the com-

putational load ratio (LDR) and the network band-

width ratio (BWR) which represent the saturation

level of the resources and are deﬁned as the amount

of used resources divided by the available amounts

(note that 0 ≤ LDR,BW R ≤ 1):

Use high-resolution timers to deliver accurate preemp-

tion points.

Compile-time constant of the Linux kernel that deﬁnes

the internal timer rate, used, for example, by the scheduler.

Due to timer resolution of 1/HZ, we have bu f f er =

min(mtu,

rate

Latency is the maximum amount of time a packet can

sit in the TBF before being dropped. We chose this value

since it is sufﬁciently high to avoid excessive packet drops

in our use case.

Performance Modeling in Predictable Cloud Computing

LDR =

Q/P

BW R =

λE[z

]

(5)

5 EXPERIMENTAL VALIDATION

In the following, the accuracy of the performance

model, in the studied case of one server and one client,

is evaluated in various conﬁgurations, by ﬁrst consid-

ering negligible networking time, then one-way com-

munications from the client to the server with constant

and exponentially distributed packet sizes under con-

strained network bandwidth. Finally, effects of high

network bandwidth saturation are highlighted.

5.1 Negligible Networking Time

The ﬁrst set of experiments deals with negligible

sending and receiving times (Eq. (3)). Various val-

ues of the computational workload and reservation

have been tested with an average request inter-arrival

time ranging from 100µs to 5ms. The small packet

size of z

= 2048 bytes and the high network band-

width of σ u 1Gbps made networking time negli-

gible with regards to processing time

. Results are

shown in Figure 2, where the continuous lines repre-

sent the theoretical average and 99

percentiles of the

response-time distributions, while the markers repre-

sent the respective experimental values obtained from

the real platform. Note that increasing the average

inter-arrival times (X-axis) implies a corresponding

increase of the average processing times on the server,

thus of the response times, since the computational

workload (LD) is kept constant in each plot (as de-

tailed on top of each plot).

As visible, the experimental average and 99

per-

centile of the response times match quite closely with

theoretical expectations. Furthermore, going from the

top plot with LDR = 0.5/0.8 = 0.625 to the middle

one with LDR = 0.7/0.9 u 0.778 to the bottom one

with LDR = 0.8/0.9 u 0.889, we can observe that in-

creasing LDR causes a decrease in stability and pre-

dictability of the experimental response times. This

is due to the fact that we get closer to the instability

region (LDR > 1). This effect has been already noted

and discussed in (Cucinotta et al., 2019).

In the following, we discuss results obtained in

scenarios with non-negligible networking times.

Networking time: z

/σ

∼

16µs

Figure 2: Experimental Response Times (Markers) for Var-

ious Conﬁgurations of Load and CPU Reservation, Com-

pared with Theoretical Expectations of Eq. (3) (Lines).

Both Average (Green) and 99

Percentile Are Shown.

5.2 Non-negligible but Constant Packet

Sizes

The following set of experiments tests the model un-

der constrained network bandwidth. In these exper-

iments, request packet sizes are kept constant, thus

they are not exponentially distributed as considered

CLOSER 2020 - 10th International Conference on Cloud Computing and Services Science

Figure 3: Experimental Response Times (Markers) for Dif-

ferent Inter-Arrival Times Compared with the Theoretical

Expectations (Lines) of Eq.(4), for Both Average (Green)

and 99

Percentile (Blue). Note That the Sent Packet Size

Is Constant and That Theoretical 99

Percentile Is a Con-

servative Approximation.

in the model of Eq.(4).

In Figure 3, the computational workload LD and

CPU reservation Q/P are constant, while request

inter-arrival times range from 100µs to 5ms. Note

that, differently from the previous set of experiments,

from a certain point decreasing the average inter-

arrival times (on the X axis) causes an increase of the

response times. This is due to the fact that packets

get queued causing a signiﬁcant increase in network

delays and therefore a corresponding increase in the

response times that is much higher than the beneﬁt

from the reduction in the processing times.

It can be noted that the model overestimates the

response times. In the case of the 99

percentile, this

was expected since Eq. 4 is a conservative approxi-

mation of it. However, the overestimation is evident

also for the average response times. This can be ex-

plained by the fact that packet sizes are not exponen-

tially distributed, as considered in the model, where

higher response times are due to the presence of big-

ger requests.

Figure 4 compares the results obtained with differ-

ent network bandwidths (σ = 16, 32, 64 Mbps). As in

the previous ﬁgure, experimental values fall below the

expected ones for the very same reasons. In addition,

it can also be noted that the 99

percentile approxi-

mation is more conservative near the “bending point”,

than it is farther from it, where it is more accurate.

In addition, the leftmost regions of both plots

show that, even near the instability region due to net-

work saturation (marked by min 1/λ in the plot), the

model still predicts the response times with a good

accuracy.

Figure 4: Average (Top Plot) and 99

Percentile (Bottom

Plot) Response Times Obtained Experimentally (Markers)

and Theoretically Expected from Eq.(4) (Dashed Lines), for

Different Network Bandwidths and Average Inter-Arrival

Periods.

5.3 Non-negligible Networking Time

with Exponentially Distributed

Packet Sizes

The following set of experiments tests the model un-

der a constrained network bandwidth with exponen-

tially distributed packet sizes.

In Figure 5, the computational workload LD and

CPU reservation Q/P are constant, while the average

request inter-arrival time 1/λ ranges from 100µs to

5ms (on the X axis). The same considerations as in the

previous case apply here, with the difference that this

time the average experimental values match closely

with the expected values, since this time the model is

accurate. Instead, the 99

percentile values still fall

below the theoretical lines since the P

] approxi-

mation of Eq. 4 is conservative, as discussed earlier.

Figure 6 compares the obtained average and 99

percentile of the response times with different net-

work bandwidths. As in Figure 5, it can be noted that

the 99

percentile approximation is less accurate in

Performance Modeling in Predictable Cloud Computing

Figure 5: Experimental Response Times (Markers) for Dif-

ferent Inter-Arrival Times Compared with Theoretical Ex-

pectations of Eq.(4) (Lines), for Both Average (Green) and

Percentile (Blue). Note That the Theoretical 99

Per-

centile Is a Conservative Approximation.

the “bending point”, even though this effect is less

noticeable than before, since this time we have expo-

nentially distributed packet sizes, reﬂecting better our

model assumptions.

However, note that in this case, approaching the

instability region BW R > 1, we can see a number of

experimental response times statistics that exceed the

predicted values, conﬁrming that our model suffers of

some limitations in this area.

5.4 Network Utilization Comparison

This set of experiments highlights the effect of very

high network utilization, close to saturation condi-

tions (bandwidth ratio BW R approaching 1).

In Figure 7, the 99

percentile of the response

times at different loads (LD) and load ratios (LDR)

for two different network bandwidth ratios (BWR),

0.5 and 0.9, are shown, along with the theoretical con-

servative approximation of Eq. 4.

Results highlight that, when the BWR is kept low

(top plot), values are below the conservative approx-

imation and also pretty stable. However, when ap-

proaching saturation of the available bandwidth (bot-

tom plot, with BW R = 0.9), values become unpre-

dictable and can also be observed over the conserva-

tive approximation line. Indeed, high network utiliza-

tion saturating the available bandwidth can generate

packet drops, which are not modeled.

Figure 6: Average (Top Plot) and 99

Percentile (Bottom

Plot) Response Times Obtained Experimentally (Markers)

and Theoretically Expected from Eq.(4) (Dashed Lines), for

Different Network Bandwidths and Average Inter-Arrival

Periods. Note That the Theoretical 99

Percentile Is a Con-

servative Approximation.

6 CONCLUSIONS AND FUTURE

WORK

In this paper, the problem of validating a container-

based performance model using real-time scheduling

has been addressed. In particular, the accuracy and ef-

fectiveness of performance analysis for real-time con-

tainers (based on real-time scheduling of the CPU,

coupled with traditional trafﬁc shaping techniques)

from literature (Cucinotta et al., 2019) has been evalu-

ated through several experiments performed on a real

implementation of the technique (exploiting custom

modiﬁcations to OpenStack and the Linux kernel).

The results showed that a simple client-server ap-

plication with Poissonian trafﬁc characteristics can be

tightly modelled thanks to the adopted mechanisms.

Our experimentation has shown that in most cases the

considered performance model matches the experi-

mental results. However, in this paper we also high-

CLOSER 2020 - 10th International Conference on Cloud Computing and Services Science

Figure 7: Experimental 99

Percentile Response Times

(Markers) for Different Loads (LD) and Load Ratios (LDR)

at Two Different Network Bandwidth Ratios (BWR), Com-

pared with the Theoretical Expectations of Eq.(4) (Dashed

Lines).

lighted some limitations of the model arising when

getting closer to the instability region (saturation of

the reserved/available computational or networking

bandwidth), in addition to the well-known limitation

due to non-negligible scheduling overheads as hap-

pening with too small CPU reservation periods.

This shows that real-time containers really enable

a predictable performance for the hosted software

components, so that we can build abstract, high-level

performance models useful for designing applications

with strong end-to-end QoS guarantees.

As a future work, the model validation presented

in this paper can be extended in various ways. First,

scenarios with more concurrent clients could be taken

into consideration. This would also require some mi-

nor modiﬁcations to the performance model.

Second, the isolation capabilities of our proposed

architecture has to be validated under more complex

interference scenarios with a multitude of workload

types. For example, mechanisms to control storage

access and its associated model could be added – at

least when using SSD drives.

Third, the studied model considers containers us-

ing only a single CPU core. However, in many NFV

scenarios the containers run concurrent servers us-

ing multiple threads for handling the clients requests.

Hence, leveraging multiple CPU cores per container

would be more realistic. This is among the planned

extensions of this work in our future investigations.

Finally, the performance of some real virtualized

network function could be analyzed – e.g., deploy-

ing Open Air Interface

, Kamailio

or similar open-

source software.

REFERENCES

Abeni, L., Balsini, A., and Cucinotta, T. (2018). Container-

based real-time scheduling in the linux kernel. In Pro-

ceedings of the Embedded Operating System Work-

shop 2018 (EWiLi’18), Torino, Italy.

Aditya, P., Akkus, I. E., Beck, A., Chen, R., Hilt, V., Ri-

mac, I., Satzke, K., and Stein, M. (2019). Will server-

less computing revolutionize nfv? Proceedings of the

IEEE, 107(4):667–678.

Akkus, I. E., Chen, R., Rimac, I., Stein, M., Satzke, K.,

Beck, A., Aditya, P., and Hilt, V. (2018). SAND:

Towards high-performance serverless computing. In

2018 USENIX Annual Technical Conference (USENIX

ATC 18), pages 923–935, Boston, MA. USENIX As-

sociation.

Ali-Eldin, A., Tordsson, J., and Elmroth, E. (2012). An

adaptive hybrid elasticity controller for cloud infras-

tructures. In 2012 IEEE Network Operations and

Management Symposium, pages 204–212.

Allen, A. O. (1978). Probability, Statistics, and Queue-

ing Theory with Computer Science Applications. Aca-

demic Press, Inc., Orlando, FL, USA.

Ardagna, C. A., Asal, R., Damiani, E., and Vu, Q. H.

(2015). From security to assurance in the cloud: A

survey. ACM Comput. Surv., 48(1):2:1–2:50.

Armbrust, M., Fox, A., Grifﬁth, R., Joseph, A. D., Katz,

R., Konwinski, A., Lee, G., Patterson, D., Rabkin, A.,

Stoica, I., and Zaharia, M. (2010). A view of cloud

computing. Commun. ACM, 53(4):50–58.

Cucinotta, T., Abeni, L., Marinoni, M., Balsini, A., and

Vitucci, C. (2019). Reducing temporal interference

in private clouds through real-time containers. In

Proceedings of the IEEE International Conference on

Edge Computing, Milan, Italy. IEEE.

Cucinotta, T., Anastasi, G., and Abeni, L. (2009). Respect-

ing temporal constraints in virtualised services. In

2009 33rd Annual IEEE International Computer Soft-

ware and Applications Conference, volume 2.

Cucinotta, T., Checconi, F., Zlatev, Z., Papay, J., Boni-

face, M., Kousiouris, G., Kyriazis, D., Varvarigou,

More information can be found at: https://www.

openairinterface.org/.

More information can be found at: https://www.

kamailio.org/w/.

Performance Modeling in Predictable Cloud Computing

T., Berger, S., Lamp, D., Mazzetti, A., Voith, T., and

Stein, M. (2010). Virtualised e-Learning with real-

time guarantees on the IRMOS platform. In 2010

IEEE International Conference on Service-Oriented

Computing and Applications (SOCA), pages 1–8.

Cucinotta, T., Marinoni, M., Melani, A., Parri, A., and Vi-

tucci, C. (2017). Temporal Isolation Among LTE/5G

Network Functions by Real-time Scheduling. In

Proceedings of the 7th International Conference on

Cloud Computing and Services Science, pages 368–

375, Funchal, Madeira, Portugal.

Drescher, M., Legout, V., Barbalace, A., and Ravindran, B.

(2016). A ﬂattened hierarchical scheduler for real-

time virtualization. In Proceedings of the 13th In-

ternational Conference on Embedded Software, EM-

SOFT ’16, pages 12:1–12:10, New York, NY, USA.

ACM.

Fernandez, H., Pierre, G., and Kielmann, T. (2014). Au-

toscaling web applications in heterogeneous cloud in-

frastructures. In 2014 IEEE International Conference

on Cloud Engineering, pages 195–204.

Georgiadis, L., Guerin, R., Peris, V., and Sivarajan, K. N.

(1996). Efﬁcient network qos provisioning based on

per node trafﬁc shaping. IEEE/ACM Transactions on

Networking, 4(4):482–501.

Gilesh, M., Sanjay, S., MadhuKumar, S., and Lillykutty, J.

(2018). Selecting suitable virtual machine migrations

for optimal provisioning of virtual data centers. ACM

Applied Computing Review, 18:22–32.

Gross, D. and Harris, C. M. (1985). Fundamentals of

Queueing Theory (2Nd Ed.). John Wiley & Sons, Inc.,

New York, NY, USA.

Lee, J., Xi, S., Chen, S., Phan, L. T. X., Gill, C., Lee, I.,

Lu, C., and Sokolsky, O. (2012). Realizing composi-

tional scheduling through virtualization. In 2012 IEEE

18th Real Time and Embedded Technology and Appli-

cations Symposium, pages 13–22.

Li, Y., Phan, L. T. X., and Loo, B. T. (2016). Network func-

tions virtualization with soft real-time guarantees. In

IEEE INFOCOM 2016 - The 35th Annual IEEE Inter-

national Conference on Computer Communications,

pages 1–9.

Mian, R., Martin, P., Zulkernine, F., and Vazquez-Poletti,

J. L. (2013). Towards building performance models

for data-intensive workloads in public clouds. In Pro-

ceedings of the 4th ACM/SPEC International Confer-

ence on Performance Engineering, ICPE ’13, pages

259–270, New York, NY, USA. ACM.

Rankothge, W., Le, F., Russo, A., and Lobo, J. (2017). Op-

timizing resource allocation for virtualized network

functions in a cloud center using genetic algorithms.

IEEE Transactions on Network and Service Manage-

ment, 14(2):343–356.

Roy, N., Dubey, A., and Gokhale, A. (2011). Efﬁcient

autoscaling in the cloud using predictive models for

workload forecasting. In 2011 IEEE 4th International

Conference on Cloud Computing, pages 500–507.

Sang, Y., Ji, B., Gupta, G. R., Du, X., and Ye, L. (2017).

Provably efﬁcient algorithms for joint placement and

allocation of virtual network functions. In IEEE IN-

FOCOM 2017 - IEEE Conference on Computer Com-

munications, pages 1–9.

Xi, S., Li, C., Lu, C., Gill, C. D., Xu, M., Phan, L.

T. X., Lee, I., and Sokolsky, O. (2015). RT-Open

Stack: CPU Resource Management for Real-Time

Cloud Computing. In 2015 IEEE 8th International

Conference on Cloud Computing, pages 179–186.

Xi, S., Wilson, J., Lu, C., and Gill, C. (2011). RT-Xen: To-

wards real-time hypervisor scheduling in Xen. In 2011

Proceedings of the Ninth ACM International Confer-

ence on Embedded Software (EMSOFT).

CLOSER 2020 - 10th International Conference on Cloud Computing and Services Science
