Semantic Segmentation using Light Attention Mechanism

Yuki Hiramatsu and Kazuhiro Hotta

Meijo University, Japan

Keywords: Semantic Segmentation, Attention Mechanism, Encoder-decoder Structure.

Abstract: Semantic segmentation using convolutional neural networks (CNN) can be applied to various fields such as

automatic driving. Semantic segmentation is pixel-wise class classification, and various methods using CNN

have been proposed. We introduce a light attention mechanism to the encoder-decoder network. The network

that introduced a light attention mechanism pays attention to features extracted during training, emphasizes

the features judged to be effective for training and suppresses the features judged to be irrelevant for each

pixel. As a result, training can be performed by focusing on only necessary features. We evaluated the

proposed method using the CamVid dataset and obtained higher accuracy than conventional segmentation

methods.

1 INTRODUCTION

Convolutional neural network (CNN) (Krizhevsky,

2012) has achieved very high accuracy on image

recognition. Semantic segmentation using CNN can

be applied to various fields such as automatic driving

(Badrinarayanan, 2017) and medical images

(Ronneberger, 2015). Semantic segmentation refers

to pixel-wise class classification. Typical methods for

semantic segmentation using CNN include Fully

Convolutional Neural Networks (Long, 2015) and

encoder-decoder networks (Ronneberger, 2015).

These methods are the basic structure of the semantic

segmentation method. Many of latest methods have

extracted features using very deep CNN. In general, it

is said that the deeper the hierarchy of CNN, the better

the feature extraction function and the higher the

accuracy. However, the deepening of the CNN

increases the amount of computation and the number

of parameters.

In order to deal with this problem, we propose a

light attention mechanism that can be introduced into

the basic encoder-decoder network. In the network

where an attention mechanism that we proposed is

introduced, it pay attention to the extracted features

and emphasizes the features judged to be effective for

training and suppresses the features judged to be

irrelevant for training. As a result, it can perform

training while focusing only on the necessary

features. Therefore, it can be considered that the

increase in computational complexity and the number

of parameters can be mitigated. In the experiment, we

evaluate the proposed method using the CamVid

dataset (Brostow, 2009) labelled with 11 classes of

images taken by the in-vehicle camera. As a result, the

proposed method could obtain higher accuracy than

conventional segmentation methods.

2 RELATED WORKS

This section describes related works. Section 2.1

describes the encoder-decoder structure. Section 2.2

describes the attention mechanism (Wang, 2017, Hu,

2018).

2.1 Encoder-decoder

U-Net (Ronneberger, 2015) is proposed as a

segmentation method using CNN. This method

adopts the encoder-decoder structure. The encoder

extracts features using convolution and down

sampling, and the decoder restores the resolution of

feature maps step by step while extracting features. In

addition, a skip connection is introduced at each

resolution between encoder and decoder, and feature

maps obtained by the encoder is connected to the

corresponding feature maps at decoder with the same

resolution. This restores the information lost during

feature extraction.

622

Hiramatsu, Y. and Hotta, K.

Semantic Segmentation using Light Attention Mechanism.

DOI: 10.5220/0009347206220625

In Proceedings of the 15th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2020) - Volume 4: VISAPP, pages

622-625

ISBN: 978-989-758-402-2; ISSN: 2184-4321

Figure 1: Overview of the proposed method.

2.2 Attention Mechanism

In the field of image recognition, Residual Attention

Network (Wang, 2017) which introduced attention

mechanism with the encoder-decoder structure into

ResNet has been proposed. This method proposed

attention residual learning which is similar to the

residual block. This solved the problem of accuracy

reduction due to the disappearance of the gradient due

to deepening and the suppression of important

features.

In the latest research, Squeeze-and-Excitation

Networks (SENet) (Hu, 2018) has been proposed.

This method proposed an attention mechanism (SE

block) that adaptively weights feature maps for each

channel. We confirmed that the training time was

longer in the SENet. Therefore, we referred to the

structure of an attention mechanism of the Residual

Attention Network (Wang, 2017).

3 PROPOSED METHOD

This section describes the proposed method. Section

3.1 describes details of the network and Section 3.2

describes the proposed attention mechanism.

3.1 Network Details

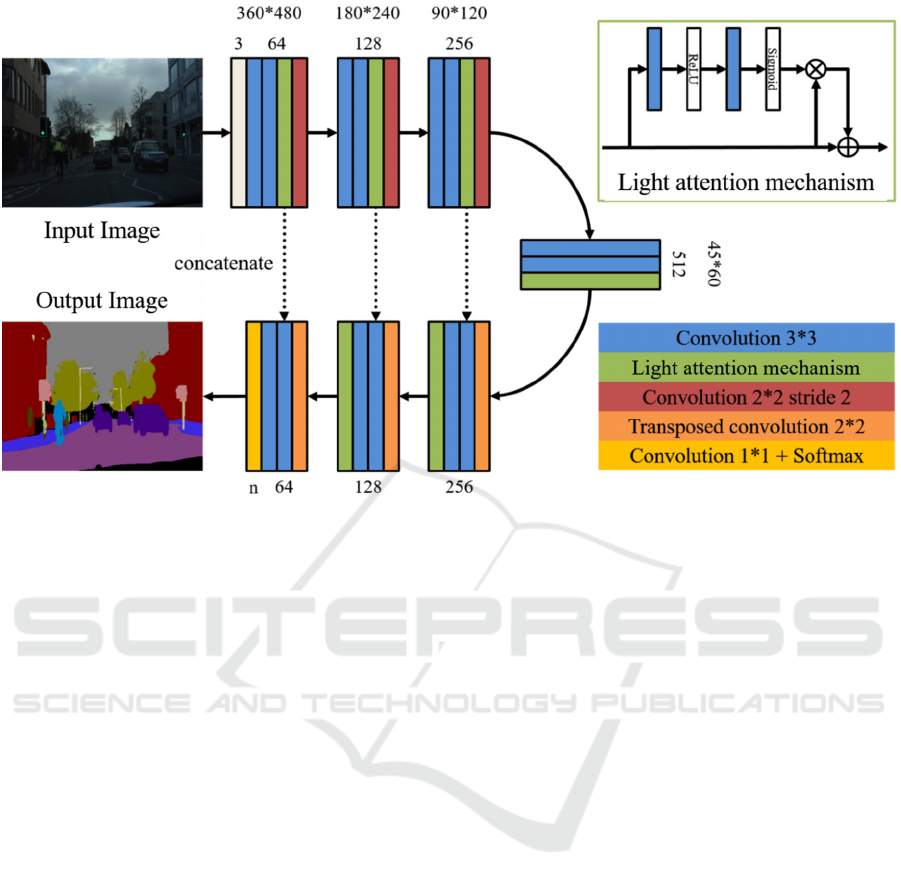

Figure 1 shows the overview of the proposed method.

Each encoder block consists of two 3×3 convolution

layer (stride=1, pad=1), a 2×2 convolution layers

(stride=2, pad=0) and an attention mechanism. On the

other hand, each decoder block consists of a 2×2

transposed convolution layer (stride=2, pad=0), two

3×3 convolution layers (stride = 1, pad = 1) and an

attention mechanism. The last layer is a 1×1

convolution layer (stride=1, pad=0) which

compresses the number of dimensions of feature maps

to the number of classes, and a Softmax function. “n”

indicates the number of classes. In the convolution

layer except for the final layer, Batch

Renormalization [loffe, 2017] and ReLU function are

used after convolution.

3.2 Light Attention Mechanism

An attention mechanism consists of two

convolutional layers with different activation

functions. In the first convolution layer, the Batch

Renormalization and ReLU functions are used after

the input is convolved. In the next convolution layer,

Batch Renormalization and the sigmoid function are

used after the convolution process. Finally, the output

of an attention mechanism is calculated by

multiplying the input and the output of the attention

Semantic Segmentation using Light Attention Mechanism

623

Table 1: Accuracy comparison results for CamVid test dataset (Brostow, 2009).

mechanism calculated in the following as

𝐻



𝑥



1𝐹



𝑥



 ∗ 𝑥 (1)

where x is the input, F (x) is the output of an attention

mechanism. Features judged to be necessary for

training is emphasized and features judged to be

irrelevant is suppressed by this process. Therefore,

training can proceed while focusing on only the

necessary features and efficient learning can be

performed. The proposed an attention mechanism is

different from SE block and has a normal convolution

layer, so attention can be paid in pixel units. This is

the difference from SE block.

4 EXPERIMENTS

This section describes the experimental results of the

proposed method. Section 4.1 describes the dataset

used in experiments. Section 4.2 describes the details

of training of the proposed method. Section 4.3

describes evaluation experiment results.

4.1 Dataset

We evaluate the proposed method using the CamVid

dataset (Brostow, 2009). The size of images is

360  480 pixels and the number of classes is 11

classes. It consists of 367 training, 101 validation and

233 test images. As data augmentation, we used

random left-right flipping during training.

4.2 Training

Since the classes are unbalanced in images, we use

class balancing weight (Badrinarayanan, 2017) where

the weight is assigned to each class in the cross-

entropy loss function. The weight is defined as

median

frequenc



⁄

(2)

where median frequency is the median of all class

frequencies and frequency (c) is the number of pixels

of class c in training images. This gives a large weight

to classes with a small ratio and a small weight to

classes with a large ratio.

We set the batch size to 2 and used an Adam

optimizer. The initial learning rate was 1e-3 and

trained up to 1000 Epoch.

4.3 Results

We evaluated the accuracy of the proposed method

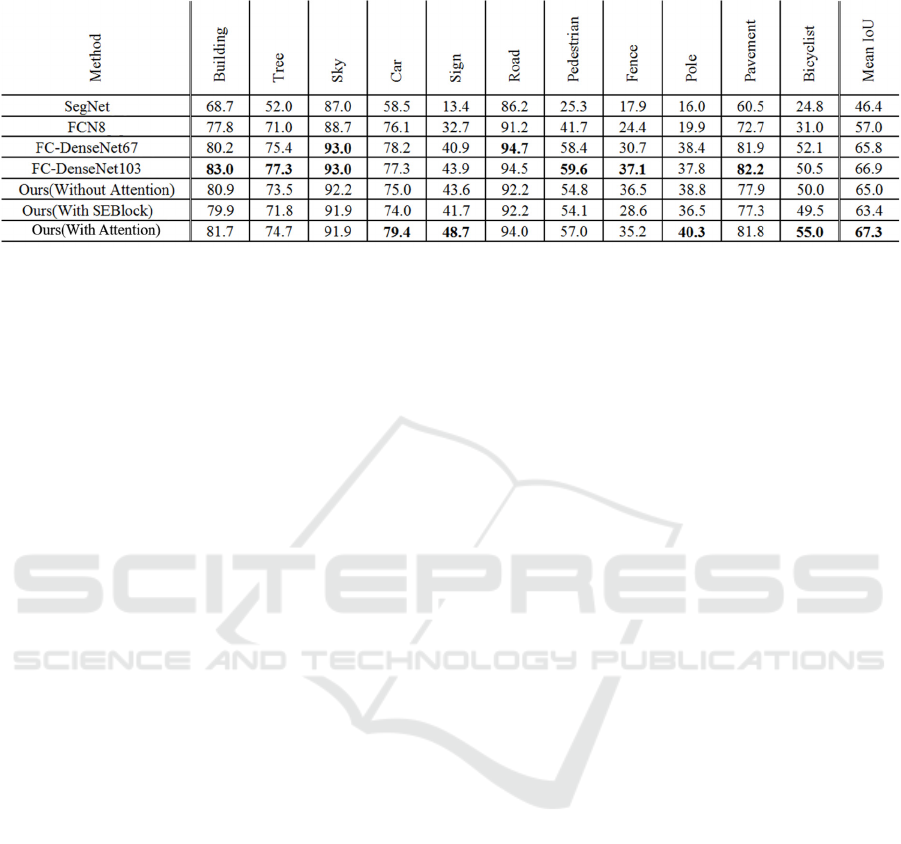

with test images. Table 1 shows the comparison

results for the test images and Fig. 2 shows the

example of the segmentation results. Table 1 shows

that the proposed method improved the Mean IoU

accuracy compared to the conventional segmentation

method. Compared with FC-DenseNet103 (Simon,

2017), IoU accuracy for each class can be confirmed

to improve IoU accuracy for Sign class by about 4.8%

and IoU accuracy for Bicyclist by about 4.5%. From

these results, it can be confirmed that the proposed

method can improve the classification accuracy for

the class with small size. On the other hand, Figure 3

shows that bus was misclasfified as building class.

This is due to the fact that objects such as buses

appear very rarely in the dataset and learning is

insufficient.

5 CONCLUSIONS

We proposed an attention mechanism that can be

introduced in the encoder-decoder network. This

achieved higher accuracy than conventional

segmentation methods on the CamVid dataset.

However, incorrect segmentation may occur

for

VISAPP 2020 - 15th International Conference on Computer Vision Theory and Applications

624

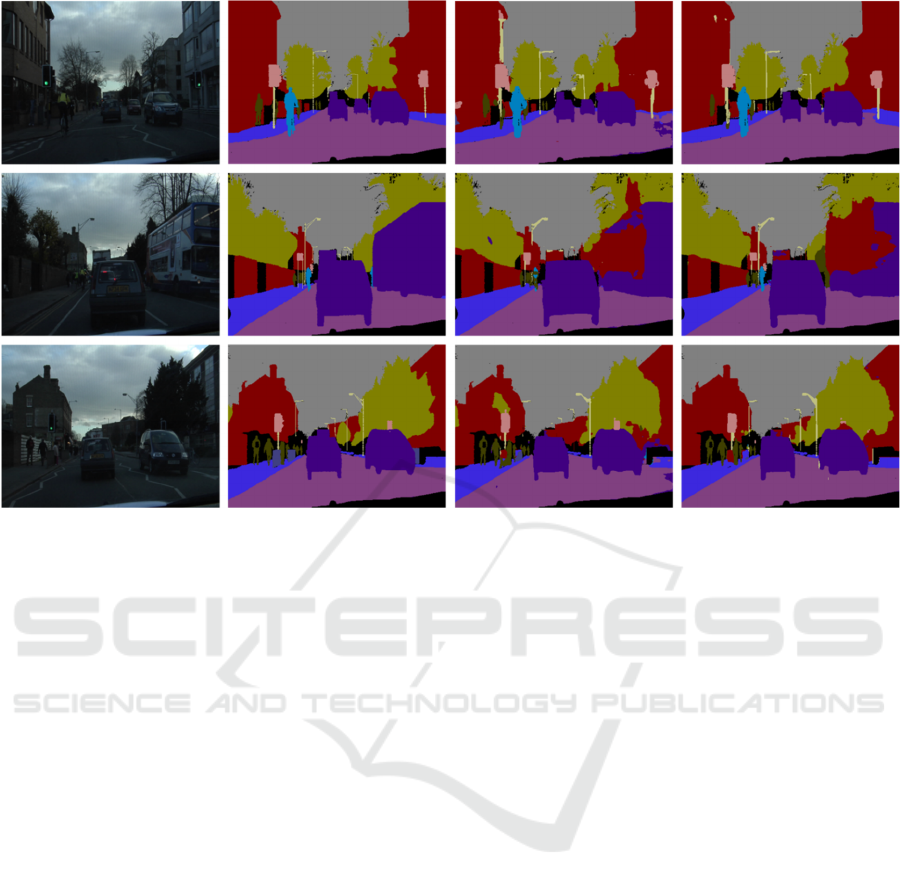

Figure 2: Example of segmentation results for CamVid test dataset (Brostow, 2009) (Left: Input Image, middle-left: Ground
