Patterns for Checking Incompleteness of Scenarios in Textual

Requirements Speciﬁcation

David

Senk

and Petr Kroha

Faculty of Information Technology, Czech Technical University in Prague, Czech Republic

Keywords:

Requirements Speciﬁcation, Text Processing, Scenarios, Grammatical Inspection, Incompleteness, Domain

Model.

Abstract:

In this contribution, we investigate the incompleteness problem in textual requirements speciﬁcations. Missing

alternative scenarios are one of the incompleteness sources, i.e., descriptions of processing in the cases when

something runs in another way as expected. We check the text of requirements speciﬁcation using linguistic

patterns, and we try to reveal scenarios and alternative scenarios. After that process is ﬁnished, we decide

whether the set of alternative scenarios is complete. As a result, we generate warning messages. We illustrate

our approach with examples.

1 INTRODUCTION

Very often, textual requirements speciﬁcation does

not contain complete information about the system to

be constructed because it is difﬁcult to obtain all re-

quired information before software design and imple-

mentation starts. Many years of practice have shown

that using incomplete information in requirements

speciﬁcation leads to incomplete or wrong models.

It can cause customers to reject the speciﬁed system

because it does not meet all their expectations. It also

means that costs and schedules have been underesti-

mated. The resulting program has to be laboriously

enhanced and adapted. A study (Standish, 1994) im-

plicated that incomplete requirements caused 12.3 %

of costs overrun and 13.1 % of failed projects.

The problem is getting more complicated by the

fact that requirements speciﬁcation are engineered in

incremental, iterative, parallel (more teams) manner,

i.e., they are changed and amended during the soft-

ware development process under schedule with mile-

stones and a limited budget. This fact may have an

impact on their incompleteness and inconsistency.

Requirements speciﬁcation follows the require-

ments analysis, which is typically based on various

requirements models. In (Firesmith, 2005), these

models are listed, starting with context model, data

model, decision model, event model, performance

https://orcid.org/0000-0002-7522-3722

https://orcid.org/0000-0002-1658-3736

model, process model, safety and security model,

state model, and use case model. In our approach,

we focus only on scenarios known from functional

requirements based on a process model. Scenarios

and use cases have very much in common. Scenarios

are often used to make use cases more speciﬁc. This

means that our view on requirements is a dynamic

view, especially a scenario view, which is based on

sequence diagrams and communication diagrams.

There are more reasons for incomplete require-

ments speciﬁcation.

First, the software system requirements speciﬁca-

tion describes only a speciﬁc part of the real system

to be modelled – a simpliﬁed model omitting some

details. We are interested only in a subset of all

existing objects, properties, and relationships of the

real system. For example, when writing information

systems, this subset is given by supposed queries, use

cases, and scenarios.

Second, subject matter experts working with the

analyst on the textual version of requirements often

take certain information for granted and suppose that

some facts are apparent, and they do not mention

them. However, what is evident for a user of a protein

information system is usually not evident for the

software analyst.

Third, some details or some scenarios are

forgotten at the very beginning of the project, or some

queries are appended later without to worry whether

the underlying model contains the necessary objects,

properties, or relationships that are necessary to

Šenký

r, D. and Kroha, P.

Patterns for Checking Incompleteness of Scenarios in Textual Requirements Speciﬁcation.

DOI: 10.5220/0009344202890296

In Proceedings of the 15th International Conference on Evaluation of Novel Approaches to Software Engineering (ENASE 2020), pages 289-296

ISBN: 978-989-758-421-3

289

produce the information in demand.

In our approach, we distinguish the sort of

incompleteness according to the scope, in which the

incomplete information is spread in the text of re-

quirements speciﬁcation. The ﬁrst scope includes

one sentence of the textual requirement speciﬁcations.

We investigated this problem in our previous paper

(

Senk

r and Kroha, 2019). The second scope includes

the whole document of the textual requirements

speciﬁcations, i.e., all its sentences. This problem is

the topic of our paper, in which we describe how to

reduce this type of incompleteness.

During requirements analysis, we can ﬁnd some

sorts of scenarios in functional requirements, e.g.,

normal case scenario (also called “sunny day sce-

nario”), exceptional (alternative) case scenario (also

called “rainy day scenario”), start-up scenario, shut-

down scenario, installation scenario, conﬁguration

scenario, etc.

Missing alternative scenarios are one of the in-

completeness sources, i.e., descriptions of processing

in the cases when something runs in another way as

expected. It may easily happen.

One of the cases is the following one. The

analyst supposes a speciﬁc user’s reaction in a given

context because the analyst uses his/her knowledge of

the problem. In contrary to the analyst expectation,

the user does something else – it may be done by

mistake or by incompetence. In such a situation,

alternative scenarios should guide the user to the next

correct step.

Missing alternative scenarios can cause users to

be disappointed and frustrated with the system, and it

can cause customers to reject the system.

In our approach, we check the text of require-

ments speciﬁcation using linguistic patterns to reveal

scenarios and alternative scenarios. However, the

semantic relations in real systems are often so

complex and hidden that they cannot be solved

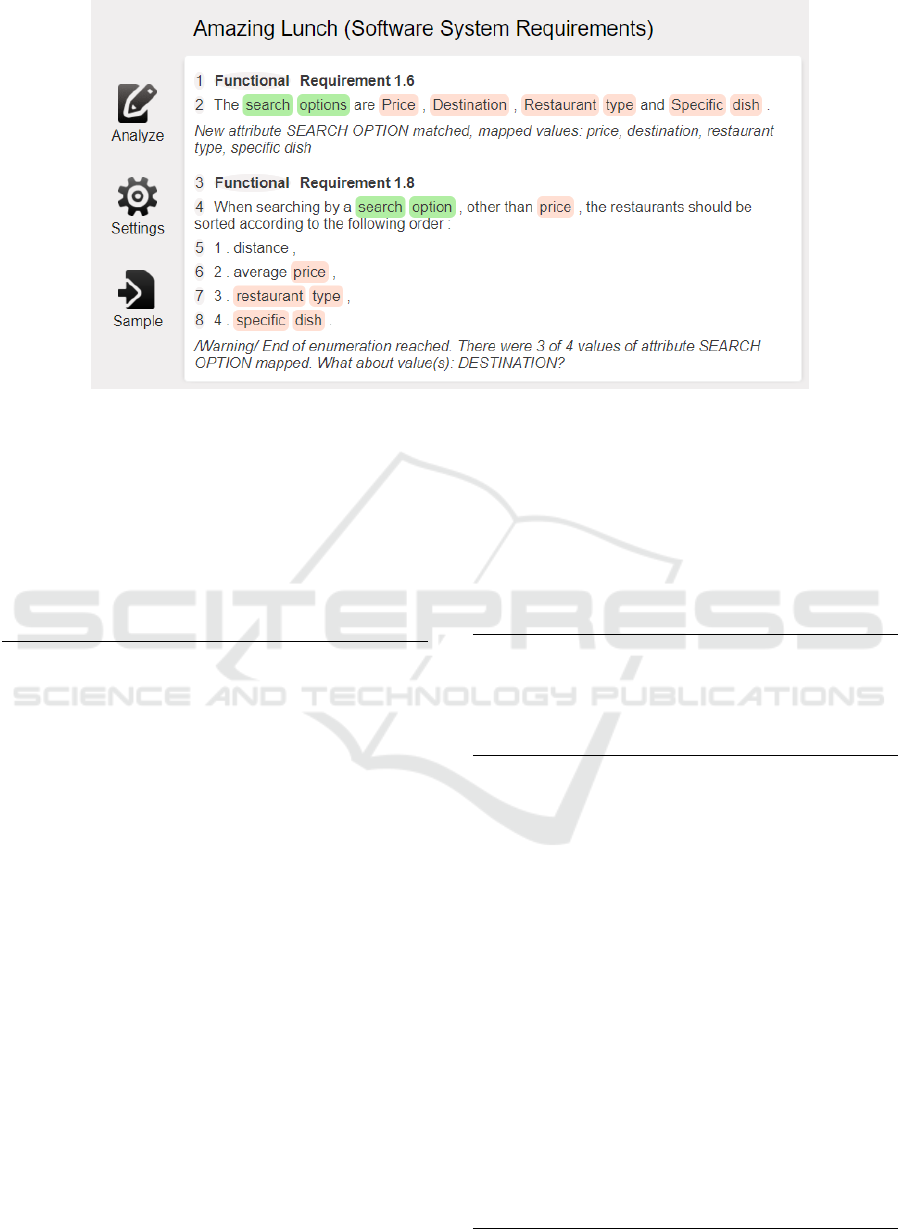

automatically. Thus, our implemented tool TEMOS

generates a warning message in the case when it ﬁnds

a suspicious formulation.

Our paper is structured as follows. In Section 2,

we discuss related work. Our approach is presented

in Section 3. The implementation, used data and

experiments are described in Sections 5 and 6.

Finally, in Section 7, we conclude.

2 RELATED WORK

Completeness of requirements speciﬁcation is a

complex problem discussed since years in details in

many publications, e.g., in (Firesmith, 2005).

Our approach is based on scenarios. In (Sutcliffe,

1998), scenarios and their usages are described in

detail, but their completeness or incompleteness is not

mentioned.

Two incompleteness metrics of input documents

of the requirements speciﬁcations are described in

(Ferrari et al., 2014). This approach takes into

account all the relevant terms and all the relevant

relationships among them, and it deﬁnes forward

functional completeness and backward functional

completeness. The forward functional completeness

corresponds with the reference functional model, i.e.,

with the future implementation of the system. The

backwards functional completeness, that the paper

(Ferrari et al., 2014) focuses on, refers to the com-

pleteness of a functional requirements speciﬁcation

with respect to the input documents. In our approach,

we mix both methods. We use requirements speciﬁ-

cations ﬁrst to build a model that can be implemented

(as we described in (

Senk

r and Kroha, 2018))

and check in the sense of the forward functional

completeness (

Senk

r and Kroha, 2019). Then in

the next step, we use the input documents, the

existing text of requirements speciﬁcation, the

fresh model, and some information from external

knowledge databases to search for the backward

functional incompleteness that is represented by

missing alternative scenarios in our approach. In

contrary to the approach in (Ferrari et al., 2014), we

do not measure the incompleteness using metrics and

quantiﬁed results, even though it is a good idea. Using

our tool, we generate warning messages only.

In (Li, 2015), a meta-model approach is used to

detect the missing information in a conceptual model.

It is also an approach of the class forward functional

completeness but at the level of a conceptual model.

In (Eckhardt et al., 2016), sentence patterns are

used to uncover incompleteness with performance re-

quirements. According to the uniﬁed model, the

performance requirements describe time behaviour,

throughput capacity, and cross-cutting. The sentence

patterns used in the paper are completely different

from our sentence patterns.

In (Dalpiaz et al., 2018), the authors explore

potential ambiguity and incompleteness based

on the terminology used in different viewpoints.

They combine possibilities of NLP technology

with information visualization. Their approach is

completely different from our approach.

The approach based on NLP techniques and

grammatical inspection methods to extract use case

scenarios is proposed in (Tiwari et al., 2019). It

is a similar approach to ours, but the question of

incompleteness is not discussed there.

ENASE 2020 - 15th International Conference on Evaluation of Novel Approaches to Software Engineering

290

In (B

aumer and Geierhos, 2018), the authors de-

veloped methods of detecting quality violations in

a requirements speciﬁcation called linguistic trig-

gers. The authors combine their approach to the

problem of incompleteness with the problem of am-

biguity. To detect incompleteness, the authors use

their approach published in (B

aumer and Geierhos,

2016), in which their linguistic triggers work in two

steps. In the ﬁrst step, the detection via predicate

argument analysis is used to assign semantic roles,

e.g., agent, theme, beneﬁciary, to the recognized

predicate. Some verbs have “rich predicates”, e.g.,

the verb “send” is a three-place predicate because it

requires the agent (sender), the theme (send), and

the beneﬁciary argument (sent-to). The second step

is compensation. Using similarity search component

known from information retrieval (IR) domain, they

try to ﬁnd the potentially missing part sent-to based on

software descriptions gathered from one software-to-

download portal. In our papers, we discuss the prob-

lems of ambiguity and incompleteness separately.

3 OUR APPROACH TO THE

PROBLEM OF

INCOMPLETENESS USING

SCENARIOS

The goal of our method described in this contribu-

tion is to ﬁnd such a kind of incompleteness that can

be revealed only in the context of the whole textual

document or in the context of thematically closed and

compact chapters.

In this paper, we present some simple

examples that concern user interface. As the norms

ISO/IEC/IEEE 29148/2018 and IEEE Std 1012:2016

explain, speciﬁcation of a user interface is part of

requirements speciﬁcation.

3.1 Alternative Scenarios

More or less, we are trying to reveal the non-existence

of some alternative scenarios. As an alternative sce-

nario, we denote here a scenario that depends on a

speciﬁc value of a class attribute.

Scenarios are used for requirements speciﬁcation

elicitation. We use three types of scenarios in our

approach:

• description of the system context (input events,

system output, i.e., system’s communication with

the actors out of the system),

• description of system usage including user’s goals

(including use cases) and system function,

• description of constraints that concern attributes

or application of methods.

We assume that some alternative scenarios have to

be present in the textual description of requirements

speciﬁcation.

First, we state which alternative scenarios should

be present, i.e., we construct a set of alternative sce-

narios to each normal case scenario.

Second, we ﬁnd the alternative scenarios present

in the textual requirements, and we compare the

corresponding sets.

(Example 1). Assume, we have textual requirements

speciﬁcation of a text editor. One of use cases is de-

scribed as a functional requirement.

Normal case scenario: To edit a text ﬁle, the user has

to click the button OPEN, to choose the ﬁle he/she

wants to edit. After the user see the ﬁle content,

he/she provides the changes of its textual content. To

save the changes, the user uses button SAVE.

Alternative (exceptional) scenarios:

Scenario 1: . . . If the user has got the message

“The ﬁle cannot be found” the user has to do the

following . . .

Scenario 2: . . . If the user has got the message

“The ﬁle you want open is not a text ﬁle” the user

has to do the following . . .

(End of Example 1)

To have the possibility of testing the existence of these

alternative scenarios, we need a class File containing

attributes File-Status (values: Exists, Does not exist,

Opened, Closed) and File-Type (values: docx, doc,

rft, txt, tex, etc.) in the model. Some text editors can

open ﬁles of types PDF or PNG but the user can be

confused by the result he/she can see on the screen.

In some cases, the implementation will be written

as an exception handling procedure that delivers

a message the user can understand instead of the

message of the operating system.

In Photoshop CC, you will get the message

“Could not complete your request because Photoshop

does not recognize this type of ﬁle” if you try opening

a ﬁle of type DOCX.

In WORD, you can try opening a PDF ﬁle but you

will get the message “To open and export to certain

types of ﬁles, Word needs to convert the ﬁle using a

Microsoft online service” in the ﬁrst step.

If our model (constructed via extracting classes

and attributes) has the property described above,

we can check whether the corresponding alterna-

tive scenarios are part of the textual requirements

speciﬁcation.

Patterns for Checking Incompleteness of Scenarios in Textual Requirements Speciﬁcation

291

3.2 The Algorithm

The algorithm implemented in our tool has to follow

these steps:

1. To identify enumerations, paragraphs, and chap-

ters by using white and special characters.

2. To construct a static UML model by using

grammatical inspection, i.e., to ﬁnd classes, rela-

tionships, and attributes. Section 3.2.1 discusses

the model construction in more detail.

3. To ﬁnd sets of values of each attribute as described

in Section 3.2.2.

4. To ﬁnd alternative scenarios in all components

(chapters) of the speciﬁcation, i.e., such sentences

that use different values of the same attribute.

A component of a speciﬁcation is the basic

part of the structured text of the speciﬁcation.

Usually, components are numbered, as we show

in Example 3. This core step of the whole algo-

rithm is described separately in Section 4.

5. To ﬁnd groups of attribute values, because some

attribute values can be grouped together, and they

can use a common alternative scenario. Such a

group of attribute values has to be identiﬁed.

6. To test whether there are alternative scenarios for

all attribute values described in all components.

7. To generate warning messages if some alternative

scenarios are missing.

3.2.1 Static UML Model Construction

Using grammatical inspection, our tool TEMOS ﬁnds

classes, their attributes and constraints involved, as

we described in our paper (

Senk

r and Kroha, 2018).

After we have classes and their attributes, our tool is

looking for their values, and it builds a correspond-

ing set of values to each attribute of each class that

participates in the normal case scenario.

These sets need not to be built only from the

text of requirement speciﬁcations. Using some pre-

deﬁned knowledge databases, we can generate warn-

ing messages, e.g., we ﬁnd in a knowledge database

that a ﬁle (from Example 1) can have a File-status

value “locked” or “encoded”. Such a value is not

mentioned in the requirements speciﬁcation. We

suppose that the alternative scenario concerning the

case of a locked or encoded ﬁle is missing, and we

indicate incompleteness.

3.2.2 Sets of Values

In common, we can describe our approach as follows.

We denote sets of attribute values that are built from

the textual requirement speciﬁcation as R-sets having

cardinalities Card(R-sets) and sets of attribute values

that are built from scenarios as S-sets having cardi-

nalities Card(S-sets).

In result, each attribute Attr of each class C has

a corresponding set of its values taken from require-

ment speciﬁcations denoted as R

C,Attr

, and each of

these sets has its cardinality Card

R,C,Attr

. Similarly,

each attribute Attr of each class C has a correspond-

ing set of its values taken from scenarios denoted as

C,Attr

, and each of these sets has its cardinality

Card

S,C,Attr

In the ﬁrst step, we can call it calibration, cardi-

nalities of sets constructed from requirements will

be compared with cardinalities of sets from scena-

rios. Probably, it will be found that Card

R,C,Attr

Card

S,C,Attr

. If more values are mentioned in the

speciﬁcation than in the scenarios, it means that

scenarios do not cover all possible situations or some

values need not be taken into account. Our tool will

generate a message to check this situation.

The case in which Card

R,C,Attr

< Card

S,C,Attr

means that the information obtained from re-

quirements contains fewer attribute values

than the information obtained from scenarios.

It happened in cases when requirements do

not count with all values, maybe because all

values were accumulated at the time of writing the

scenarios. Our tool will generate a message, too.

The case in which Card

R,C,Attr

= Card

S,C,Attr

means that we can start the incompleteness checking

in the scope of the whole document.

In the second step, we suppose that the reason why

a set of attribute values is mentioned in the description

is that each of these values indicates a different path

of data processing.

Theoretically, we could expect alternative

scenarios for different attribute values, as shown in

the following example.

(Example 2). In the trafﬁc simulation, the class

representing Trafﬁc Light has the corresponding set of

attributes such as {Type, Year of Production, Light,

etc.}. From the speciﬁcation, we know possible

values of attribute Light. It’s this set: {Red, Orange,

Green}.

Scenario for Light equals Red:

Stop procedure is applied. . .

Scenario for Light equals Green:

Run procedure is applied. . .

The enumeration of attribute Light was ended and

not all possible values were mentioned. Our tool

generates a warning message: “What is to do if the

Light is Orange, i.e., the alternative for Light equals

Orange is missing?”

ENASE 2020 - 15th International Conference on Evaluation of Novel Approaches to Software Engineering

292

(End of Example 2)

In practice, some attribute values can be grouped,

and the alternative scenario is deﬁned for the whole

group. It means that multiple values are mentioned

together separated by commas, or the multiple values

are hidden behind the noun “others”.

4 PATTERNS TO FIND

SCENARIOS

To implement the method and the algorithm (Section

3.2) described above, we replace the problem

of ﬁnding scenarios by the problem of ﬁnding

typical textual patterns that indicate the presence

of scenarios in a text of requirements speciﬁcation.

We reuse the already presented (

Senk

r and Kroha,

2018) idea of a grammatical inspection and sentence

patterns following (Rolland and Proix, 1992). So, we

construct the corresponding patterns, we apply them

on the whole text, and we ﬁnd all sentences, in which

such a situation can be found.

We can categorize the patterns into two groups.

The patterns from the ﬁrst group cover situation

where the class name and names of its attributes

have to be mentioned. The patterns from the second

group cover situation where the values of some

attribute are used but the attribute name is not

explicitly mentioned.

4.1 Patterns Covering Class/Attribute

Name

Usually, the class name and its attributes are

embedded in a description of a process started by call-

ing a method. Often, there is the same verb in a nega-

tive clause in the alternative scenario.

The example context situation is:

Class File has methods Open (means Open existing

ﬁle), Enter data (or Import ﬁle from an external de-

vice), Save (without changing Name, Directory and

Type), and Save As (Changes possible).

Normal Case Scenario:

To process an existing ﬁle (CLASS NAME) that

can be seen in the window of the ﬁle manager, the

user uses Open item in the File menu.

Alternative Scenario:

To process an existing ﬁle (CLASS NAME) that

cannot be seen in the window of the ﬁle manager, the

user uses Import item in the File menu.

Normal Case Scenario:

After the action ”Enter data” is completed, and if the

data is ok, the system shall store the data.

Alternative Scenario:

After the action ”Enter data” is completed, and the

data is not ok, the system shall issue an error message.

4.1.1 Values Conditional Pattern

This category covers a situation where the require-

ments enumerate behaviour based on all mapped

values of a concrete attribute. If there is a scenario

for at least one concrete value of a speciﬁc attribute,

it should be checked if all already mapped values are

concerned.

‘IF’ ATTRIBUTE NAME ‘BE’/‘EQUAL’/‘=’ ATTRIBUTE VALUE

mark nsubj attr

Figure 1: Values Conditional Pattern #1.

‘WHEN’ ATTRIBUTE NAME ‘BE’/‘EQUAL’/‘=’ ATTRIBUTE VALUE

advmod nsubj attr

Figure 2: Values Conditional Pattern #2.

4.1.2 Incomplete Conditional Pattern

Typically, the requirement describes the prospective

situation in a conditional way (e.g., if something

is (successfully) loaded/processed/OK), but there are

missing alternatives. Based on this observation, we

can create two sets. The ﬁrst one contains prospective

nouns (Fig. 3) and verbs (in the “-ed” form, Fig.

4) and the second one contains their opposites.

When the scenario mapping prospective situation

appears, it’s time to check if the opposite exists.

CLASS/ATTRIBUTE NAME ‘BE’ PROSPECTIVE SET

AUX

acompnsubj

Figure 3: Incomplete Conditional Pattern #1.

CLASS/ATTRIBUTE NAME ‘BE’ PROSPECTIVE SET

AUX

auxpassnsubjpass

Figure 4: Incomplete Conditional Pattern #2.

4.2 Patterns Covering Values of

Attribute

Other situations not handled by the previous category

are presented here. Let’s focus on sentences where

the name of the attribute is not mentioned. And let’s

focus on properties of attributes such as uniqueness.

4.2.1 Values in Enumeration Pattern

This pattern considers enumerations, and it’s based on

the text structure. Different from Values Conditional

Patterns for Checking Incompleteness of Scenarios in Textual Requirements Speciﬁcation

293

Pattern, we do not require a conditional form in this

case.

As shown in Example 3

, all (three) points of

enumeration listed in the part of Installation together

cover all values of one speciﬁc attribute (Operating

system). But only two of them are discussed in the

part of Conﬁguration.

(Example 3).

Non-functional requirement speciﬁcation 5.13: The

system OpenVPN will work under Windows, macOS,

and Linux.

Design speciﬁcation 5.13:

5.13.1 Installation of OpenVPN

We need an OpenVPN client from the community edi-

tion at least of version 2.4.

• Users of MS Windows should download

from https://openvpn.net/index.php/open-

source/downloads.html

• Users of Linux will very probably use a package

from their Linux distribution. It can be useful to

install Network Manager, too.

• Users of macOS have available the applica-

tion from https://tunnelblick.net that contains both

Open VPN and the graphical interface.

5.13.2 Conﬁguration of OpenVPN

• Users of MS Windows are recommended to

store conﬁguration ﬁles into their personal proﬁle,

e.g. in folder C:\Users\Name\OpenVPN\config

where Name is the user’s name in MS Windows.

• Users of Linux place the conﬁguration ﬁle into

the folder that is used by their speciﬁc distribution

of Linux, probably \etc\openvpn.

To conﬁgure OpenVPN we need the following ﬁles. . .

(End of Example 3)

You can see that the name of the attribute is not ex-

plicitly mentioned there. Therefore, the ﬁrst step

of mapping this pattern is to check each item of

enumeration against the values of all attributes. By

this step, we ﬁnd the attributes that are possibly enu-

merated, and we can check the missing values. See

illustrating Fig. 5.

This kind of incompleteness has to be found and

indicated by our tool, i.e., a message like “In the

This example is taken from a grey-zone between

non-functional requirement speciﬁcations and design

speciﬁcation. However, the border between require-

ment speciﬁcations and design speciﬁcation is not exactly

deﬁned, and usually, they overlay each other in some

aspects and properties.

TEXT

…

enumerating

symbol

itemizing

symbol

value 1 of attribute

value 2 of attribute

value n of attribute

existing

scenarios

missing scenarios?

whitespace

Figure 5: Values in Enumeration Approach.

5.13.2 Conﬁguration part of the speciﬁcation, the

alternative concerning macOS is missing.” has to be

generated.

4.2.2 Unique Attribute Pattern

In the requirements, some attributes may be marked

as unique. When such a unique attribute is used

within the extracted positive use case scenario, there

should surely be the alternative one. We can ﬁnd it via

pattern in Fig. 6 where the unique set should consists

of words such as taken, occupied, used, etc. Attribute

representing “username” is a typical example.

‘IF’/‘WHEN’ UNIQUE ATTRIBUTE NAME ‘BE’ UNIQUE SET

attrnsubjmark/advmod

Figure 6: Unique Attribute Pattern.

5 IMPLEMENTATION

The current version of our tool TEMOS is written in

Python, and it is powered by spaCy

NLP framework

in version 2.2 (we use the features such as tokeniza-

tion, sentence segmentation, part-of-speech tagging,

lemmatization, dependency recognition, co-reference

recognition). We use texts written in English,

and for this purpose, we use the pre-trained model

called en

core web lg (available together with spaCy

installation).

The workﬂow of our implemented tool extends the

original one presented in (

Senk

r and Kroha, 2018).

After base text classiﬁcation (provided by spaCy) and

before we start to generate the output model, it makes

sense to check the text against inaccuracies. So far,

we tackle the ambiguity and incompleteness issues.

This check is optional but recommended. Based on

the methods presented in this paper, we extended

the module denoted to incompleteness revealing. In

Fig. 7, there is a screenshot of TEMOS application.

https://spacy.io

ENASE 2020 - 15th International Conference on Evaluation of Novel Approaches to Software Engineering

294

Figure 7: TEMOS Application.

6 DATA AND EXPERIMENTS

The method we described is not perfect. We are not

able to ﬁnd all the forgotten alternative scenarios. It

can happen that there are more alternative scenarios

concerning a class attribute and its values, as we can

show in the following example.

(Example 4). From textual requirements speciﬁca-

tion of a library information system, we ﬁnd that its

model contains a class Reader having attribute Date-

of-Birth. There is a functional requirement describing

how readers borrow books.

Functional requirement: A reader lays the book

on the screen of the indicating machine, insert his/her

membership card in the slot of the machine, and

pushes the button READY.

Normal case scenario: After a green light starts

to blink, the process is ﬁnished, and the following

message occurs: “The process of borrowing a book

has been ﬁnished successfully.”

Alternative scenario: After a red light starts to

blink, the process is ﬁnished by an error, and the

following message occurs: “Readers younger than 18

years cannot borrow books for adults.”

We have our alternative scenario concerning the

Reader-Age and its value. Of course, there may exist

a set of other alternative scenarios concerning the

Reader-Age and its value, e.g., “Reader older than 70

years can borrow books of the library free of charge.”

It should be mentioned in the functional require-

ment: Every reader will be charged by 50 Euro at the

January, 1st.

Both Age-restrictions are described in Library

rules that had to be elicited before requirements speci-

ﬁcation has been formulated.

The only action we could do is to generate

a question whether there are some additional

possibilities depending on the reader’s age.

(End of Example 4)

We continue with an example from published soft-

ware system requirements where our methods could

help. In Fig. 7, there is a screenshot of processing the

next example by our tool.

(Example 5). In (Geagea et al., 2010), there is Func-

tional Requirement 1.6 stating “The search options

are Price, Destination, Restaurant type and Speciﬁc

dish”. Our tool map these four options as values of

the attribute search option.

Functional Requirement 1.8 contains the

following rule “When searching by a search

option, other than price, the restaurants should be

sorted according to the following order: 1. distance,

2. average price, 3. restaurant type, 4. speciﬁc dish”.

The order represents a list where 3 of 4 values of the

attribute search option are mentioned. The pattern

5.2.1 Values in Enumeration Pattern was applied.

Therefore, our tool generates a warning regarding

the missing value destination. The analyst based on

this warning can decide whether the distance is an

expression of destination in this context, and if the

meaning is clear.

(End of Example 5)

Patterns for Checking Incompleteness of Scenarios in Textual Requirements Speciﬁcation

295

7 CONCLUSIONS

The identiﬁcation of incompleteness in requirements

speciﬁcations is still an open issue in requirements

engineering.

We presented our method that reveals scenarios

and alternative scenarios in textual requirements

speciﬁcation using patterns. In the ﬁrst phase, we

construct a UML model as we described in our pre-

vious paper (

Senk

r and Kroha, 2018). Using the

model, we ﬁnd values of attributes of classes that take

parts in scenarios and alternative scenarios. Then we

compare sets of attributes mentioned in alternative

scenarios with sets of attributes from the model and

decide about this kind of requirements speciﬁcation

completeness.

Unfortunately, it is difﬁcult to get large textual

requirements speciﬁcations from software compa-

nies. Usually, these documents are classiﬁed as conﬁ-

dential. Software developers do not agree with the

publishing. This is the reason why we cannot present

statistical data supporting our patterns.

In the future, we will test the possible existence of

some more complicated textual formulations of sce-

narios and their correspondence with a domain model.

ACKNOWLEDGEMENT

This research was supported by the grant

of Czech Technical University in Prague

No. SGS17/211/OHK3/3T/18.

REFERENCES

aumer, F. S. and Geierhos, M. (2016). Running Out

of Words: How Similar User Stories Can Help to

Elaborate Individual Natural Language Requirement

Descriptions. In Dregvaite, G. and Damasevicius,

R., editors, Information and Software Technologies,

volume 639, pages 549–558. Springer International

Publishing, Cham.

aumer, F. S. and Geierhos, M. (2018). Flexible Ambiguity

Resolution and Incompleteness Detection in Require-

ments Descriptions via an Indicator-Based Conﬁgura-

tion of Text Analysis Pipelines. In Proceedings of the

51st Hawaii International Conference on System Sci-

ences, pages 5746–5755.

Dalpiaz, F., van der Schalk, I., and Lucassen, G. (2018).

Pinpointing Ambiguity and Incompleteness in Re-

quirements Engineering via Information Visualization

and NLP. In Kamsties, E., Horkoff, J., and Dalpiaz,

F., editors, Requirements Engineering: Foundation for

Software Quality, pages 119–135, Cham. Springer In-

ternational Publishing.

Eckhardt, J., Vogelsang, A., Femmer, H., and Mager, P.

(2016). Challenging Incompleteness of Performance

Requirements by Sentence Patterns. In 2016 IEEE

24th International Requirements Engineering Confer-

ence (RE), pages 46–55, Beijing, China. IEEE Com-

puter Society Press.

Ferrari, A., dell’Orletta, F., Spagnolo, G. O., and Gnesi,

S. (2014). Measuring and Improving the Complete-

ness of Natural Language Requirements. In Sali-

nesi, C. and van de Weerd, I., editors, Requirements

Engineering: Foundation for Software Quality, pages

23–38, Cham. Springer International Publishing.

Firesmith, D. (2005). Are Your Requirements Complete?

Journal of Object Technology, 4(1):27–43.

Geagea, S., Zhang, S., Sahlin, N., Hasibi, F.,

Hameed, F., Raﬁyan, E., and Ekberg, M.

(2010). Software Requirements Speciﬁcation:

Amazing Lunch Indicator. Available from:

http://www.cse.chalmers.se/

∼

feldt/courses/reqeng/

examples/srs example 2010 group2.pdf.

Li, A. (2015). Analysis of Requirements Incompleteness

Using Metamodel Speciﬁcation. Master’s thesis, Uni-

versity of Tampere.

Rolland, C. and Proix, C. (1992). A Natural Language

Approach for Requirements Engineering. In Ad-

vanced Information Systems Engineering, pages 257–

277, Berlin, Heidelberg. Springer.

Senk

r, D. and Kroha, P. (2018). Patterns in Textual Re-

quirements Speciﬁcation. In Proceedings of the 13th

International Conference on Software Technologies,

pages 197–204, Porto, Portugal. SCITEPRESS – Sci-

ence and Technology Publications.

Senk

r, D. and Kroha, P. (2019). Problem of Incom-

pleteness in Textual Requirements Speciﬁcation. In

Proceedings of the 14th International Conference on

Software Technologies, volume 1, pages 323–330,

Porto, Portugal. INSTICC, SCITEPRESS – Science

and Technology Publications.

Standish (1994). The CHAOS Report (1994). Technical

report, The Standish Group.

Sutcliffe, A. (1998). Scenario-based Requirements Analy-

sis. Requirements Engineering, 3(1):48–65.

Tiwari, S., Ameta, D., and Banerjee, A. (2019). An

Approach to Identify Use Case Scenarios from Tex-

tual Requirements Speciﬁcation. In Proceedings of

the 12th Innovations on Software Engineering Confer-

ence, ISEC’19, pages 5:1–5:11, New York, NY, USA.

ACM.

ENASE 2020 - 15th International Conference on Evaluation of Novel Approaches to Software Engineering

296
