ZigBee IoT Intrusion Detection System: A Hybrid Approach with

Rule-based and Machine Learning Anomaly Detection

Fal Sadikin and Sandeep Kumar

Signify Research, Eindhoven, The Netherlands

Keywords:

ZigBee IoT Intrusion Detection System, Rule-based Method, Machine Learning Anomaly Detection.

Abstract:

The Internet of Things (IoT) is an emerging technology with potential applications in different domains. How-

ever these IoT systems introduce new security risks and potentially open new attack vector never seen before.

In this article, we show various methods to detect known attacks, as well as possible new types of attacks

on ZigBee based IoT systems. To do so, we introduce a novel Intrusion Detection System (IDS) with hy-

brid approach by combining the human-crafted rule-based and machine learning-based anomaly detection.

Rule-based approach is used to provide accurate detection mechanism for known attacks, but the rule-based

approach introduces complexity in deﬁning precise rules for accurate detection. Therefore, machine learning

approach is speciﬁcally used to create a complex model of normal behaviour that is used for anomaly detec-

tion. This paper outlines the IDS implementation that cover various types of detection methods both to detect

known attacks, as well as potential new type of attacks in the ZigBee IoT systems.

1 INTRODUCTION

The Internet of Things (IoT) is emerging as key en-

abler for unique solutions in many application do-

mains like home and building automation. However,

due to its device constraints and their massive deploy-

ments, the IoT also introduces new security issues that

could open new attack vectors never seen before. This

paper introduces a novel prototype of Intrusion De-

tection Techniques, which is speciﬁcally tailored to a

ZigBee (ZigBee-Alliance, 2015) based IoT system.

Intrusion Detection System (IDS) is a well-known

technology for detecting attacks in digital or con-

nected systems. In general, there are two approaches

of IDS in term of detection methods: misuse rule-

based and anomaly-based Machine Learning (ML).

Misuse rule-based are human created rules to detect

both known and unknown attacks. While, anomaly-

based machine learning IDS is a detection method

based on pre-deﬁned ML model of normal behaviour,

which are used to detect malicious activities or new

type of attacks that have never been seen before.

This paper outlines our prototype of a novel de-

tection technique for a ZigBee based IoT system that

combines misuse rule-based and ML anomaly detec-

tion to detect both known and unknown attacks. In

this prototype, we use speciﬁc features of ZigBee

protocol to create the rules for the rule-based detec-

tion and to train the ML model to detect the attacks.

Speciﬁcally, the main contributions of this paper is

four-fold:

• Survey various attacks and possible exploitation

scenarios in a ZigBee based IoT system.

• Data-sets of network behavior when some of these

attack scenarios are performed on the ZigBee

based IoT system.

• Novel rule-based attack detection techniques tai-

lored for a ZigBee based IoT system.

• Novel machine learning based anomaly detection

techniques for a ZigBee based IoT system.

2 RELATED WORK

Our work is related to several research domains as

ZigBee Intrusion Detection System is based on var-

ious technologies like wireless communication sys-

tems, data analytics, machine learning and the detec-

tion techniques itself. In this section, we brieﬂy out-

line several existing solutions that relate to our work.

(Pacheco, 2016) introduces an Anomaly Be-

haviour Analysis (ABA) Intrusion Detection System

(ABA-IDS) to detect anomalies in IoT system. This

approach can detect known and unknown attacks for

Sadikin, F. and Kumar, S.

ZigBee IoT Intrusion Detection System: A Hybrid Approach with Rule-based and Machine Learning Anomaly Detection.

DOI: 10.5220/0009342200570068

In Proceedings of the 5th International Conference on Internet of Things, Big Data and Security (IoTBDS 2020), pages 57-68

ISBN: 978-989-758-426-8

IoT end nodes, with high detection rate and low false

alarms.

(Doohwan-Oh, 2014) presents a lightweight se-

curity system that uses a novel malicious pattern-

matching engine. The authors manage to limit the

memory usage of the proposed system in order to

make it work on resource-constrained devices. To

mitigate performance degradation due to limitations

of computation power and memory, the authors pro-

pose two novel techniques, auxiliary shifting and

early decision.

(T-H-Lee, 2014) proposes a lightweight intrusion

detection model based on analysis of node’s energy

consumed in a 6LowPAN network. The 6LoW-

PAN energy consumption models for mesh-under and

route-over routing schemes are created. The sensor

nodes with irregular energy consumption are identi-

ﬁed as malicious attackers.

(Summerville, 2015) have developed an ultra-

lightweight deep packet anomaly detection approach

that is feasible to run on resource constrained IoT de-

vices, but still provides good discrimination between

normal and abnormal payloads. Due to its simplicity,

the approach can be efﬁciently implemented in either

hardware or software and can be deployed in network

appliances, interfaces, or in the protocol stack of a de-

vice.

(Pongle, 2015) propose a novel intrusion detec-

tion system for the IoT, which can detect a wormhole

attack and the attacker. The proposed methods use

the location information of node and neighbour infor-

mation to identify the wormhole attack and received

signal strength to identify attacker nodes.

(Anhtuan-Le, 2016) propose a speciﬁcation to de-

tect Routing Protocol for Low power and Lossy net-

work (RPL) topology attacks that can downgrade the

network performance signiﬁcantly by disrupting the

optimal routing structure.

(Rathore, 2018) introduce a fog-based attack de-

tection framework that relies on the fog computing

paradigm and a newly proposed ELM-based Semi-

supervised Fuzzy C-Means (ESFCM) method. As an

extension of cloud computing, fog computing enables

attack detection at the network edge and supports dis-

tributed attack detection.

(Chawla, 2018) propose a platform intrusion de-

tection system that uses machine learning algorithms

to detect security anomalies in IoT networks. This

detection platform provides security as a service and

facilitates inter-operability between various network

communication protocols used in IoT.

(A-A-Diro, 2018) propose design and implemen-

tation of deep learning based distributed attack detec-

tion mechanism, which reﬂects the underlying dis-

tribution features of IoT. Moreover, (Maniriho and

Ahmad, 2018) also studies the Performance of Ma-

chine Learning Algorithms in Anomaly Network In-

trusion Detection System. Furthermore, other re-

search works propose various detection techniques in-

cluding Probabilistic-driven Ensemble Approach pro-

posed by (Saia et al., 2018), and IDS with Internet-

integrated CoAP Sensing Applications proposed by

(Granjal and Pedroso, 2018).

In general, there is a lot of research work

that addresses various Intrusion Detection Sys-

tem approaches reaching from rule-based detection,

anomaly-based detection, to machine learning and

deep learning. However, to the best of our knowl-

edge, none of them address speciﬁc techniques to de-

tect attacks on large-scale ZigBee IoT system under

its various constraints.

3 IoT ZigBee SECURITY

3.1 ZigBee Protocol

This section describes the ZigBee stack architecture

(ZigBee-Alliance, 2015) and network topology de-

ﬁned in the ZigBee standard speciﬁcation provided by

ZigBee Alliance.

3.1.1 ZigBee Stack Architecture

As described in ZigBee Speciﬁcation (ZigBee-

Alliance, 2015), the ZigBee Alliance has developed

a very low-cost, very low power consumption, wire-

less communications standard. Solutions adopting the

ZigBee standard are embedded in consumer electron-

ics, home and building automation, industrial con-

trols, medical sensor applications, toys, and games.

The ZigBee stack architecture is deﬁned based on

a set of layers. Each layer performs a speciﬁc set of

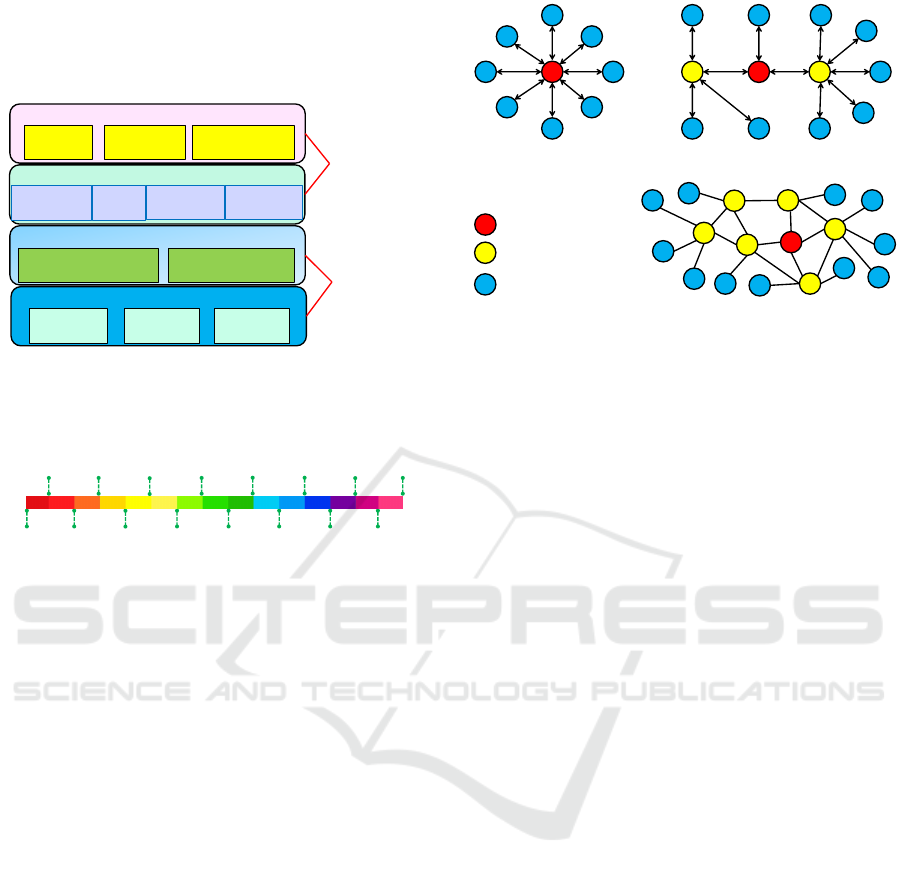

services for the layer above and below. Figure 1 rep-

resents the outline of the ZigBee Stack Architecture.

Basically, ZigBee Stack Architecture is built based

on two standards. The lower layers, which are the

Physical Layer (PHY) and the Medium Access Con-

trol (MAC) are deﬁned by IEEE 802.15.4 standard.

The upper layers, which are Network Layer (NWK)

and Application Layer (APL) are deﬁned by ZigBee

Alliance itself. Furthermore, ZigBee also offers net-

work layer and application layer security.

ZigBee PHY uses three different frequency

ranges. The lower frequency band 868 MHz is used in

Europe and 915 MHz band is used in several countries

such as United Stated and Australia. Furthermore, the

higher frequency band in 2.4 GHz is used worldwide.

IoTBDS 2020 - 5th International Conference on Internet of Things, Big Data and Security

Figure 2 depicts the 2.4 GHz ZigBee channels, where

the channels are divided into 16 different channels,

ranging from channel 11 at 2405 MHz to channel 26

at 2480 MHz.

Security

Management

Message

Broker

Routing

Management

Network

Management

Network Layer (NWK)

Application

Framework

Application

Security

Application

Support Sub-layer

Application Layer (APL)

Beacon Mode Slotted

CSMA/CA GTS Allocation

Medium Access Control (MAC)

2.4 GHz/250

kbps

915 MHz/40

kbps

868 MHz/20

kbps

Physical Layer (PHY)

Non-beacon Mode

Non-Slotted CSMA/CA

Defined by

ZigBee Alliance

Defined by

IEEE 802.15.4

Standard

Network Layer (NWK)

Figure 1: ZigBee Stack Architecture.

Channel

2405

MHz

Channel

2415

MHz

Channel

2425

MHz

Channel

2435

MHz

Channel

2445

MHz

Channel

2455

MHz

Channel

2465

MHz

Channel

2475

MHz

Channel

2410

MHz

Channel

2420

MHz

Channel

2430

MHz

Channel

2440

MHz

Channel

2450

MHz

Channel

2460

MHz

Channel

2470

MHz

Channel

2480

MHz

Figure 2: 2.4 GHz ZigBee Channels.

3.1.2 ZigBee Network Topology

ZigBee Speciﬁcation (ZigBee-Alliance, 2015) also

deﬁnes that ZigBee network layer (NWK) support

star, tree, and mesh topologies. In a star topology,

the network is controlled by one single device called

the ZigBee coordinator. The ZigBee coordinator is

responsible for initiating and maintaining the devices

on the network. All other devices, known as end de-

vices, directly communicate with the ZigBee coordi-

nator. In mesh and tree topologies, the single Zig-

Bee coordinator is responsible for starting the net-

work and for choosing certain key network parame-

ters, but the network may be extended through the use

of ZigBee routers. In tree networks, routers move data

and control messages through the network using a hi-

erarchical routing strategy. Tree networks may em-

ploy beacon-oriented communication as described in

the IEEE 802.15.4 speciﬁcation. Mesh networks al-

low full peer-to-peer communication. ZigBee routers

in mesh networks do not currently emit regular IEEE

802.15.4 beacons. Figure 3 illustrates the ZigBee

Network Topology.

Star Topology

Tree Topology

Mesh Topology

ZigBee Coordinator

ZigBee Router

ZigBee End Device

Figure 3: ZigBee Network Topology.

3.2 Attack Scenarios

As shown in Figure 1, ZigBee protocol stack con-

sists of two main layers, the layer deﬁned by IEEE

802.15.4 and the layer deﬁned by ZigBee Alliance.

This section outlines various attack scenarios against

ZigBee devices, speciﬁcally on network layer deﬁned

by the ZigBee Alliance. Basically, ZigBee devices

can be attacked to achieve four types of attacker’s

goals, which are:

• Reconnaissance. An attacker aims at gaining de-

vice information to perform further malicious ac-

tivities, ranging from revealing sensitive informa-

tion related to user’s privacy, to gathering impor-

tant information to perform follow-up attacks.

• Denial-of-Service (DoS). An attacker aims at per-

forming DoS to disable the service or operations

performed by the ZigBee devices.

• Malicious Control. An attacker aims at gain-

ing unauthorized control to the ZigBee devices to

misuse them.

• Device Hijacking. An attacker aims at hijacking

the device connectivity to take over full control of

the legitimate device. In this case, the legitimate

user will lose control to their devices.

This section discusses possible known attack sce-

narios that could happen on ZigBee devices. The dis-

cussion mainly focuses on two attack scenarios; Zig-

Bee network layer attacks and the possible attacks that

misuses the ZigBee feature on Inter-PAN command.

Figure 4 illustrates the possible attack scenarios on

ZigBee devices.

3.2.1 ZigBee Network Layer Attacks

An attacker can exploit the features in ZigBee NWK

layer to perform various attacks, ranging from recon-

ZigBee IoT Intrusion Detection System: A Hybrid Approach with Rule-based and Machine Learning Anomaly Detection

Attack Scenario

ZigBee

Attack Scenario on ZigBee

ZLL TouchLink Inter-PAN

Attacks

Network Layer Attacks

TouchLink

Device Scan

Blinking

Attack

Factory Reset

Attack

Hijacking

via Attacker’s

Network Join

Network Key Extraction

triggered by User’s Reset

and Rejoin the Network

Command

Injection

(Controlling)

Channel Update

Attack

PAN ID Update

Attack

Network Key

Update

Hijacking via

Network

Key Update

Device Scan Via

Fake Beacon Request

Denial-of-Service

Hijacking

via Attacker’s

Network Key

Update

PAN ID Conflict

Attack

Flooding

Attacks

Associate

Flooding

Disassociate

Flooding

Data Request

Flooding

Flooding: Device

Ask to Leave

Flooding: Coordinator

Ask to Leave

Replay Attack

Max-Frame-Counter

Attack

DoS

Follow-up

Reconnaissance

Hijacking

Malicious Control

DoS Classification

Follow-up Attacks

Possible Follow-up

Attacks after DoS

DoS Follow-up

DoS

Follow-up

Figure 4: Attack Scenarios on ZigBee.

naissance, DoS type of attacks, malicious control, to

hijacking to take control over an user’s access to the

target device.

(i) Reconnaissance

An attacker can scan all active ZigBee devices in

the range by crafting a Zigbee standardized Bea-

con Request packet, that we denote further as the

Fake Beacon Request and broadcast it to all ZigBee

channels consecutively. In this way, all coordinator

and router devices in the range will answer the beacon

request that could reveal sensitive information about

the devices, which could be related to the privacy of

the user/owner of devices. In addition, the informa-

tion could also be used to perform further attacks.

Figure 5 illustrates the reconnaissance in a ZigBee

network.

By collecting beacon frame from coordinator and

routers in the network, an attacker can get useful in-

formation, such as:

• Channel Information. An attacker usually

broadcasts the Fake Beacon Request iteratively to

all ZigBee channels (e.g. channel 11-26). In this

Attack Scenario on

ZigBee

ZigBee Network

1. Attacker crafted

Fake_Beacon_Request

and broadcast it to all ZigBee

channels consecutively

2. Coordinator and all

routers then broadcast

their beacon information

Figure 5: Reconnaissance Using Fake Beacon Request.

case, the attacker can ﬁnd out the channel that is

being used by the target network based on the re-

sponse from all devices. The channel information

is useful to ﬁnd out the target and perform further

attacks.

• Protocol Version. The beacon frame from Zig-

Bee coordinator and routers contains the protocol

version that is used in the network. This informa-

tion is useful to initially judge what type of possi-

ble attacks could be performed on a speciﬁc ver-

sion of protocol. In addition, the attacker could

also infer the type of ZigBee application based on

the protocol version.

• PAN ID. It is a ZigBee network address, which is

unique for each network. PAN ID is one of impor-

tant parameters that is needed to perform further

attacks.

• Extended PAN ID. By default, Extended PAN ID

(EPID) is a Coordinator MAC Address. To per-

form some attacks, an attacker needs to know the

Coordinator’s MAC Address.

• List of All Active Devices. To ﬁnd out the target,

an attacker needs information about all active de-

vices including their short ZigBee addresses and

corresponding MAC addresses.

• Device Capability. ZigBee beacon also contains

information about the capability of each device

(e.g. Coordinator, End Device, Router Capabil-

ity). This information is useful to create attack

scenarios on ZigBee Network.

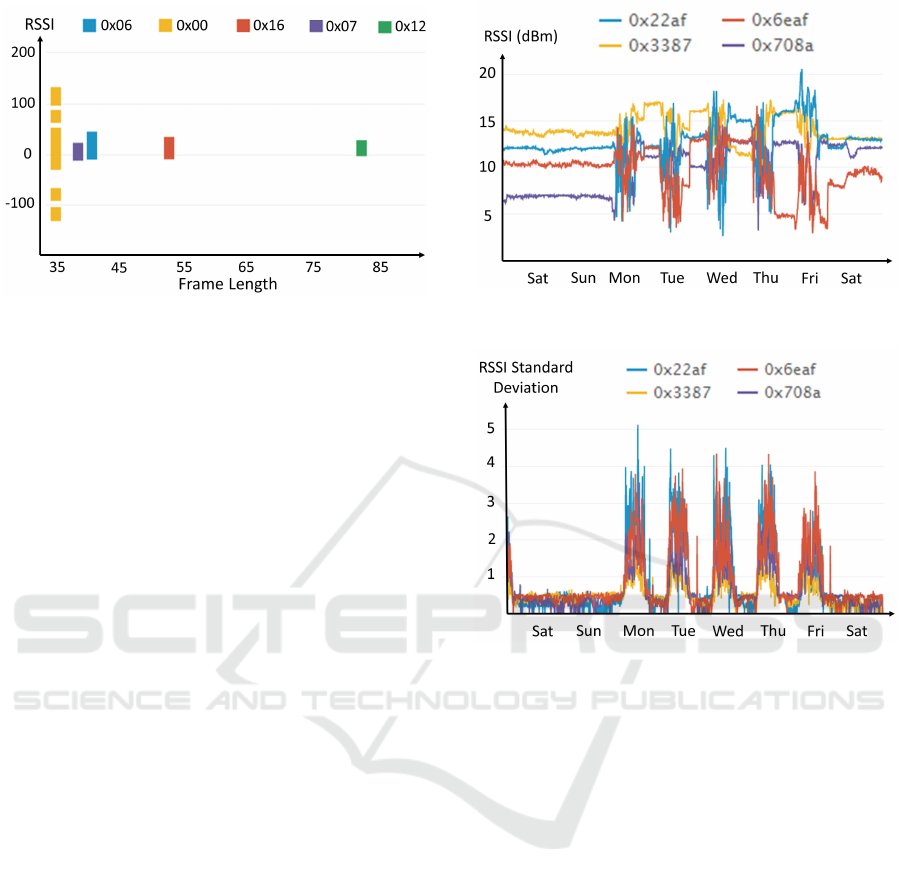

• Signal Strength. This information could infer the

position or distance of each ZigBee device. Thus,

the attacker could get meaningful information in-

cluding infer the topology of the ZigBee network.

In general, collecting ZigBee beacon of each de-

vice in the network is a critical step to performing fur-

ther malicious activities.

IoTBDS 2020 - 5th International Conference on Internet of Things, Big Data and Security

(ii) Malicious Control

After gaining the device information, an attacker

can then ﬁgure out the device functionalities in

the ZigBee network, and choose a target to launch

attacks such as performing malicious control. One

possible way to do malicious control is by performing

a Replay attack. Replay attack is a type of attack,

where an attacker records or copies the previous

communication packets of a legitimate device and

sends the copied packets later in time. The attacker

may successfully perform this attack if the legitimate

device does not check the Frame Counter due to

improper implementation or having ﬂushed the last

known Frame Counter from its memory. In this

case, the legitimate device is made to believe that the

copied packet was sent by the legitimate device in the

network. For example, when a legitimate user sends

a command to unlock the door, the attacker sniffs and

copies the command to unlock the door and sends the

copied command when the user is not at home.

(iii) Denial-of-Service

By having enough information about the target

device, an attacker can perform many types of DoS

attacks, ranging from PAN ID conﬂict attack, Max-

Frame-Counter attack, to various ﬂooding attacks.

a. PAN ID Conﬂict Attack

ZigBee speciﬁcation deﬁnes that PAN ID shall be

unique for each ZigBee network. In this way, two

or more different ZigBee networks can operate in the

same channel, as long as each network has a unique

PAN ID. In other words, each ZigBee coordinator

shall issue an unique PAN ID for its network. In

addition, the ZigBee speciﬁcation also deﬁnes that

a node which has detected a PAN identiﬁer conﬂict

shall construct a Network Report Command frame of

type PAN Identiﬁer Conﬂict and address it to the co-

ordinator. Upon receiving the network report, the co-

ordinator then sends a PAN ID realign to all devices

in the network. The attacker can craft a ZigBee bea-

con frame with the same PAN ID but different Coor-

dinator MAC address. This technique can make all

ZigBee devices in the target network (e.g. the same

PAN ID) to think that there is another network in the

vicinity that uses the same PAN ID. All devices that

receive the crafted beacon frame then construct a Net-

work Report Command frame of type PAN Identiﬁer

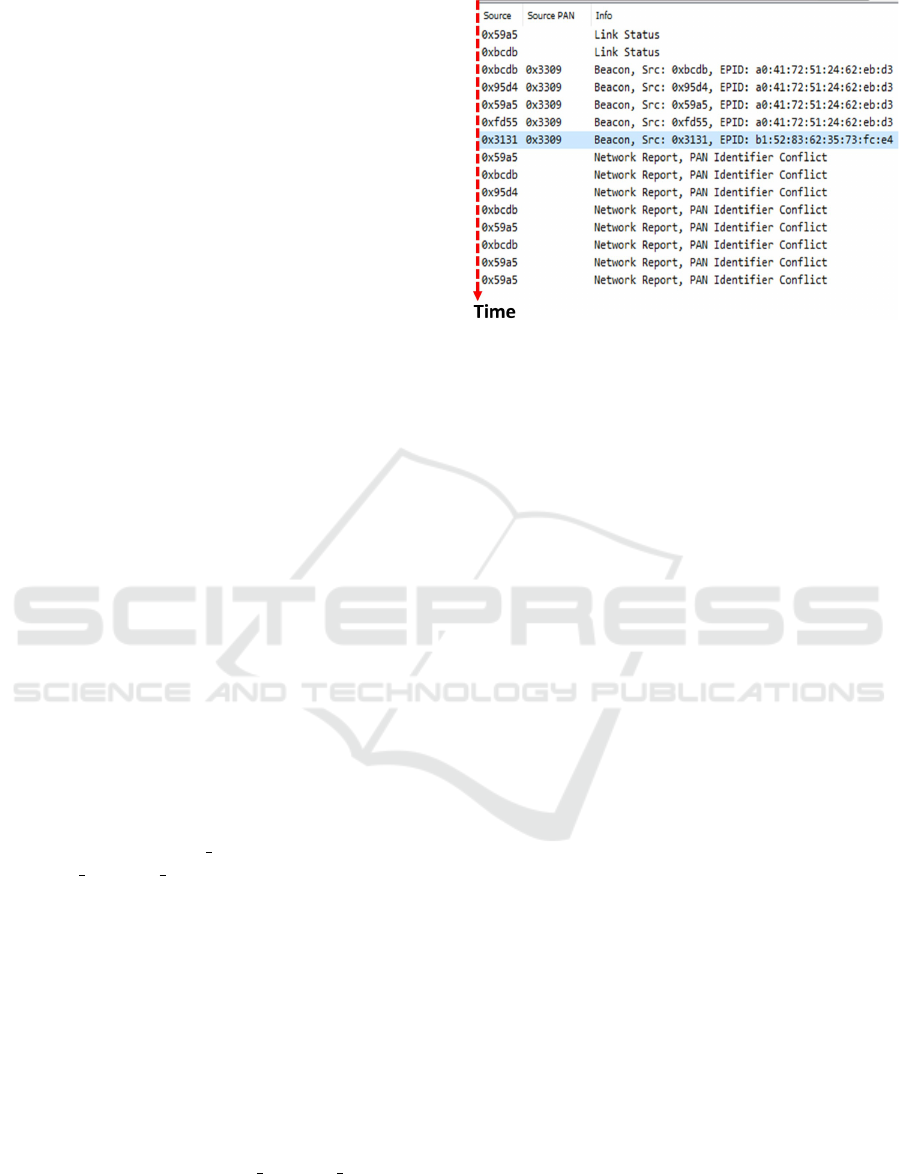

Conﬂict. Figure 6 shows the result of our experiment,

where nodes that received the specially crafted bea-

con frame tried to report a PAN Identiﬁer Conﬂict to

the coordinator.

In this test, four ZigBee nodes (i.e. 0xbcdb,

0x95d4, 0x59a5, and 0xfd55) and one coordinator

Figure 6: Network Report on PAN ID Conﬂict Attack.

(i.e. EPID a0:41:72:51:24:62:eb:d3) were set up

as the legitimate network with PAN ID 0x3309.

In addition, the fake beacon frame (marked in

blue) was specially crafted with node source address

0x3131, which belongs to different coordinator (EPID

b1:52:83:62:35:73:fc:e4), but has the same PAN ID

0x3309. In this case, all legitimate nodes that detected

the PAN ID conﬂict reported to their coordinator.

In PAN ID conﬂict attack, an attacker uses two

ZigBee interfaces. The ﬁrst interface is used to listen

and mark PAN ID of the target network. The second

interface is used to constantly send out the specially

crafted fake beacon frame with the found PAN ID.

These two interfaces keep listening and sending out

beacons repeatedly, so that all the nodes keep asking

the coordinator to change their PAN ID. Thus, the

coordinator would be busy changing its PAN ID

leading to a DoS of the network.

b. Max-Frame-Counter Attack

ZigBee Speciﬁcation deﬁnes that a Packet Frame

Counter value shall be incremented by one for each

new transmission. In other words, a ZigBee device

compares the frame counter value every time it re-

ceives a packet from a source address. If the received

frame counter value is not higher than the previous

value, the packet is then discarded by the device.

This feature introduces a type of attack called

Max-Frame-Counter Attack, where the attacker crafts

a spoofed packet using one of the legitimate source

addresses and sets the counter to maximum value.

In this case, the target device would discard any

packet from the legitimate device since its frame

counter is not higher than the spoofed packet that

was previously sent by the attacker. An attacker may

successfully perform this attack if the target device

incorrectly checks the MIC (Message Integrity Code)

due to improper implementation, or it could also

ZigBee IoT Intrusion Detection System: A Hybrid Approach with Rule-based and Machine Learning Anomaly Detection

happen if the implementation uses a crypto-suite

without integrity protection. In addition, the attackers

could also successfully set the frame-counter to

maximum value if he/she has access to the single

network key being used.

c. Flooding Attacks

Another possible way to perform DoS attack is by

continuously ﬂooding the target device with several

packets or requests. In this case, the target device

would be busy responding to those requests and can-

not perform its normal operation such as responding

to requests from other legitimate devices. In the case

of ZigBee protocol, there are several ways to perform

ﬂooding attacks, including:

• Associate Request Flooding: Associate request is

a type of request where a ZigBee node initiates to

join a ZigBee network. The request is sent by a

ZigBee node to the network parent or coordinator.

In case of ﬂooding attack, an attacker can craft an

Associate Request packet and repeatedly send or

ﬂood the target network coordinator. In this case,

the coordinator is ﬂooded by many malicious re-

quests, keeping it busy and it cannot respond to

other requests from legitimate devices.

• Data Request Flooding: Data request is a type of

request where a ZigBee node requests to collect

data from its parent or network coordinator. An

attacker can perform ﬂooding attacks by crafting

Data Request and repeatedly sending the request

to the target network coordinator. The attacker

needs to know the network key or compromise

any one node in the network to perform this at-

tack.

• Disassociate Request Flooding: There are two

types of disassociate request. The ﬁrst type of

request is the coordinator asking the end-device

to leave the network, and the second type of re-

quest is the end-device initiating request to leave

the network. An attacker could impersonate as

a network coordinator and ﬂood the target node

with leave requests to make it leave the network.

In similar scenario, an attacker could also imper-

sonate as legitimate node and ﬂood the target co-

ordinator with leave requests. The attacker needs

to know the network key to perform this attack.

3.2.2 ZigBee TouchLink Inter-PAN

ZigBee speciﬁcation also deﬁnes Inter-PAN commu-

nication, which allows a node to send messages to a

node in a different network (e.g. different PAN ID).

In other words, this feature allows communication be-

tween networks. It is to be noted that Inter-PAN com-

munication is not protected using NWK-layer secu-

rity.

The ZigBee application proﬁle, ZigBee Light

Link (ZLL) is designed to meet the speciﬁc require-

ments of a connected lighting system. ZLL deﬁnes

TouchLink Commissioning via Inter-PAN message to

enable lighting use cases where commissioning of

lighting devices can be done using a device with lim-

ited functionality such as handheld remote control. In

addition, the Touchlink Commissioning also enables

to manage network conﬁgurations.

Similar to Network layer attack scenarios, an at-

tacker could exploit the features in Inter-PAN Touch-

Link commands to perform various attacks, ranging

from reconnaissance to gain device information, DoS

type of attacks, malicious control, to hijacking to take

over user’s access to their devices as shown in Figure

4. For the current work, we will focus more on the

network layer attack detection.

3.2.3 Follow-up Attacks after DoS

As described before, various DoS attacks can be

performed on Zigbee networks. After a successful

DoS attack, where the legitimate user cannot control

their devices, it is highly likely that the user would

perform reset factory procedure and sequentially

re-join to the legitimate network. In this regard, an

attacker can exploit this user behaviour by snifﬁng

the re-join procedure to steal and recover the key

of the legitimate network. This attack can be done

because the key is transported during the network

join procedure and it could be encrypted using a

well-known global key (such as ZigBeeAlliance09

for legacy device). Figure 7 depicts our test on steal-

ing the key during normal network join procedure. In

this test, network re-join was performed by initially

sending Associate Request and Data Request to the

coordinator/bridge (e.g. 0x01). At the reception

of those requests, the coordinator sends an Asso-

ciate Response to assign a ZigBee network address

to the device (e.g. 0x04) and sequentially send the

network key via Transport Key command. It is to be

noted that for legacy devices, the Transport Key is

encrypted using global keys deﬁned by the Zigbee

standard. Therefore the attacker can use the recov-

ered network key to perform further attacks including

performing attacks on other legitimate device via

command injection and hijacking the whole network

with key updates.

(i) Command Injection

After successfully recovering the network key, an

attacker can then control the target device such as

impersonate as a legitimate user. In this case, the

IoTBDS 2020 - 5th International Conference on Internet of Things, Big Data and Security

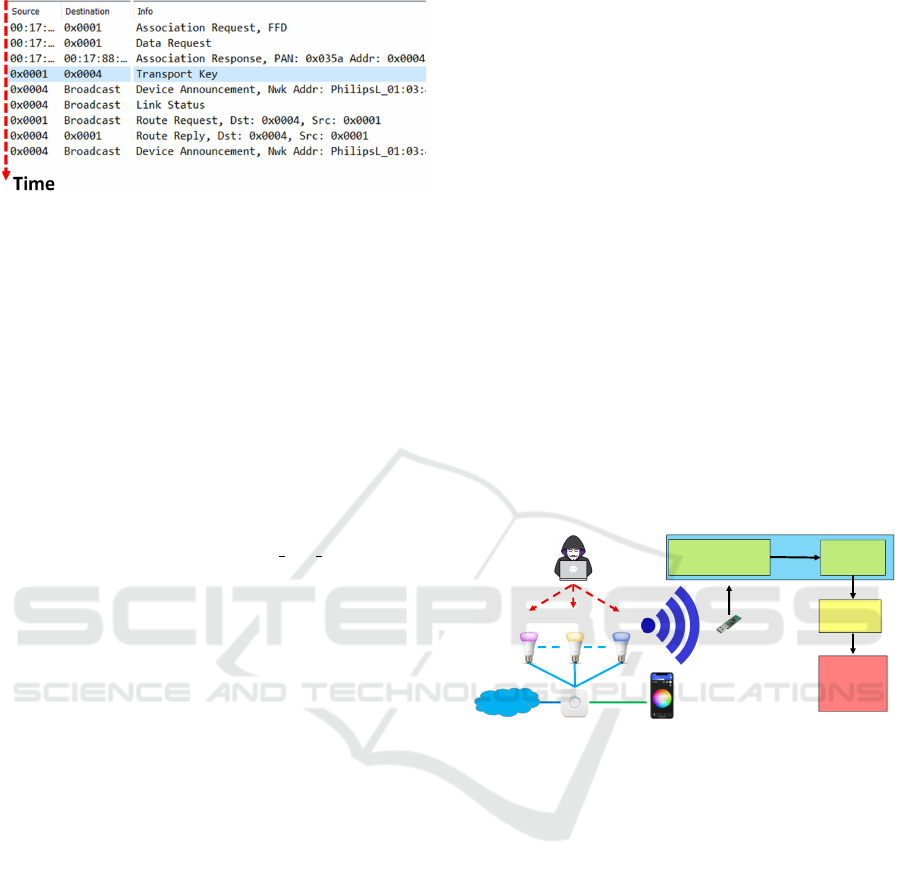

Figure 7: Snifﬁng the Key during Network Join Procedure.

attacker can encrypt/decrypt the communication and

become a member of the legitimate network. This

enables command injection sent by an attacker to be

accepted by any device in the network that uses only

the network key for security.

(ii) Hijacking via Network Key Update

By knowing the network key, an attacker can act as

legitimate device and perform any activity that seems

legitimate to other devices in the network. In this at-

tack scenario, the attacker can impersonate as ZigBee

coordinator or Trust Center and force the target node

to update its network key to attacker’s network key.

It is done by sending the Network Key Update com-

mand to the target device. At the reception of the net-

work key update, the target device changes its net-

work key to the attacker’s network key. It means that

the device now belongs to the attacker’s network and

the legitimate user loses control of the target device.

4 IDS BASED ZigBee SECURITY

Intrusion Detection System (IDS) is one approach to

provide reliable attack detection both for known and

unknown attacks. This section outlines our proposed

solution using IDS, which is speciﬁcally tailored to a

large-scale ZigBee based IoT system. Initially, we de-

scribe our testbed setup used for data collection both

for normal behaviour, as well as anomaly datasets cre-

ated based on attack scenarios we performed on the

testbed. In addition, various attack detection tech-

niques both using rule-based and machine learning-

based solution are outlined in this section.

4.1 Proof of Concept

A ZigBee IoT lighting system is used as an experi-

mental testbed to create a realistic representative ver-

sion of an IoT system. This testbed includes Zigbee

based lights and a bridge, where the legitimate user

can control all lights in the network using a legitimate

App, such as turning on/off the lights, changing the

light colour, dimming, or adding a new light bulb to

join the network. It is to be noted that the testbed

consists of one gateway (0x01), and three Light Bulbs

(0x02, 0x03, and 0x04).

To collect realistic datasets, all ZigBee trafﬁc is

sniffed and stored to the rule engine for further anal-

ysis. To collect the normal behaviour of legitimate

user, all legitimate commands sent from the App are

collected via the sniffer. In this case, we use the app to

repeatedly control the lights and behave like a normal

user. In addition, we also performed attack scenarios

on the testbed by launching various attacks described

in Figure 3. By doing so, we can collect realistic ma-

licious datasets for accurate attack detection and clas-

siﬁcation.

After collecting enough datasets at the rule engine,

we then perform data analysis that is used to classify

both normal and anomaly behaviour. Figure 8 depicts

our lighting testbed and ZigBee IoT IDS prototype.

In the prototype, we use rule engine to implement

both rule-based and machine learning based detection

methods.

Hub/Gateway

Light

LightLight

ZigBee Network

App

Wi-Fi

Attack/Pen-Test

ZigBee

Sniffer

Database, Indexing,

Rule Engine, Machine

Learning Application

Web and

Application

Server

Data Analysis and Attack Detection

SOAP API

Web

Browser

Alerts,

Email,

Log Files

Attack Scenario

on ZigBee

Cloud

Figure 8: ZigBee IoT Lighting System and IDS Prototype.

After successfully implementing the detection

methods, we tested the IDS by reproducing the attack

scenarios. It is done by controlling the lighting system

via the app, as well as re-launching all attacks on the

testbed. In this case, the IDS prototype raises an alarm

in case it detects attacks or anomalous behaviour.

4.2 Rule-based IDS

Rule-based IDS is a type of detection method using

parameters based on human-crafted rules, which is

created by manually analysing the dataset or log ﬁles.

The rule-based IDS can be used to recognize known

attacks, as well as for anomaly detection to detect un-

known attacks or types of attacks that have never been

seen before.

ZigBee IoT Intrusion Detection System: A Hybrid Approach with Rule-based and Machine Learning Anomaly Detection

4.2.1 Attack Detection

To detect the known attacks, the dataset of various

attack scenarios is analysed and compared with the

dataset of legitimate user behaviour, which is sent

from the App. By doing so, we can classify the

normal and anomalous behaviour, as well as classify

various type of attacks described in Figure 4.

(i) RSSI Pattern

By analysing the dataset, there are several possi-

ble ways to detect malicious activities. For exam-

ple, malicious command injection can be detected by

analysing the pattern of Received Signal Strength In-

dication (RSSI). In common wireless networks in-

cluding ZigBee, all active devices measure the RSSI

of receiving (Rx) packets including Rx unicast and Rx

broadcast. The Rx RSSI sent by each neighbouring

device has speciﬁc pattern depending on the distance

between device sending the packet and the receiver.

In addition, the RSSI pattern can vary based on exter-

nal factors such as people movement or the number

of people present in the vicinity of the wireless net-

works.

To perform command injection, an attacker ini-

tially spoofs the ID of a legitimate device. By doing

so, the attacker can impersonate as legitimate device

and make the target device to think that the command

is sent by the legitimate device. However, the attacker

cannot spoof the RSSI pattern received by the target

device, meaning that there will be an unusual change

in pattern of the Rx RSSI. Figure 9 depicts the detec-

tion mechanism, where the malicious command in-

jected by the attacker changes the Rx RSSI pattern

of the device (0x03). In this regard, there will be a

spike up on the pattern if the attacker sends the com-

mand when being closer than the legitimate device,

or a spike down if the attacker sends the command

from a device farther away than the legitimate device

than was to the receiver. The attacker may try to send

commands with a different signal strength as sent by

the legitimate device. However, it would still affect

the changing RSSI pattern due to external factors sur-

rounding the legitimate and different RSSI Rx pattern

being detected on other devices.

To create more accurate detection, the rule should

adopt the RSSI changes based on the presence of

other objects in the environment. For example, the

RSSI pattern in the ofﬁce during working hours is

different than the RSSI pattern during night or when

most of the people are not in the ofﬁce (e.g. weekend

or holidays). The section 4.2.2. describes in more

detail the rule-based RSSI pattern anomaly detection

with with the additional context of time.

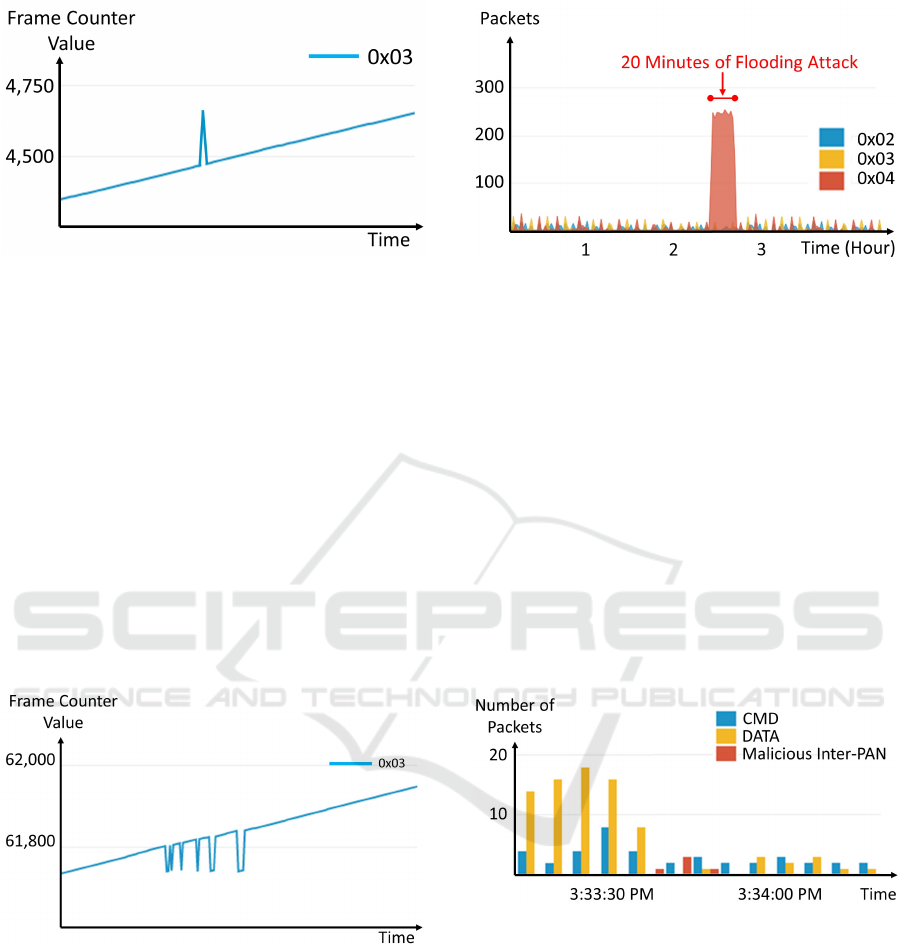

Figure 9: Command Injection and Spoofed Device Detec-

tion.

Furthermore, speciﬁc patterns of RSSI can

indicate a speciﬁc attack such as various types of

ﬂooding attacks. In this case, a continuously stable

RSSI value in a time range is a clear indication of

ﬂooding attacks. Figure 10 shows the attack scenario

dataset for a ﬂooding attack, where the RSSI value

of a device is continuously stable in a speciﬁc period

of time (e.g. 20 minutes). It is to be noted that the

ﬂooding attack was performed by initially spooﬁng

the address of one legitimate device (i.e. 0x03) and

subsequently sending large number of packets to the

coordinator.

Figure 10: RSSI Pattern in Flooding Attack.

(ii) Frame Counter

The existence of a spoofed device and/or malicious

command injection can be detected by analysing the

frame counter of received ZigBee packets. ZigBee

speciﬁcation deﬁnes that the value of a packet frame

counter shall be incremented by one for each new

transmission by the sender. In command injection use

case, an attacker attempts to impersonate as legitimate

device by spooﬁng the ID of the device (i.e. 0x03) and

inject a message with higher frame counter to fool the

target device to accept the command. However, this

type of attack can be detected as the received frame

counter value is signiﬁcantly incremented than one.

Figure 11 depicts the attack scenario dataset on com-

IoTBDS 2020 - 5th International Conference on Internet of Things, Big Data and Security

Figure 11: The Pattern of Frame-Counter Value on Com-

mand Injection Attack.

mand injection attack, where one injected packet has

a signiﬁcantly higher frame counter value.

Furthermore, the frame counter pattern can also

indicate a speciﬁc type of command injection (e.g.

various types of replay attacks). In replay attack use

case, an attacker copies a previous message sent by

legitimate device and replays it later to impersonate

as legitimate device. However, this attack can be de-

tected by checking the current frame counter value

that is not incremented or has lower value compared

to the value of previous message. Figure 12 depicts

the dataset of the replay attack scenario, where the at-

tacker repeatedly replays the pre-recorded packet sent

by the legitimate device (i.e. 0x03) which in this case

is ignored by the receiving device.

Figure 12: Frame Counter Value on Replay Attack.

(iii) Trafﬁc Rate

Another way to detect various type of ﬂooding

attacks is by measuring the packet rate. In normal

behaviour, there are certain thresholds of normal

network packet exchanges among the legitimate

devices. By deﬁning the threshold, the ﬂooding

attack can easily be detected. Figure 13 shows the

dataset of ﬂooding attack with a different metric, the

packet rate. It is the same ﬂooding dataset shown

in Figure 10, where the attack was performed by

continuously sending large number of packets using

Figure 13: Dataset on Flooding Attack.

spoofed address of legitimate device (0x04) for 20

minutes.

(iv) Packet Frame Format

ZigBee deﬁnes various types of packet frame formats,

some of them are Packet Length, Command Frames

(e.g. Route Request, Route Reply, Network Status,

Network Report, Network Update, etc.), and Frame

Type. Various types of attacks in ZigBee can be de-

tected based on speciﬁc packet frame format. For ex-

ample, the existence of Inter-PAN command during

normal operation is a clear indication of TouchLink

Inter-PAN attacks. Therefore the IDS should raise

an alarm as the TouchLink Inter-PAN should not exist

during normal operation. Figure 14 shows the attack

scenario dataset on TouchLink Inter-PAN attacks.

Figure 14: Dataset of Packet Frame Format.

After detecting the TouchLink Inter-PAN attacks,

the next step is to classify the speciﬁc type of attacks,

as well as approximately locate the distance of the at-

tacker if it is applicable. It is done by checking the

identiﬁer of the TouchLink command and comparing

it with the RSSI value to approximately locate the

distance of the attacker. Figure 15 shows the dataset

of the TouchLink Inter-PAN Identiﬁer sent by the at-

tacker. In this dataset, the attacker attempted to send

several TouchLink commands, ranging from Scan Re-

quest (0x00) from various distances, Reset Factory

(0x07), Identify Request (0x06) for blinking attack,

Network Update (0x16) to change the channel, to Net-

ZigBee IoT Intrusion Detection System: A Hybrid Approach with Rule-based and Machine Learning Anomaly Detection

Figure 15: Distribution of TouchLink Inter-PAN Identiﬁer.

work Join Router (0x12) to hijack the device.

By analysing the symptoms of the attacks, all

known attacks basically can be detected by checking

the characteristic of Packet Frame Format. For exam-

ple, by checking the speciﬁc command frames that are

sent during normal operation and comparing it with

the speciﬁc command frames that are sent by the at-

tacker.

4.2.2 Anomaly Detection

Rule-based method can be also used to detect

unknown attacks by creating a model for anomaly

detection. By using the model from the normal

dataset, the IDS can detect anomaly when there is a

new packet or command that does not match the rules

of normal behaviours.

(i) RSSI Pattern

One method to create the rules of normal behaviour

is by modelling the RSSI of normal devices. As an

example of creating the models, we conducted exper-

iments with data that was observed by a sniffer from

four neighbouring nodes in a connected ZigBee light-

ing system in a typical ofﬁce environment. The pat-

tern of average RSSI levels of these legitimate de-

vices are depicted in Figure 17. In this graph, the

RSSI levels change based on the human presence in

the ofﬁce, particularly during the work hours. In this

regard, the pattern of RSSI level is relatively stable

on weekends as the presence of people is relatively

low during those days. Figure 16 also depicts the pat-

tern that shows RSSI is relatively stable on workdays

particularly in the time range between evening hours

when most people leave the ofﬁce to morning hours

when most people start to work on the next day.

In addition, the standard deviation of the RSSI lev-

els over the days is also provided for a more accurate

detection method. Figure 17 shows the standard devi-

ation of RSSI levels that we observed.

Figure 16: Average RSSI Pattern of Authorized Nodes in

Every 10 Minutes.

Figure 17: Standard Deviation of RSSI Pattern in Every 10

Minutes.

In this regard, the IDS will detect the existence

of malicious packet or spoofed device if the current

RSSI level does not match the rule model generated

from the historical patterns for different time and day

of the week. By doing so, all types of known attacks

including spoofed device, replay attack, ﬂooding

attacks, packet injection, and in addition any types

of malicious activities that have never seen before

can be detected. This is because all those malicious

activities (e.g. known and unknown attacks) will not

match with the pattern of normal behaviour.

(ii) Packet Frame Format

A model for normal behaviour can also be created us-

ing packet frame format. There are many ways to do

that, for example, by combining several features such

as frame length, command frame, and the RSSI. Fig-

ure 19 depicts the model of a normal behaviour of

ZigBee lighting system in an ofﬁce environment. In

addition, Figure 18 also identiﬁes the anomaly com-

mand sent by the attacker, which is outside of the nor-

mal model frontier.

In this example, a model is created based on the

location of the source device represented by the RSSI

IoTBDS 2020 - 5th International Conference on Internet of Things, Big Data and Security

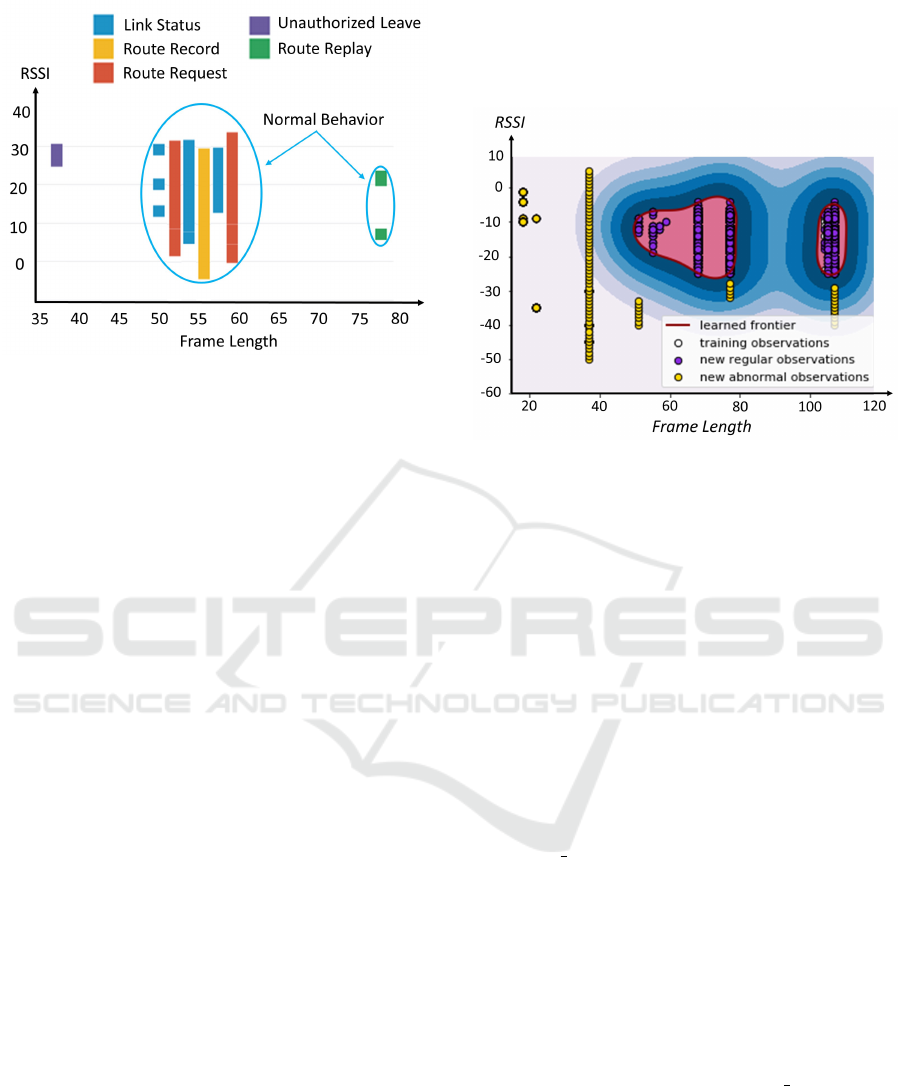

Figure 18: Anomaly Detection Using Packet Frame Format.

value, the length of the packet, and the type of com-

mand sent during the normal operation. Based on this

model, an example of rules for normal behaviour can

be created as follow:

• Packet length shall be either 77 bytes or ranges

from 50 to 59 bytes.

• And the RSSI shall ranges from -4 to 33 dBm.

• And the legitimate command during normal op-

eration shall be either Link Status, Route Record,

Route Request, or Route Replay.

In general, all messages that do not match the rules

above will be classiﬁed as anomaly. For example,

an attacker attempting to send commands with packet

length 37 bytes and command Leave are classiﬁed as

anomaly.

To summarize, the rule-based method is an effec-

tive method that provide detection mechanisms with

high accuracy. It can be used to detect both known

attacks and potential new attacks that have never been

seen before. However, the human-crafted rule-based

introduces complexity and is time consuming for cre-

ating the model and rules for attack detection. In ad-

dition, the rules created by humans might be error

prone.

4.3 Machine Leaning Anomaly

Detection

In the proposed ZigBee IoT IDS, machine learn-

ing is used to create a complex model with vari-

ous features of ZigBee frame format including RSSI,

frame length, time, frame counter, and packet inter-

val. To create the model of normal behaviour, the

testbed dataset of normal behaviour was used for ma-

chine learning training using One-class-SVM with

non-linear kernel (RBF). Furthermore, we plotted the

implementation of training/test model using scikit-

learn (sklearn.svm.OneClassSVM). Figure 19 shows

the test result of the anomaly detection model.

Figure 19: Training and Test Dataset Using One-Class-

SVM.

To validate the accuracy of the model, we re-run

the testbed to collect new normal observation (e.g.

marked in purple dot) and experiment on the model

by launching several attacks (marked in yellow). The

attack scenarios are listed as follow:

• Flooding attack using Leave command: To do this

experiment, we crafted the leave command with

37 bytes length and ﬂood the packet to the net-

work coordinator from various distances. In this

case, all ﬂooded commands are spread with dif-

ferent RSSI ranging from -53 to 7 dBm. How-

ever, the Leave commands sent by the attacker are

not inside the learning frontier, which is classi-

ﬁed as anomaly. In addition, we crafted an As-

sociate Request command with 22 bytes length

and ﬂood this command to the network coordi-

nator, which is done from two different places,

inside and outside the room where the testbed is

installed. In this case, the plot of the commands

are separated to form two different RSSI area,

which are inside and outside the room. However,

the command is classiﬁed as anomaly since the

packet length is not in the range of packet length

in normal behaviour. Furthermore, we repeated

the ﬂooding experiment using Data Request com-

mand with 18 bytes length. However, the re-

sult also shows that the command is classiﬁed as

anomaly since it is outside the normal frontier.

• Finally, we attempted to perform replay attacks

using previously captured packets from legitimate

devices. In this case, we replayed several pack-

ets with length 51, 77, and 105 bytes. However,

ZigBee IoT Intrusion Detection System: A Hybrid Approach with Rule-based and Machine Learning Anomaly Detection

all commands are classiﬁed as anomaly (e.g. out-

side the normal frontier) since the attacks were

sent from outside the room. It is to be noted that

the attacker may attempt to perform the replay at-

tack from inside the building, however the frame

counter feature will be able to detect this attack.

In general, by combining several features to create

the normal behaviour model we can detect anomalous

behaviour in the ZigBee network which can be used to

detect possible attempts to attack the network. In ad-

dition, using machine learning for creating the model

for normal behaviour is more efﬁcient and less-time

consuming. However, there is a limitation of the non-

linear kernel (RBF), where some part on the kernel

(i.e. the learned frontier) touch the leaning observa-

tion (e.g. dataset of normal behaviour). This issue

makes the new observation of normal behaviour to

be classiﬁed as anomaly, particularly when they touch

the learned frontier. Therefore, in real case IDS im-

plementation, the One-class-SVM model will intro-

duce false positives, where some of normal messages

sent by legitimate devices will touch the frontier of

normal behaviour. It means some of legitimate pack-

ets/commands will be classiﬁed as anomaly. There-

fore, additional learning should be built-in to ensure

the model of normal behaviour is updated correctly

over time.

5 CONCLUSIONS

In this article, we have covered various methods to

detect known attacks, as well as possible new types

of attacks in ZigBee IoT systems. To do so, we intro-

duce intrusion detection system with hybrid approach

by combining the human-crafted rule-based and ma-

chine learning-based anomaly detection. Rule-based

approach is used to provide accurate detection mech-

anism for known attacks, but it is also effective to

be used for anomaly detection mechanism. However,

the rule-based approach introduces complexity and

is time-consuming to deﬁne precise rules for accu-

rate detection. While, machine learning approach is

speciﬁcally used to create a complex model of nor-

mal behaviour that is used for anomaly detection.

Indeed, creating the model using machine learning-

based anomaly detection is much efﬁcient method and

less-time consuming. However, it potentially intro-

duces false alarms in real IDS deployments.

REFERENCES

A-A-Diro (2018). Distributed attack detection scheme us-

ing deep learning approach for internet of things.

Future Generation Computer Systems, vol. 82, pp.

761–768.

Anhtuan-Le (2016). A speciﬁcation-based ids for detecting

attacks on rpl-based network topology. Information,

vol. 7, no. 2, p. 25.

Chawla (2018). Security as a service: real-time intrusion

detection in internet of things. In Proceedings of the

Fifth Cybersecurity Symposium, p. 12, ACM.

Doohwan-Oh (2014). A malicious pattern detection en-

gine for embedded security systems in the internet of

things. Sensors, vol. 14, no. 12, pp. 24188–24211.

Granjal, J. and Pedroso, A. (2018). Intrusion detection and

prevention with internet-integrated coap sensing ap-

plications. In Proceedings of the 3rd International

Conference on Internet of Things, Big Data and Secu-

rity - IoTBDS,, pages 164–172. INSTICC, SciTePress.

Maniriho, P. and Ahmad, T. (2018). Analyzing the per-

formance of machine learning algorithms in anomaly

network intrusion detection systems. In 2018 4th In-

ternational Conference on Science and Technology

(ICST), pages 1–6.

Pacheco (2016). Iot security framework for smart cyber in-

frastructures. IEEE International Workshops on Foun-

dations and Applications of Self-Systems.

Pongle (2015). Real time intrusion and wormhole attack

detection in internet of things. International Journal

of Computer Applications, vol. 121, no. 9.

Rathore (2018). Semi-supervised learning based distributed

attack detection framework for iot. Applied Soft Com-

puting, vol. 72, pp. 79–89.

Saia, R., Carta, S., and Recupero, D. R. (2018). A

probabilistic-driven ensemble approach to perform

event classiﬁcation in intrusion detection system. In

Proceedings of the 10th International Joint Confer-

ence on Knowledge Discovery, Knowledge Engineer-

ing and Knowledge Management - Volume 1: KDIR,

(IC3K 2018), pages 139–146. INSTICC, SciTePress.

Summerville (2015). Ultra-lightweight deep packet

anomaly detection for internet of things devices. IEEE

34th International Performance Computing and Com-

munications Conference (IPCCC).

T-H-Lee (2014). A lightweight intrusion detection scheme

based on energy consumption analysis in 6lowpan.

Advanced Technologies, Embedded and Multime-

dia for Human-centric Computing, pp. 1205–1213,

Springer.

ZigBee-Alliance (2015). Zigbee speciﬁcation. ZigBee Doc-

ument 05-3474-21.

IoTBDS 2020 - 5th International Conference on Internet of Things, Big Data and Security
