Personal Documents Classiﬁcation using a Hybrid Framework at a

Mobile Insurance Company: A Case Study

Raissa Barcellos and Rodrigo Salvador

ADDLabs, Computing Institute - Federal Fluminense University, Brazil

Keywords:

Document Classiﬁcation, Convolutional Neural Networks.

Abstract:

In the information age, coupled with the full range and speed of data, the ease of access to new disruptive

technologies brings the relevant problem of document classiﬁcation. Identifying and categorizing documents is

still a very challenging initiative addressed in the literature. This paper analyzes the construction of a document

classiﬁcation hybrid framework in a real business context. The research is based on a case study addressing the

construction of a hybrid framework that uses text and image in document classiﬁcation and how this framework

can be useful in an authentic context of a mobile insurance company. Excellent accuracy and precision results

were found in the use of both approaches, even considering a possible fraudulent circumstance. From these

results we can conclude that using the hybrid framework, using the visual approach as a ﬁlter — which is more

efﬁcient in verifying the authenticity of documents— and consolidating the results with the textual approach,

is a convincing option for deployment in the company in question.

1 INTRODUCTION

Nowadays, with the era of Big Data, over-data ex-

poses the challenging problem of recognizing and cat-

egorizing documents. In many scenarios, document

classiﬁcation is a sophisticated task that confronts

several areas of research. This task usually consists

of a feature extraction step and an automatic classiﬁ-

cation step. The primary purpose of this type of clas-

siﬁcation is to assign a document to one or more cat-

egories (Hassan et al., 2015).

Documents generally have distinct visual styles.

Today, one of the challenges of document image anal-

ysis is the fact that within each type of document,

there is a vast range of visual variability (Harley et al.,

2015). Another critical issue is that documents of dif-

ferent categories regularly display considerable visual

similarities. From a visual style standpoint, some er-

roneous recoveries under these circumstances may be

justiﬁable, but generally, the task of document image

analysis is to classify documents despite intra-class

variability and class similarity (Harley et al., 2015).

Also, there are several important issues - which

have serious consequences — in today’s society

that can be well resolved using document classiﬁca-

tion (Xiao and Cho, 2016). Such as the problem of

identity fraud. These threats can be characterized as

small frauds or even organized crimes. Several ap-

proaches have been proposed to classify documents -

such as supervised classiﬁcation, unsupervised clas-

siﬁcation, and semi-supervised classiﬁcation of doc-

uments (Hassan et al., 2015). More recently, it has

become more common to use neural networks, which

jointly perform feature extraction and classiﬁcation,

for document classiﬁcation. In the following subsec-

tions, we will cover these different approaches more

extensively (Xiao and Cho, 2016).

The main objective of this paper is to conduct

a case study, regarding the construction of a frame-

work for personal documents classiﬁcation submit-

ted by users, in a real business context. Our case

study refers to a mobile insurance company — it cov-

ers phones for loss, theft and accidental damage with

mobile phone — that massively identiﬁes the correct-

ness of the clients’ documents manually, through a

call center. This particular company intends to invest

in an aggressive marketing strategy, but the number of

service orders — cellphone theft notiﬁcation — will

increase so much, that it would be necessary to dou-

ble the number of resources in the call center to meet

new demand. In this context, the ideal would be to in-

vest in an automatic document identiﬁcation applica-

tion, so that when opening a service order through the

company portal, the customer is instructed to submit

their documents via the internet. This service should

be able to identify personal documents with as little

490

Barcellos, R. and Salvador, R.

Personal Documents Classiﬁcation using a Hybrid Framework at a Mobile Insurance Company: A Case Study.

DOI: 10.5220/0009340204900497

In Proceedings of the 22nd International Conference on Enterprise Information Systems (ICEIS 2020) - Volume 1, pages 490-497

ISBN: 978-989-758-423-7

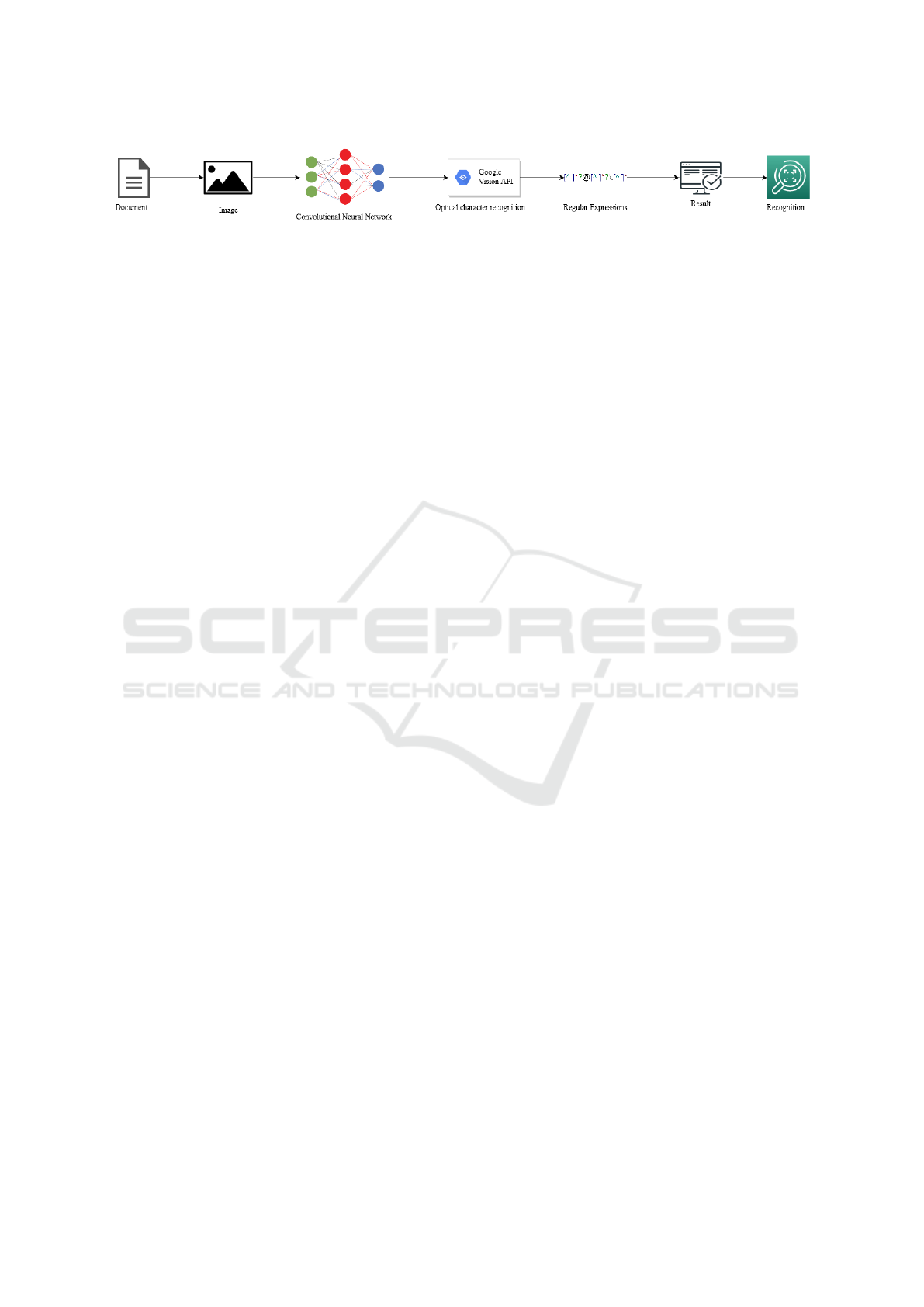

Figure 1: Developed Hybrid Framework.

human intervention as possible.

To conduct this case study, we developed a hy-

brid application that explores text and image to clas-

sify personal documents, as we can see in Figure 1,

targeting the real business scenario. By running this

case study, we hope to be able to explore the option of

deploying a document classiﬁer hybrid framework as

an alternative for the company, in question to be able

to invest in its new marketing strategy without having

to double the call center staff. For the development

and testing of the framework, we have a sample of the

database provided by the company.

This work is organized as follows: Section 2

presents the theoretical background, regarding to the

techniques used in our work and that conceptualize

the importance of this work. Section 3 presents a lit-

erature review. Section 4 presents our hybrid frame-

work. Section 5 describes a discussion about our hy-

brid framework. Finally, Section 6 show our ﬁnal con-

clusion and future work.

2 BACKGROUND

2.1 Unsupervised Document Learning

The Machine Learning community widely studies un-

supervised learning (Su et al., 2019). In unsuper-

vised learning, there is a set of N observations (x1,

x2, ..., xN) of a random p-vector X having joint den-

sity Pr(X).The goal is to directly infer the properties

of this probability density without the help of a super-

visor or teacher providing correct answers or degree-

of-error for each observation (Friedman et al., 2001).

The dimension of X is sometimes much higher than

in supervised learning, and the properties of interest

are often more complicated than simple location esti-

mates (Friedman et al., 2001).

The most common unsupervised learning task is

the clustering — detecting potentially useful input

sample clusters. A ﬁxed group of text is clustered

into groups that have similar content. The similarity

between documents is calculated with the associative

coefﬁcients. Document clustering mainly used Hier-

archical clustering algorithms (Hassan et al., 2015).

2.2 Supervised Document Classiﬁcation

In supervised learning, there is a set of N variables

that might be denoted as inputs, which are measured

or preset. These have some inﬂuence on one or more

outputs. The goal is to use the inputs to predict the

values of outputs. This activity is called supervised

learning (Friedman et al., 2001).

In this kind of learning, approaches such as pattern

recognition are used to classify a document —– ex-

amples of classiﬁers such as neural networks, support

vector machines, and genetic programming. Multiple

classiﬁers can be used in combination with supervised

learning, but classiﬁer accuracy can be improved us-

ing a small set of documents (Hassan et al., 2015).

An example of a supervised learning technique, that

is widely used today in document recognition, is the

use of Convolutional Neural Networks.

2.2.1 Convolutional Neural Networks in

Document Classiﬁcation

Deep learning is revolutionizing the already rapidly

developing ﬁeld of computer vision. The convolu-

tional neural network (CNN) is a state-of-the-art deep

learning tool that learns high level features directly

from a huge dataset of labeled images (Khan et al.,

2018). A deep convolutional neural network consists

of convolutional layers followed by fully connected

layers with normalization and/or grouping performed

between the layers. There are a wide variety of net-

work architectures and layer parameters are learned

from trainning data.

In traditional Artiﬁcial Neural Networks, the rela-

tionship between input and output units is determined

by matrix multiplication. In Convolutional Neural

Networks, convolution is used instead of general ma-

trix multiplication, reducing the number of weights

and parameters in the network (Revanasiddappa and

Harish, 2019).

Besides, it minimizes network complexity by re-

ducing memory size and improving performance.

Learning algorithms bypass the resource extraction

procedure due to the direct consideration of network

entry. Convolution also helps to learn a multi-level

representation (Revanasiddappa and Harish, 2019).

Image representations are computed by taking the

output of the fully connected intermediate layers or

Personal Documents Classiﬁcation using a Hybrid Framework at a Mobile Insurance Company: A Case Study

491

by pooling the output of the last convolutional layer.

Intermediate layer extraction produces intermediate-

level generic representations that can be used for var-

ious recognition and recognition tasks a wide range

of data, such as document classiﬁcation (Sicre et al.,

2017). Convolutional Neural Networks have tradi-

tionally been implemented for image recognition, and

several techniques have already been implemented to

improve this architecture (Sicre et al., 2017).

Semi-supervised learning algorithms have widely

been studied since the 1990s mostly thanks to Infor-

mation Access and Natural Language Processing ap-

plications. In these applications unlabeled data are

signiﬁcantly easier to come by than labeled examples

which generally require expert knowledge for correct

and consistent annotation. The underlying assump-

tion of semi-supervised learning algorithms is, if two

points are close then they should be labeled simi-

larly, resulting in that the search of a decision bound-

ary should takeplace in low-density regions. This as-

sumption does not imply that classes are formed from

single compact clusters, only that objects from two

distinct classes are not likely to be in the same clus-

ter (Krithara et al., 2008).

2.3 Optical Character Recognition

Optical Character Recognition (OCR) is a technology

that analyzes image characters and transforms them

into the text format used on a computer (Lee et al.,

2019). OCR is a complex problem because of the va-

riety of languages, fonts and styles in which text can

be written, and the complex rules of languages etc.

Hence, techniques from different disciplines of Com-

puter Science — as image processing, pattern classi-

ﬁcation and natural language processing — are em-

ployed to address different challenges (Islam et al.,

2017).

Based on the type of input, the OCR systems

can be categorized as handwriting recognition and

machine printed character recognition. The former

is relatively simpler problem because characters are

usually of uniform dimensions, and the positions of

characters on the page can be predicted (Islam et al.,

2017). In this work we only utilized machine printed

character recognition.

Web services like Google Cloud Vision and Ama-

zon Rekognition are OCR solutions that implement

machine learning algorithms as a solution to image

recognition (Pathak et al., 2019). Google Cloud Vi-

sion was launched on December 2, 2015 moreover

has been growing and developing constantly. Cloud

Vision is a proprietary API that can prove application

development for image analysis, using as multiple

REST APIs. The API has features for image recog-

nition, including identiﬁcation of landmarks, optical

character recognition, face detection, and logo detec-

tion (Pathak et al., 2019).

3 LITERATURE REVIEW

Various approaches for document image classiﬁcation

have been proposed over the years. Generally, docu-

ment image classiﬁcation approaches are divided into

two major groups, structure/layout based, and content

based. This section provides an overview of some

important works which have been reported in refer-

ence to structure or content based document classiﬁ-

cation (Afzal et al., 2015).

Khanalni et al. (Khanalni and Gharehchopogh,

2018) used a hybrid of the IWO algorithm — based

on chaos theory — with a Naive Bayes classiﬁer

for classifying text documents. The authors used

the algorithm IWO to select essential features and

Naive Bayes for trainning-based document classiﬁca-

tion and tests. The results indicated that the proposed

model is more accurate compared to Naive Bayes.

Also, the error rate factor indicates that proposed

model errors with Feature Selection are smaller in a

comparison of the proposed model with other mod-

els, the results indicated that the model proposed by

the authors is more accurate due to the use of Fea-

ture Selection which is capable of better exploit the

resource space.

In another work, Audebert et al. (Audebert et al.,

2019) attacked the problem of document classiﬁca-

tion based only on an image of a digitized document,

and the authors performed classiﬁcation using visual

and textual attributes using the Tesseract OCR En-

gine and FastText — a library for text classiﬁcation

and representation learning. The authors introduced

an end-to-end learned multimodal deep network that

jointly learns text and image capabilities and performs

the ﬁnal classiﬁcation based on a different represen-

tation of the document. The proposal showed consis-

tent gains in both small and large datasets. So, there is

signiﬁcant interest in the hybrid image/text approach

even when clear text is not available for document im-

age classiﬁcation.

Popereshnyak et al. (Popereshnyak et al., 2018)

chosen Convolutional Neural Network to solve the

problem of identifying personal documents, using the

ReLU activation function. As a result, image clas-

siﬁcation performance has been tested, and an ac-

curacy of about 85% has been achieved. It has

been experimentally determined that a neural network

can recognize multiple classes at once in one image.

ICEIS 2020 - 22nd International Conference on Enterprise Information Systems

492

This option allows more improvement of the neural

network, increasing the number of classes, and in-

creasing recognition accuracy. Kolsch et al. (K

olsch

et al., 2017) addressed the problem of real-time train-

ning for document image classiﬁcation. The authors

present a document classiﬁcation approach that trains

one millisecond per image, ie, in real-time. The ap-

proach is divided into two stages — the ﬁrst stage uses

resource extraction from deep neural networks, and

the second stage uses Extreme Learning Machines

(ELMs) for classiﬁcation.

According to Tensmeyer et al. (Tensmeyer and

Martinez, 2017), convolutional neural networks are

very efﬁcient models for document image classiﬁca-

tion. However, many of these approaches are based

on architectures designed to classify natural images,

which differ from document images. In this paper,

the authors question whether this custom is appropri-

ate and conduct an empirical study to ﬁnd out which

aspects of convolutional neural networks most affect

document imaging performance. In general, the ap-

plication of shear transformations during trainning

and the use of large input images lead to the most

signiﬁcant gains in performance. trainning and test-

ing at various scales also improve the speciﬁcally for

smaller trainning sets. Also, Batch Normalization is

a useful alternative to Dropout in datasets with great

visual variety. A trained convolutional neural net-

work is also examined, and the authors report evi-

dence that it is learning characteristics layout interme-

diaries. Neurons ﬁre based on the type of layout com-

ponent (graphic, text, handwriting, noise) and tend to

shoot at speciﬁc places in the image.

The contribution of this present work is to explore

the development and implementation of a hybrid doc-

ument classiﬁer framework, in a real scenario of a

mobile insurance company, using a not artiﬁcial sam-

ple of documents. We also performed a framework

implementation evaluation, using a company dataset

containing actual data of varying quality.

4 DEVELOPED HYBRID

FRAMEWORK

In order to build a document classiﬁcation hybrid

framework, in a real business scenario, we used some

technologies, and we combined two approaches. The

visual approach uses Convolutional Neural Networks

to identify the documents to be classiﬁed automati-

cally, through the image only. This step is essential

to identify the document class, since this will pro-

vide relevant information about the layout of data to

be extracted, and about the security measures present

on that document that will allow detecting document

forgery. In the textual approach, we used the Google

Vision API to extract text from images, along with

the use of regular expressions, identifying common

words present in documents to be classiﬁed.

4.1 Dataset

The document dataset, for trainning and testing, con-

tains images of scanned documents, collected from

the mobile insurance company’s private database. In

total, the database has over 30.587 documents, hand-

labeled with tags. The three categories are ”iden-

tity document/driver’s license”, ”invoice” and ”occur-

rence report”.

4.2 Convolutional Neural Networks

The convolutional neural networks we used in

this experiment are models that map input images

x ∈ R

H×W×D

into the probability vectors y ∈ R

where D is the input image depth, W is a ﬁlter

which is applied to a window of H words to pro-

duce a new feature, and C is the number of classes.

Each layer performs a transformation with learn-

able parameters followed by non-linear operation(s):

= g

? x

l−1

+ b

) where 1 ≤ l ≤ L is the layer in-

dex, x

is the input image, W

, b

are learnable param-

eters, ? is either matrix multiplication for fully con-

nected layers or 2D convolution for convolution lay-

ers, and g

is a layerspeciﬁc non-linearity, constituted

by Rectiﬁed Linear Units— ReLU (x) = max(0, x),

and optionally max-pooling, batch normalization, or

dropout. Deep convolutional neural networks with

ReLUs train much faster than their counterparts with

Hyperbolic Tangent. The output of the last layer is

a input to a sigmoid function — the softmax func-

tion is a more generalized logistic activation function

which is used for multiclass classiﬁcation. Similar

approaches were used in (Tensmeyer and Martinez,

2017) (Krizhevsky et al., 2012). For each type of

document, we trained a different convolutional neu-

ral network, using Keras

— a high-level neural net-

works API, written in Python and capable of running

on top of TensorFlow.

4.2.1 Identity Document

1. Trainning Details

For this trainning, we utilized 3 datasets: a train-

ning dataset, a testing dataset and a validation

dataset. We use trainning data to train the algo-

rithm and then create the predictive model. Only

https://keras.io/

Personal Documents Classiﬁcation using a Hybrid Framework at a Mobile Insurance Company: A Case Study

493

IDs is in the training data. We used validation

data to evaluate the model during trainning. We

used the testing data to validate the performance

of the already trained model, ie, we presented the

model with data that he did not see during train-

ning to ensure that he can make predictions. The

ﬁrst dataset is composed of 10.595 images, splited

into two paths 5.257 (IDs) and 5.339 (others). The

second dataset is composed of 607 images. The

third dataset is composed of 139 images.

2. Trainning Hyperparameters

We used 32 features for a 2D array and deﬁned

our array as 3x3 format. So, we converted all

our 256x256 pixel images into a 3D array. We

applied the max-pooling layer to reduce the size

of the feature map, added four convolution lay-

ers, applying max-pooling layers between them.

We used Data Augmentation technique to gener-

ate samples by transforming trainning data, with

the target of improving the accuracy and robust-

ness of the model (Fawzi et al., 2016). We ap-

plied Flatten to convert the 2D data structure to

a 1D structure, ie, an array. The rectiﬁer activa-

tion function (relu) is used, and then a sigmoid

activation function to obtain the odds of each im-

age containing an identiﬁcation document or not.

To compile the network, we used the Adam opti-

mizer — ﬁrst-order algorithm for gradient-based

optimization of objective functions based on an

adapted estimate of low order moments. We used

a log loss function with binary cross-entropy be-

cause it works well with sigmoid functions. We

used 5000 steps in our trainning set for 4 epochs.

We chose 2000 validation steps for validation im-

ages.

3. Accuracy

We achieved an accuracy of 97% for the trainning

set and 91% for the test set.

4.2.2 Occurrence Report

1. Trainning Details

Like for Identity Document, we utilized 3

datasets: a trainning dataset, a testing dataset, and

a validation dataset. The ﬁrst dataset is composed

of 7.373 images, splited into two paths 3.447

(IDs) and 3.926 (others). The second dataset is

composed of 938 images. The third dataset is

composed of 638 images. Only Occurrence Re-

ports is in the training data.

2. Trainning Hyperparameters

We used 32 features for a 2D array and deﬁned

our array as 3x3 format. So, we converted all

our 256x256 pixel images into a 3D array. We

applied the max-pooling layer to reduce the size

of the feature map, added four convolution layers,

applying max-pooling layers between them. Like

for Identity Document, we used Data Augmenta-

tion technique. We also applied a technique called

Batch Normalization to increase trainning speed.

Batch Normalization works by ﬁrst linearly scal-

ing and shifting each neuron’s activations to have

zero mean and unit variance (Tensmeyer and Mar-

tinez, 2017). We inserted Batch Normalization af-

ter each convolution layer. We applied Flatten to

convert the 2D data structure to a 1D structure.

Like for Identity Document, we used the rectiﬁer

activation function (relu), and then a sigmoid acti-

vation function. To compile the network, we used

the Adam optimizer and a log loss function with

binary cross-entropy. We used 3000 steps in our

trainning set for 4 epochs. We chose 2000 valida-

tion steps for validation images.

3. Accuracy

We achieved an accuracy of 96% for the trainning

set and 89% for the test set.

4.2.3 Invoice

1. Trainning Details

We also utilized 3 datasets: a trainning dataset, a

testing dataset, and a validation dataset. The ﬁrst

dataset is composed of 9648 images, splited into

two paths 5459 and 4189 (others). The second

dataset is composed of 3369 images. The third

dataset is composed of 5537 images. Only In-

voices in is trainning data.

2. Trainning Hyperparameters

We also used 32 features for a 2D array and

deﬁned our array as 3x3 format, and we con-

verted all our 384x384 pixel images into a 3D ar-

ray. Like for Occurrence Report, we applied the

max-pooling layer to reduce the size of the fea-

ture map, added four convolution layers, apply-

ing max-pooling layers between them. We also

used Data Augmentation technique and we ap-

plied Batch Normalization to increase trainning

speed. We applied Flatten and we used the recti-

ﬁer activation function (relu), and the sigmoid ac-

tivation function. To compile the network, we also

used the Adam optimizer and a log loss function

with binary cross-entropy. We used 3000 steps in

our trainning set for 4 epochs. We chose 2000 val-

idation steps for validation images.

3. Accuracy

We achieved an accuracy of 94% for the trainning

set and 82% for the test set.

ICEIS 2020 - 22nd International Conference on Enterprise Information Systems

494

Table 1: Documents type, keywords and regular expressions used.

Document Type Keywords Regular expressions

Occurrence report “police”, “report”, “record”

re.search(“((police)+(.+))+((report |

occurrence |

record)+(.))+(.+)?”, line)

Invoice

“danfe”, “invoice”, “tax coupon”,“nf”,

“taxes”, “tax”, “tributes”, “nfce”

re.search(“((danfe | invoice |

tax coupon | nf)+(.+))

+(tributes | tax | taxes | nfce)+(.+)?”, line)

Identity Document/

Driver’s license

“secretary of”, “safety”, “public”,

“identity”, “doc source”,

“id card”, “director”,

“national trafﬁc department”,

“permission”

re.search(“(((((secretary of)+

(safety)+(public)+(.+))

| ((identity)+(.+)))+

((doc source | doc . source | doc. source)

+(.+))+((id card | director)+(.+))+(.+)?)) |

(((national

trafﬁc department) +(.+))+

(permission)+ (.)+(cat)+(.+)?)”, line)

4.3 Google Vision API and Regular

Expressions

We used the Google Vision API text extraction feature

to implement regular expressions, reﬁning the text ex-

tracted from document images. For the construction

of regular expressions, we listed the most common

keywords in all selected document types, according to

the Table 1. The classiﬁcation of the documents hap-

pens through the results of the regular expressions.

4.3.1 Accuracy

We performed a test with a total of 198 real doc-

uments, where: (i) 75 documents corresponded to

the occurence report type, (ii) 51 documents corre-

sponded to the identiﬁcation document or driver’s li-

cense type and (iii) 72 documents corresponded to the

invoice type. We measured the accuracy of the correct

classiﬁcation for each of these types of documents.

Table 2 presents the accuracy measurements obtained.

Table 2: Accuracy measurements obtained.

Document Type Accuracy

Occurrence report 97,5%

Invoice 94,8%

Identity Document/

Driver’s license

87,5%

5 HYBRID FRAMEWORK

EVALUATION

As a hybrid framework evaluation methodology, we

compute the precision metric for the same test dataset

in both approaches with 198 documents, as we can

see in Table 3. The visual approach — using Convo-

lutional Neural Networks — works learning the pro-

cedures that it needs to follow through images, any

kind of anomaly that comes through is going to be

detected and can be classiﬁed as a potencial for fraud

that need to be checked out. So, the textual approach

— using Google Vision API and Regular Expressions

— after 198 test cases, we do not compute precision

errors, there is no false-positive occurrence informa-

tion for this approach, so the precision metric is con-

siderated 100%. However, the textual approach works

with text extraction and regular expressions, does not

consider fraudulent situations, considering the image

format and characteristics.

Given that accuracy indicates the overall perfor-

mance of the approach, that is, of all ratings, how

many have the approach correctly rated, by using our

hybrid framework, the company will be able to au-

tomate much of the manual document classiﬁcation

process today. Given our results, in visual approach,

we were able to accurately exclude between 82%

and 92% handwritten documents considered fraudu-

lent when attempting to reproduce either type of doc-

ument. By aggregating the textual approach, we are

able to guarantee between 87.5% and 97.5% accuracy

in the textual approach and arguably satisfactory ac-

curacy for scanned documents. Given that precision

indicates, among all the positive class ratings the ap-

Personal Documents Classiﬁcation using a Hybrid Framework at a Mobile Insurance Company: A Case Study

495

Table 3: Precision measurements obtained for document type/approach.

Document Type

First step precision

(CNN)

Second step precision

(OCR+ Regex)

Number of

approved

documents

Number of

inconclusive

documents

Occurrence report 97% 100% 192 6

Invoice 100% 100% 198 0

Identity Document/

Driver’s license

99% 100% 196 2

proach has taken, how many are correct, by using our

hybrid framework, in visual approach, we were able

to precisely classify between 97% and 100% docu-

ments. By aggregating the textual approach, we are

able to precisely classify 100% documents.

Therefore, with the result of this evaluation, we

can conclude that the high classiﬁcation accuracy,

provided by the hybrid framework, gives remarkable

conﬁdence to the model’s ability to classify docu-

ments correctly. As for accuracy, we can conclude

that by evaluating the error in the classes equally —

true positives and negatives — we have a high accu-

racy of document classiﬁcation, this factor is also a

good general indication of the excellent performance

of the hybrid framework. For our scenario, a high

measure of precision will be more beneﬁcial than a

high measure of accuracy. For, considering that one

purpose of building the hybrid framework would be

to reduce as much human interference as possible

in document identiﬁcation, the precision measure re-

ports whether the framework accuses the document

of a particular type, but is not. With a very high

level of precision, as presented, the framework will

be able to quickly meet the demand of the mobile in-

surance company by efﬁciently automating the work

previously done by the call center industry manually.

We compared our accuracy results with some re-

lated works, given the union between image and text

to classify documents. In the study (Audebert et al.,

2019), the authors obtained about 90.6% accuracy in

the RVL-CDIP dataset and between 68% and 98%

accuracy in the Tobacco3482 dataset, both contained

in documents such as emails, letters, questionnaires,

and presentations. That is, the datasets did not con-

tain personal documents. In the work (Popereshnyak

et al., 2018), the authors conduct training with per-

sonal documents such as passports and driver’s li-

censes, reaching an accuracy of around 85%, through

only one CNN to classify all types of documents to-

gether.

6 CONCLUSIONS

The problem of document classiﬁcation still consists

of several types of research in the academic ﬁeld. The

search for an efﬁcient and effective approach, which

can identify various types of documents with the best

yet, is extensive, although it is addressed by many

areas today. In this paper, we conduct a case study,

in a real business scenario, where a mobile insurance

company needs a solution that automatically classi-

ﬁes documents, with the goal of leverage the invest-

ments in other areas of the business, such as market-

ing, without any increase in call center resources —–

industry that manually classiﬁes documents. For this

case study, we developed a hybrid document classiﬁer

framework that explores text and image documents

using technologies such as Optical character recog-

nition and Convolutional Neural Networks. We use a

real database, used today in production, for the con-

struction and testing of the framework. This frame-

work has two approaches: (i) the visual approach

explores the document format and the image itself

through supervised machine learning, and (ii) the tex-

tual approach explores only the text itself after its ex-

traction — it is a fact that the textual approach does

not consider handwritten/digitized texts.

For the visual approach, we built Convolutional

Neural Networks to classify each type of document.

In this approach, we train hyperparameters by apply-

ing various techniques such as Data Augmentation

and Batch Normalization. Already for the textual ap-

proach, we use an Optical Character Recognition so-

lution for text extraction and build regular expressions

through the most recurring terms between documents.

After building the framework, we could observe

the results of some metrics like accuracy and preci-

sion. Given the results, the conclusions we have ob-

tained is that the best way to use our hybrid frame-

work is to ensure that the visual approach works as

a ﬁlter, because the visual approach exploits the im-

age, avoiding fraudulent attempts — fundamental in

our scenario.

ICEIS 2020 - 22nd International Conference on Enterprise Information Systems

496

Since the visual approach already maintains a high

level of accuracy and precision, not reaching 100%,

but working with visual and not semantic characteris-

tics, the textual approach acts as a consolidator, ad-

dressing textual characteristics and ensuring 100%

precision in the classiﬁcation of the documents. In

this study case, a high measure of precision will be

more beneﬁcial than a high measure of accuracy. This

factor demonstrates the efﬁcient contribution of this

paper because the mobile insurance company in ques-

tion, the focus of our case study, will be able to invest

in an aggressive marketing strategy without having to

double the number of call center resources to meet

the new needs. Adding the visual approach prevents

fraudulent attempts — fundamental in our mobile in-

surance company scenario.

As a limitation of this work, we point out that

other technologies could be implemented to increase

the accuracy of the textual approach, such as Natural

Language Processing. We will consider this limita-

tion as future work. Another future work will be col-

lecting actual fraudulent data to experiment using our

hybrid framework.

REFERENCES

Afzal, M. Z., Capobianco, S., Malik, M. I., Marinai, S.,

Breuel, T. M., Dengel, A., and Liwicki, M. (2015).

Deepdocclassiﬁer: Document classiﬁcation with deep

convolutional neural network. In 2015 13th Interna-

tional Conference on Document Analysis and Recog-

nition (ICDAR), pages 1111–1115. IEEE.

Audebert, N., Herold, C., Slimani, K., and Vidal, C.

(2019). Multimodal deep networks for text and

image-based document classiﬁcation. arXiv preprint

arXiv:1907.06370.

Fawzi, A., Samulowitz, H., Turaga, D., and Frossard, P.

(2016). Adaptive data augmentation for image clas-

siﬁcation. In 2016 IEEE International Conference on

Image Processing (ICIP), pages 3688–3692. Ieee.

Friedman, J., Hastie, T., and Tibshirani, R. (2001). The

elements of statistical learning, volume 1. Springer

series in statistics New York.

Harley, A. W., Ufkes, A., and Derpanis, K. G. (2015). Eval-

uation of deep convolutional nets for document image

classiﬁcation and retrieval. In 2015 13th International

Conference on Document Analysis and Recognition

(ICDAR), pages 991–995. IEEE.

Hassan, H., YehiaDahab, M., Bahnassy, K., and Idrees,

A. M. (2015). Arabic documents classiﬁcation method

a step towards efﬁcient documents summarization. In-

ternational Journal on Recent and Innovation Trends

in Computing and Communication, 3(1):351–359.

Islam, N., Islam, Z., and Noor, N. (2017). A survey on

optical character recognition system. arXiv preprint

arXiv:1710.05703.

Khan, M. J., Yousaf, A., Abbas, A., and Khurshid, K.

(2018). Deep learning for automated forgery detec-

tion in hyperspectral document images. Journal of

Electronic Imaging, 27(5):053001.

Khanalni, S. and Gharehchopogh, F. S. (2018). A new ap-

proach for text documents classiﬁcation with invasive

weed optimization and naive bayes classiﬁer. Journal

of Advances in Computer Engineering and Technol-

ogy, 4(3):31–40.

olsch, A., Afzal, M. Z., Ebbecke, M., and Liwicki, M.

(2017). Real-time document image classiﬁcation us-

ing deep cnn and extreme learning machines. In

2017 14th IAPR International Conference on Docu-

ment Analysis and Recognition (ICDAR), volume 1,

pages 1318–1323. IEEE.

Krithara, A., Amini, M. R., Renders, J.-M., and Goutte, C.

(2008). Semi-supervised document classiﬁcation with

a mislabeling error model. In European Conference

on Information Retrieval, pages 370–381. Springer.

Krizhevsky, A., Sutskever, I., and Hinton, G. E. (2012). Im-

agenet classiﬁcation with deep convolutional neural

networks. In Advances in neural information process-

ing systems, pages 1097–1105.

Lee, Y., Song, J., and Won, Y. (2019). Improving personal

information detection using ocr feature recognition

rate. The Journal of Supercomputing, 75(4):1941–

1952.

Pathak, A., Ruhela, A., Saroha, A. K., and Bhardwaj, A.

(2019). Examining robustness of google vision api

based on the performance on noisy images.

Popereshnyak, S., Suprun, O., Suprun, O., and Wieck-

owski, T. (2018). Personal documents identiﬁcation

system development using neural network. In 2018

IEEE 13th International Scientiﬁc and Technical Con-

ference on Computer Sciences and Information Tech-

nologies (CSIT), volume 1, pages 129–134. IEEE.

Revanasiddappa, M. and Harish, B. (2019). A novel text

representation model to categorize text documents us-

ing convolution neural network.

Sicre, R., Awal, A. M., and Furon, T. (2017). Identity doc-

uments classiﬁcation as an image classiﬁcation prob-

lem. In International Conference on Image Analysis

and Processing, pages 602–613. Springer.

Su, Y., Li, W., Nie, W., Song, D., and Liu, A.-A. (2019).

Unsupervised feature learning with graph embedding

for view-based 3d model retrieval. IEEE Access,

7:95285–95296.

Tensmeyer, C. and Martinez, T. (2017). Analysis of convo-

lutional neural networks for document image classi-

ﬁcation. In 14th IAPR International Conference on

Document Analysis and Recognition, ICDAR 2017,

Kyoto, Japan, November 9-15, 2017, pages 388–393.

Xiao, Y. and Cho, K. (2016). Efﬁcient character-level docu-

ment classiﬁcation by combining convolution and re-

current layers. arXiv preprint arXiv:1602.00367.

Personal Documents Classiﬁcation using a Hybrid Framework at a Mobile Insurance Company: A Case Study

497
