Real-time Spatial-temporal Context Approach for 3D Object

Detection using LiDAR

K. S. Chidanand Kumar

and Samir Al-Stouhi

Great Wall of Motors, Whitefield, Bangalore, Karnataka, India

American Haval Motors, Michigan, U.S.A.

Keywords: Bird’s-Eye-View (BEV), Convolutional Neural Network (CNN), Non-Local Context Network (NLCN),

YOLO, Convolutional LSTM (CLSTM), Spatial-Temporal Context Network (STCN).

Abstract: This paper proposes a real-time spatial-temporal context approach for BEV object detection and classification

using LiDAR point-clouds. Current state-of-art BEV object-detection approaches focused mainly on single-

frame point-clouds while the temporal factor is rarely exploited. In current approach, we aggregate 3D

LiDAR point clouds over time to produce a 4D tensor, which is then fed to a one-shot fully convolutional

detector to predict oriented 3D object bounding-box information along with object class. Four different

techniques are evaluated to incorporate the temporal dimension; a) joint training b) CLSTM c) non-local

context network (NLCN) d) spatial-temporal context network (STCN). The experiments are conducted on

large-scale Argoverse dataset and results shows that by using NLCN and STCN, mAP accuracy is increased

by a large margin over single frame 3D object detector and YOLO4D 3D object detection with our approach

running at a speed of 28fps.

1 INTRODUCTION

An autonomous vehicle is an intelligent

transportation which must operate safely, accurately

observe its environment to make robust decisions and

navigate in a complex traffic environment. A typical

autonomous system is divided into subtasks (J.

Levinson et al., 2011) perception, prediction, planning

and control. Perception is in charge of estimating all

actor’s positions and motions, given the current and

past evidences. Prediction on the other hand, tackles

the problem of estimating the future positions of all

actors as well as their intentions (e.g., changing lanes,

parking). Finally, motion planning takes the output

from previous stacks and generates a safe trajectory

for the self-driving vehicle to execute via a control

system.

3D object detection is a fundamental task in

perception systems. Recent approaches to 3D object

detection exploit different data sources. Camera

based approaches utilize either monocular (X. Chen et

al., 2016) or stereo images monocular (X. Chen et al.,

2017), fisheye cameras or depth cameras. These

camera-based approaches have drawbacks such as

limited fields of view, difficult in operating under

low-contrast conditions and inability to determine

precise distances within the surrounding outdoor

environment. On the other hand, LiDAR sensors,

which use reflected laser pulses to scan the area

around a vehicle, can overcome such limitations.

LiDAR scanner data is used to create a 360-degree

point cloud, which solves the limited field of view

problem experienced in camera-based systems, and

LiDAR data is more robust to changes in weather and

illumination issues in indoor and outdoor

environments. Thus, they are generally considered as

more important sensors than cameras for autonomous

vehicles driving safety and are adopted by nearly all

auto-makers today (Baidu 2017, Google’s waymo

2017, What it Was Like 2017 and Volvo 2018).

Compared to images, Lidar point clouds are

sparse with a varying density, highly unordered, noisy

due to imperfect reflections and echoes. Also LiDAR

point cloud lack colour and texture features that

characterize the object classes as in the case of 2D

camera perspective images. Such complexity, in

addition to the dynamic nature of the environment,

motivates us to incorporate the temporal factor in

addition to the spatial features of the input 3D LiDAR

point clouds.

Real-time performance is much essential in

autonomous driving systems. While deep-learning

432

Kumar, K. and Al-Stouhi, S.

Real-time Spatial-temporal Context Approach for 3D Object Detection using LiDAR.

DOI: 10.5220/0009340004320439

In Proceedings of the 6th International Conference on Vehicle Technology and Intelligent Transport Systems (VEHITS 2020), pages 432-439

ISBN: 978-989-758-419-0

has a well-known success story in camera-based

computer vision. In this context, literature survey

tackles the problem of real-time performance using

Single shot detectors, like YOLO (Redmon, J et al.,

2016) and SSD (Liu, W et al.,2016).

3D object detection using LiDAR point clouds are

mainly divided into two types: 3D voxel grids and 2D

projections. A 3D voxel grid transforms the point

cloud into a regularly spaced 3D grid called voxels,

and from each voxel cell we can compute statistics

and apply 3D convolutions to extract high-order

representation from the voxel grid (M. Engelcke et al.,

2017). However, point clouds are sparse by nature, the

voxel grid are also sparse, less compact and require

huge computation. As a result, typical systems ((M.

Engelcke et al., 2017, B. Li,) et al., 2016) only run at 1-

2 FPS. On the other hand, 2D projection based

techniques projects the point cloud onto a plane,

which is then discretized into a 2D image based

representation where 2D convolutions are applied.

These 2D projection based representations are more

compact, but they bring information loss during

projection and discretization. In addition to

computation efficiency, BEV representation also has

other advantages i.e. it eases the problem of object

detection as objects do not overlap with each other

and thus the network can exploit priors about the

physical dimensions of objects.

In our framework, we use single-shot detection

based architecture to detect objects on LiDAR’s

BEV.

1.1 Related Work

Most of the works on 3D object detection using

LIDAR BEV representation relies on single point

cloud PIXOR (Yang, B et al., 2018), Complex YOLO

(M. Simon et al., 2018), YOLO3D (Ali, W et al., 2018).

These LiDAR 3D point clouds object detection

methods do not take the advantage of temporal

information to produce more accurate 3D bounding

boxes. Recently, Fast and Furious (Luo W et

al.,2018), IntentNet (S. Casas et al., 2018), Neural

motion planner (Wenyuan Zeng et al., 2019)

incorporates the time with 3D voxels using 2D, 3D

convolutions and adopts a multi-task learning like

tracking, motion forecasting and motion planning. To

our knowledge YOLO4D (El Sallab., 2018) is the only

technique where they incorporated temporal

information from successive point clouds.

In this paper, we exploit temporal information

from successive point clouds using spatial-temporal

model to augment context information for BEV based

3D object detection.

1.2 Contribution

In this paper, we propose a spatial-temporal context

based 3D object detector that operates on sequence of

3D point clouds. Our approach is a single-stage 3D

object detector that exploits the 2D BEV

representation in an efficient way since it is

computationally less expensive as compared with 3D

voxel grids, and also preserves the metric space which

allows our model to explore priors about the size and

shape of the object categories. Our detector outputs

accurate oriented bounding boxes in real-world

dimension in bird’s eye view. The main contributions

of this paper are:

a) Non-local context network (NLCN), a novel

approach to augment the CNN backbone features for

BEV object detection by a context representation

computed using non-local relations between feature

maps to capture global appearance and motion

information. This approach has led to significant

improvements by 4.4mAP over single-frame BEV

object detector and by 1.1mAP over YOLO4D BEV

object detector on Argoverse dataset (M. Chang et al.,

2019).

b) Spatial-temporal context network (STCN), a novel

approach of generating context representation for

BEV object detector by applying 2D convolutions on

a stack of BEV images (Super image) to capture local

spatial-temporal information and using 3D

convolutions on local spatial-temporal feature maps

to capture global temporal interactions (long-range

temporal dynamics). This approach led to significant

improvements by 6.9mAP over single-frame 3D

object detector and by 3.5mAP over YOLO4D 3D

object detector on Argoverse dataset (M. Chang et al.,

2019).

The rest of the paper is organized as follows; first,

we discuss the single frame based 3D object

detection, followed by the spatial-temporal

approaches to encode context information from

temporal point cloud sequences. Finally, we present

our experimental results and evaluate different

techniques on Argoverse dataset (M. Chang et al.,

2019).

2 SPATIO-TEMPORAL 3D

OBJECT DETECTION

In this section, the approach for spatial-temporal BEV

object detection is described. The main motivation

behind our work is to exploit not only the spatial but

also the temporal information in the input LIDAR

Real-time Spatial-temporal Context Approach for 3D Object Detection using LiDAR

433

sequences for more accurate object detection. For

encoding temporal sequences, we experimented with

four different approaches. These approaches model

the temporal information in different ways.

As shown in Fig. (1), BEV maps are generated

from a LIDAR point-clouds(PC’s) and each BEV

maps were given to CNN backbone network (a

combination of few convolutional and maxpool

layers) to extract feature maps. To encode long-range

temporal information, successive BEV maps were

given to context generation block which employs four

different approaches to encode temporal information.

Backbone feature maps are concatenated with spatial-

temporal feature maps and it will be fed to header-

network which consists of fewer convolutional layers

followed with classification and regression branches

to handle both object recognition and localization.

Figure 1: Spatial-temporal 3D object detection.

2.1 Input Representation

3D point clouds are highly unstructured, and thus

standard convolutions cannot be directly applied

since they assume that the input lies on a grid. One

option is to use voxelization to form a 3D voxel grid

and then we can use 3D convolution to extract 3D

feature. However, this can be very expensive in

computation as we have to slide the 3D convolution

kernel along three dimensions. Instead, we can

represent the scene from the BEV alone.

Figure 2: Velodyne FOV range estimation in X and Y

directions on argoverse datasets.

By reducing the degrees of freedom from three to

two, we don’t lose information in point cloud as we

can still keep the height information as channels

along the third dimension.

In addition to computation efficiency, BEV

representation also has other advantages. It eases the

problem of object detection as objects do not overlap

with each other (compared with front-view

representation) and thus the network can exploit

priors about the physical dimensions of objects.

In current approach, we estimate the velodyne

FOV range for 3D object detection in BEV on

argoverse dataset based on statistics of graphs shown

in Fig. (2).



























































(1)

We follow the design put by [13] to get single

birds-eye-view RGB-map.

2.2 Single Frame 3D Object Detection

Single-frame 3D object detection network is a one-

shot fully convolutional detector which mainly

consists of backbone network for feature extraction

and a header network for object recognition and

localization as shown in Fig. (3). In our framework,

we combined classification-bounding box prediction

directly by predicting objects in each cell of the

feature maps and the corrections on anchor boxes.

Figure 3: Single point-cloud based object detection

framework.

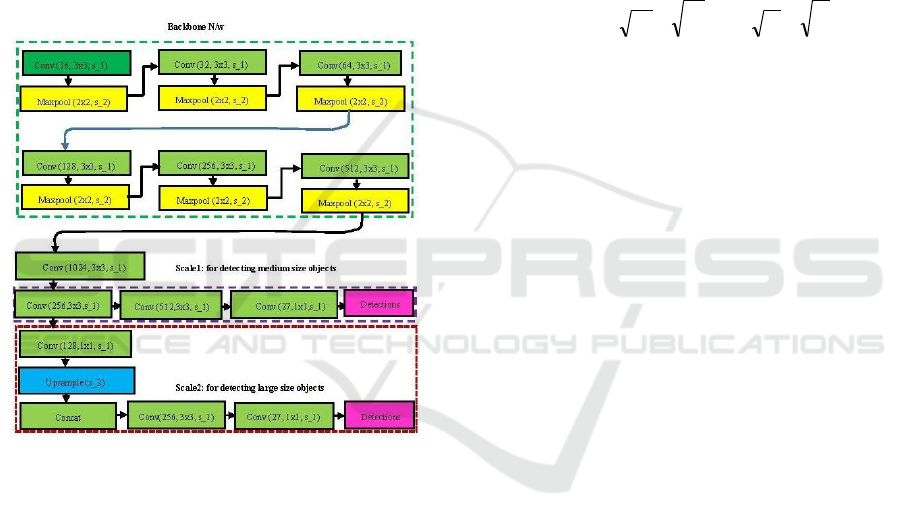

Network details for single point-cloud based

object detection is as shown in Fig. (4).

2.2.1 Backbone Network

Backbone network consists of seven convolutional

blocks, and each conv2D layers with filter number

{16, 32, 64, 128, 256, 512 and 1024}, kernel filter

sizes of 3x3 and stride 1. After each of the first six

convolutional blocks, a maxpool layer with kernel

filter size 2x2 and stride 2 is incorporated. Multi-scale

Concatenation

CNN feature maps

Header

n/w

Box-offset

regression

Classifie

BACKBON

E N/W

CONTEX

N/W

BEV

VEHITS 2020 - 6th International Conference on Vehicle Technology and Intelligent Transport Systems

434

features are generated by resizing and concatenating

feature maps from different scales. The total down

sampling rate of the network is 32.

2.2.2 Header Network

The header network is a multi-task network that

handles both object recognition and localization.

Similar to feature pyramid network (T.-Y. Lin et al.,

2017), we predict oriented bounding boxes at two

scales as shown in Fig. (4). At each scale we use three

anchors at each location with predefined sizes, aspect

ratios, and orientations. Anchors are calculated by

taking the mean 3D box dimensions for each object

class in argoverse dataset, and use these average box

dimensions as our anchors.

Figure 4: Architecture of single frame based object

detection framework.

From the backbone network, we add few more

CNN layers and only the last CNN layers predicts a

3D-tensor encoding oriented bounding-boxes, one

confidence score and  classes thus producing a

tensor of size 







      





where 

is the feature map size. The classification branch

outputs a score for each anchor indicating the

probability of a vehicle at each anchor’s location

associated scale. The regression branch predicts

regression targets (

























for each anchor associated scale.

2.2.3 Loss-function Calculation

The loss function is similar to complex-YOLO (M.

Simon et al., 2018) which consists of two parts. The

first part of the loss function is simply a sum of

squared errors similar to YOLO 2D (Redmon, J et al.,

2016), while the second part is built on the Euler

regression logic and is defined to be the difference

between the complex numbers of prediction and

ground truth.





















  



















































0 0

)()(

 



= 

= =













−+

























−+

























−+













−+

























−+













−=

i classesc

obj

iiii

obj

ijcoord

iiii

obj

ijcoordYOLO

cpcpL

CCL

hhwwL

yyxxLL



(2)

2.3 Multi-frame 3D Object Detection

In this section, the approach for spatial-temporal 3D

object detection is described. The main intuition

behind our work is to leverage not only the spatial but

also the temporal information in LiDAR input

sequences for more accurate object detection. For

encoding temporal sequences, we adopted four

different approaches: joint training, CLSTM

(YOLO4D), NLCN and STCN. These approaches

encode the temporal information in different ways.

2.3.1 Joint Training

In this technique, point-cloud frames are jointly

trained with single-shot fully convolutional detector.

Each BEV maps are processed through single-

frame object detection network but total loss is

combined on the last stage and it is computed as given

in Equation. (3). Here the network weights of CNN

backbone network on each BEV maps are shared

during training thus reducing number of learnable

parameters. During the training process, it is up to the

network to learn the temporal information from the

input joint training scheme without encoding hidden

state through recurrent layers.













 















 















 















 







(3)

Real-time Spatial-temporal Context Approach for 3D Object Detection using LiDAR

435

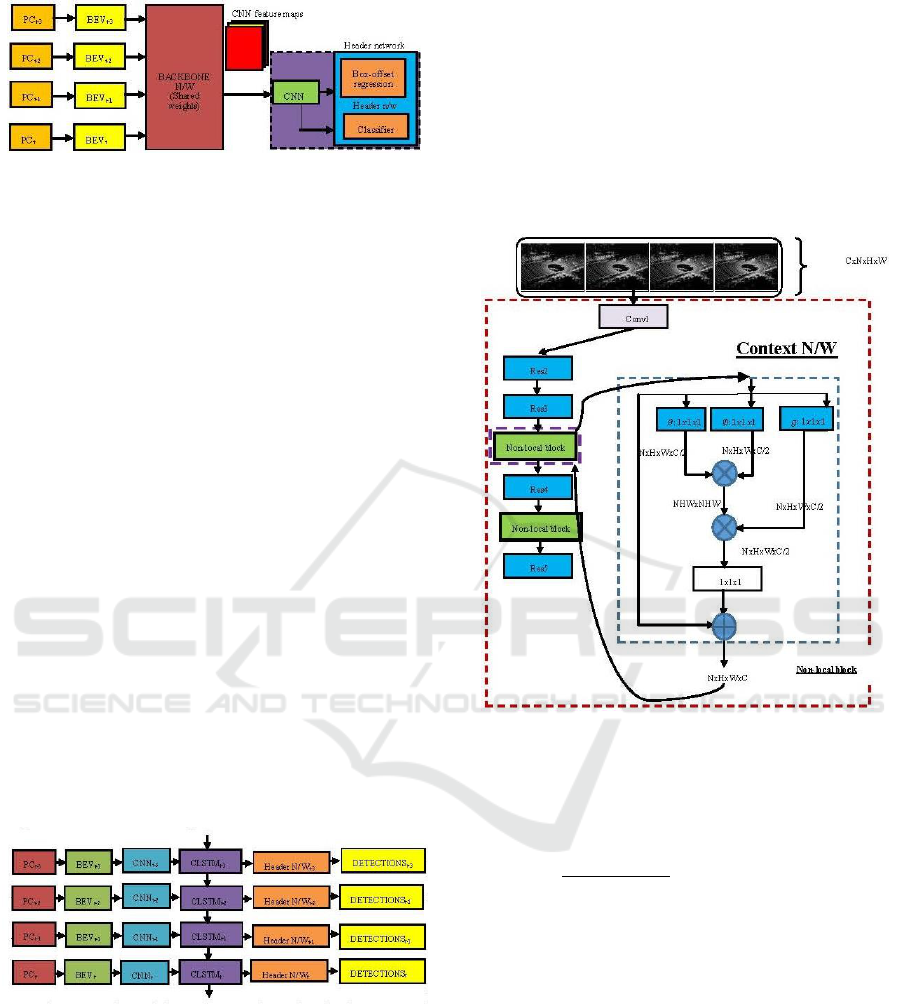

Figure 5: Joint training of successive point-clouds.

Architecture for joint training on successive

point-clouds is as shown below in Figure (3).

2.3.2 Temporal Aggregation using CLSTM

In this architecture (El Sallab., 2018), a CLSTM (S.

Xingjian et al., 2015) layer is injected directly into

single-frame object detection architecture between

the feature-extraction stage and header-network.

CLSTM allows the network to learn both spatial and

temporal information thus enhancing context

information for 3D object detection. The network is

trained on the successive point-clouds, thereby

leading to a model that is capable of detecting objects

in temporal streams of input point-clouds. This

architecture maps an input frame and the previous

state



to a list of oriented bounding boxes D, and

current state 



as shown in Equation. (4).

































(4)

Where the state 



is used as input for the next

time step predictions. The loss in this case is the same

as in Equation. (2), however, the optimization is back-

propagated through time via the injected CLSTM

layer to maintain the temporal information.

Figure 6: Joint training of successive point-clouds.

2.3.3 Temporal Aggregation using

Non-Local Context Network (NLCN)

Usage of non-local layer (Xiaolong Wang et al., 2018)

is commonly used in video action recognition but it is

rarely exploited in BEV object detection. Hence to

embed temporal characteristics on BEV maps, the

non-local layer is introduced into the context CNN

block which is as shown in Figure (7). The most

distinguishing part of non-local neural networks is

that it captures global dependencies by exploiting

both appearance and motion features which has a

significant impact in static/dynamic object detection.

Given an input feature tensor 



obtained from a sequence of  feature maps of

size, we desire to exchange information

between features across all spatial locations and

frames.

Figure 7: Non-local context network (NLCN).

Let 







sampled from, the corresponding

output 







of non-local operation can be

formulated as follow:































































(5)

Here, 







indexes all locations across

a feature map and all frames. We first project  to a

lower dimensional embedding space 





by using

linear transformation functions  (1 × 1 × 1

convolution). Then, the response of each location 



is computed by the weighted average of all positions





by using Embedded Gaussian instantiation. The

overall non-local layer is finally formulated as 





Y+X, where the output of nonlocal operation is

added to the original feature tensor  with a

transformation 



(1×1×1convolution) that maps 

to the original feature space 



. The intuition behind

the non-local operation is that when extracting

VEHITS 2020 - 6th International Conference on Vehicle Technology and Intelligent Transport Systems

436

features at a specific location in a specific time, the

network should consider the spatial and temporal

dependency within a sequence by attending on the

non-local context.

In our architecture, we embed two non-local

layers after the Residual 3rd and 4th blocks of SE-

ResNext (J. Hu et al., 2017) module. In the training

phase, we don't initialize the weights of SE-ResNext

2D convolution model from the ImageNet pre-trained

model.

2.3.4 Temporal Aggregation using

Spatial-Temporal Context Network

(STCN)

To model long range temporal dynamics, we generate

a super-image by stacking BEV frames in the

channel dimension to form a tensor of

size. This super-image not only contains

local spatial appearance information represented by

individual point-cloud but also local temporal

dependency among these successive video frames.

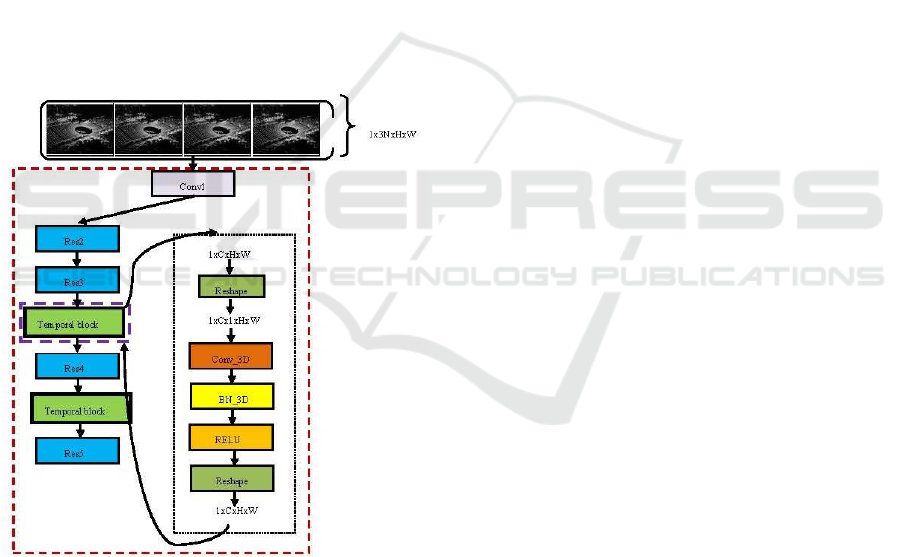

Figure 8: Spatial-temporal context network (STCN).

In order to jointly model the local spatial-temporal

relationship, we leverage 2D convolution (whose

input channel size is 3N) on each of the super-images.

Specifically, the local spatial-temporal correlation is

modelled by 2D convolutional kernels inside the

Conv1, Res2, and Res3 blocks of SE-ResNext-50 as

shown in Fig. (8). In our current setting, N is set to 4.

Temporal Block: 2D convolution on the super-

images generates local spatial-temporal feature maps.

Building the global spatial-temporal representation of

the super-images is essential for understanding the

context from successive point clouds. Specifically,

we choose to insert two temporal blocks after the

Residual 3

and Residual 4

blocks of SE-ResNext

(J. Hu et al., 2017) module. The temporal modelling

blocks are designed to capture the long-range

temporal dynamics inside a sequence of point clouds

and they can be easily implemented by incorporating

the architecture Conv3d-BN3d-ReLU. Applying two

temporal convolutions on the local spatial-temporal

feature maps after residual 



(Res3) and 



blocks

(Res4) introduces very limited extra computation cost

but is effective to capture global spatial-temporal

correlation progressively. In the temporal modelling

blocks, weights of Conv3d layers are initially set

to













, where 



denotes input channel size, and

biases are set to 0. BN3d is initialized to be an

identity mapping. In the training phase, we don't

initialize the weights of SE-ResNext 2D convolution

model from the ImageNet pre-trained model.

3 EXPERIMENTS

Here we conduct two types of experiments here. We

compare our spatial-temporal multi-frame object

detection with state-of-the-art 3D object detectors on

new large-scale argoverse (M. Chang et al., 2019)

dataset for autonomous driving. Second, we conduct

experiments on two aspects: network architecture

timing analysis and learnable parameter count.

3.1 Multi-frame Object Detection on

Argoverse Dataset

3.1.1 Implementation Details

We set the region of interest for the point cloud

to















meters and do BEV

projection with a discretization resolution of 0.1

meter. We set the height range to [−2.5, 1] meters in

LIDAR. As a result, our input representation has the

dimension of 968*968*3. We use data augmentation

of rotation between [−20, 20] degrees along the Z

axis, global scaling along X, Y and Z dimensions with

range to [0.95, 1.5] along with random flip along X

axis during training. Network was trained from

scratch without using any pre-trained model weights.

The detection network is trained using Adam

optimizer (Diederik P. Kingma et al., 2015) a learning

rate of 1e-4 and a weight decay of 1e-4 for 300 epochs

with a batch size of 4 on single RTX2080Ti GPU.

Real-time Spatial-temporal Context Approach for 3D Object Detection using LiDAR

437

3.1.2 Evaluation Results

We compare mean average precision (mAP) at

different IoU levels as a measure of accuracy. To the

best of our knowledge, (El Sallab., 2018) is the only

previous work which performs detection using

temporal LiDAR point clouds. As shown in Table 1,

our NLCN and STCN model accuracy outperforms

both single- frame and CLSTM based 3D object

detector (El Sallab., 2018) at all the IoU levels (0.5, 0.6,

and 0.7).

Table 1: Ablation study of network performance on IoU

thresholds.

Model

AP@0.5IO

AP@0.6IO

AP@0.7IO

Single-

frame

.752

.723

.595

Joint

model

.759

.716

.561

CLST

.786

.74

.579

NLCN

.796

.747

.633

STCN

.821

.758

.641

Also we show detailed timing analysis, FLOPS

and learnable parameter count of each network

architectures in Table 2. The computation of input

representation and final NMS are both processed on

CPU in Python. The network time is measured on a

RTX-2080Ti GPU averaged over 100 sequential

frames.

Table 2: Ablation study of network timing analysis and

learnable parameter count.

Model

Learnable

params

FLOPS

(in GMAC)

Speed

(in ms)

Single-

frame

8.67M

14.69

Joint

model

8.68M

62.46

CLSTM

9.89M

24.67

NLCN

15.15M

31.86

59.5

STCN

12.13M

27.74

From the Table (1) and (2), we get the following

observations: (1) NLCN model outperforms by

4.4mAP over single-frame 3D object detector and by

1.1mAP over YOLO4D 3D object detector. (2) STCN

model outperforms by 6.9mAP over single-frame 3D

object detector and by 3.5mAP over YOLO4D 3D

object detector. (3) STCN outperform NLCN model

by 2.5mAP @0.5IoU with less number of learnable

parameters at a speed of 36ms.

4 CONCLUSIONS

In this paper, we introduce NLCN and STCN

temporal context models that is able to tackle the

tasks of BEV based object detection in the context of

self-driving cars. This models not only leverages

spatial information from current point cloud but also

extract temporal feature from successive point clouds

thereby enriching context information for the

detection of 3D objects on LiDAR point clouds. By

exploiting temporal information, our both the models

NLCN and STCN outperforms single-frame object

detection and CLSTM object detector by a large-

margin. In the future, we plan to exploit HD maps and

do End-to-End learning system of perception module

in autonomous driving system.

REFERENCES

J. Levinson, J. Askeland, J. Becker, J. Dolson, D. Held, S.

Kammel, J. Z. Kolter, D. Langer, O. Pink, V. Pratt, et

al. 2011. Towards fully autonomous driving: Systems

and algorithms. In IEEE Intelligent Vehicles

Symposium (IV)

X. Chen, K. Kundu, Z. Zhang, H. Ma, S. Fidler, and R.

Urtasun, 2016. Monocular 3d object detection for

autonomous driving. In Proceedings of the IEEE

Conference on Computer Vision and Pattern

Recognition.

X. Chen, K. Kundu, Y. Zhu, H. Ma, S. Fidler, and R.

Urtasun., 2017. 3d object proposals using stereo

imagery for accurate object class detection. In IEEE

Transactions on Pattern Analysis and Machine

Intelligence

2017. Baidu Apollo. http://apollo.auto...

2017. Google’s Waymo Invests in LIDAR Technology,

Cuts Costs by 90 Percent.

https://arstechnica.com/cars/2017/01/googles-waymo-

invests-in-lidartechnology-cuts-costs-by-90-percent/

2017. What it Was Like to Ride in GM’s New Self- riving

Cruise Car.

https://www.recode.net/2017/11/29/16712572/general-

motors-gm-new-selfdriving-autonomous-cruise-car-

future.

2018. Volvo Finds the LIDAR it Needs to Build Self-

Driving Cars. https://www.wired.com/story/volvo-self-

driving-lidar-luminar/.

Redmon, J., Divvala, S., Girshick, R., Farhadi, 2016. A.:

You only look once: Unified, real-time object detection.

In Proceedings of the IEEE conference on computer

vision and pattern recognition.

Liu, W., Anguelov, D., Erhan, D., Szegedy, C., Reed, S.,

Fu, C.Y., Berg, A.C., 2016. Ssd: Single shot multibox

detector. In European conference on computer vision,

Springer

VEHITS 2020 - 6th International Conference on Vehicle Technology and Intelligent Transport Systems

438

M. Engelcke, D. Rao, D. Z. Wang, C. H. Tong, and I.

Posner, 2017. Vote3deep: Fast object detection in 3d

point clouds using efficient convolutional neural

networks. In International conference on Robotics and

Automation (ICRA)

B. Li, T. Zhang, and T. Xia., 2016. Vehicle detection from

3d lidar using fully convolutional network. In Robotics:

Science and Systems.

Yang, B., Luo, W., Urtasun, R. 2018. Pixor: Real-time 3d

object detection from point clouds. In proceedings of

the IEEE Conference on Computer Vision and Pattern

Recognition

M. Simon, S. Milz, K. Amende, and H.-M. Gross, Mar

2018. Complex-YOLO: Real-time 3D Object Detection

on Point Clouds. In European Conference on Computer

Vision

Ali, W., Abdelkarim, S., Zidan, M., Zahran, M., and El

Sallab, A 2018. Yolo3d: End-to-end real-time 3d

oriented object bounding box detection from lidar point

cloud. In Proceedings of the European Conference on

Computer Vision (ECCV).

Luo, W., Yang, B., Urtasun, R, 2018. Fast and furious: Real

time end-to-end 3d detection, tracking and motion

forecasting with a single convolutional net. In

proceedings of the IEEE Conference on Computer

Vision and Pattern Recognition

S. Casas, W. Luo, and R. Urtasun, 2018. IntentNet:

Learning to predict intention from raw sensor data, In

Proceedings. 2nd Annu. Conf. Robot Learning

Wenyuan Zeng, Wenjie Luo, Simon Suo, Abbas Sadat, Bin

Yang, Sergio Casas, and Raquel Urtasun, 2019. End-to-

end interpretable neural motion planner. In Proceedings

of the IEEE Conference on Computer Vision and

Pattern Recognition

El Sallab, A., Sobh, I., Zidan, M., Zahran, M., and

Abdelkarim, S. Yolo4d, 2018: A spatio-temporal

approach for real-time multi-object detection and

classification from lidar point clouds. In Thirty-second

Conference on Neural Information Processing Systems,

Workshop on Machine Learning for Intelligent

Transportation Systems.

M. Chang, J. Lambert, P. Sangkloy, J. Singh, S. Bak, A.

Hartnett, D. Wang, P. Carr, S. Lucey, D. Ramanan, and

J. Hays, 2019. “Argoverse: 3d tracking and forecasting

with rich maps,” In IEEE Conference on Computer

Vision and Pattern Recognition (CVPR).

T.-Y. Lin, P. Dollar, R. Girshick, K. He, B. Hariharan, and

S. Belongie, 2017. Feature pyramid networks for object

detection. In IEEE Computer Vision and Pattern

Recognition (CVPR)

Xiaolong Wang, Ross B. Girshick, Abhinav Gupta, and

Kaiming He, 2018. Non-local neural networks. In IEEE

Computer Vision and Pattern Recognition (CVPR)

S. Xingjian, Z. Chen, H. Wang, D. Yeung, W. Wong, and

W. Woo, 2015. Convolutional LSTM network: A

machine learning approach for precipitation now

casting. In Neural Information Processing

systems(NIPS).

J. Hu, L. Shen, and G. Sun, 2017. Squeeze-and-excitation

networks. arXiv preprint arXiv:1709.01507

Diederik P. Kingma and Jimmy Ba. Adam, 2015. A Method

for Stochastic Optimization. In International

Conference on Learning Representations(ICLR)

Real-time Spatial-temporal Context Approach for 3D Object Detection using LiDAR

439
