Experimental Evaluation of Forward Secure Dynamic Symmetric

Searchable Encryption using the Searchitect Framework

Ines Kramer, Silvia Schmidt, Manuel Koschuch

and Mathias Tausig

Competence Centre for IT Security, University of Applied Sciences FH Campus Wien, Vienna, Austria

Keywords:

Searchable Encryption, Dynamic Symmetric Searchable Encryption, Implementation, Framework, Forward

Privacy.

Abstract:

In this work we present a prototype implementation of a framework for searchable encryption (SE), “Searchi-

tect”. Our framework can be used to extend applications with search functionality over encrypted data in

a protocol agnostic approach, hopefully paving the way for a broader and easier adoption of this promising

privacy enhancing technology. Furthermore, it allows for easy comparison and evaluation of different imple-

mentations of SE schemes. We discuss dynamic searchable encryption schemes, supporting efﬁcient updates

of an encrypted index, as well as forward secure schemes that guarantee additional security properties, which

resist ﬁle injection attacks. We evaluate the performance characteristics of two implementations of existing

forward secure schemes, DynRH and Sophos. Our results show that the DynRH implementation is outper-

forming Sophos in terms of efﬁciency in the execution time of the search and update protocol, but needs

more bandwidth for a search request. In addition, we augment an existing cloud-storage application with SE

functionality using our framework, showing the negligible additional effort required by the implementers to

accomplish this.

1 INTRODUCTION AND

RELATED WORK

Symmetric searchable encryption (SE) is a privacy

enhancing technology (PET) which provides a secure

search functionality on outsourced encrypted data.

The searched content stays oblivious to the server,

even if it gets compromised. The emerging need for

this kind of technology is based on the rising trend

of the usage of cloud infrastructure in industries and

home automation. Furthermore, the introduction of

the general data protection regulation (GDPR) en-

forces privacy protection.

Since the seminal work of (Song et al., 2000) a

vast number of schemes have been proposed com-

pared to the rare number of reported usable imple-

mentations. Up to our knowledge only a few research

projects on SE openly published source code such as

(Kamara and Moataz, 2017; Popa, 2014; Popa et al.,

2015; Bost, 2016a; Bost et al., 2017; Hoang et al.,

2017; Hoang et al., 2018). The comprehensive sur-

vey on SE techniques by (B

osch et al., 2014) states

that schemes differ in efﬁciency, performance and se-

https://orcid.org/0000-0001-8090-3784

curity levels. It might be insufﬁcient to compare dif-

ferent approaches just on a theoretical basis. Choos-

ing an appropriate and secure SE scheme for a use

case without a practical comparison and realistic eval-

uation may be burdensome for a software developer

without speciﬁc knowledge in this domain.

Our work tries to close this gap by providing a

server/client framework called Searchitect, which

• Allows an easy integration of a searchable encryp-

tion scheme for testing purposes,

• Offers metrics for a comparison between schemes

in performance and storage space, and

• Provides an interface for integration of SE tech-

nology in existing applications.

Further, we evaluate two proposed forward secure dy-

namic symmetric searchable encryption schemes (FS-

DSSE). We also show how to integrate SE function-

ality in an existing data storage application. Our ap-

proach (Hab

ock et al., 2018) is hybrid in the sense that

it does not matter how the original data is encrypted,

but it has to be possible to map to the encrypted data.

Therefore, the application can handle the data encryp-

tion and storage in its own way. The client needs to

generate a searchable data structure - known as en-

Kramer, I., Schmidt, S., Koschuch, M. and Tausig, M.

Experimental Evaluation of Forward Secure Dynamic Symmetric Searchable Encryption using the Searchitect Framework.

DOI: 10.5220/0009337000250035

In Proceedings of the 5th International Conference on Internet of Things, Big Data and Security (IoTBDS 2020), pages 25-35

ISBN: 978-989-758-426-8

crypted database (EDB) - with its own keys, which

are concealed from the server.

Since our primary objective are efﬁcient search

queries we focus on symmetric searchable encryption

schemes based on an inverted index. This approach

was ﬁrst proposed by (Curtmola et al., 2006), the dif-

ference between a forward and inverted plaintext in-

dex is shown in Table 1.

Table 1: Forward and inverted index.

Forward index Inverted index

{doc1:{new,test,..}} {new:{doc1,doc3}}

{doc2:{error,test,..}} {test:{doc1,doc2}}

{doc3:{new,..}} {error:{doc2}}

Inverted index based schemes provide a search

performance that is linear to the number of documents

containing the keyword, whereas forward index based

scheme such as (Goh, 2004) just achieve a search time

linear to the number of documents. Unfortunately, in-

verted encrypted indexes are more complex in han-

dling updates.

Furthermore, we limit the scope of this work to

dynamic schemes which support efﬁcient updates.

Due to the fact that data processed by applications

is steadily growing and outsourced to the cloud over

time, SE technology has to support addition and

preferably also modiﬁcation and deletion of exist-

ing data. File injection attacks such as presented in

(Zhang et al., 2016) compromise the privacy of client

queries by injecting a small portion of new primed

documents into the encrypted database. These attacks

break the security assumptions of most known dy-

namic schemes, only forward private schemes resist

them. This property was ﬁrst introduced by (Stefanov

et al., 2013) and is also known as forward secure. For-

ward security ensures that newly added data remains

hidden to the server until it gets revealed by a later

query, even if the server might have learned some se-

crets during previous queries. Therefore, the Searchi-

tect framework is shaped to integrate forward secure

dynamic symmetric searchable encryption schemes.

The remainder of this paper is now structured

as follows: Preliminary deﬁnitions of dynamic sym-

metric and forward secure searchable encryption are

given in Section 2. The Searchitect framework is de-

scribed in Section 3 and the implementation and in-

tegration of schemes is given in Section 4. Section 5

provides the experimental evaluation and results. Fi-

nally, we discuss our ﬁndings in Section 6.

2 DYNAMIC SYMMETRIC

SEARCHABLE ENCRYPTION

Dynamic searchable encryption schemes provide an

efﬁcient and secure solution for adding and deleting

data to and from an encrypted index structure.

For the deﬁnition of the protocols of dynamic

SE schemes we follow a slightly modiﬁed approach

of (Cash et al., 2014) and (Bost, 2016b) as shown

in Figure 1 and Table 2. The database DB consists

of keyword/document-identiﬁer pairs also called

records, which have been extracted from the docu-

ments using an indexer.

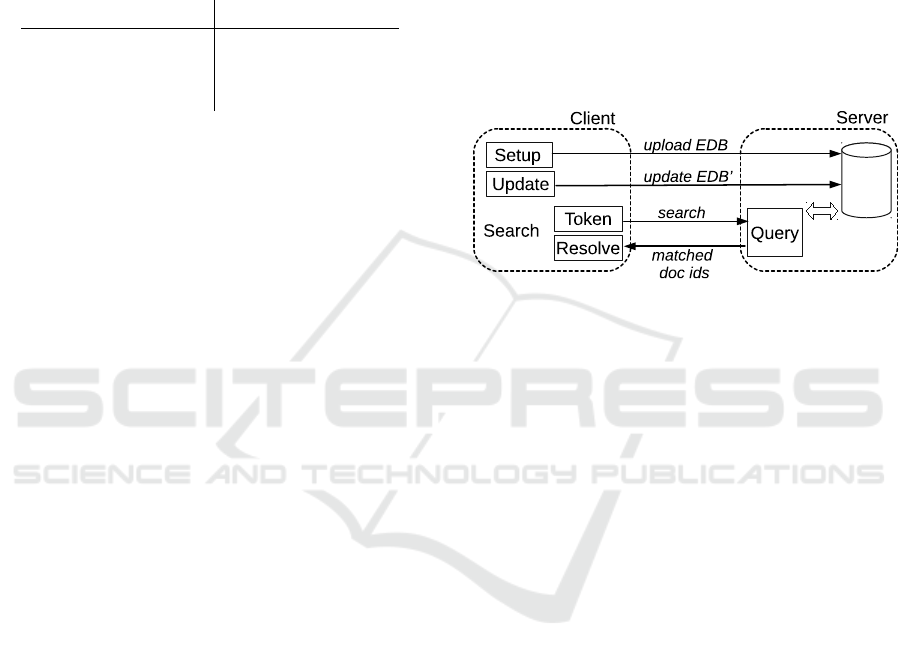

Figure 1: Protocols supported by a DSSE scheme.

The Resolve step in the Search protocol is optional

and only needed for schemes which are resource hid-

ing. They do not reveal the document identiﬁers to the

server, thus they need to provide a decryption step.

2.1 Forward Secure Schemes

The ﬁrst forward secure scheme was presented by

Chang and Mitzenmacher in (Chang and Mitzen-

macher, 2005); it is based on a forward index. A

scheme with sub-linear search time was proposed in

(Stefanov et al., 2013) using a path ORAM (Obliv-

ious RAM) like construction, which lacks in perfor-

mance. An efﬁcient but not forward secure construc-

tion Dyn2Lev has been proposed by Cash et al in

(Cash et al., 2014) using keyword dependent keys for

encryption. We found a forward secure implemen-

tation DynRH2Lev within the Clusion library (Ka-

mara and Moataz, 2017) published by Kamara and

Moataz, where a query contains one search token

for each keyword/document identiﬁer pair in the re-

sult set. Sophos - published by Bost (Bost, 2016b) -

uses asymmetric trapdoor permutations to make the

update tokens unlinkable to the server. Another ap-

proach to achieve forward and backward privacy is

based on range constrained cryptographic primitives

(Bost et al., 2017). The forward secure scheme is

achieved similar to the ARQ-EQ scheme of (Pod-

dar et al., 2016). Puncturable encryption has been

IoTBDS 2020 - 5th International Conference on Internet of Things, Big Data and Security

Table 2: DSSE protocol deﬁnition.

Setup (1

,DB) → (K,EDB)

Setup runs at the client and expects a se-

curity parameter λ along with the DB as

an input; consequently, it outputs ran-

domly generated key material K along

with the encrypted index EDB.

Search protocol between client and server

Token (w,K,σ) → ST

Token runs at the client and takes a key-

word w, the key material K and op-

tional a client state σ as an input; con-

sequently, it outputs a search token ST .

Query (ST,EDB) → ids/encids

Query runs at the server and takes the

search token ST and the encrypted index

EDB as an input; consequently it de-

livers all matching document-identiﬁers

ids or encrypted ids: encids

Resolve (encids,K) → ids The client decrypts

the encrypted identiﬁers using the key

material K.

Update (op,K, DB

,σ) → EDB

The client performs the Update proce-

dure on the input of the desired opera-

tion (add or delete), the key material K,

the new inserted database DB

, and the

client state σ. Then it sends the output

- an updated encrypted data-structure -

to the server, where it is processed and

results in an updated encrypted database

EDB

cure asynchronous messaging (M. D. Green and I.

Miers, 2015). Using puncturable encryption a weak

form of backward security can be achieved, but the

computation effort for the pairings lacks in efﬁciency.

A scheme proposed by Kim et al uses a dual dic-

tionary, which has the advantages of both forward

and inverted indexes at the same time (Kim et al.,

2017). This enables efﬁcient deletions with a continu-

ous space reclamation after each search query, but has

no backward security guarantees. The empirical eval-

uation of the search performance of this scheme com-

pared to Sophos reveals that it lacks in performance

and storage efﬁciency.

Another line of work called TWORAM and

ODSE examines ORAM based schemes (Garg et al.,

2016; Hoang et al., 2017; Hoang et al., 2018). Hoang,

Yavuz, Durak, and Guajardo give several ORAM

and distributed PIR (Private Information Retrieval)

based approaches which achieve forward and back-

ward privacy. Instead of using a generic ORAM they

leverage speciﬁc bandwidth-efﬁcient oblivious access

techniques such as read-only multi-server PIR for

search and write-only ORAM for updates. Their ex-

perimental evaluation shows that this overcomes the

limitations of prior ORAM schemes regarding com-

munication costs.

To our knowledge there is still a lack of schemes

providing efﬁcient backward privacy, where the

server can not learn any information from a dele-

tion update with space reclamation on the EDB (Bost

et al., 2017).

Unfortunately, all efﬁcient forward secure

schemes need to keep track of the state at the client.

Thus, an additional synchronization effort for the

client state is needed if an application allows the

usage of multiple devices.

2.2 Selection of SE Schemes

We used following metrics to compare above

schemes:

• Storage size at client and server

• Search & update time and communication com-

plexity

• Parallelization of computation

• Efﬁcient deletion handling

Taking into account efﬁciency of performance

and storage size, we chose to compare DynRH and

Sophos within our framework.

DynRH - The dynamic construction called Π

Bas

(Cash et al., 2014) is based on a simple dictionary,

which contains label-value pairs. The label consists

of a keyed hash value derived from a keyword speciﬁc

key and a keyword counter, that stores the occurrence

of the keyword per document. Whereas the value of

a pair is calculated by the encryption of the document

identiﬁer with another keyword dependent key. In the

forward secure version of the Clusion library (Kamara

and Moataz, 2017) the document identiﬁers are en-

crypted twice, deterministic and probabilistic - each

time with a different, keyword dependent key. There-

fore, this scheme is resource hiding, because plain-

text document identiﬁers remain hidden to the server.

The forward private search is achieved by sending one

search token for each expected match. The number of

expected matches is indicated by a keyword speciﬁc

counter stored within the client state. This forward se-

cure scheme will be called DynRH in this paper, the

pseudo-code can be found in Appendix 6.2

Experimental Evaluation of Forward Secure Dynamic Symmetric Searchable Encryption using the Searchitect Framework

Sophos - Bost‘s approach is based on a dictionary

- similarly to DynRH - and our version keeps track

of the keyword counters in a client state - similarly

to DynRH (Bost, 2016b). The main difference is

how the labels - also called update tokens UT

are derived and a Search token is issued. Sophos

achieves forward privacy by keeping the update

tokens unlinkable until a search query is issued. The

scheme makes use of an extra layer of asymmetric

encryption using trapdoor permutations π. The server

is able to process a search query using the search

token, the public key, and a keyword constrained key

to re-calculate all previous update tokens of a speciﬁc

keyword. However, the same parameters prevent the

server from predicting the next update token without

a secret key. Whereas the client is able to issue a

searchtoken ST

using the number of the keyword

speciﬁc counter inverse trapdoor permutations. This

scheme is resource revealing, because the document

identiﬁers are encrypted just once; the encryption is

done by applying an XOR operation with the search

token. The drawbacks of this method are the com-

putational effort for the asymmetric cryptographic

primitives, and the sequential processing, which

cannot be parallelized. We slightly modiﬁed the

original scheme to increase the efﬁciency for batched

updates at the client as shown in Appendix 6.2.

Comparing DynRH to Sophos, we noticed that

both schemes are add-only schemes. They do not

provide an efﬁcient deletion handling and both need

to keep track of a client state. The most remark-

able differences are data privacy, used cryptographic

primitives, and resulting performance. DynRH is re-

source hiding whereas Sophos is not. Furthermore,

the former uses symmetric encryption contrary to

the latter which uses asymmetric trapdoor permuta-

tions. Hence, DynRH requires more storage space

and bandwidth while Sophos needs more computa-

tional resources.

3 SEARCHITECT FRAMEWORK

The client-server framework provides support for

multiple users to upload and update their encrypted

index and search for a keyword in this index. Further-

more, it offers some basic user account management

and query authentication. It achieves the following

non-functional requirements:

• Secure communication - authentication and en-

cryption,

• Openness - easy integration of new schemes, no

dependency on programming language,

• Easy to deploy and test,

• Dynamically updated documentation of the web-

service API.

3.1 Client-side Searchitect Framework

The client Searchitect API is exposed to the primary

application that enables it to perform all Searchitect

related queries through this interface. The client li-

brary contains all generic classes such as the indexer,

which is used to extract keyword/document-identiﬁer

pairs from documents resulting in a plain-text inverted

index. Each SE scheme is integrated by its own client

plugin. Hence, each plugin has to implement the same

interface to the client library.

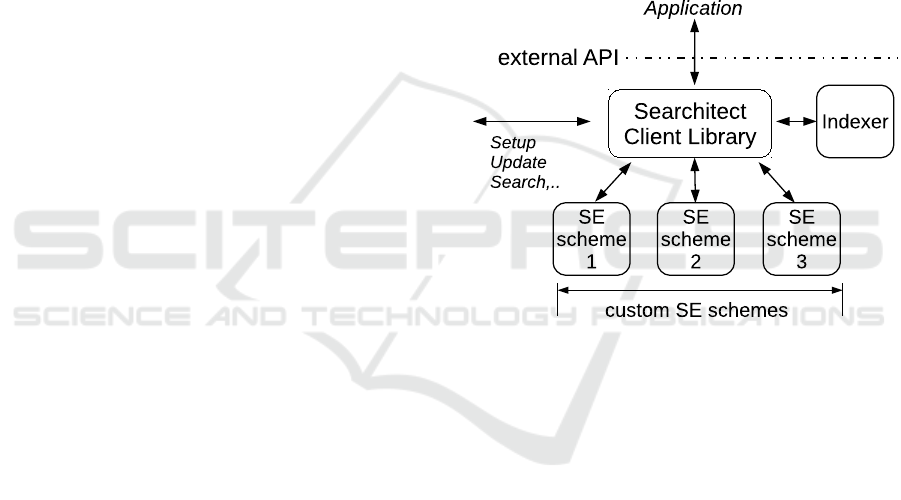

Figure 2: Client-side Searchitect framework, source:

(Hab

ock et al., 2018).

3.2 Server-side Searchitect Framework

The server offers a web-service based on a micro-

services architecture, which consists of a gateway and

several SE backend modules. The external API ex-

posed to the client is provided by a gateway, which

accomplishes basic user-management tasks and query

authentication. For these tasks the gateway holds

a database with user accounts containing randomly

generated identiﬁers of the EDBs and the related

backend module. This enables the gateway to autho-

rize access and forward the queries of SE protocols to

the speciﬁc SE backend module. Each backend mod-

ule will handle the storage of the EDB in its own ﬂa-

vor.

IoTBDS 2020 - 5th International Conference on Internet of Things, Big Data and Security

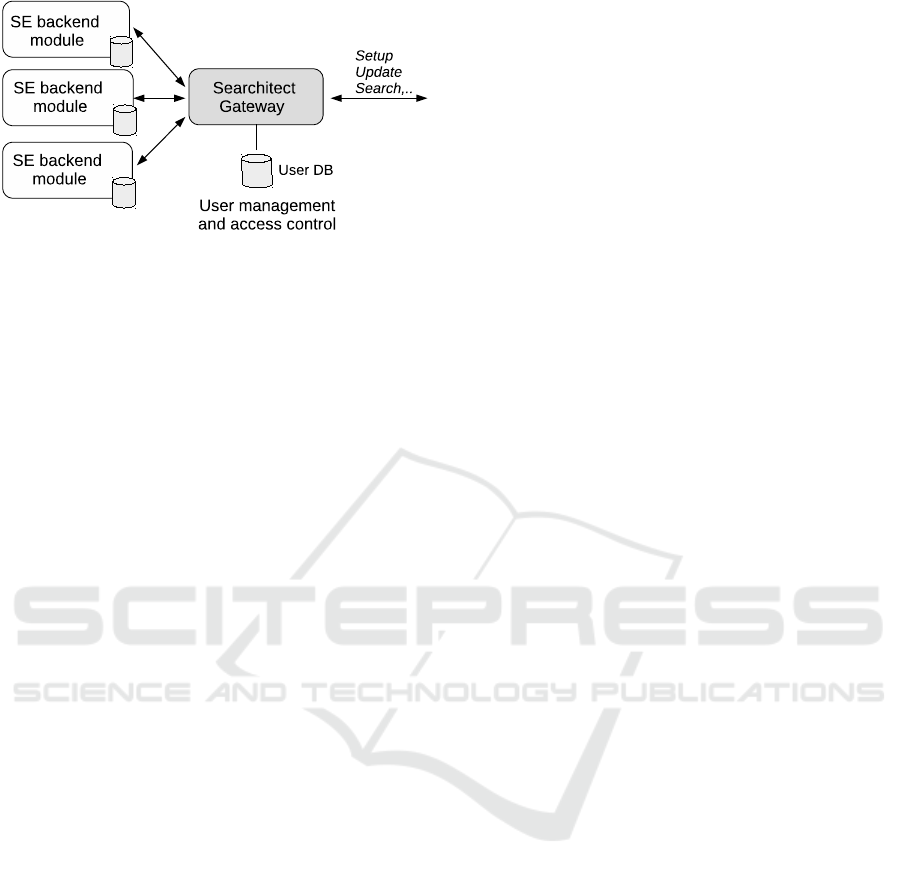

Figure 3: Server-side Searchitect framework, modiﬁed

source: (Hab

ock et al., 2018).

4 IMPLEMENTATION AND

INTEGRATION

Currently, all code is written in Java 10. However, the

communication interfaces between client and server

accept JSON formatted data through RESTful APIs;

this offers interoperability and loosely coupled sys-

tems. Client queries are secured by TLS 1.2 in or-

der to guarantee privacy. At the moment we use a

username-password authentication and JSON web to-

kens (JWT) for the authorization of all subsequent

client requests.

4.1 Client-side Implementation

The client has to process the biggest part of the work-

load. The indexer of the Clusion library supports

keyword extraction from different ﬁle formats using

speciﬁc libraries such as Apache PDFBox or Apache

POI. This multi threaded process is using the Apache

Lucene library and does some basic ﬁltering of stop

words. We had to adapt the indexing code to ﬁt the

speciﬁc application data to our test sets. A difference

to the Clusion version is that our map to a document

identiﬁer should not be bigger than 20 bytes. We used

a shortened path to the document. Each SE scheme

has a separate client plugin that needs to implement

the same interface method signatures in order to get

integrated into the client library.

4.2 Server-side Implementation

Server-side code is built on the Spring Boot (version

2.06) template, which facilitates dependency man-

agement, conﬁguration, and deployment using the

embedded application server Apache Tomcat. For

continuous compilation and building of all server

instances we use Docker (Docker-compose version

1.18.0).

4.2.1 Searchitect Gateway

The gateway consists of three main controllers for:

• Authentication which issues a JWT authorization

token

• User account management

• Repository controller which forwards the SE

client queries.

Currently both, user management and access control

database, are stored in memory using an H2 database.

We added some security related classes to the Spring

Security library that manage authentication without

any external identity provider.

4.2.2 SE Backend Module

A Java dictionary object in memory was used for the

ﬁrst implementation of the SE backend module. Con-

sequently, the search time performance slowed down.

Therefore, we considered a fast key-value store as

data structure which is able to persist the EDBs in

the backend-module similar to (Bost, 2016a). The

open source library RocksDB is designed for efﬁcient

random access in memory and SSD I/O operations

(Team, 2018). RocksJava offers a Java API in an extra

Java package. We use the HashSkipListMemTable,

because the Java API does not provide an implemen-

tation of a Cuckoo hash table as for C++, which

is optimized for point lookup. The HashSkipList-

MemTable contains a ﬁxed-sized array of buckets and

each bucket points to a skiplist, the default value is

1,000,000 buckets.

4.3 Integration of SE Schemes

We integrated two schemes, i.e. DynRH and Sophos.

The original design is extensible with a new scheme

by adding code for the client-plugin, a backendmod-

ule and their common classes. Further the new back-

endmodule name and port need to be added to the ap-

plication properties of the gateway.

4.3.1 DynRH

The Clusion library uses cryptographic primitives of

the Bouncy Castle library. AES 128 in CTR mode

was chosen for encryption and a keyed SHA256 hash

for the pseudo-random function (PRF). All keys are

derived from the keyword using the PRF. The doc-

ument identiﬁers are encrypted twice, one time with

deterministic encryption using a synthetic initializa-

tion vector (SIV) and another time with a random IV

in the probabilistic encryption. We slightly modiﬁed

Experimental Evaluation of Forward Secure Dynamic Symmetric Searchable Encryption using the Searchitect Framework

Table 3: Difference between DynRH and Sophos implementations.

Dynamic Variants DynRH Sophos

Storage RocksDB + Client state

Resource Hiding Revealing

Id Encryption 2 x AES CTR XOR H

(ST

)

Label Derivation Keyed hash Trapdoor permutation

Label/Value Sizes 24/52 byte 44/32 byte

FS-Search Bandwidth Calculation effort

the implementation of the Clusion library and limited

the size of a document identiﬁer to 20 bytes in order

to reduce the storage space, which resulted in 36 bytes

encrypted values.

4.3.2 Sophos

The Secure Computation API (SCAPI) is an open

source library for secure two-party and multiparty

computation (Ejgenberg et al., 2012). It also pro-

vides RSA trapdoor permutations, which we extended

to support fast multiple inversions using the Chinese

remainder theorem. For the PRF we make use of

SHA256 and Blake2 of the Bouncy Castle library.

Further, we ﬁxed the maximal length of a document

identiﬁer and subsequently implemented a 24 bytes

ﬁxed length XOR operation. Our implementation of

the Sophos scheme is entirely deterministic, because

our design does not use any randomness (except once

in the key derivation); i.e. the same key material

and plaintext index (DB) result into exactly the same

EDB.

Both backendmodules use RocksDB as persistent

database. At the client we have the same size of client

state, if both schemes process the same numbers of

keywords. The main difference between the two im-

plemented schemes lies in the encryption of docu-

ment identiﬁers, the derivation of the labels, and how

the forward secure search (FS-Search) is achieved as

shown in Table 3.

Our implementation of the framework

is open source and publicly available at

https://gitlab.com/Searchitect.

4.4 Application Integration

Further we integrated the prototype of our client li-

brary into a secure cloud synchronization application

as a proof of concept. This integration didn’t require

any fundamental changes of the underlying applica-

tion and basically boiled down to merely extending

the user interface with the search functionality as well

as ﬁnding appropriate injection points for triggering

the update process. The prototype still lacks in han-

dling multiple EDB repositories and efﬁcient and se-

cure key management while it enables an encrypted

search over one vault.

5 EXPERIMENTAL EVALUATION

AND RESULTS

Our tests focus on the feasibility of the searchable en-

cryption technology in a working application. There-

fore, all measurements except the EDB storage size

are taken at the client machine. The communica-

tion between client and gateway is transport encrypted

with TLS 1.2. Search and Update requests are sent

to the gateway and after an authorization check for-

warded to the appropriate backend module instance.

For our experiments we used for the server an In-

tel Xeon E5-2620 with 8 cores, 64 GB RAM, and

an SSD SATA3 running a Docker container in a vir-

tual machine on Ubuntu 18.04 with 16 GB memory.

The client hardware environment was a DELL Lati-

tude E470 with an Intel(R) Core(TM) I5-6300U CPU

running with 16 GB RAM and an ATA LITEON CV3-

8D512 SSD hard drive running Ubuntu 18.04 (64 bit).

5.1 Testset Generation and Tests

We examined two main test cases, one with synthetic

generated data and another with realistic data.

Synthetic - The synthetic generated testset includes

100 plaintext update indexes, where each update in-

dex contains the same 100 keywords with 100 newly

inserted random order document maps. The test iter-

ates over all 100 updates, the time used to process one

update is measured at the client. After each update

all 100 keywords are searched and an average search

time is calculated and stored in a report.

Realistic - For the realistic testset we extracted the

biggest archive from the publicly available ENRON

email dataset (William W. Cohen, 2012) and grouped

it into 282 updates each containing 100 documents.

IoTBDS 2020 - 5th International Conference on Internet of Things, Big Data and Security

0 5000 10000 15000 20000 25000

0e+00 2e+06 4e+06

Number of documents

Number of records

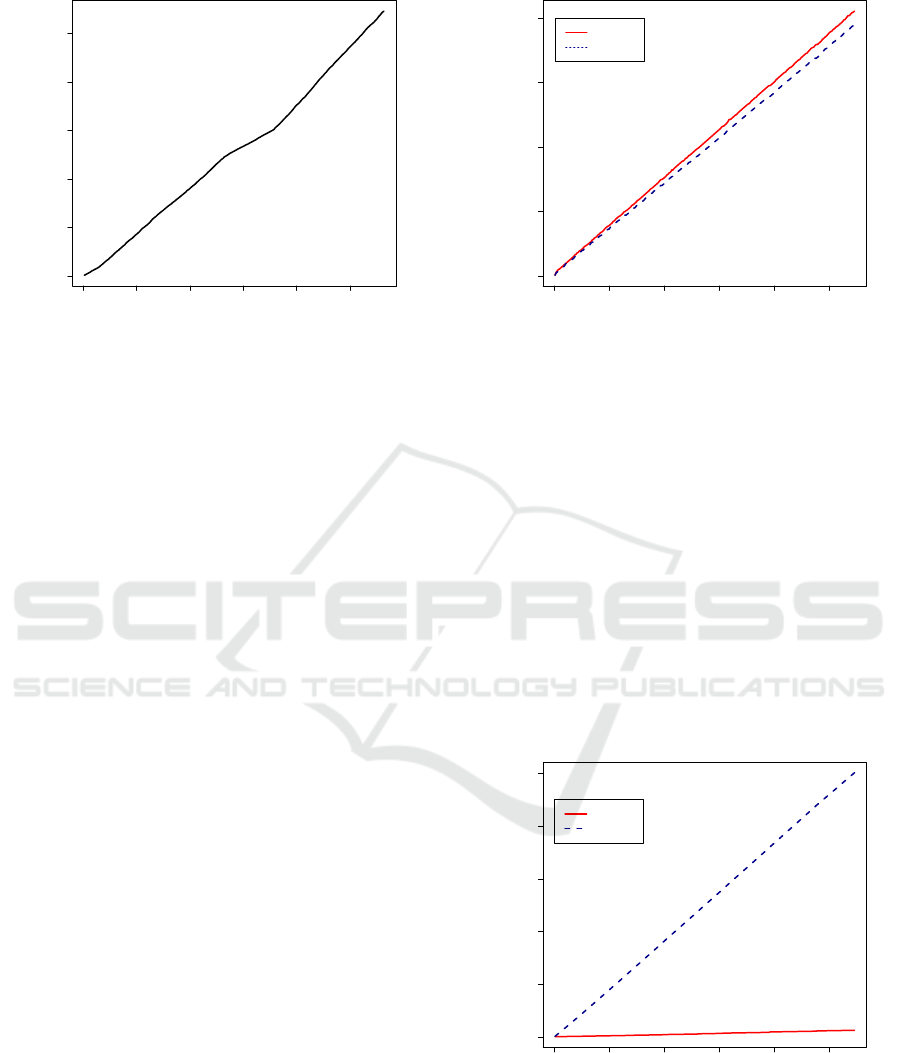

Figure 4: Growth of the database records with incremental

updates containing 100 email documents.

In order to create the plain text inverted index, we

needed to adapt the indexer of the client library to map

document identiﬁers of the size of 20 bytes and ﬁlter

out email tags of the keywords. The growth of the

records in the DB with incremental updates is shown

in Figure 4.

The mean time used for the index extraction pro-

cess for an update of 100 documents was 106.74 ms.

It took on average 0.0055 ms per record, but this value

is strongly dependent on the data and occurrence of

the keywords in the texts. After each index extrac-

tion of an update, an additional wordlist containing

keywords with a small, medium, and big result set

in the updated database has been created. The test

loops over all updates and the update related wordlist

is searched after each update and the running times

are saved in a report.

5.2 Performance Evaluation

A record of the EDB consists of a label and encrypted

document identiﬁer. Table 4 gives an overview of our

testing results for the EDB storage space and the run-

ning time for the update and search protocol on a per

record base. The measured running time at the client

includes also an averaged time for authentication and

network trafﬁc communication overhead.

5.2.1 Storage Size of the EDB

We logged the storage space usage of the EDB with

incremental updates at the server. Although there

is no difference between the 76 byte sized records

for both schemes, RocksDB occupies in case of the

DynRH implementation 5.99 % more space than in

case of Sophos as shown in Figure 5. The size in

bytes for one record differs between the synthetic and

0e+00 1e+06 2e+06 3e+06 4e+06 5e+06

0 100 200 300 400

Number of records

Storage space usage [MB]

DynRH

Sophos

Figure 5: Storage space usage of RocksDB with continuous

updates tested with the realistic test set.

realistic test set. This may be caused by the database

management of RocksDB.

5.2.2 Update Time

The measured time for an update in the synthetic test-

set stayed nearly constant over time, except for two

spikes in the 37th and 73rd update in DynRH and 36th

and 72nd in Sophos which needed between 700 and

1500 ms longer. We can trace back this behavior to

the use of the HashSkipListMemTable implementa-

tion of RocksDB. The performance difference of the

accumulated update running time between DynRH

and Sophos for the realistic testset is shown in Fig-

ure 6.

0e+00 1e+06 2e+06 3e+06 4e+06 5e+06

0 2000 4000 6000 8000 10000

Number of records

Update time [s]

DynRH

Sophos

Figure 6: Accumulated difference in running time for in-

cremental updates of DynRH implementation compared to

Sophos one tested with the realistic test set.

An average update processed by the Sophos im-

plementation takes about 41 times longer than with

DynRH. This lack of performance in the Sophos im-

Experimental Evaluation of Forward Secure Dynamic Symmetric Searchable Encryption using the Searchitect Framework

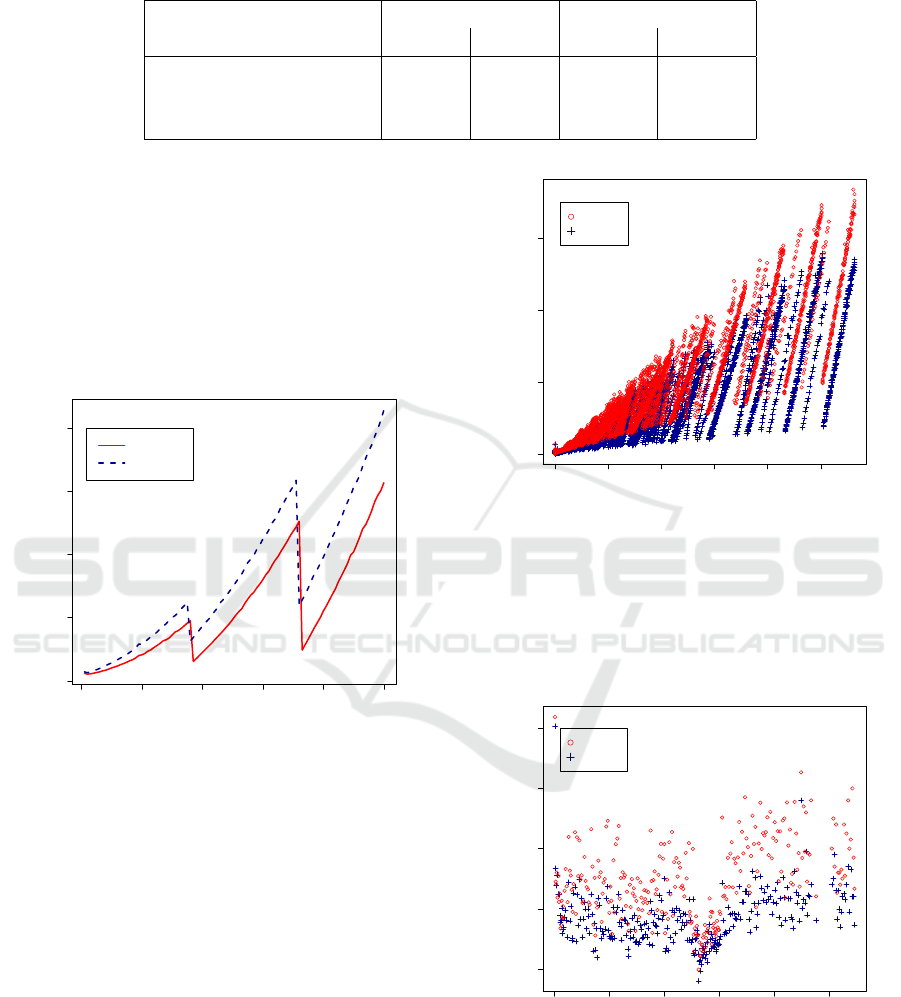

Table 4: Test results presented in storage size, update time and search time calculated as mean value over all measurements

on a per record base.

Synthetic Realistic

DynRH Sophos DynRH Sophos

Storage size/record [bytes] 85.45 78.61 79.58 75.08

Update time/record [ms] 0.03838 1.34523 0.04458 1.83433

Search time/record [ns] 1.10473 1.60002 21.13343 29.17961

plementation is caused by the expensive secret key

computations of the asymmetric trapdoor permuta-

tion.

5.2.3 Search Time

In the synthetic test we compared the average search

speed of the same 100 keywords after each update,

the result is shown in Figure 7. We discovered the

0 2000 4000 6000 8000 10000

0 500 1000 1500 2000

Number of matched documents

Search time [ms]

DynRH

Sophos

Figure 7: Running time of search queries with continuous

increasing result matches tested with the synthetic gener-

ated test set.

two update time spikes. The restructuring of the

HashSkipListMemTable in these updates improved

the search performance. Tested with the synthetic

testset the search protocol in the DynRH implemen-

tation is 30.96% faster than the Sophos one.

Realistic Testset: The running time for 13,305 search

queries in relation to the number of matching docu-

ment identiﬁers is shown in Figure 8. Just a few key-

words are contained in each update and the restructur-

ing of the database management of RocksDB is obvi-

ous. We took an average over all search queries of the

realistic testset and compared the DynRH implemen-

tation to Sophos. DynRH is 27.57% more efﬁcient

than Sophos tested with the realistic dataset.

Further, we extracted test results for search

queries with one matched document and had a look

if the search time stays constant over time with an in-

0 5000 10000 15000 20000 25000

0 2000 4000 6000

Number of matched documents

Search time [ms]

DynRH

Sophos

Figure 8: Running time of DynRH and Sophos search

queries with continuous increasing result matches tested

with the realistic test set.

creasing encrypted database. This extraction is shown

in Figure 9, the search time in both schemes keeps

relatively constant. Remarkably, there seems to be an

optimal size for search queries in the middle.

0e+00 1e+06 2e+06 3e+06 4e+06 5e+06

30 40 50 60 70

Number of records

Search time [ms]

DynRH

Sophos

Figure 9: Running time of DynRH and Sophos search

queries with continuous increasing result matches tested

with the realistic test set.

IoTBDS 2020 - 5th International Conference on Internet of Things, Big Data and Security

5.3 Comparison of the Results

There are several points which make it difﬁcult to

compare our outcomes to other reported test results

such as in (Bost, 2016b; Kim et al., 2017; Cash et al.,

2014).

• The used coding language differs - we used Java,

which lacks in performance compared to C++.

• Our tests focus on feasibility in the usage of SE

technologies in an application, whereas others fo-

cus on performance of the raw algorithms without

communication overhead of authentication and/or

transport encryption.

• The testing environment of this work differs com-

pared to (Cash et al., 2014).

6 CONCLUSION

The Searchitect framework presents our approach to

integrate searchable encryption technology in real

world applications. Further, it provides a stable envi-

ronment to compare implementations of different SE

schemes. We examined the performance difference

of two integrated forward secure implementations of

the DynRH scheme and Sophos. Due to the lack of

efﬁcient backward secure schemes, both are add-only

schemes. Forward secure schemes can be extended

by a basic deletion handling by using the ﬁrst byte in-

dicating if the document identiﬁer is added or deleted.

If the performance of the client is a key factor the

DynRH implementation is preferred over the Sophos

one. The search queries of DynRH will cost signiﬁ-

cantly more bandwidth. A work around could be us-

ing the keyword counters in the client state to predict

the signiﬁcance of the keyword in advance to avoid

costly requests.

For our future evaluations we plan to replace the

HashSkipListMemTable with a Cuckoo hash table to

determine its inﬂuence on the system performance. In

addition we want to examine the impact of switching

to a native C(++) implementation as well as add new

backward secure schemes (i.e. schemes supporting

document deletion with space reclamation).

REFERENCES

osch, C., Hartel, P., Jonker, W., and Peter, A. (2014).

A Survey of Provably Secure Searchable Encryption.

ACM Computing Surveys, 47(2):1–51.

Bost, R. (2016a). OpenSSE schemes. https://gitlab.com/

sse/sophos. [accessed on 2018-04-15].

Bost, R. (2016b). Sophos - Forward Secure Searchable En-

cryption. Published: Cryptology ePrint Archive, Re-

port 2016/728.

Bost, R., Minaud, B., and Ohrimenko, O. (2017). For-

ward and Backward Private Searchable Encryption

from Constrained Cryptographic Primitives. Pub-

lished: Cryptology ePrint Archive, Report 2017/805.

Cash, D., Jaeger, J., Jarecki, S., Jutla, C., Krawczyk, H., and

Steiner, M. (2014). Dynamic searchable encryption in

very-large databases: Data structures and implemen-

tation. In In Network and Distributed System Security

Symposium (NDSS14).

Chang, Y.-c. and Mitzenmacher, M. (2005). Privacy

Preserving Keyword Searches on Remote Encrypted

Data. In ACNS 2005, volume 3531 of LNCS, pages

442–455. Springer Berlin Heidelberg.

Curtmola, R., Garay, J., Kamara, S., and Ostrovsky, R.

(2006). Searchable Symmetric Encryption: Improved

Deﬁnitions and Efﬁcient Constructions. In Computer

and Communication Security CCS‘06, pages 79–88.

ACM.

Ejgenberg, Y., Farbstein, M., Levy, M., and Lindell, Y.

(2012). Scapi: The secure computation application

programming interface. https://cyber.biu.ac.il/scapi/.

Garg, S., Mohassel, P., and Papamanthou, C. (2016).

TWORAM: Efﬁcient Oblivious RAM in Two Rounds

with Applications to Searchable Encryption. In Rob-

shaw, M. and Katz, J., editors, Advances in Cryptology

– CRYPTO 2016: 36th Annual International Cryp-

tology Conference, Santa Barbara, CA, USA, August

14-18, 2016, Proceedings, Part III, pages 563–592.

Springer Berlin Heidelberg, Berlin, Heidelberg. DOI:

10.1007/978-3-662-53015-3 20.

Goh, E.-J. (2004). Secure Indexes. IACR Cryptology ePrint

Archive, 2003:216:1–18.

Hab

ock, U., Koschuch, M., Kramer, I., Schmidt, S., and

Tausig, M. (2018). Searchitect - a developer frame-

work for hybrid searchable encryption (position pa-

per).

Hoang, T., Yavuz, A. A., Durak, B. F., and Guajardo, J.

(2017). Oblivious Dynamic Searchable Encryption

via Distributed PIR and ORAM. Published: Cryp-

tology ePrint Archive, Report 2017/1158.

Hoang, T., Yavuz, A. A., Durak, F. B., and Guajardo, J.

(2018). Oblivious Dynamic Searchable Encryption on

Distributed Cloud Systems. In Kerschbaum, F. and

Paraboschi, S., editors, Data and Applications Secu-

rity and Privacy XXXII, Lecture Notes in Computer

Science, pages 113–130. Springer International Pub-

lishing.

Kamara, S. and Moataz, T. (2017). Encrypted sys-

tems lab: The clusion library. https://github.com/

encryptedsystems/Clusion. [accessed on 2017-09-05].

Kim, K. S., Kim, M., Lee, D., Park, J. H., and Kim,

W.-H. (2017). Forward Secure Dynamic Searchable

Symmetric Encryption with Efﬁcient Updates. In

Proceedings of the 2017 ACM SIGSAC Conference

on Computer and Communications Security, pages

1449–1463, Dallas, Texas, USA. ACM.

Experimental Evaluation of Forward Secure Dynamic Symmetric Searchable Encryption using the Searchitect Framework

M. D. Green and I. Miers (2015). Forward Secure Asyn-

chronous Messaging from Puncturable Encryption. In

2015 IEEE Symposium on Security and Privacy, pages

305–320.

Poddar, R., Boelter, T., and Popa, R. A. (2016). Arx:

A Strongly Encrypted Database System. Published:

Cryptology ePrint Archive, Report 2016/591.

Popa, R. A. (2014). Cryptdb. ”https://css.csail.mit.edu/

cryptdb/”. [accessed on 2017-09-09].

Popa, R. A., Stark, E., Helfer, J., Valdez, S., Zeldovich, N.,

Kaashoek, M. F., and Balakrishnan, H. (2015). My-

lar. https://github.com/strikeout/mylar. [accessed on

2017-09-09].

Song, D. X., Wagner, D., and Perrig, A. (2000). Practical

techniques for searches on encrypted data. In S&P

2000, pages 44–55. IEEE.

Stefanov, E., Papamanthou, C., Shi, E., and Encryption,

S. (2013). Practical Dynamic Searchable Encryption

with Small Leakage.

Team, F. D. E. (2013-2018). Rocksdb. https://rocksdb.org/.

[accessed on 2017-07-07].

William W. Cohen, MLD, C. (2012). Enron email dataset,

may 7, 2015 version of dataset. https://www.cs.cmu.

edu/

∼

./enron/.

Zhang, Y., Katz, J., and Papamanthou, C. (2016). All

Your Queries Are Belong to Us: The Power of File-

Injection Attacks on Searchable Encryption. IACR

Cryptology ePrint Archive, 2016:172.

APPENDIX

6.1 Implemented DynRH Scheme

Algorithm 1 shows a version of the Π

Bas

scheme of

(Cash et al., 2014) found in the Clusion library (Ka-

mara and Moataz, 2017). For brevity we omitted the

Setup algorithm, where we used a modiﬁed version

of DynRH2Lev of the Clusion library. F represents a

pseudo random function (PRF) and Enc stands for a

symmetric encryption scheme.

6.2 Implemented Sophos Scheme

Our implementation presents a slightly modiﬁed ver-

sion of Sophos scheme (Bost, 2016b) supporting

batched updates, this is shown in Algorithm 2.

F,H

are PRF and the trapdoor permutation is

symbolized by π, where π

−c

is the cth iteration of the

inversion of the trapdoor function.

Algorithm 1 : DynRH Source: derived from (Cash et al.,

2014; Kamara and Moataz, 2017) and modiﬁed.

UPDATE(id,DB,K,σ):  Runs at client

← F(K, 3)

for w ∈ DB do

← F(K

,1 k w); K

← F(K

,2 k w);

← F(K, 4 k w); SIV ← F(K,5);  Derive

and (SIV )

encid ← Enc(K

,SIV,id,size);  Deterministic

c ← Get(σ,w);  Get client keyword counter

if c =⊥ then c ← 0

for id ∈ DB(w) do

l ← F(K

,c);d ←Enc(K

,encid); 

Probabilistic encryption

c = c + 1;  Increment counter

Add(l, d) to List L

Replace(σ(w,c))  Update client state

send L to the server

SEARCH(K, w):

procedure TOKEN(K,w,σ)  Runs at client

← F(K, 3); K

← F(K

,1 k w);

← F(K

,2 k w);

c ← Get(σ,w)

for i = 0 to c do

← Get(γ

,F(K

,i));

Send (K

,ST

,...ST

) to server

procedure QUERY((K

,ST

,...ST

,γ

))  Runs at

server

for ST

∈ ST

,...,ST

d ← Get(γ

,ST

);encid ← Dec(K

,d)

add encid’s to List encidList

procedure RESOLVE(encidList, w,K )  Runs at

client

← F(K, 4 k w); SIV ← F(K,5);

for encid ∈ encidList do

id ← Dec(K

,SIV,id); Add id to idList 

Decrypt the ids

return idList

IoTBDS 2020 - 5th International Conference on Internet of Things, Big Data and Security

Algorithm 2: Sophos forward secure scheme - modiﬁed im-

plemented version. Source: derived from (Bost, 2016b).

SETUP():  Runs at client

← {0, 1}

;

(sk, pk) ← KeyGen(1)

;

σ,γ ← empty map

return ((γ, pk),(K

,sk), σ)

UPDATE({add,DB, σ}):  Runs at client

for w ∈ DB do

← F(K

,1 k w); K

← F(K

,2 k w); 

Derive keys

←Map(K

);  Map K

to a group element

c ←Get(σ, w)  Derive counter c from state

if c =⊥ then c ← 0; ST

← ST

Add(σ,(w,c))

else

← π

−c

(sk, ST

);  Get search token ST

by multiple trapdoor inversion

for id ∈ DB(w) do

← π

−1

(sk, ST

);c ← c + 1;  Derive

next ST

and increment counter c

← H

,ST

)

d ← id ⊕ H

,ST

)  XOR encryption

Add(UT

,d) to List L  Insert in random

order

Replace(σ,(w,c))

Send L to the server  Server adds L to γ

SEARCH(K, σ, w):

procedure TOKEN(K

,σ,w)  Runs at client

← F(K

,w);K

← F(K

,2 k w)

c ←Get(σ, w);  c = |DB(w)|

if c =⊥ then

return 0

←Map(K

)ST

← π

−c

(sk, ST

); 

Calculate search token

send (K

,ST

,c) to the server.

procedure QUERY(K

,ST

,c,γ )  Runs at server

for i = 0 to c do

← H

,ST

);d ←Get(γ,UT

);

id ← d ⊕ H

,ST

)

Add id to idList

i−1

← π(pk,ST

);i = i + 1;  Calculate

trapdoor function

Send idList to Client

Experimental Evaluation of Forward Secure Dynamic Symmetric Searchable Encryption using the Searchitect Framework
