Safety in Distributed Sensor Networks: A Literature Review

Tobias Altenburg

, Sascha Bosse

and Klaus Turowski

Very Large Business Applications Lab, Faculty of Computer Science Otto-von-Guericke University Magdeburg, Germany

Keywords: Dependability, Sensor Network, Internet of Things, Fault Tolerance, Fault Prevention.

Abstract: The connectivity megatrend dominates the current social change. The number of networked devices and the

resulting amount of data is constantly increasing worldwide. For this reason, the dependability of computer

systems is becoming increasingly relevant. Especially in the context of civil infrastructures, the constant

availability of computer systems is of great importance. This paper provides a structured overview of the

current literary status of safety in distributed sensor networks. Most approaches from the literature focus on

the design phase. By the following connection with the existing dependability theory, the potential for the

optimization of dependability could be proven.

1 INTRODUCTION

The visionary article “The Computer for the 21st

Century” by Marc Weiser (1991) is the birth of the

integrative technology paradigm later known by the

term “Internet of Things”. For the first time he takes

up existing technological developments and brings

them into a relationship. Driven by the laws of Robert

Metcalf (Gilder, 1993) and Gordon Moore (1965) the

steady progress of microelectronics, communication

and information technology continues. The number of

networked devices is estimated to be about 75 billion

by 2025 (Lucero, 2016) and the resulting global data

volume will increase to 175 Zettabyte (Reinsel,

Gantz, and Rydning, 2018).

The background to this rapid increase is the new

way in which sensor networks can obtain data

(Borgia, 2014; Akyildiz, Su, Sankarasubramaniam,

and Cayirc, 2002). These networks use sensory

acquisition to transfer the dynamic real world into the

digital world in real time. In contrast, conventional

information systems have manual data entry. Borgia

(2014) illustrates these essential architectural

differences of general information systems and sensor

networks. The Internet of Things (IoT) has become a

key technology for forward-looking scenarios. The

applications are manifold. The use in civil

infrastructure facilities in particular has a particularly

high social relevance and impact (BMI, 2009).

https://orcid.org/0000-0002-2490-363X

https://orcid.org/0000-0002-1433-4912

These critical infrastructures are organizations or

institutions of importance to the community. Their

systems and services, such as the supply of water or

electricity, are increasingly dependent on highly

available and functioning information technology. A

malfunction, impairment or even failure can lead to

significant disturbances of public safety or other

dramatic consequences (BSI, 2018). The resulting

dependence of progressive society on complex

information systems is constantly increasing and

digital systems are consequently entrusted with ever

more critical tasks that require a correspondingly high

degree of dependability (Nelson, 1990; BSI, 2015).

The categorical statement that “anything that can go

wrong will go wrong”, known as Murphy's Law,

already describes the importance of dependability in

information and communication technology.

Domains such as Smart Cities and Smart Grids are

becoming increasingly important as a result of global

population growth and urbanization. The existence of

such a large network entails an enormous risk

(Andrea, Chrysostomou, and Hadjichristofi, 2015).

The conventional dependability procedures for

safety-critical information systems are not

universally applicable in the context of IoT (Boano et

al., 2016). The challenges here are the resource-

limited hardware and the basically complex IoT

environment, e.g. the harsh environmental conditions

or the high dynamics in the communication network

Altenburg, T., Bosse, S. and Turowski, K.

Safety in Distributed Sensor Networks: A Literature Review.

DOI: 10.5220/0009311701610168

In Proceedings of the 5th International Conference on Internet of Things, Big Data and Security (IoTBDS 2020), pages 161-168

ISBN: 978-989-758-426-8

161

itself. Since the stability of information systems has

become a national or worldwide social concern of the

highest priority, methods must be researched which

significantly improve the dependability of future

information systems, especially in critical

infrastructures (Avizienis, Laprié, and Randell,

2001).

The field of dependability research was shaped by

Jean-Claude Laprié. He established a standard

framework and general terminology for reliable and

fault-tolerant systems (Laprié, 1995). A distinction is

made between dependability methods and

dependability validation (Avizienis, Laprié, Randell,

and Landwehr, 2004). Fault prevention and fault

tolerance are part of dependability procurement and

form the focus of our future investigations. We

assume that these two methods promise the greatest

potential in terms of optimizing dependability, while

ensuring simple and cost-effective implementation.

Error prevention refers to methods which are intended

to prevent the occurrence of an error condition or the

introduction of an error cause into the system (see

also Laprié, 1995; Avizienis et al., 2004). These occur

during the design phase or during the runtime of the

system. In contrast, in fault tolerance methods are

developed which are intended to avoid a failure even

though a cause of the fault already exists in the system

(Laprié, 1995; Avizienis et al., 2004). Two basic

concepts are relevant in the environment of

distributed sensor networks - Security and Safety (see

also Avizienis et al., 2004). The modelling of errors

can include technological, human and organizational

factors. The focus in science and practice in most

cases lies in the development of approaches in the

context of security. However, safety is often not

considered as another important system property

(Kufås, 2002). In order to be able to make a scientific

contribution in this area, our investigation focuses on

safety, i.e. protection against random failures in

computer systems (Idsø, and Jakobsen, 2000).

In literature, the different dependability methods

are usually considered independently and isolated

from other methods. For this reason, the goal is to

define a pattern catalogue that can be used as a set of

rules for improving safety in distributed sensor

networks. This contains generally valid solution

schemes for recurring problems in the context of

safety, especially in fault prevention and fault

tolerance. The defined patterns show the different

possibilities for dependability optimization under

consideration of the technical as well as logical

correlations. This provides an essential decision-

making basis for the optimization of safety, especially

in the area of IoT. Based on this literature review, we

would like to answer the following research question:

"Is the use of classical safety approaches qualified

for dependability optimization in distributed

sensor networks?"

This article presents the current state of the art for the

dependability of distributed sensor networks, based

on a structured literature review according to Webster

and Watson (2002). Below, the structure of the

literature search and the material collection is

described first. Afterwards a descriptive analysis is

presented in section (3). Section (4) gives an insight

into the defined analytical categories and section (5)

presents the corresponding results of the material

evaluation. Section (6) concludes this contribution by

summarizing the paper and outlining the way

forward.

2 LITERATURE REVIEW

PROCESS AND MATERIAL

COLLECTION

The literature review process derived from Seuring

and Müller (2008) and includes four steps:

 Material collection

 Descriptive analysis

 Category selection

 Material evaluation

The material collection identifies the relevant

contributions for the research area. The formal

aspects of the relevant material are then evaluated in

the descriptive analysis in order to be able to present

the result set in a ordered form. For the material

evaluation, content dimensions are defined in step 3

and then analysed in order to achieve an interpretation

of the results. A paper is considered relevant if it

provides theoretical foundations for the dependability

paradigm or approaches to optimizing dependability

in the context of distributed sensor networks. The

scientific investigation focuses on fault tolerance and

fault avoidance as dependability methods according

to Laprié (1995). For the work, essentially software-

technical, hardware-technical as well as interaction

approaches are classified as relevant. The first step of

material collection was a keyword search in the most

important publication databases of the IT domain.

The following expression was used for the search

term: (Reliability OR Dependability OR Availability

OR Robustness) AND (fault tolerance OR fault

prevention or fault Avoidance) AND (Wireless sensor

networks OR Sensor Network OR distributed sensor

Networks OR Internet of Things). About 15,000

IoTBDS 2020 - 5th International Conference on Internet of Things, Big Data and Security

162

articles were found using the keyword search. After

these results were filtered from the databases by

checking title and abstract for relevance, 190 papers

remained. Subsequently, content filtering was carried

out by cursory reading of the documents, which

resulted in 82 relevant publications.

3 DISCRIPTIVE ANALYSIS

This section evaluates the formal attributes of the

selected publications. For this reason, the year of

publication and the type of publication are taken into

account for each relevant contribution.

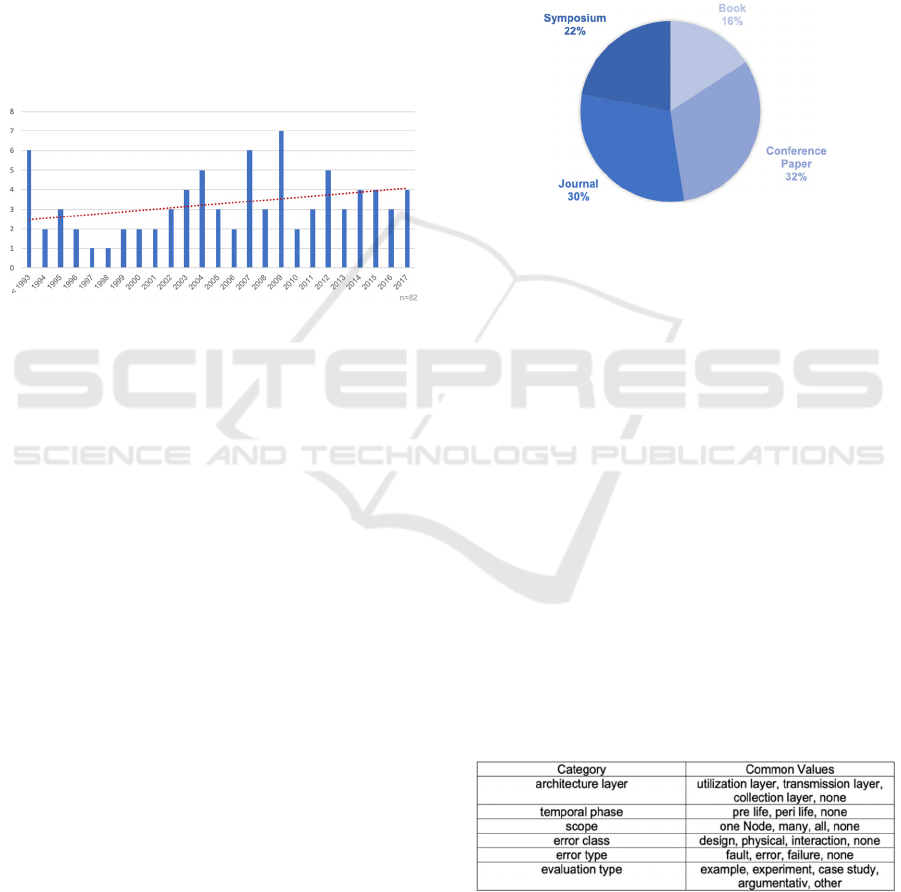

Figure 1: Number of relevant publications per year.

Figure 1 shows the number of publications per

year from 1993 and earlier until 2017. Research in the

field of dependability methods began before 1993

(Avizienis, 1976; Iver et al., 1991; Avizienis, 1967;

Laprié, 1985) and this work forms the basis for

subsequent publications, since the generally

developed theories on dependability are generally

applicable to all information systems (Laprié, 1995).

The distributed sensor networks as an architectural

concept were first analysed in 1980 (Wesson, and

Hayes-Roth, 1980) and later coined in 1999 by the

term “Internet of Things” (Ashton, 2009). With the

breakthrough of IoT paradigm, the use of complex IT

systems, which are also used in critical application

domains, is now growing. This development

increases the need for resilient ICT and is becoming

increasingly important (Boano, and Römer, 2014). In

Figure 1, the linear trend line (represented by the

dotted line) of the number of papers per year shows

that the number of publications is increasing. This

illustrates the growing relevance of the topic and the

existing research interest. As early as the mid-2000s,

most of the contributions addressed possible

applications and the safety-related aspects lost their

relevance.

Figure 2 shows that the identified contributions

were published in four types: Journal articles (25),

book chapters (13) as well as conference papers (26)

and symposium contributions (18). The high number

of journal articles indicates that there are completed

research projects already that are known to have

validated approaches for optimizing dependability.

More than half of the relevant papers are conference

and symposium papers, which highlights the

intensive discussions on the topic. Book chapters

often provide a detailed theoretical basis for the

development of relevant approaches and thus form

the basis for the field of research.

Figure 2: Publication types of relevant contributions.

Looking at the year of publication as well as the

type of publications, one can conclude that the area of

dependability procedures is still strongly discussed in

the context of distributed sensor networks. This

makes it clear that there is still research potential and

that the approaches so far have not been scientifically

and practically mature.

4 CATEGORY SELECTION

This paper examines approaches for optimizing the

dependability of distributed sensor networks by using

dependability procedures, i.e. error avoidance and

error tolerance (Avizienis et al., 2004). The identified

approaches serve as a basis for deriving the categories

for material evaluation and are classified accordingly

in six categories, cf. Table 1.

Table 1: Categories and common values for material

evaluation.

The methods for optimizing the dependability of

distributed sensor networks can be divided into the

three basic architecture layers (see also Borgia, 2014).

The collection layer refers to procedures for capturing

Safety in Distributed Sensor Networks: A Literature Review

163

the physical environment and for general perception

of the real world. The transmission layer, which

contains the mechanisms for rendering the collected

data to the application level or the attached services,

is superordinate. The utilization layer is the actual

processing, administration and usage level. This

includes the processing of information flows, the

bidirectional forwarding of data and general functions

such as device management or data aggregation.

In addition to the basic architecture, time t plays

an important role in the dependability domain,

because it is directly related to dependability R(t) (see

also Laprié, 1995). According to Dubrova (2012) and

Laprié (1995), a distinction is made between the

design and operation phases. The overall model is a

temporal classification of the methods into two life-

cycle phases - the pre-phase and the peri-phase

(Byron, and Blake, 2019). In the pre-phase, the focus

is on planning and designing the information system

at the software and hardware levels. According to

Laprié (1995), the design of an IT system has the

greatest influence on its dependability. Suitable

procedures are to be defined, which also optimize

dependability in the operating phase through fault

tolerance or fault avoidance. The peri-phase is the

actual operating phase of the IT system. Here

methods are classified, which can be used exclusively

during the performance of the system. The scope

category was examined to determine the intensity of

the various optimization methods. This analyses the

size of the efficiency in relation to the number of

nodes in the sensor network. A distinction is made

between three orders of magnitude:

 One Node - here procedures are classified which

refer to only one single node (Cotroneo, Natella,

Pietrantuono, and Russo, 2014; Grey, and

Siewiorek, 1991).

 Many - by this we mean dozens to several hundred

nodes, which simultaneously achieve an

improvement in dependability through the

respective method (Asim, Mokhtar, and Merabti,

2008; Johnson, 1996; Cooper, 1985).

 All - all nodes of the entire network segment are

influenced by the method used (Denning, 1976;

Bishop, 1988; Lyu, 1995).

In summary, it can be concluded that the sphere of

influence of the dependability procedures examined

represents an important indicator for the prioritization

of the methods in the pattern catalogue. Due to the

large number and high dynamics in current sensor

networks (Tubaishat, Madria, 2003) the effort for the

implementation and application of the methods can

also increase significantly. Error classes can be

derived from the already known error causes

(Avizienis et al., 2004). According to Laprié (1995)

there are three essential error classes to be

distinguished, which we use for our investigation:

 Design - this includes all software and hardware

errors that occurred during the design phase and

affect the actual operating phase.

 Physical - contains all errors that affect the

hardware of the three architecture layers (Borgia,

2014).

 Interaction - if all external and internal input or

communication errors occur between the various

nodes or components of the information system.

A system is referred to as being correct when it

performs as specified for the system. As soon as the

system no longer meets these specifications, it

switches to a faulty state (Avizienis et al., 2004).

Laprié (1995) defines three fundamental error types

which form the basis of error theory. The various

dependability optimization methods are assigned to

the respective fault types and thus provide an

appropriate indicator of efficiency. In the area of

dependability, the terms “failure” for downtime,

“fault” for a cause of failure and “error” for

malfunction have gained acceptance (Avizienis et al.,

2004). A fault is the responsible or hypothetical cause

of a malfunction. An error is the part of the system

state that is responsible for a failure. In general, it is a

deviation from the required operation of the system

or subsystem. Failure occurs when the performance

of the system no longer corresponds to the correct or

expected performance. It is the transition from a

correct to an incorrect system state. The system

therefore no longer performs the required functions.

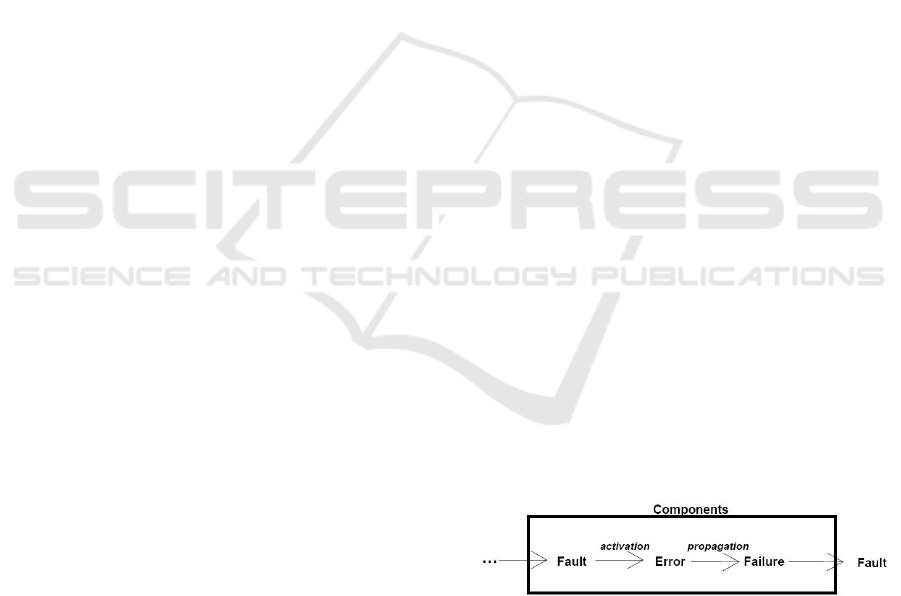

Figure 3 of Avizienis et al. (2001) shows the error

process described in a component. If a fault is

activated, it can cause an error, which in turn (if it

spreads) can cause a failure. This failure is evaluated

as a fault by the next component.

Figure 3: Fault-Error-Failure chain.

Thus, it can be deduced that the analysed methods

can only be subdivided into the error classes fault and

error, since according to Avizienis et al. (2001) causal

chain a failure can only occur by the propagation of

an error. A further differentiation of the evaluated

papers is provided by the individual type of

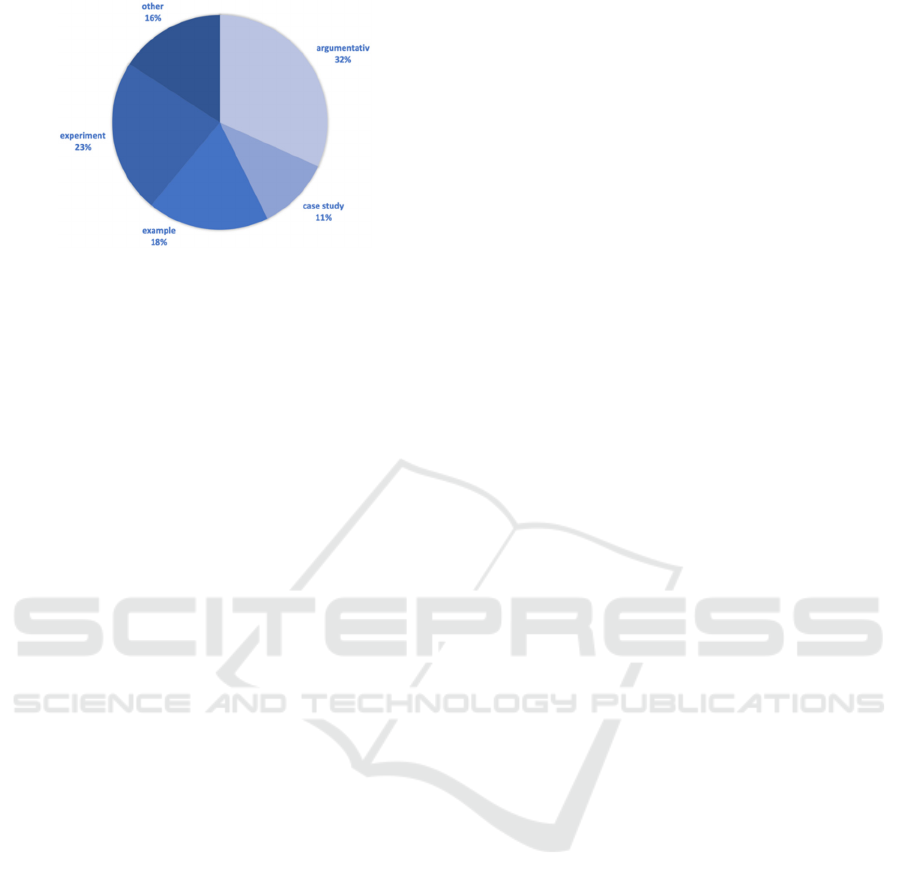

evaluation. In this analysis, the evaluations are classi-

IoTBDS 2020 - 5th International Conference on Internet of Things, Big Data and Security

164

fied according to the following schema:

 An exemplary assessment was performed when a

hypothetical scenario was modelled to

demonstrate the basic applicability of the

developed model.

 An experimental evaluation was performed when

a realistic scenario was modelled. This simulation

offers a realistic representation.

 A case study was performed when a real scenario

was modelled and analysed. This proves the

applicability of the model to real problems.

 An argumentative evaluation was carried out

when a conclusive argumentation was used to

prove the methods.

 All papers that do not contain any of the previous

valuation types are classified under

miscellaneous.

5 MATERIAL EVALUATION

Once the categories have been identified, the

quantitative analysis of the 82 selected papers can be

carried out. The design of a system for high

dependability implies the need to identify and

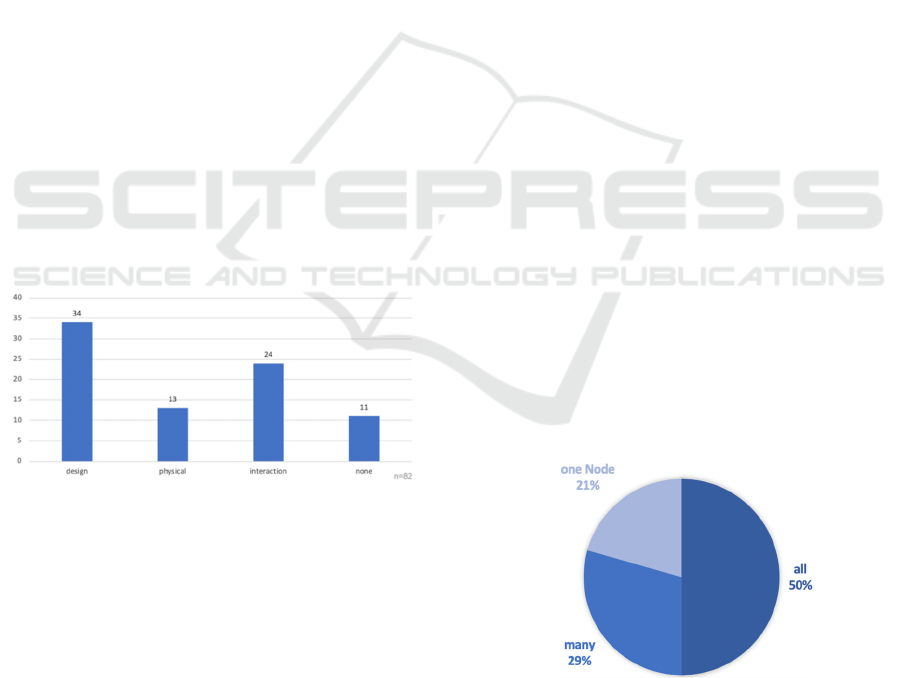

consider the various possible causes of failure. Figure

4 shows the classification of the approaches into the

three essential error classes according to Laprié

(1995).

Figure 4: Number of contributions per error class.

All approaches to optimizing system

dependability can be classified into the three error

classes. Eleven publications deal with the general

theoretical basics and thus form the basis for the

investigation. Most methods are assigned to the error

class Design. This proves the high importance of the

construction phase of information systems, because

already at this point measures can be taken to prevent

errors or the methods for error tolerance can be

implemented and synchronized at an early stage.

Nevertheless, the other two fault classes have a

similar potential to significantly increase

dependability in distributed sensor networks. Errors

in hardware components or the interaction between

the various system components must be equally

avoided or tolerated with regard to dependability

(Laprié, 1995). The previous analysis of error classes

applied showed that the design phase plays a crucial

role in optimizing the dependability of information

systems (Byron, and Blake, 2019). The majority of

the methods examined relate to software engineering

(Birolini, 2017). Various measures for increasing

dependability are possible along the entire

development process. Holzmann (2006) offers an

exemplary set of rules for the software development

of safety-critical systems. In order to guarantee the

correctness of the result in the algorithm created, the

basic concept of design diversity (Bishop, 1988; Xie,

Sun, Saluja, 2008) or the already established method

of software testing (Lyu, 2007; Luo, 2001) is used..

Quality control techniques must also be used in the

installed hardware in order to be able to avoid

hardware errors in a targeted manner (Avizienis et al.,

2001). The approaches mentioned help to avoid errors

in software and hardware already in the design phase,

but also fault tolerance, as an important dependability

procedure, should guarantee the correct performance

in case of active faults (see also Avizienis et al.,

2001). Fault tolerance is usually a design goal, which

is realized from the requirements of dependability and

availability (Auerswald, Herrmann, Kowalewski,

Schulte-Coerne, 2002). The error tolerance can

basically be divided into reactive and proactive error

tolerance. Reactive fault tolerance techniques are

used to reduce the impact of failures on a system

when the failures have already occurred. In

comparison, the proactive fault tolerance techniques

include preventive measures to avoid faults during the

actual operating time of the IT system (Amin, Sethi,

Singh, 2015).

Figure 5: Number of contributions per scope.

For the evaluation of the individual

dependability methods, the scope can be used as a

criterion. The aim is to be able to design as many

components of the distributed sensor network as

Safety in Distributed Sensor Networks: A Literature Review

165

possible more reliably using these methods. In this

way, the complexity of the implementation or the

difficulty of using the various methods can be

approximately determined. Figure 5 shows the scope

of the methods found in the Design error class. More

than 75 % of the papers examined describe

procedures that can be applied to several components

of the information system. Figure 5 shows once again

that there is great potential for optimizing

dependability in the design phase of information

systems. The use of high-quality components or

systematic design techniques often does not

sufficiently reduce the probability of system failures

and means must be provided to tolerate errors in the

system (see also Nelson, 1990). Accordingly, the use

of a dualism between fault prevention and fault

tolerance is essential to increase dependability. The

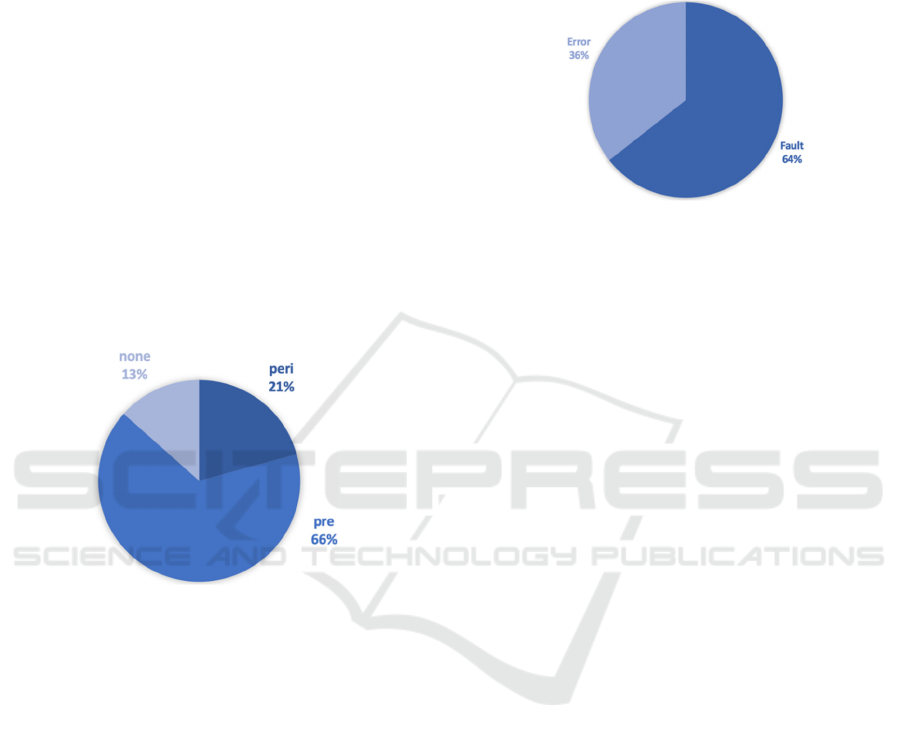

following Figure 6 shows the time phase when the

methods examined can be used appropriately in the

event of an error. The classification is based on the

active life cycle of a computer system.

Figure 6: Number of contributions per temporal phase.

More than 2/3 of the dependability procedures

are assigned to the pre-stage, i.e. the design phase. In

contrast, about a quarter of the papers examined

describe methods that are applied during the

operating phase. These results of Figure 6 illustrate

Laprié's hypothesis (see also Laprié, 1995).

According to Auerswald et al. (2002) and Laprié

(1995) the complete avoidance of errors is practically

impossible or too costly. After all the improvement of

dependability in distributed sensor networks should

be in an acceptable relation to the economic costs.

This economic point of view has to be considered for

all views concerning the optimization of

dependability. A sensor network can be considered as

a sum of components. Dependability is influenced by

the interaction of the various system components

(Avizienis et al., 2001). The threats to distributed

sensor networks are characterized by faults, errors,

and failures. These three types of errors according to

Laprié (1995) and Avizienis et al. (2001) are good

indicators for assessing the efficiency of the methods

analysed. The causal chain of Avizienis et al. (2001)

shows the logical course of errors in an information

system. Basically, failure is to be avoided completely,

whereby we have assigned the methods identified in

Figure 7 to the two error types fault and error.

Figure 7: Number of contributions per error types.

Almost all identified papers describe methods to

avoid or tolerate faults (Xie et al., 2008; Paradis, Han,

2007; Saridakis, 2002; Treaster, 2005). In particular,

the software development process is at the forefront.

Bishop (1988) and Torres-Pomales (2000)

summarize the already identified patterns for fault-

tolerant software in their work. These concepts are

divided into two groups (see also Lyu, 1995) - Single

versions and multi-version software techniques.

Single version techniques focus on improving the

fault tolerance of a single piece of software by adding

mechanisms to the design. In contrast, multi version

techniques creates several variants of a software in

order to avoid design errors in one version. A third of

the papers examined describe techniques that deal

with the tolerance or avoidance of errors. According

to Hanmer (2007) error processing is characterized by

error detection and the subsequent error recovery. A

fundamental distinction is made between forward and

backward recovery mechanisms (Laprié, 1995; Iver

et al., 1991; Saridakis, 2002). Errors can be avoided

by implementing redundancy techniques already in

the design phase or in the pre-phase by a proactive

rejuvenation of the software (Cotroneo et al., 2014).

The analysis of the evaluations carried out in the

identified papers shows that 1/3 of the findings are

proven by an argumentative explanation, cf. Figure 8.

In the other contributions an experimental or

exemplary evaluation type is dominating. In only 11

% of the papers was a real case study carried out.

These results show that although half of the identified

papers are based on empirical research, only a small

part was examined in a real environment. Therefore,

it can be concluded that there is still a need for

realistic approaches in reliability theory for

distributed sensor networks.

IoTBDS 2020 - 5th International Conference on Internet of Things, Big Data and Security

166

Figure 8: Number of contributions per evaluation types.

6 CONCLUSION

Our goal is to maximize the dependability of

distributed sensor networks through a pattern

catalogue defined by us. The requirements in the real

world are manifold. A distributed sensor network has

to cope with a large spatial separation of the

individual components. It has an open system

structure, a high degree of autonomy for the

individual system components and a high degree of

heterogeneity. Therefore, it is important to be able to

achieve standardization by means of a pattern

catalogue. For this purpose, a taxonomy is created

from the identified dependability procedures of the

literature review. On the basis of this classification,

characteristically similar methods can be summarized

and subsequently standardized. Afterwards, the

classified methods are evaluated in the context of

distributed sensor networks and included in the

pattern catalogue with regard to the optimization of

dependability.

In this paper, a structured literature analysis was

performed to analyse the current state of

dependability theory in distributed sensor networks.

Eighty-two relevant publications were identified by

keyword search and filter process. After the

descriptive analysis pointed out the relevance of the

topic, the categories for the content analysis of the

examined papers were defined. On this basis the

material valuation could be carried out. The methods

identified were analysed using the error classes from

Laprié (1995). It turned out that most approaches in

literature refer to design errors. The design phase thus

offers a high potential to optimize the dependability

of distributed sensor networks. The following

specification of the procedures in the design phase

showed that over 75 % of the methods can be applied

to several components at the same time. This

significantly reduces the complexity of

implementation into existing or newly emerging

sensor networks. Furthermore, more than half of the

methods found can be classified in the concept of

fault tolerance and one third in error avoidance.

According to the hypothesis of Laprié (1995) and

Auerswald et al. (2002), this illustrates that errors can

never be completely avoided and therefore the focus

in literature is on error tolerance techniques. In order

to be able to determine the efficiency of the identified

dependability procedures, the error types were

analysed at the end. Dependability tools are designed

to reduce the number of errors. Faults can spread

traditionally and cause errors or failures (Avizienis et

al., 2001). In this respect, it is important to apply error

theory in order to assess the effectiveness of the

procedures. Increasing IT penetration and networking

are creating potential that a highly developed and

industrialized country cannot do without (BSI, 2017).

The development of a fully interconnected ecosystem

has a major impact on industry and society. At the

same time, increasing digitalization is creating new

risk situations. Computer failures can have

considerable economic and social consequences,

which must be responded to quickly and consistently

(BSI, 2018). The sources of error are manifold,

widely distributed and difficult to locate. It is

therefore necessary to pay close attention to

dependability and future maintainability when

developing sensor networks.

REFERENCES

Akyildiz, I.F., Su, W., Sankarasubramaniam, Y., Cayirc, E.,

2002. A Survey on Sensor Networks. IEEE

Communication Magazine.

Amin, Z., Sethi, N., Singh, H., 2015. Review on Fault

Tolerance Techniques in Cloud Computing. Journal of

Computer Applications, No. 18.

Andrea, I., Chrysostomou, Ch., Hadjichristofi, G.C., 2015.

Internet of Things: Security vulnerabilities and

challenges. IEEE Symposium on Computers and

Communication (ISCC).

Ashton, K., 2009. That „Internet of Things“ Thing. RFID

Journal.

Asim, M., Mokhtar, H., Merabti, M., 2008. A Fault

Management Architecture For Wireless Sensor

Networks. International Wireless Communications and

Mobile Computing Conference.

Auerswald, M., Herrmann, M., Kowalewski, S., Schulte-

Coerne, V., 2002. Entwurfsmuster für fehlertolerante

softwareintensive Systeme. Automatisierungstechnik

Methoden und Anwendungen der Steuerungs-,

Regelungs- und Informationstechnik, Band 50, Heft 8,

Seiten 389-398.

Avizienis, A., 1976. Fault-Tolerant Systems. IEEE

Transactions on computers, Vol.25, No. 12.

Safety in Distributed Sensor Networks: A Literature Review

167

Avizienis, A., 1967. Design of fault-tolerant computers.

Fall Joint Computer Conference.

Avizienis, A., Laprié, J. C., Randell, B., 2001. Fundamental

Concepts of Computer System Dependability.

Workshop on Robot Dependability.

Avizienis, A., Laprié, J. C., Randell, B., Landwehr, C.,

2004. Basic Concepts and Taxonomy of Dependable

and Secure Computing. IEEE Computer Science.

Birolini, A., 2017. Reliability Engineering – Theory and

Practice. Springer, Berlin, Heidelberg.

Bishop, P.G., 1988. The PODS Diversity Experiment.

Software Diversity in Computerized Control Systems,

Springer-Verlag, 51-84.

Boano, C. A., Römer, K. U., 2014. No Dependability, No

Internet of Things. net-Xperiment future, 23-23.

Boano, C. A., Römer, K., Bloem, R., Witrisal, K., Baunach,

M., Horn, M., 2016. Dependability for the Internet of

Things-from dependable networking in harsh

environments to a holistic view on dependability.

Elektrotechnik & Informationstechnik, Vol.133.

Borgia, E., 2014. The Internet of Things vision: Key

features, applications and open issues. Computer

Communications 54, 1-31.

Bundesamt für Sicherheit in der Informationstechnik, 2018.

Die Lage der IT-Sicherheit in Deutschland 2018.

Bundesamt für Sicherheit in der Informationstechnik, 2017.

Schutz kritischer Infrastrukturen. bsi.bund.de.

Bundesministerium des Inneren, 2009. Nationale Strategie

zum Schutz Kritischer Infrastrukturen (KRITIS-

Strategie). bmi.bund.de.

Byron, R., Blake, M., 2019. What ist reability?. Retrieved

from http://www.ni.com/de-de/innovations/white-

papers/13/what-is-reliability-.html

Cooper, E.C., 1985. Replicated Distributed Systems.

Proceedings of the tenth ACM symposium on Operating

systems principles, 63-78.

Cotroneo, D., Natella, R., Pietrantuono, R., Russo, S., 2014.

A Survey of Software Aging and Rejuvenation Studies.

ACM Journal on Emerging Technologies in Computing

Systems 10.

Denning, P.J., 1976. Fault Tolerant Operating Systems.

ACM Computing Surveys, Volume 8, Issue 4, 359-389.

Dubrova, E., 2012. Fault-Tolerant Design. Springer, NY.

Gilder, G., 1993. Metcalfe’s Law and Legacy.

Grey, J., Siewiorek, D.P., 1991. High-Availability

Computer Systems. Journal Computer, Vol.24, 39-48.

Hanmer, R. S., 2007. Patterns for Fault Tolerant Software.

Wiley Publishing.

Holzmann, G.J., 2006. The Power of 10: Rules for

Developing Safty-Critical Code. NASA/JPL

Laboratory for Reliable Software.

Idsø, S., Jakobsen, E., 2000. Objekt- og

informasjonssikkerhet. Metode for risiko- og

sårbarhetsanalyse, NTNU.

Bundesamt für Sicherheit in der Informationstechnik, 2015.

IT-Sicherheitsgesetz. Bundesgesetzblatt Jahrgang

2015. Teil I, Nr.31, §8.

Iver, R.K., Patel, J.H., Fuchs, W.K., Banerjee, P., Horst, R.,

1991. Fault Tolerant Computing: An Overview. Illinois

Computer Labortory for Aerospace Systems, NASA.

Johnson, B.W., 1996. An introduction to the design and

analysis of fault-tolerant systems. Fault-tolerant

computer system design, 1-87.

Kufås, I, 2002. A framework for information security

culture; could it help on solving the insider problem?.

Informasjonssikkerhet og innsideproblematikk, NTNU.

Laprié, J. C., 1995. Dependable Computing: Concepts,

Limits, Challenges. 25th IEEE International

Symposium on Fault-Tolerant Computing, 42-54.

Laprié, J. C., 1985. Dependable Computing and Fault

Tolerance: Concepts and Terminology. IEEE

Proceedings of FTCS-25, Volume III.

Lucero, S., 2016. IoT platforms: enabling the Internet of

things. IHS Whitepaper, Retrieved from ihs.com, 5-6.

Luo, L., 2001. Software Testing Techniques - Technology

Maturation and Research Strategies. Inst. Softw. Res.

Int. Carnegie mellon Univ. Pittsburgh, PA, 1-19.

Lyu, M.R., 1995. Software Fault Tolerance. John Wiley &

Sons, Inc. New York, NY, USA.

Lyu, M.R., 2007. Software Reliability Engineering: A

Roadmap. Future of Software Engineering, 153-170.

Moore, G. E., 1965. Cramming more components onto

integrated circuits. Band 38, Nr. 8, S. 114–117

Nelson, V.P., 1990. Fault-Tolerant Computing:

Fundamental Concepts. IEEE Computer, 23, 19-25.

Paradis, L., Han, Q., 2007. A Survey of Fault Management

in Wireless Sensor Networks. Journal of Network and

Systems Management, Vol. 15, No. 2.

Reinsel, D., Gantz, J., Rydning, J., 2018. The Digitization

of the World; From Edge to Core. IDC Whitepaper,

Retrieved from idc.com, 2-4.

Saridakis, T., 2002. A System of Patterns for Fault

Tolerance. Proceedings of the 7th European

Conference on Pattern Languages of Programms.

Seuring, S. and Müller, M., 2008. From a literature review

to a conceptual framework for sustainable supply chain

management. Journal of Cleaner Production.

Torres-Pomales, W., 2000. Software Fault Tolerance: A

Tutorial. NASA Langley Technical Report Server.

Treaster, M., 2005. A Survey of Fault-Tolerance and Fault-

Recovery Techniques in Parallel Systems. ACM

Computing Research Repository (CoRR), 1-11.

Tubaishat, M., Madria, S.K., 2003. Sensor Networks: An

Overview. IEEE Potentials, Institute of Electrical and

Electronics Engineers.

Webster, J., Watson, R.T., 2002. Analyzing the Past to

Prepare for the Future: Writing a Literature Review.

MIS Quaterly, 26, xiii-xxiii.

Weiser, M., 1991. The Computer for the 21st Century.

Scientific American 265(3), 66–75.

Wesson, R., Hayes-Roth, F., 1980. Network Structures for

Distributed Situation Assessment.

Defense Advanced

Research Projects Agency.

Xie, Z., Sun, H., Saluja, K., 2008. A Survey of Software

Fault Tolerance Techniques. University of Wisconsin-

Madison, Department of Electrical and Computer

Engineering.

IoTBDS 2020 - 5th International Conference on Internet of Things, Big Data and Security

168
