Using Enterprise Architecture to Model a Reference Architecture for

Industry 4.0

Miguel Paiva, André Vasconcelos and Bruno Fragoso

INESC-ID, Instituto Superior Técnico, IST Universidade de Lisboa, Rua Rovisco Pais, Lisboa, Portugal

Keywords: Industry 4.0, Archimate, Enterprise Architecture, RAMI4.0, I4.0 Component Model, Viewpoints, Layers.

Abstract: Enabled by the new technologies brought by the fourth industrial revolution (Industry4.0), organizations have

the possibility to address productivity challenges and consequently become more profitable. This research

uses the Reference Architecture Model of Industry 4.0 (RAMI4.0) and Industry 4.0 Component Model as

ingredients for a reference architecture modelled using Enterprise Architecture (EA). RAMI4.0 EA is

modelled using Archimate by producing a mapping between the Archimate and RAMI4.0 concepts. To apply

the proposed solution and evaluate it, the EA of an Industry project is modelled including the 4 lower layers

of RAMI4.0 (Asset, Integration and Communication, Informational and Functional). The evaluation of the

mapping is done using ontological analysis supporting the benefits of using a common language for modelling

Enterprise and Industry 4.0 concepts.

1 INTRODUCTION

Industry 4.0 (I4.0) is the term given to the promise of

a new industrial revolution, a revolution that

promotes even more the junction of the advanced

production and operation techniques with smart

digital technologies to create a digital enterprise.

Regardless of the technologies, the main purpose

of the industrial transformation is to increase the

competitive power of the companies (Ustundag,

2017).

According to a survey made by Deloitte (Deloitte

Insights, 2018) that measures business and

government readiness for the I4.0 revolution, the

major areas to focus in technology initiatives are

processes and organization operations.

Taking this in account, this paper brings the I4.0

concepts to the broader perspective provided by

Enterprise Architecture(EA).

In order to get insight in the way businesses works

from different perspectives, we use Archimate

language to study EA, which allows high-level

modellings between different domains. (TOGAF,

2019)

The companies that need to adopt projects under

the scope of Industry 4.0 have to be supported by a

technological and organizational migration process.

RAMI4.0 stands here as a step-by-step migration

method from existing systems (i.e., legacy systems)

into a digitalized networked industrial environment

formally backed by the RAMI4.0 (Reference

Architecture Model of Industry 4.0) specification

(Schulte and Colombo, 2017).

RAMI4.0 introduces a three-dimensional model,

having the special characteristics of combining the

life cycle and value stream of the assets with a

hierarchically structured definition of I4.0

components through a description of a reference

architecture model in the form of a cubic layer model,

which provides and architecture for assets in the form

of layers, and allows them to be described, tracked

and assigned (DIN, 2016). In that context, the model

permits a step by step migration from the world of

today to an Industry 4.0 compliant one. (Status

Report, 2014)

RAMI4.0 was developed by the German

industrial normalization and standardization

organization DIN in order to support all the

participants of the industrial businesses and

processes. So, it is in the best interest of RAMI4.0 to

be aligned with ISO types that specify what an

architecture should contain, which is the case of ISO

42010.

The RAMI4.0 isn’t aligned with ISO42010, since

doesn’t provide any kind of viewpoint that ease the

visualization and implementation of new I4.0

solutions. This Standard provides several guidelines

Paiva, M., Vasconcelos, A. and Fragoso, B.

Using Enterprise Architecture to Model a Reference Architecture for Industry 4.0.

DOI: 10.5220/0009194307090716

In Proceedings of the 22nd International Conference on Enterprise Information Systems (ICEIS 2020) - Volume 2, pages 709-716

ISBN: 978-989-758-423-7

709

to consider when creating architectures (ISO 42010,

2011), and the focus of this paper is how to tackle this

gap in this reference architecture model in order to

develop such viewpoints using Archimate.

In order to represent the RAMI4.0’s structure in

Archimate, this paper provides a mapping from the

concepts presented in RAMI4.0 (DIN SPEC 91345)

to the Archimate notation.

Thus, the problem that originates the

development of this research is the feasibility of being

able to verify the existing conditions to carry out the

representation and modelling of such viewpoints to be

developed in RAMI4.0 domains using Archimate

language. For that purpose, this research validates the

theoretical mapping between RAMI4.0 and

Archimate concepts.

The major goal of this paper is to propose a

mapping between an EA language and a Reference

Architecture, using Archimate (notation), integrating

RAMI4.0 (Reference Architecture) with EA

principles and models in order to properly implement

Industry4.0 projects. This is then applied in the

analysis to the representation of a project currently

being implemented in an organization, following the

structure, principles and vocabulary of RAMI4.0,

through the modelling of 4 viewpoints.

The following questions lead the development of

this research:

Q1. How to model Reference Architecture Model

of Industry 4.0?

Q2. How to model RAMI4.0 and the respective

i4.0Component Model using Archimate?

The research methodology used in this paper is

based on the Design Science Research Methodology

(DSRM) (Vaishnavi and Kuechler, 2013).

The DSRM is developed in an iterative process of

six stages composed by: identify problem & motivate,

define objectives of a solution, design &

development, demonstration, evaluation and

communication.

The “Identify Problem and Motivate” step is

presented in section 1 The “Define Objectives of

Solution” step is presented in section 1.1 (Solution

Objectives). The “Design and Development” step is

presented in section 3 (Mapping Industry 4.0 in

Archimate). The “Demonstration” and evaluation

steps are presented in section 4. Finally, the

“Communication” step is presented in section 5.

2 RELATED WORK

2.1 Industry 4.0

Industry4.0 is a confluence of a number of

technologies. This term originated from the high-tech

strategy of the German government. Industry 4.0

introduces what has been called “Smart factory”

(Bitkom, ZVEI and VDMA, 2015) and includes

concepts as Cyber Physical Systems (CPS), the

Internet of Things, the Internet of Services, monitor

the physical processes of the factory and make

decentralized decisions. The physical systems are

becoming self-sustained through Internet of things,

Internet of Services, the Cloud, communicating and

cooperating with other things and with humans in real

time. In this respect, transformation to Industry 4.0 is

based on nine foundational technology advances: IoT,

Autonomous Robots, data analytics and artificial

intelligence (Big Data and Analytics), Simulation and

System Integration (CPS), Cloud systems, Additive

Manufacturing, Cybersecurity and Augmented

Reality.

Industry 4.0 was first declared by German

government during Hannover Fair in 2011 as the

beginning of the 4th industrial revolution. As

explained in Bitkom, VDMA, ZVEI’s report (2015),

an increasing number of physical elements obtain

receivers such as sensors and tags as a form of

constructive technology and these elements have

been connected after then the improvements seen in

Internet of Things field. Additionally, electronic

devices connection is conducted as a part of

distributed systems to provide the accessibility of all

related information in real time processing. On top of

it, ability to derive the patterns from data at any time

triggers more precise prediction of system behavior

and provides autonomous control. All these

circumstances influence the current business and

manufacturing processes while new business models

are being emerged. Hence, challengers for modern

industrial enterprises are appeared as more complex

value chains that require standardization of

manufacturing and business processes and a closer

relation between stakeholders.

2.2 Enterprise Architecture

Enterprise Architecture (EA) is a coherent whole of

principles, methods and models that are used in the

design and realization of an enterprise’s

organizational structure, business process,

information systems and infrastructure (Lankhorst

2005). Providing a holistic view of the enterprise,

ICEIS 2020 - 22nd International Conference on Enterprise Information Systems

710

bringing together information from related or non-

related individuals domains, EA provides the

translation from the strategy of an organization to

daily operations. To achieve this quality in EA an

approach is needed that makes understandable all the

processes to all the employees from different

domains. To create this integrated perspective, where

different stakeholders have different viewpoints on

the architecture, is required an integrated set of

methods for the specification, analysis, and

communication of enterprise architectures (that

addresses the expectations of different stakeholders).

Archimate is a modelling language that offers a

uniform representation for concepts that describe the

EA. Archimate is an open and independent EA

standard that supports the description, analysis and

visualization of architecture within and across

business domains provided by the Open Group.

(Archimate, 2013) The core of the Archimate

Framework defines a structure of elements and

relationships, which can be separated in different

layers, and different aspects.

The Archimate notation also provides a flexible

approach in which architects and stakeholders can use

their own views on the Enterprise Architecture, thus

views are specified by viewpoints that define

abstractions on the set models, each aimed to address

particular set of concerns.

2.3 RAMI4.0

The “Reference Architectural Model of Industry 4.0”

(RAMI4.0) was “drawn” as a reference model for the

Industrial production and automation (Status Report,

2014).

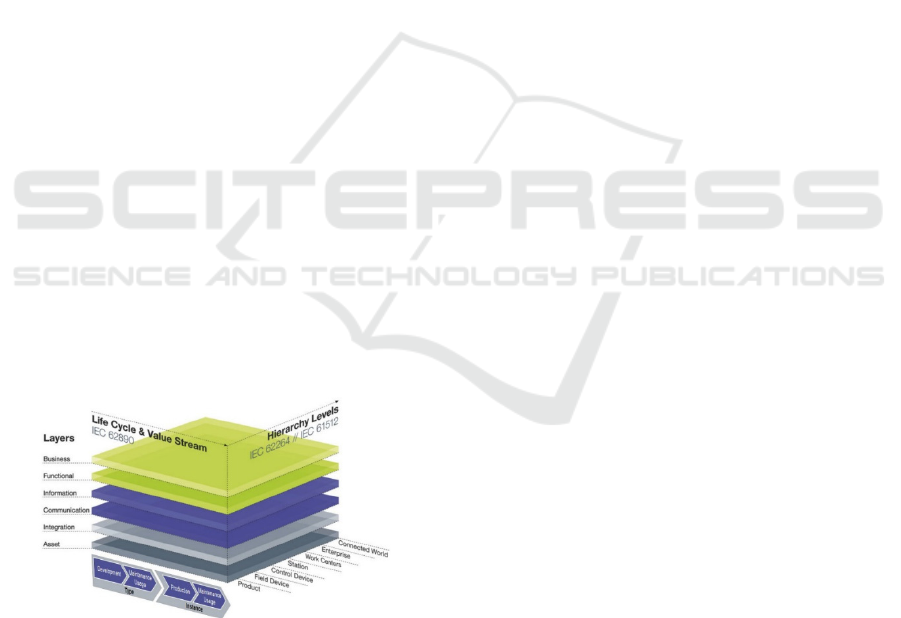

Figure 1: Reference- Architecture Model of Industry 4.0

(RAMI4.0).

RAMI4.0 is a three-dimensional model, as

illustrated in Figure 1, showing how to approach the

issue of I4.0 in a structured manner, with three axes:

Hierarchy Levels, Layers and Life Cycle Value

Stream. On the vertical axis, based in the standard,

layers are used to represent the complex IT

perspectives, such as data maps, functional

descriptions, hardware, assets, and communications

protocol:

 The Asset Layer represents the reality, the assets

that exists in the physical world, which will be

represented in the layers above it.

 The Integration Layer represents the transition

from the physical world to the information world.

 The Communication Layer describes which data

is used, where it is used and when it is

distributed.

 The Information Layer describes the data that is

used, generated or modified by the technical

functionality of the asset.

 The Functional Layer describes functions of an

asset with regard to its role in the Industry4.0

system.

 And, the Business Layer, that will not be address

in this paper, describes the commercial view.

In the left horizontal axis, the product lifecycle is

represented based in the IEC 62890 standard. In the

right-hand horizontal axis, Hierarchy levels

represents the roles and the responsibilities/

functionalities within the factories/plants, based on

the IEC 62264(adding the elements “Connected

world”, “Field Device” and “Product”) and IEC

61512. Hierarchy Levels and Life-Cycle Value

Stream form the Industry 4.0 plane. This allows the

representation on which area as well as the

classification from a management point of view

between the interaction of single assets. Every asset

has its own life cycle, depending in which state it

actually is.

The main objective of RAMI4.0 and the

respective I4.0 Component Model is to roll out the

administration shell and enable long-term

interoperability in digital ecosystems.

RAMI4.0 “permits step by step migration from

the world of today to that of I4.0, and the definition

of application domains with special stipulations and

requirements”. (DIN, 2016)

The reference architecture model RAMI4.0 has

been put forward for standardization as DIN SPEC

91345. (DIN, 2016)

2.3.1 Asset

An asset is an object that represents value to the

organization, exists in itself and has a lifetime. The

most important question when designing a system is

whether and to what extent this information (its

existence, identity, state and lifetime) is known to the

Using Enterprise Architecture to Model a Reference Architecture for Industry 4.0

711

information system, and how much of the information

is used/presented in the system. (DIN, 2016)

An asset can be classified, depending on the

quantity data available and on its communication

capability. (VDI/VDE, 2016).

2.3.2 I4.0 Component Model

I4.0 components are globally and uniquely

identifiable capable of communication and comprises

the administration shell and the asset with digital

connection within an I4.0 system and offer services.

(BMWi, 2015)

An asset is not necessarily an I4.0 component,

only if it is an entity, has at least passive

communication and has been equipped with an

administration shell. (Schreiber, 2017)

The administration shell is the logical

representation of any equipment in the production

system. Its structure is based in automation, ICT

technologies and equipped for futures developments

regarding the aspects of Smart Manufacturing.

3 MODELING INDUSTRY 4.0 IN

ARCHIMATE

3.1 Solution Approach

Architectural descriptions are made for different

‘layers’ of the organization. The lower layers provide

functionality to support the higher layers. The layers

that are usually recognized in this context are the

business layer, the application layer and the

technology layer (Petasis, 2011). The research is

more focus on the last two layers. Thus, Data,

Application and Technical Infrastructure domains of

Archimate are focus in this paper.

On the RAMI4.0 side, the focus is on the lowest

domains, which are represented in following layers:

asset, integration, communication, information, and

functional.

In the development of this research a refined

RAMI4.0 is used. The following RAMI4.0 layers are

addressed considering Archimate’s domains: Asset,

Integration, Communication, Information and

Functional.

For the correct mapping, after the correspondence

between domains in Archimate and the RAMI4.0’s

layers, this paper proposes a match among the

concepts from Archimate and from RAMI4.0 (DIN

SPEC 91345). Therefore, this section starts by

analyzing the domains addressed by Archimate layers

(Technology, Application, Business layers). Then the

domains addressed from RAMI4.0 are analyzed.

Finally, the solution proposed identifies the mapping

between Archimate elements and DIN SPEC 91345

of RAMI4.0.

3.2 Modelling I4.0 Component Model

“Asset” and “Administration Shell” are two main

concepts addressed in RAMI4.0 and I4.0. From

RAMI4.0 its architecture represents the concept

“Asset” across all the layers. From the I4.0

Component Model, although it also goes around this

concept, the “Asset”, is always together with a

“Administration Shell” that is responsible for the

representation (Status Report, 2014) of the asset. This

representation is the virtual, digital and active

representation of the asset in some system.

Before modelling it is important to understand

how these two concepts are related.

The asset represents technical objects that are

intentionally manufactured in order to fulfil a specific

purpose(Status Report, 2014). It only become an i4.0

component if assets are equipped with an

administration shell that provides a structured

information asset description that will act as a virtual

representation of an asset.

Figure 2: I4.0 Component Model in Archimate.

Furthermore, in Figure 2 is modelled in Archimate the

I4.0 component.

To represent the “asset” a data object was chosen

since “A data object is defined as a passive element

suitable for automated processing”.

To represent the “Administration Shell”, that

records all asset related information and make it

available to everything, the authors propose

Archimate “Application component” element, since it

represents “an encapsulation of application

functionality aligned to implementation structure,

which is modular and replaceable. It encapsulates its

behaviour and data, expose services, and makes them

available through interfaces” (Archimate, 2013). To

represent the I4.0 component, it is proposed the

“application component” as well.

The result of the composition of a I4.0 component

is the link between the asset and its administration

ICEIS 2020 - 22nd International Conference on Enterprise Information Systems

712

shell, where at a certain point of the process, the

Administration shell will create a digital description

of the asset itself that will realize the asset,

independently if it is a digital or physical asset.

The mapping between RAMI4.0 and Archimate,

is performed considering the semantics of the

concepts presented in both specifications, RAMI4.0

and Archimate.

3.3 Modelling RAMI4.0

Considering the solution approach presented, in this

section the steps proposed to model the Asset,

Integration and Communication, Information,

Functional layers of RAMI4.0, using Archimate

elements are developed.

The solution is used for modelling the RAMI4.0’

Asset, Integration and Communication, Information

and Functional layers in Archimate.

To model RAMI4.0 layers and I4.0 Component

Model the approach proposed uses some of the

architecture viewpoints defined in Archimate – see

Table 2.

The match was made by the process that is

presented in the Table 1 for each concept.

Table 1: Matching process.

Table 2: Viewpoints addressed by layers.

RAMI4.0’s domains

Archimate

architecture view

oint

Functional (Enterprise)

laye

Application Usage

Information laye

Information structure

Integration and

Communication laye

Infrastructure

Asset (Field) laye

I4.0 Component Model Application Usage

3.3.1 Asset Layer

Figure 3 presents the asset layer modelled in

Archimate. This viewpoint presents information asset

as a physical asset, and what is needed to consider an

asset as an i4.0 component.

Figure 3: Asset layer in Archimate.

An asset that comprises these requirements turns

into an I4.0 component. Table 3 presents the mapping

of concepts between Archimate and RAMI asset

layer.

Table 3: Asset Layer RAMI-Archimate mapping.

RAMI4.0 concept Archimate concept

Asset Layer

Asset

Materials

Sensors

Facility

Network

Information

Software

Services

Humans

3.3.2 Integration and Communication Layer

Archimate Infrastructure viewpoint is used for

modelling the Communication layer (that describes

how the access to assets’ information and functions

work) and the Integration layer (that represents the

transition from the physical world to the information

world describing the infrastructure that exists in order

Definition of RAMI4.0 concept: (from din spec 91345, here

retrieve definitions and descriptions)

Key words: (Choose keywords)

Conce

(

Name of the RAMI4.0 conce

)

ArchiMate Concept: (ArchiMate Specifications)

Definition: (ArchiMate Specifications)

Ima

RAMI 4.0 definition proposal: (here we propose a definition of

the RAMI4.0 concept taking in account the mapped element in

ArchiMate

)

Rami4.0 concept map in ArchiMate: (RAMI4.0 concept

resented in ArchiMate

)

Using Enterprise Architecture to Model a Reference Architecture for Industry 4.0

713

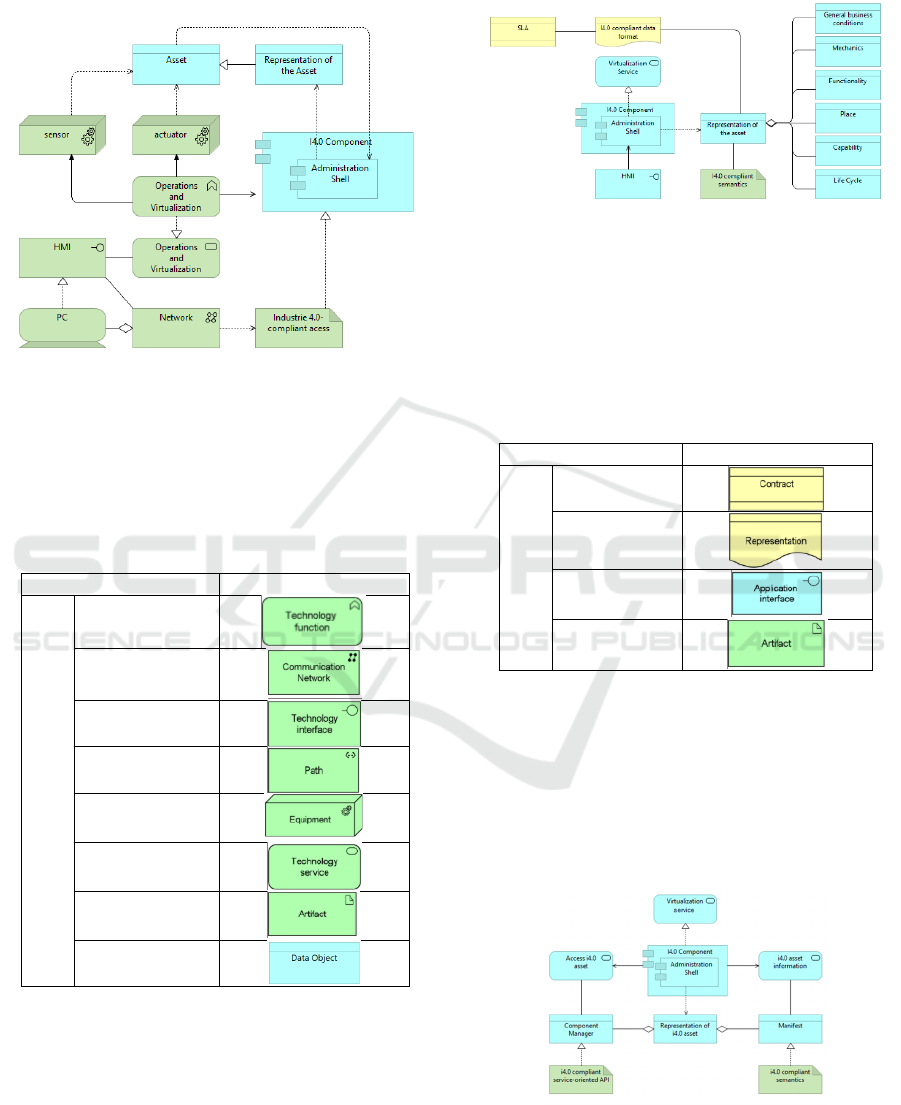

to implement a function or to store the properties and

process related functions that make the asset usable)

– Figure 4.

Figure 4: Integration and Communication layer in

Archimate.

Table 4 presents the concepts correspondence

between Archimate and RAMI Integration and

Communication Layer.

Table 4: Integration and Communication Layer RAMI-

Archimate mapping.

RAMI4.0 concept Archimate concept

Integration and Communication Layer

Virtualization

Network

HMI

Cables

Sensor/Actuator

Virtualization

Service

Industriy 4.0

compliant acess

Representation

of the asset

3.3.3 Information Layer

For modelling the Information layer that describes the

data that is used, generated or modified by the

technical functionality of the asset (Archimate, 2013),

the Information Structure Viewpoint is used. This

viewpoint is used because is comparable to the

information models created in the development of an

information system – Figure 5.

Figure 5: Information layer in Archimate.

Additionally this viewpoint presents the structure

of the information used in the enterprise or

application in terms of data types (Archimate, 2013).

Table5 presents the concept mapping between

Archimate and RAMI information layer.

Table 5: Information Layer RAMI-Archimate mapping.

RAMI4.0 conce

t Archimate conce

Information Layer

SLA

Data format

Interface

I4.0 compliant

semantics

3.3.4 Functional Layer

The Application Usage Viewpoint is used for

modelling the Functional Layer that describes the

logical functions of an asset. This viewpoint is used

because it describes how applications are used to

support business processes or other applications – see

Figure 6.

Figure 6: Functional layer in Archimate.

ICEIS 2020 - 22nd International Conference on Enterprise Information Systems

714

Regarding RAMI4.0 and the respective I4.0

component model, from this model one can

understand the structure of an administration shell

and the services of the administration shell’s

components (component manager and manifest).

Table 6 presents the mapping between Archimate

and RAMI functional layer concepts.

Table 6: Functional Layer RAMI-Archimate mapping.

RAMI4.0 concept Archimate concept

Functional Layer

Virtualization

Service

Access i4.0 asset

I4.0 asset

information

I4.0 compliant

service-oriented

API

I4.0 compliant

semantics

Component

Manager

Manifest

4 EVALUATION

In order to assess the proposed solution some

viewpoints of an organisation’s EA are developed (4

layers, 4 viewpoints). The viewpoints represent the

AS-IS of a Government owned company –

DemoCorp. These viewpoints are used to compare

with the 4 layers of RAMI4.0 presented in the

previous section.

4.1 Model Organization EA in

Archimate

This step represents the organization’s EA in

Archimate, considering projects under the scope of

Industry4.0 - see in Figure 7 and Figure 8

This models focus on the organization AS-IS,

namely a project under development at DemoCorp.

This project major goal is to digitalize all the

information generated from industrial production’s

machines, in a shop-floor plant environment.

For the execution of this step the main structure

and terms used in a project are analysed and identify.

This project provides a solution to obtain plant

visibility

and improve the efficiency of the line of

Figure 7: Organization EA's Information viewpoint.

Figure 8: Asset (Machine name) viewpoint.

production. Figure 7 and Figure 8 presents 2 of the 4

viewpoints used to compare with RAMI4.0 4 layers.

Through a software accessed by cloud, this service

provides connection from any mobile device or pc

from anywhere in the world. The information

generated is used to deliver information to support the

continuous improvement efforts of the organization.

Once the deployment of the system is done and

the connectivity established, the information

generated is composed by: Uptime/downtime of the

machines, Automated Break Creep, Late Start

tracking, Changeover exceeded times, Production

counts and Scrap reporting, Production summary and

Speeds, Filtering by crew/shift/product type, OEE

Reporting, Centralized report creation and sharing,

Email report distribution and proactive alerts, Plant

floor visualisation for operators and supervisors via

their electronic boards

The main Business value of the project is to

provide tools and information for productivity

improvement.

4.2 Gap Analysis

This Step aims to analyse the gaps and major

differences between the AS-IS and the desired TO-

BE (RAMI4.0): structure of the solution, and

terminology used in the architectures.

Through the analysis presented one compare

those the structures and terms with the ones presented

by RAMI4.0.

Using Enterprise Architecture to Model a Reference Architecture for Industry 4.0

715

In the analysis of the gaps found across all layers

the main difference between these two architectures

has to do with terminology, whether or not each

model considers what is an asset and an i4.0

Component that present in its specifications (Asset

Layer).

Due to the absence of the concept of the I4,0

component (absence of an administration shell for the

major assets) in the organization, another main gap

was discovered at the Information layer where the

types of information retrieved was very low in the

DemoCorp, comparatively with the ones mentioned

in the RAMI4.0 specifications.

5 CONCLUSIONS

The first contribution of this paper is the

systematization of an analysis for the representation

of RAMI4.0 in Archimate.

The second contribution, after mapping and

modelling RAMI4.0, is the representation of a I4.0

reference architecture through the study of DIN SPEC

91345 (which is expect to support the development of

I4.0 projects in the broader context of the Enterprise).

The third contribution is the proposal of the

mapping of concepts between RAMI4.0 and

Archimate.

The realization of this mapping was applied in a

case study of an organization developing a

modernization of its processes (projects under the

scope of Industry4.0).

Regarding RAMI4.0, this paper only focus on the

Asset, Integration, Communication, Information and

Functional layers. For future work an analysis of the

Business layer should be performed.

In the construction of the RAMI4.0’s viewpoints,

the approach proposed assumes that the relationships

presented in the Archimate viewpoints are the same

as between RAMI4.0 elements and their I4.0

Component Model. Future work should be done by

diving the properties adjacent to the administration

shell: encapsulation and aggregation of

administration shells. It would be expected that

Archimate elements like Node, Path and Technology

Collaboration would be used in future mappings.

The toolbox of RAMI4.0 is also been planned as

future work for further assessment of the solution

proposed.

Regarding Archimate, this research focus its

lowest layers, namely: Physical, Technology and

Application layers. For future work the concepts in

Archimate and RAMI4.0 highest layers should be

performed.

ACKNOWLEDGMENTS

This work was supported by national funds through

Fundação para a Ciência e a Tecnologia (FCT) with

reference UIDB/50021/2020 and by the European

Commission program H2020 under the grant

agreement 822404 (project QualiChain)

REFERENCES

A, ÜSTÜNDAĞ. (2017) Industry 4.0: Managing The

Digital Transformation. Retrieved from: https://www.

linkedin.com/pulse/industry-40-managing-digital-

transformation-alp-üstündağ/

Deloitte Insights. (2018) The Fourth Industrial Revolution

is here—are you ready?, Deloitte Insights, p. 28,

The TOGAF® Standard, Version 9.2. (2019) Retrieved

from: https://pubs.opengroup.org/architecture/togaf9-

doc/arch/chap31.html.

Schulte, D. and Colombo, A. W. (2017) RAMI4.0 based

digitalization of an industrial plate extruder system:

Technical and infrastructural challenges.

DIN (2016) Reference Architecture Model of Industrie 4.0-

DIN SPEC 91345

ISO/IEC/IEEE 42010. (2011) Systems and Software

Engineering – Architecture Description

(2014) Status Report - RAMI4.0. Ecowas Centre for

Renewable Energy & Energy Efficiency

Vaishnavi, V. and Kuechler, B. (2013) Design Science

Research in Information Systems, ISWorld

Bitkom, VDMA, and ZVEI, (2015) Implementation

Strategy Industry 4.0, Report on the results of the

Industry 4.0 Platform

Lankhorst, M. (2005) Enterprise Architecture at Work

Archimate Specification. (2013) Open Group Standard

VDI/VDE. (2016) Status Report – Technical Assets

BMWi. (2015) Structure of the Administration Shell,

Federal Ministry for Economic Affairs and Energy

Schreiber, A. (2017) Industry 4.0 component

Petasis, G. (2011) Knowledge-driven multimedia

information extraction and ontology evolution

ICEIS 2020 - 22nd International Conference on Enterprise Information Systems

716
