Towards Keypoint Guided Self-supervised Depth Estimation

Kristijan Bartol

1 a

, David Bojani

1 b

, Tomislav Petkovi

1 c

, Tomislav Pribani

1 d

and Yago Diez Donoso

2 e

University of Zagreb, Faculty of Electrical Engineering and Computing, Zagreb, Croatia

Yamagata University, Faculty of Science, Yamagata, Japan

Keywords:

Monocular Depth Estimation, Self-supervised Learning, Keypoint Similarity Loss.

Abstract:

This paper proposes to use keypoints as a self-supervision clue for learning depth map estimation from a

collection of input images. As ground truth depth from real images is difﬁcult to obtain, there are many

unsupervised and self-supervised approaches to depth estimation that have been proposed. Most of these

unsupervised approaches use depth map and ego-motion estimations to reproject the pixels from the current

image into the adjacent image from the image collection. Depth and ego-motion estimations are evaluated

based on pixel intensity differences between the correspondent original and reprojected pixels. Instead of

reprojecting the individual pixels, we propose to ﬁrst select image keypoints in both images and then reproject

and compare the correspondent keypoints of the two images. The keypoints should describe the distinctive

image features well. By learning a deep model with and without the keypoint extraction technique, we show

that using the keypoints improve the depth estimation learning. We also propose some future directions for

keypoint-guided learning of structure-from-motion problems.

1 INTRODUCTION

Monocular depth estimation is a long-standing, ill-

posed computer vision problem. A depth map esti-

mated from a monocular image describes an inﬁnite

amount of scenes due to the scale ambiguity. Never-

theless, monocular depth estimation is a very popular

topic, especially in the deep learning era. A partic-

ularly interesting approach is the joint, unsupervised

learning of monocular depth and pose (Garg et al.,

2016). The model has two convolutional networks,

one which outputs a depth map and one which outputs

the transformation matrices representing pose trans-

formations between the target and the source views

(Figure 1). Assuming the intrinsic matrix is known,

depth and pose estimations are sufﬁcient to reproject

the pixels from the source views to the target view

(Hartley and Zisserman, 2003). The sum of differ-

ences between the original (target) and the reprojected

(source) pixel intensities is called a photometric loss.

https://orcid.org/0000-0003-2806-5140

https://orcid.org/0000-0002-2400-0625

https://orcid.org/0000-0002-3054-002X

https://orcid.org/0000-0002-5415-3630

https://orcid.org/0000-0003-4521-9113

The supervision clue in case of unsupervised

learning comes from time component between the im-

ages in a collection. The idea of the photometric

loss is to learn to warp the source image to match

with the target image. Another way to look at this

is that the photometric loss is used to learn the model

to ﬁnd the correct pixel correspondences between the

images. Of course, pixel intensities are not unique,

so even though the correspondent pixel intensities are

the same, it does not guarantee that they are truly cor-

respondent. For example, the pixels of the white wall

will perfectly match, even though they might not be

correspondent in 3D.

There are many ways to cope with the correspon-

dence problem. Unsupervised depth estimation mod-

els like (Mahjourian et al., 2017) estimate depth maps

on multiple scales. The pixel on a lower scale is

aggregated from the square of pixels on the original

scale. It is therefore expected that the lower scale

pixels will match better in case of low or repeating

textures. In classical structure-from-motion, for ex-

ample, in COLMAP (Sch

onberger and Frahm, 2016),

the correspondences are found by matching the se-

lected image keypoints. Our proposal is therefore to

select and reproject the keypoints from the source to

the target images and then compare these keypoints

Bartol, K., Bojani

c, D., Petkovi

c, T., Pribani

c, T. and Donoso, Y.

Towards Keypoint Guided Self-Supervised Depth Estimation.

DOI: 10.5220/0009190005830589

In Proceedings of the 15th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2020) - Volume 4: VISAPP, pages

583-589

ISBN: 978-989-758-402-2; ISSN: 2184-4321

583

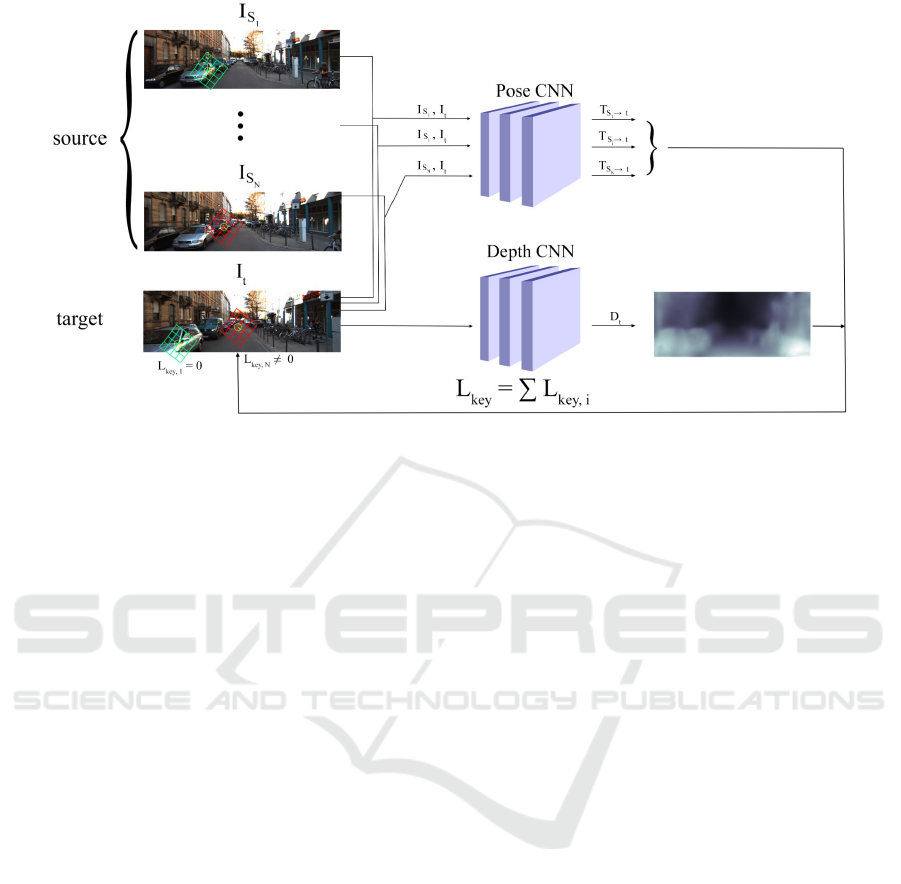

Figure 1: Overview of the model. The model contains separate depth and pose networks that jointly learn as in (Garg et al.,

2016) and (Mahjourian et al., 2017). Instead of source images’ pixels, the keypoints of the source images are reprojected to

the target image. The keypoints shown in green is the correct reprojection and the keypoints in red is the incorrect one. Note

that the reprojection is done for all the source-target image pairs separately.

to determine their similarity. If the values are similar,

it means that the keypoints of both images are proba-

bly representing the same part of the 3D scene, so the

loss function value should be low, and vice versa. To

the best of our knowledge, the keypoints have not yet

been utilitized for learning structure-from-motion.

We use SIFT keypoint descriptors by (Lowe,

2004) to compare the original and the reconstructed

image. Keypoints have many beneﬁcial properties.

First, they preserve and enforce distinctiveness of im-

age regions. In (Bojani

c et al., 2019), it is shown

that the SIFT descriptors are still among the best op-

tions in state-of-the-art of keypoint descriptors. Sec-

ond, the selected keypoints are expected to be more

important and informative than other image regions.

Third, SIFT keypoints are assigned varying sizes that

are, in general, reversely proportional to the poten-

tial information in the pixel neighbourhood. For ex-

ample, low texture region might be assigned a large

sized keypoint whose boundary reaches some distinc-

tive edges, also making this low texture region more

distinctive, carrying greater information. Large sized

keypoint regions offer an elegant solution to handling

low or repeating texture areas compared to multi-scale

depth estimation. Finally, by selecting the keypoints,

the model also ignores the regions that are not ben-

eﬁcial, for example, very large textureless areas like

sky, road or walls. Learning models like (Mahjourian

et al., 2017) cope with this by learning the explain-

ability mask that assigns weights to each pixel based

on their estimated importance.

The aim of this work is to show that using the

keypoints provide a beneﬁcial clue for self-supervised

learning of depth estimation. To summarize, we pro-

pose a keypoint similarity loss between the original

and the reprojected image keypoints as an improve-

ment to the unsupervised loss components’ stack and

as a replacement for the explainability mask loss and

multi-scale depth map estimation.

2 RELATED WORK

There is a lot of work dedicated to depth estimation.

In this section we will give a brief overview over the

recent attempts which are mostly focused on deep

learning.

Unsupervised Structure-from-motion. The pio-

neering unsupervised learning of monocular depth es-

timation work is done by (Garg et al., 2016). The

authors propose an image warping technique, the

same as the one used in this work. They also pro-

pose a smooth loss function that minimizes the dif-

ferences between the neighbouring values of an es-

timated depth map. It is shown that smoothing the

depth map greatly improves the estimation accuracy

and serves as a regularization for the photometric loss.

Instead of using time as a supervision clue, they use a

stereo pair and compare between the real and the re-

constructed image. A similar approach is proposed by

VISAPP 2020 - 15th International Conference on Computer Vision Theory and Applications

584

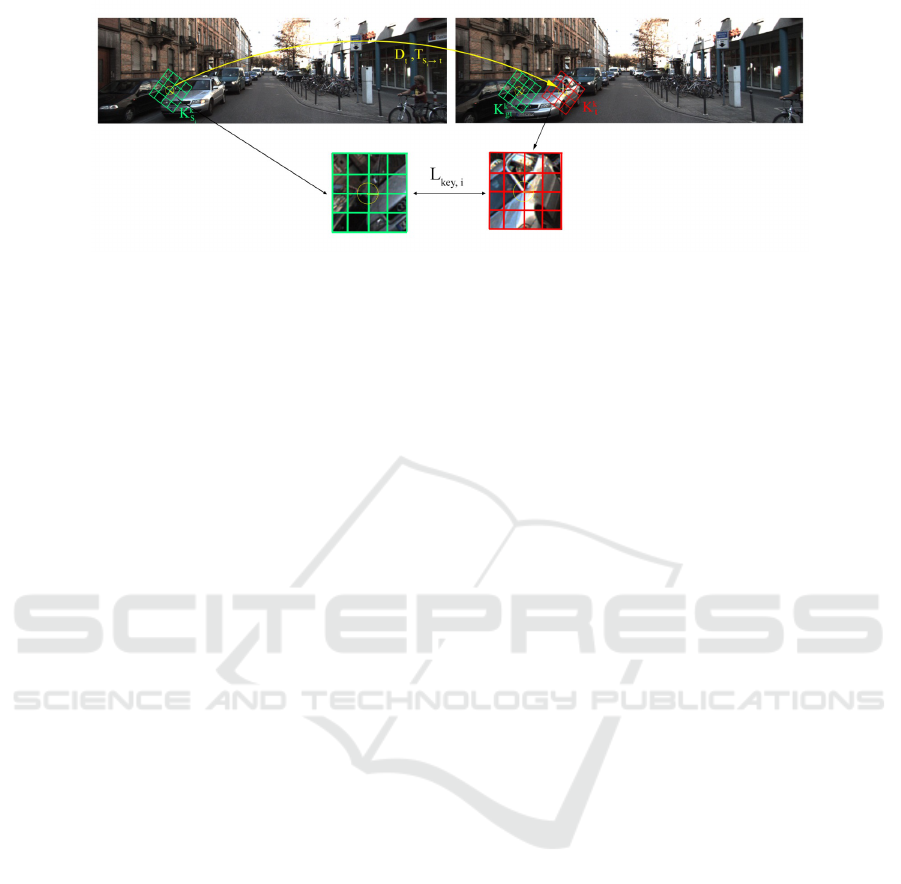

Figure 2: The keypoint similarity loss. The selected keypoint on the left (source) image is reprojected to the right (target)

image using the depth and pose estimations. The red keypoint indicates that the reprojection is incorrect. The difference

between the keypoint descriptors is labeled as L

key,i

and is a keypoint similarity loss for a given pair of keypoints.

(Godard et al., 2016) to enable left-right consistency

check.

A model by (Mahjourian et al., 2017) learns to

predict both the depth map and pose estimations be-

tween the views, exploiting the time component, as

done in this paper. The photometric loss uses the im-

age warping technique and compares the target image

with its reconstructions sampled from the source im-

ages. The model architecture is composed of depth

and pose estimation networks which are coupled dur-

ing training as shown in Figure 1, but which can be

applied independently in test time. They also propose

to learn the explainability mask whose goal is learn-

ing to ignore the parts of the image that might degrade

the photometric loss performance. For example, oc-

cluded or moving objects are ideally ignored using the

explainability mask. Finally, they output depth maps

on multiple scales to enable pixels of smaller scale to

see larger patches of the original image and in that

way cope with low textured regions.

The authors of (Godard et al., 2018) improve the

depth estimation results by focusing on the pose es-

timation network. The authors propose to share the

encoder weights between the depth and pose network.

Also, they use the improved, edge-aware smooth loss

that accounts less for the differences between the

neighbouring depth map values if their correspond-

ing, original image difference is also higher. Instead

of directly utilizing the depth maps on smaller scale,

they simply upscale these depth maps to the origi-

nal image size and then apply the photometric error,

which is shown to reduce the texture-copy artifacts.

That way they improve on the multi-scale depth map

estimation.

Keypoint Similarity. LF-Net (Ono et al., 2018) is

a self-supervised model for learning keypoint detec-

tion and description. Similar to us, they also use

SIFT keypoints. On top of the keypoints supervi-

sion, SfM algorithm is used to estimate the transfor-

mations between the image pairs so that the LF-Net

model is not directly supervised by SIFT (otherwise,

it would perform as SIFT at best). The model predicts

the keypoints for the reference image and then these

keypoints are transformed to the ground truth image

where the detections and the corresponding descrip-

tions are compared. The difference between LF-Net

and our proposal is that LF-Net uses SIFT and SfM

self-supervision to learn to generate keypoints. Our

model directly uses SIFT keypoints to learn SfM, i.e.,

the keypoints help the model to verify the keypoint

correspondence, which is the core problem in SfM

(Furukawa and Hern

andez, 2015). We further reﬂect

on LF-Net in section 5.

3 KEYPOINT SIMILARITY LOSS

Let I

denote a target image, I

one of the source

images, D

a depth map estimated for the target im-

age, matrix K the camera intrinsics and T

→t

a rigid

transformation between the views (pose). The stan-

dard photometric loss evaluates the depth estimation

of the target view, D

, by measuring how well the

pixels from the source image reproject to the target

image. Precisely, I

is reconstructed by warping I

based on D

and T

→t

= I

∗

= KT

→t

−1

), (1)

where

is the reconstructed target image sam-

pled from the image I

in the coordinates (u, v) →

. Note that the pixel (i, j) reprojects to the sub-

pixel (u

∗

, v

∗

). To assign the exact (u, v) pixel’s in-

tensity, the (u

∗

, v

∗

) subpixel reprojection is used to

sample the four closest pixel intensities using bilin-

ear interpolation. The difference between the pixel

intensities of the original image I

and of the recon-

structed image

is the photometric loss L


Towards Keypoint Guided Self-Supervised Depth Estimation

585

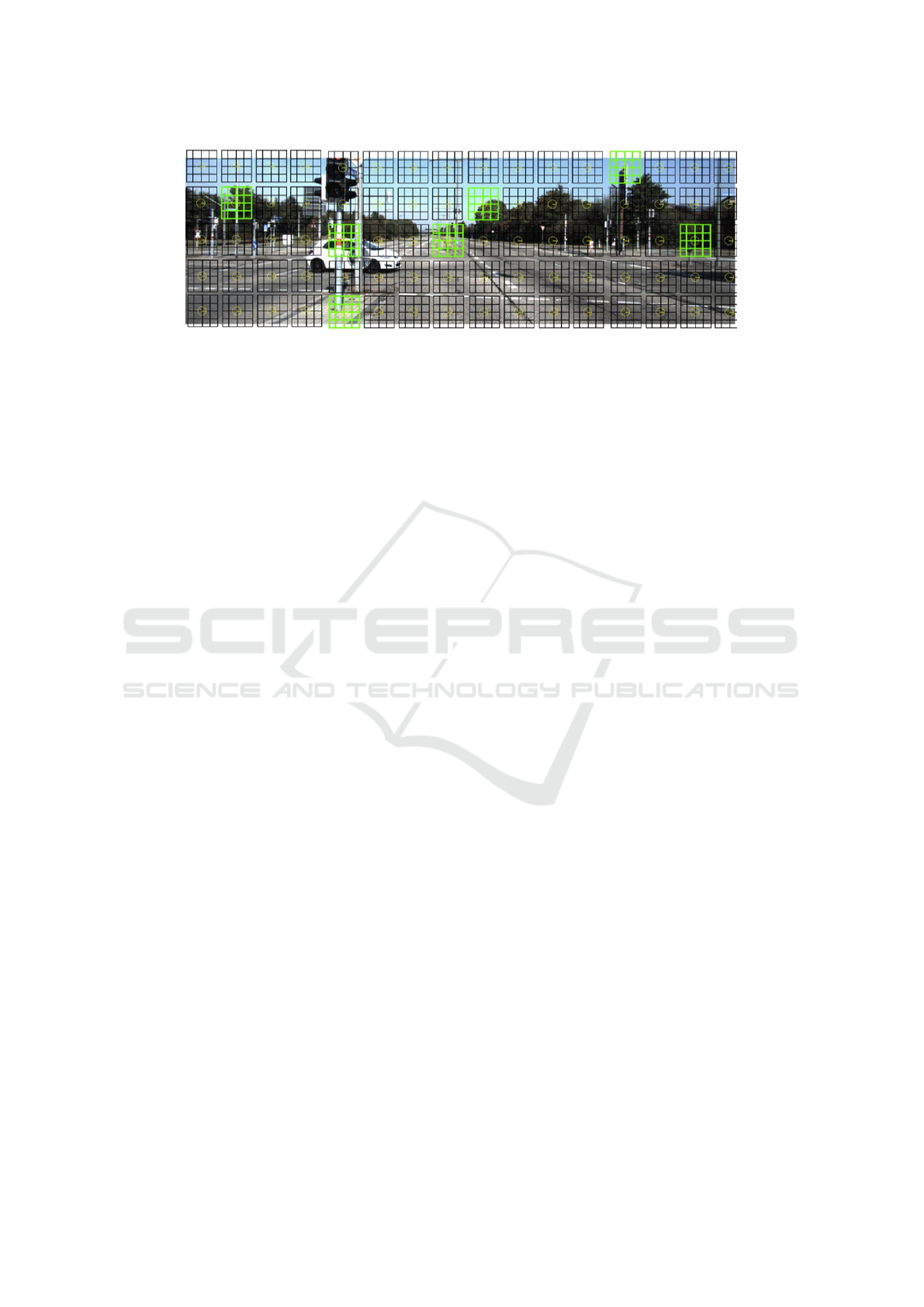

Figure 3: The keypoints are precomputed in every pixel location. The green keypoints represent the keypoints selected by the

detector. The keypoints have predeﬁned sizes and orientations.

− I

. Instead of reprojecting and com-

paring all the pixel intensities, we propose to only re-

project and compare the keypoints selected by SIFT.

The overview of the proposal is shown in Figure 1.

Let K

denote k-th keypoint in the source image

and K

its correspondent keypoint in the target im-

age (Figure 2). We deﬁne the keypoint similarity loss

function between the two images I

and I

as a sum

over the differences between the correspondent key-

point vectors:

key,i

||K

(l) − K

(l)||

, (2)

where k represents k-th keypoint of the source im-

age I

and l ∈ 1...128 the index of an element in

the k-th SIFT keypoint vector. For the source key-

point K

and its perfectly reprojected, corresponding

counterpart K

g t

, the loss should be zero (Figure 2).

The total keypoint similarity loss is the sum of key-

point similarity losses for all the source-target image

pairs, L

key

key,i

For the experimental purposes, we also use other

loss components previously proposed and used by

(Mahjourian et al., 2017), (Godard et al., 2018), etc.,

for example, smooth loss and explainability mask

loss. When all these components are included, our

loss function looks like:

L = αL

key

+ βL


+ γL

smooth

+ δL

expl

, (3)

where α, β, γ and δ are the loss hyperparameters

that balance the dynamics between the loss compo-

nents. The best hyperparameter values determined by

the experiments are: α = 2.0, β = 1.0, γ = 0.5 and

δ = 0.2.

4 EXPERIMENTS

The purpose of the experiments is to provide a step to-

wards the keypoint guided self-supervision for learn-

ing depth estimation. For this purpose, we choose

the KITTI dataset (Geiger et al., 2013) and the model

based on (Mahjourian et al., 2017), but the similar ap-

proach can be applied to other structure-from-motion

environments and datasets. Instead of using the orig-

inal smooth loss, we use the improved, edge-aware

smoothness from (Godard et al., 2016). To enable the

keypoint similarity loss, we add it as a loss compo-

nent, based on the Eq. 2 from section 3.

The SIFT keypoints are precomputed in every

pixel (Figure 3), for two reasons. First, by precom-

puting the keypoints in all the pixel locations (i, j),

we make sure that the keypoint reprojections in (u, v)

will have its correspondent pair, for every (u, v) in-

side the image boundaries. Second, by precomput-

ing the keypoints in every pixel, we are able to test

two different approaches - learning with and without

the keypoint selection mechanism. In case learning is

done without the keypoint detector, keypoints calcu-

lated from every source image pixel’s neighbourhood

reproject to the target image, which boils down to us-

ing keypoint descriptions instead of pixel intensities

as a supervision clue.

When using the keypoint detector, the gradients

in backward pass are applied only on the selected

keypoints and the rest are masked as shown in Fig-

ure 3. As expected, we show that keypoint detection

improves learning, compared to the model that does

not select the keypoints. We explain this by the fact

that the SIFT descriptions of the keypoints are simply

better for the selected keypoints, but it also indicates

that the selectivity increases the quality of the back-

ward passed gradients. To compute the keypoint for a

speciﬁc pixel location (i, j), the orientation and patch

size need to be speciﬁed upfront by hand. We choose

to provide zero angled orientations and the patches of

size 15x15.

VISAPP 2020 - 15th International Conference on Computer Vision Theory and Applications

586

Table 1: Quantitative comparison of the experimental results. The ﬁrst column displays the experiments’ names. The second

and third show absolute relative and squared relative error (the lower the better). The last three columns show the accuracy

metrics, where δ denotes the ratio between the estimates and the ground truth (the higher the better). The ﬁrst part of the table

shows the results obtained when keypoint similarity loss was used.

Experiment / Metric Abs Rel Sq Rel δ < 1.25 δ < 1.25

δ < 1.25

No det + expl (ours) 0.309 3.813 0.603 0.818 0.912

Det + expl (ours) 0.284 3.275 0.620 0.822 0.914

No det + no expl (ours) 0.282 3.160 0.605 0.815 0.911

Det + no expl (ours) 0.277 3.275 0.633 0.829 0.917

SfMLearner 0.286 3.072 0.629 0.829 0.916

SfMLearner (full) 0.181 1.341 0.733 0.901 0.964

4.1 Quantitative Comparison

The ﬁrst row of the Table 1 shows the used metrics’

names. The ﬁrst part of the table shows the results

of four of our different experiments and the second

part shows the results of the base model (without the

keypoint similarity loss). The four experiments are

done by learning the model with and without the key-

point detector and with and without the explainability

mask.

Looking at the ﬁrst part of the Table 1, it is shown

that the model learn better without the explainabil-

ity mask. As expected, the more selective mod-

els (the ones in third and ﬁfth row of the table) are

shown to learn better than their non-selective counter-

parts (second and fourth row). Our selective keypoint

model without the explainability mask slightly out-

performs SfMLearner. This is an indication that key-

point guidance help to improve the overall learning

performance. The last row shows the results reported

by (Mahjourian et al., 2017) after training on KITTI

and ﬁne-tuning on Cityscapes dataset (Cordts et al.,

2016). Even though we outperform the base model

using the keypoint similarity loss, the model needs to

be further ﬁne-tuned to reach the results in the last

row of Table 1.

4.2 Qualitative Comparison

The overview of the qualitative results is shown in the

Figure 4 where the ﬁrst column shows the input im-

ages and the rest of the columns follow the second to

sixth row of the Table 1. The ﬁfth column contains

the sharpest depth maps which corresponds with the

quantitative results. Interestingly, the three people are

most precisely reconstructed in the fourth row, when

the keypoint selection was not used. Comparing the

depth maps the models using the explainability mask

with the ones not using it (ﬁrst part of the qualita-

tive results with the second), we conﬁrm the quanti-

tative results. The results from the models not using

explainability mask are generally sharper and more

precise and than the ones using the explainability. Fi-

nally, the last column is worse than the ﬁfth column,

both in terms of precision and sharpness. Moreover,

the three people are not clearly visible at all in the last

column.

4.3 Implementation Details

The model is an extension of the PyTorch (Paszke

et al., 2019) implementation of SfMLearner by

(Mahjourian et al., 2017). Our experiments were run

on a single NVidia GeForce RTX 2080 GPU, 12GB

VRAM. SIFT keypoints generated from the KITTI

dataset are stored using about 400GB of HDD. We

only generated SIFT patches of size 15x15 and it

took around 40 hours on Intel(R) Core(TM) i7-8700K

CPU @ 3.70GHz. For larger sizes, it takes even more

time. Hard disk reads are the implementation bot-

tleneck which prevented us from running more than

20 training epochs of batch size 4 in the learning ex-

periments. There are multiple ways to cope with the

latter problem. One is to generate compressed SIFT

descriptors to reduce the overall dataset size. Another

way is to use a GPU implementation of SIFT com-

piled as PyTorch node and the SIFT keypoints can

then be calculated on-demand. However, the com-

pression takes even more time to generate the descrip-

tors. We therefore aim for the second improvement.

4.4 Other Experiments

An interesting question is whether the keypoint simi-

larity loss could be used alone, with all the other loss

function components’ weights set to zero. We ran the

experiment with and without the smooth loss com-

ponent. When run with the smooth loss component,

the produced depth maps after an epoch of learning

are completely smooth, which means that the model

have converged too early. In this case, the smooth-

ness loss was too dominant over the keypoint simi-

larity loss, which might be mitigated by lowering the

smooth weight hyperparameter. However, when the

Towards Keypoint Guided Self-Supervised Depth Estimation

587

Figure 4: The overview of the qualitative results. The three input images (in the ﬁrst column) are randomly selected from the

KITTI dataset.

smoothness loss was completely turned off, the model

was unable to signiﬁcantly move from the starting

point. All this suggests that the keypoint similarity

loss in this form can not be solely used as a loss func-

tion. Surprisingly, multi-scale depth estimation did

not outperform its single-scale counterpart so we do

not mention it in the analysis.

5 FUTURE WORK

The mandatory step towards reaching state-of-the-art

results is further model ﬁne-tuning. It is also worth

examining SIFT’s parameters further. The most im-

portant parameter for the experiments is the size of the

keypoint. By using larger patches, low or repeating

texture image regions should be learned better. In the

experiments, it is shown that the keypoint guided self-

supervision replaces the explainability mask. Larger

keypoint patches might also serve as an elegant re-

placement for multi-scale depth map estimations. Ide-

ally, we will wrap SIFT as a computational node,

which would enable SIFT to choose the size an ori-

entation of keypoints itself.

However, all these approaches largely depend on,

and are limited by, the SIFT performance. Taking a

step further, it seems reasonable to try a joint learning

of image keypoints and depth estimation in a similar,

self-supervised learning fashion.

5.1 Learning the Keypoints

Encouraged by LF-Net presented in (Ono et al.,

2018), we plan to learn the keypoints instead of di-

rectly using the ones selected and described by SIFT.

The keypoints learning model should implicitly cap-

ture the depth properties of a scene. We propose the

following high-level pipeline:

• Select and describe N SIFT keypoints for every

source image.

• Use the keypoints network to ﬁnd N keypoints on

the target image.

• Reproject the estimated target image keypoints to

the source images based on depth (and pose) esti-

mation.

• Assign the correspondent source image keypoint

to every reprojected target keypoint reprojected

and compare them.

Note that the correspondences now need to be

determined, because they not known upfront. This

makes the task much harder, so we decide to sim-

plify it by using the pose ground truths. The dataset

in which the camera parameters are known is, for ex-

ample, an InteriorNet by (Li et al., 2018). The subset

of structure-from-motion problems where the camera

parameters are known is called a multi-view-stereo

or MVS (Furukawa and Hern

andez, 2015) and it is

a possible future direction for joint learning of geom-

etry and keypoints.

6 CONCLUSION

The aim of our work is to propose a step towards key-

point guided learning of depth estimation. The model

performance is still not on the state-of-the-art level

on KITTI dataset, but the experimental results sug-

gest that the presented approach improves the learn-

ing. The future goals are to wrap SIFT as a PyTorch

node and try learning joint keypoint and depth estima-

tion, completely removing the SIFT dependency. To

make the joint learning of depth and keypoints easier,

we propose to learn under camera parameters semi-

supervision, i.e., in a multi-view-stereo conﬁguration.

ACKNOWLEDGEMENT

This work has been supported by Croatian Sci-

ence Foundation under the grant number HRZZ-

IP-2018-01-8118 (STEAM) and by European Re-

gional Development Fund under the grant number

KK.01.1.1.01.0009 (DATACROSS).

VISAPP 2020 - 15th International Conference on Computer Vision Theory and Applications

588

REFERENCES

Bojani

c, D., Bartol, K., Pribani

c, T., Petkovi

c, T., Donoso,

Y. D., and Mas, J. S. (2019). On the comparison

of classic and deep keypoint detector and descriptor

methods. 11th Int’l Symposium on Image and Signal

Processing and Analysis.

Cordts, M., Omran, M., Ramos, S., Rehfeld, T., Enzweiler,

M., Benenson, R., Franke, U., Roth, S., and Schiele,

B. (2016). The cityscapes dataset for semantic urban

scene understanding. CoRR, abs/1604.01685.

Furukawa, Y. and Hern

andez, C. (2015). Multi-view stereo:

A tutorial. Foundations and Trends in Computer

Graphics and Vision.

Garg, R., G, V. K. B., and Reid, I. D. (2016). Unsupervised

CNN for single view depth estimation: Geometry to

the rescue. CoRR, abs/1603.04992.

Geiger, A., Lenz, P., Stiller, C., and Urtasun, R. (2013).

Vision meets robotics: The kitti dataset. I. J. Robotic

Res., 32(11):1231–1237.

Godard, C., Aodha, O. M., Firman, M., and Brostow, G.

(2018). Digging into self-supervised monocular depth

estimation. The International Conference on Com-

puter Vision (ICCV).

Godard, C., Mac Aodha, O., and Brostow, G. J. (2016). Un-

supervised monocular depth estimation with left-right

consistency. CoRR, abs/1609.03677.

Hartley, R. and Zisserman, A. (2003). Multiple View Geom-

etry in Computer Vision. Cambridge University Press,

USA, 2 edition.

Li, W., Saeedi, S., McCormac, J., Clark, R., Tzoumanikas,

D., Ye, Q., Huang, Y., Tang, R., and Leutenegger, S.

(2018). Interiornet: Mega-scale multi-sensor photo-

realistic indoor scenes dataset. In British Machine Vi-

sion Conference (BMVC).

Lowe, D. G. (2004). Distinctive image features from scale-

invariant keypoints. International Journal of Com-

puter Vision.

Mahjourian, R., Wicke, M., and Jun, C. (2017). Unsuper-

vised learning of depth and ego-motion from video.

CVPR.

Ono, Y., Trulls, E., Fua, P., and Yi, K. M. (2018). Lf-

net: Learning local features from images. CoRR,

abs/1805.09662.

Paszke, A., Gross, S., Massa, F., Lerer, A., Bradbury, J.,

Chanan, G., Killeen, T., Lin, Z., Gimelshein, N.,

Antiga, L., Desmaison, A., Kopf, A., Yang, E., De-

Vito, Z., Raison, M., Tejani, A., Chilamkurthy, S.,

Steiner, B., Fang, L., Bai, J., and Chintala, S. (2019).

Pytorch: An imperative style, high-performance deep

learning library. In Wallach, H., Larochelle, H.,

Beygelzimer, A., d'Alch

e-Buc, F., Fox, E., and Gar-

nett, R., editors, Advances in Neural Information Pro-

cessing Systems 32, pages 8024–8035. Curran Asso-

ciates, Inc.

Sch

onberger, J. L. and Frahm, J.-M. (2016). Structure-

from-motion revisited. 2016 IEEE Conference on

Computer Vision and Pattern Recognition (CVPR),

pages 4104–4113.

Towards Keypoint Guided Self-Supervised Depth Estimation

589
